2019 Fishin Barge 20 DLX

2019

FISHIN' BARGE® 20 DLX

w/ 40 ELPT FourStroke Command Thrust Mercury® FourStroke
Price Excludes Optional Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
Base Price
$19795
USD

Overview

Fishing for 2–or 10! At 21’ 11” long and 8’ 6” wide, the FISHIN’ BARGE® 20 DLX is spacious enough for however many—or few—people who you want to take with you on the water.

Regardless the crew size, you’ll be impressed with the great features throughout, including the fore and aft fishing decks, two aerated livewells and plentiful rod storage. And don’t miss the STOW MORE™ seat storage system, which provides easily accessible storage in the couch backs!

All that and more makes this a family fishing boat you’ll enjoy for years to come.

Videos


Specifications

Length 6.68 m 21' 11''
Deck length 6.05 m 19' 10''
Deck Width 2.59 m 8' 6''
Max. Recommended HP 90 HP
Fuel Capacity 121.5 L 32.1 gal.
Pontoon log length 6.2 m 20' 4''
Pontoon log diameter 60.96 cm 24''
Pontoon log material 0.080 5052 marine alloy
Max. Person Capacity 10 persons
Max. person weight 621.42 kg 1370 lbs.
Max. person, motor & gear weight 861.83 kg 1900 lbs.
Interior depth 60.96 cm 24''
Average dry weight 771.11 kg 1700 lbs.
Average package weight 1525.43 kg 3363 lbs.
Package height 2.67 m 8' 9''
Package width 2.59 m 8' 6''
Towing length 9.25 m 30' 4''
Storage Length 9.25 m 30' 4''

Motor Options

AVAILABLE MOTOR ESTIMATED SPEEDS PACKAGE PRICE VIEW PRICE W/ PREP & FREIGHT
Mercury® FourStroke
9.9 ELPT FourStroke Command Thrust ProKicker -
$16275

USD
Select Dealer
20 ELPT FourStroke -
$17155

USD
Select Dealer
40 ELPT FourStroke Command Thrust -
$19795

USD
Select Dealer
60 ELPT FourStroke Command Thrust -
$20795

USD
Select Dealer
90 ELPT FourStroke Command Thrust 21-29 mph
$22895

USD
Select Dealer

Features

Comfort, Convenience & Peace of Mind
  • 10+LIFE™ warranty
  • NMMA® certified
  • 7' (2.13 m) color-keyed Bimini top w/LED courtesy lights & protective boot
  • NEW front zipper on Bimini top to join optional forward Bimini together
  • Exclusive QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
  • Storage pockets in Bimini top
  • Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
  • NEW nylon gate latches & heavy-duty hinges that open inward
  • Port & starboard LED navigation lights
  • Bimini-mounted anchor/navigation light
  • 4 mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
Livewell Systems
  • Starboard in-couch 10-gal. (37.85 L) aerated livewell w/shutoff valve & padded backrest
  • Aft rotomolded compartment w/8-gal. (30.28 L) aerated livewell w/shutoff valve, drink holder, rod holder, battery storage & composite lid w/ruler
Console
  • Deluxe soft-touch sport steering wheel
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Wraparound sport console shroud & tinted windscreen
  • Below-console cooler/storage space
  • Small items tray
  • Drink holders
  • Built-in footrest w/non-skid pad
  • AM/FM Bluetooth®-capable stereo w/MP3 jack & 2 speakers
  • Illuminated tachometer, trim & fuel gauges
  • Lighted rocker switches
  • Ergonomically positioned Mercury® binnacle control box w/trim
  • 12V outlet
Interior
  • Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
  • Bow & aft fishing positions w/3 removable folding fishing chairs
  • Forward-console couch w/STOW MORE™ system & below-cushion livewell w/shutoff valve
  • Aft L-lounge w/STOW MORE™ system, underseat storage & lockable storage compartment
  • Aft storage net
  • NEW high-back swiveling helm bucket seat, reclining & w/self-leveling arms
  • Pop-up changing room in lounge arm
  • Bow-rail-mounted rod, drink & tool holders
  • Fore & aft vertical rod holders
  • Padded woven vinyl floor covering
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • Movable drink holder/armrest
  • NEW removable table w/padded insert, 4 molded-in drink holders & 1 pedestal base location
  • Port wheelchair-access gate
  • 4-step folding boarding ladder w/grab rails
Performance
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller
Construction & Exterior

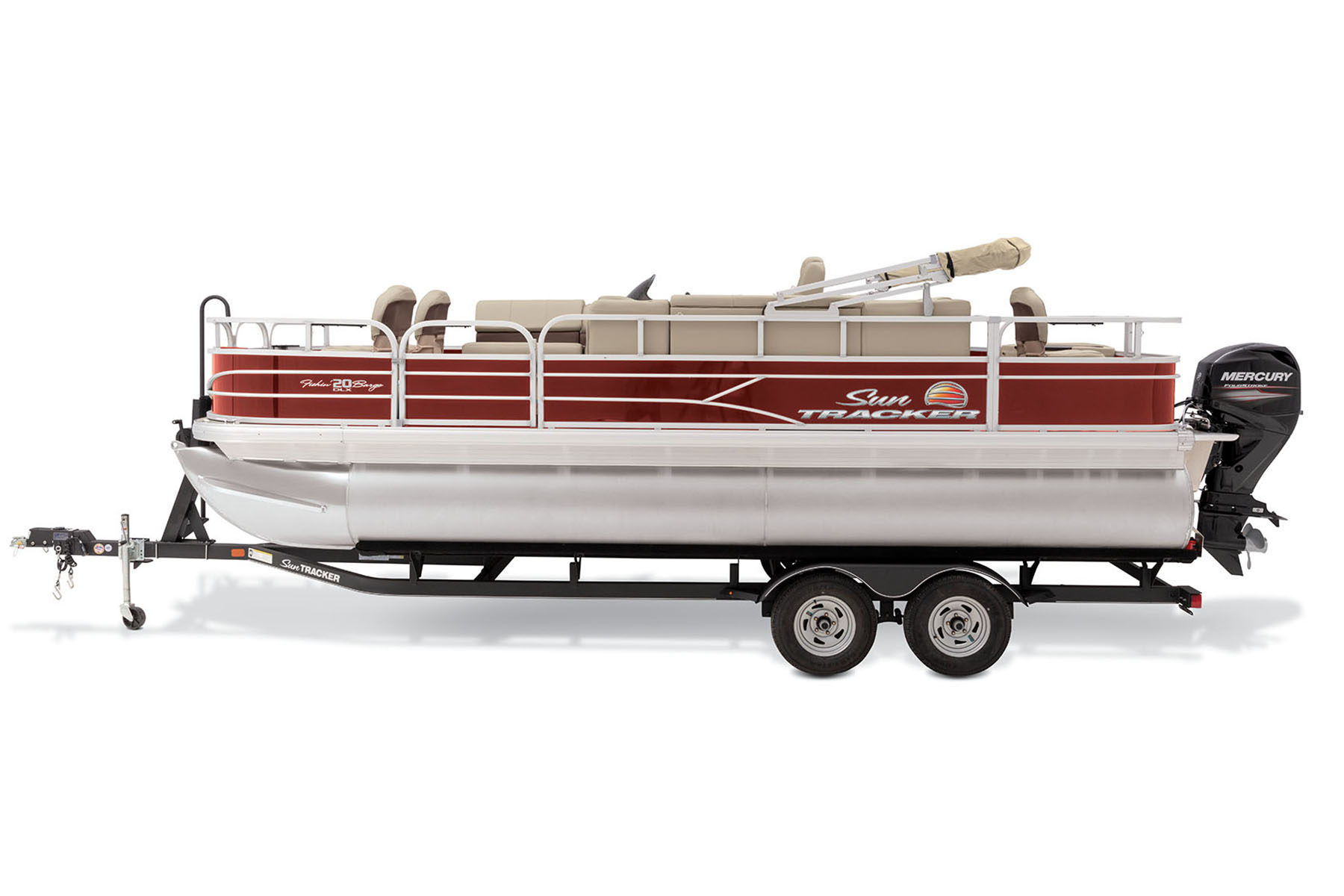

  • Color: Black Metallic or NEW Copper Red fencing
  • NEW interior styling
  • Rotomolded furniture backs & bases for resistance to the elements
  • Heavy-duty bow U-channel reinforcement behind deck trim
  • 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
  • 1-piece full-length M-bracket deck supports
  • RAIL-LOCK® system for mounting optional tops & optional mooring cover
  • Protective exoskeleton rail & panel system for durability & a quieter ride
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • Rear boarding platform
Electrical
  • Easy-access marine-grade automotive-style fuse panel w/NEW latching fuse block door
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors
  • Interior courtesy lighting

Options


Gallery

Purchase your Sun Tracker and take delivery through your nearest dealer!
