2019 Fishin Barge 22 DLX

2019

FISHIN' BARGE® 22 DLX

w/ 60 ELPT FourStroke Command Thrust Mercury® FourStroke
Price Excludes Optional Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
Base Price
$23495
USD

Overview

Teach your kids or grandkids the joys of fishing. Invite out your friends for a day of trolling and socializing. No matter the activity or the crew’s age, everyone will appreciate the space, stability and features offered by FISHIN’ BARGE® 22 DLX.

For the anglers, fore and aft fishing decks both feature two fishing chairs and an aerated livewell, as well as conveniently located rod holders. And when you’re not fishing, the QUICKLIFT® Bimini top, L-lounge and plentiful storage (including the STOW MORE™ seat storage system) are ready to provide you all-day comfort and convenience.

The FISHIN’ BARGE 22 DLX—the perfect platform for making fishing memories.

Videos


Specifications

Length 7.37 m 24' 2''
Deck length 6.73 m 22' 1''
Deck Width 2.59 m 8' 6''
Max. Recommended HP 150 HP
Fuel Capacity 121.5 L 32.1 gal.
Pontoon log length 6.78 m 22' 3''
Pontoon log diameter 60.96 cm 24''
Pontoon log material 0.080 5052 marine alloy
Max. Person Capacity 11 persons
Max. person weight 680.39 kg 1500 lbs.
Max. person, motor & gear weight 974.32 kg 2148 lbs.
Interior depth 66.04 cm 26''
Draft 38.1 cm 15''
Average dry weight 825.54 kg 1820 lbs.
Average package weight 1657.43 kg 3654 lbs.
Package height 2.74 m 9'
Package width 2.59 m 8' 6''
Towing length 9.86 m 32' 4''
Storage Length 9.86 m 32' 4''

Motor Options

AVAILABLE MOTOR ESTIMATED SPEEDS PACKAGE PRICE VIEW PRICE W/ PREP & FREIGHT
Mercury® FourStroke
9.9 ELPT FourStroke Command Thrust ProKicker -
$19479

USD
Select Dealer
25 ELPT FourStroke 11-14 mph
$21299

USD
Select Dealer
60 ELPT FourStroke Command Thrust 15-20 mph
$23495

USD
Select Dealer
90 ELPT FourStroke Command Thrust 21-28 mph
$25595

USD
Select Dealer
115 ELPT FourStroke -
$26195

USD
Select Dealer
115 ELPT FourStroke Command Thrust 23-33 mph
$26595

USD
Select Dealer
150 L FourStroke 27-38 mph
$28995

USD
Select Dealer
Mercury® Pro XS®
115 ELPT Pro XS® FourStroke Command Thrust -
$26955

USD
Select Dealer

Features

Comfort, Convenience & Peace of Mind
  • 10+LIFE™ warranty
  • NMMA® certified

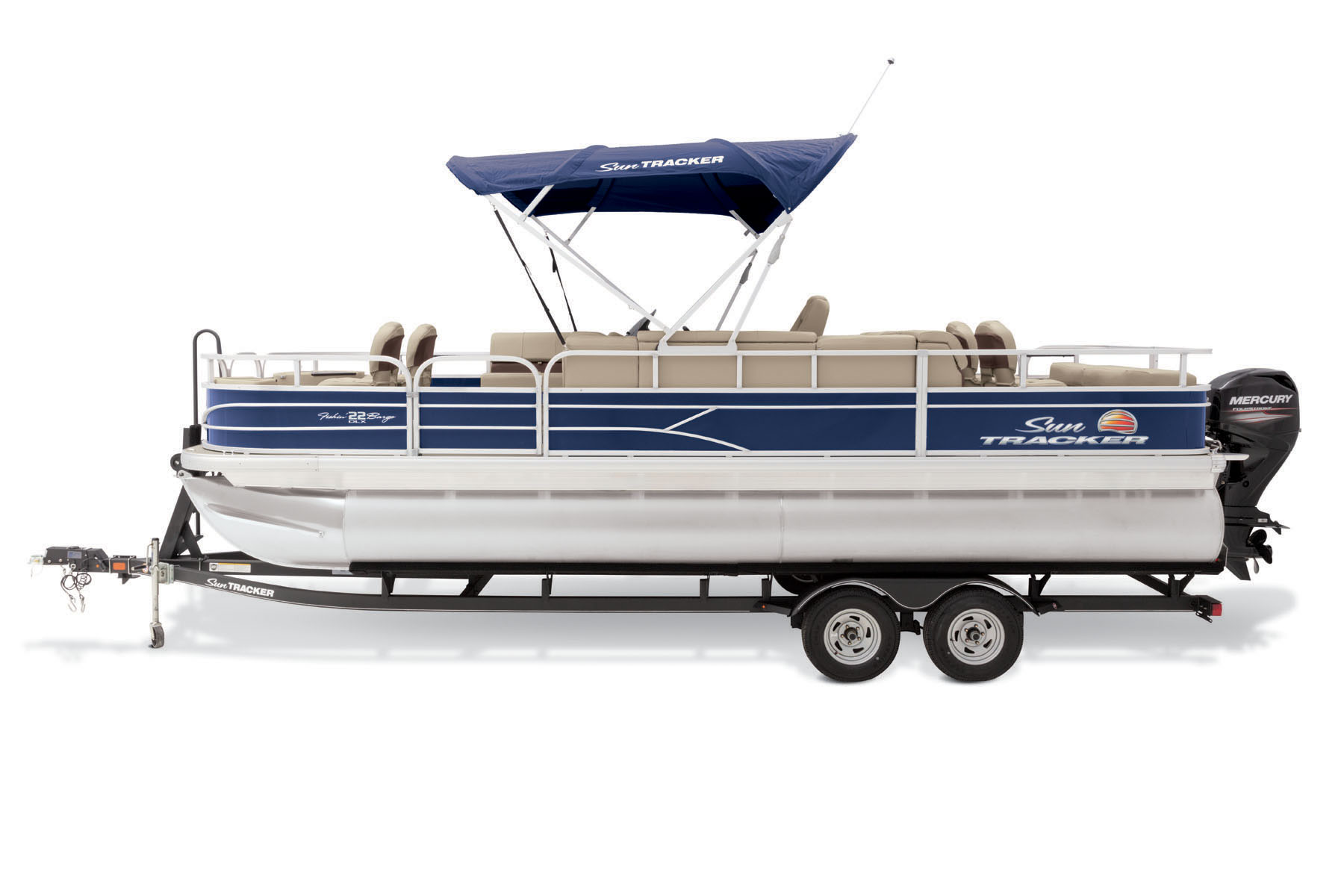

  • 9' (2.74 m) color-keyed Bimini top w/LED courtesy lights & protective boot
  • NEW front zipper on Bimini top to join optional forward Bimini together
  • Exclusive QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
  • Storage pockets in Bimini top
  • Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
  • NEW nylon gate latches & heavy-duty hinges that open inward
  • Port & starboard LED navigation lights
  • Bimini-mounted anchor/navigation light
  • 4 mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
Livewell Systems
  • Bow port 12-gal. (45.42 L) rotomolded & aerated livewell w/shutoff valve & composite lid w/ruler
  • Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve
Console
  • Deluxe soft-touch sport steering wheel
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Wraparound sport console shroud & tinted, removable windscreen
  • Below-console cooler/storage space w/door & integrated pouch
  • Small items tray
  • Drink holders
  • Built-in footrest w/non-skid pad
  • AM/FM Bluetooth®-capable stereo w/MP3 & USB ports & 2 directional speakers
  • Tachometer, trim meter/speedometer & fuel & hour gauges
  • Lighted rocker switches
  • Ergonomically positioned Mercury® binnacle control box w/trim
  • 12V outlet
Interior
  • Bow port rotomolded box w/livewell, ruler & drink holders
  • Bow starboard rotomolded box w/storage, ruler & drink holders
  • Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
  • Bow & aft fishing positions w/4 removable folding fishing chairs

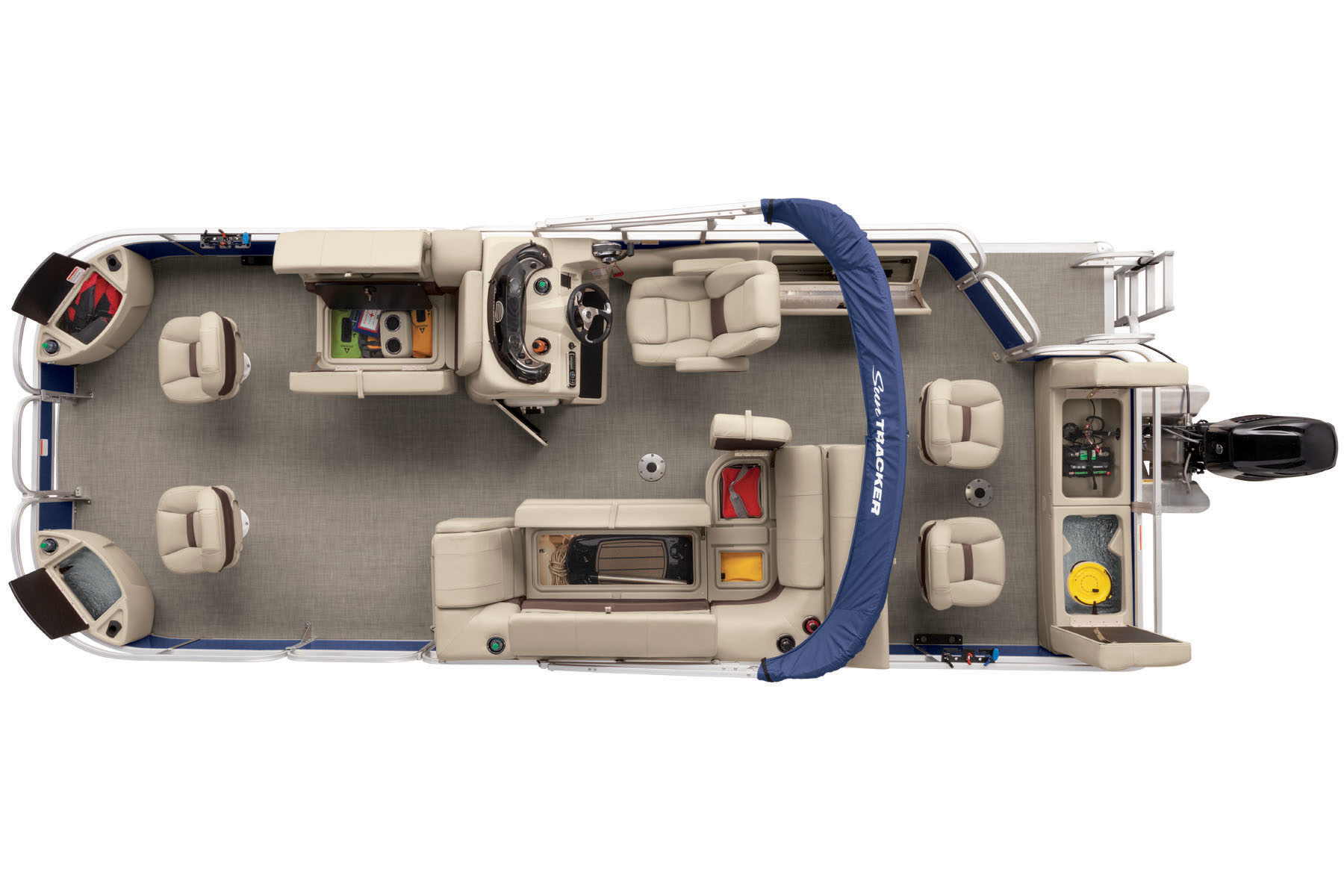

  • Forward-console couch w/STOW MORE™ system & lockable underseat storage
  • Aft L-lounge w/STOW MORE™ system & underseat storage
  • Rear-facing tackle storage in aft L-lounge
  • NEW high-back swiveling helm bucket seat, reclining & w/self-leveling arms
  • Pop-up changing room in lounge arm
  • Fore & aft vertical rod holders
  • Molded aft starboard lockable rod box for rods to 7' 6" (2.29 m)
  • Padded woven vinyl floor covering
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • Movable drink holder/armrest
  • NEW removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
  • Port wheelchair-access gate
  • 4-step folding boarding ladder w/grab rails
Performance
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller
Construction & Exterior
  • Color: Black Metallic or NEW Indigo Blue fencing
  • NEW interior styling
  • Rotomolded furniture backs & bases for resistance to the elements
  • Heavy-duty bow U-channel reinforcement behind deck trim
  • 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
  • 1-piece full-length M-bracket deck supports
  • RAIL-LOCK® system for mounting optional tops & optional mooring cover
  • Protective exoskeleton rail & panel system for durability & a quieter ride
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • Rear boarding platform
Electrical
  • Easy-access marine-grade automotive-style fuse panel w/NEW latching fuse block door
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors

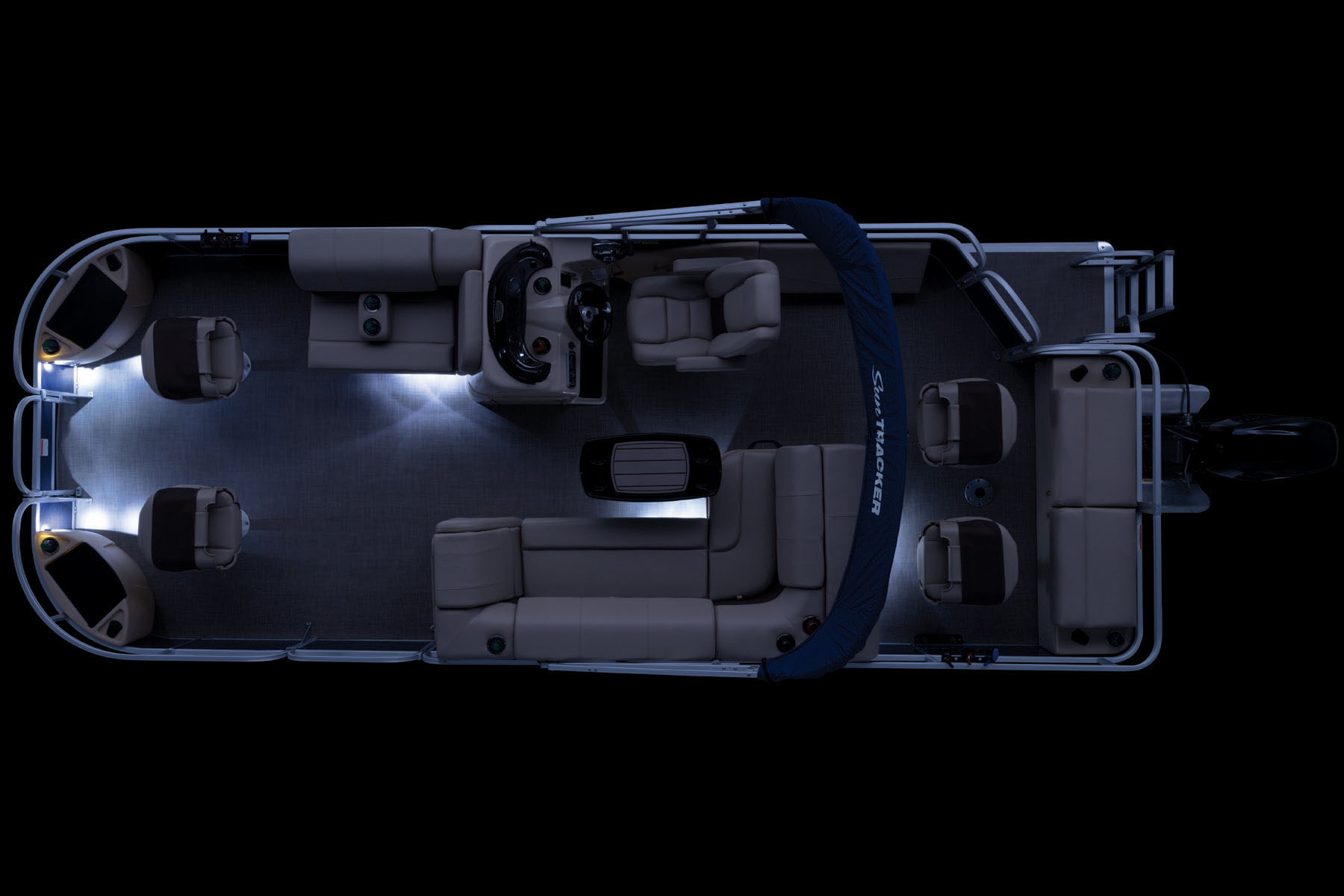

  • Interior courtesy lighting

Options


Gallery

Purchase your Sun Tracker and take delivery through your nearest dealer!
