2019 Fishin Barge 24 DLX

2019

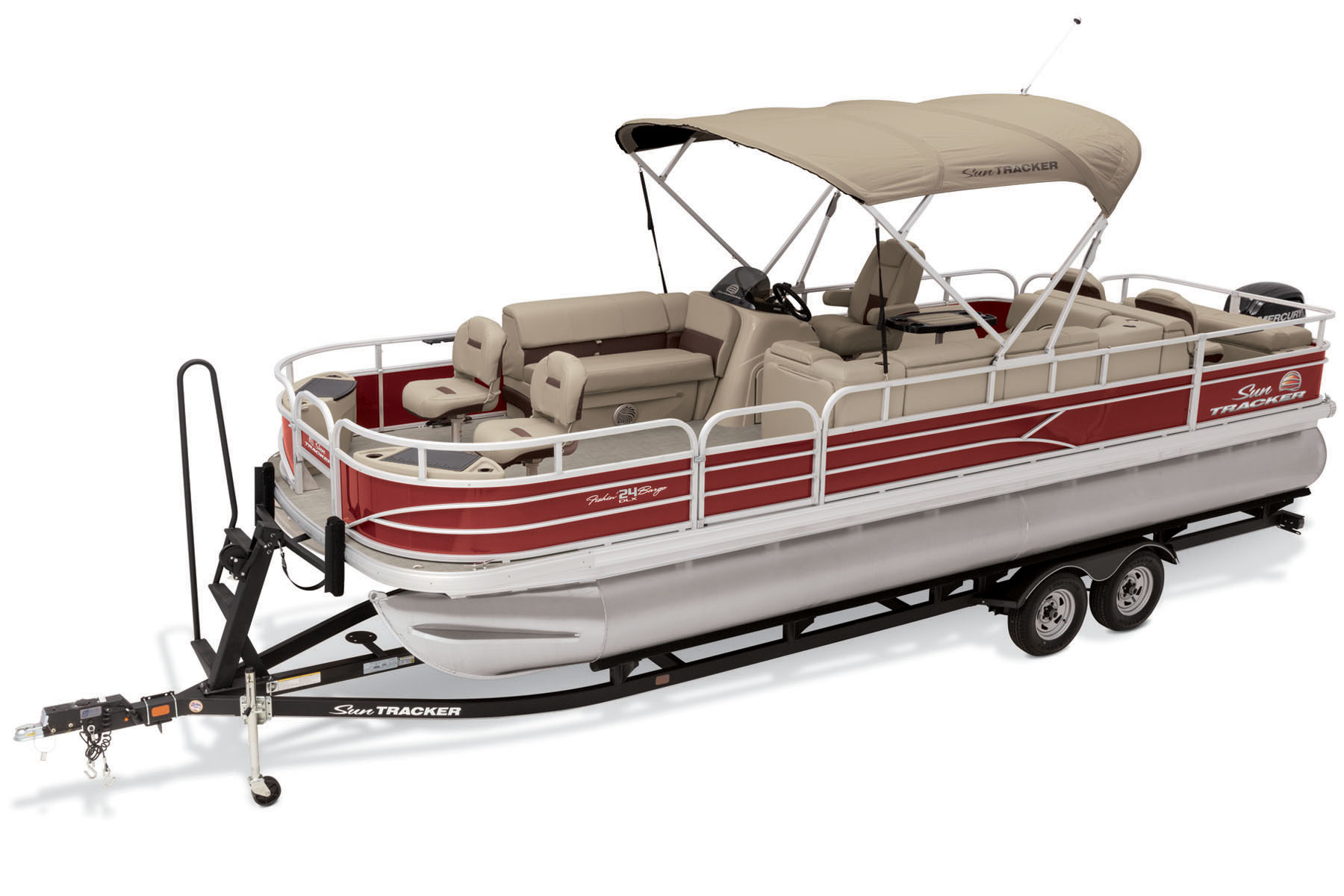

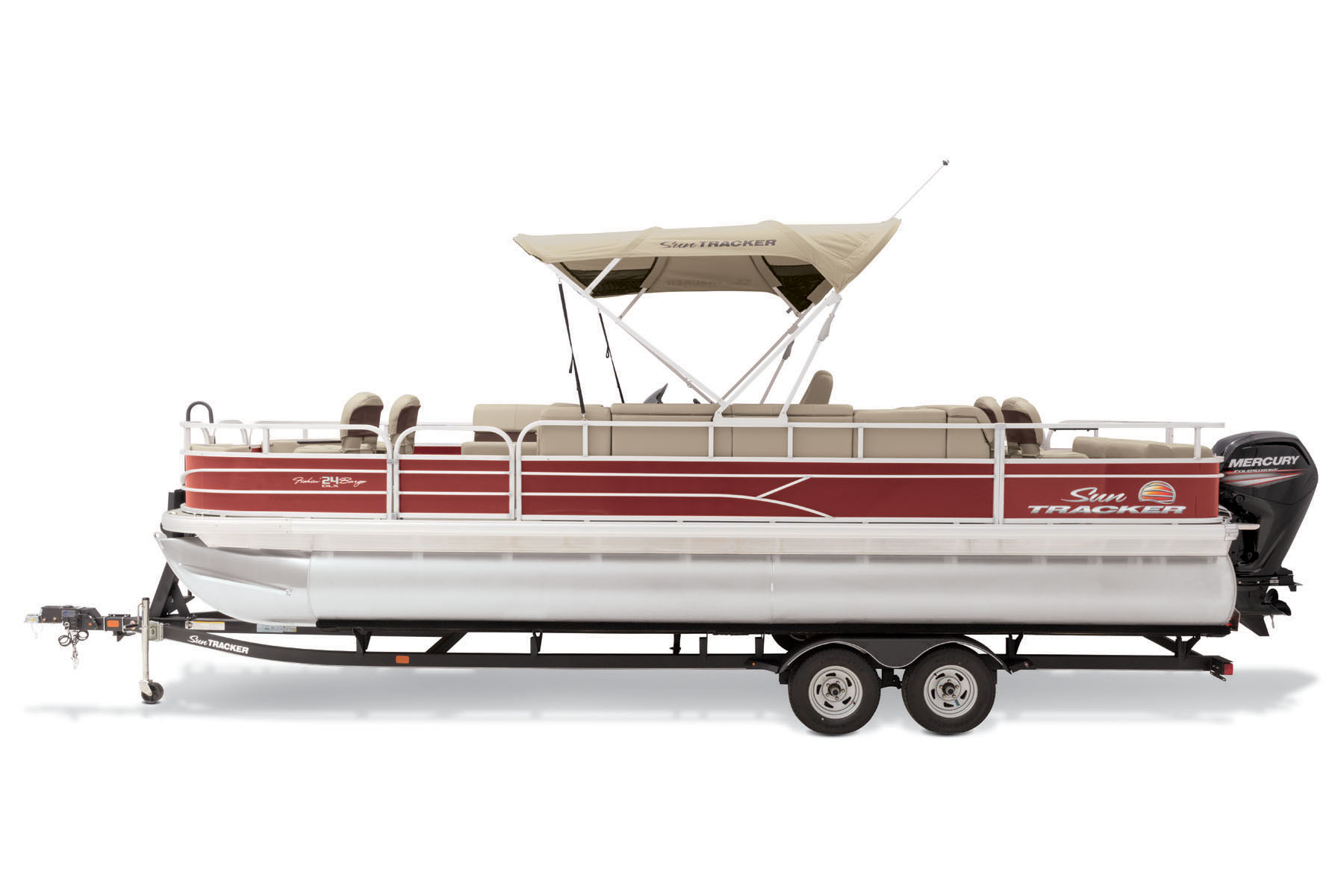

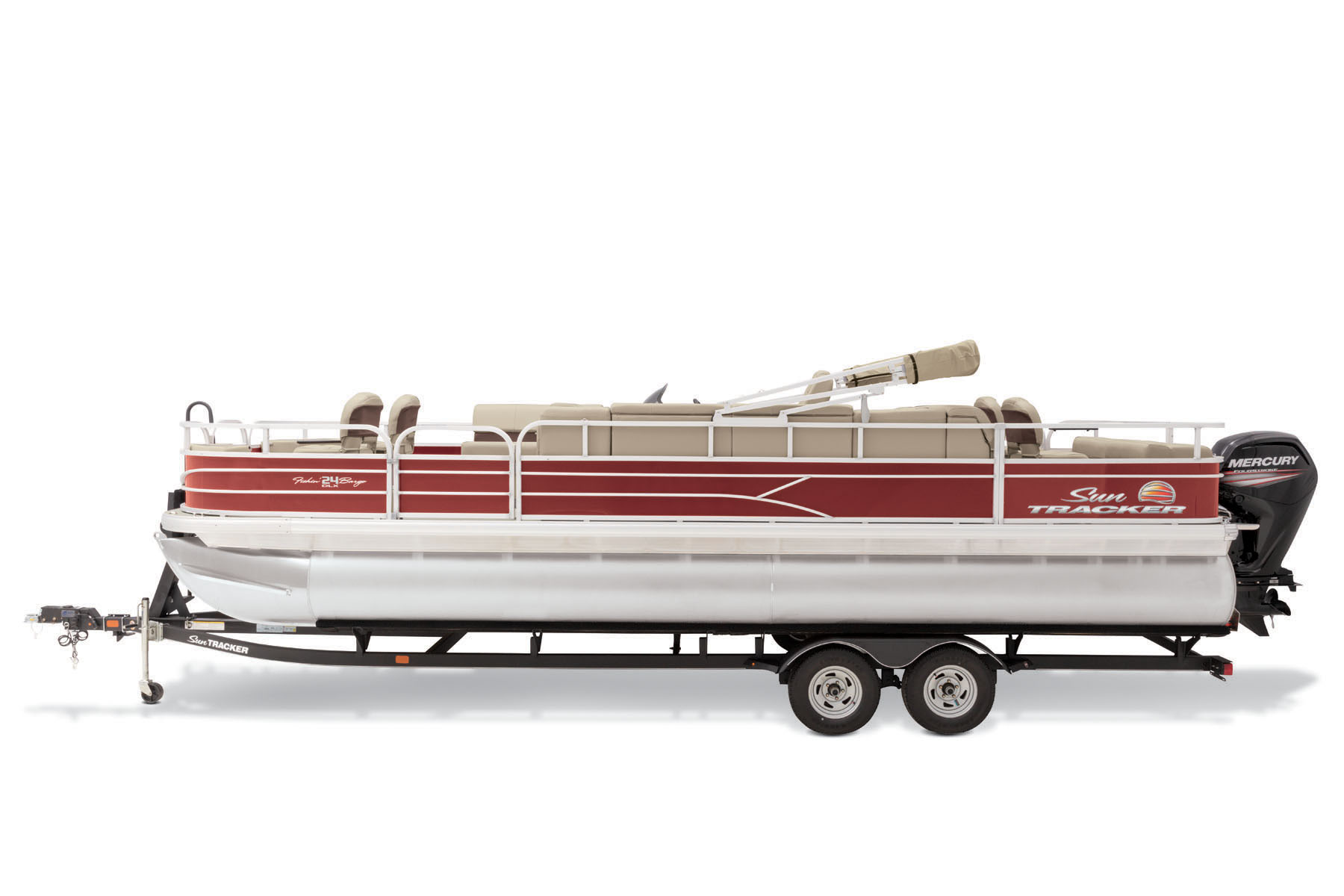

FISHIN' BARGE® 24 DLX

w/ 115 ELPT FourStroke Mercury® FourStroke
Price Excludes Optional Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
Base Price
$28095
USD

Overview

The extremely spacious FISHIN’ BARGE® 24 DLX uses its more than 26’ length to provide your crew of 12 everything they need to fish away the day in comfort.

Need fishing features? Fore and aft casting decks offer a total of four fishing chairs, multiple rod storage options and two aerated livewells. Need storage space? Multiple STOW MORE™ seat-back compartments, under-seat and under-console compartments and more give you space for all your gear. Need comfort? Plush seating and a QUICKLIFT® Bimini are ready.

Need anything else? Just a crew to fill the seats and enjoy the water.

Videos


Specifications

Length 7.98 m 26' 2''
Deck length 7.34 m 24' 1''
Deck Width 2.59 m 8' 6''
Max. Recommended HP 150 HP
Fuel Capacity 121.5 L 32.1 gal.
Pontoon log length 7.42 m 24' 4''
Pontoon log diameter 60.96 cm 24''
Pontoon log material 0.080 5052 marine alloy
Max. Person Capacity 12 persons
Max. person weight 771.11 kg 1700 lbs.
Max. person, motor & gear weight 1088.62 kg 2400 lbs.
Interior depth 60.96 cm 24''
Average dry weight 950.28 kg 2095 lbs.
Average package weight 1892.39 kg 4172 lbs.
Package height 2.74 m 9'
Package width 2.59 m 8' 6''
Towing length 10.52 m 34' 6''
Storage Length 10.52 m 34' 6''

Motor Options

AVAILABLE MOTOR ESTIMATED SPEEDS PACKAGE PRICE VIEW PRICE W/ PREP & FREIGHT
Mercury® FourStroke
9.9 ELPT FourStroke Command Thrust ProKicker -
$20875

USD
Select Dealer
25 ELPT FourStroke -
$22695

USD
Select Dealer
115 ELPT FourStroke 21-28 mph
$28095

USD
Select Dealer
115 ELPT FourStroke Command Thrust -
$28495

USD
Select Dealer
150 L FourStroke -
$30895

USD
Select Dealer
Mercury® Pro XS®
115 ELPT Pro XS® FourStroke Command Thrust -
$28855

USD
Select Dealer

Features

Comfort, Convenience & Peace of Mind
  • 10+LIFE™ warranty
  • NMMA® certified
  • 9' (2.74 m) color-keyed Bimini top w/LED courtesy lights & protective boot
  • NEW front zipper on Bimini top to join optional forward Bimini together
  • Exclusive QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
  • Storage pockets in Bimini top
  • Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
  • NEW nylon gate latches & heavy-duty hinges that open inward
  • Port & starboard LED navigation lights
  • Bimini-mounted anchor/navigation light
  • 4 mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
Livewell Systems
  • Bow port 12-gal. (45.42 L) rotomolded & aerated livewell w/shutoff valve & composite lid w/ruler
  • Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve
Console
  • Deluxe soft-touch sport steering wheel
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Wraparound sport console shroud & tinted, removable windscreen
  • Below-console cooler/storage space w/door & integrated pouch
  • Small items tray
  • Drink holders
  • Built-in footrest w/non-skid pad
  • AM/FM Bluetooth®-capable stereo w/MP3 & USB ports & 2 directional speakers
  • Tachometer, trim meter/speedometer & fuel & hour gauges
  • Lighted rocker switches
  • Ergonomically positioned Mercury® binnacle control box w/trim
  • 12V outlet

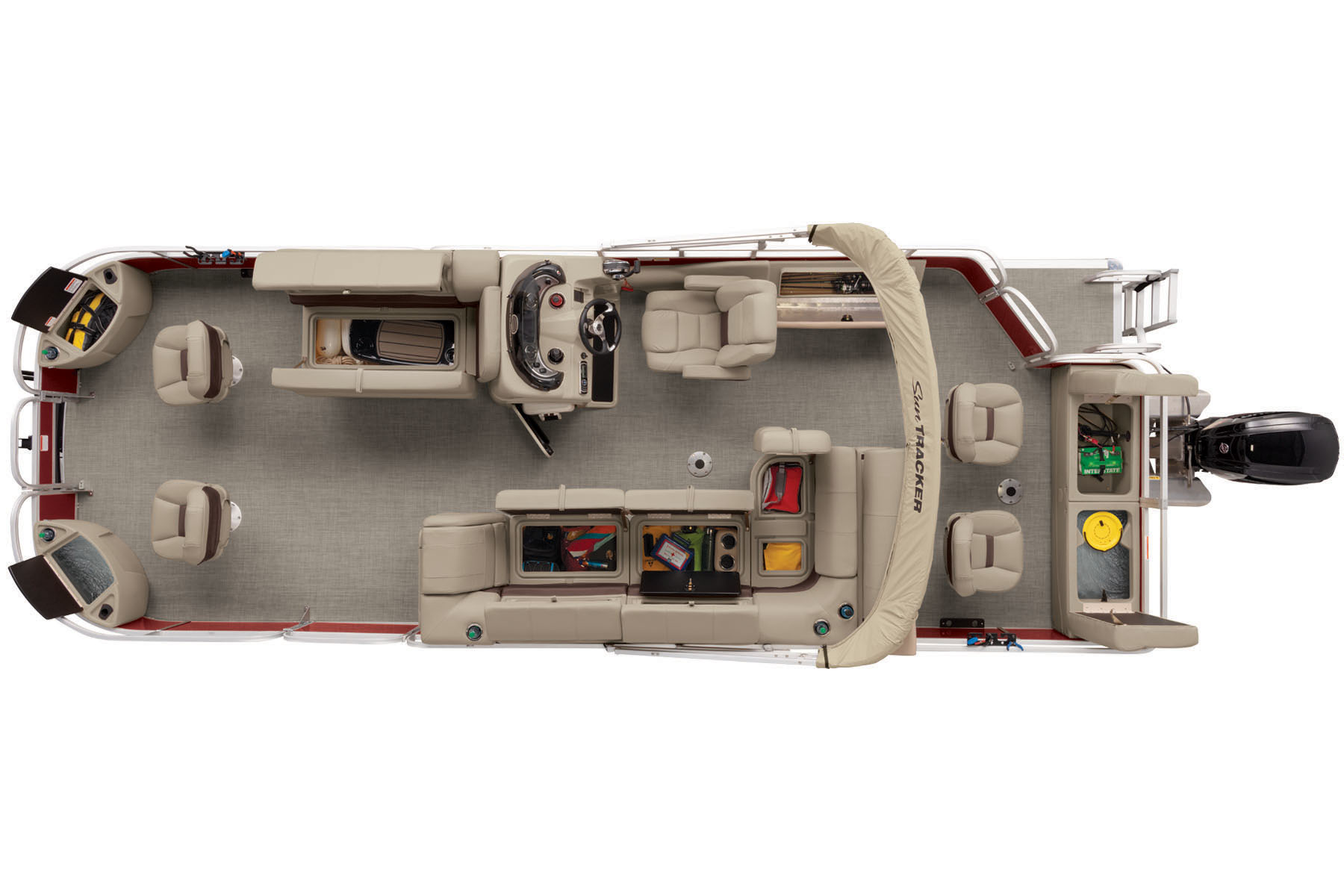

Interior
  • Bow port rotomolded box w/livewell, ruler & drink holders
  • Bow starboard rotomolded box w/storage, ruler & drink holders
  • Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
  • Bow & aft fishing positions w/4 removable folding fishing chairs
  • Forward-console couch w/STOW MORE™ system & underseat storage
  • Aft L-lounge w/STOW MORE™ system, underseat storage & lockable storage compartment
  • Rear-facing tackle storage in aft L-lounge
  • NEW high-back swiveling helm bucket seat, reclining & w/self-leveling arms
  • Pop-up changing room in lounge arm
  • Fore & aft vertical rod holders
  • Molded aft starboard lockable rod box for rods to 7' 6" (2.29 m)
  • Padded woven vinyl floor covering
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • Movable drink holder/armrest
  • NEW removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
  • Port wheelchair-access gate
  • 4-step folding boarding ladder w/grab rails
Performance
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller
Construction & Exterior
  • Color: Black Metallic or NEW Copper Red fencing
  • NEW interior styling
  • Rotomolded furniture backs & bases for resistance to the elements
  • Heavy-duty bow U-channel reinforcement behind deck trim
  • 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
  • 1-piece full-length M-bracket deck supports
  • RAIL-LOCK® system for mounting optional tops & optional mooring cover
  • Protective exoskeleton rail & panel system for durability & a quieter ride
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • Rear boarding platform
Electrical
  • Easy-access marine-grade automotive-style fuse panel w/NEW latching fuse block door
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors
  • Interior courtesy lighting

Options


Gallery

Purchase your Sun Tracker and take delivery through your nearest dealer!

Uncompromising Versatility

To view price with dealer prep and freight, use the search box to locate and choose a dealer near you.
