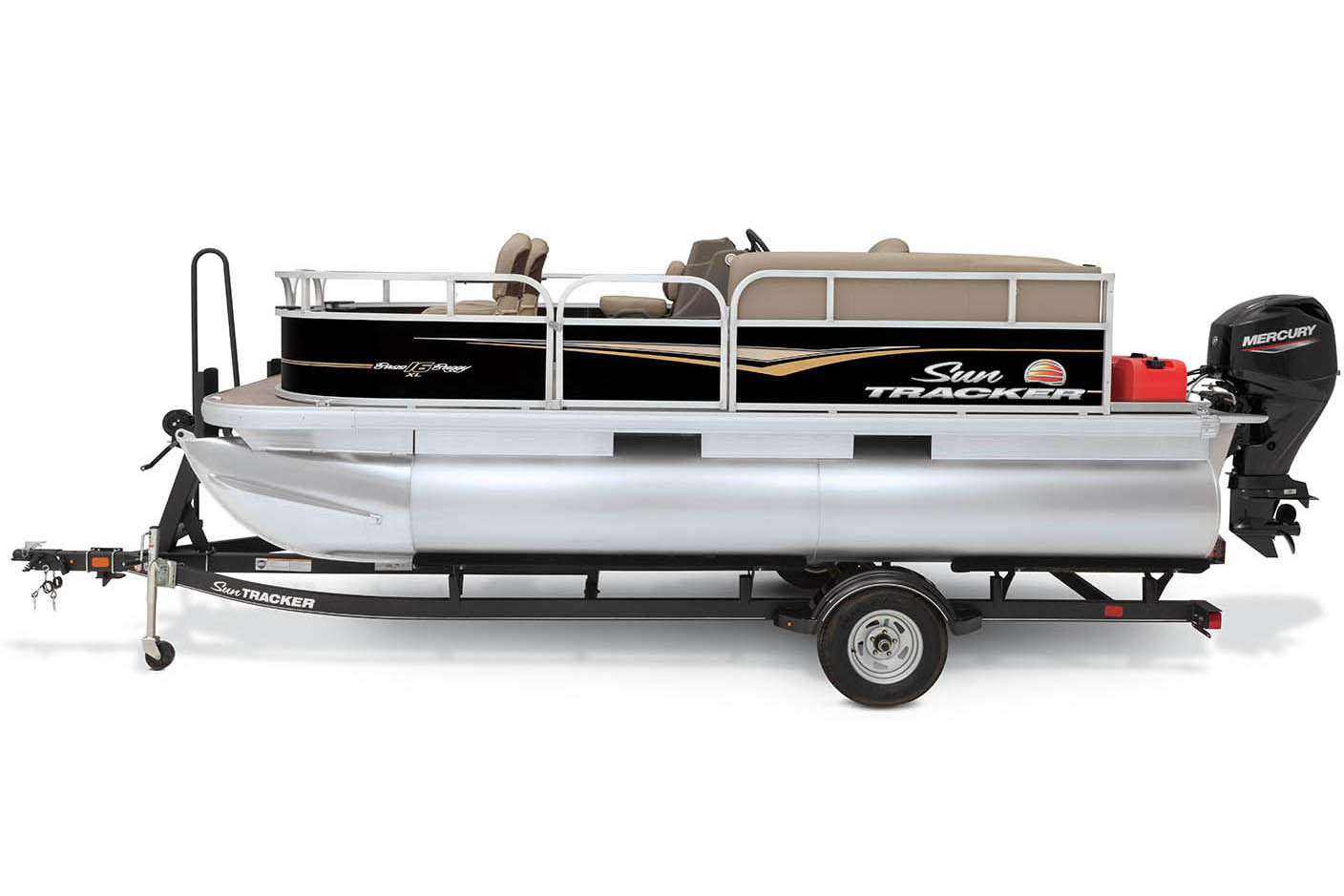

2020 Bass Buggy 16 XL

2020

BASS BUGGY® 16 XL

w/ 20 ELPT FourStroke Mercury® FourStroke
Price Excludes Optional Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
Base Price
$10995
USD

Overview

With a NO HAGGLE NO HASSLE® price of just $10,995, the BASS BUGGY® 16 XL is a great value for families who want to make memories together on the water.

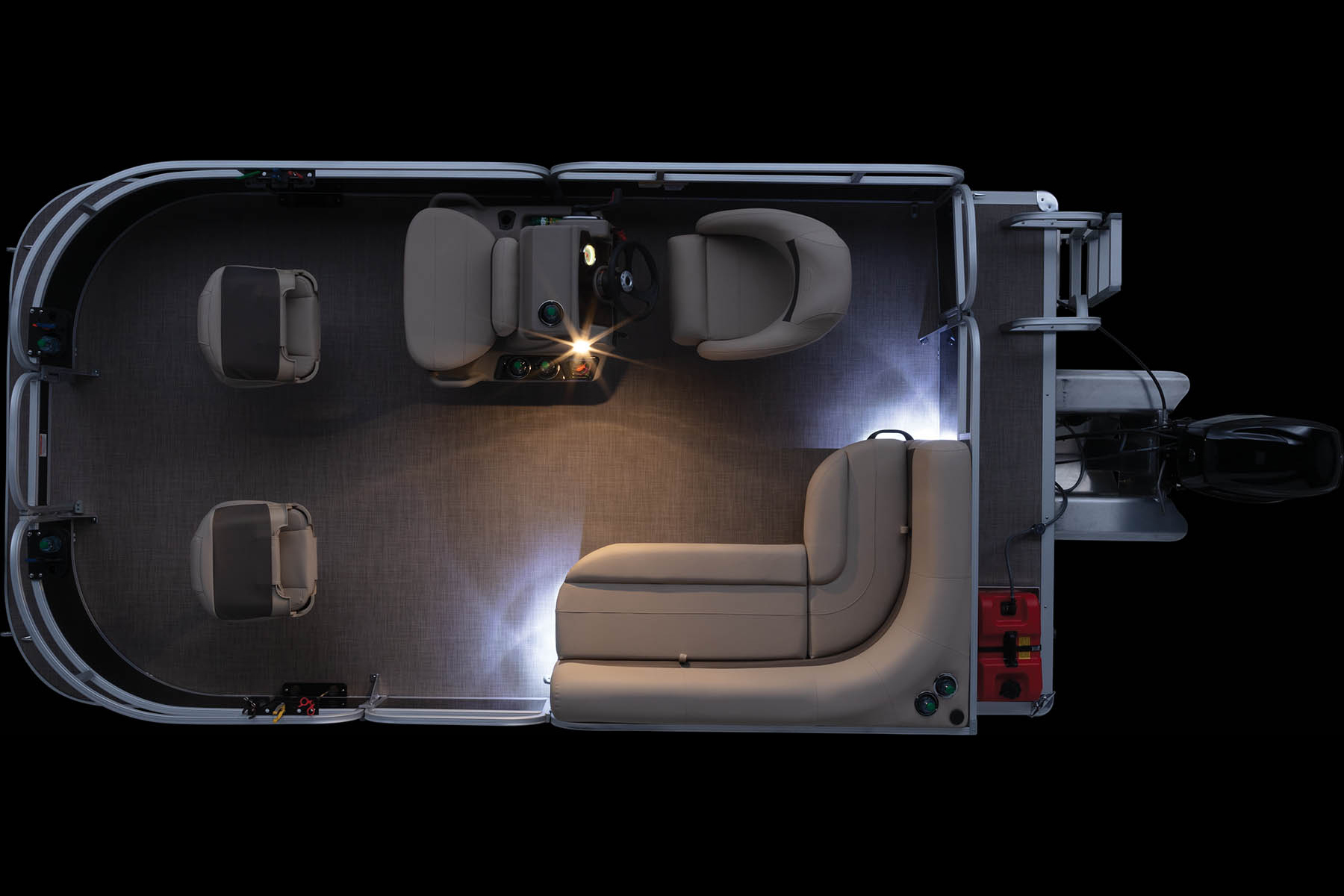

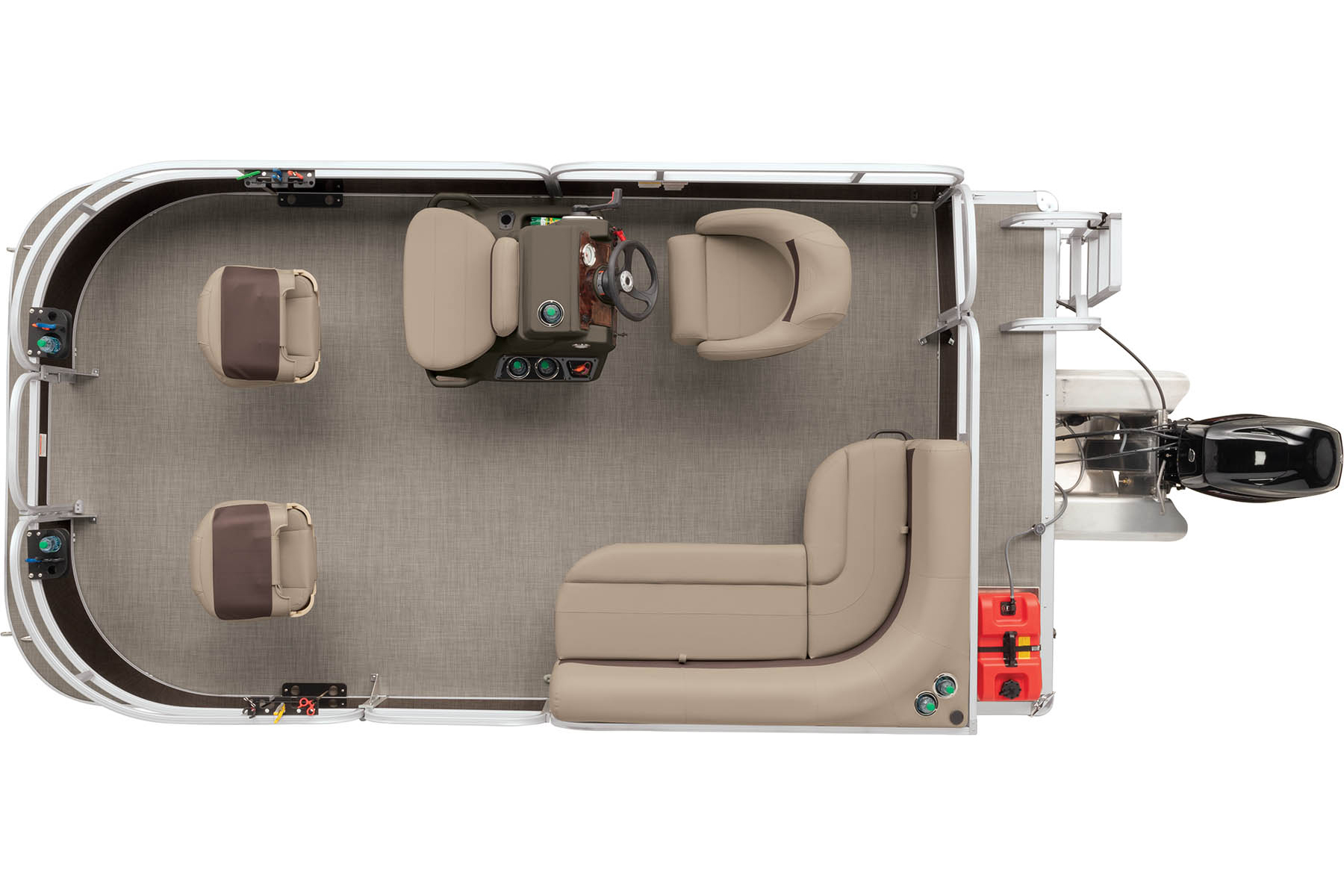

The deck is 16' long and 8' wide, providing a spacious, stable platform for a variety of activities. Fishing? Dual bow fishing chairs provide comfortable spots to cast away the day, and a forward-console livewell/seat is perfect for placing your keepers. There is also rod storage at the console.

Relaxing? The aft L-lounge is plush and ready—and also provides storage below. Swimming? Three gates provide quick access to the water, and the aft platform also has a fold-down reboarding ladder.

Get the most out of your time on the water and for your money with the all-new BASS BUGGY 16 XL.

Key Features

Aerated livewell

Keep your catch healthy with the 9-gal. livewell located under the forward-console cushion.

Aft platform

It’s fun for the whole family thanks to the aft platform with the reboarding ladder.

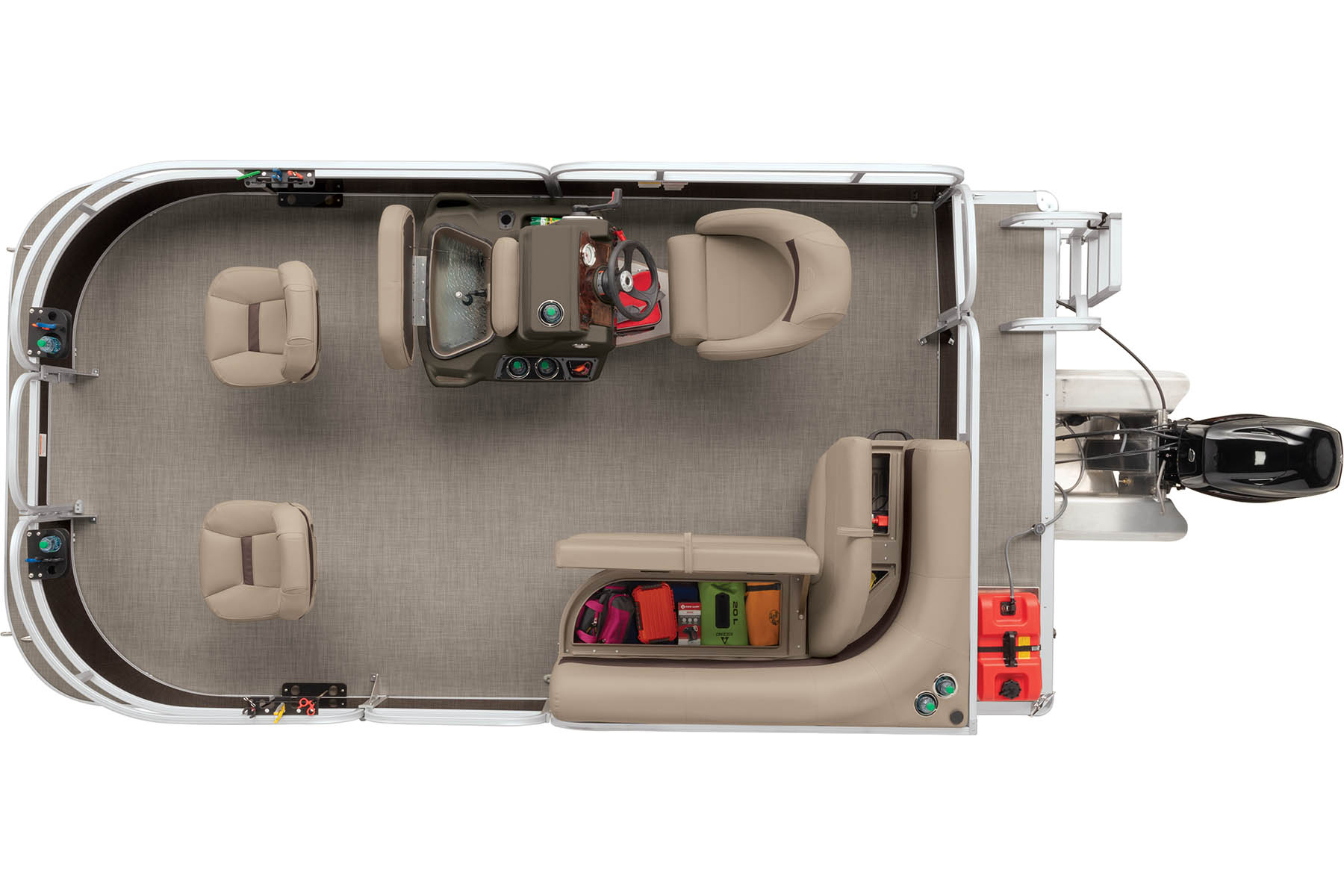

Underseat storage

Rotomolded underseat compartments provide plenty of space for all your gear.


Videos


Specifications

Length 5.61 m 18' 5''
Deck length 4.88 m 16'
Deck Width 2.44 m 8'
Max. Recommended HP 50 HP
Fuel Capacity w/20HP Motor 11.36 L 3 gal.
Fuel Capacity w/50HP Motor 22.71 L 6 gal.
Pontoon log length 5.05 m 16' 7''
Pontoon log diameter 60.96 cm 24''
Pontoon log material 0.080 5052 marine alloy
Max. Person Capacity 7 persons
Max. person weight 494.42 kg 1090 lbs.
Max. person, motor & gear weight 703.07 kg 1550 lbs.
Interior depth 60.96 cm 24''
Average dry weight 594.21 kg 1310 lbs.
Average package weight 1100.42 kg 2426 lbs.
Package height 2.64 m 8' 8''
Package width 2.51 m 8' 3''
Towing length 7.65 m 25' 1''
Storage Length 7.57 m 24' 10''

Motor Options

AVAILABLE MOTOR ESTIMATED SPEEDS PACKAGE PRICE VIEW PRICE W/ PREP & FREIGHT
Mercury® FourStroke
20 ELPT FourStroke -
$10995

USD
Select Dealer
50 ELPT FourStroke -
$12595

USD
Select Dealer

Features

Comfort, Convenience & Peace of Mind
  • 10+LIFE™ Limited Lifetime Warranty
  • NMMA® certified
  • Nylon gate latches & heavy-duty hinges that open inward
  • Port & starboard LED navigation lights
  • Anchor/navigation light
  • 4 mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
Livewell Systems
  • Forward-console 9-gal. (34.07 L) aerated livewell w/padded cushion
Console
  • Sport steering wheel
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Vertical rod holder
  • Below-console storage space w/curtain
  • Integrated small items tray
  • Drink holders
  • Illuminated tachometer
  • Rocker switches
  • Side-mounted controls w/trim
  • 12V outlet
Interior
  • Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
  • Bow fishing positions w/2 removable folding fishing chairs
  • Forward-console seat w/molded-in grab handles & below-cushion livewell w/shutoff valve
  • Aft L-lounge w/underseat storage
  • Woven 16-oz. (.45 kg) marine-grade flooring throughout
  • Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • Port wheelchair-access gate
  • 4-step folding boarding ladder w/grab rails
Performance
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller
Construction & Exterior
  • Color: Black Metallic or Indigo Blue fencing
  • Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
  • Rotomolded couches & backs for furniture w/Diamante Pepper accent
  • Fishing seats w/Diamante Pepper accent
  • 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
  • Extruded anodized aluminum deck edging w/polished corner covers
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
Electrical
  • Marine-grade fuse panel
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors
  • Interior courtesy lighting

Options


Gallery

Purchase your Sun Tracker and take delivery through your nearest dealer!
