2020 Fishin Barge 22 DLX

2020

FISHIN' BARGE® 22 DLX

w/ 60 ELPT FourStroke Command Thrust Mercury® FourStroke
Price Excludes Optional Trailer
View Price w/ Prep & Freight:
NO HAGGLE NO HASSLE® National Price
Base Price
$24895
USD

Overview

Call up your friends and invite them out for a day loaded with plenty of casts, laughs and memories, compliments of the FISHIN’ BARGE® 22 DLX and its long list of fishing and comfort features.

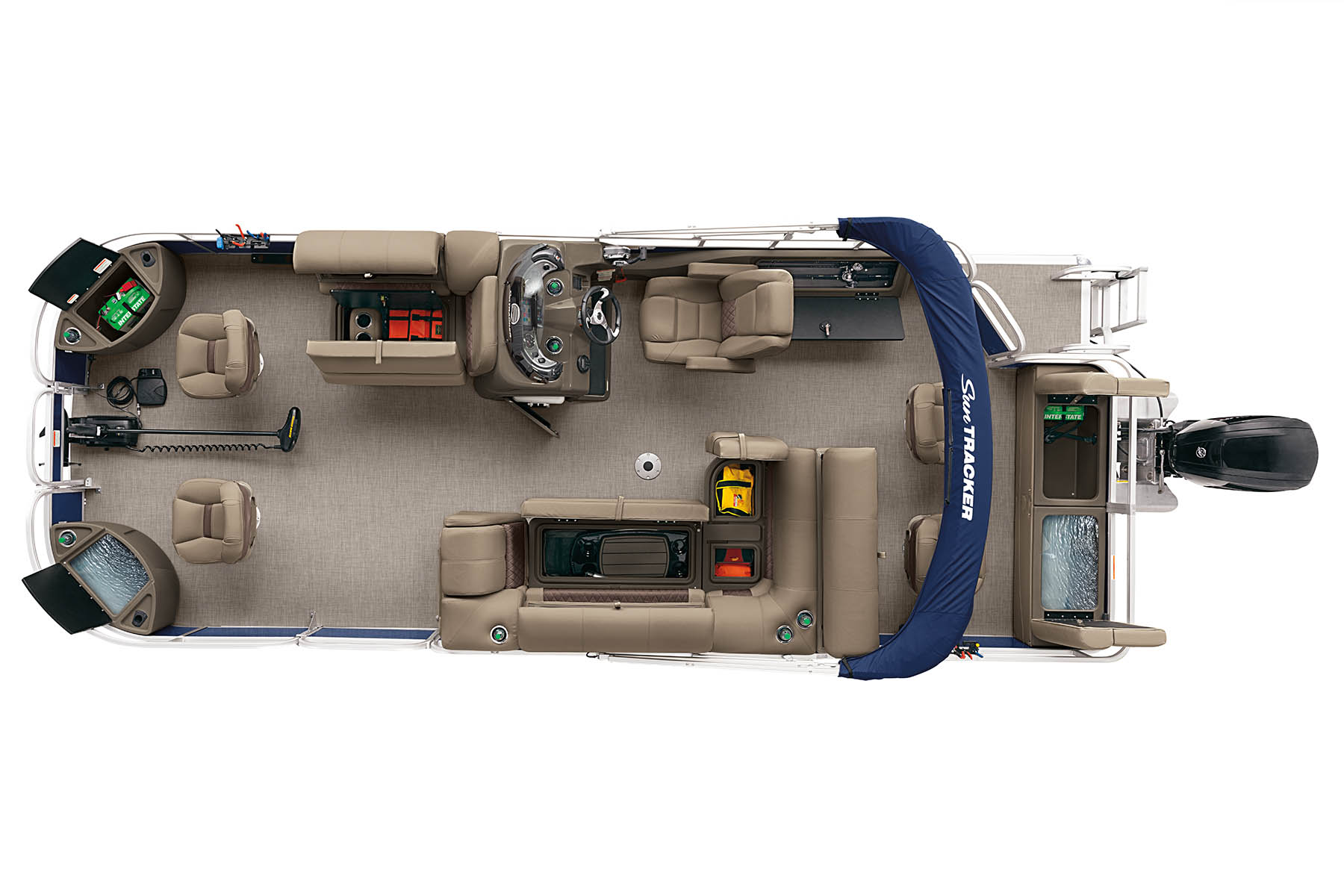

With a 22’ 1” by 8’ 6” deck, this boat has plenty of room in the playpen for two loaded fishing decks, both with an aerated livewell, two fishing chairs and rod storage (new lockable rod storage is conveniently located near the aft fishing deck). But the fun doesn’t stop there! There’s also midship lounge seating port and starboard, both with the STOW MORE™ seat storage system, a new, larger 11’ Bimini top, new Bazooka® stereo speaker and more!

Did we mention that it’ll hold a crew of 11? Do you need any more reasons to check out the loaded and fishing friendly FISHIN’ BARGE 22 DLX? Because, there are plenty more features for you to look at!

Key Features

Aerated livewells

With 32 gallons of total livewell capacity, you can ensure your catch is healthy all the way back.

STOW MORE™ storage system

Storage in the seat backs, under the seats and at the aft fishing deck provide space for everything.

Fishing chairs

Four fishing chairs (two fore, two aft) provide the anglers comfort while casting.


Videos


Specifications

Length 7.37 m 24' 2''
Deck length 6.73 m 22' 1''
Deck Width 2.59 m 8' 6''
Max. Recommended HP 150 HP
Fuel Capacity 121.5 L 32.1 gal.
Pontoon log length 6.78 m 22' 3''
Pontoon log diameter 60.96 cm 24''
Pontoon log material 0.080 5052 marine alloy
Max. Person Capacity 11 persons
Max. person weight 680.39 kg 1500 lbs.
Max. person, motor & gear weight 974.32 kg 2148 lbs.
Interior depth 66.04 cm 26''
Draft 38.1 cm 15''
Average dry weight 924.87 kg 2039 lbs.
Average package weight 1756.76 kg 3873 lbs.
Package height 2.74 m 9'
Package width 2.59 m 8' 6''
Towing length 9.86 m 32' 4''
Storage Length 9.86 m 32' 4''

Motor Options

AVAILABLE MOTOR ESTIMATED SPEEDS PACKAGE PRICE VIEW PRICE W/ PREP & FREIGHT
Mercury® FourStroke
9.9 ELPT FourStroke Command Thrust ProKicker -
$20375

USD
Select Dealer
25 ELPT FourStroke 11-14 mph
$22195

USD
Select Dealer
60 ELPT FourStroke Command Thrust -
$24895

USD
Select Dealer
90 ELPT FourStroke Command Thrust 21-28 mph
$26995

USD
Select Dealer
115 ELPT FourStroke Command Thrust 23-33 mph
$27995

USD
Select Dealer
150 L FourStroke 27-38 mph
$30395

USD
Select Dealer
Mercury® Pro XS®
115 ELPT Pro XS® FourStroke Command Thrust -
$28355

USD
Select Dealer

Features

Comfort, Convenience & Peace of Mind
  • 10+LIFE™ Limited Lifetime Warranty
  • NMMA® certified
  • NEW 11' (3.35 m) color-keyed Bimini top w/LED courtesy lights, protective boot & accepts optional drop-down changing curtain
  • NEW Bazooka® Party Bar stereo & speakers in the Bimini top
  • Front zipper on Bimini top to join optional forward Bimini together
  • QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
  • Storage pockets in Bimini top
  • Nylon gate latches & heavy-duty hinges that open inward
  • Port & starboard LED navigation lights
  • Bimini-mounted anchor/navigation light
  • 4 mooring cleats
  • Motor-stop safety lanyard
  • Fire extinguisher
  • Horn
Livewell Systems
  • NEW bow port 16-gal. (60.57 L) rotomolded & aerated livewell w/shutoff valve & composite lid w/ruler
  • Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve
Console
  • Deluxe soft-touch sport steering wheel
  • 4:2 ratio no-feedback steering for responsive, easy turning
  • Wraparound sport console shroud & tinted, removable windscreen
  • Below-console cooler/storage space w/door & integrated pouch
  • Small items tray
  • Drink holders
  • Built-in footrest w/non-skid pad
  • Bluetooth®-capable stereo interface for Bazooka® Party Bar
  • Tachometer, trim meter/speedometer & fuel & hour gauges
  • Lighted rocker switches
  • Ergonomically positioned Mercury® binnacle control box w/trim
  • 12V outlet
  • NEW darker console color
Interior
  • STOW MORE™ system features an added compartment in the seat back for increased storage
  • NEW larger bow port rotomolded box w/livewell, ruler, drink holders & lid
  • NEW larger bow starboard rotomolded box w/storage, ruler, drink holders & lid w/room for 24V total battery capacity
  • Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
  • Bow & aft fishing positions w/4 removable folding fishing chairs
  • Forward-console couch w/STOW MORE™ system & lockable underseat storage
  • Aft L-lounge w/STOW MORE™ system & underseat storage
  • Rear-facing tackle storage in aft L-lounge
  • NEW molded aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer
  • High-back swiveling helm bucket seat, reclining & w/self-leveling arms
  • Fore & aft vertical rod holders
  • Woven 16-oz. (.45 kg) marine-grade flooring throughout
  • NEW marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
  • Movable drink holder/armrest
  • Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
  • Port wheelchair-access gate
  • 4-step folding boarding ladder w/grab rails
Performance
  • Nose cone & motor pod wave/spray deflectors for a drier ride
  • Factory-matched aluminum propeller
Construction & Exterior
  • Color: Black Metallic or Indigo Blue fencing
  • NEW exterior styling
  • Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
  • Rotomolded couches & backs for furniture w/NEW Diamante Pepper accent
  • Fishing seats w/NEW Diamante Pepper accent
  • Heavy-duty bow U-channel reinforcement behind deck trim
  • 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
  • 1-piece full-length M-bracket deck supports
  • RAIL-LOCK® system for mounting optional tops & optional mooring cover
  • NEW protective exoskeleton rail & panel system for durability & a quieter ride
  • High-sheen fence finish for long-lasting good looks
  • 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
  • Extruded anodized aluminum deck edging w/polished aft corner covers
  • All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
  • Stainless or coated corrosion-resistant fasteners
  • 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
  • Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
  • Elevated fence panels for deck drainage & ventilation
  • Sound- & vibration-deadening fence insulation for a quiet ride
  • Box-beam all-aluminum transom for strength & longevity
  • Rear boarding platform
Electrical
  • Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
  • Protective abrasion-resistant wire wrap
  • Water-resistant connectors

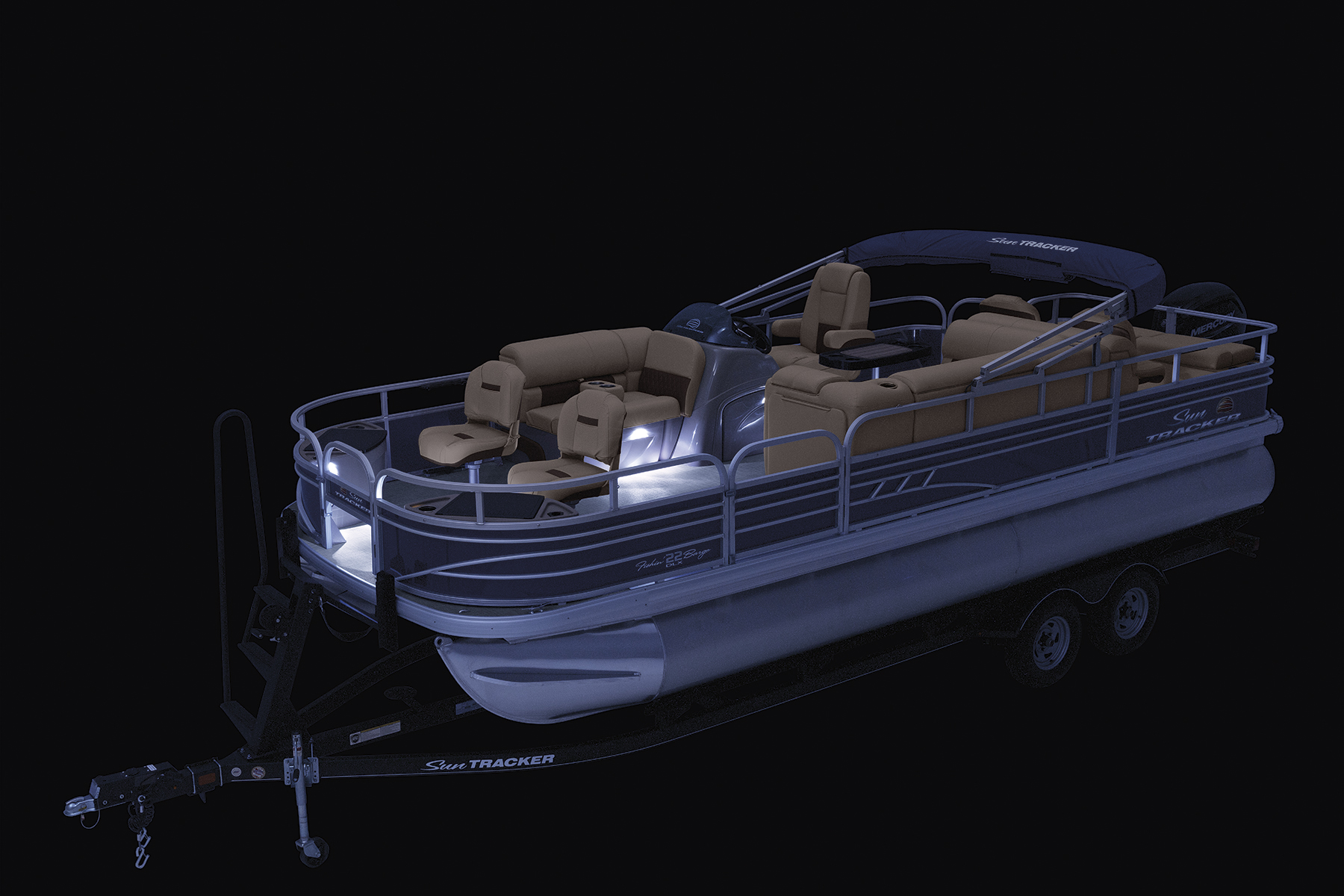

  • Interior courtesy lighting

Options


Gallery

Purchase your Sun Tracker and take delivery through your nearest dealer!

Uncompromising Versatility

To view price with dealer prep and freight, use the search box to locate and choose a dealer near you.
