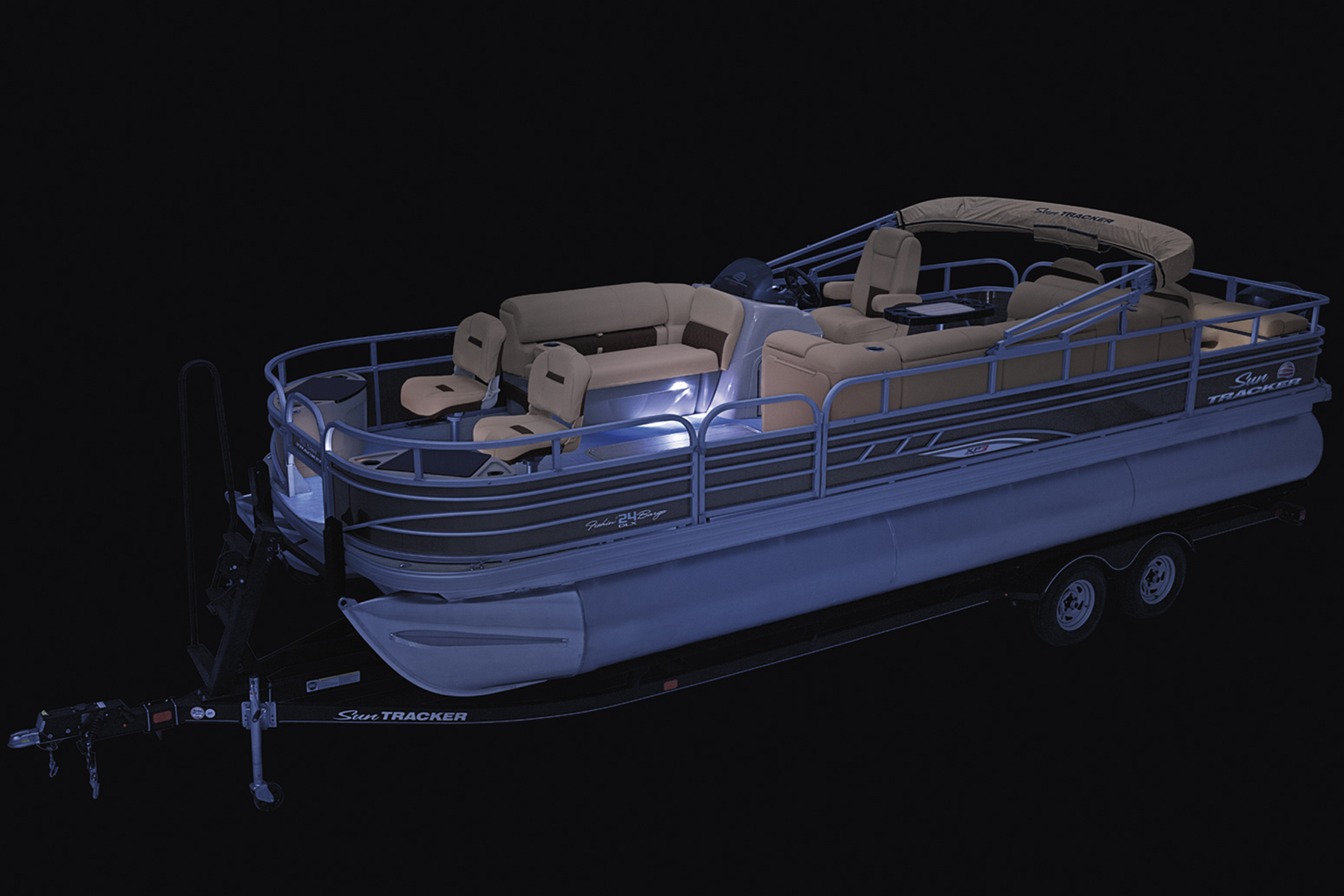

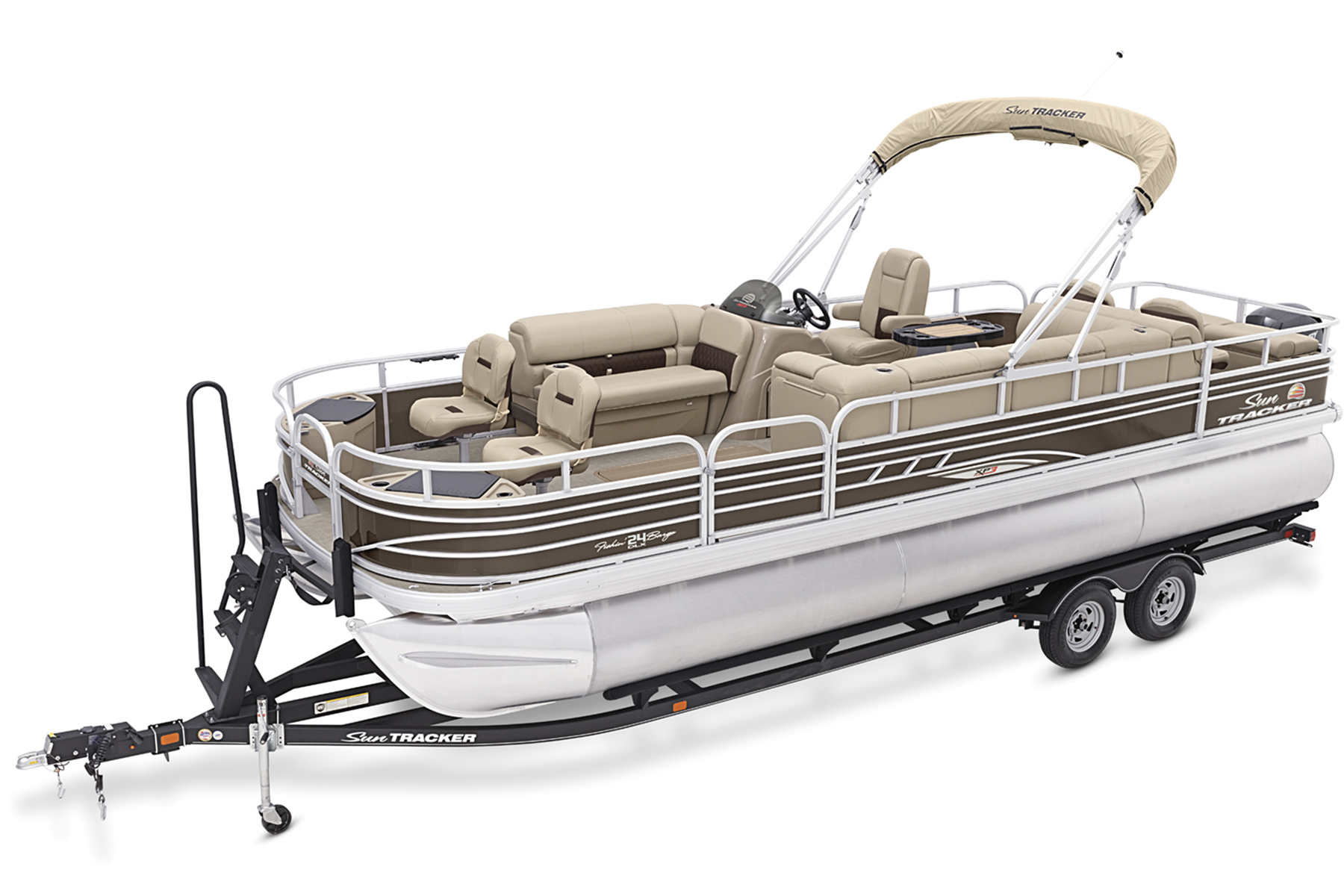

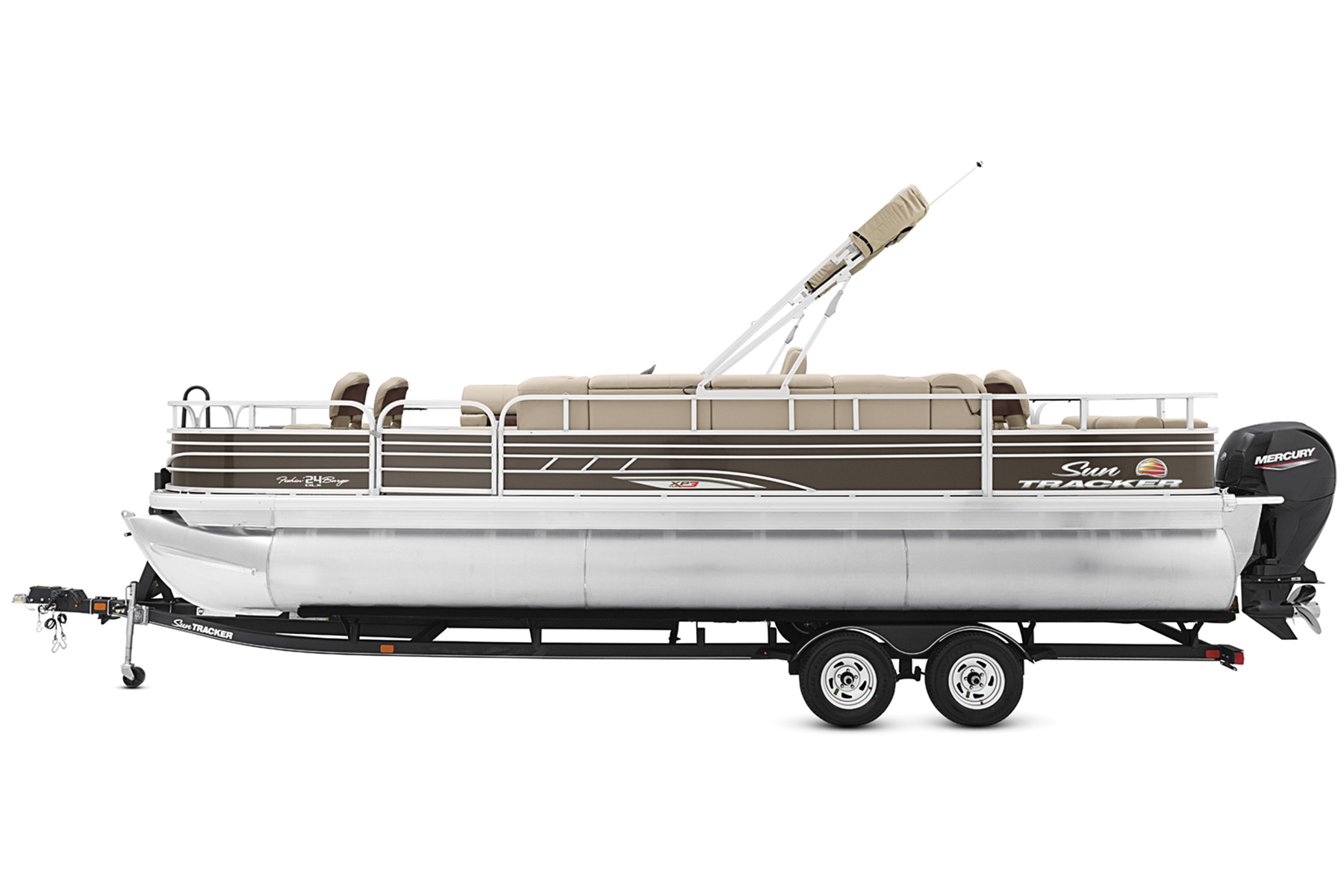

2020 Fishin' Barge 24 XP3
2020
FISHIN' BARGE® 24 XP3
w/ 150 L FourStroke Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$38995
USD
|
Overview
The numbers don’t lie—the FISHIN’ BARGE® 24 XP3 is a massively impressive fishing machine that invites more crew members to bring more gear and catch more fish—resulting in more memories!
To start, you need to add up the fishing features. Two casting decks. Four fishing chairs. Two livewells with a combined capacity of 32 gallons. And a 7’ 6” rod locker and numerous rod holders!

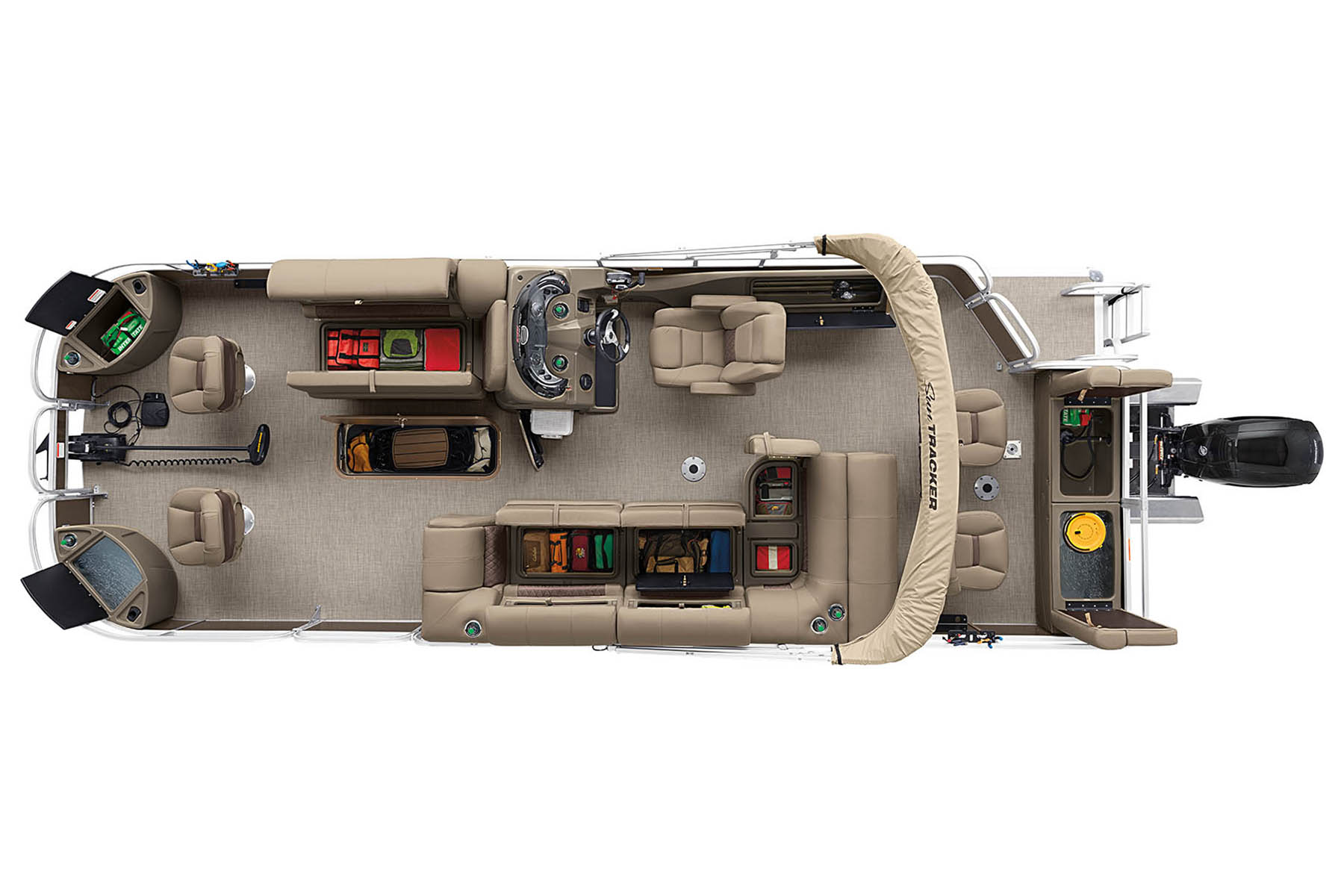

Then, add in the new 11’ Bimini top with its QUICKLIFT® deployment system, two spacious lounges (both with the STOW MORE™ seat storage system) and oversized four-step reboarding ladder. All fit perfectly into a spacious 24’ 1” by 8’ 6” deck that rides on three 26” performance pontoons. Want more? Get more. Fish and play more!
Key Features
XP3 package
The XP3 performance upgrades allow for a bigger engine, resulting in higher top-end speeds for watersports.
Aft platform
After a bout of watersports or swimming, you can easily reboard via the aft platform with the fold-down ladder.
Bazooka® stereo
Located on the Bimini top, the Bazooka stereo system provides amazing sound (and LED lighting) to enhance your outing further.
Videos
Specifications
| Length | 7.98 m | 26' 2'' |
| Deck Length | 7.34 m | 24' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 250 HP | |
| Fuel Capacity | 196.82 L | 52 gal. |
| Pontoon Log Length | 7.59 m | 24' 11'' |
| Pontoon Log Diameter | 66.04 cm | 26'' |
| Pontoon Log Material | 0.100 5052 marine alloy | |
| Max. Person Capacity | 12 persons |
| Max. Person Weight | 952.54 kg | 2100 lbs. |
| Max. Person, Motor & Gear Weight | 1360.78 kg | 3000 lbs. |
| Interior Depth | 60.96 cm | 24'' |
| Average Dry Weight | 1340.82 kg | 2956 lbs. |
| Average Package Weight | 2394.97 kg | 5280 lbs. |
| Package Height | 2.69 m | 8' 10'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 10.46 m | 34' 4'' |
| Storage Length | 10.46 m | 34' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | VIEW PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 250 L FourStroke | - |
$47045 USD
|
Select Dealer | ||
| 150 L FourStroke | - |
$38995 USD
|
Select Dealer | ||
| 200 L FourStroke | - |
$42745 USD
|
Select Dealer | ||
| 225 L FourStroke | - |
$44095 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty
- NMMA® certified
- NEW 11' (3.35 m) color-keyed Bimini top w/LED courtesy lights, protective boot & accepts optional drop-down changing curtain
- NEW Bazooka® Party Bar stereo & speakers in the Bimini top
- Front zipper on Bimini top to join optional forward Bimini together
- QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
- Storage pockets in Bimini top
- Nylon gate latches & heavy-duty hinges that open inward
- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light
- 4 mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Livewell Systems
- NEW bow port 16-gal. (60.57 L) rotomolded & aerated livewell w/shutoff valve & composite lid w/ruler
- Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve
Console
- Deluxe soft-touch sport steering wheel
- Hydraulic steering w/tilt
- Wraparound sport console shroud & tinted, removable windscreen
- Below-console cooler/storage space w/door & integrated pouch
- Small items tray
- Drink holders
- Built-in footrest w/non-skid pad
- Bluetooth®-capable stereo interface for Bazooka® Party Bar
- Tachometer, trim meter/speedometer & fuel & hour gauges
- Lighted rocker switches w/NEW bilge switch
- Ergonomically positioned Mercury® binnacle control box w/trim
- 12V outlet
- NEW darker console color
Interior
- STOW MORE™ system features an added compartment in the seat back for increased storage
- NEW larger bow port rotomolded box w/livewell, ruler, drink holders & lid
- NEW larger bow starboard rotomolded box w/storage, ruler, drink holders & lid w/room for 24V total battery capacity
- Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals
- Bow & aft fishing positions w/4 removable folding fishing chairs
- Forward-console couch w/STOW MORE™ system & underseat storage
- NEW 88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/bilge pump in center log
- Aft L-lounge w/STOW MORE™ system, underseat storage & lockable storage compartment
- Rear-facing tackle storage in aft L-lounge
- NEW molded aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer
- High-back swiveling helm bucket seat, reclining & w/self-leveling arms
- Fore & aft vertical rod holders
- NEW receptacle for optional ski tow pylon
- Woven 16-oz. (.45 kg) marine-grade flooring throughout
- NEW marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
- Movable drink holder/armrest
- Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
- Port wheelchair-access gate
- 4-step folding boarding ladder w/grab rails
Performance
- XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched aluminum propeller
Construction & Exterior
- Color: Black Metallic or Caribou Metallic fencing
- NEW exterior styling w/XP3 graphics package
- Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
- Rotomolded couches & backs for furniture w/NEW Diamante Pepper accent
- Fishing seats w/NEW Diamante Pepper accent
- Heavy-duty bow U-channel reinforcement behind deck trim
- Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- RAIL-LOCK® system for mounting optional tops & optional mooring cover
- NEW protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Factory-installed underpinning (under-deck shielding) for improved performance
- Extruded anodized aluminum deck edging w/polished aft corner covers
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity
- Rear boarding platform
Electrical
- NEW 500 GPH (1892.71 LPH) Ultima auto bilge pump
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
- Interior courtesy lighting
Options
