2019 Party Barge 22 DLX
2019
PARTY BARGE® 22 DLX
w/ 60 ELPT FourStroke Command Thrust Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$23995
USD
|
Overview
The entire 24’ 2” length is well-equipped with quality features carefully chosen, designed and crafted for comfort, convenience and safety through years of outings.
For example, it offers four couches, one for each corner of the playpen. Each feature multi-density foam for lounging in comfort, as well as our exclusive STOW MORE™ seat-back compartments. It also features a new higher-backed helm seat, a QUICKLIFT® Bimini top, movable table and so much more!
All so you’ll be well-equipped to take your get-togethers well beyond the ordinary.
Videos
Specifications
| Length | 7.37 m | 24' 2'' |
| Deck length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 150 HP | |
| Fuel Capacity | 121.5 L | 32.1 gal. |
| Pontoon log length | 6.78 m | 22' 3'' |
| Pontoon log diameter | 60.96 cm | 24'' |
| Pontoon log material | 0.080 5052 marine alloy | |
| Max. Person Capacity | 11 persons |
| Max. person weight | 680.39 kg | 1500 lbs. |
| Max. person, motor & gear weight | 997.9 kg | 2200 lbs. |
| Interior depth | 66.04 cm | 26'' |
| Average dry weight | 870.9 kg | 1920 lbs. |
| Average package weight | 1702.79 kg | 3754 lbs. |
| Package height | 2.69 m | 8' 10'' |
| Package width | 2.59 m | 8' 6'' |
| Towing length | 9.86 m | 32' 4'' |
| Storage Length | 9.86 m | 32' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | VIEW PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 9.9 ELPT FourStroke Command Thrust ProKicker | - |
$19475 USD
|
Select Dealer | ||
| 25 ELPT FourStroke | - |
$21295 USD
|
Select Dealer | ||
| 60 ELPT FourStroke Command Thrust | - |
$23995 USD
|
Select Dealer | ||
| 90 ELPT FourStroke Command Thrust | 23-29 mph |
$26095 USD
|
Select Dealer | ||
| 115 ELPT FourStroke | 21-31 mph |
$26695 USD
|
Select Dealer | ||
| 115 ELPT FourStroke Command Thrust | 23-33 mph |
$27095 USD
|
Select Dealer | ||
| 150 ELPT FourStroke | 29-38 mph |
$29495 USD
|
Select Dealer | ||
| Mercury® Pro XS® | |||||
| 115 ELPT Pro XS® FourStroke Command Thrust | - |
$27455 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ warranty
- NMMA® certified

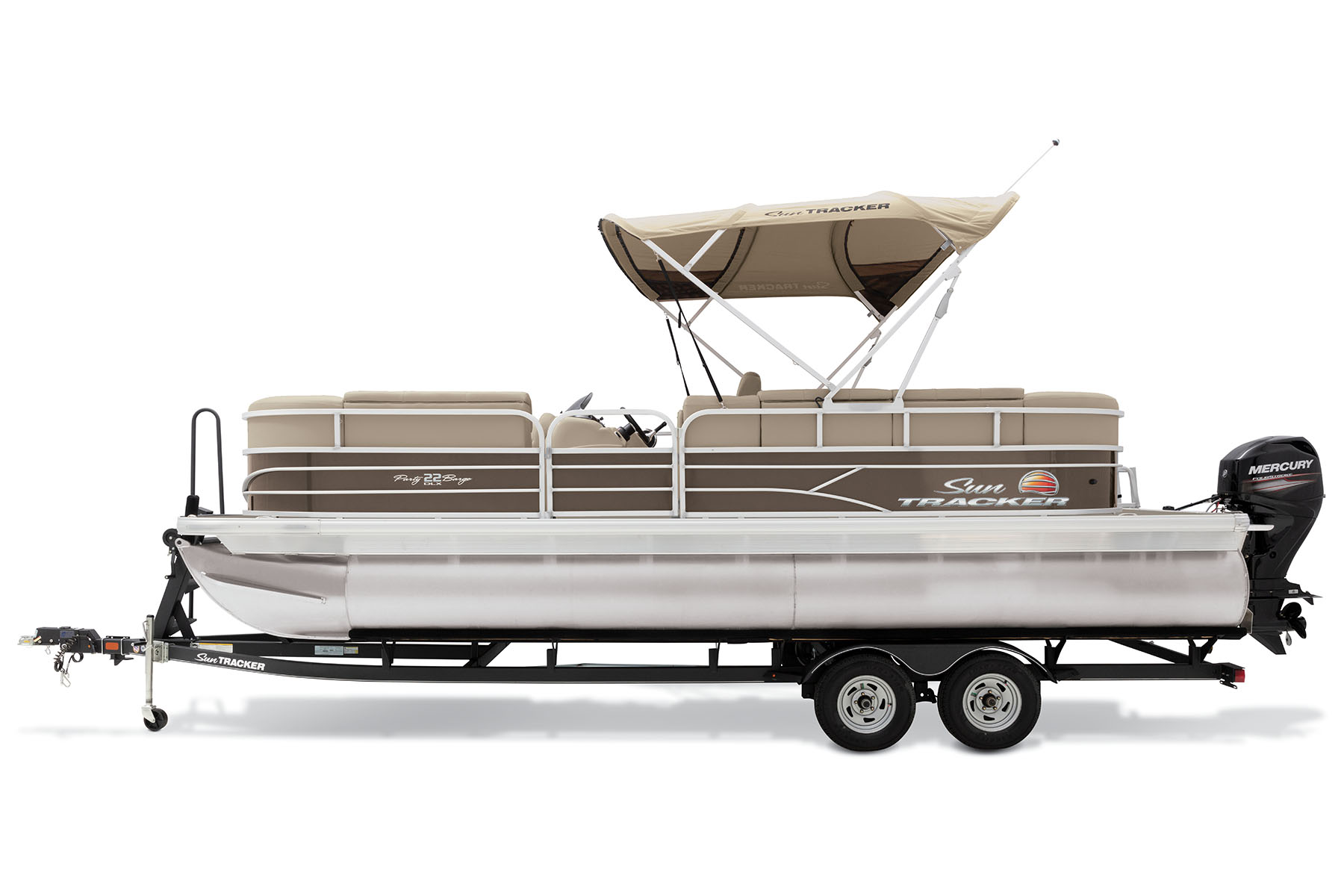

- 9' (2.74 m) color-keyed Bimini top w/LED courtesy lights & protective boot
- NEW front zipper on Bimini top to join optional forward Bimini together
- Exclusive QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
- Storage pockets in Bimini top
- Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
- NEW nylon gate latches & heavy-duty hinges that open inward
- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light
- 4 NEW folding mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console
- Deluxe soft-touch sport steering wheel
- 4:2 ratio no-feedback steering for responsive, easy turning
- Wraparound sport shroud & tinted, removable windscreen
- Below-console cooler/storage space w/door & integrated pouch
- Small items tray
- Drink holders
- Built-in footrest w/non-skid pad
- AM/FM Bluetooth®-capable stereo w/MP3 & USB ports & 4 directional speakers
- Tachometer, trim meter/speedometer & fuel & hour gauges
- Lighted rocker switches
- Ergonomically positioned Mercury® binnacle control box w/trim
- 12V outlet
Interior
- Bow port & starboard couches w/STOW MORE™ system & underseat storage
- Aft port couch w/STOW MORE™ system & underseat storage
- Aft starboard couch w/STOW MORE™ system & lockable underseat storage
- NEW high-back swiveling helm bucket seat, reclining & w/self-leveling arms
- Pop-up changing room
- Full-width aft swim deck
- Padded woven vinyl floor covering
- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
- 2 movable drink holders/armrests
- NEW removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
- Port wheelchair-access gate
- 4-step folding boarding ladder w/grab rails
Performance
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched aluminum propeller
Construction & Exterior

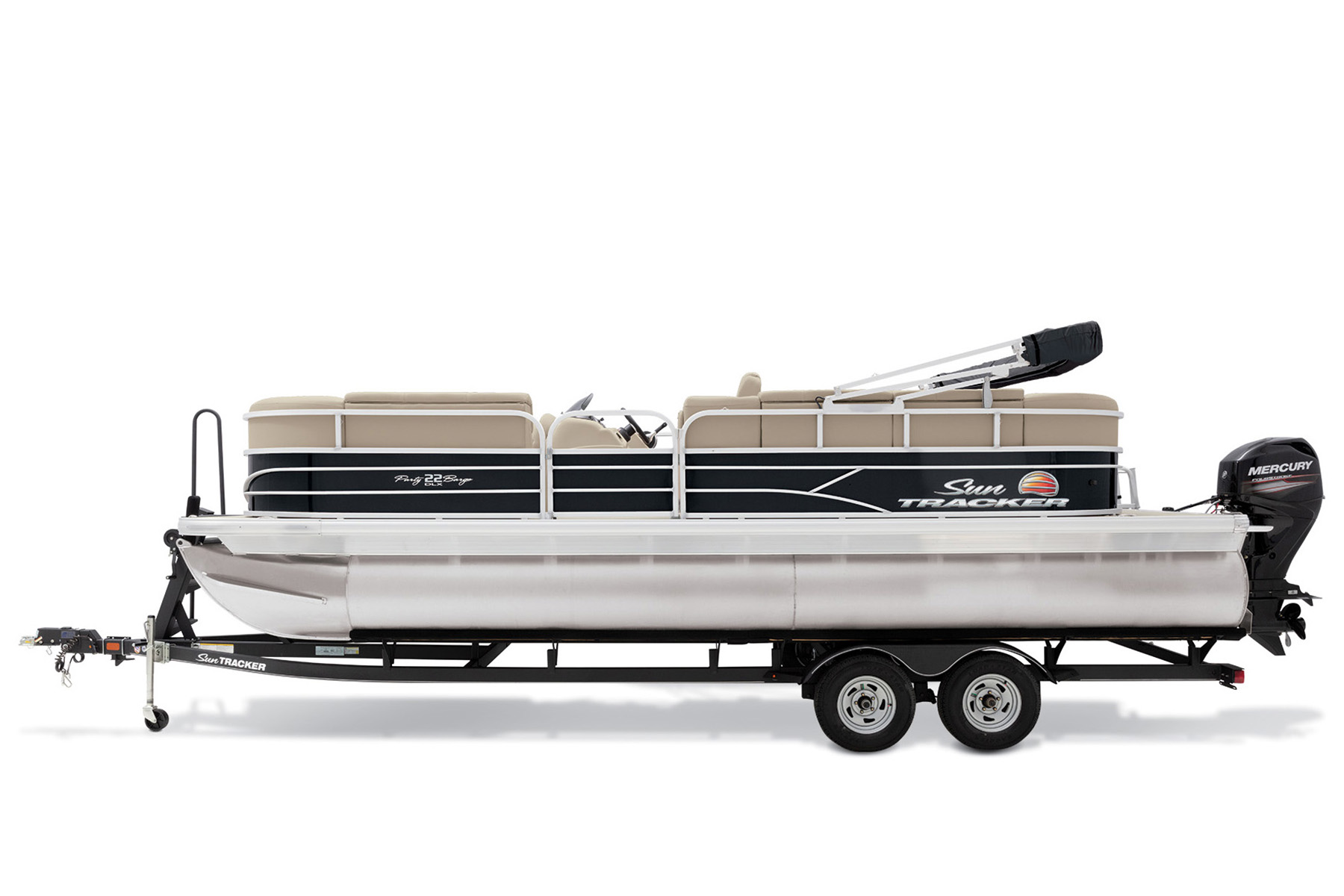

- Color: Black Metallic or Caribou Metallic fencing
- NEW interior styling
- Rotomolded furniture backs & bases for resistance to the elements
- Heavy-duty bow U-channel reinforcement behind deck trim
- 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- RAIL-LOCK® system for mounting optional tops & optional mooring cover
- Protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Reinforced bow structure
- Extruded anodized aluminum deck edging w/polished aft corner covers
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity
Electrical
- Easy-access marine-grade automotive-style fuse panel w/NEW latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors

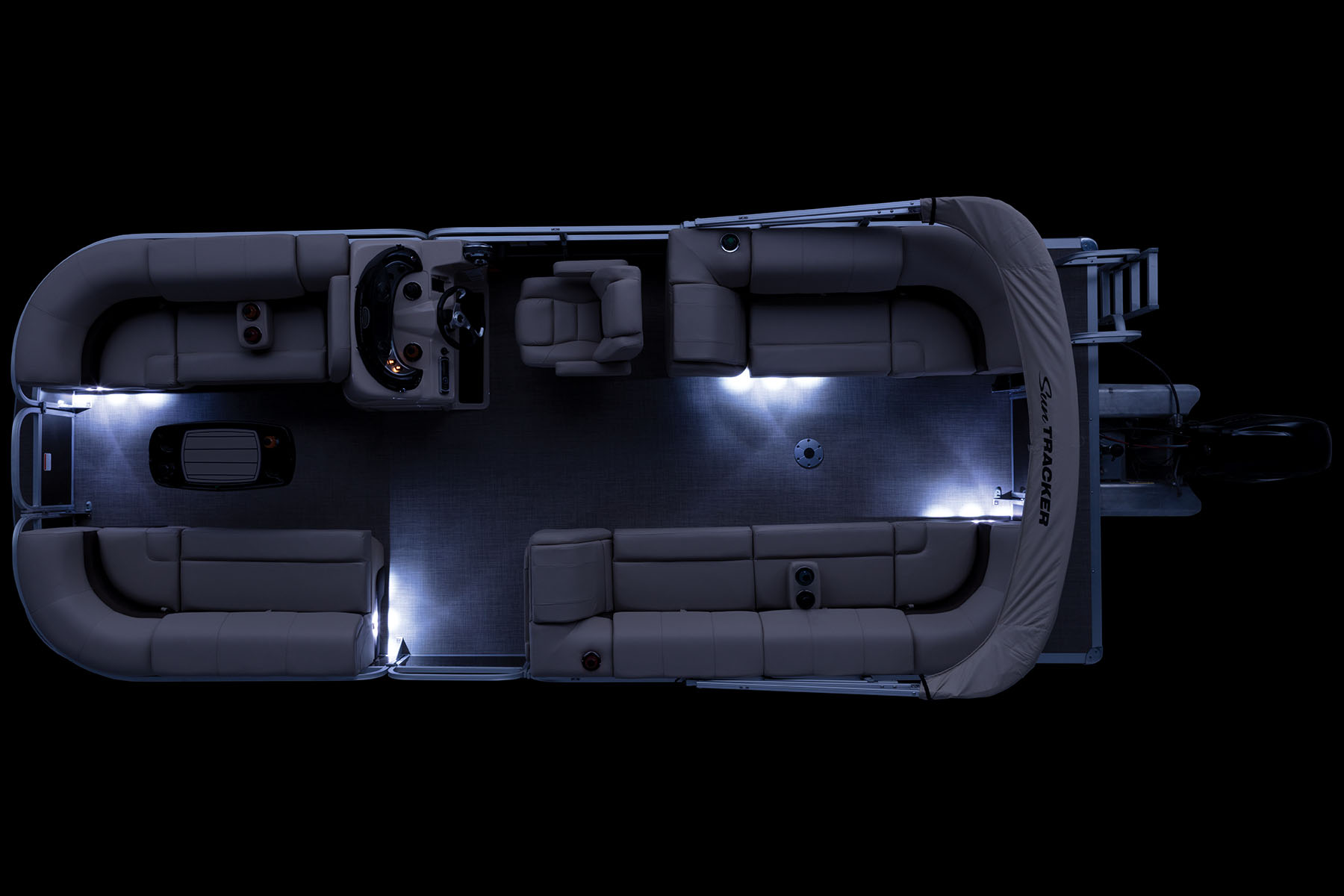

- Interior courtesy lighting
Options
Gallery
Purchase your Sun Tracker and take delivery through your nearest dealer!
