2019 Party Barge 22 RF XP3
2019
PARTY BARGE® 22 RF XP3
w/ 115 ELPT Pro XS® FourStroke Command Thrust Mercury® Pro XS®
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$32355
USD
|
Overview
The PARTY BARGE® 22 RF XP3 offers the horsepower you need for some seriously fun watersports action, as well as a rear-facing lounge aft for watching it.
During the breaks from the watersports, the dual bow couches invite you to set up the table and refuel with an on-the-water picnic. All seating provides under-cushion storage, and the couches also feature our STOW MORE™ seat-back compartments. That, combined with the under-console cooler storage, ensures you can take all the gear you need for a full day of fun.
Bow or aft lounging, watersports or swimming, the PARTY BARGE 22 RF XP3 is ready to go.
Videos
Specifications
| Length | 7.37 m | 24' 2'' |
| Deck Length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 200 HP | |
| Fuel Capacity | 196.82 L | 52 gal. |
| Pontoon Log Length | 6.78 m | 22' 3'' |
| Pontoon Log Diameter | 66.04 cm | 26'' |
| Pontoon Log Material | 0.100 5052 marine alloy | |
| Max. Person Capacity | 11 persons | |
| Max. Person Weight | 725.75 kg | 1600 lbs. |
| Max. Person, Motor & Gear Weight | 1088.62 kg | 2400 lbs. |
| Interior Depth | 66.04 cm | 26'' |
| Draft | 30.48 cm | 12'' |
| Average Dry Weight | 1314.96 kg | 2899 lbs. |
| Average Package Weight | 2213.98 kg | 4881 lbs. |
| Package Height | 2.72 m | 8' 11'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.86 m | 32' 4'' |
| Storage Length | 9.86 m | 32' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | VIEW PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 115 ELPT FourStroke | 22-33 mph |
$31595 USD
|
Select Dealer | ||
| 115 ELPT FourStroke Command Thrust | - |
$31995 USD
|
Select Dealer | ||
| 150 L FourStroke | 31-40 mph |
$34395 USD
|
Select Dealer | ||
| 200 L FourStroke | - |
$38070 USD
|
Select Dealer | ||
| Mercury® Pro XS® | |||||
| 115 ELPT Pro XS® FourStroke Command Thrust | - |
$32355 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ warranty
- NMMA® certified
- 9' (2.74 m) color-keyed Bimini top w/LED courtesy lights & protective boot
- NEW front zipper on Bimini top to join optional forward Bimini together
- Exclusive QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone
- Storage pockets in Bimini top
- Adjustable nylon pull-tight Bimini straps for quick adjustment & reduced vibration
- NEW nylon gate latches & heavy-duty hinges that open inward
- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light
- 4 NEW folding mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console
- Deluxe soft-touch sport steering wheel
- Hydraulic steering w/tilt
- Wraparound sport shroud & tinted, removable windscreen
- Below-console cooler/storage space w/door & integrated pouch
- Small items tray
- Drink holders
- Built-in footrest w/non-skid pad
- AM/FM Bluetooth®-capable stereo w/MP3 & USB ports & 4 directional speakers
- Tachometer, trim meter/speedometer & fuel & hour gauges
- Lighted rocker switches
- Ergonomically positioned Mercury® binnacle control box w/trim
- 12V outlet
Interior
- NEW w/port-side, rear-facing double lounge & a starboard couch

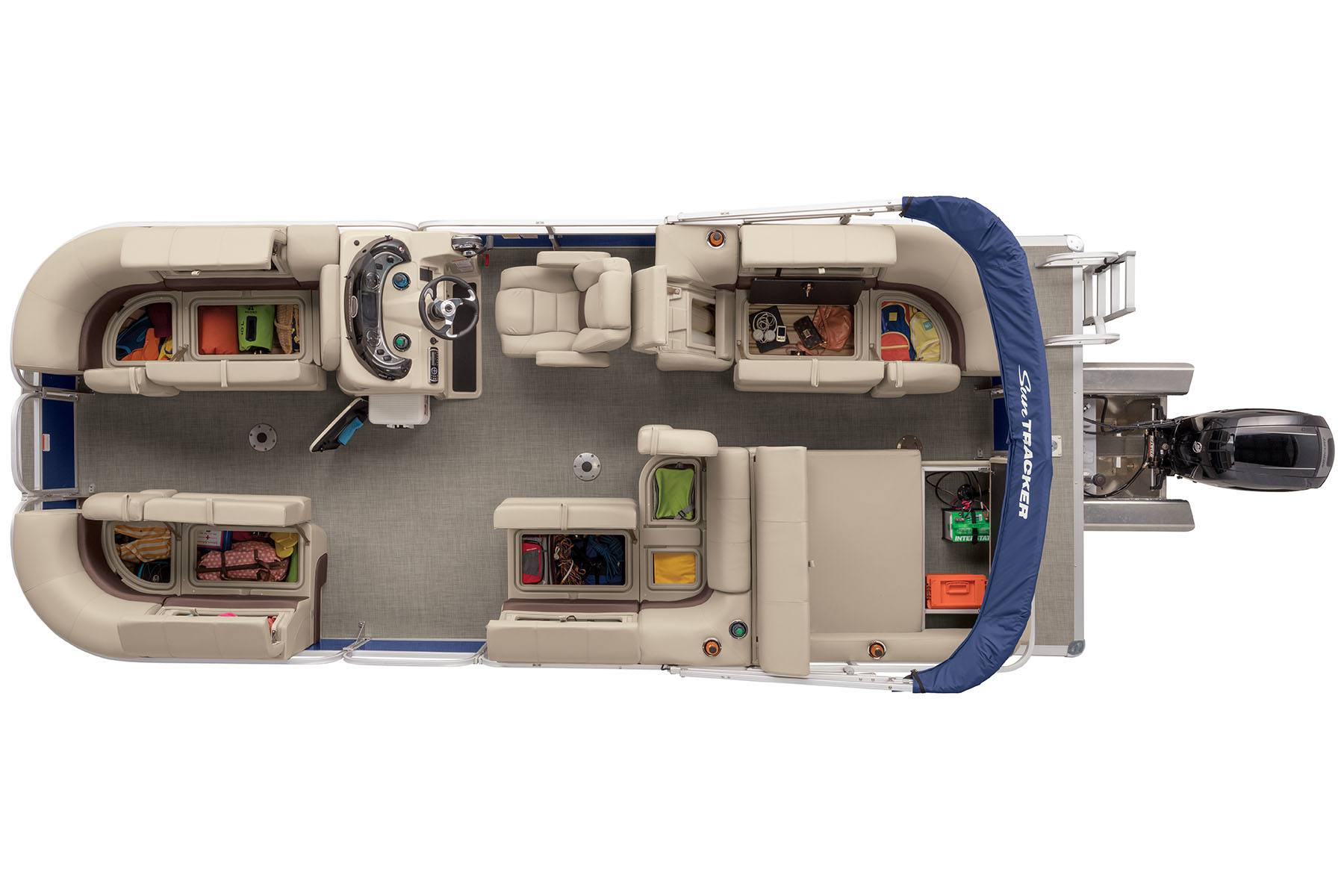

- Bow port & starboard couches w/STOW MORE™ system & underseat storage
- Aft port couch w/STOW MORE™ system & underseat storage
- Aft starboard couch w/STOW MORE™ system & lockable underseat storage
- NEW high-back swiveling helm bucket seat, reclining & w/self-leveling arms
- Pop-up changing room
- Full-width aft swim deck
- Receptacle for optional ski tow pylon
- Padded woven vinyl floor covering
- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
- 2 movable drink holders/armrests
- NEW removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
- Port wheelchair-access gate
- 4-step folding boarding ladder w/grab rails
Performance
- XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched aluminum propeller
Construction & Exterior
- Color: NEW Copper Red or NEW Indigo Blue fencing
- NEW interior styling
- Rotomolded furniture backs & bases for resistance to the elements
- Heavy-duty bow U-channel reinforcement behind deck trim
- Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- RAIL-LOCK® system for mounting optional tops & optional mooring cover
- Protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Reinforced bow structure
- Factory-installed underpinning (under-deck shielding) for improved performance
- Extruded anodized aluminum deck edging w/polished aft corner covers
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity
Electrical
- Easy-access marine-grade automotive-style fuse panel w/NEW latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors

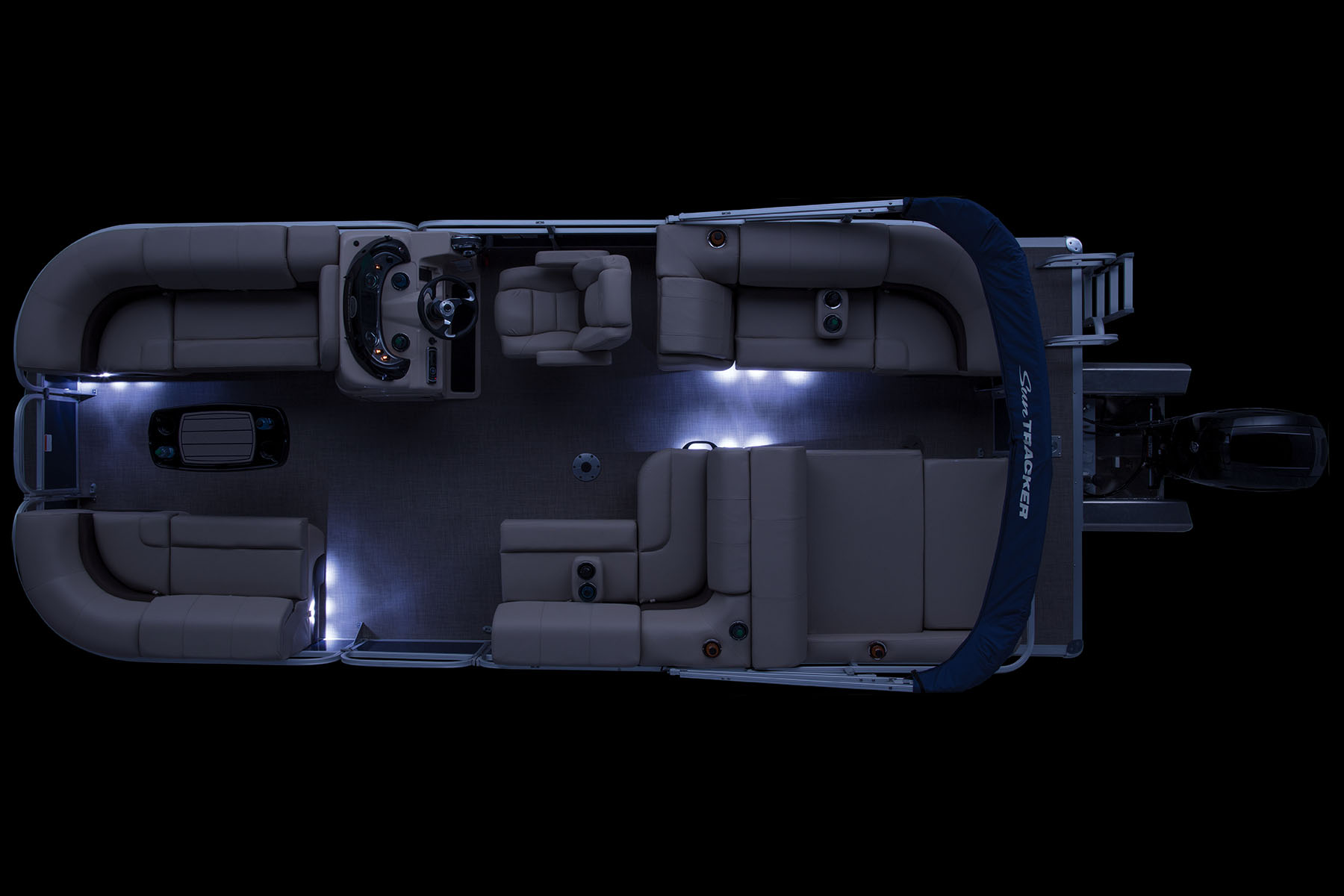

- Interior courtesy lighting
Options
