Limited 2024 Availability

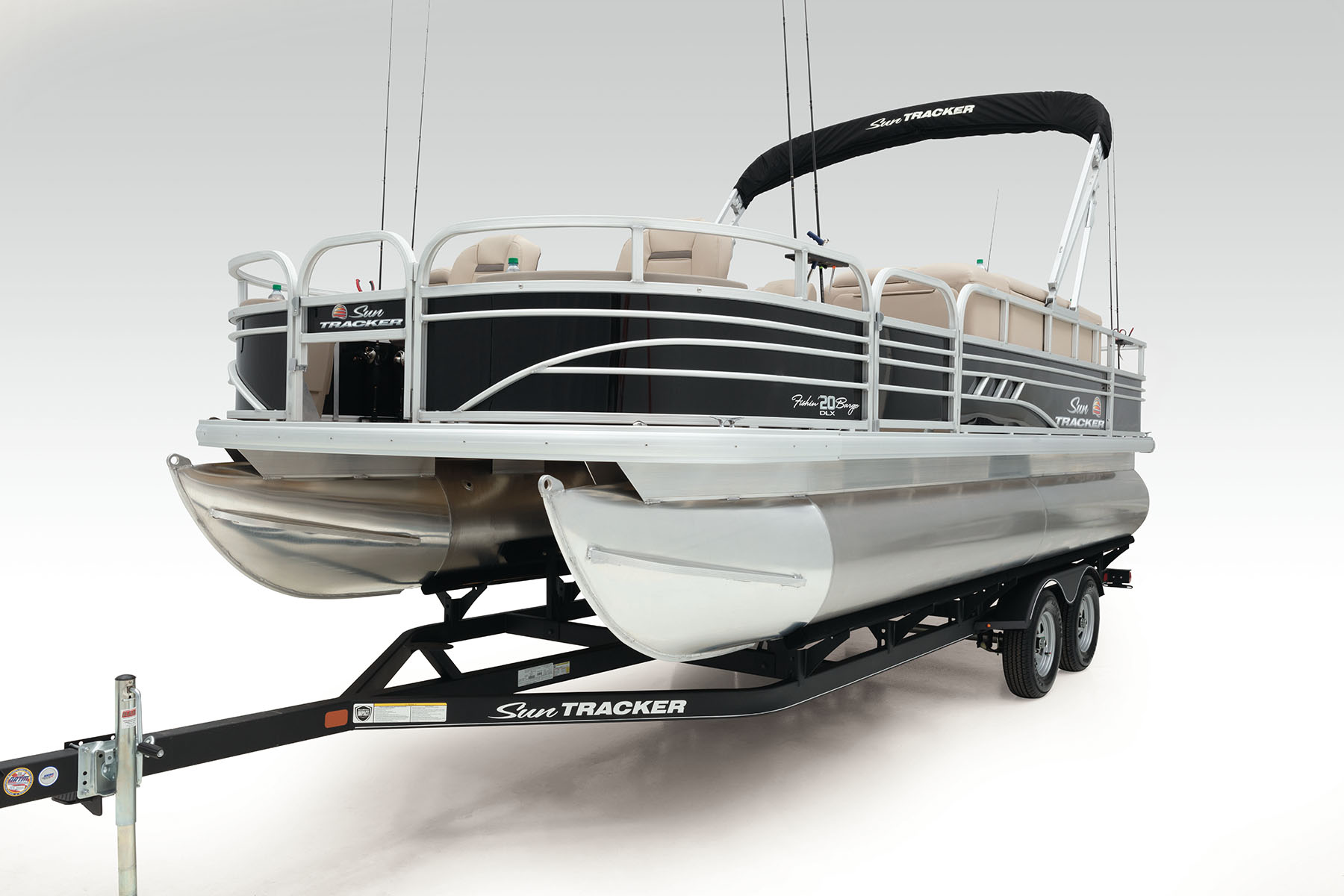

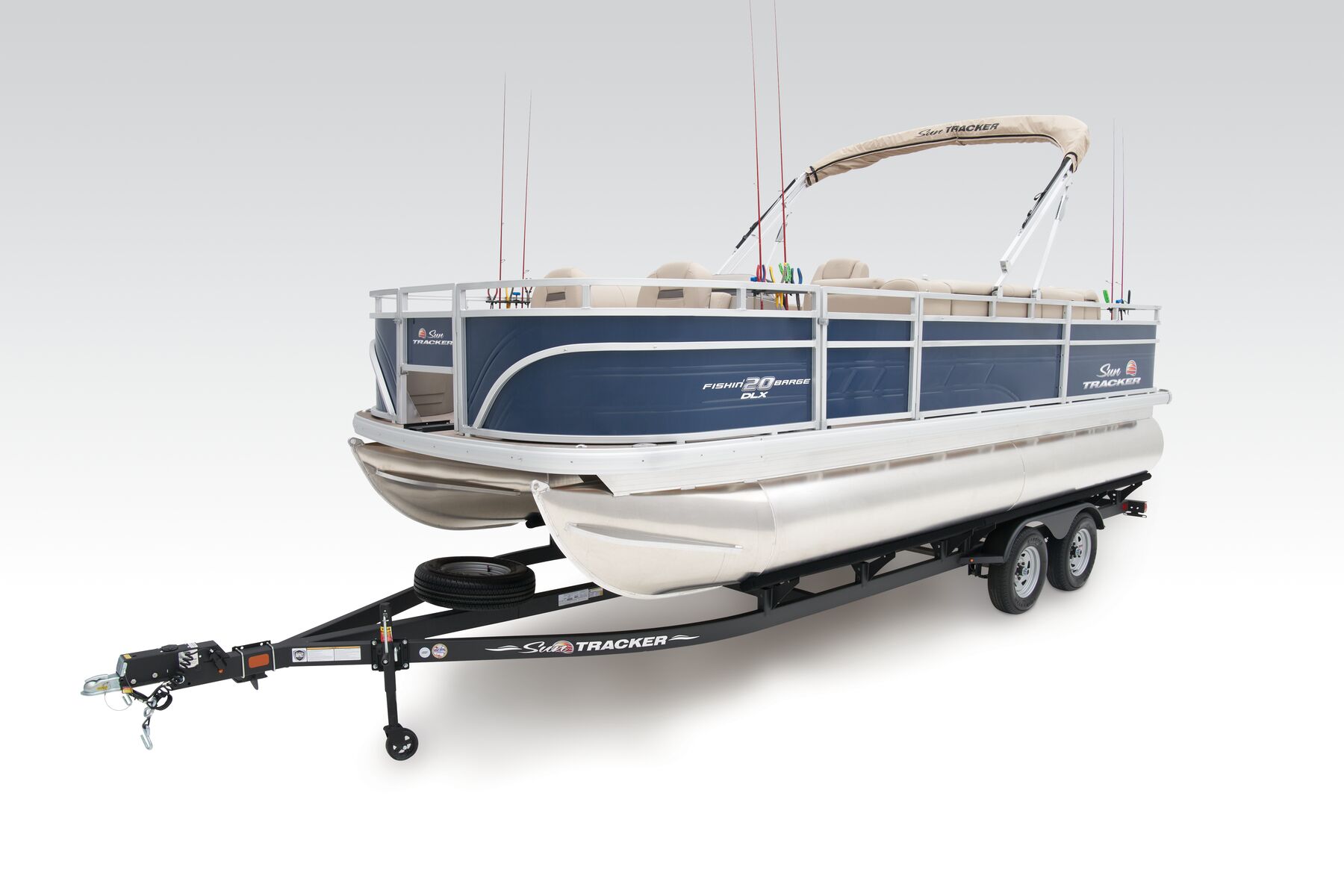

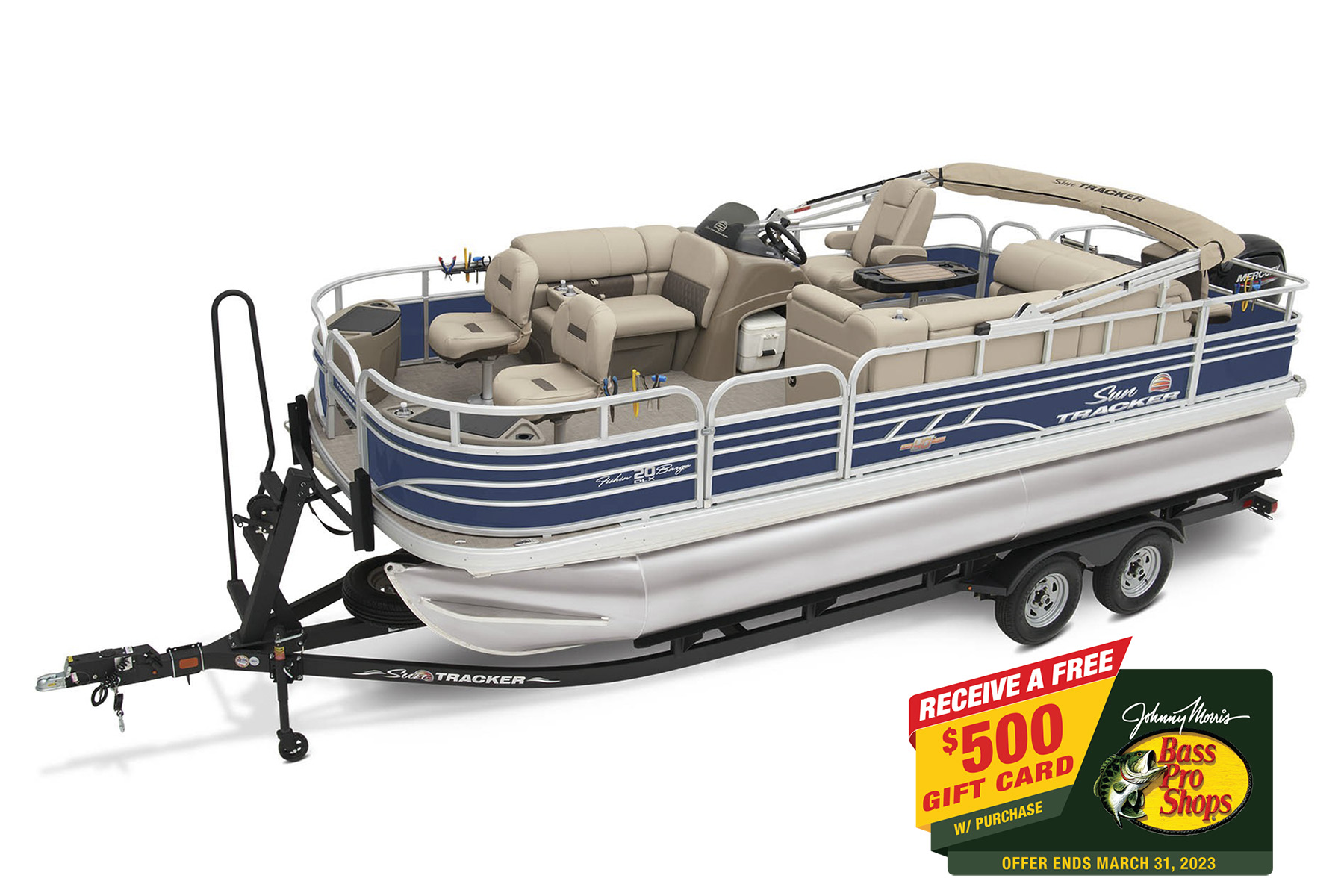

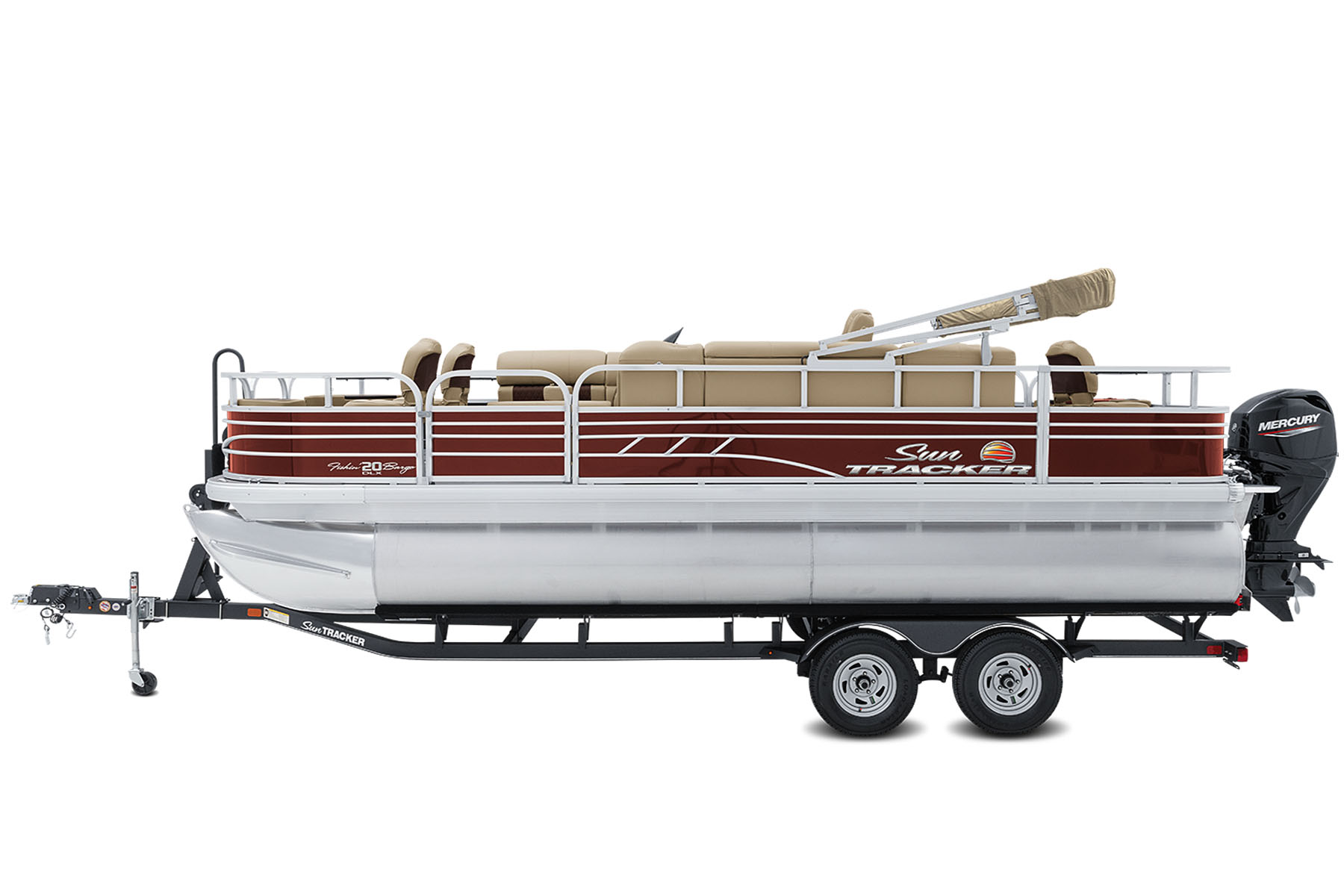

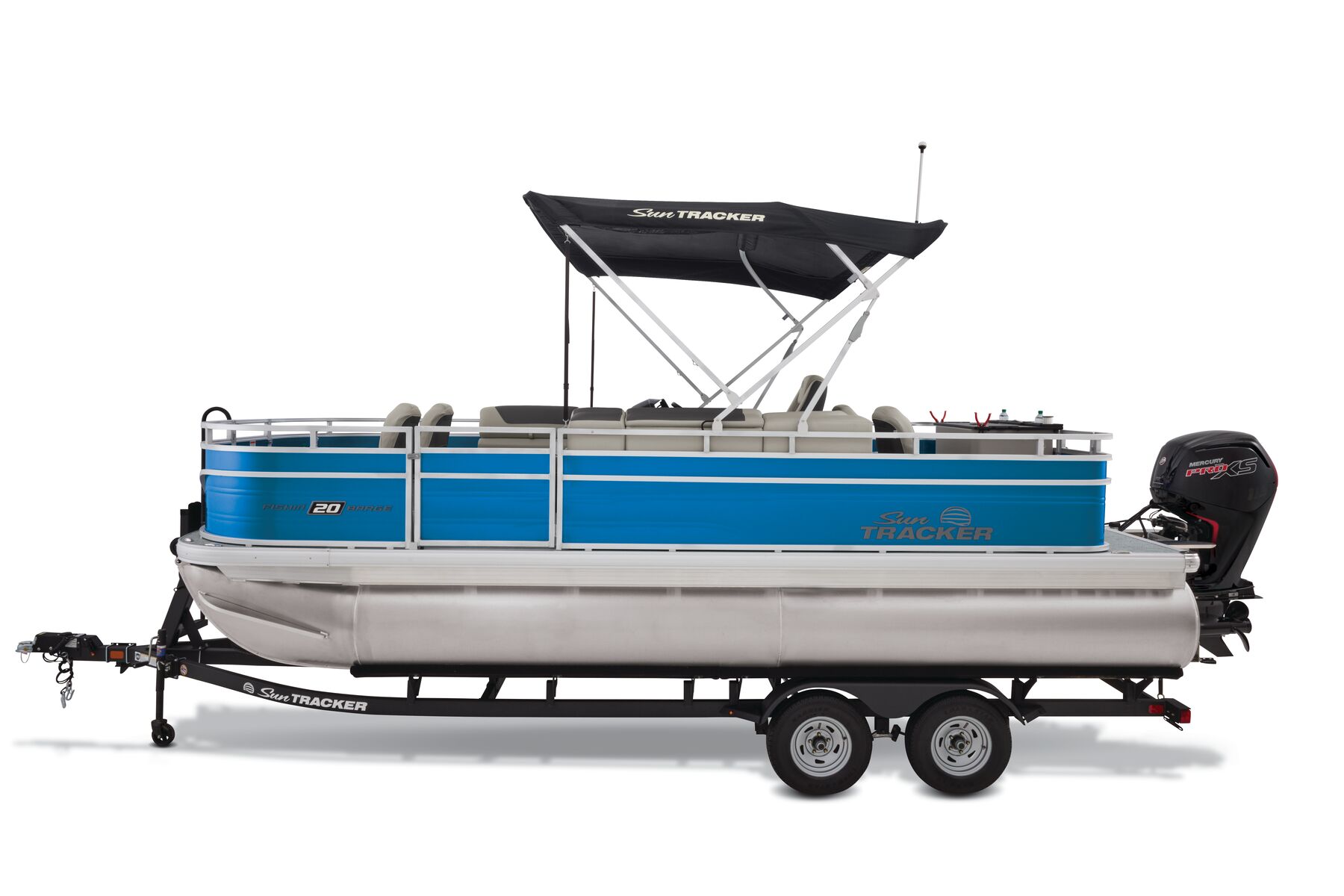

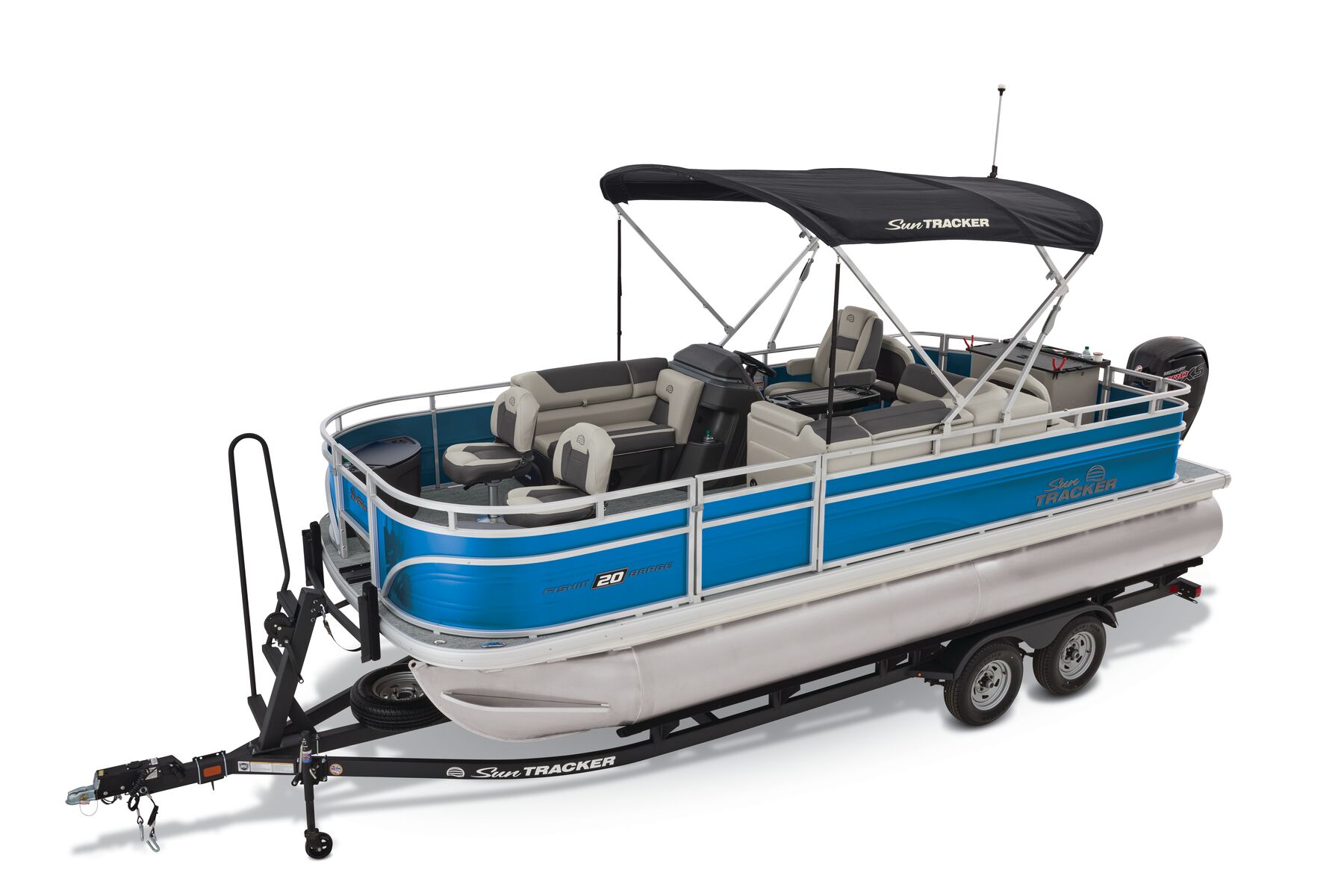

Fishin' Barge 20 DLX
2025
FISHIN' BARGE® 20 DLX
w/ 90 ELPT FourStroke Command Thrust Mercury® FourStroke

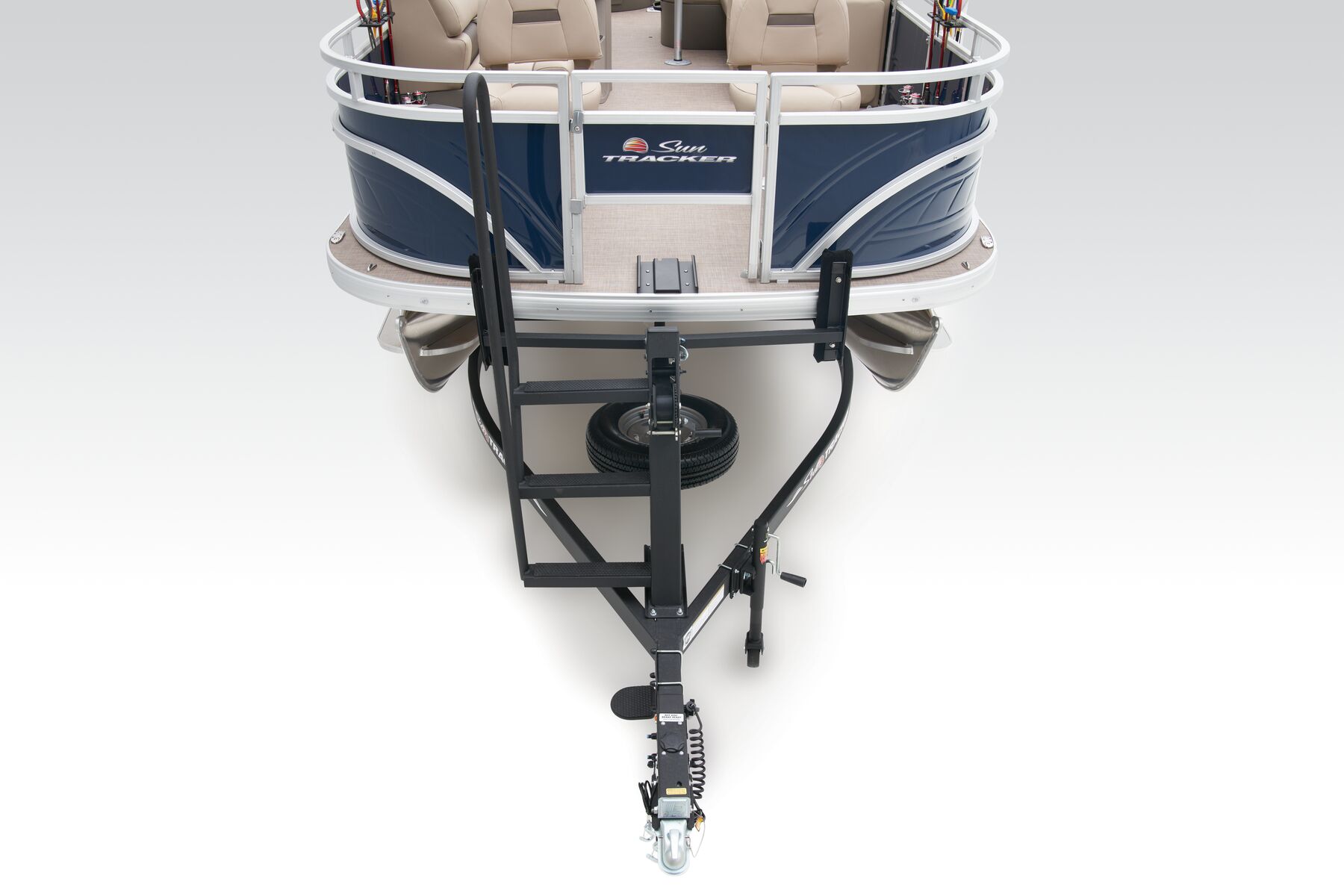

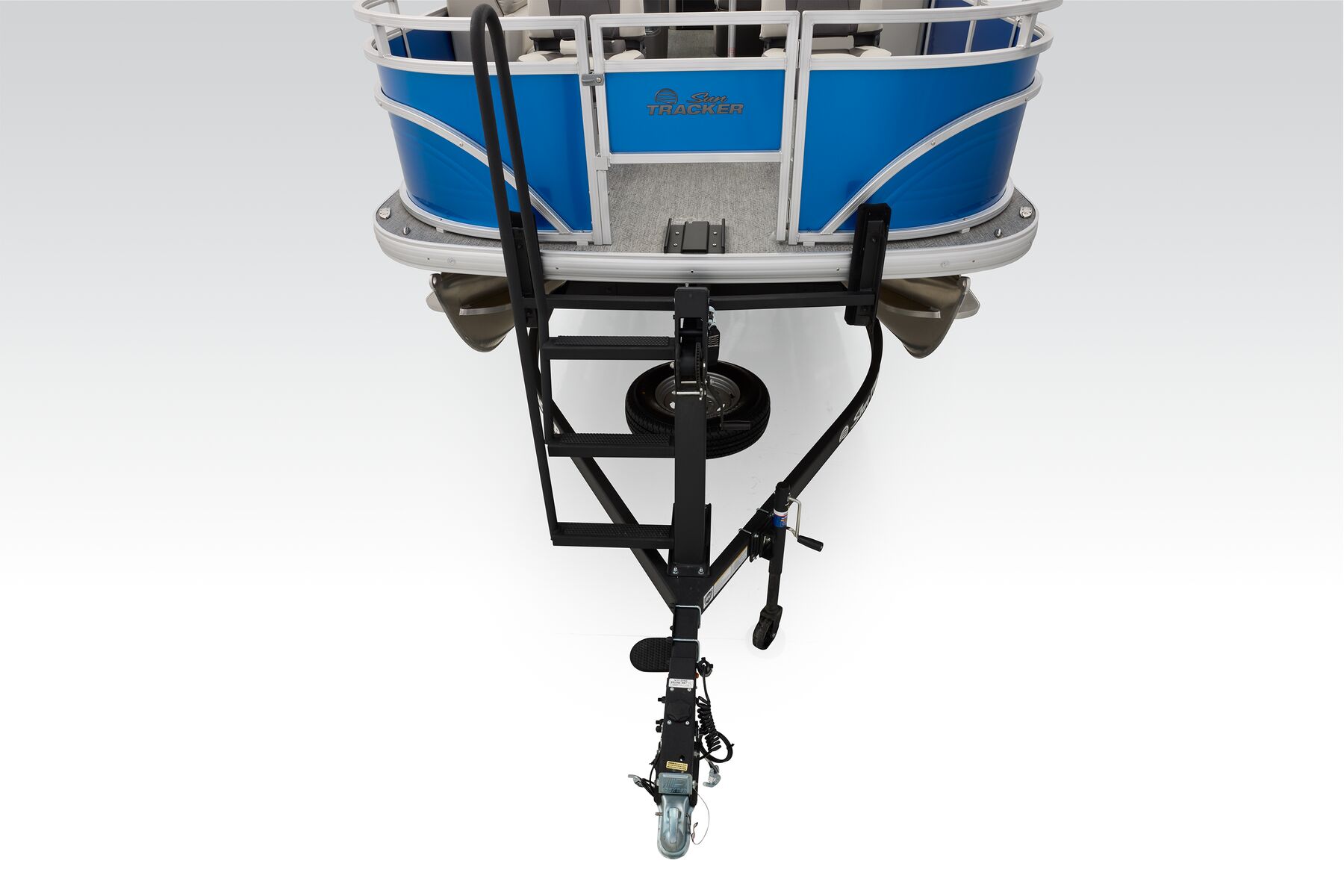

Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$33375
USD
|
Overview

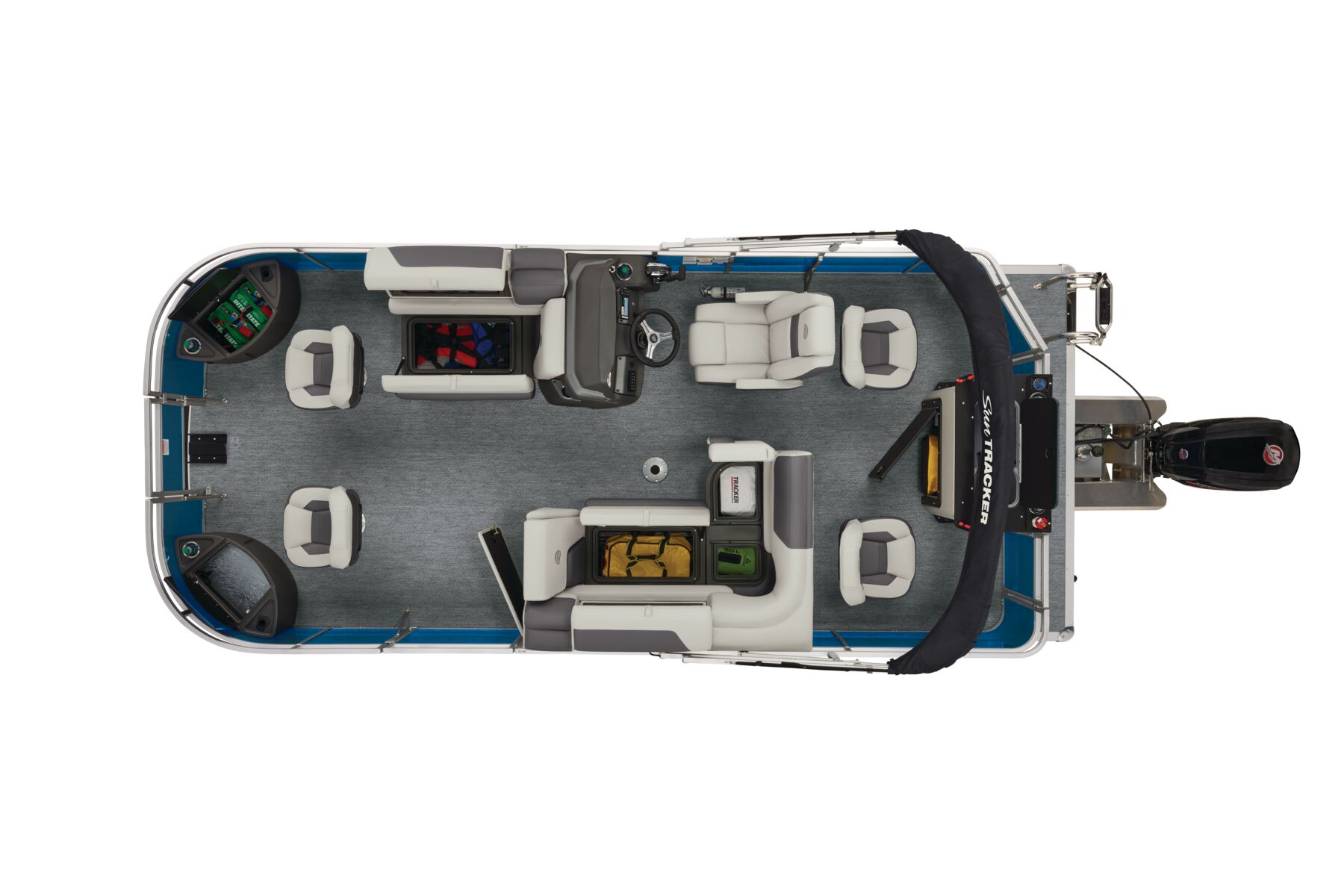

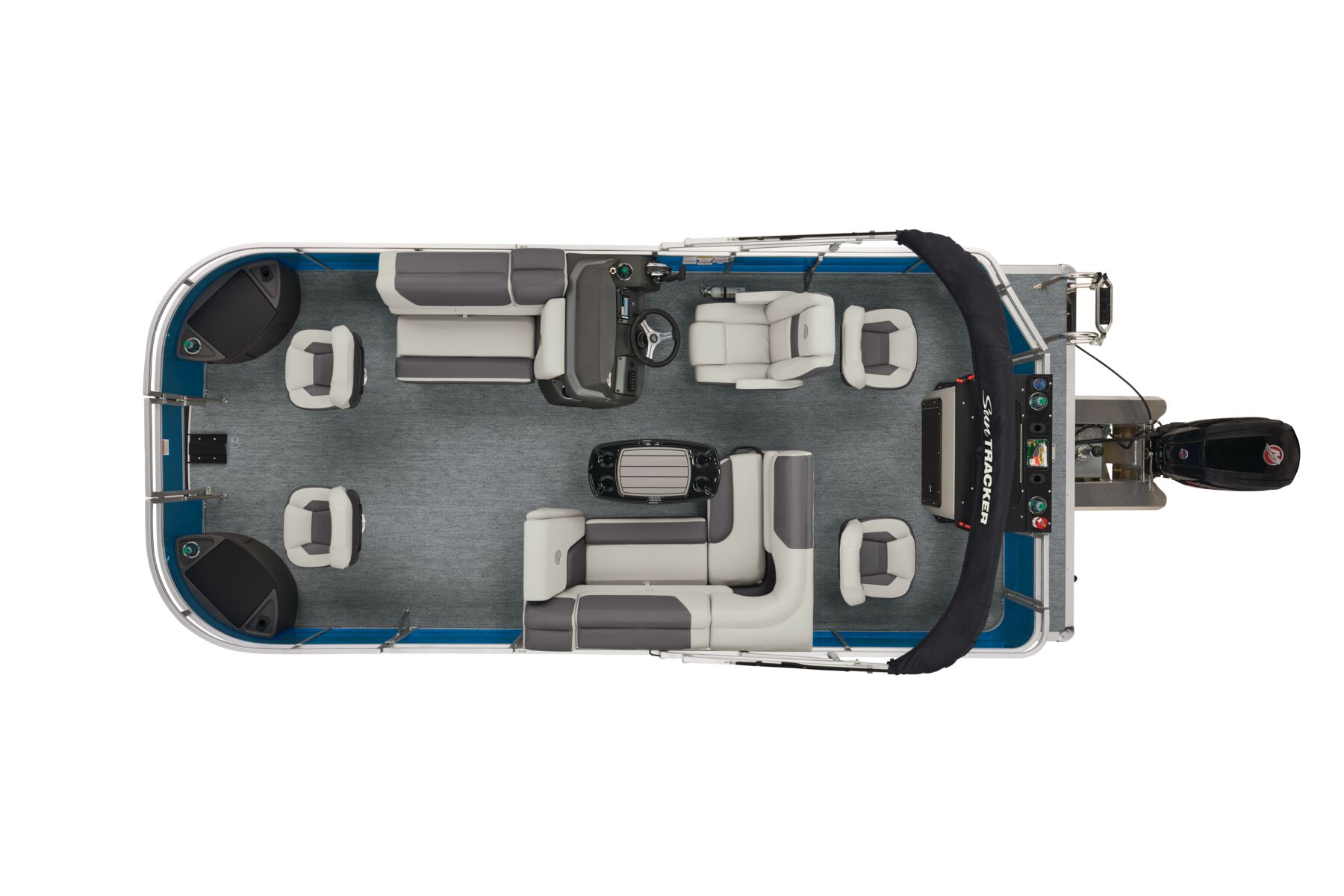

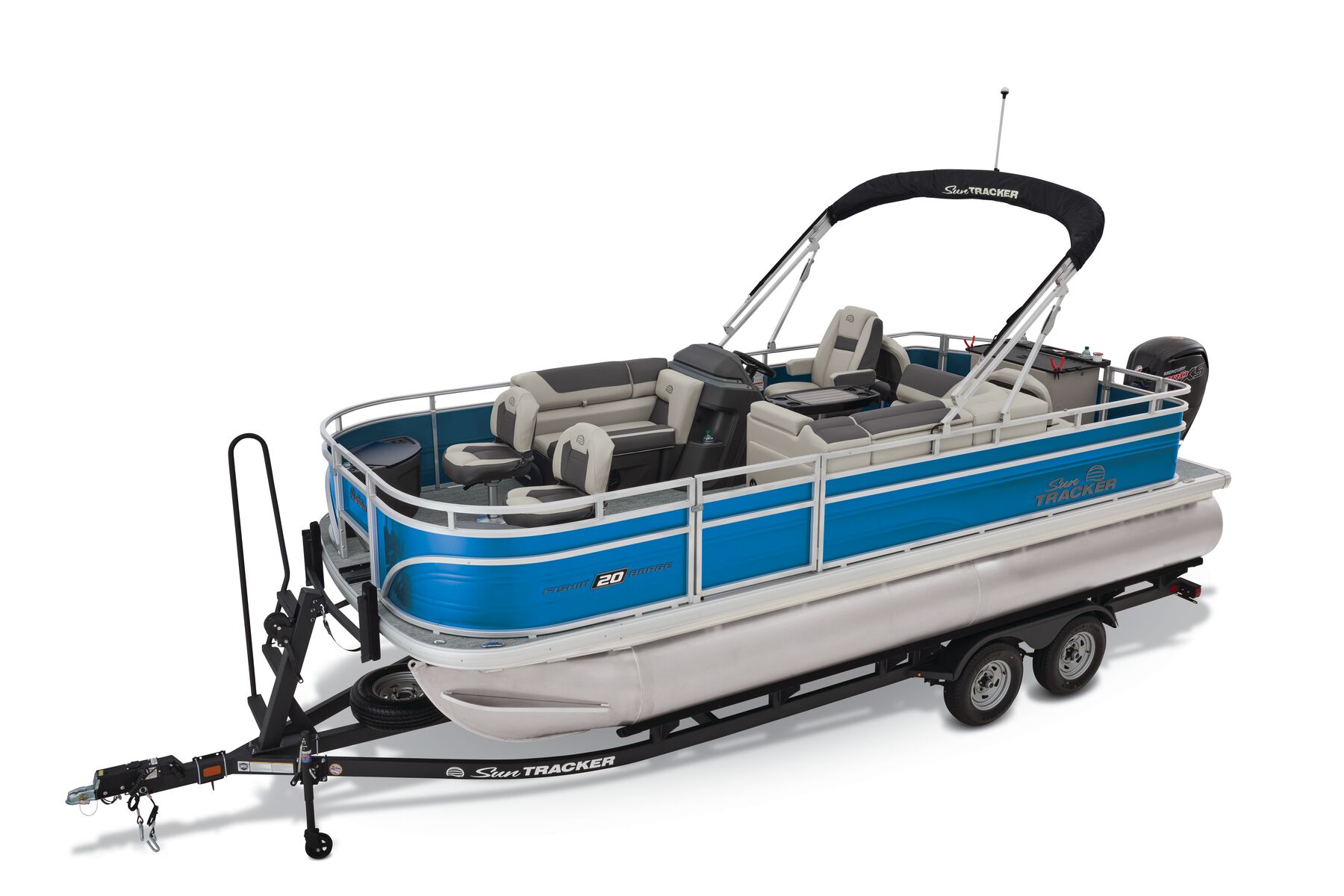

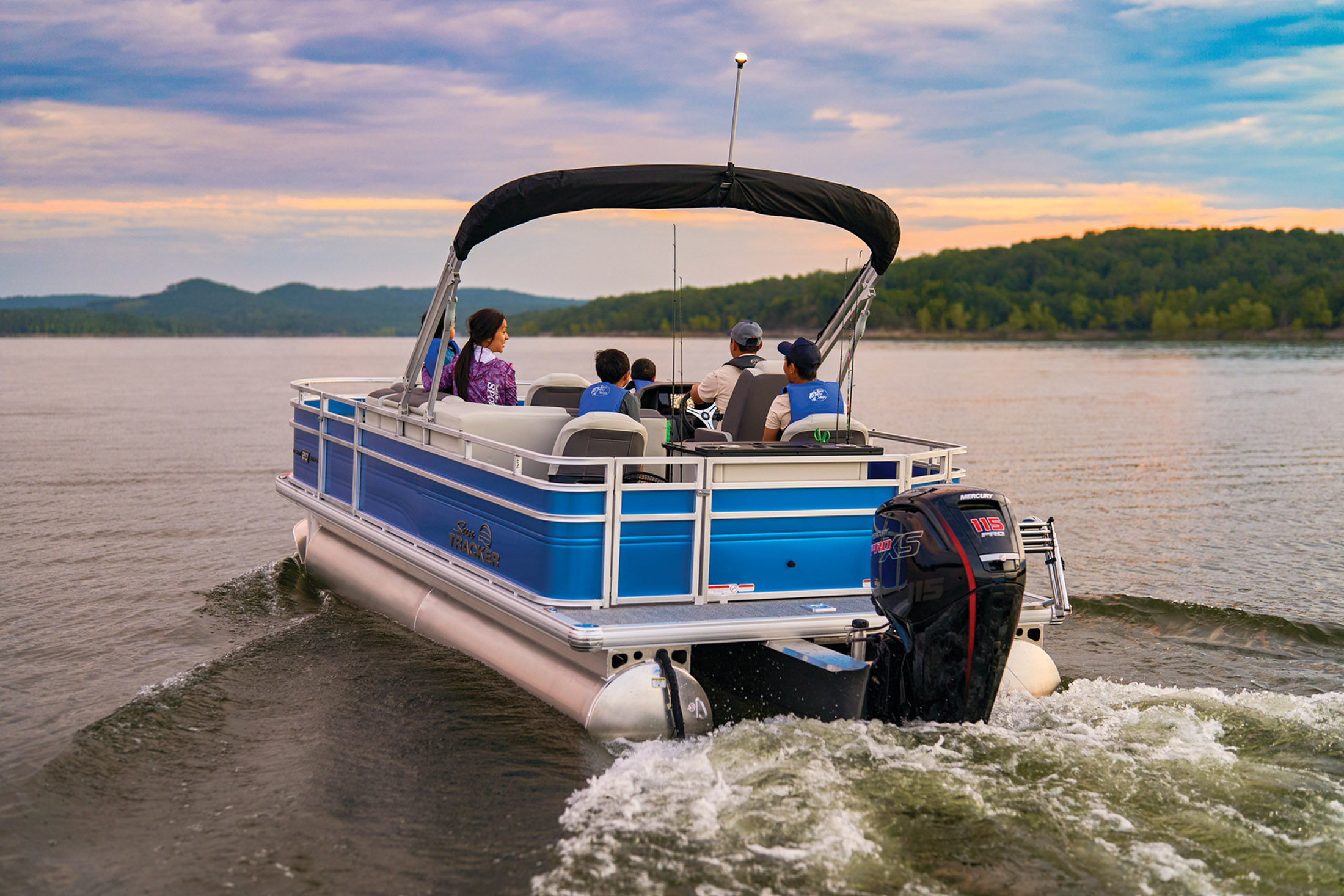

The 2025 FISHIN' BARGE® 20 DLX takes fun seriously, and you will too when you're casting lines with the family from its 19' deck.

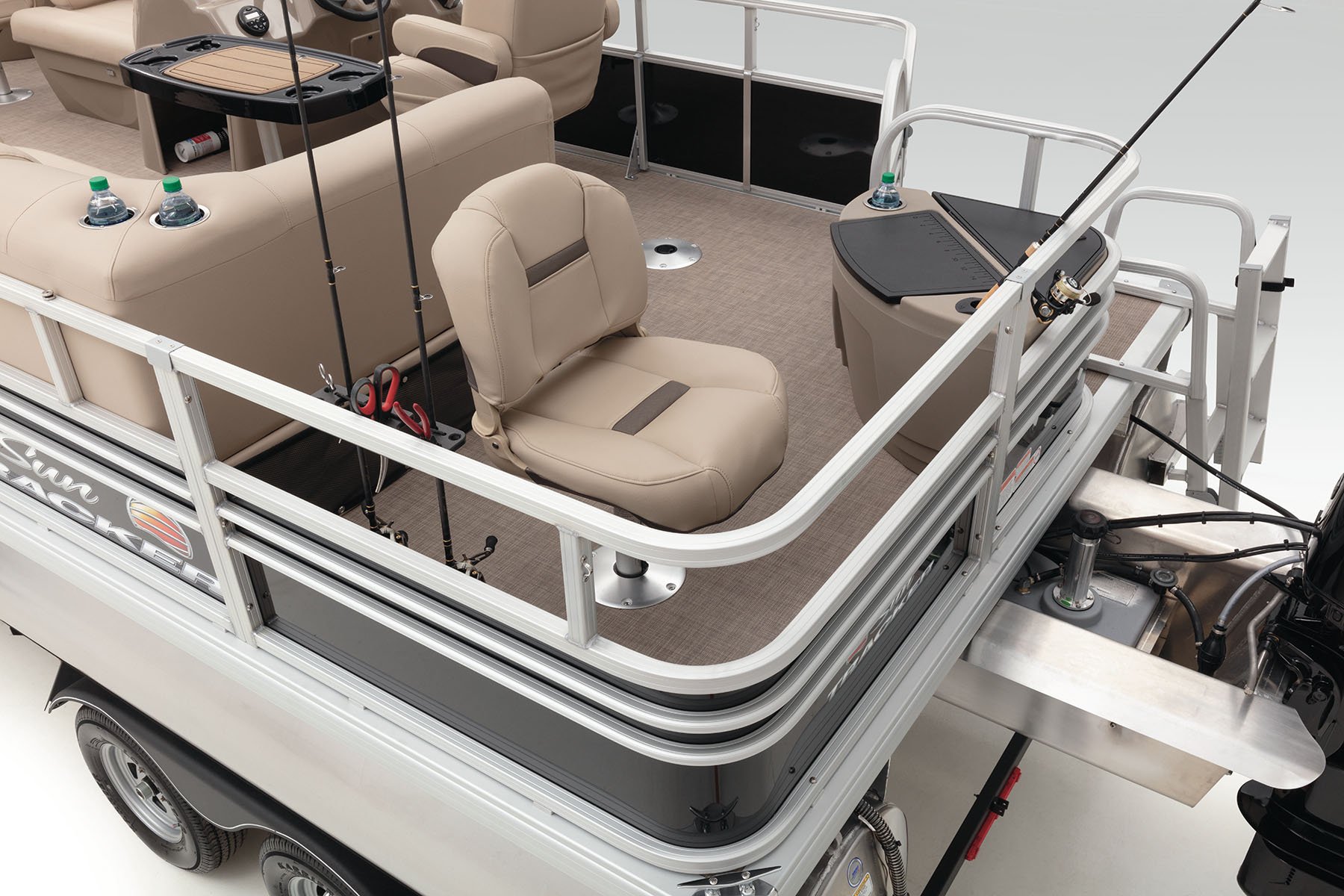

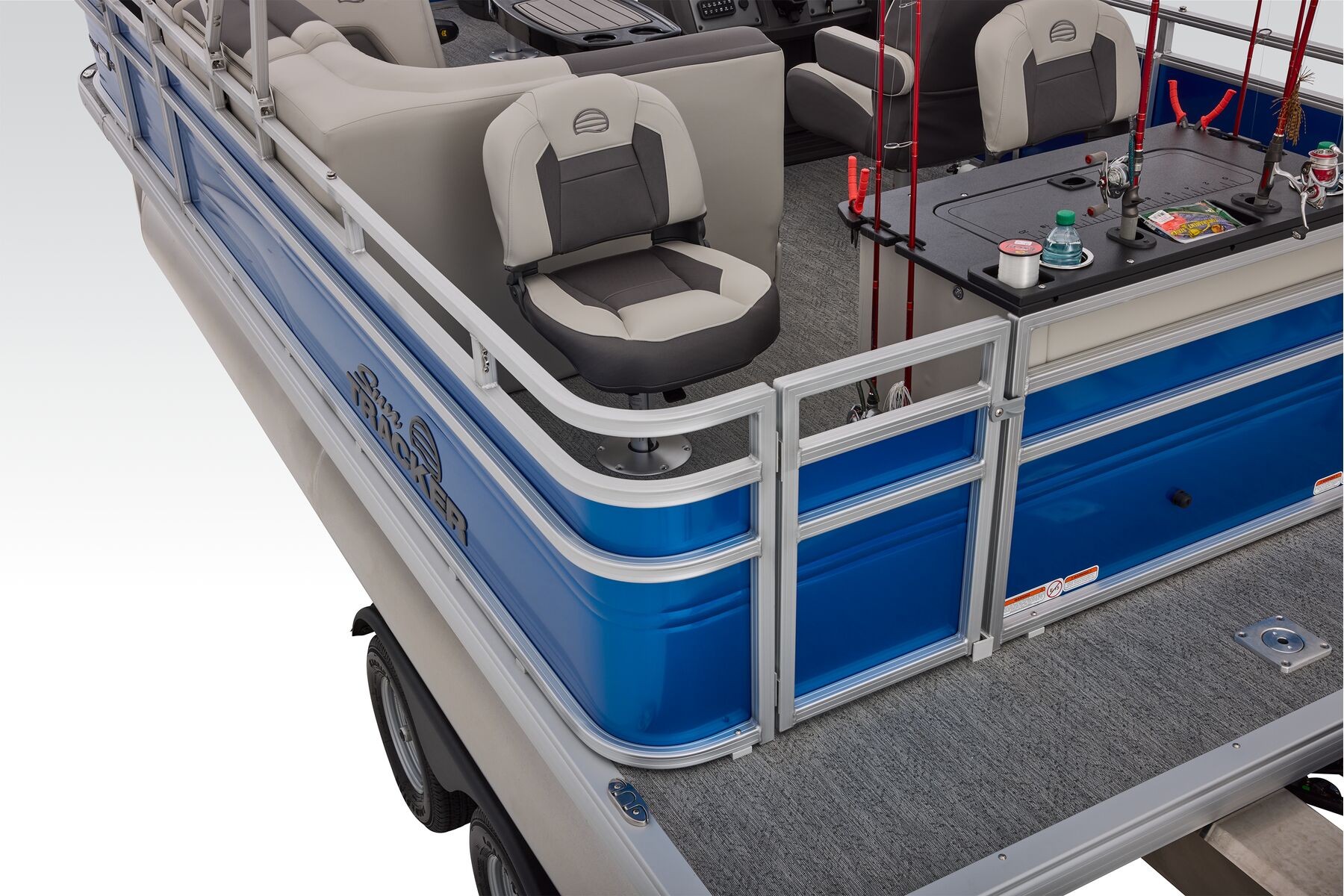

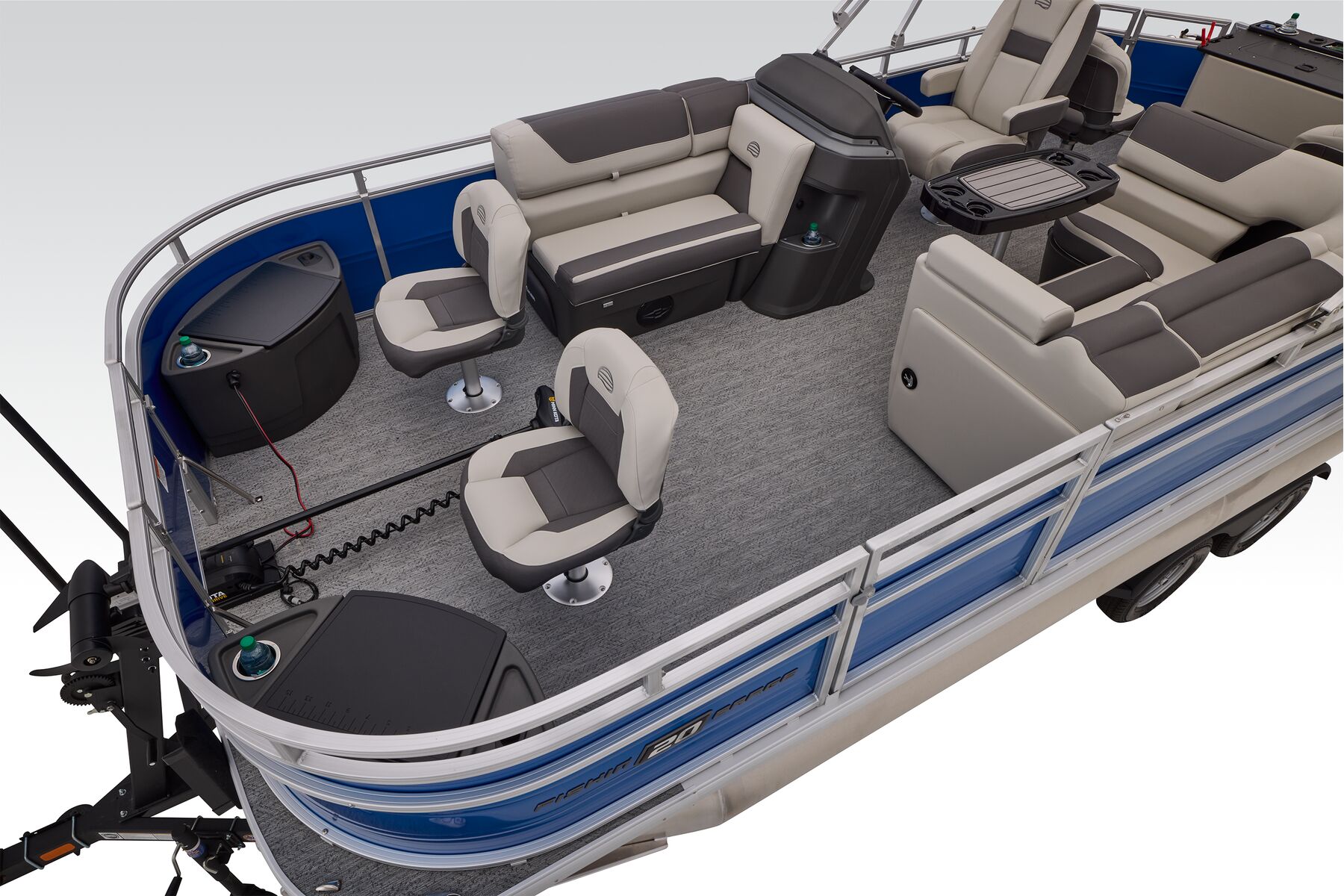

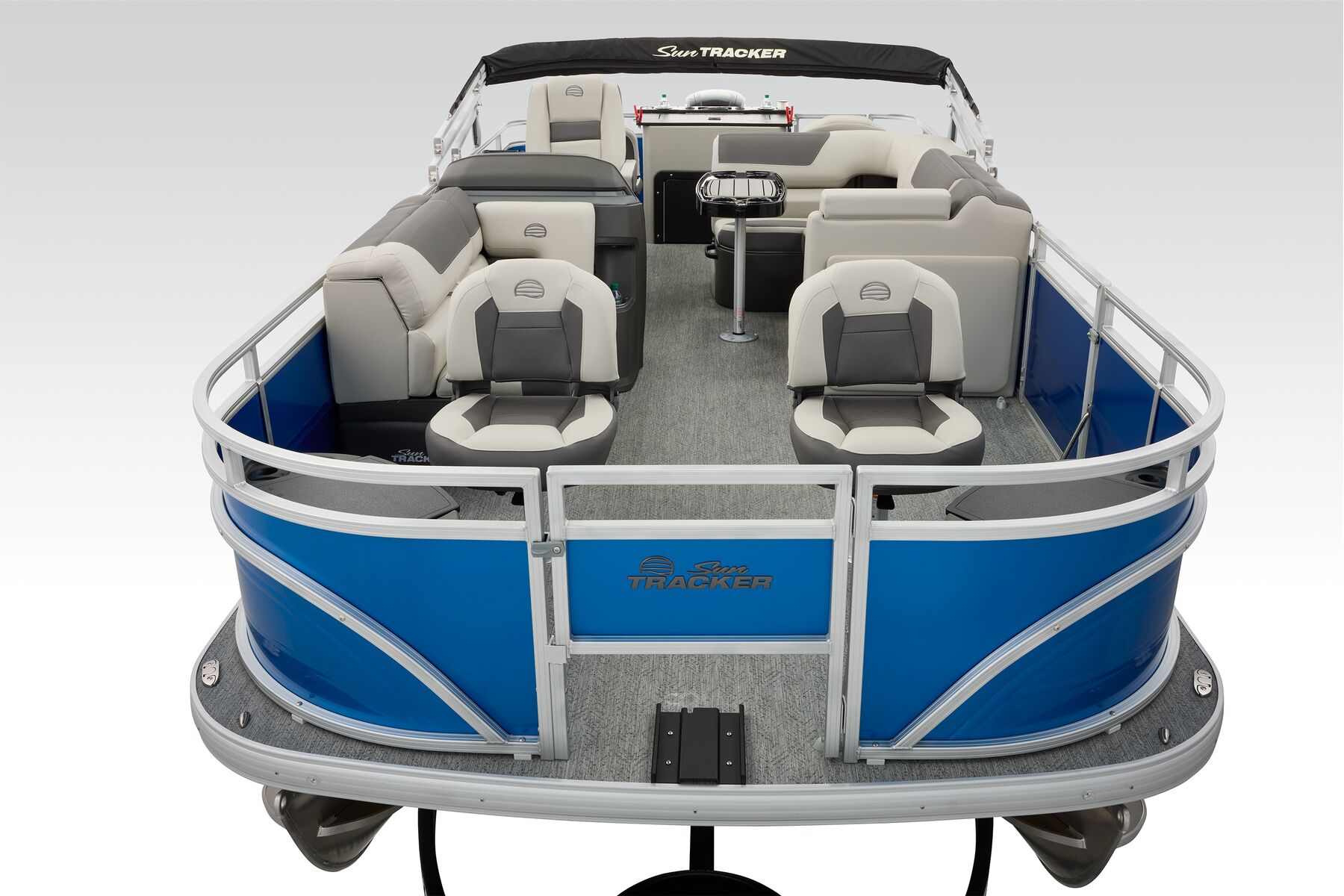

Claim your favorite spot from either the fore or aft fishing decks, which boast 3 casting chairs, 2 aerated livewells, and rail-mounted holders ready to present your rods and tools. Those fishing chairs are removable and foldable to allow for deck customization. Both ends offer extra storage areas for tackle and tools.

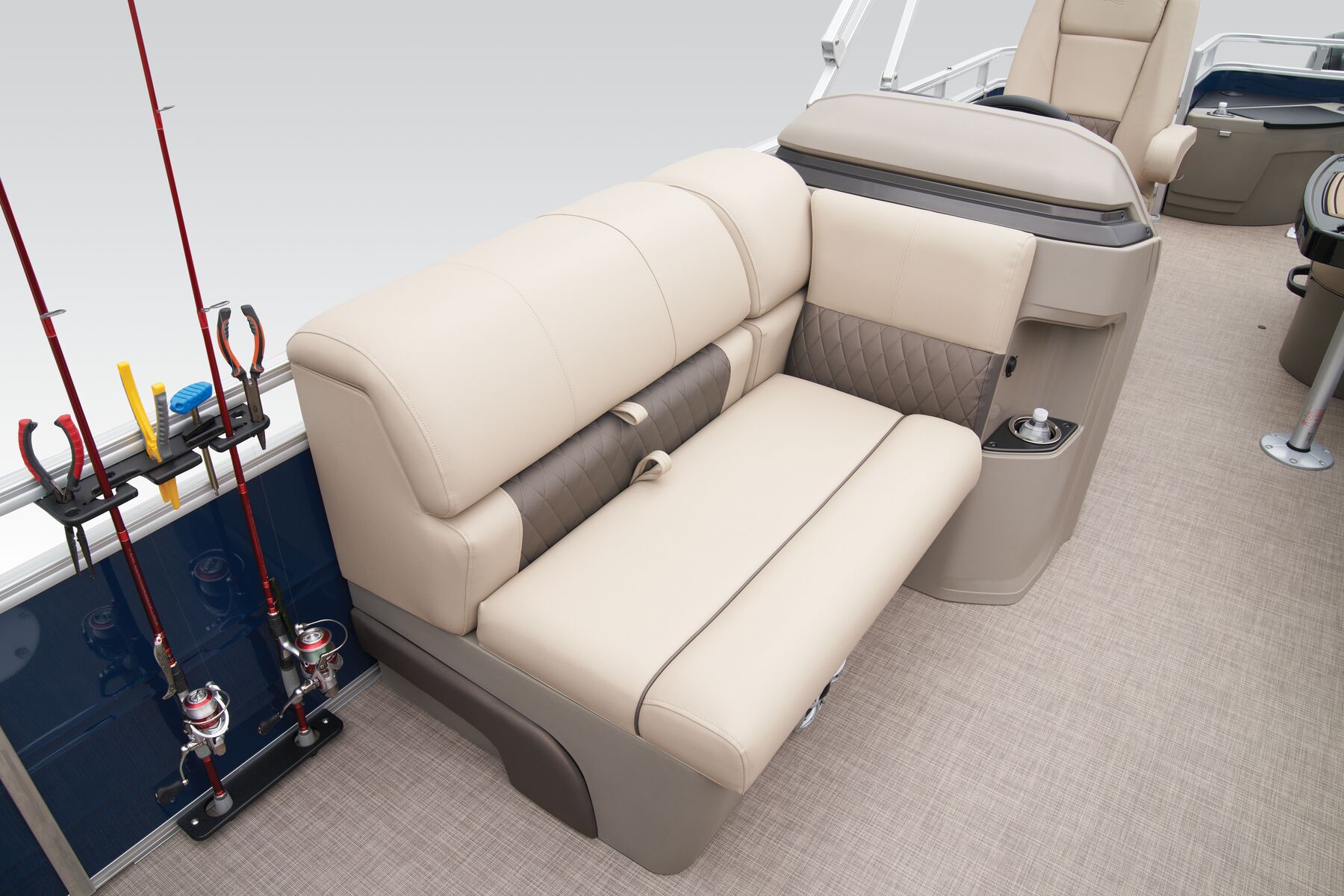

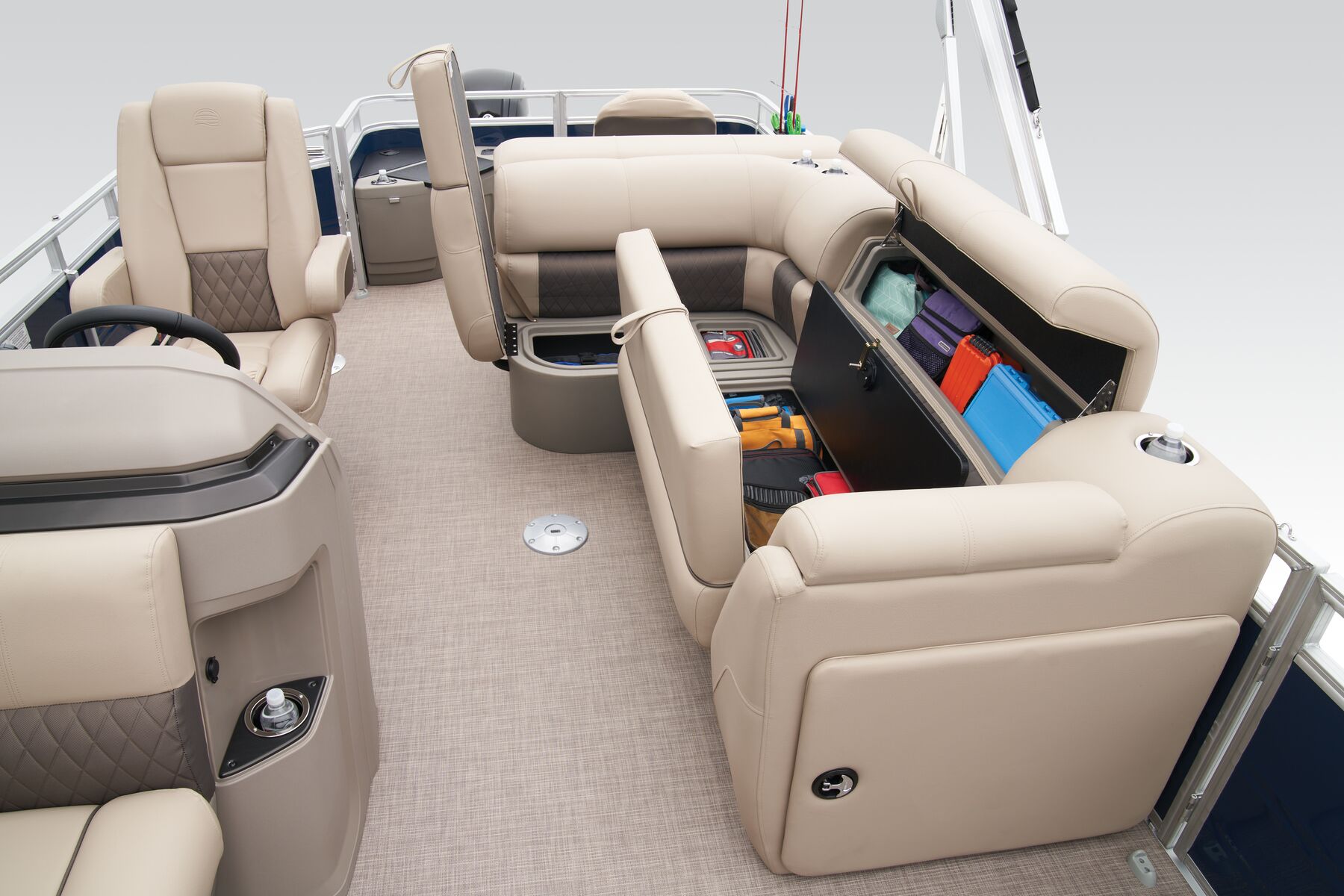

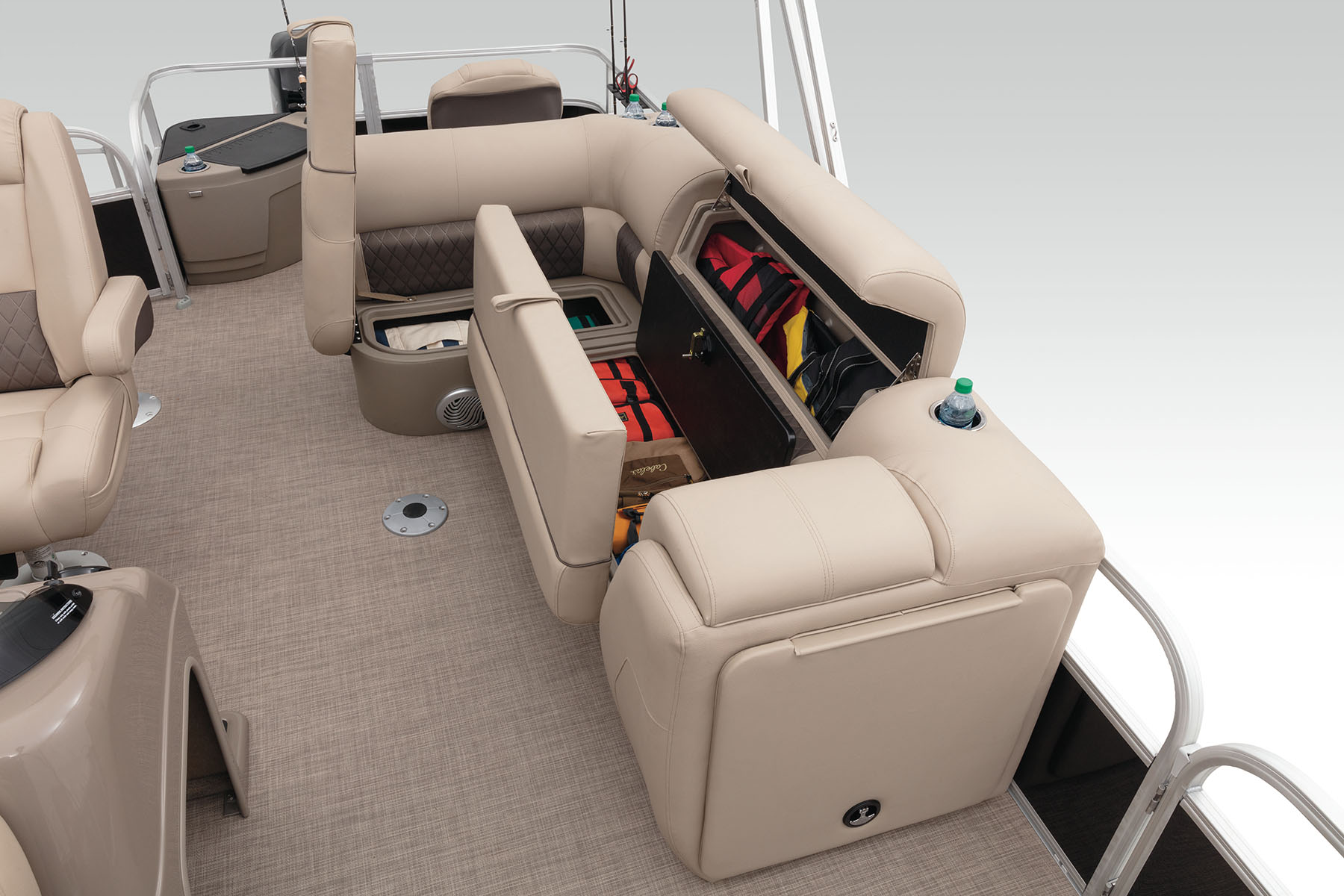

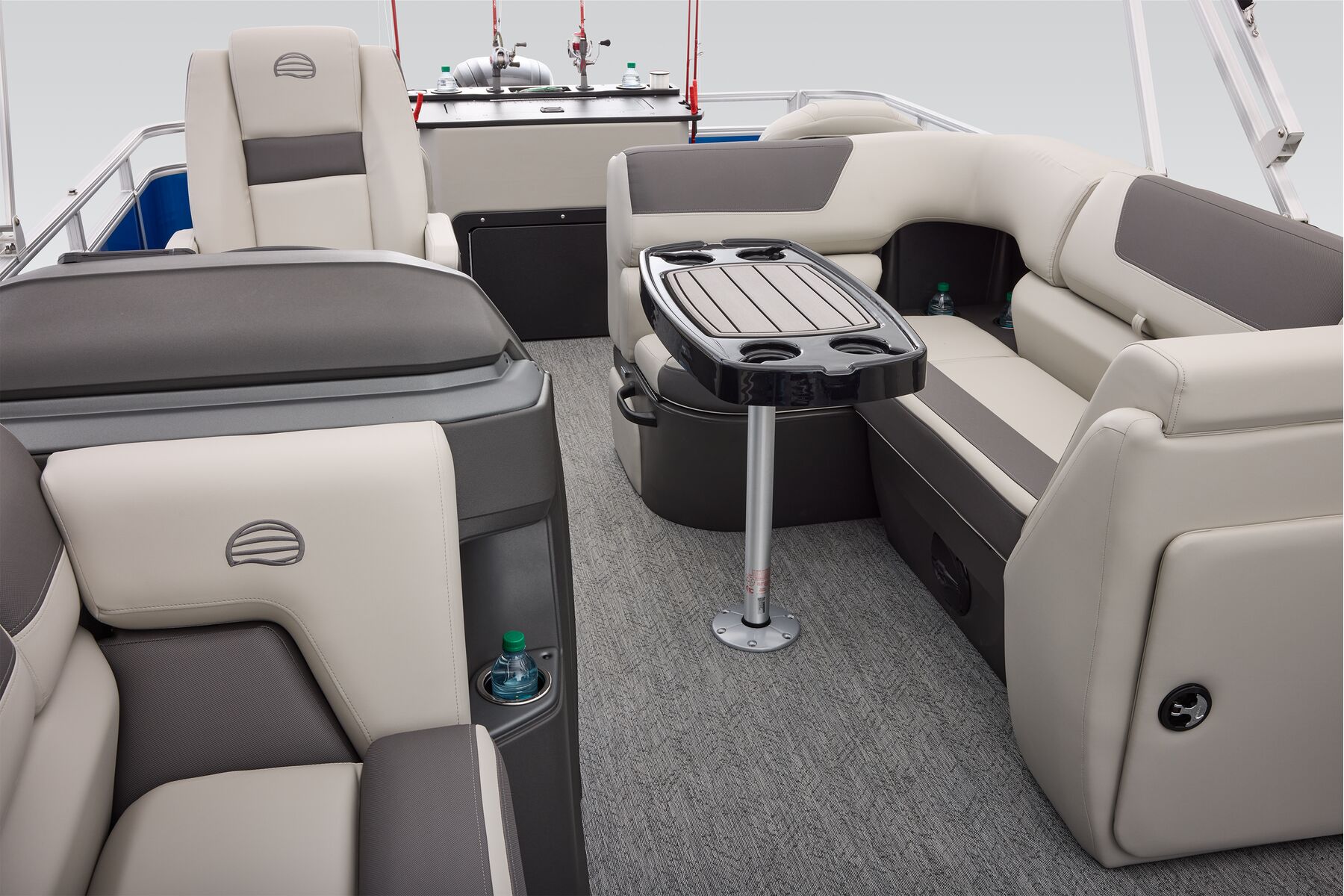

Those who are just along for the ride can relax in the 2 lounge seats with plenty of drink holders and a removable table. Those seats also boast the STOW MORE™ system, which secrets away storage areas under the seat cushions and seat backs. If the sun's beating down on you, put up the 9' QuickLift® bimini top for some cool shade. Create a soundtrack for your trip with the standard Wet Sounds® stereo with Bluetooth® and 2 upholstery speakers. The wraparound fence and 3 inward swinging doors keep kids safe. The rear features a reboarding platform with a telescoping ladder.

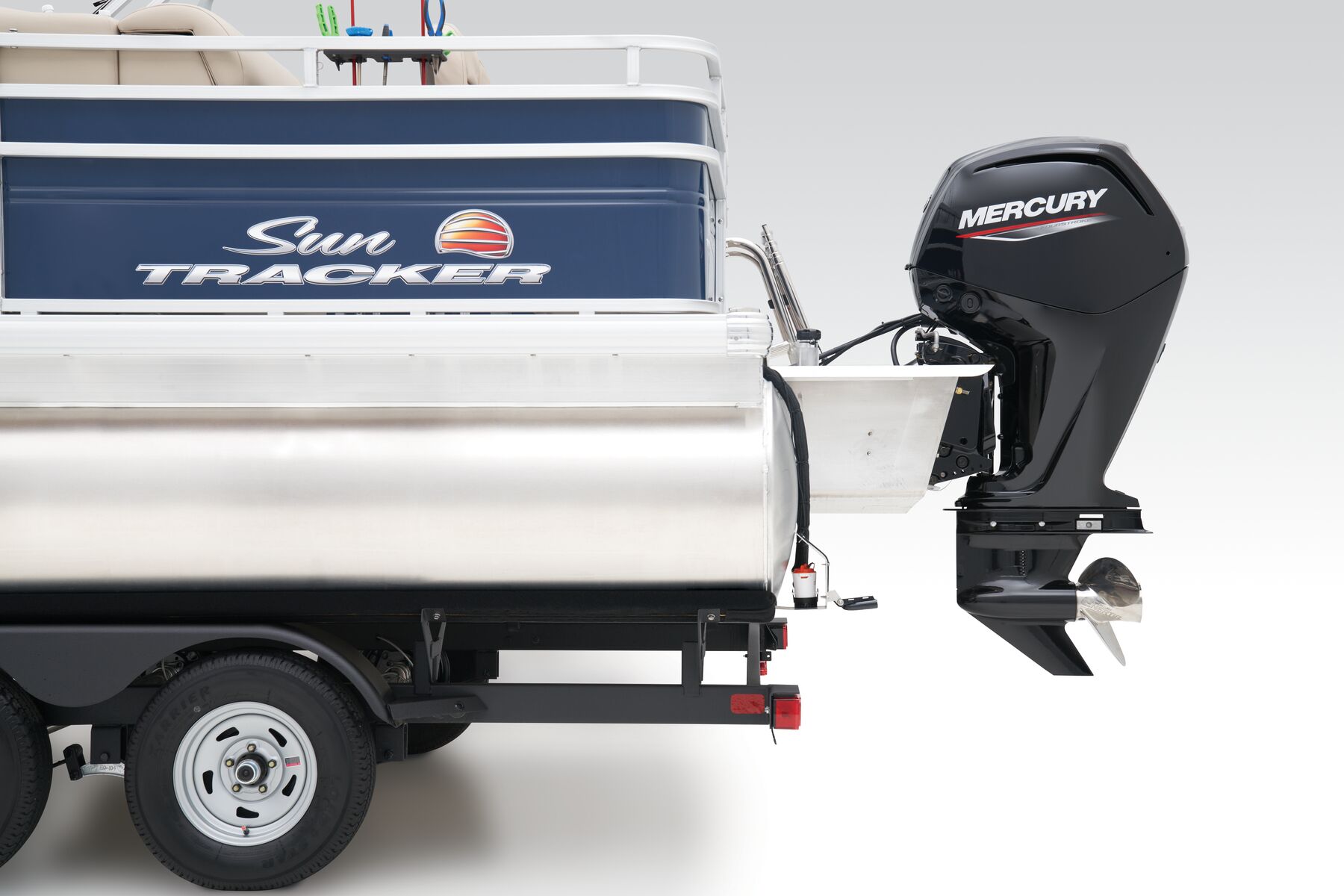

The FISHIN' BARGE® 20 DLX comes standard with a 90hp Mercury® ELPT FourStroke outboard motor and has a recommended maximum 90hp rating.
Key Features
Bimini top
The Bimini top extends to provide 9' of coverage, and it has a powered system for easy deployment!

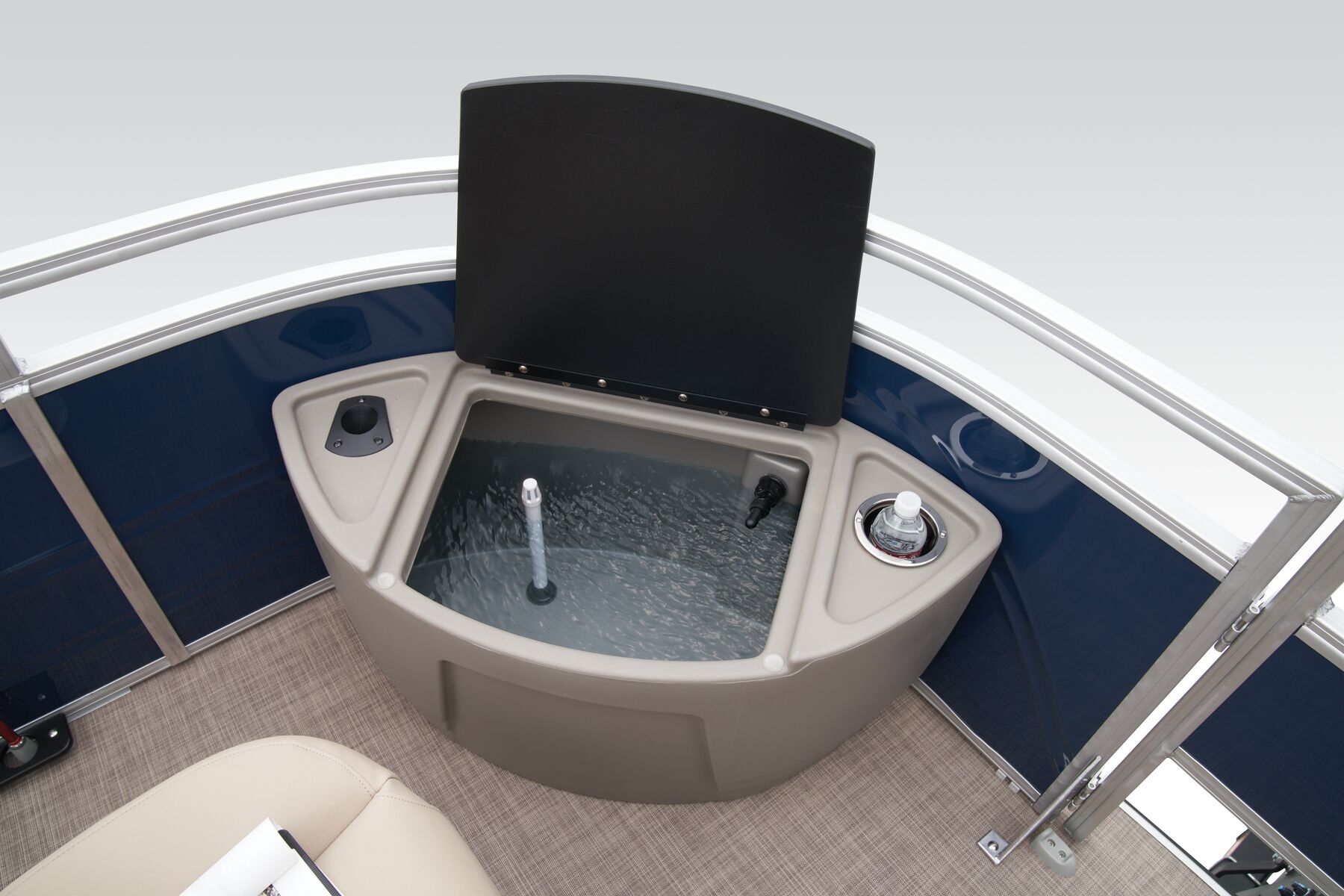

Livewells
In addition to fishing chairs and rod holders, this model features two aerated livewells.

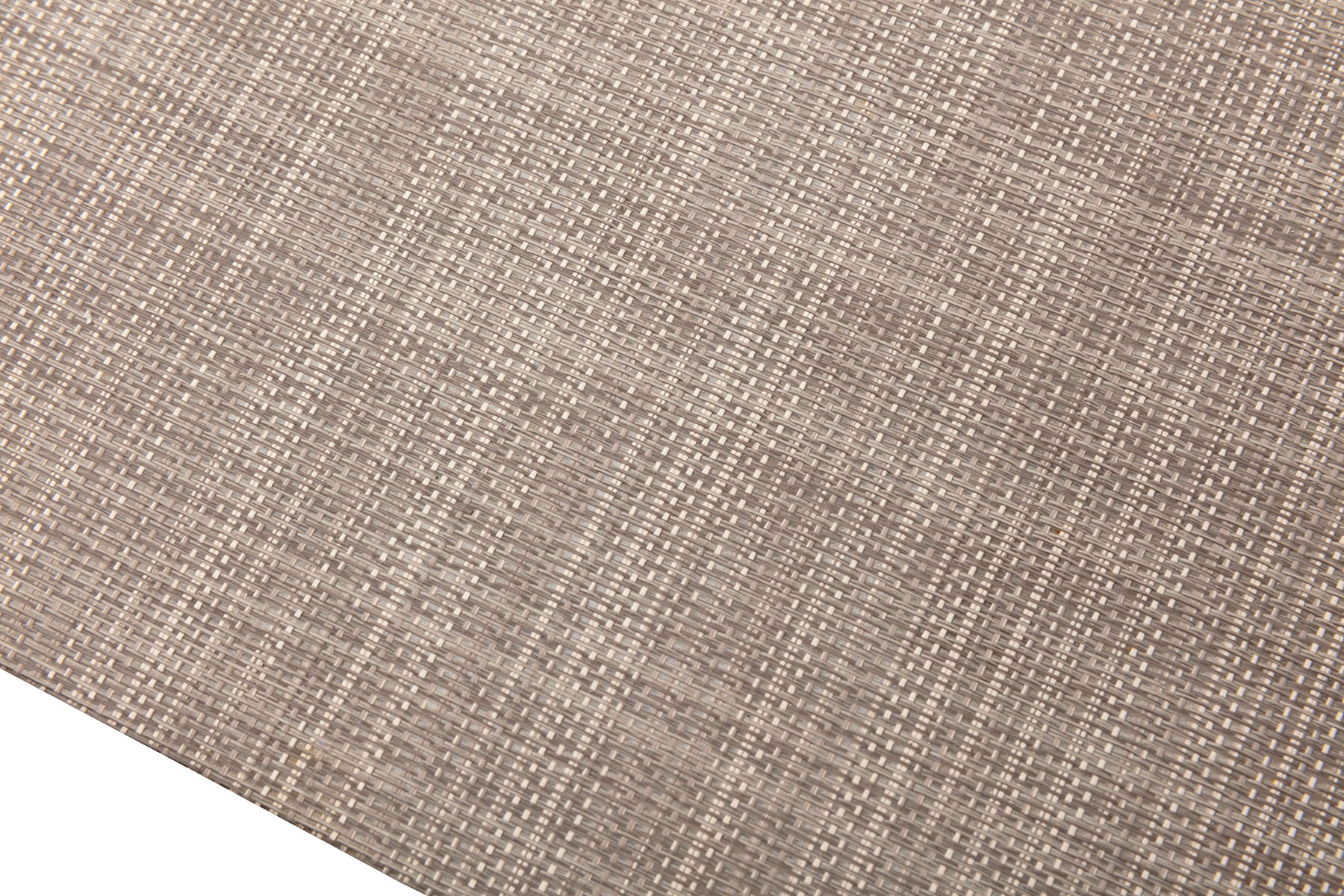

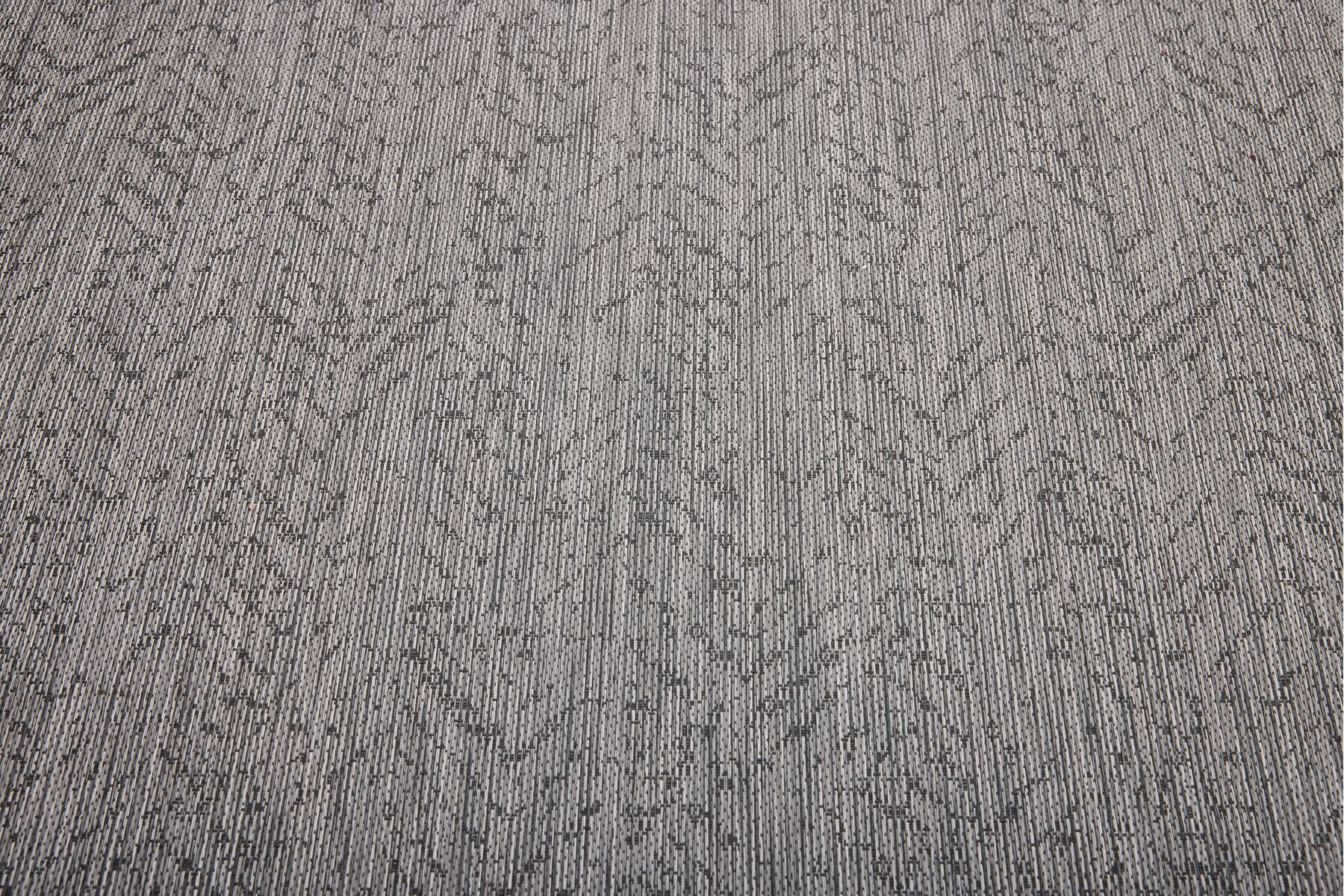

Woven floor
The vinyl floor throughout provides an easy-to-clean surface.
Gallery
Specifications
| Length | 6.68 m | 21' 11'' |
| Deck Length | 6.05 m | 19' 10'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 115 HP | |
| Fuel Capacity | 121.5 L | 32.1 gal. |
| Pontoon Log Length | 6.2 m | 20' 4'' |
| Pontoon Log Diameter | 60.96 cm | 24'' |
| Pontoon Log Material | 0.080 5052 marine alloy | |
| Max. Person Capacity | 10 persons |
| Max. Person Weight | 621.42 kg | 1370 lbs. |
| Max. Person, Motor & Gear Weight | 861.83 kg | 1900 lbs. |
| Interior Depth | 60.96 cm | 24'' |
| Average Dry Weight | 879.97 kg | 1940 lbs. |
| Average Package Weight | 1635.2 kg | 3605 lbs. |
| Package Height | 2.59 m | 8' 6'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.25 m | 30' 4'' |
| Storage Length | 9.25 m | 30' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 9.9 ELPT FourStroke Command Thrust ProKicker | - |
$26940 USD
|
Select Dealer | ||
| 20 ELPT FourStroke | - |
$27590 USD
|
Select Dealer | ||
| 25 ELPT FourStroke | - |
$28530 USD
|
Select Dealer | ||
| 60 ELPT FourStroke Command Thrust | - |
$30995 USD
|
Select Dealer | ||
| 90 ELPT FourStroke Command Thrust | 21-29 mph |
$33375 USD
|
Select Dealer | ||
| 115 ELPT FourStroke Command Thrust | - |
$34245 USD
|
Select Dealer | ||
| Mercury® Pro XS® | |||||
| 115 ELPT Pro XS® FourStroke Command Thrust | - |
$35095 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
- NMMA® certified

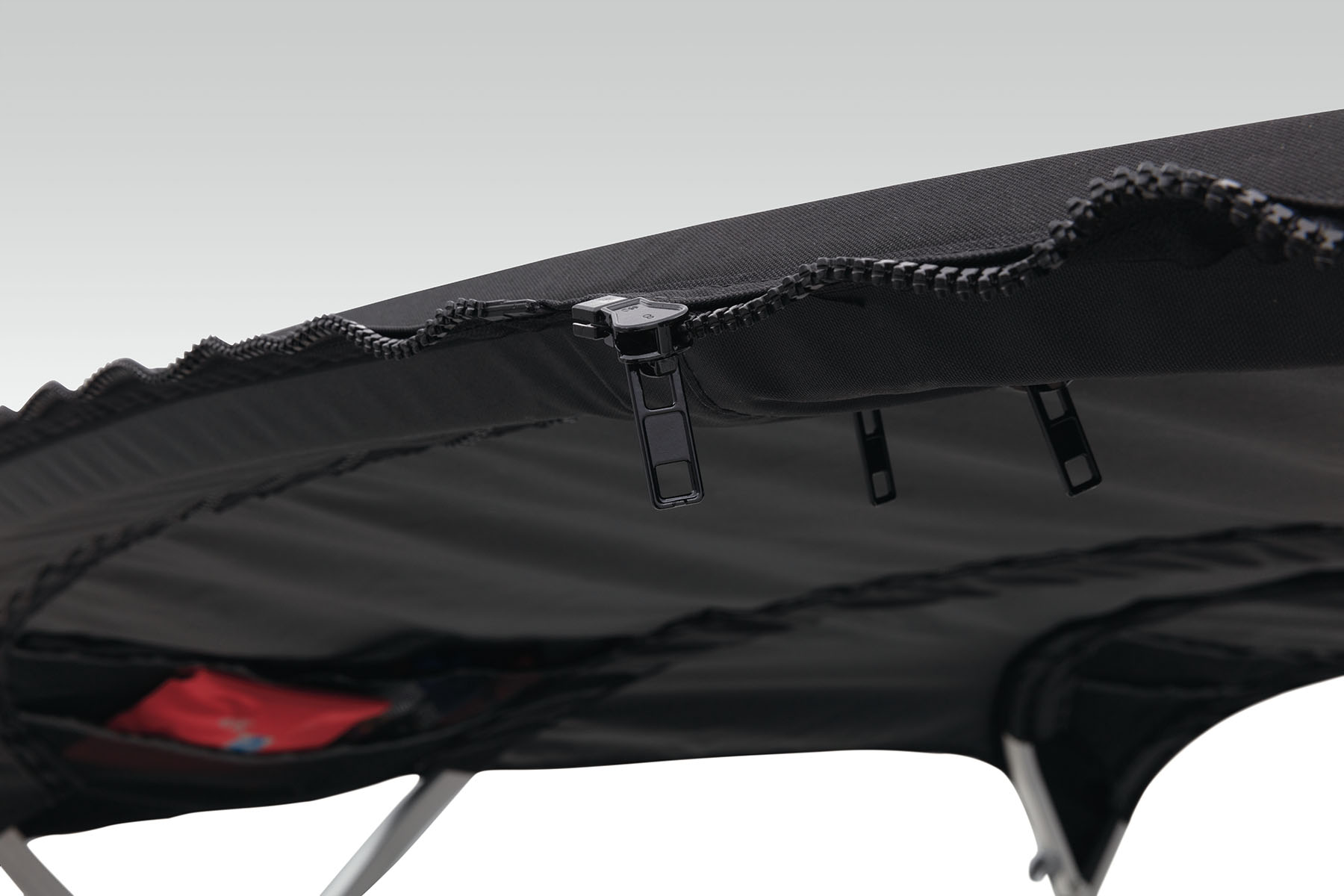

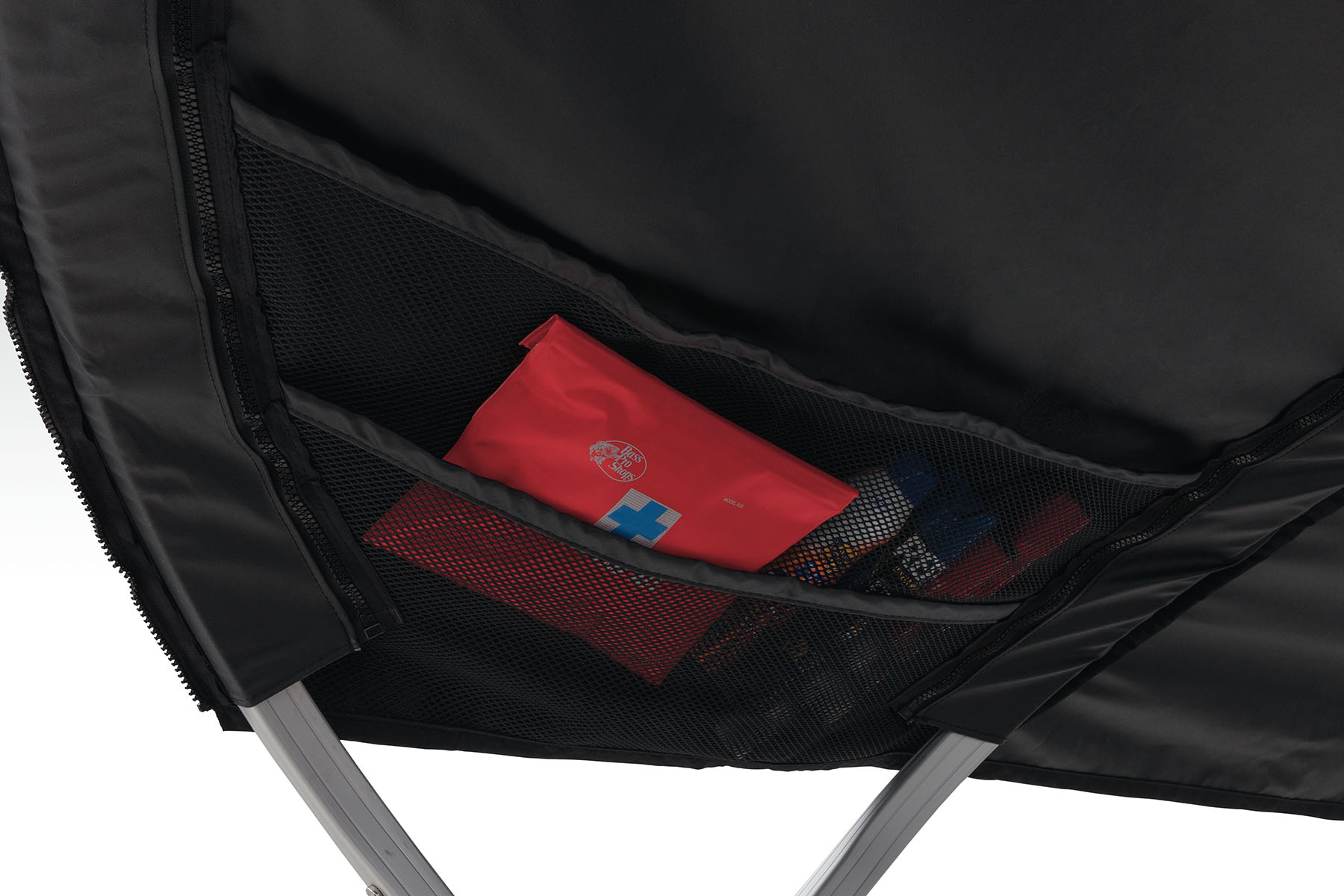

- 9' (2.74 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Indigo Blue fencing)

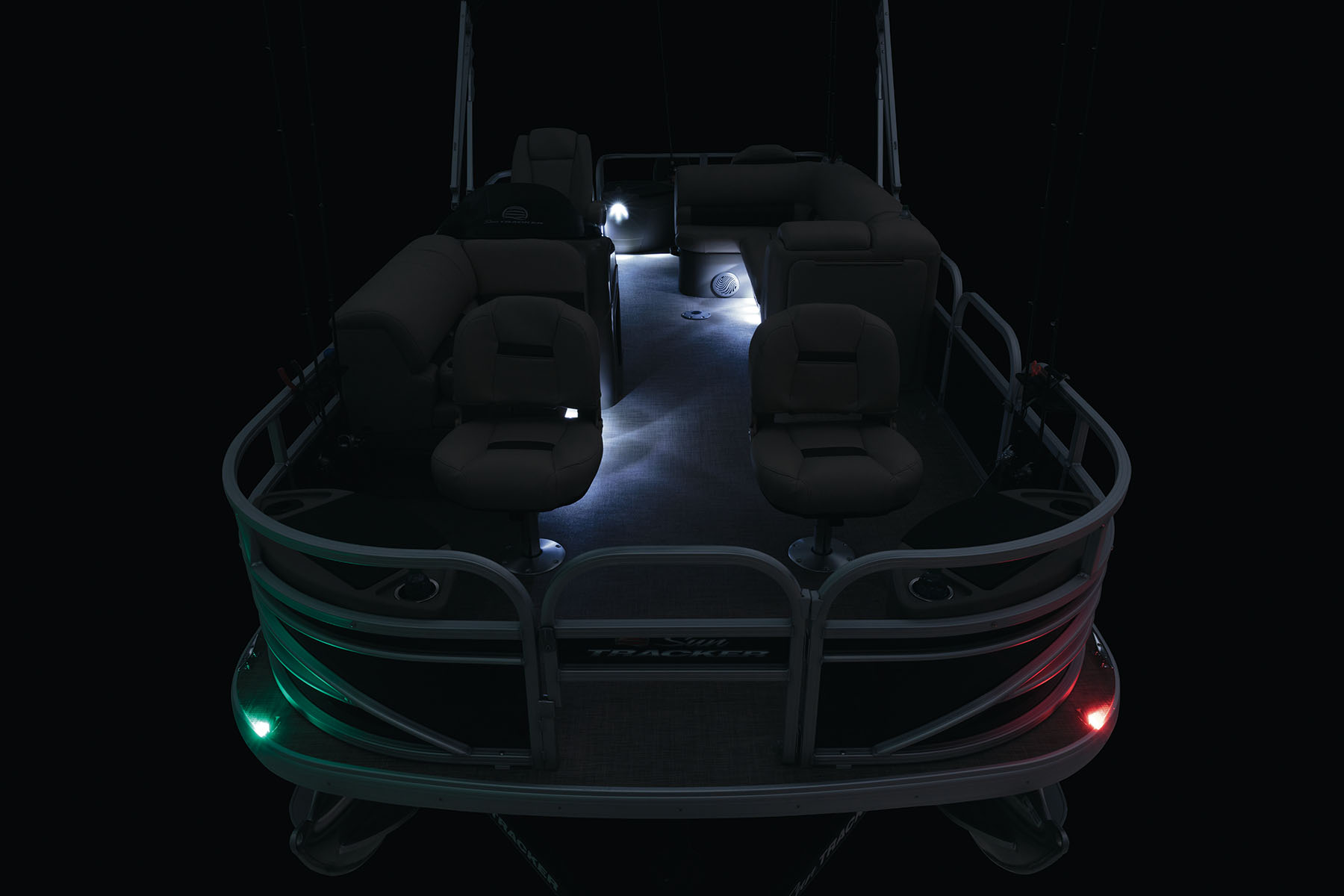

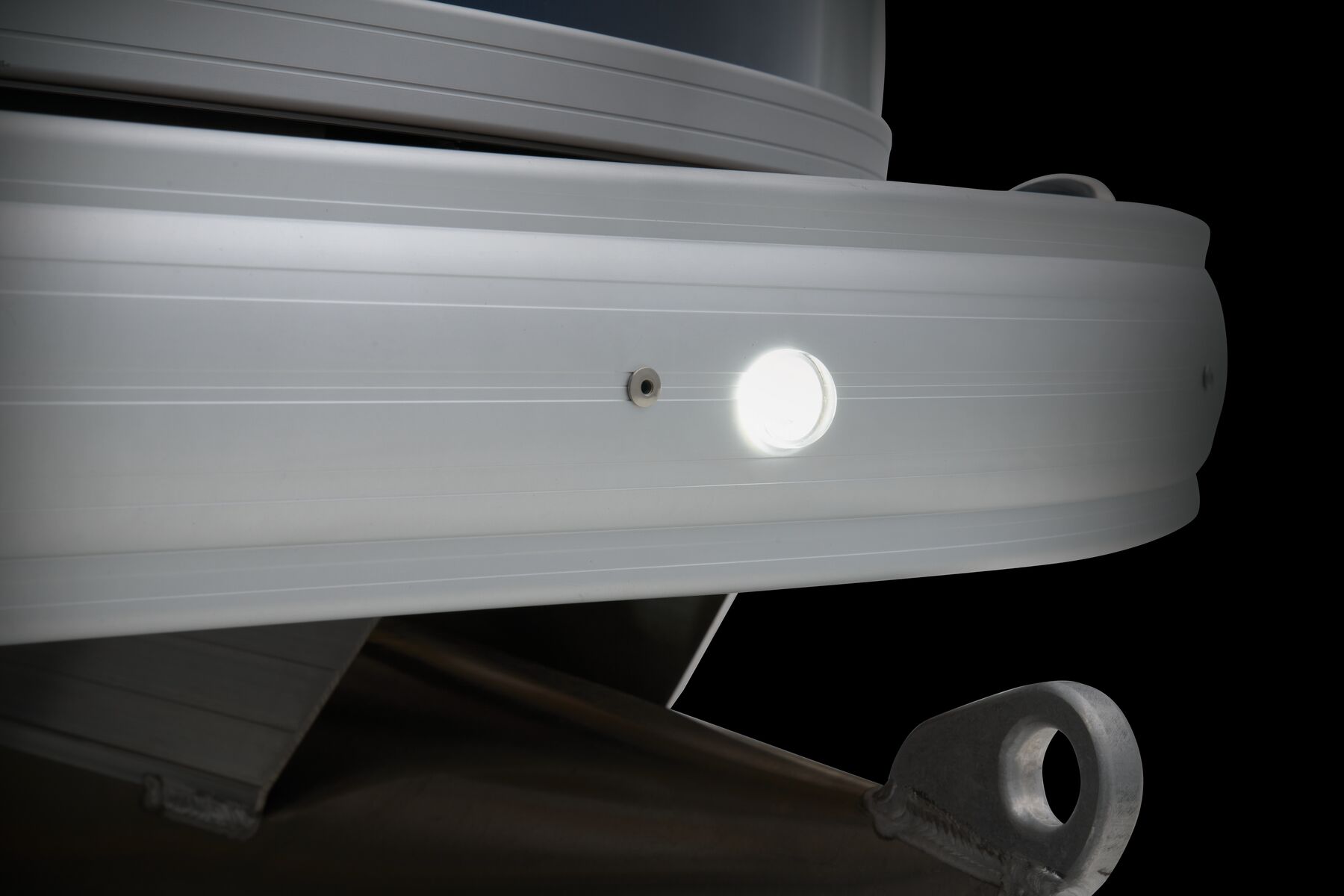

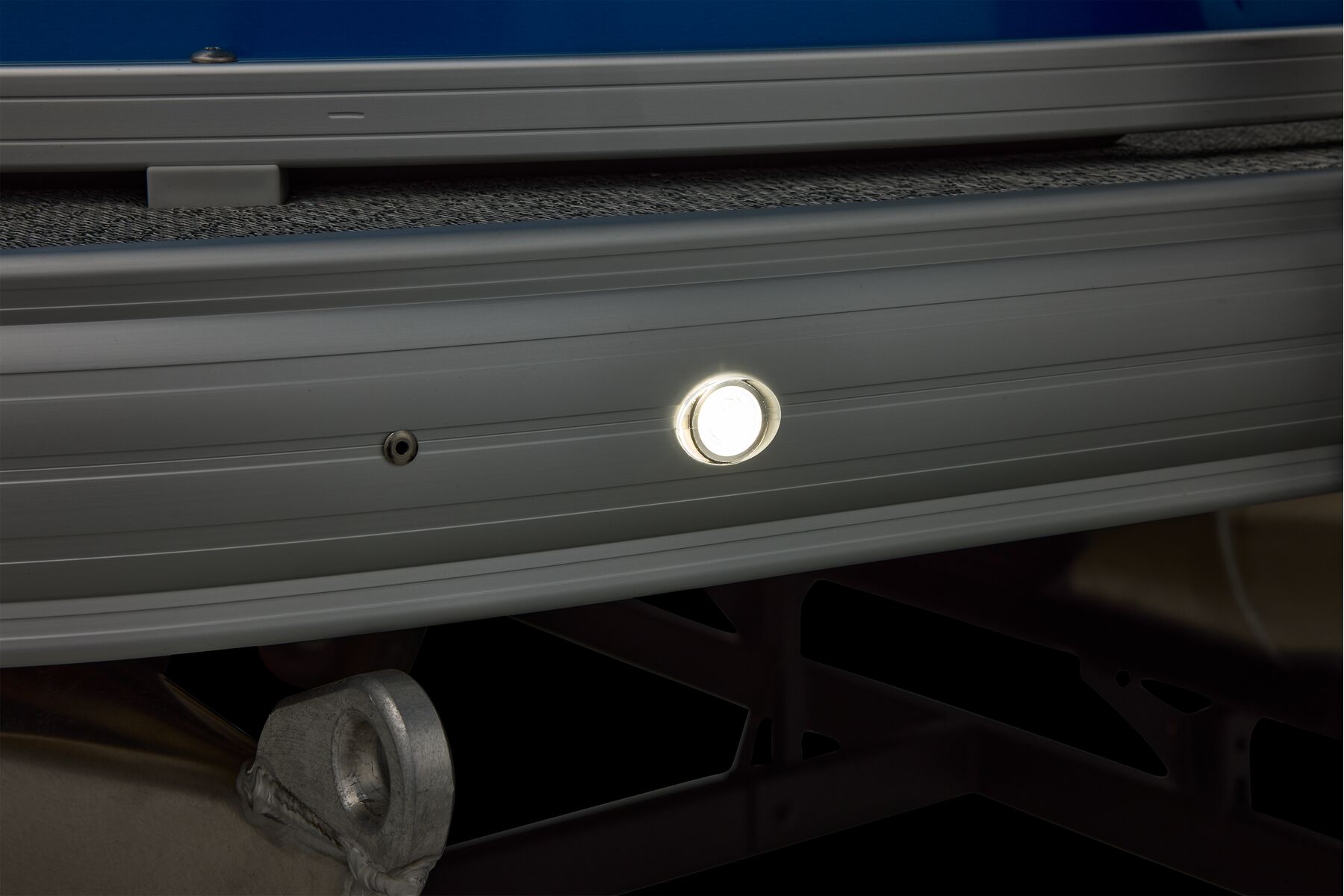

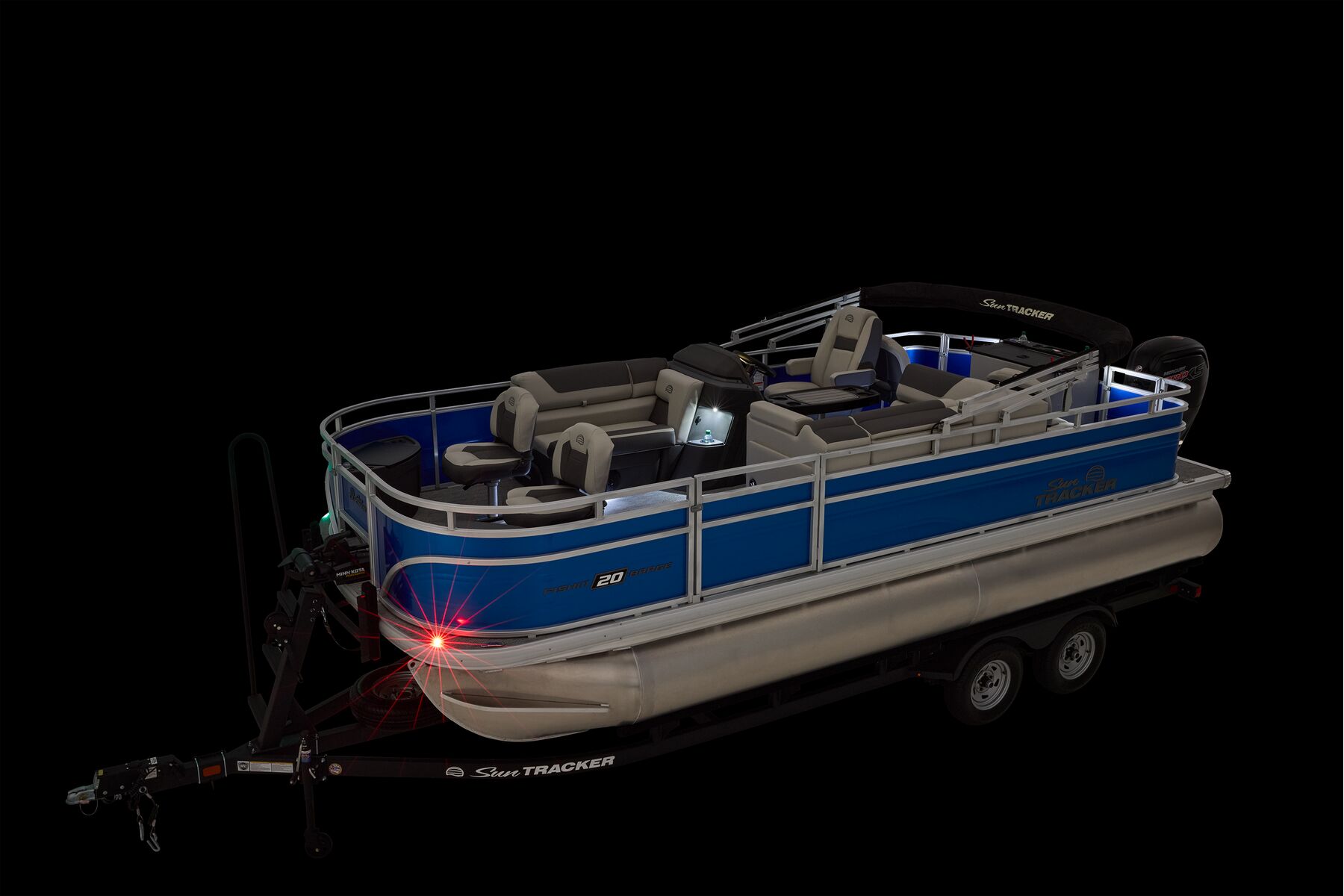

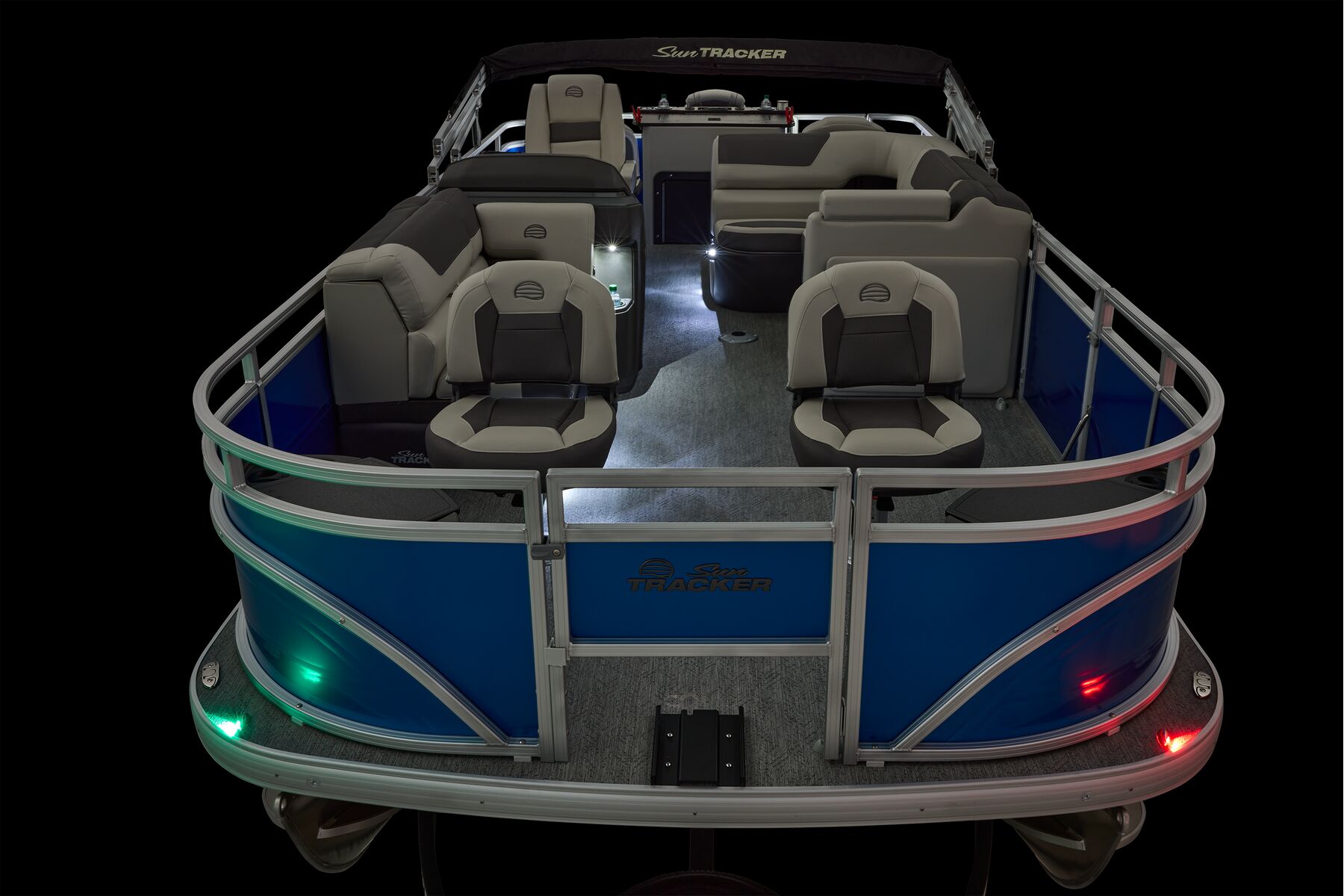

- Built-in LED docking lights

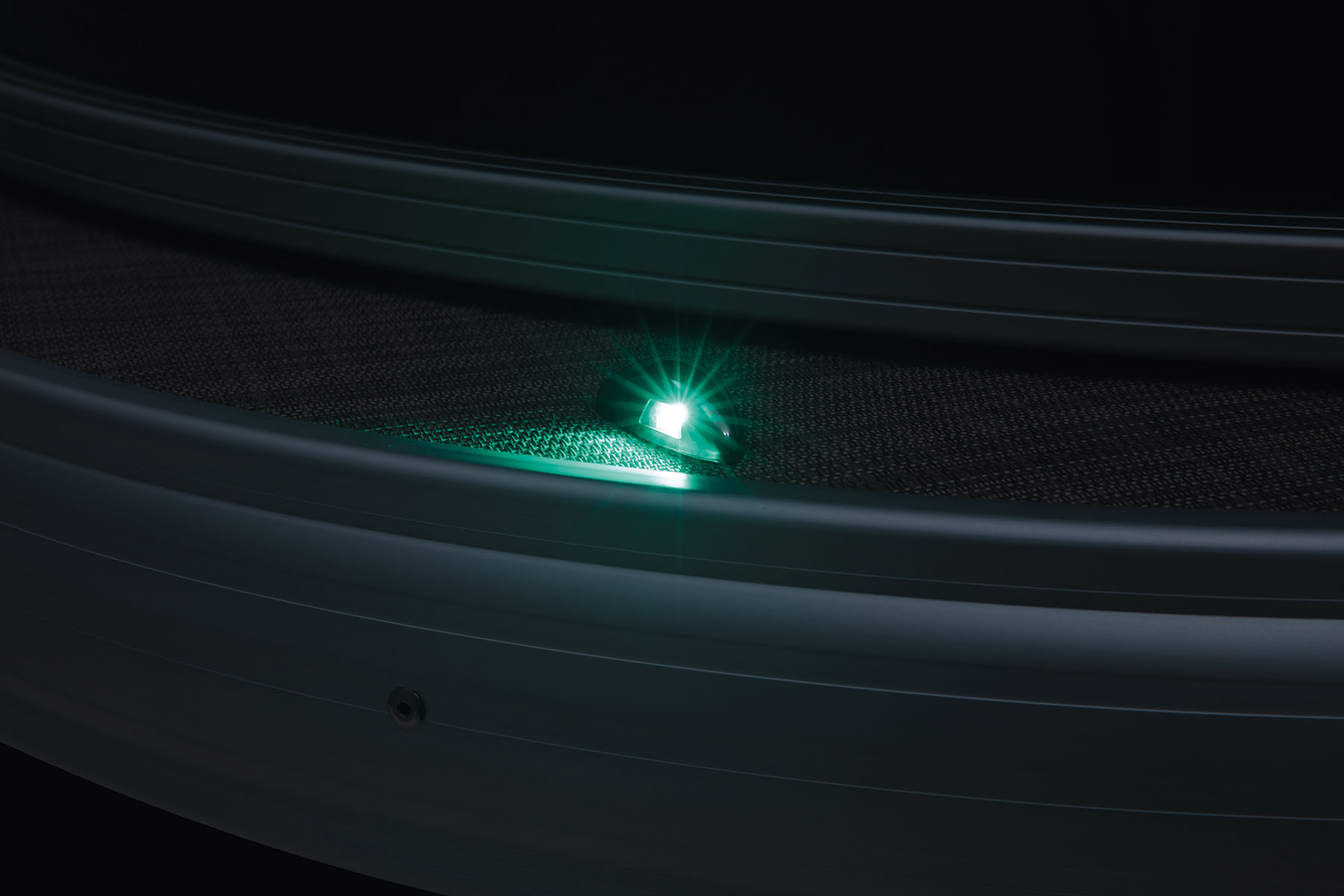

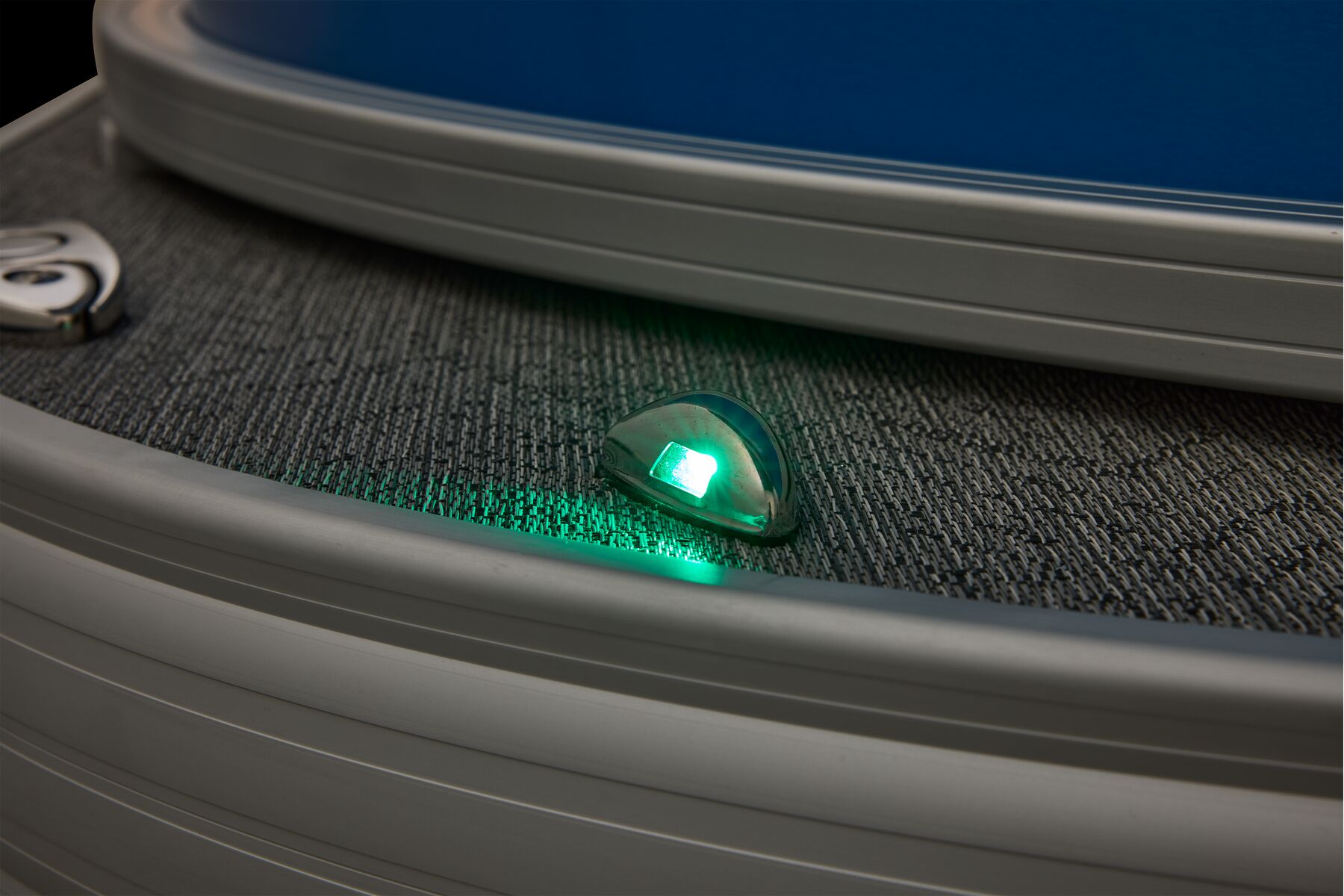

- Built-in LED navigation & anchor lights
- 4 folding mooring cleats
- Port wheelchair-accessible gate

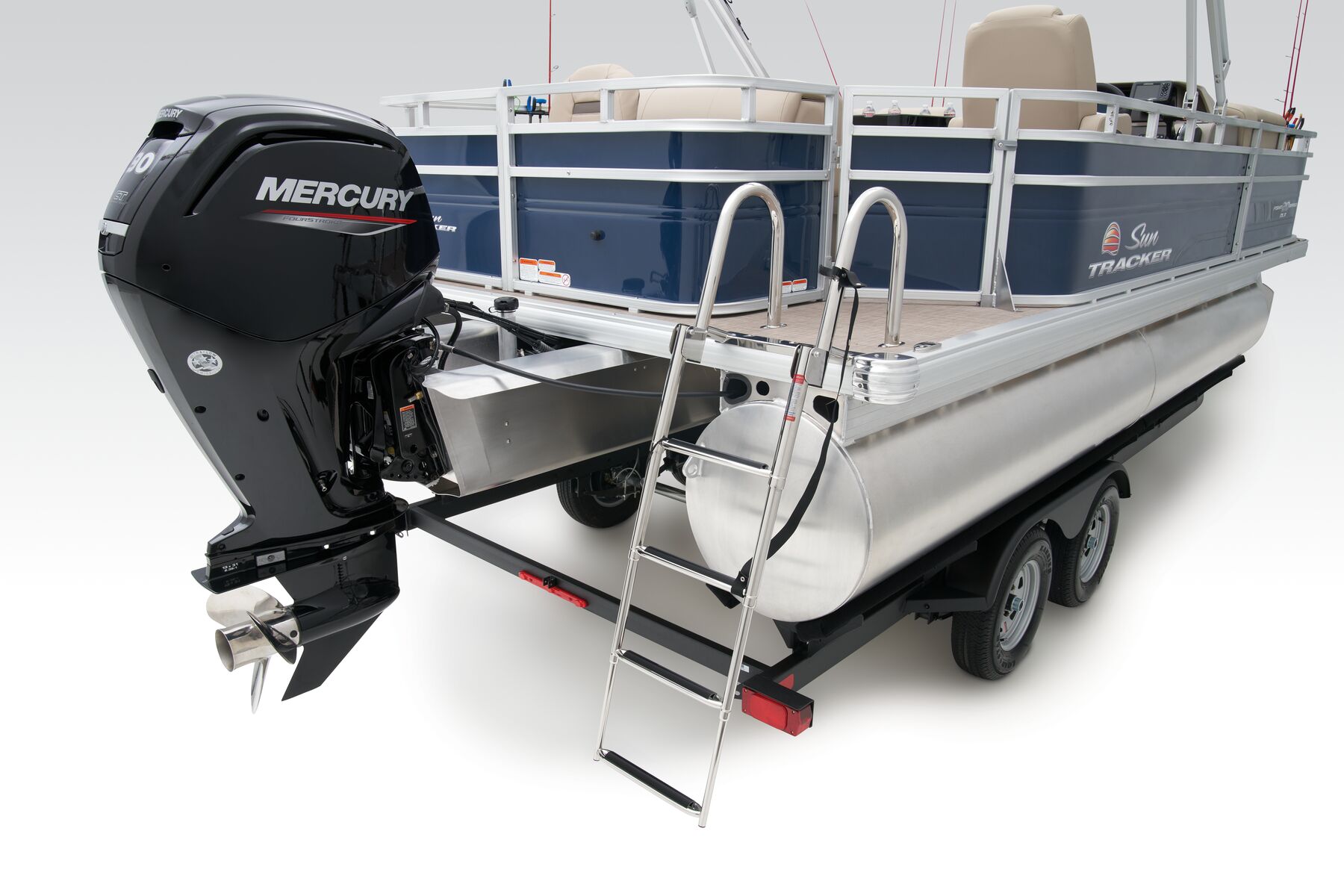

- Rear boarding platform w/4-step telescoping boarding ladder & grab rails

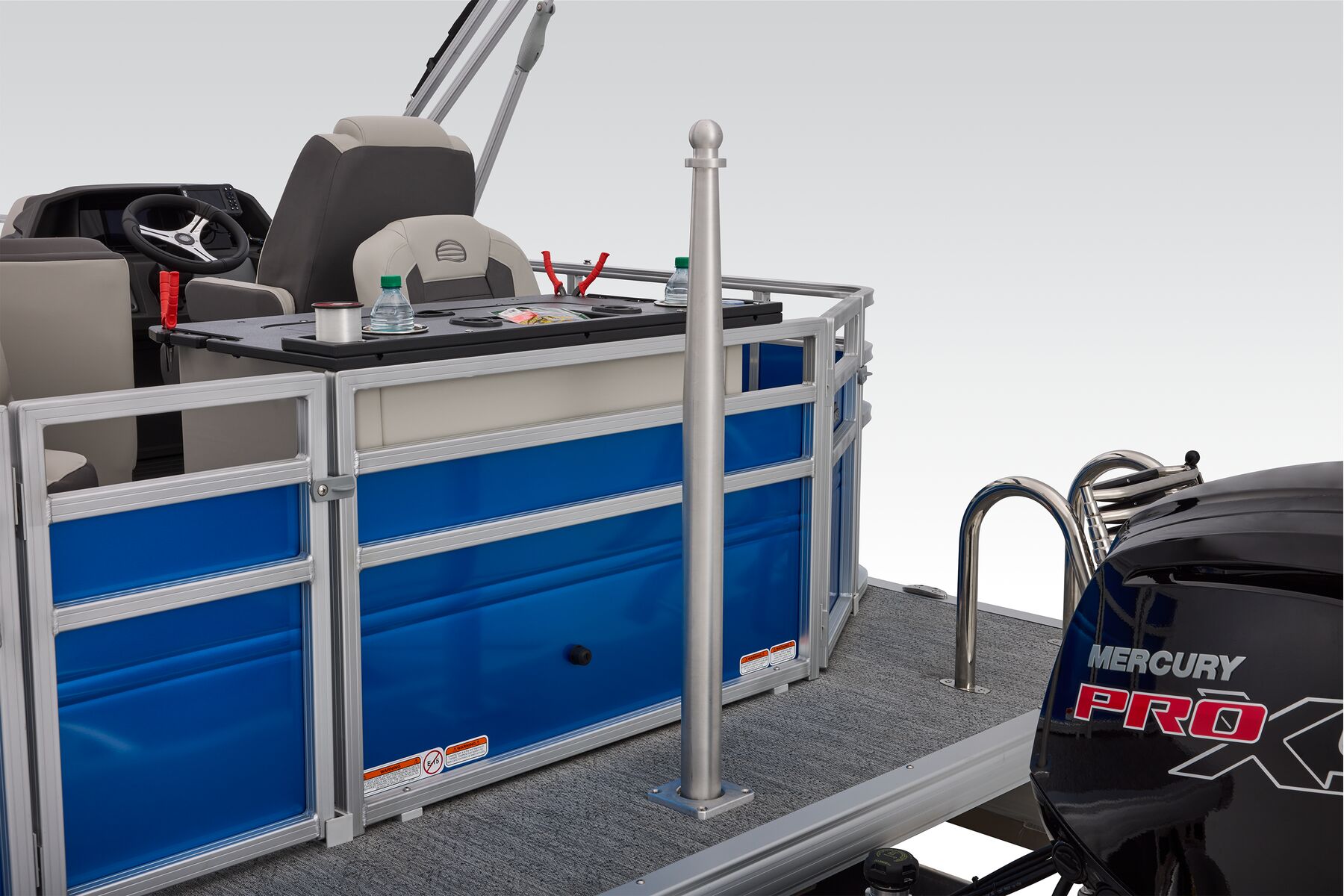

- Aft receptacle base for optional ski tow pylon
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Livewell System

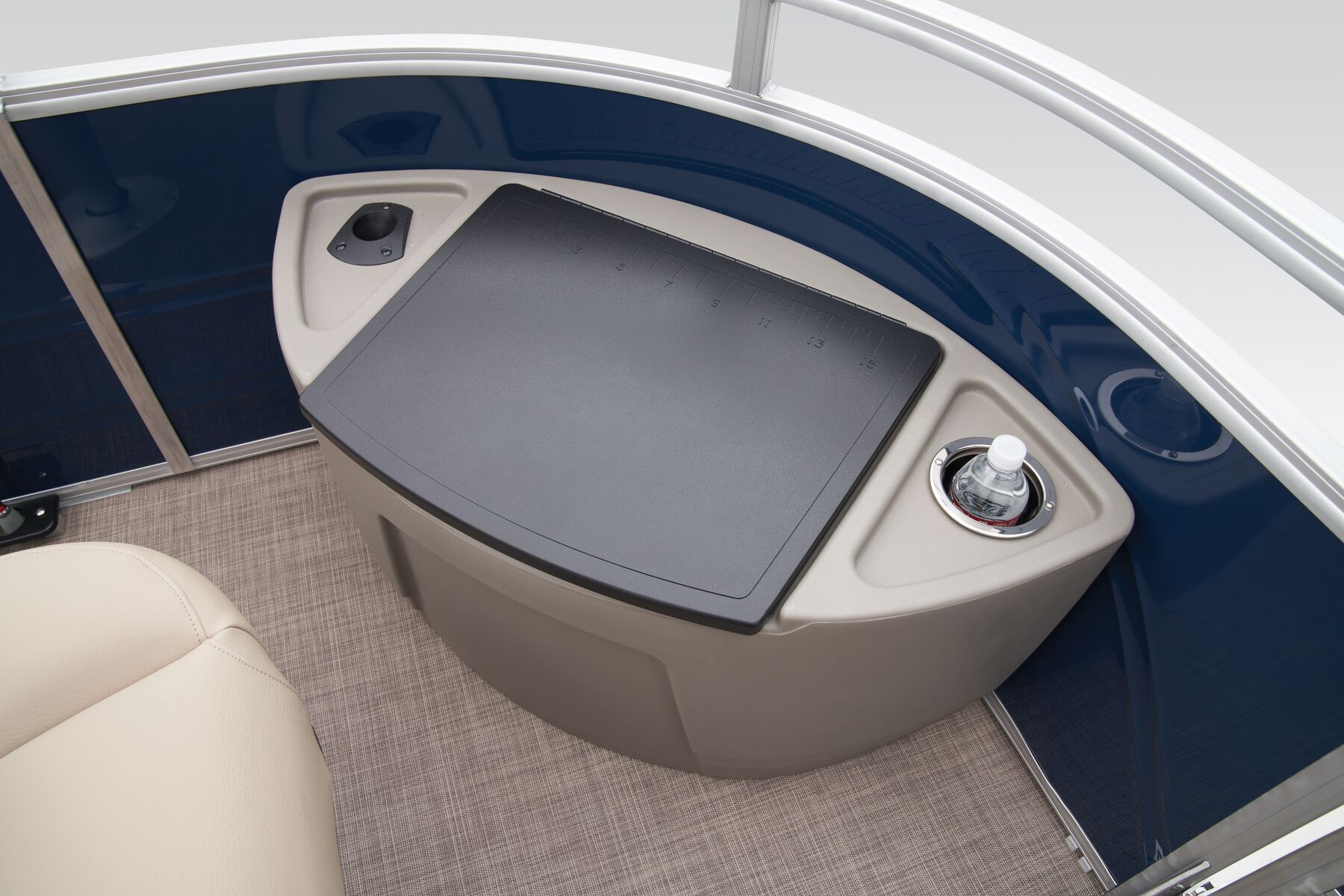

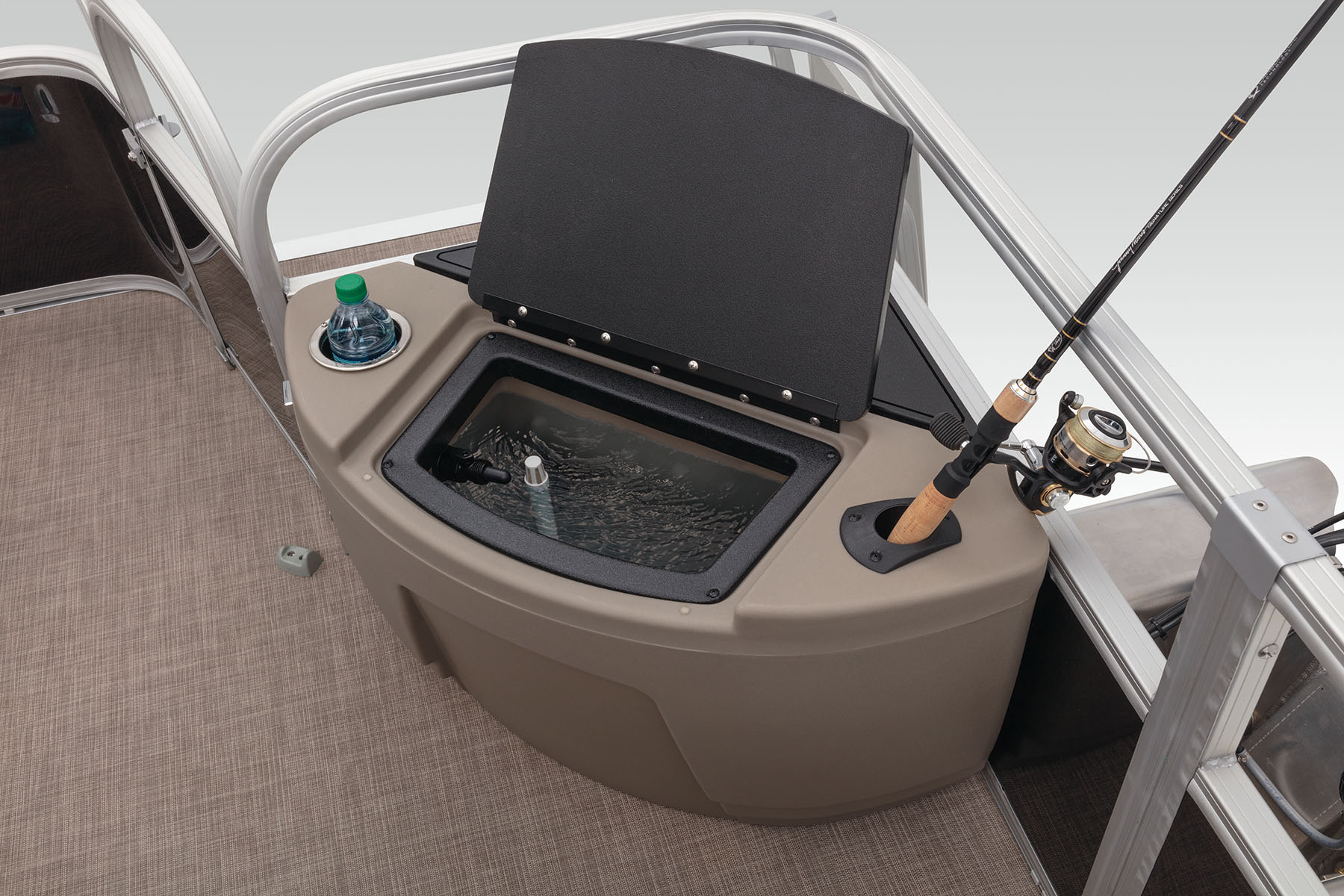

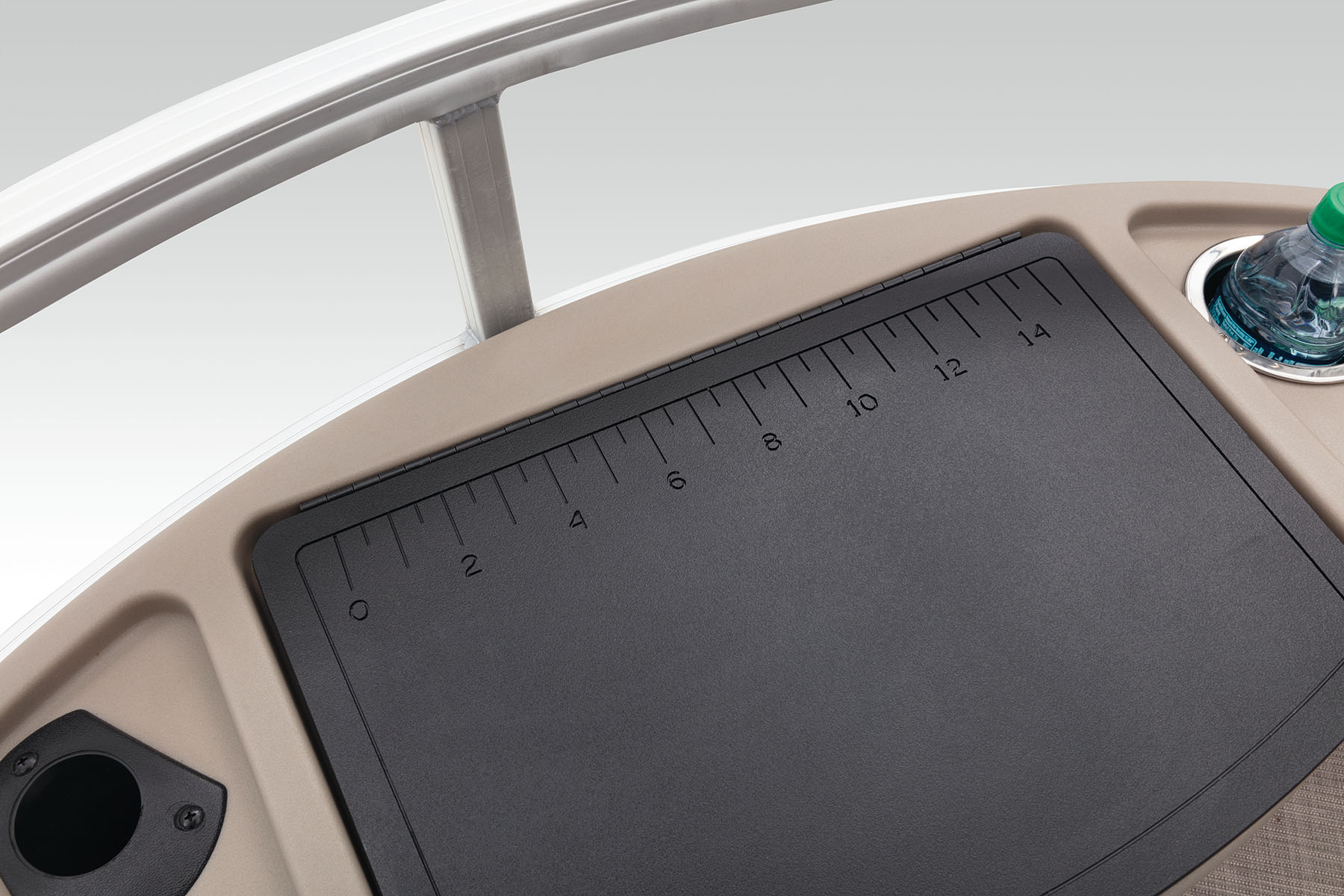

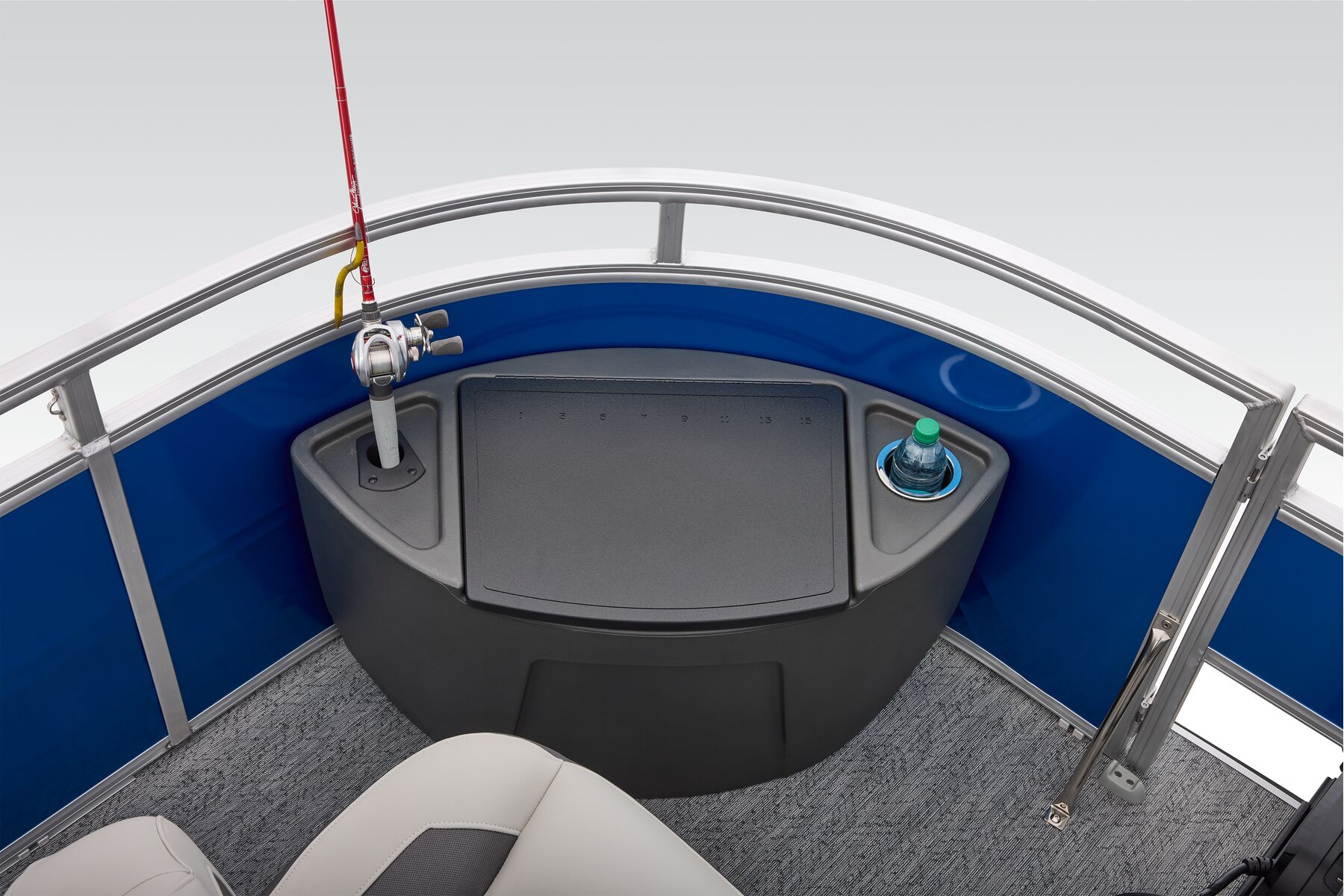

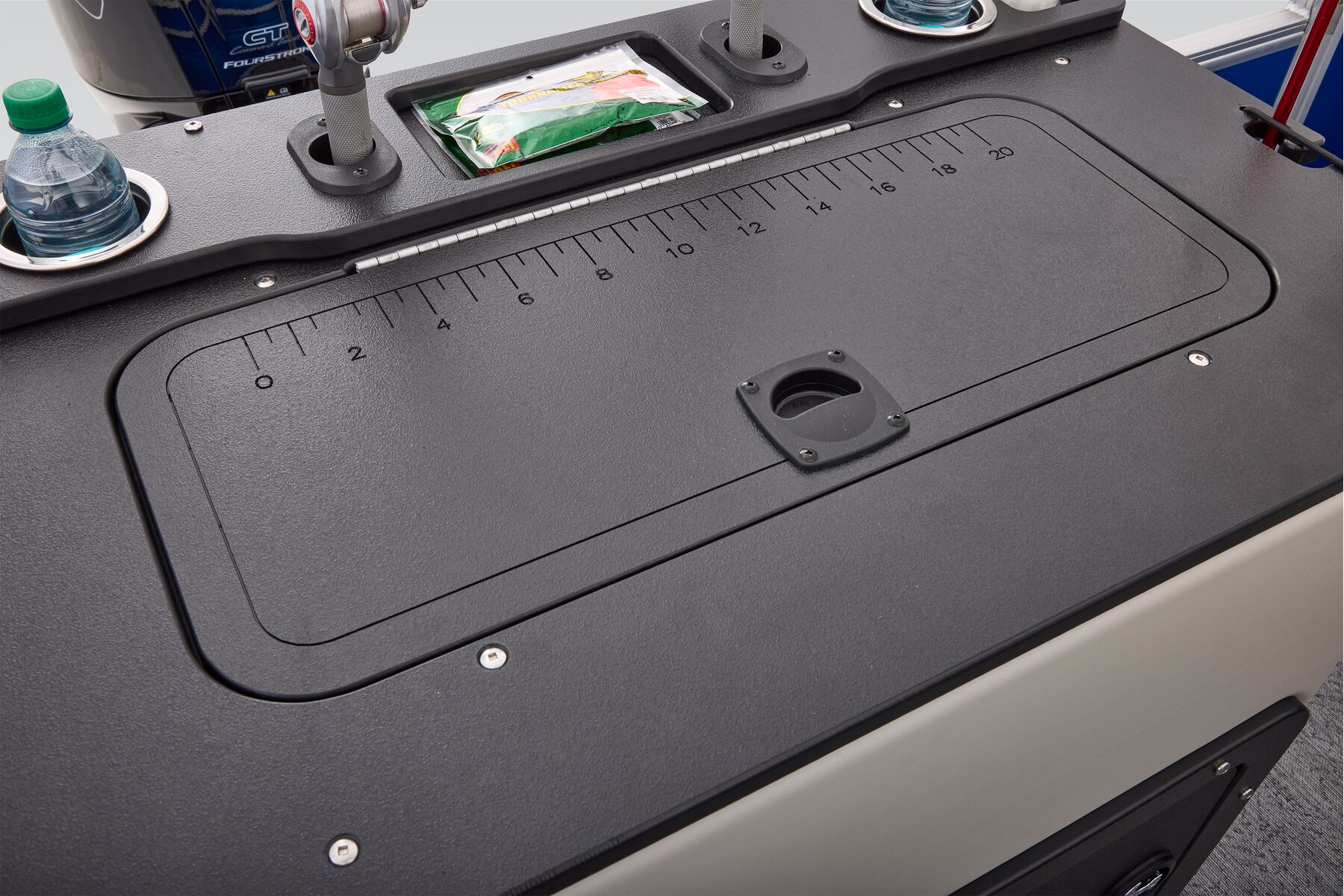

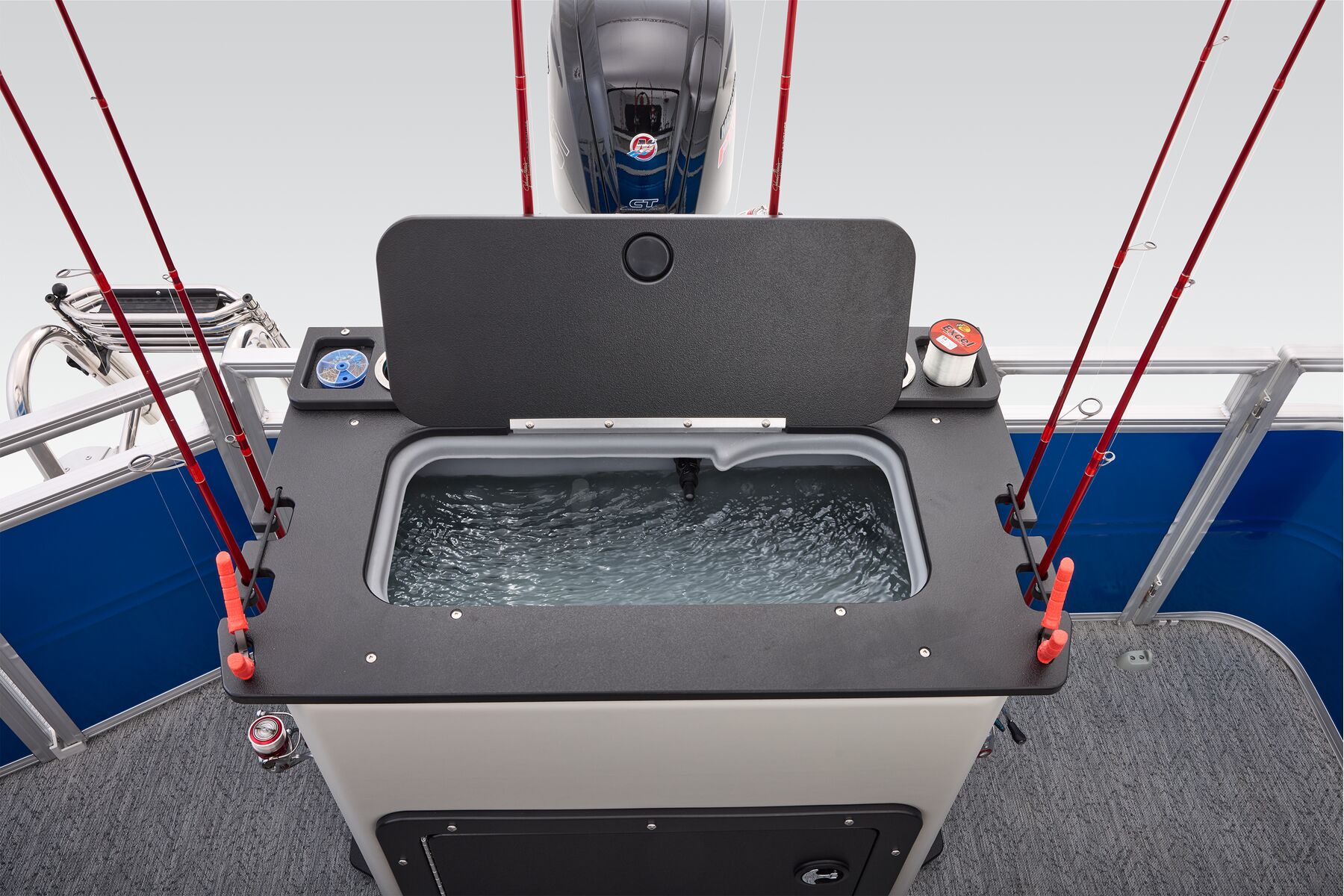

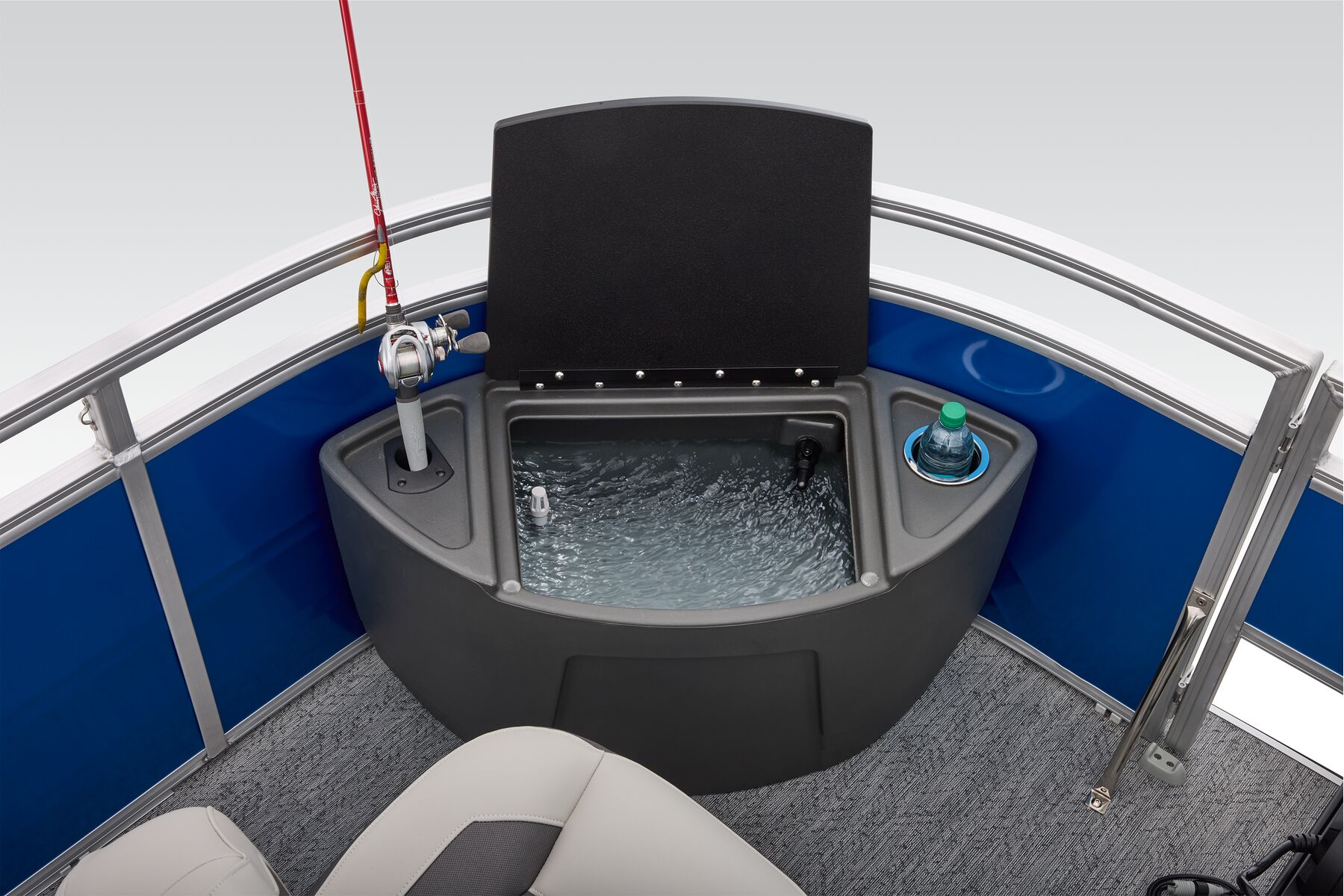

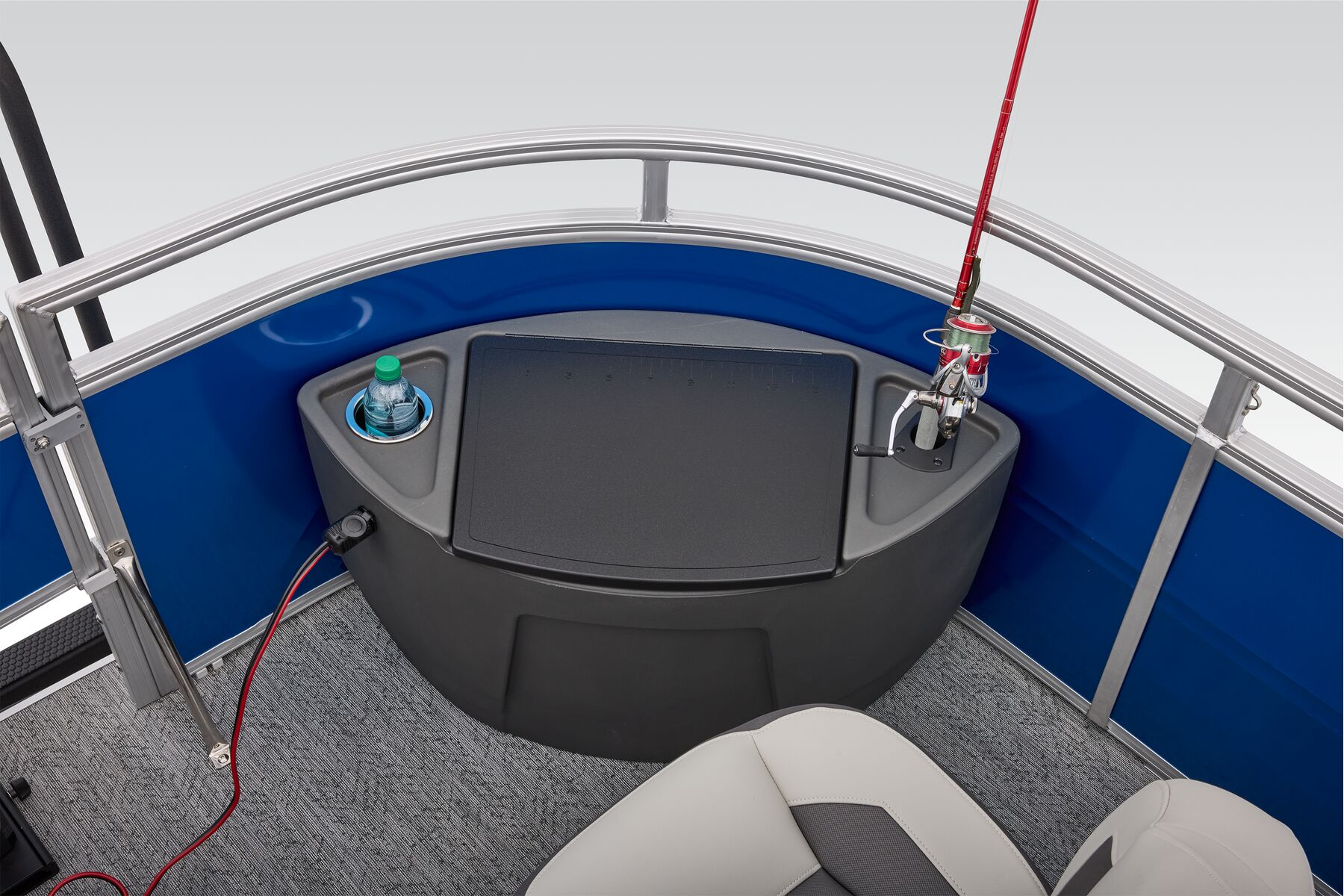

- Bow 10-gal. (37.85 L) aerated livewell w/shutoff valve, drink holder, rod holder & composite lid w/fish ruler

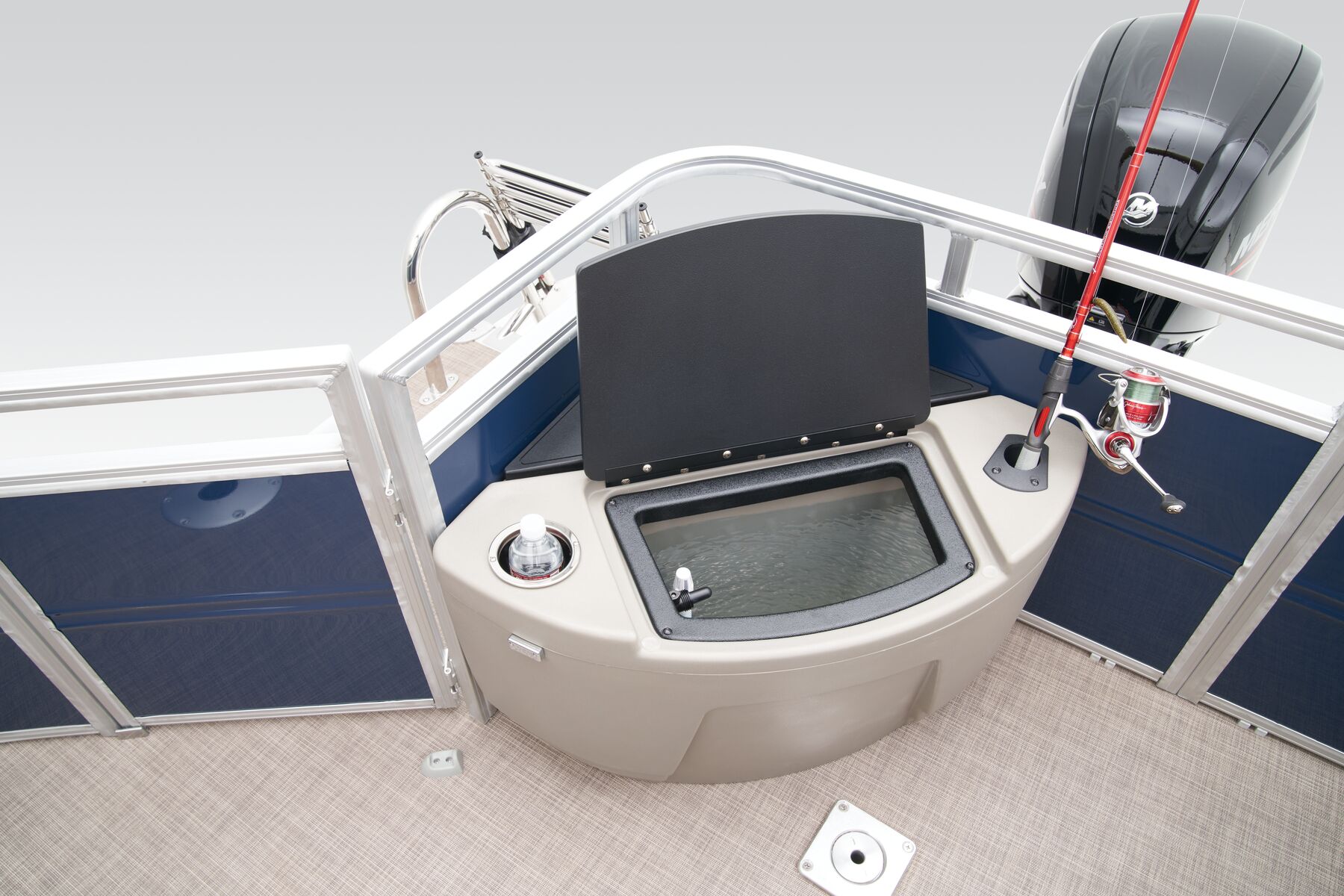

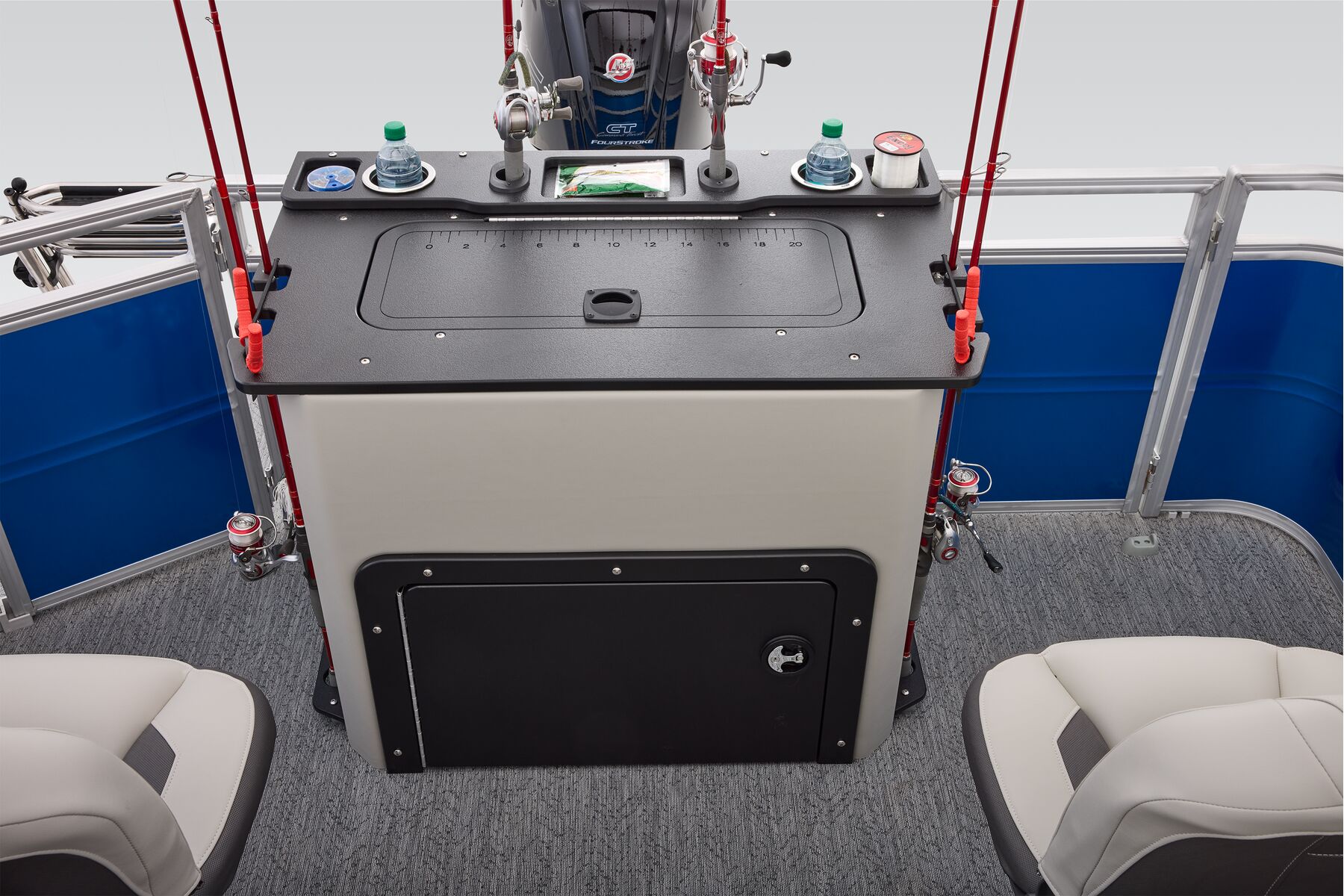

- Aft 8-gal. (30.28 L) aerated livewell/baitwell w/shutoff valve, drink holder, rod holder & composite lid w/fish ruler

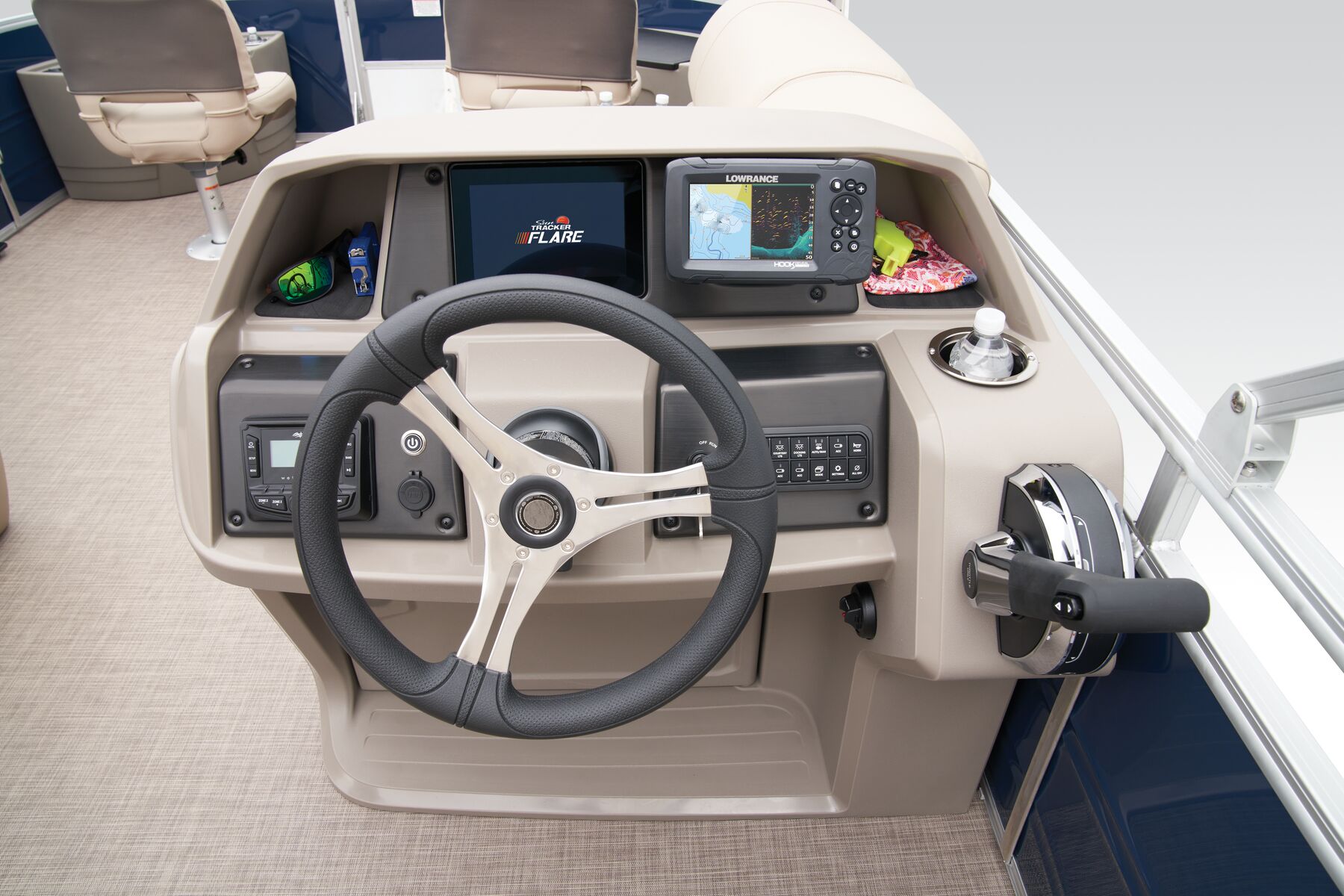

Console

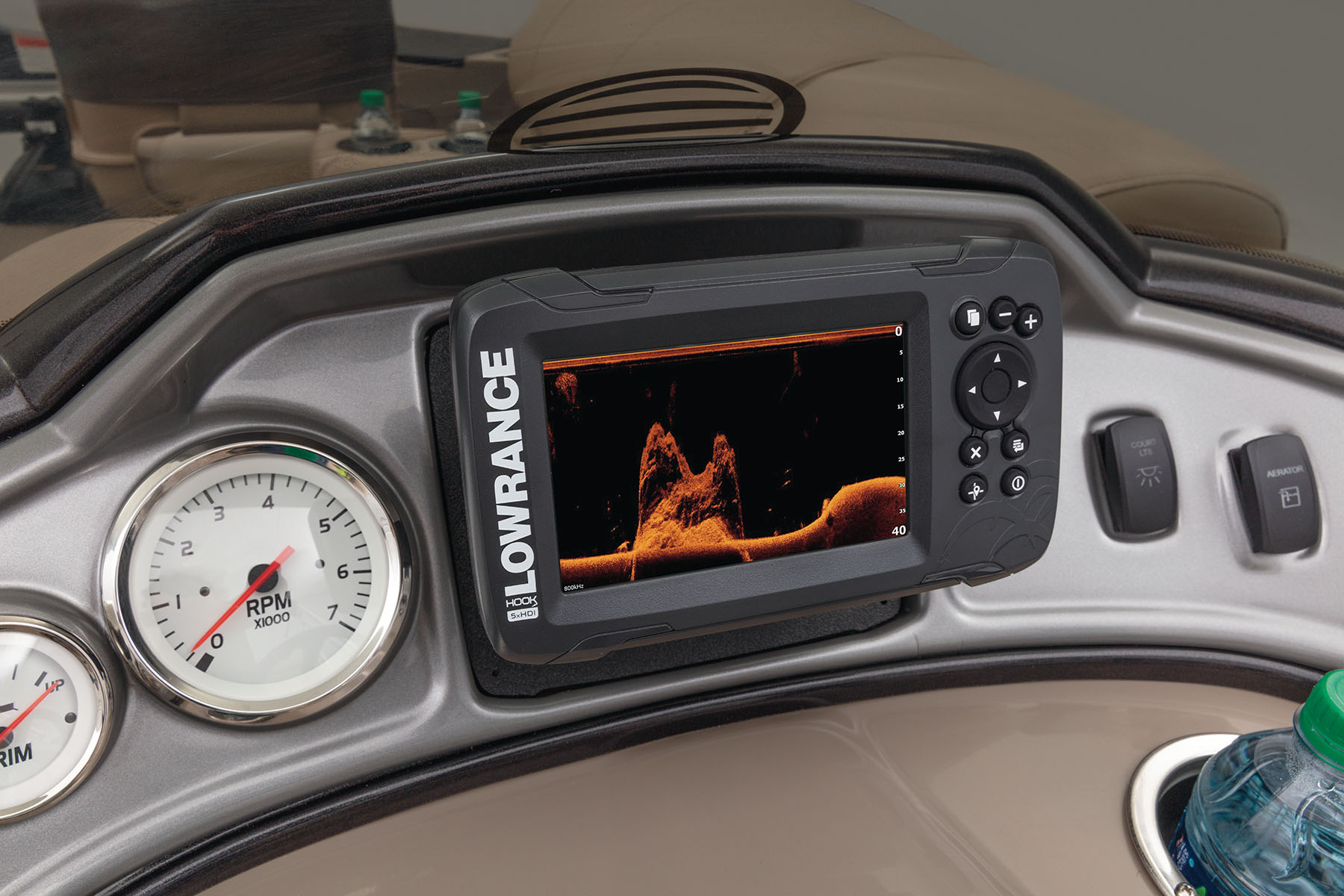

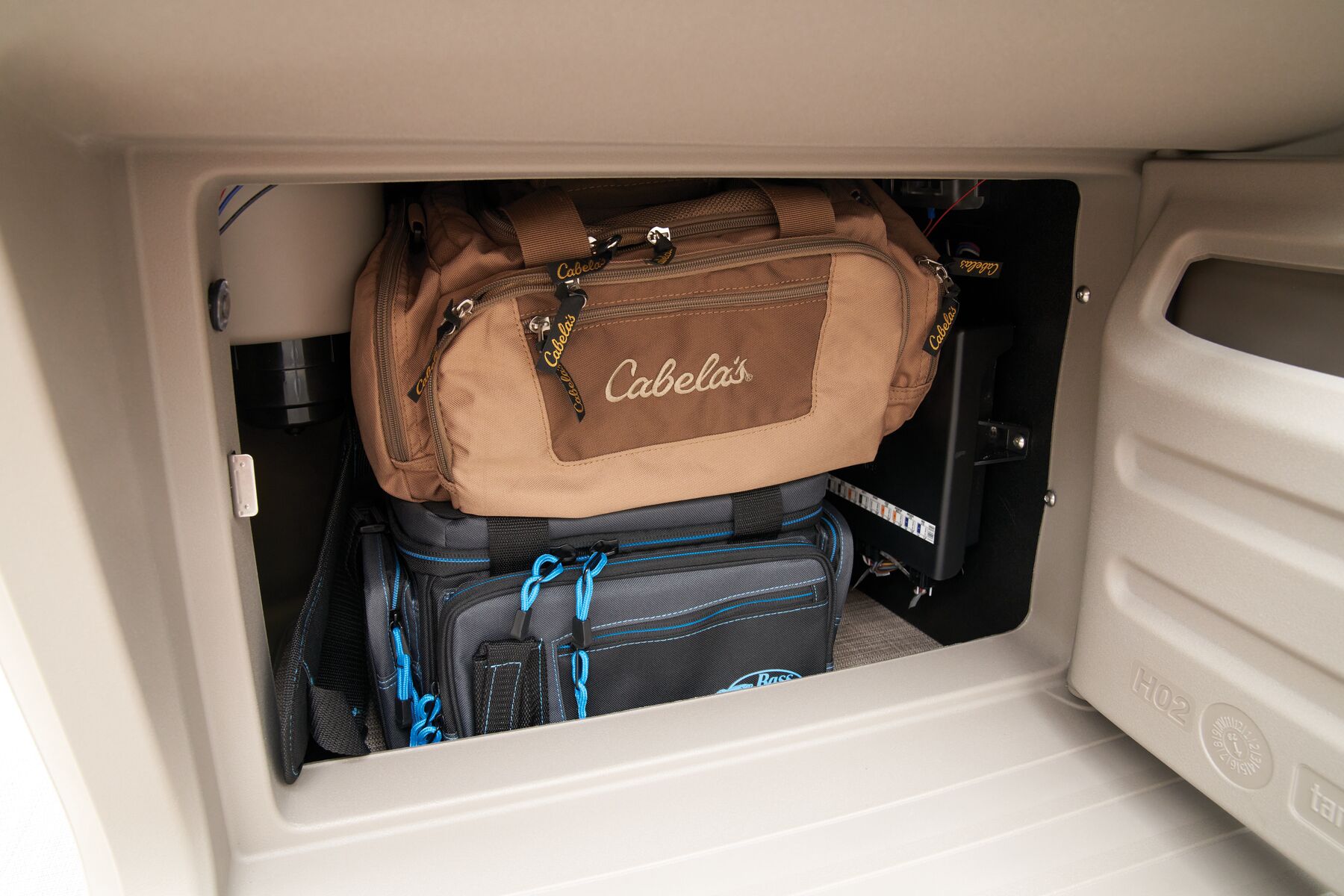

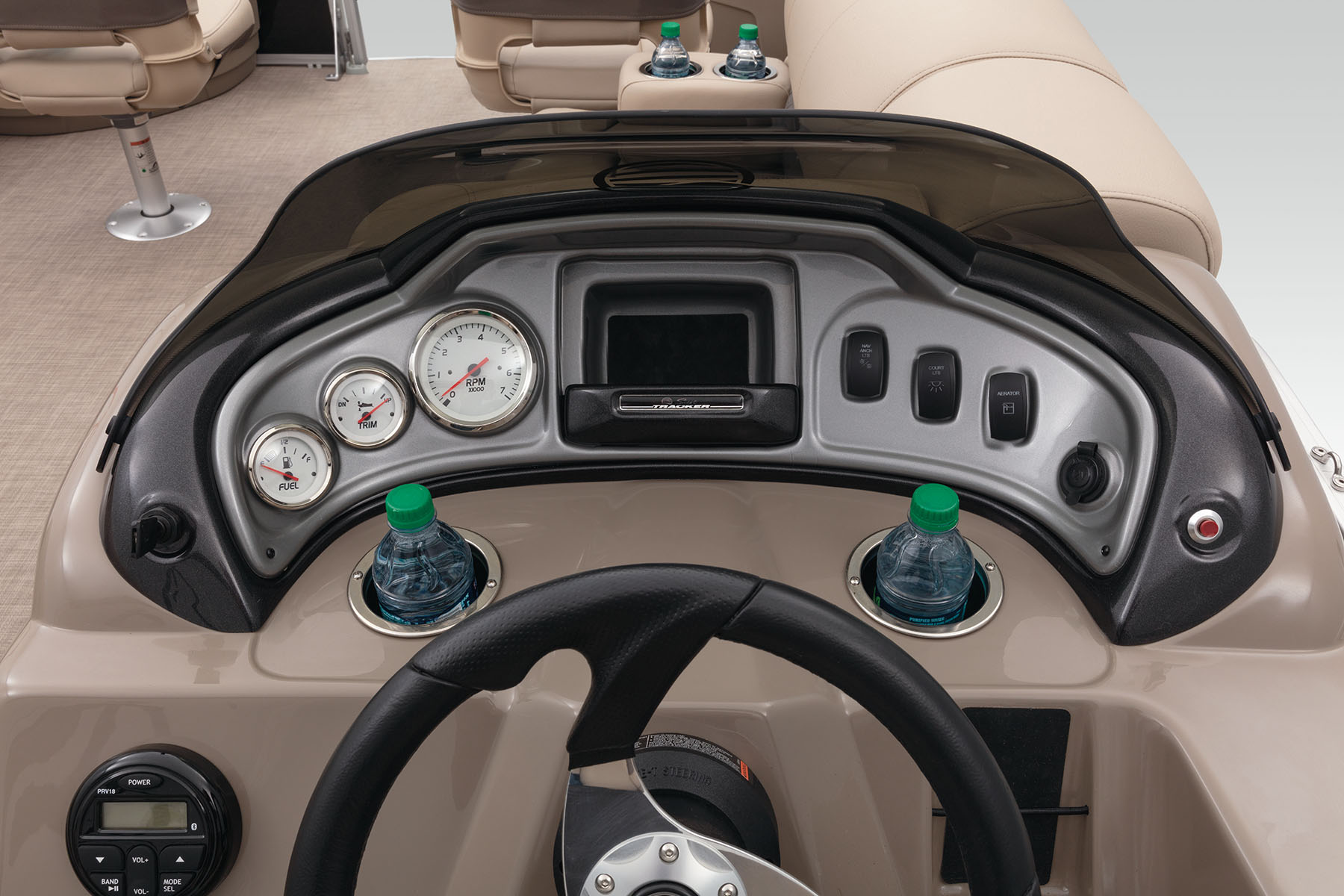

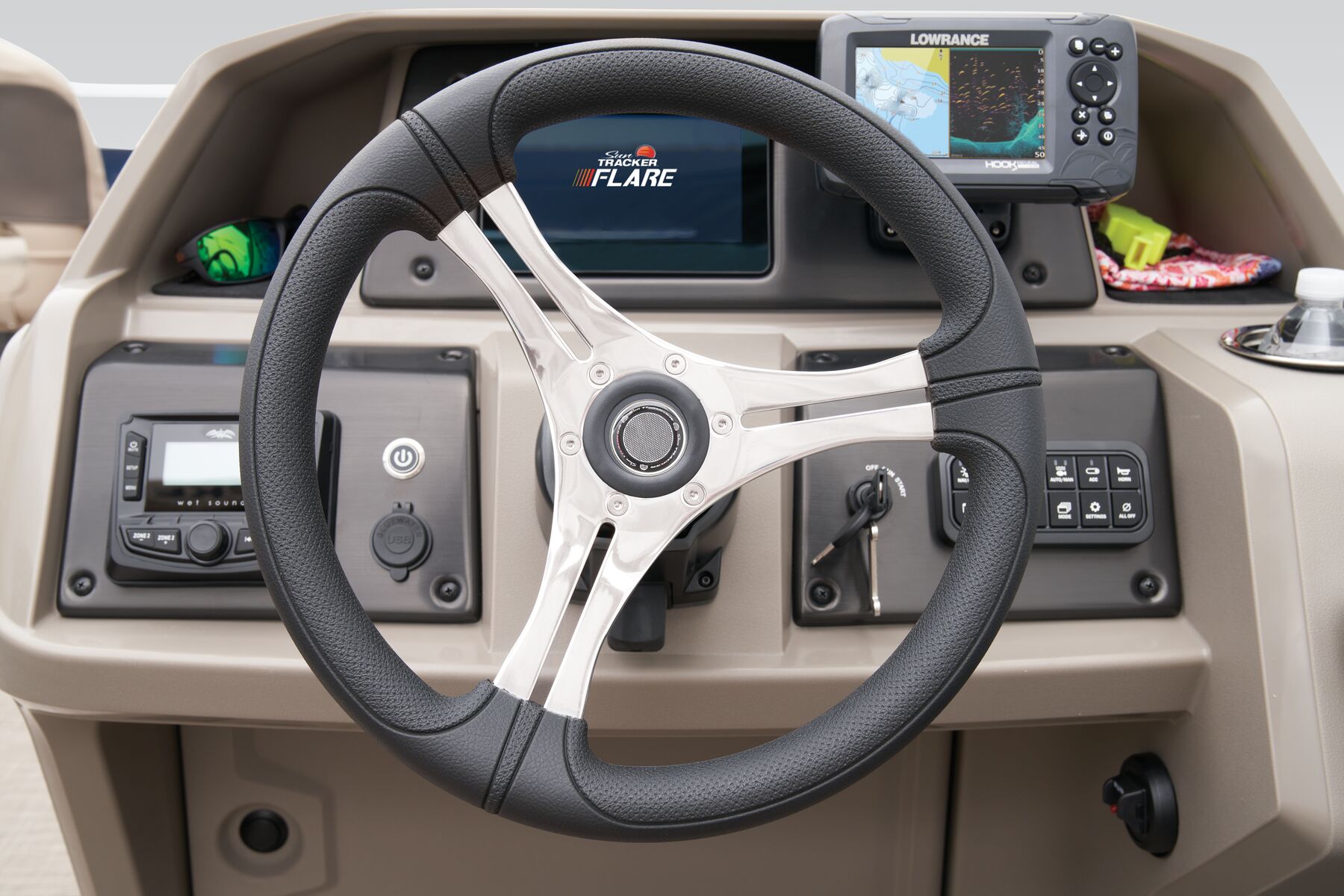

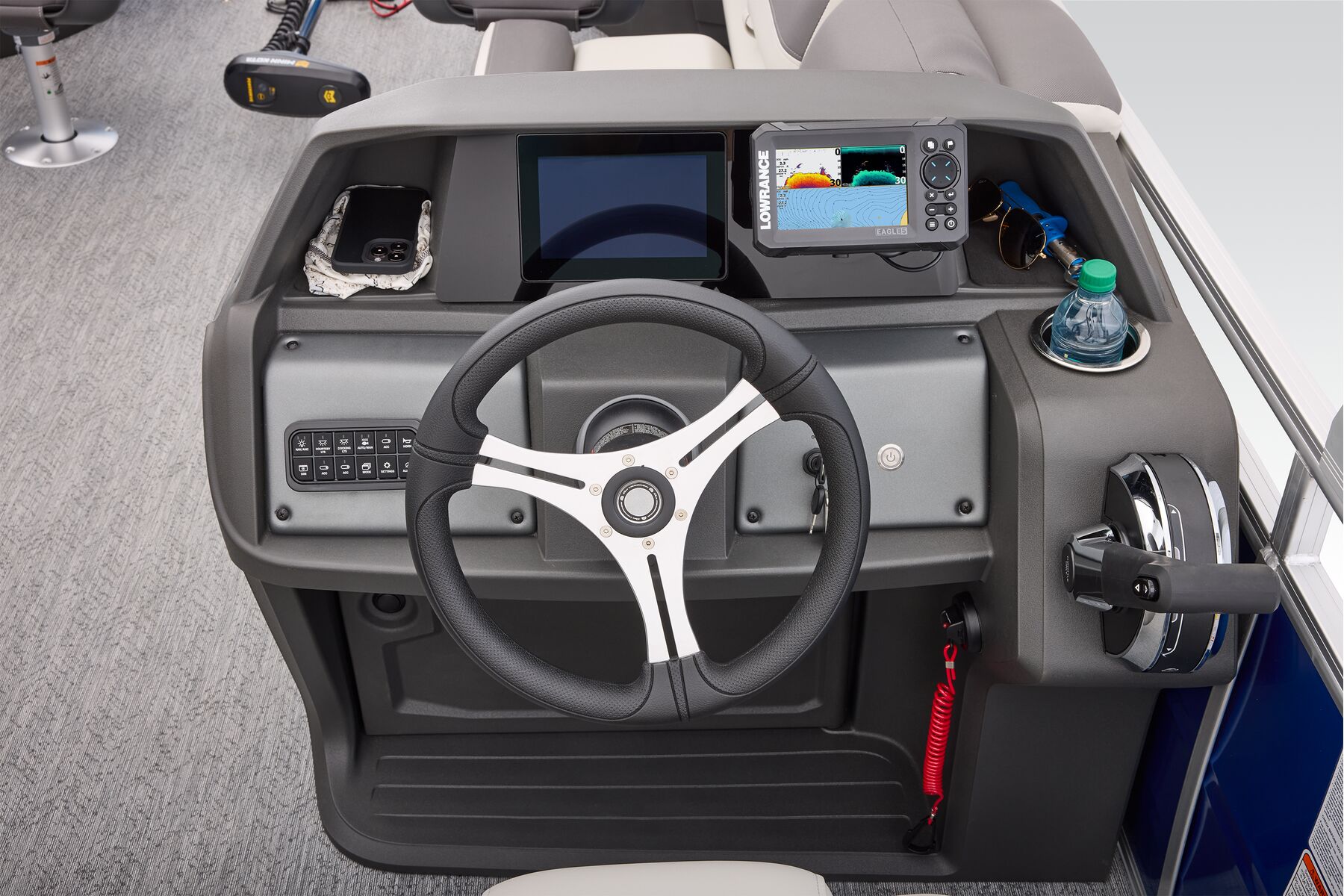

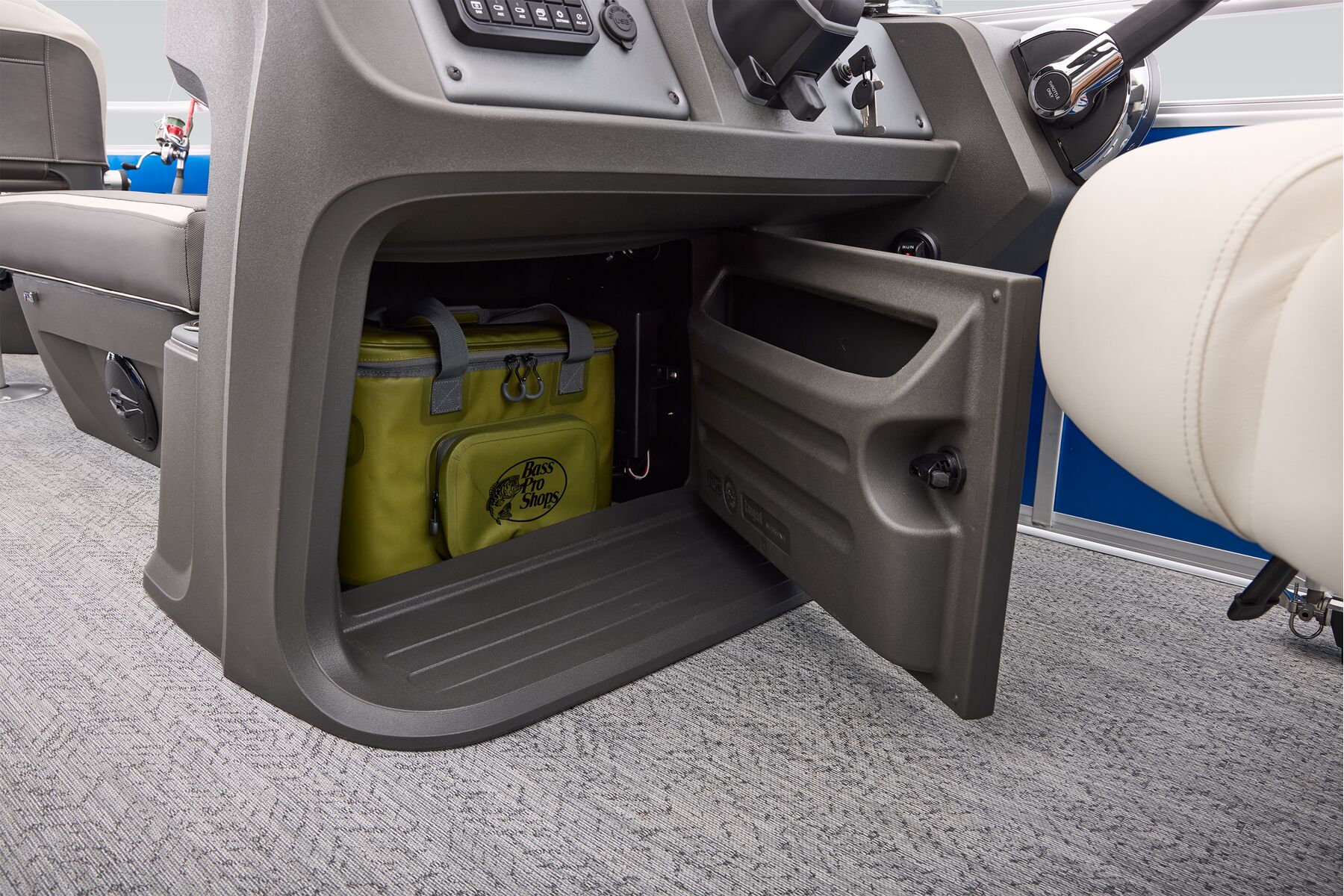

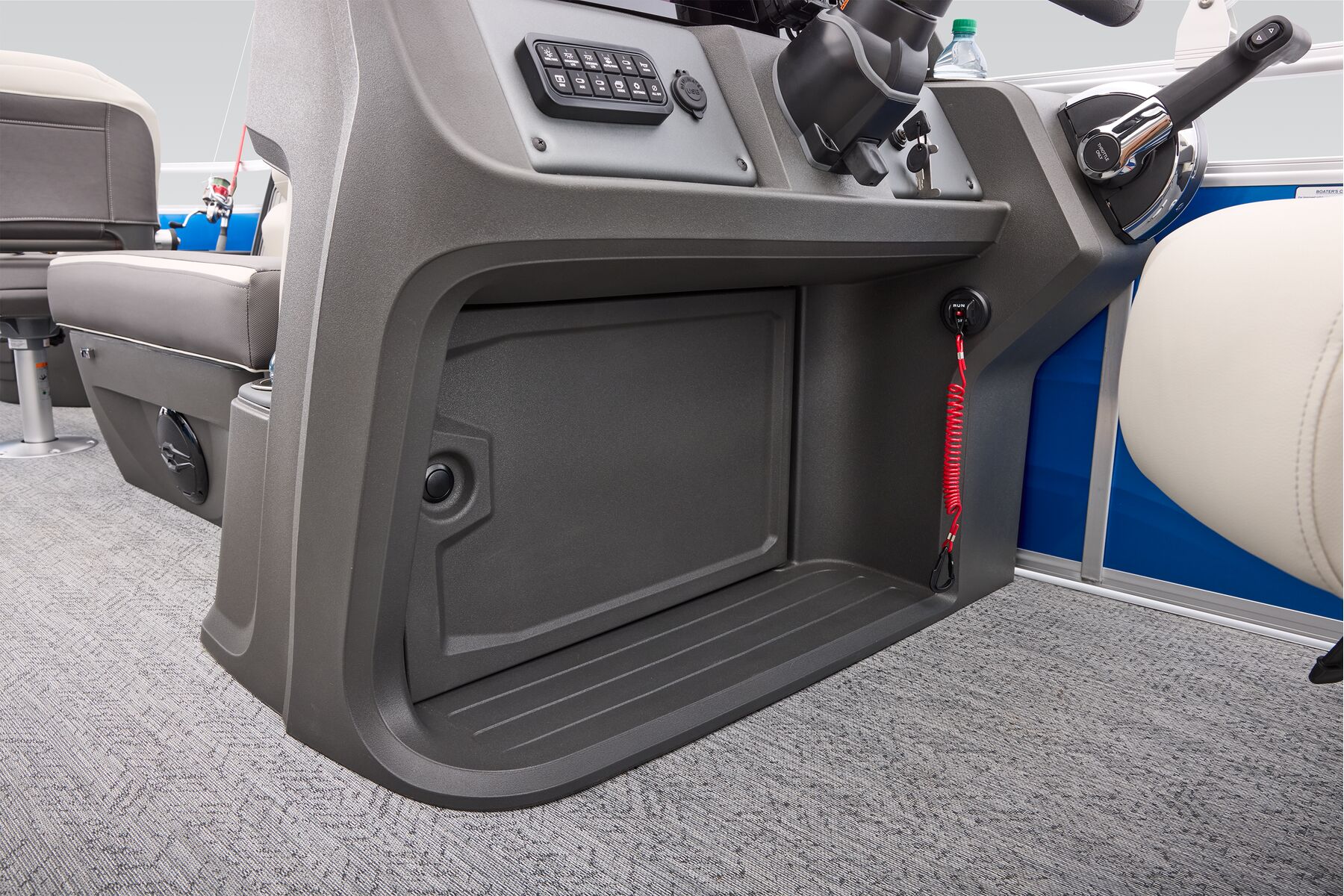

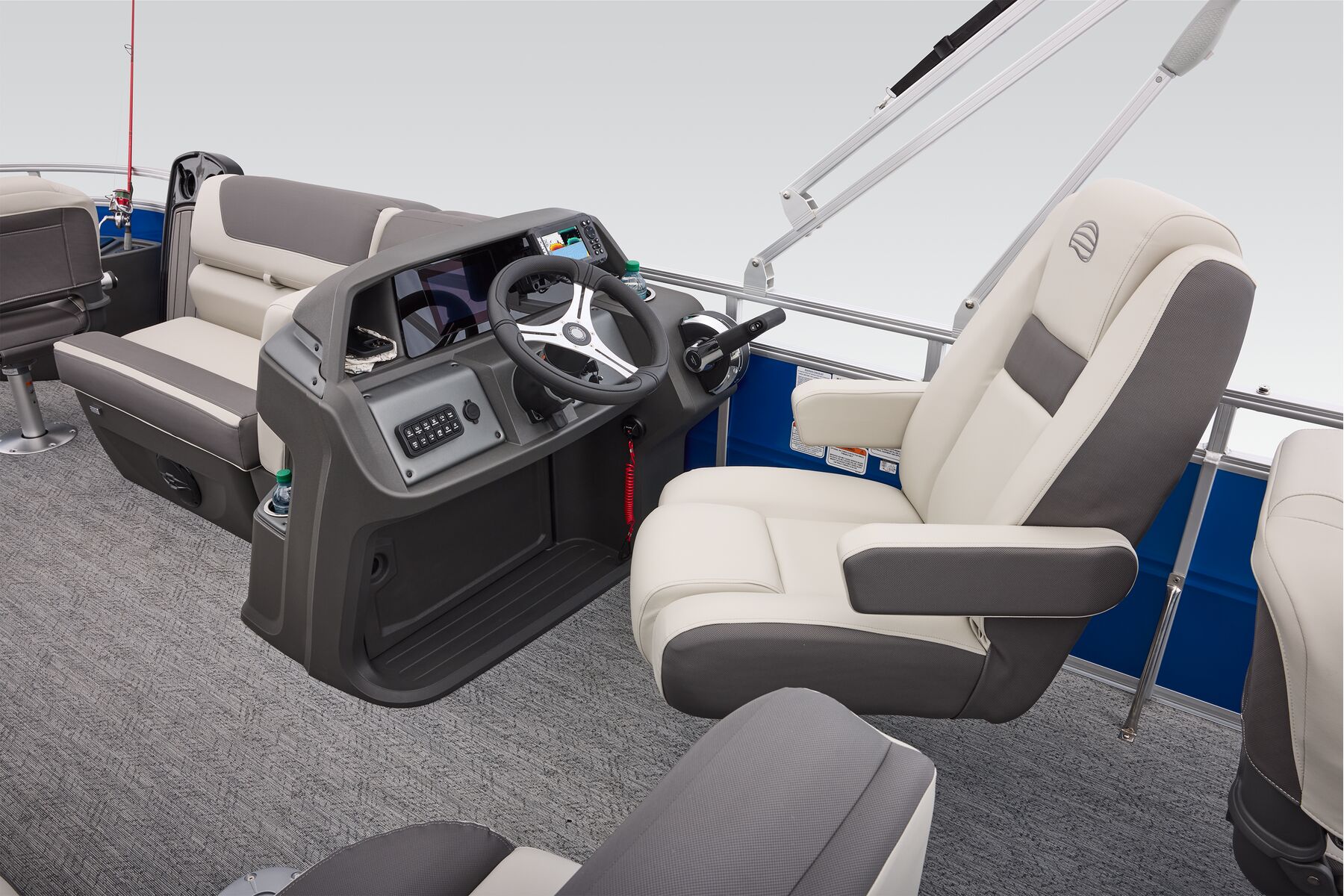

- Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

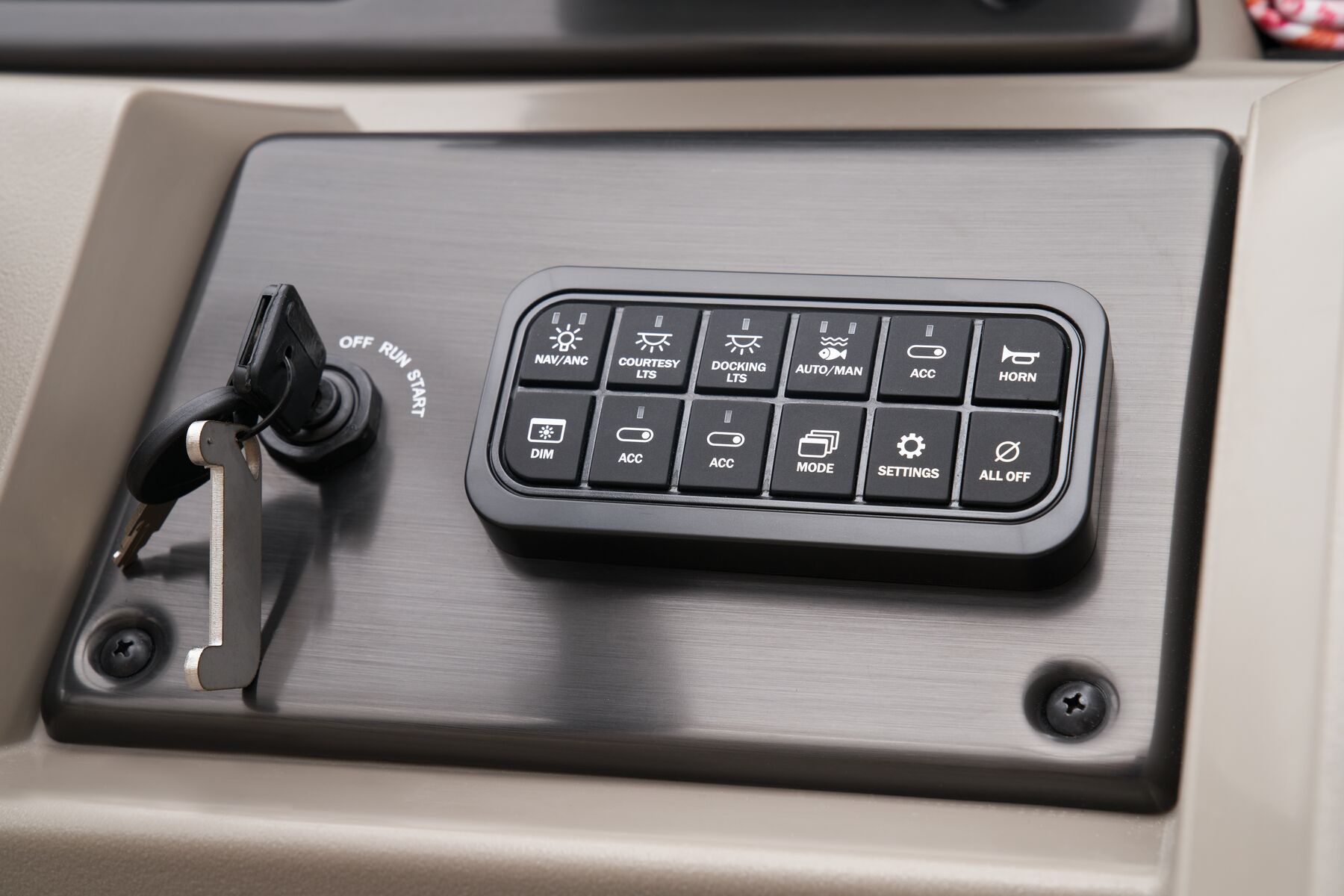

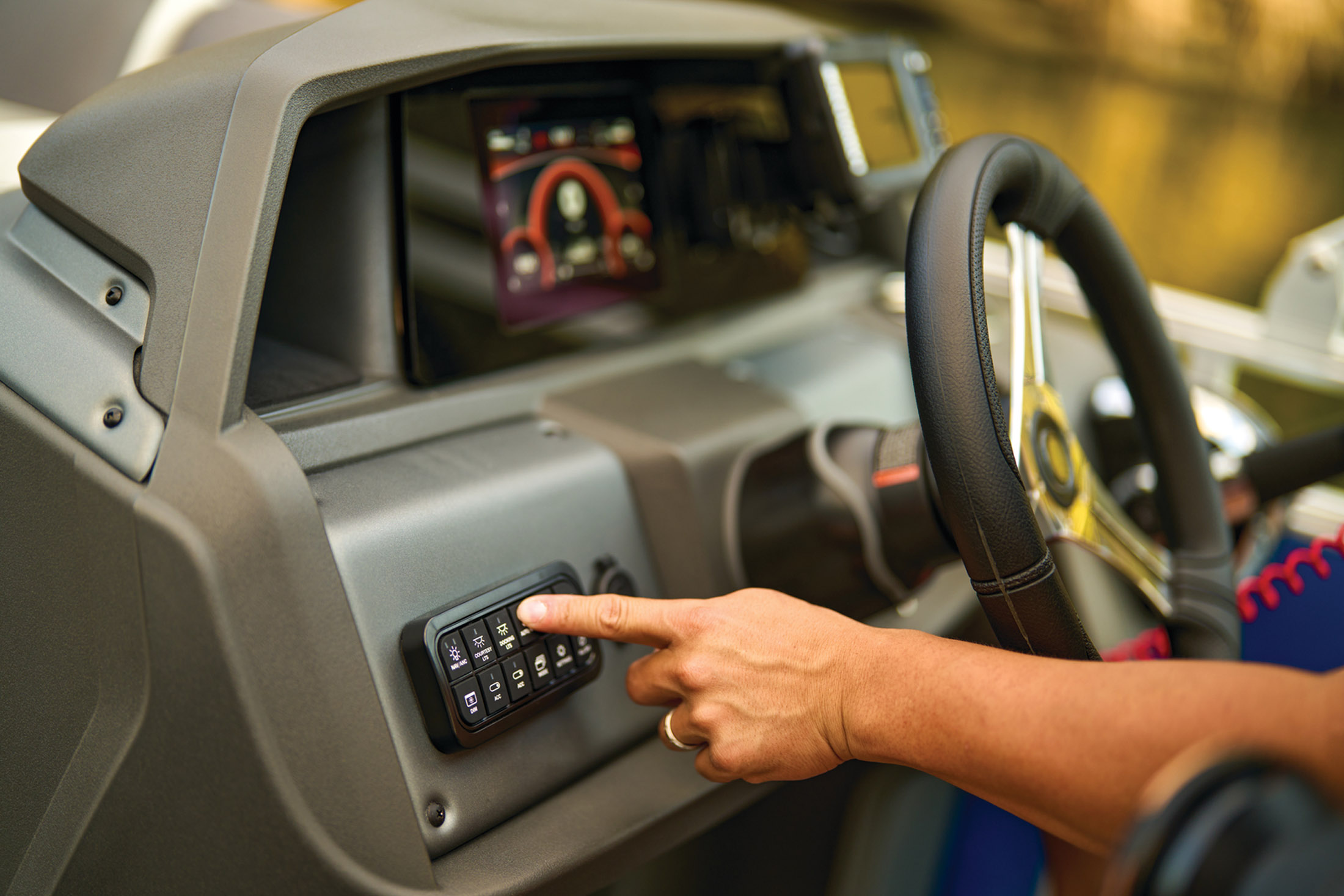

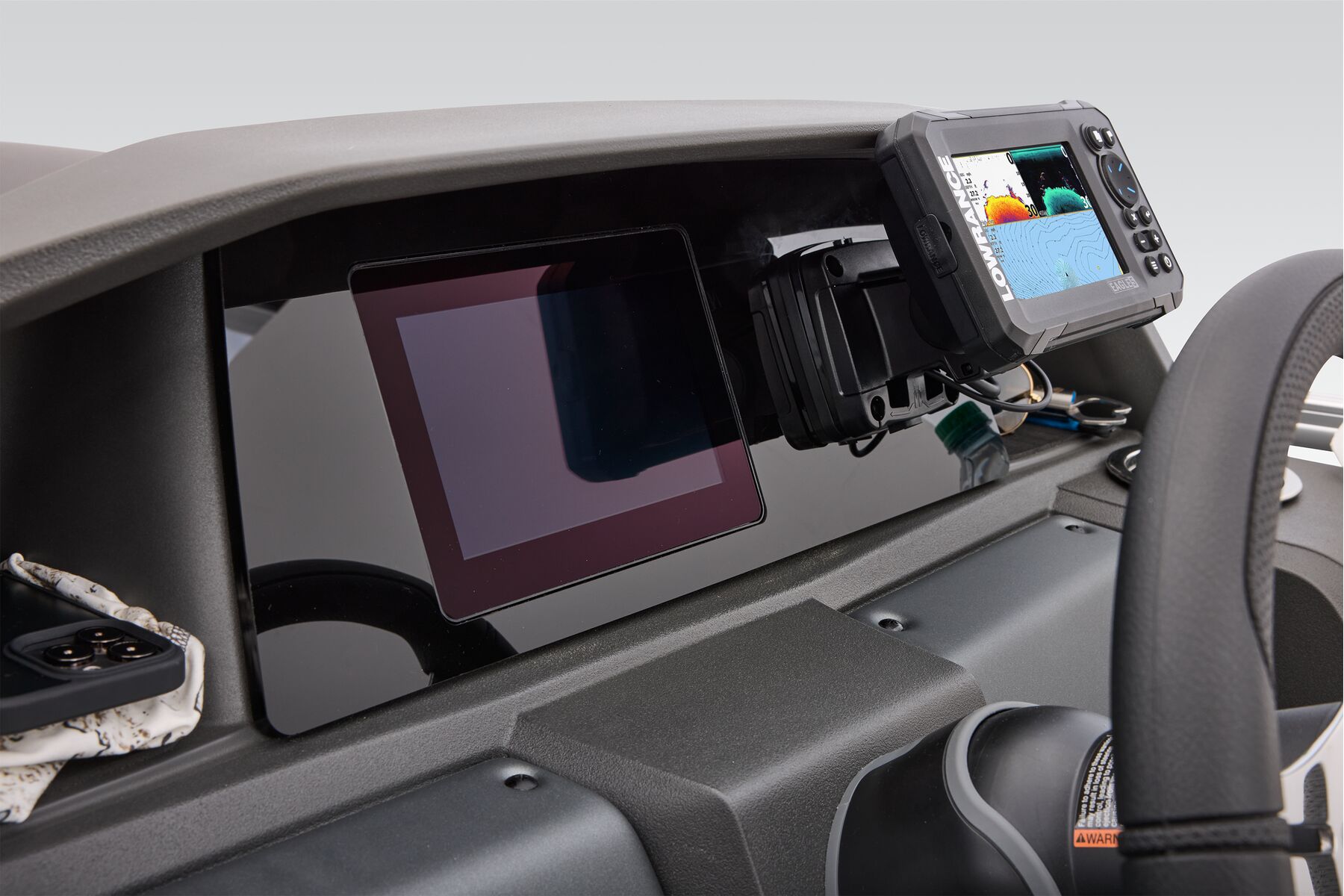

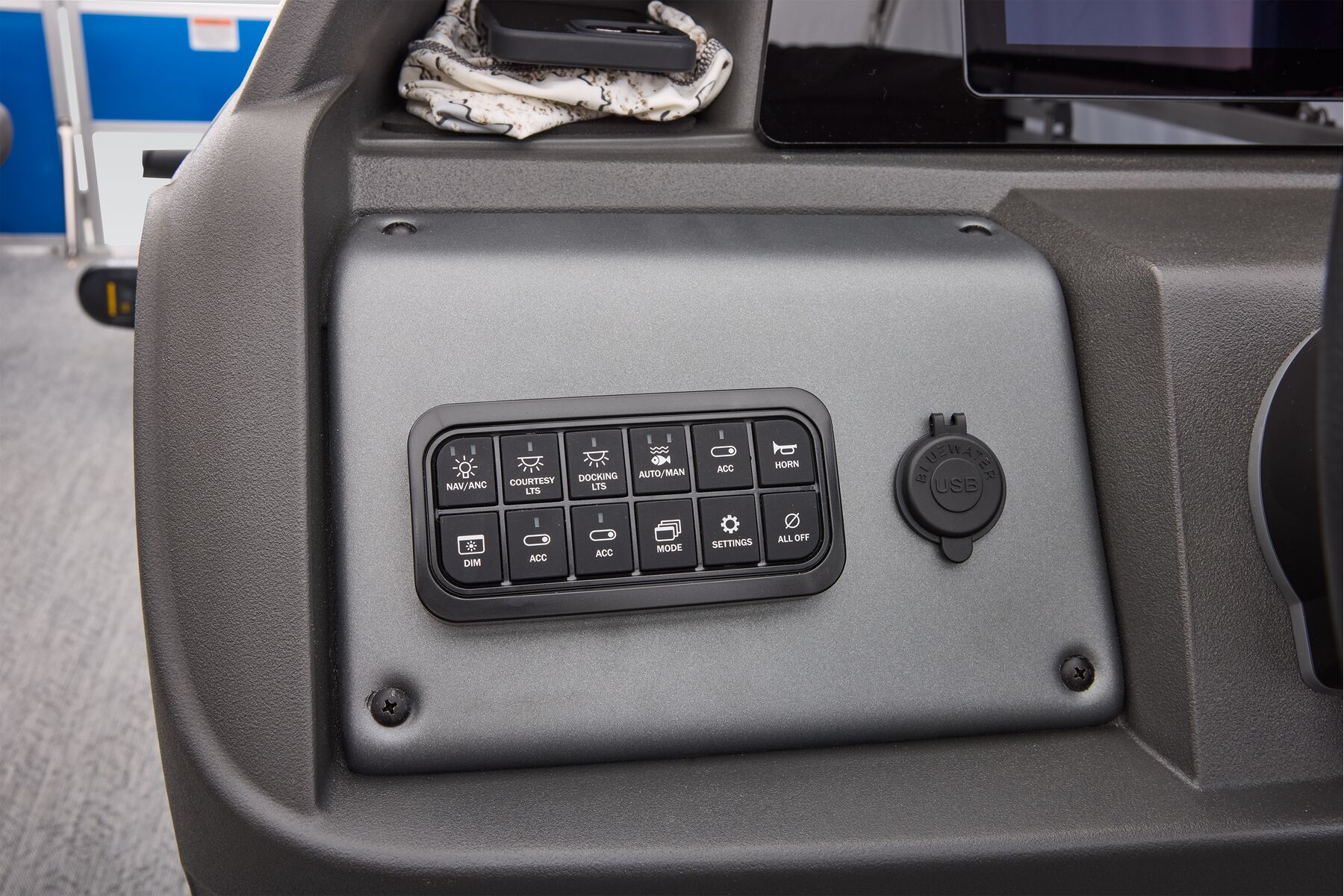

- SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel

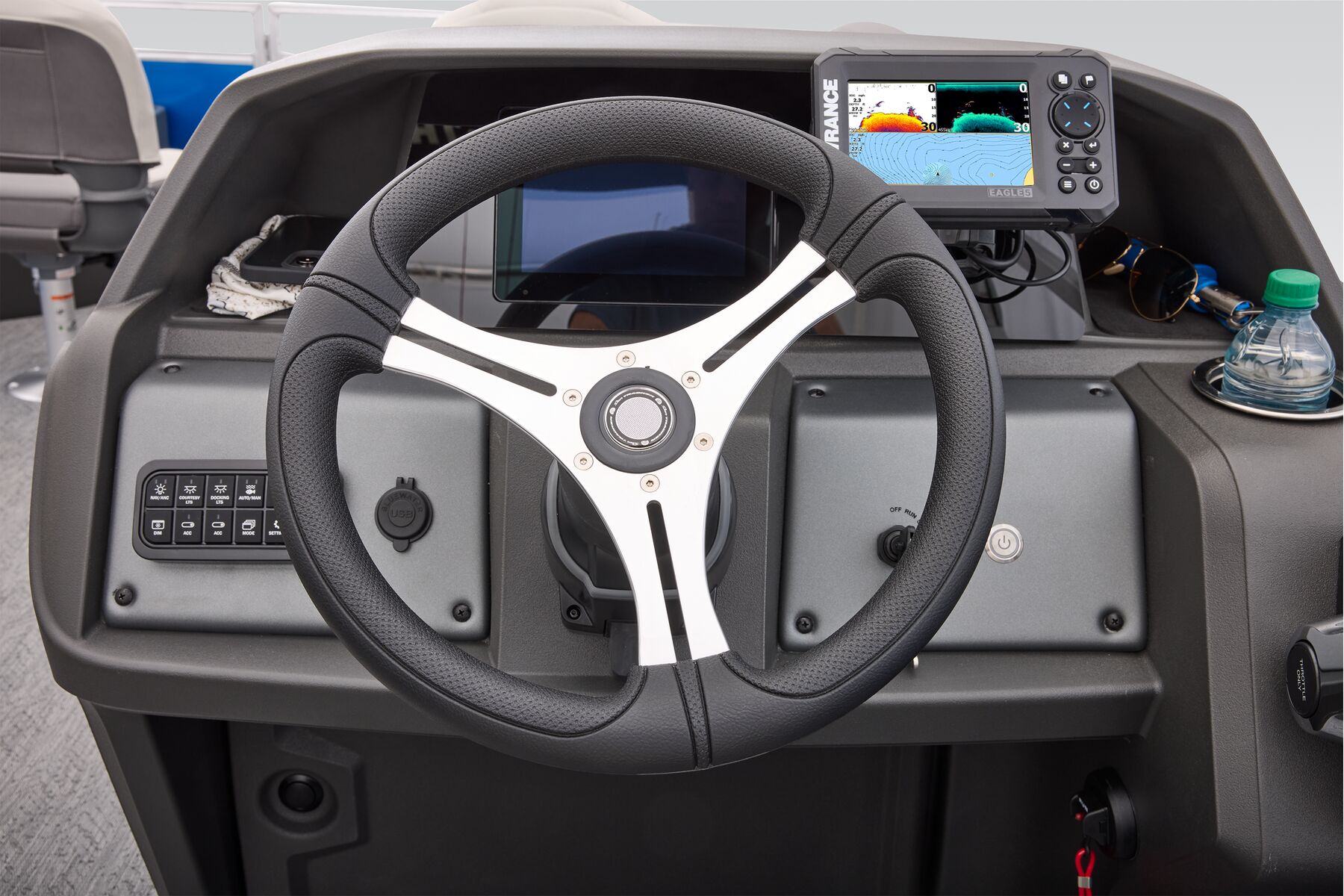

- Tilt steering w/deluxe soft-touch steering wheel

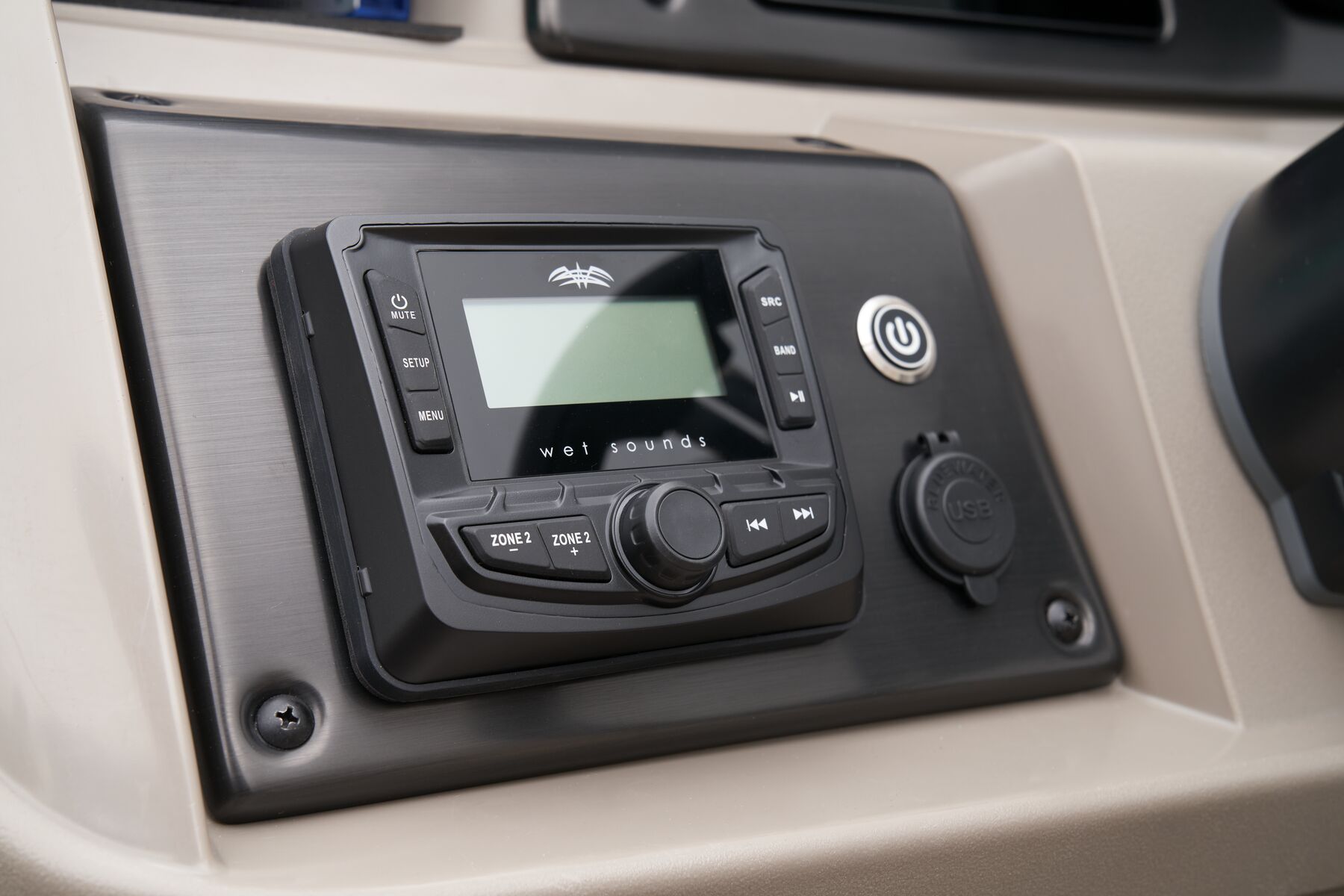

- Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) speakers, strategically located & shielded within the seat bases
- Master power on/off switch
- Recessed mobile phone cubbies
- USB charging receptacle
Interior

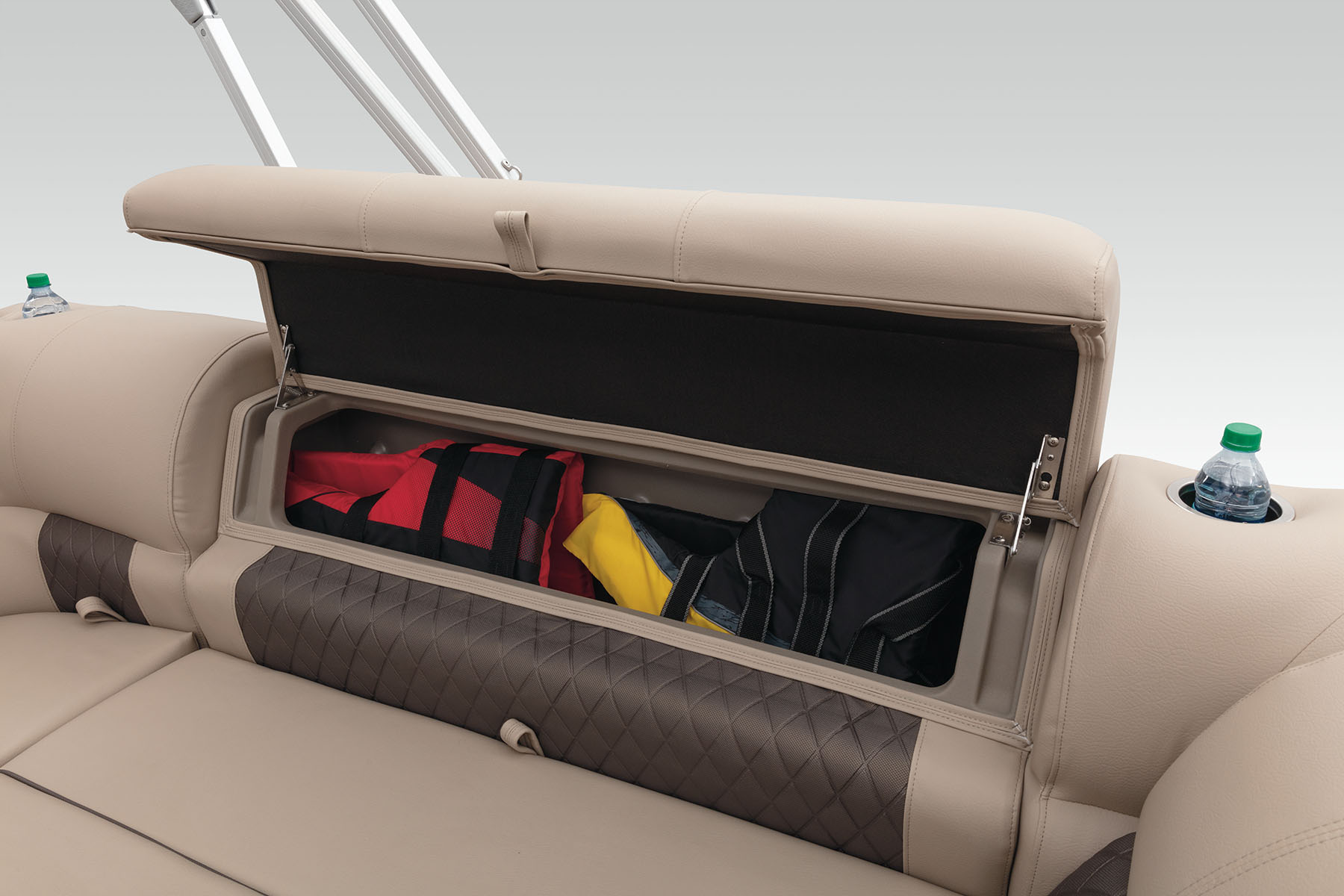

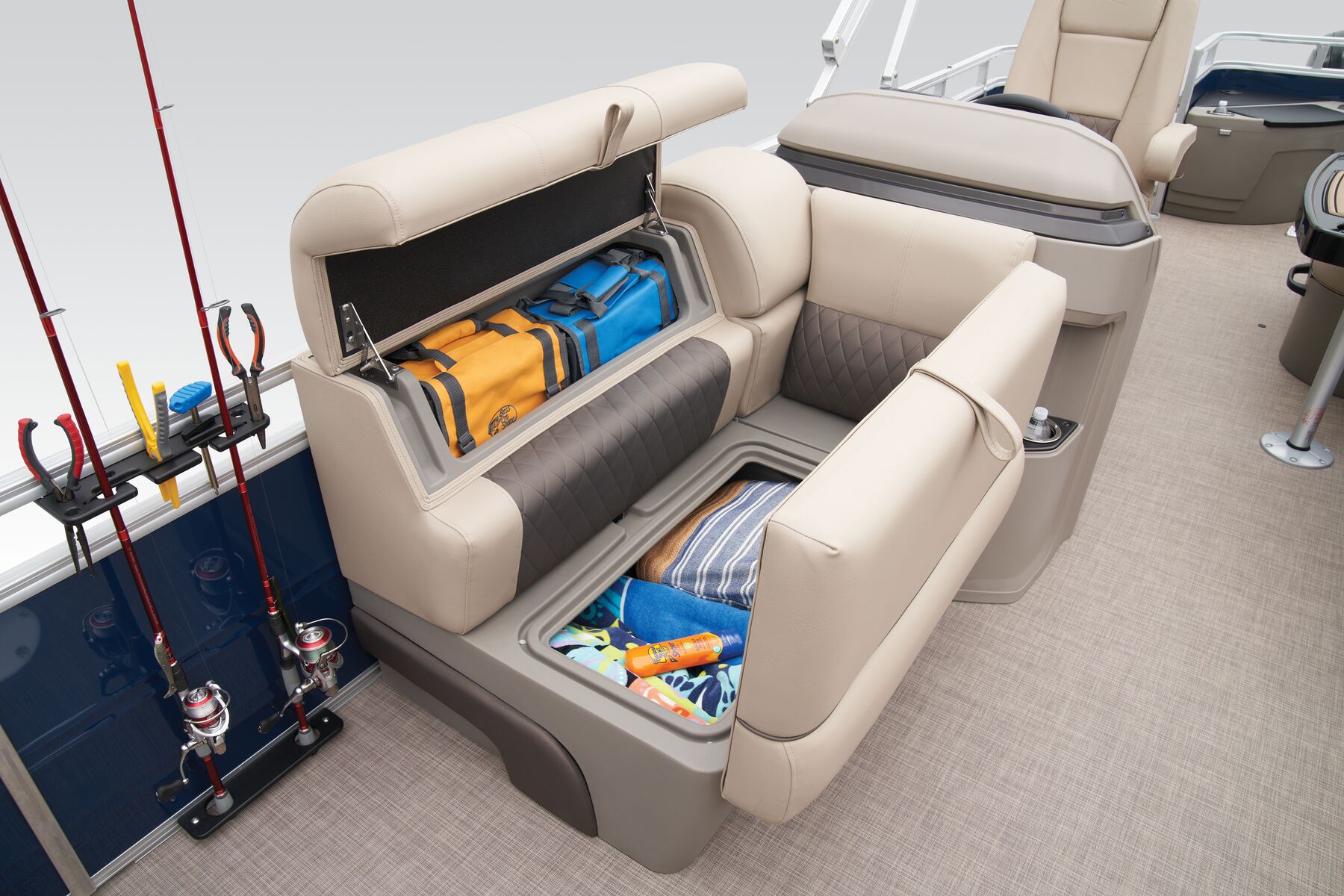

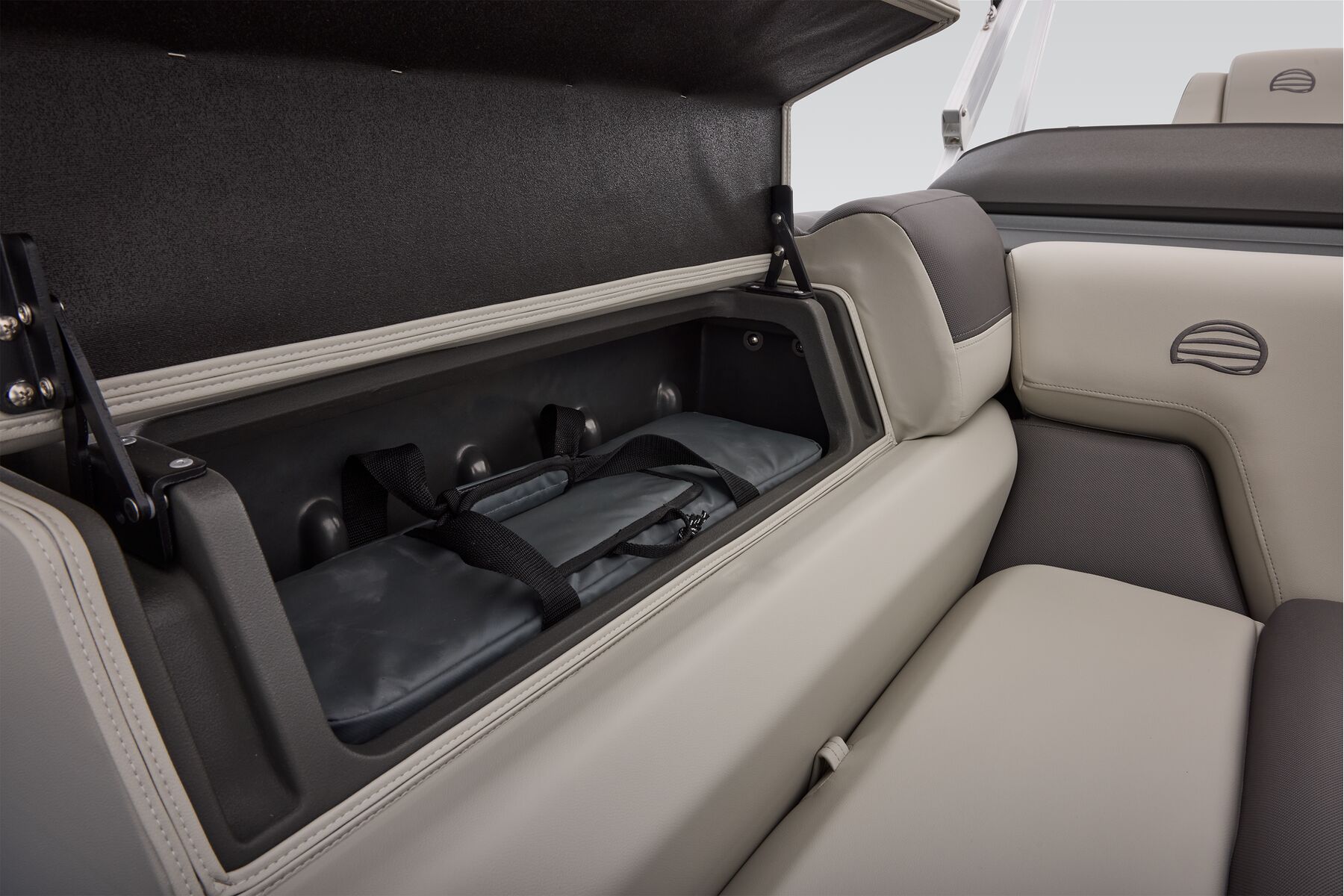

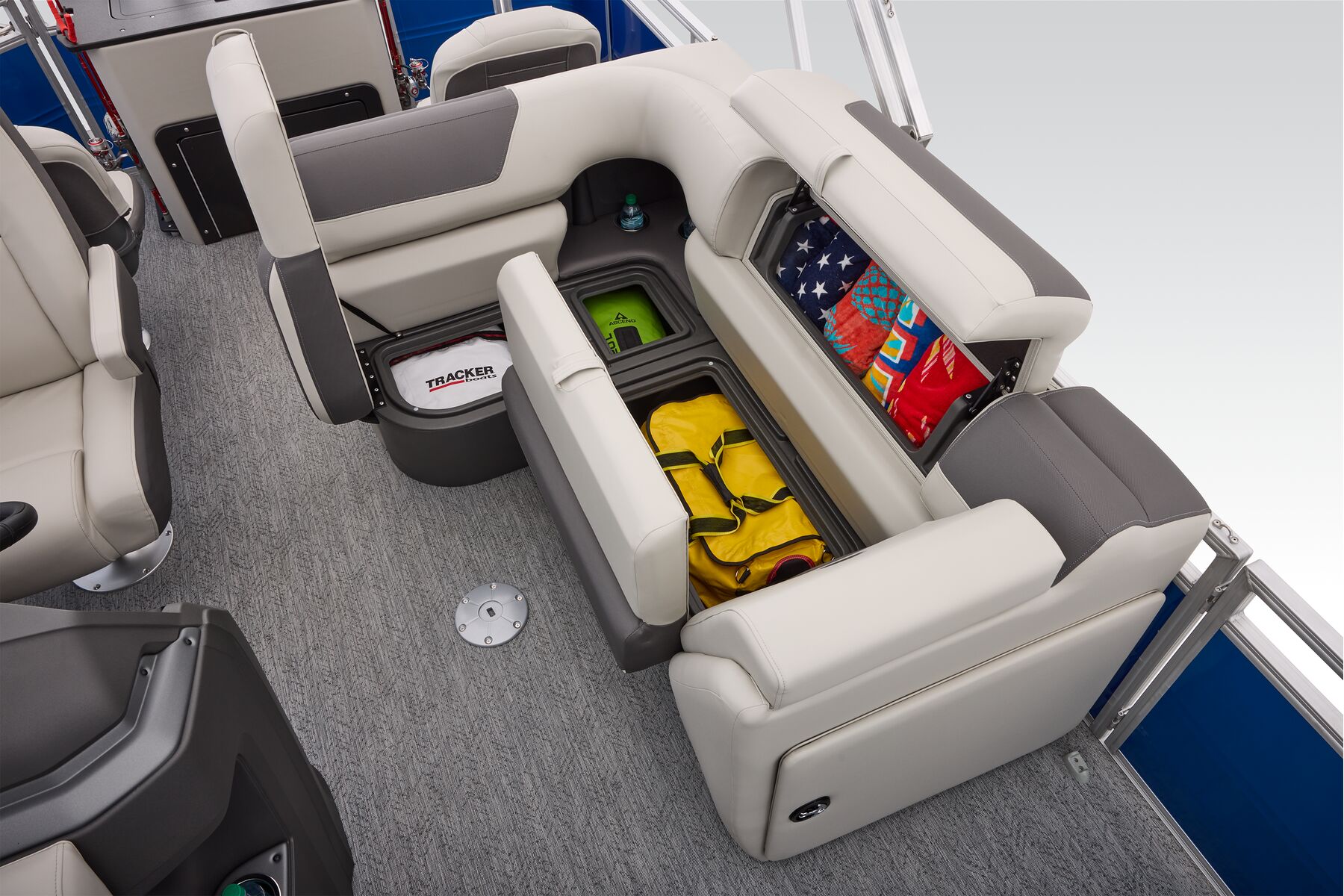

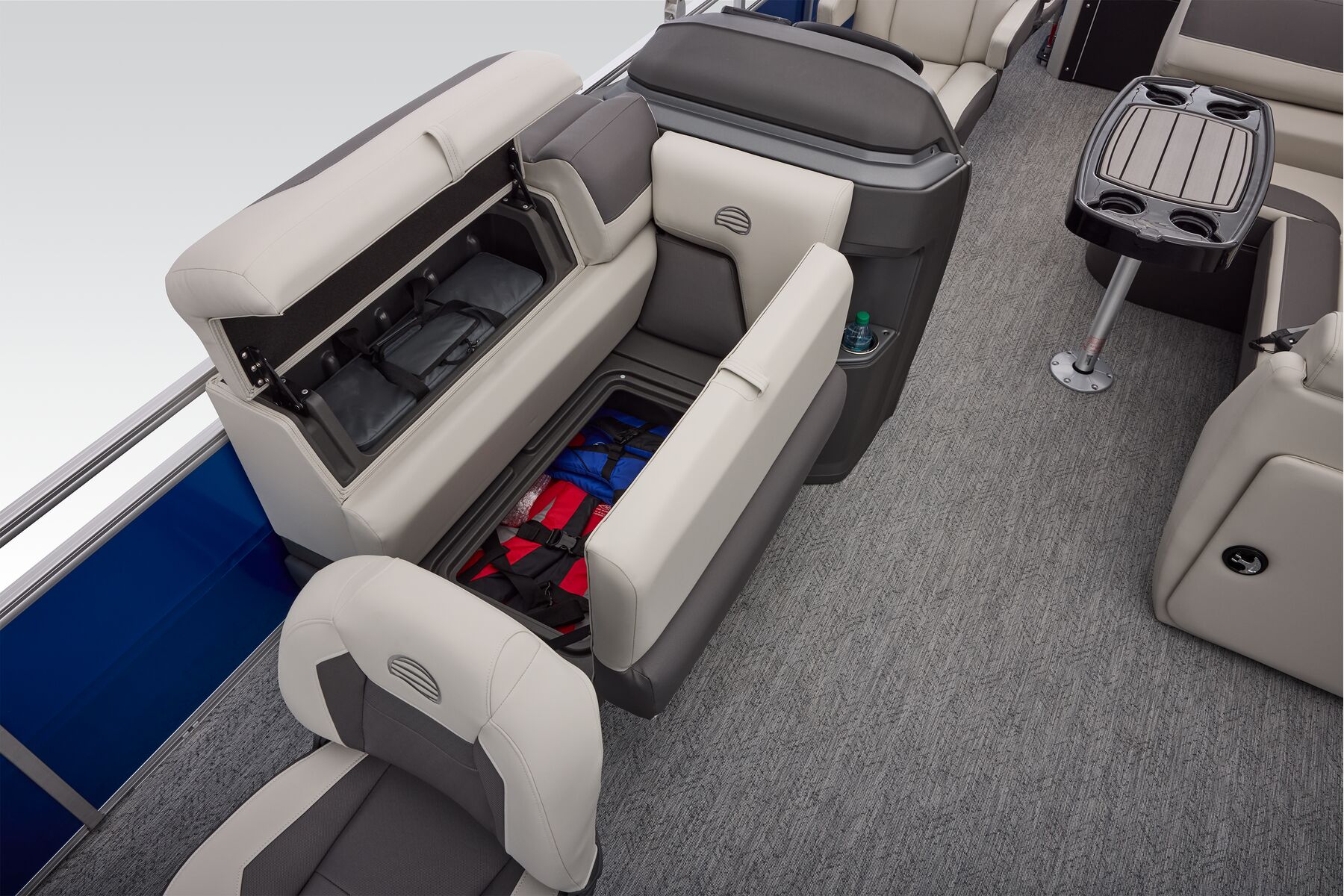

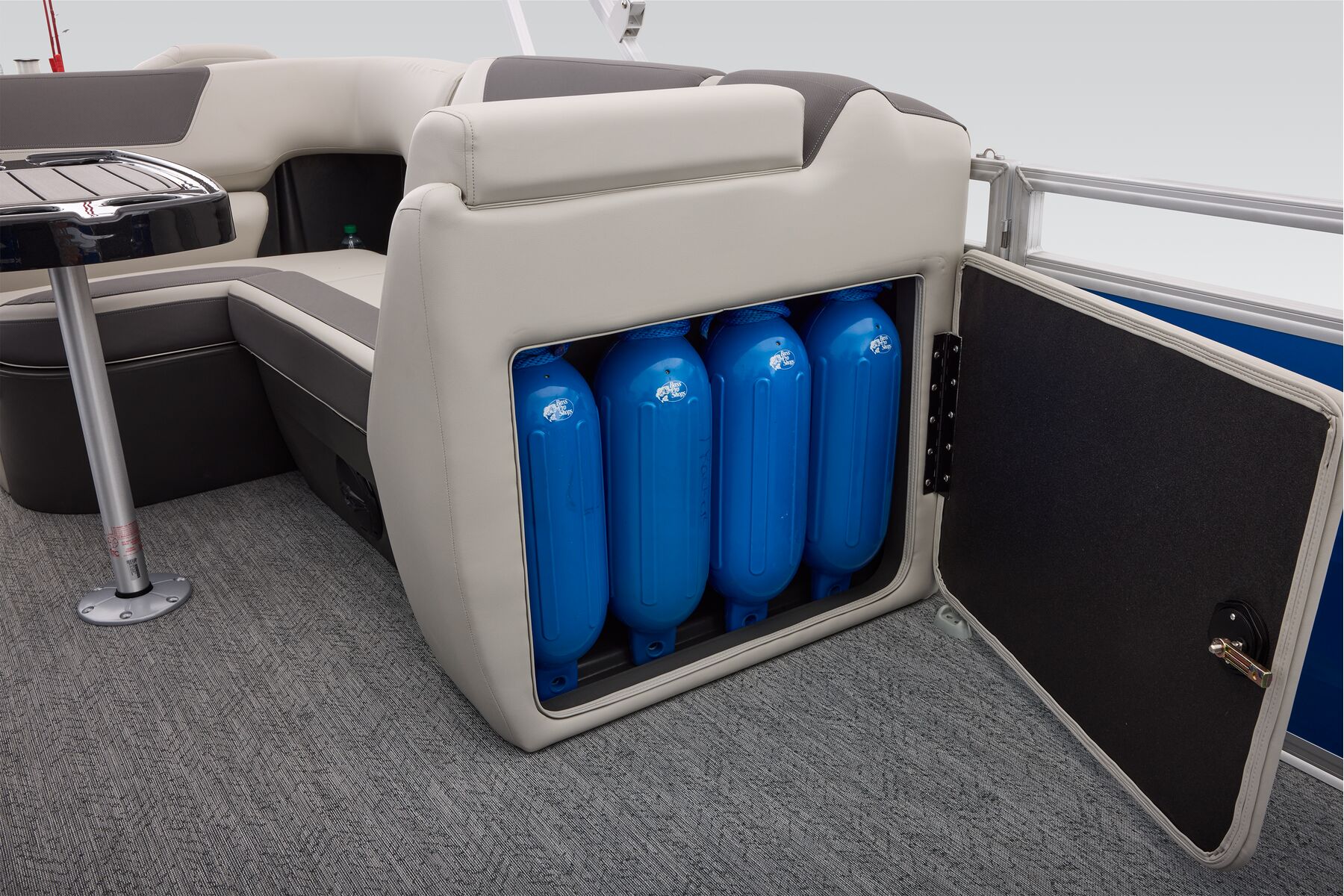

- Patented built-in STOW MORE™ seat-back storage system for all couches

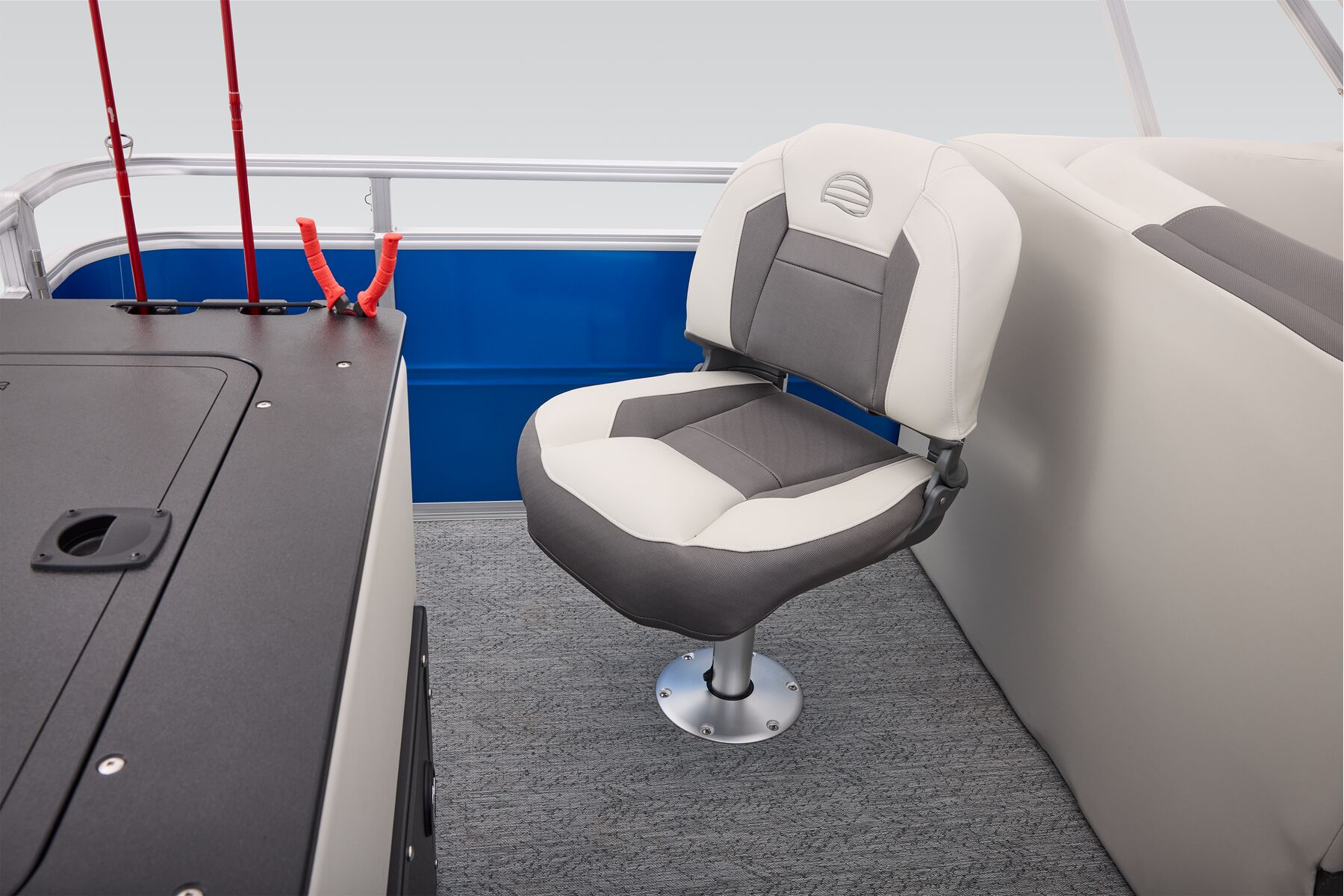

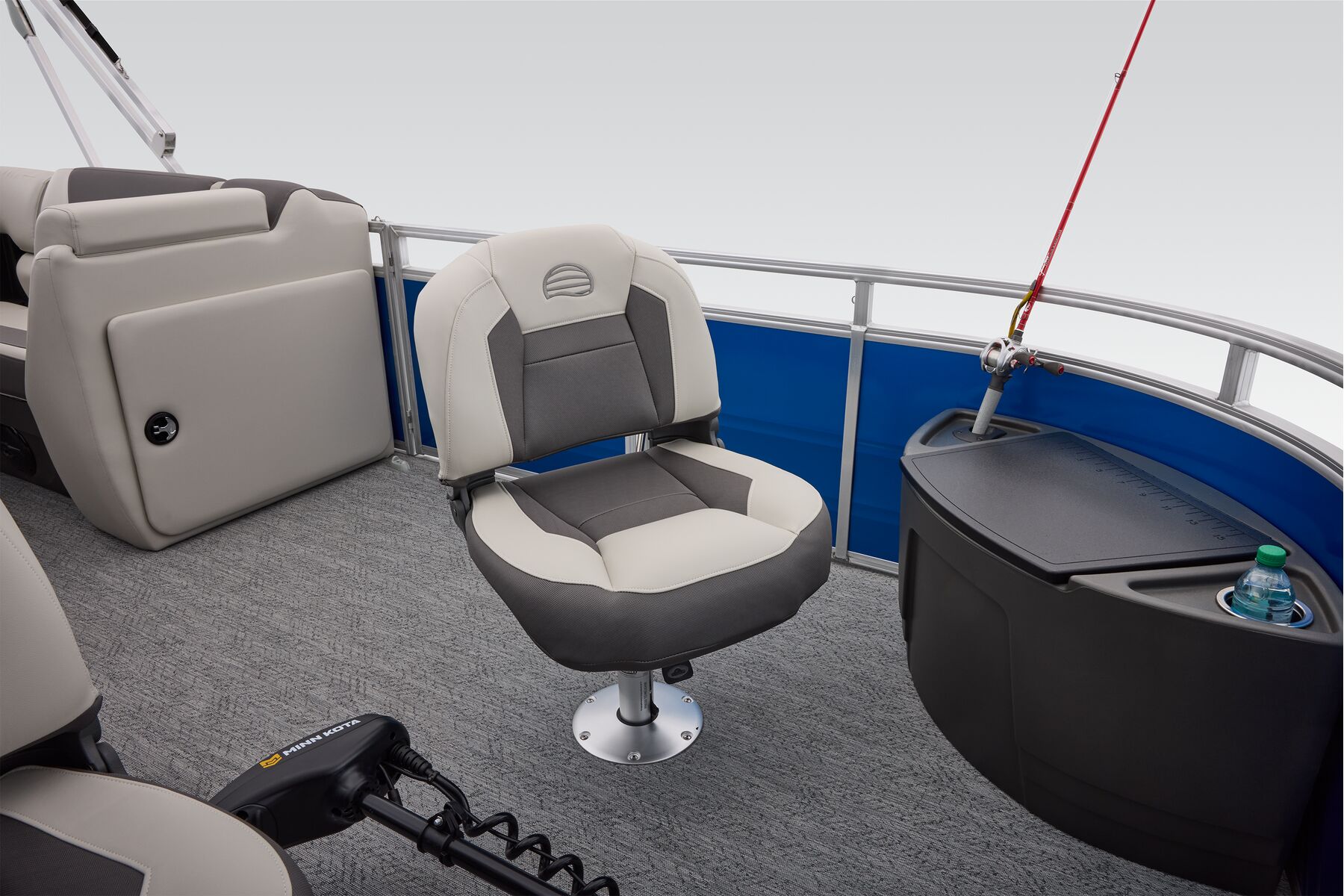

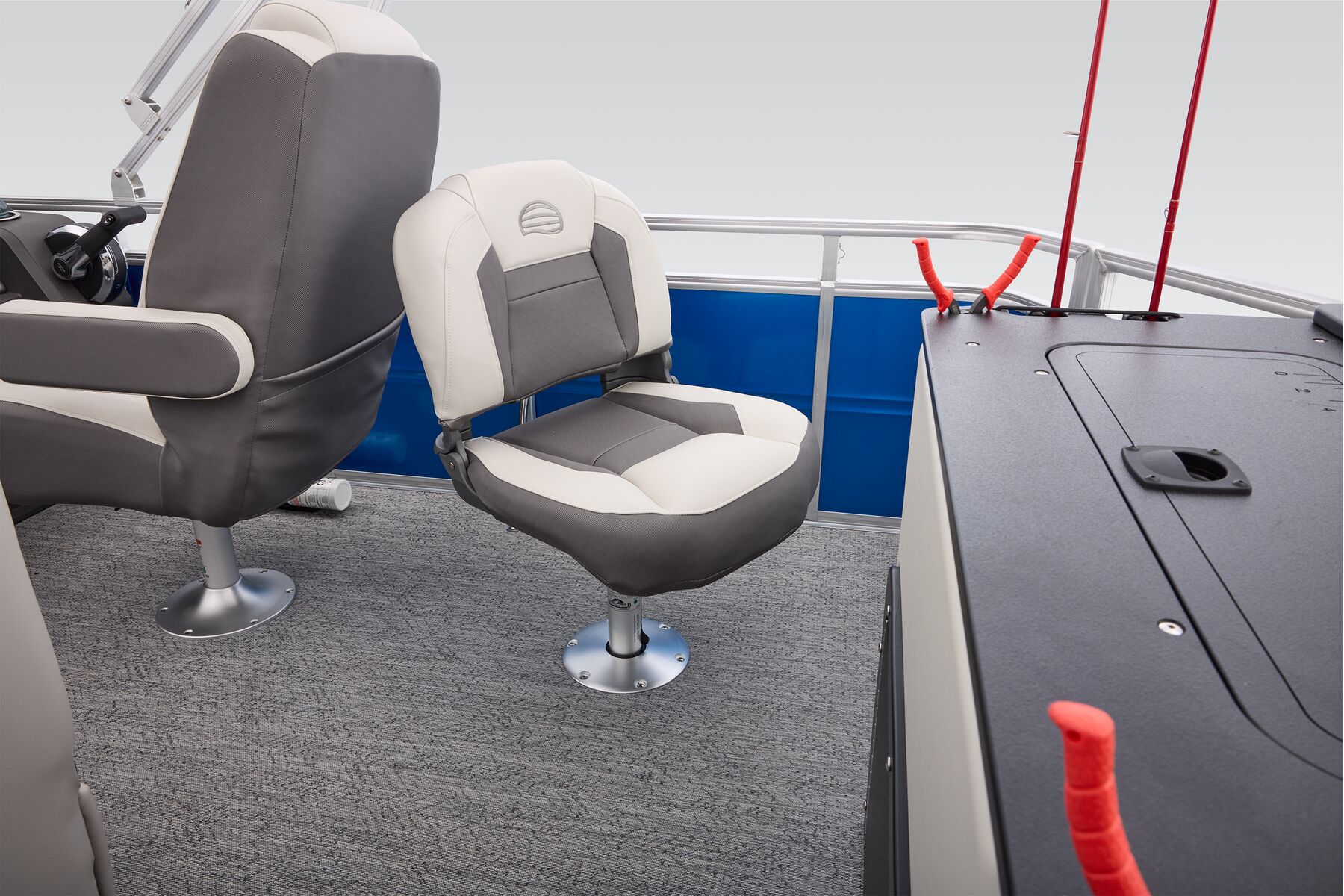

- 3 removable & folding fishing chairs w/heavy-duty 2-3/8" (6 cm) diameter pedestals

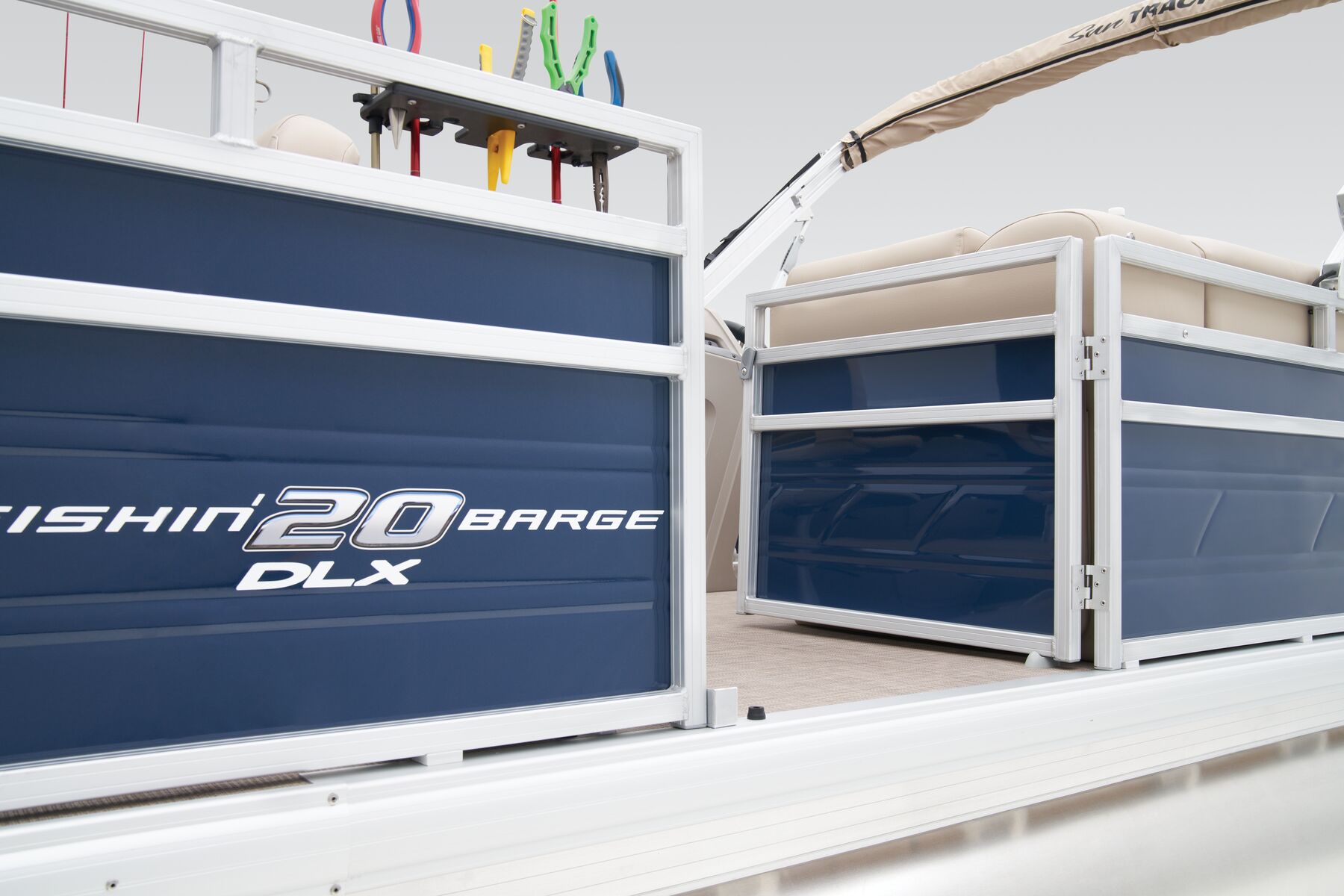

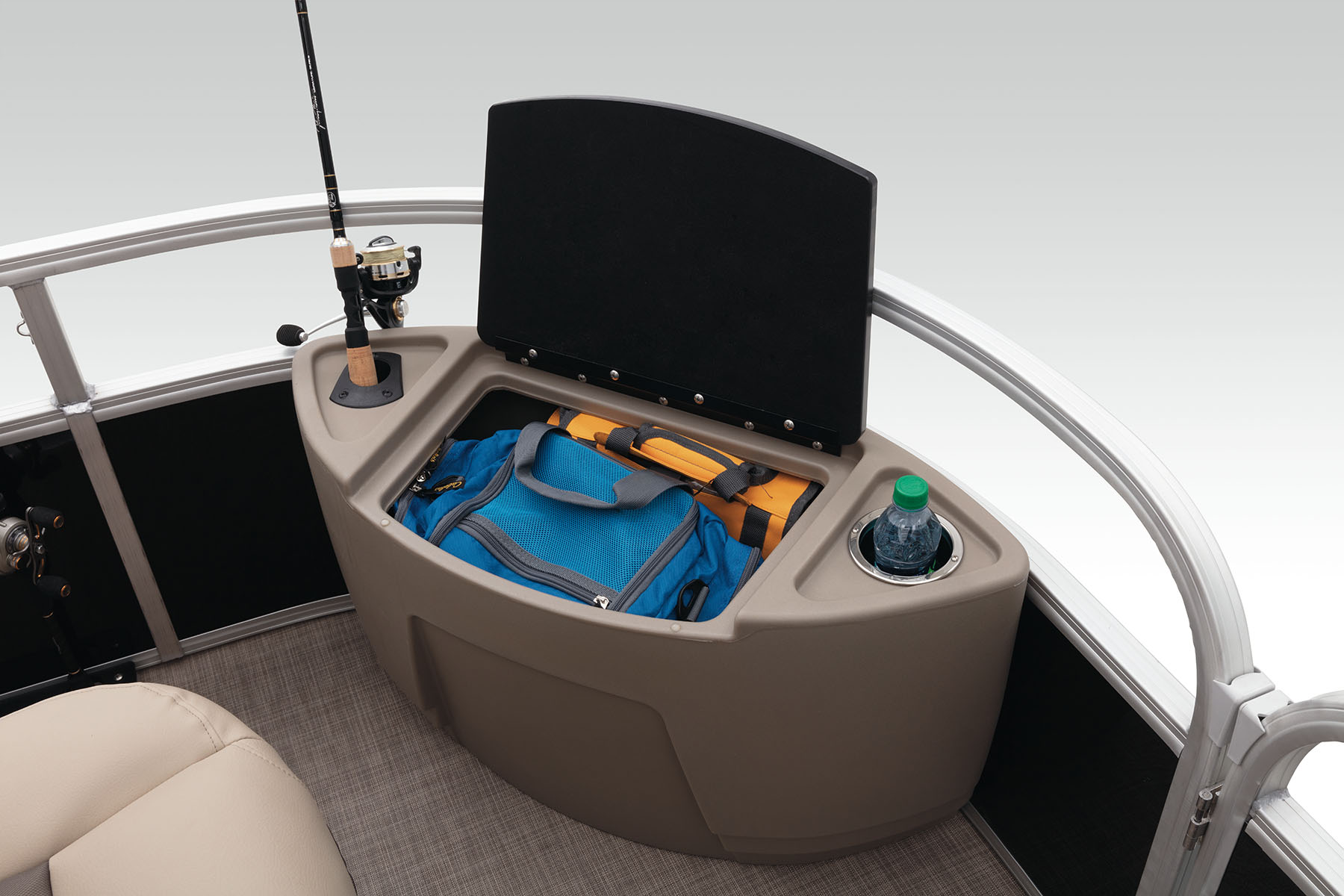

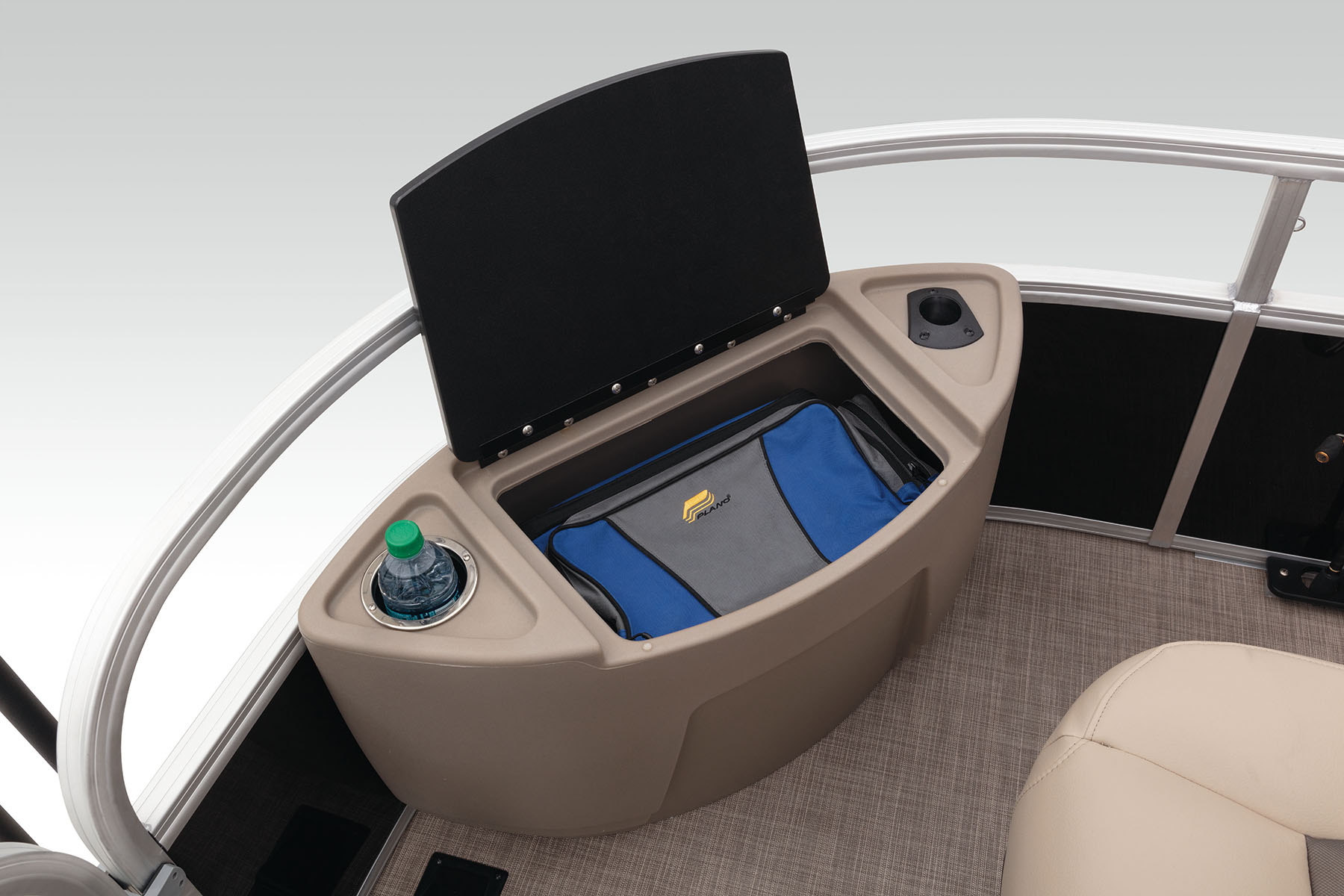

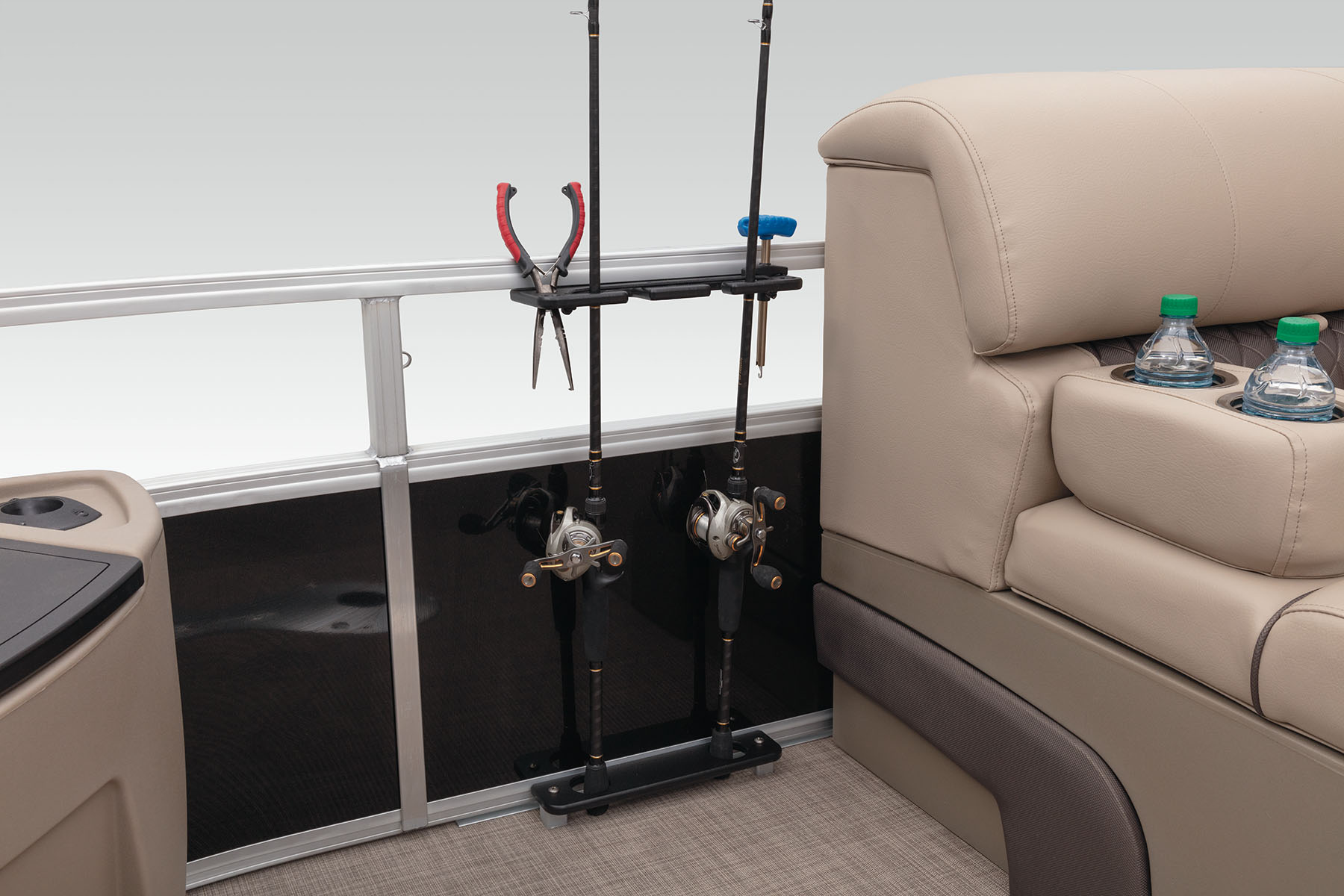

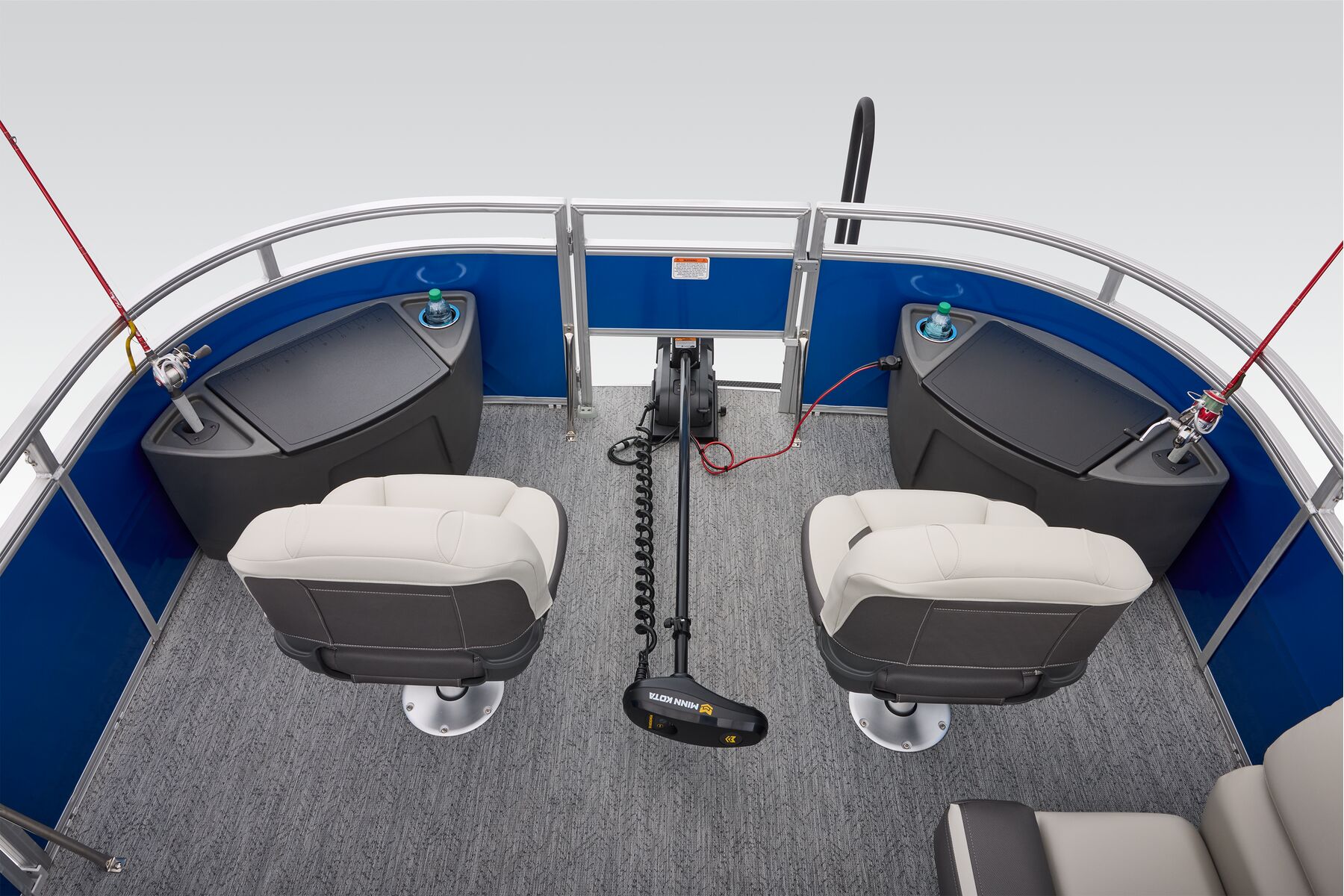

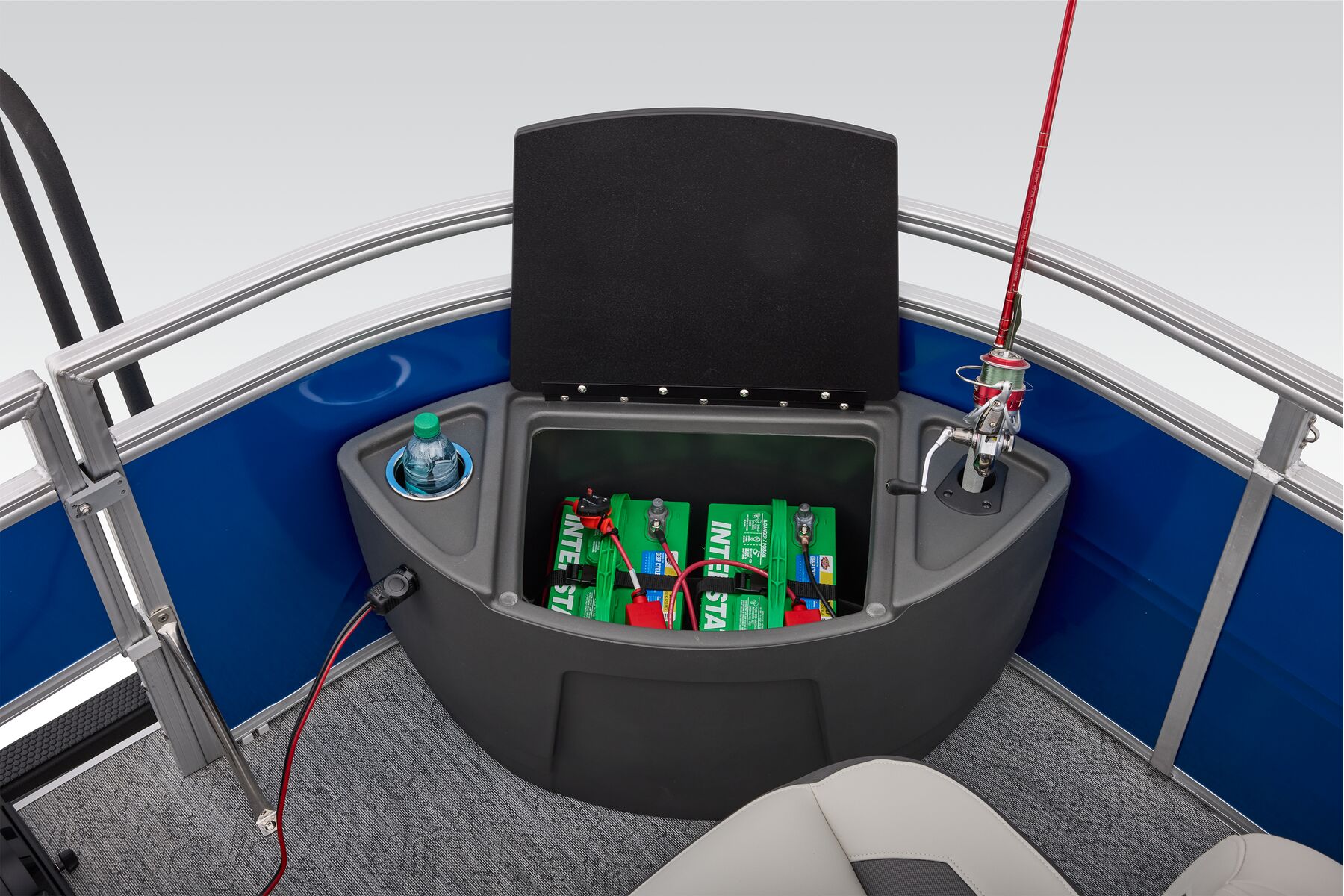

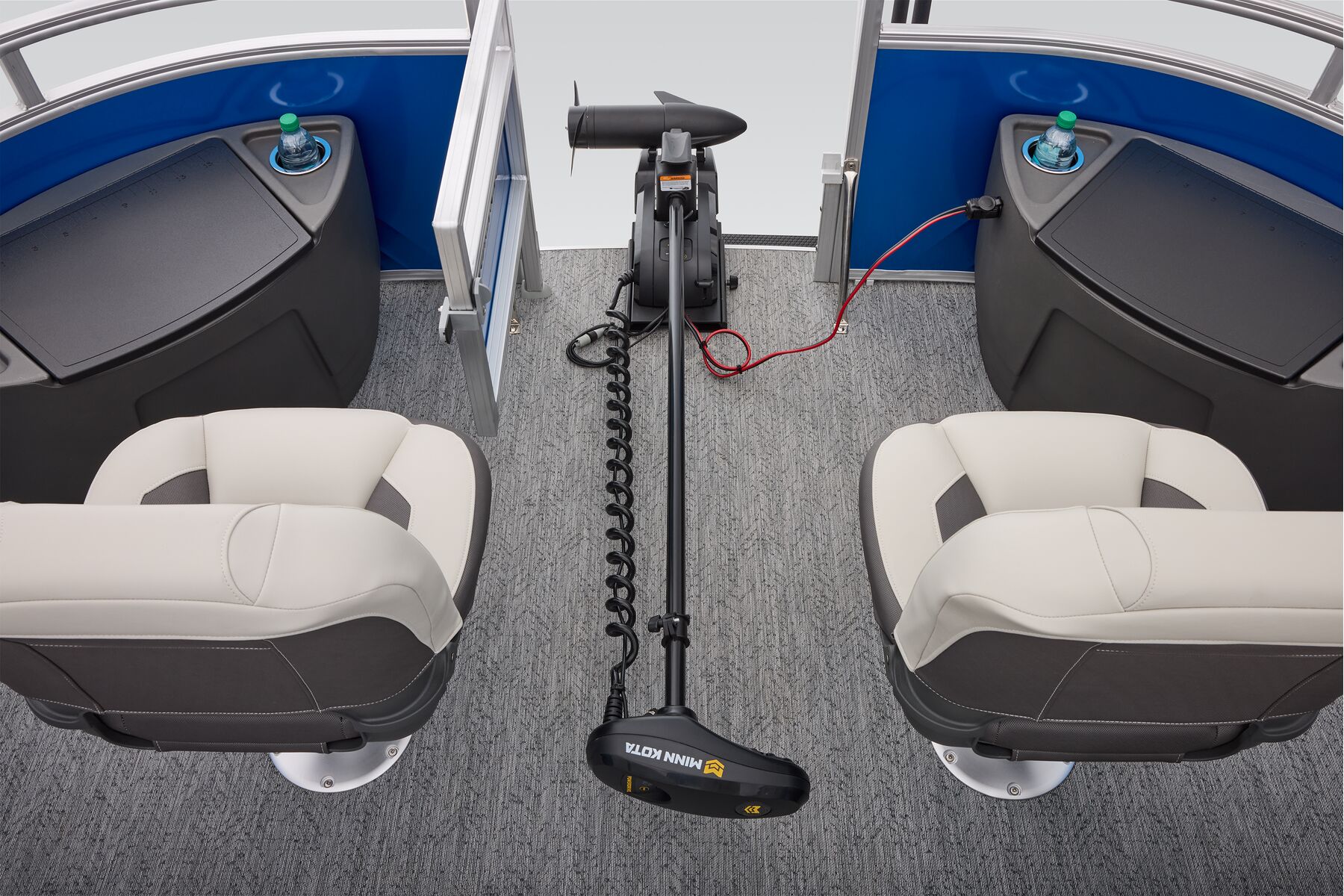

- Front fishing station w/2 pedestal seat bases; rail-mounted rod & tool holders; & bow starboard storage compartment w/rod & drink holders

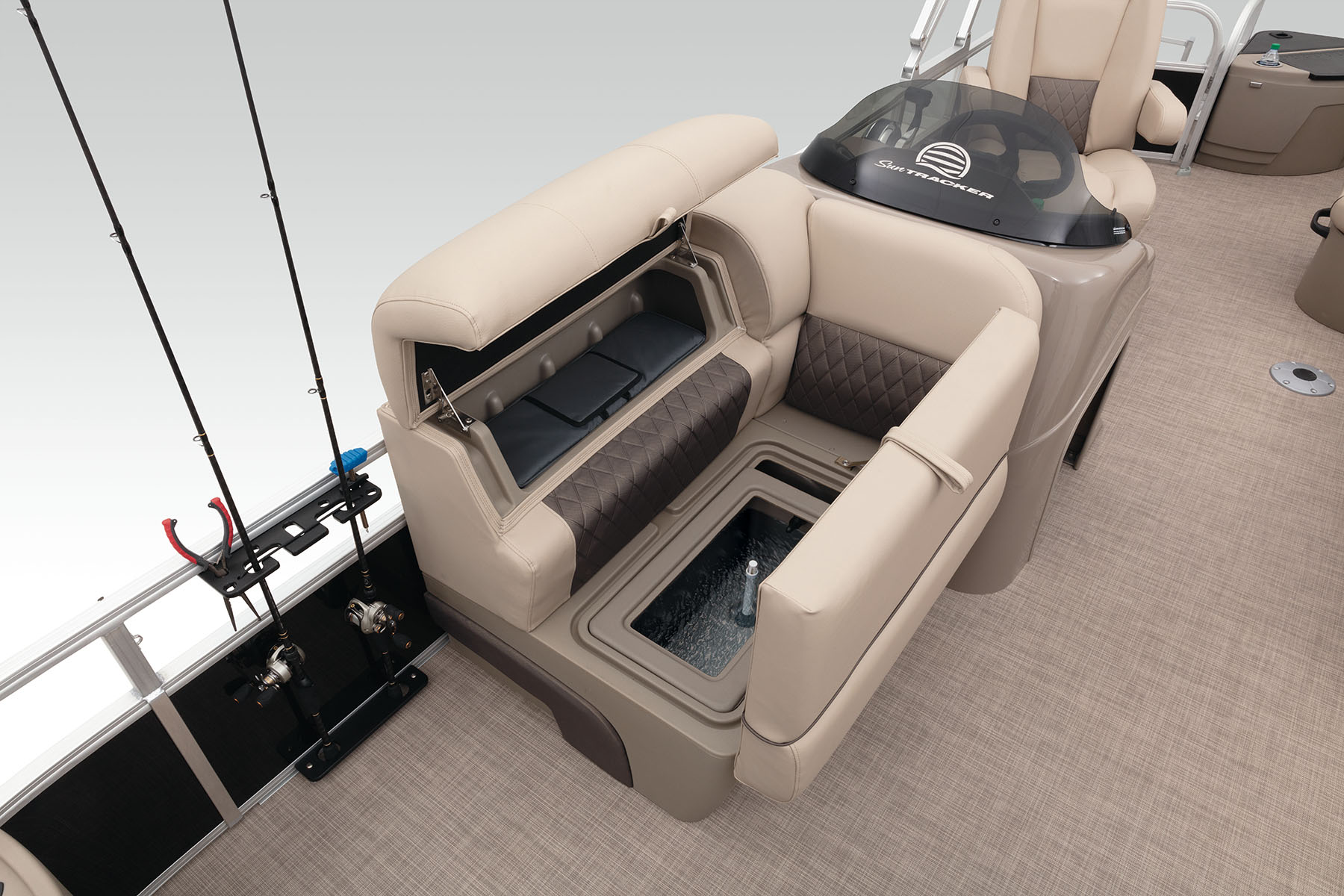

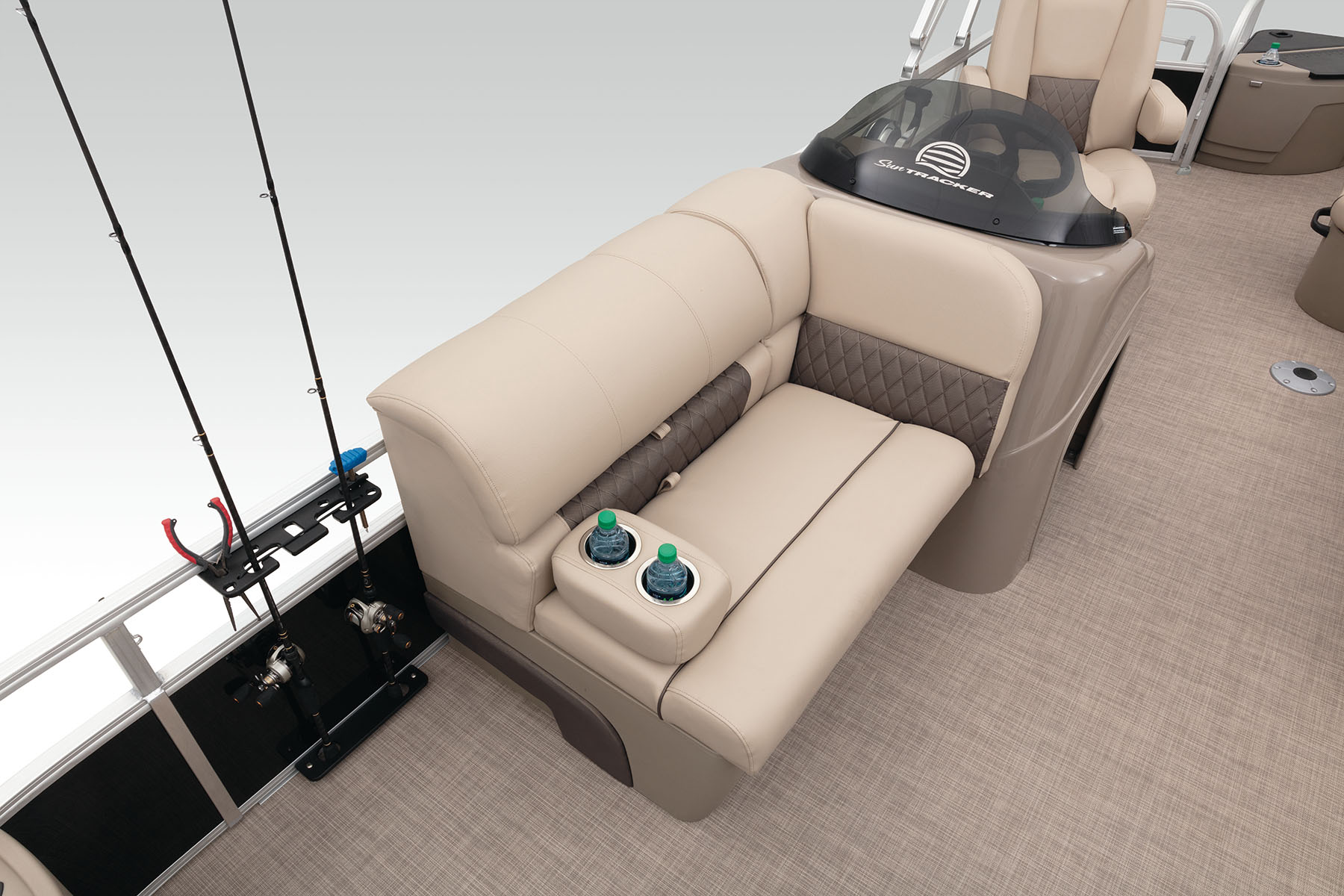

- Bow starboard console couch w/STOW MORE™ & underseat storage

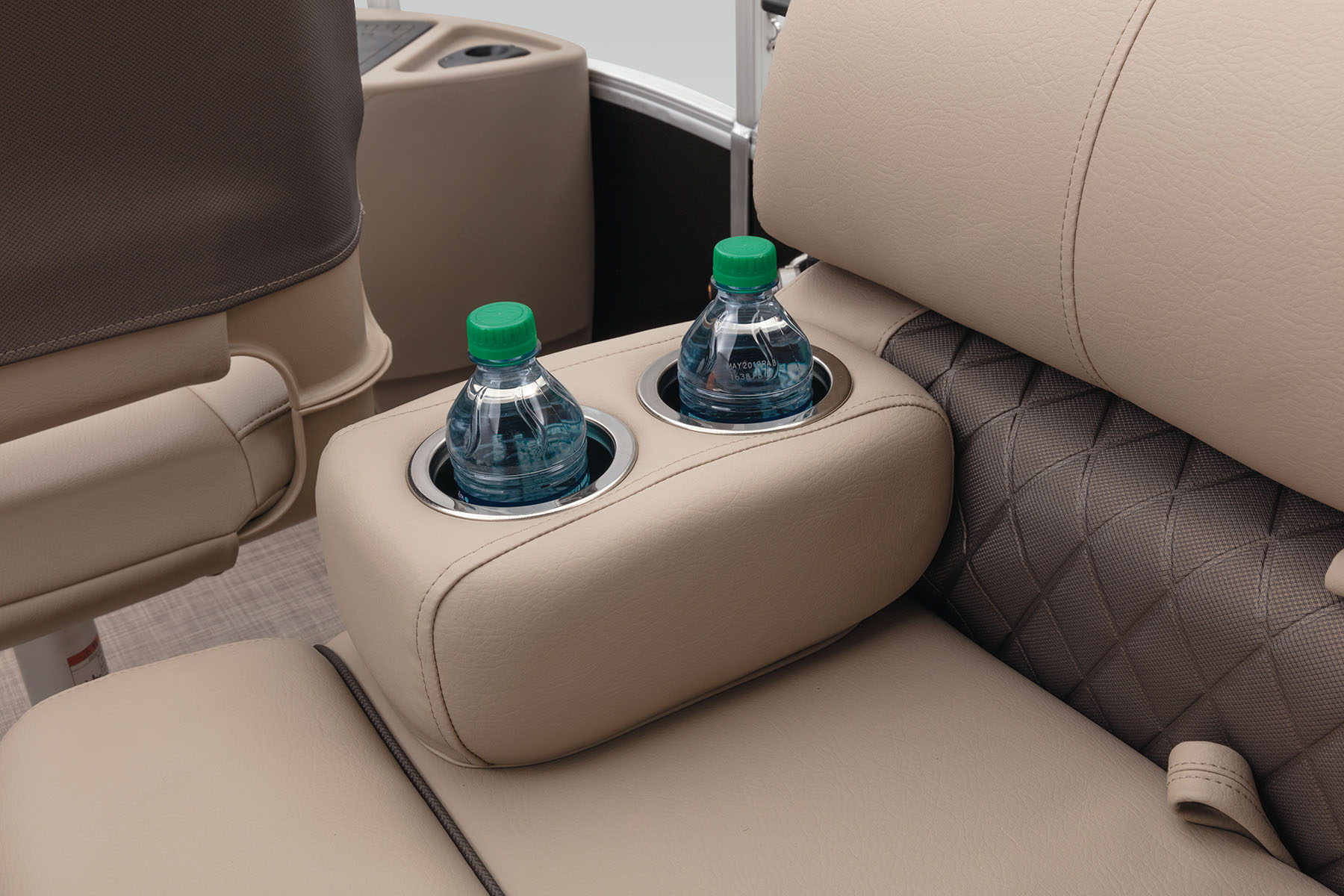

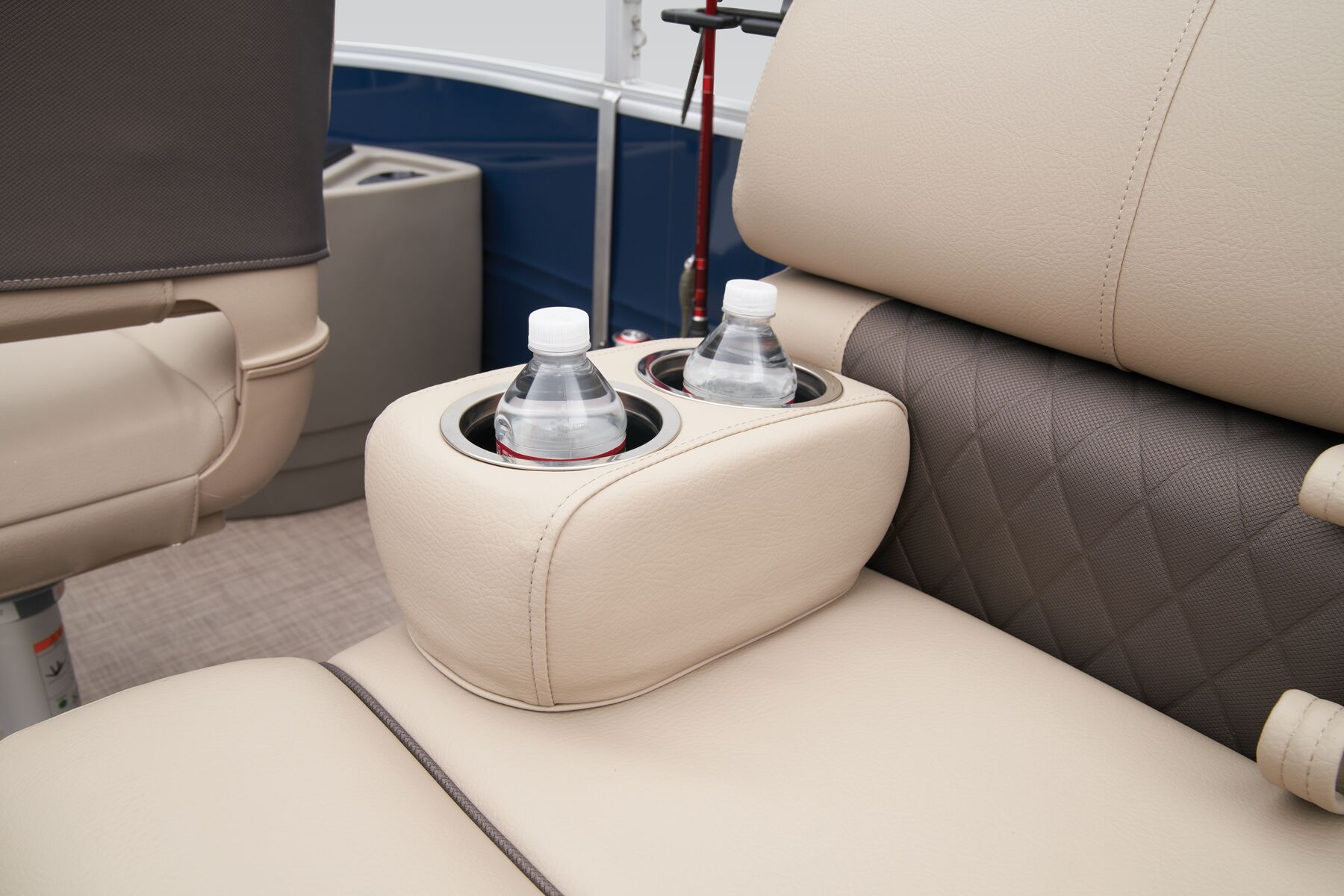

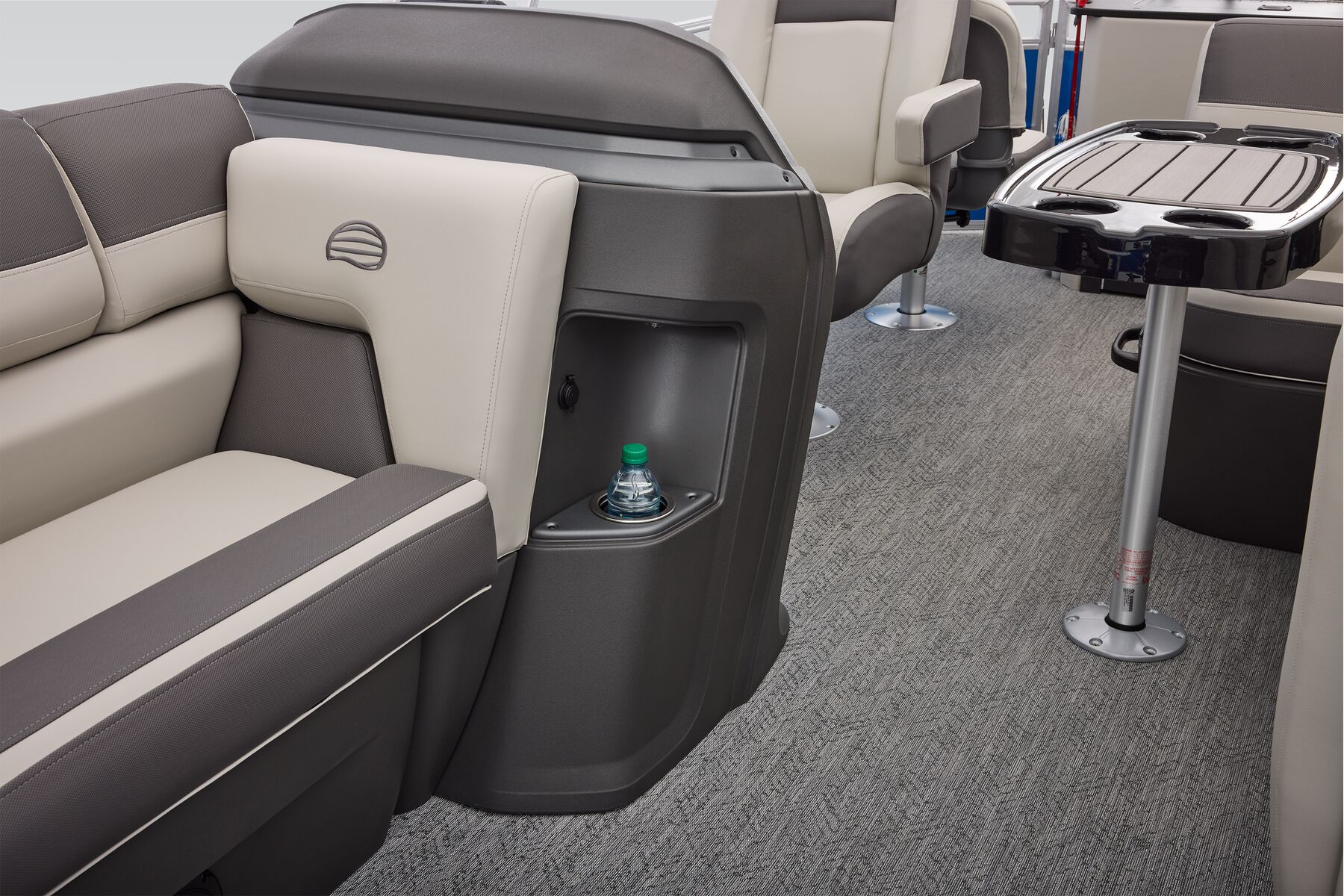

- Movable drink holder/armrest for couch seating

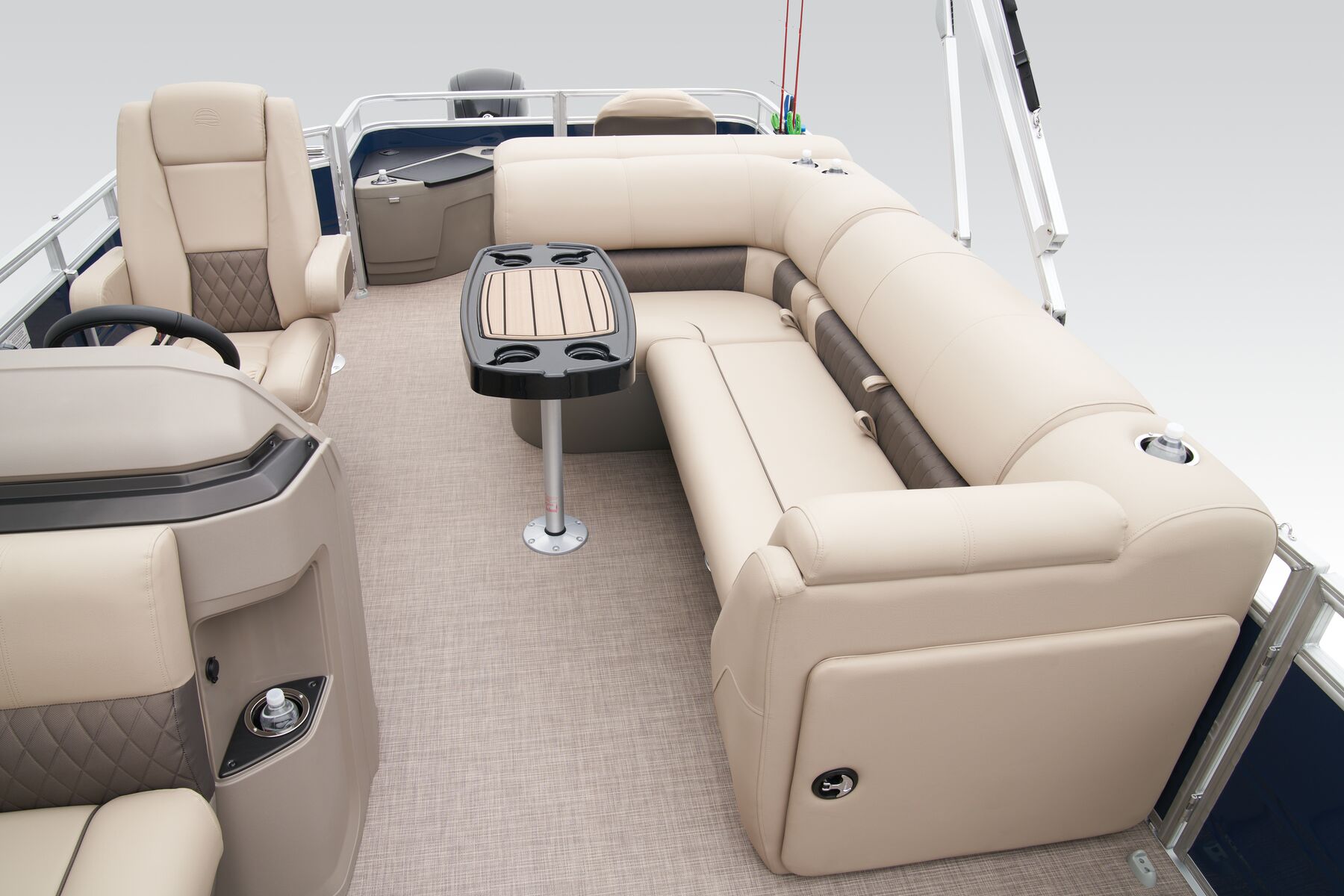

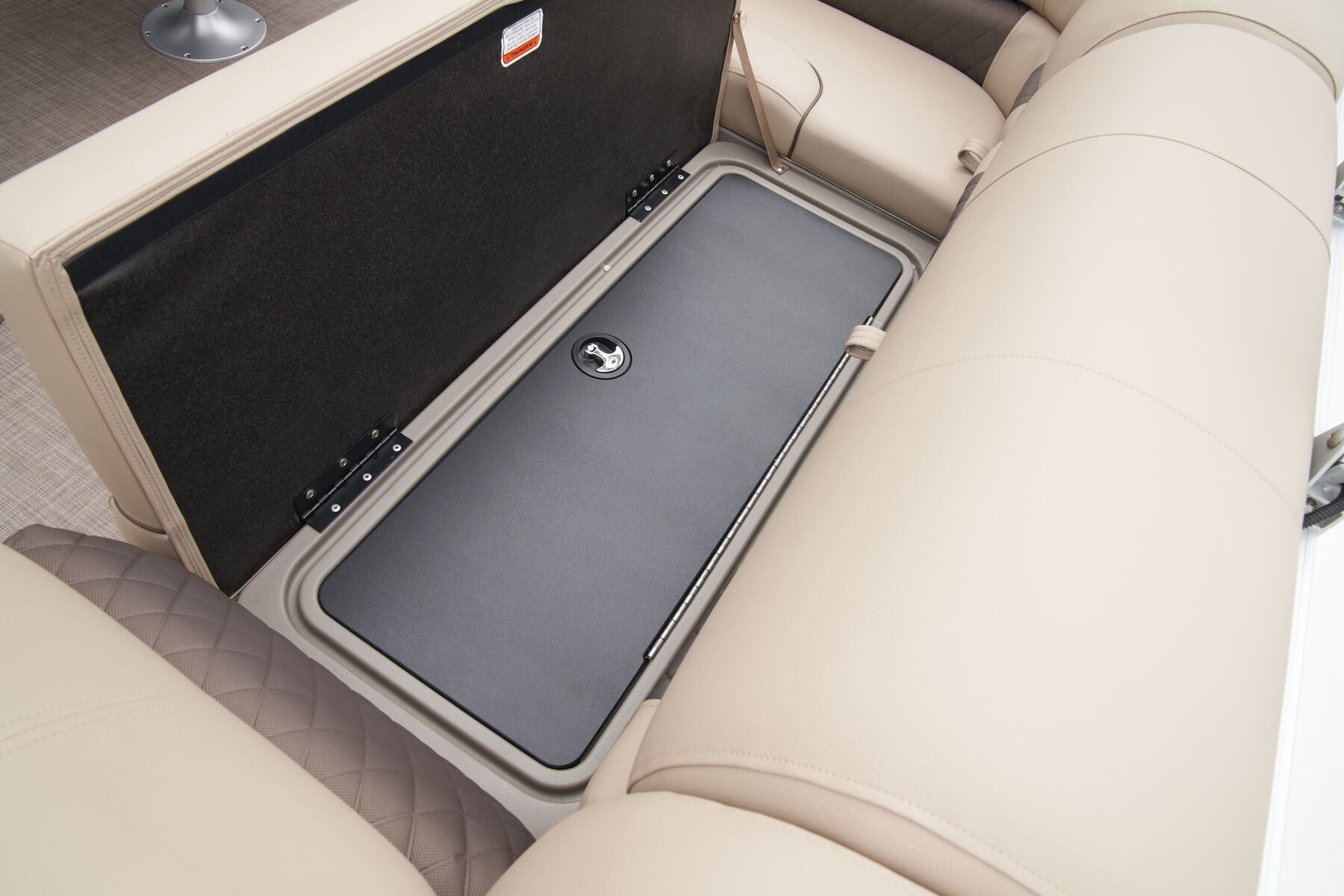

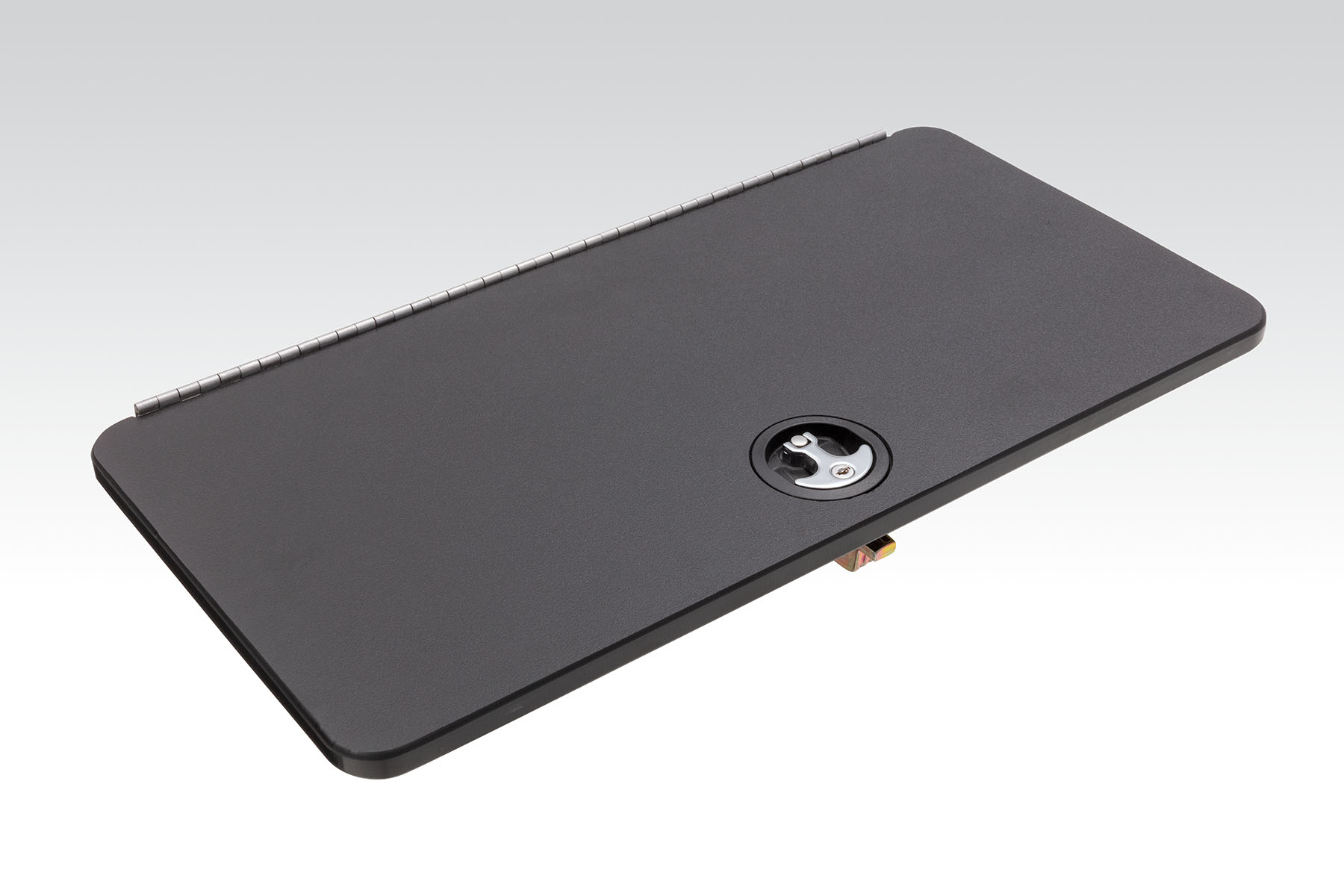

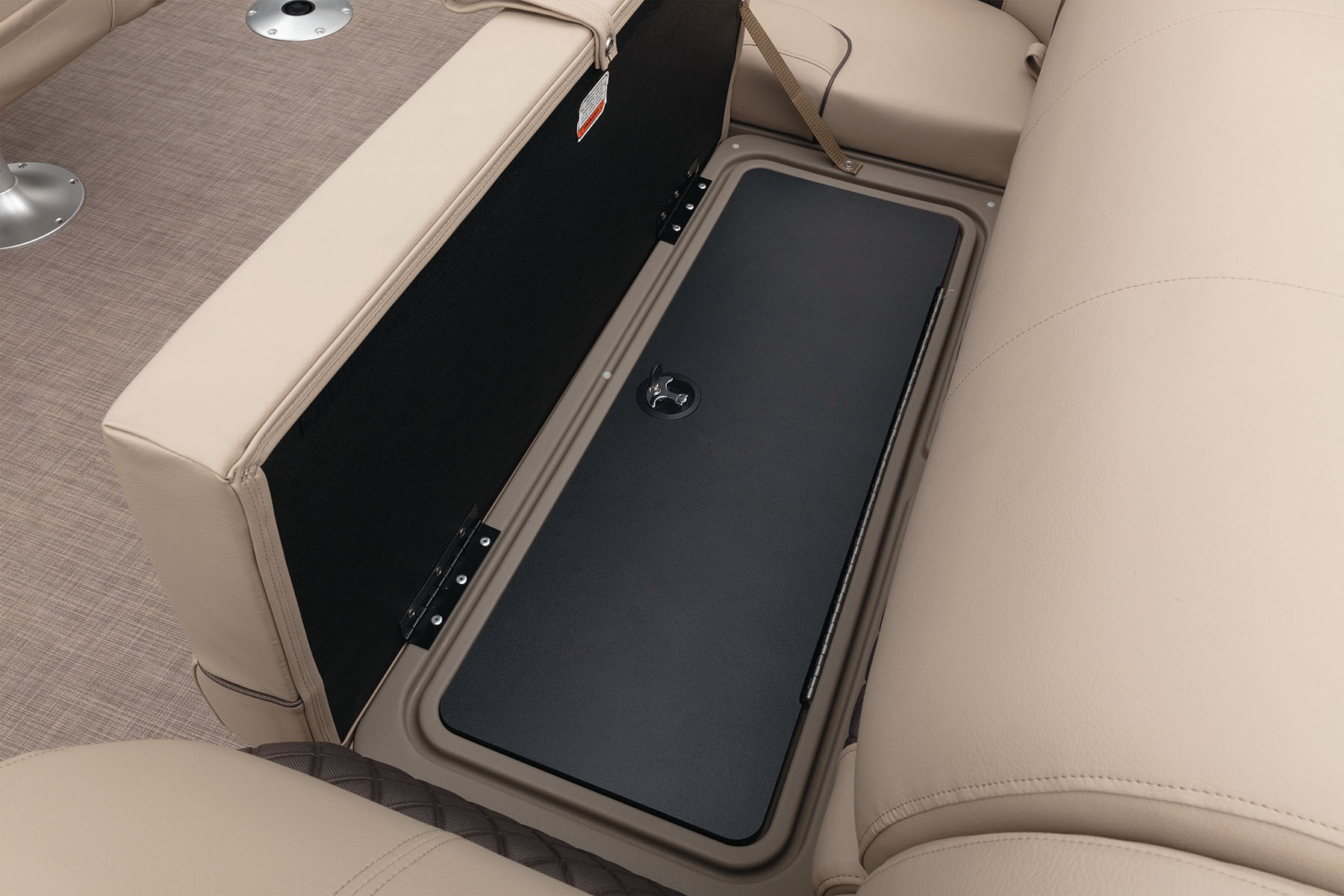

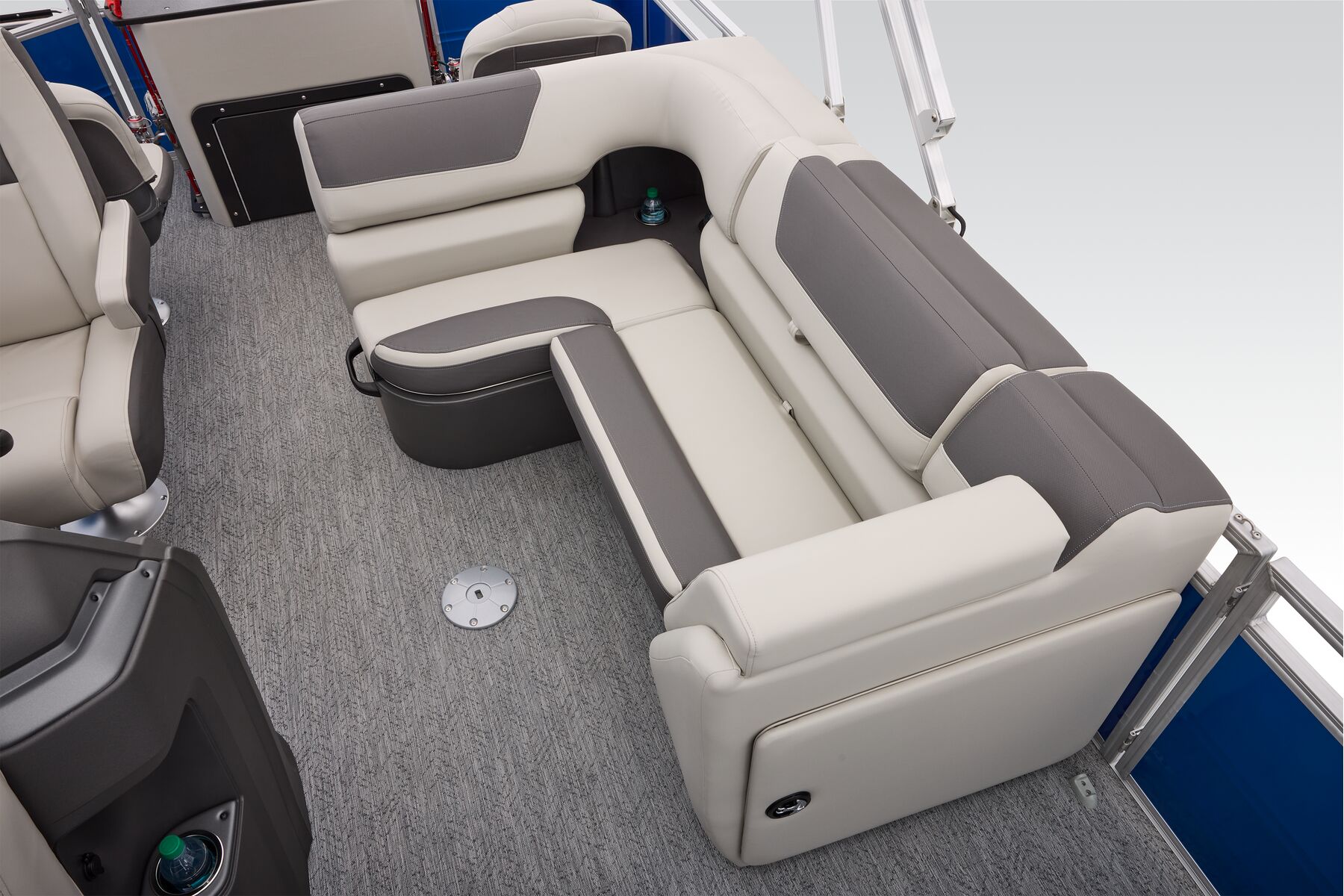

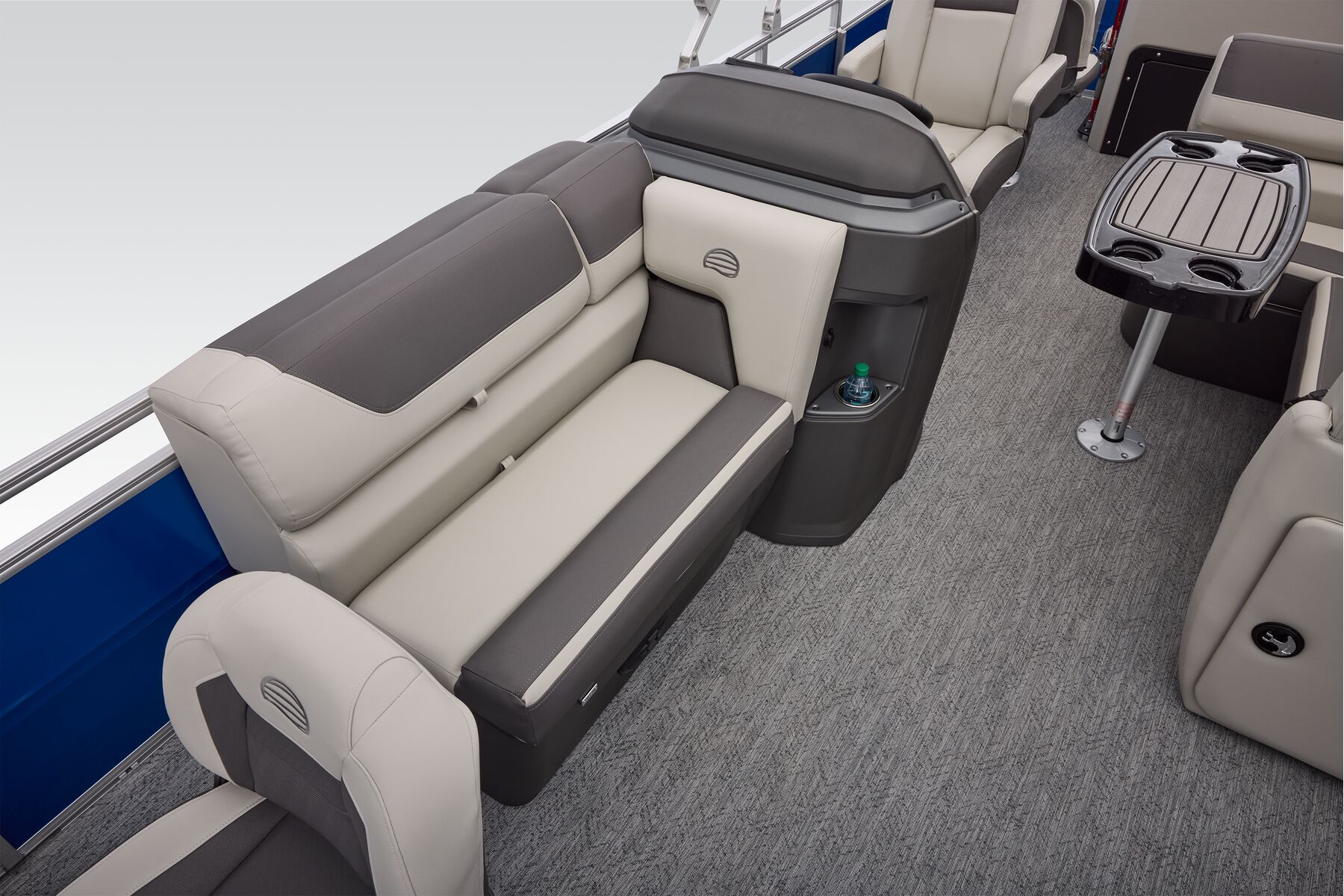

- Aft L-lounge couches w/STOW MORE™ & underseat, lockable storage

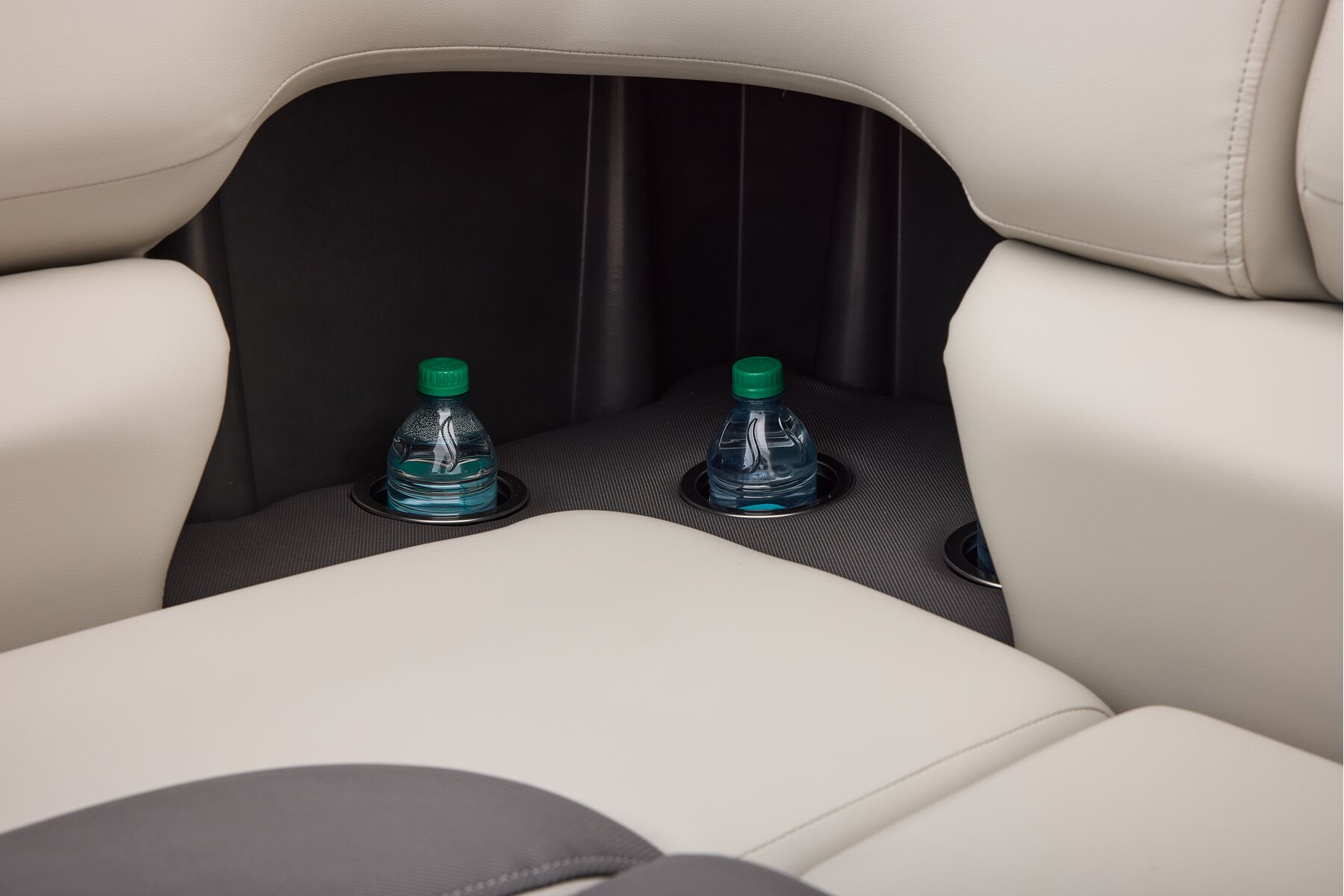

- Removable table w/soft-touch insert & 4 molded-in drink holders

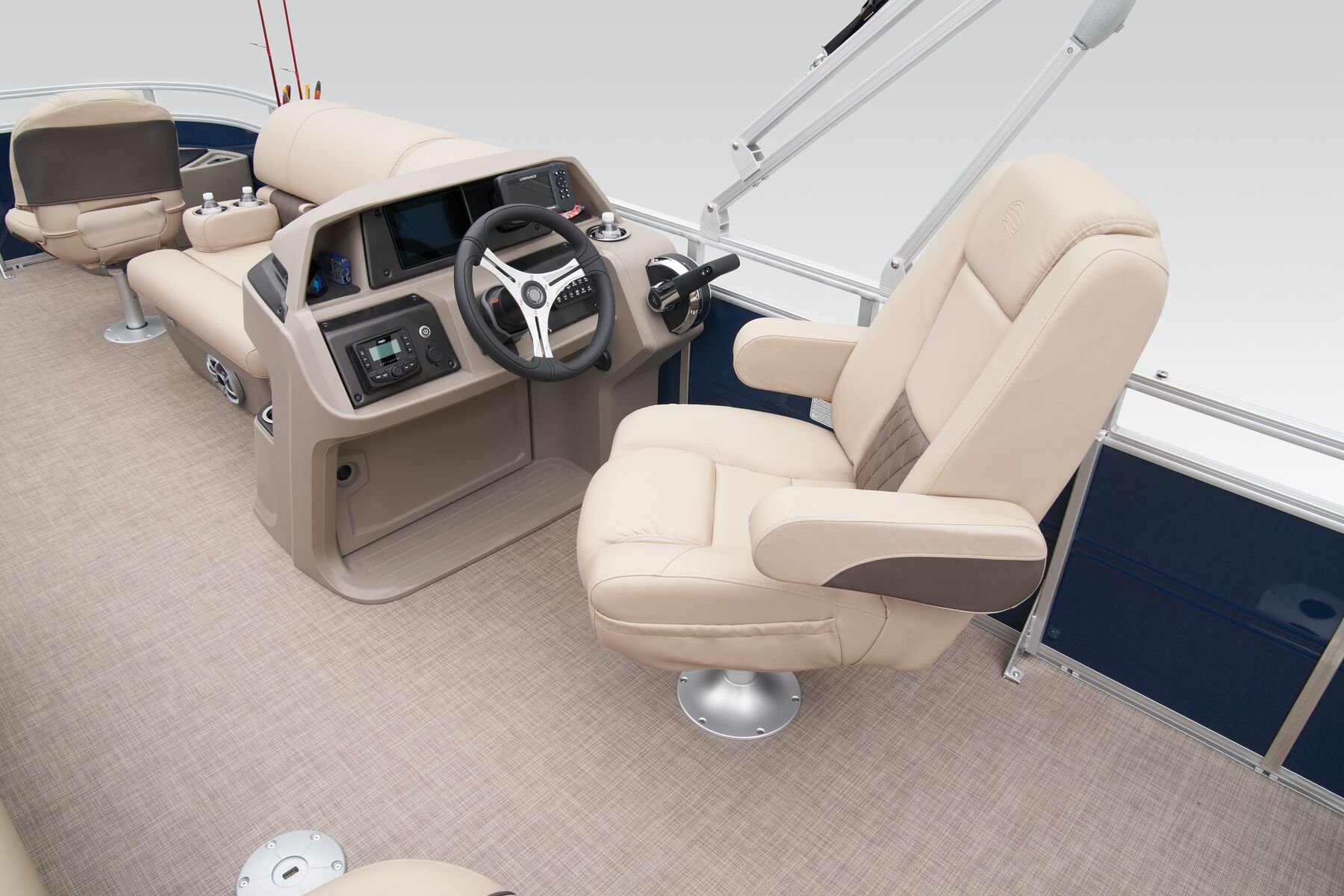

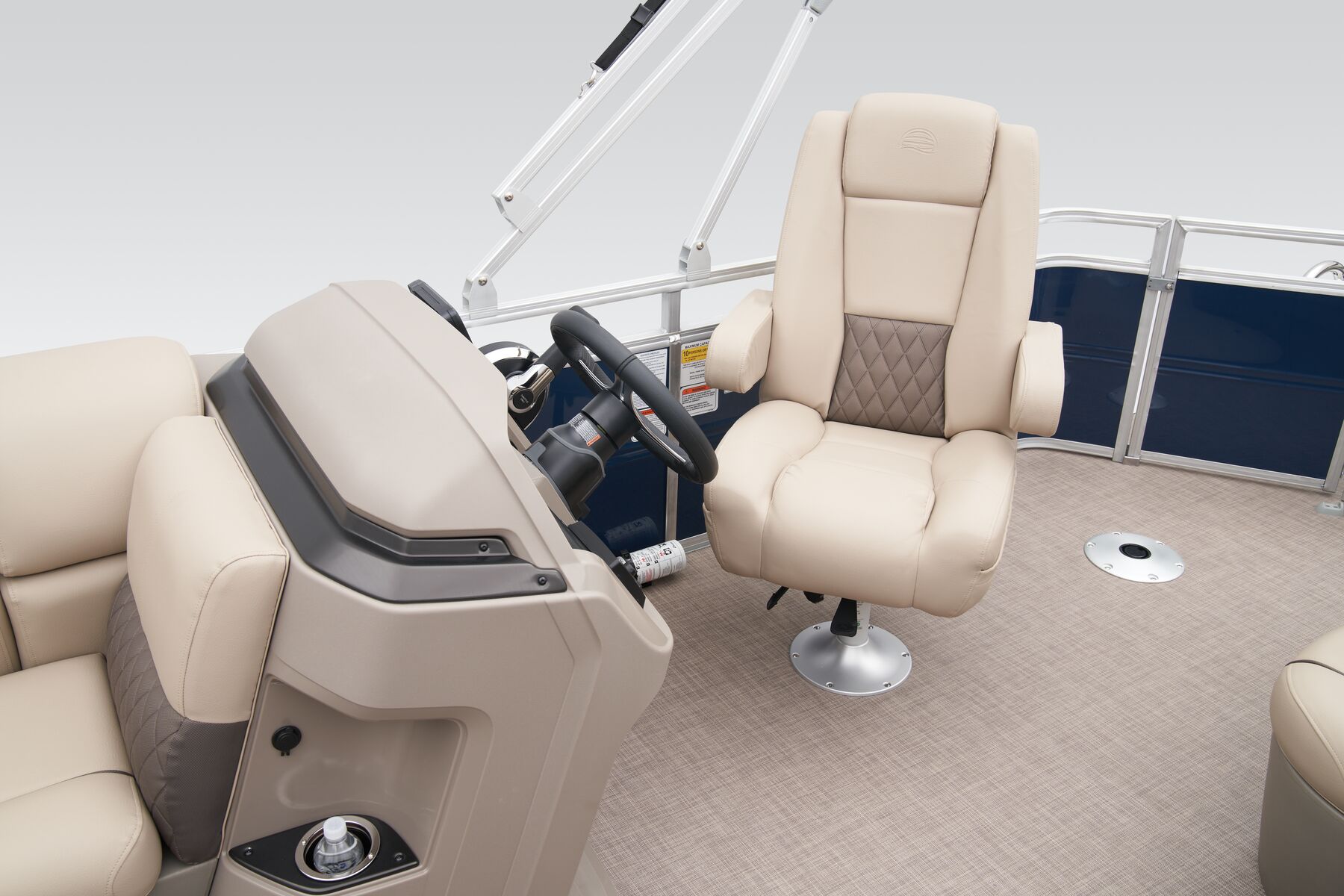

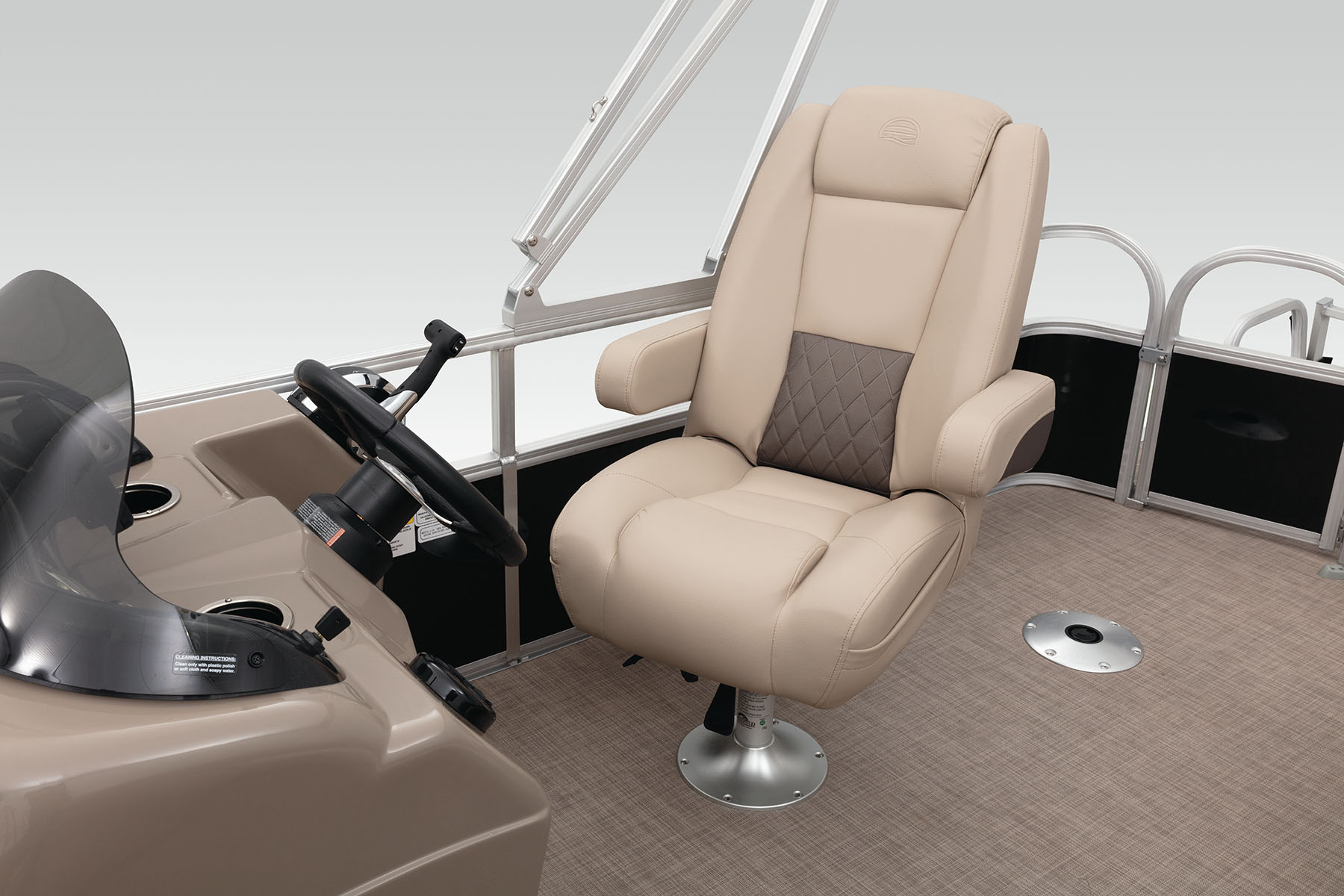

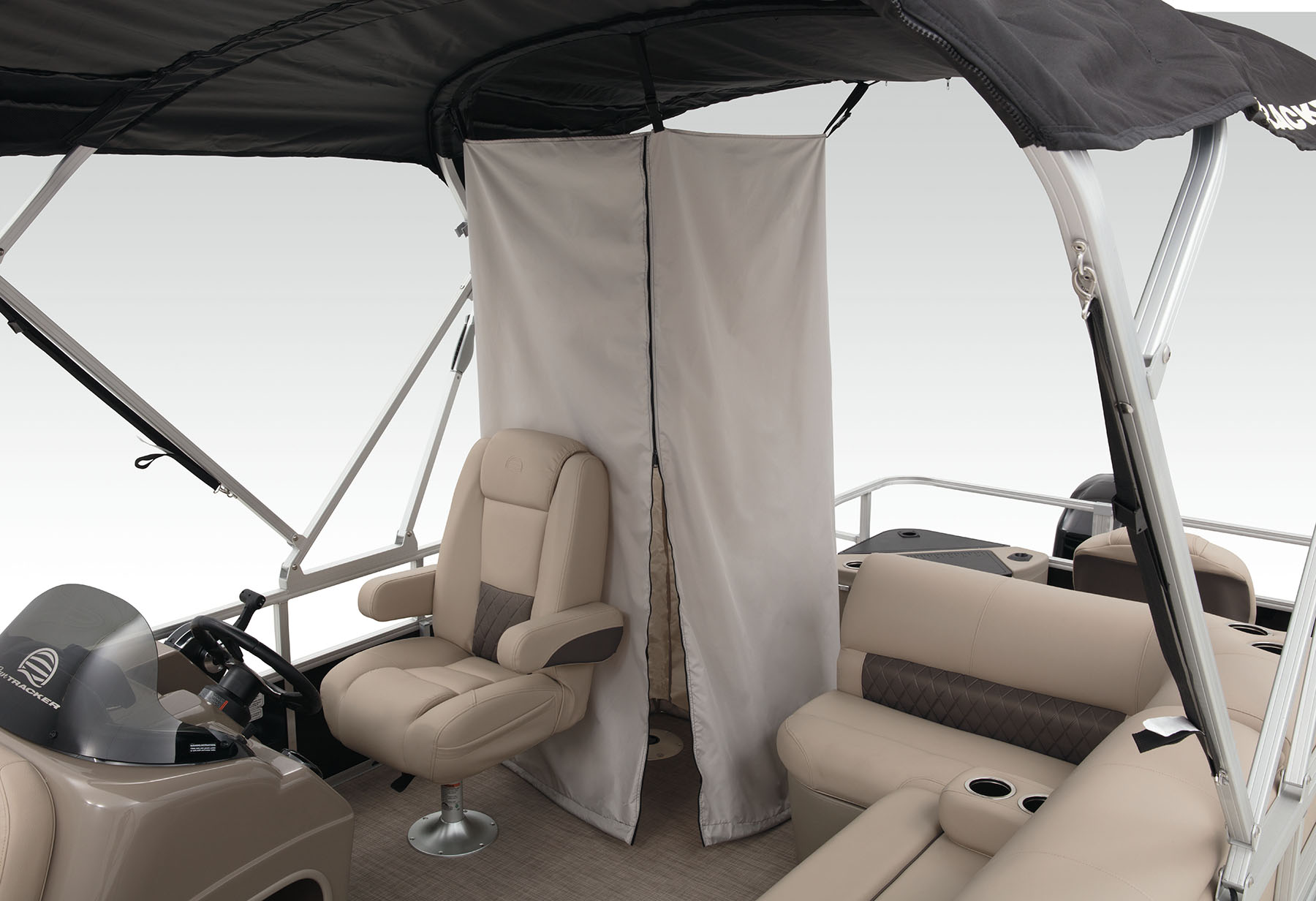

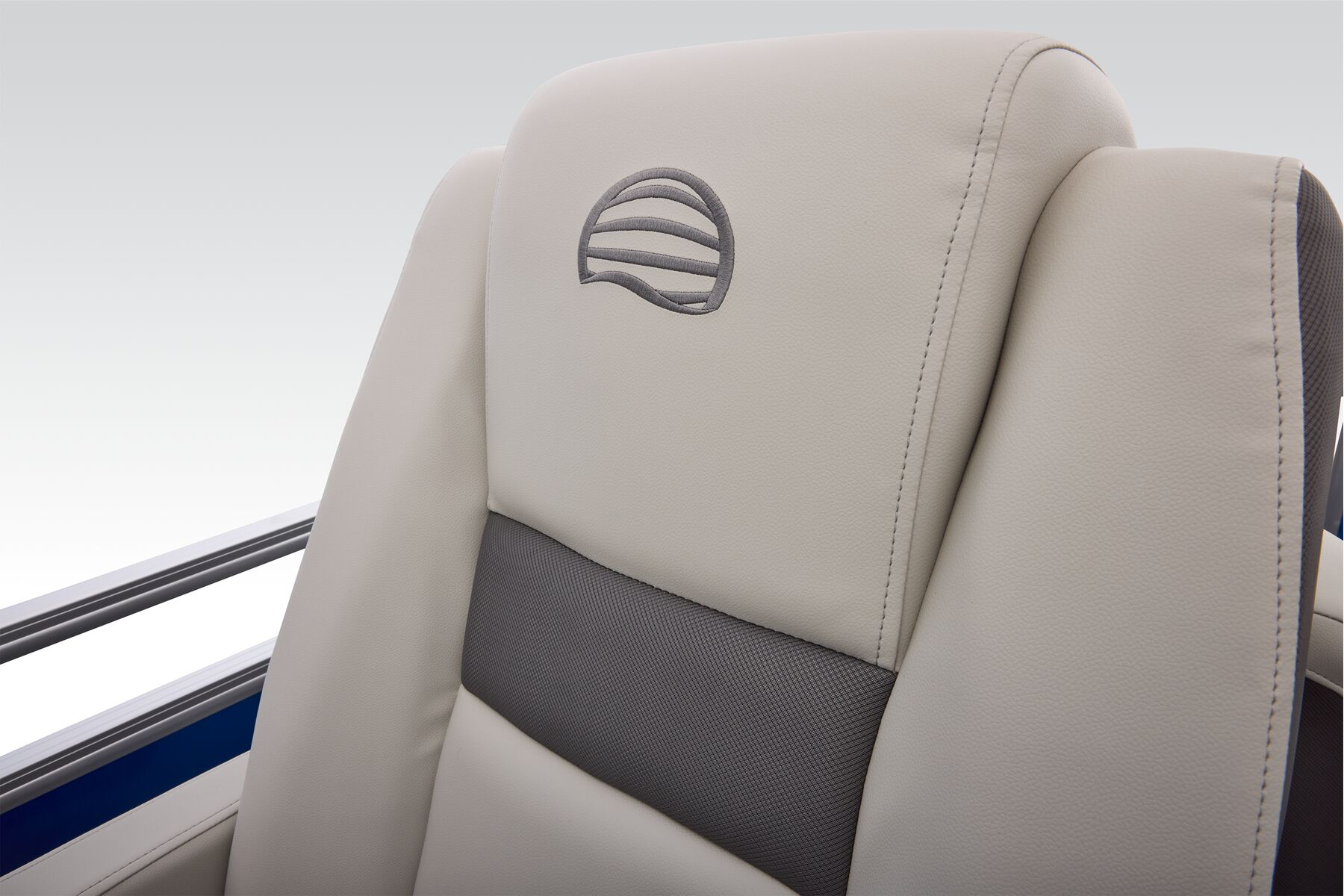

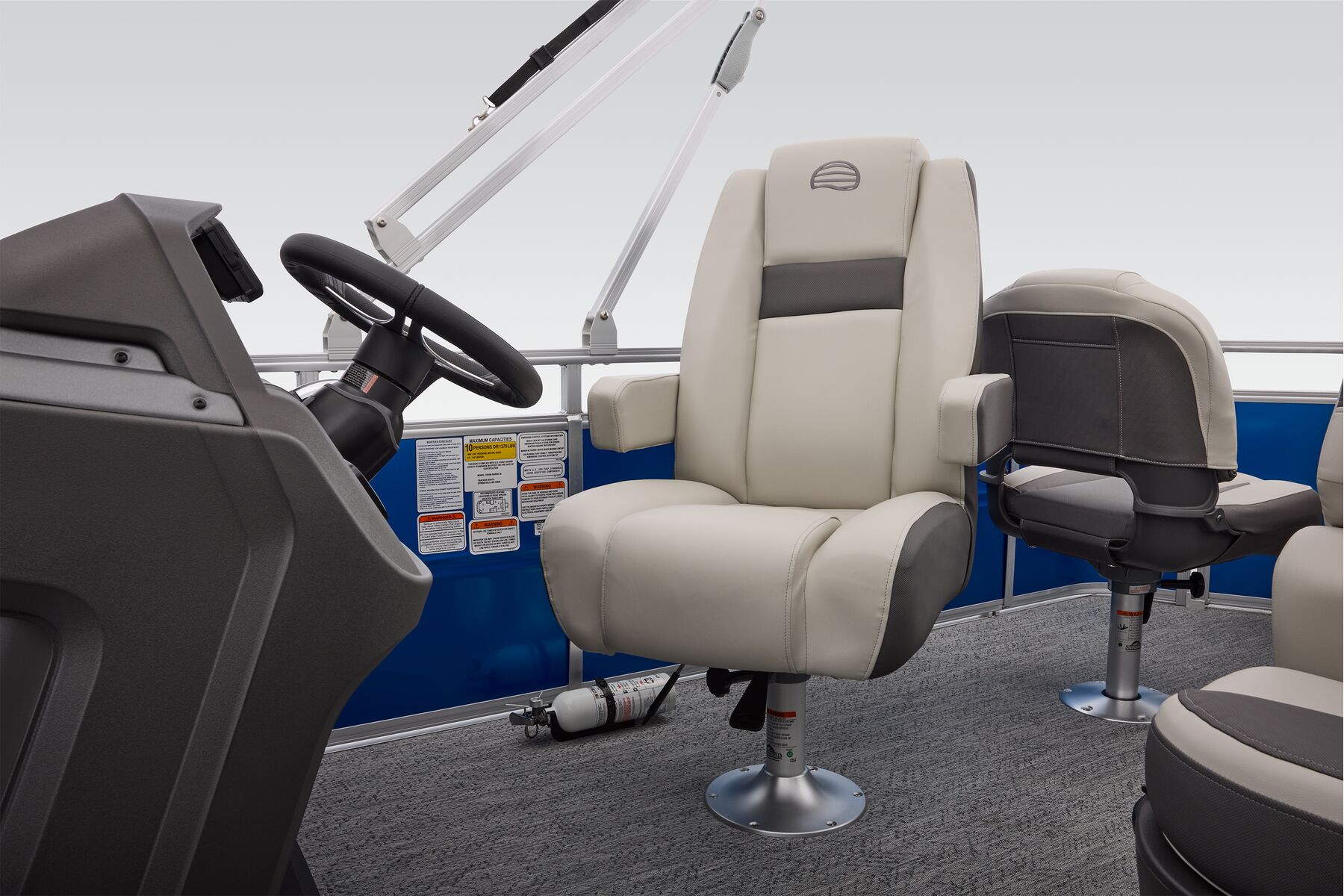

- Reclining, high-back swiveling helm bucket seat w/self-leveling armrests

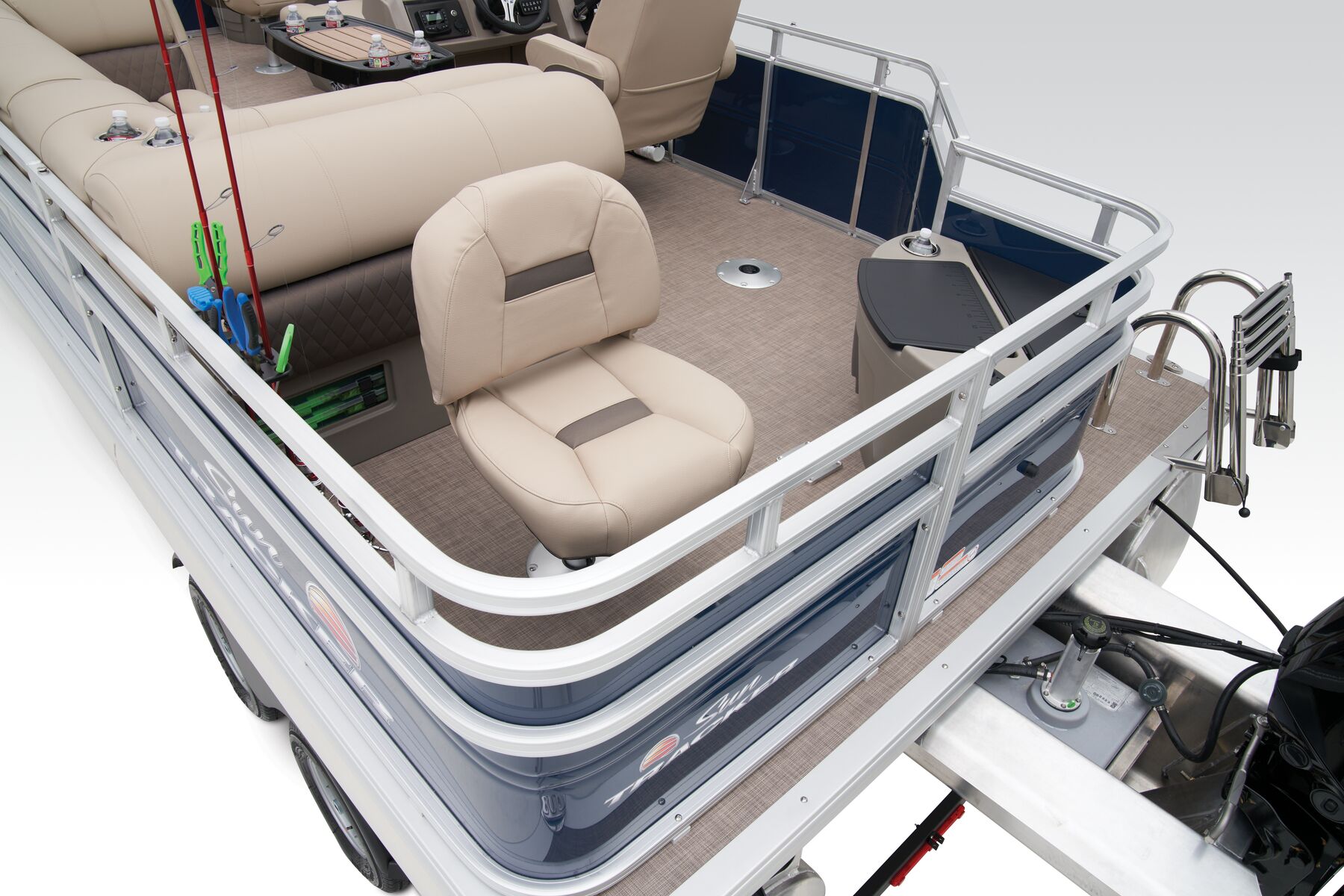

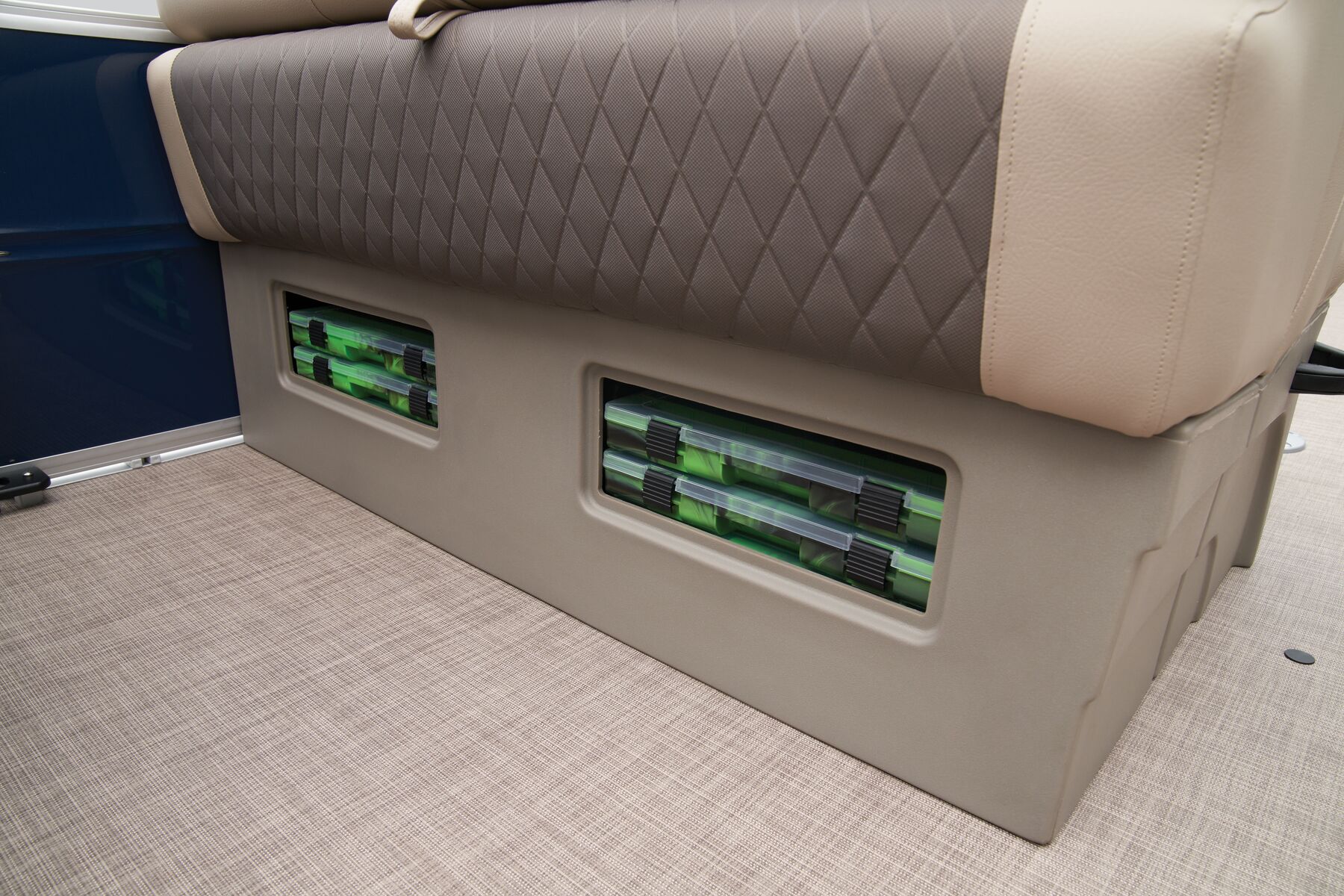

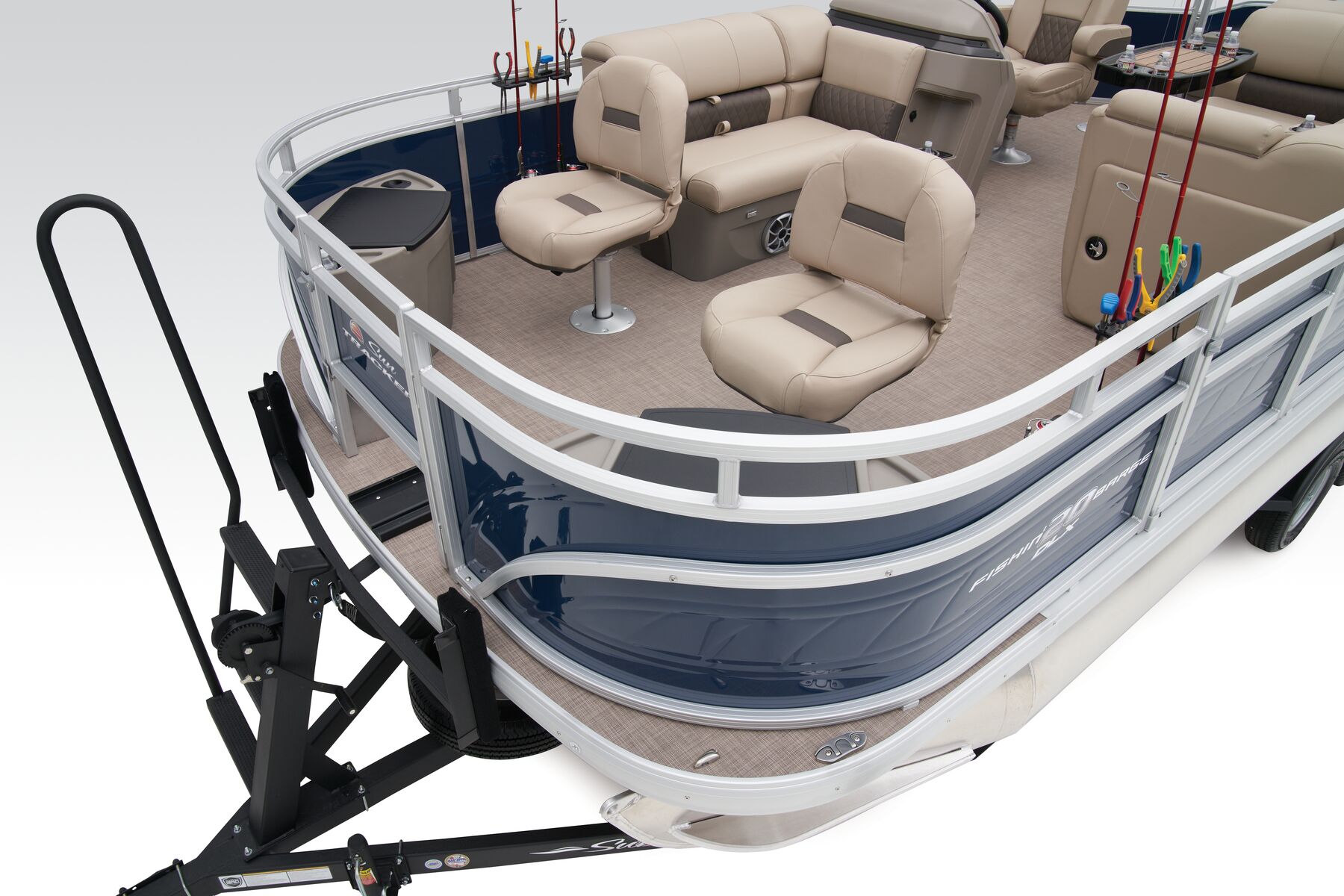

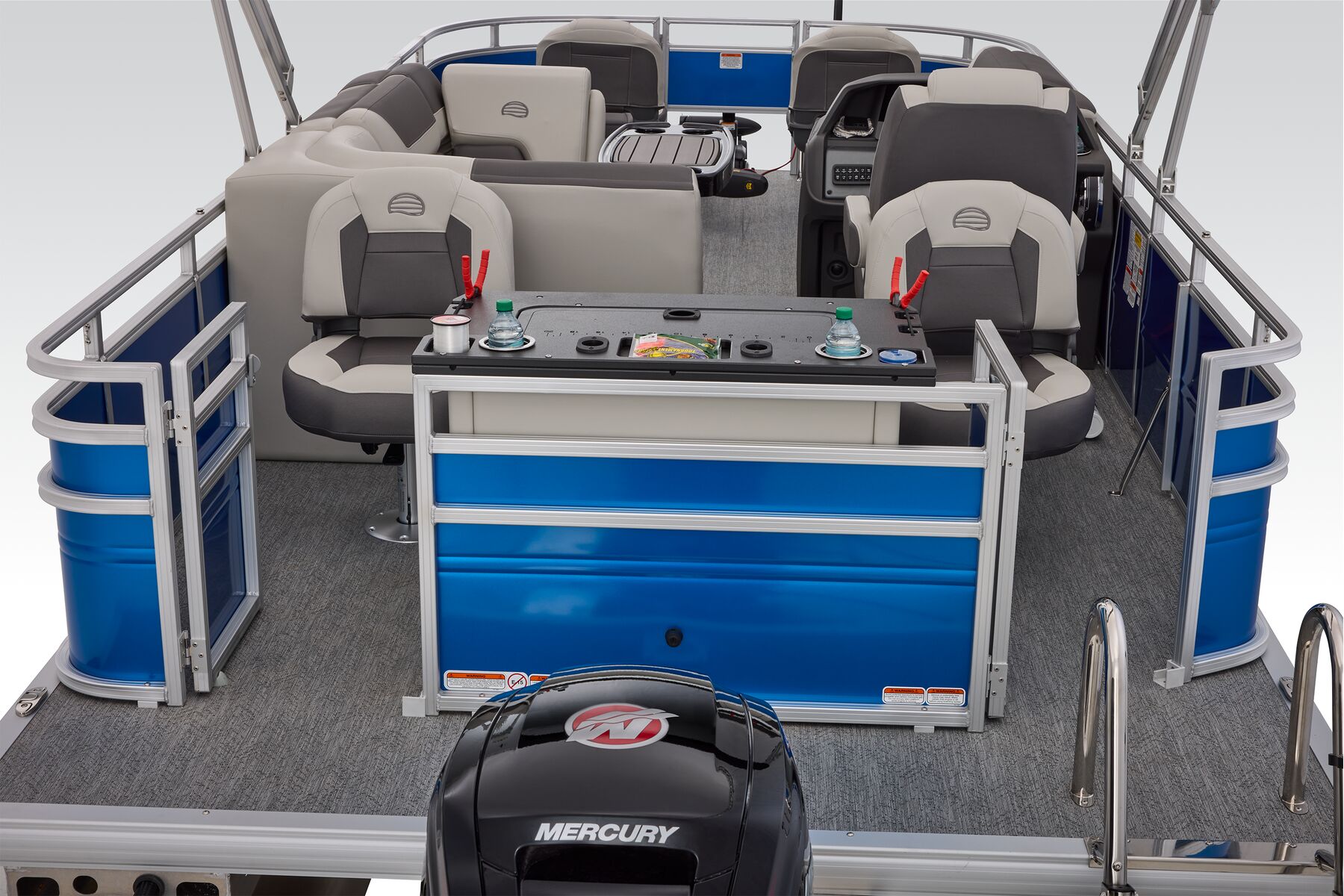

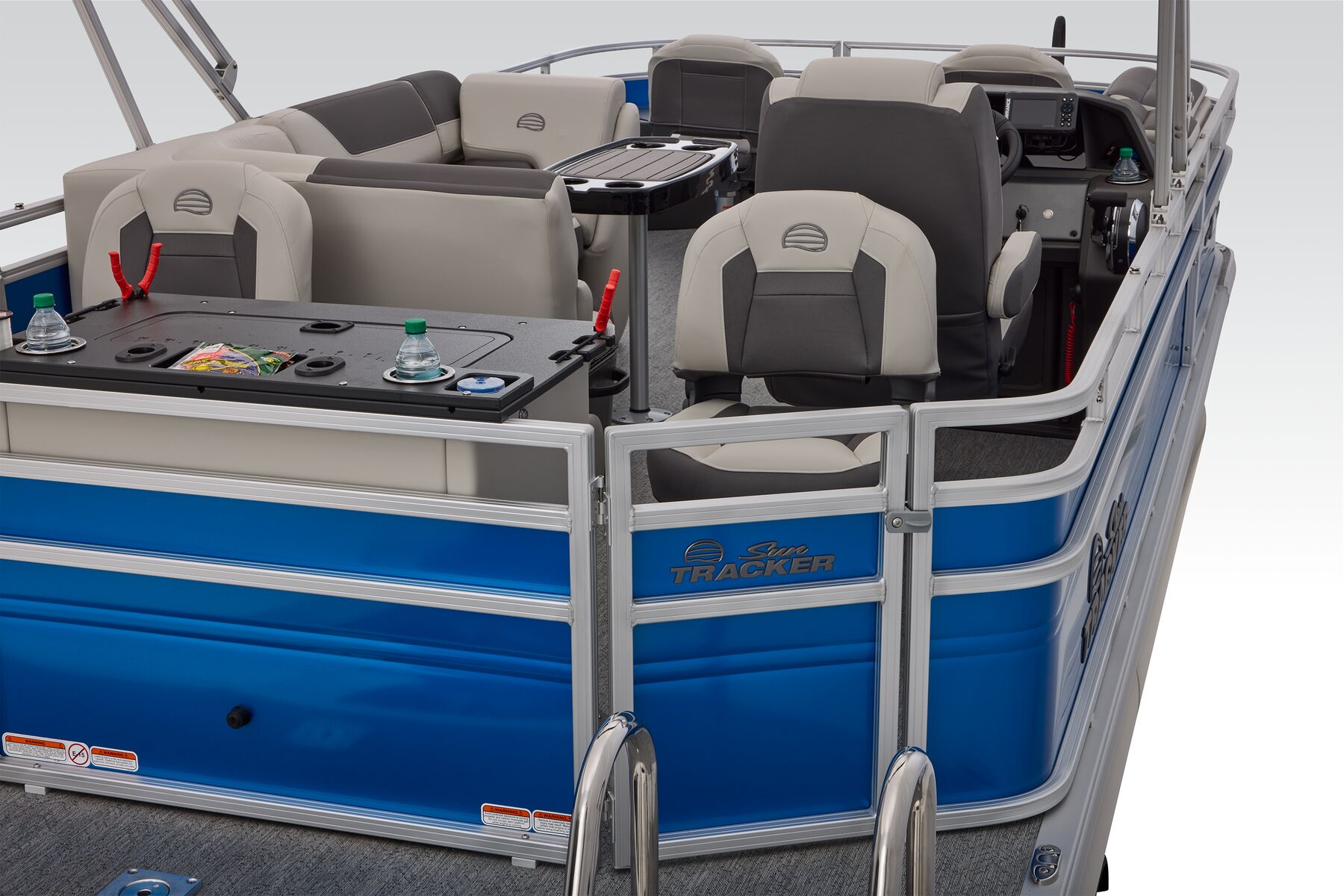

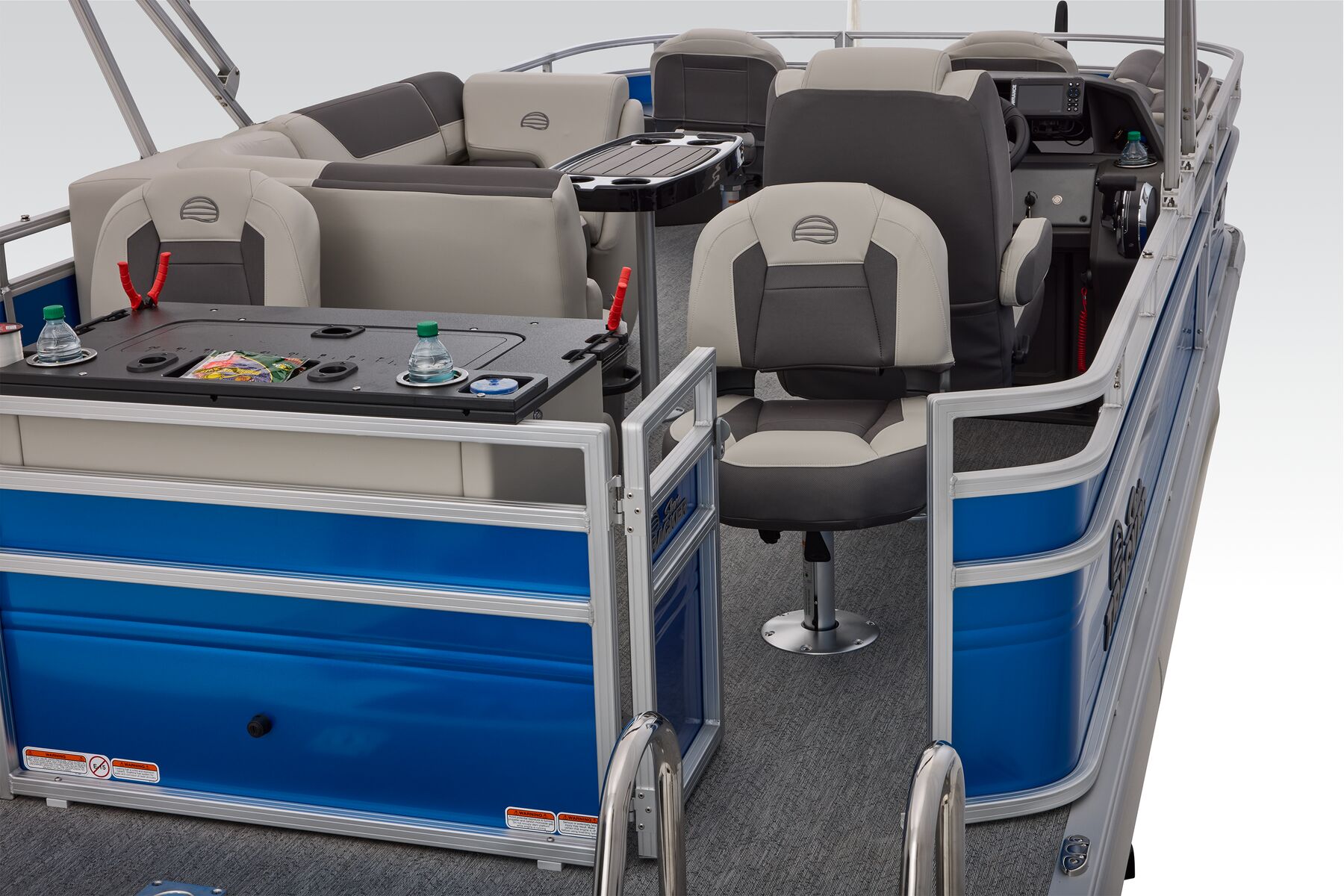

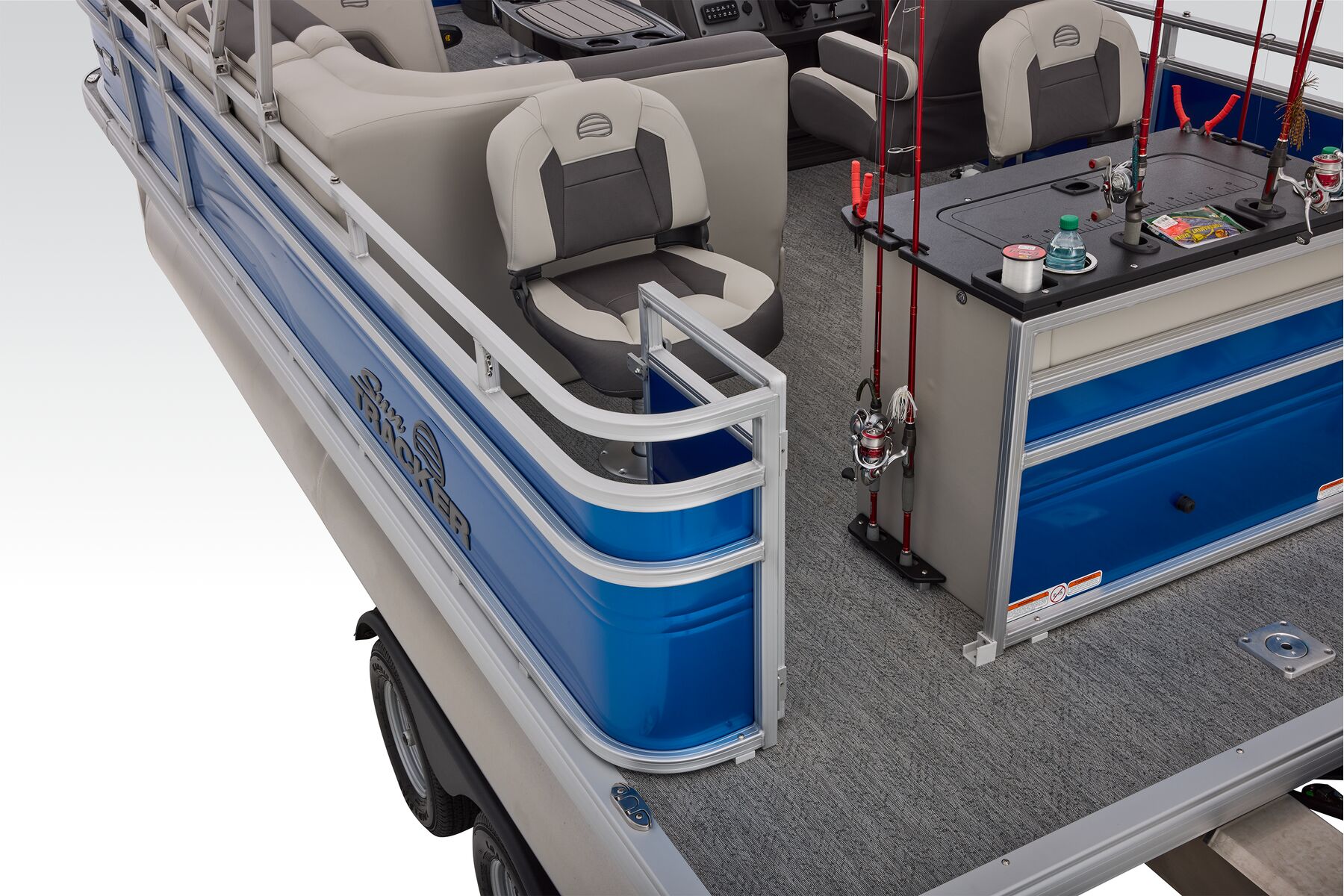

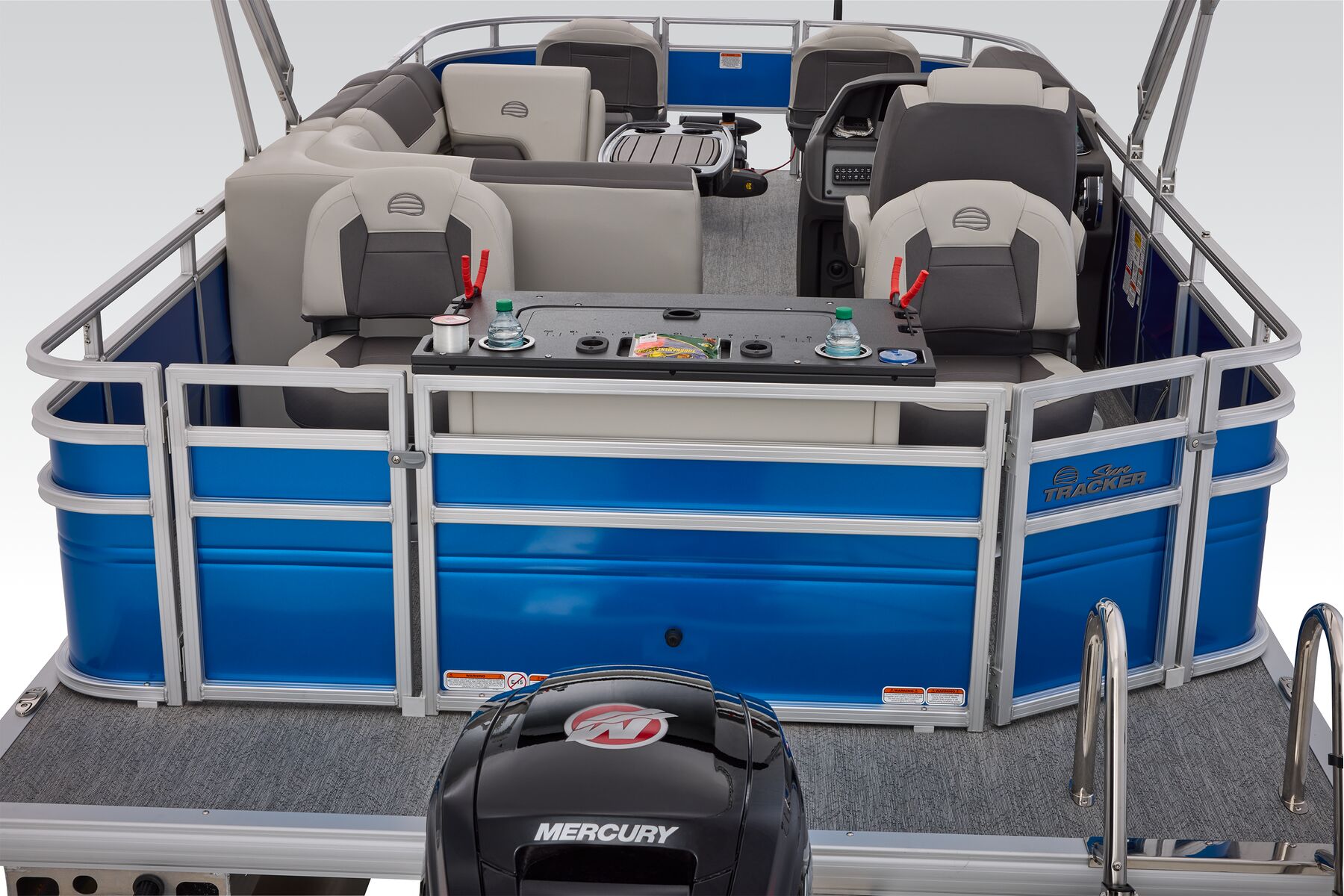

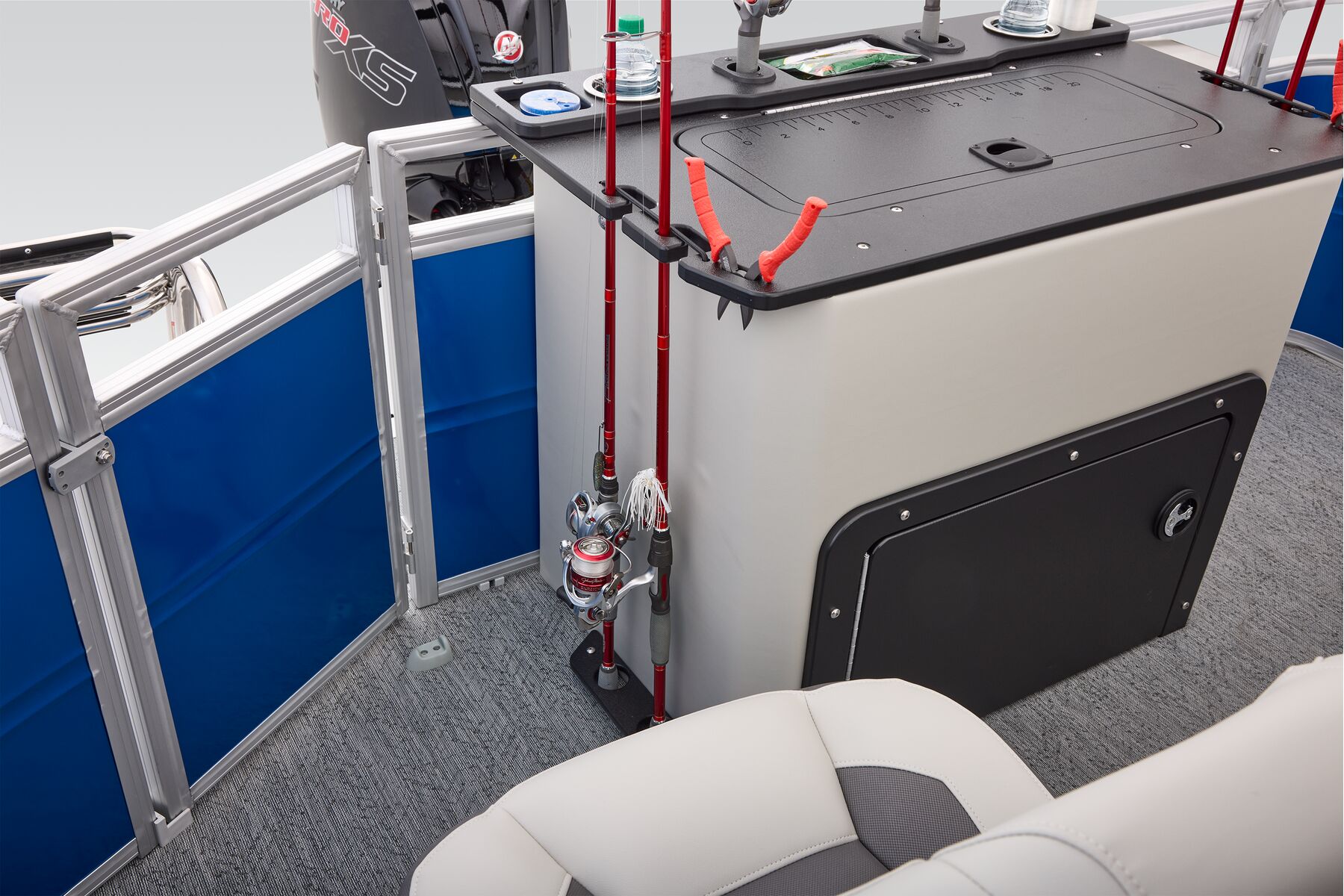

- Aft fishing station w/2 pedestal seat bases; rail-mounted rod & tool holders; aft storage net; & STOW MORE™ tackle storage station
- Interior courtesy lighting
- Woven 16-oz. (.45 kg) marine-grade flooring throughout

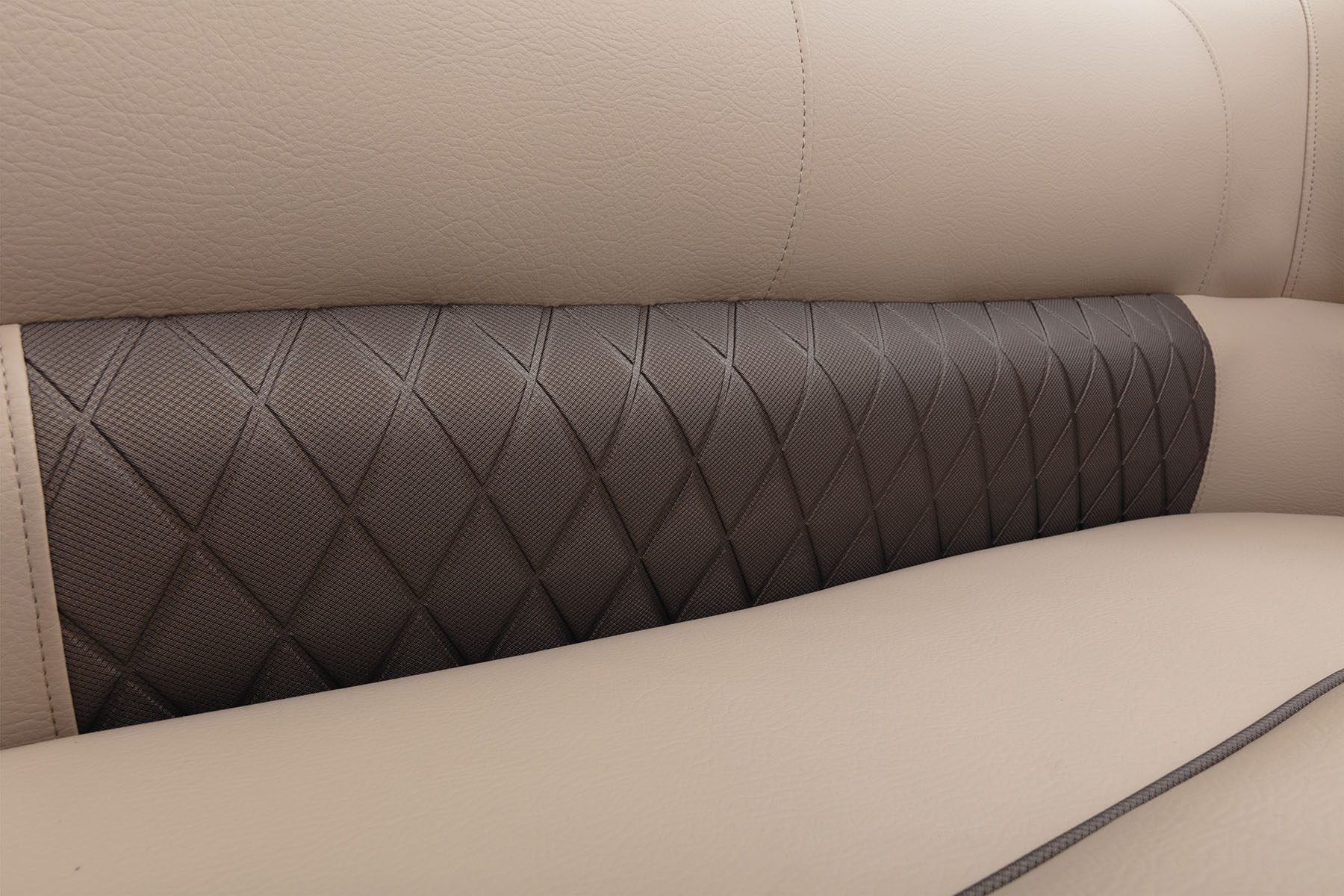

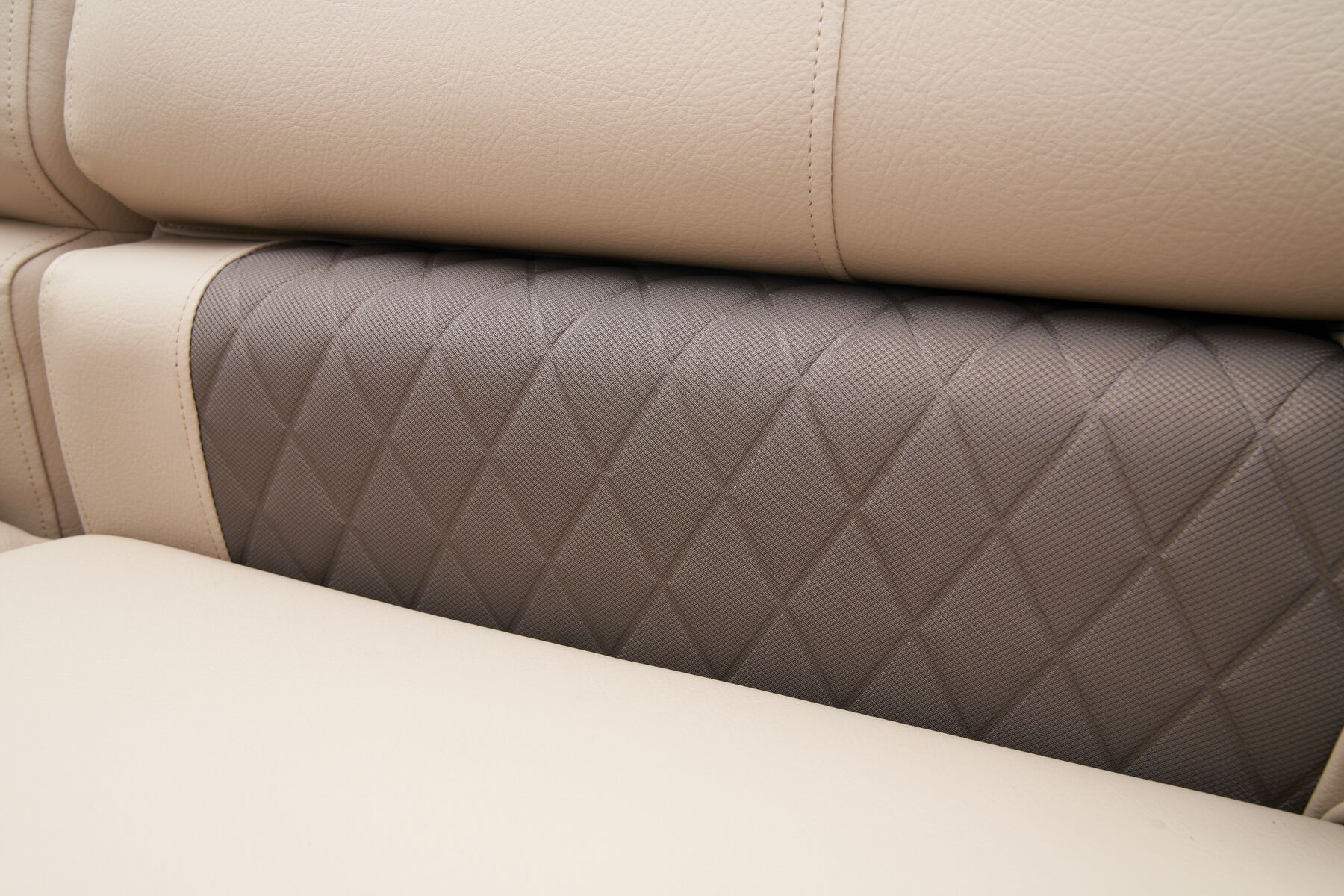

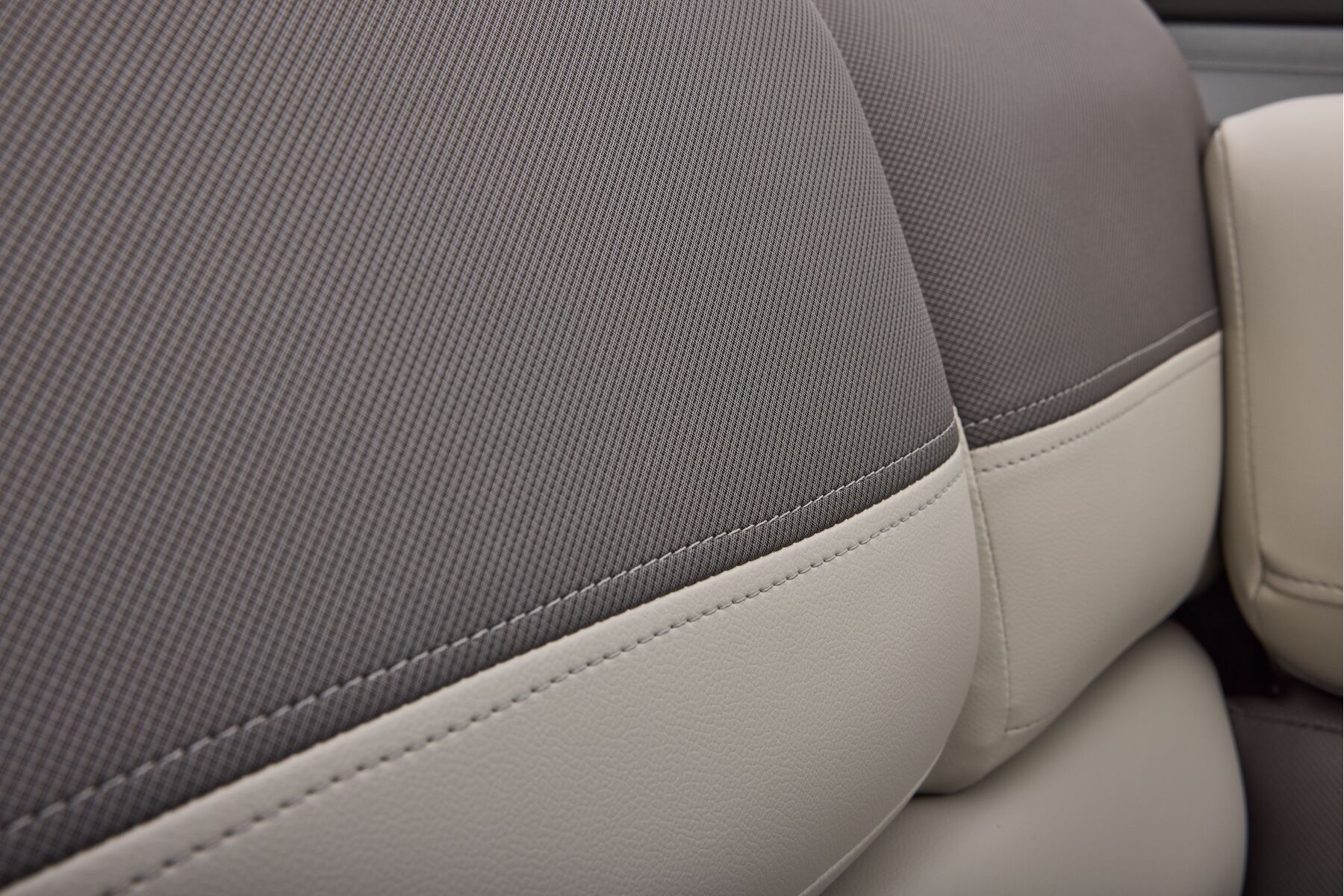

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Construction & Performance
- 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
- Full-length, 1-piece longitudinal M-bracket deck supports
- Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
- Heavy-duty aluminum U-channel reinforcement behind bow deck trim

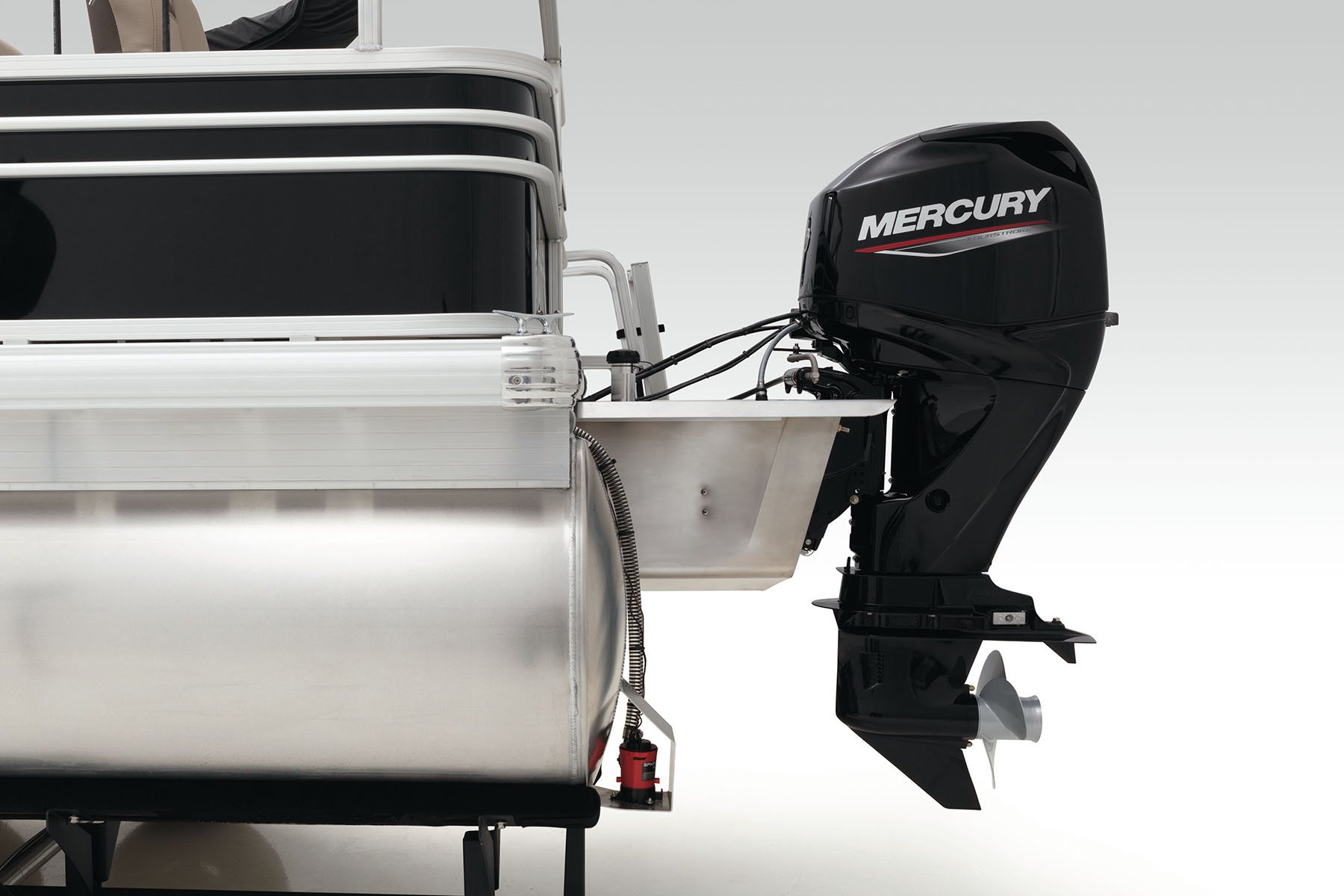

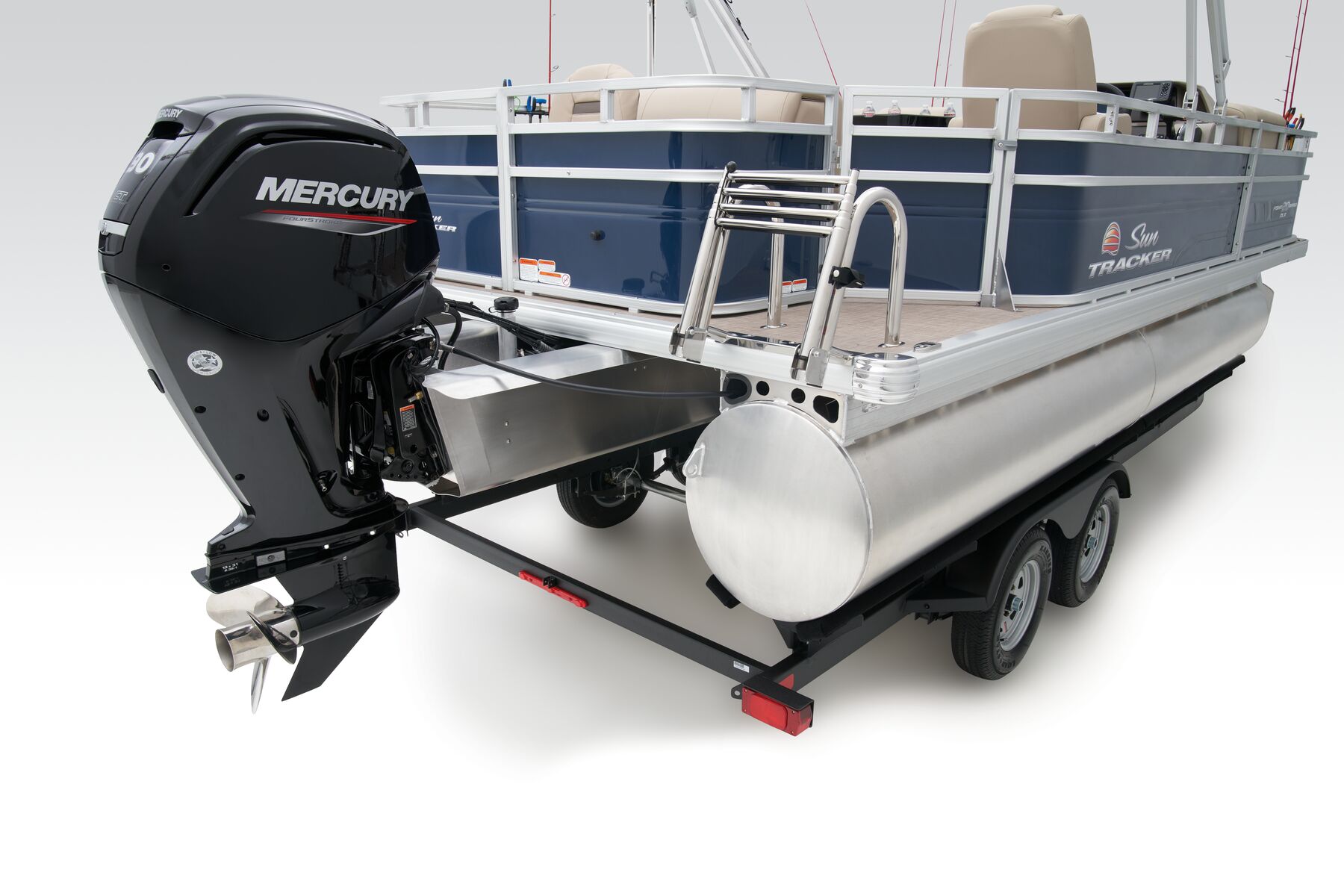

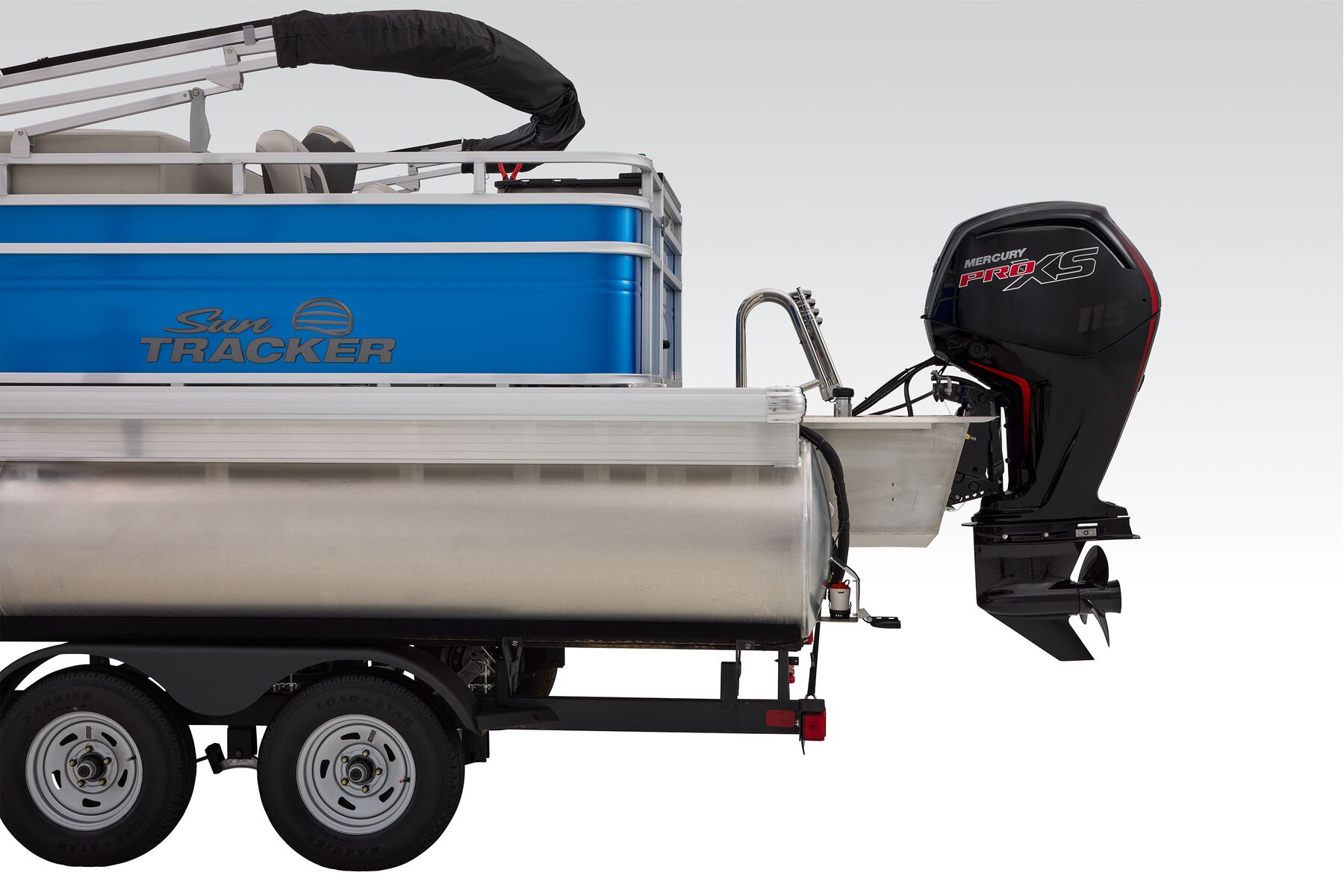

- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- All-aluminum box-beam transom for strength & longevity
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

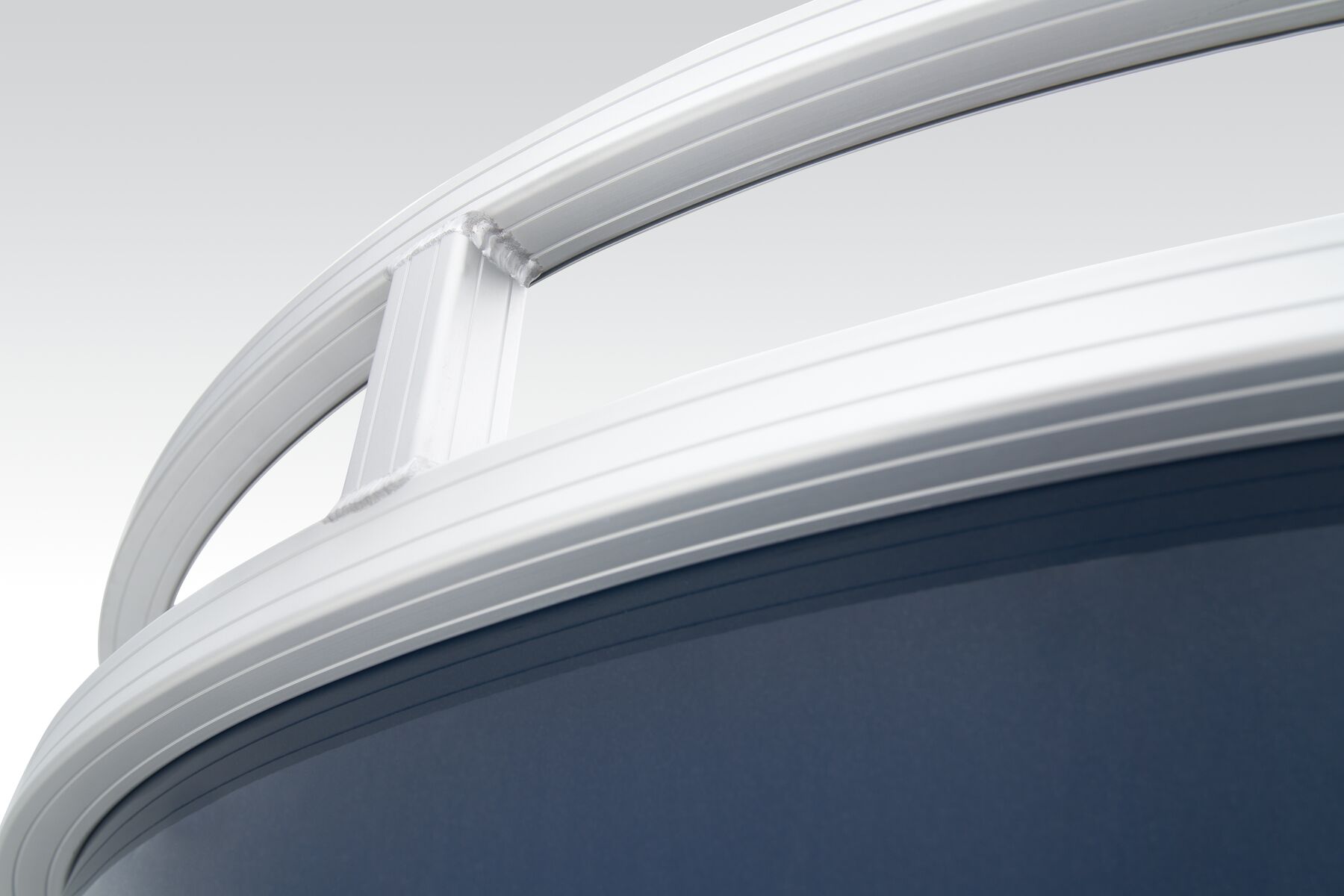

- 1-1/4" (3.18 cm), .090" (.23 cm) anodized aluminum fence rails
- Sound- & vibration-deadening fence insulation for a quiet ride
- Extruded & anodized aluminum deck edging w/polished aft corner covers
- Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
- Rotomolded storage, furniture & console for superior strength & longevity

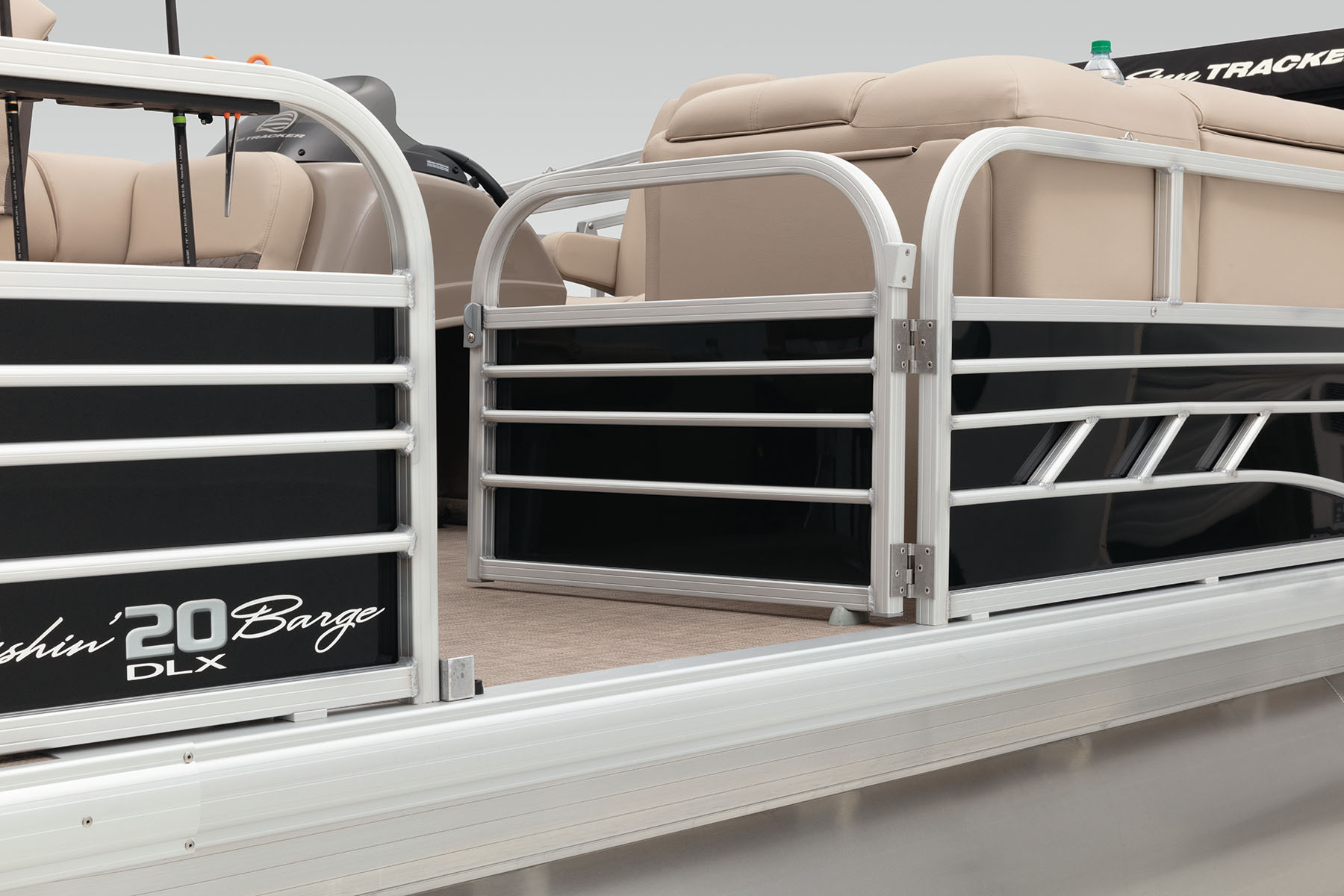

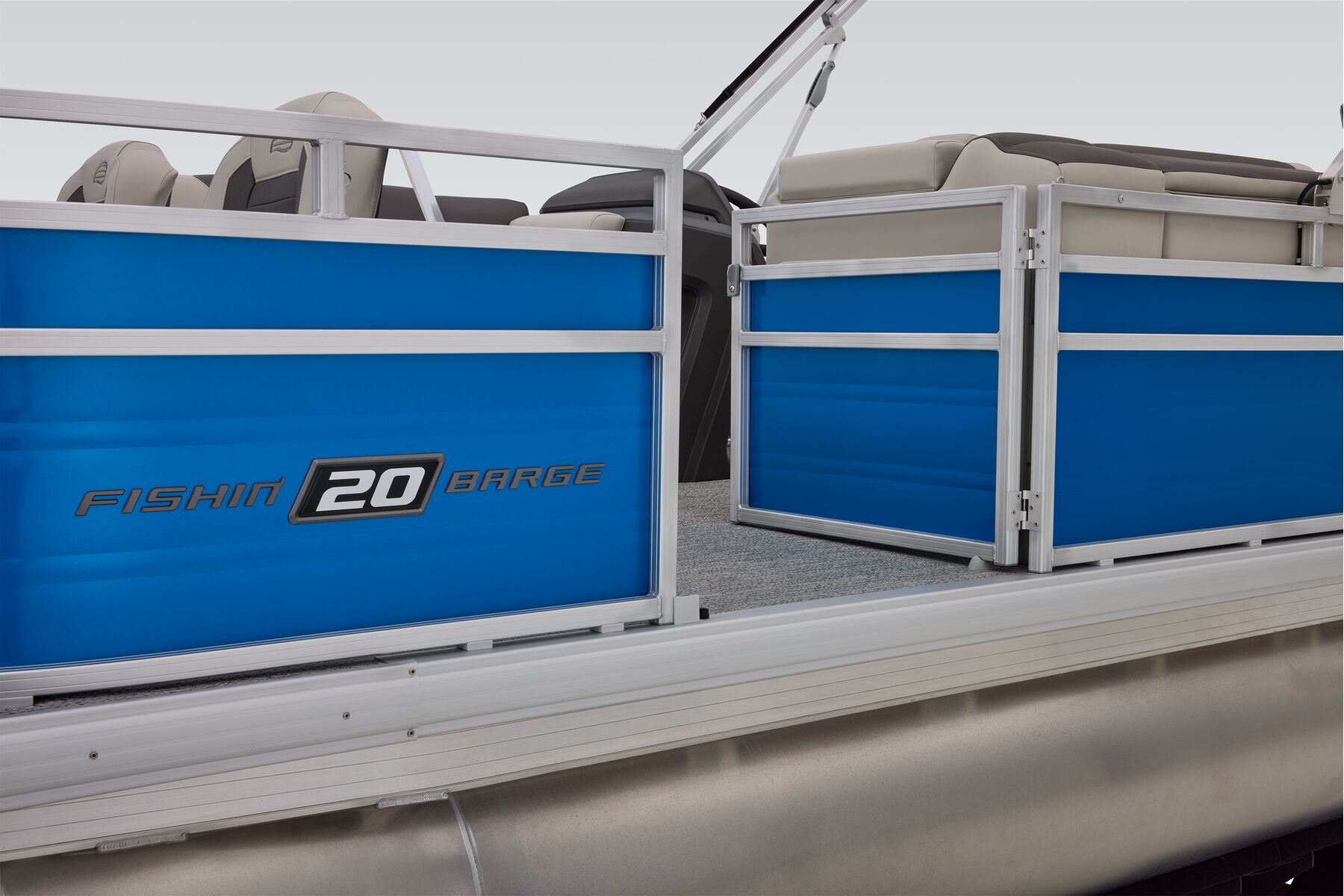

- Nylon gate latches & heavy-duty hinges that open inward
- Stainless or coated corrosion-resistant fasteners
- Factory-matched aluminum propeller
Exterior
- Color: Charcoal or Indigo Blue fencing

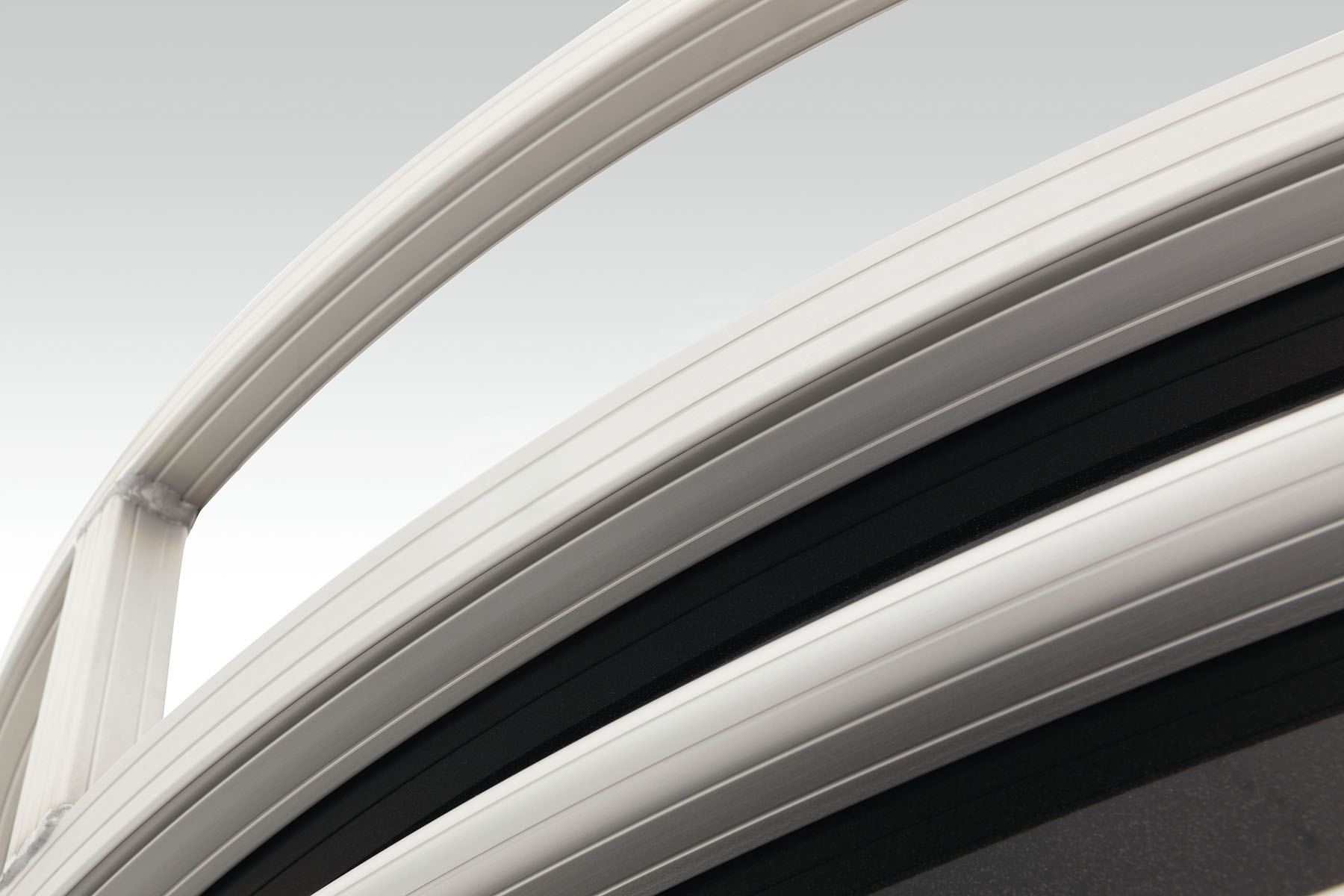

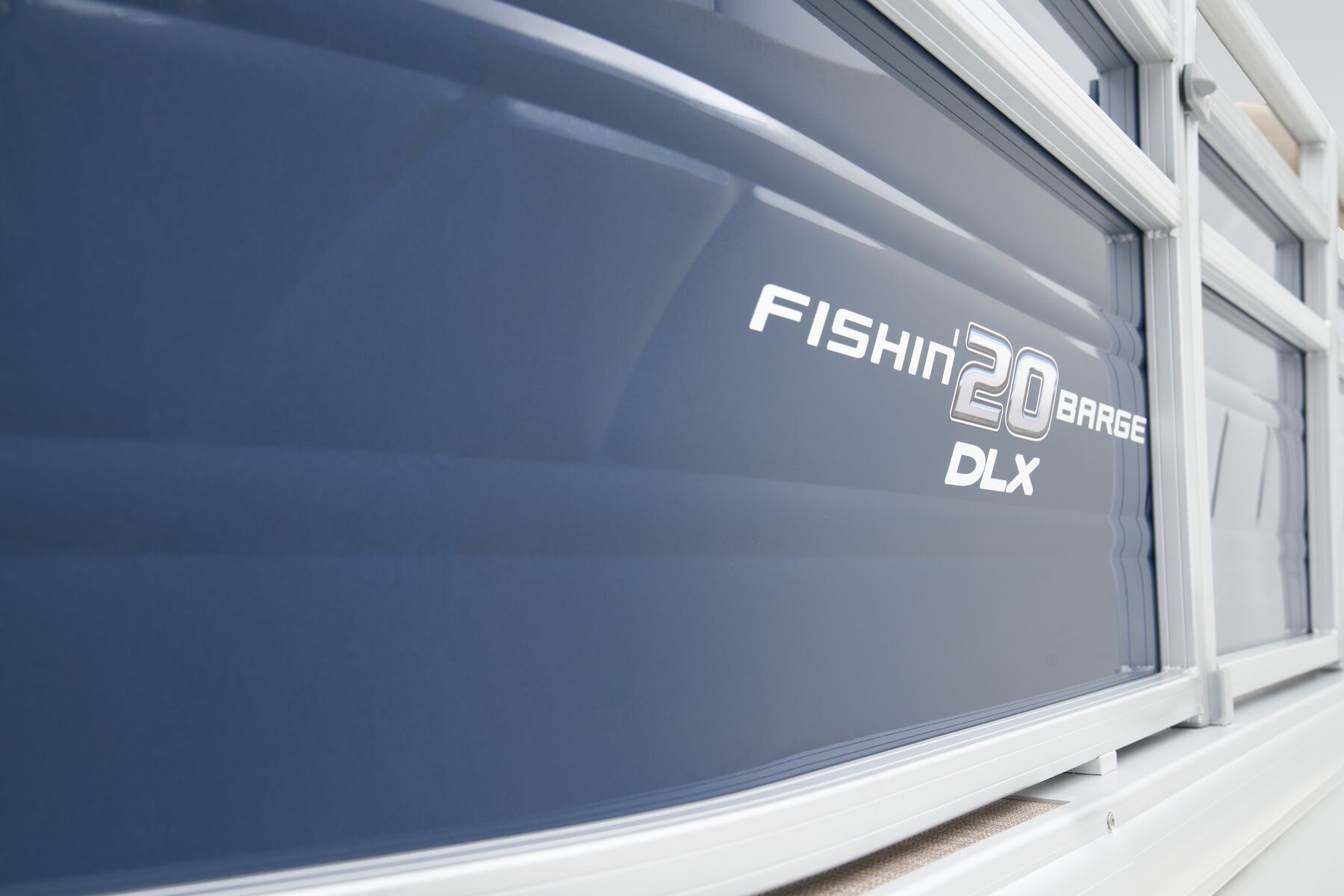

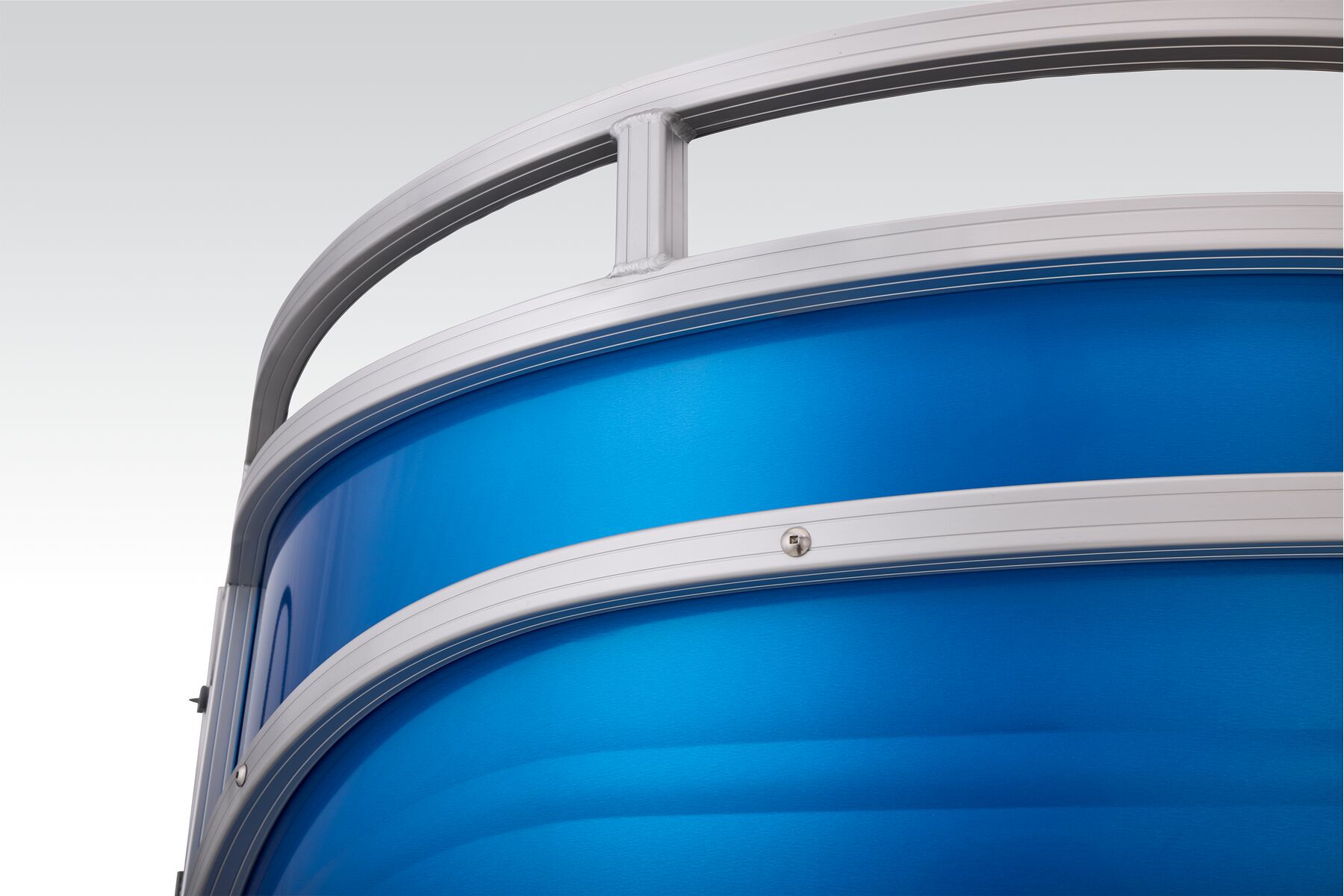

- TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics
- Elevated fence panels for deck drainage & ventilation
Electrical
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors

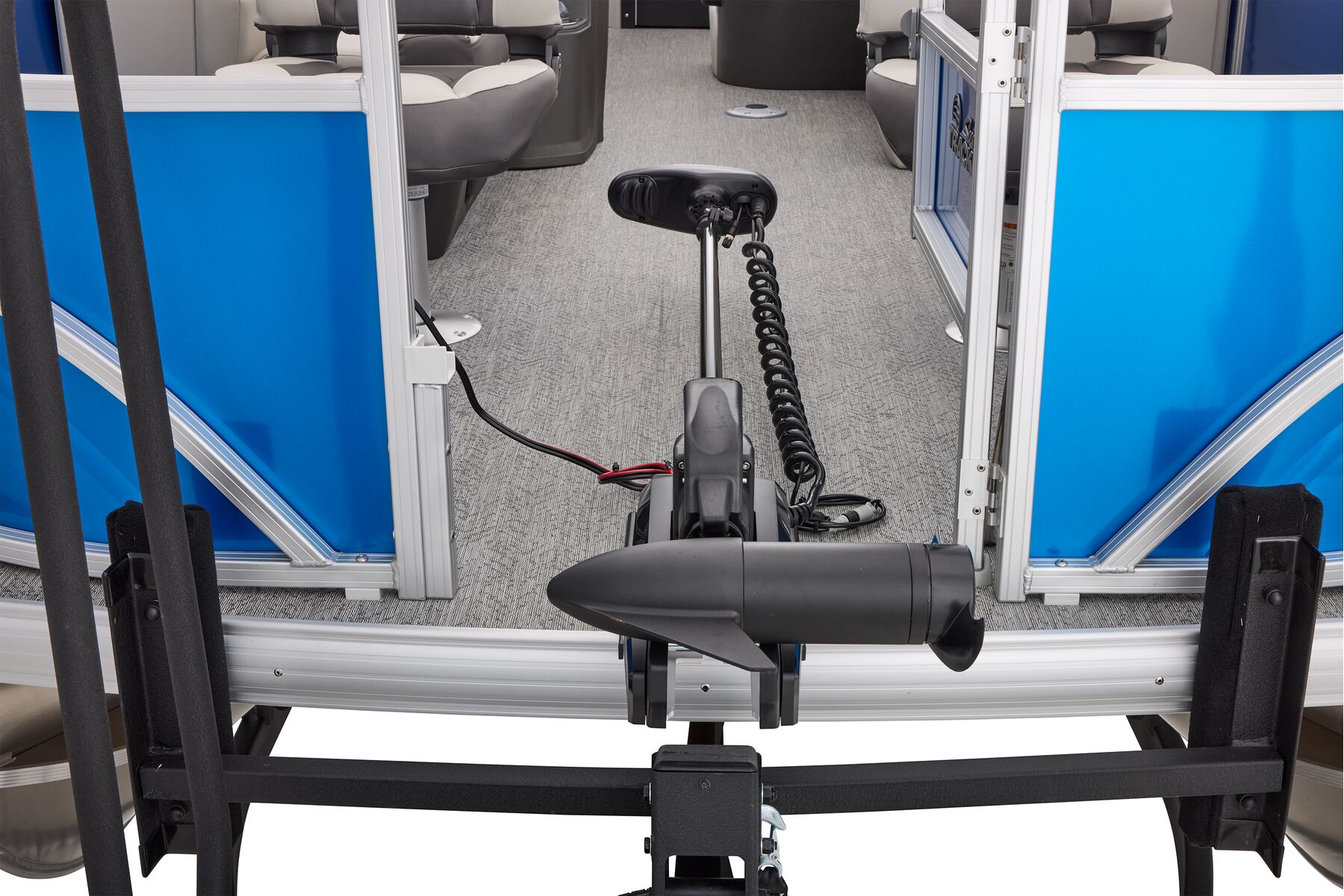

- Pre-wired for optional fishing package
Options
Note: SunTracker’s innovative new FLARE touchscreen gauge display relies on proprietary digital engine data not available from all engines. Boats equipped with optional Mercury 9.9ELPT FourStroke or 20ELPT FourStroke engines will experience limited monitoring capability. See dealer for details.
SUN TRACKER Digital Brochure
FLARE Digital Display User Guide
10+ Life Warranty Information
