Party Barge 22 RF XP3
2021

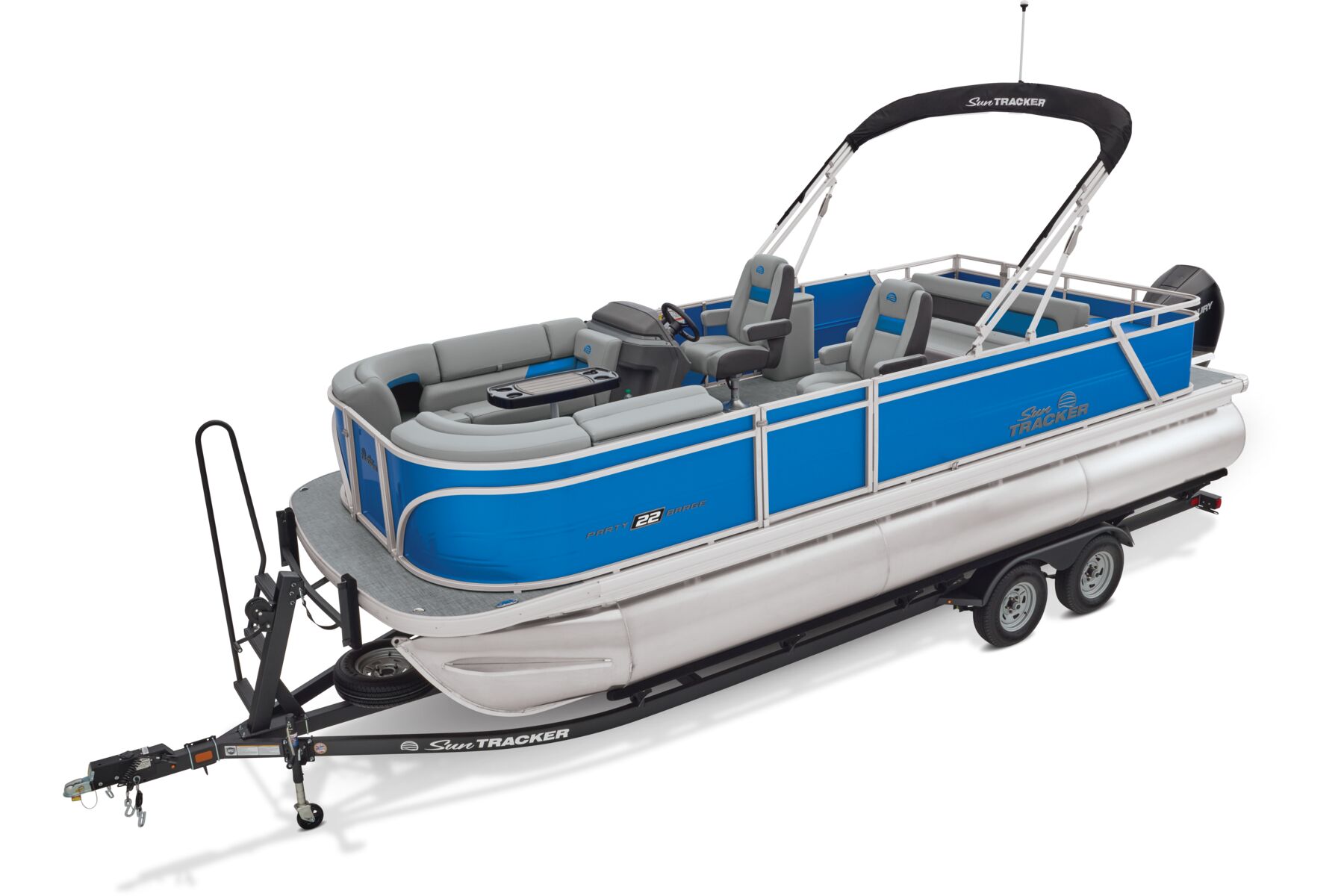

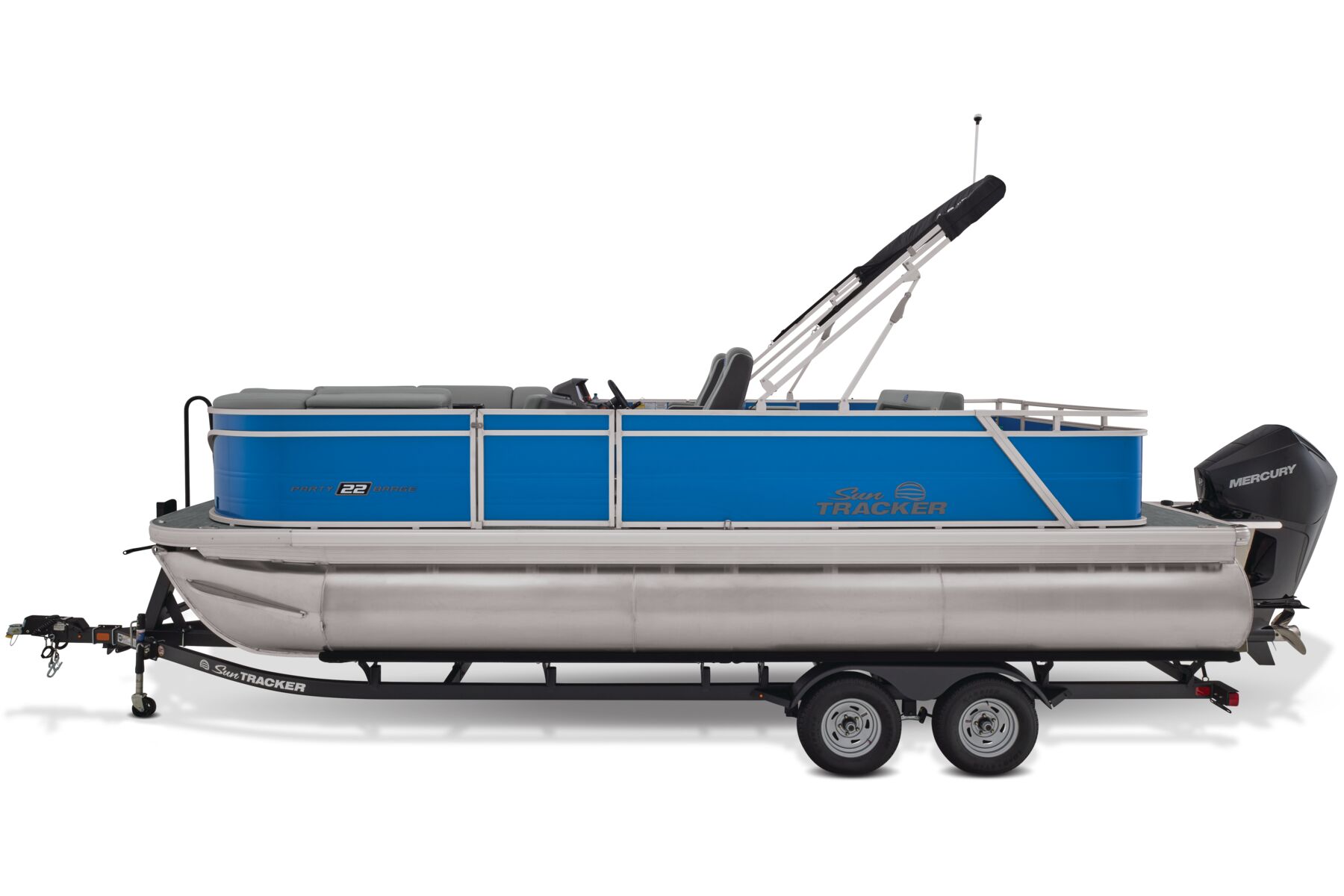

PARTY BARGE® 22 RF XP3
w/ 150 L FourStroke Mercury® FourStroke

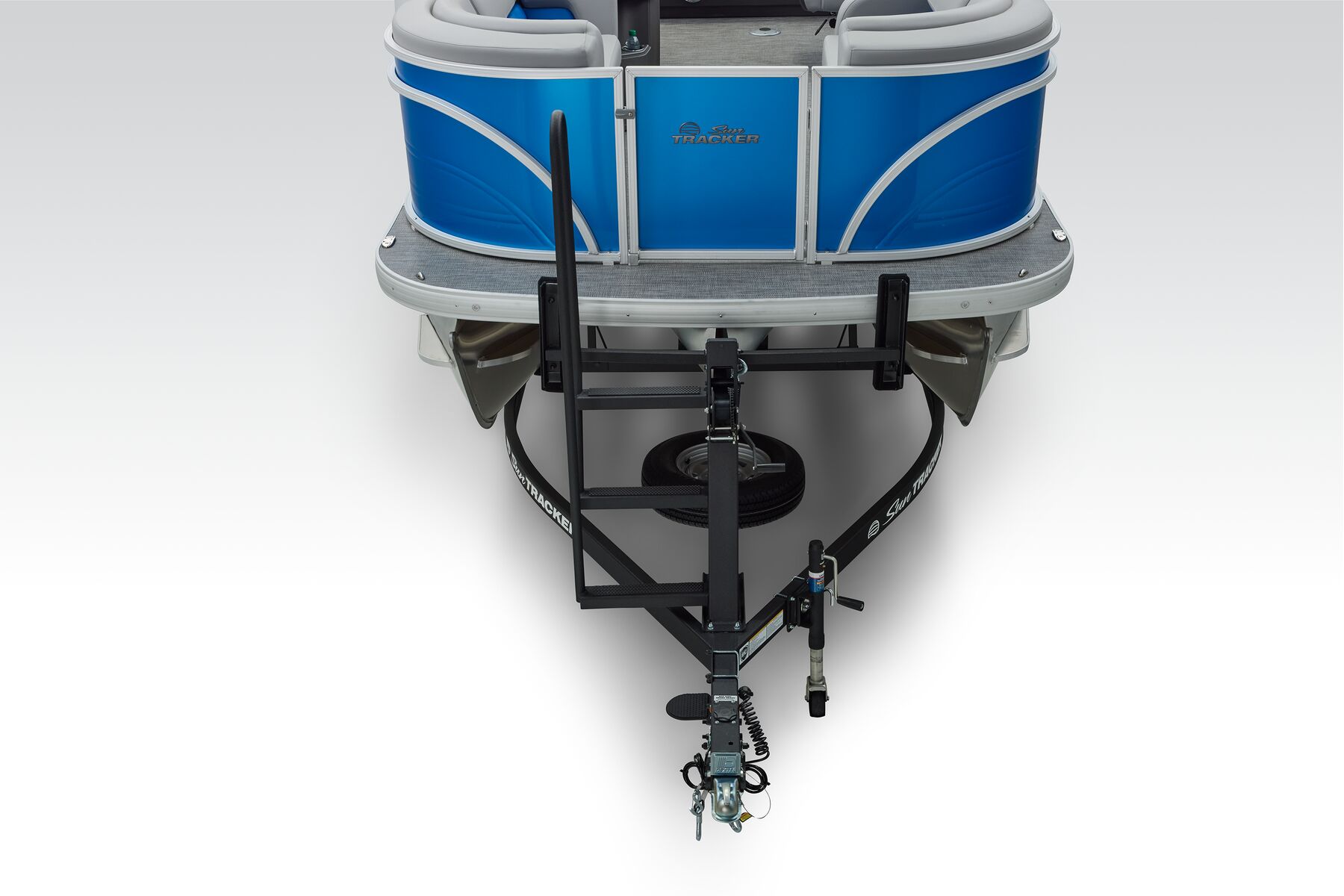

Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$38095
USD
|
Overview

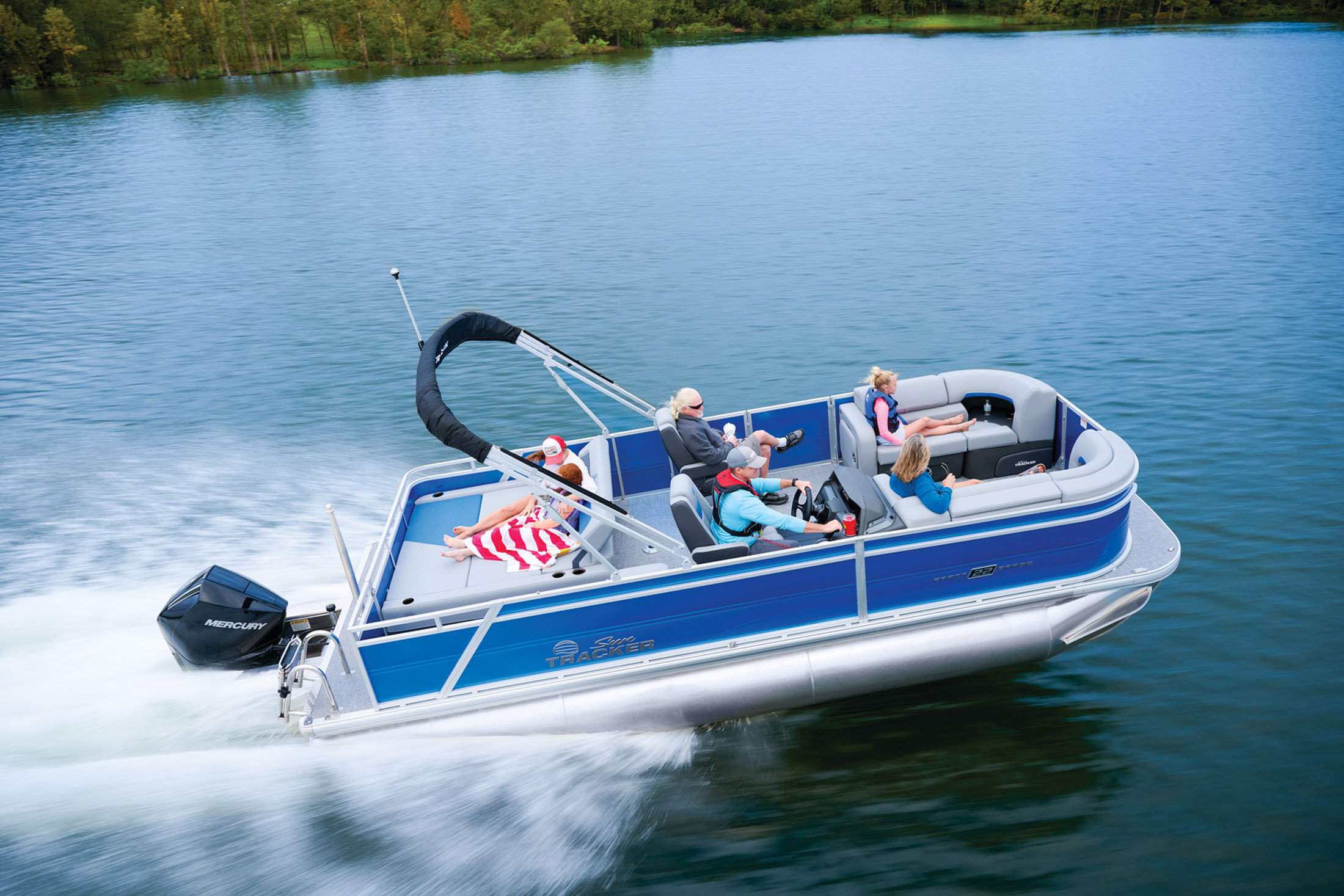

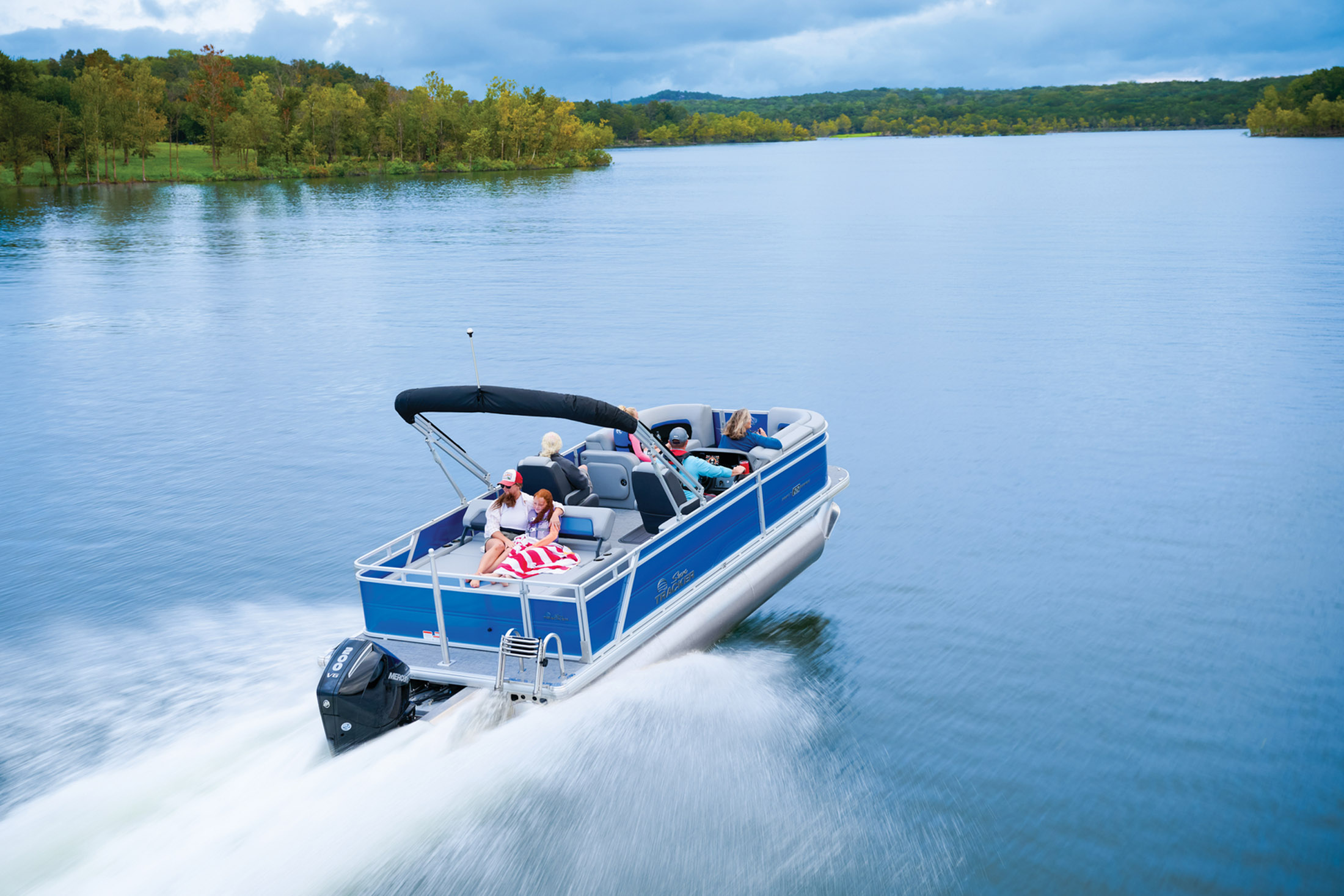

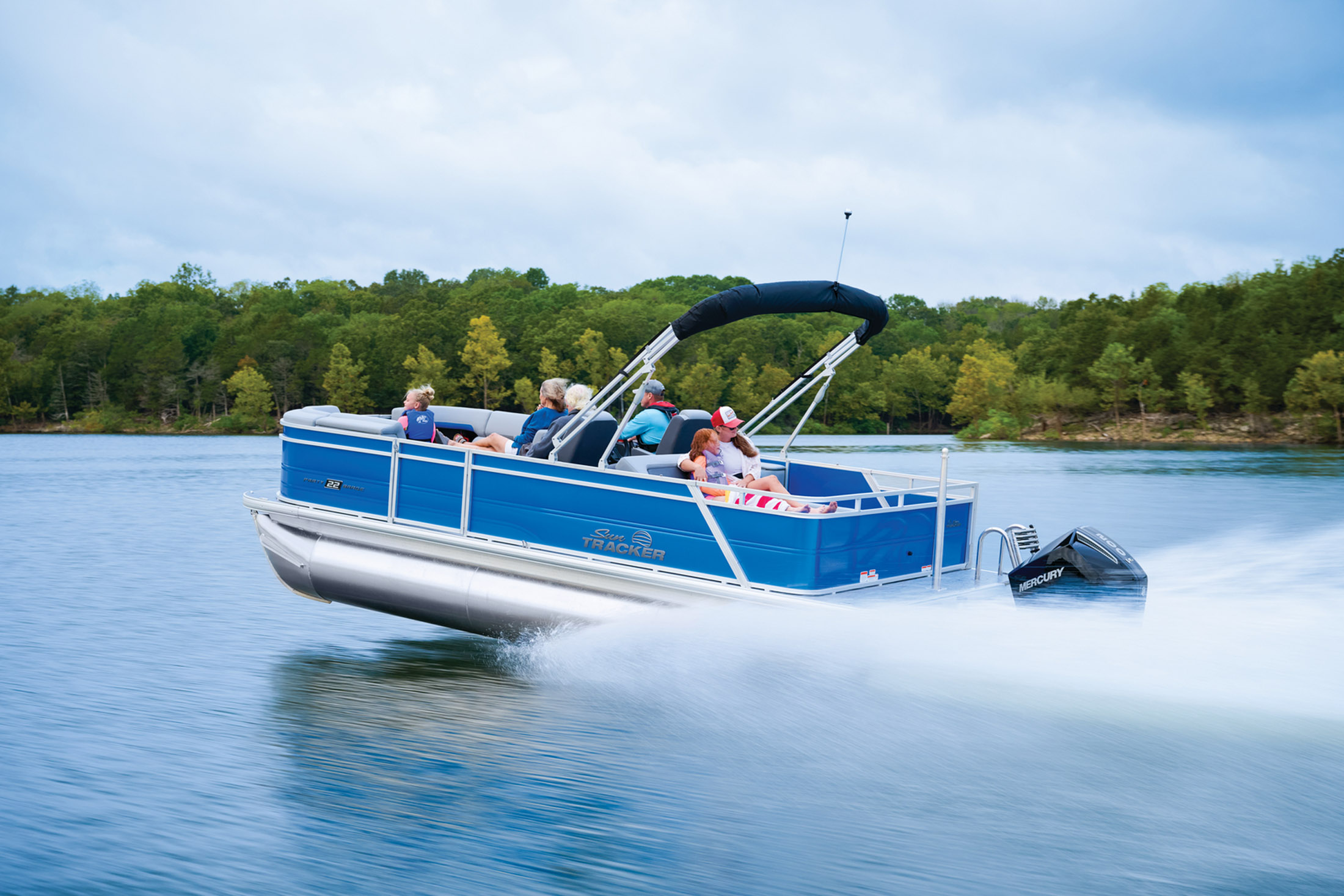

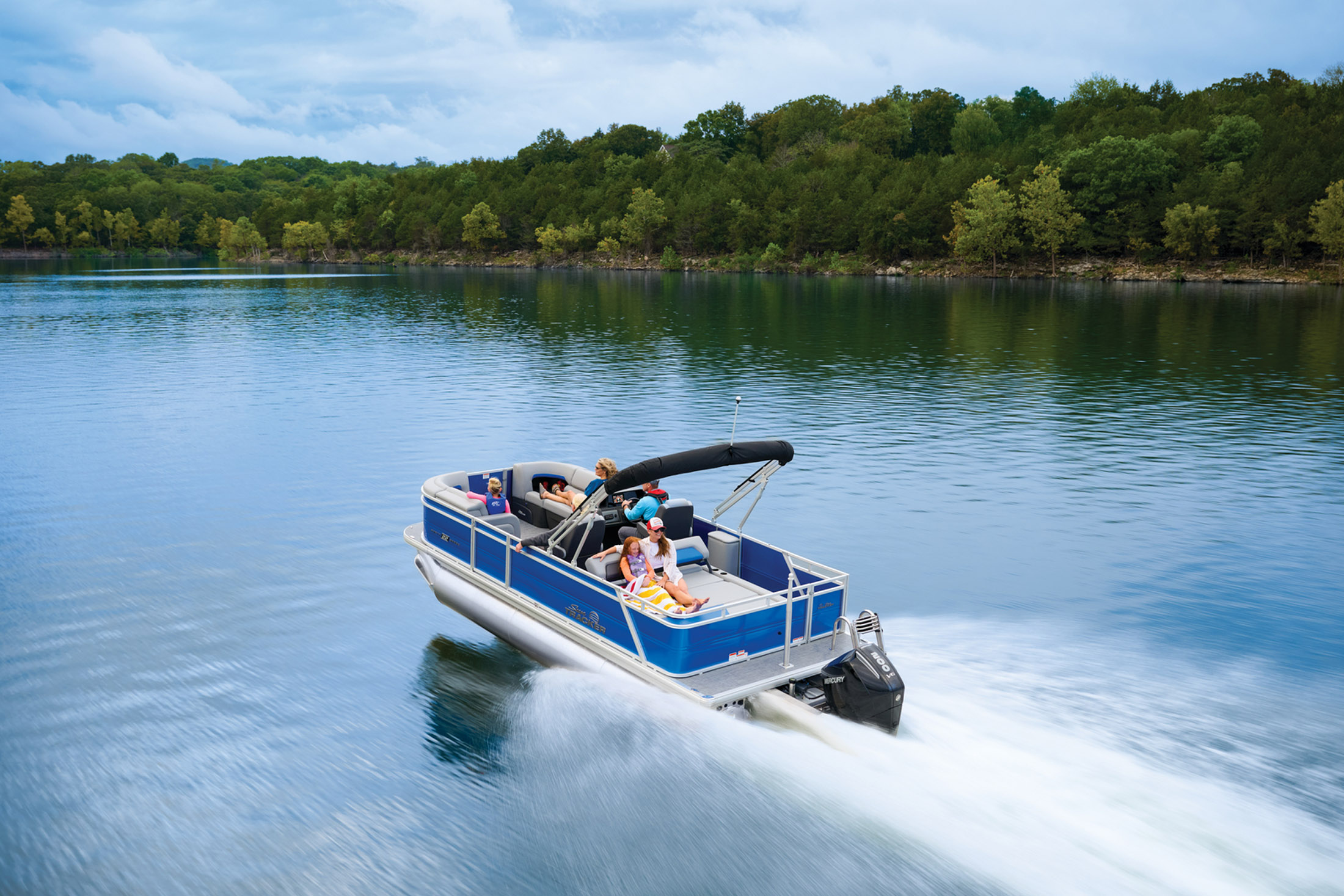

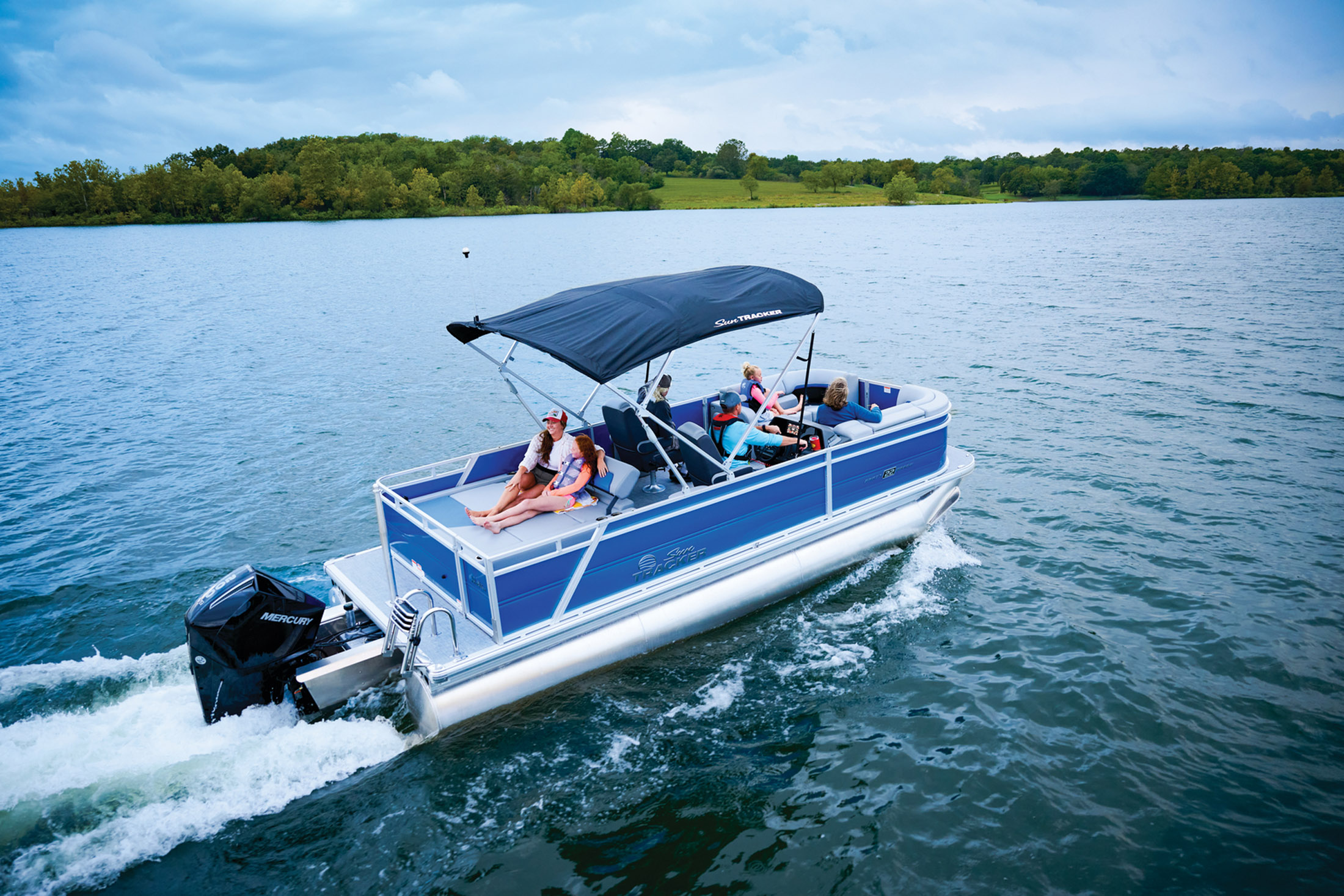

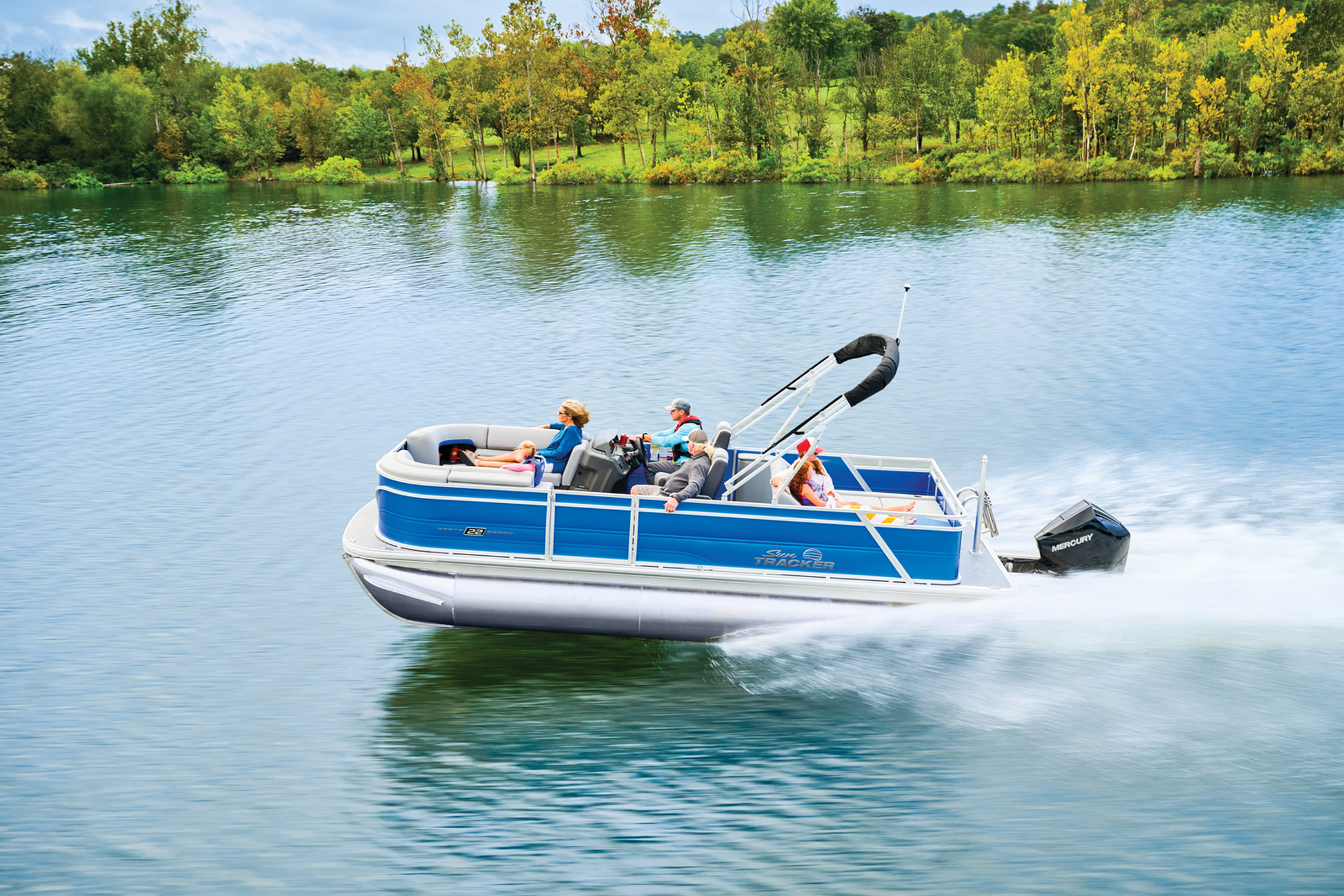

Change your view of summer fun with the PARTY BARGE® 22 RF XP3!

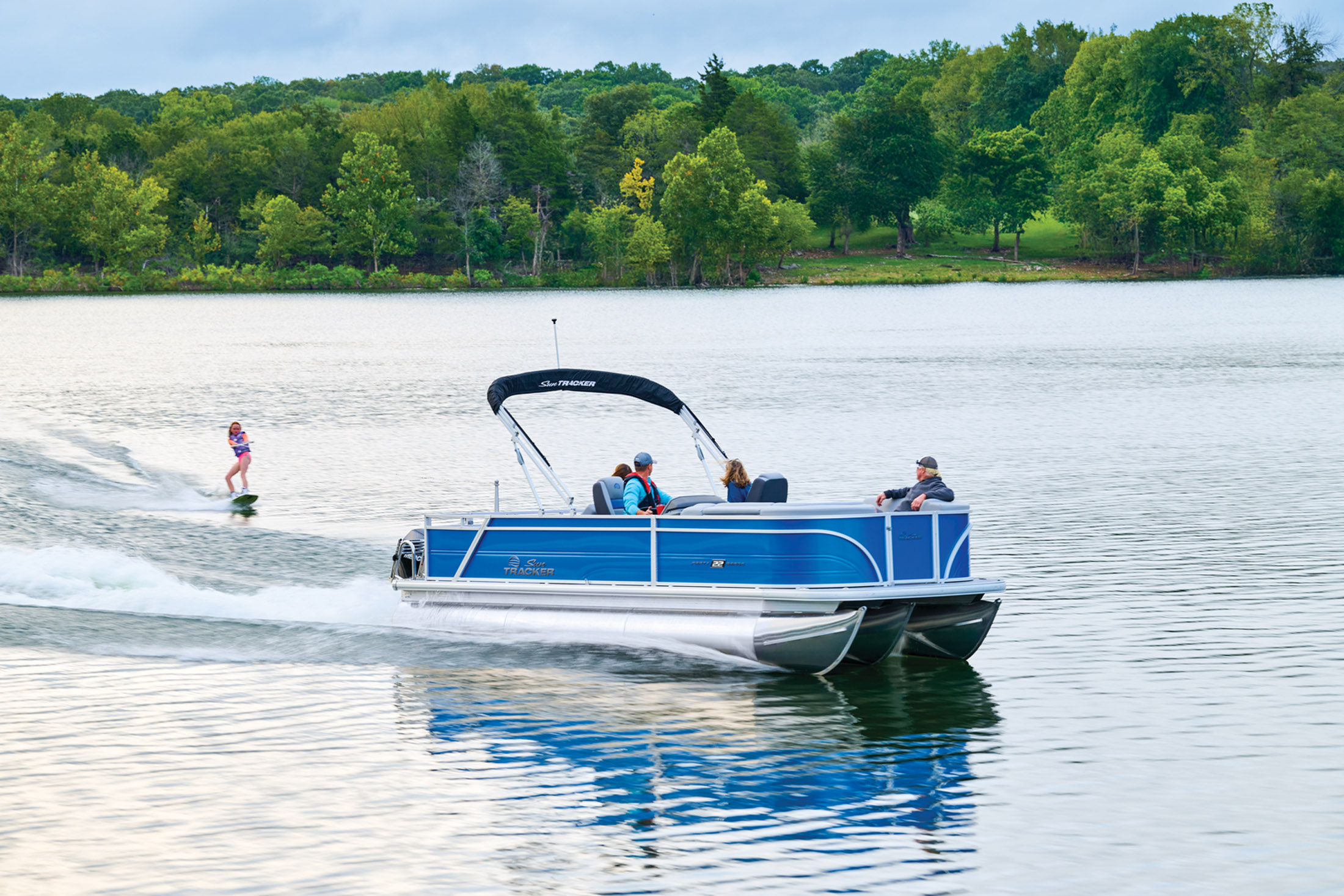

With three 26” logs with lifting strakes and factory-installed underpinning, this pontoon boat can handle up to 200 horsepower—extra power for cruising and pulling a tuber! That rear-facing lounge provides the perfect place for a couple of spotters to enjoy the action.
For those slower moments, the other couches throughout invite all-day lounging. The STOW MORE™ seat storage system keeps everyone’s gear conveniently close, yet out of the way. And the Bluetooth®-capable Bazooka® stereo system provides a soundtrack to all the fun.
Ready to change your view of summer fun?
Key Features

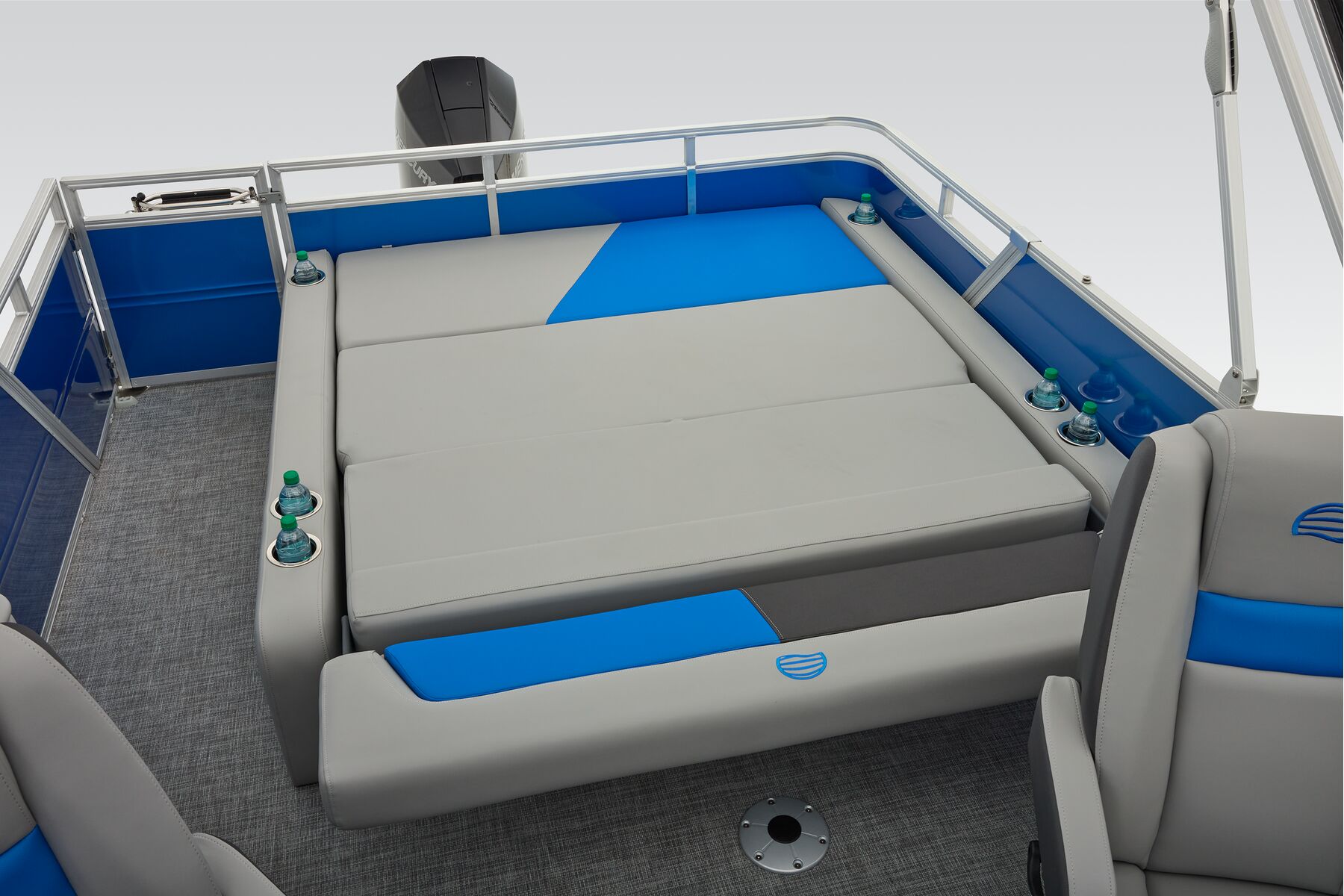

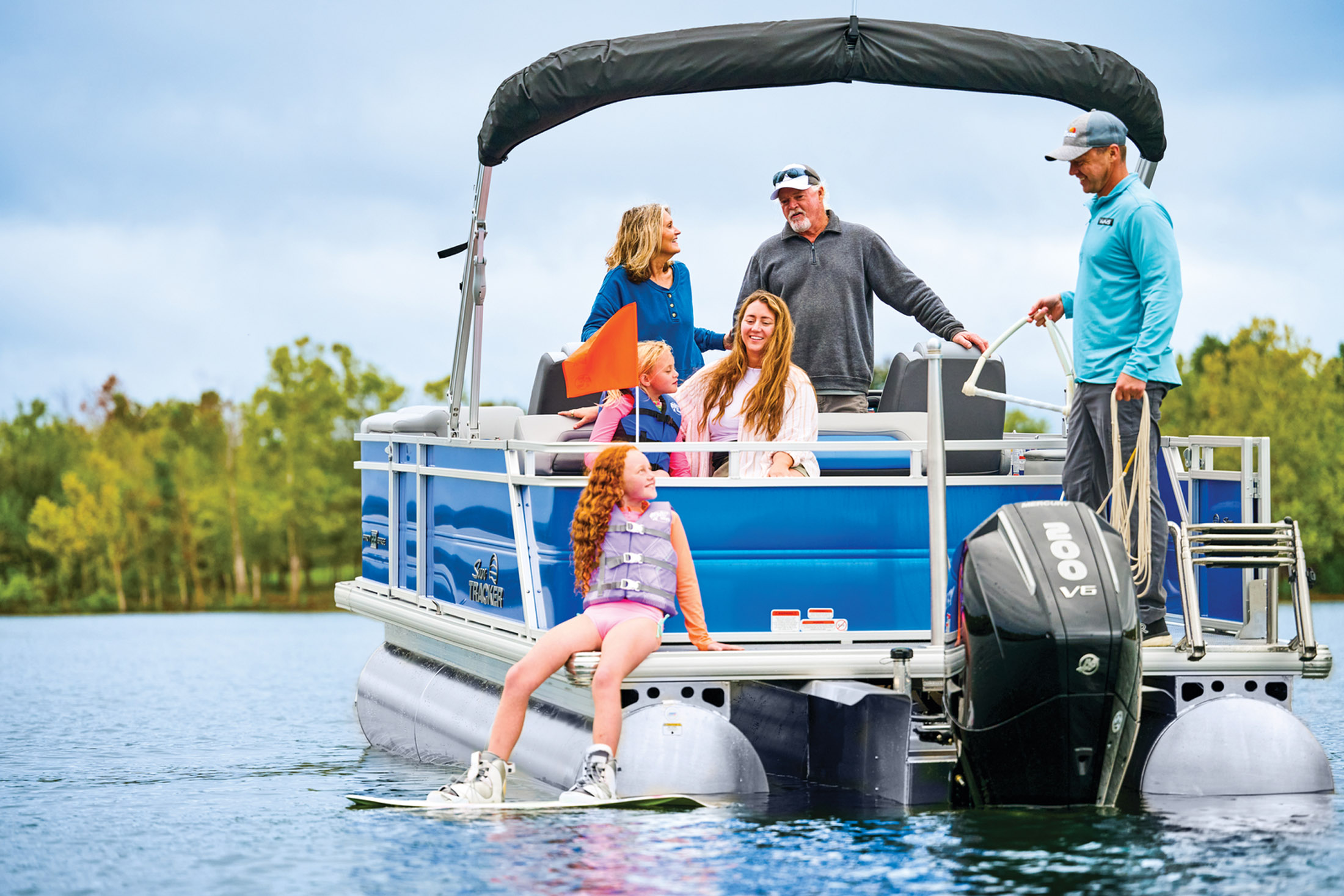

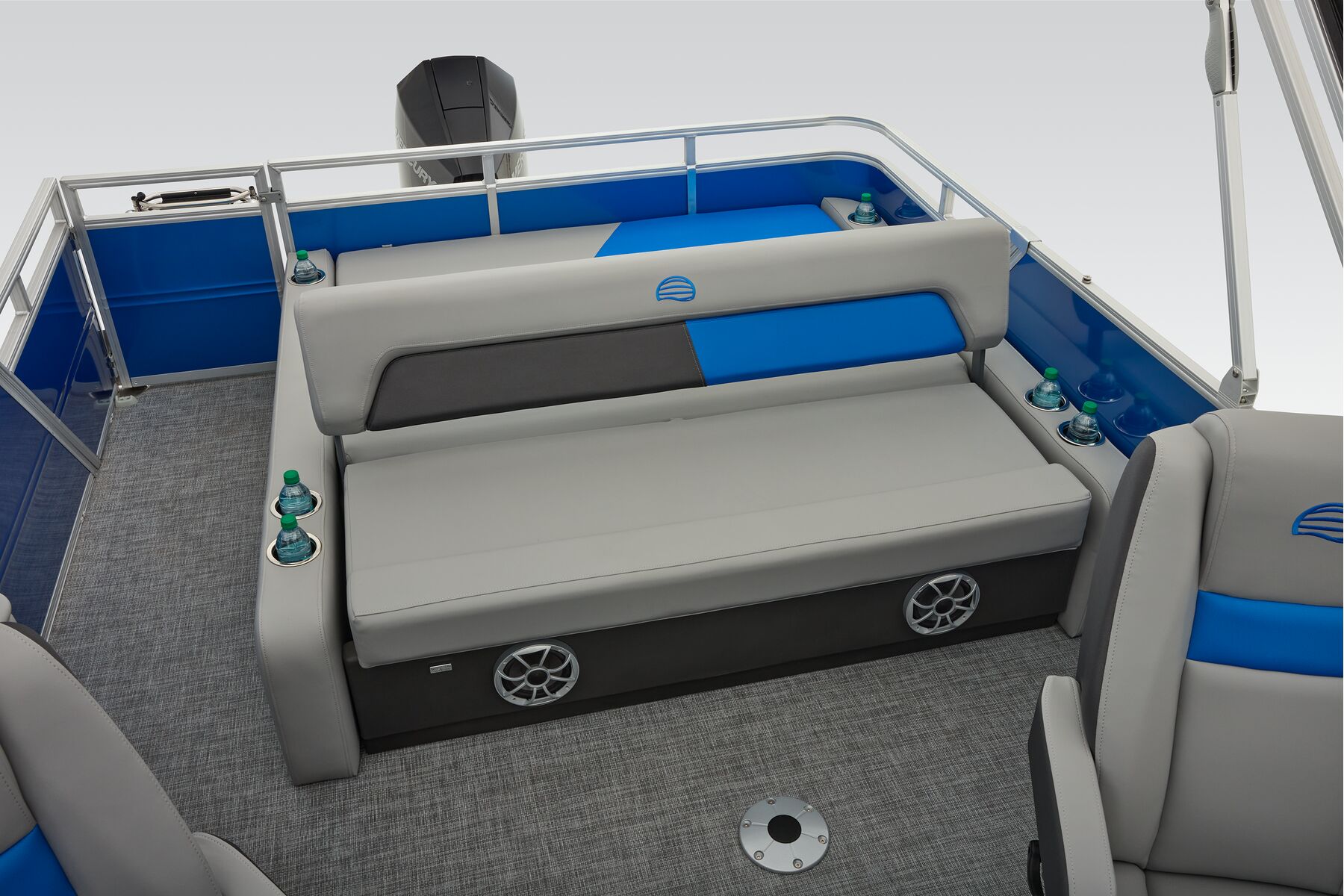

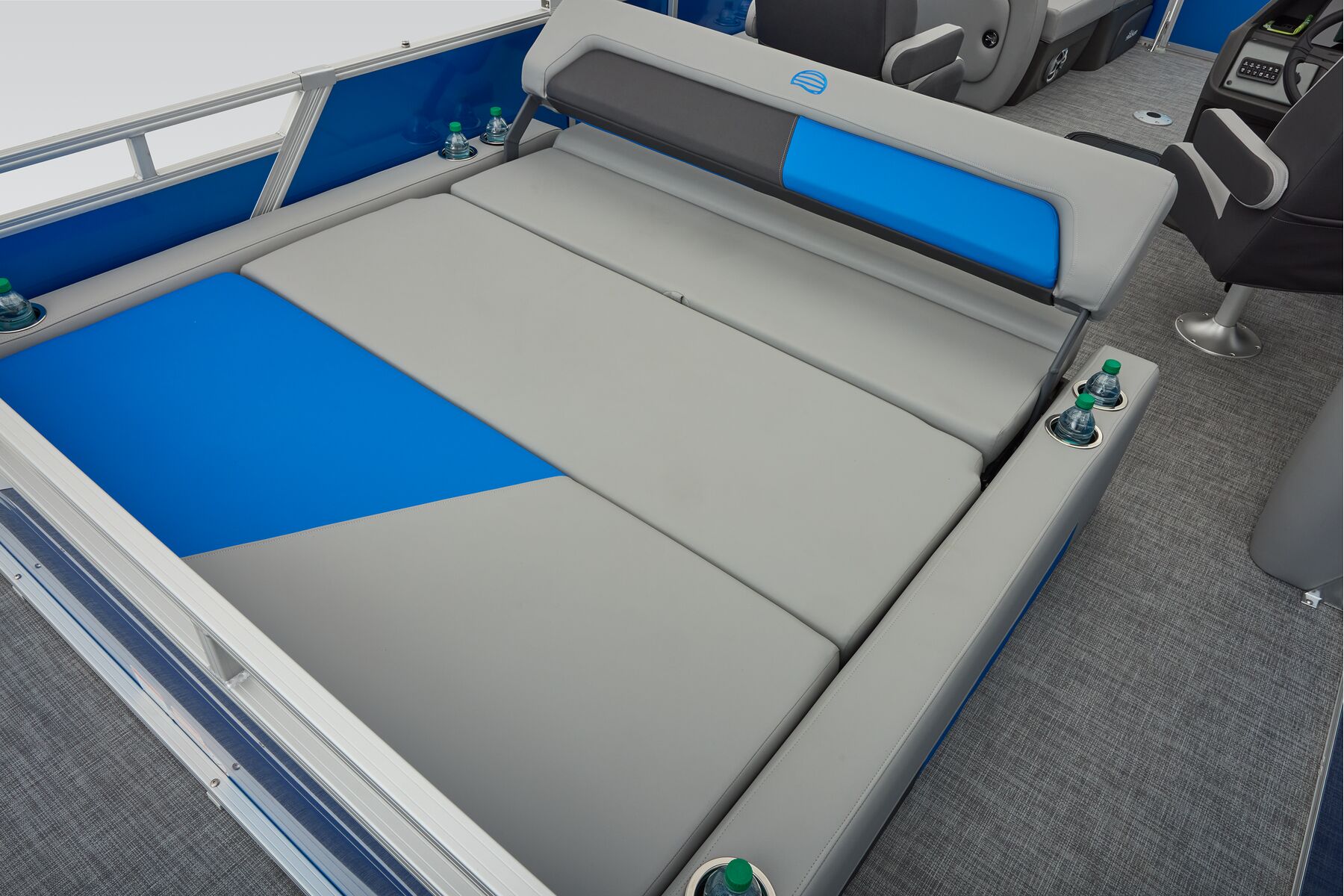

Rear-facing lounge
The aft lounge is perfect for lying back and watching the watersports action.

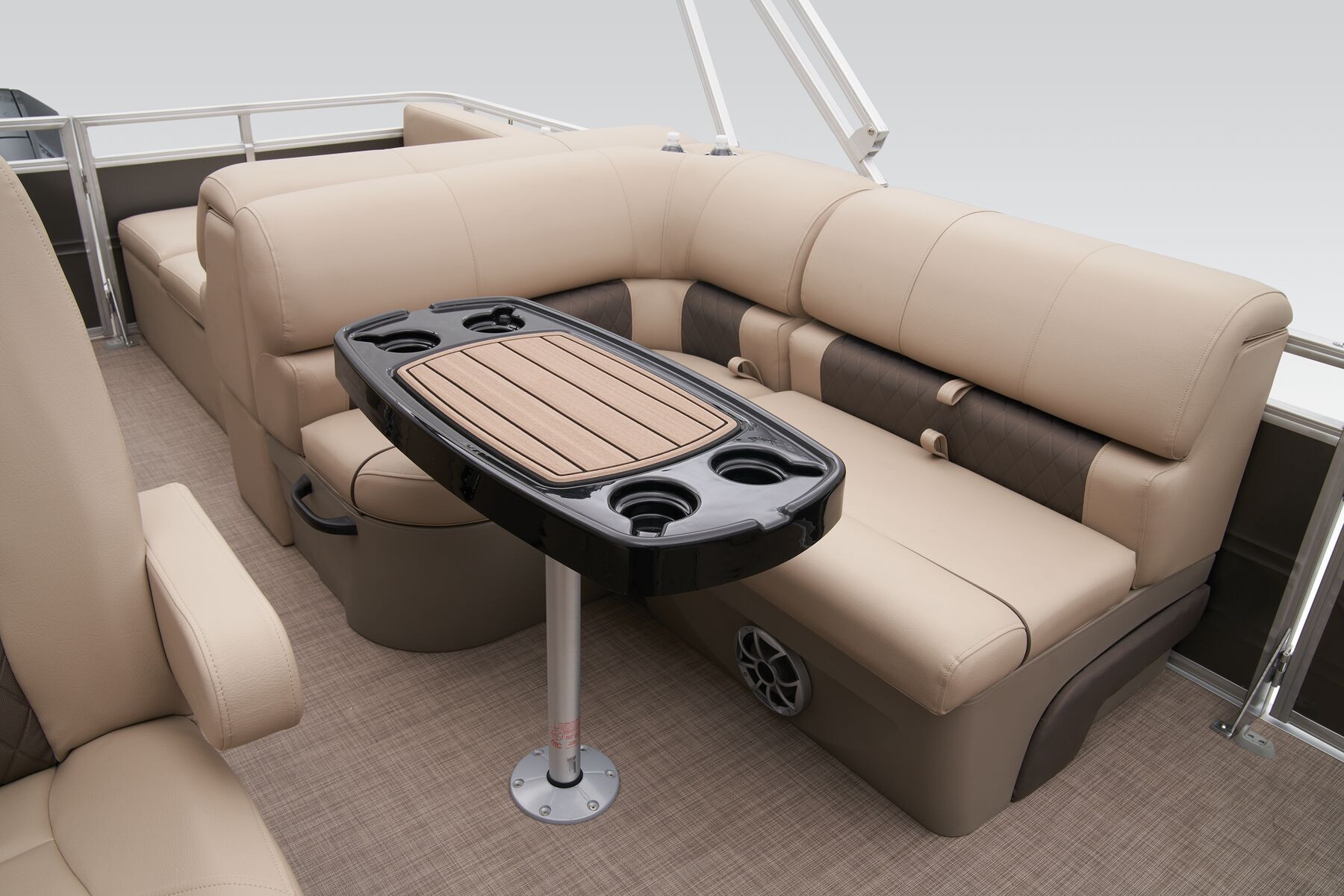

Movable table
The table can be set up at the L-lounge or bow lounges and features drink holders.
XP3 performance
The 26" logs and lifting strakes provide the performance needed to take your fun faster.
Specifications
| Length | 7.37 m | 24' 2'' |
| Deck length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 200 HP | |
| Fuel Capacity | 196.82 L | 52 gal. |
| Pontoon log length | 6.78 m | 22' 3'' |
| Pontoon log diameter | 66.04 cm | 26'' |
| Pontoon log material | 0.100 5052 marine alloy | |
| Max. Person Capacity | 11 persons | |
| Max. person weight | 725.75 kg | 1600 lbs. |
| Max. person, motor & gear weight | 1088.62 kg | 2400 lbs. |
| Interior depth | 74.93 cm | 29.5'' |
| Draft | 30.48 cm | 12'' |
| Average dry weight | 1351.25 kg | 2979 lbs. |
| Average package weight | 2253.9 kg | 4969 lbs. |
| Package height | 2.72 m | 8' 11'' |
| Package width | 2.59 m | 8' 6'' |
| Towing length | 9.86 m | 32' 4'' |
| Storage Length | 9.86 m | 32' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | VIEW PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 115 ELPT FourStroke Command Thrust | - |
$35695 USD
|
Select Dealer | ||
| 150 L FourStroke | 31-40 mph |
$38095 USD
|
Select Dealer | ||
| 200 L FourStroke | - |
$41845 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty
- NMMA® certified

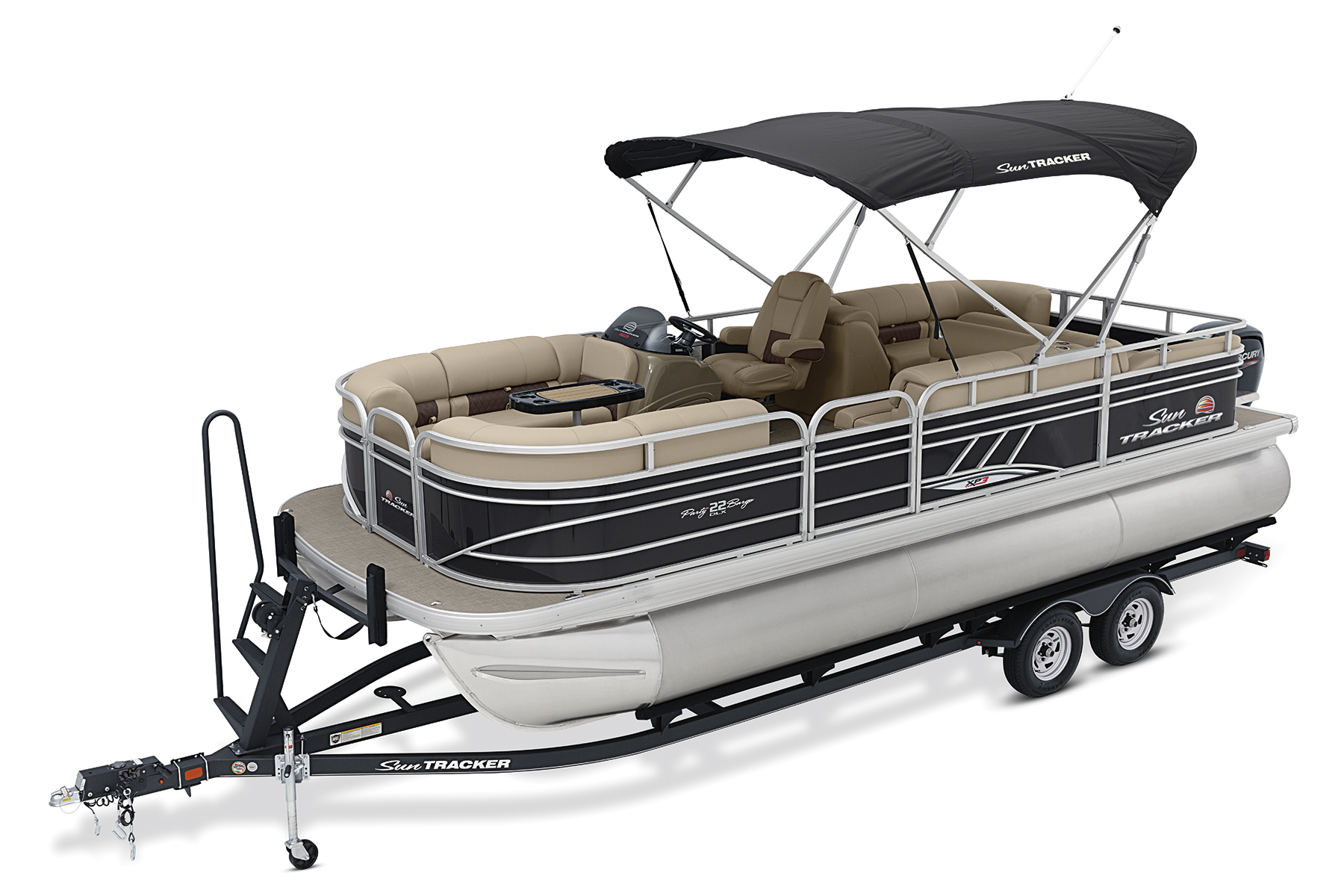

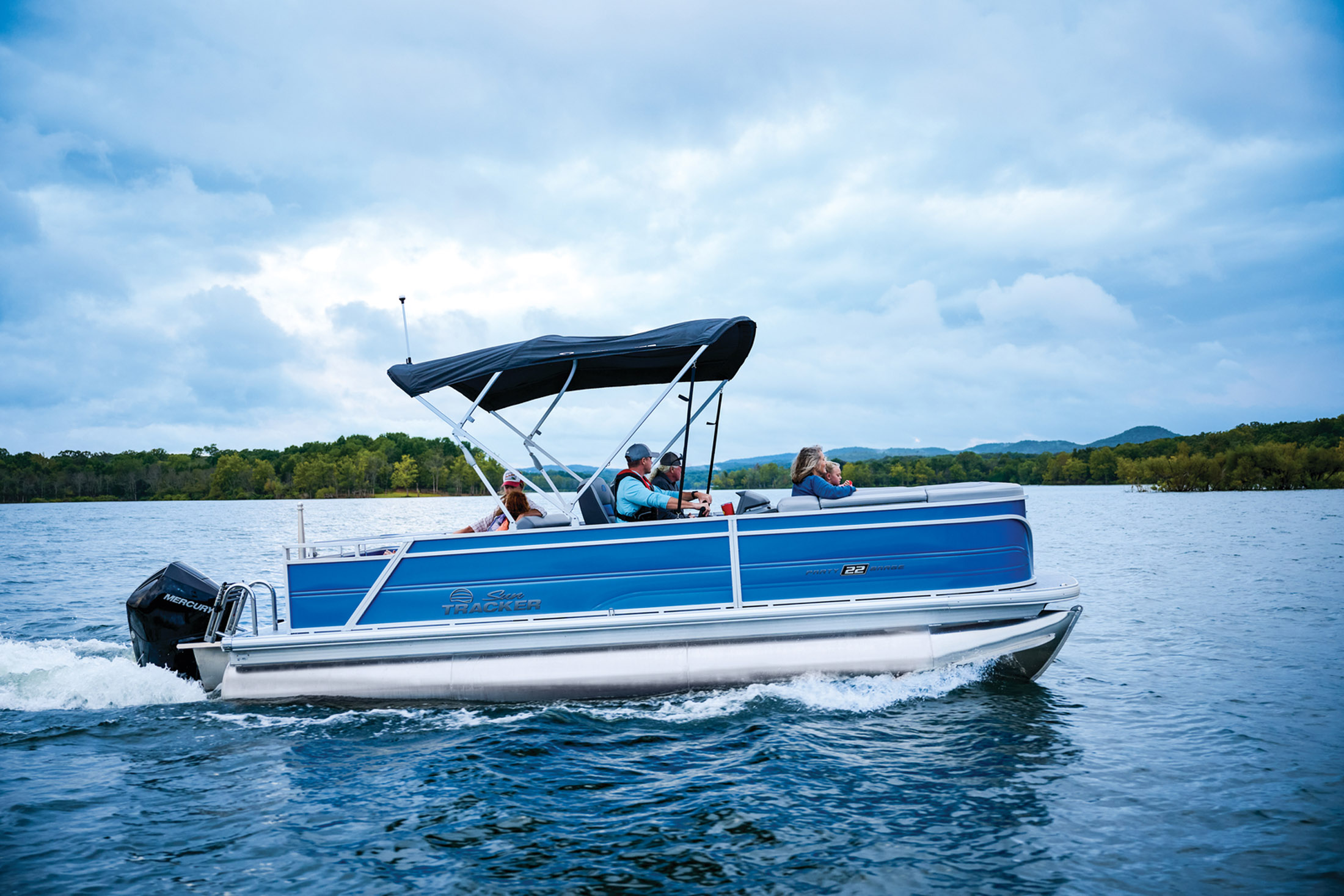

- 11' (3.35 m) color-keyed Bimini top w/LED courtesy lights, protective boot & accepts optional drop-down changing curtain

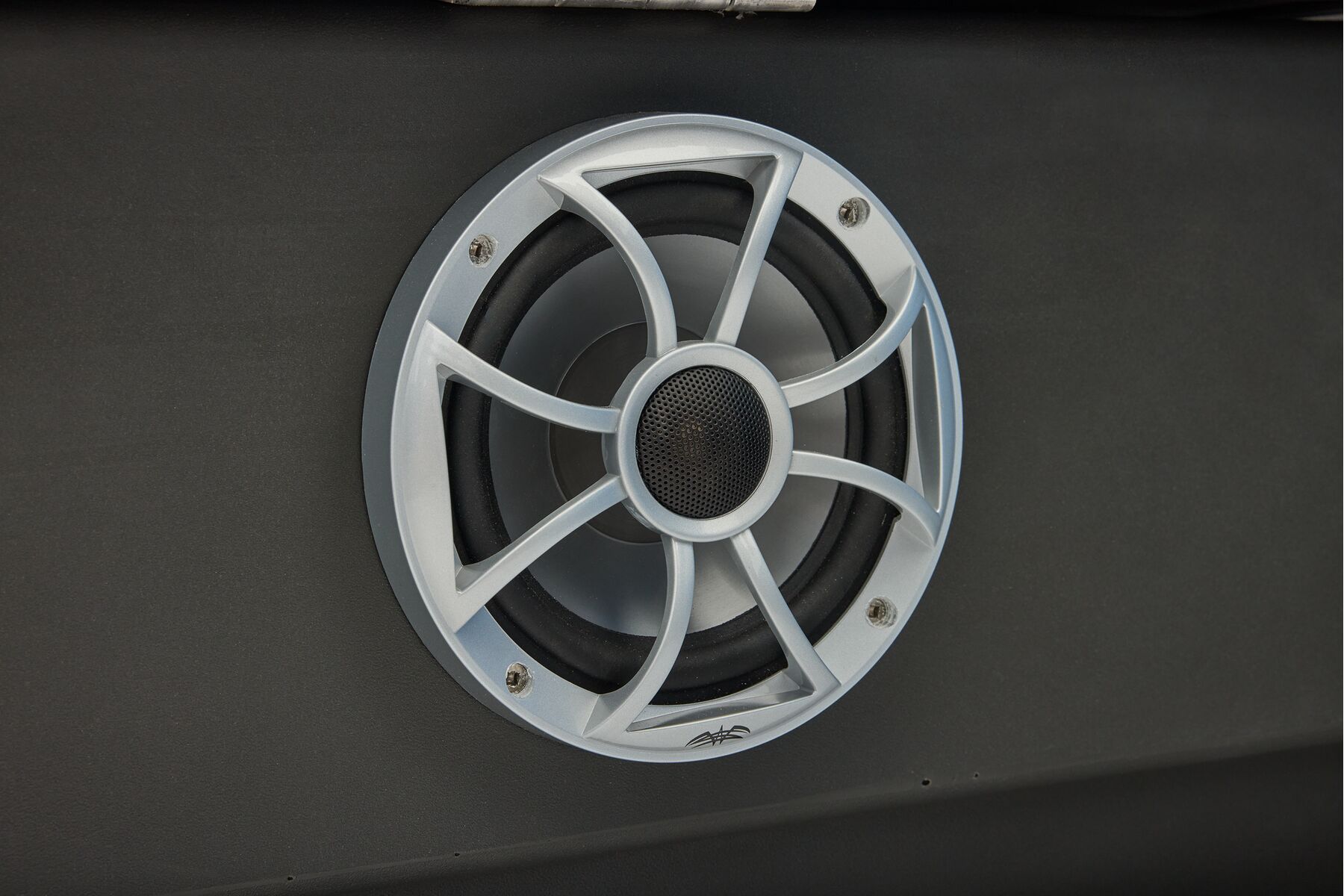

- Bazooka® Party Bar stereo & speakers in the Bimini top

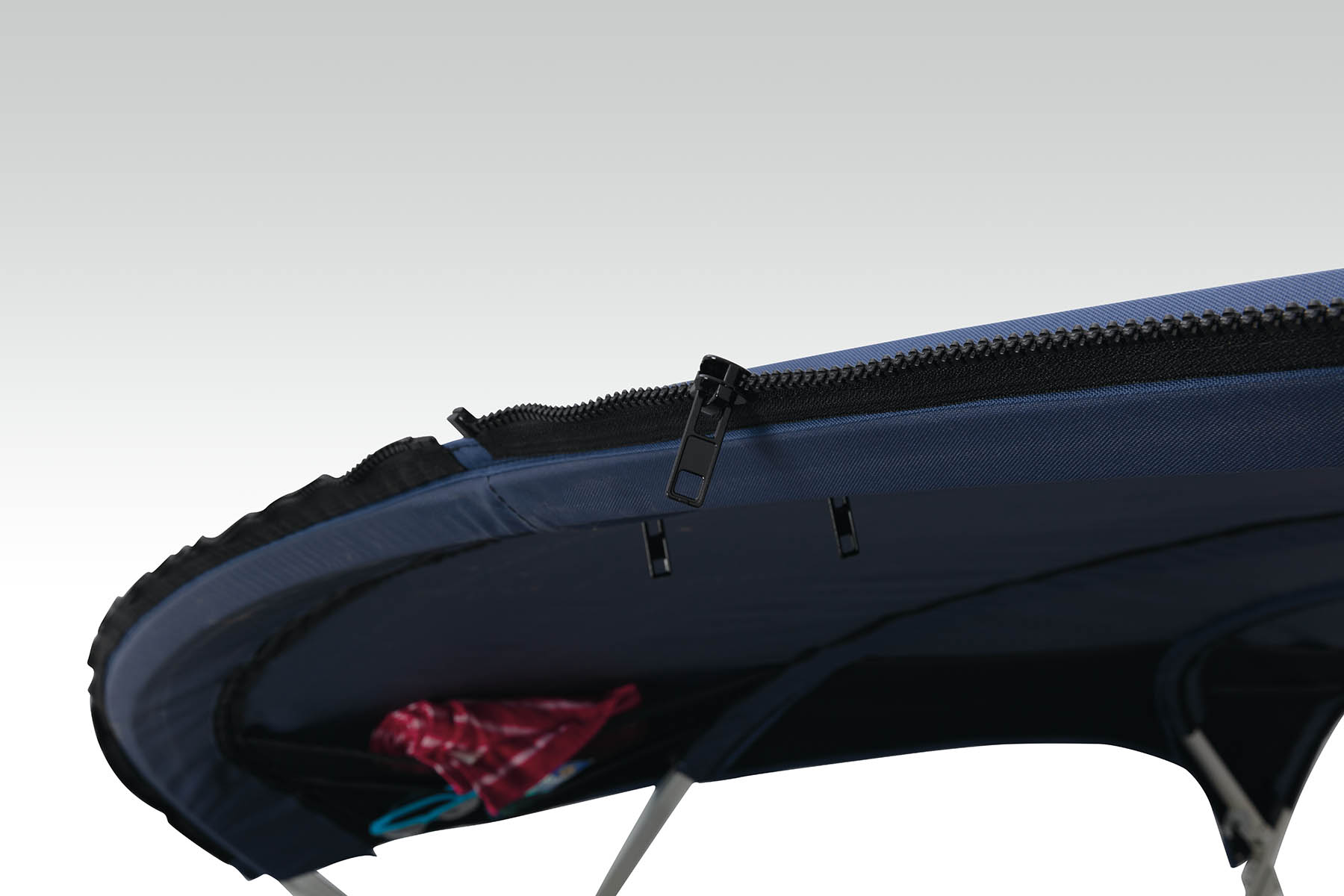

- Front zipper on Bimini top to join optional forward Bimini together
- QUICKLIFT® Bimini top deployment system, allowing 1 person to effortlessly extend the canopy alone

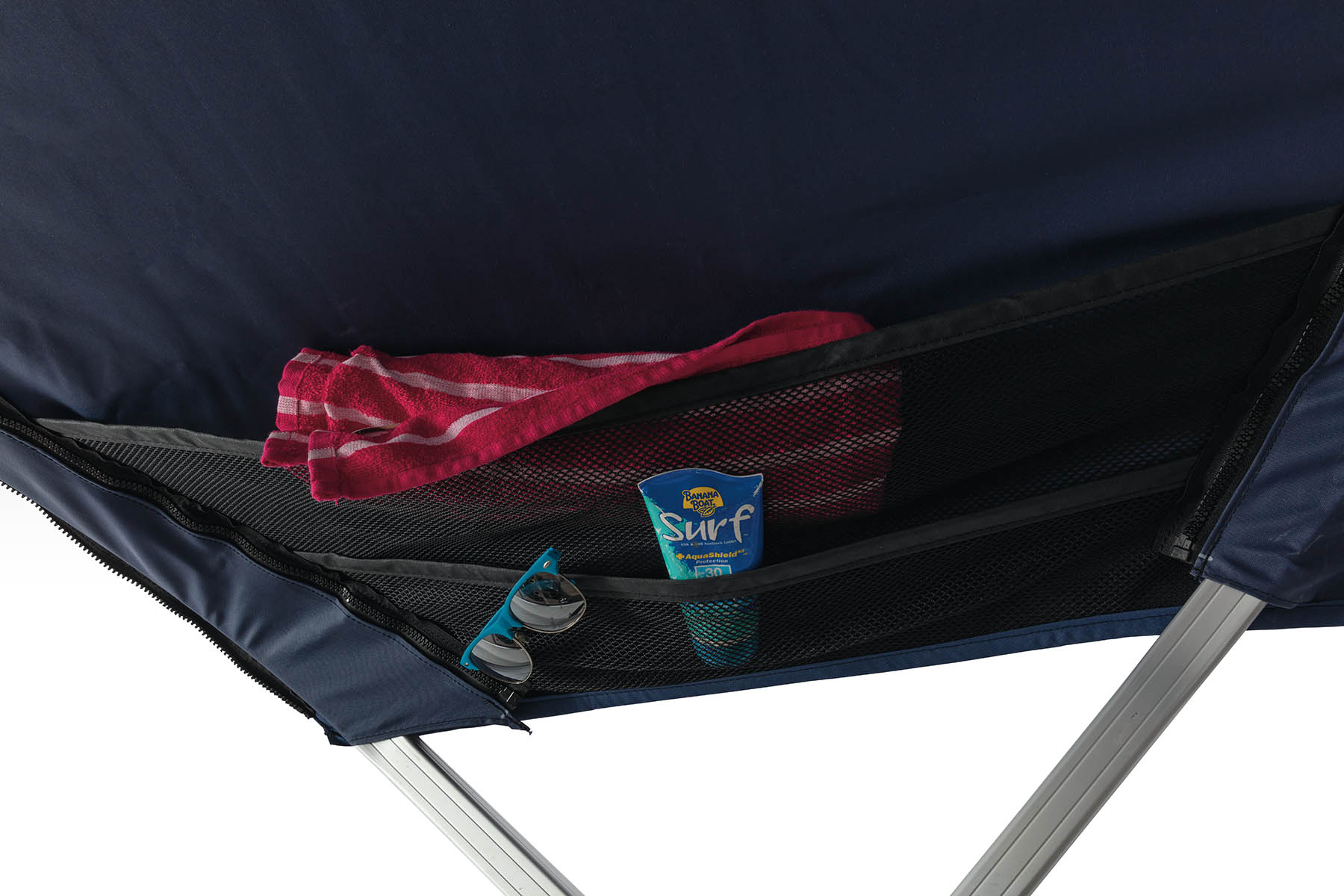

- Storage pockets in Bimini top
- Nylon gate latches & heavy-duty hinges that open inward

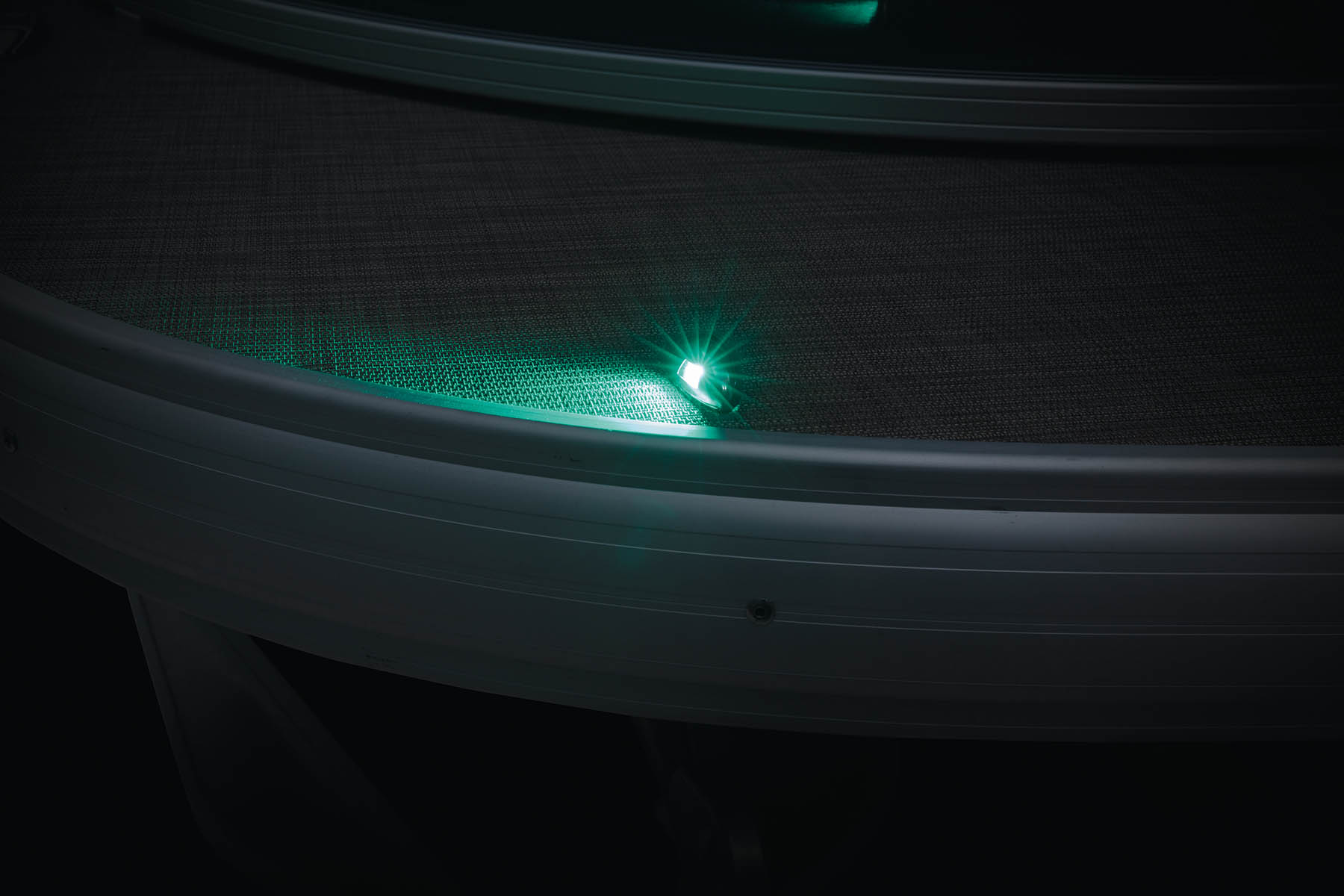

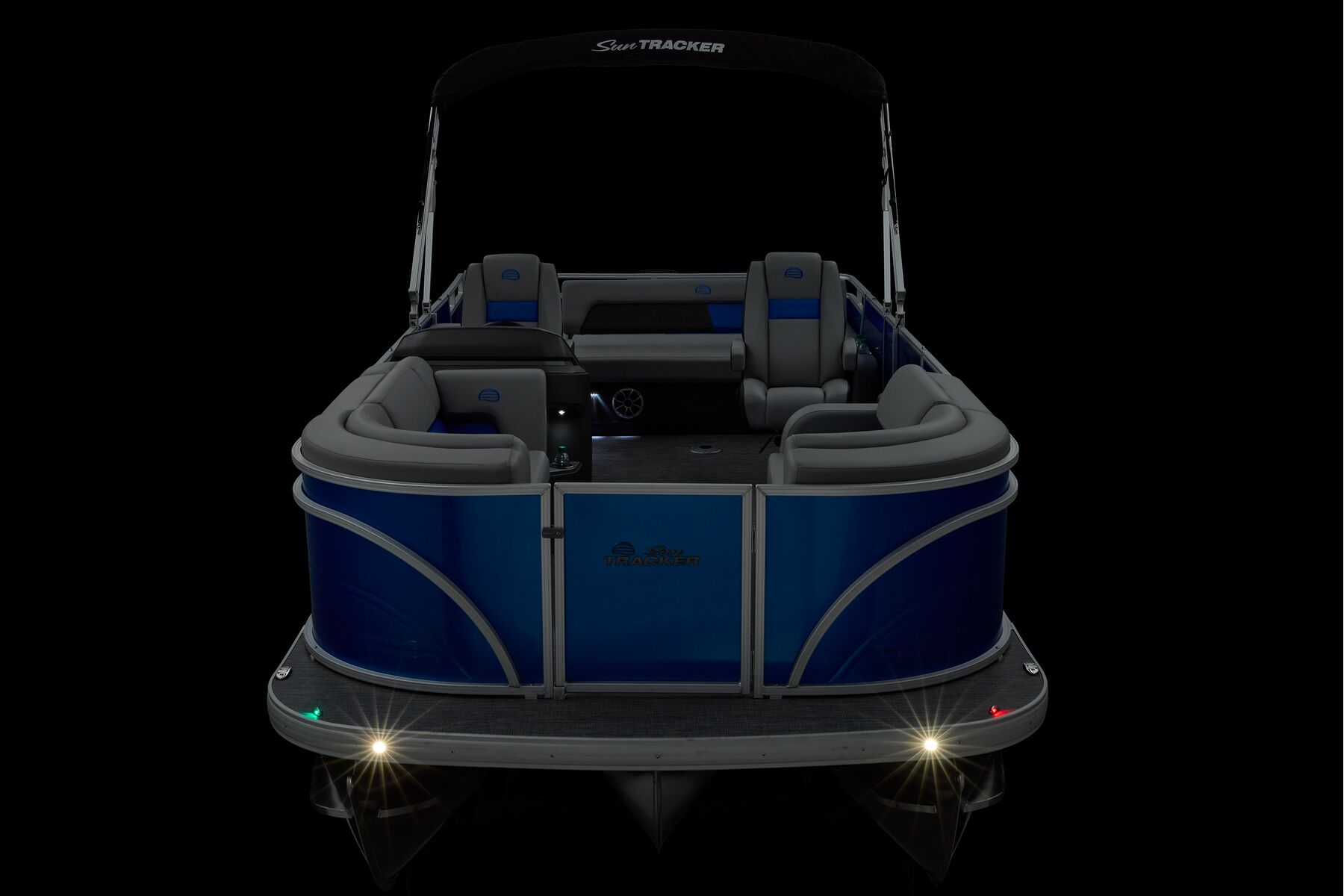

- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light

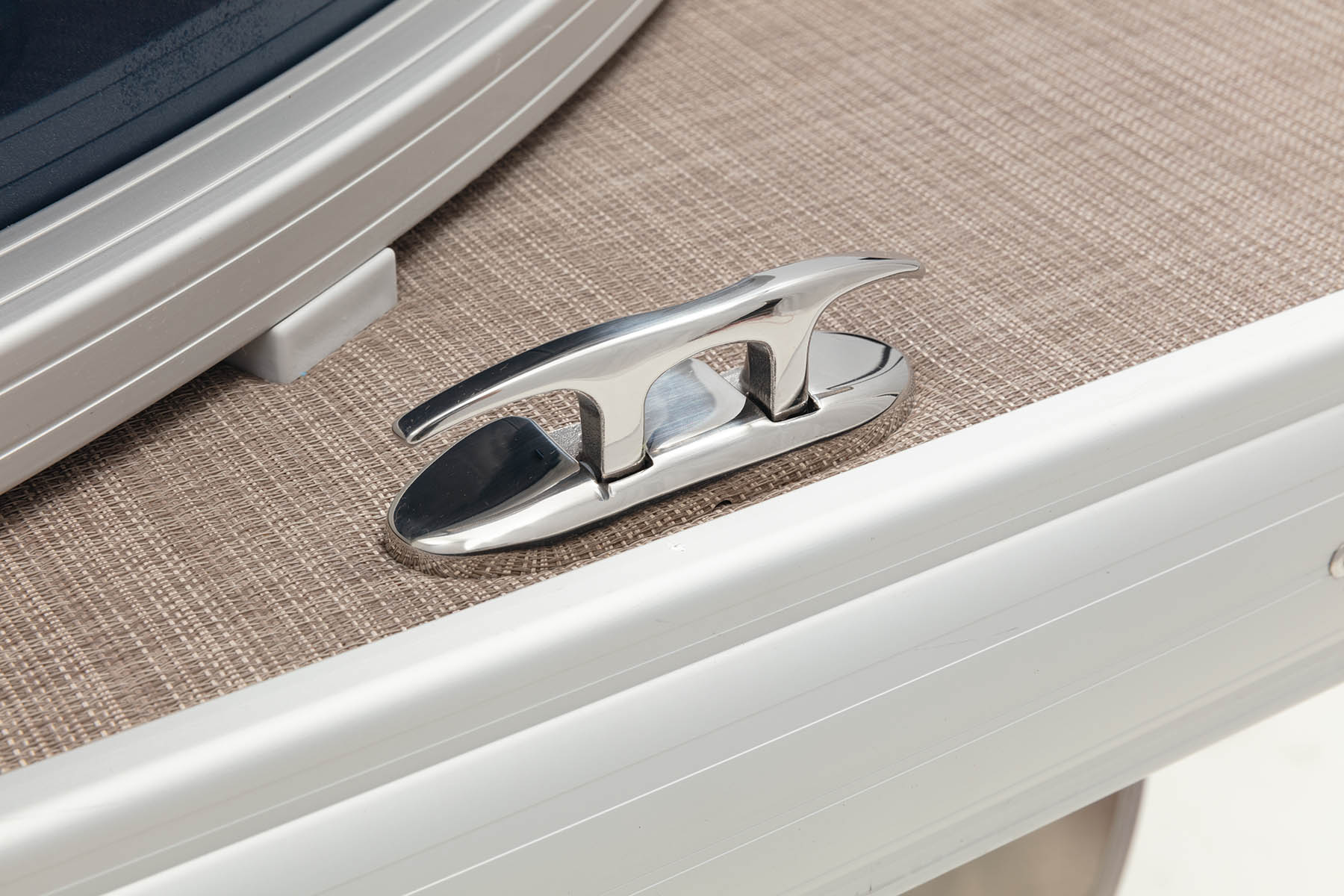

- 4 folding mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn

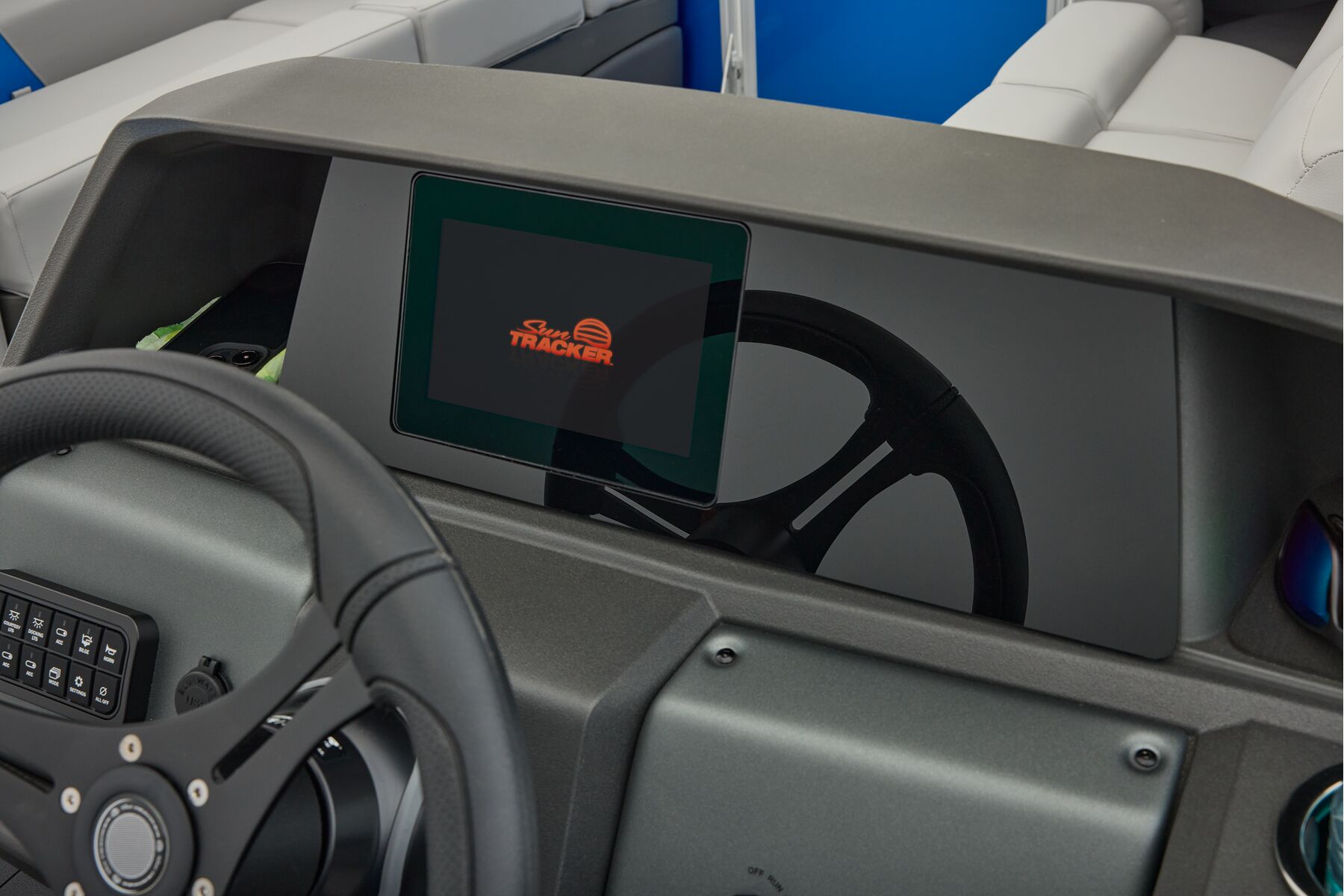

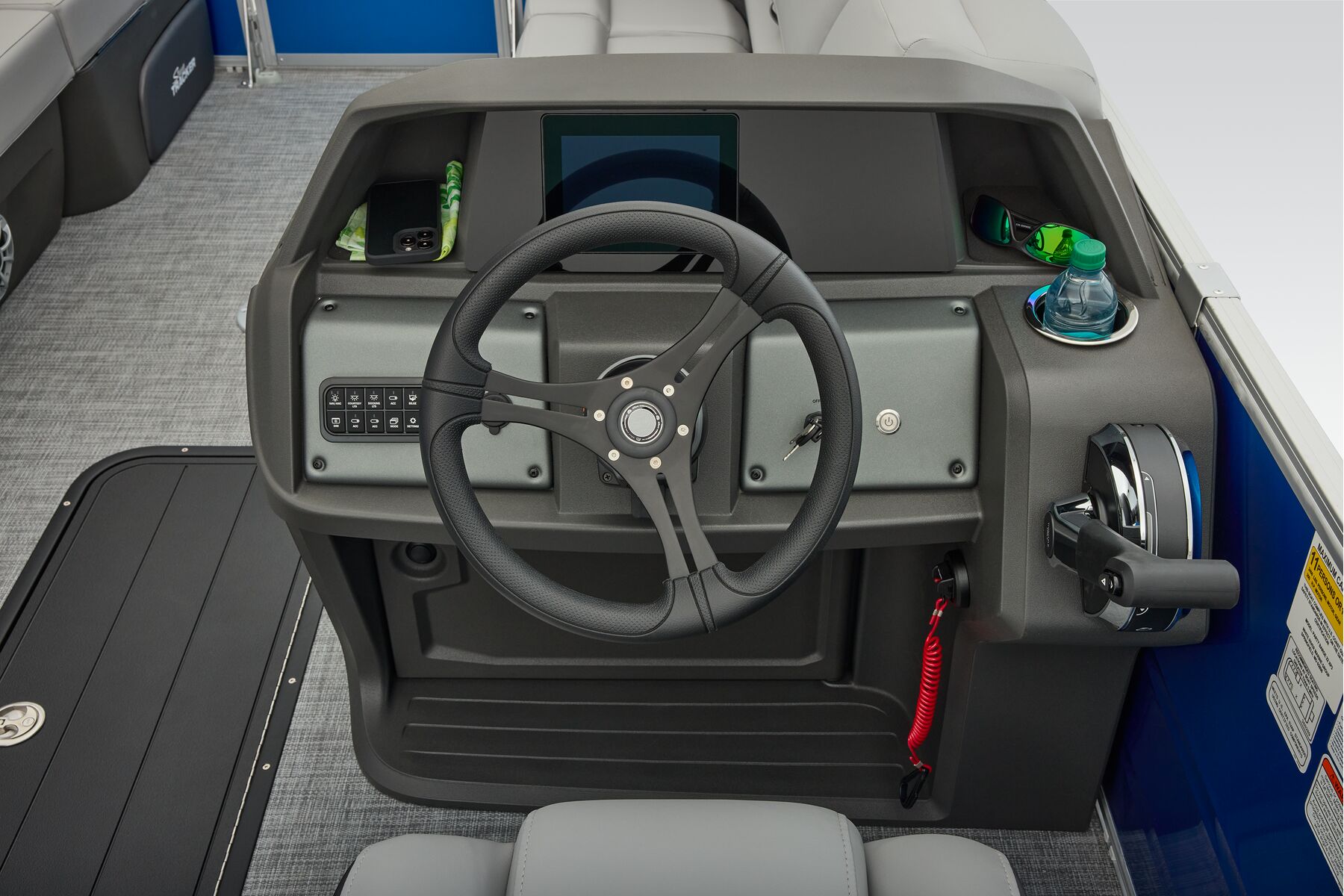

Console
- Deluxe soft-touch sport steering wheel

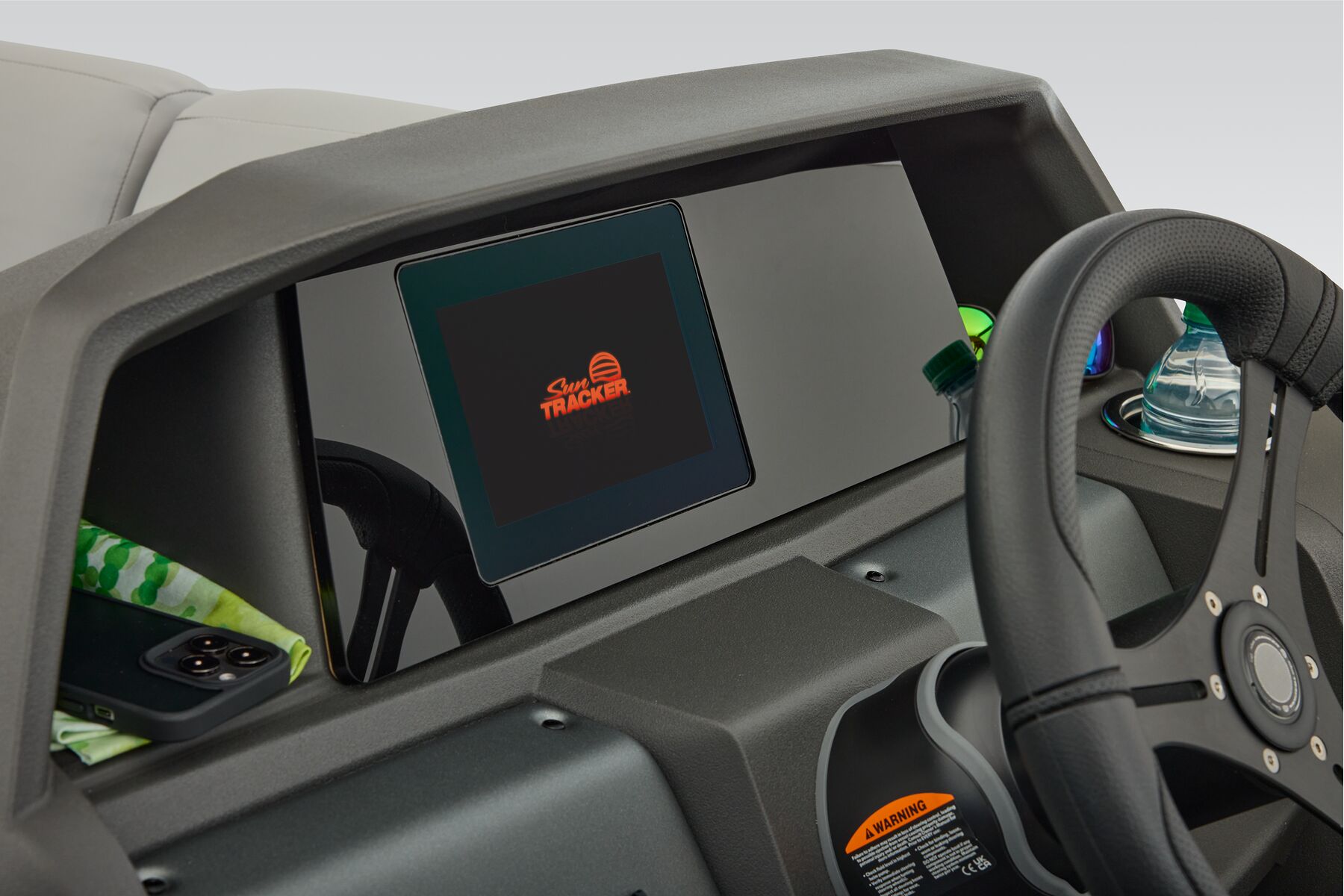

- Wraparound sport shroud & tinted, removable windscreen

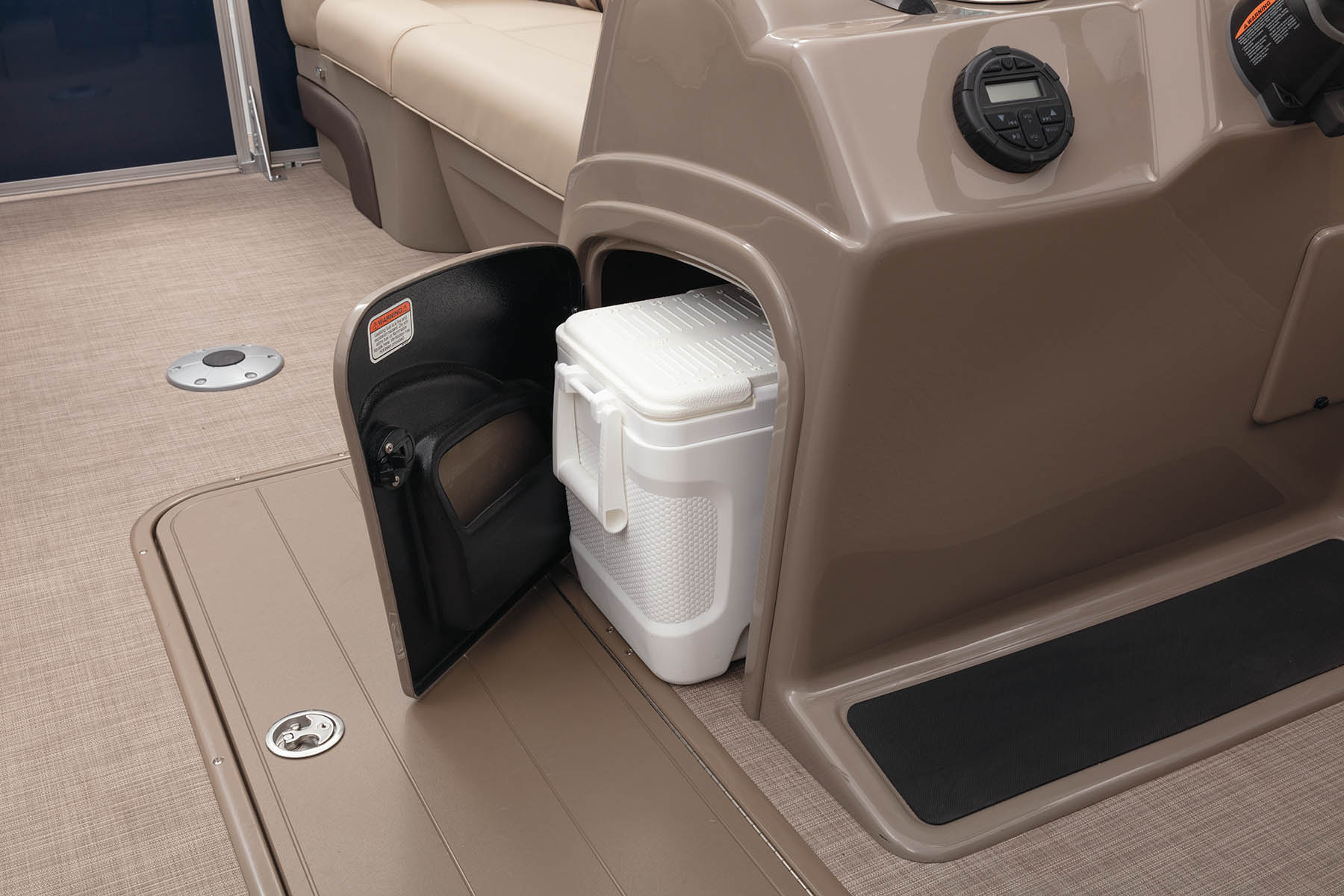

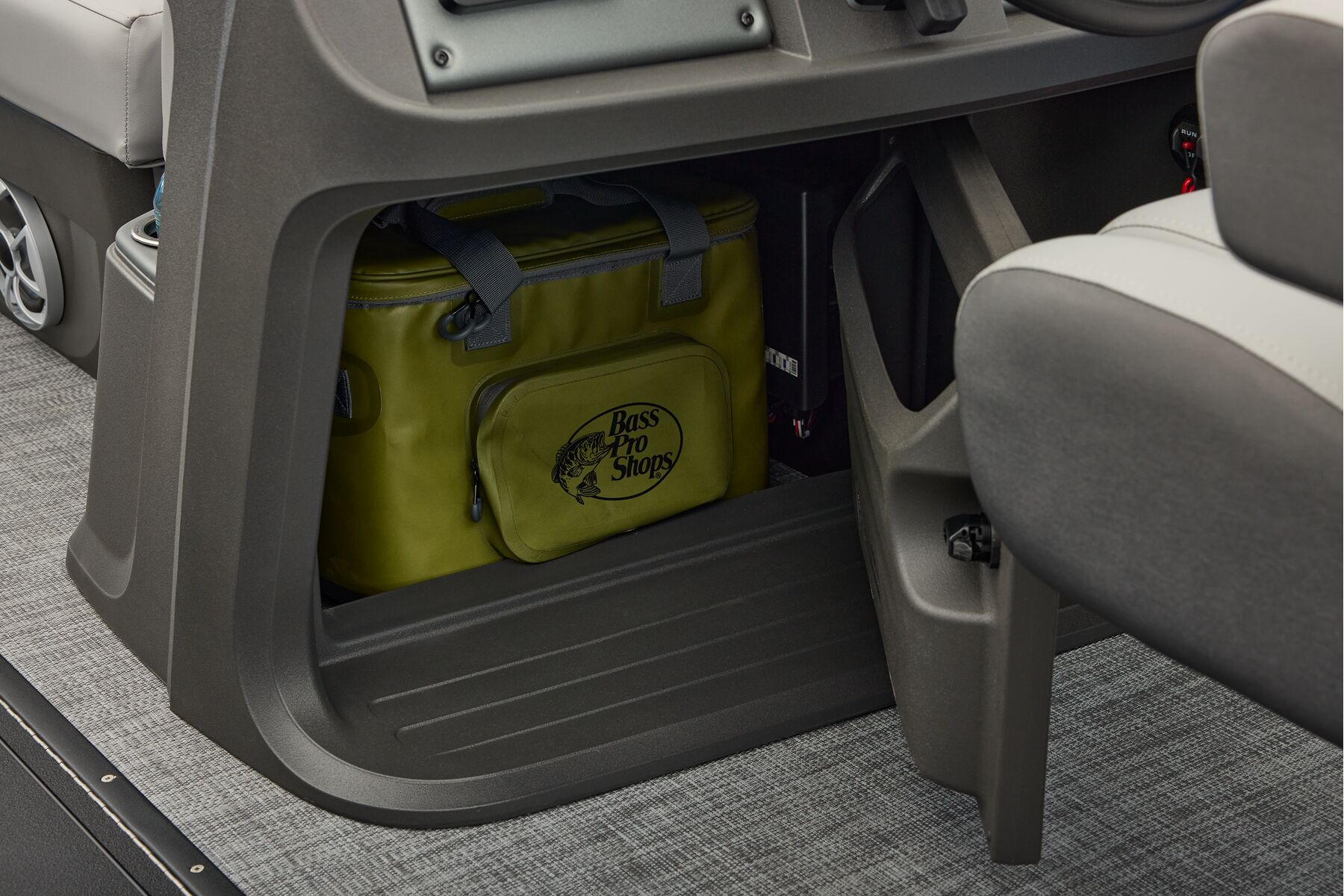

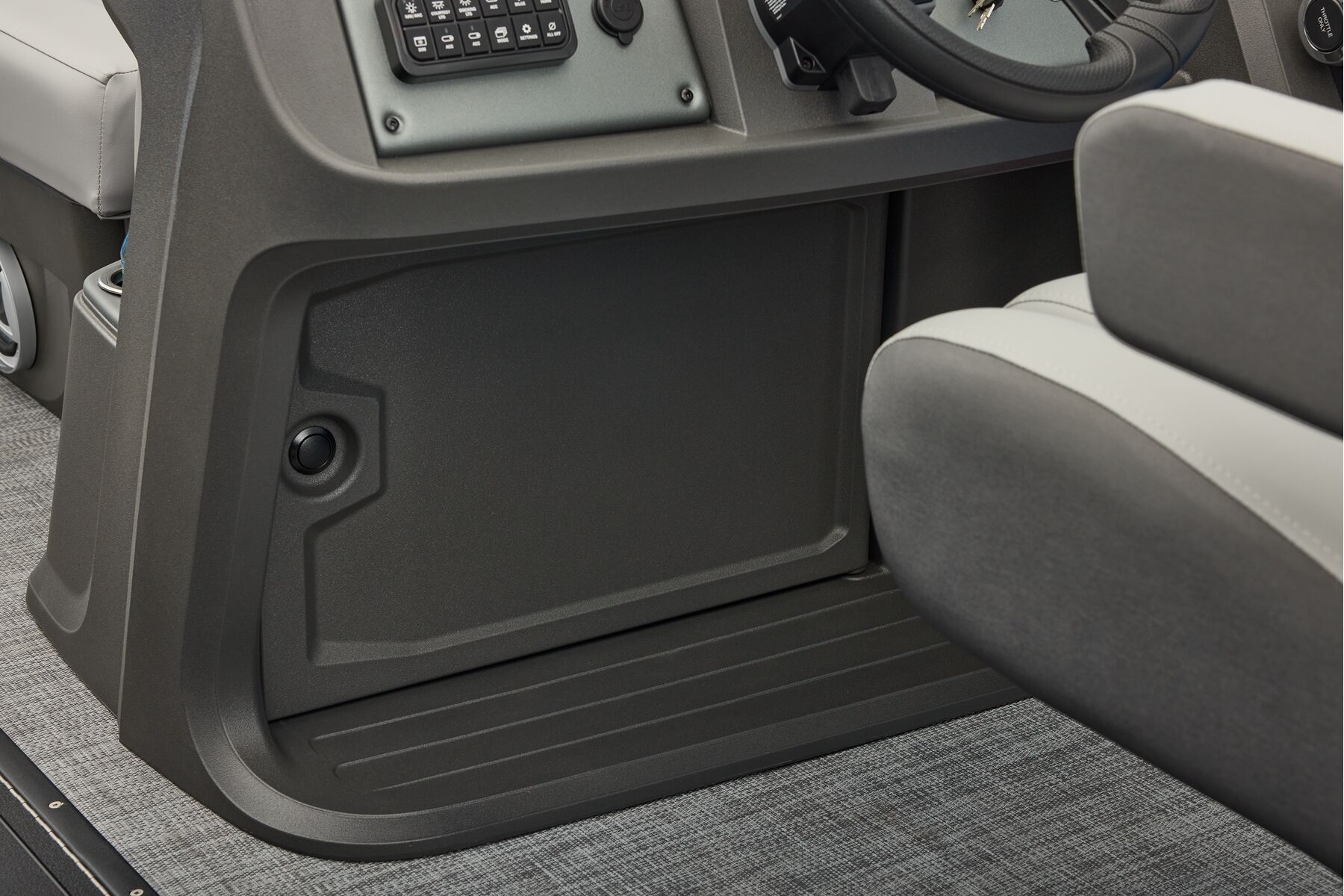

- Below-console cooler/storage space w/door & integrated pouch
- Small items tray

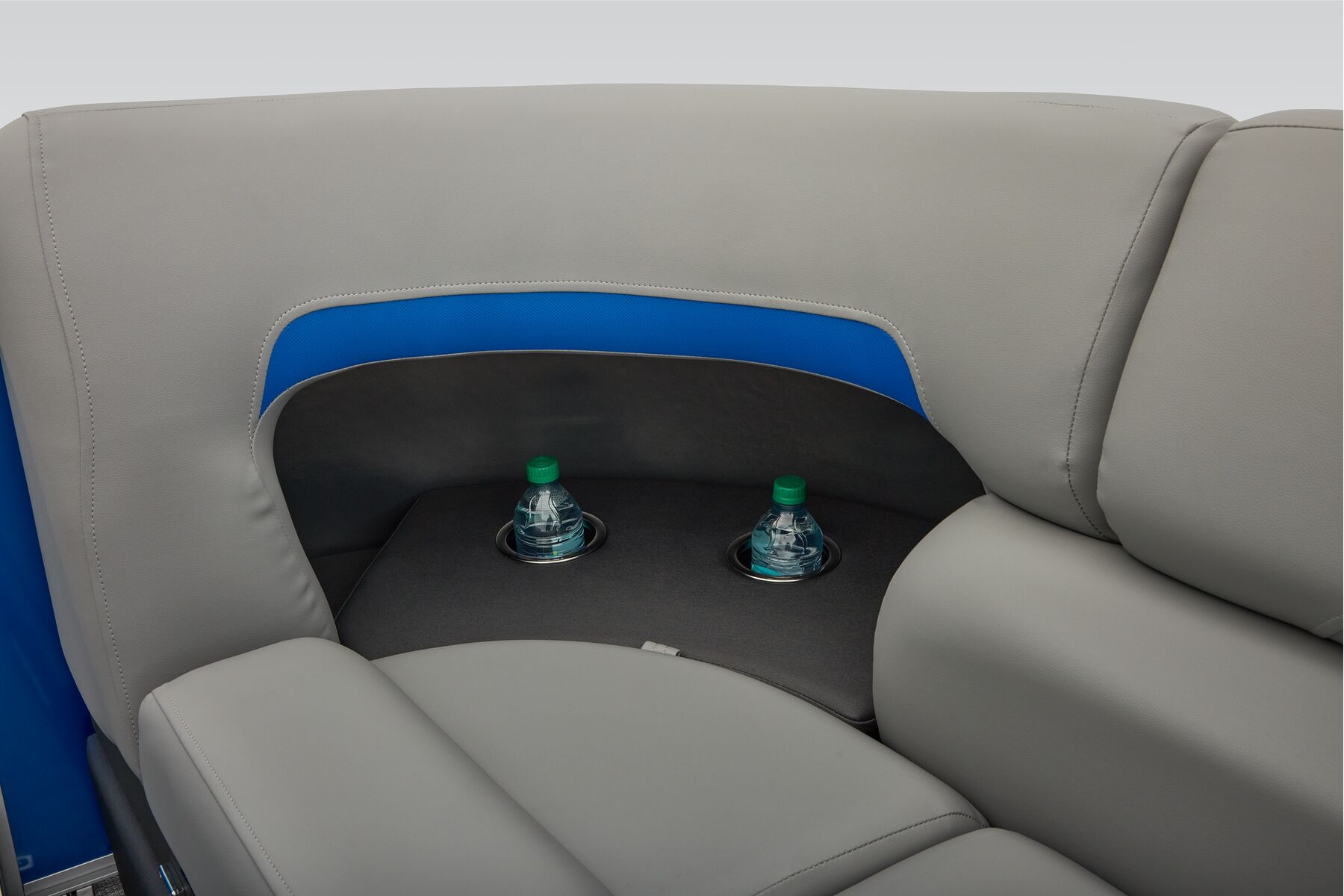

- Drink holders
- Built-in footrest w/non-skid pad
- Bluetooth®-capable stereo interface for Bazooka® Party Bar
- Tachometer, trim meter/speedometer & fuel & hour gauges
- Lighted rocker switches w/bilge switch
- Ergonomically positioned Mercury® binnacle control box w/trim

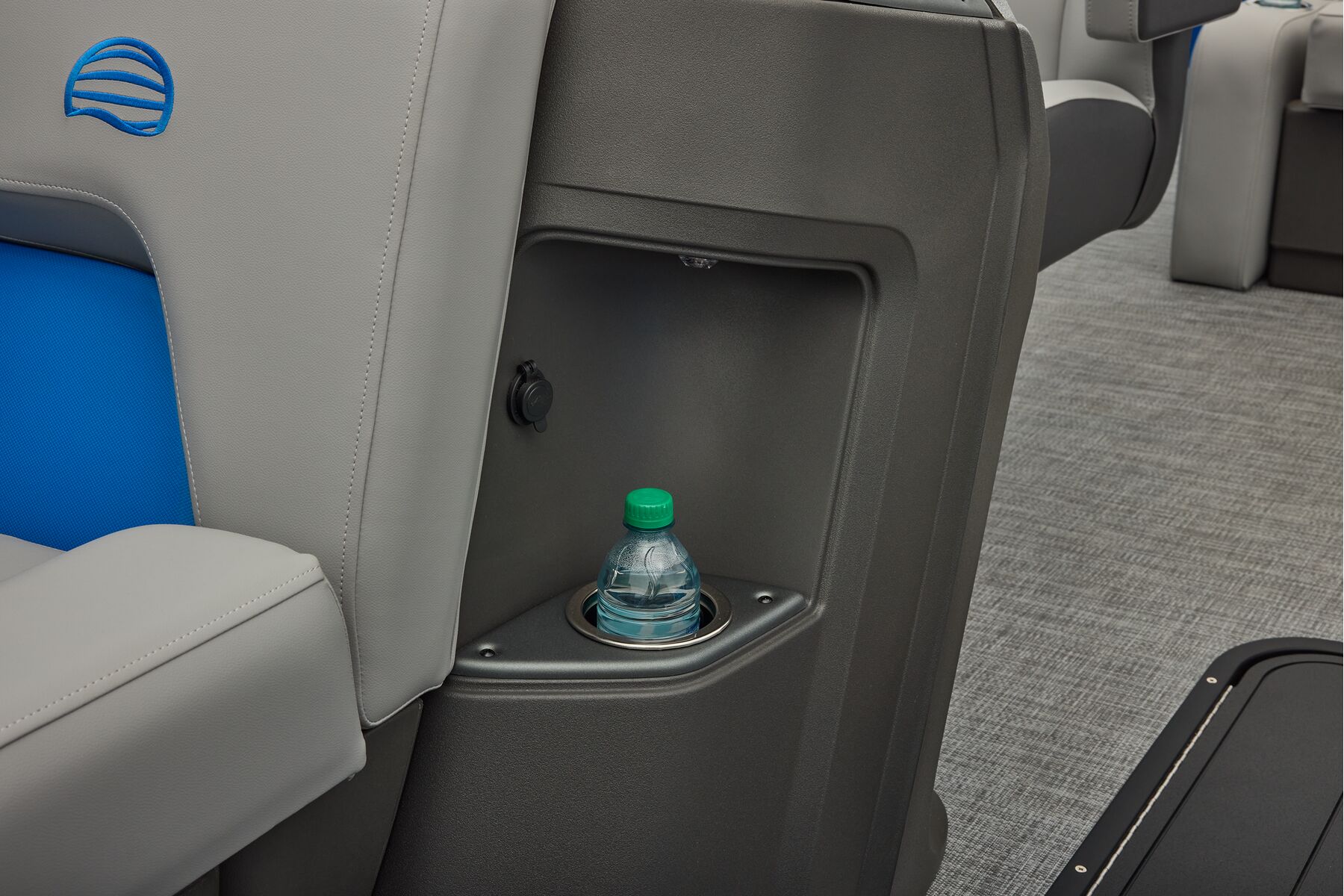

- 12V outlet
- Dark console color

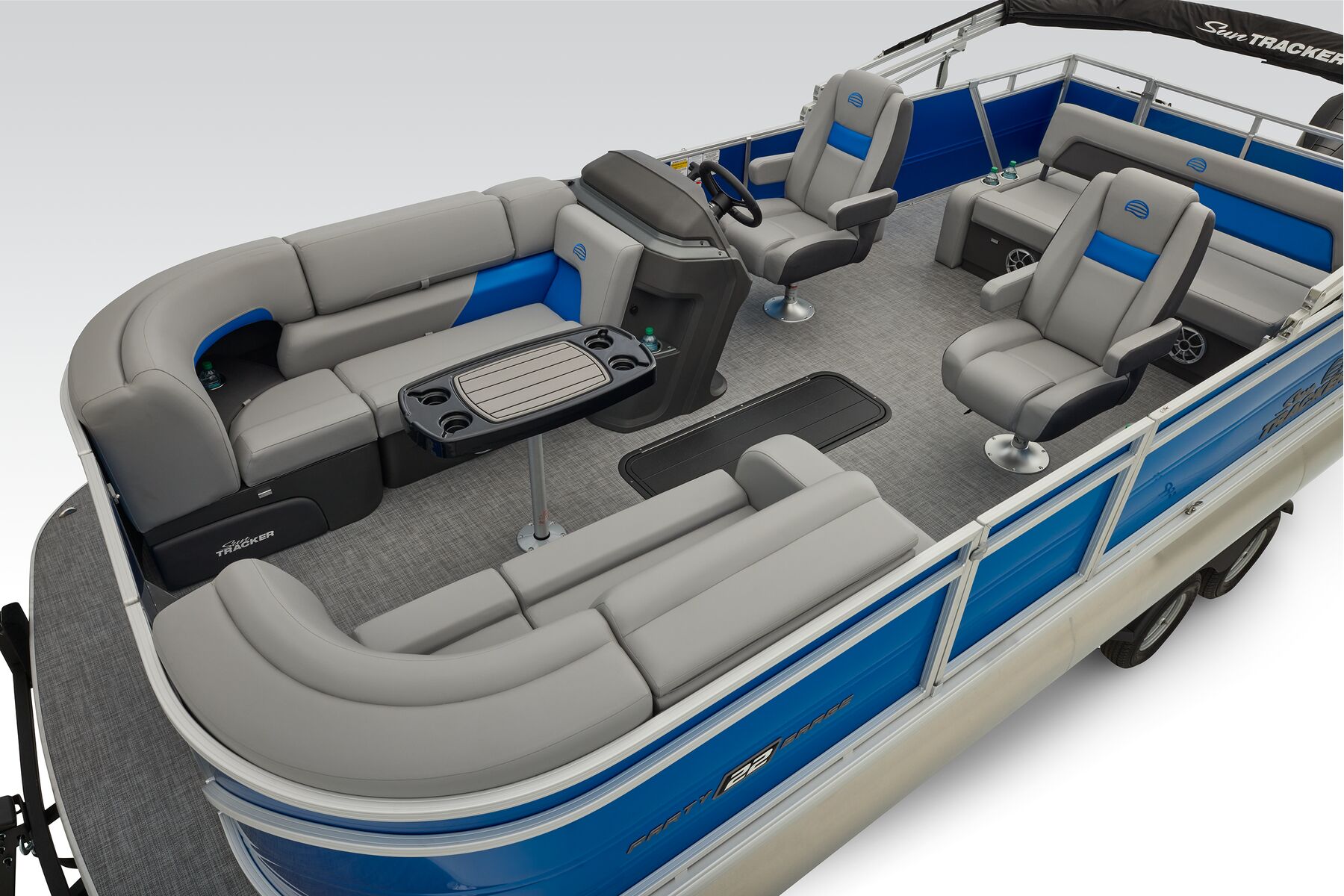

Interior

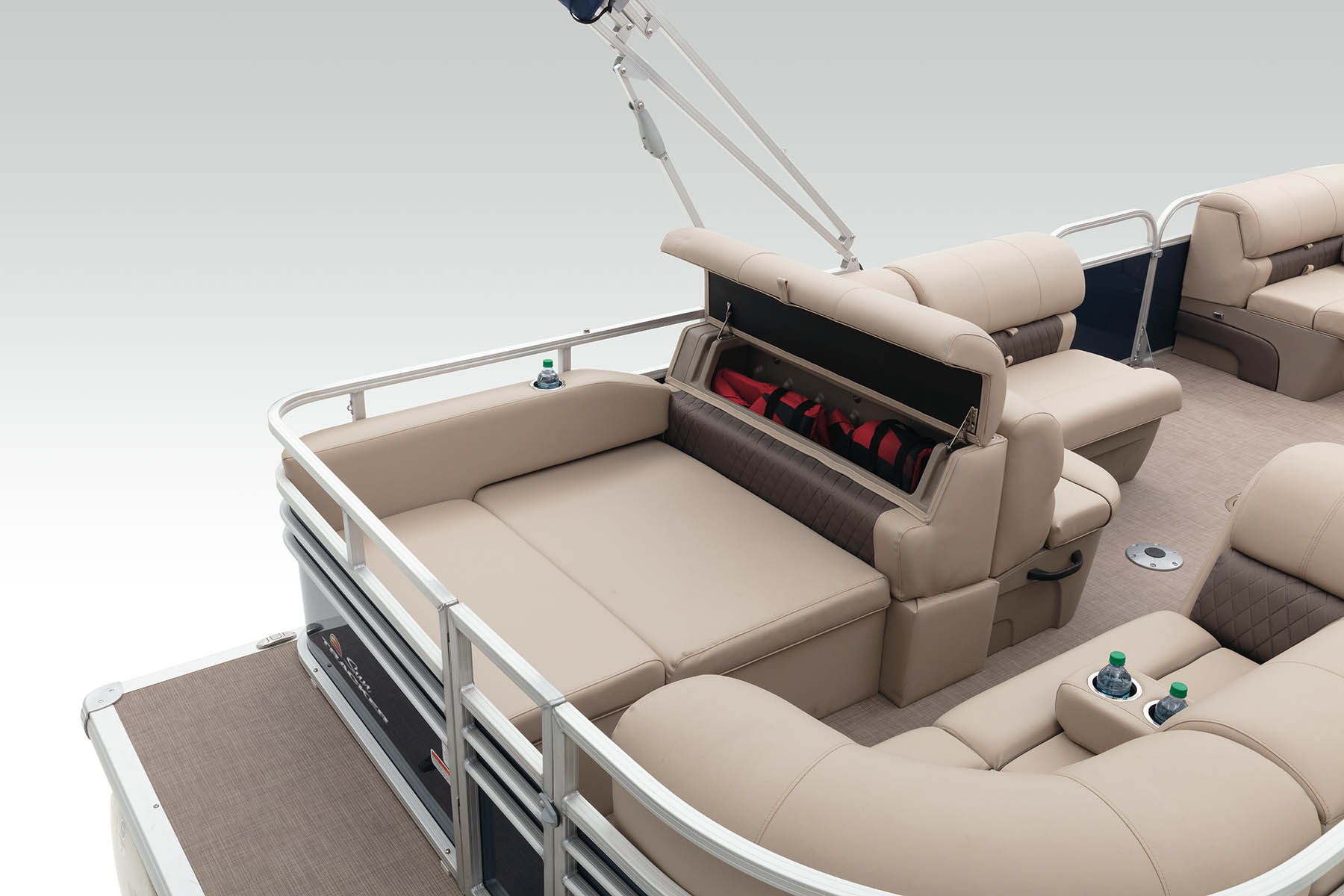

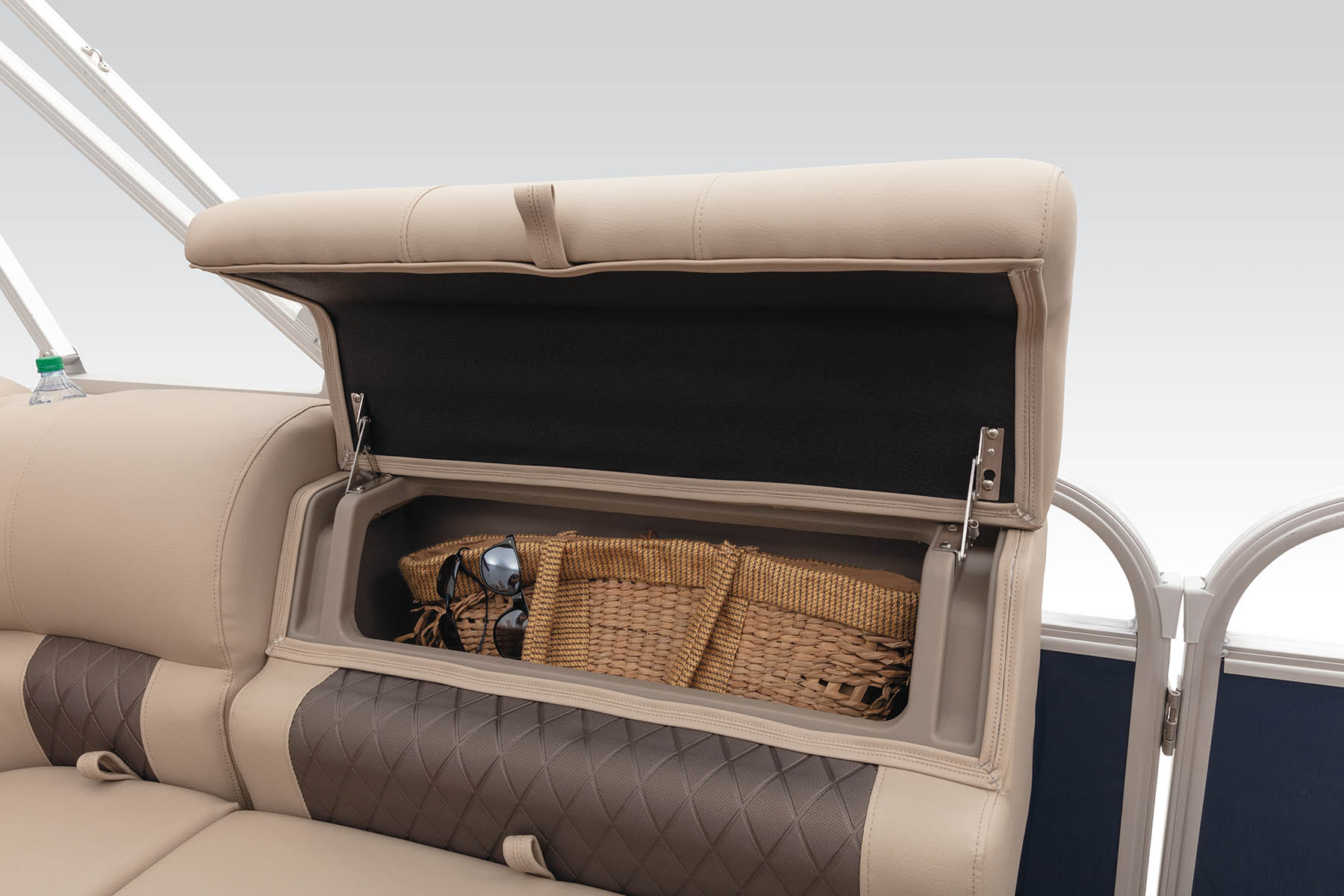

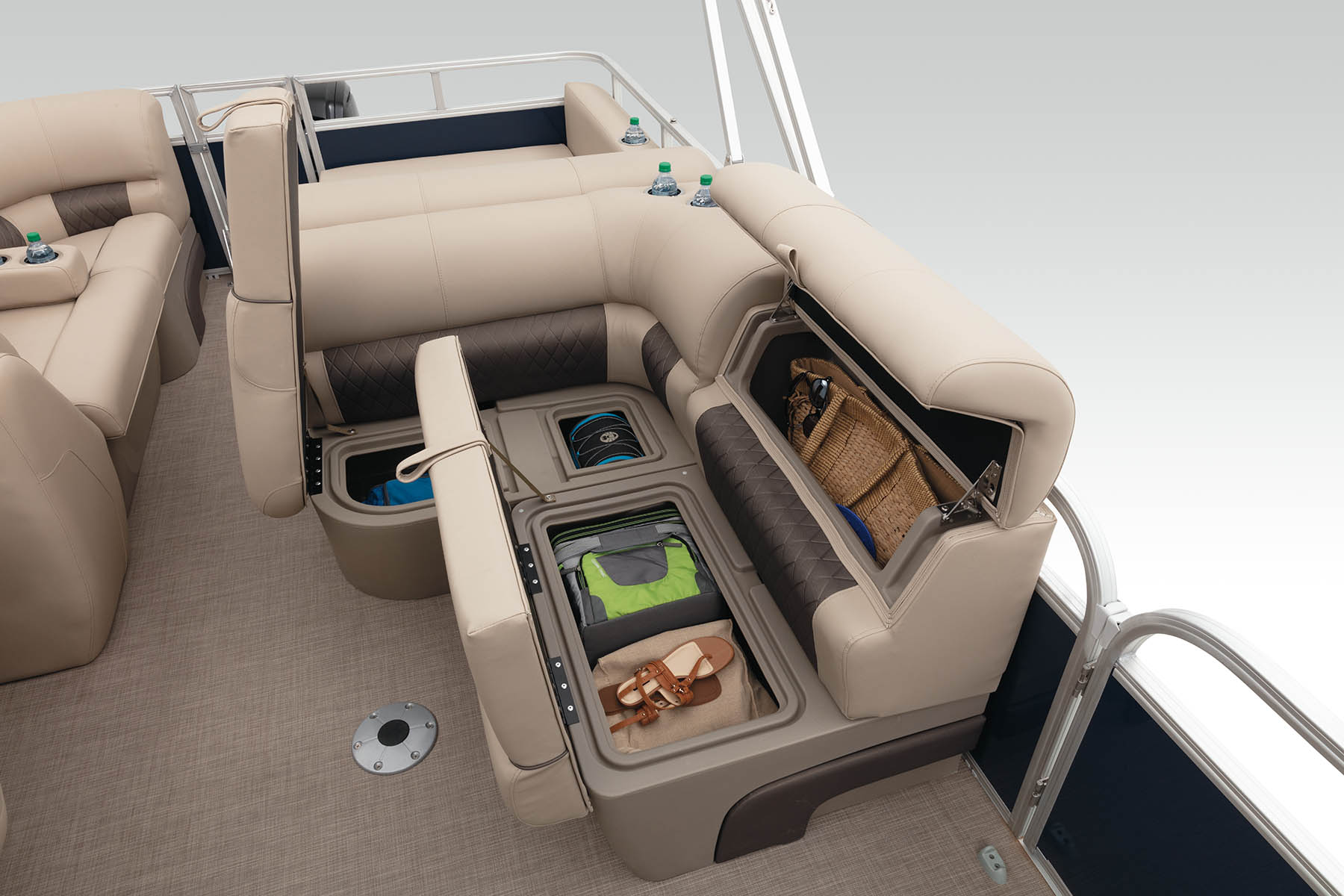

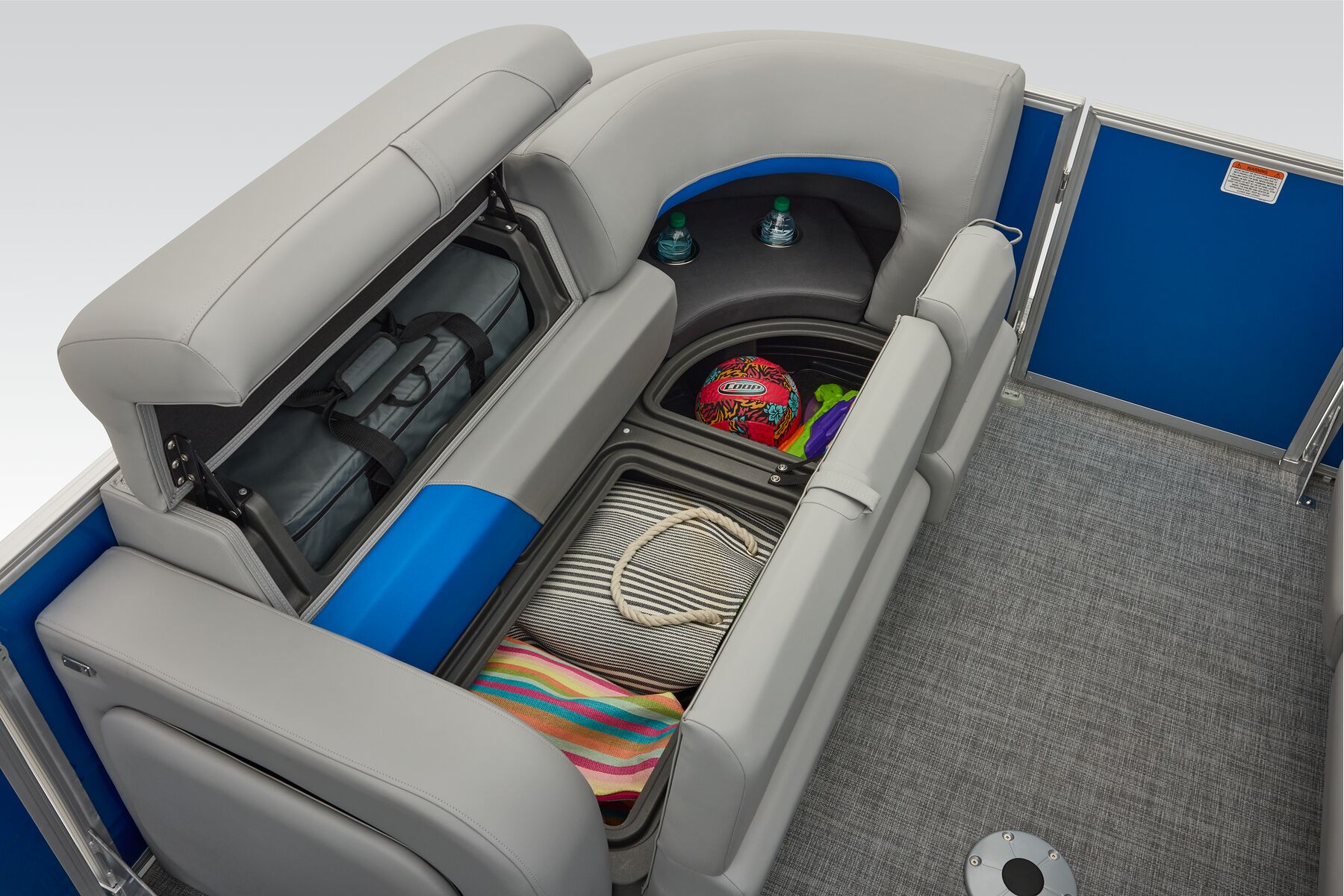

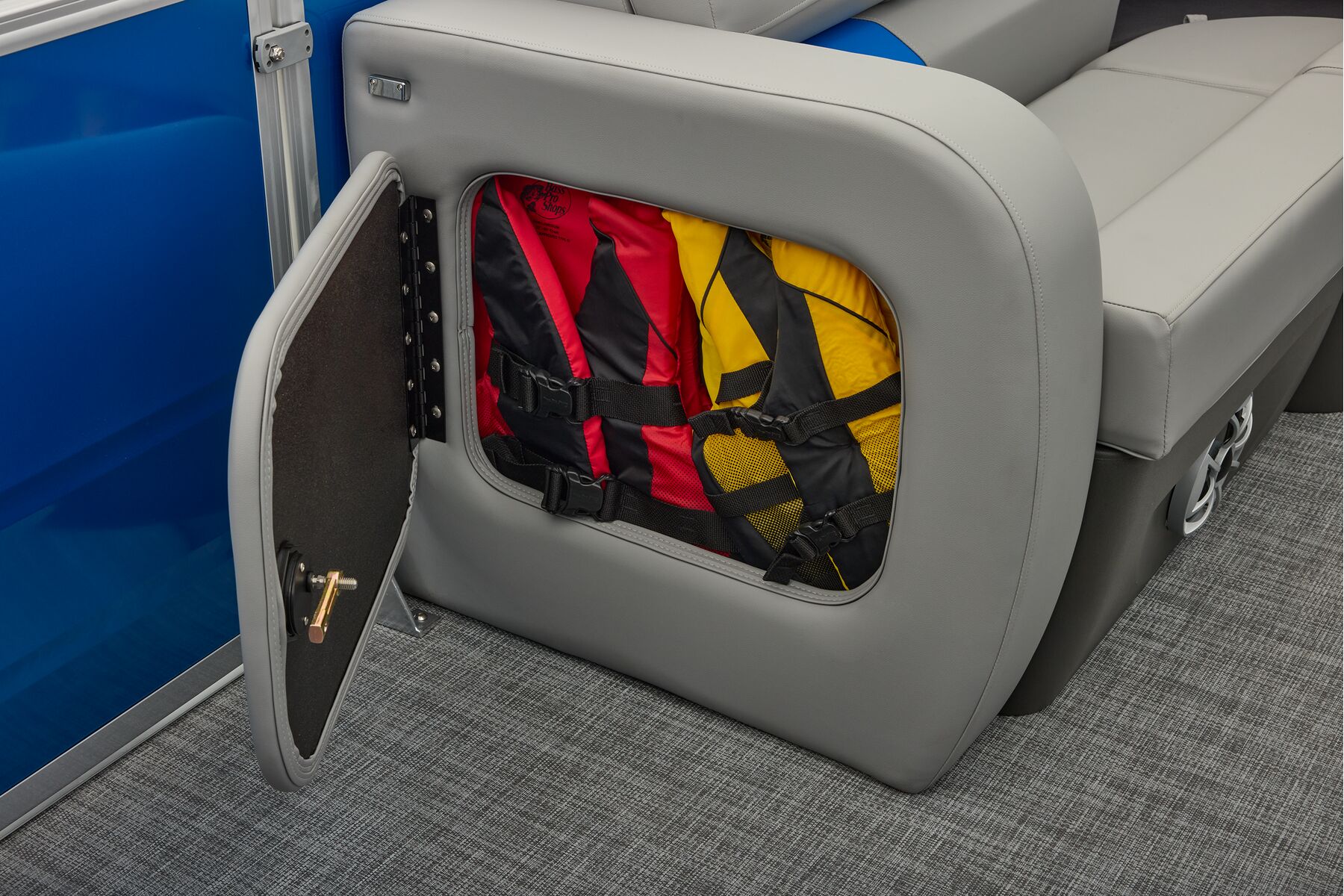

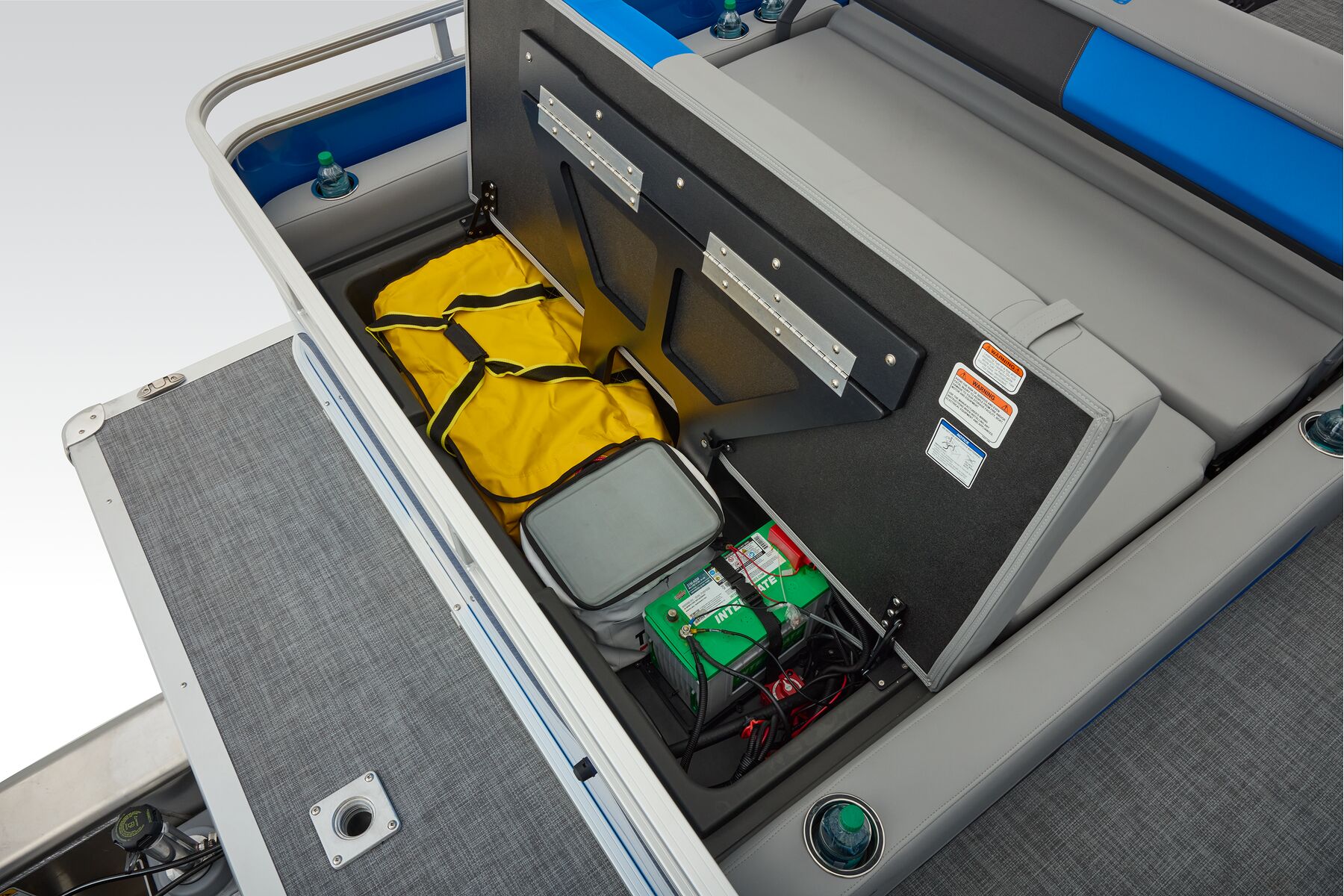

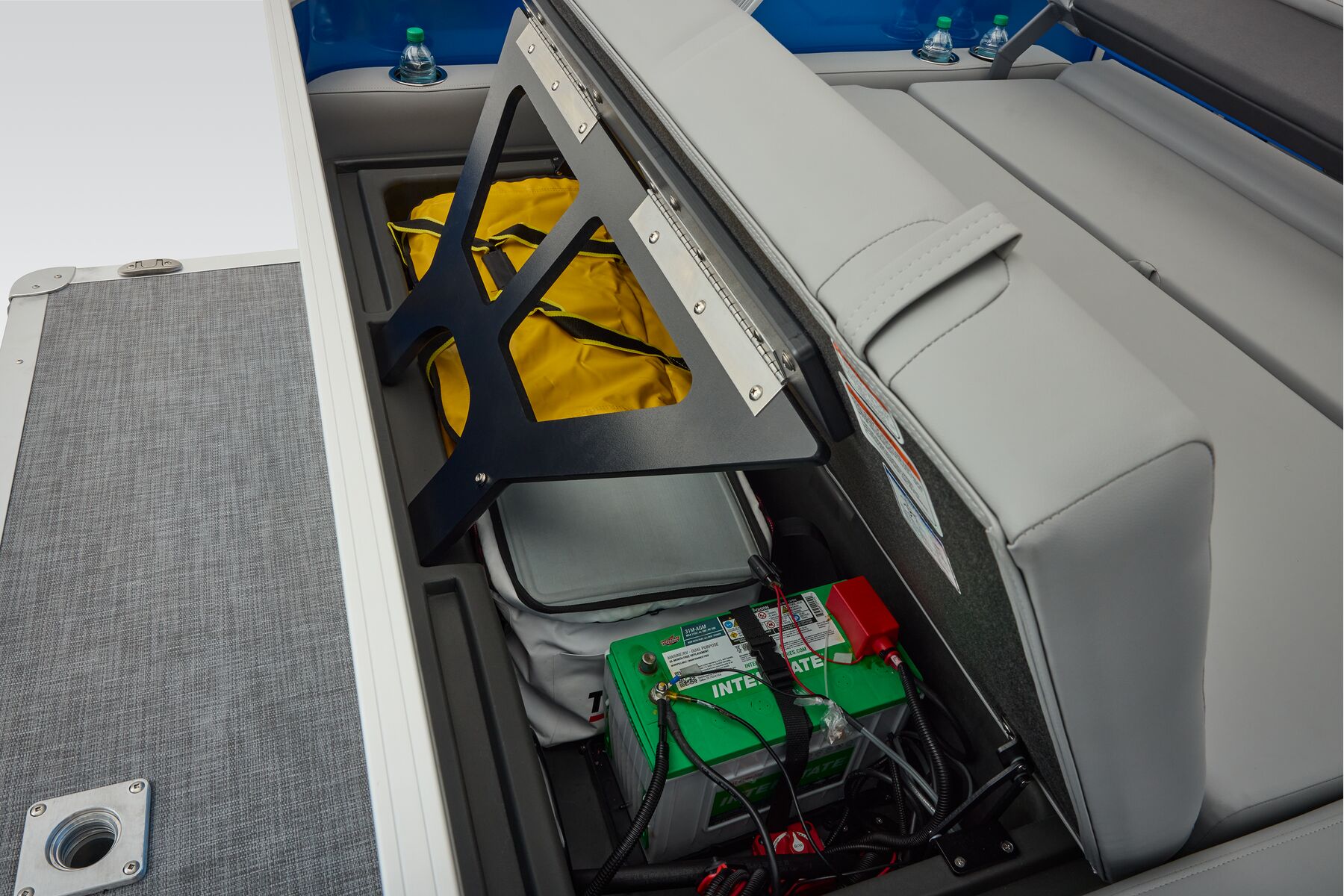

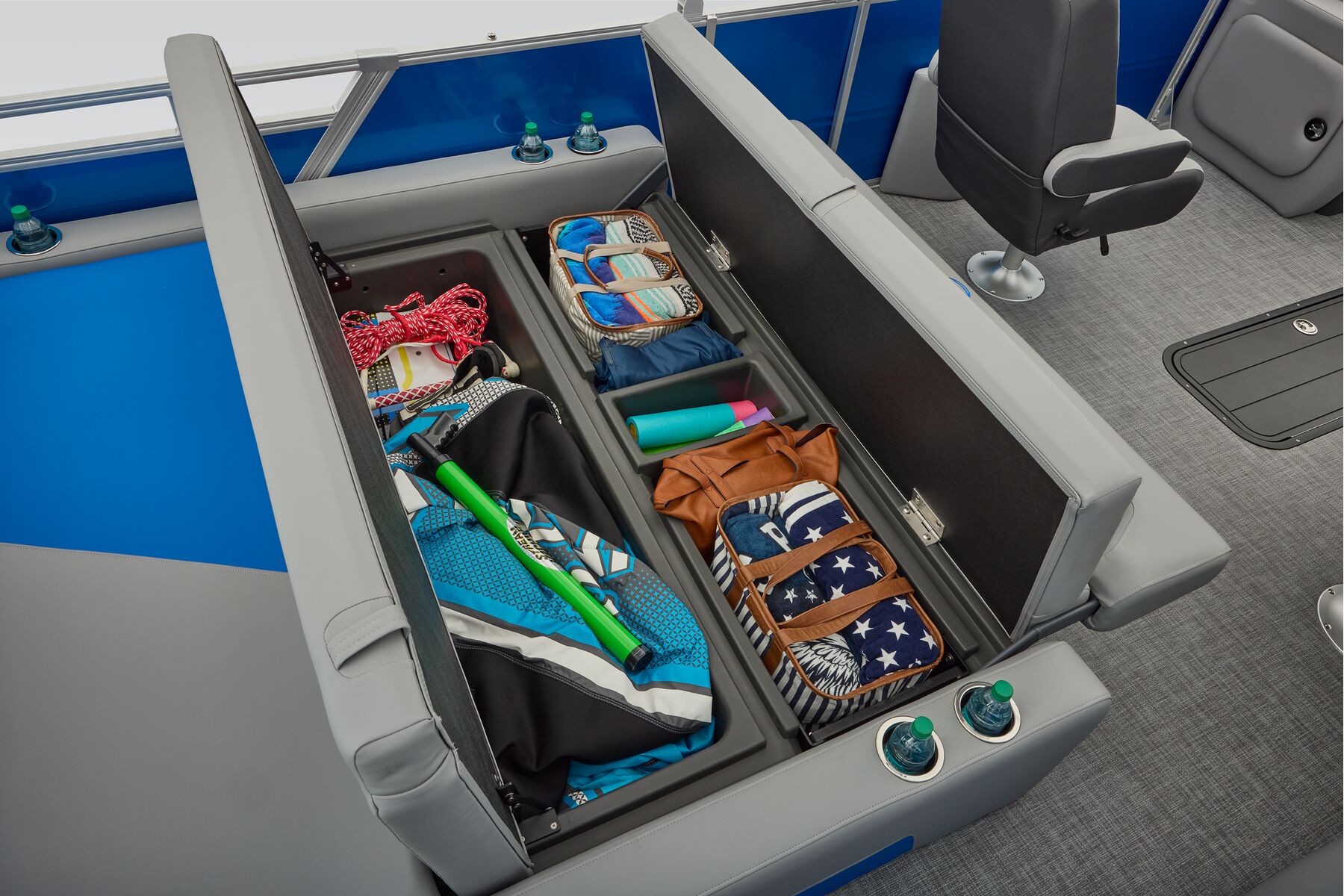

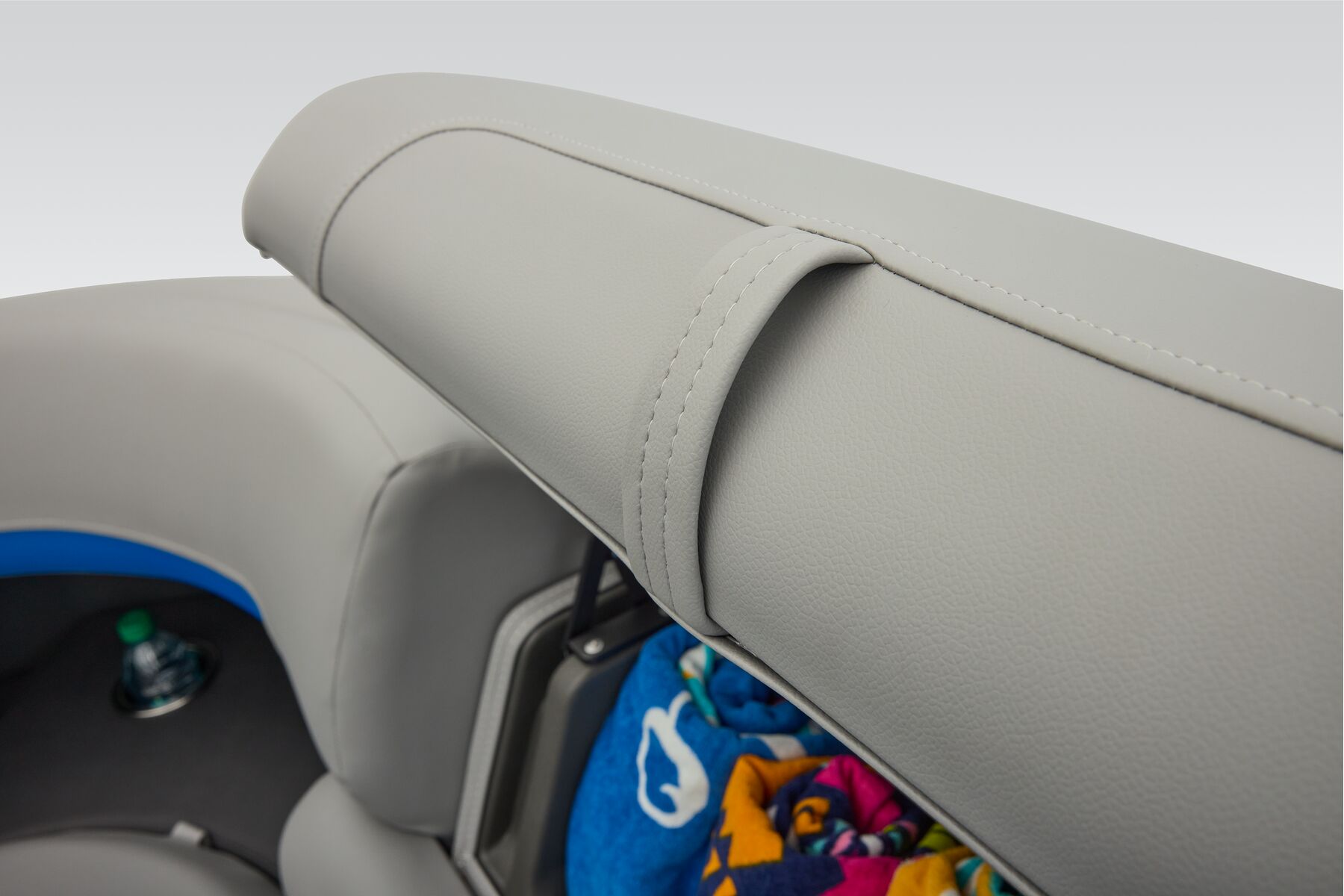

- STOW MORE™ system features an added compartment in the seat back for increased storage

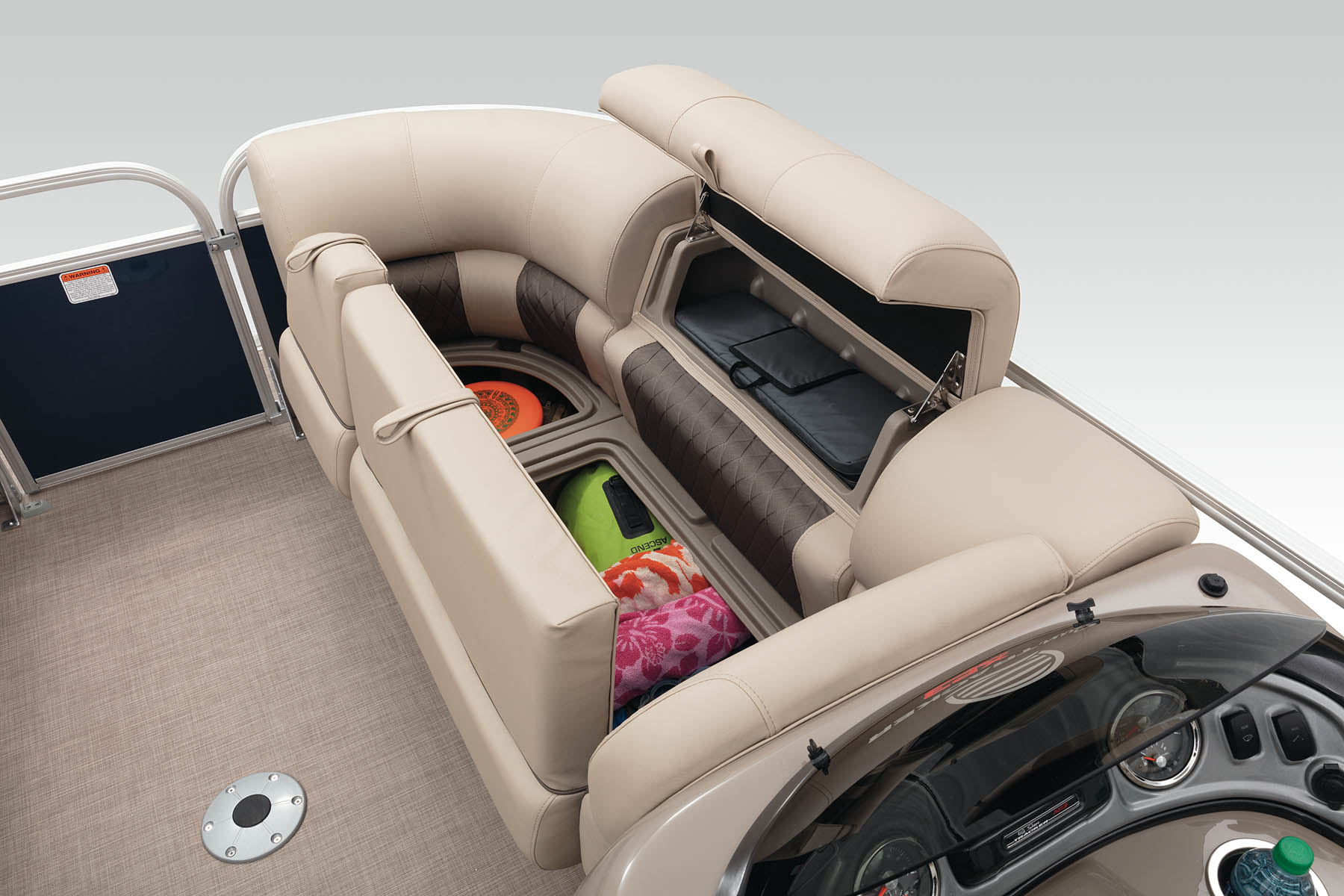

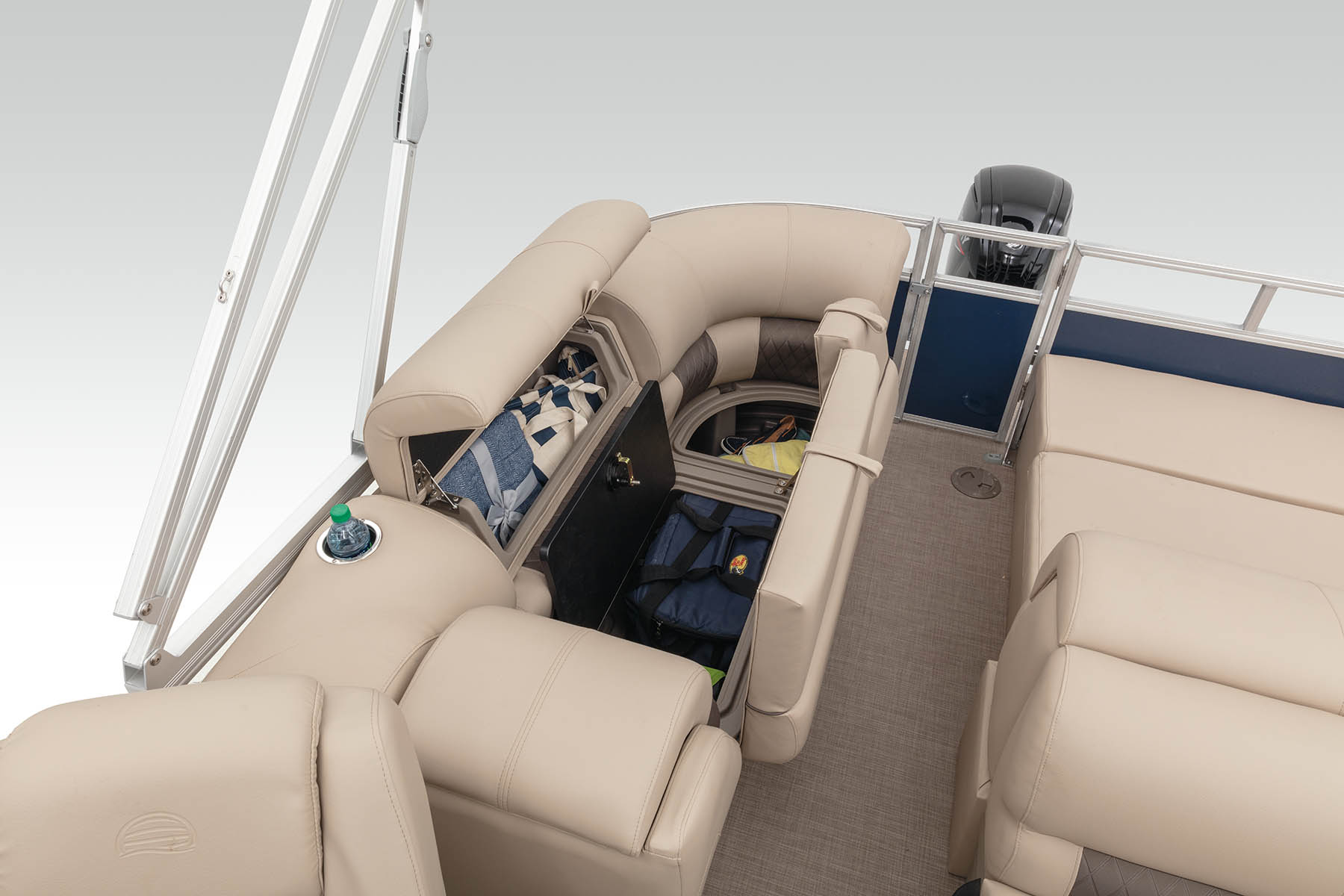

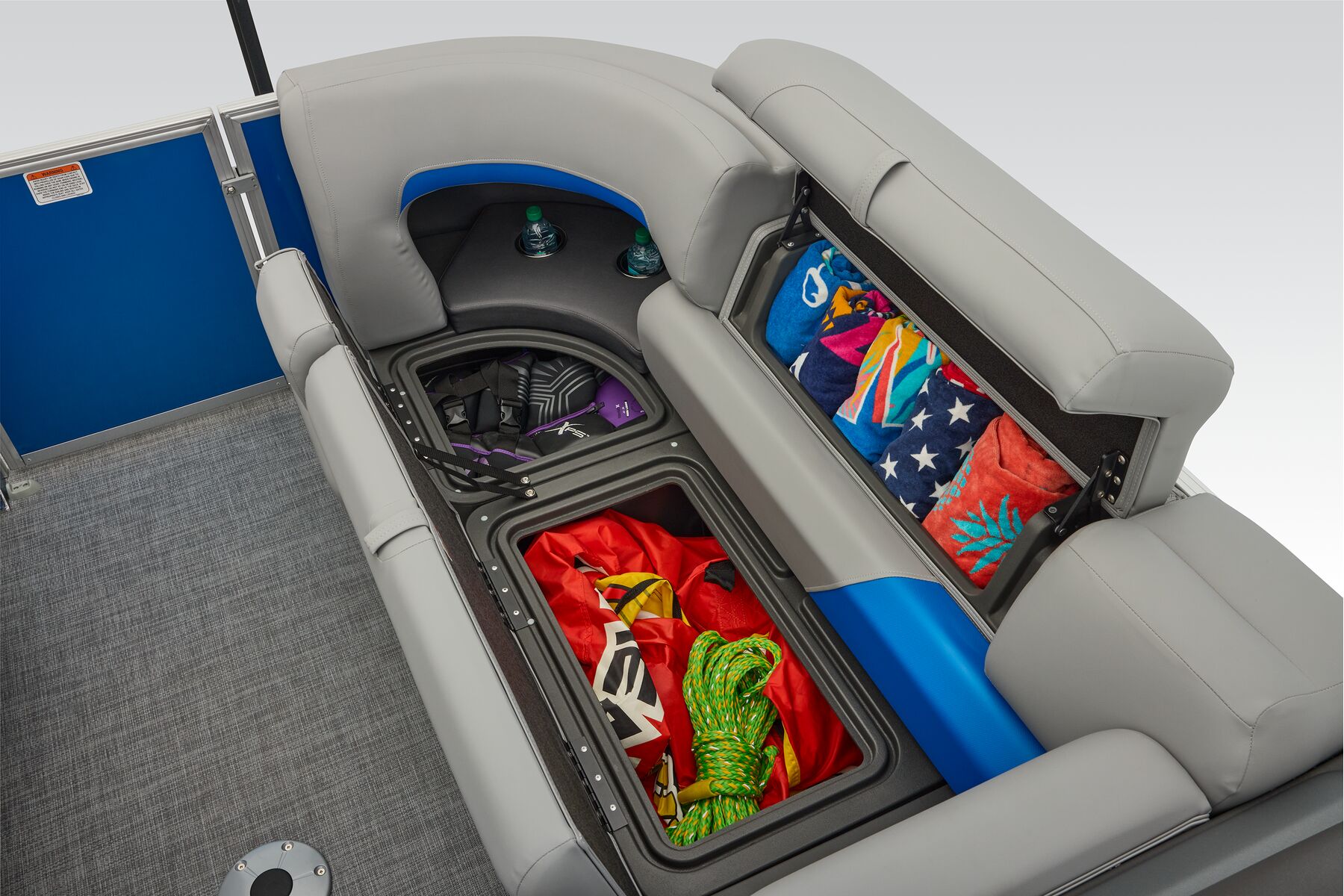

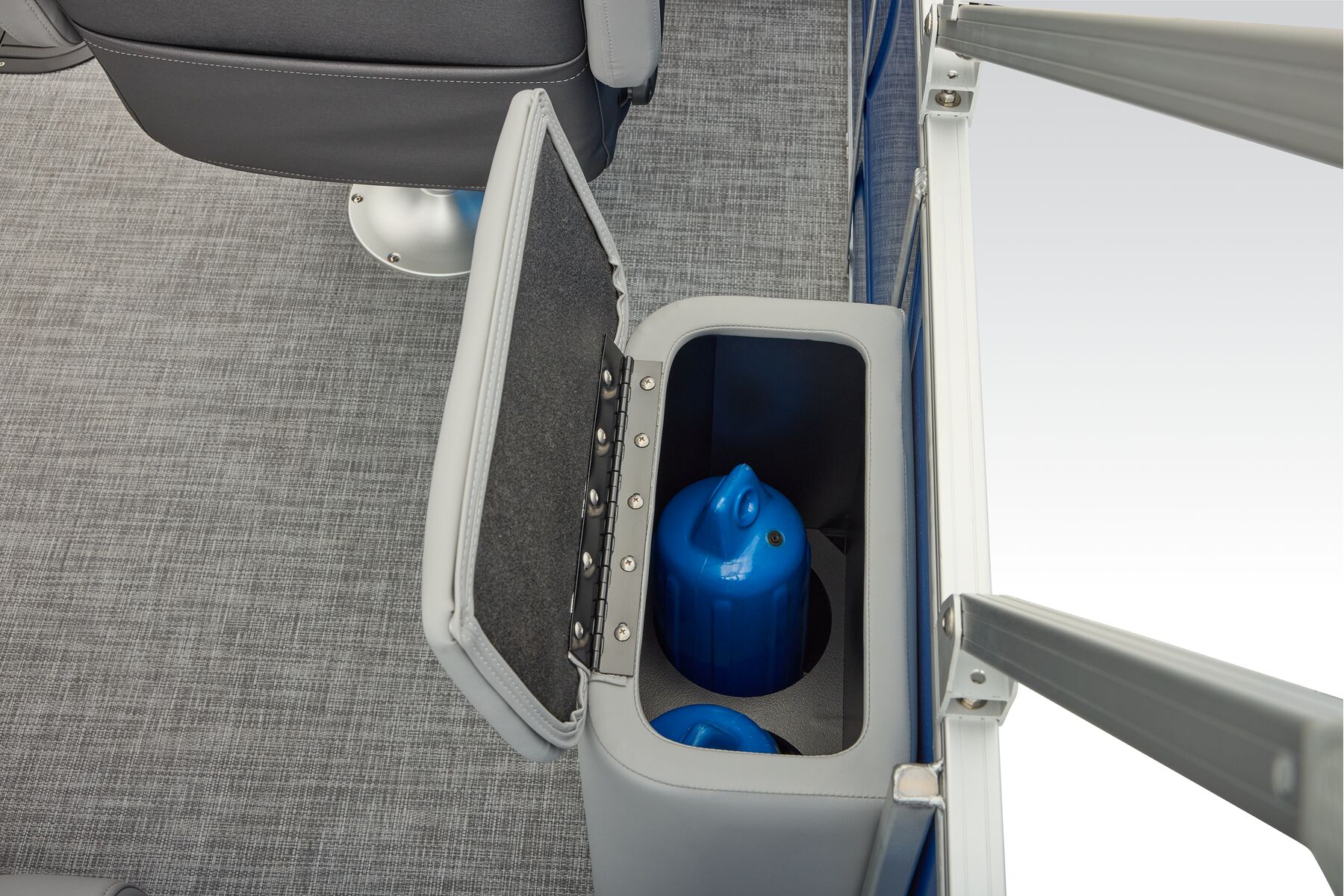

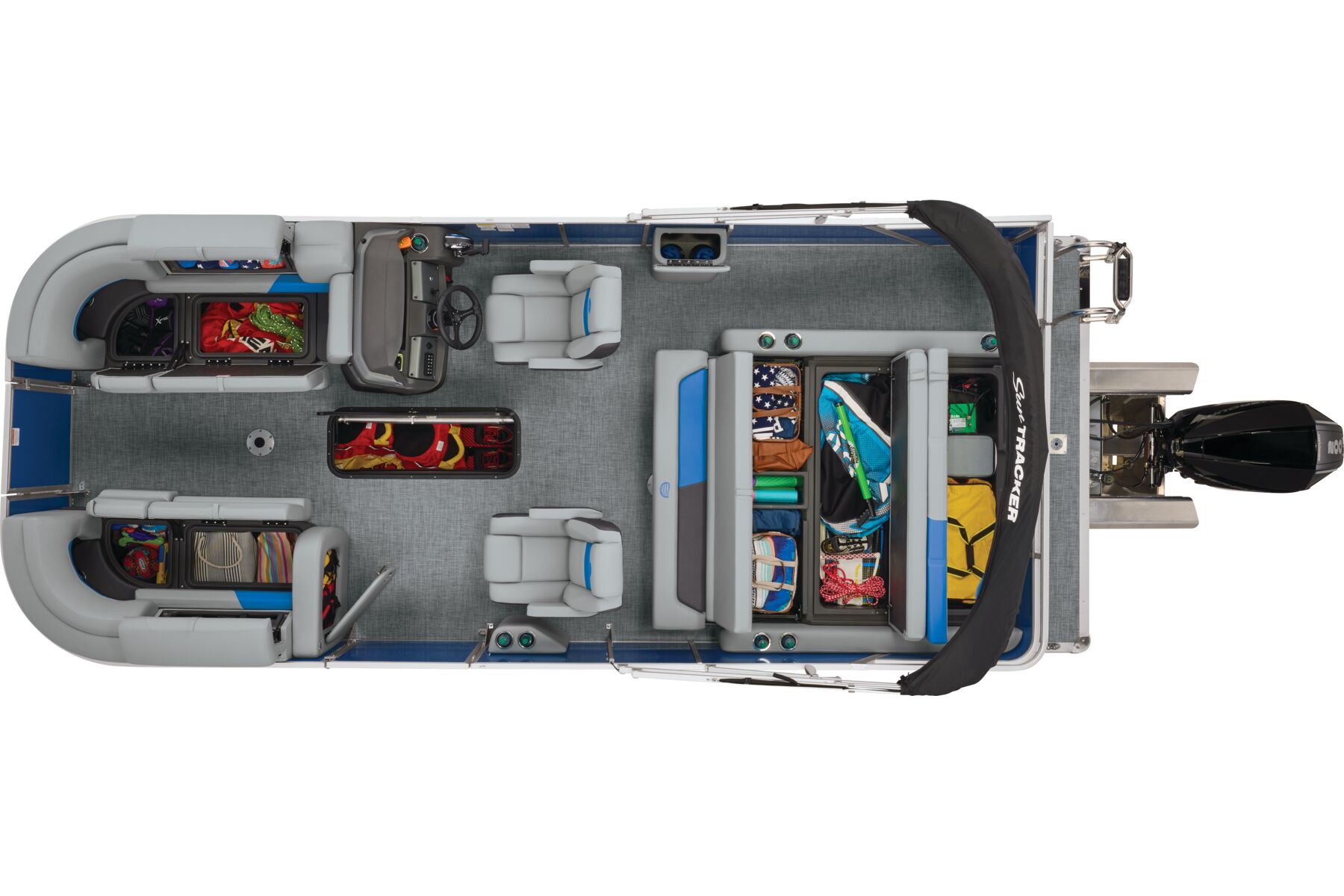

- Bow port & starboard couches w/STOW MORE™ system & underseat storage

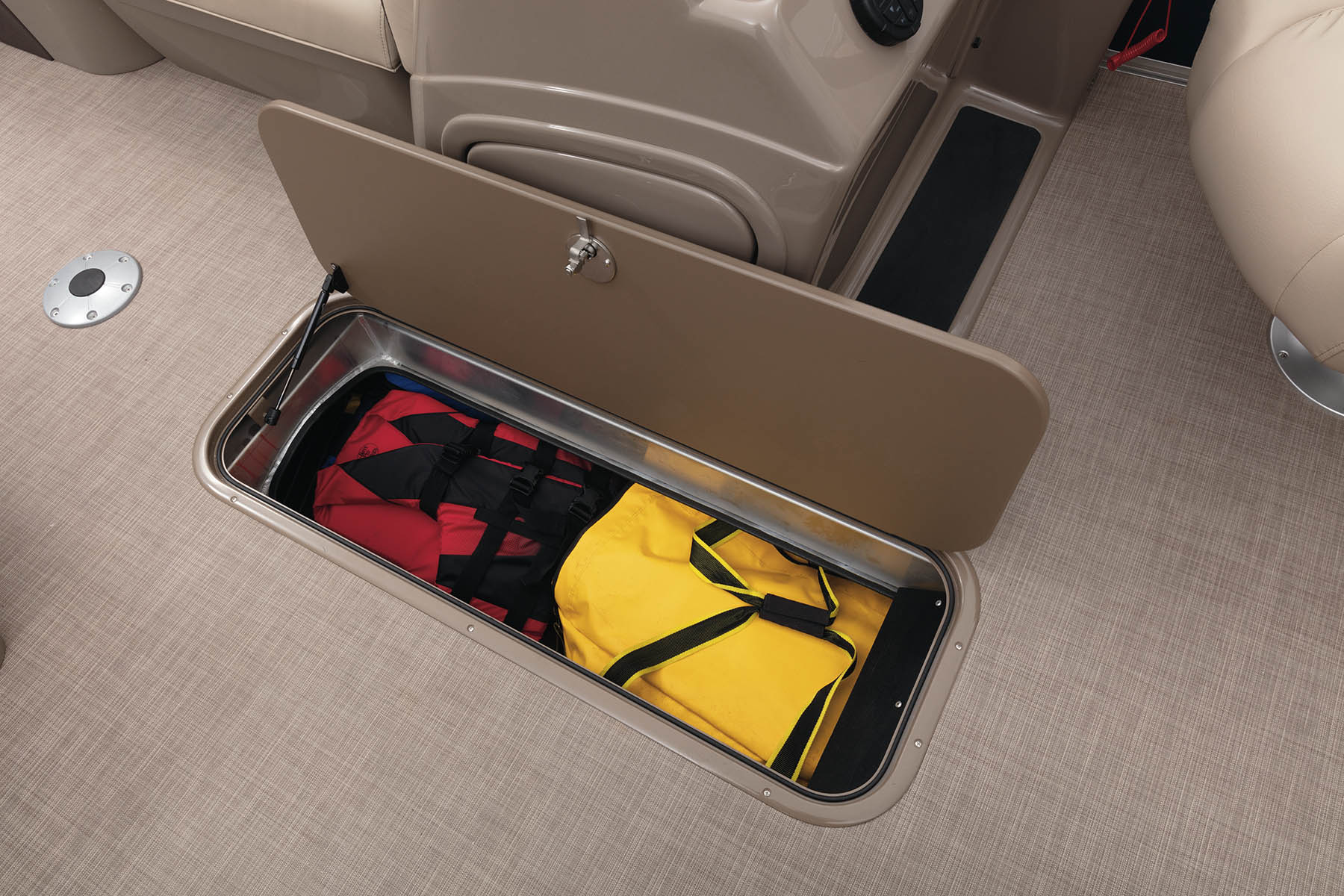

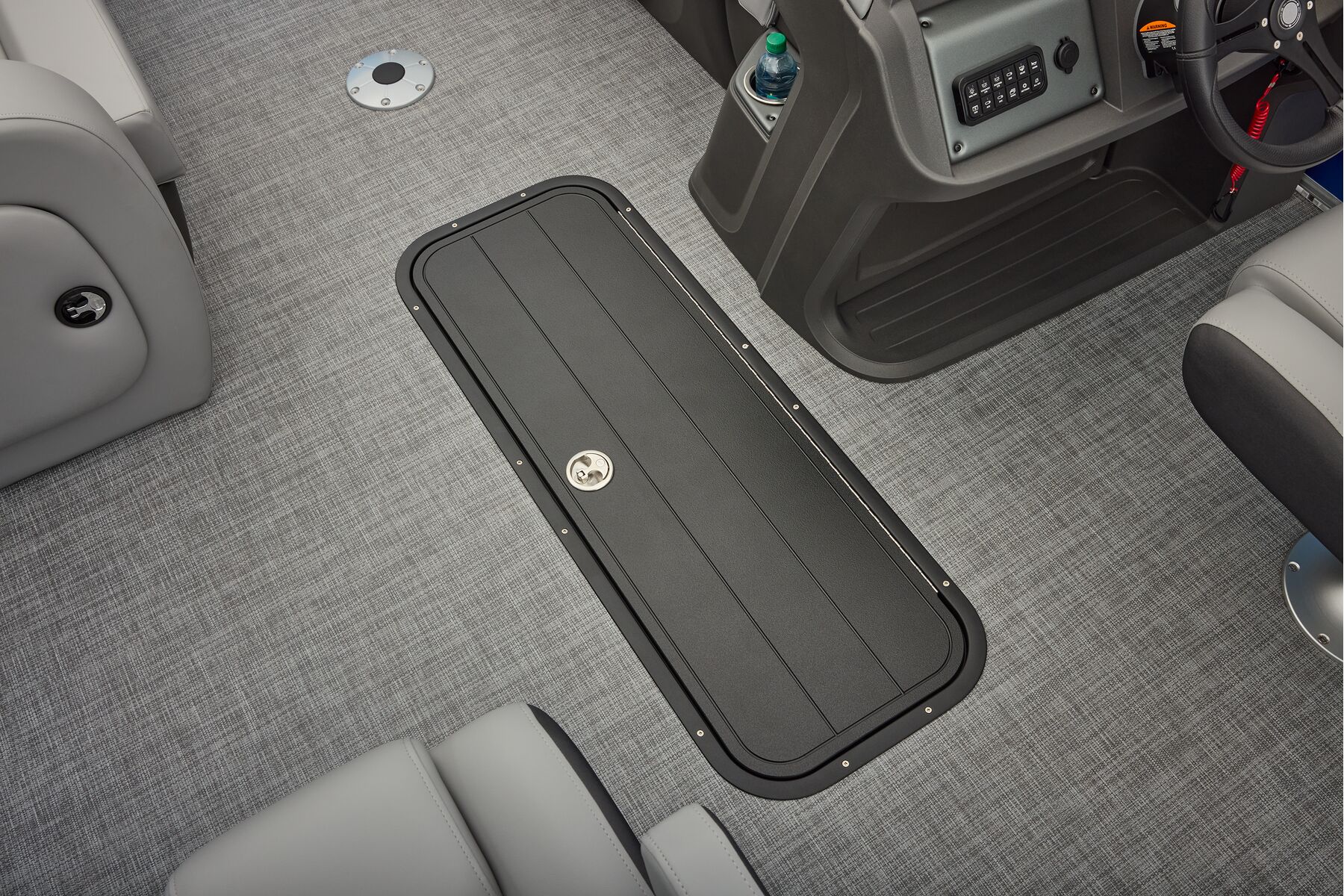

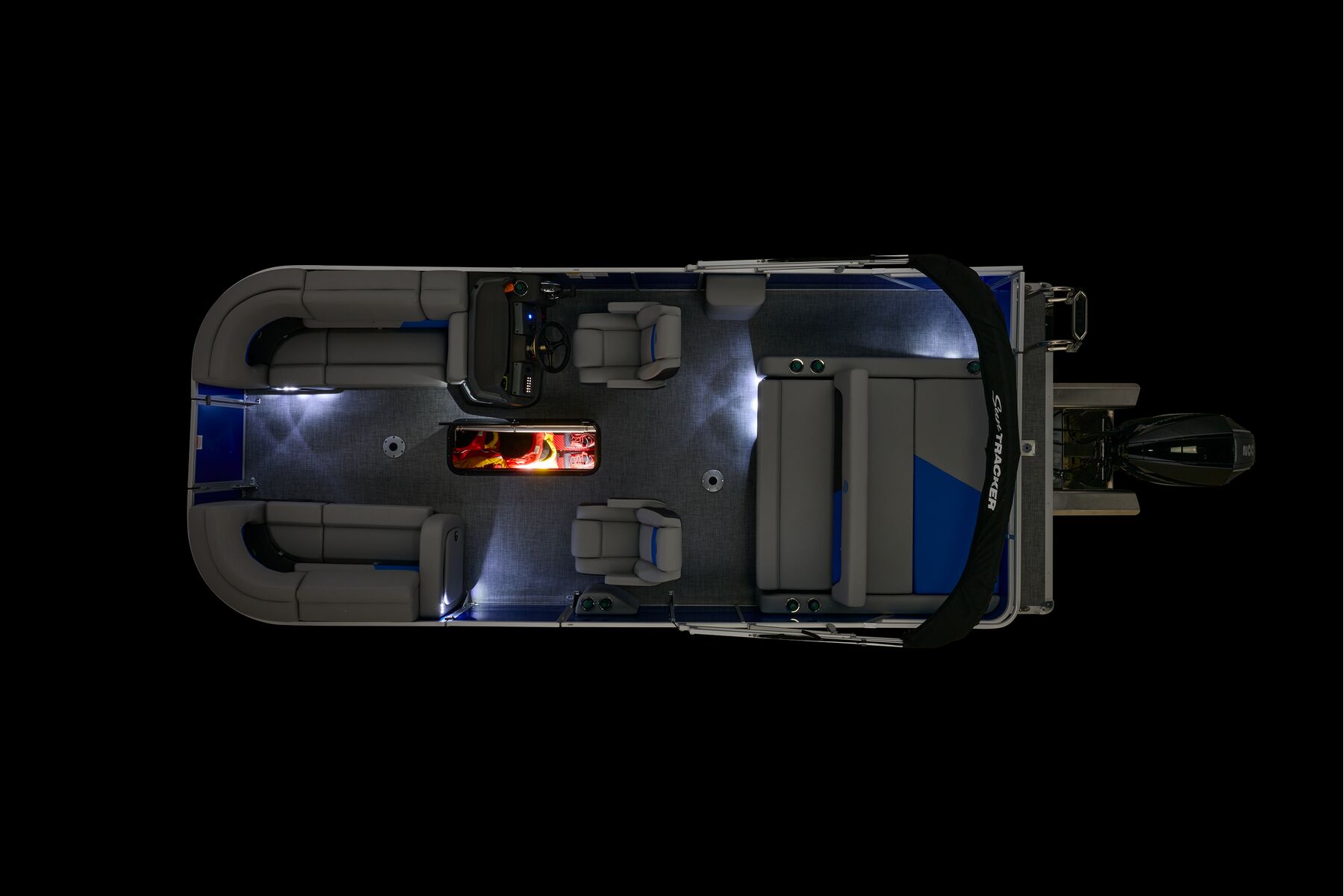

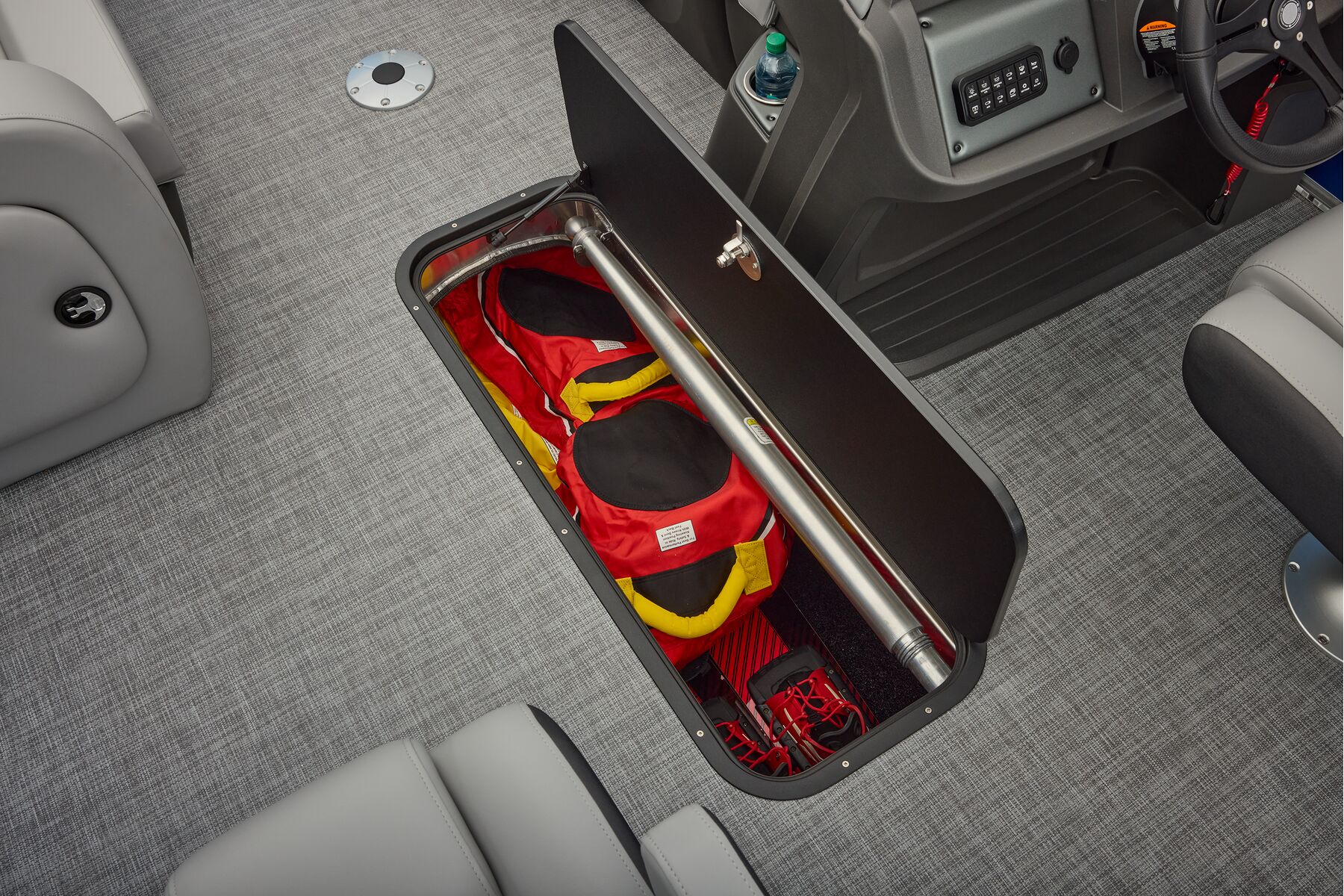

- 88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/bilge pump in center log
- Midship port L-lounge w/STOW MORE™ system & underseat storage

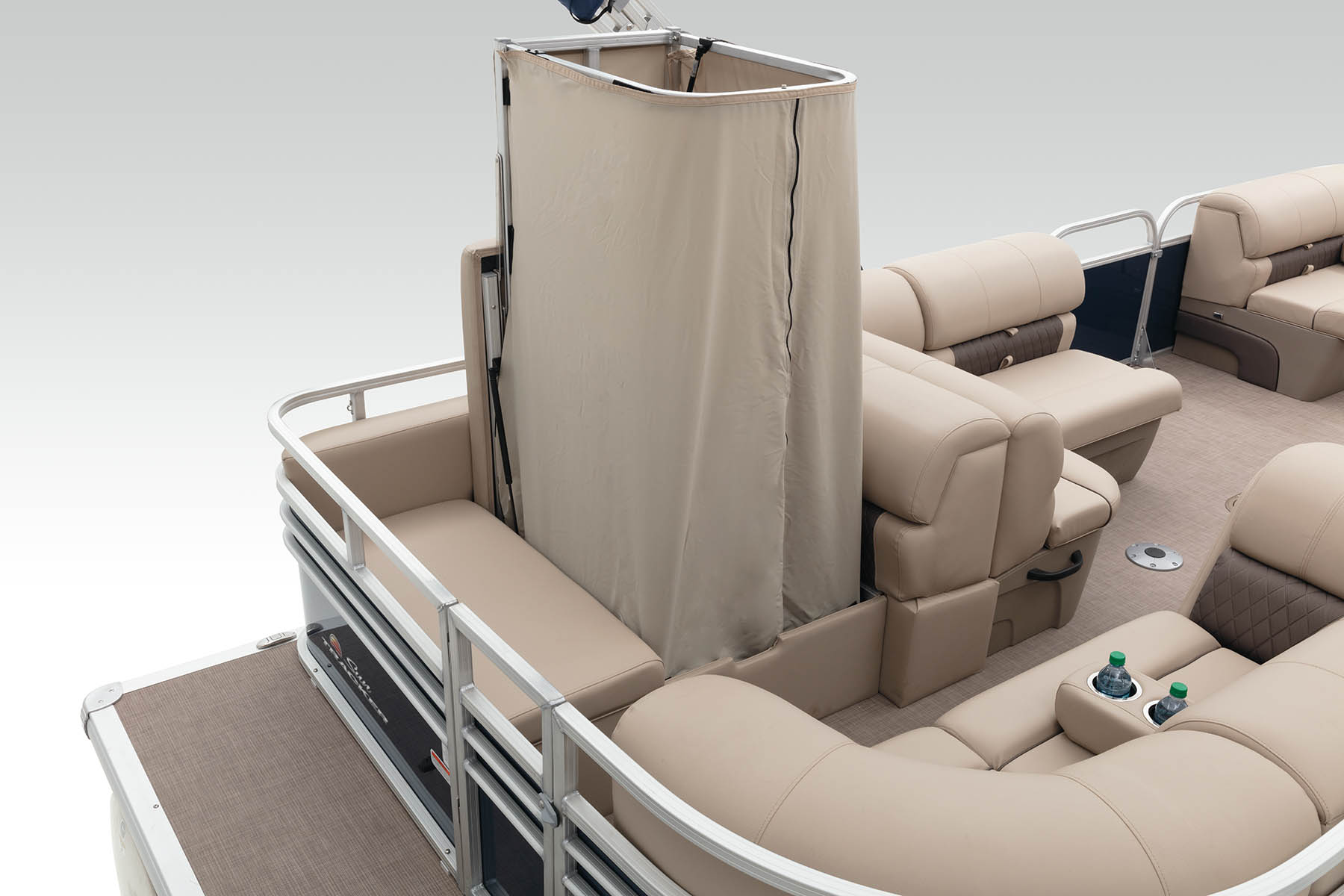

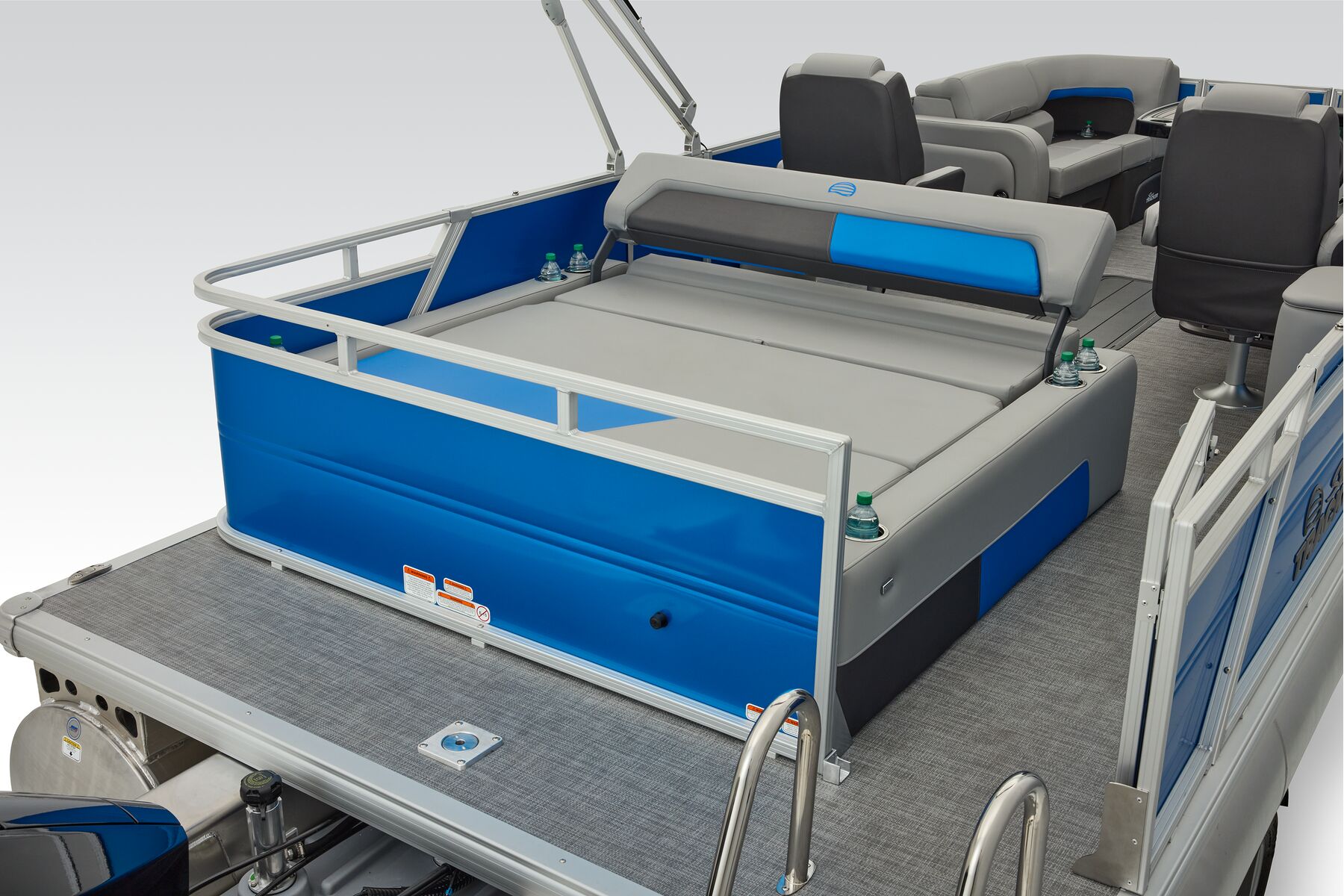

- Aft port rear-facing double lounge w/STOW MORE™ system, underseat storage & pop-up changing room

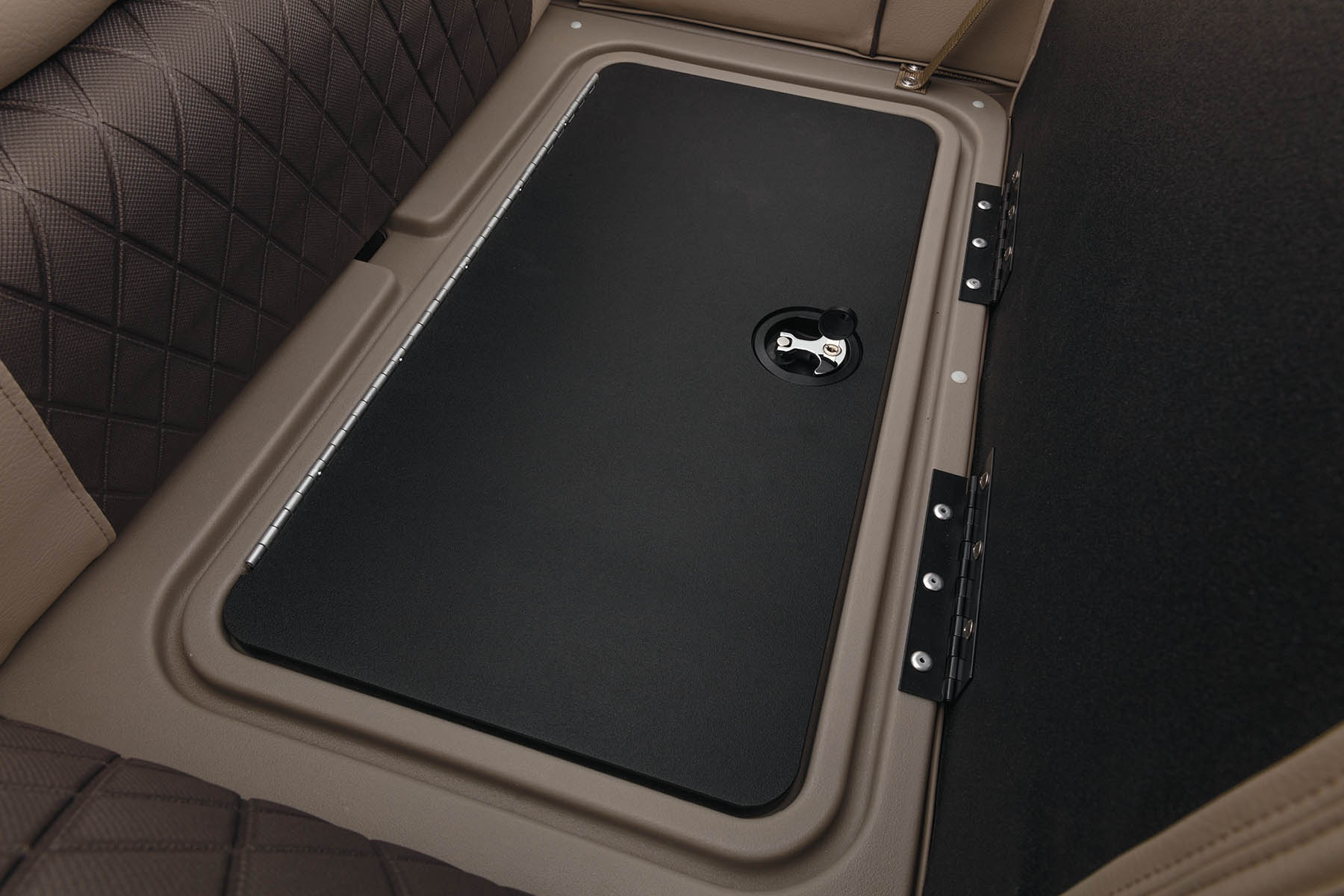

- Aft starboard couch w/STOW MORE™ system & lockable underseat storage

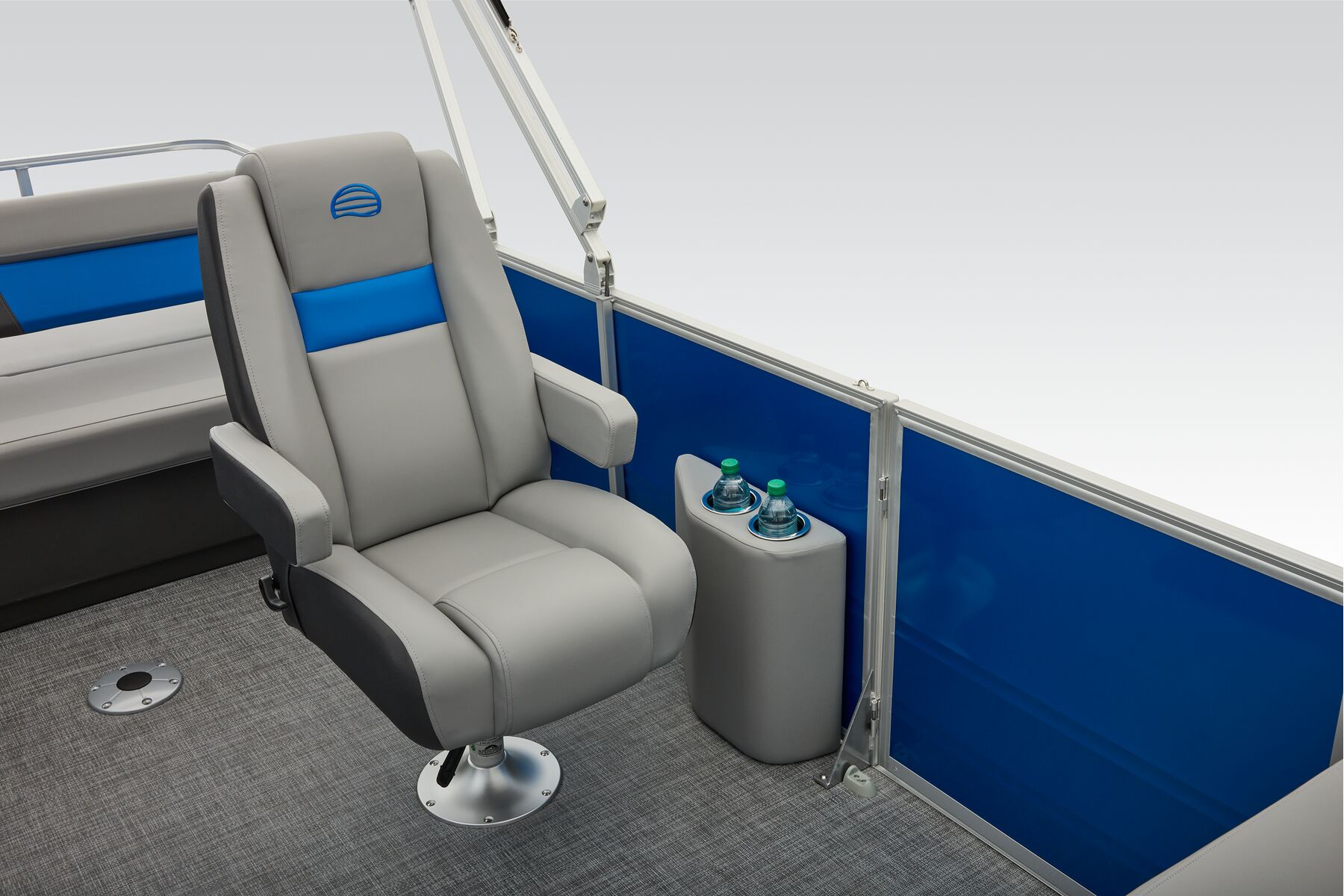

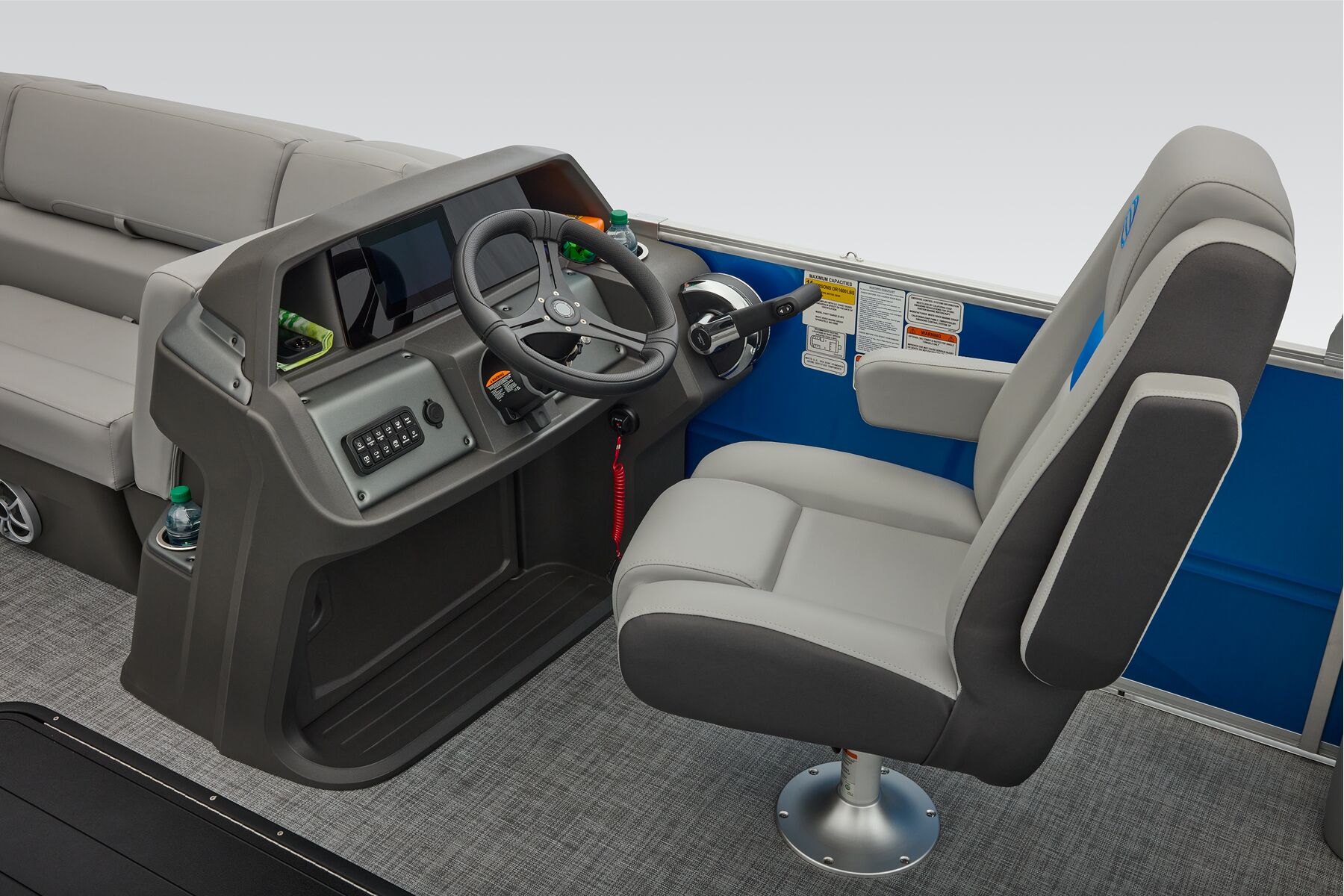

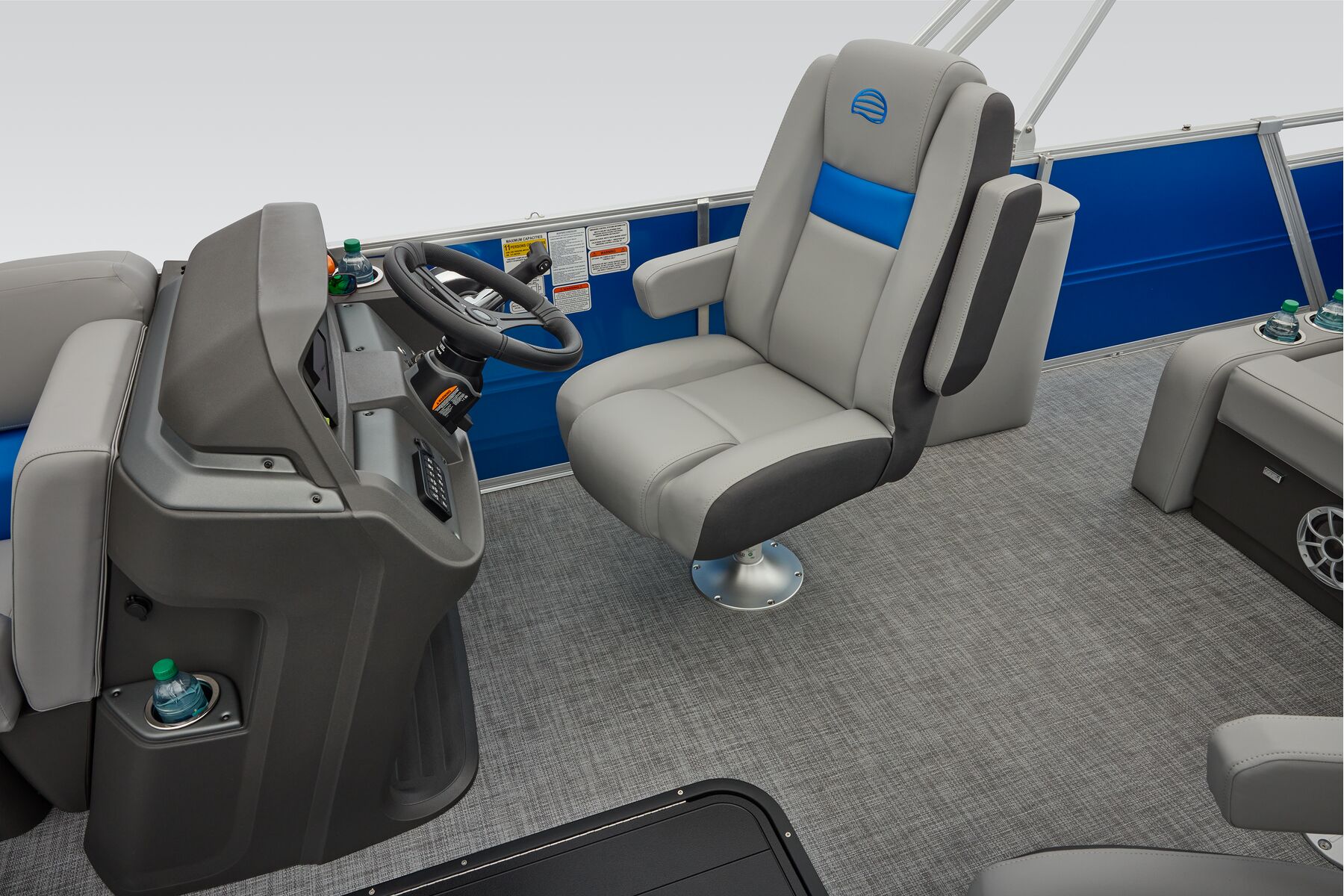

- High-back swiveling helm bucket seat, reclining & w/self-leveling arms
- Full-width aft swim deck

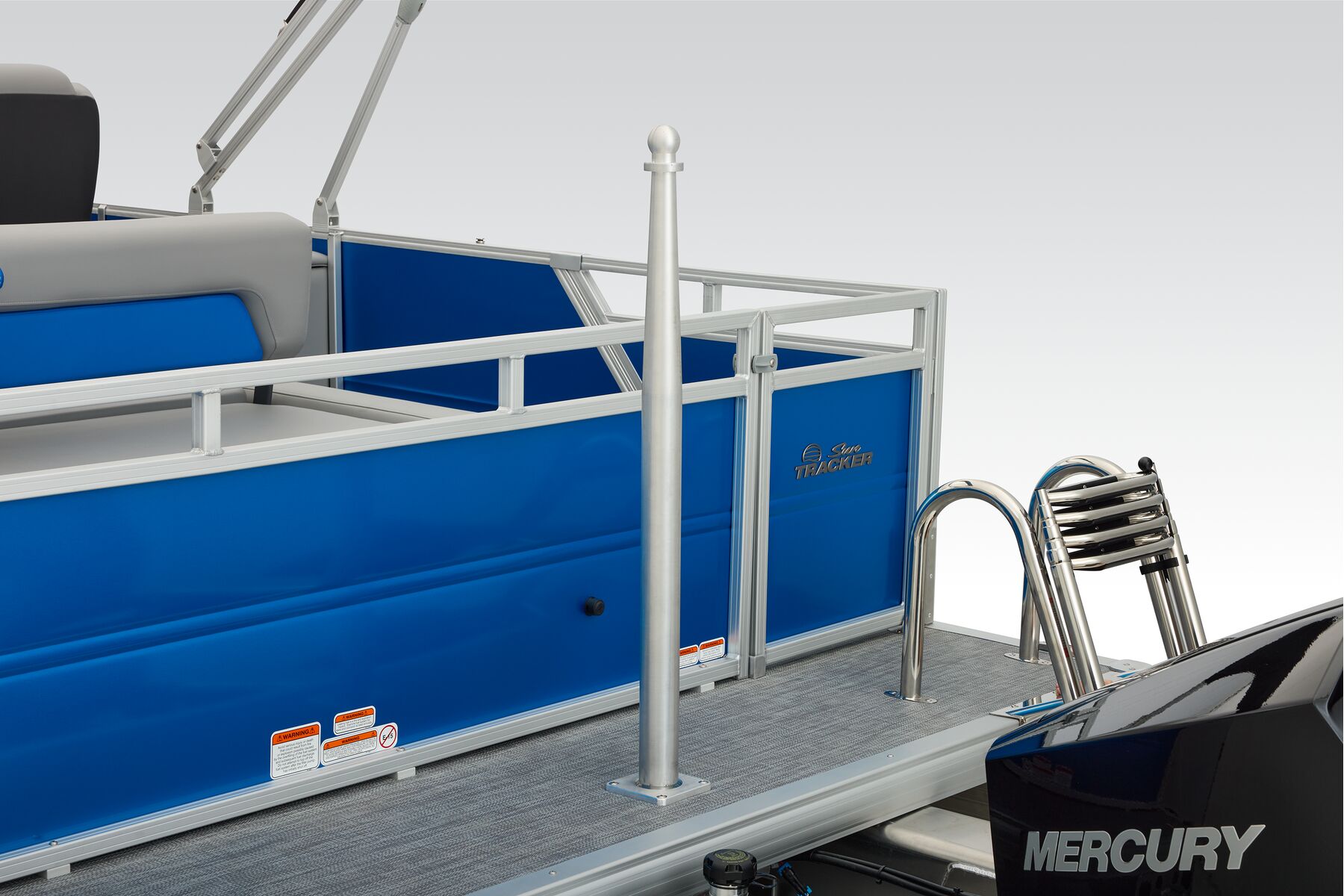

- Receptacle for optional ski tow pylon

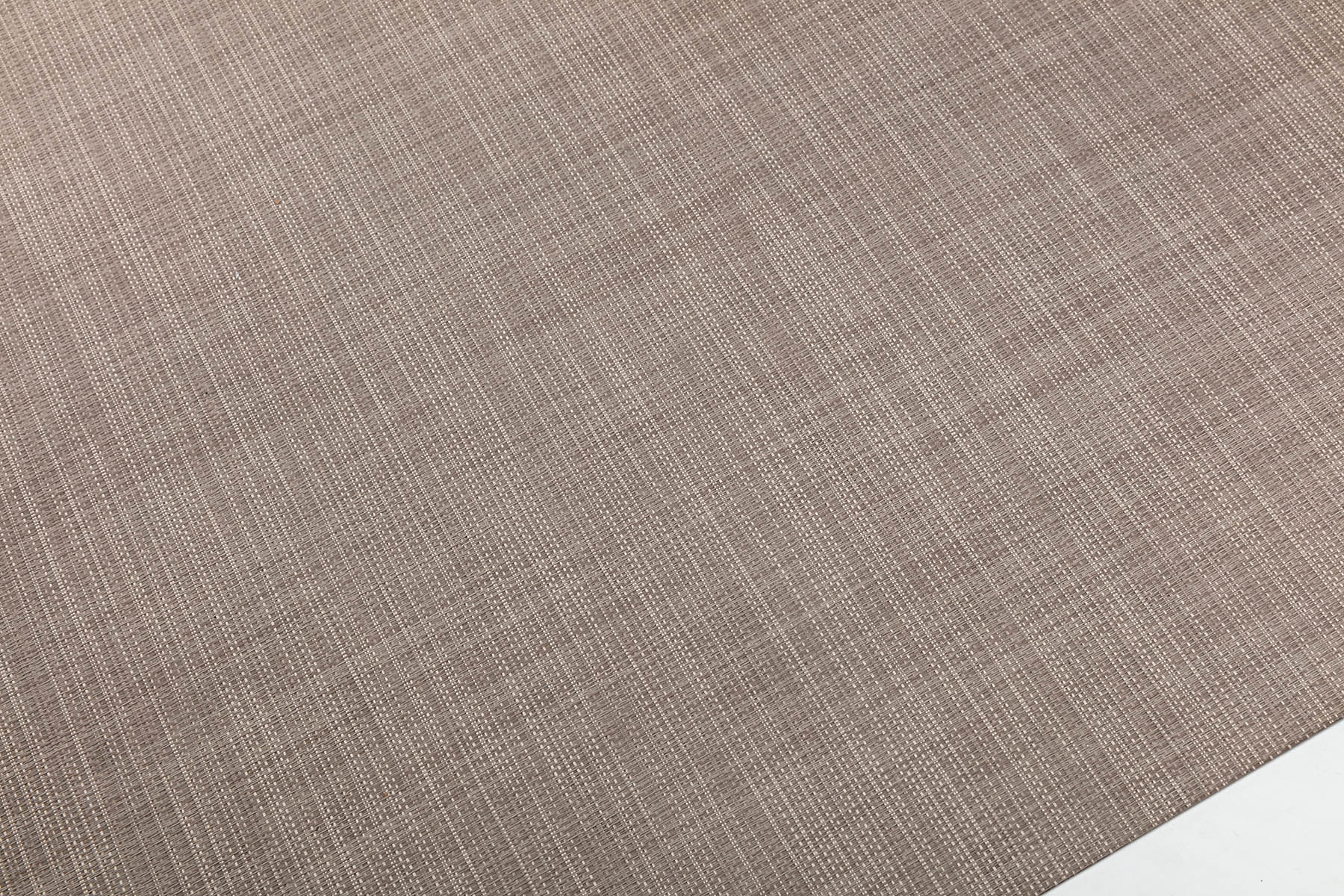

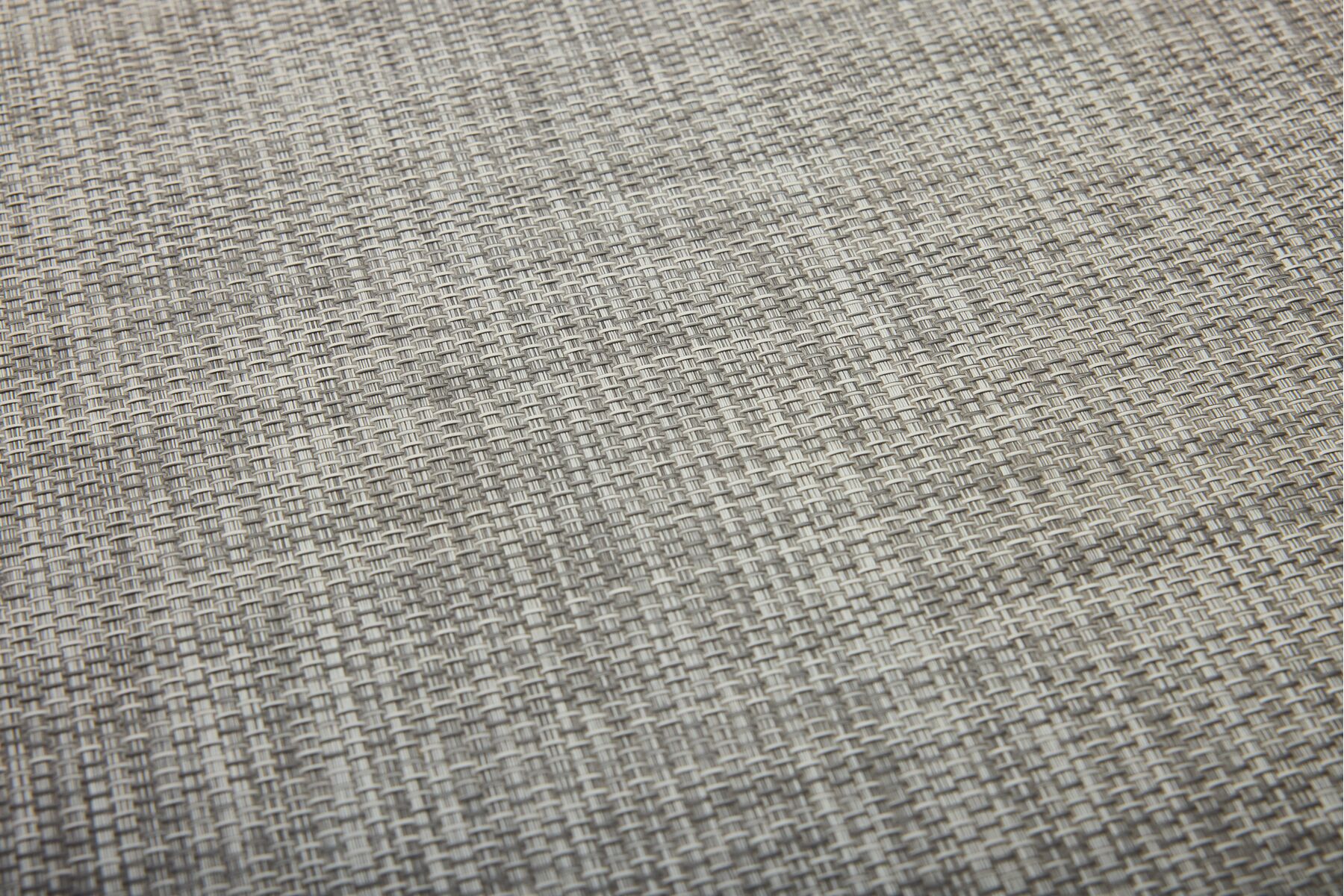

- Woven 16-oz. (.45 kg) marine-grade flooring throughout

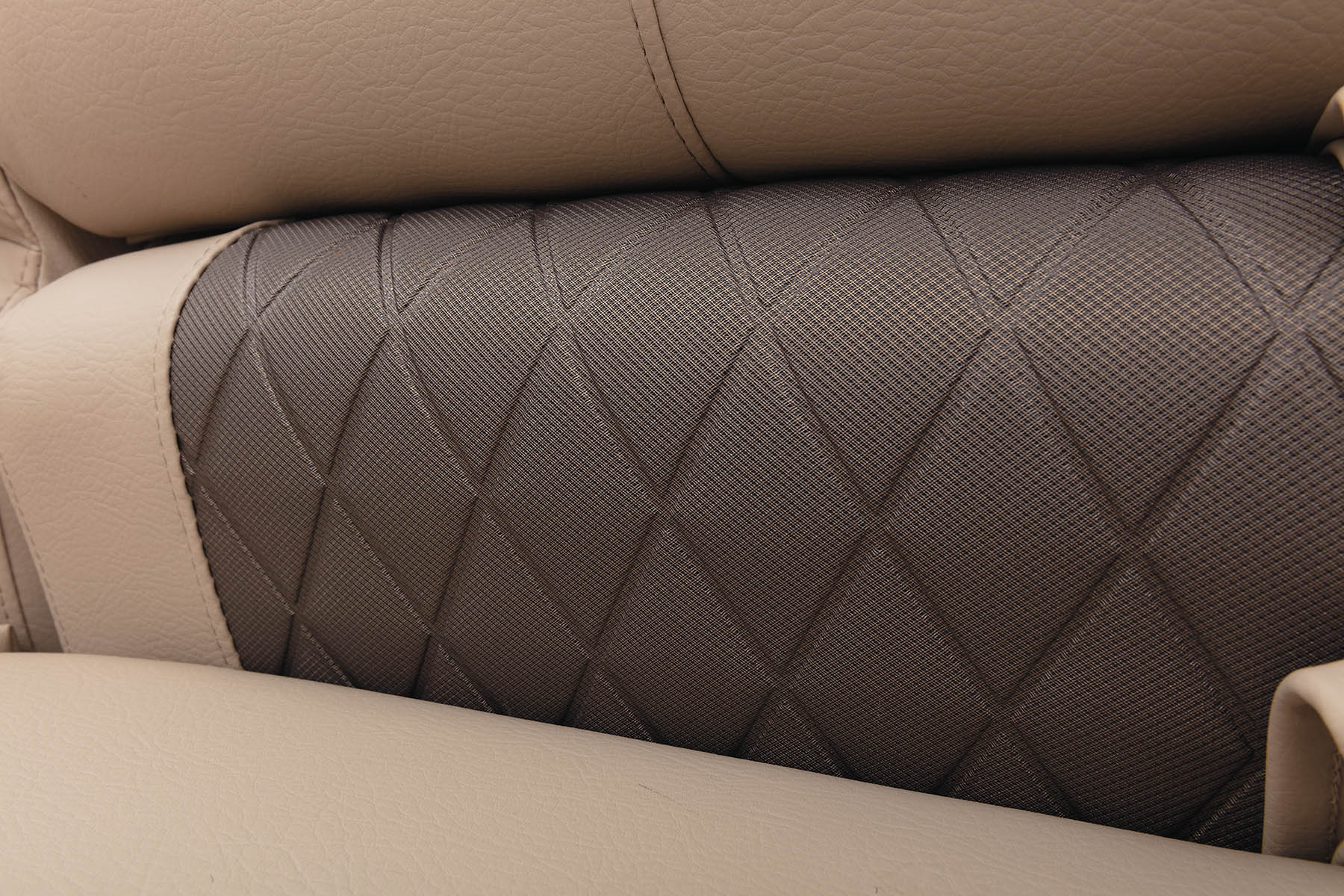

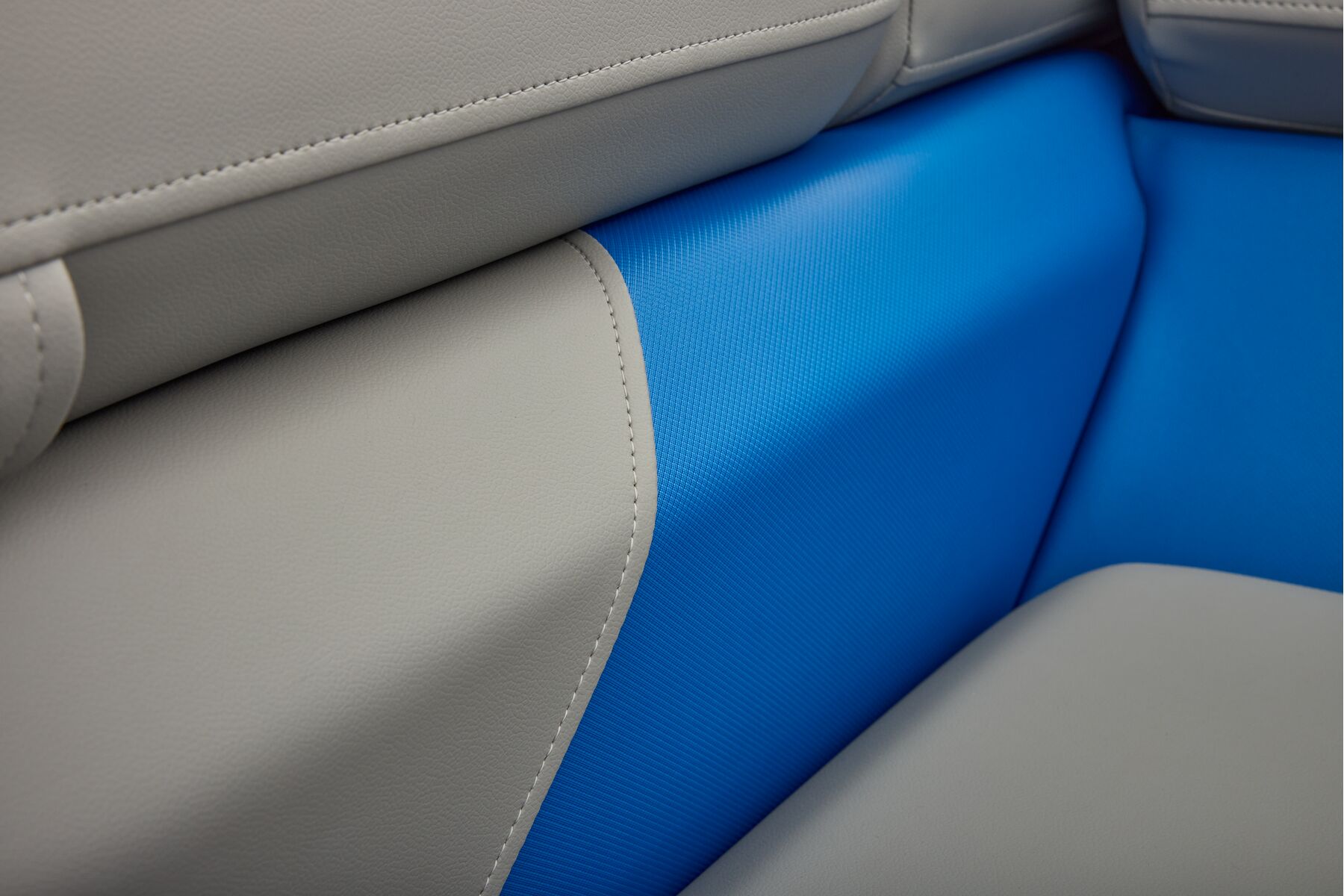

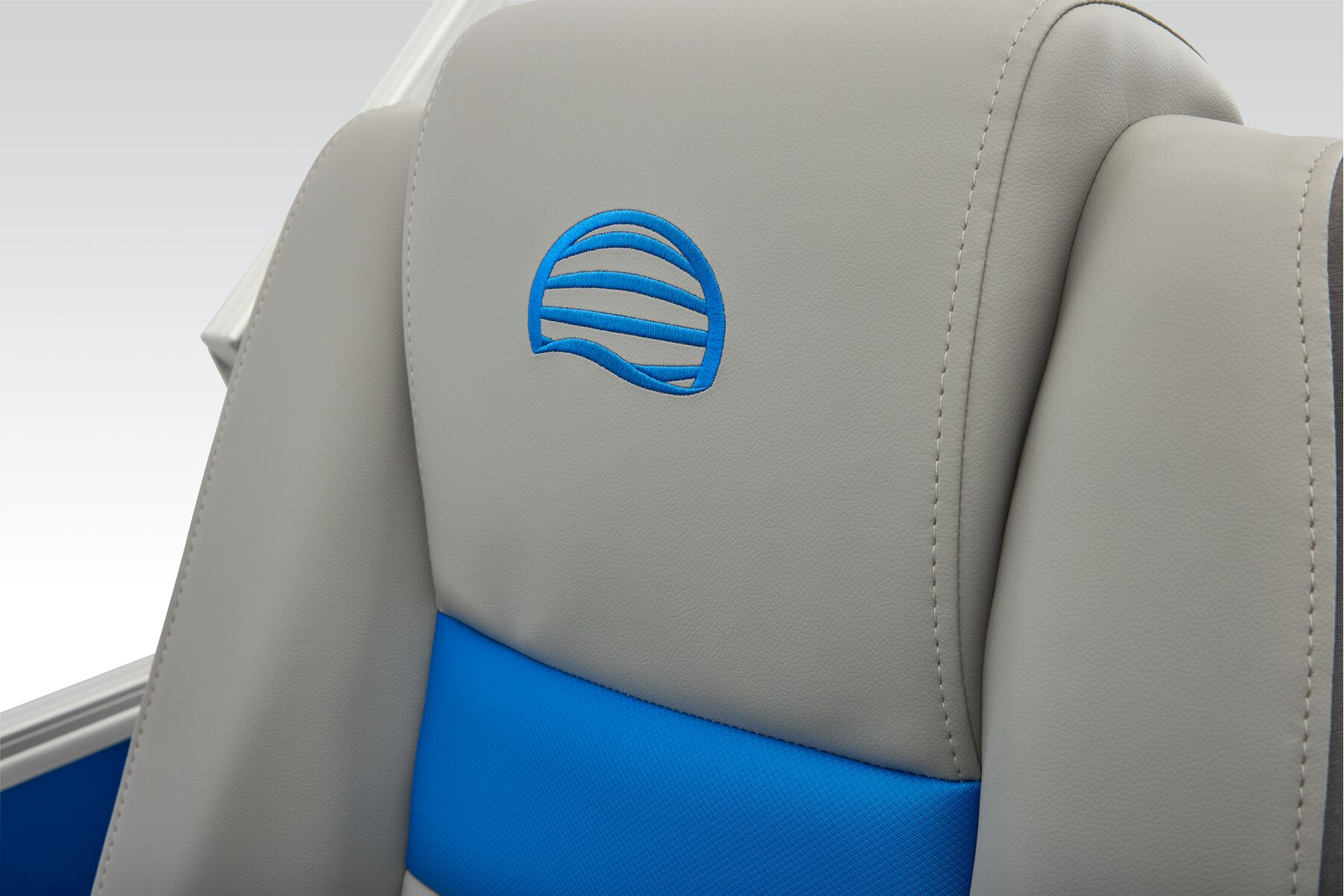

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

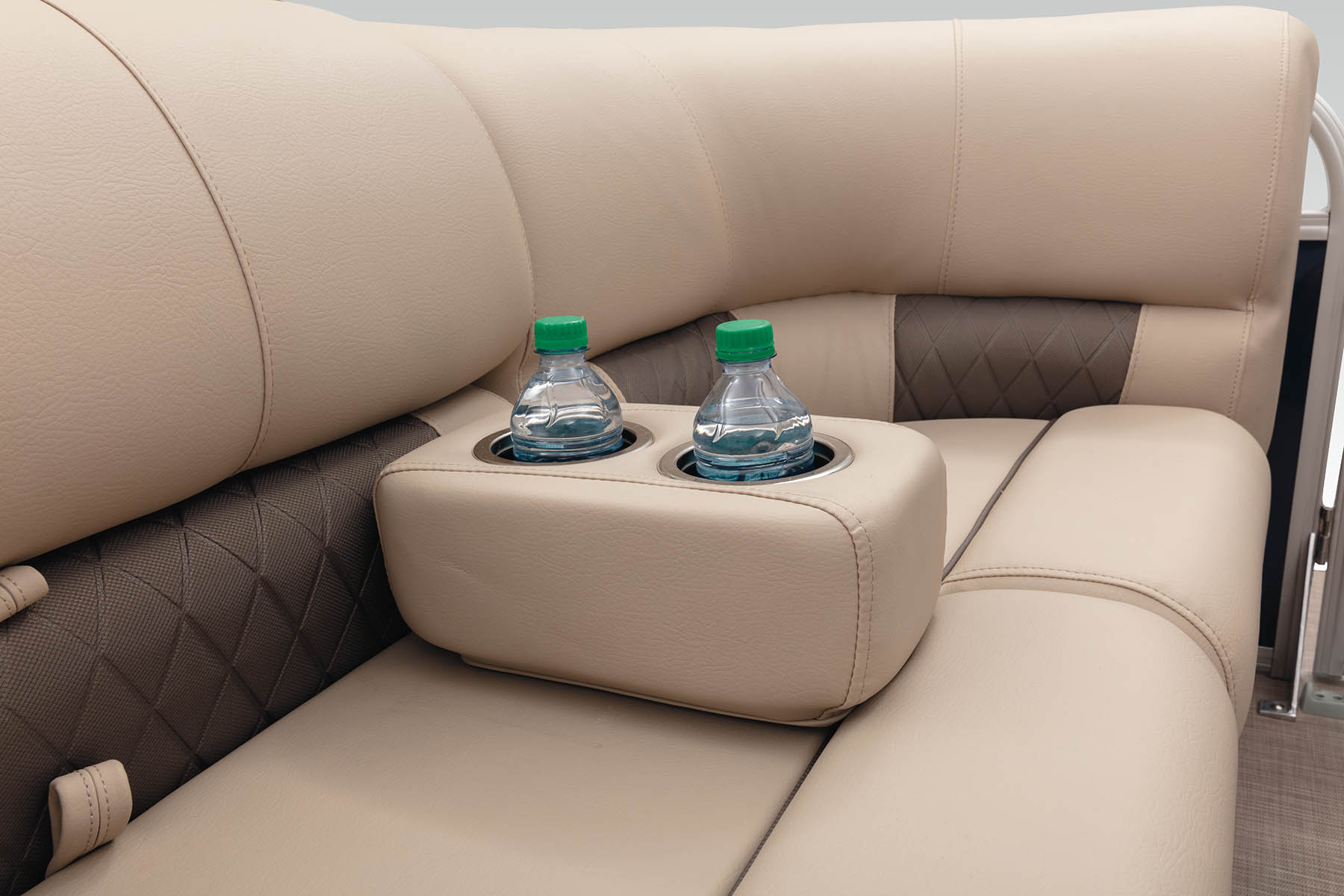

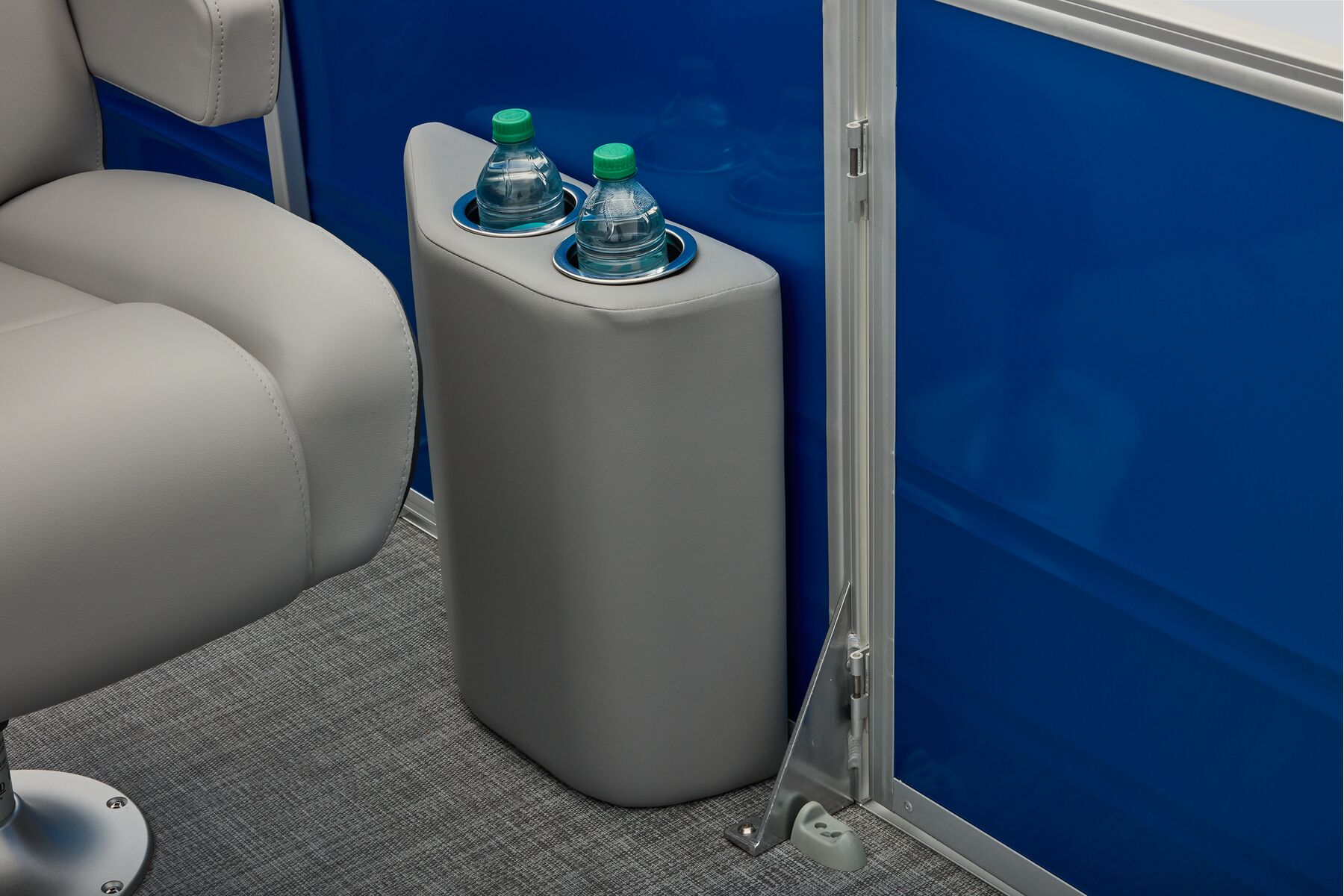

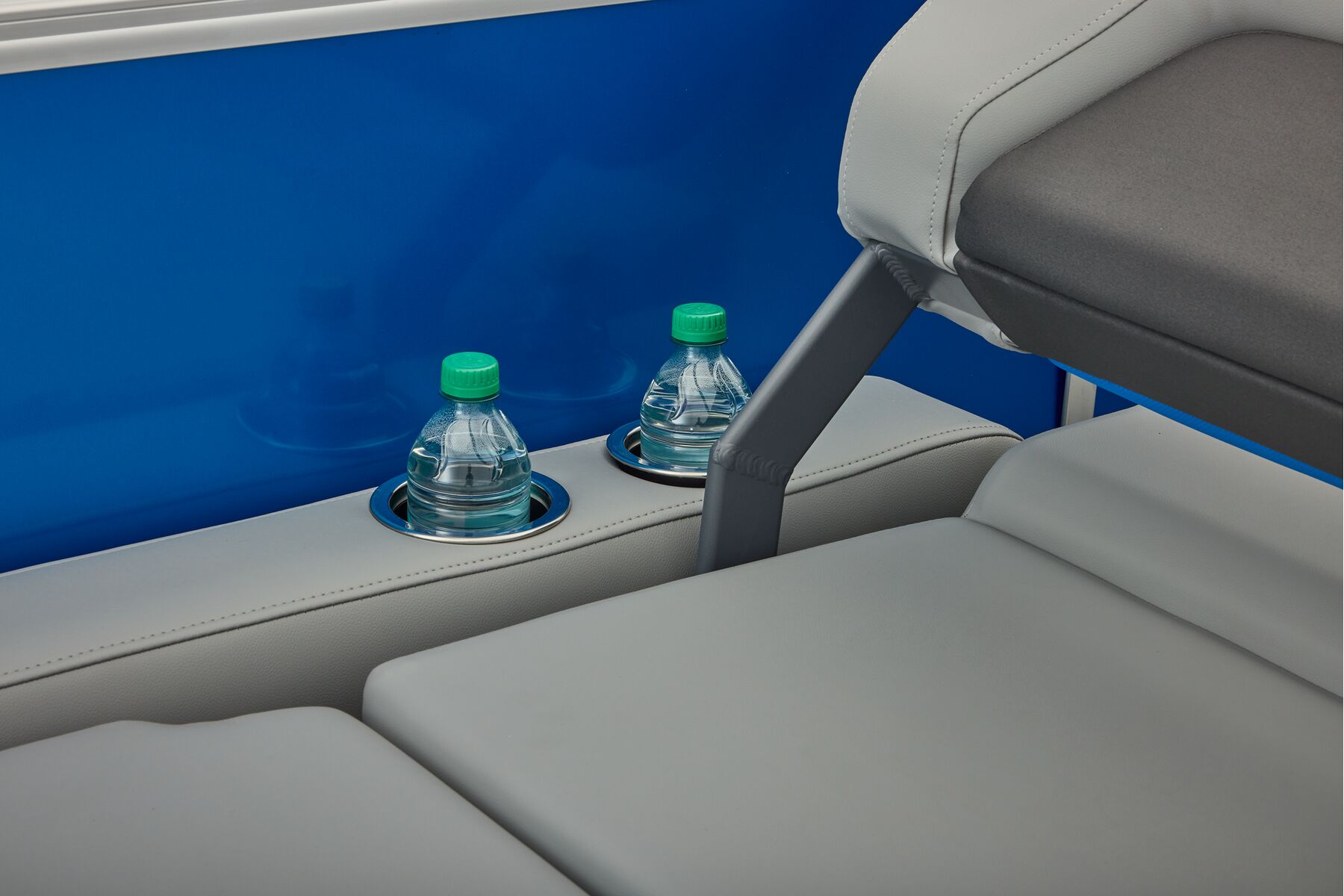

- 2 movable drink holders/armrests

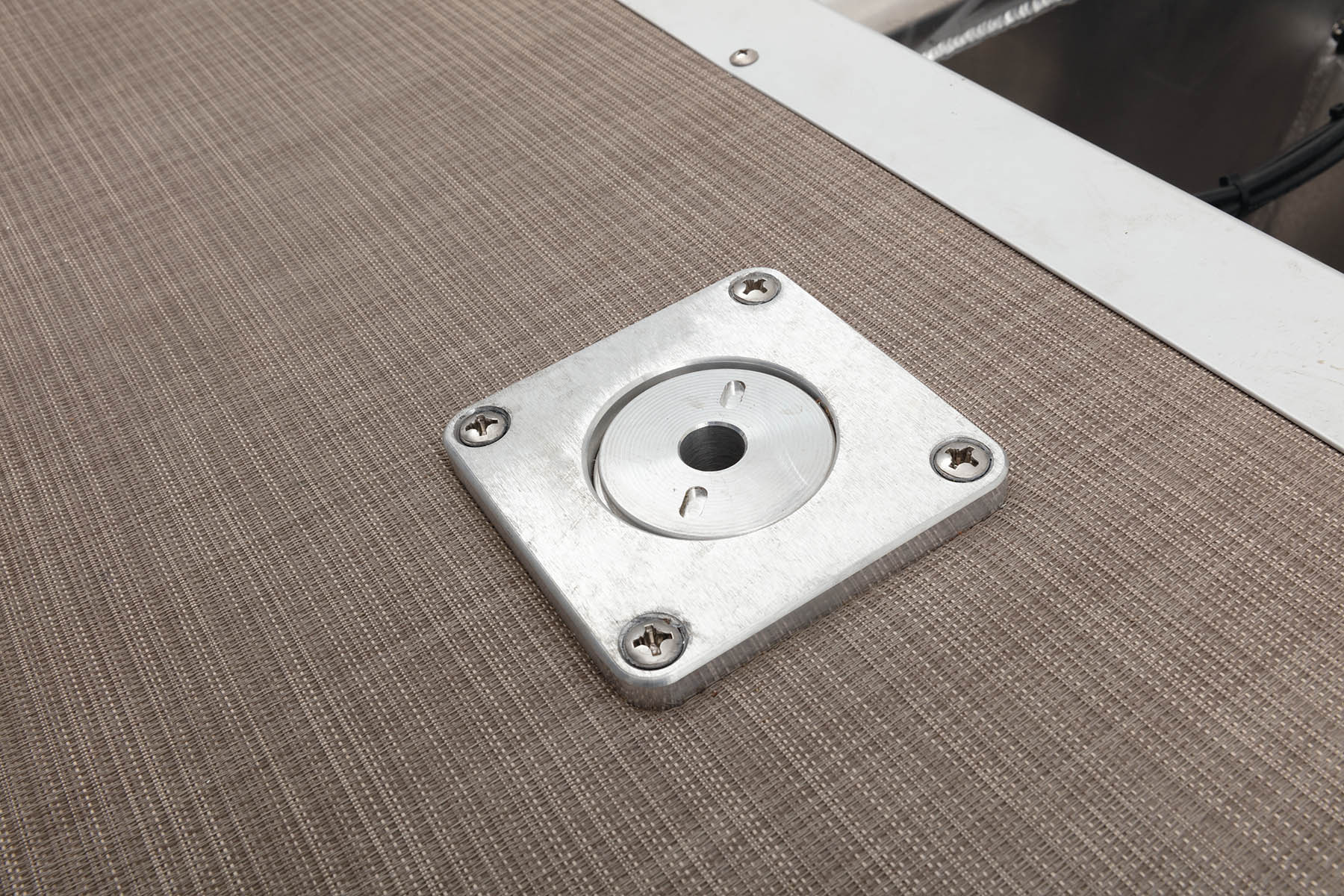

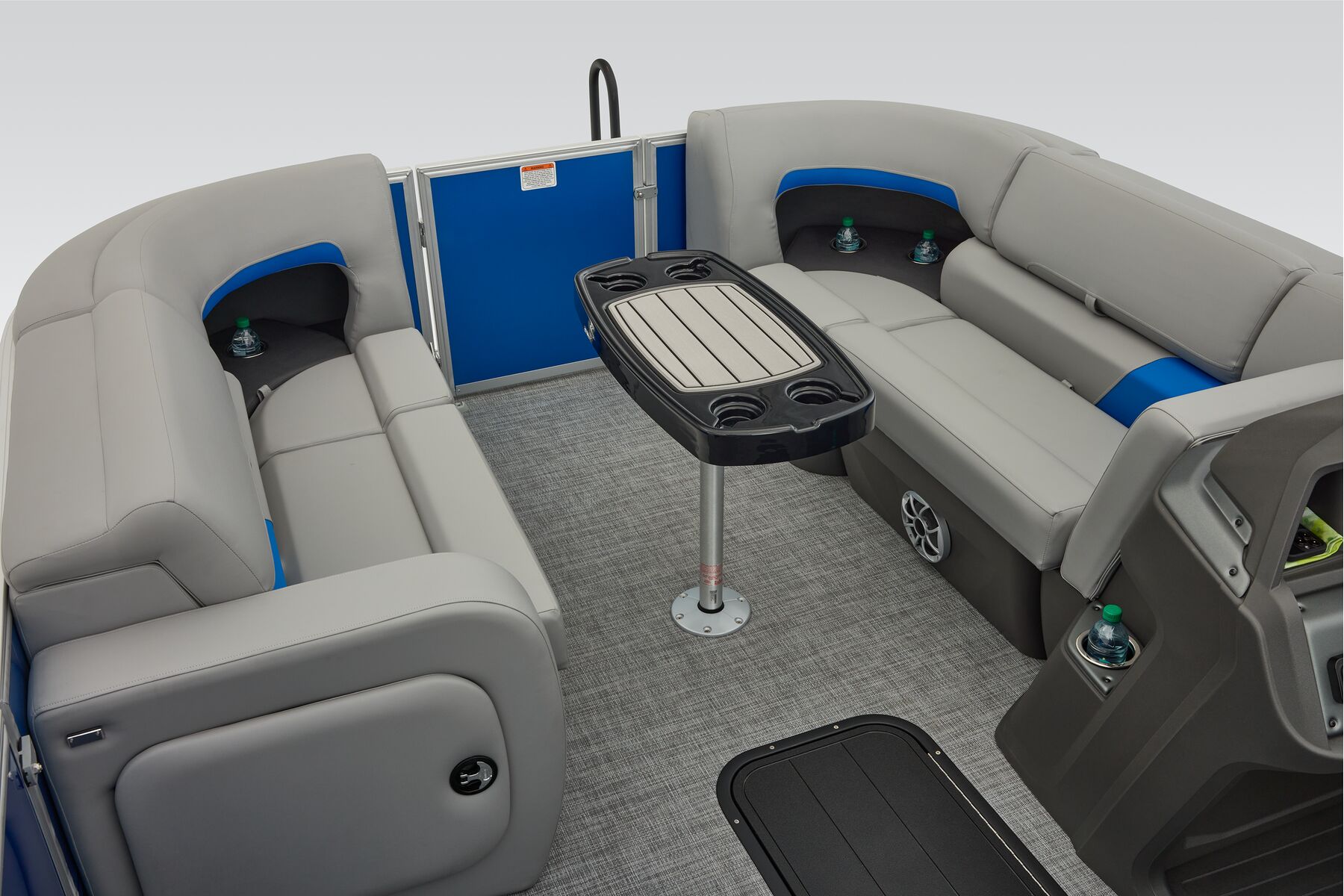

- Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations

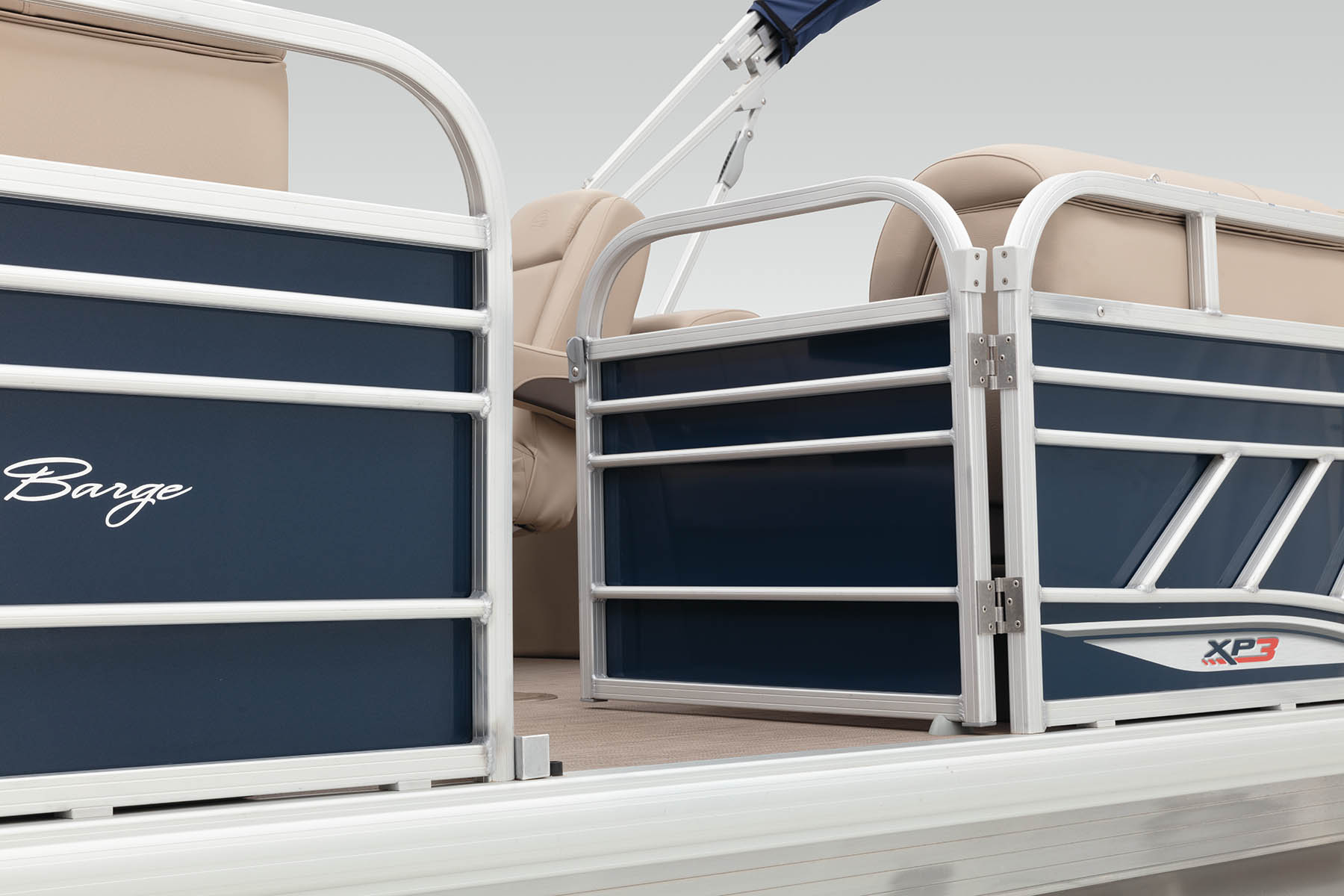

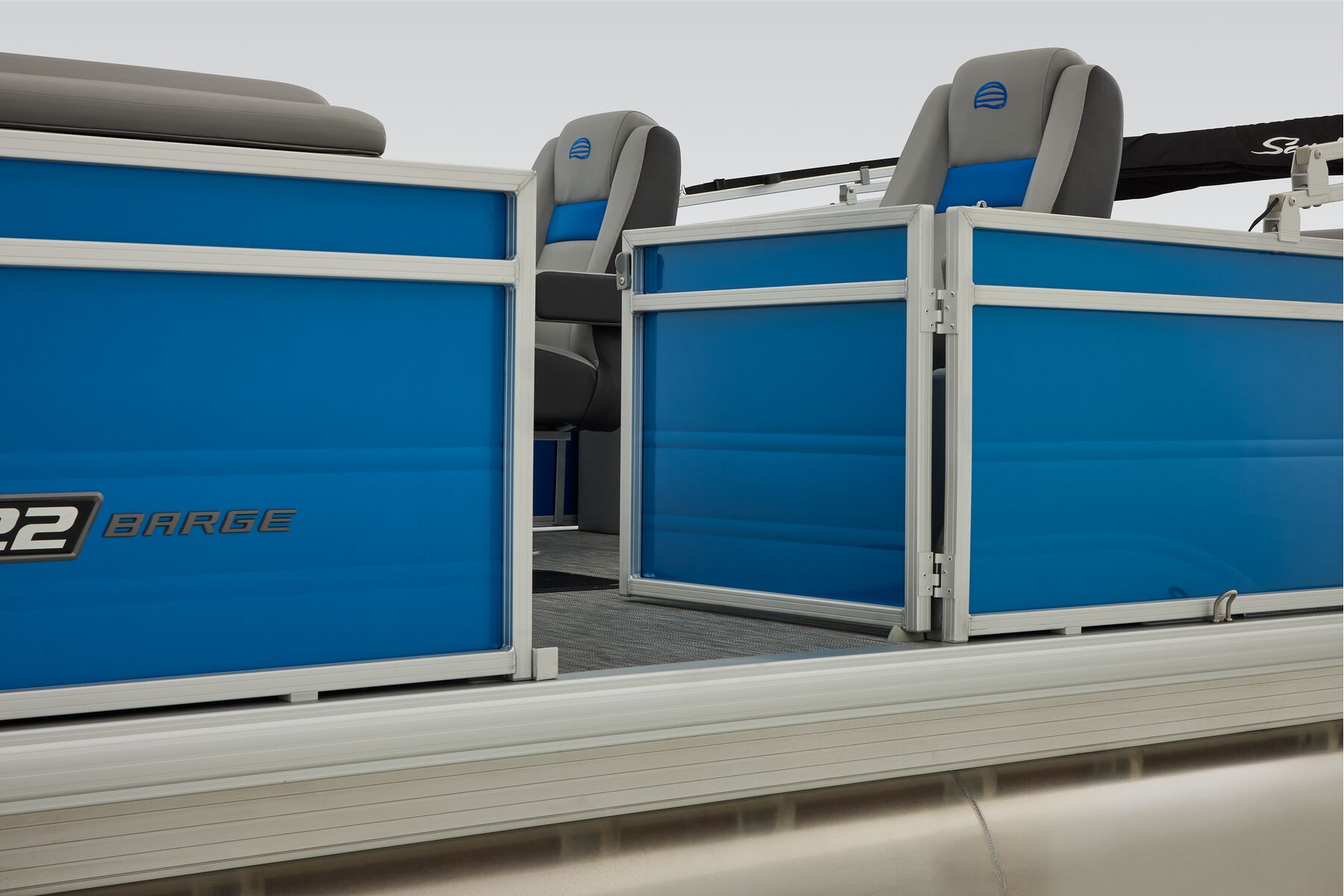

- Port wheelchair-access gate

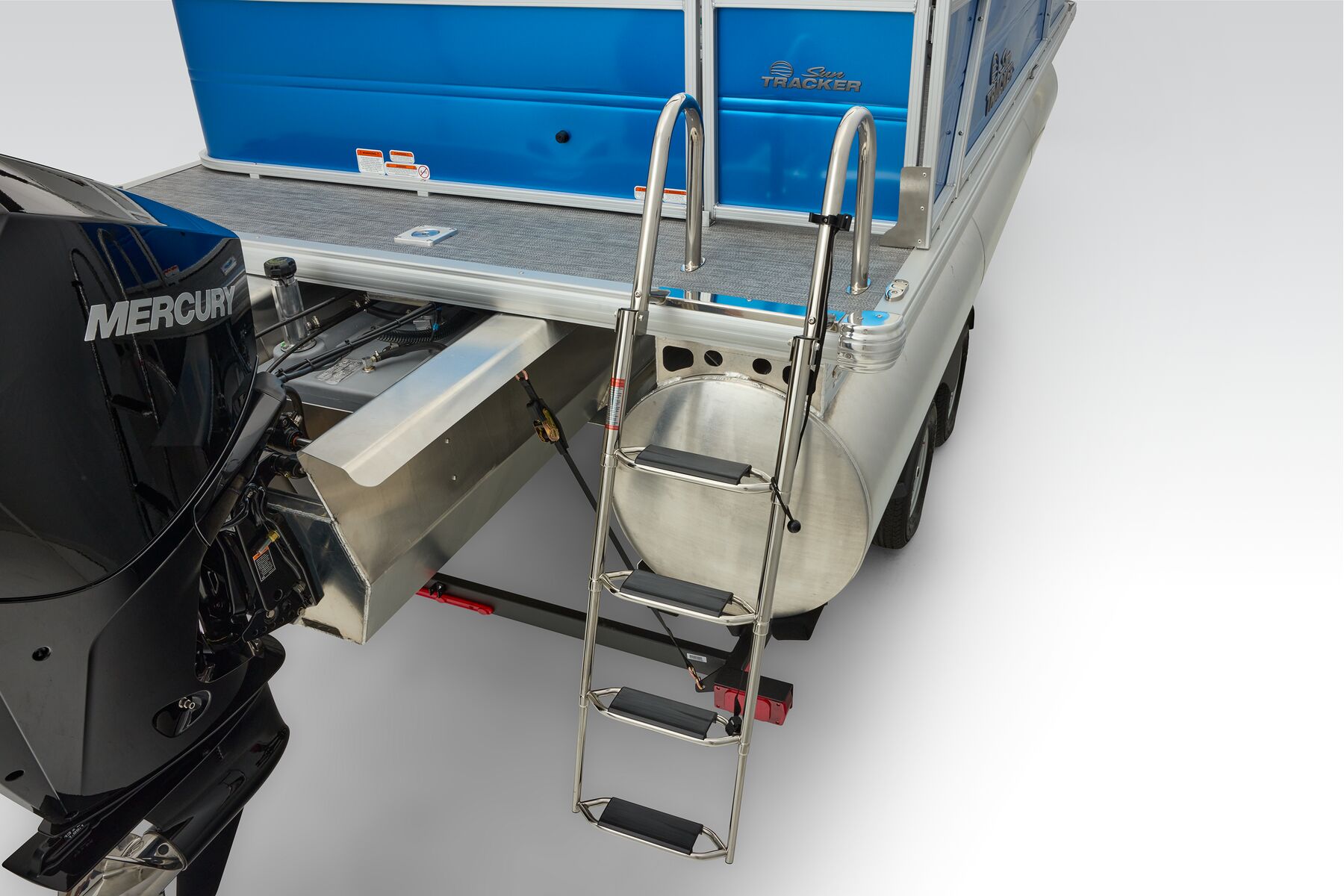

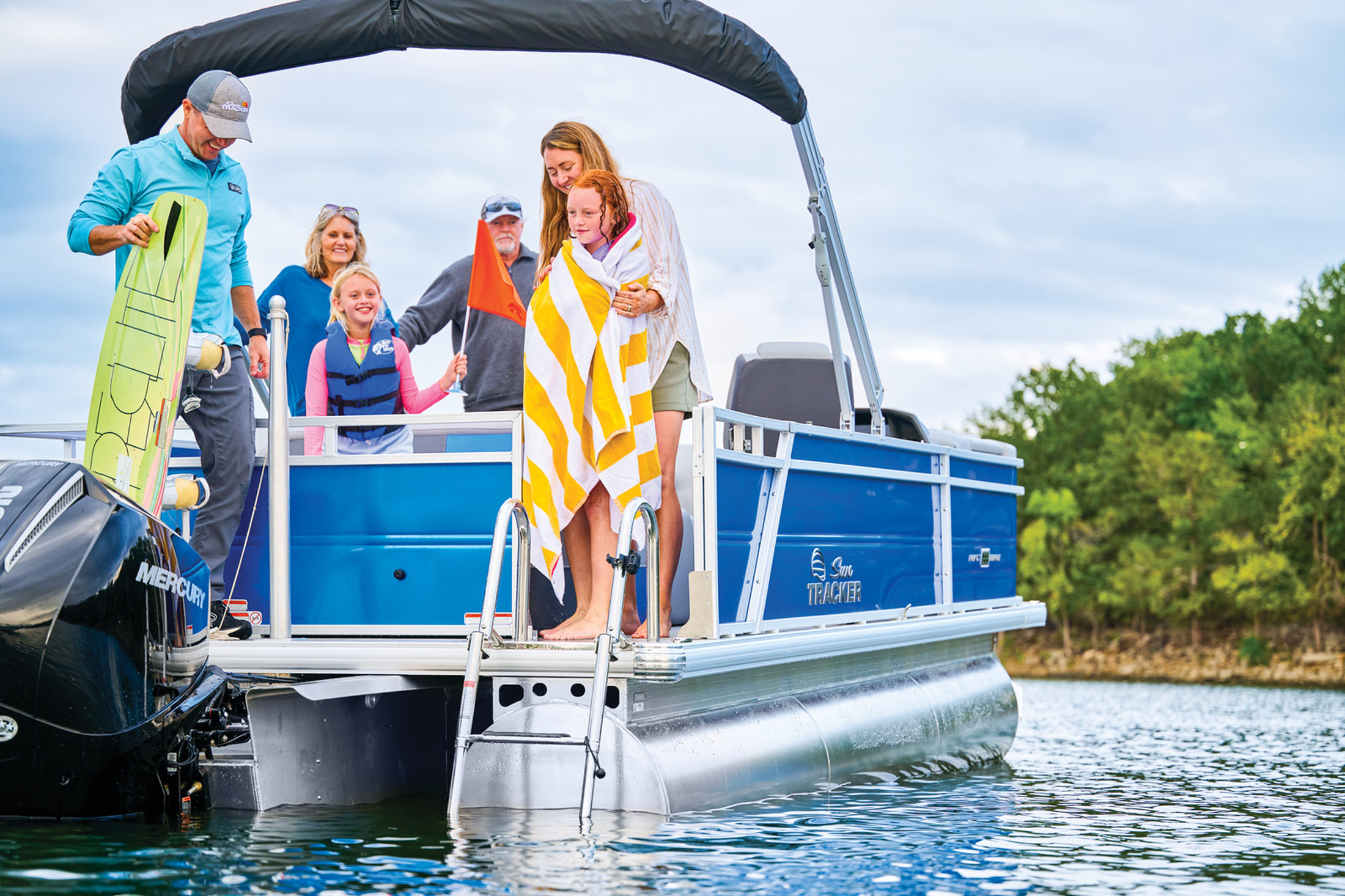

- 4-step folding boarding ladder w/grab rails
Performance
- XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched aluminum propeller
Construction & Exterior
- Color: Copper Red or Indigo Blue fencing

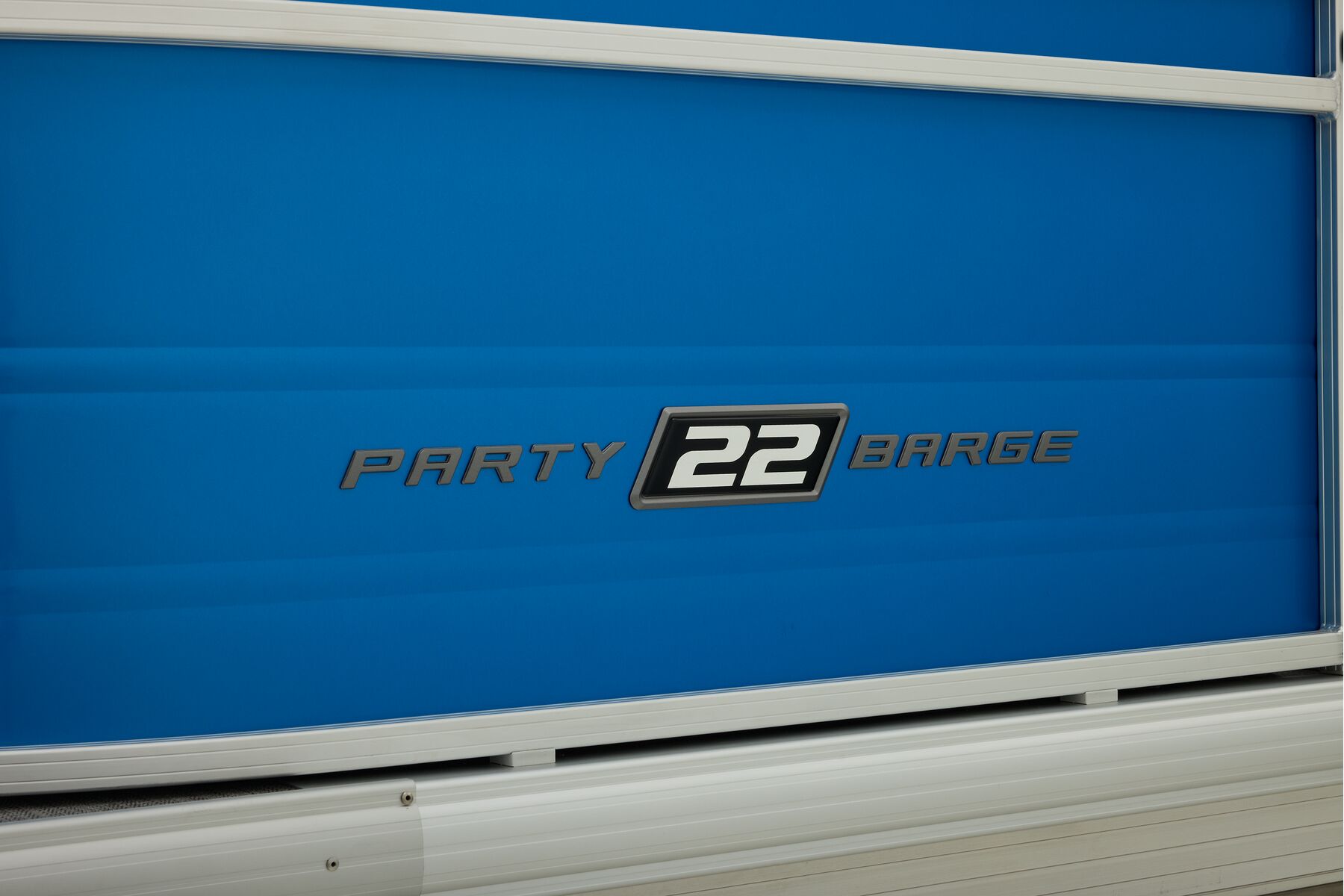

- Exterior styling w/XP3 graphics package
- Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
- Heavy-duty bow U-channel reinforcement behind deck trim

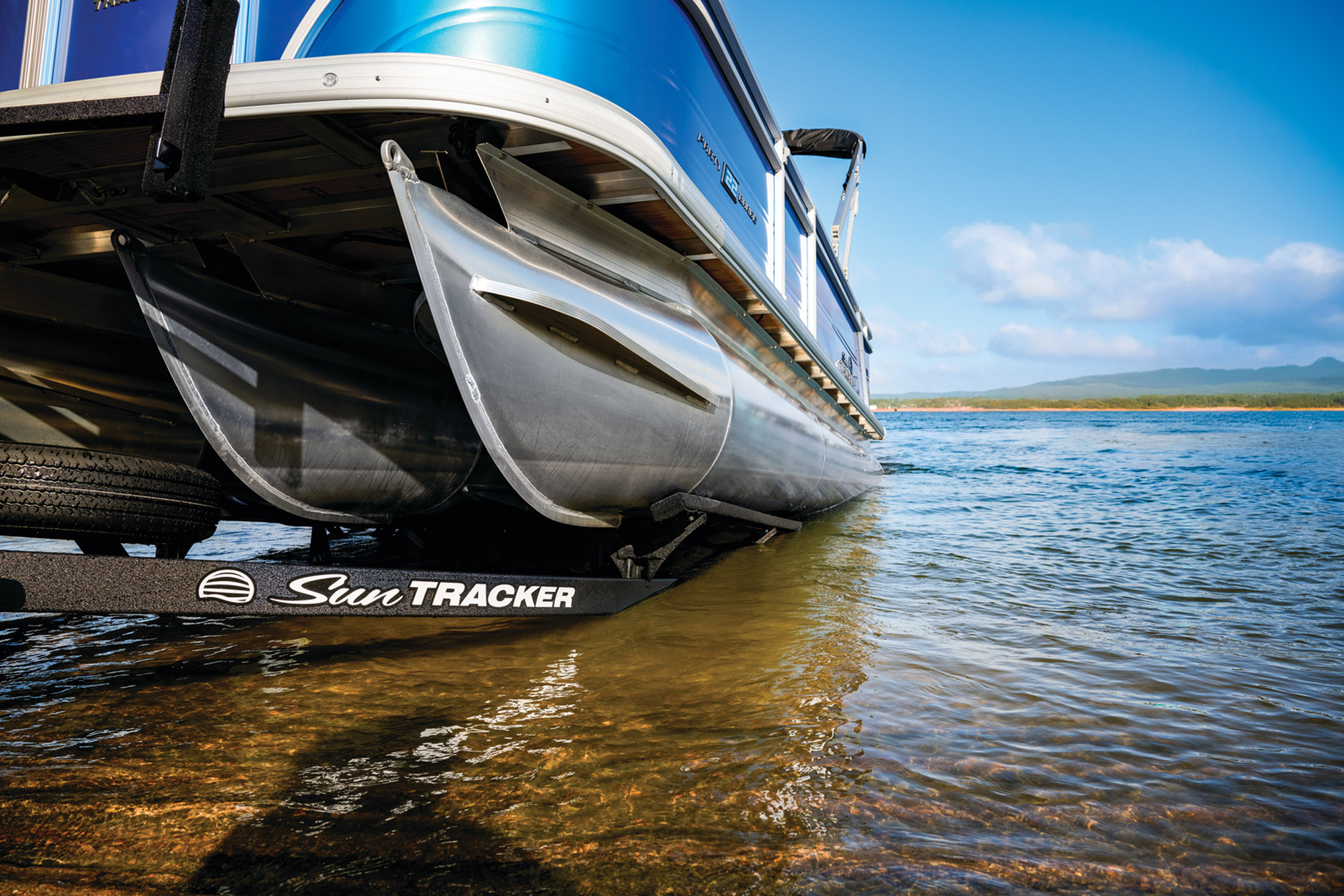

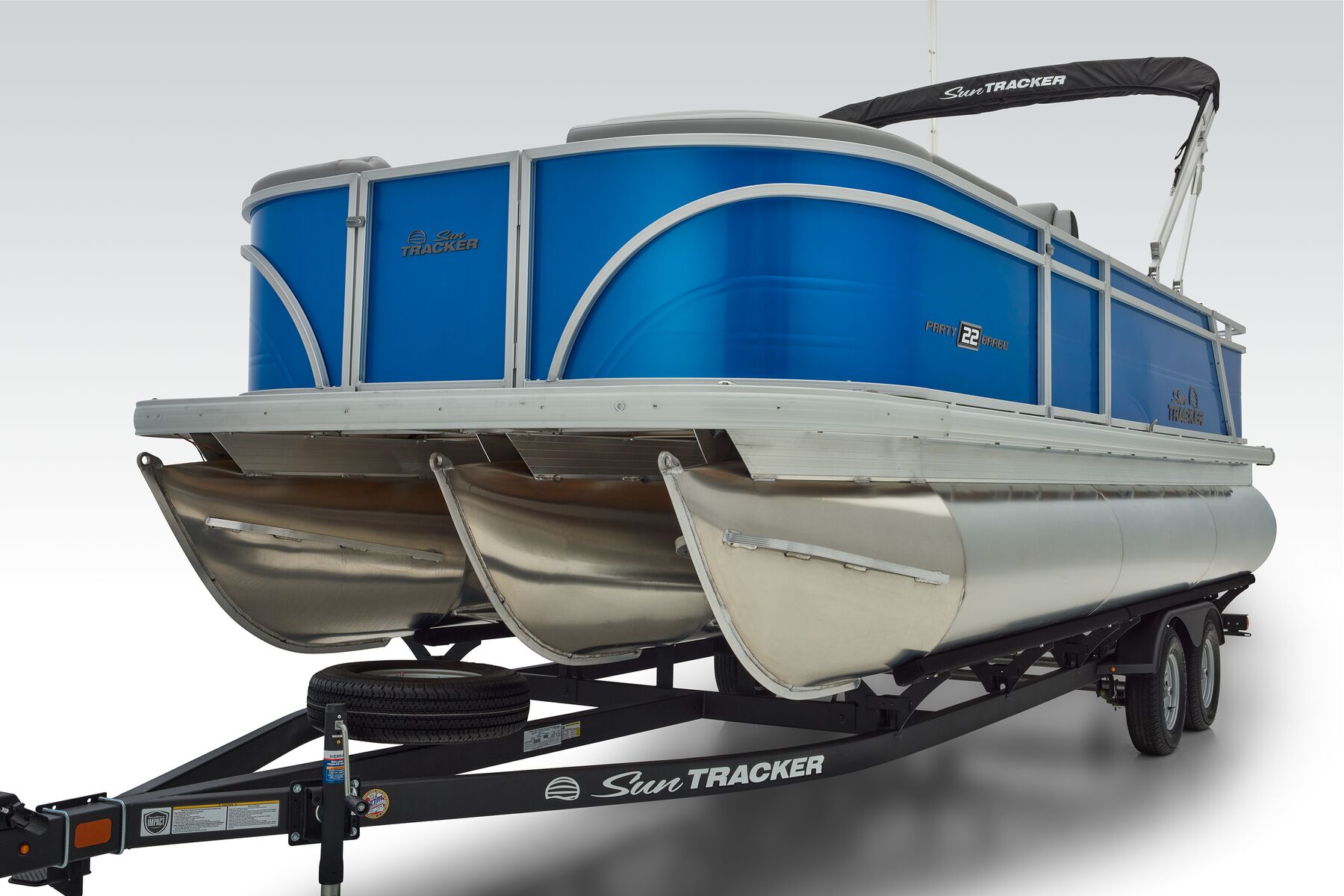

- Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- RAIL-LOCK® system for mounting optional enclosures
- Protective exoskeleton rail & panel system for durability & a quieter ride

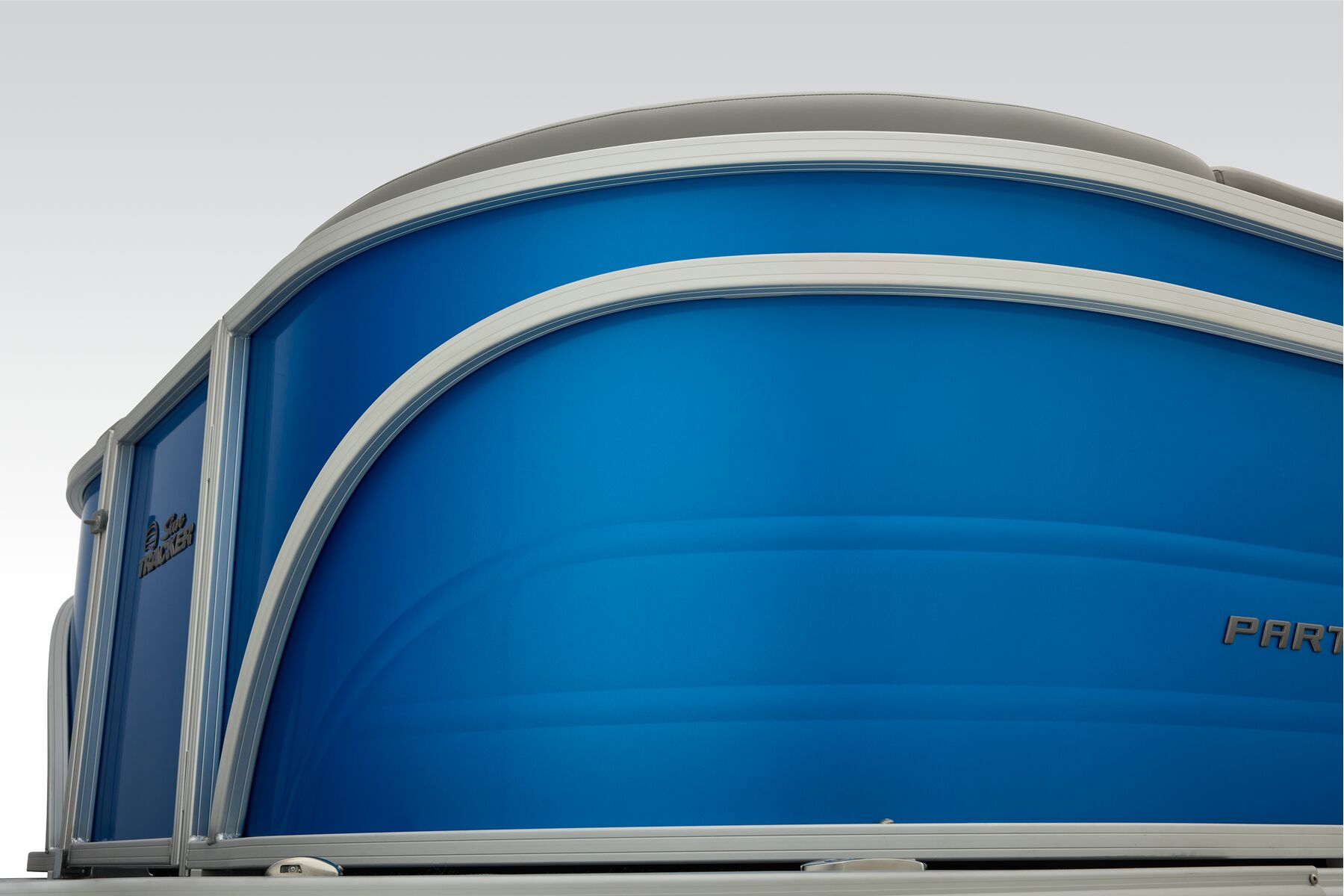

- High-sheen fence finish for long-lasting good looks

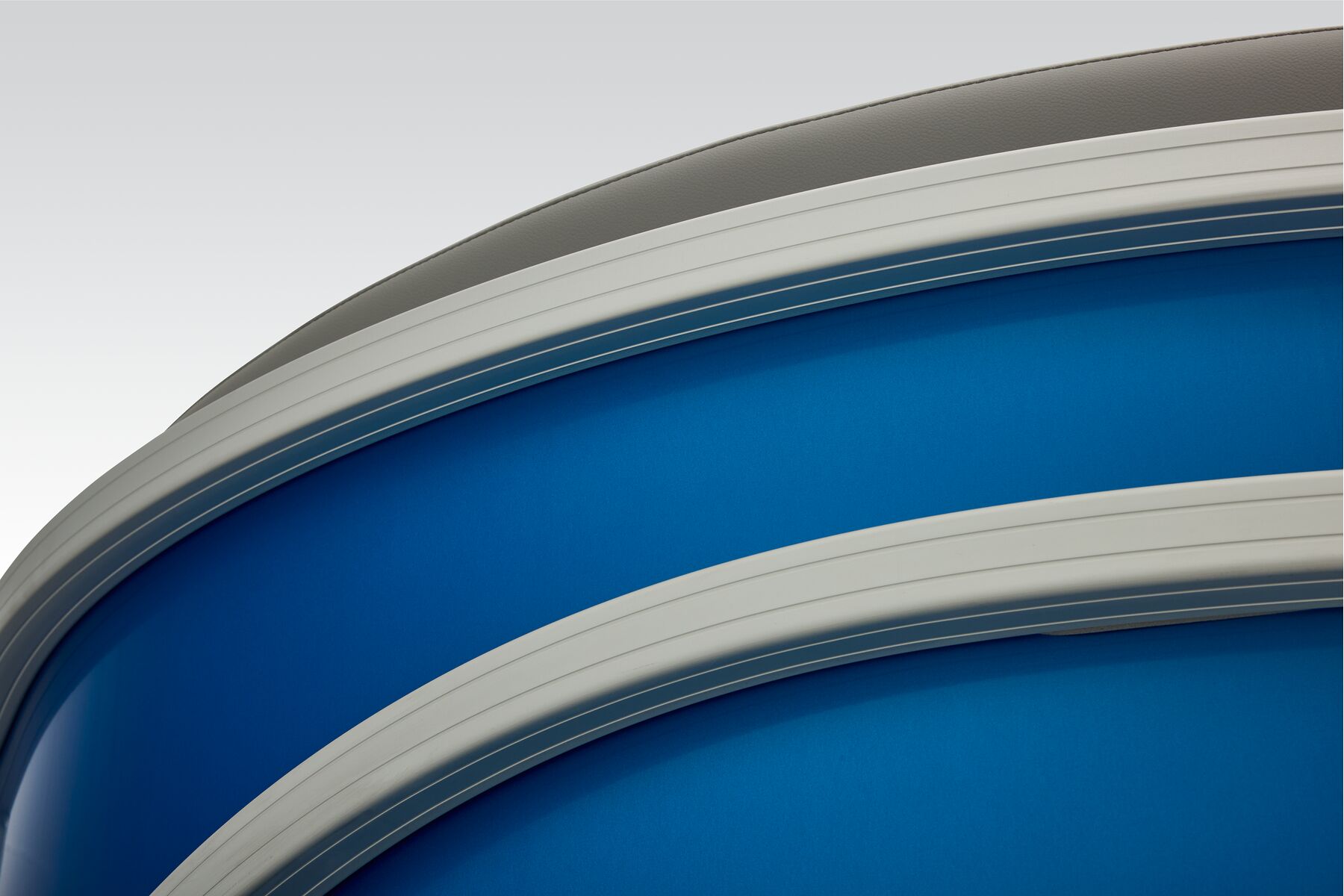

- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Reinforced bow & stern structures

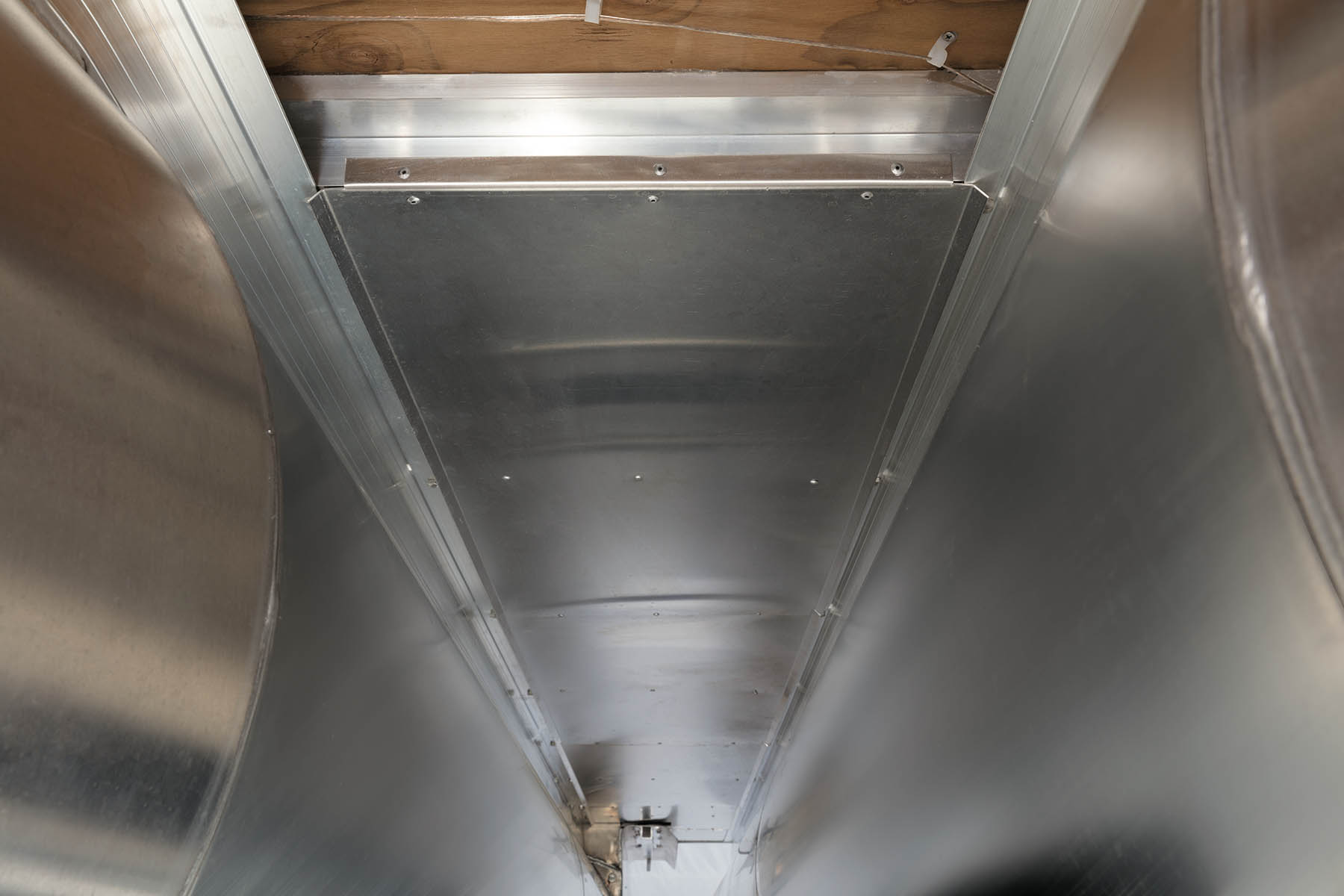

- Factory-installed underpinning (under-deck shielding) for improved performance

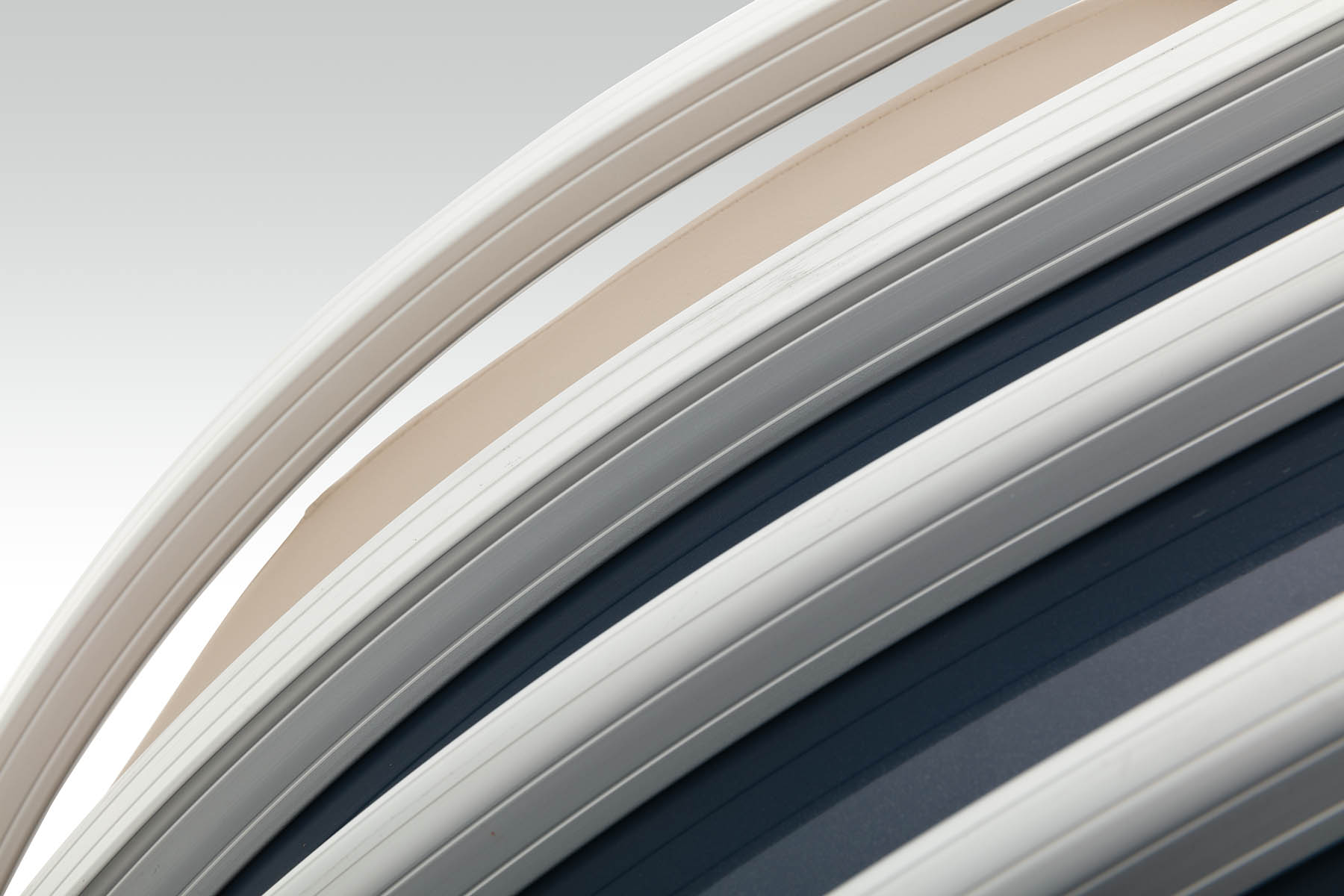

- Extruded anodized aluminum deck edging w/polished aft corner covers

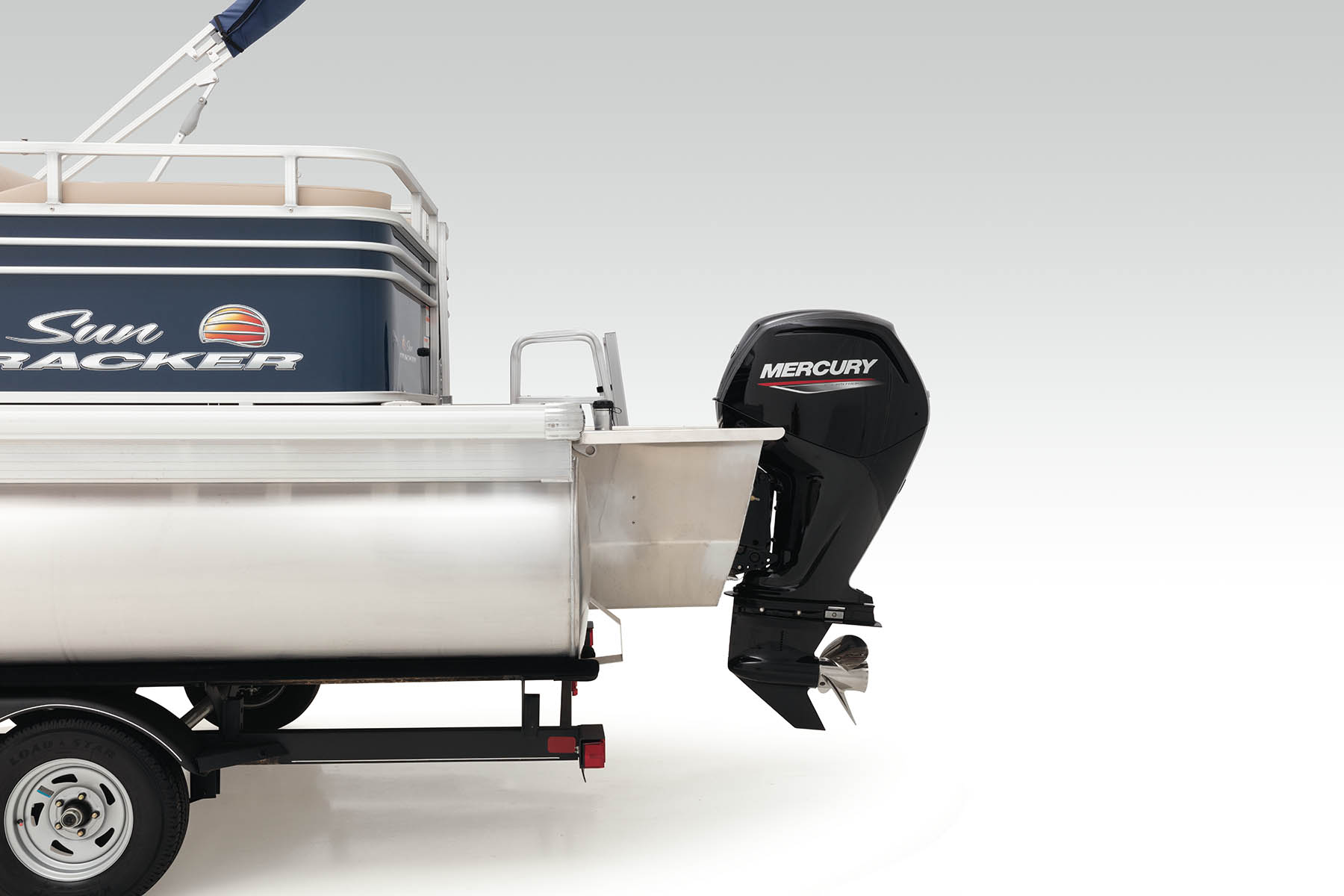

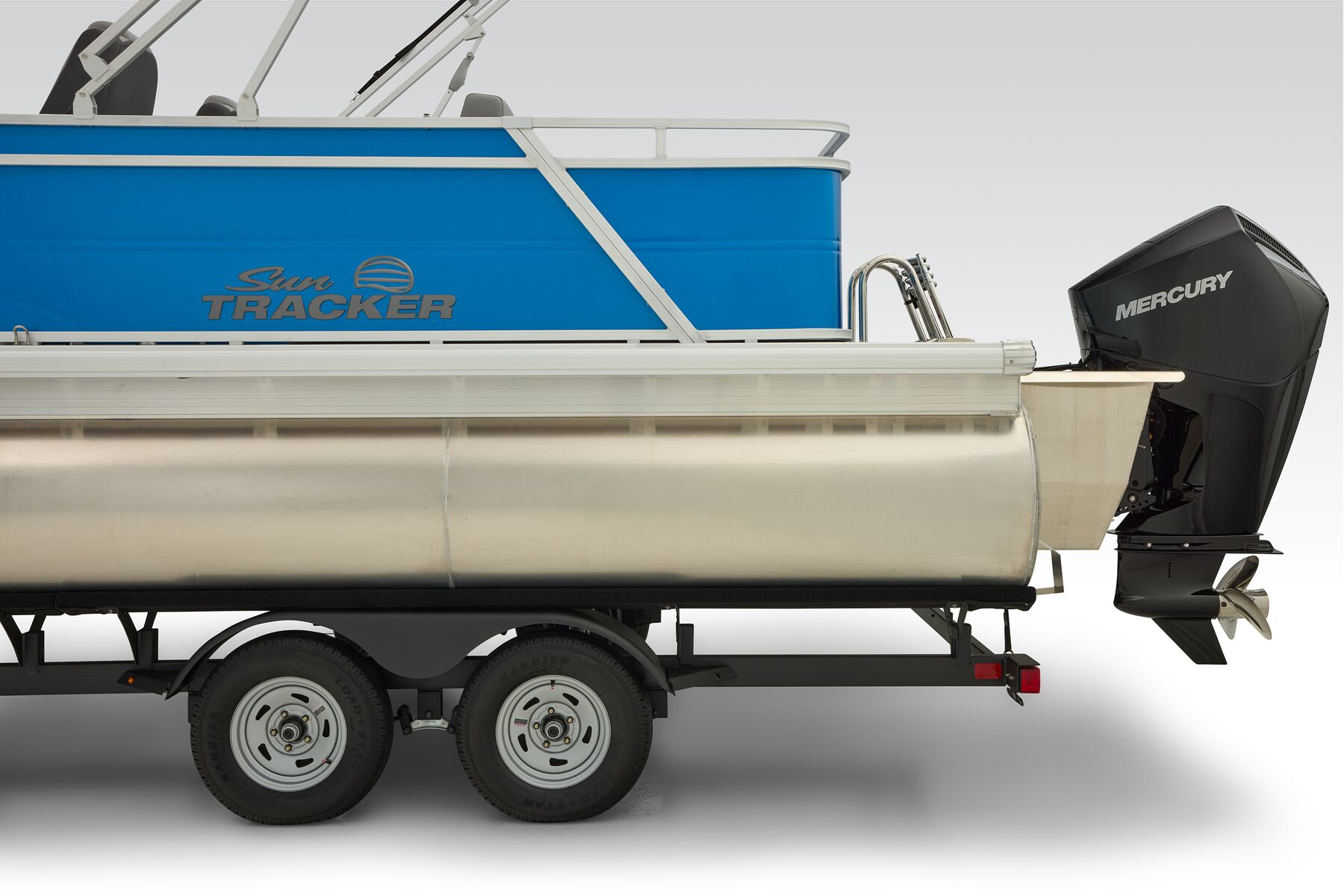

- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- 7-ply pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity
Electrical
- 500 GPH (1892.71 LPH) Ultima auto bilge pump
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors

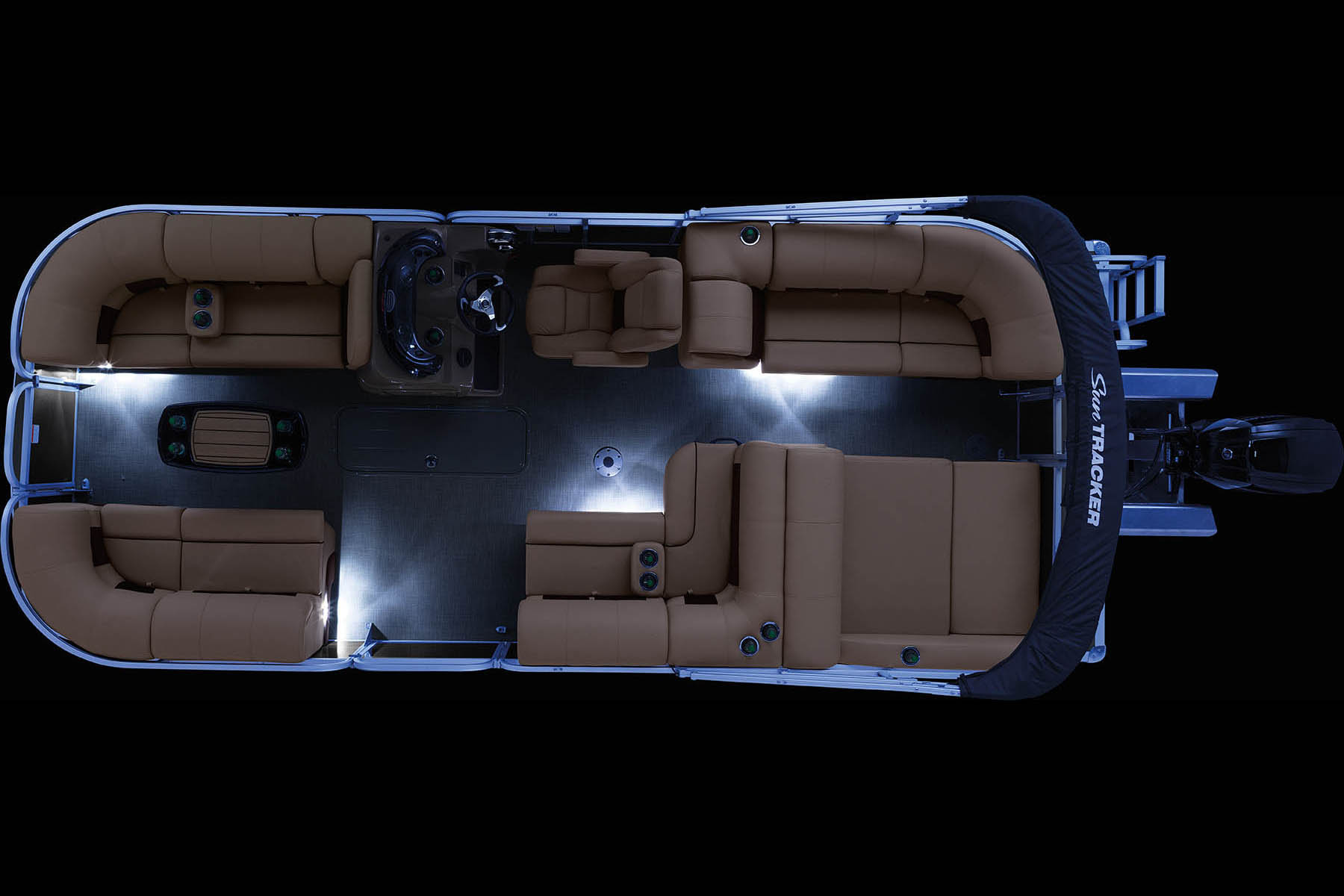

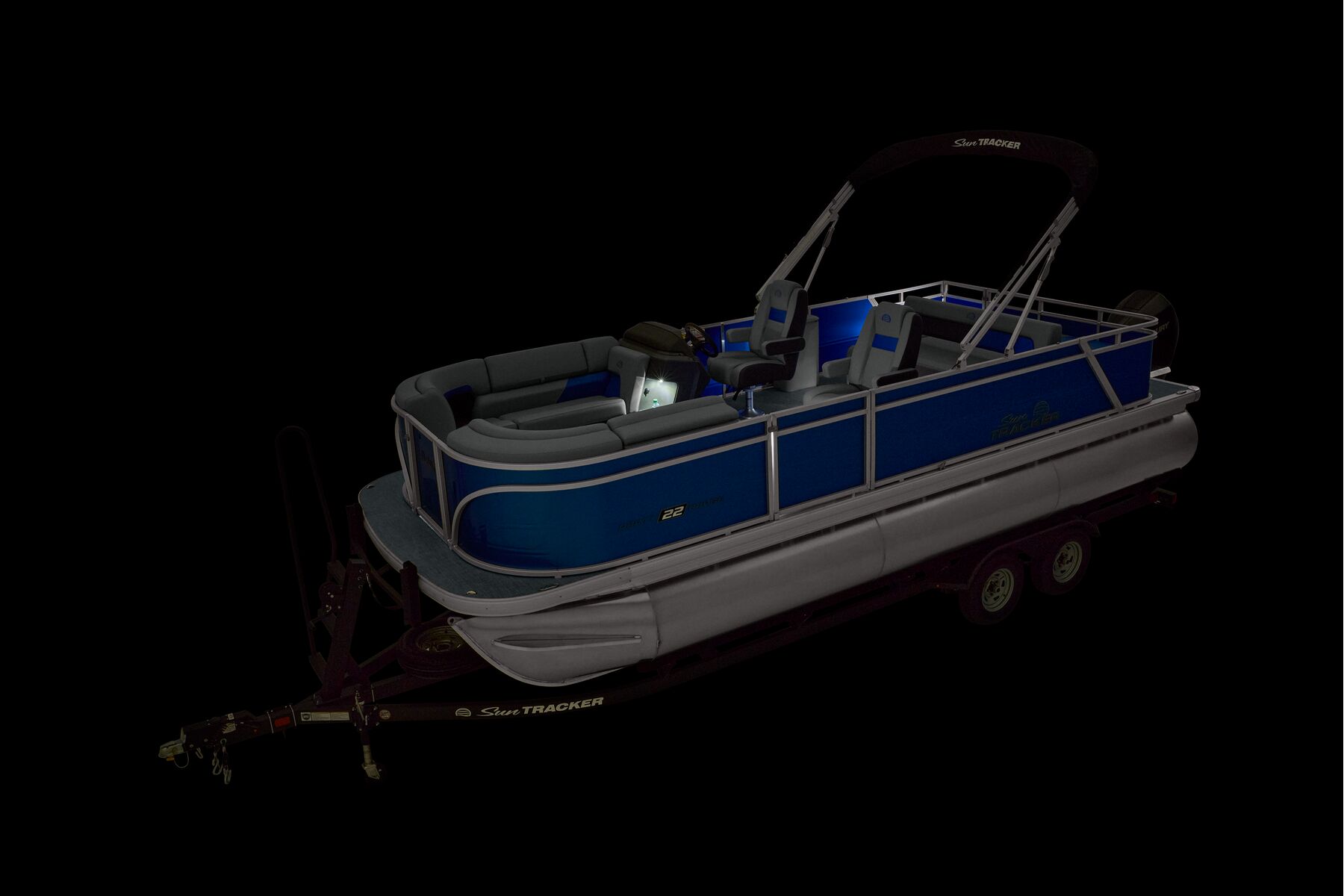

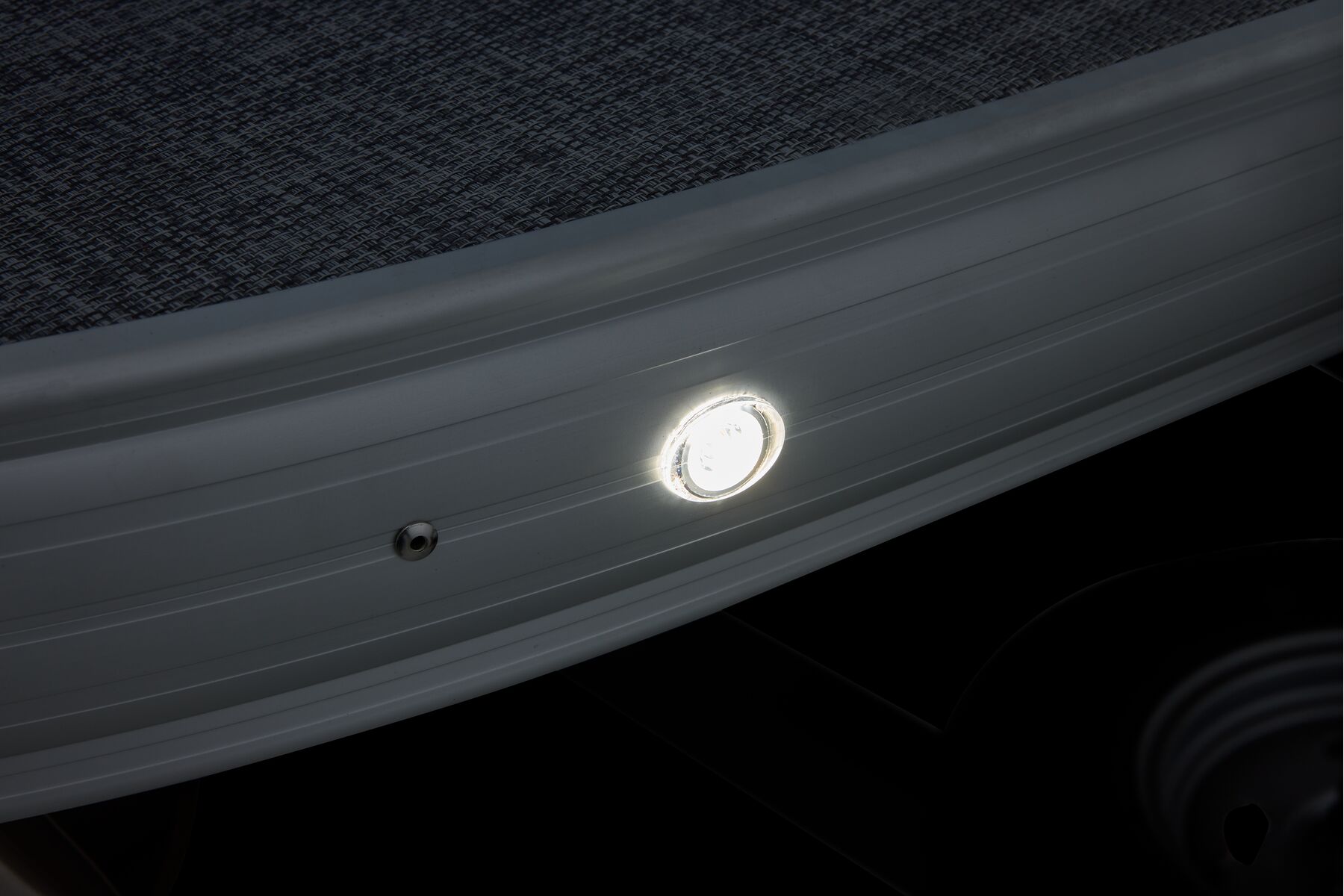

- Interior courtesy lighting
Options
