2027
PARTY BARGE® 20 DLX
w/ 60 ELPT FourStroke Command Thrust Mercury® FourStroke

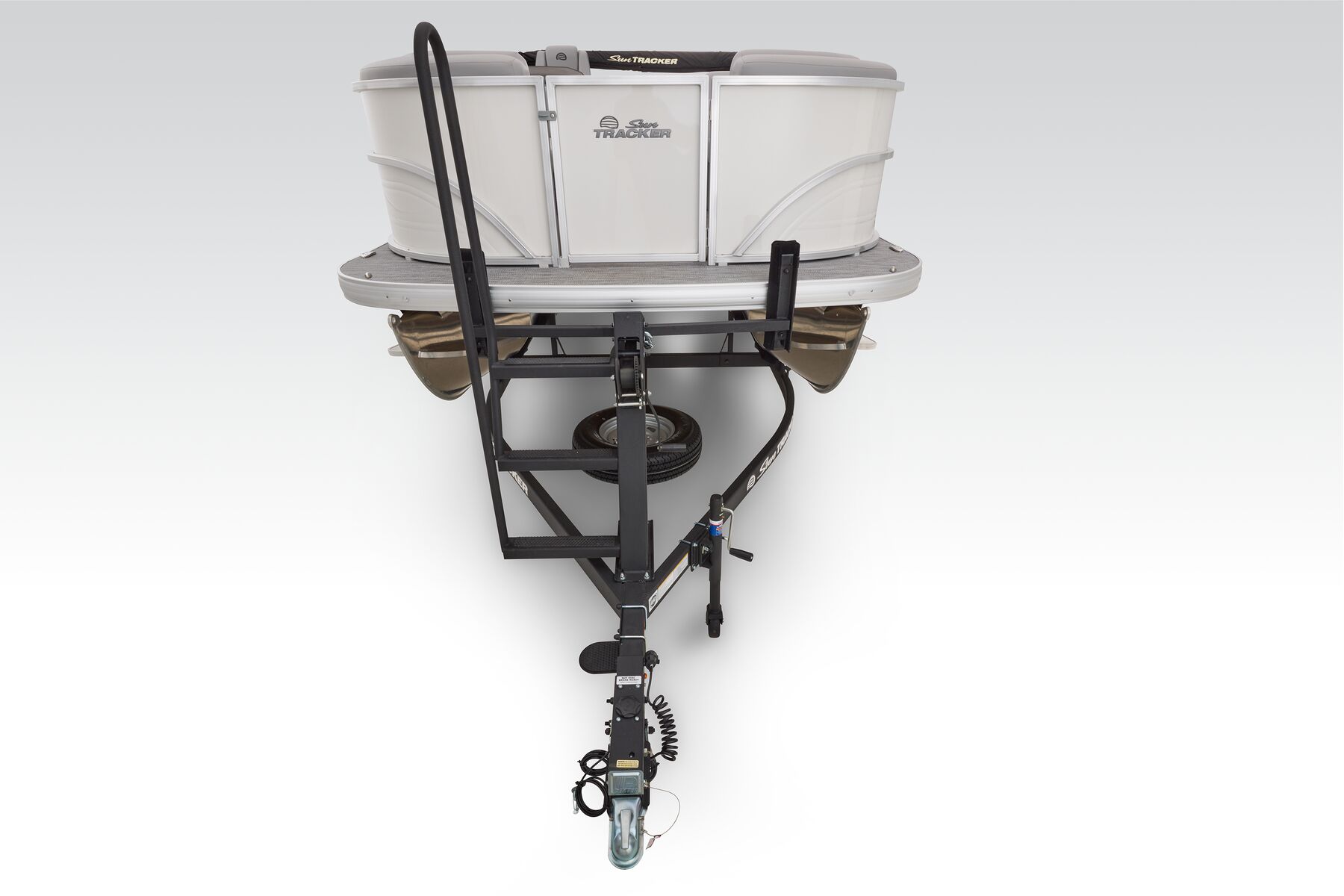

Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$32995
USD
|
Overview

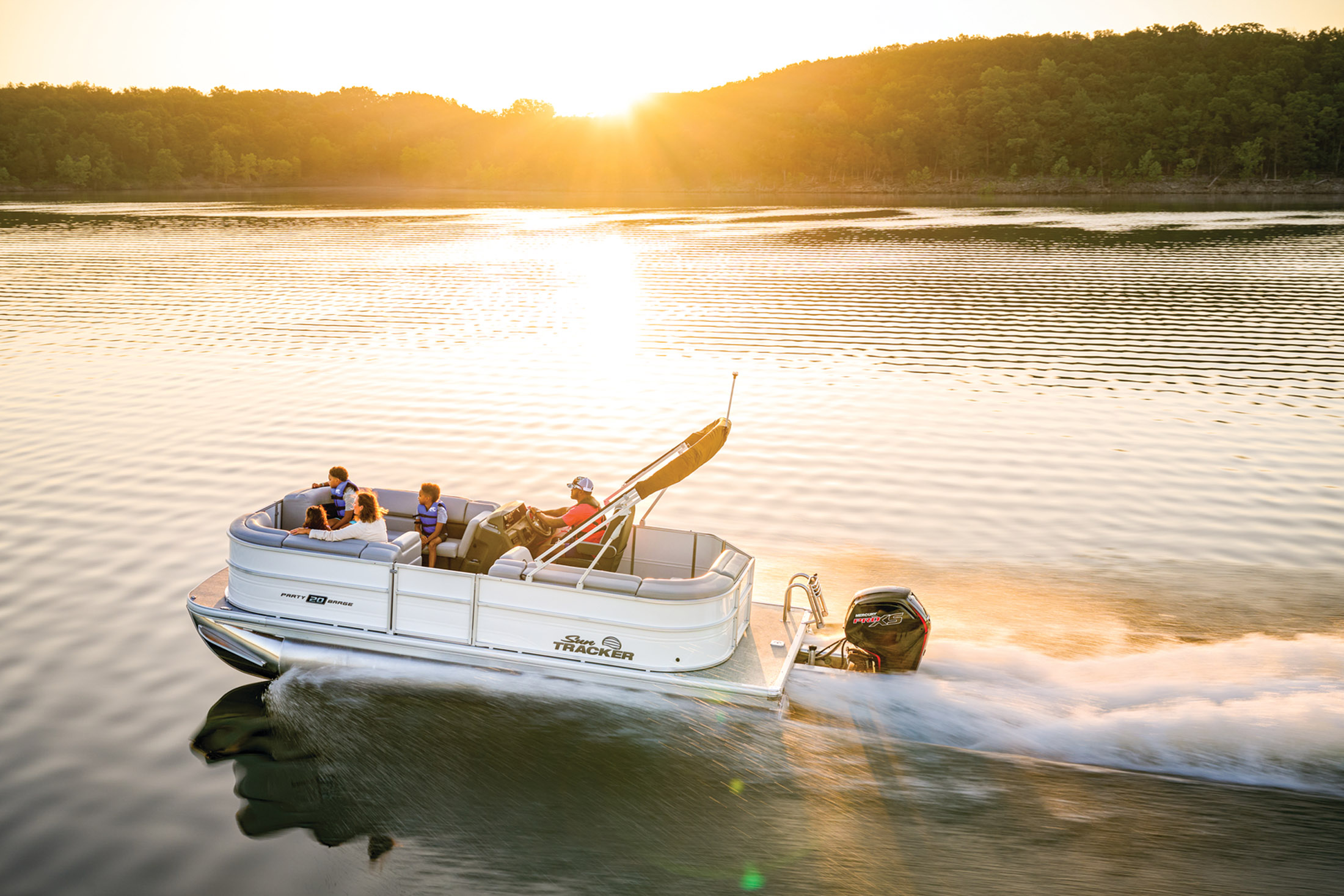

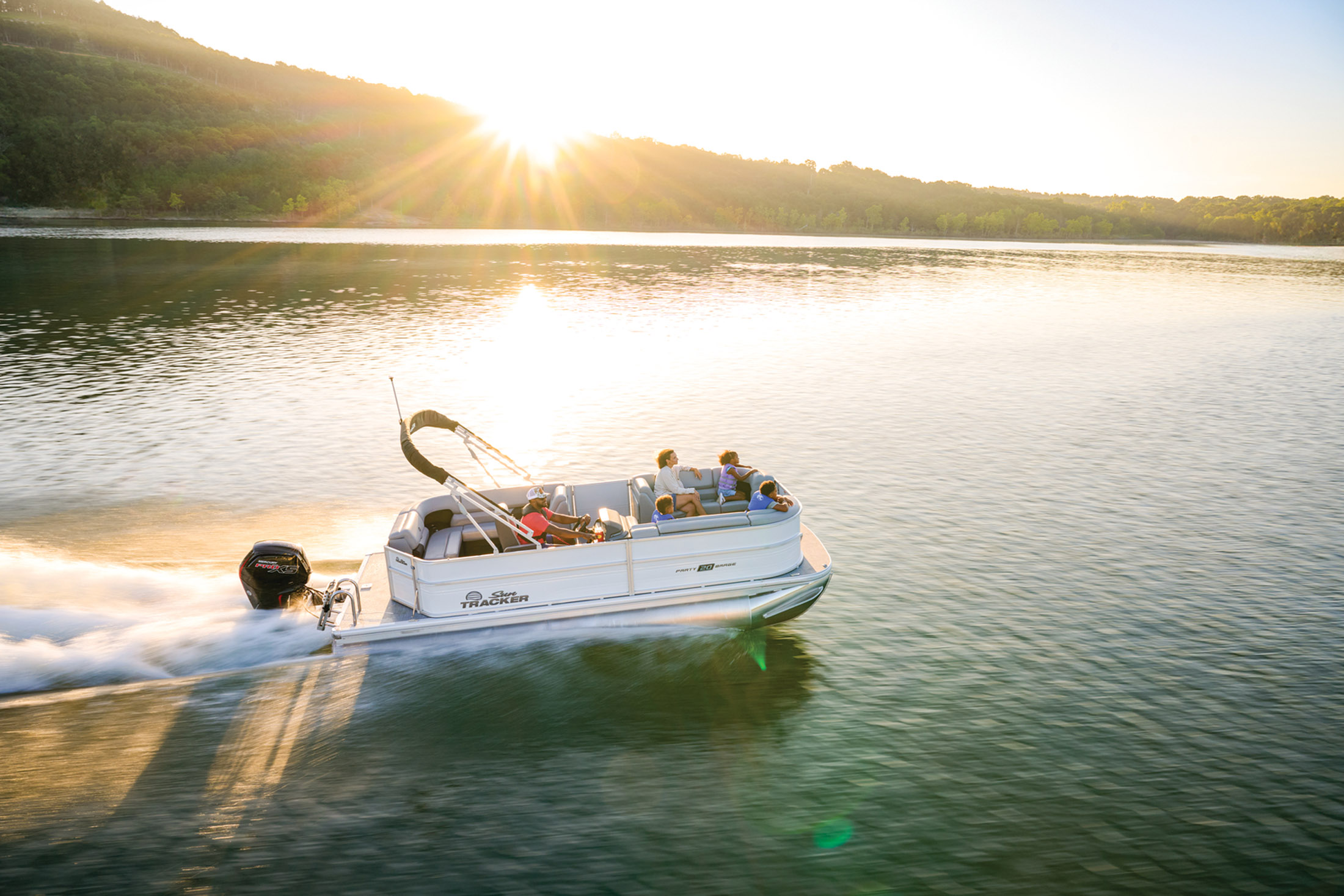

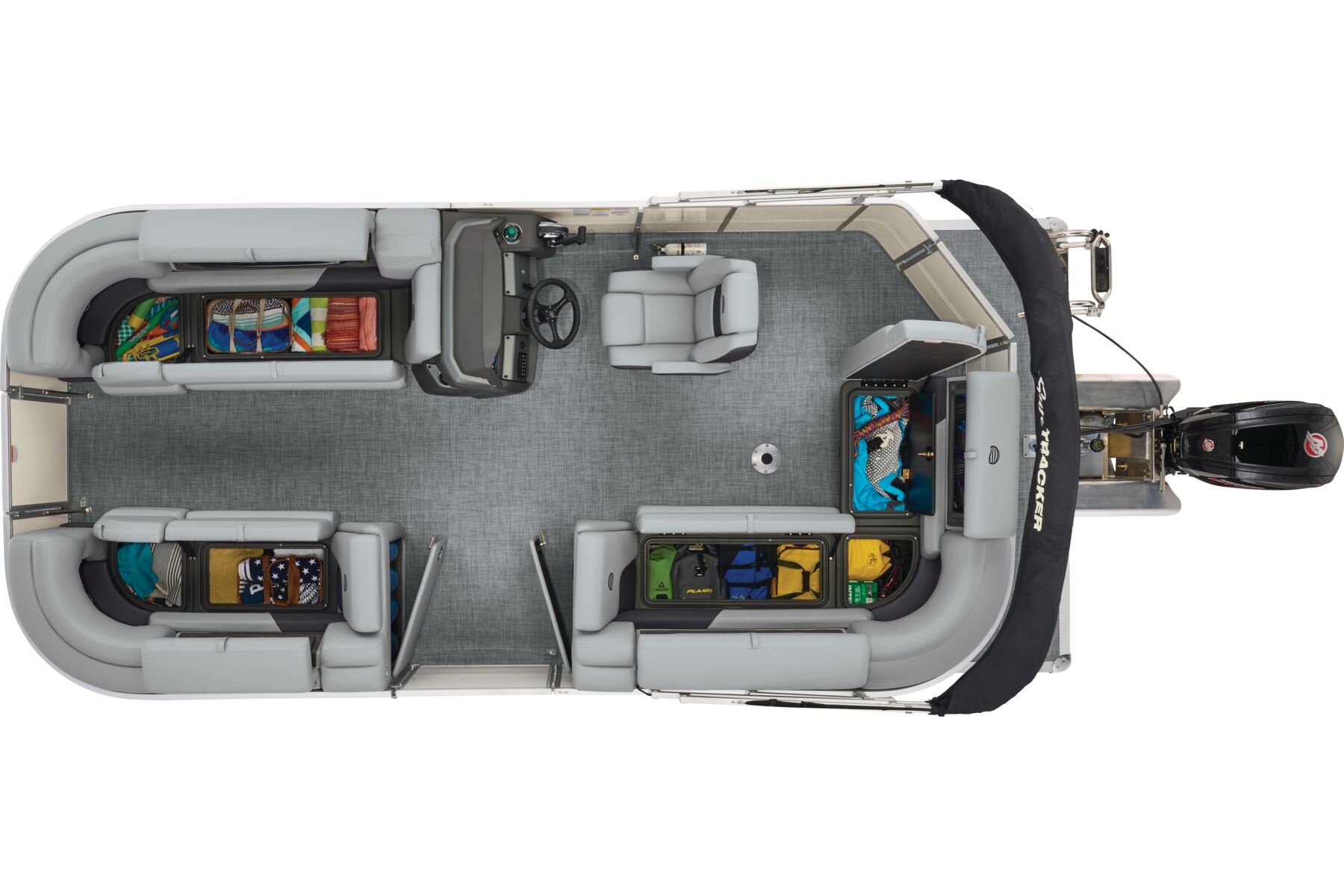

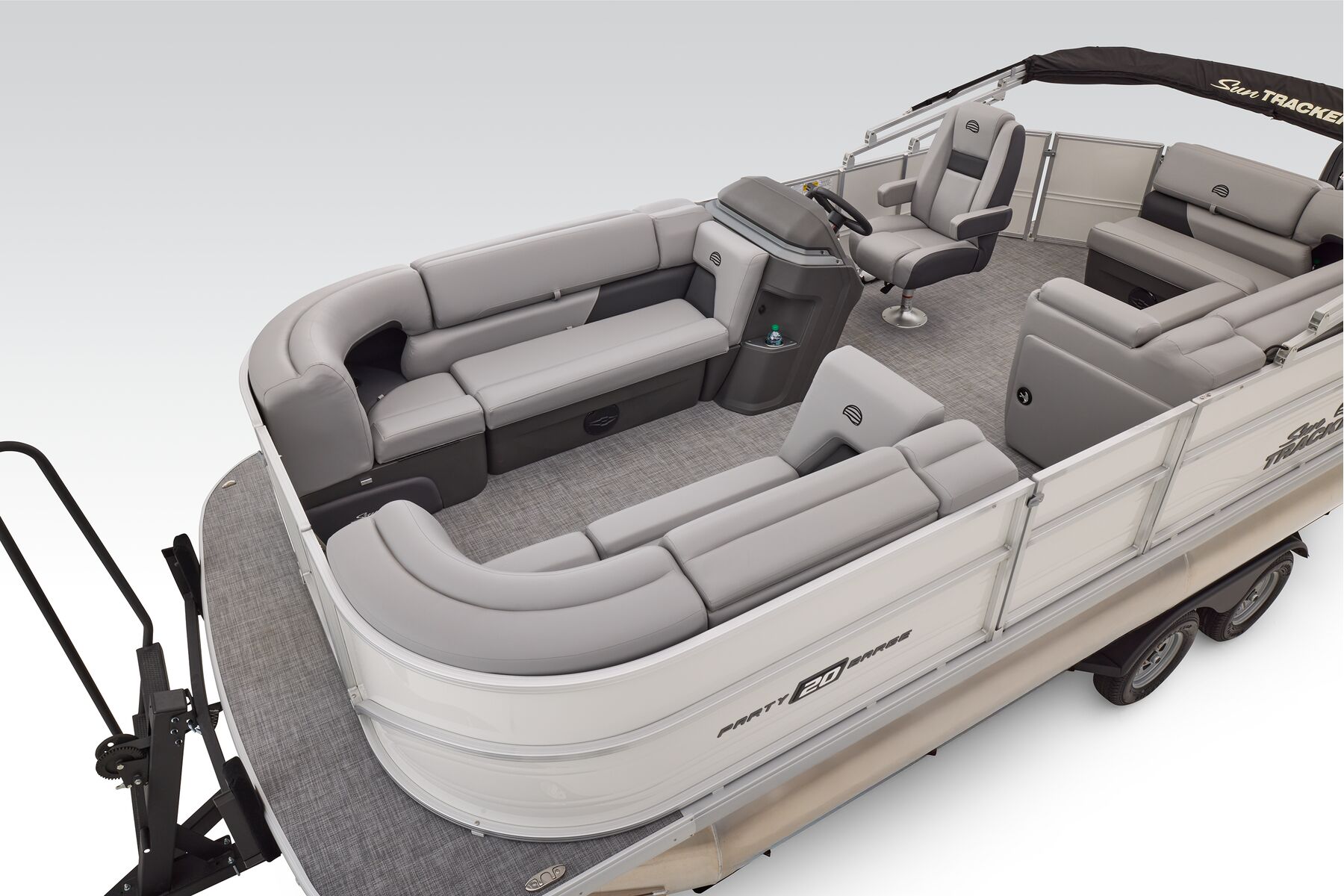

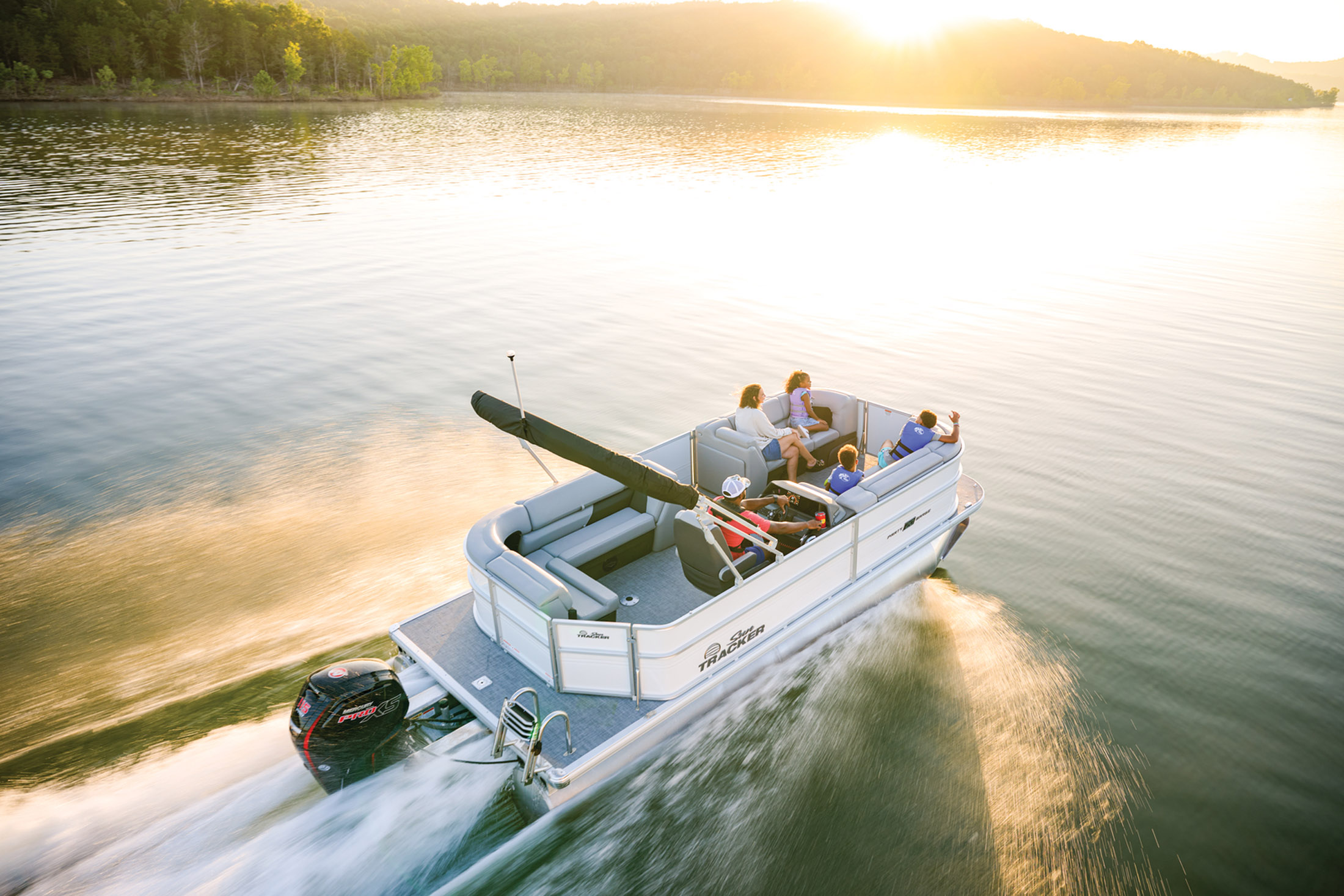

Built for bigger lake days, the 2027 SUN TRACKER® PARTY BARGE® 20 DLX makes every outing feel like a celebration with room for up to 10 people and comfort at every turn. Spacious wraparound lounges invite your crew to stretch out and relax, while premium upholstery, integrated storage, and added cupholders keep essentials close at hand.
At the helm, an updated captain’s console puts control and convenience front and center. Hidden storage beneath the plush seating helps keep the deck organized and ready for adventure.
For families and watersports fans, increased horsepower capabilities and a standard ski tow pylon anchor point make pulling skiers and tubers easier than ever. A wider boarding ladder also helps swimmers climb back aboard with confidence.
From sunrise cruises to sunset gatherings, the PARTY BARGE 20 DLX delivers the space, features, and versatility to make every weekend on the water one to remember.
Key Features
Touchscreen
SUN TRACKER FLARE™ gauge display with integrated GPS & NEW PARTYMORE™ broadcast audio for easy music sharing.

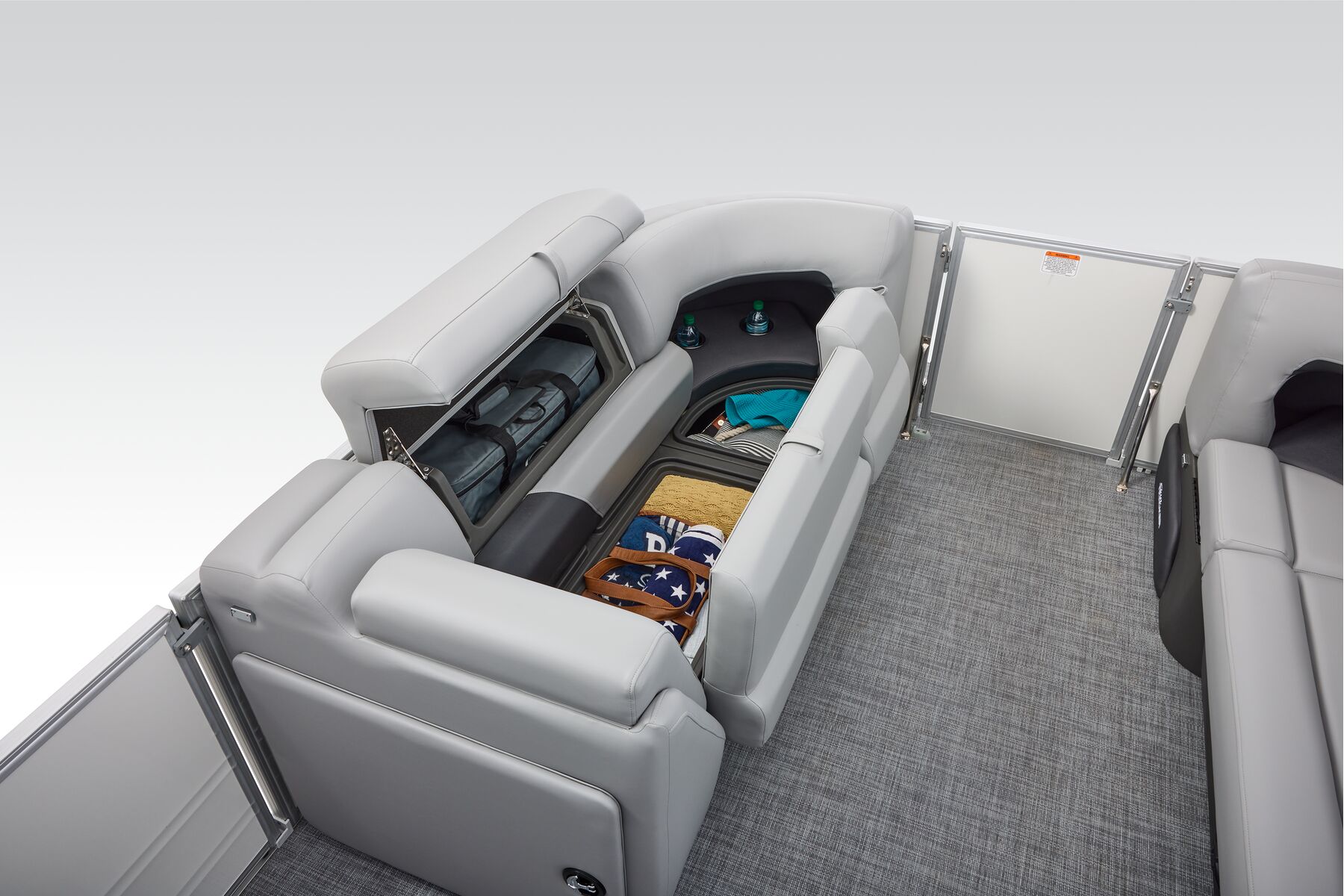

STOW MORE™
Patented built-in STOW MORE™ seat- back storage system for all couches.

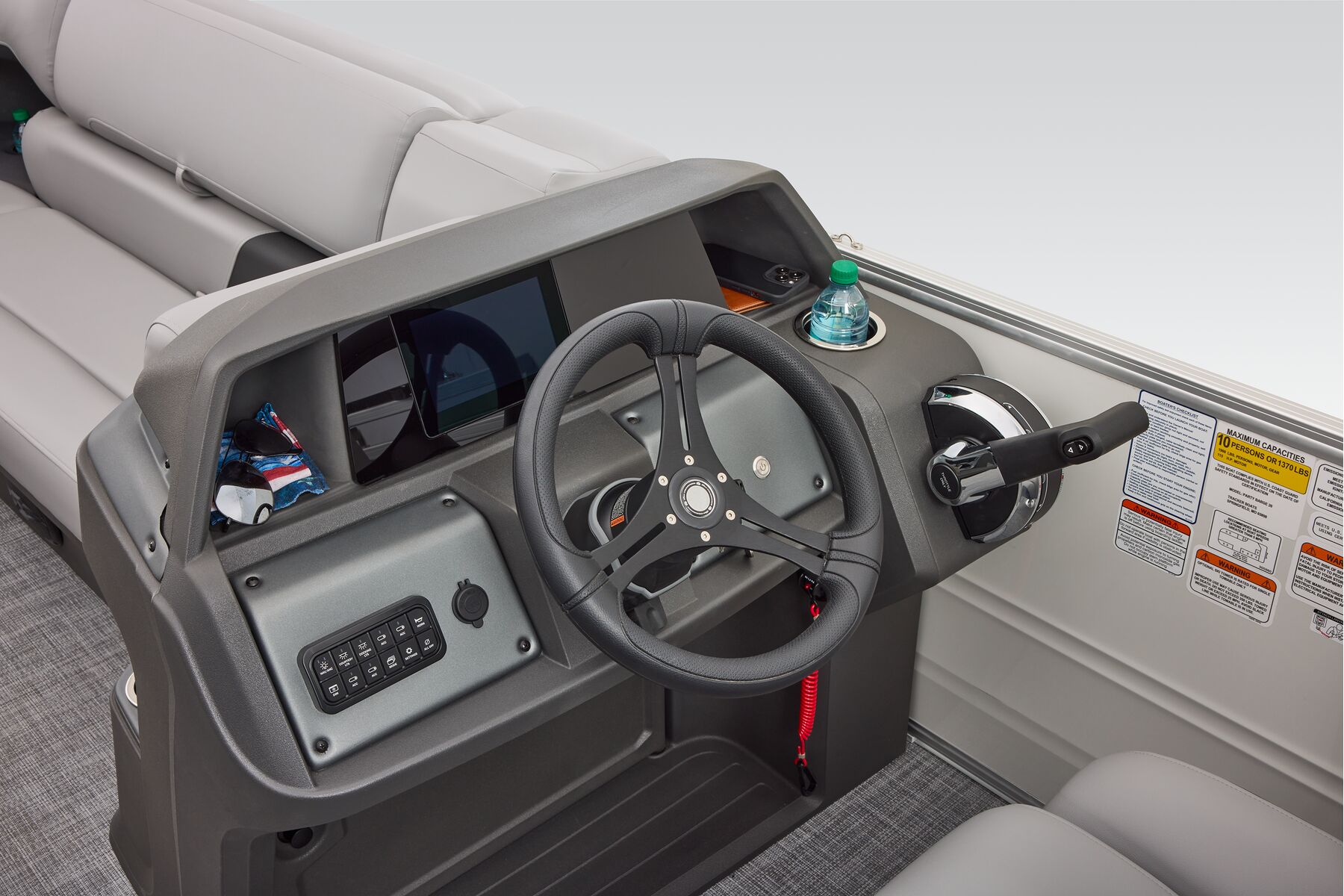

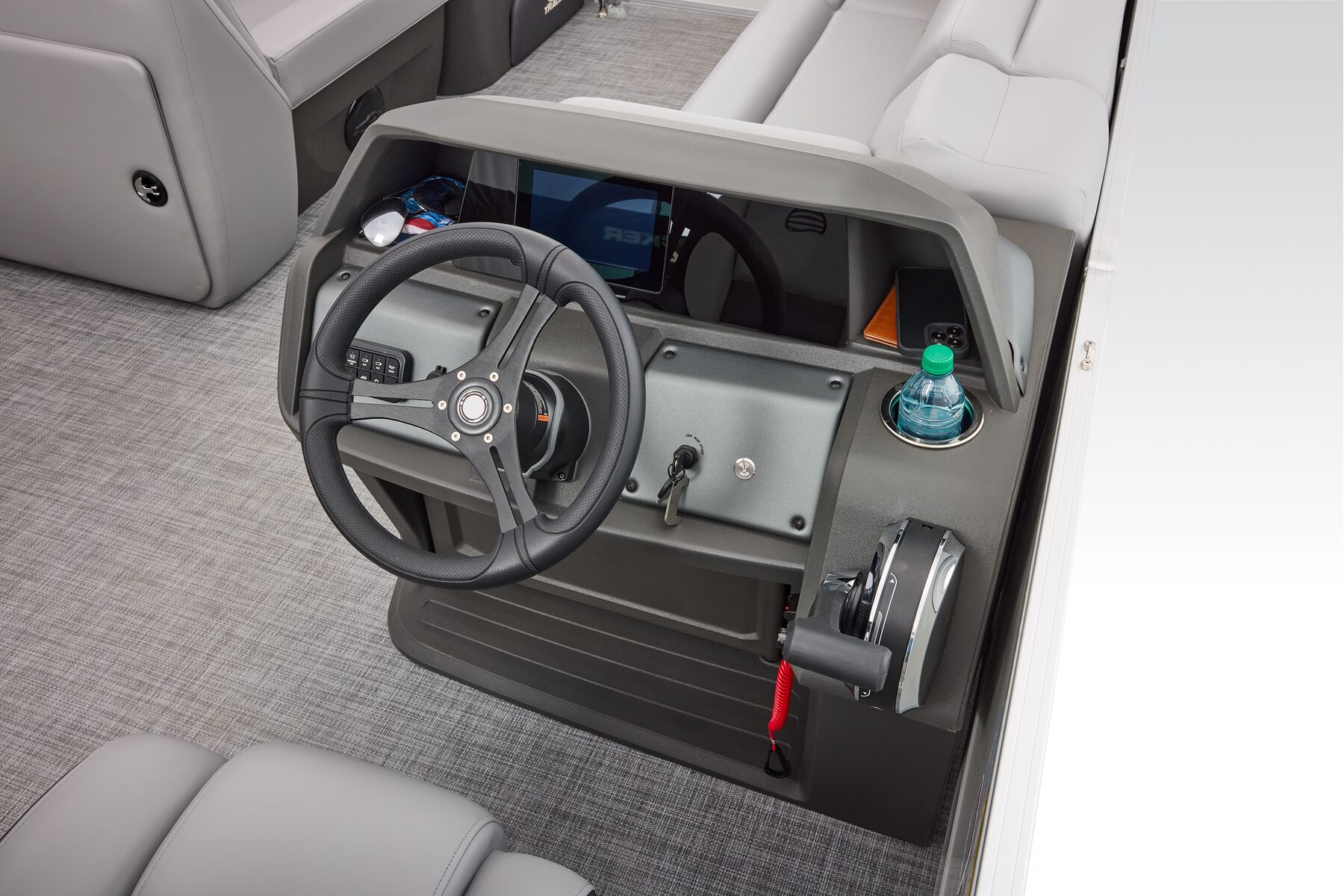

Console
NEW console design with integrated storage, drink holders, built-in footrest & ergonomically-positioned controls.
Specifications
| Length | 6.68 m | 21' 11'' |
| Deck Length | 6.05 m | 19' 10'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 115 HP | |
| Fuel Capacity | 121.5 L | 32.1 gal. |
| Pontoon Log Length | 6.2 m | 20' 4'' |
| Pontoon Log Diameter | 60.96 cm | 24'' |
| Pontoon Log Material | 0.080 5052 marine alloy | |
| Max. Person Capacity (U.S.) | 10 persons | |
| Max. Person Weight (U.S.) | 621.42 kg | 1370 lbs. |
| Max. Person, Motor & Gear Weight (U.S.) | 861.83 kg | 1900 lbs. |
| Max. Person Capacity (Canada) | 8 persons | |
| Max. Person Weight (Canada) | 605.55 kg | 1335 lbs. |
| Max. Person, Motor & Gear Weight (Canada) | 898.11 kg | 1980 lbs. |
| Interior Depth | 69.215 cm | 27.25'' |
| Average Dry Weight | 943.47 kg | 2080 lbs. |
| Average Package Weight | 1698.7 kg | 3745 lbs. |
| Package Height | 2.67 m | 8' 9'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.19 m | 30' 2'' |
| Storage Length | 9.19 m | 30' 2'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 9.9 ELPT FourStroke Command Thrust ProKicker | - |
$28520 USD
|
Select Dealer | ||
| 20 ELPT FourStroke | - |
$29170 USD
|
Select Dealer | ||
| 25 ELPT FourStroke | - |
$30110 USD
|
Select Dealer | ||
| 60 ELPT FourStroke Command Thrust | 18-23 mph |
$32995 USD
|
Select Dealer | ||
| 90 ELPT FourStroke Command Thrust | 23-29 mph |
$35405 USD
|
Select Dealer | ||
| 115 ELPT FourStroke Command Thrust | - |
$36220 USD
|
Select Dealer | ||
| Mercury® Pro XS® | |||||
| 115 ELPT Pro XS® FourStroke Command Thrust | - |
$37075 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
- NMMA® certified
- 9' (2.74 m) Black SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot

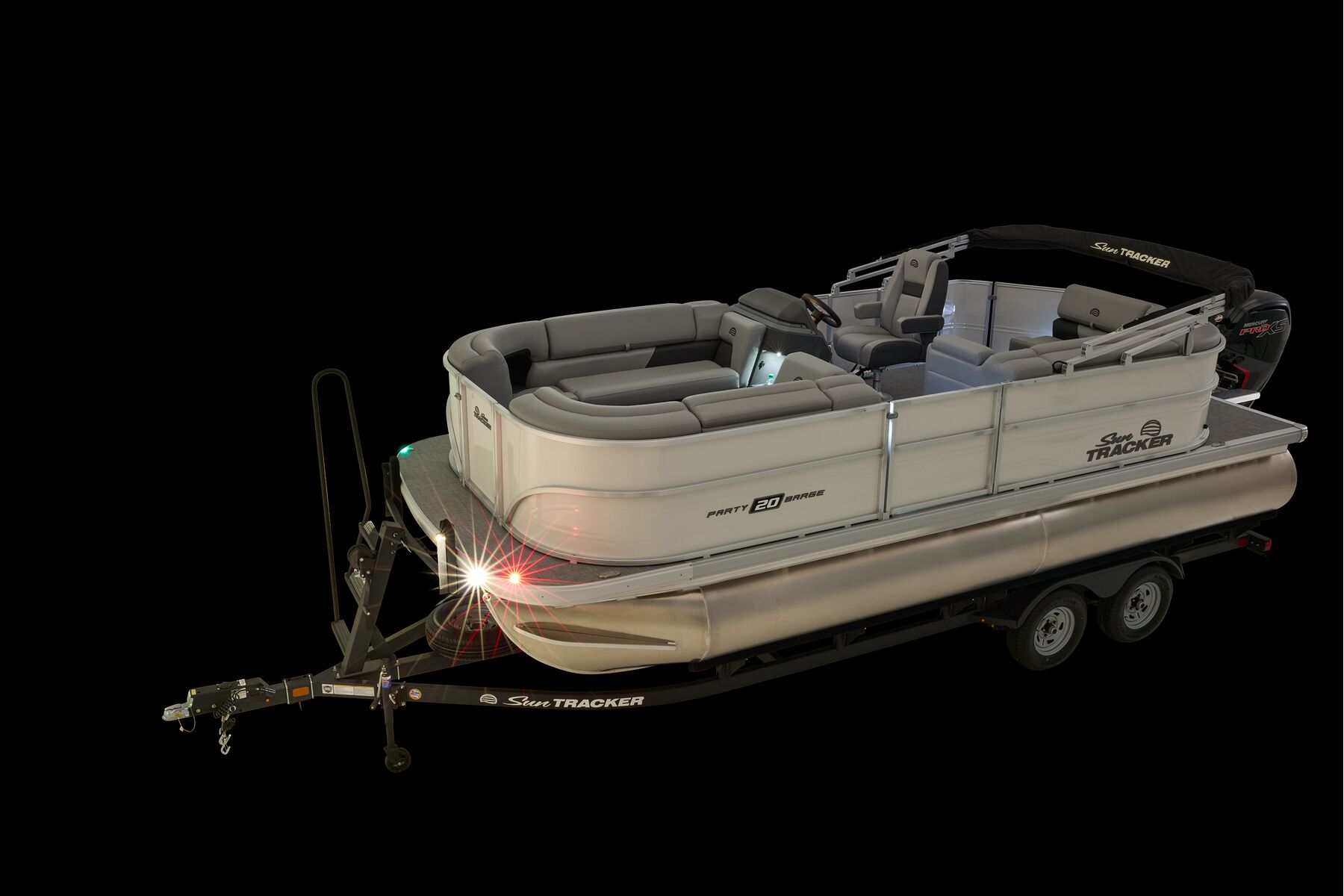

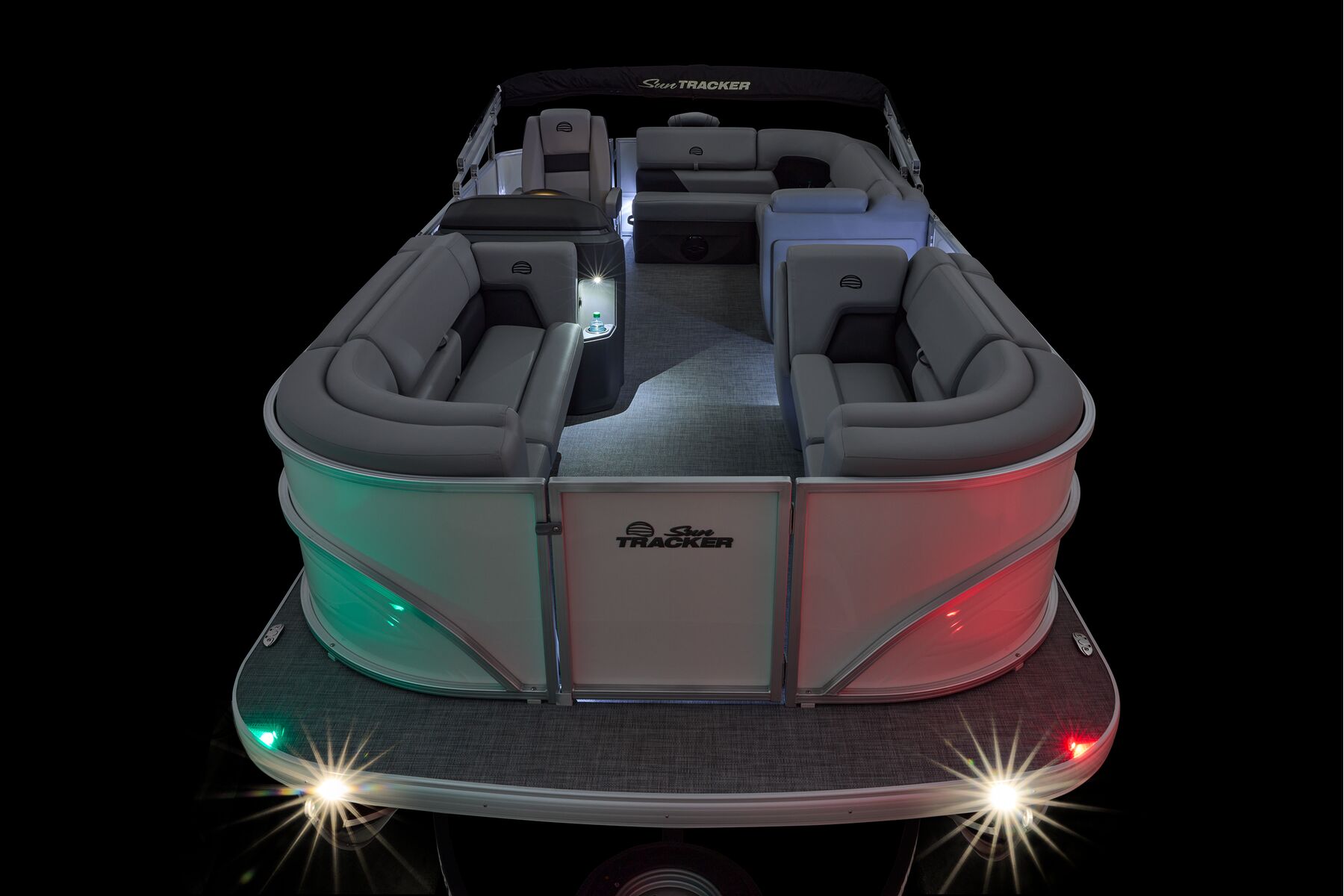

- Integrated LED docking lights

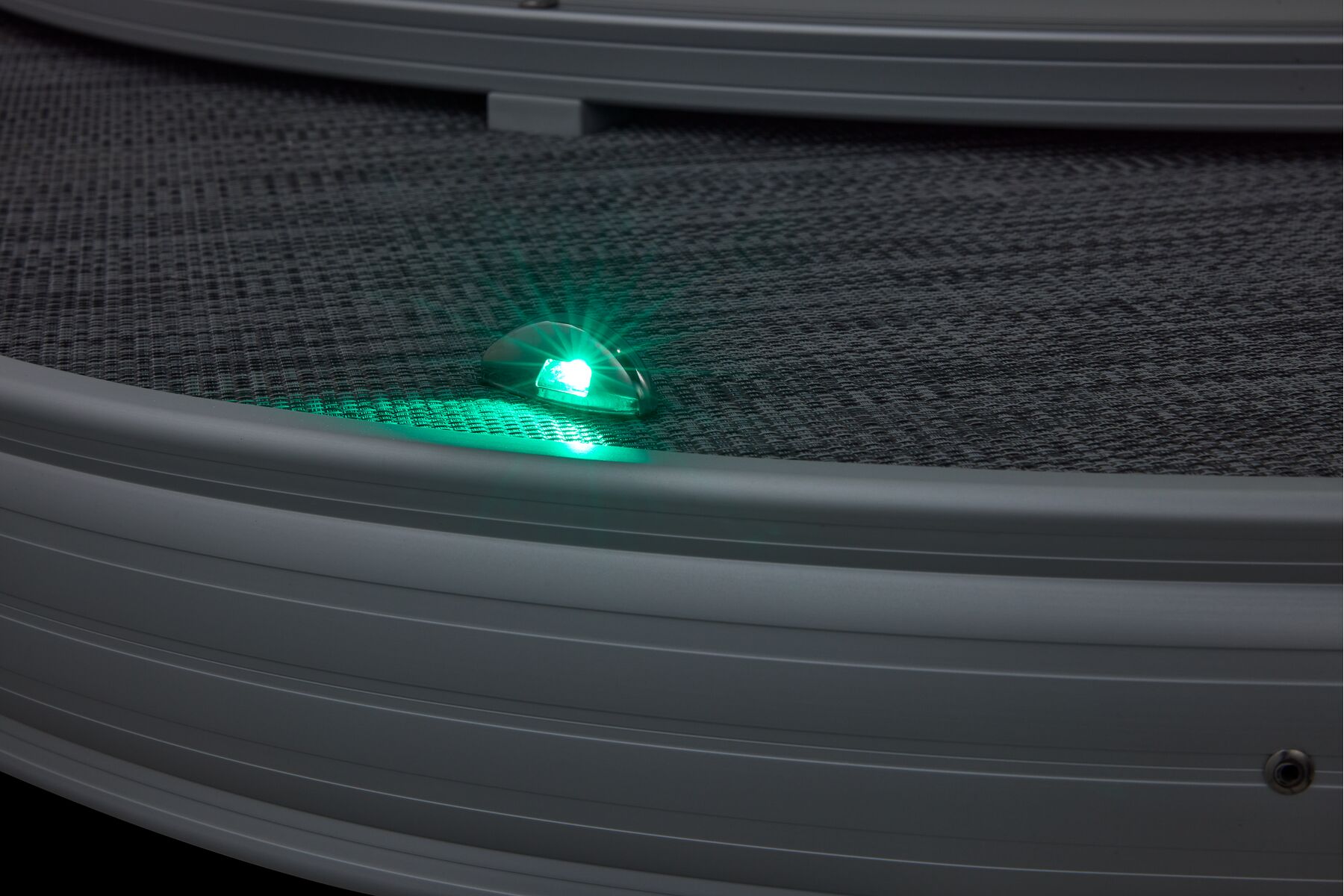

- Integrated LED navigation & anchor lights

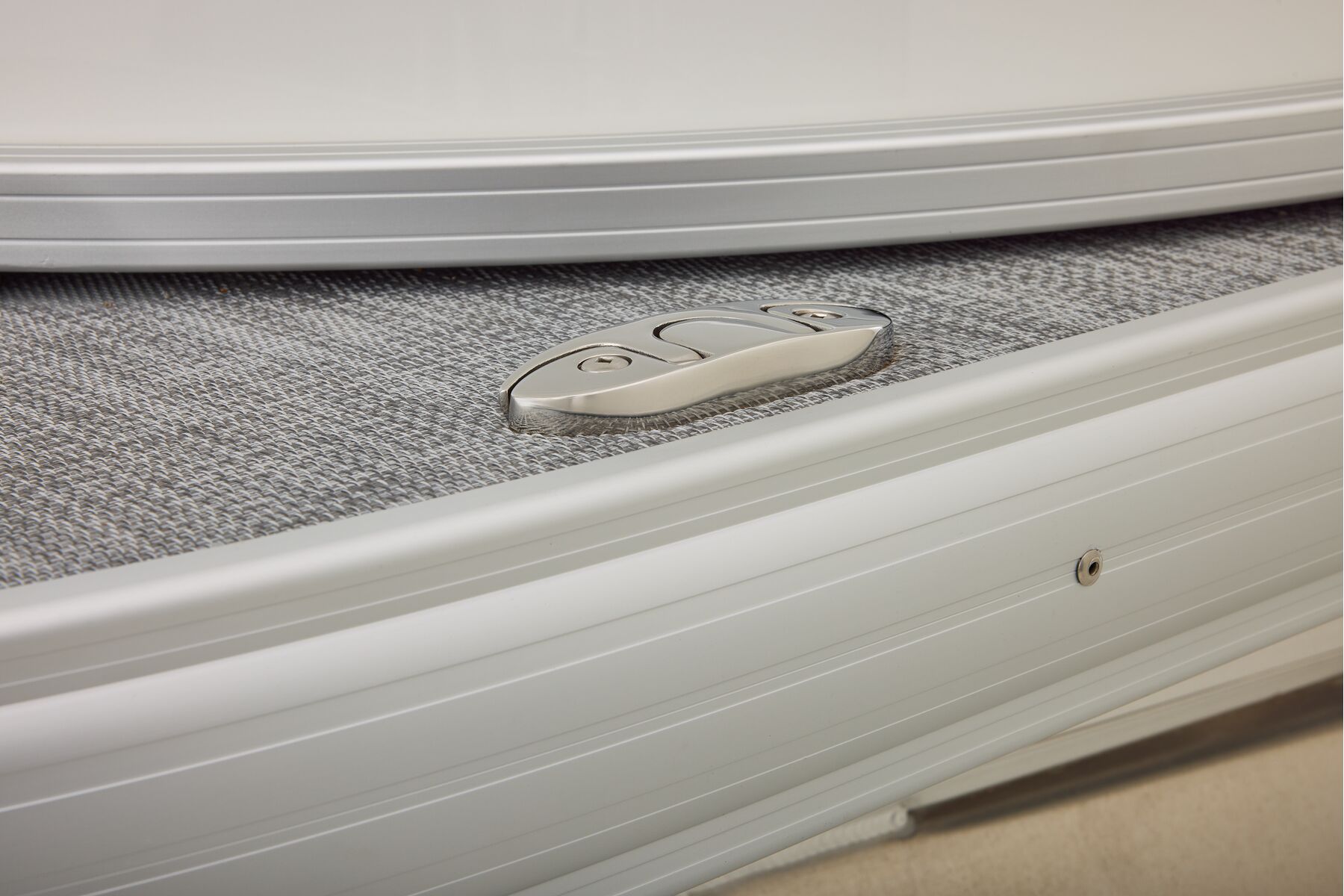

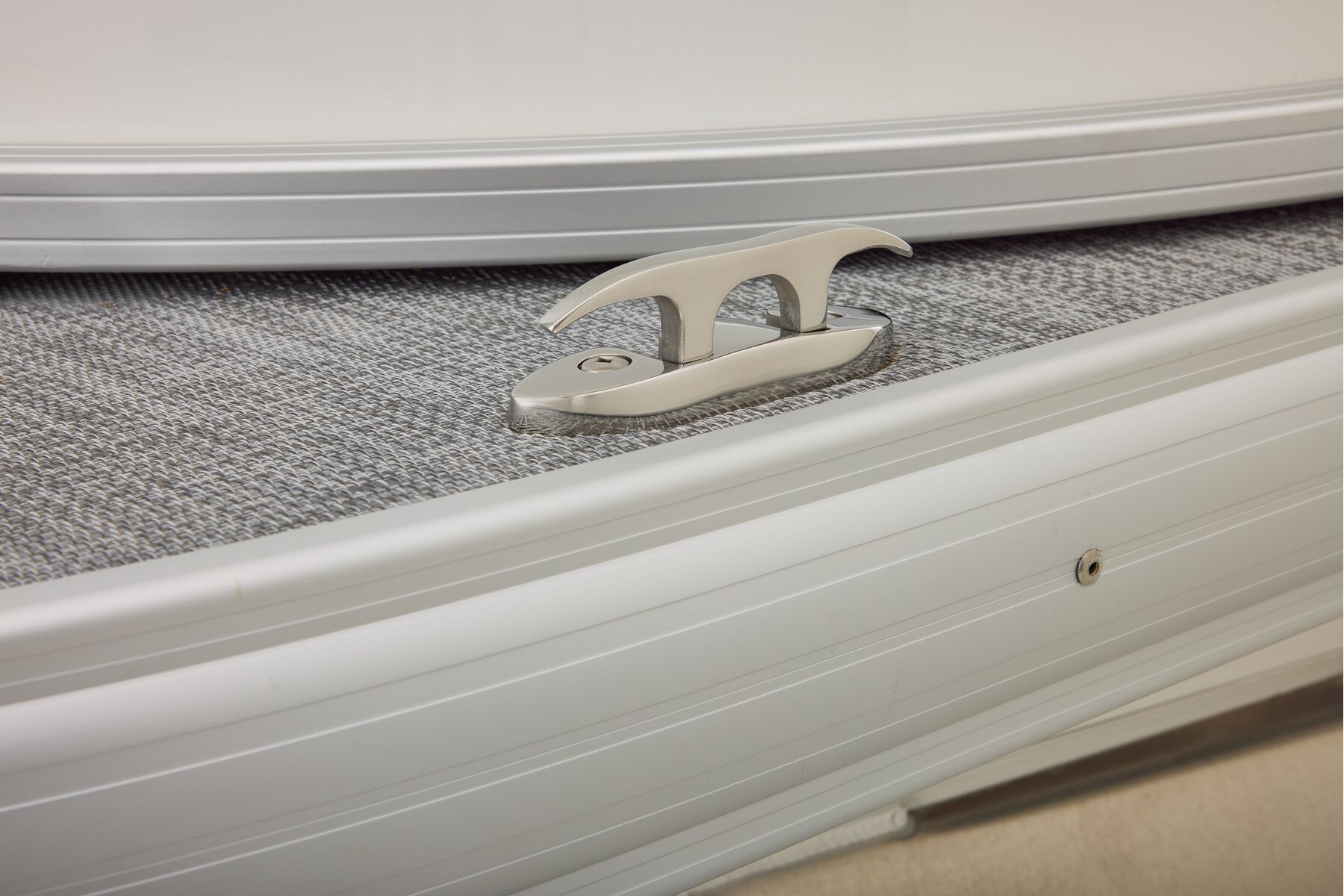

- 4 folding mooring cleats

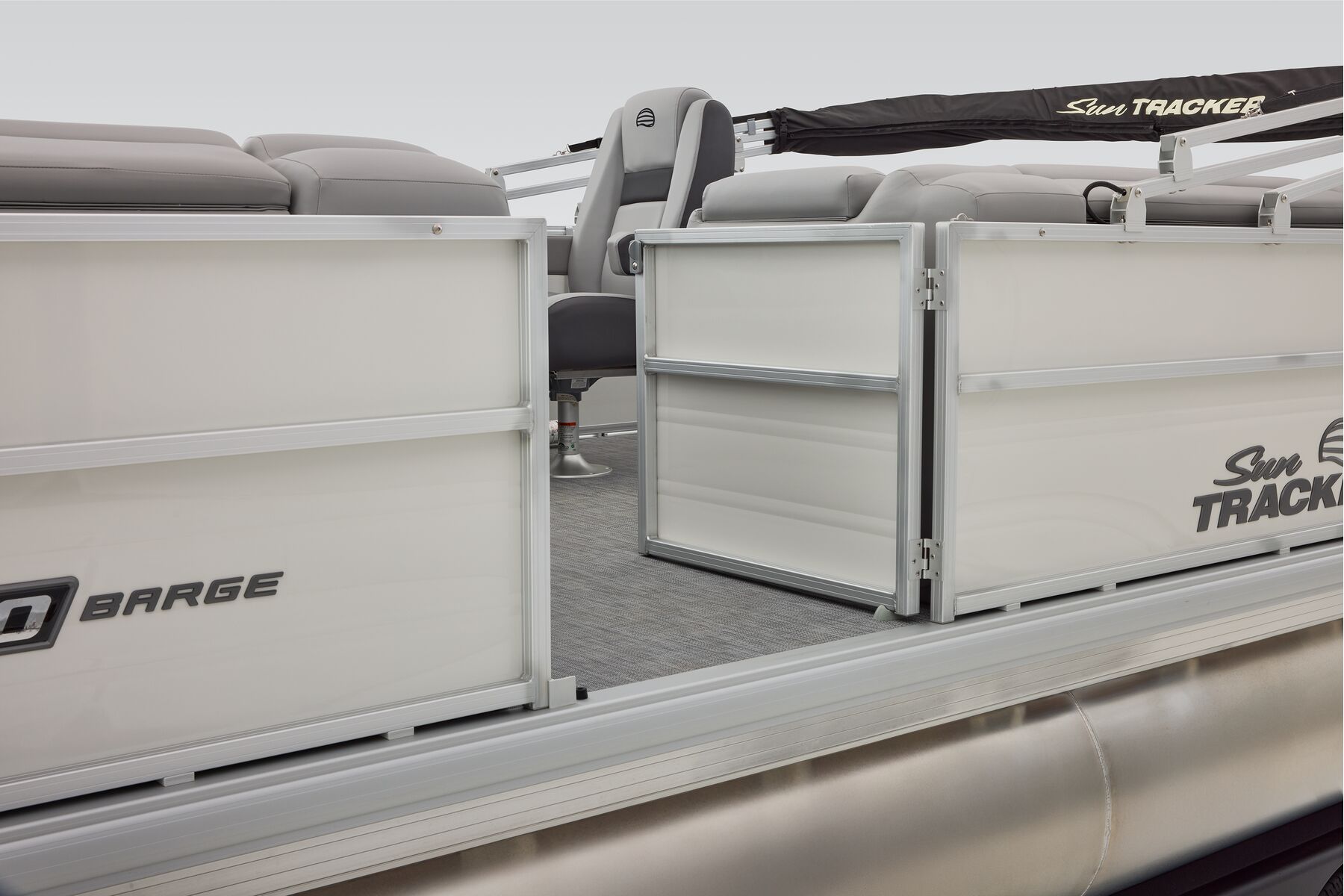

- Port wheelchair-accessible gate

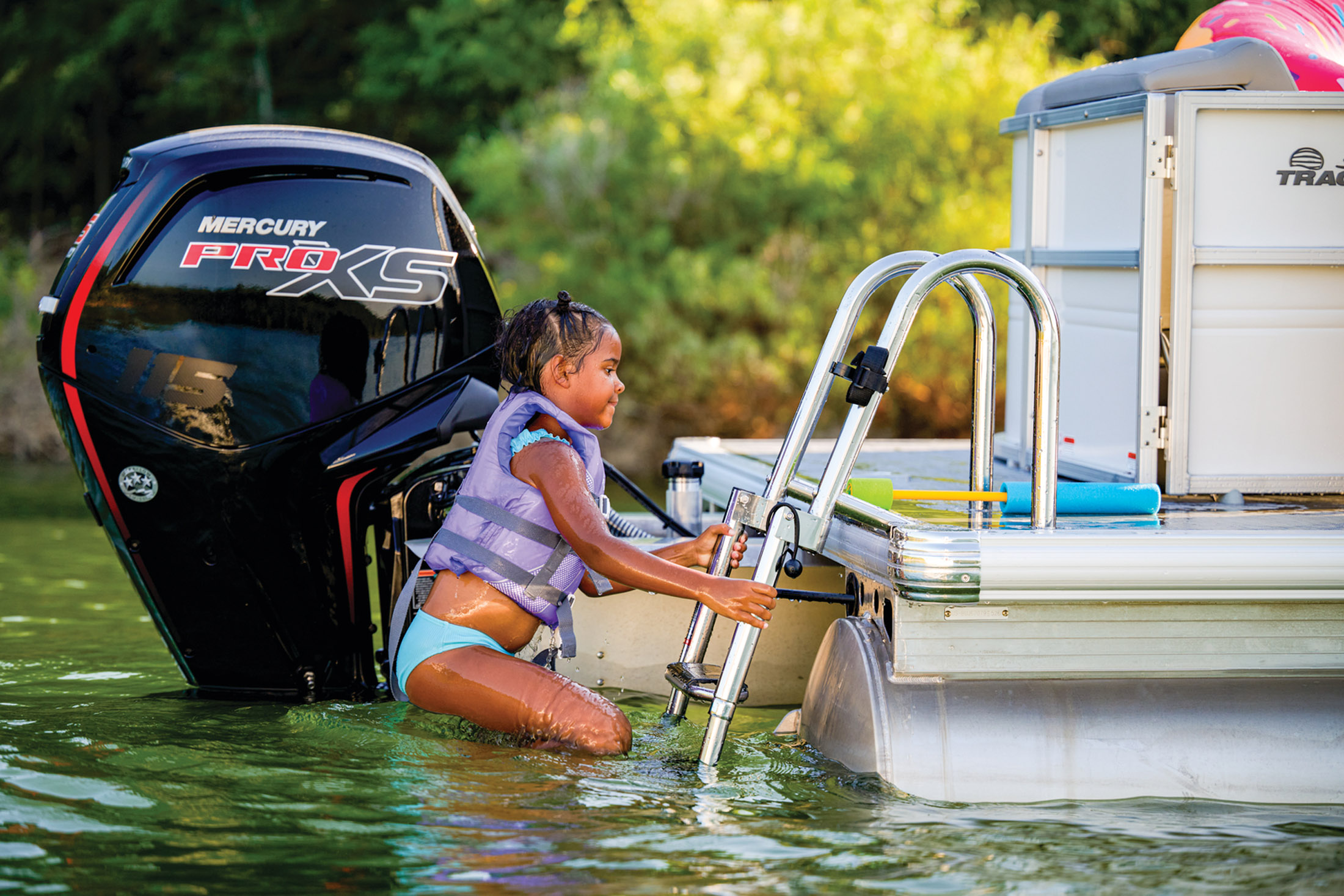

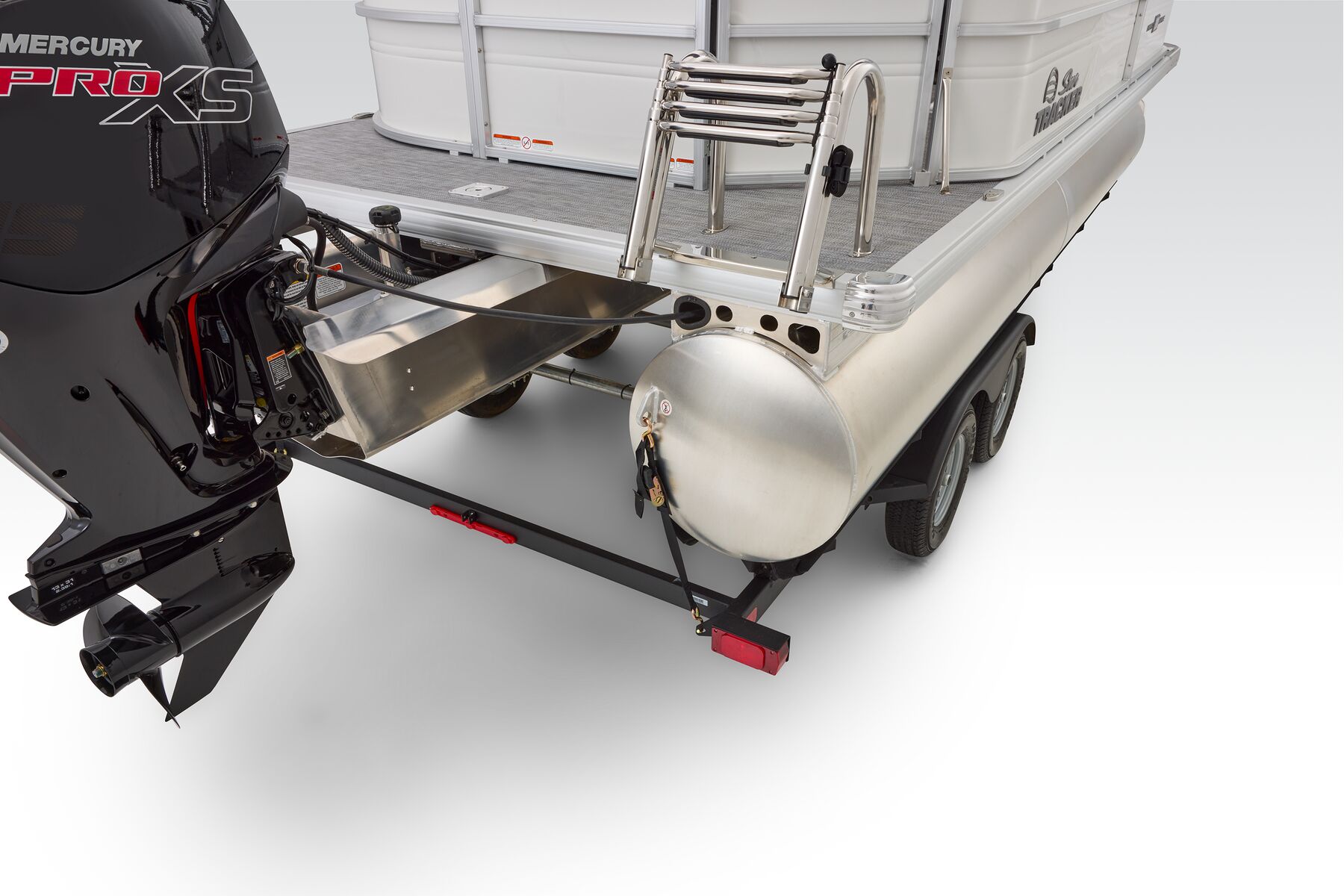

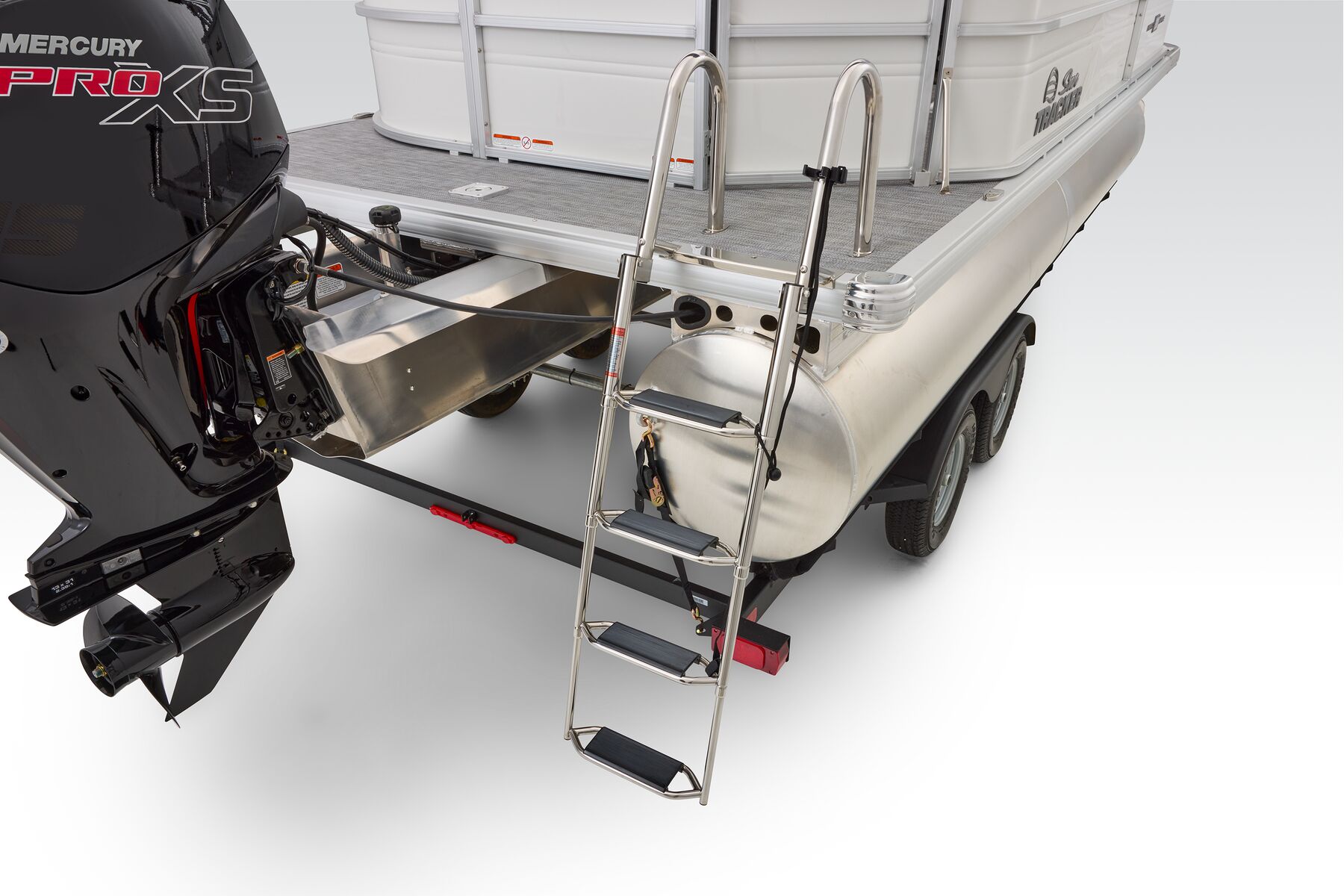

- Rear boarding platform w/wide 4-step telescoping boarding ladder & grab rails

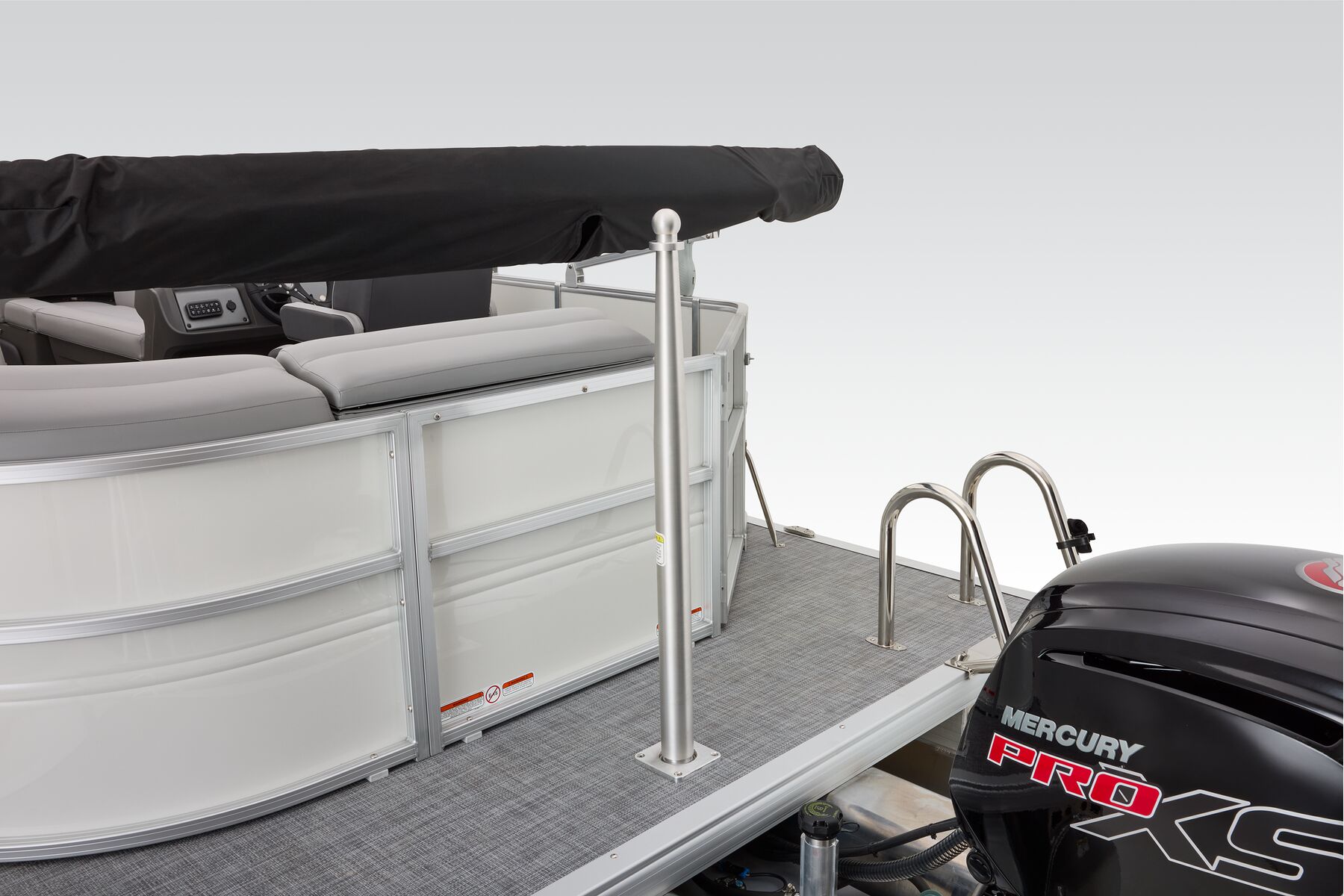

- Aft receptacle base for optional ski tow pylon
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console

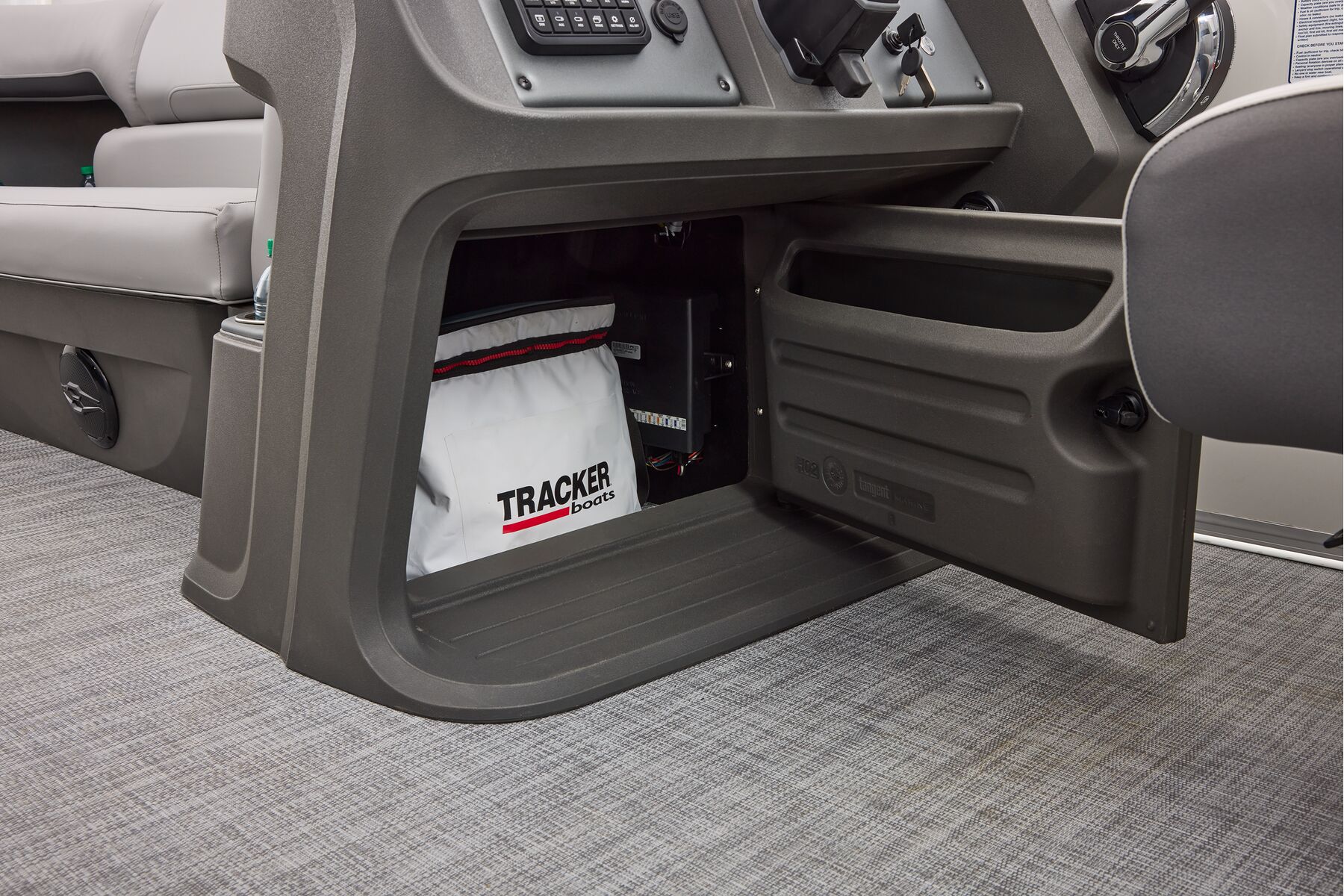

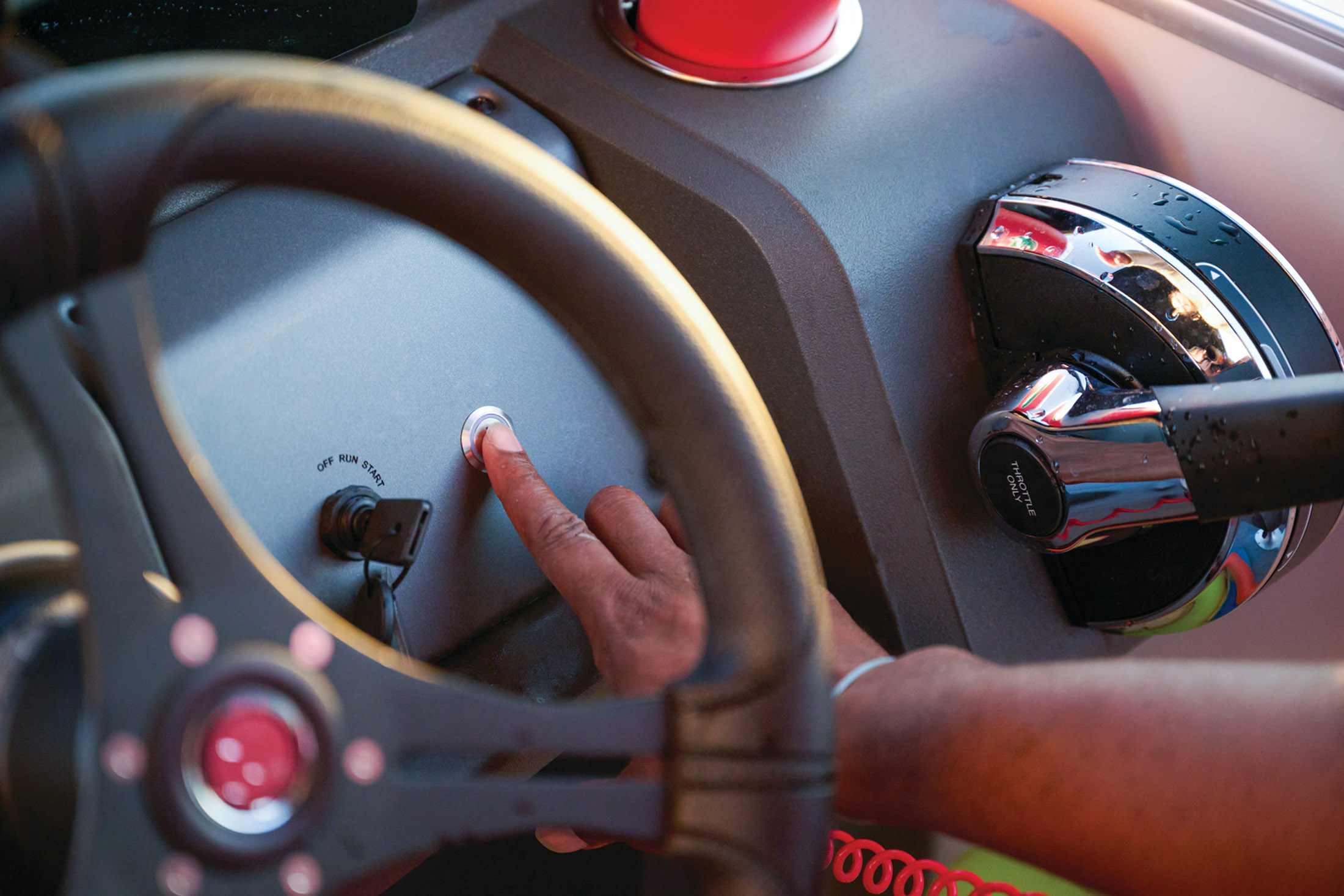

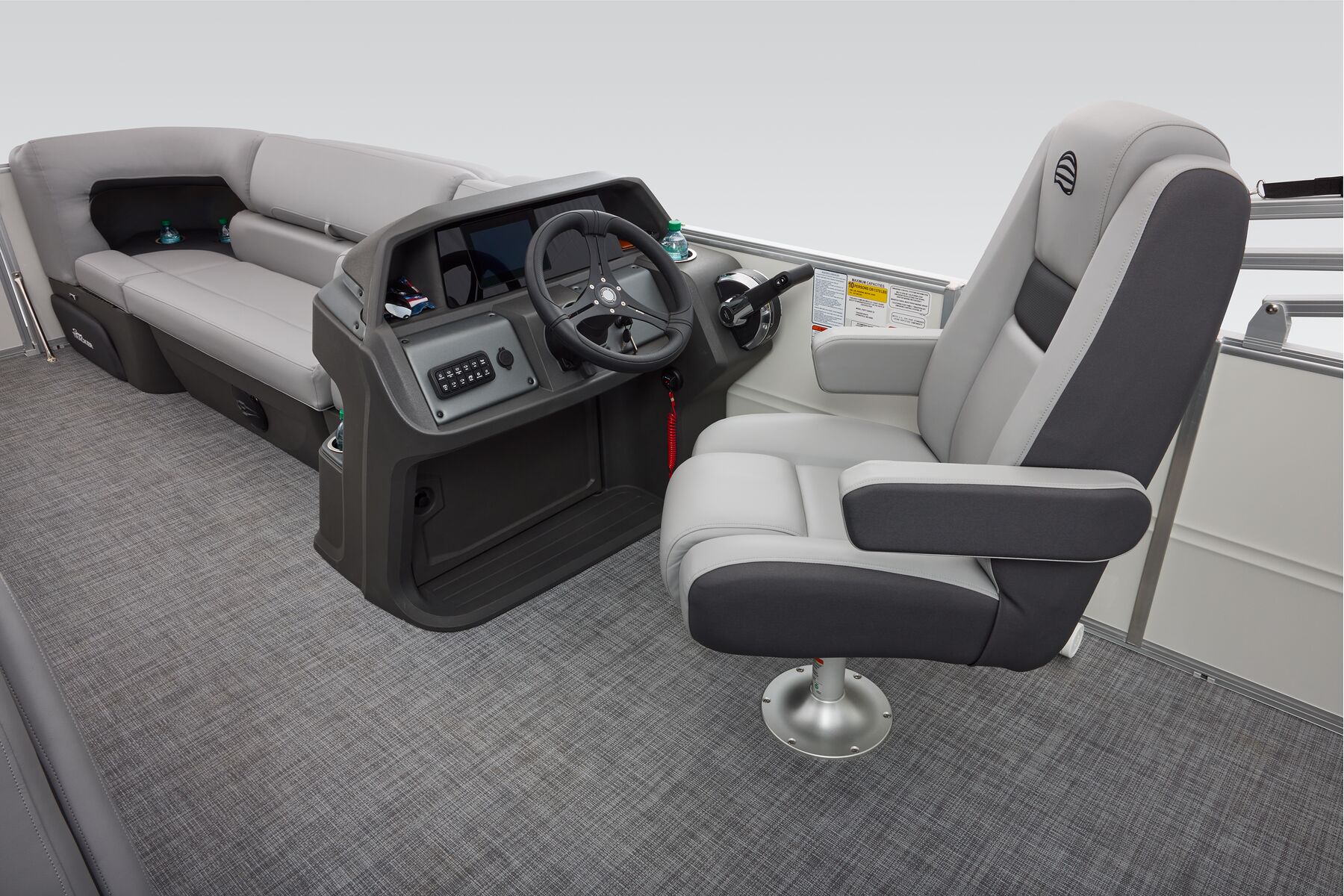

- Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

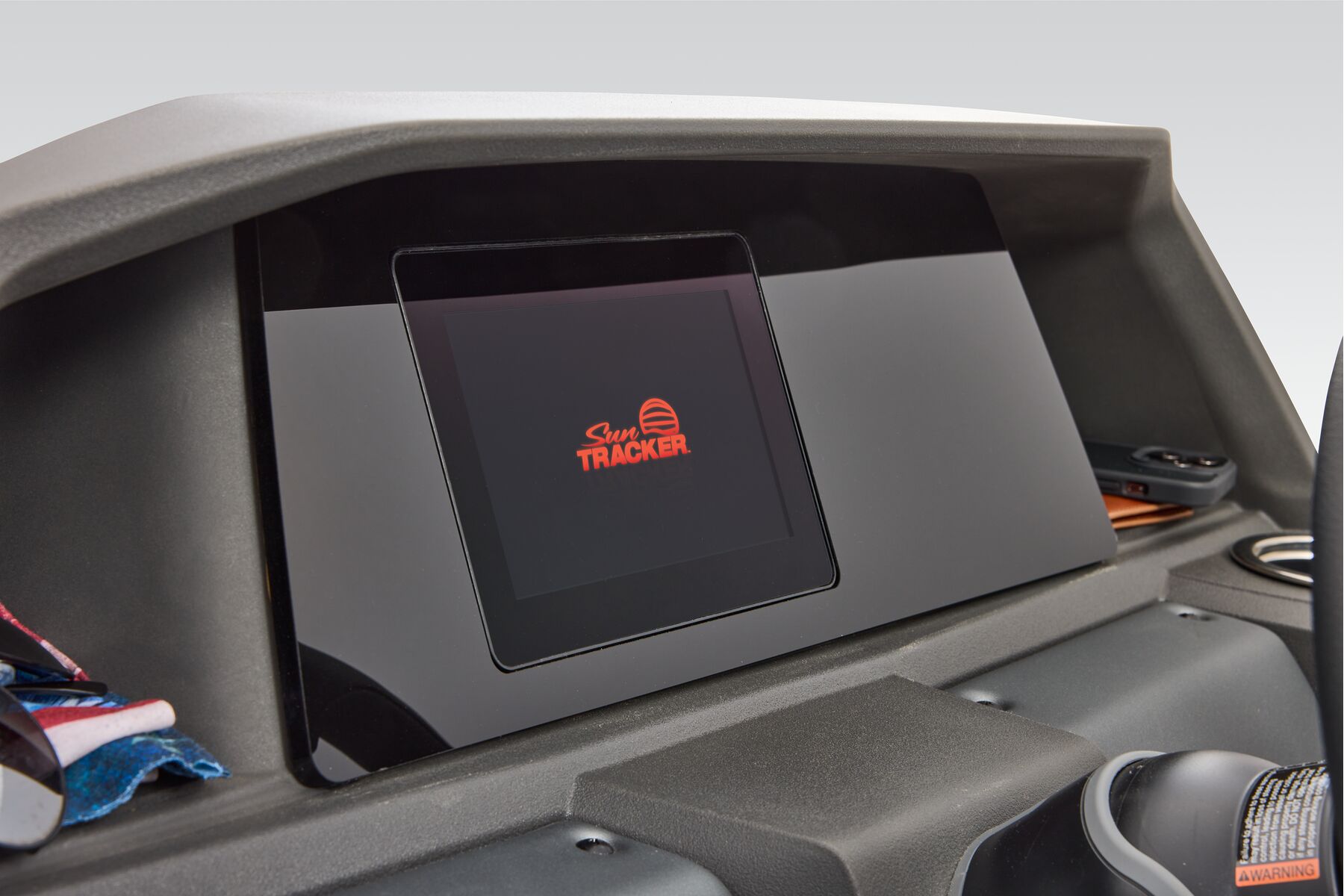

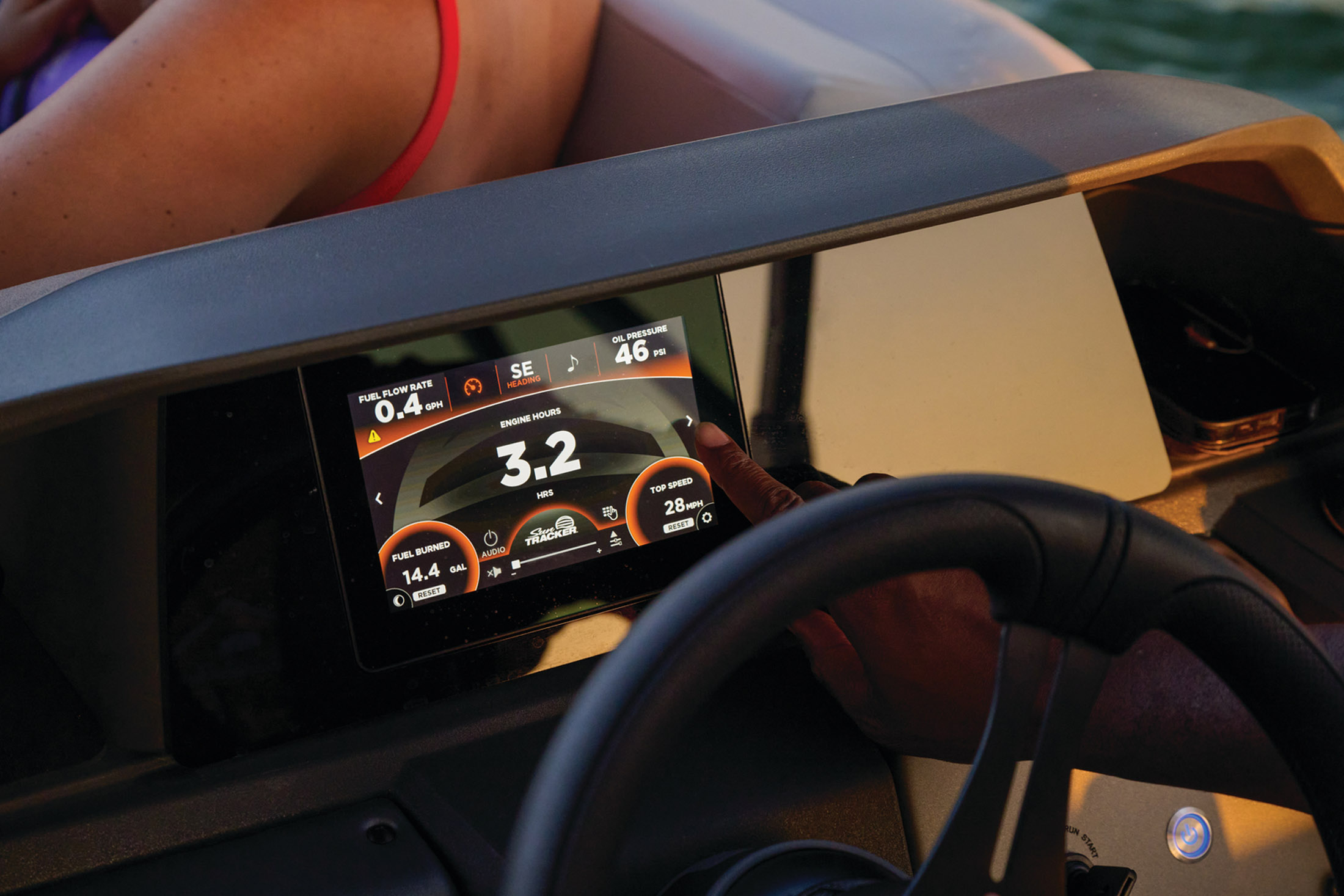

- SUN TRACKER FLARE™ touchscreen gauge display w/integrated GPS, stereo control, screen protector & upgraded Bluetooth®
- NEW PARTYMORE™ broadcast audio mode integrated into FLARE™ touchscreen for easy music sharing

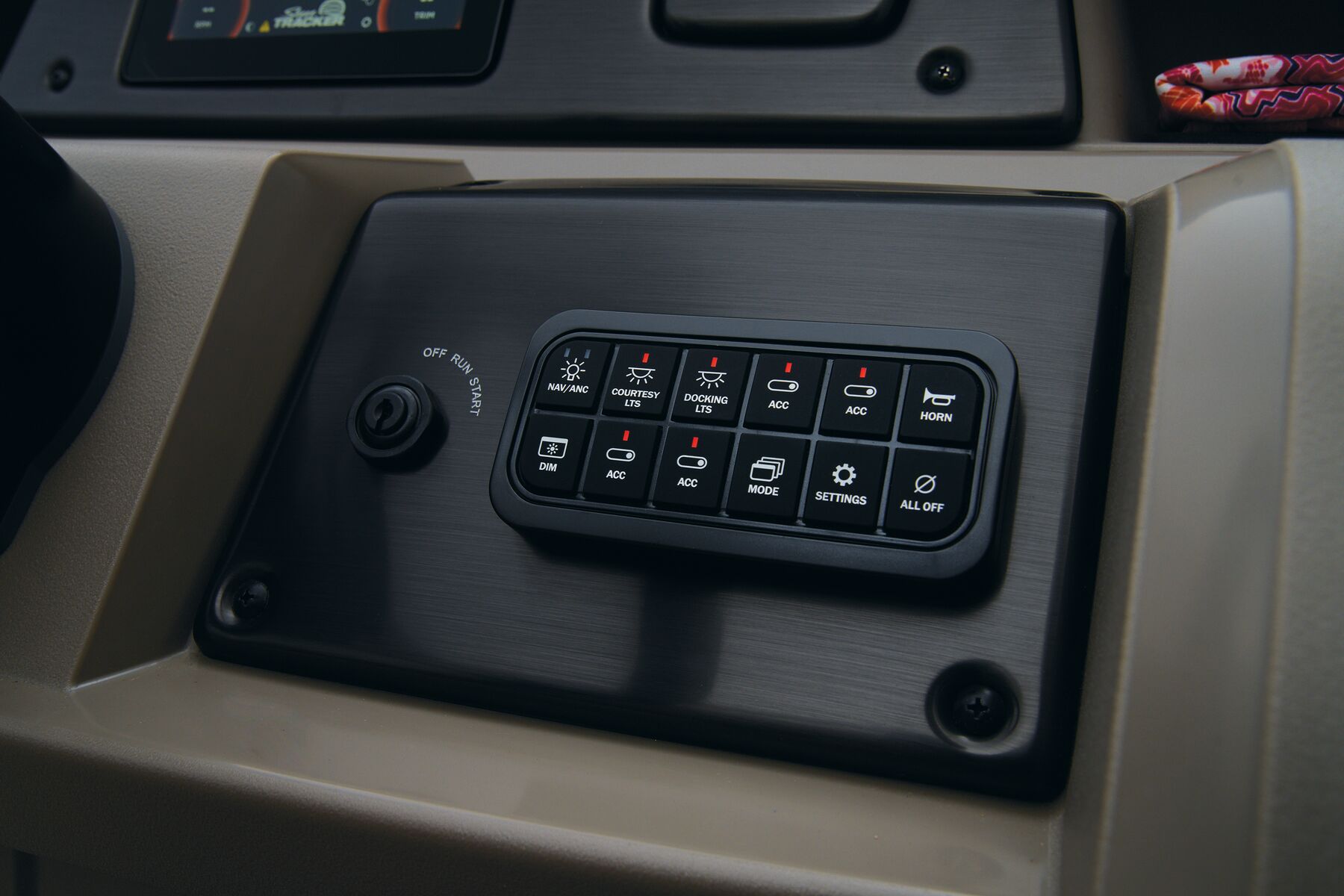

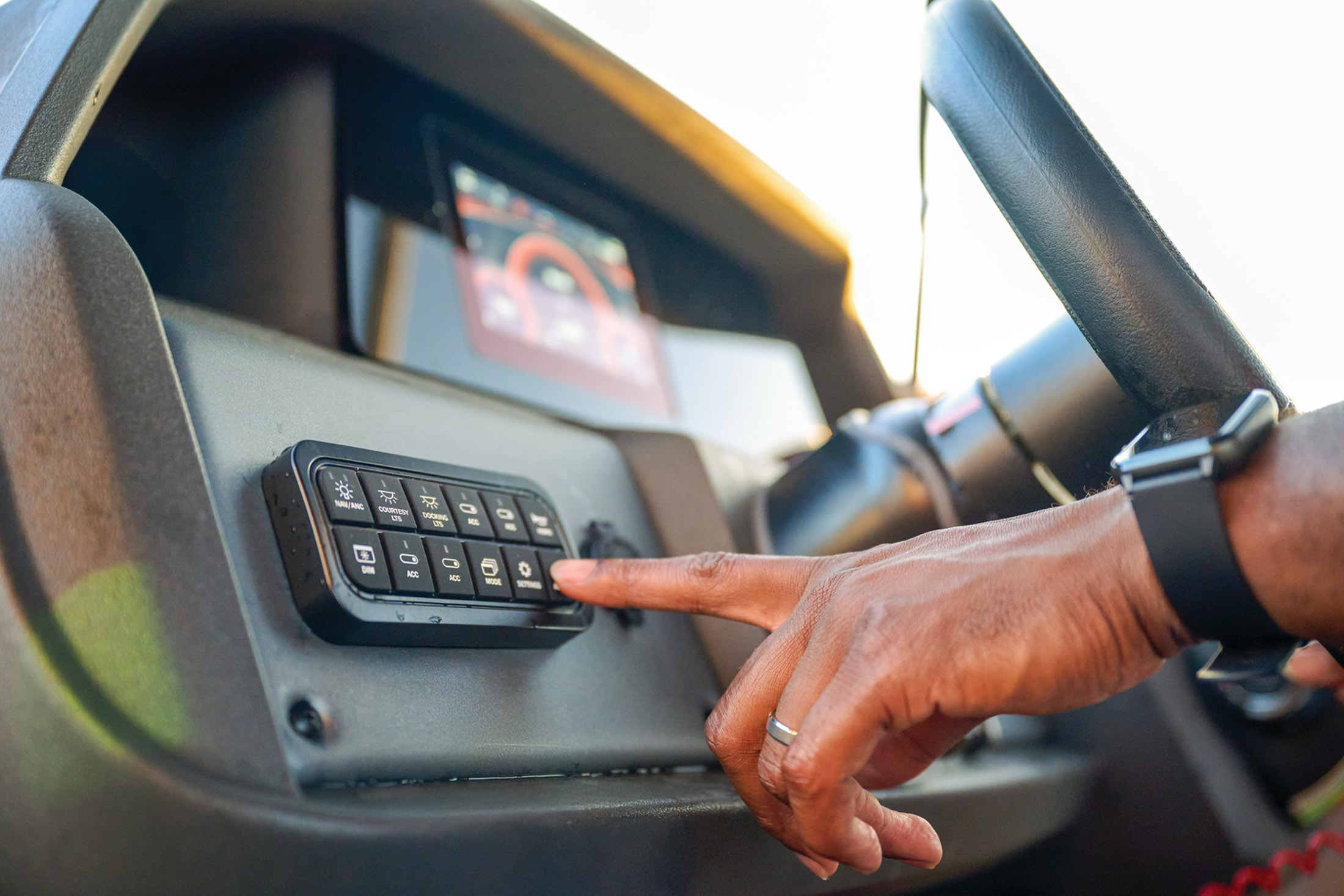

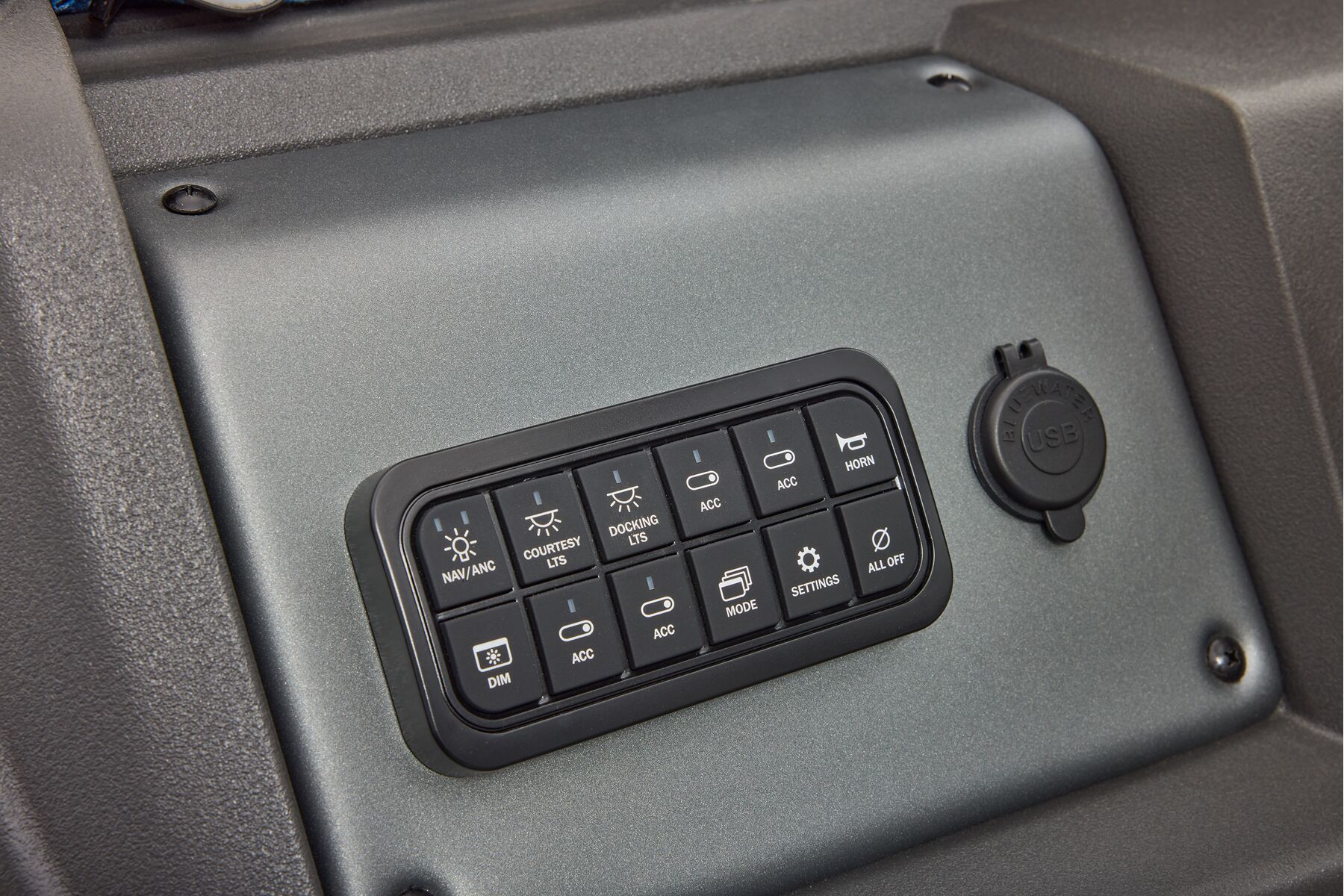

- 12-button switch panel
- Tilt steering w/NEW upgraded deluxe soft-touch steering wheel

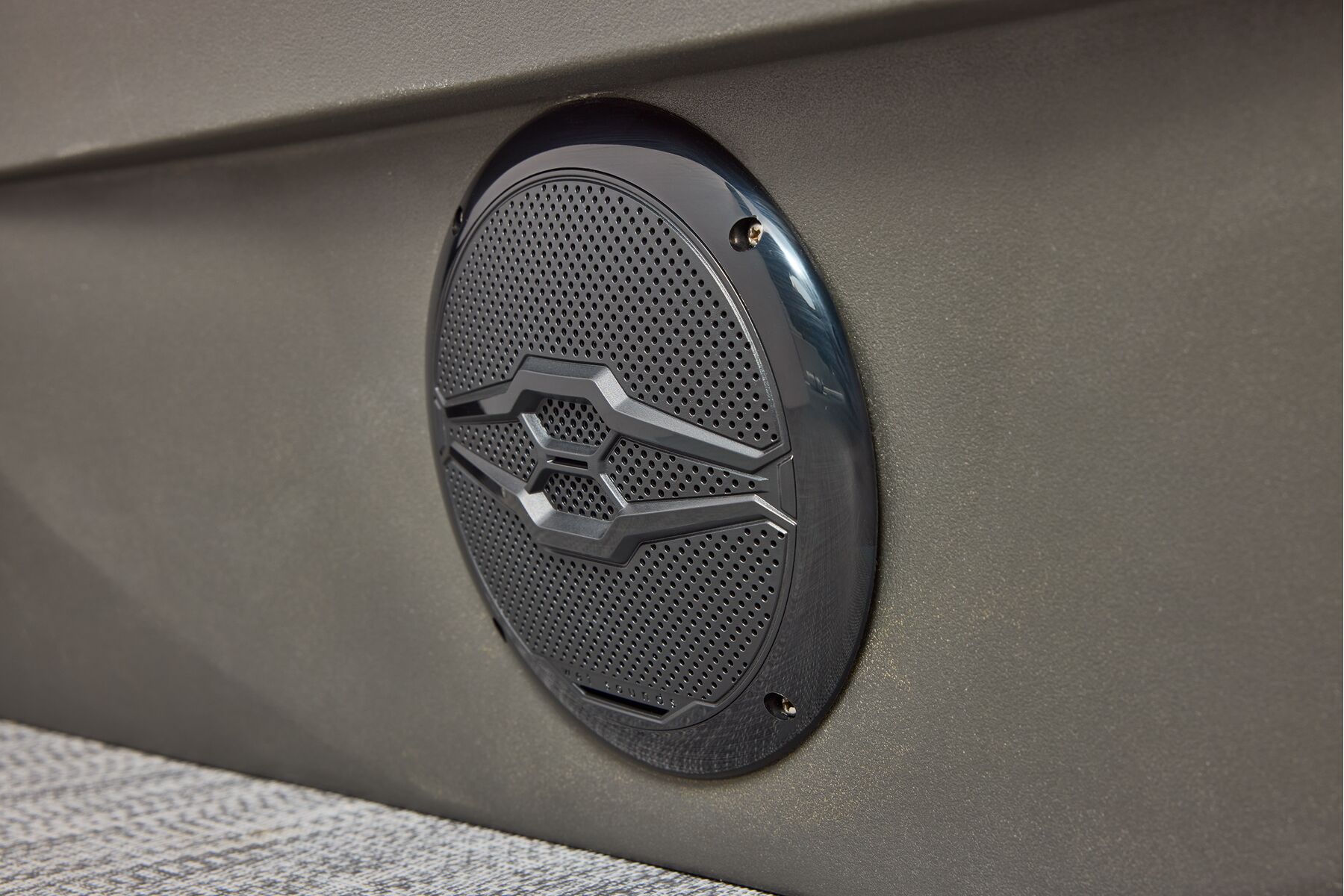

- 4 Wet Sounds® 6.5" (16.51 cm) upholstery speakers, strategically located & shielded within the seat bases

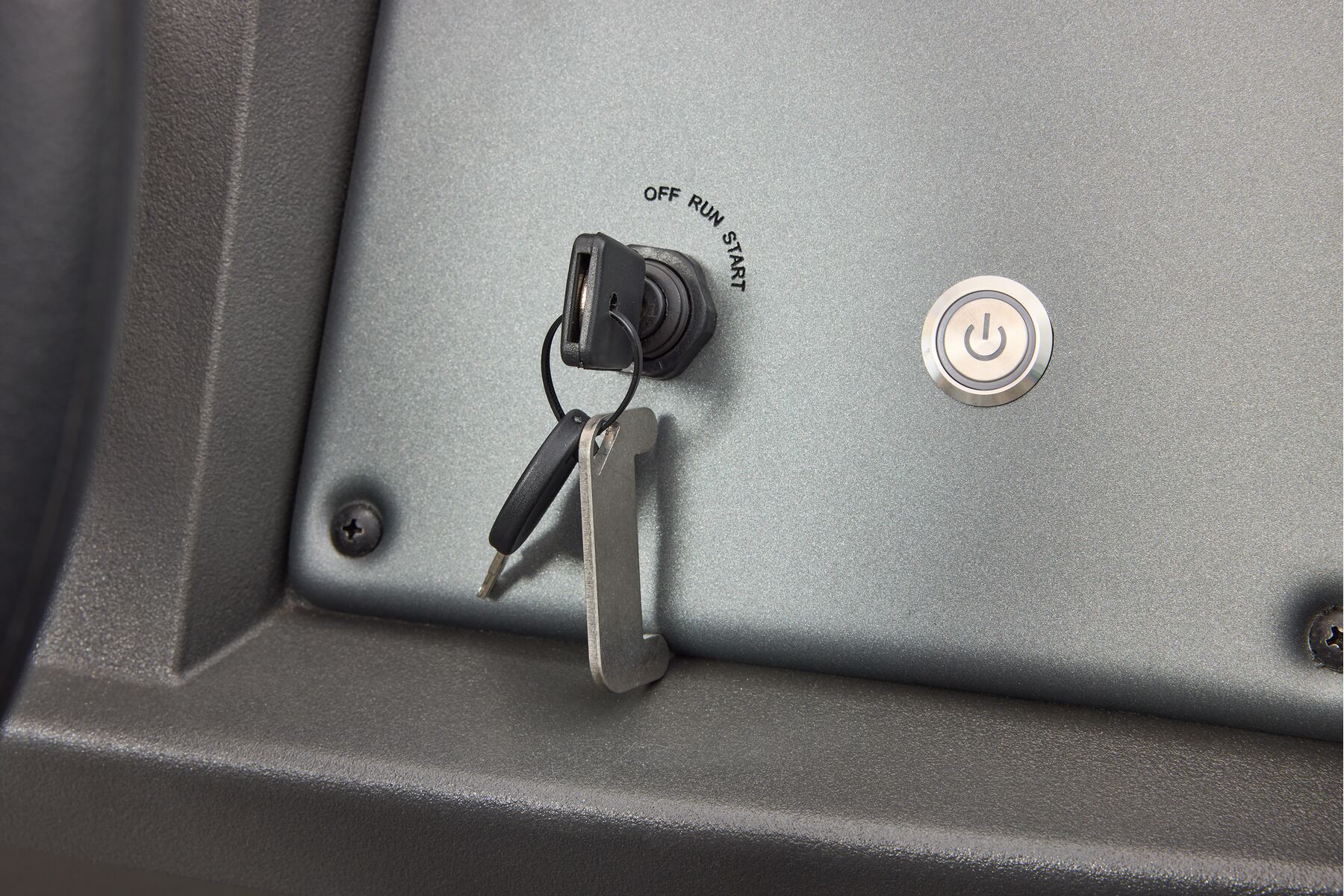

- Master power on/off switch
- Recessed mobile phone cubbies
- USB type A & C receptacle at helm for convenient charging of multiple mobile device models

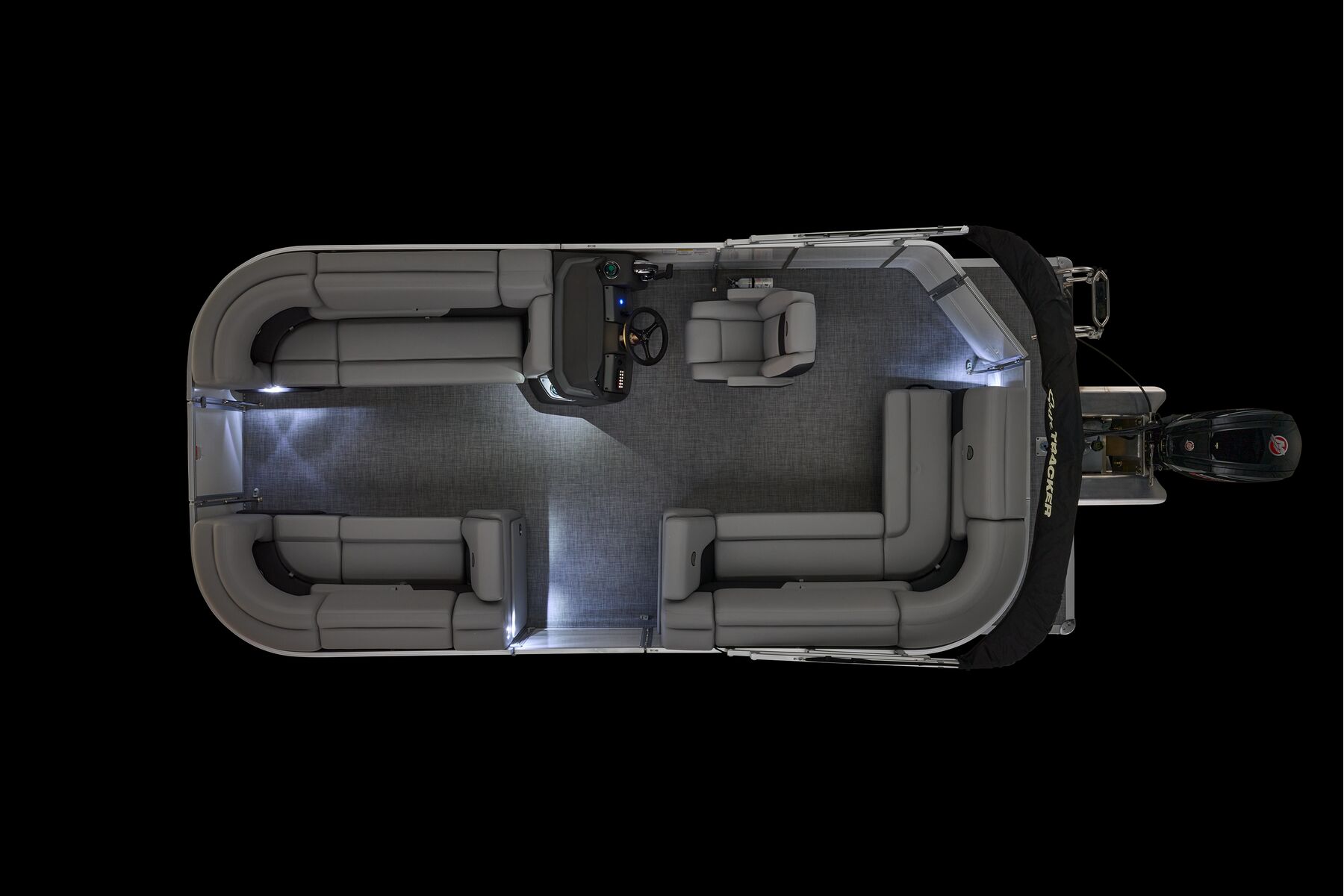

Interior

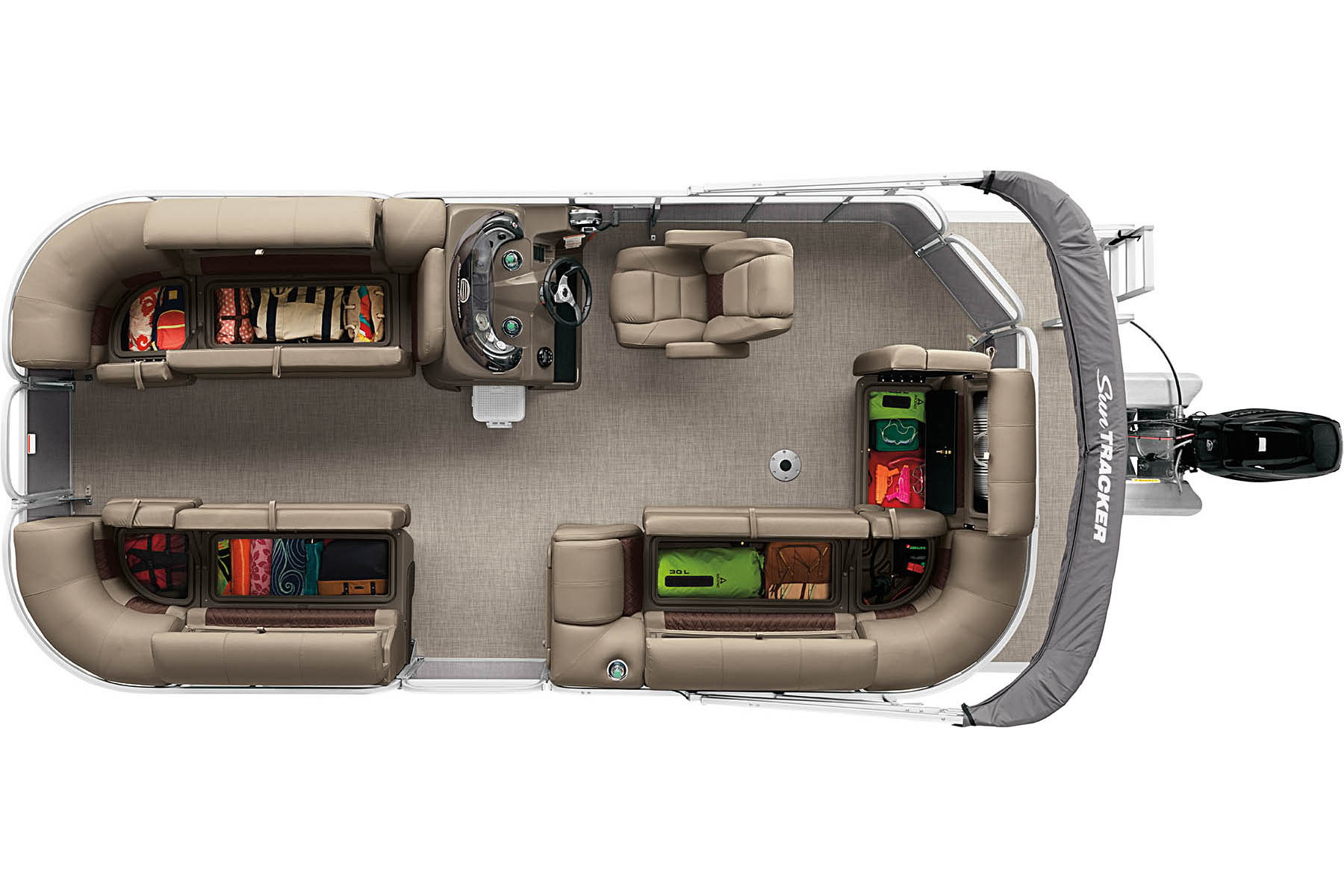

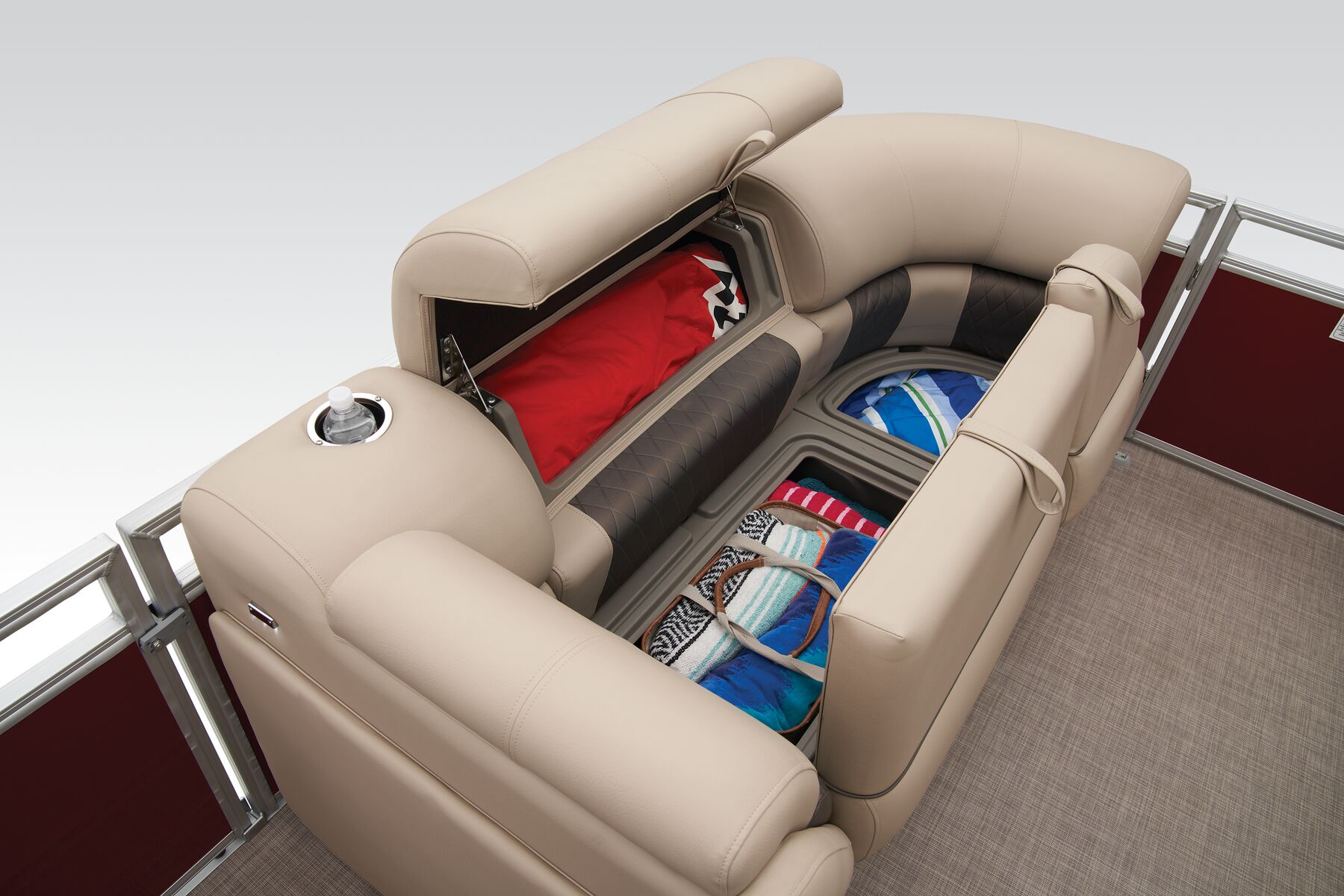

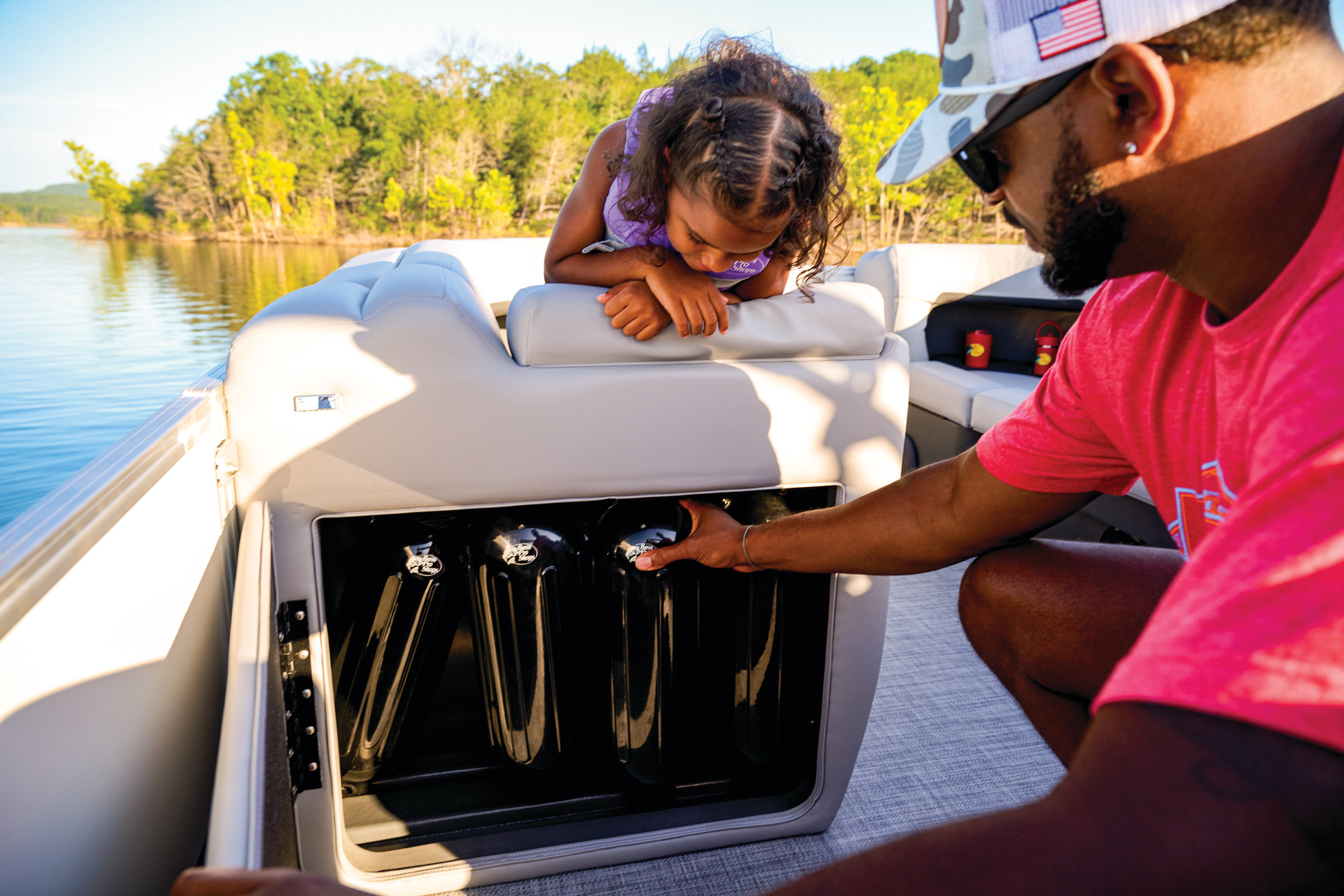

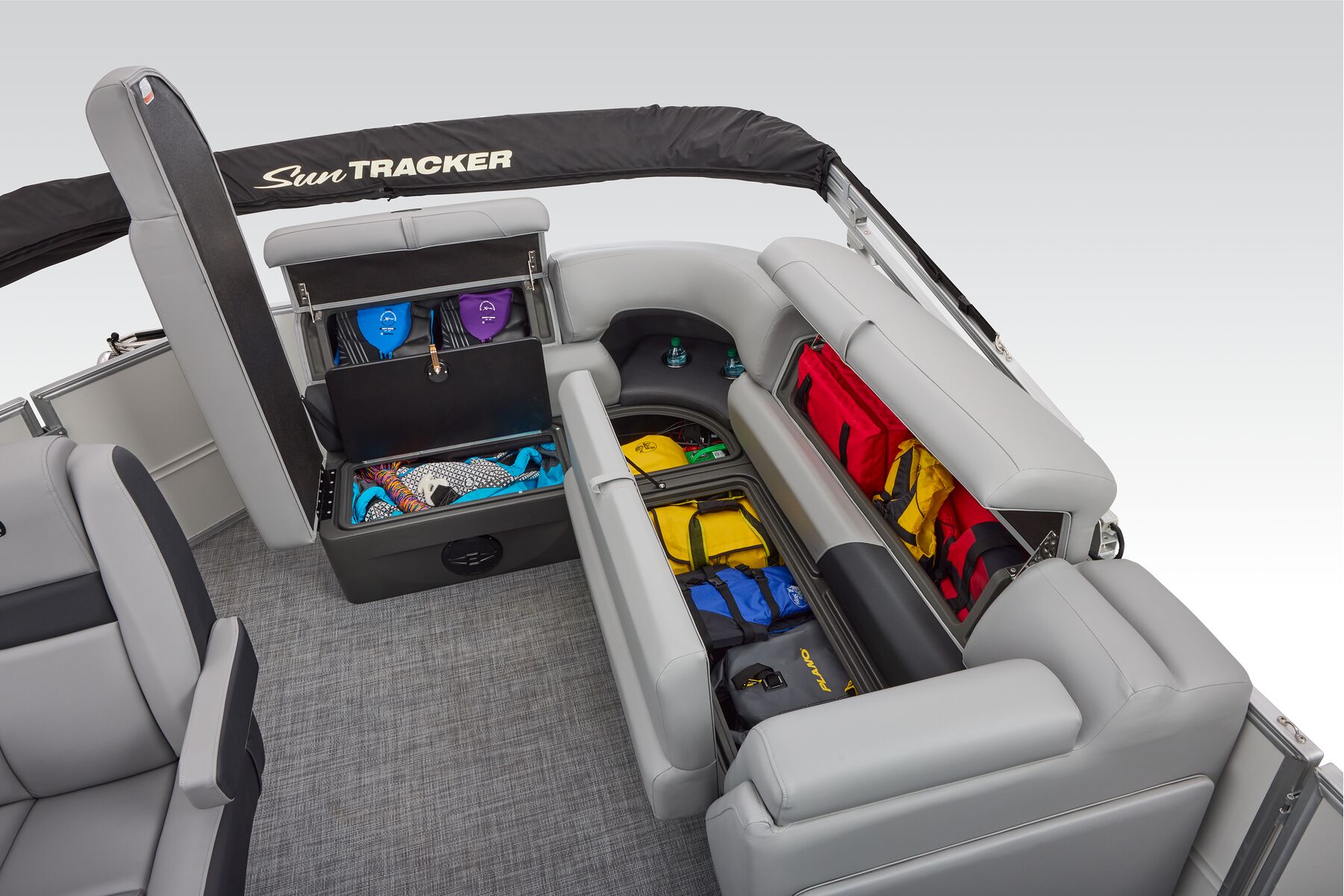

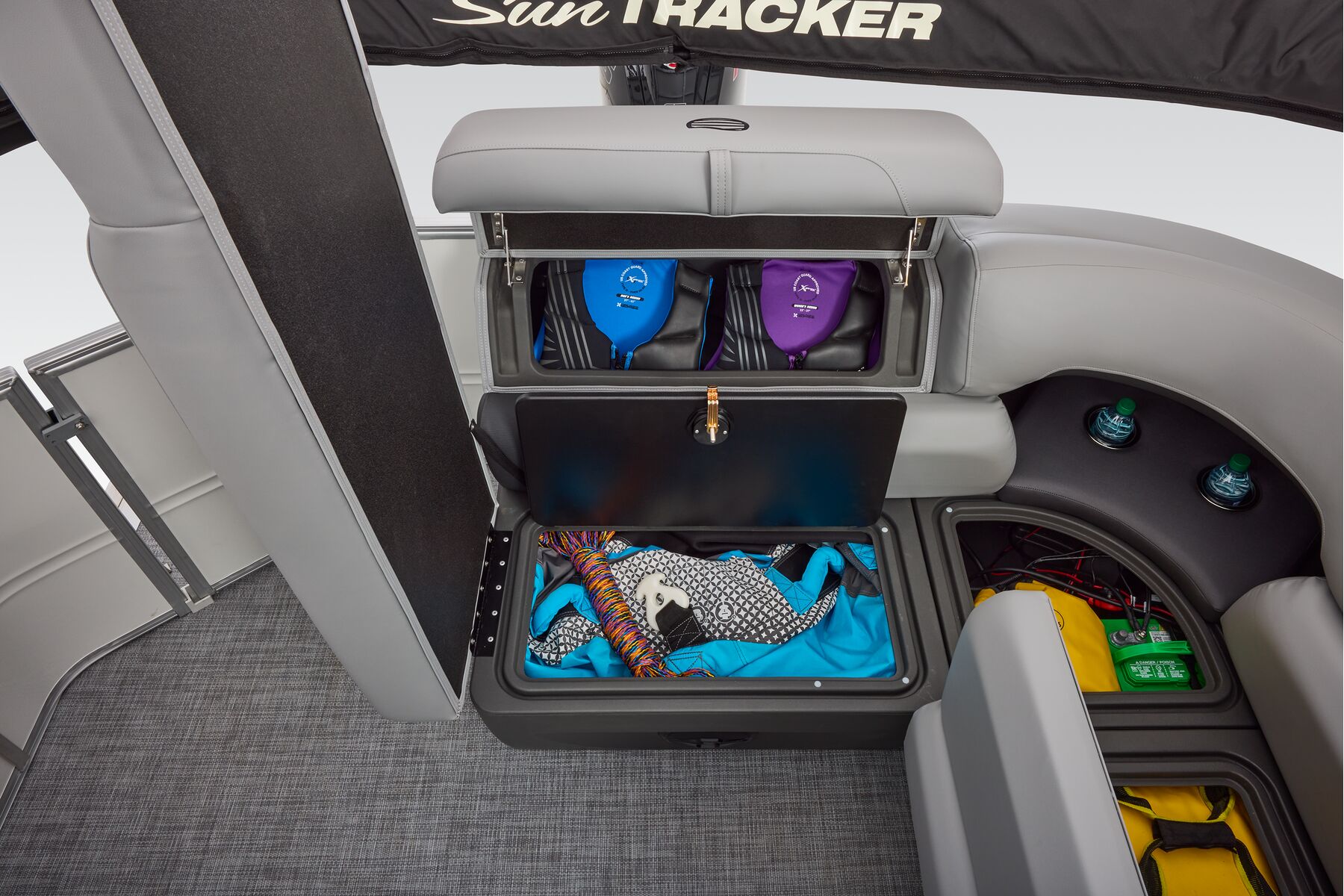

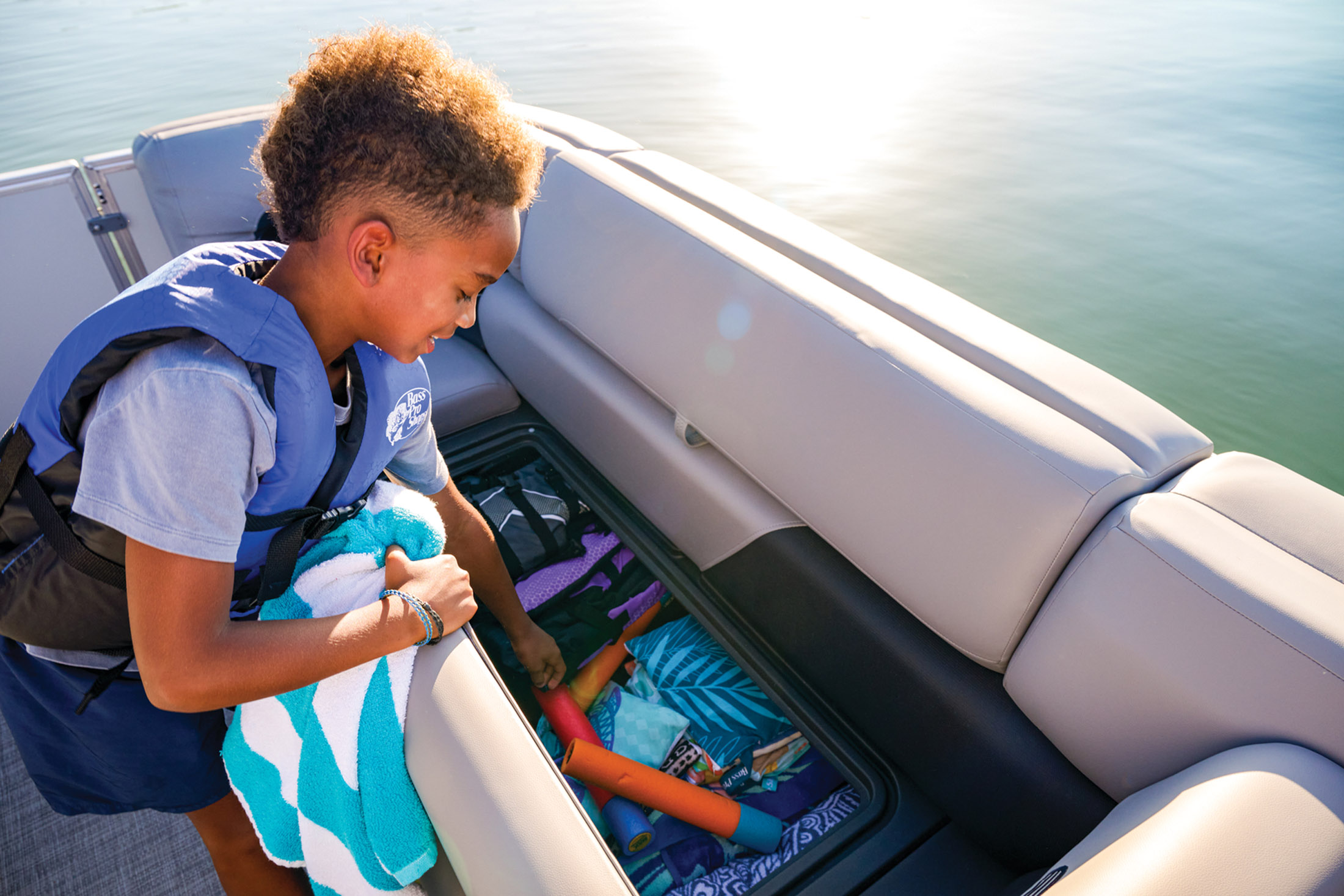

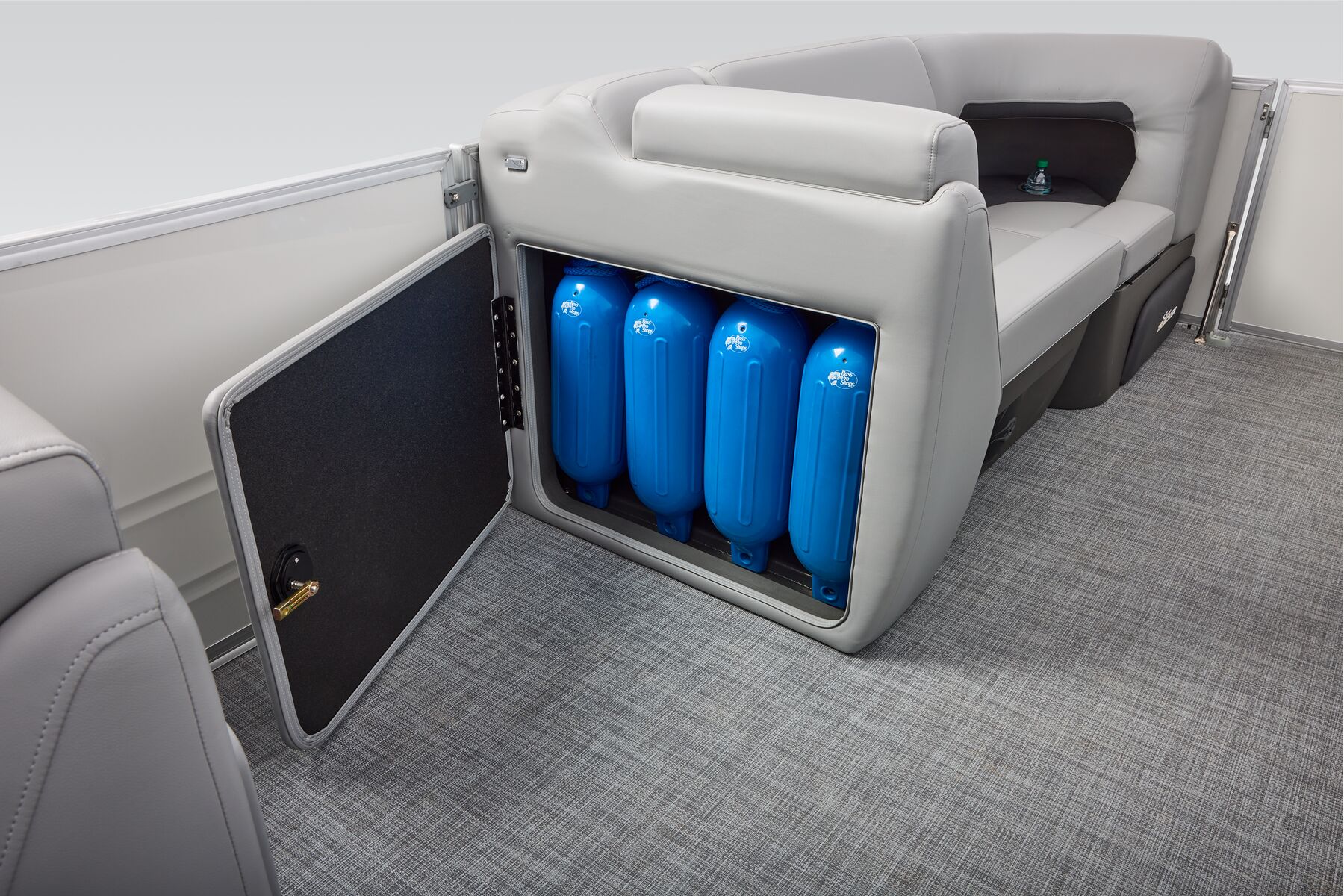

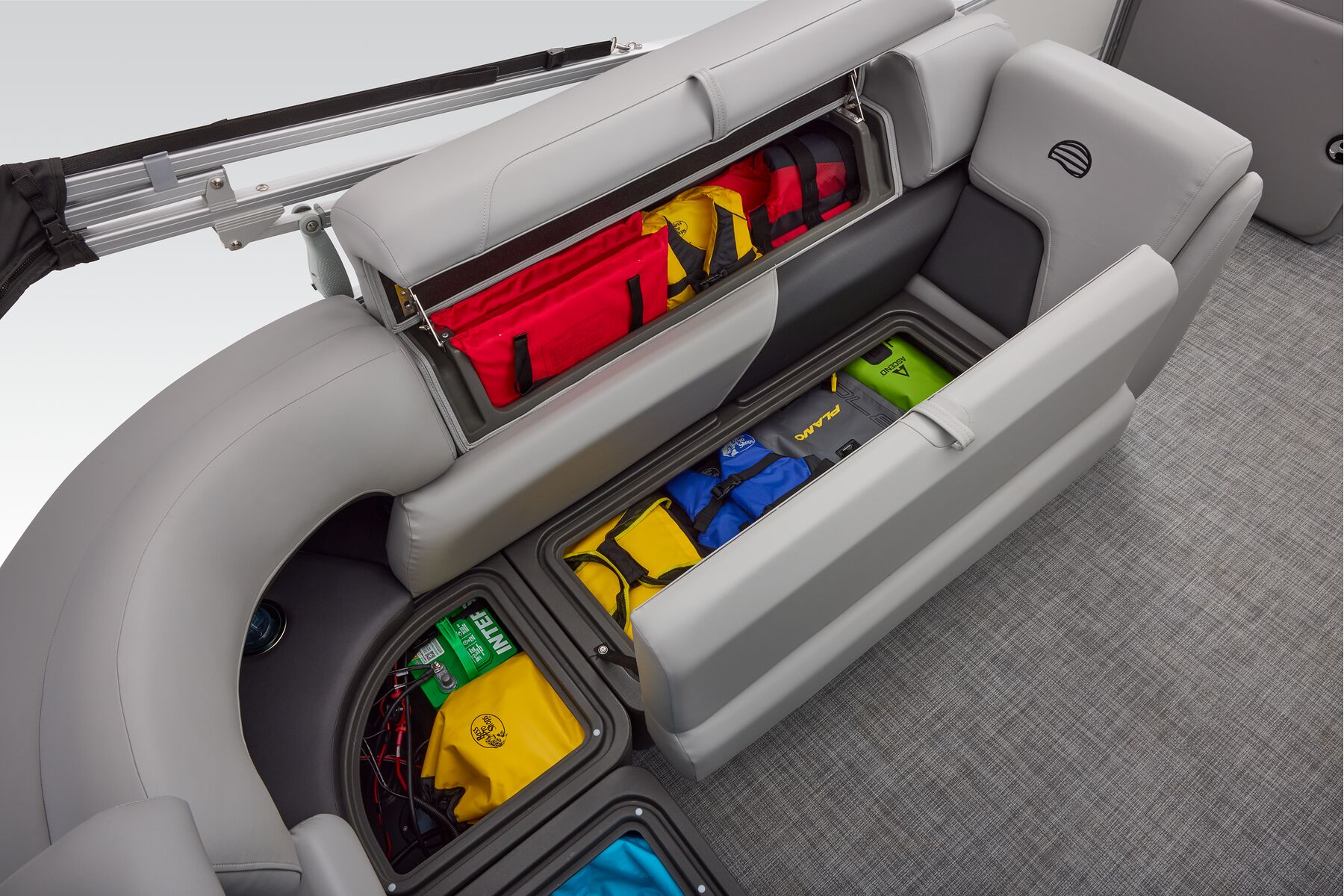

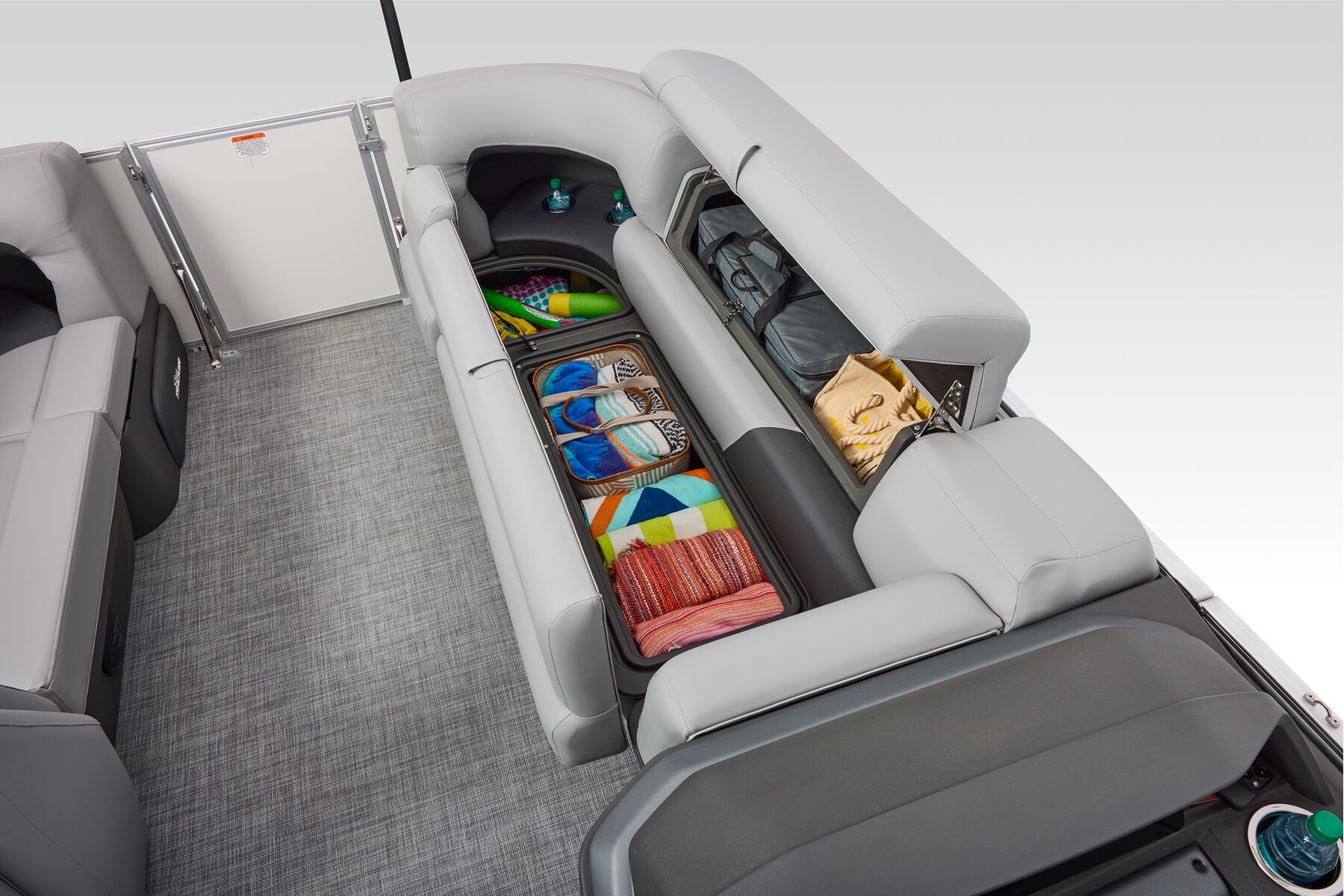

- Patented built-in STOW MORE™ seat-back storage system for all couches & lounges

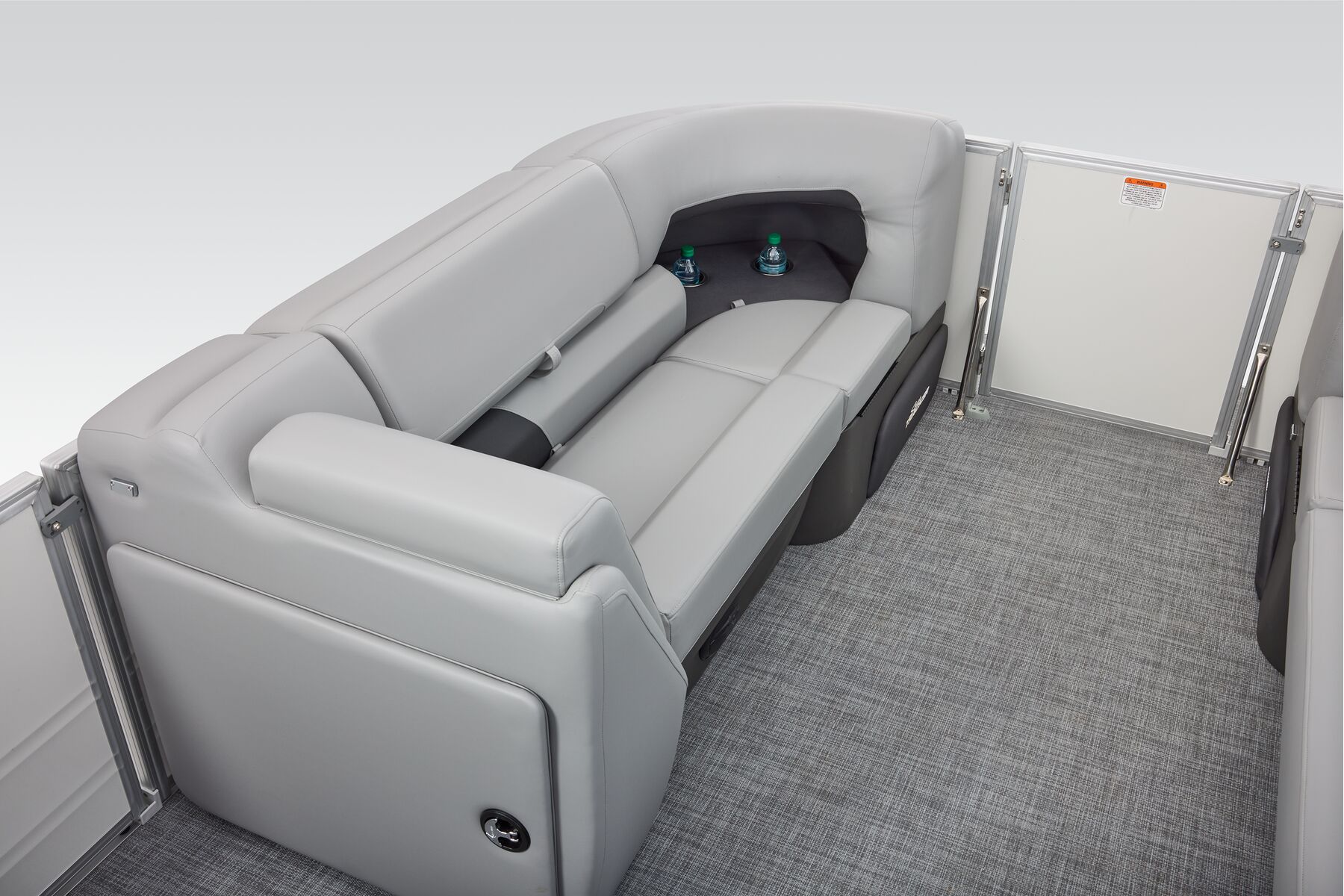

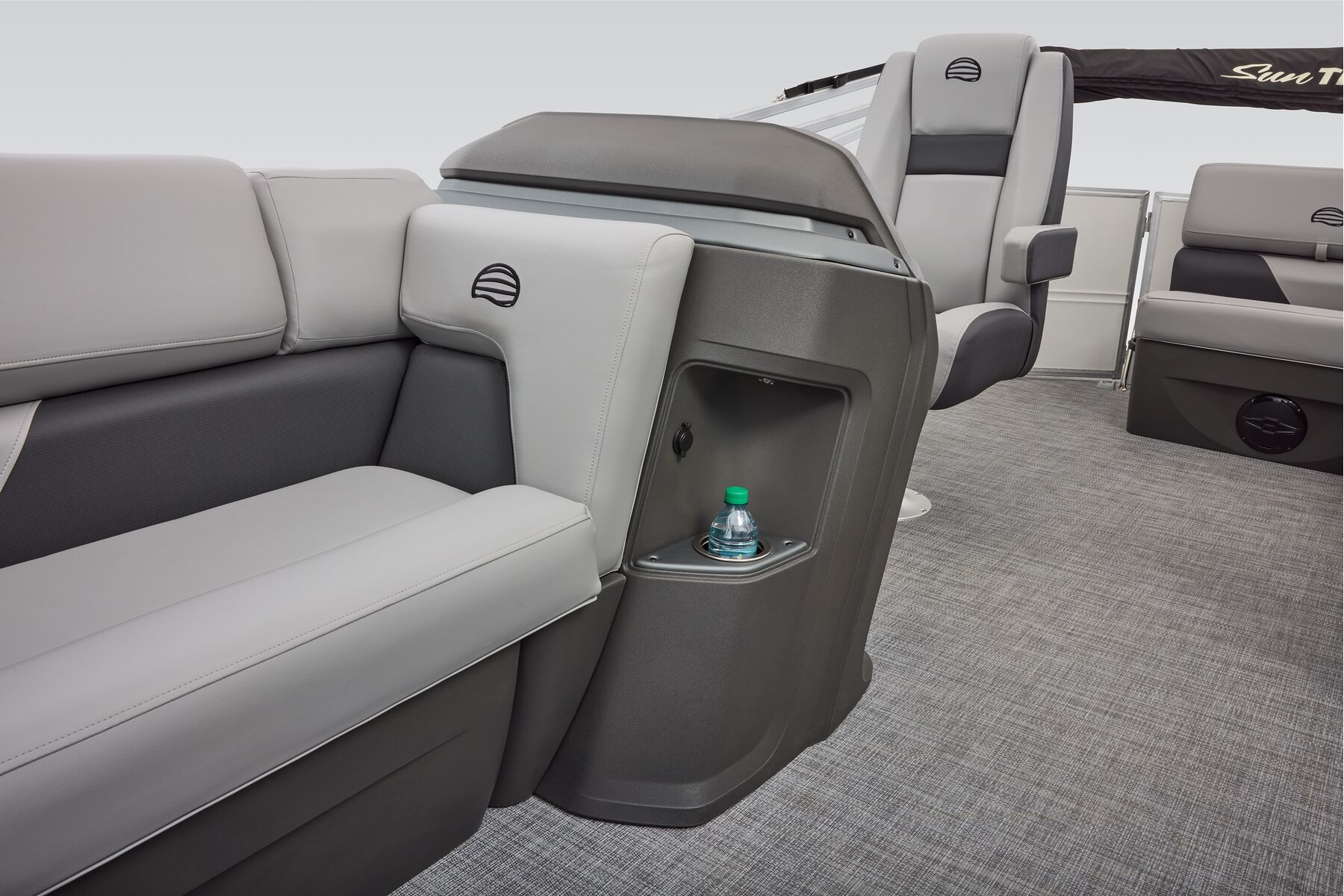

- Bow port couch w/underseat storage & armrest w/drink holder

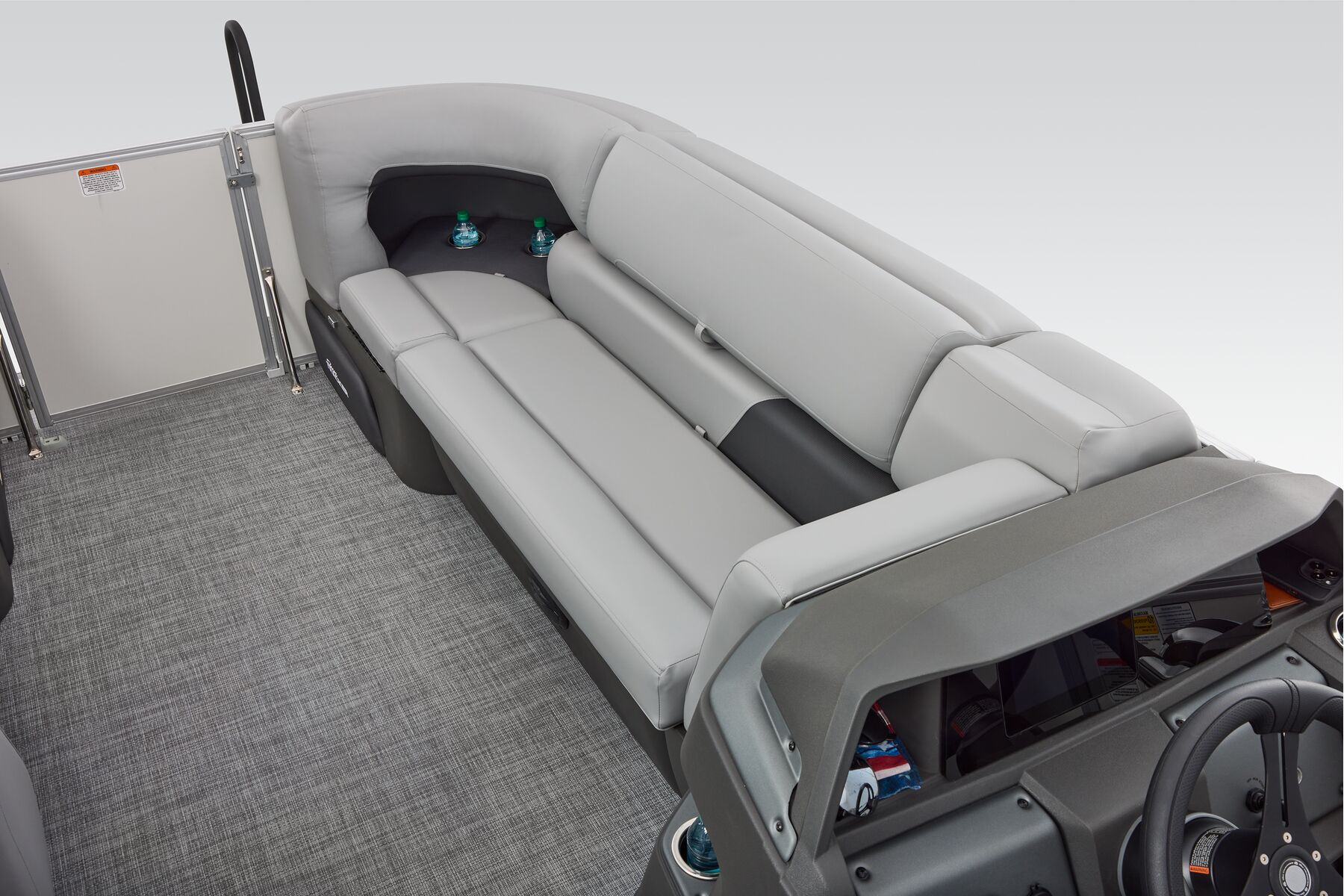

- Bow starboard console couch w/underseat storage

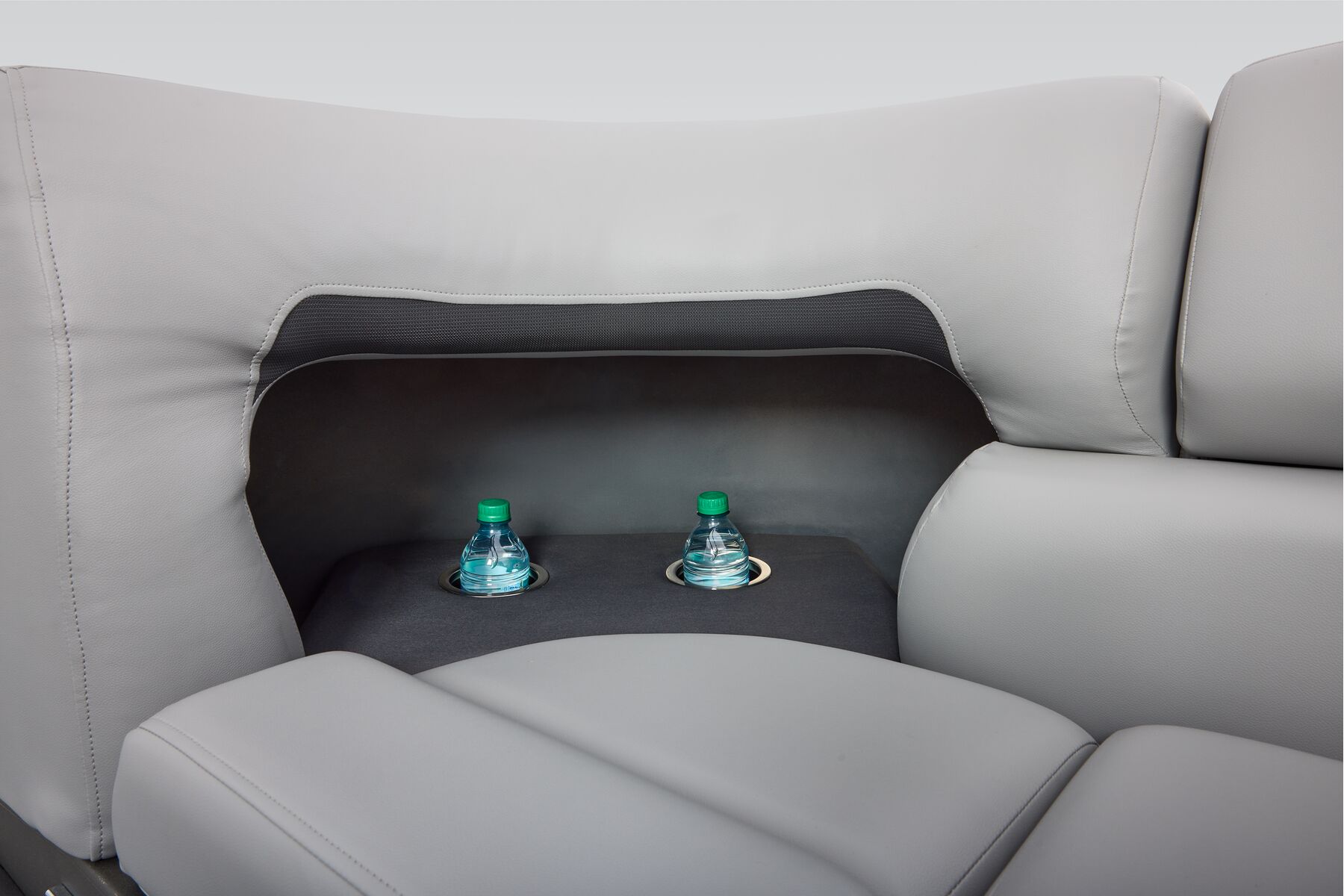

- Integrated drink holders w/storage area

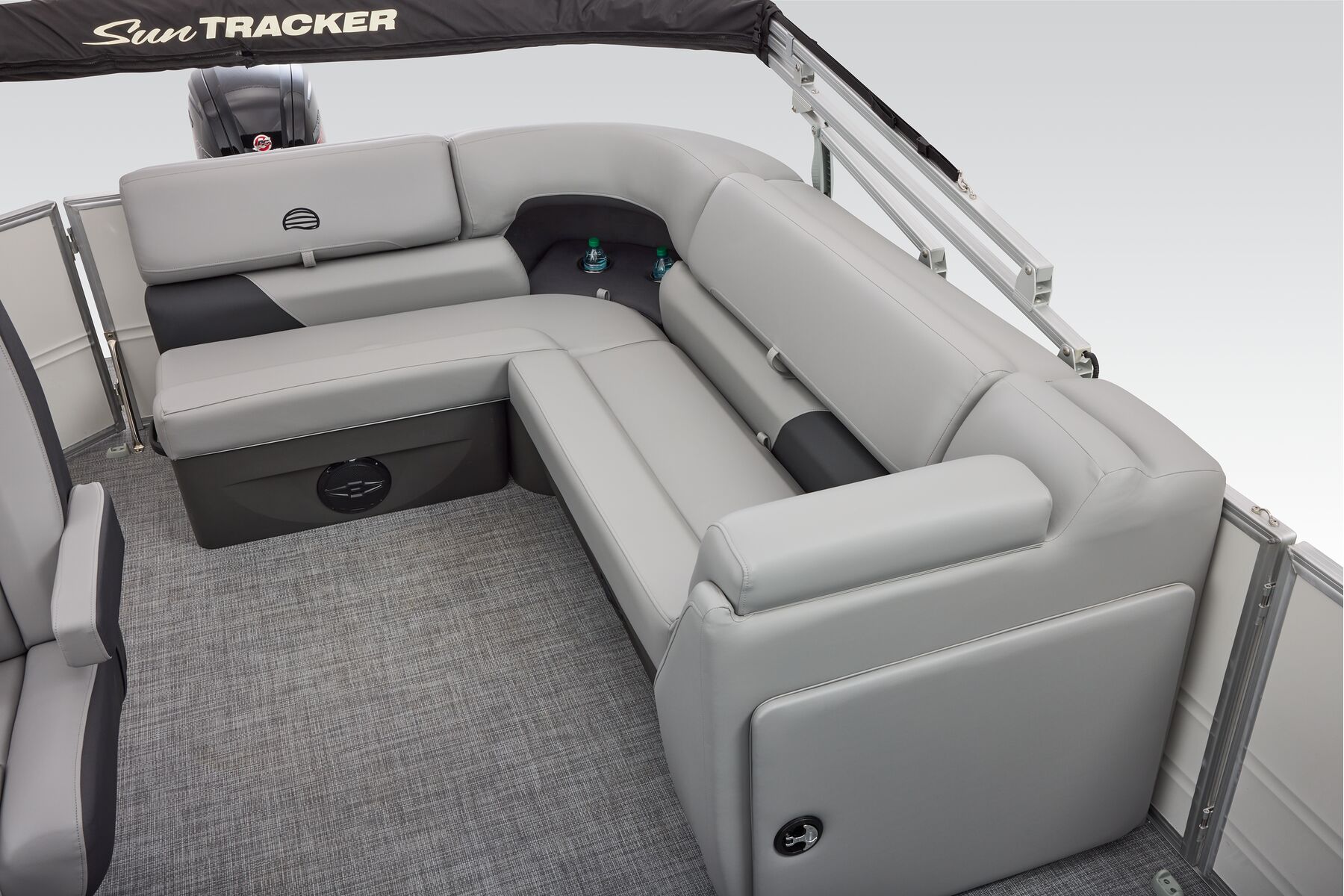

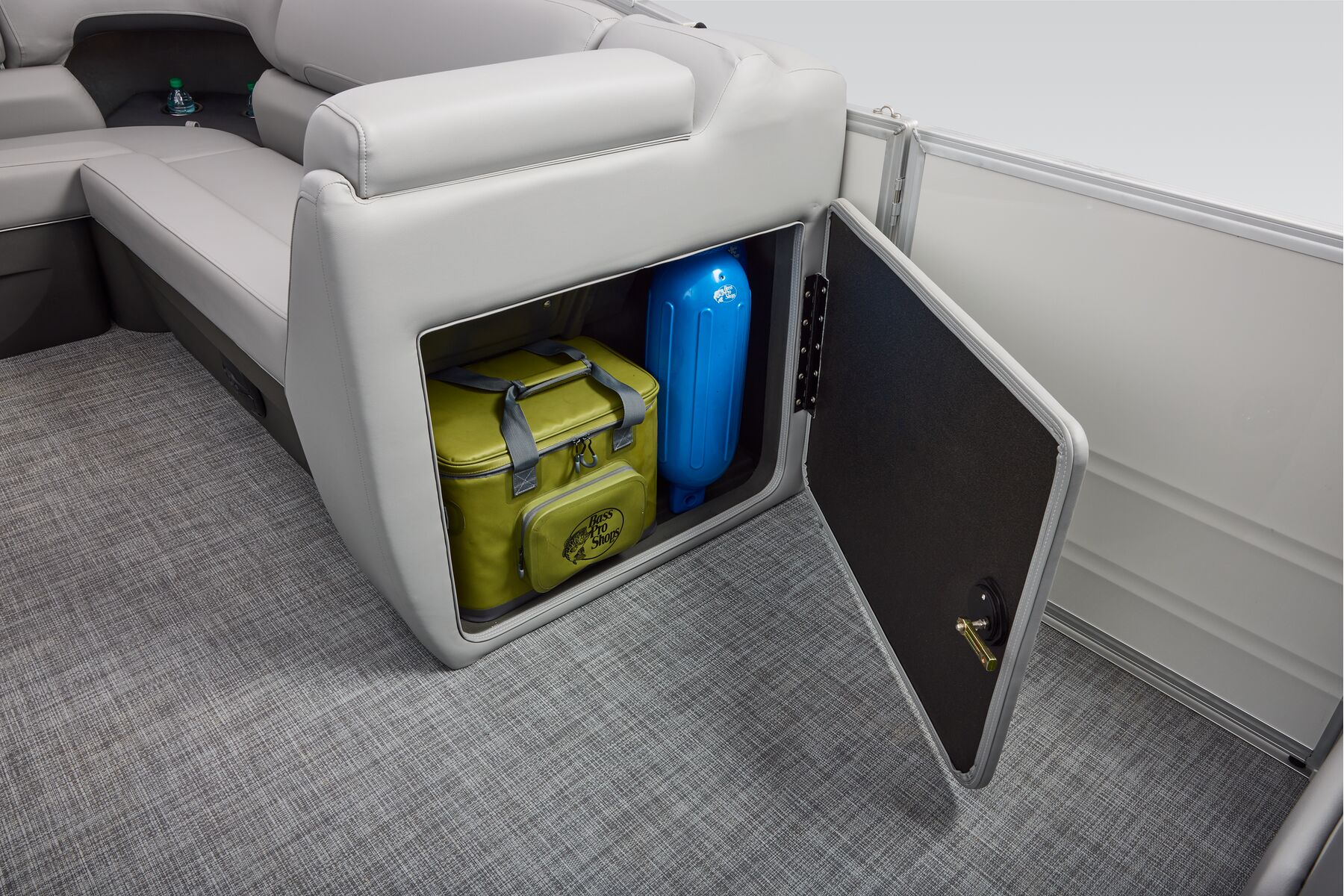

- Aft L-lounge couches w/underseat, lockable storage

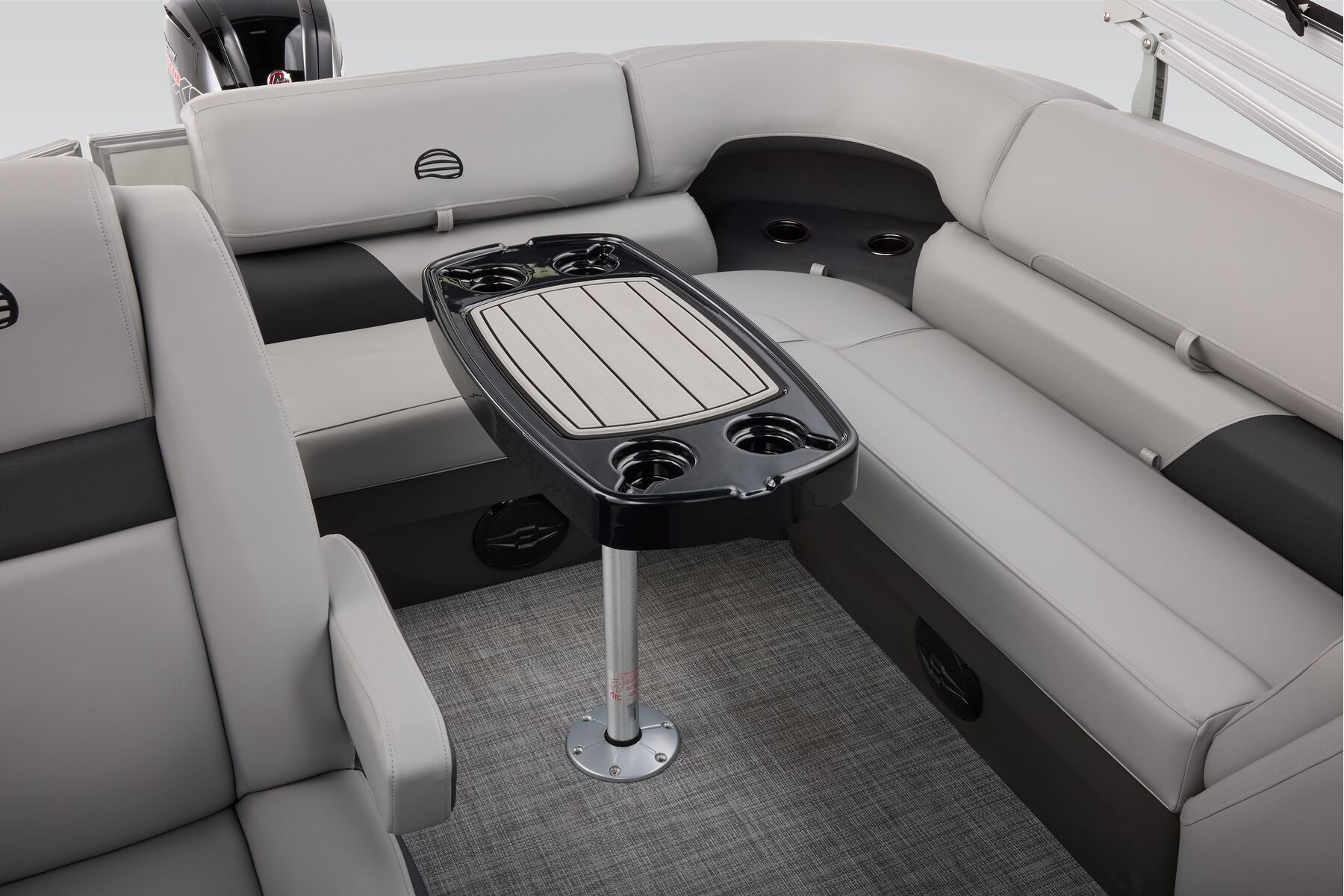

- Removable table w/4 molded-in drink holders; color-coordinated, soft-touch mat; & tailored table location per dealer (dealer installed)

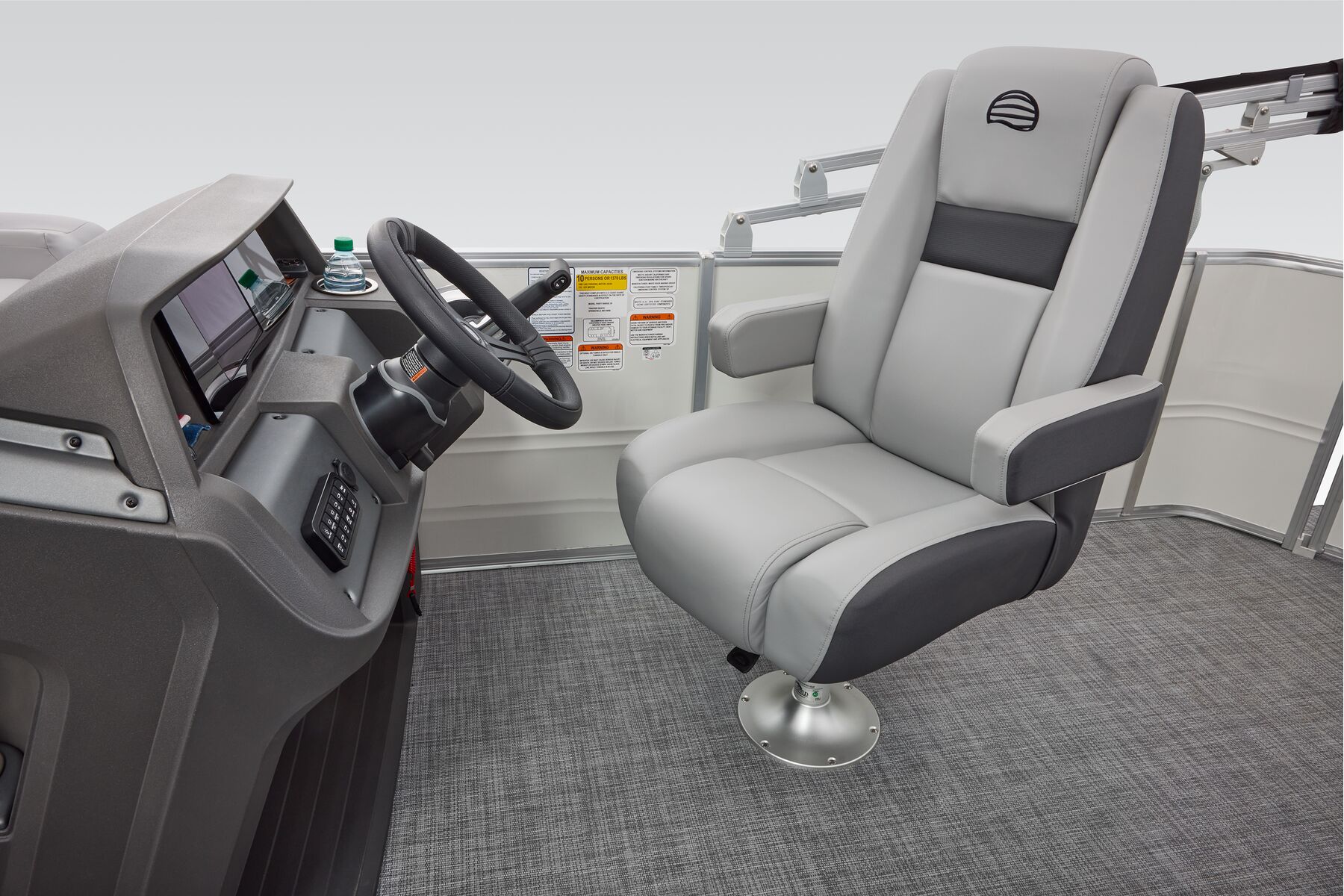

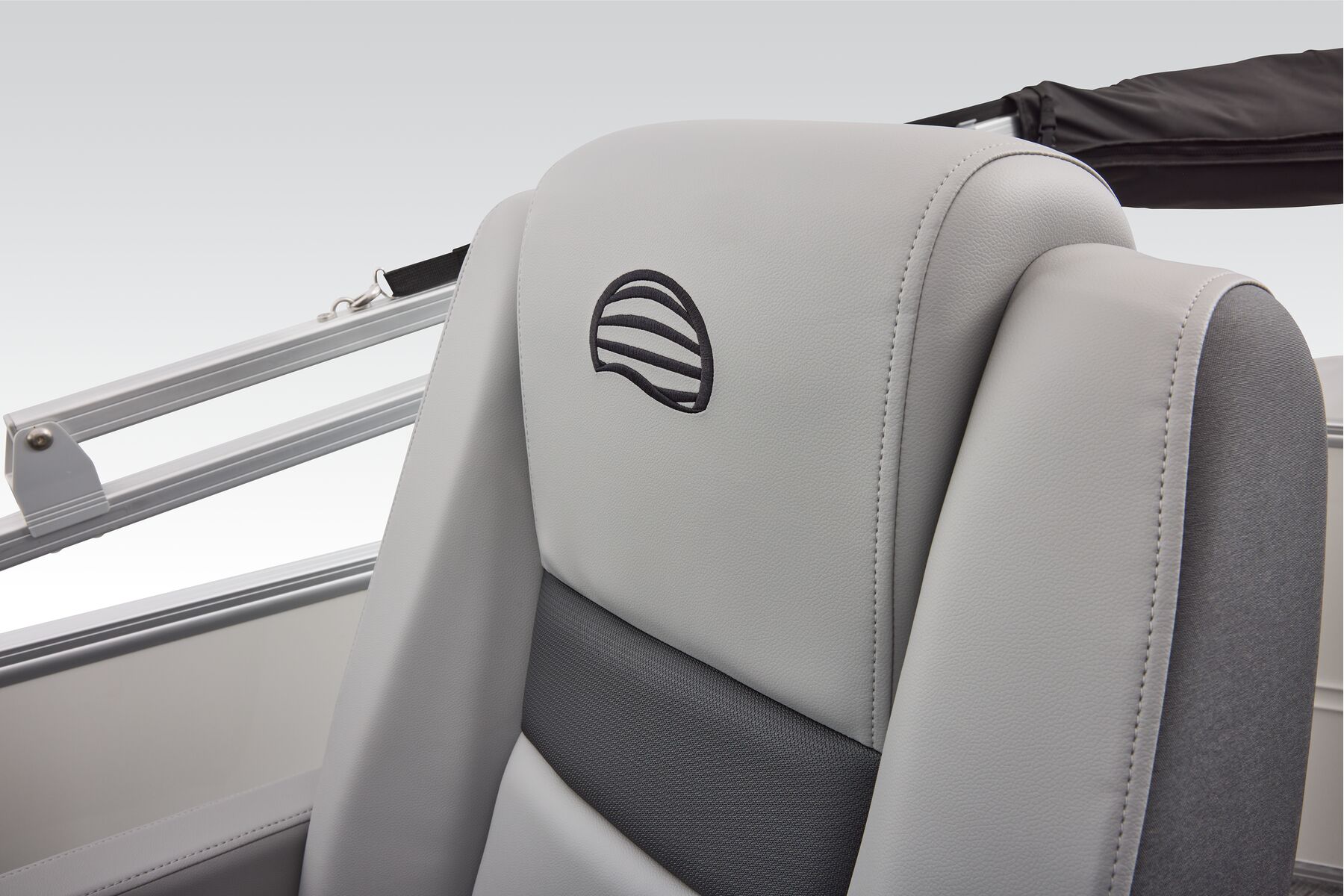

- Reclining, high-back swiveling helm bucket seat w/self-leveling armrests

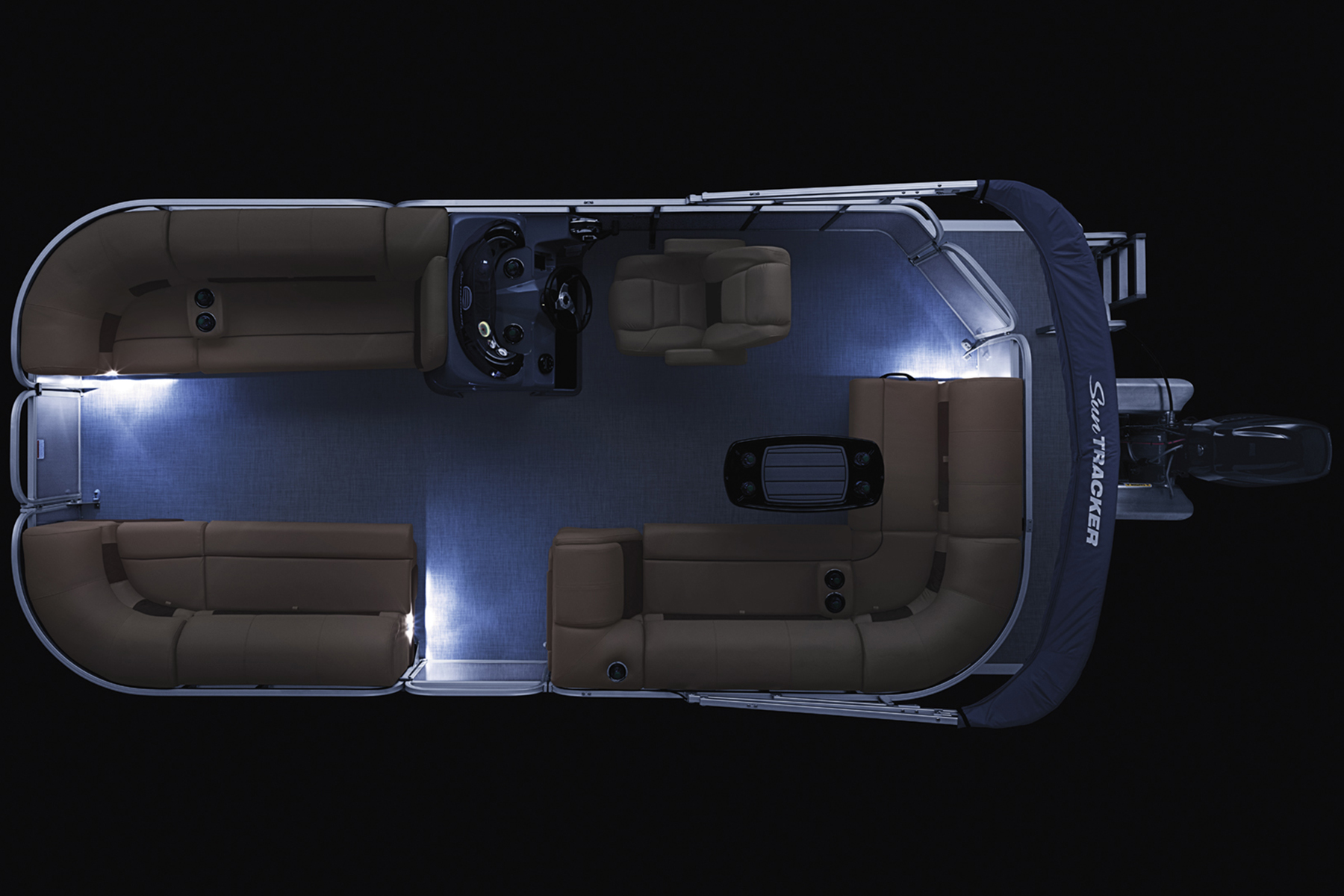

- Interior courtesy lighting
- Full-width aft swim deck

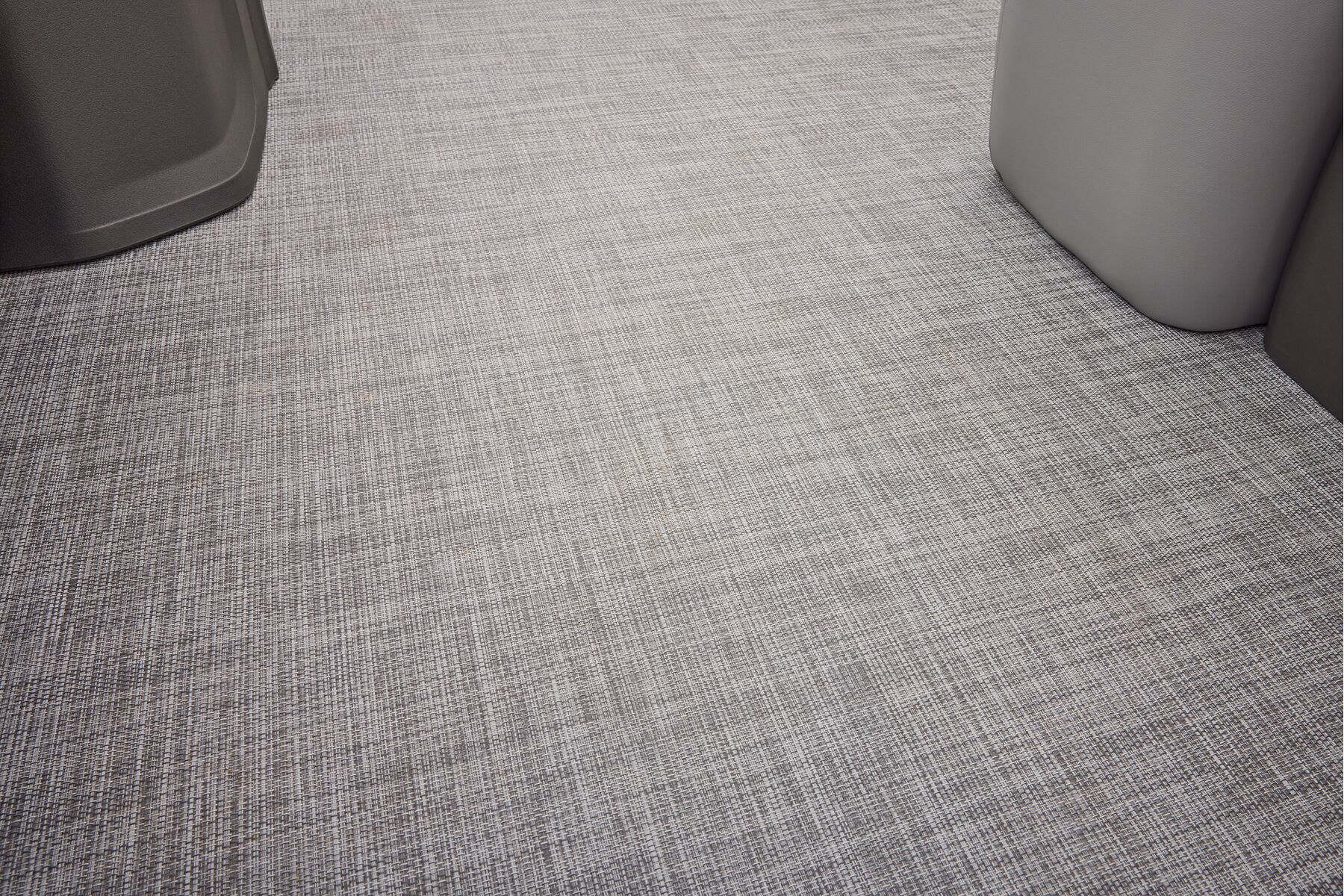

- Woven 16-oz. (.45 kg) marine-grade flooring throughout

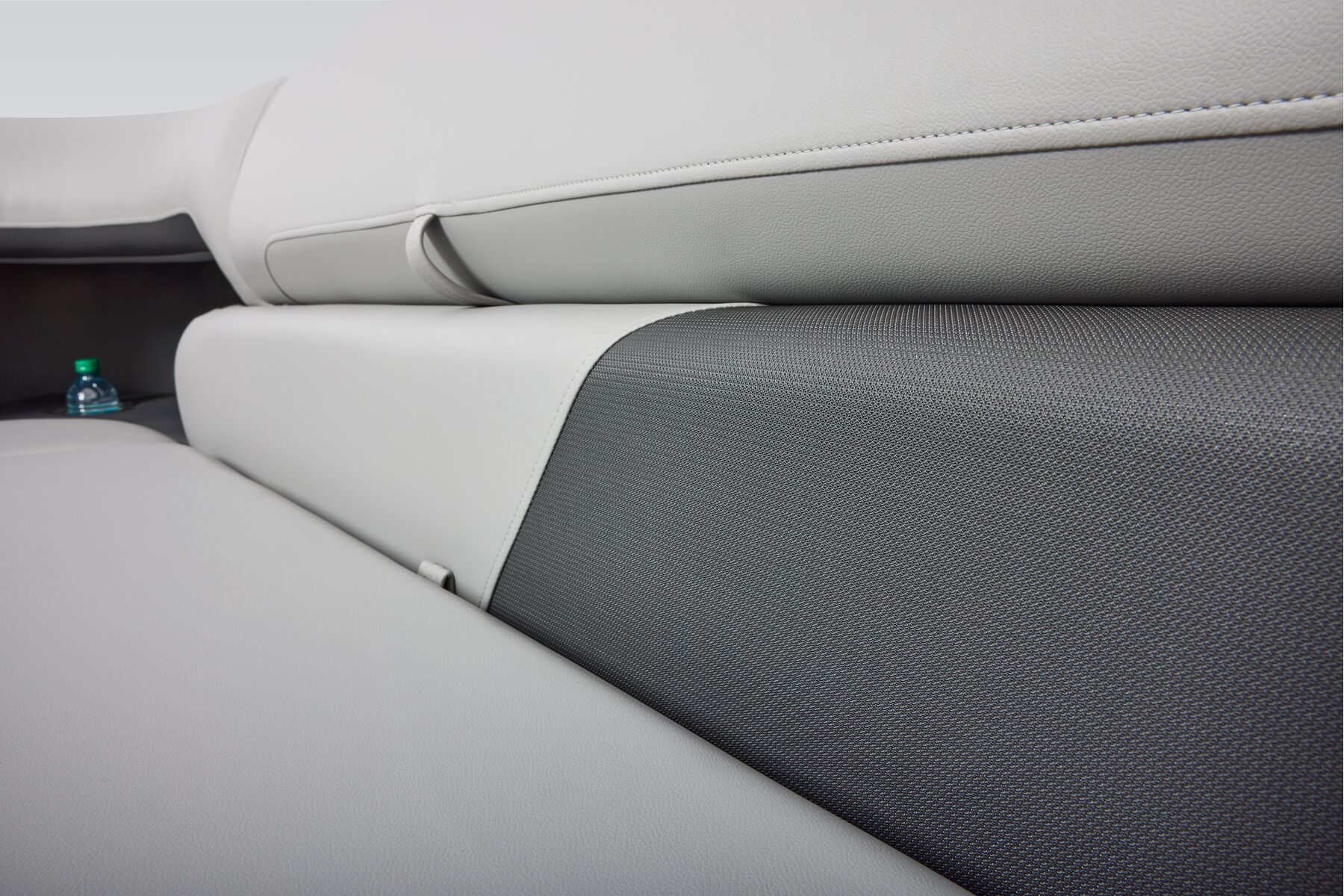

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance
- 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
- Full-length, 1-piece longitudinal M-bracket deck supports
- Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
- Heavy-duty aluminum U-channel reinforcement behind bow deck trim
- Reinforced bow structure
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- All-aluminum box-beam transom for strength & longevity
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
- Sound- & vibration-deadening fence insulation for a quiet ride
- Extruded & anodized aluminum deck edging w/polished aft corner covers
- Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
- Rotomolded storage, furniture & console for superior strength & longevity
- Nylon gate latches & heavy-duty hinges that open inward
- Stainless or coated corrosion-resistant fasteners
- Factory-matched aluminum propeller
Exterior

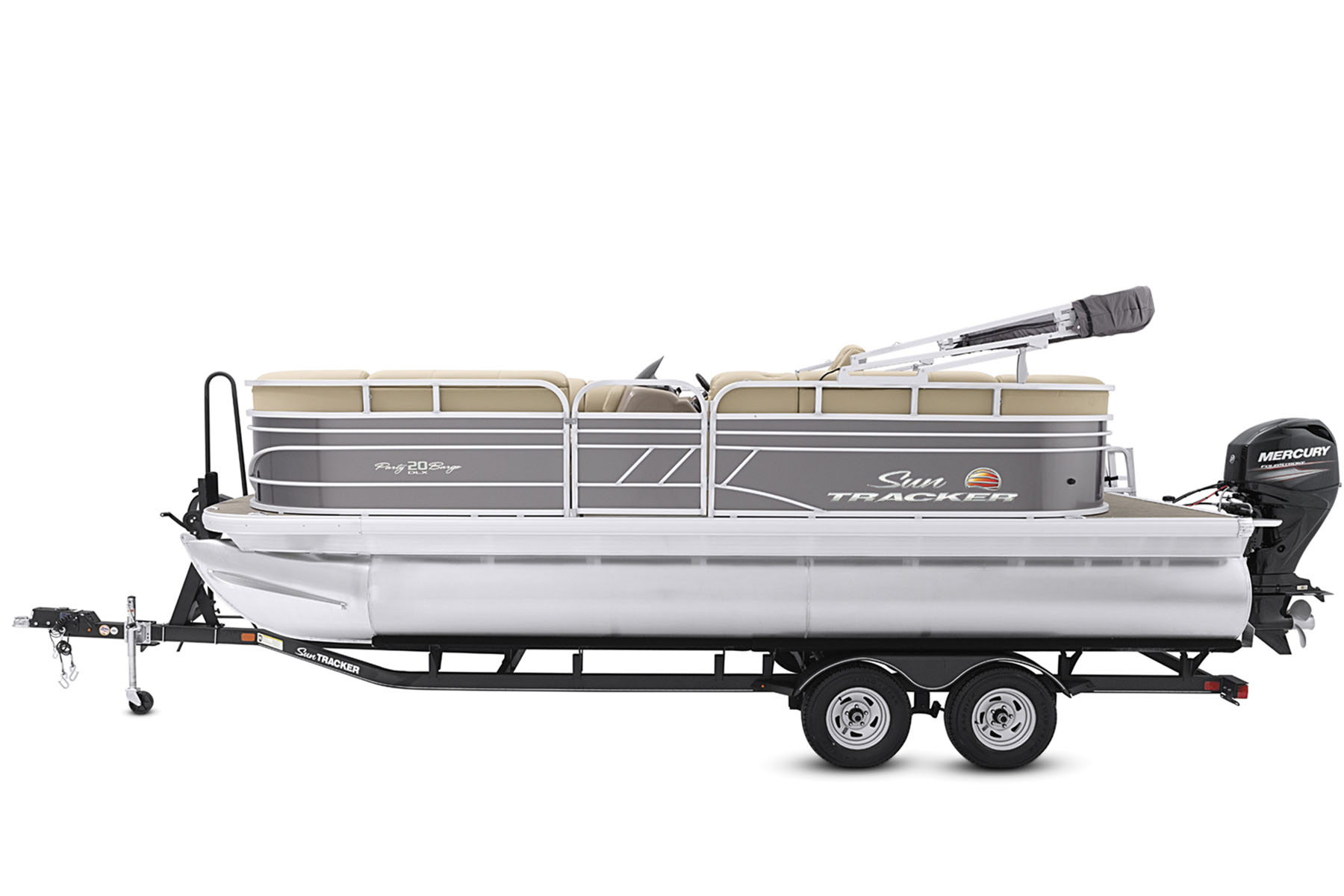

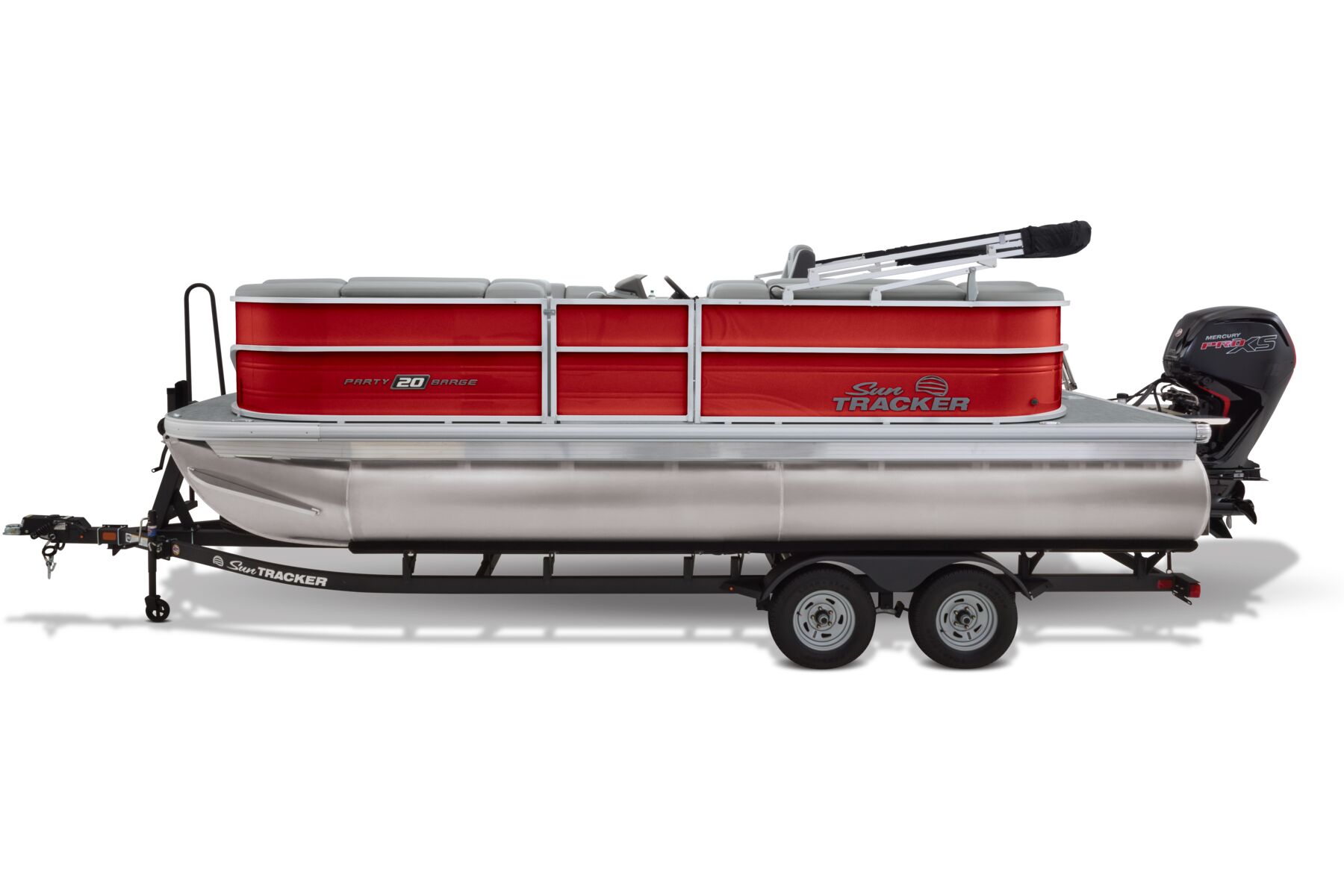

- Colors available:
- • Heritage Red fencing
- • Pearl White fencing

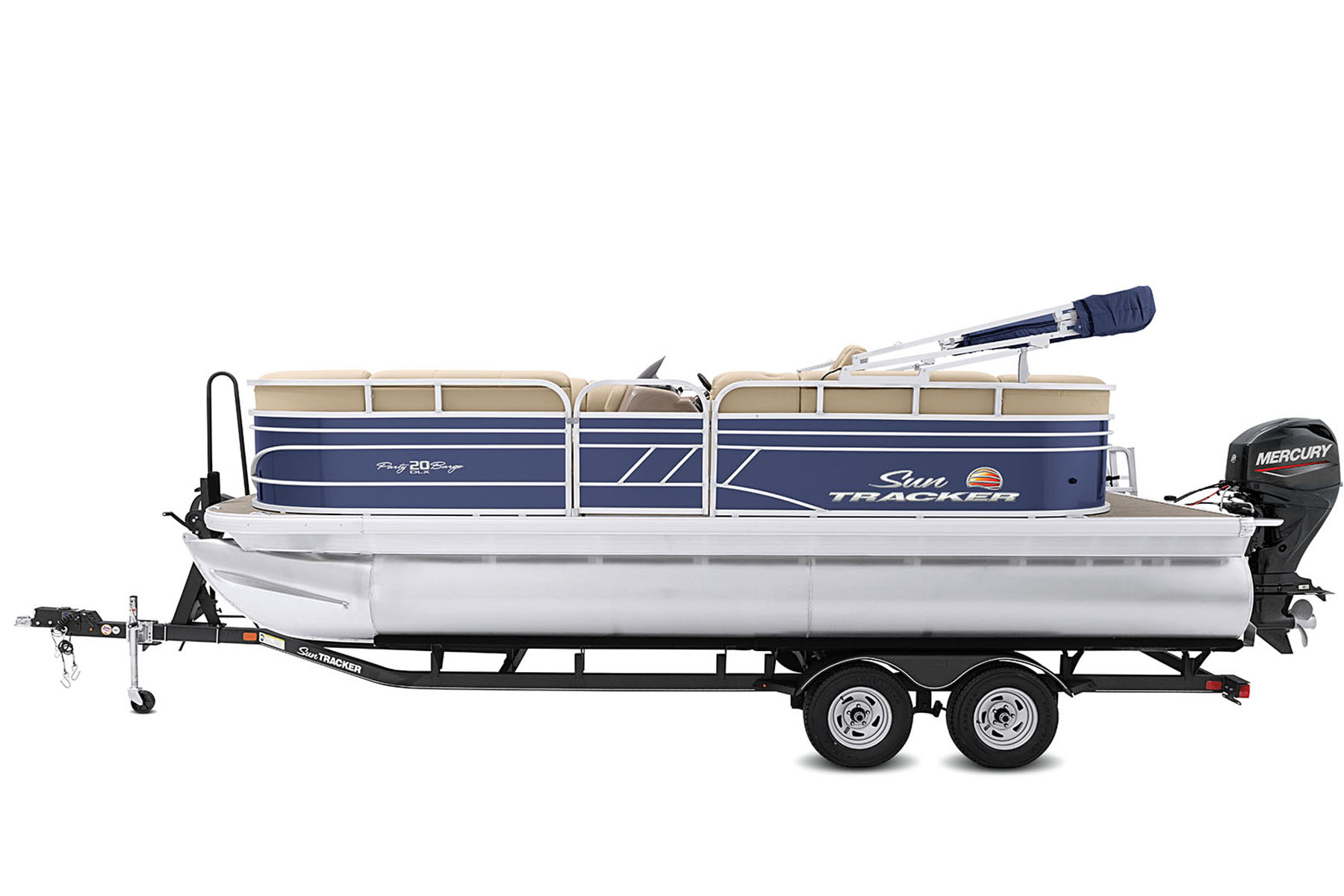

- • Sky Blue fencing
- • Starlite Black fencing

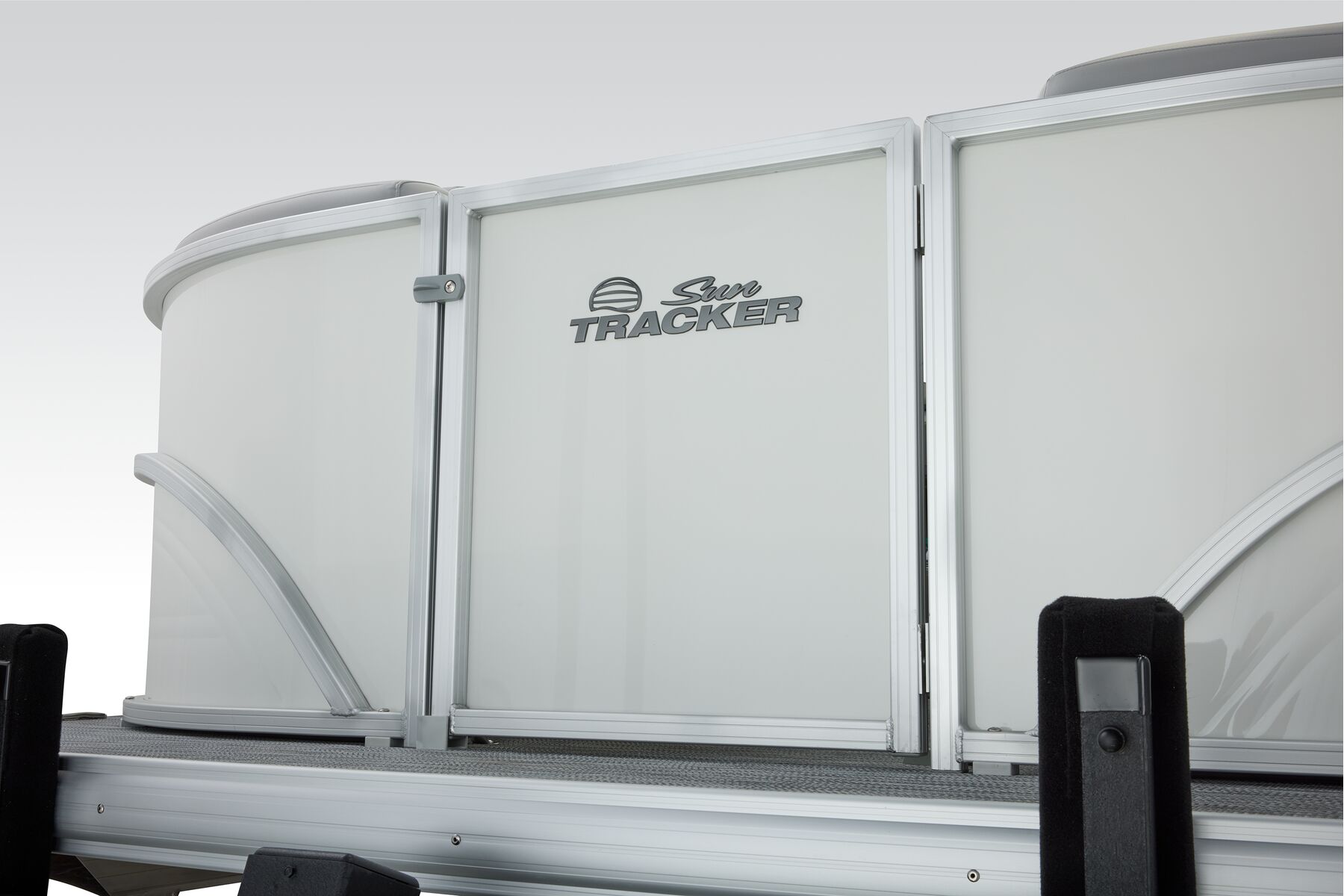

- Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics
- Full-height, elevated fence panels for deck drainage & ventilation
Electrical
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
Options
Note: SunTracker’s innovative new FLARE touchscreen gauge display relies on proprietary digital engine data not available from all engines. Boats equipped with optional Mercury 9.9ELPT FourStroke or 20ELPT FourStroke engines will experience limited monitoring capability. See dealer for details.
