Sportfish 24 XP3
2025

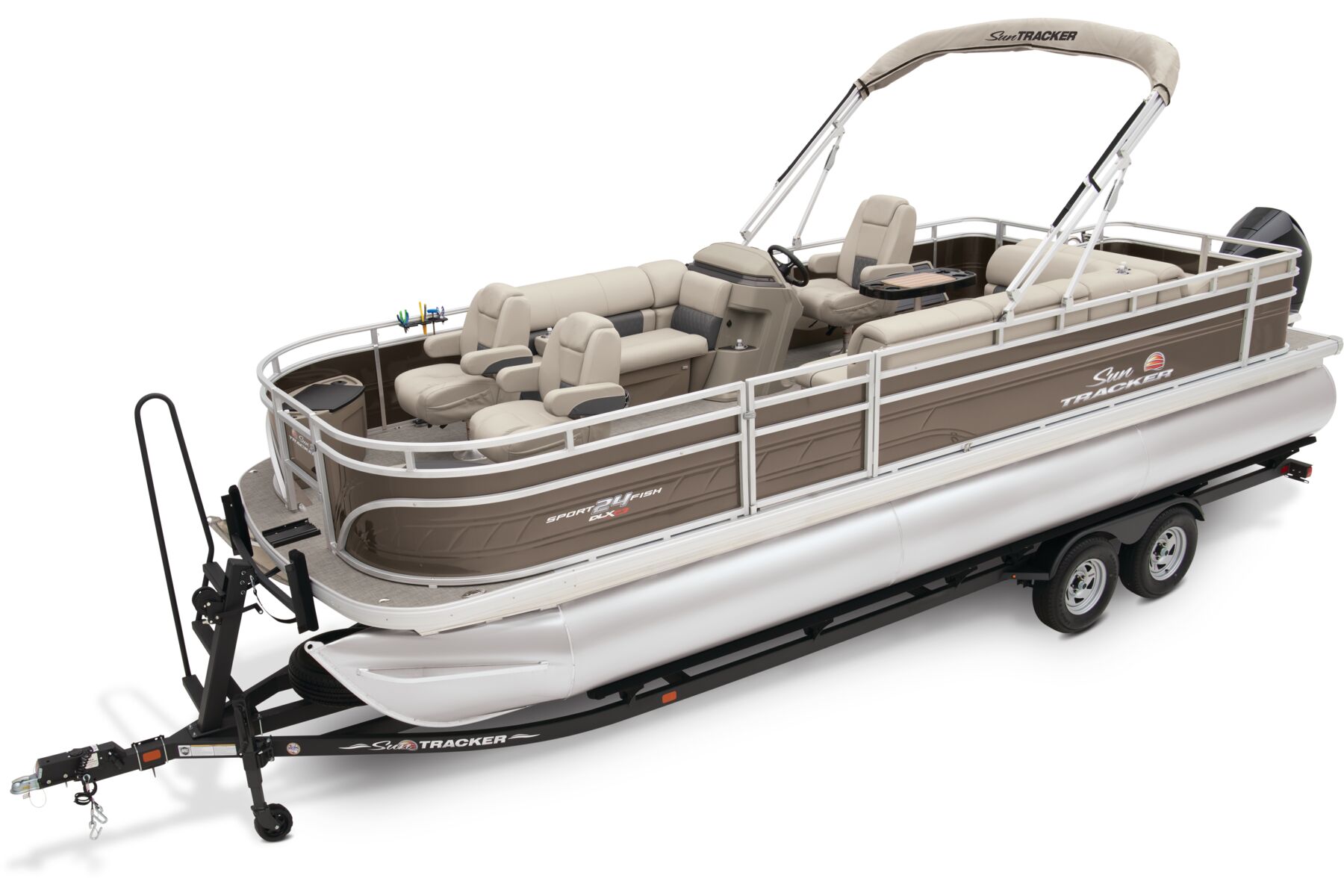

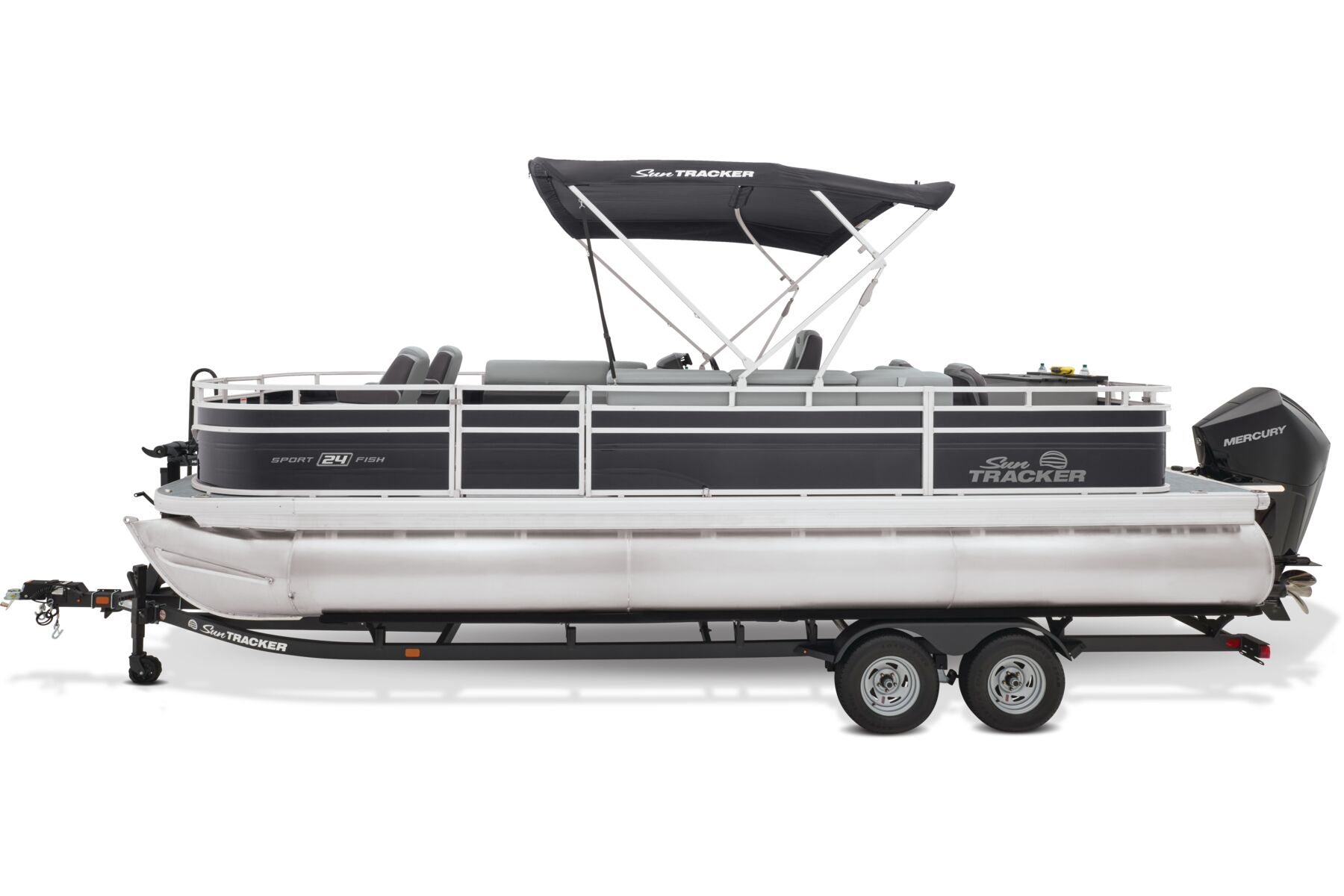

SPORTFISH™ 24 XP3
w/ 150 L FourStroke Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$53995
USD
|
Overview

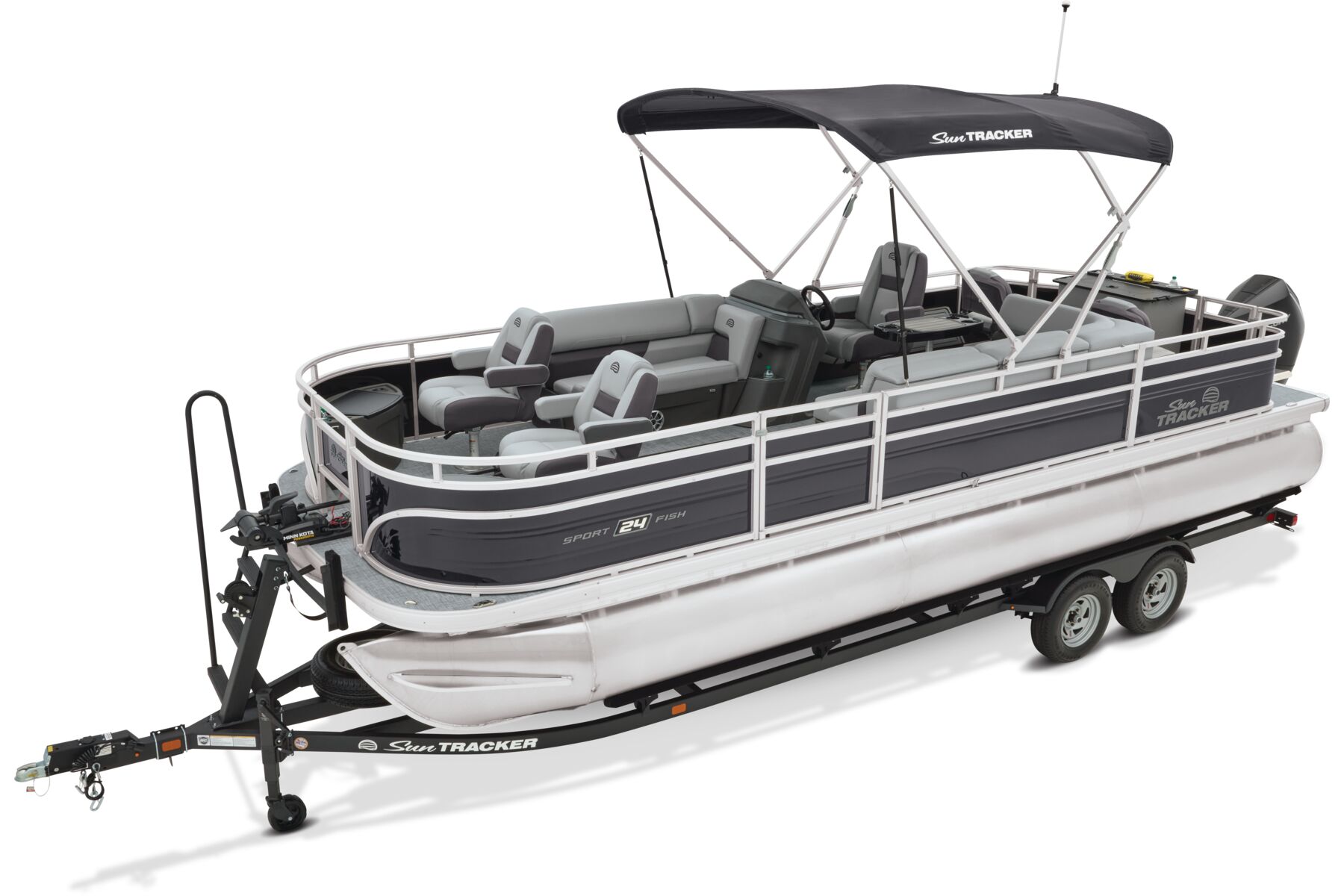

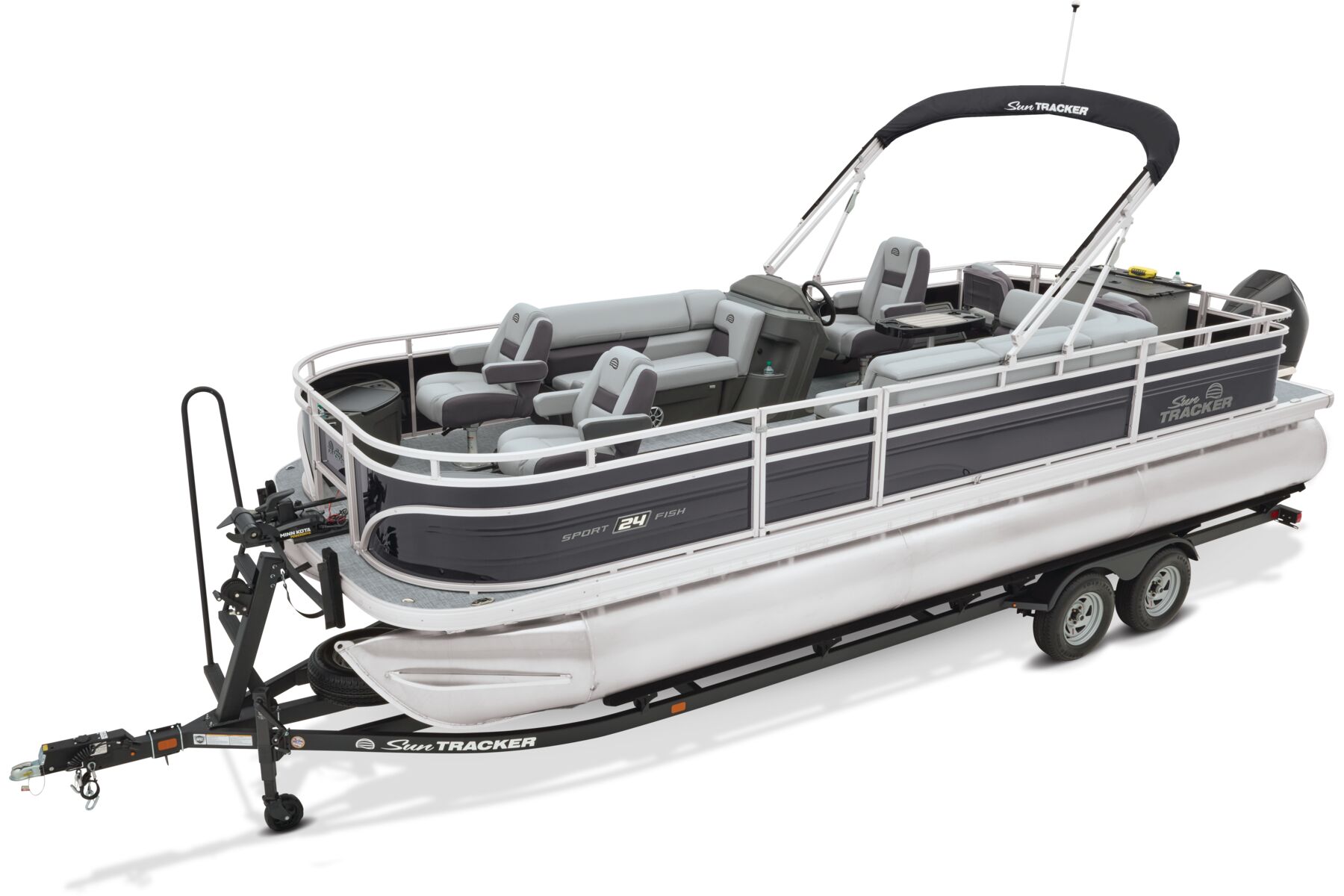

You just can't do much better than the 2025 SPORTFISH™ 24 XP3 if you're looking for the best floating fishing and relaxing station!

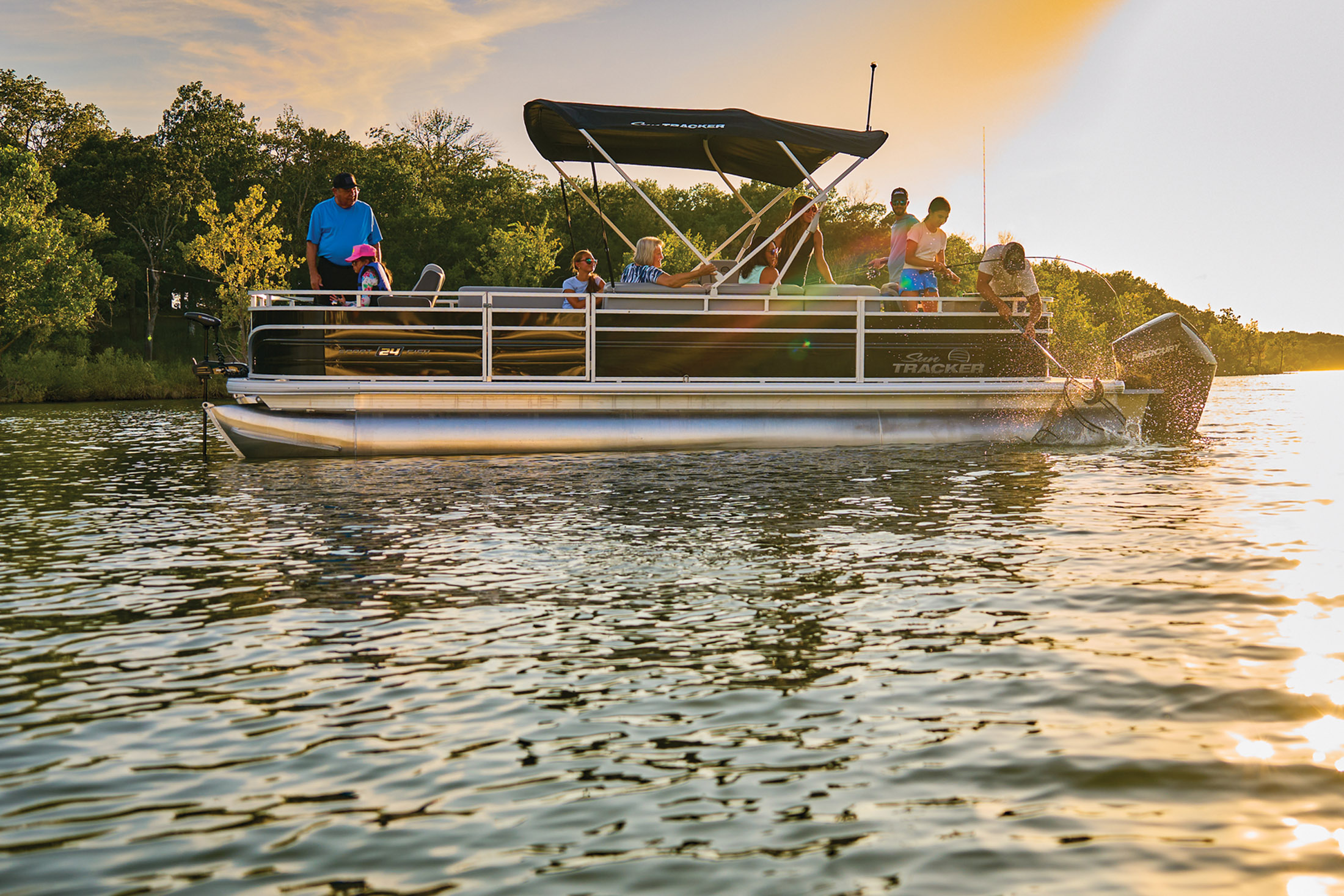

This SUN TRACKER® pontoon boat's 24' deck stays stable thanks to 3 pontoon logs with lifting strakes. Be ready to wet a line at any moment with the lockable rod box. From the bow casting deck’s dual removable and folding fishing chairs, anglers can take advantage of rail-mounted rod holders, an aerated livewell, the tackle storage compartment, and more.
Those who just want to sit back on the water can do so in the rear-facing couch, the L-shaped aft lounge, and the fore couch—all of which hide extra storage spaces under their seats and behind their seat backs. The pilot can relax and find the next cove in the swiveling captain's chair. Find your spot and pull up the 10' QuickLift® bimini top for some shade. When the bites slow down, turn on the 2-speaker Wet Sounds® stereo with Bluetooth® compatibility to create a soundtrack for your day on the water.
The SPORTFISH™ 24 XP3 comes standard with a 150hp Mercury® L FourStroke outboard motor and has a recommended maximum 250hp rating.
Key Features
Helm Seats
Dual low-back fishing seats are ideal for casting or chilling.
Optional Fishing Package

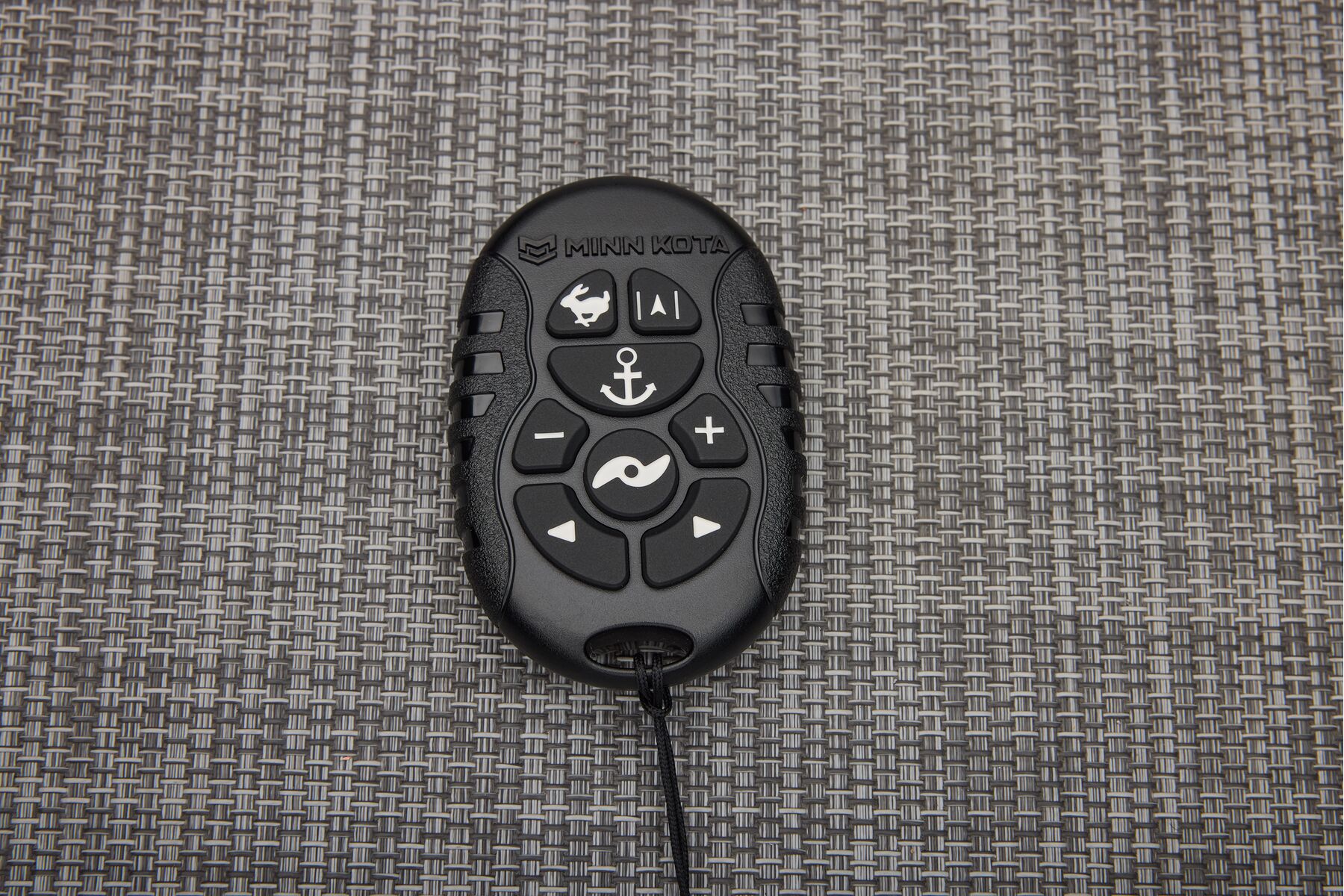

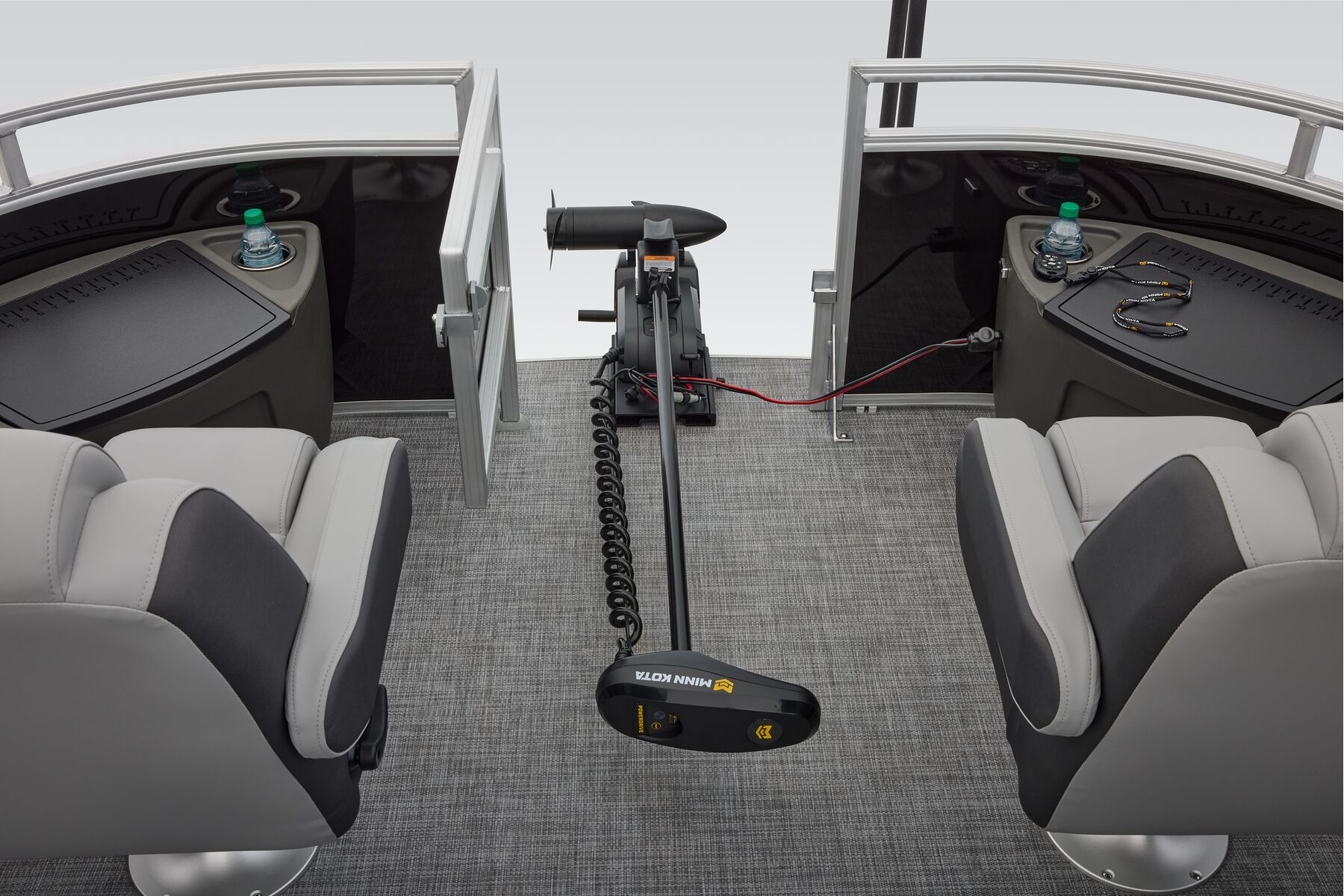

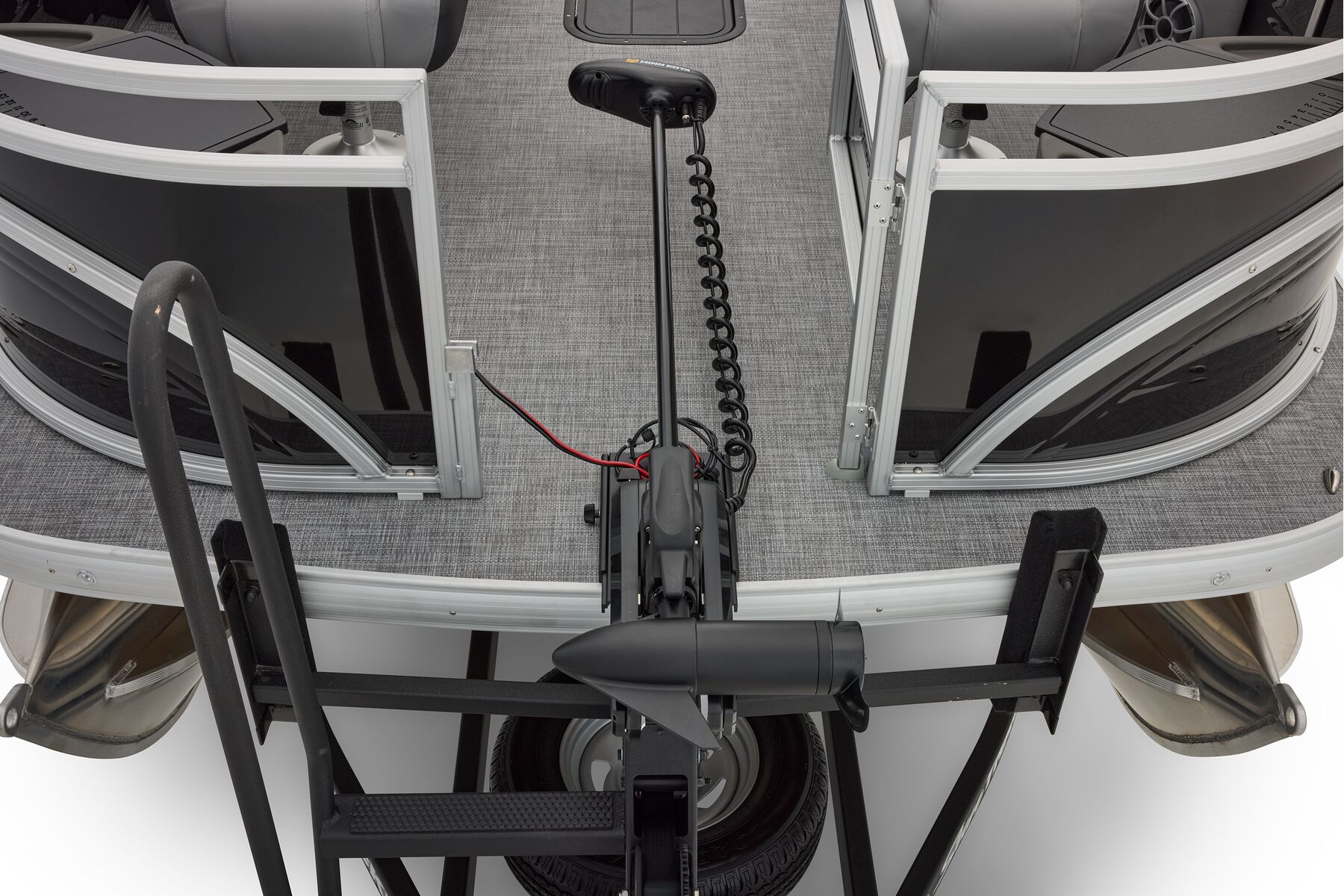

A 24V trolling motor combine with rod and tool holders for fishing perfection.

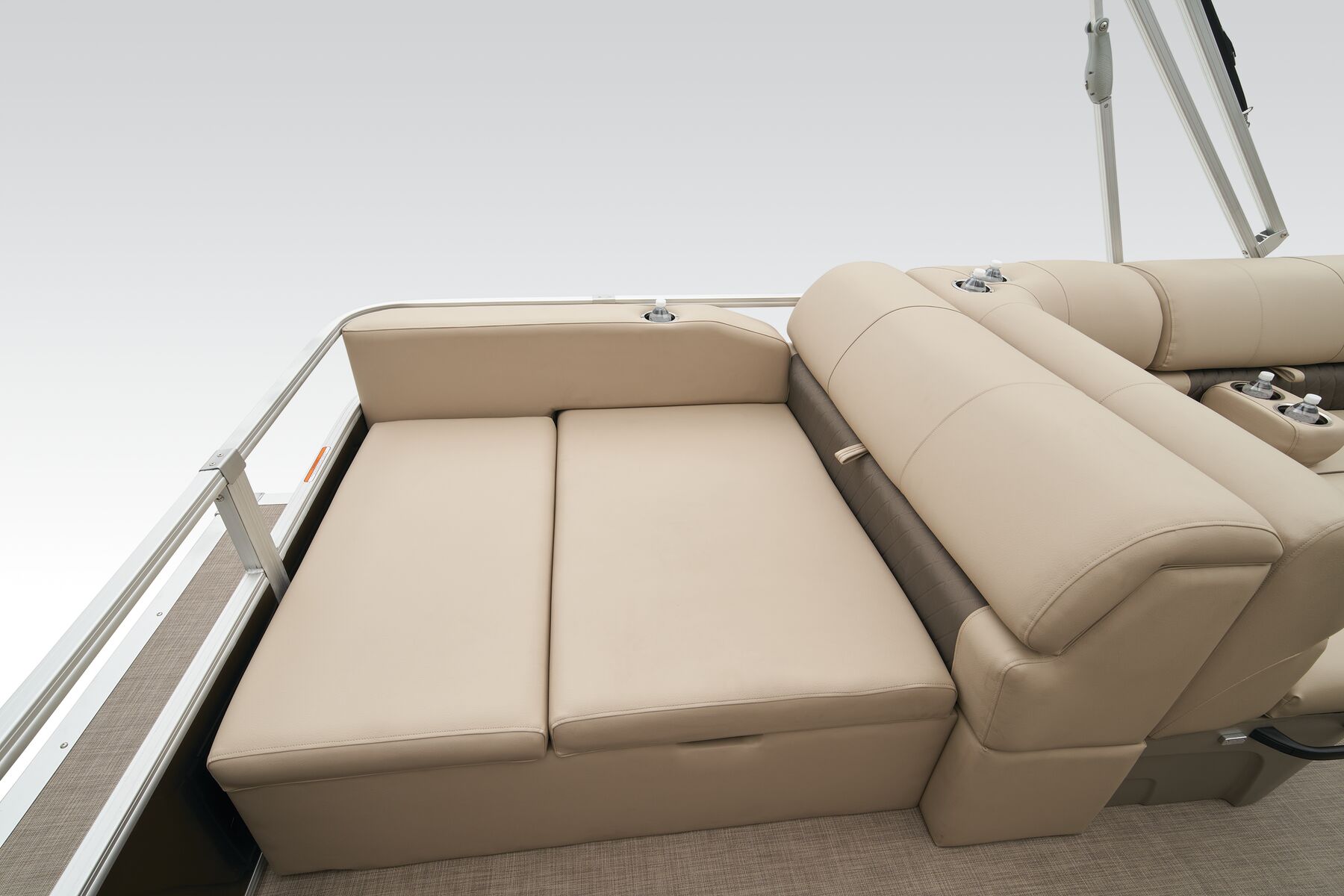

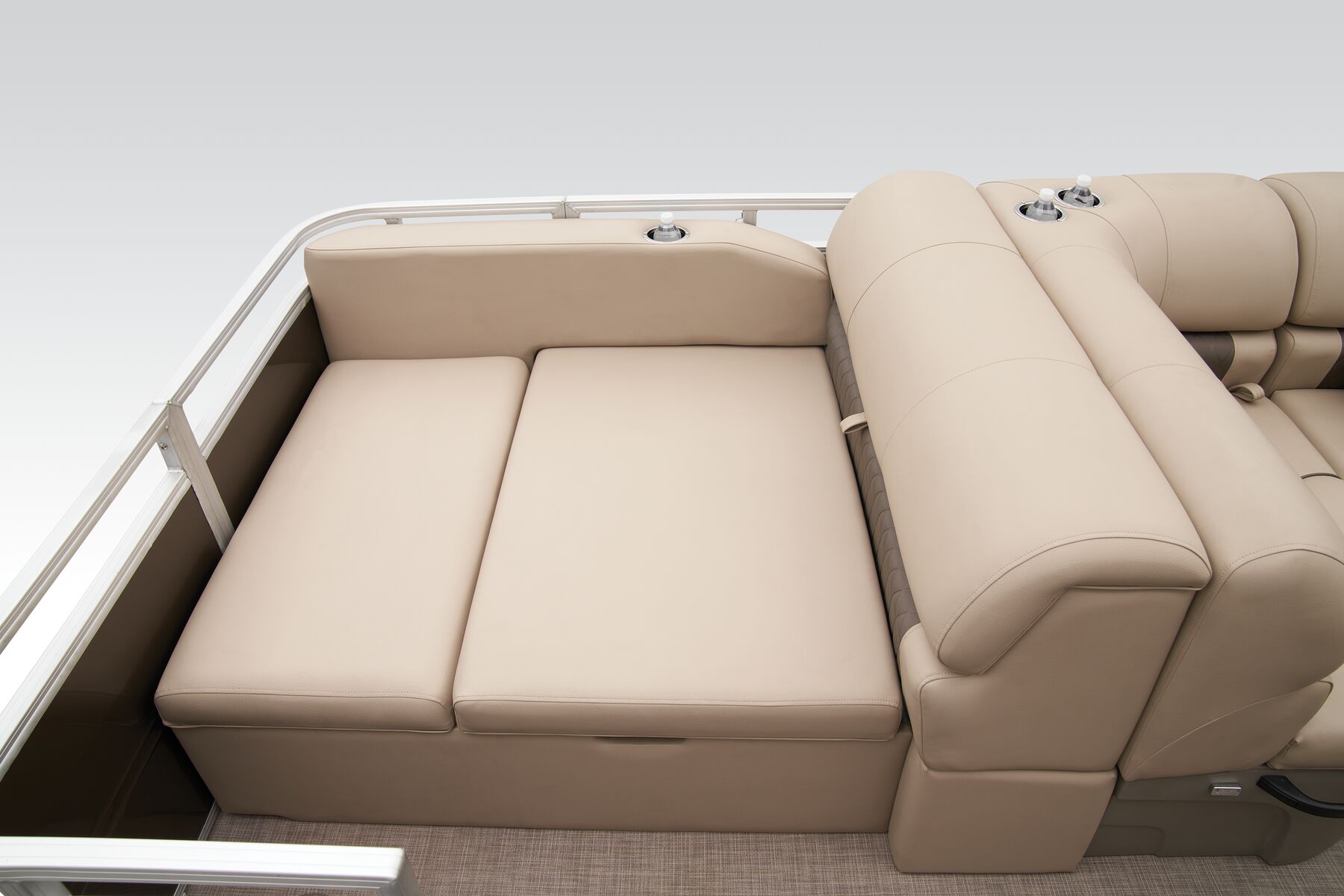

Rear-Facing Bed
Spread out and relax after a long day of fishing.

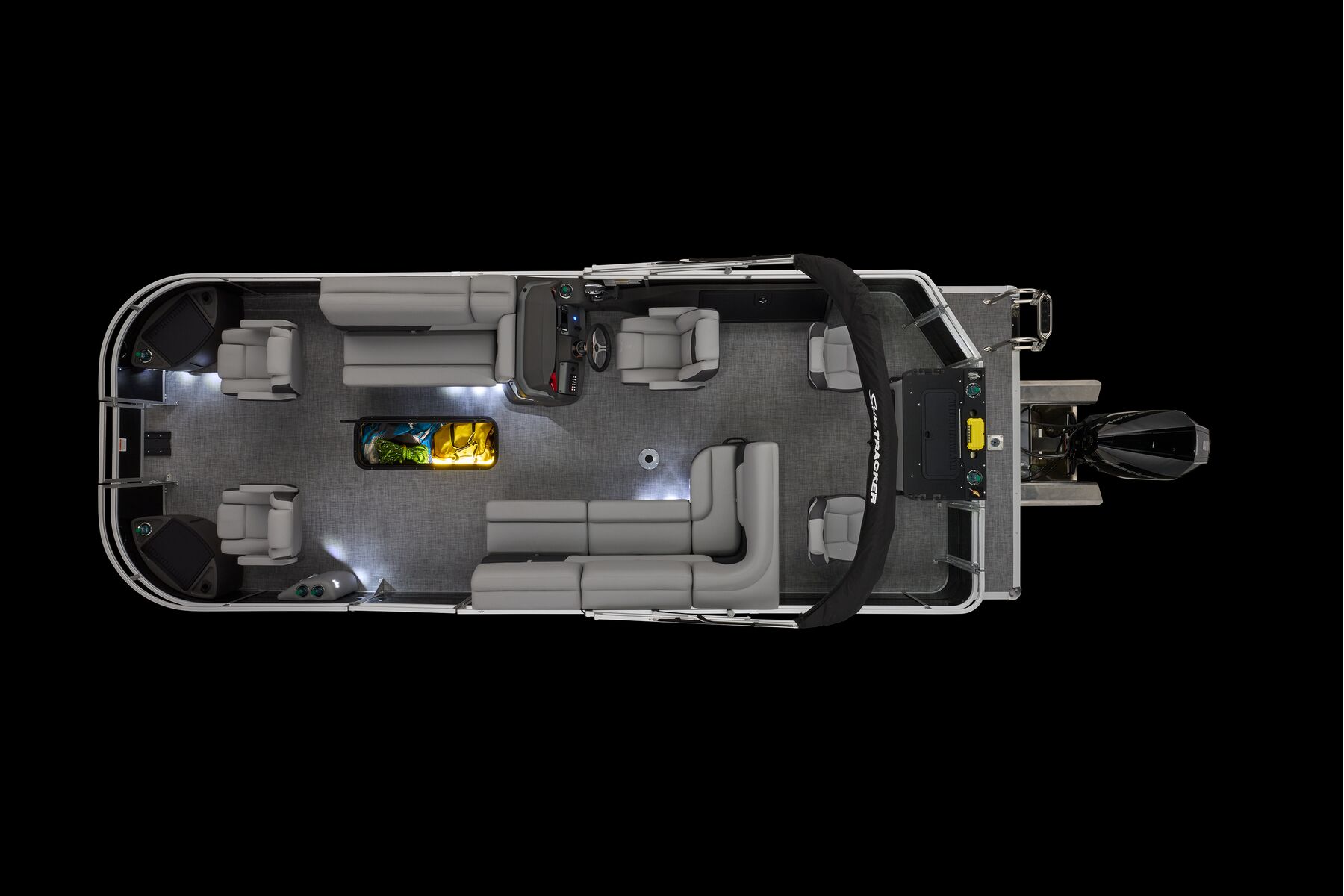

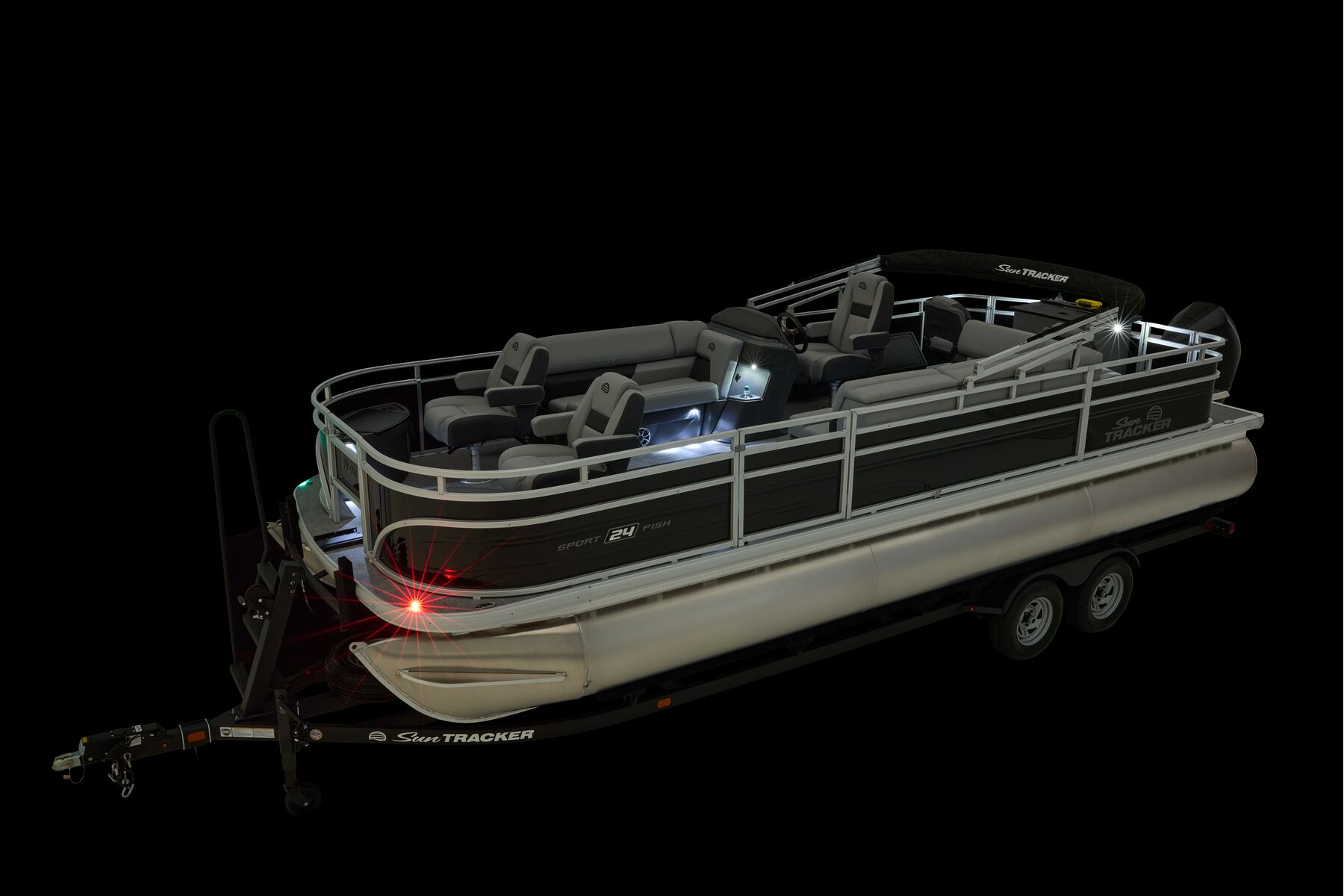

Gallery
Specifications
| Length | 7.98 m | 26' 2'' |
| Deck Length | 7.34 m | 24' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 250 HP | |
| Fuel Capacity | 196.82 L | 52 gal. |
| Pontoon Log Length | 7.59 m | 24' 11'' |
| Pontoon Log Diameter | 66.04 cm | 26'' |
| Pontoon Log Material | 0.100 5052 marine alloy | |
| Max. Person Capacity | 12 persons |
| Max. Person Weight | 952.54 kg | 2100 lbs. |
| Max. Person, Motor & Gear Weight | 1344.9 kg | 2965 lbs. |
| Interior Depth | 60.96 cm | 24'' |
| Average Dry Weight | 1342.63 kg | 2960 lbs. |
| Average Package Weight | 2394.97 kg | 5280 lbs. |
| Package Height | 2.69 m | 8' 10'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 10.46 m | 34' 4'' |
| Storage Length | 10.46 m | 34' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 150 L FourStroke | 33-37 mph |
$53995 USD
|
Select Dealer | ||
| 200 L FourStroke | - |
$58865 USD
|
Select Dealer | ||
| 250 L FourStroke | - |
$63795 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
- NMMA® certified

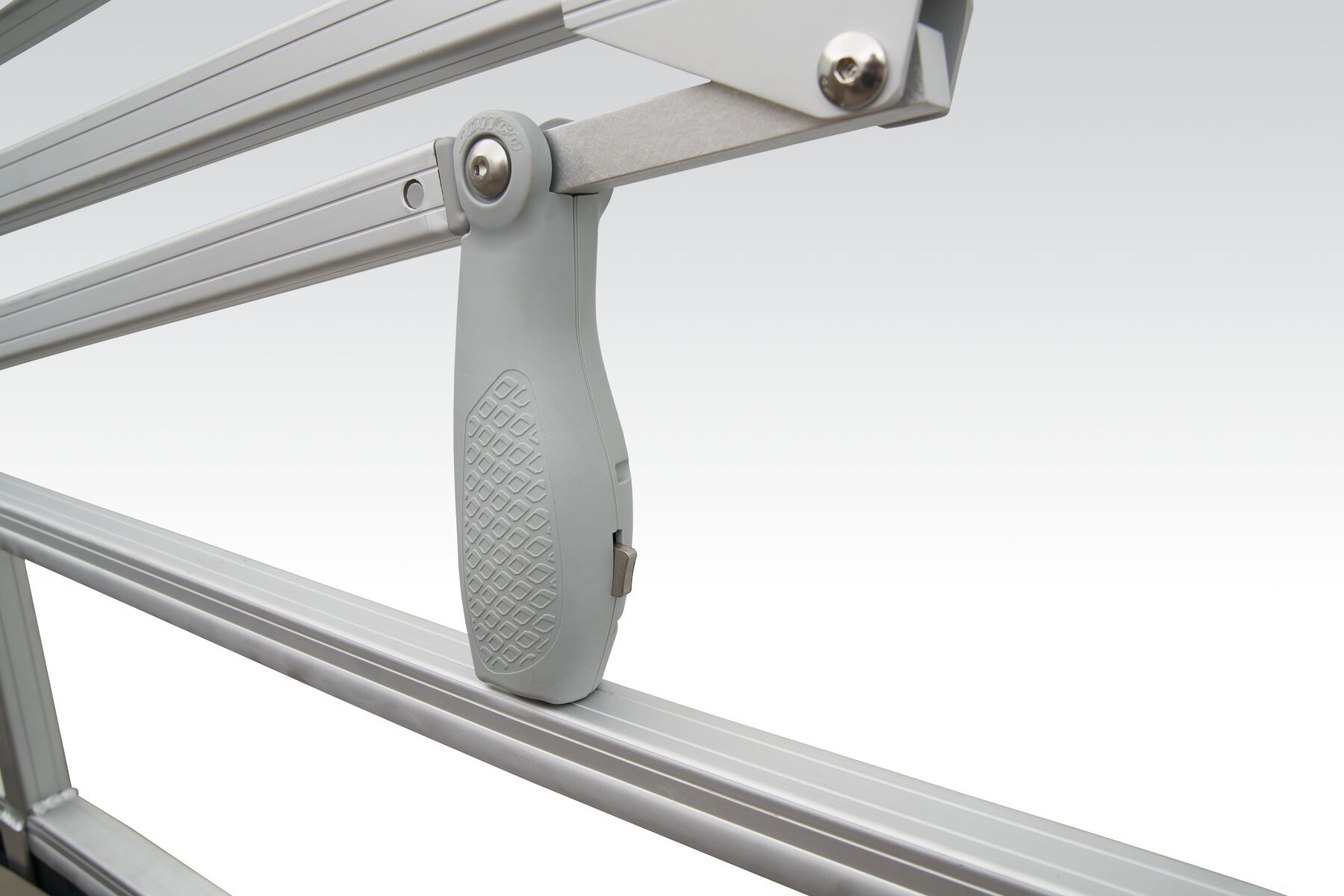

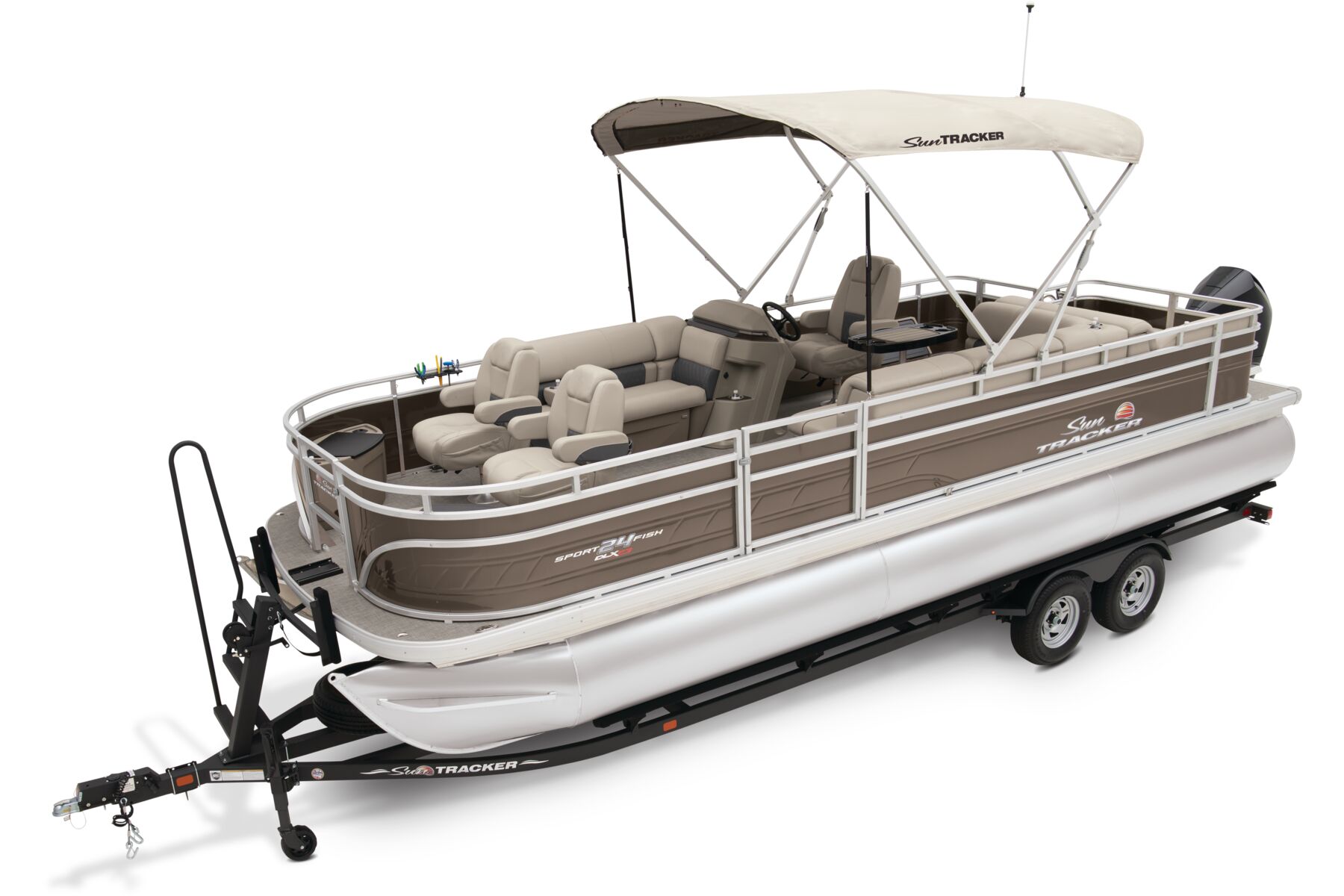

- 10' (3.05 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Black fencing or Sand w/Caribou fencing)

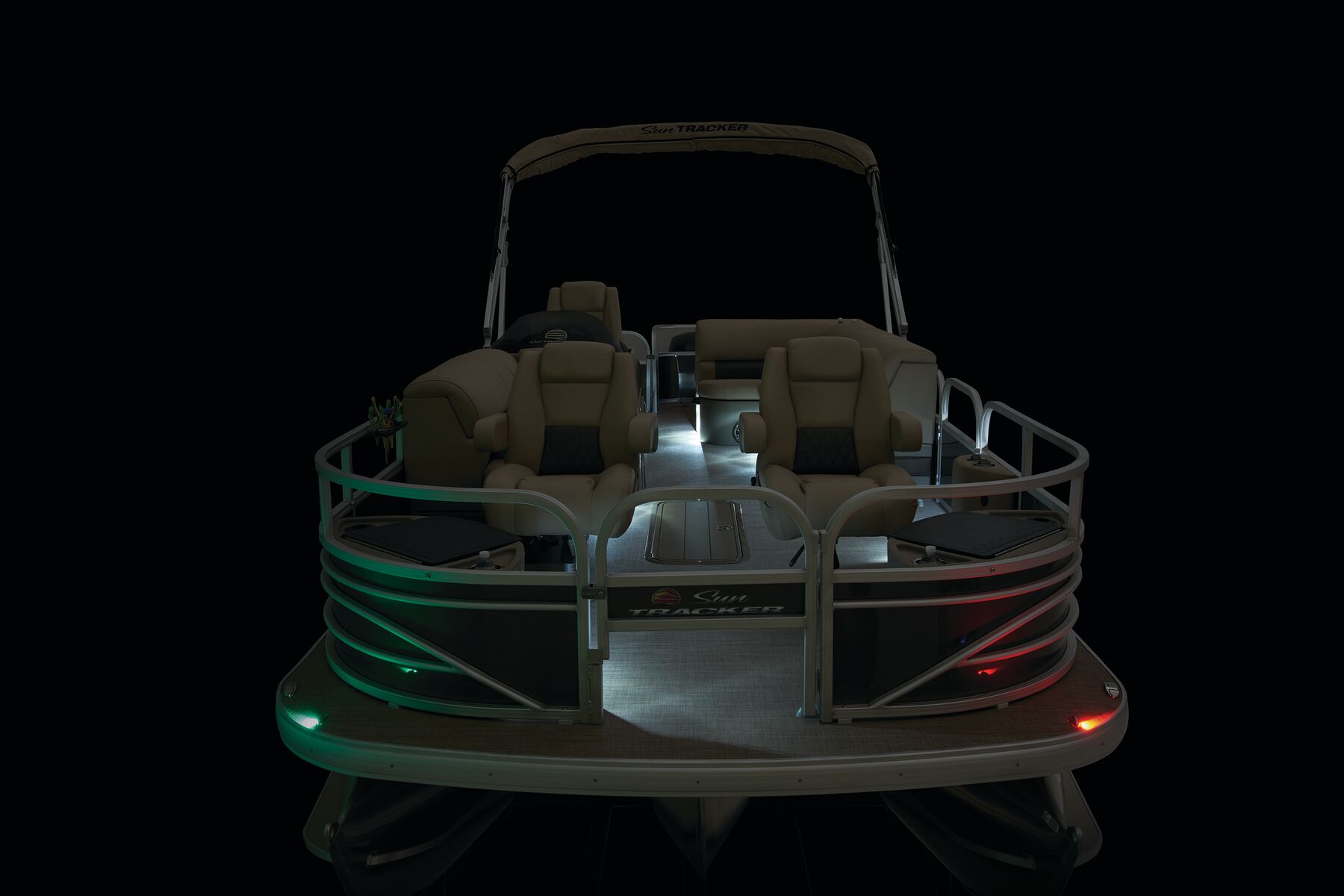

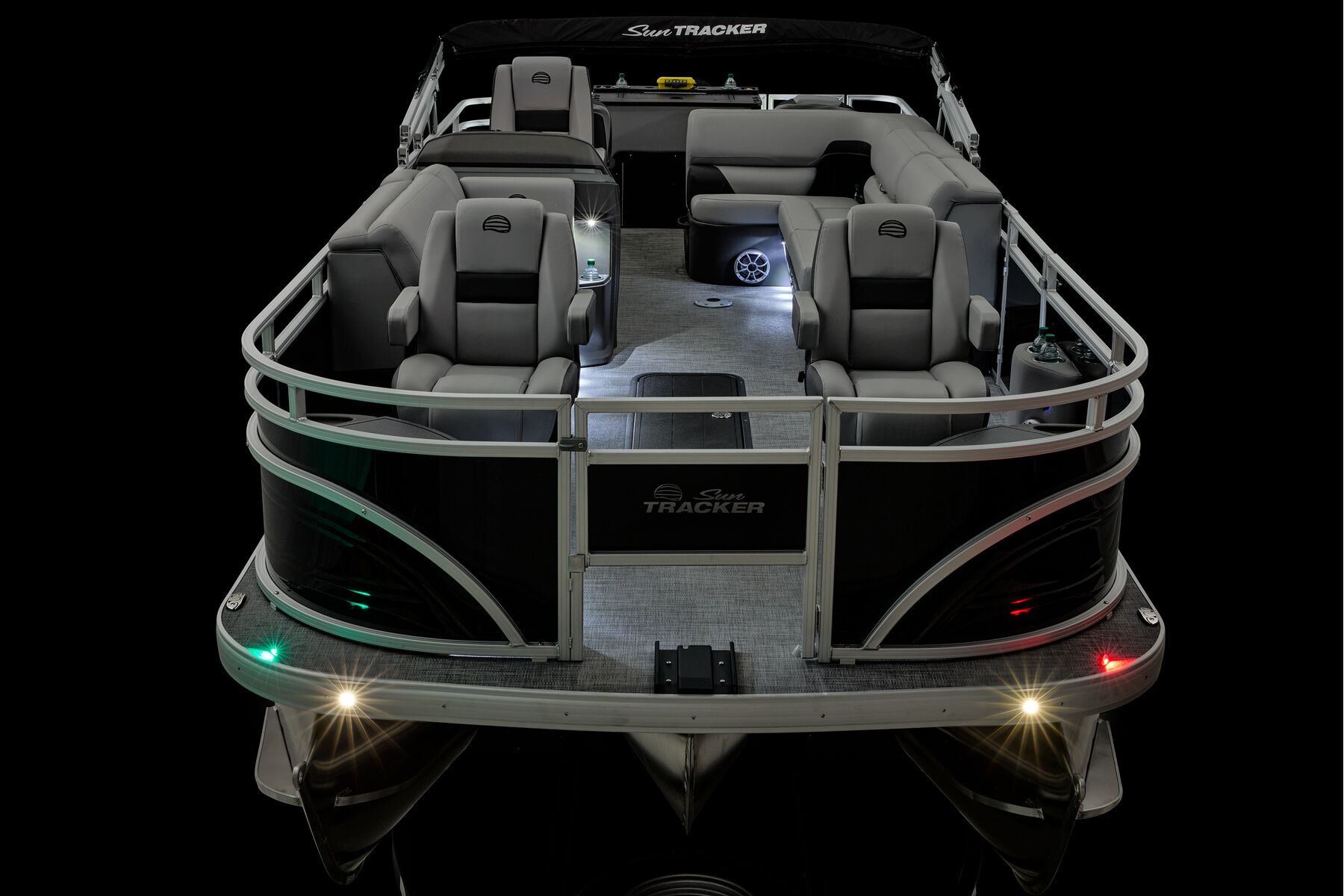

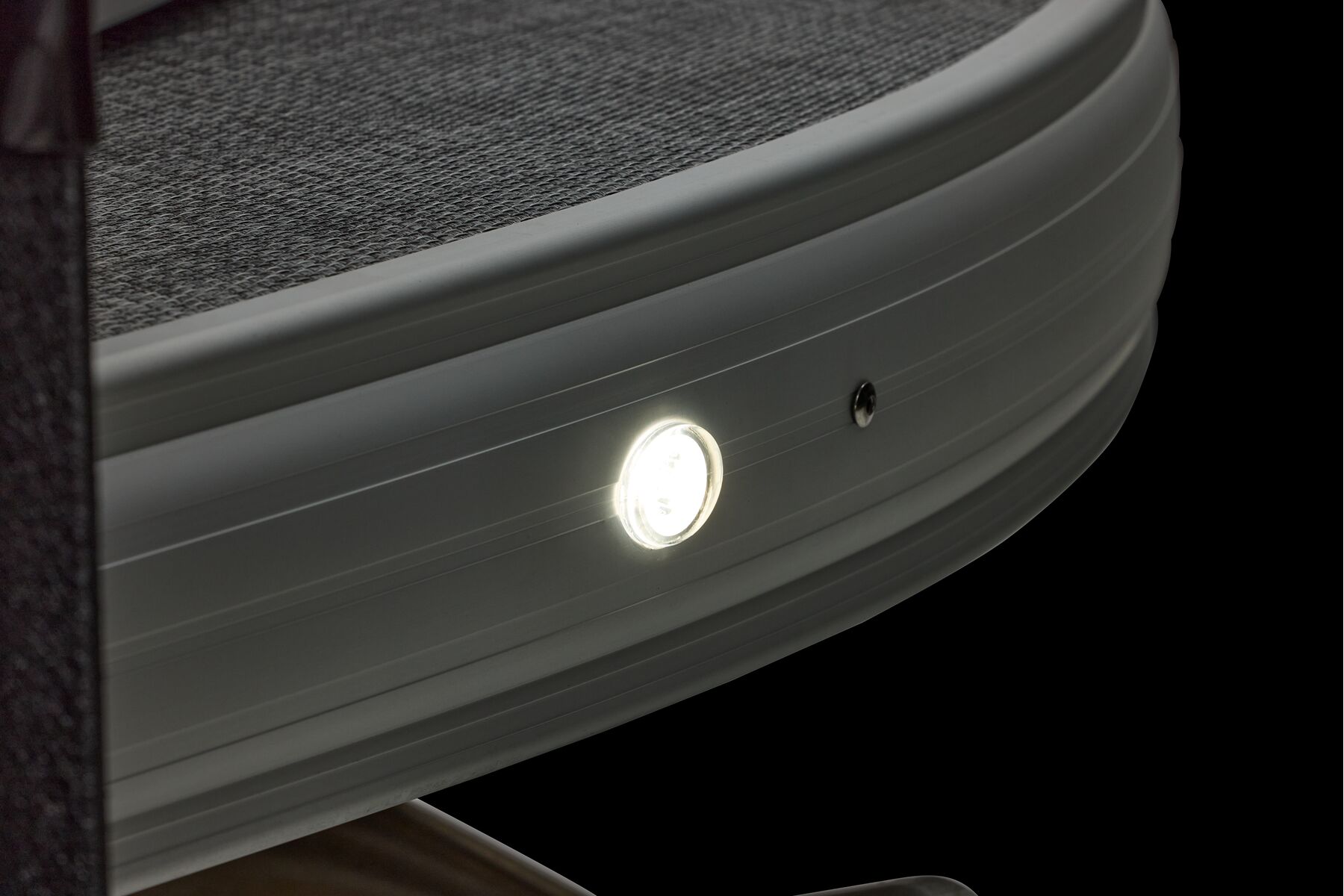

- Built-in LED docking lights

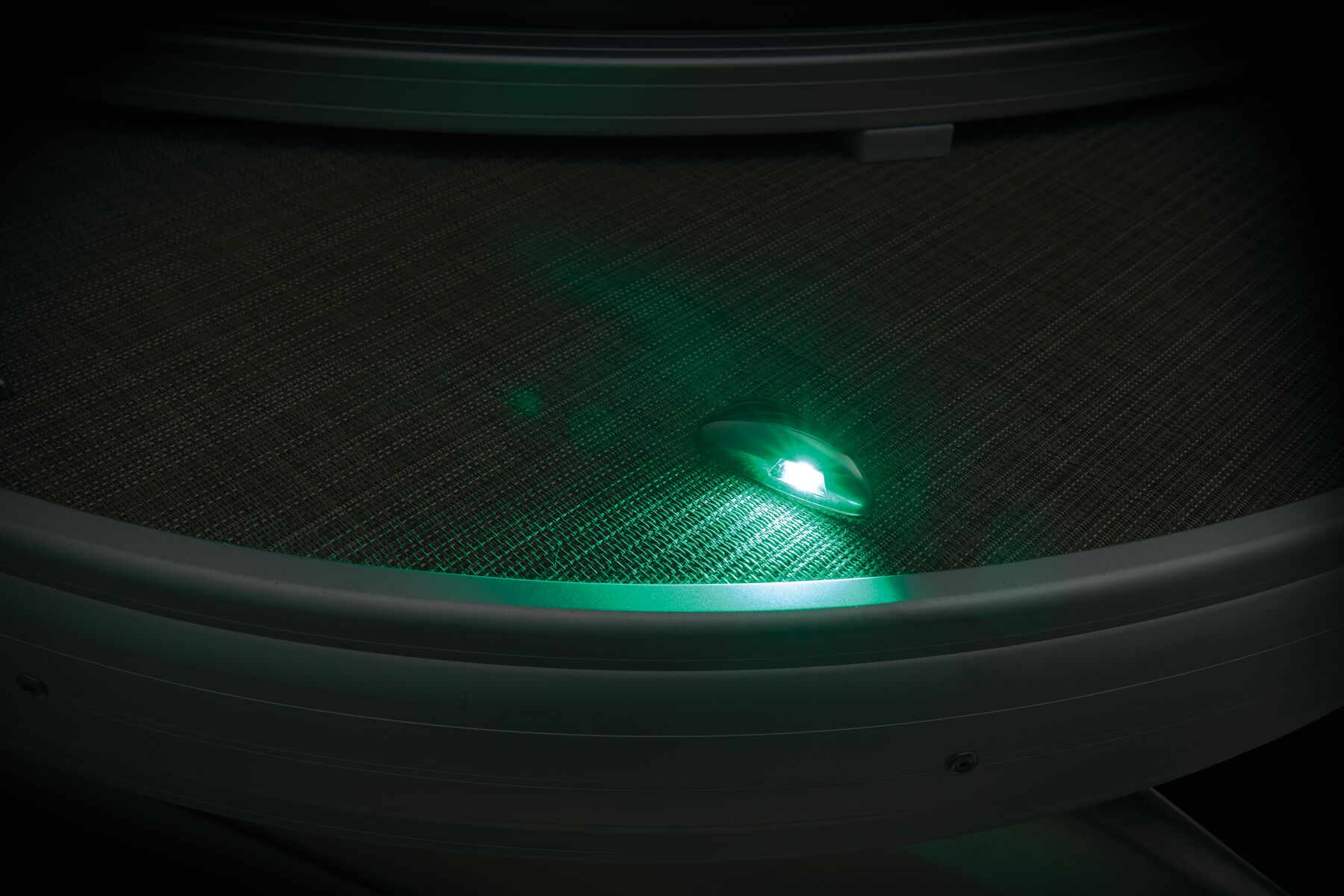

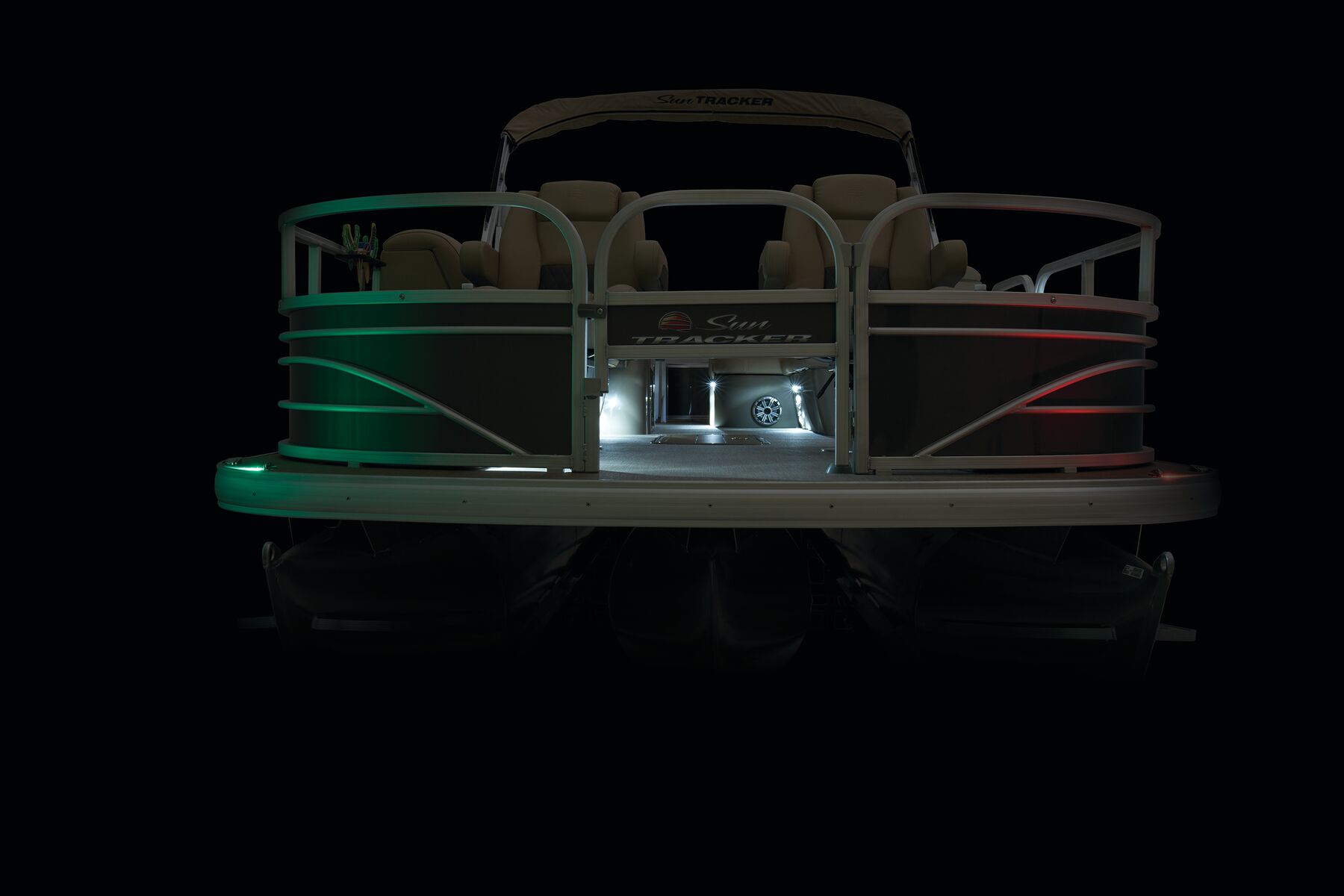

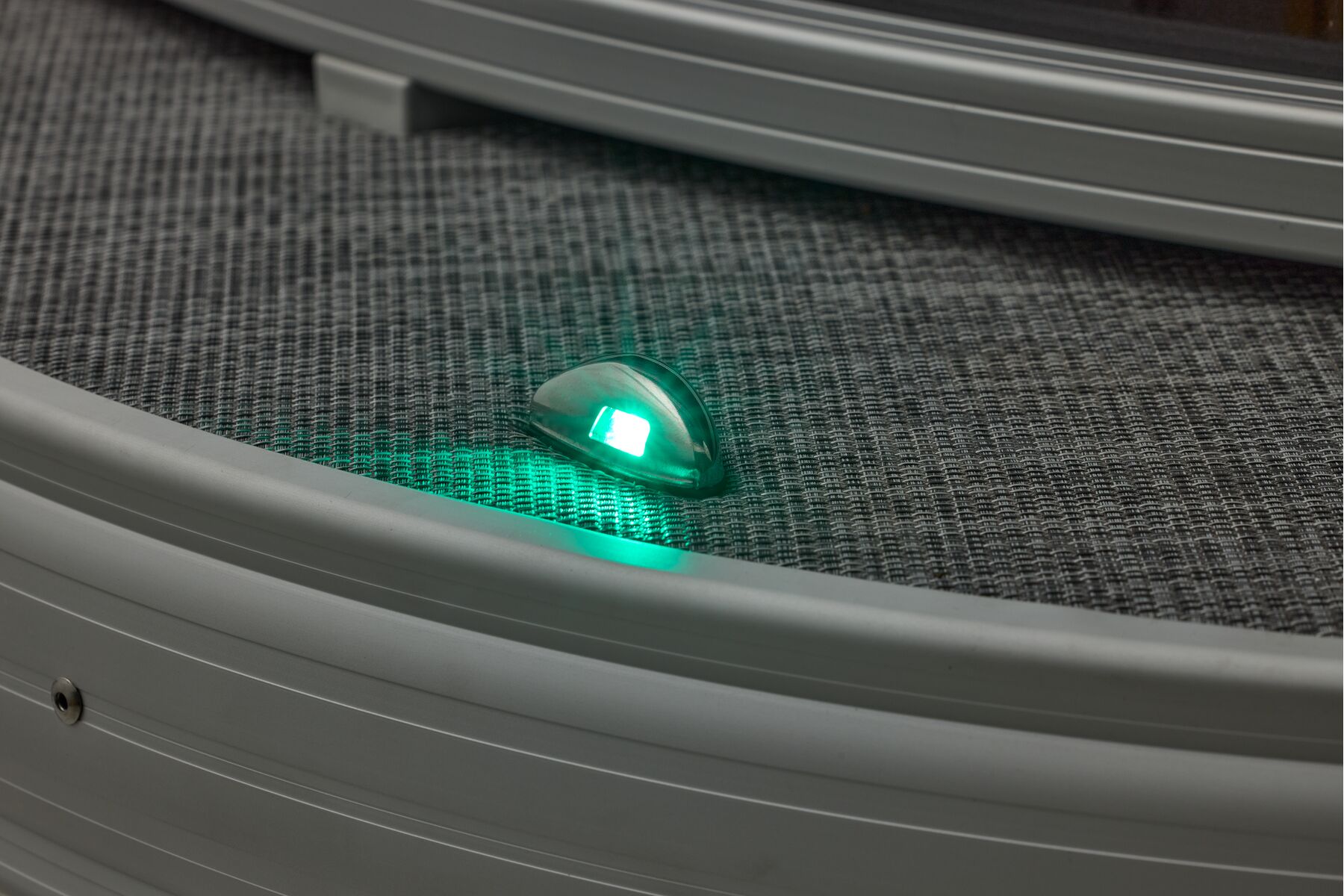

- Built-in LED navigation & anchor lights
- 4 folding mooring cleats & starboard side tie-off mooring eye

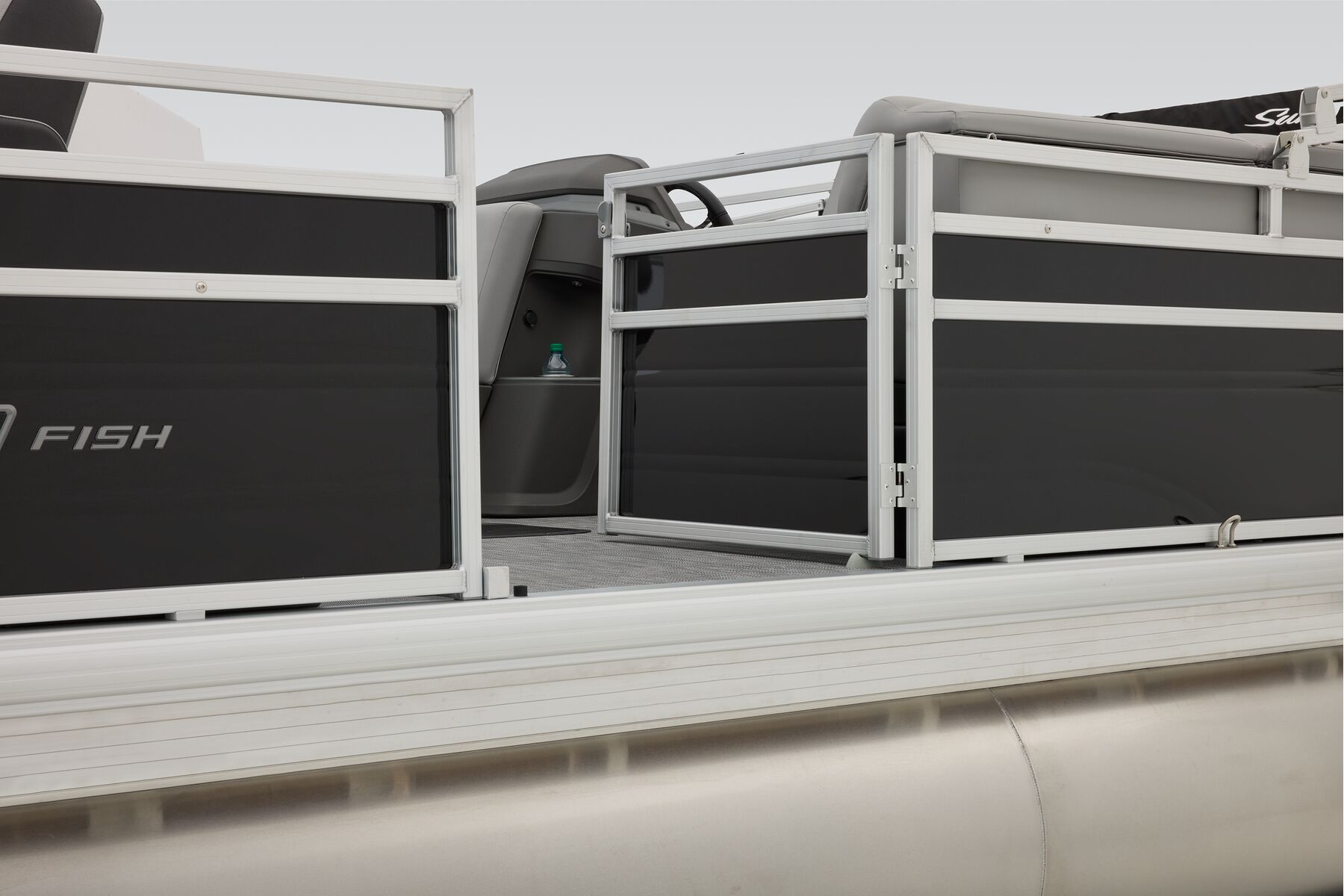

- Port wheelchair-accessible gate

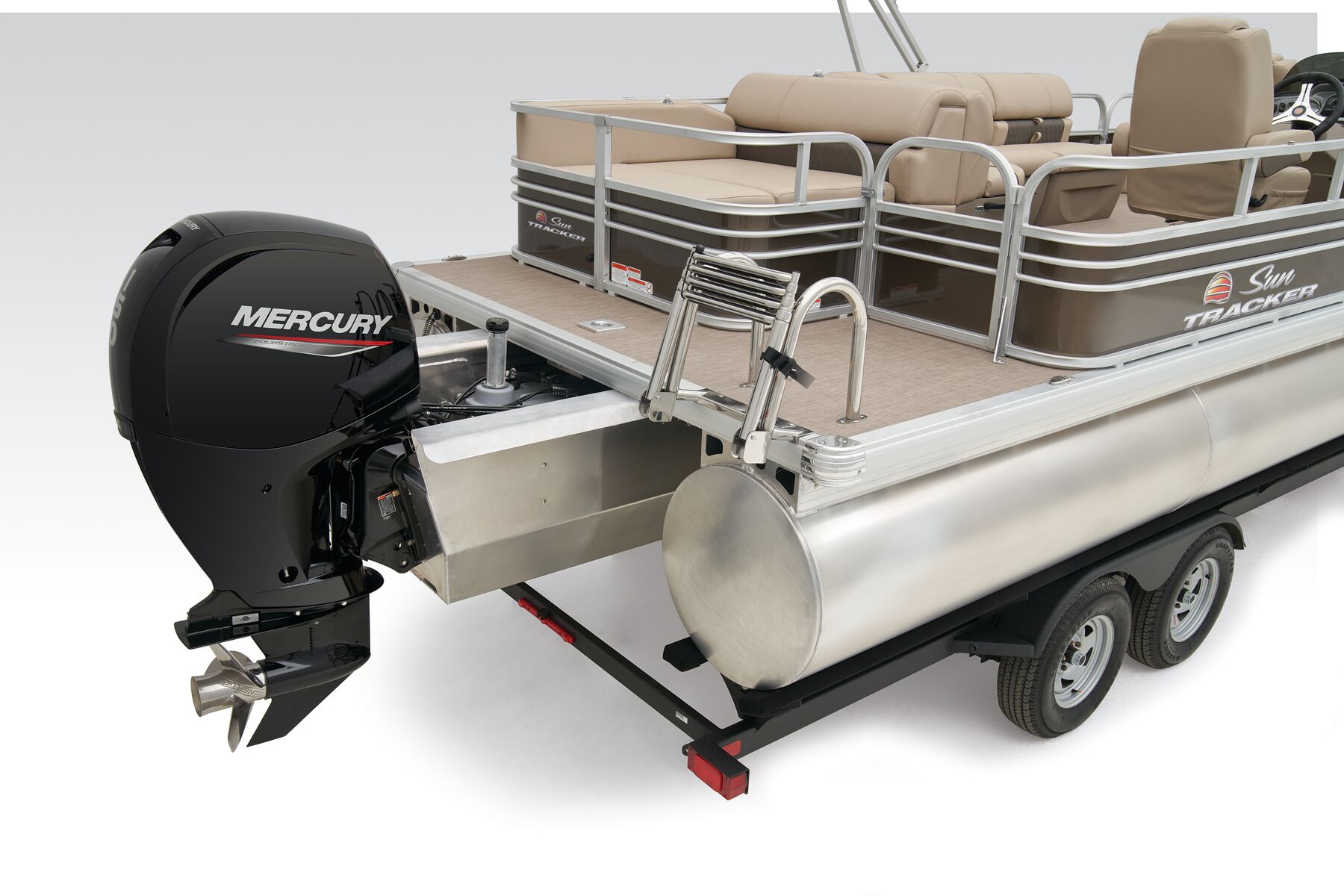

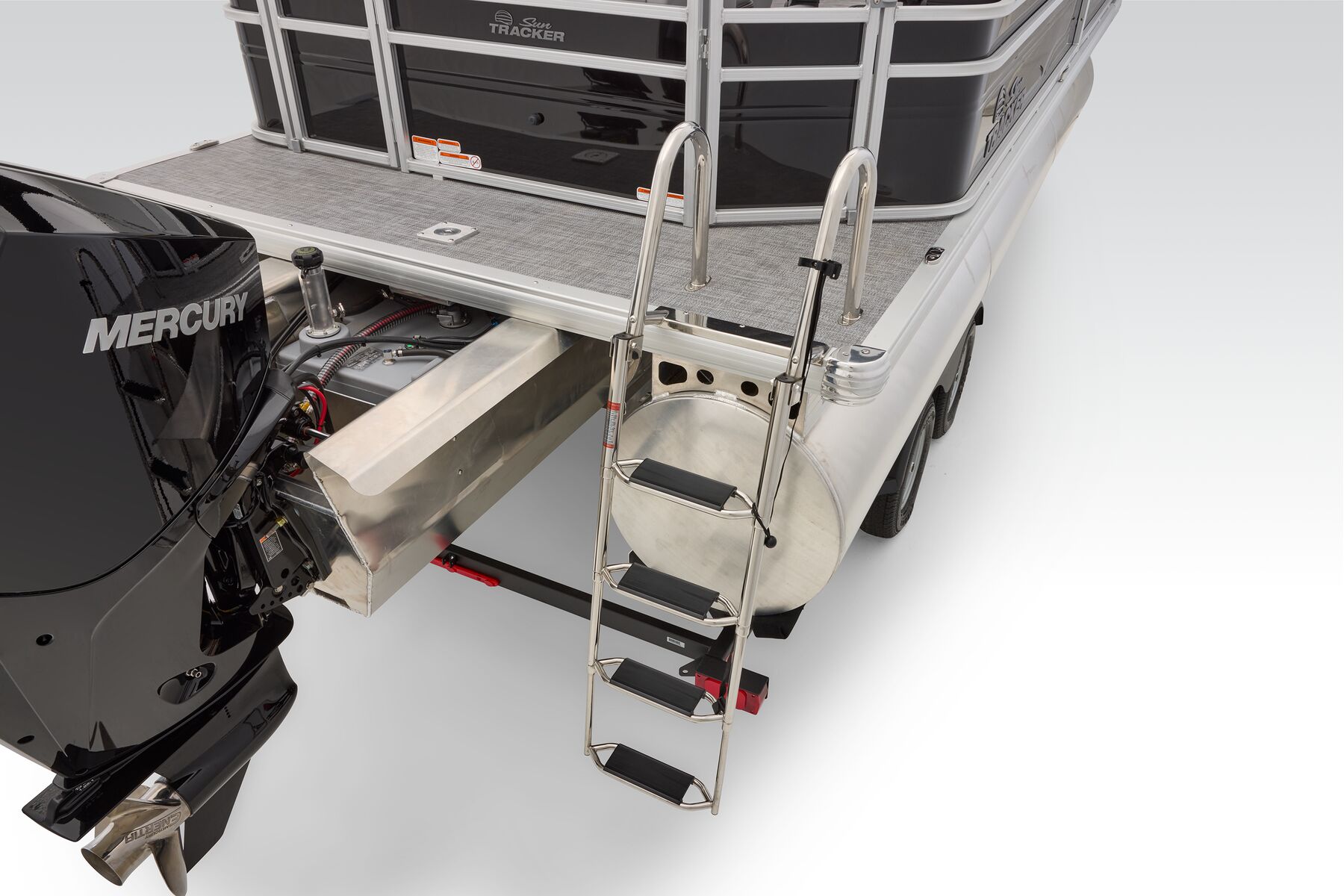

- Rear boarding platform w/4-step telescoping boarding ladder & grab rails

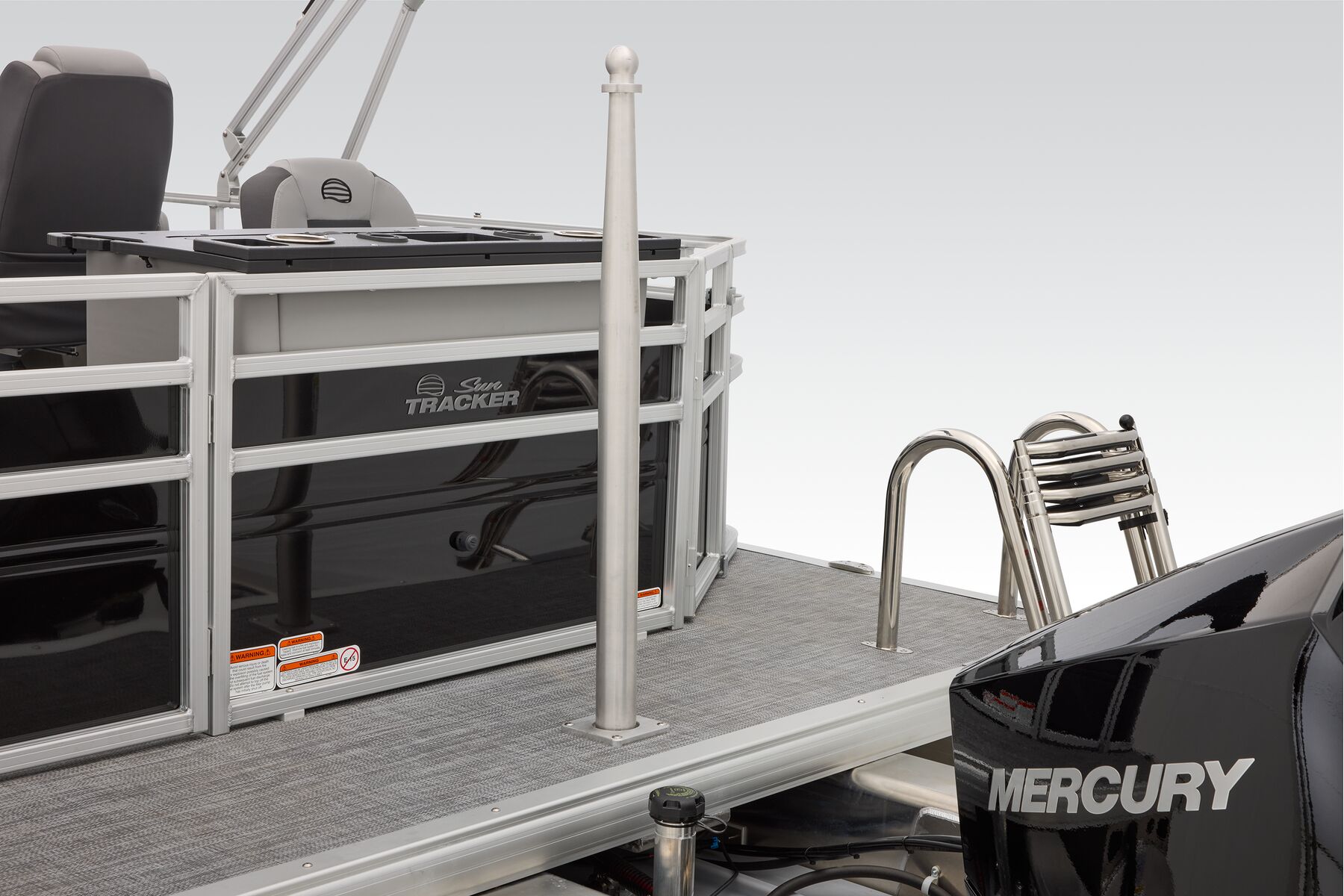

- Aft receptacle base for optional ski tow pylon
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Livewell System

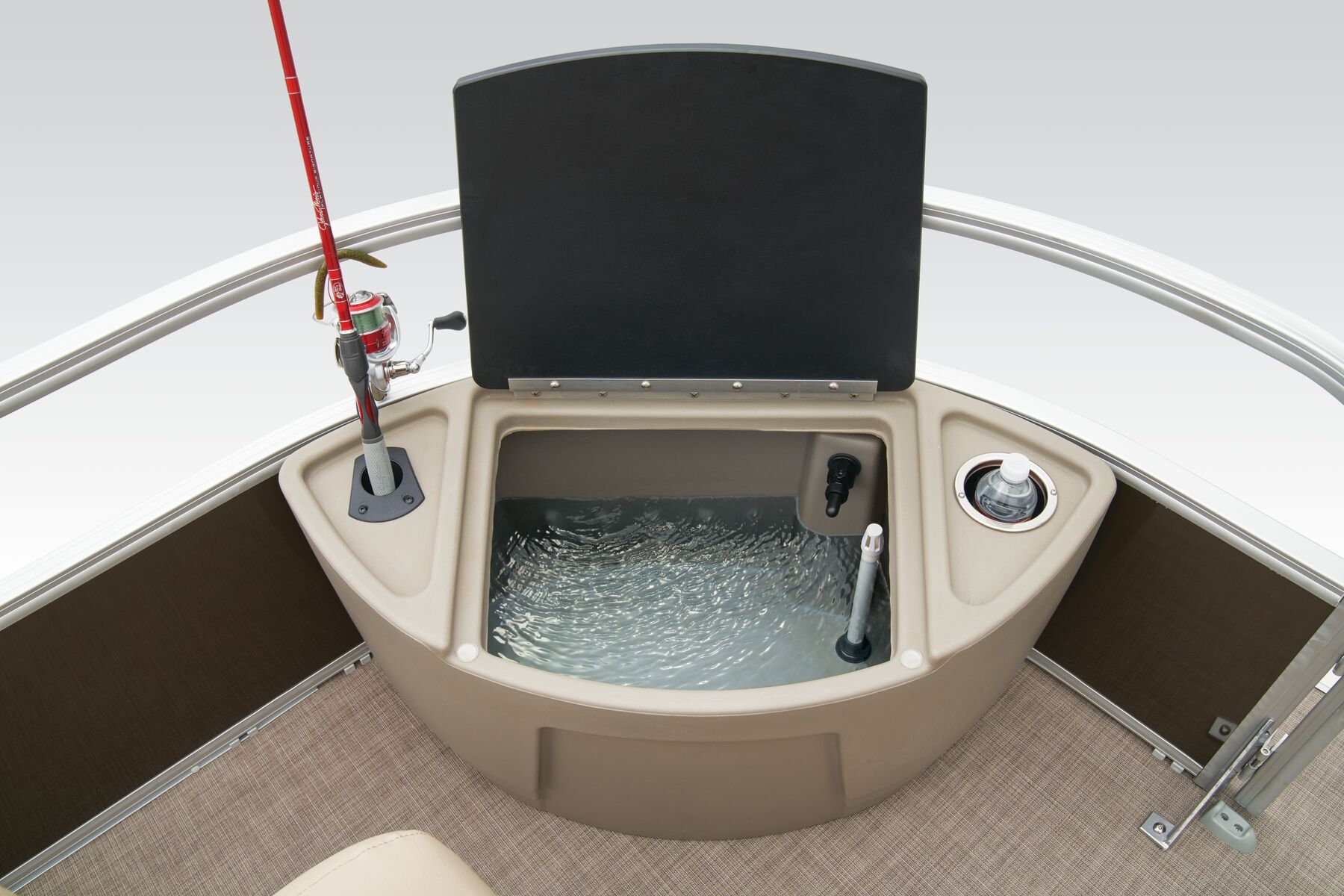

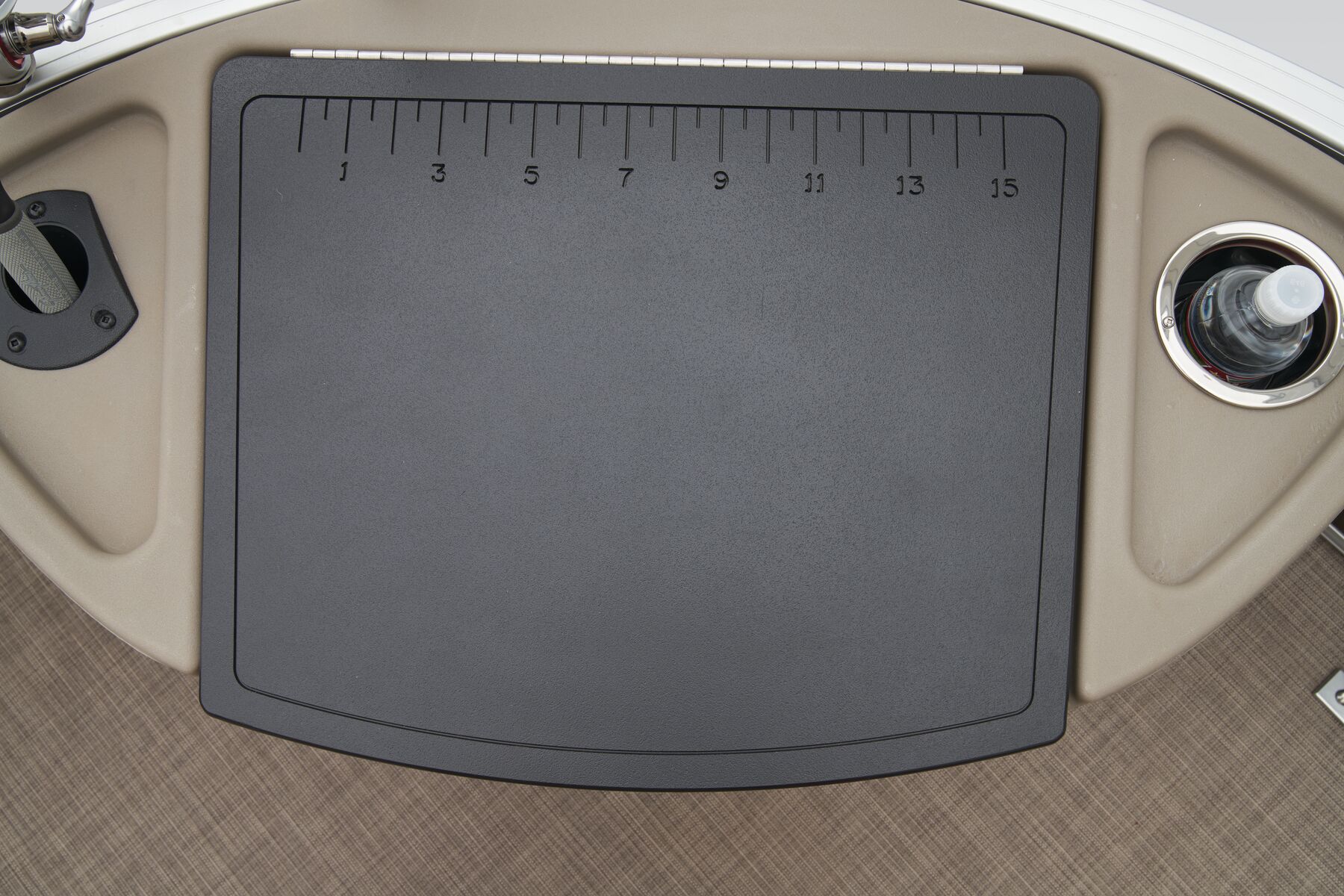

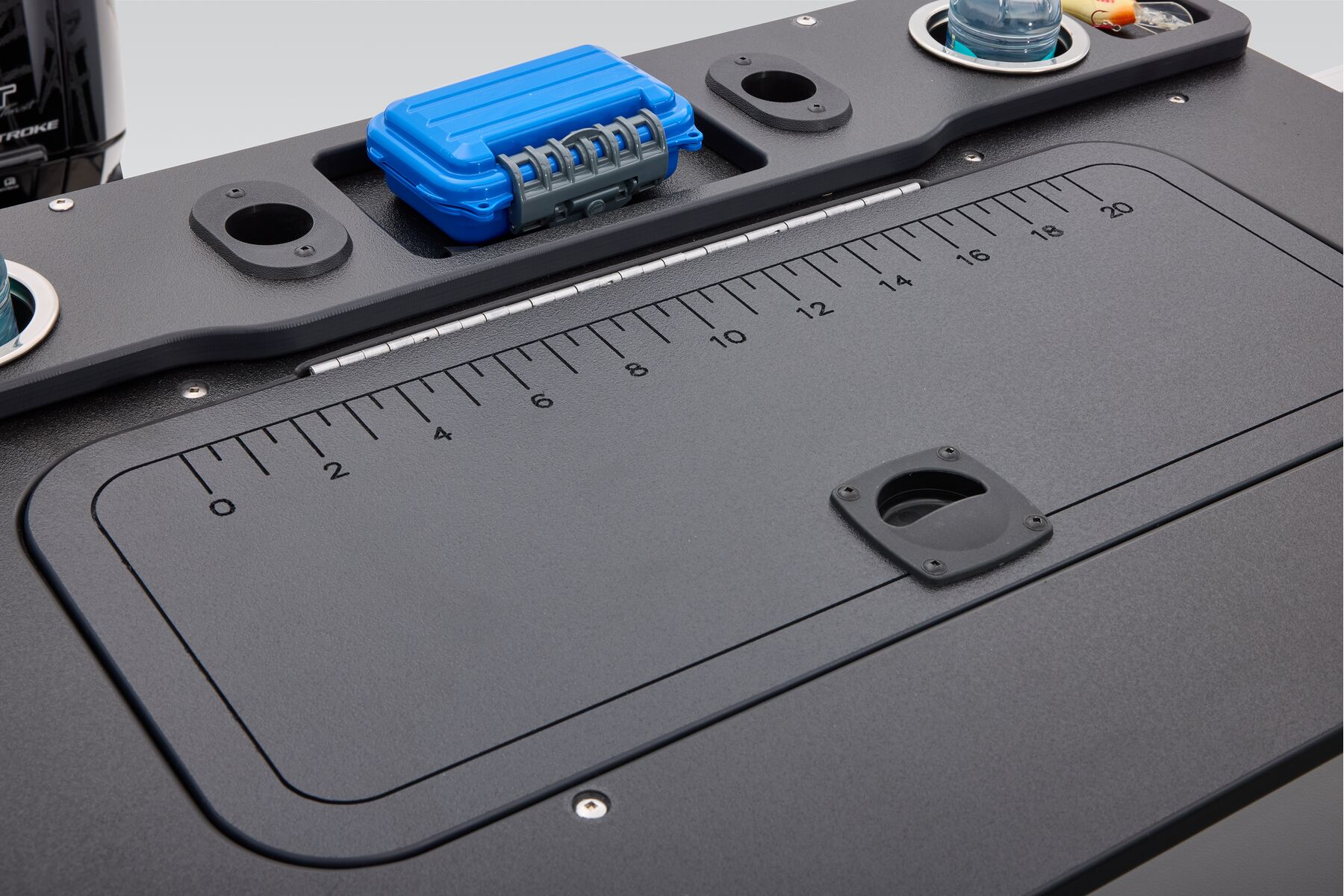

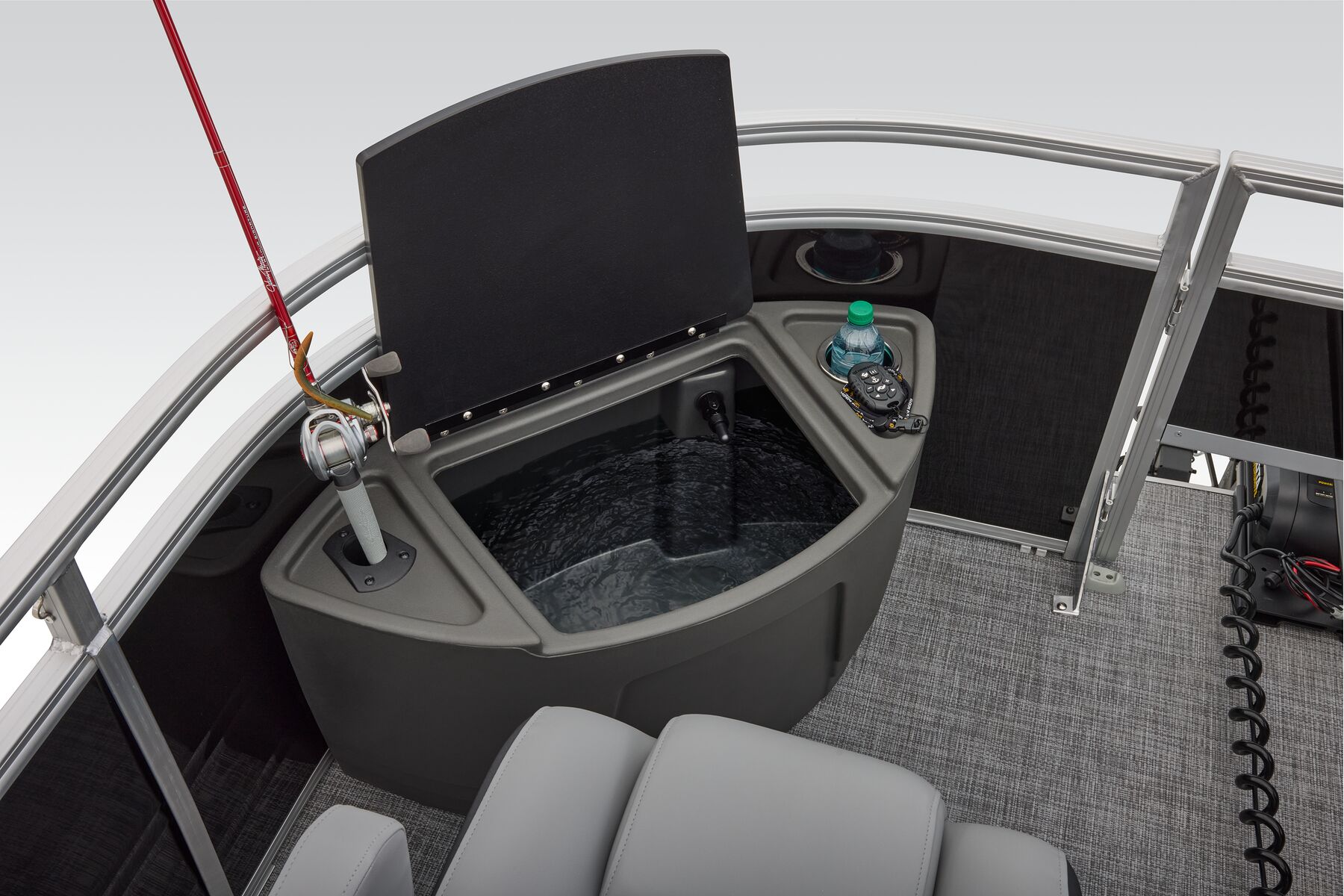

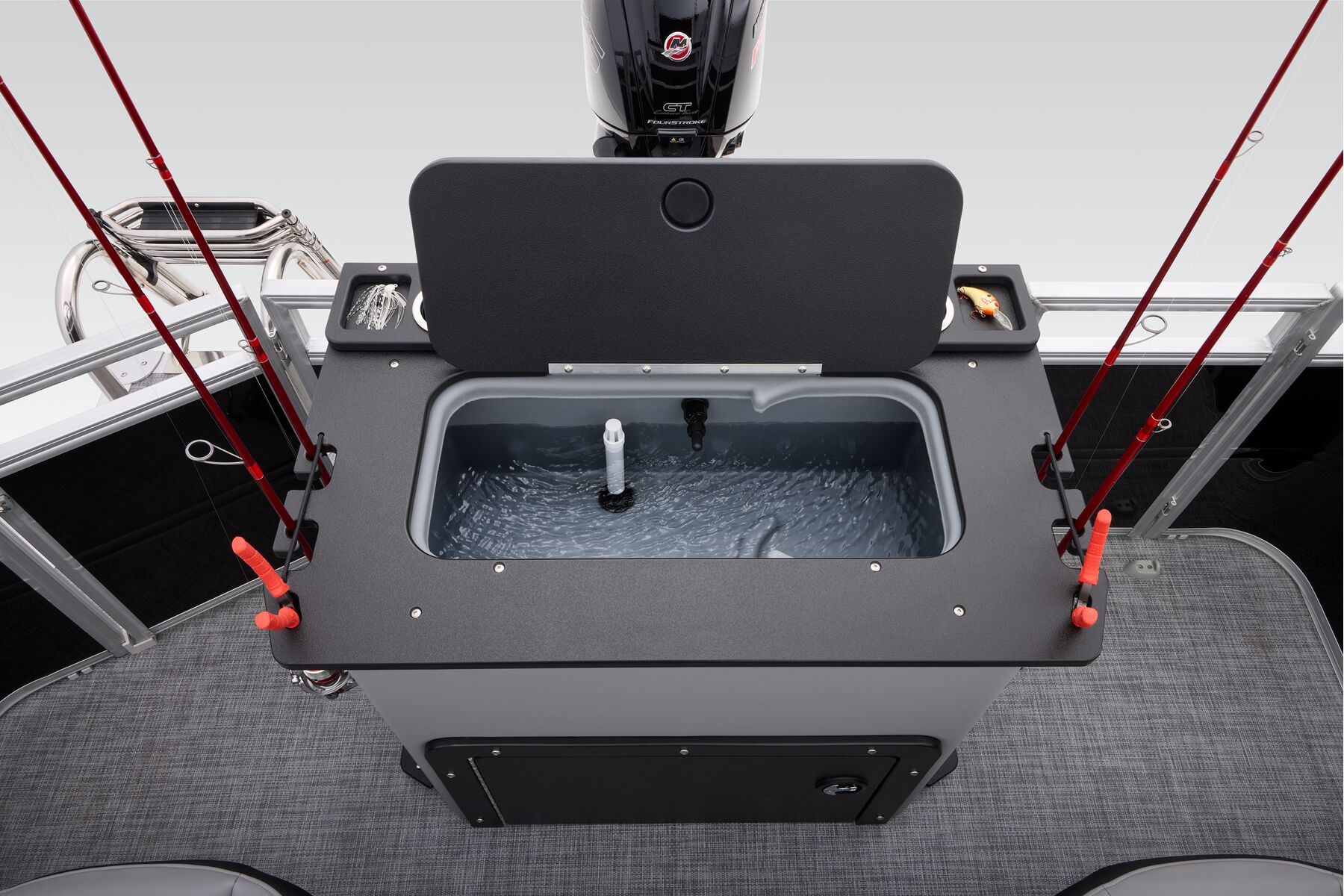

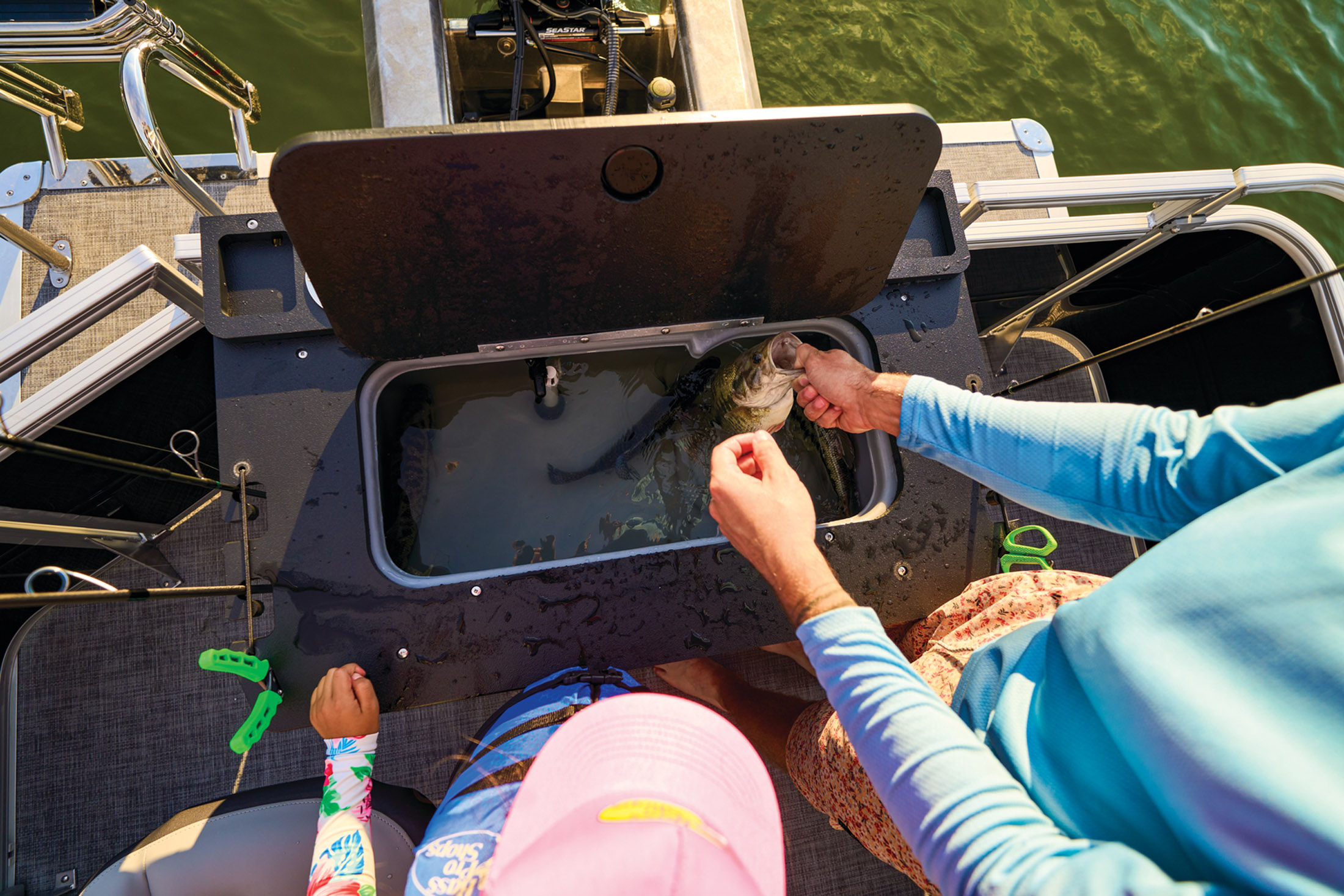

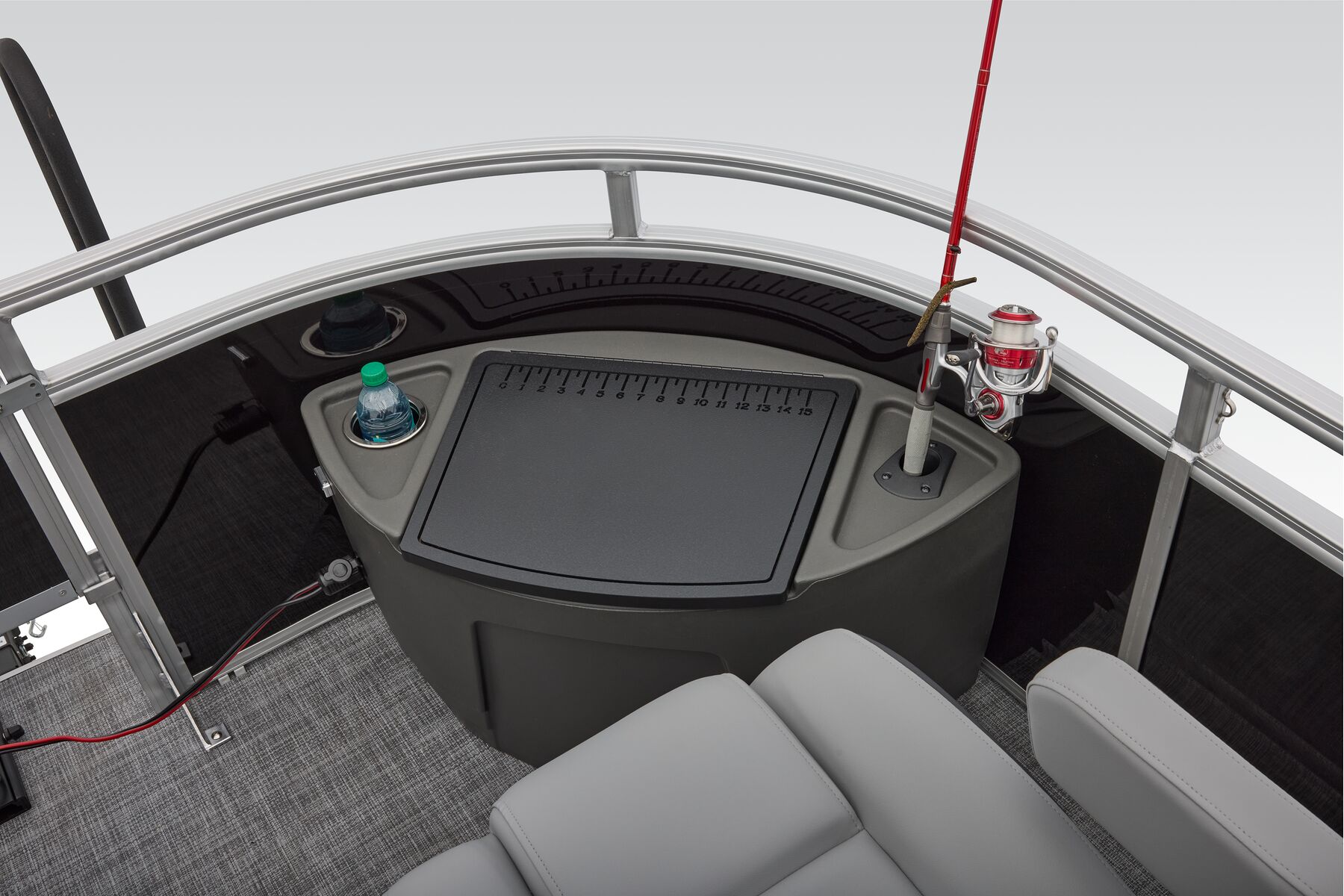

- Bow 16-gal. (60.57 L) aerated livewell/baitwell w/shutoff valve, drink holder, rod holder & composite lid w/fish ruler
Console

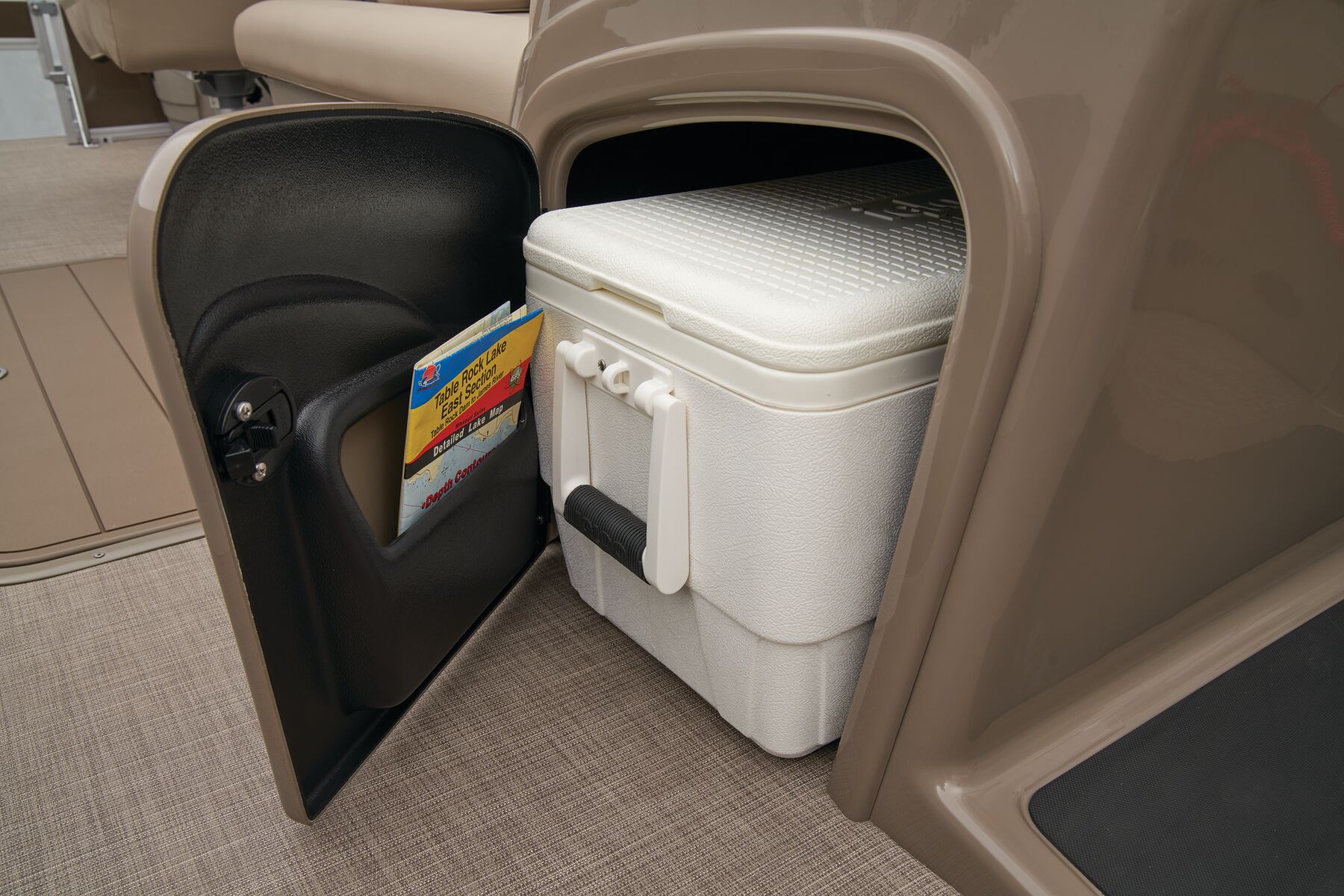

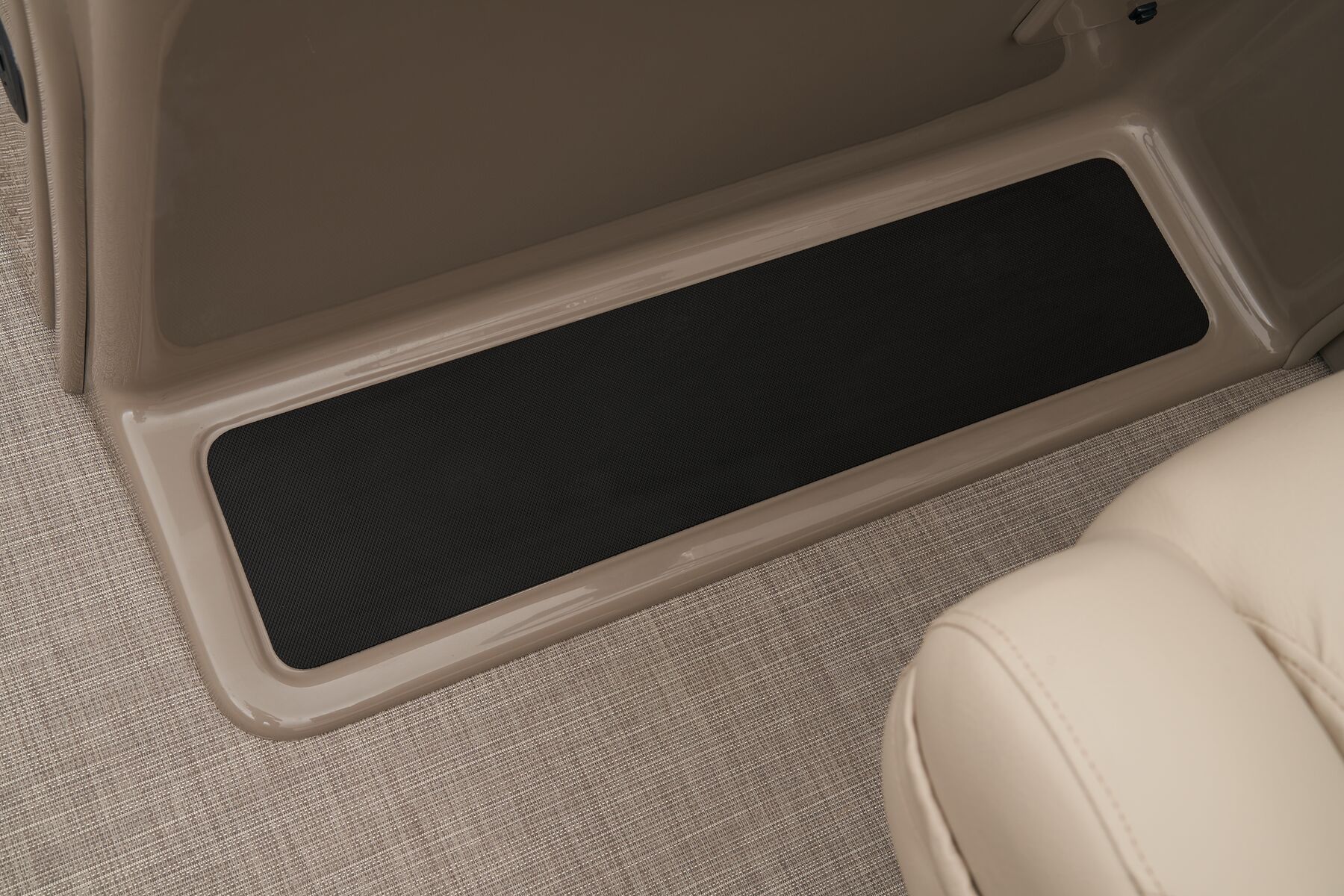

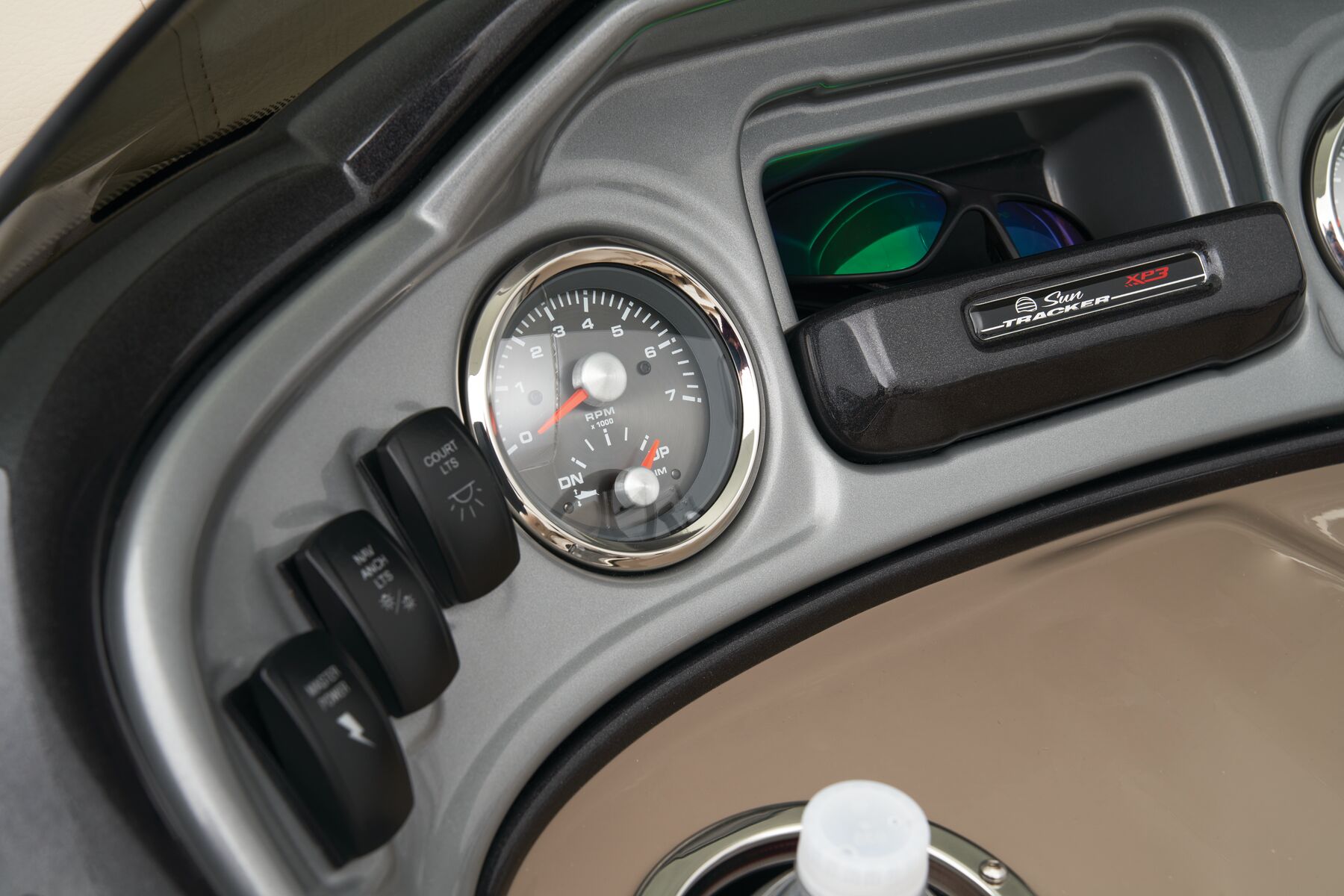

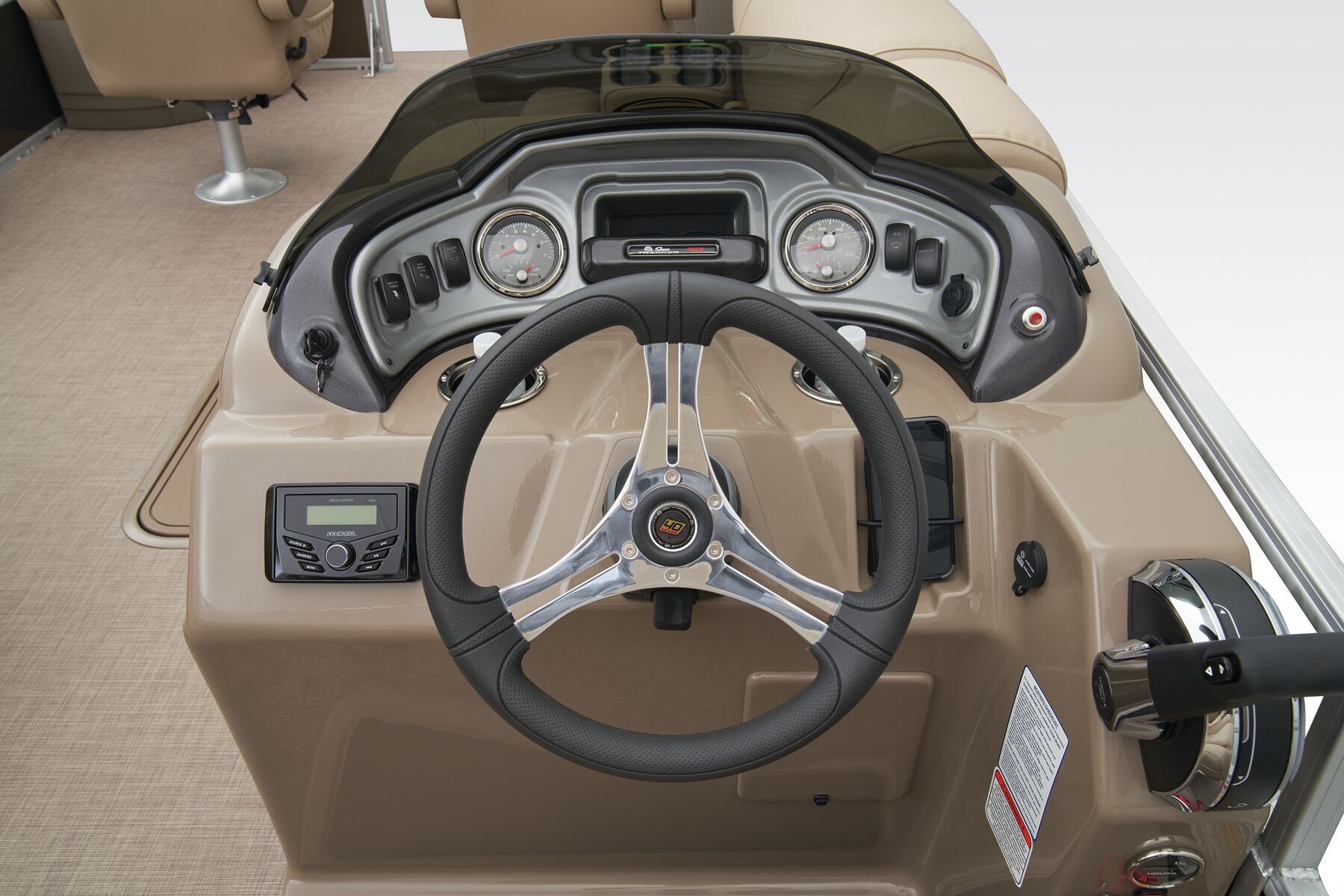

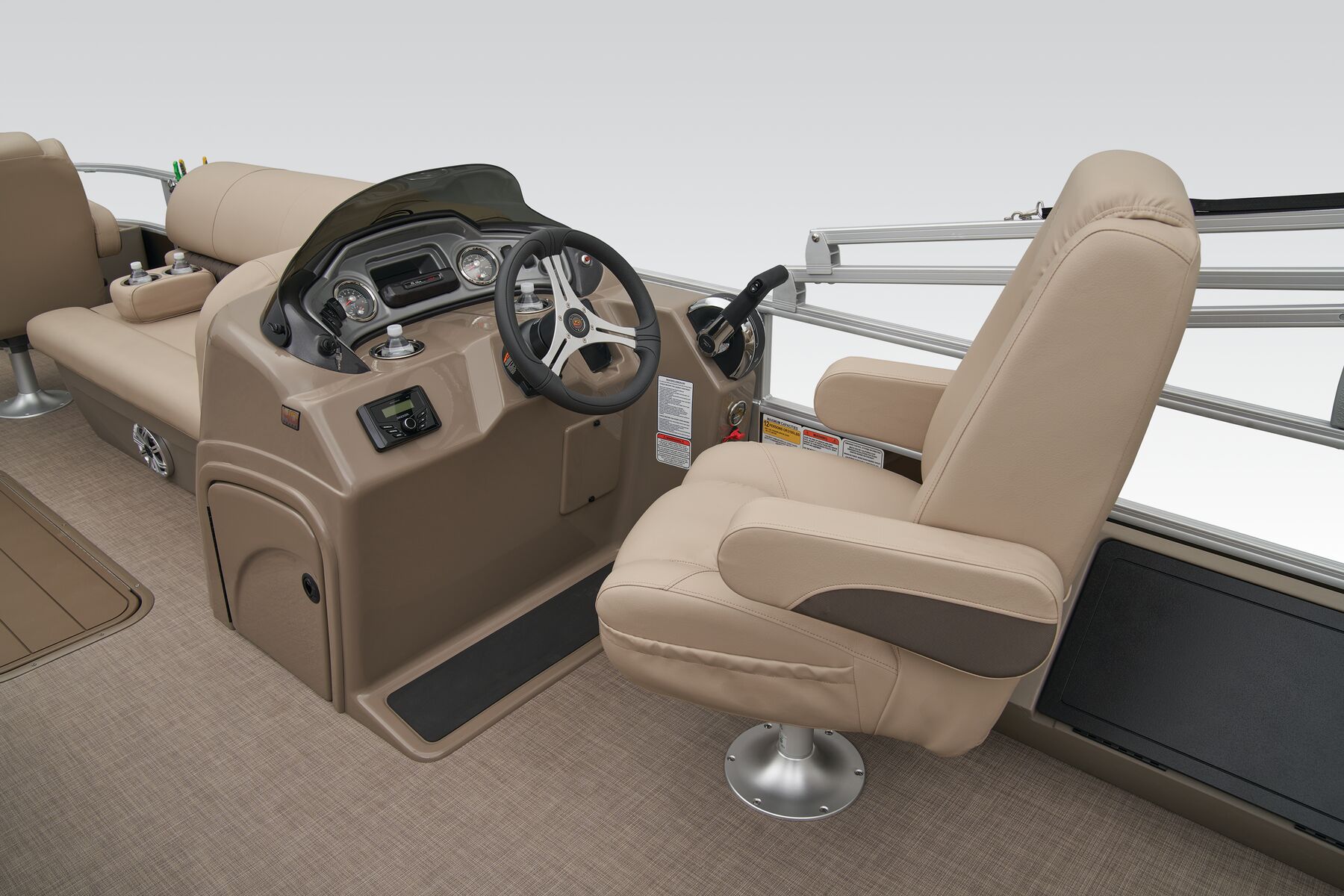

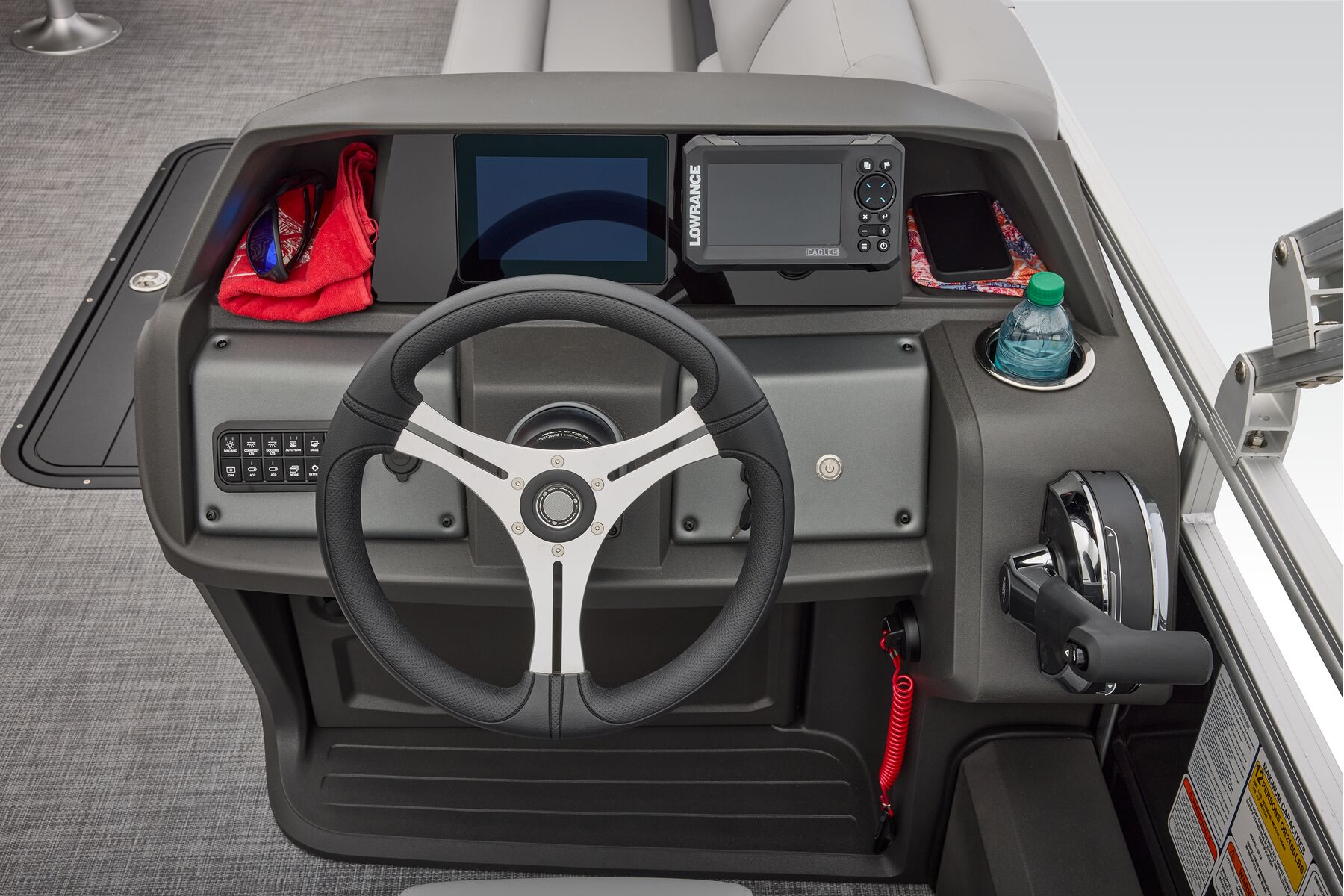

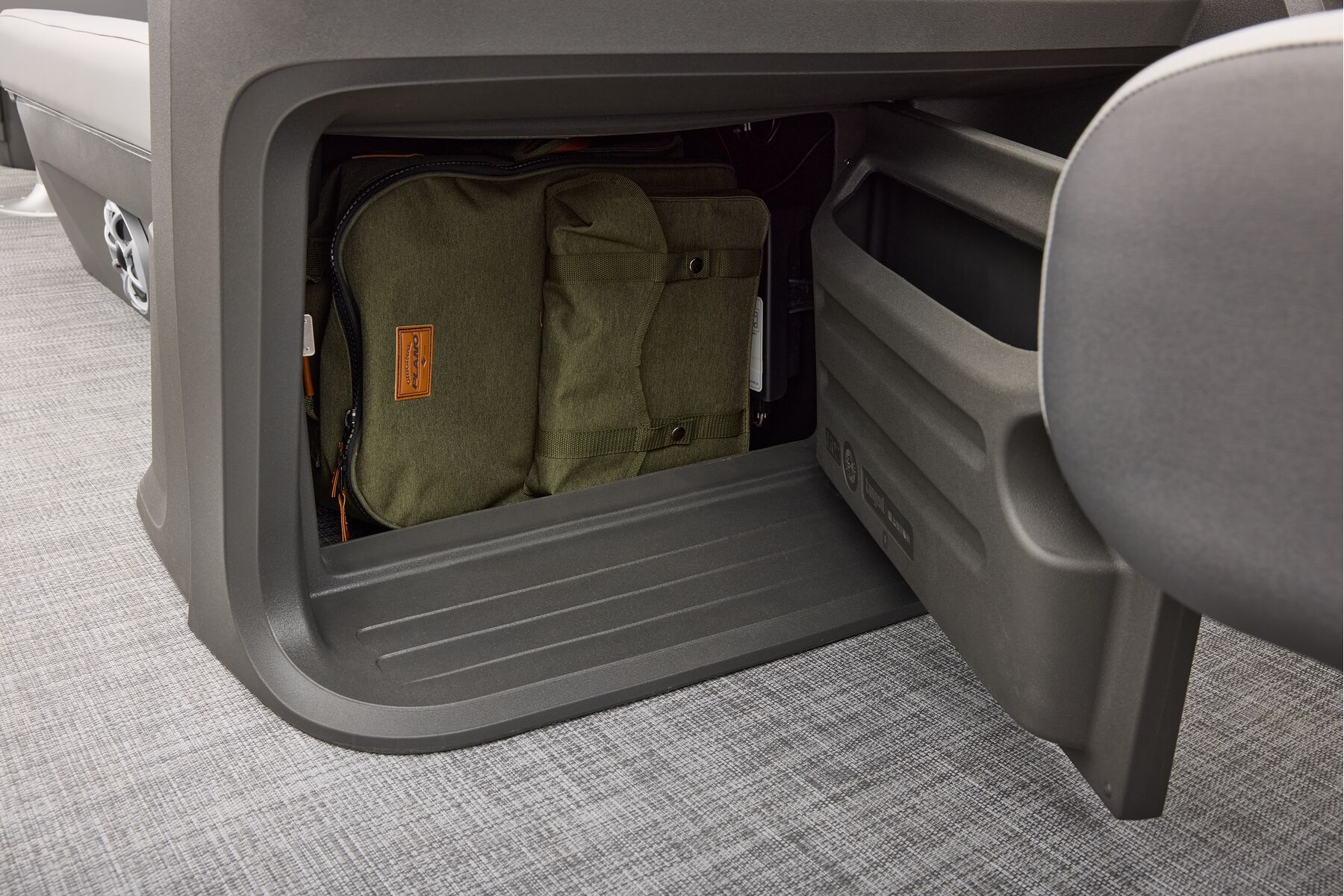

- Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

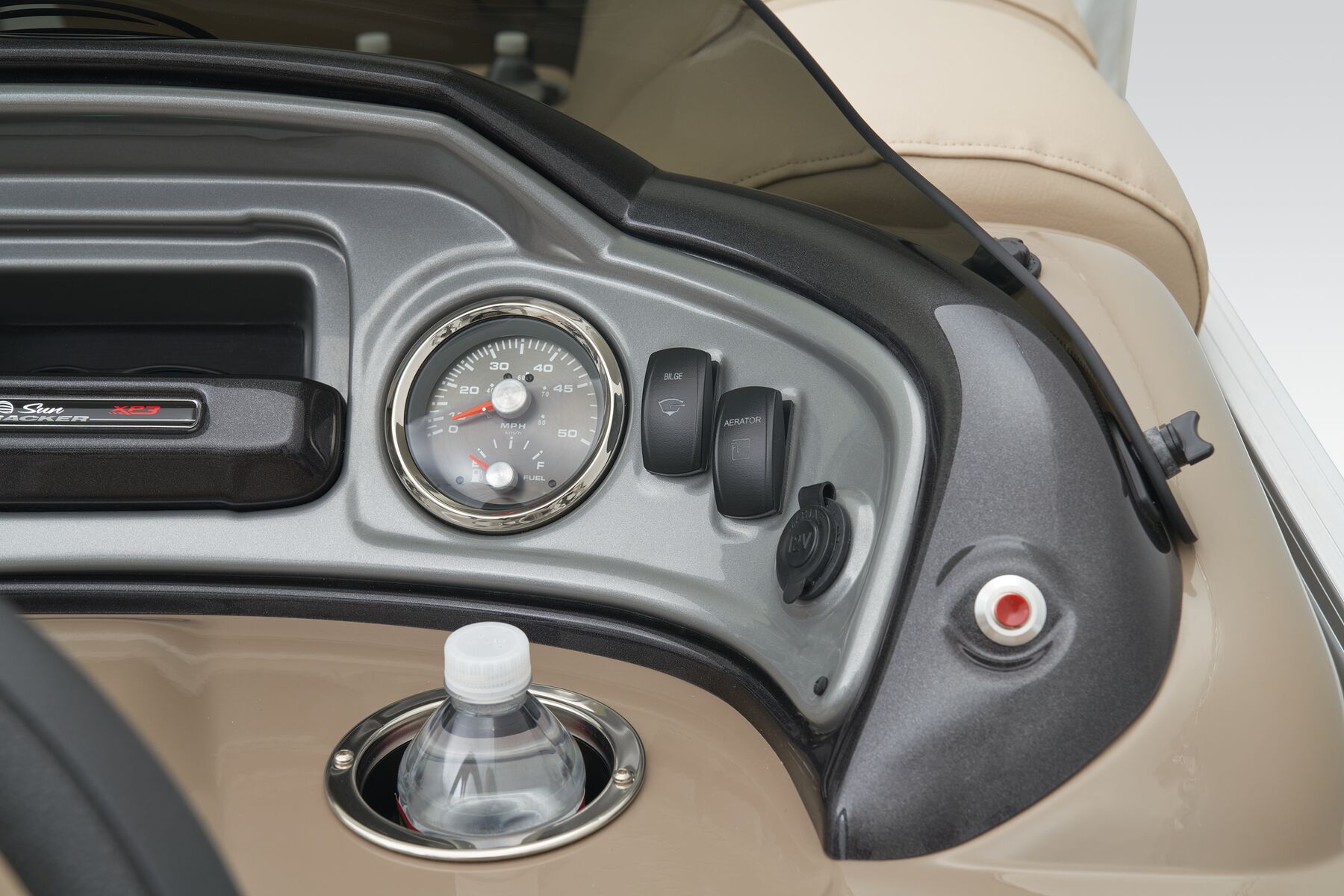

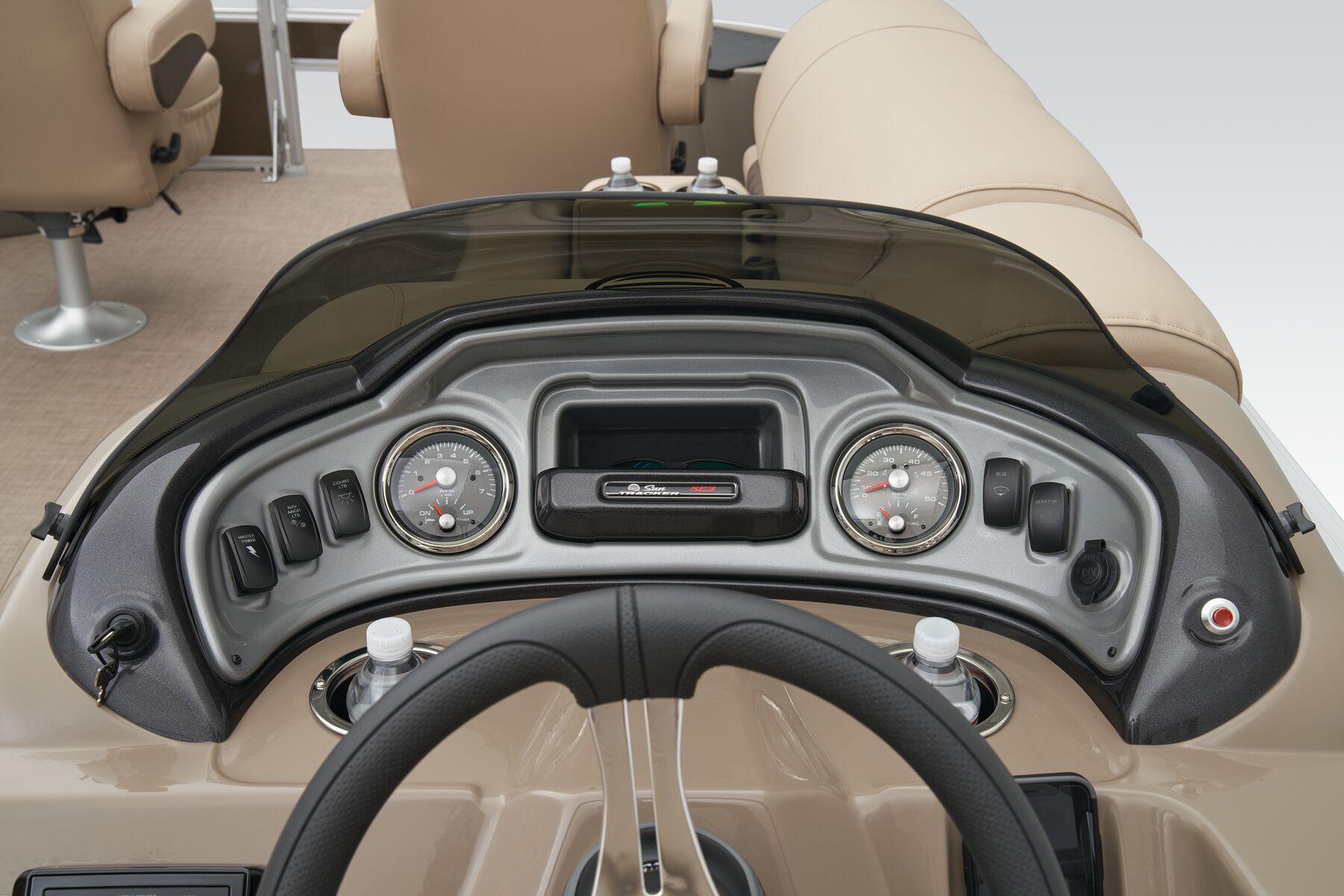

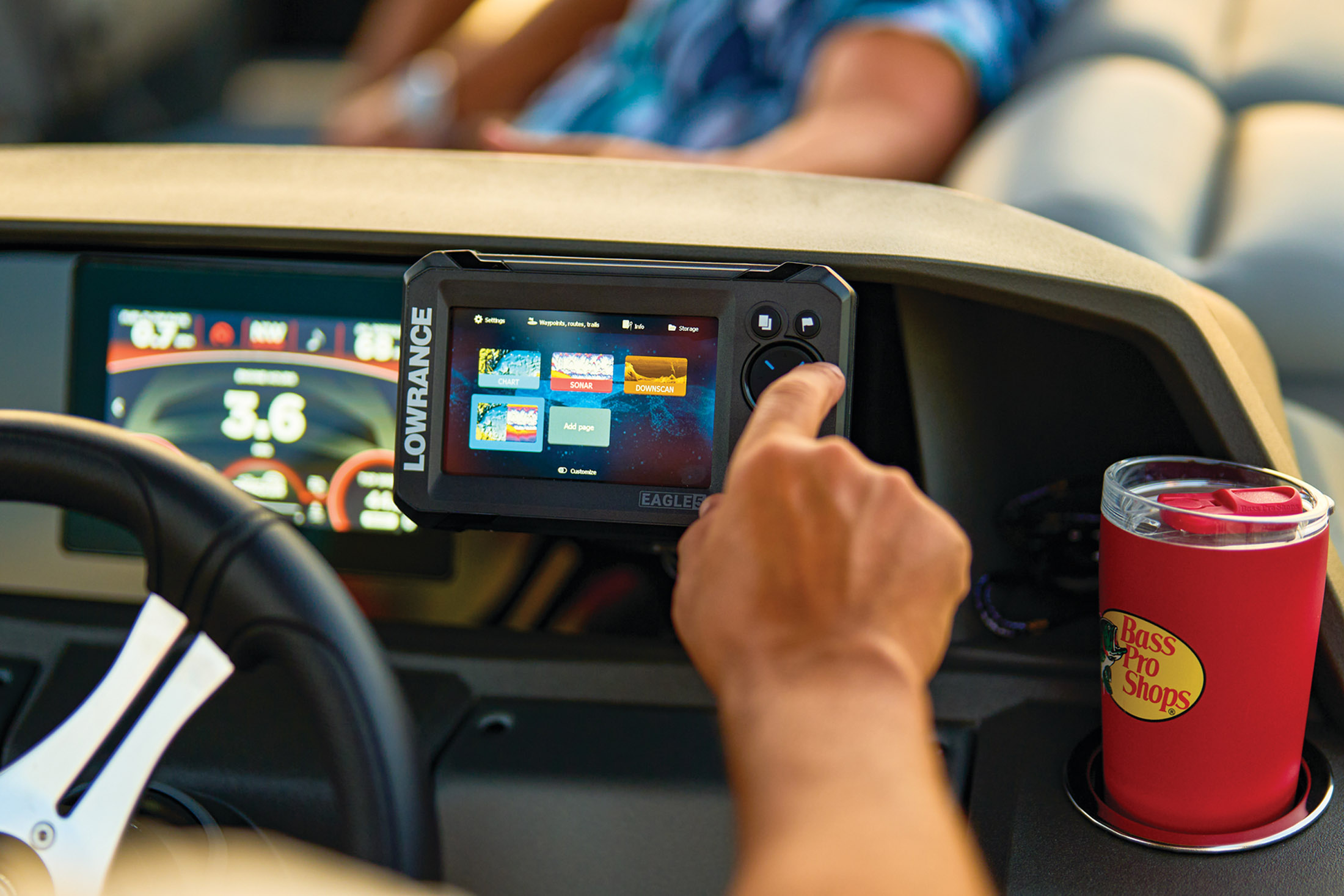

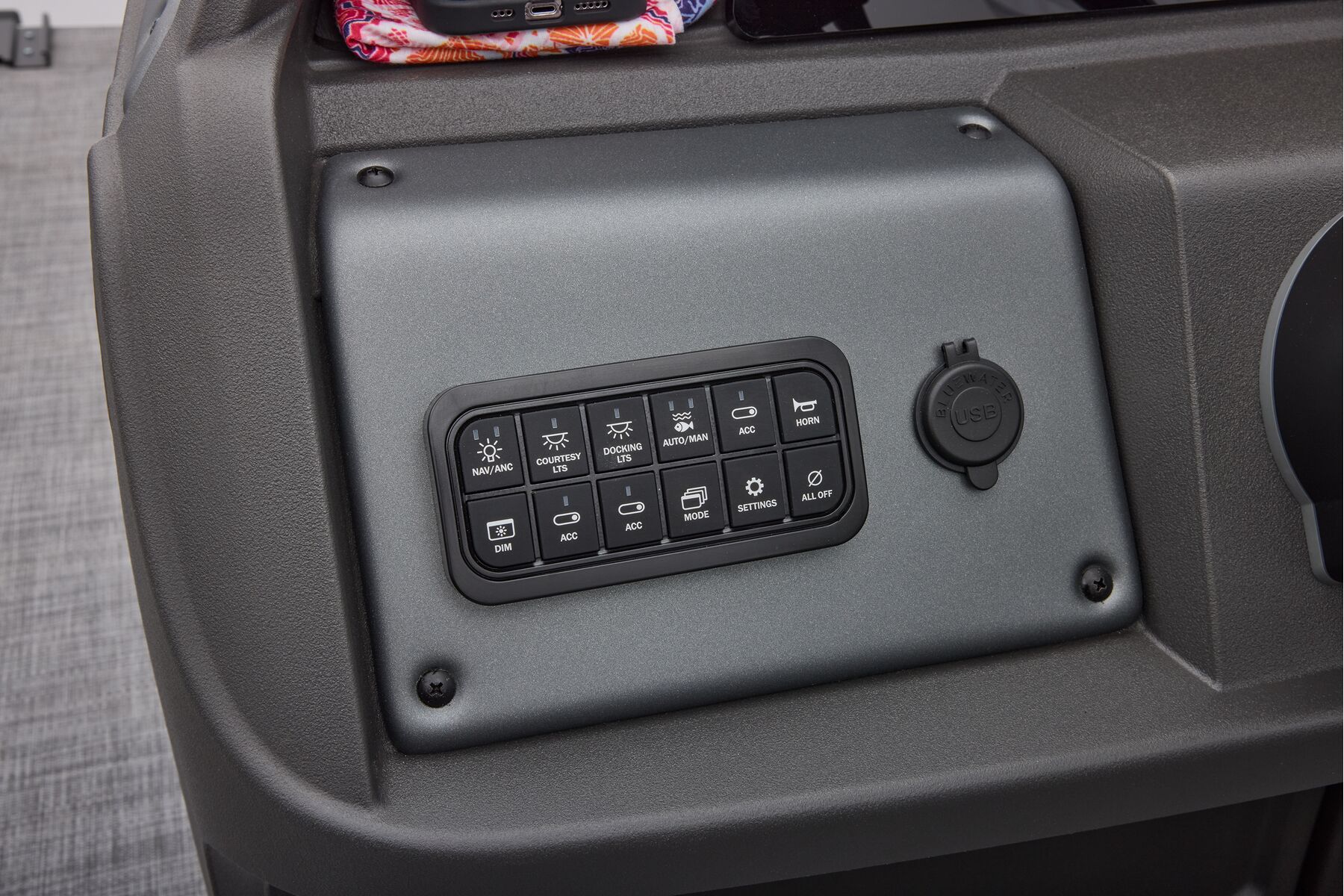

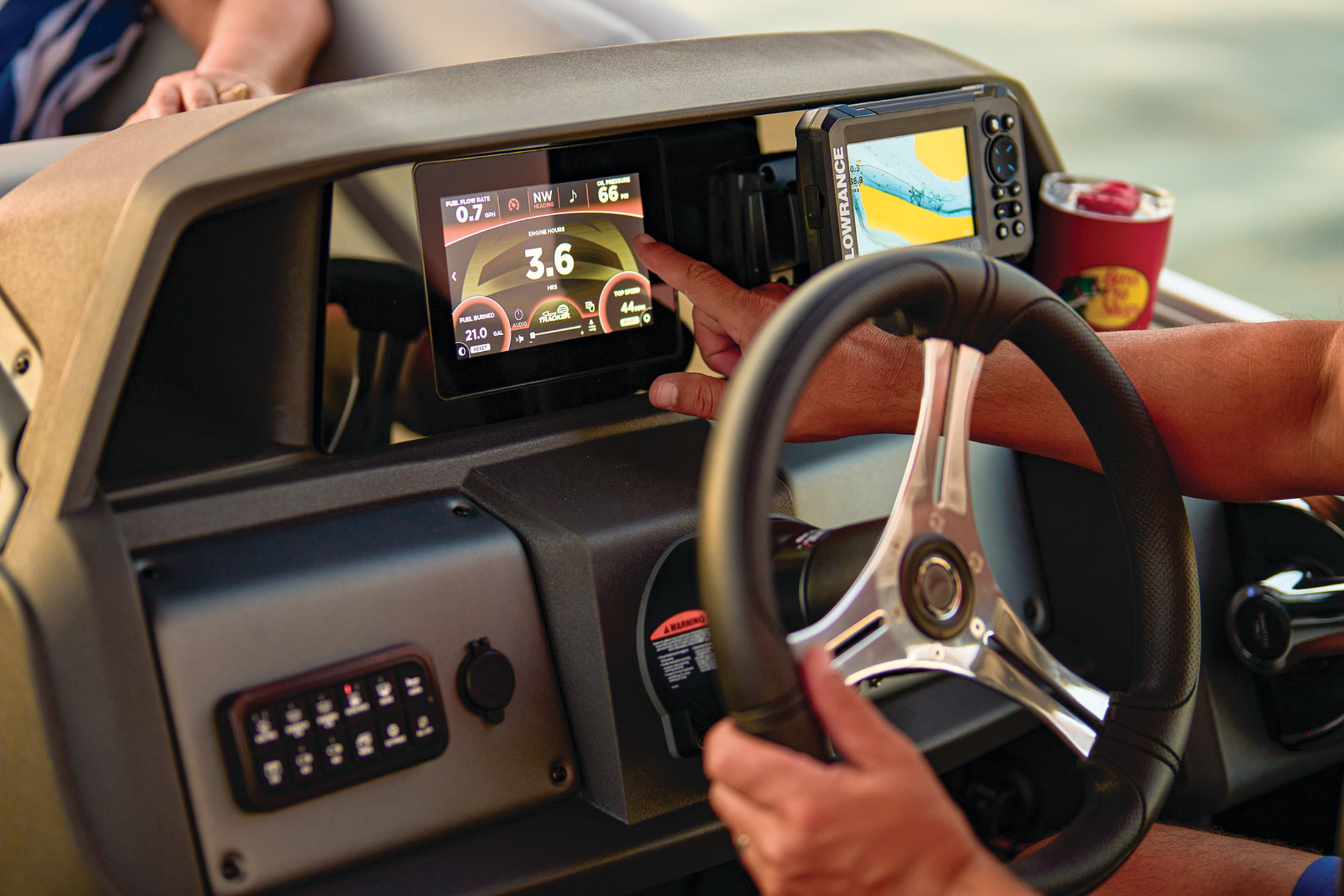

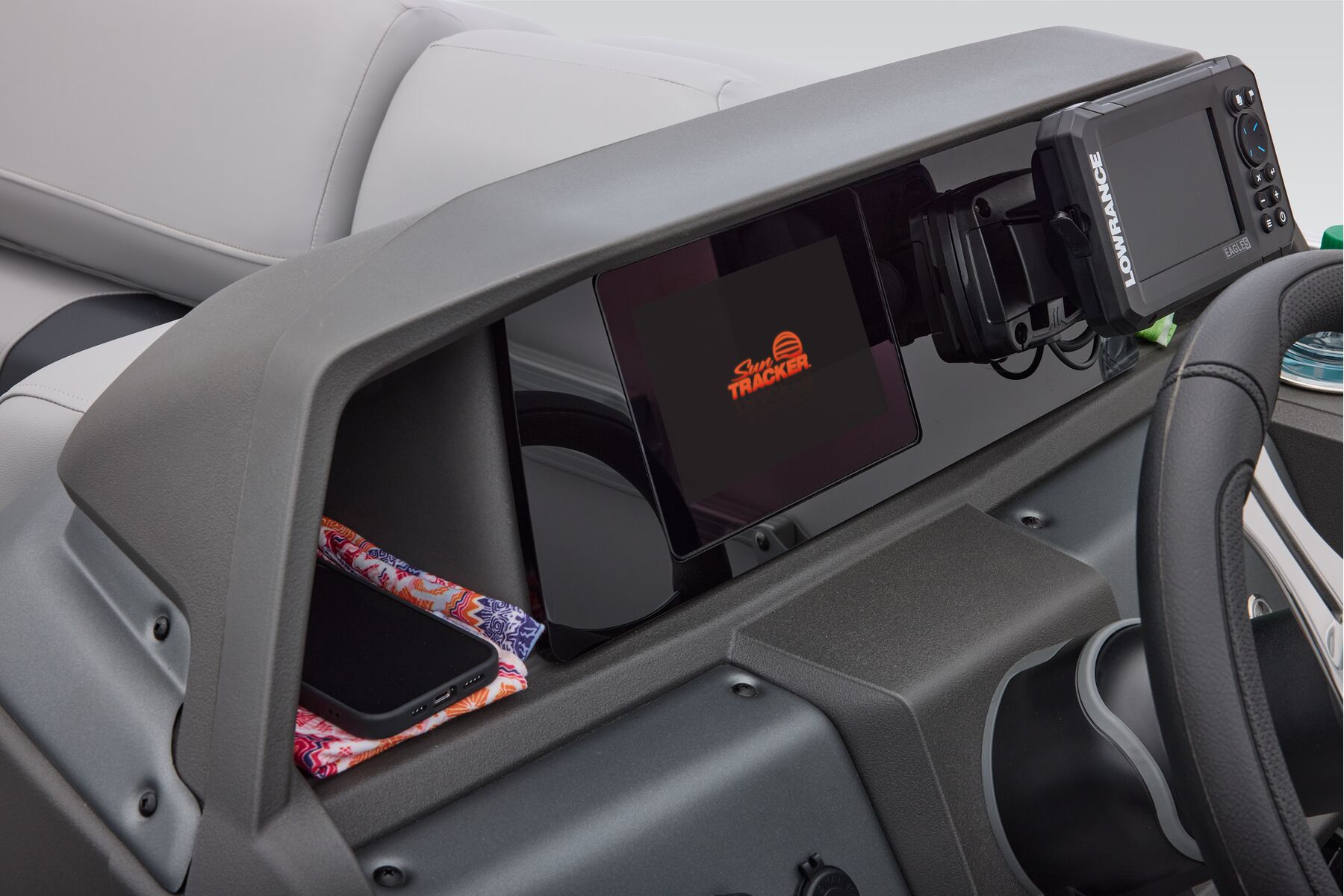

- SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel

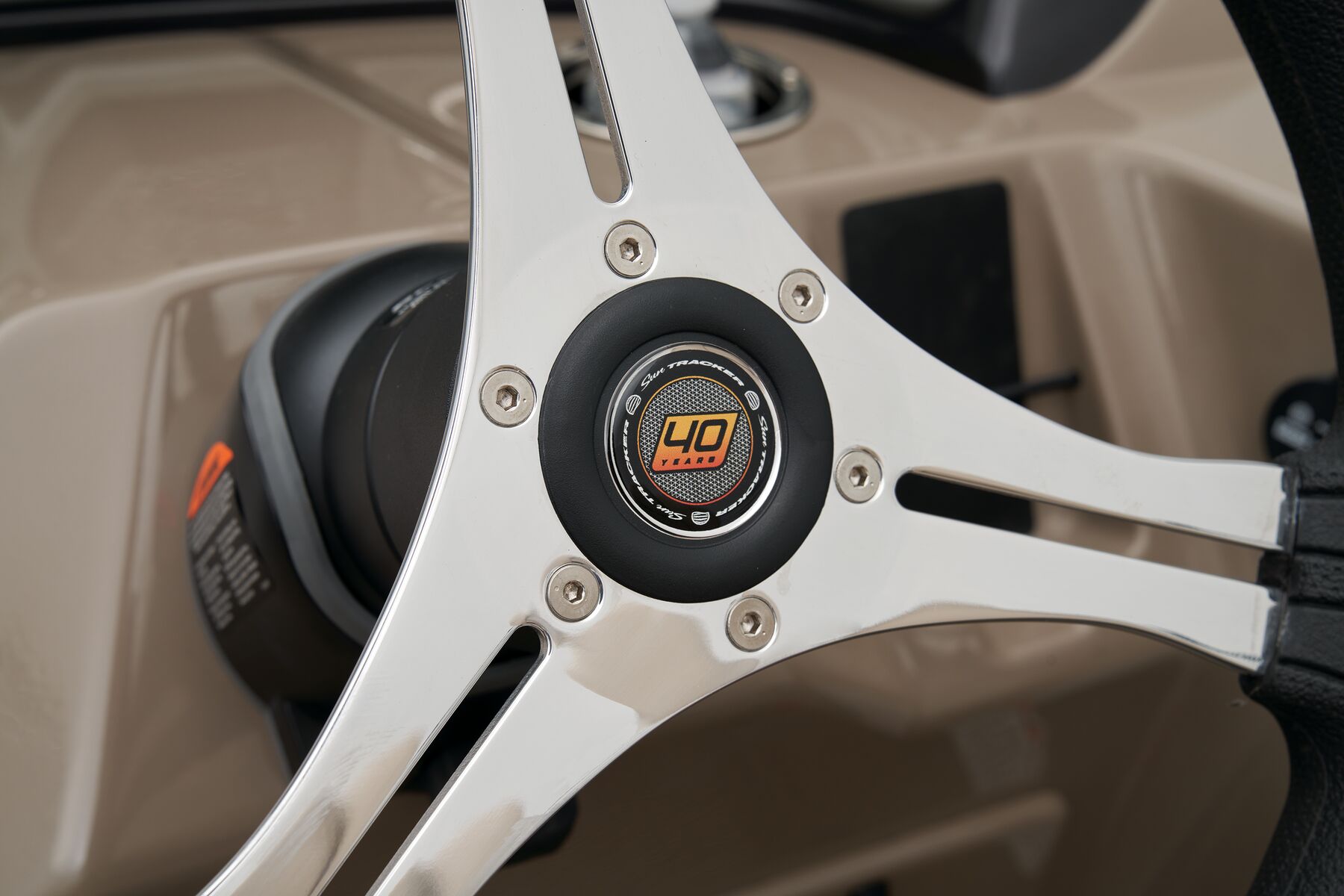

- Tilt hydraulic steering w/deluxe soft-touch steering wheel

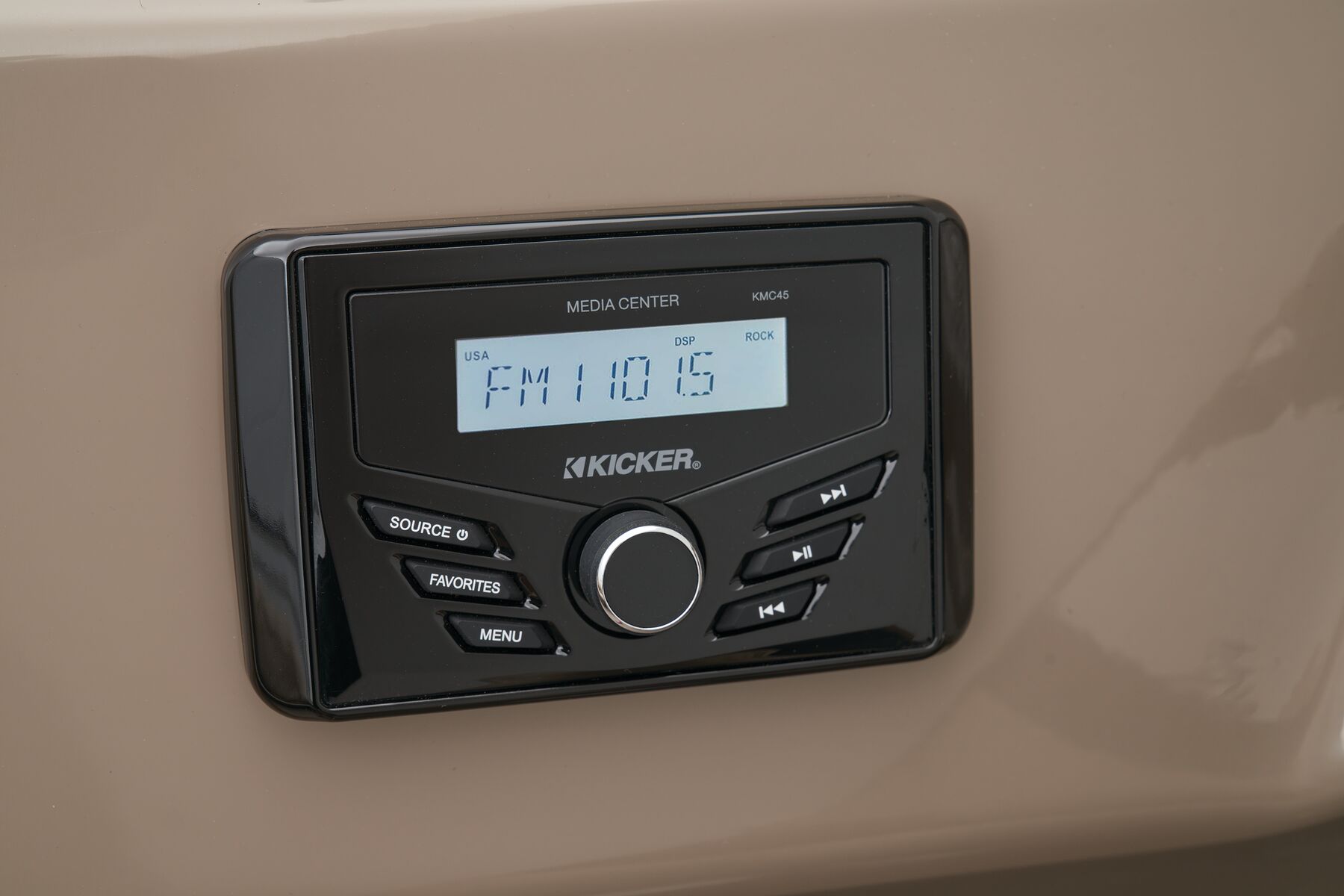

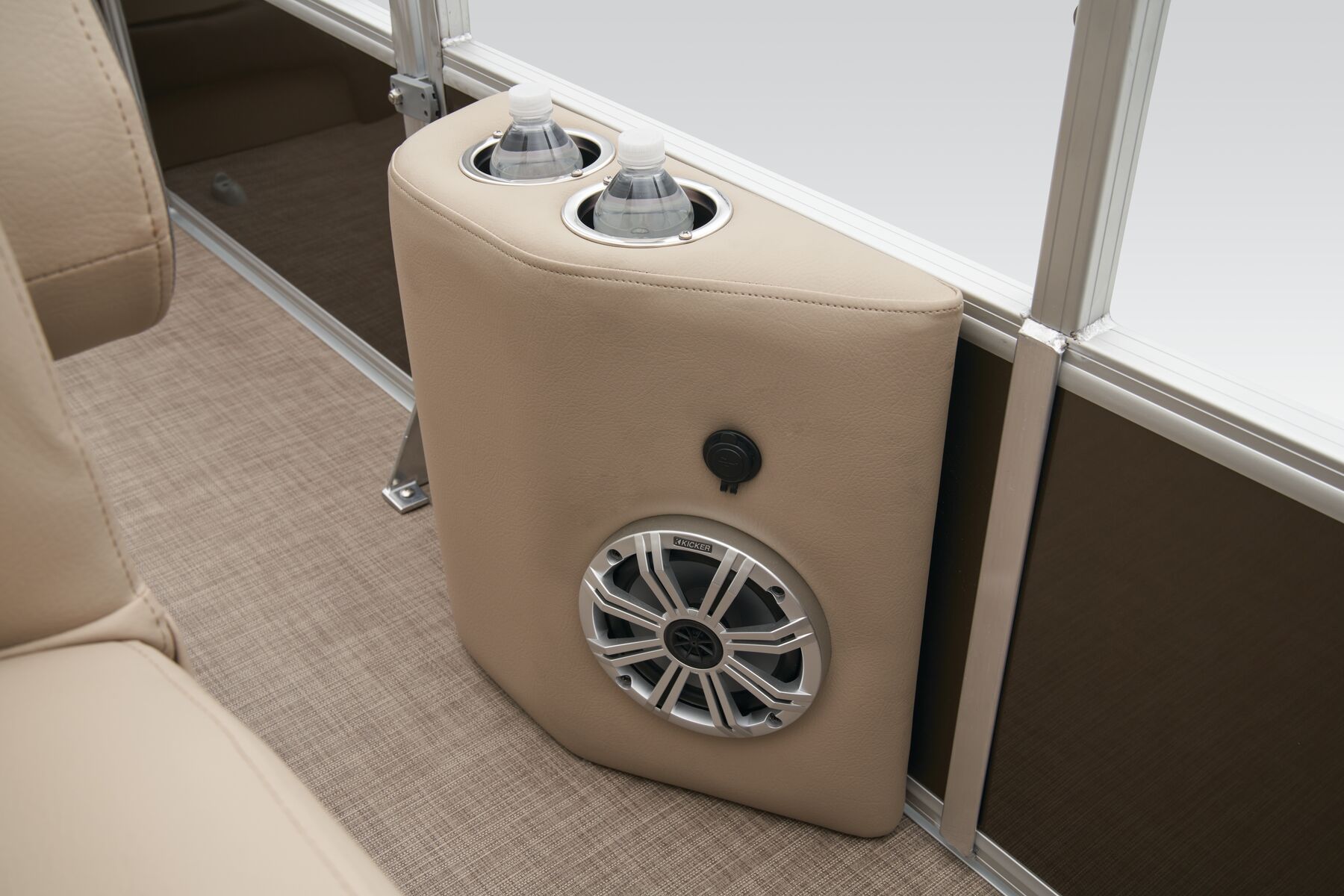

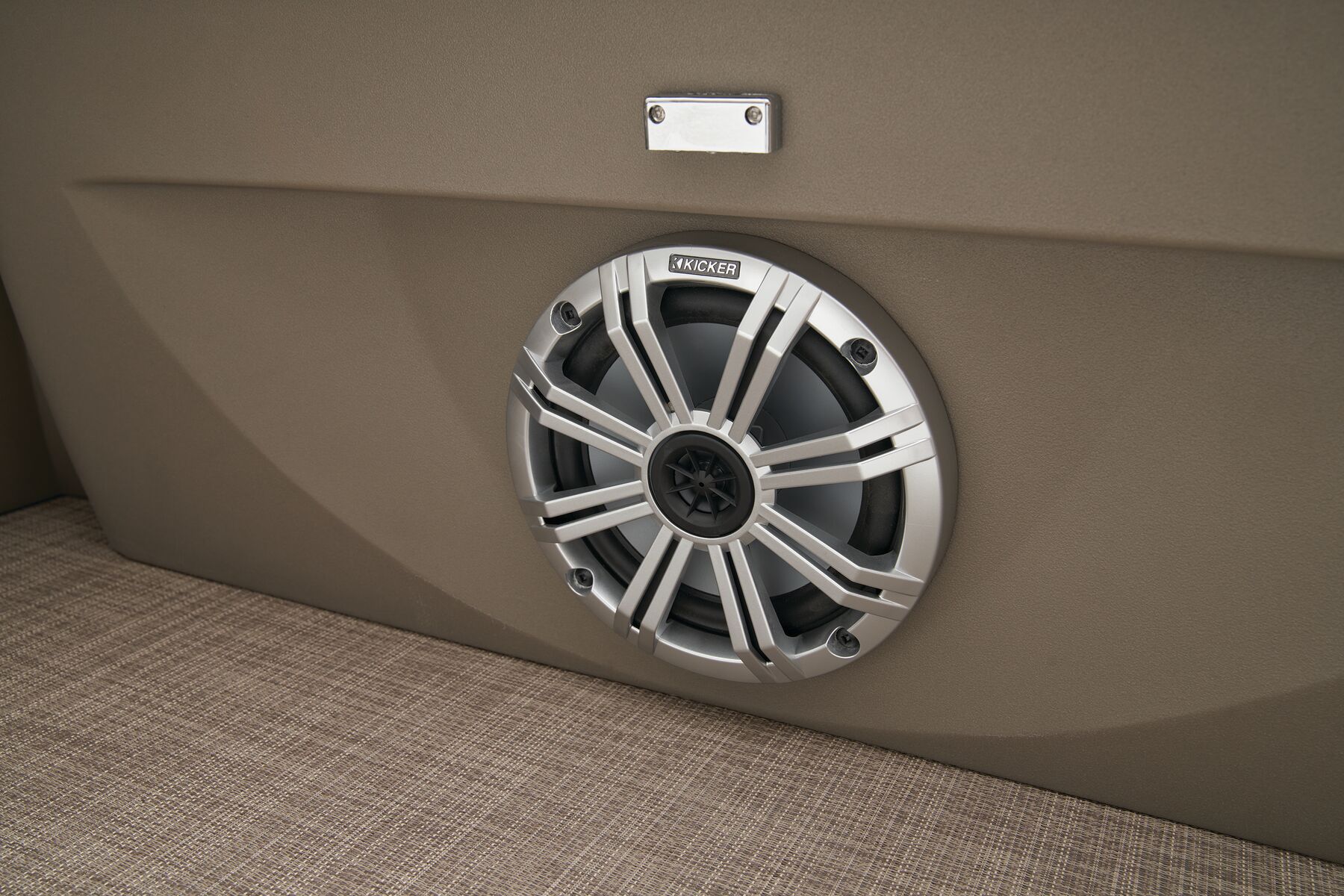

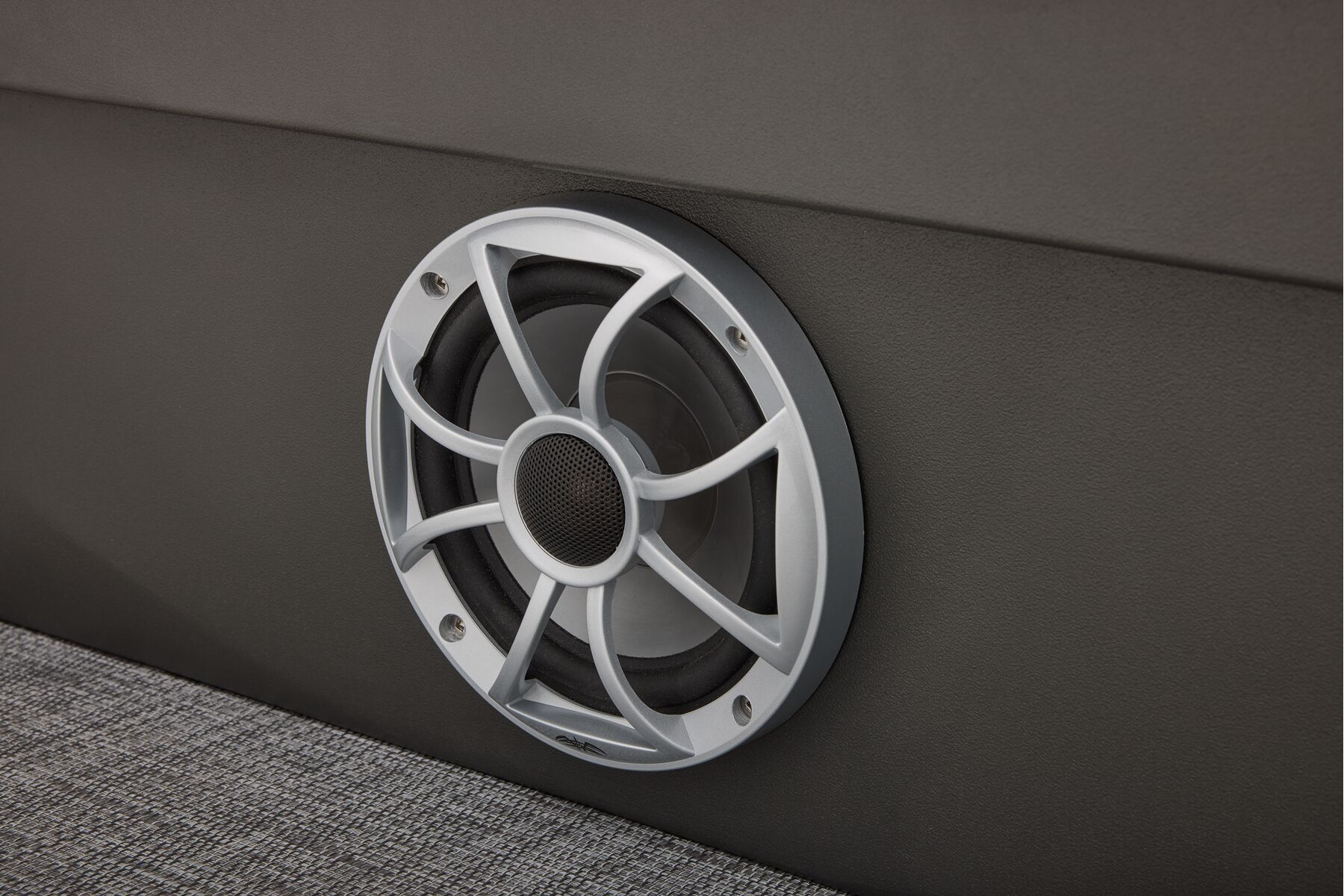

- Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) speakers, strategically located & shielded within the seat bases
- Master power on/off switch
- Recessed mobile phone cubbies
- USB charging receptacle

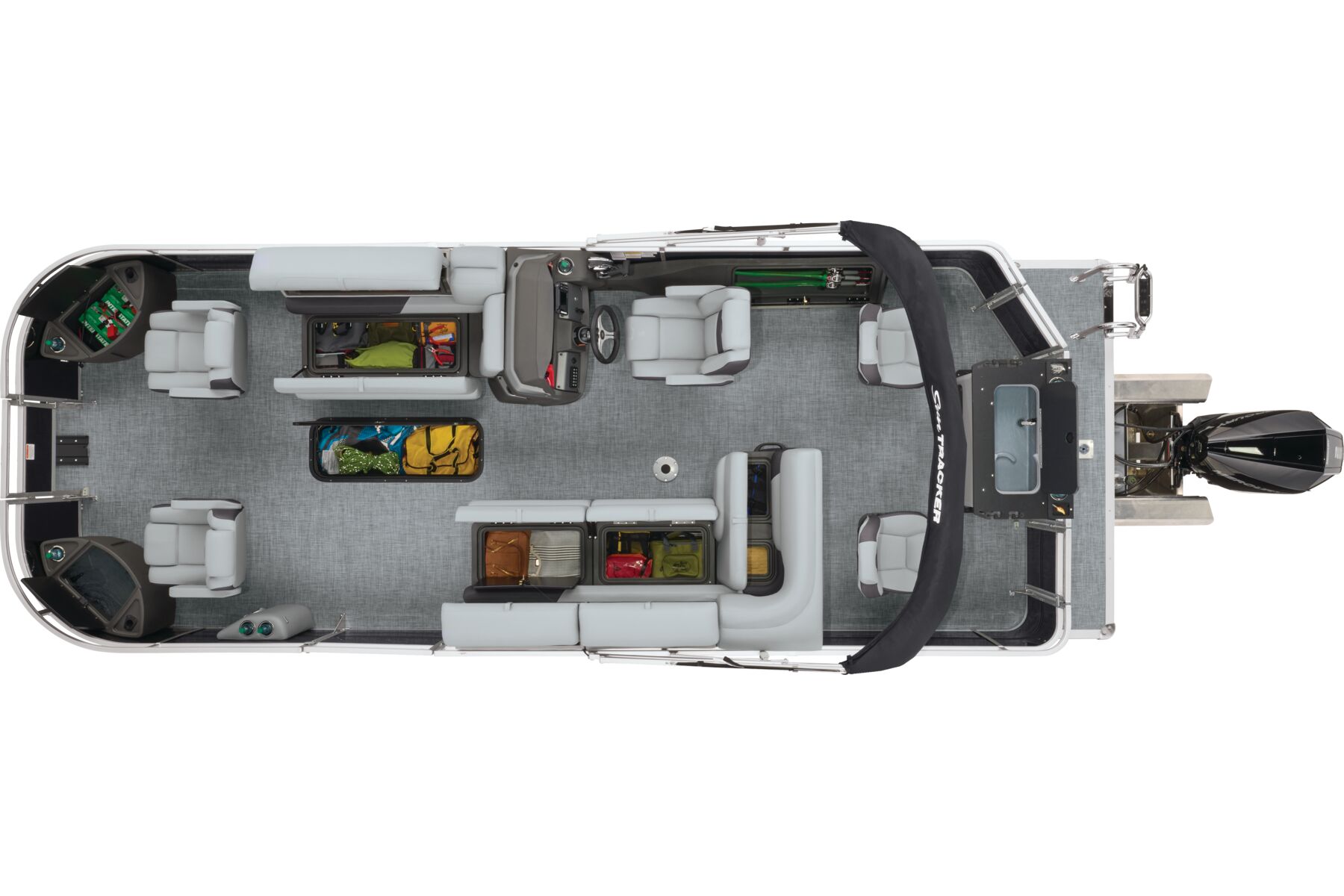

Interior

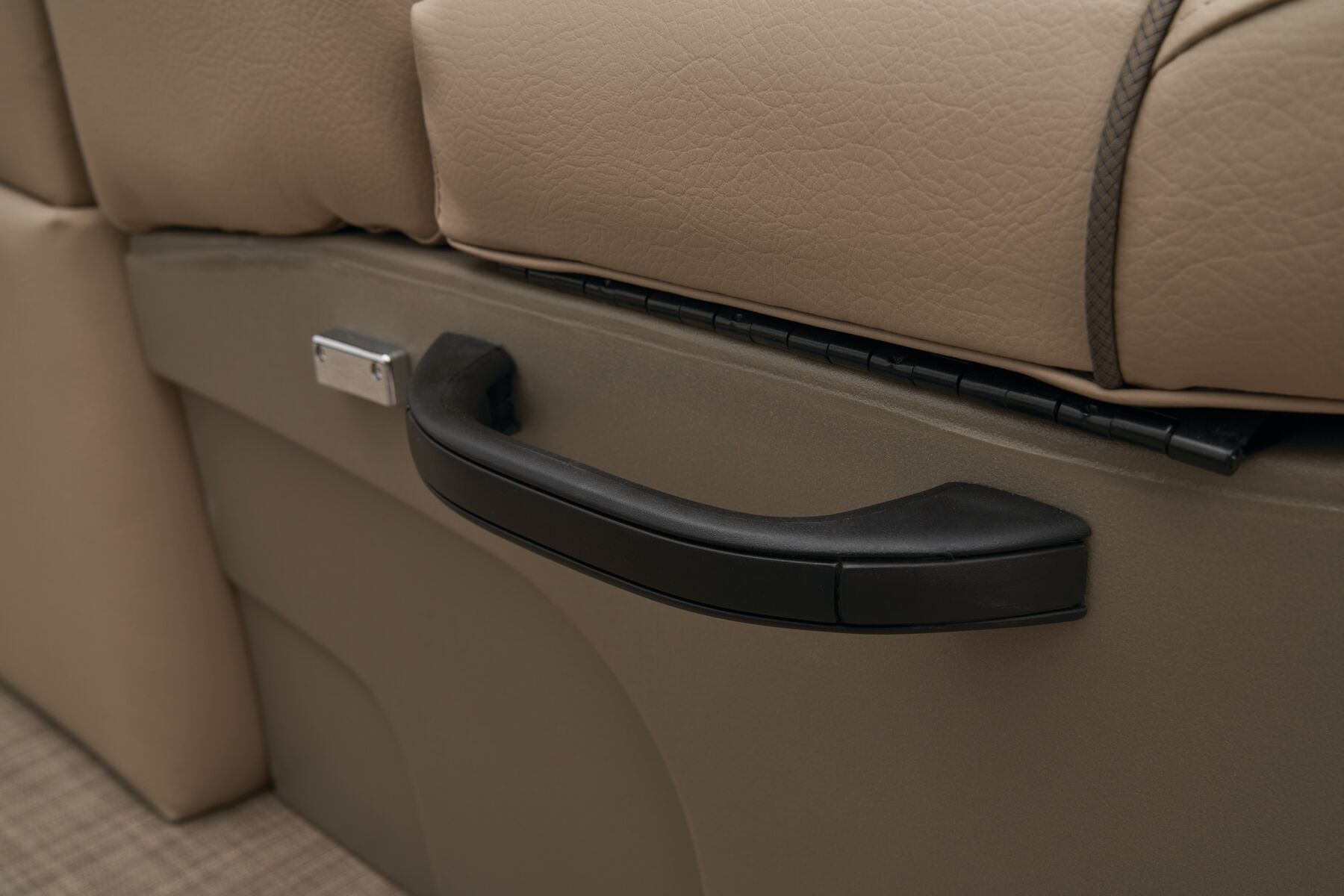

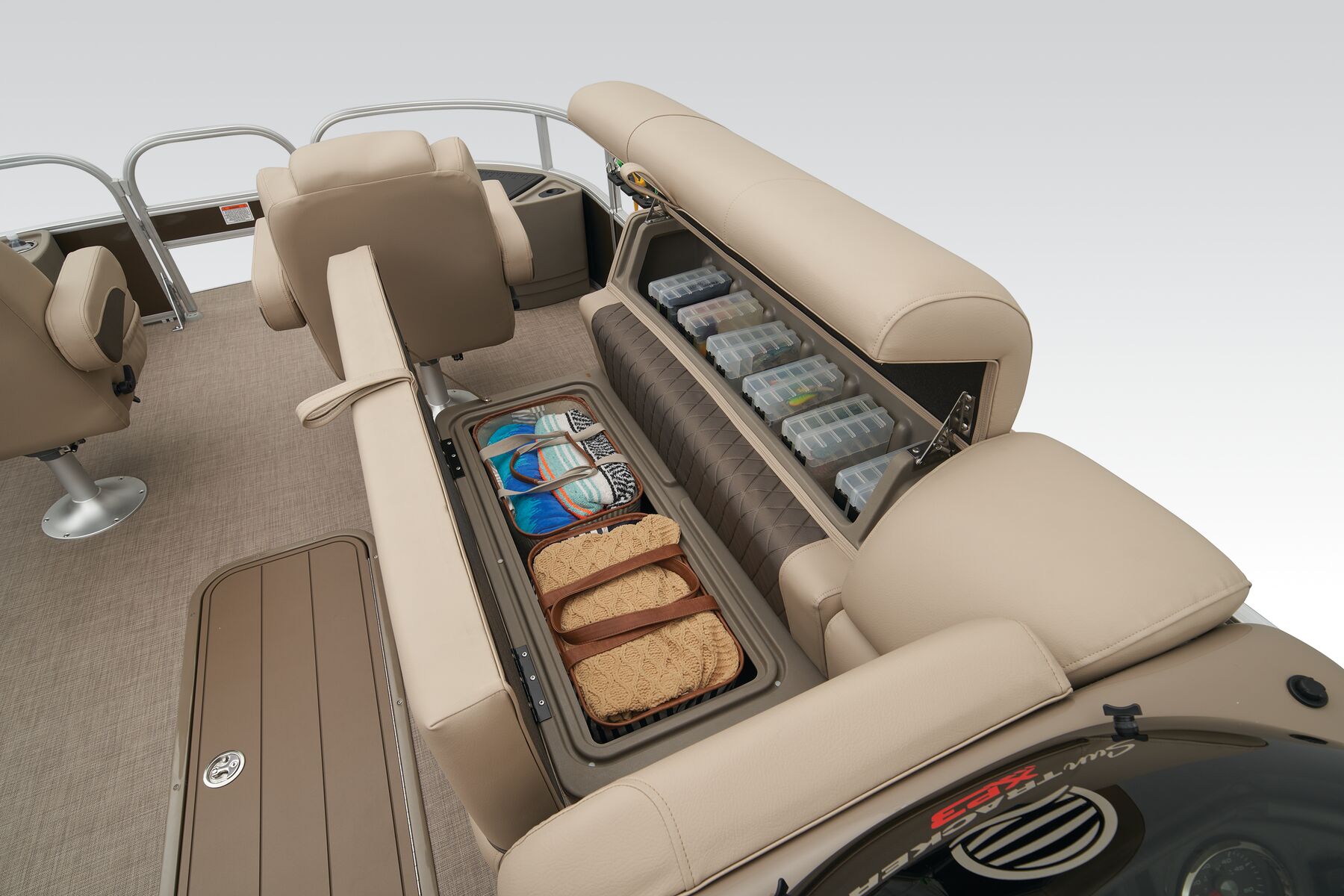

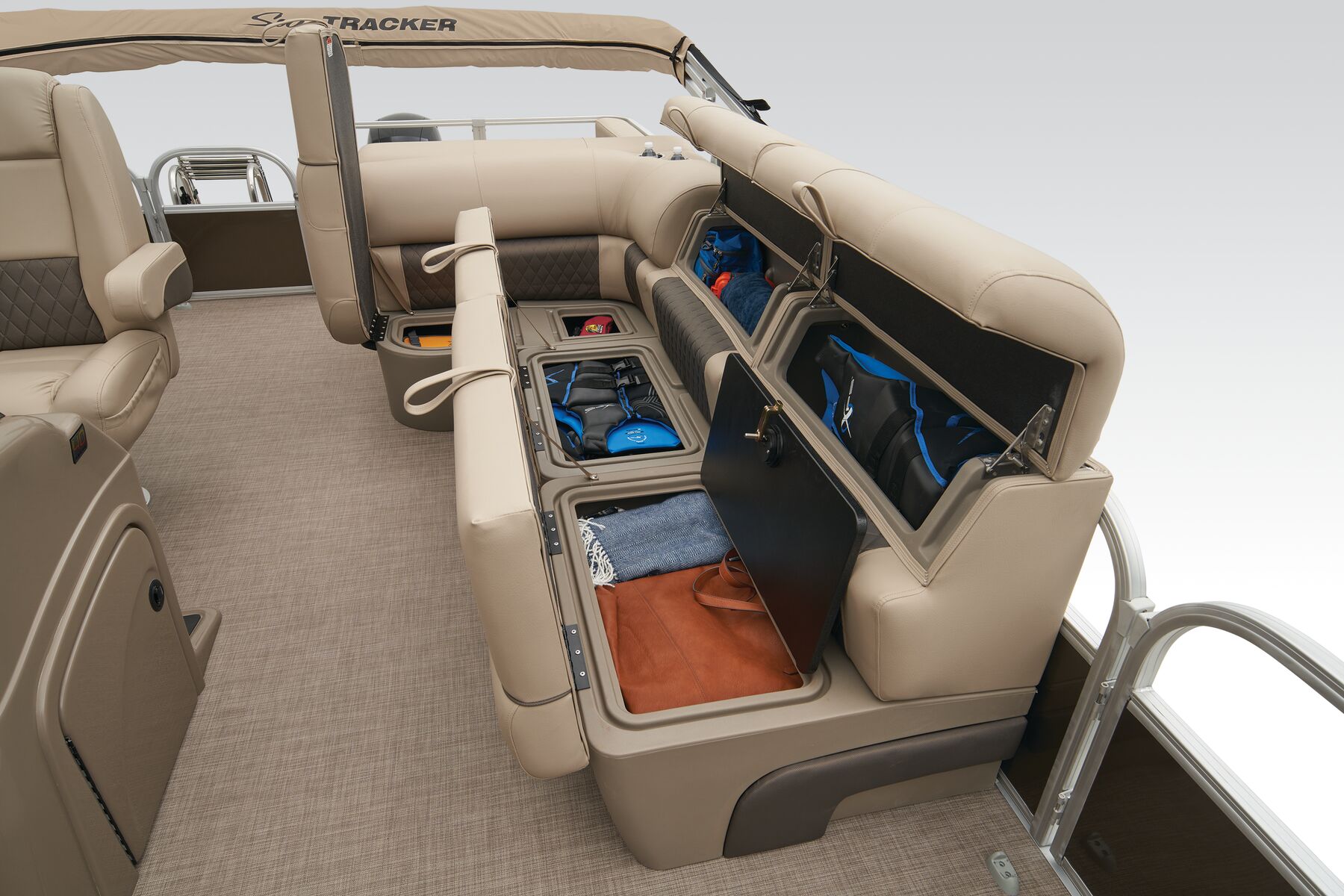

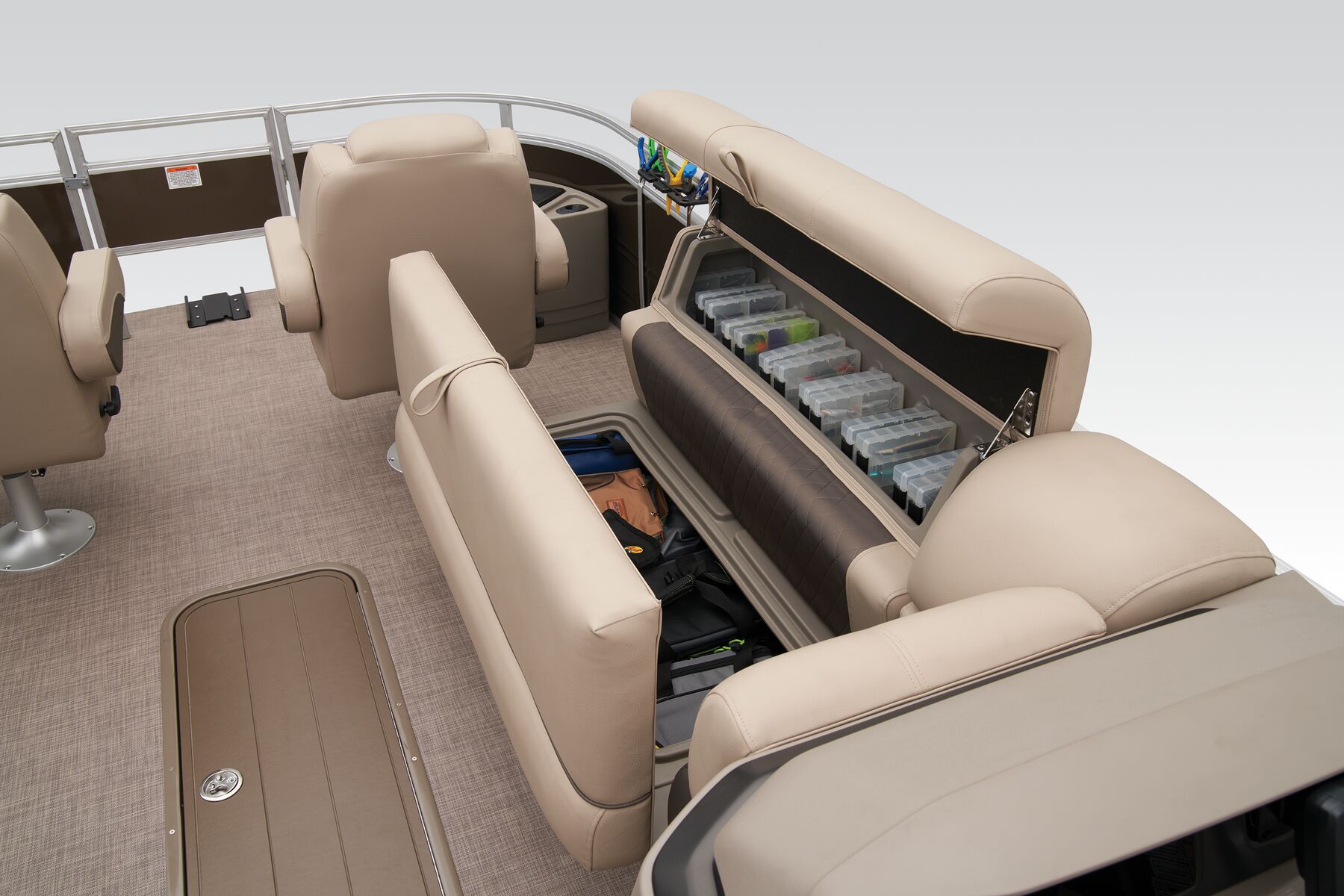

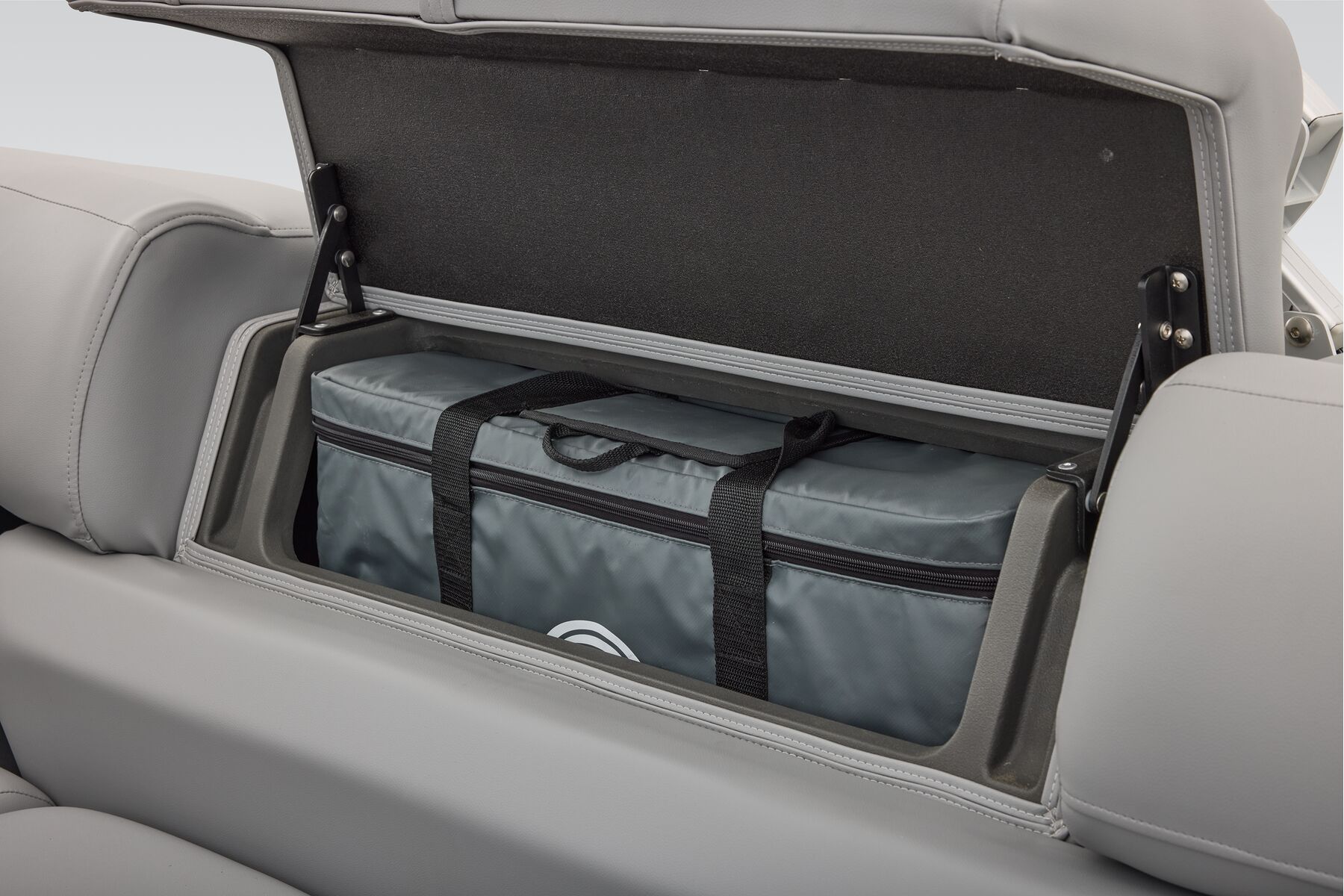

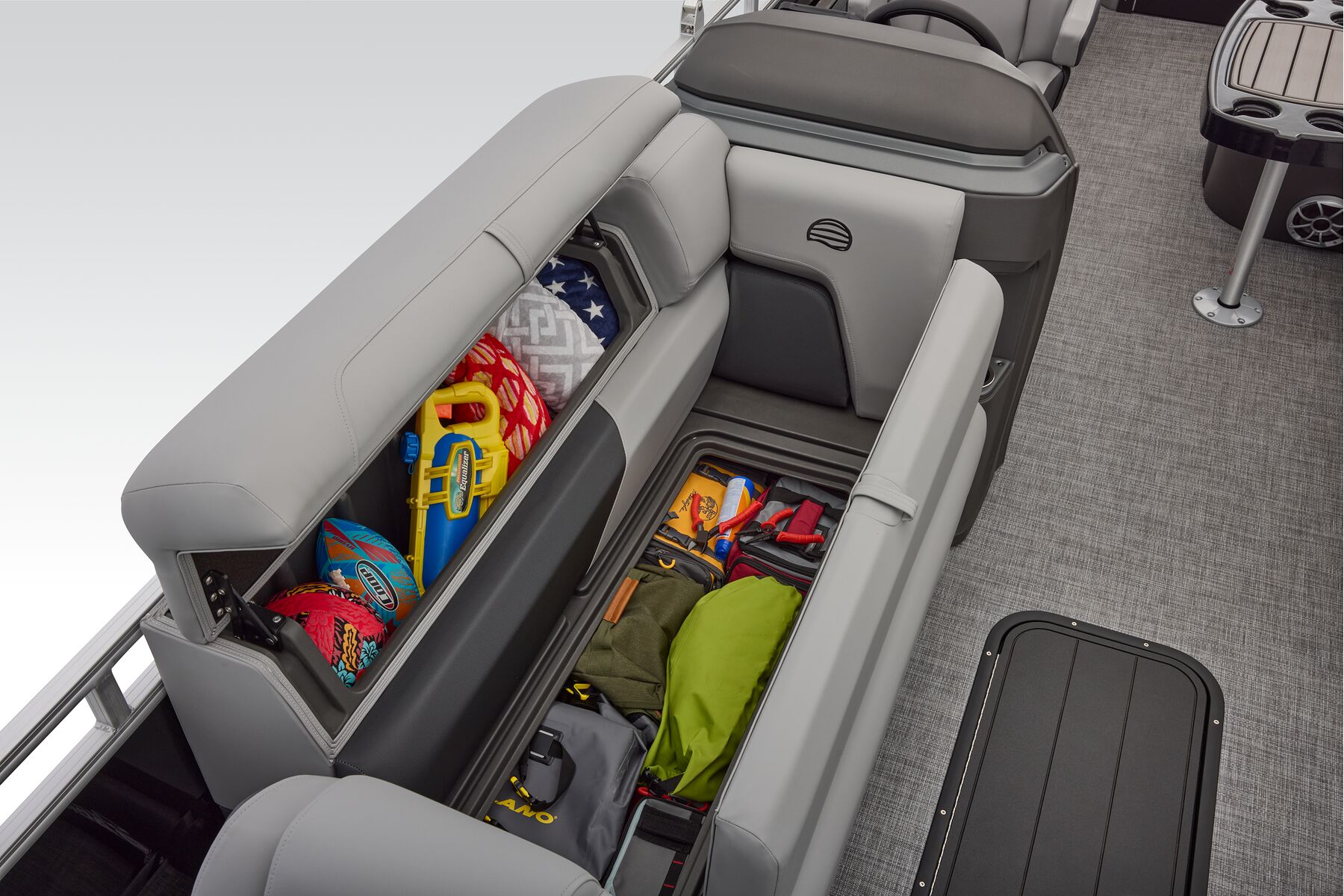

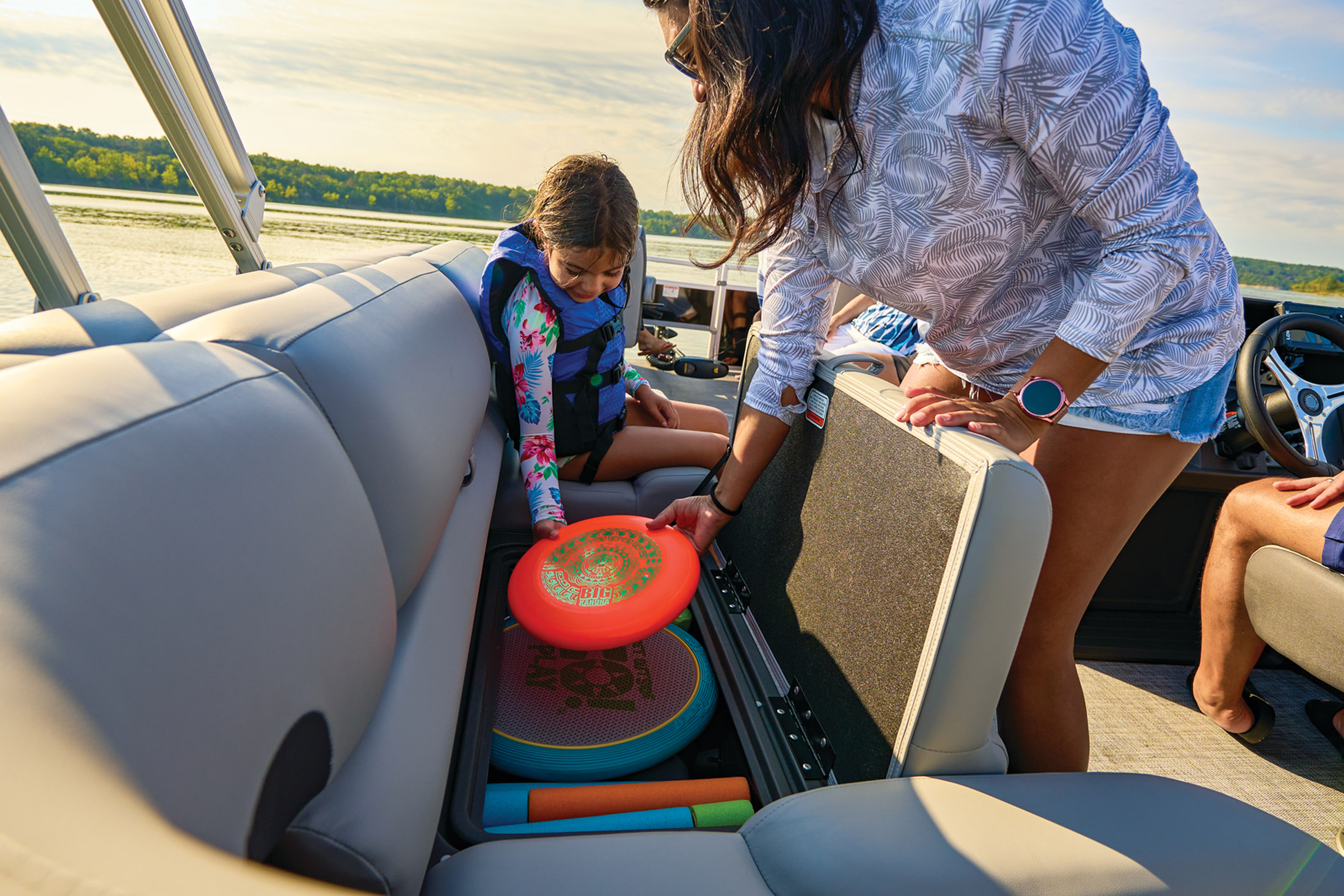

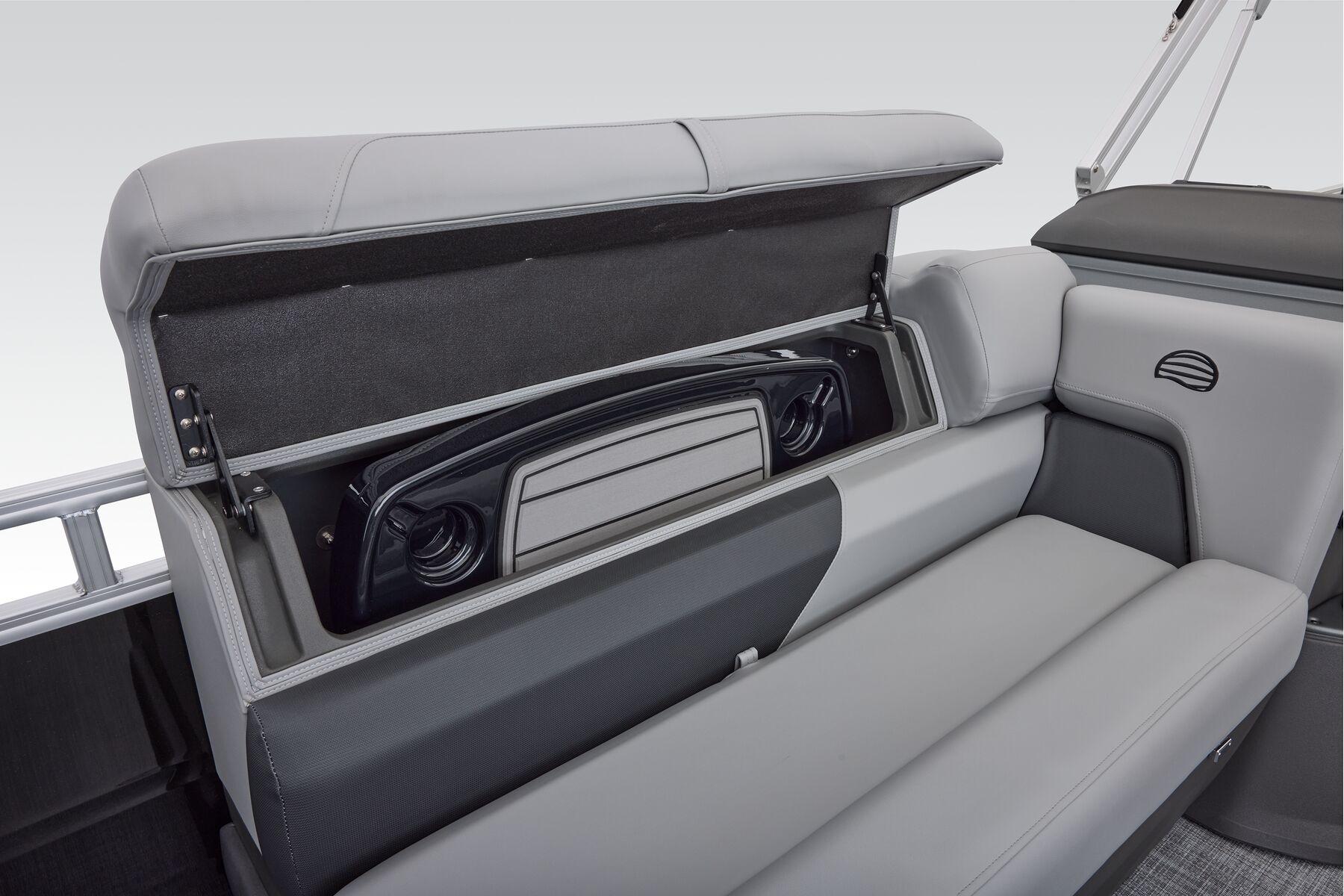

- Patented built-in STOW MORE™ seat-back storage system for all couches

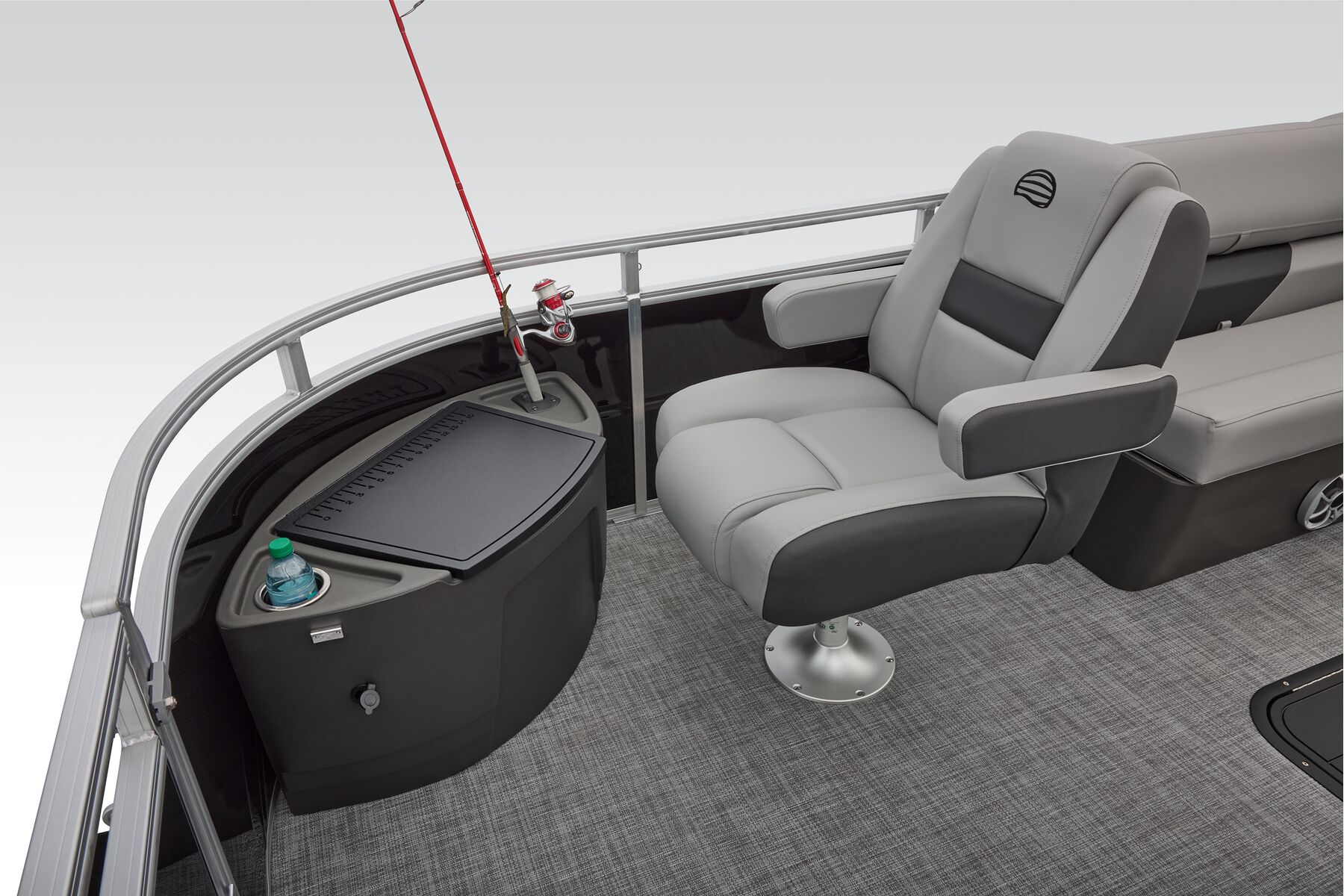

- 2 swiveling bow bucket seats w/self-leveling armrests

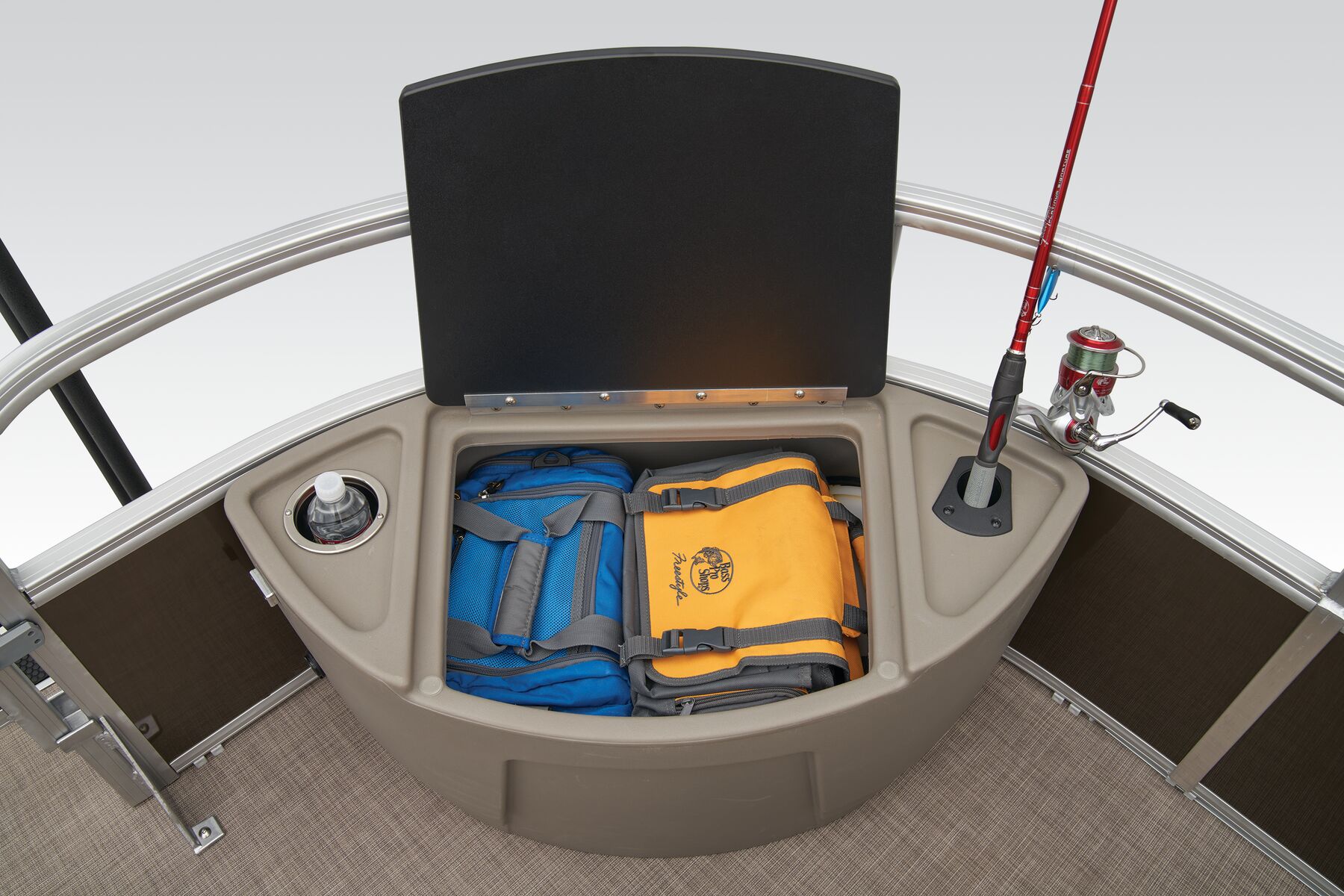

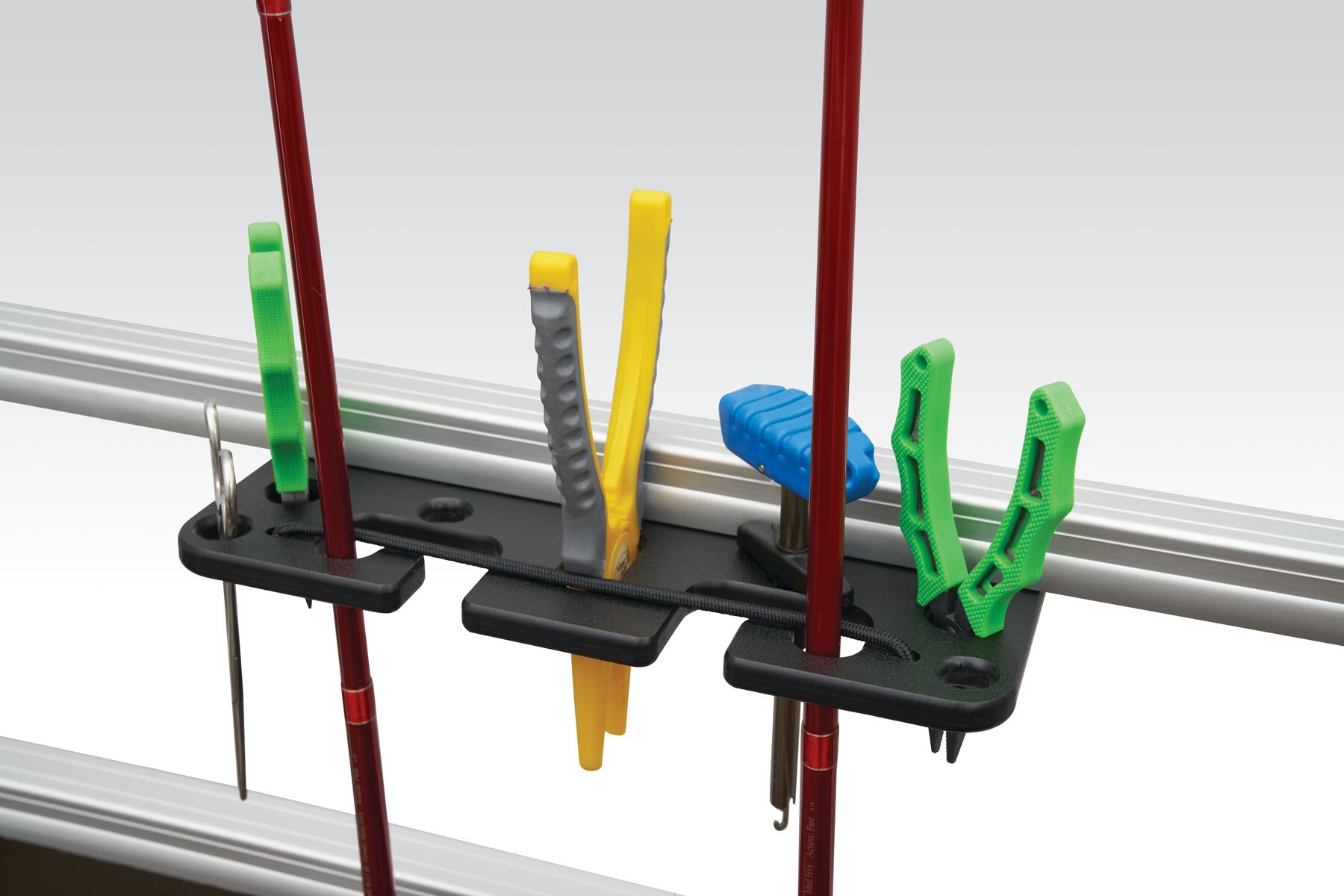

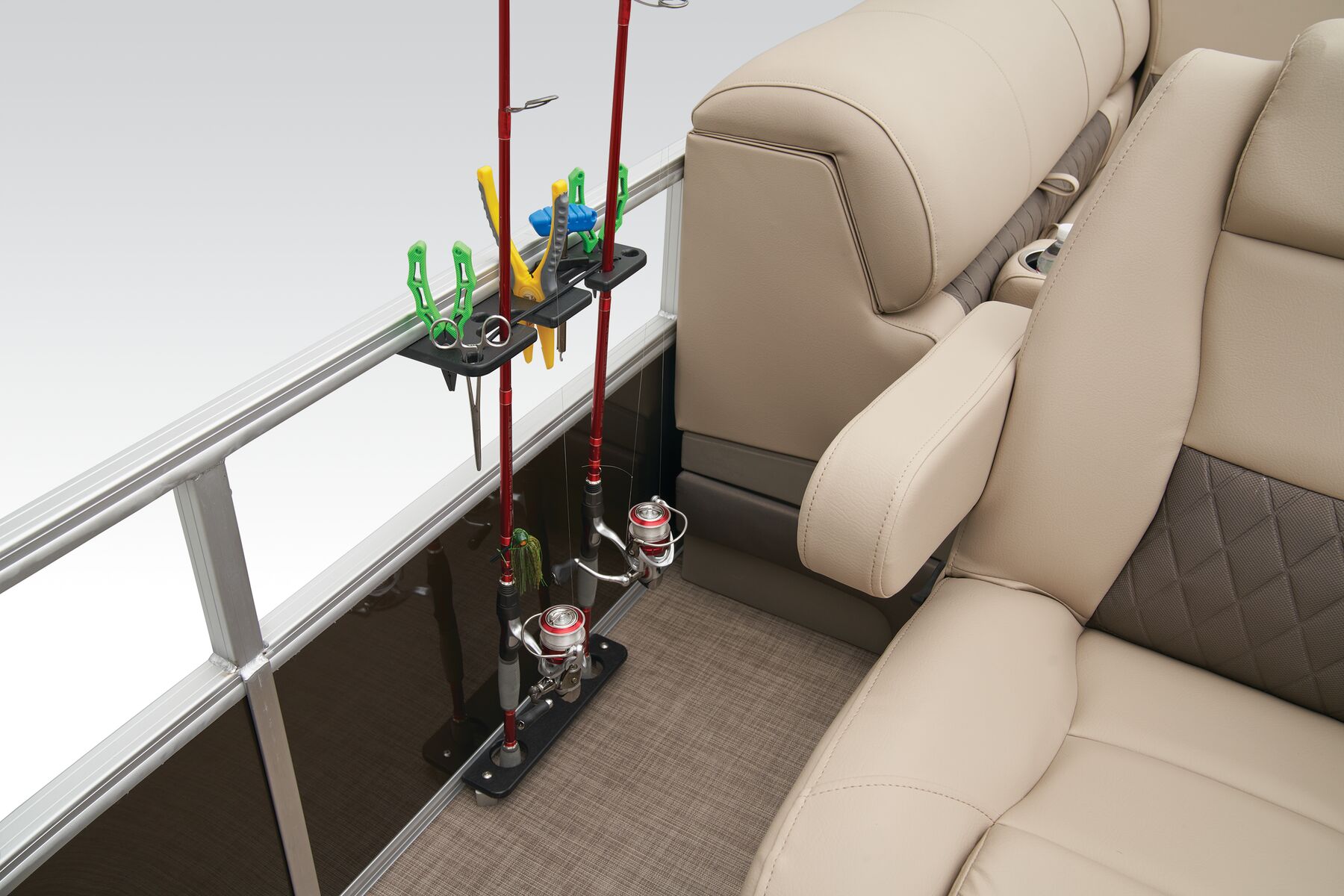

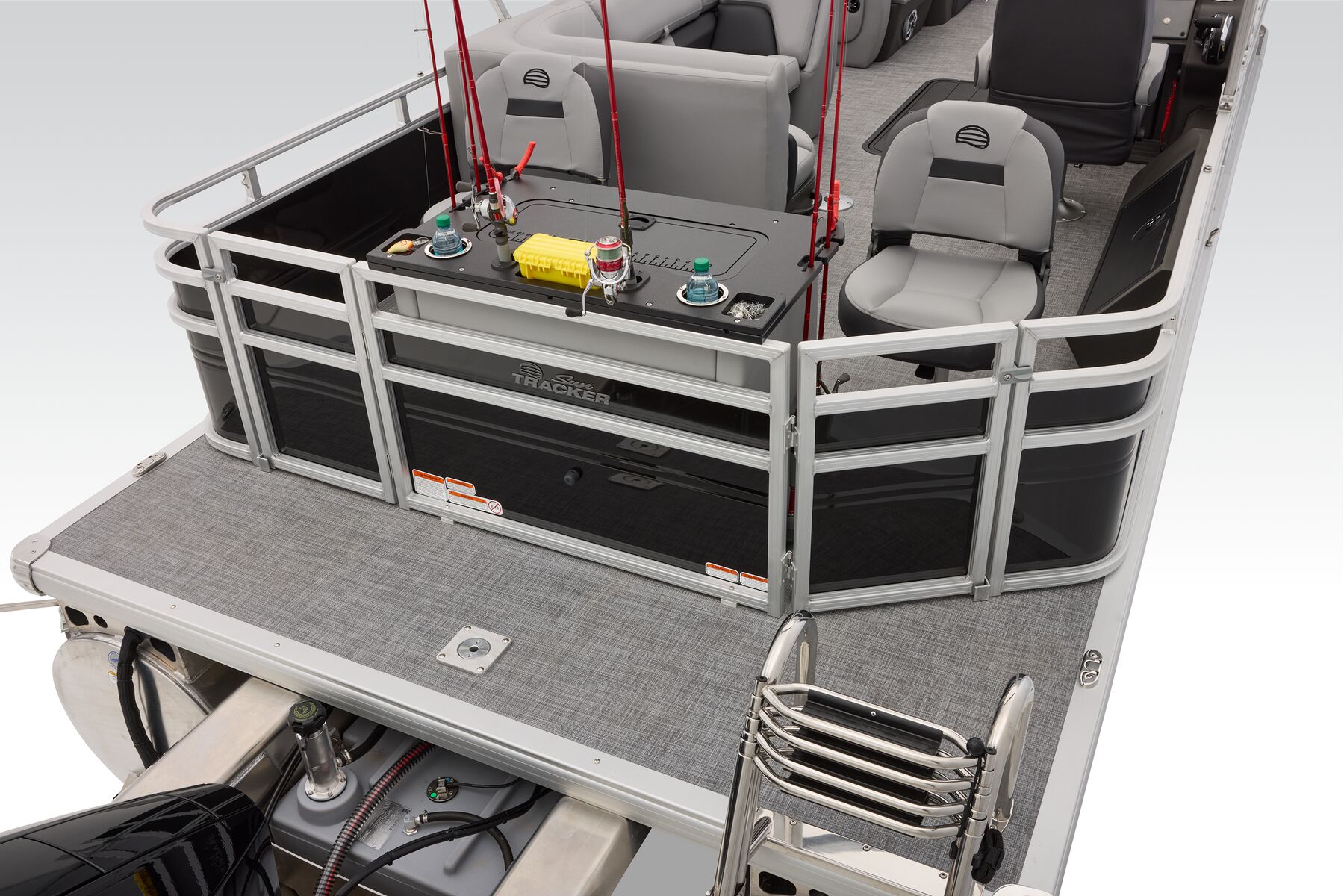

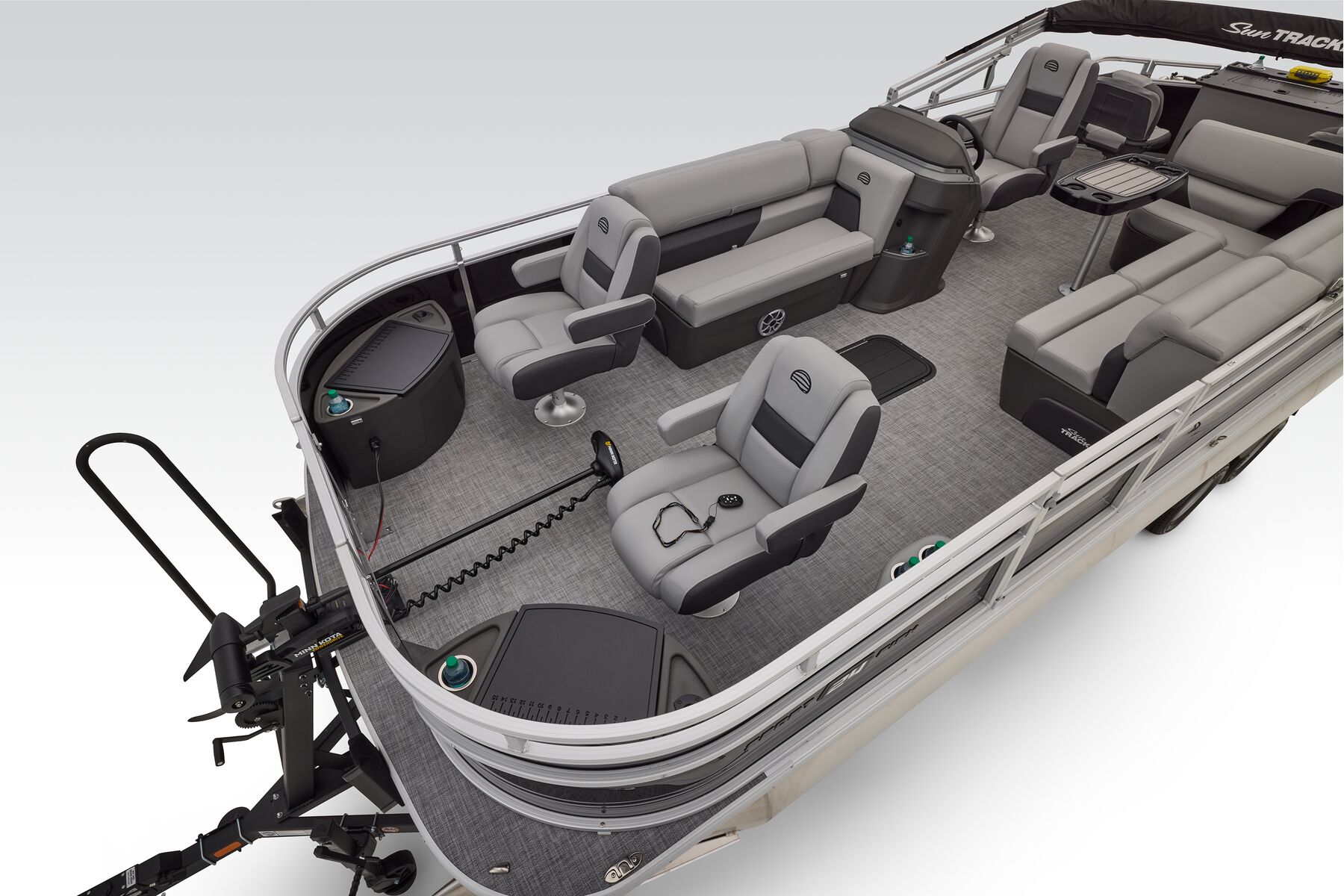

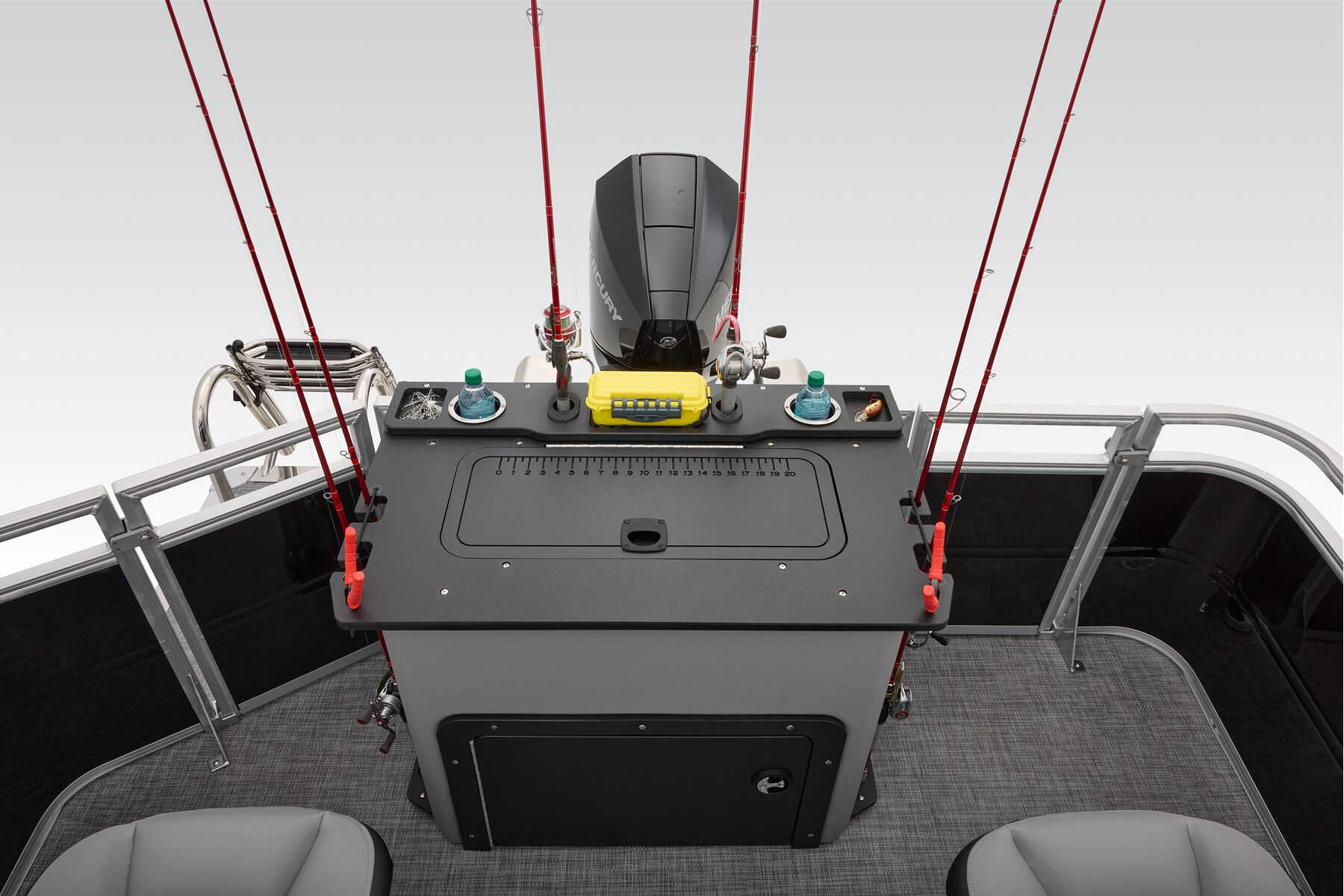

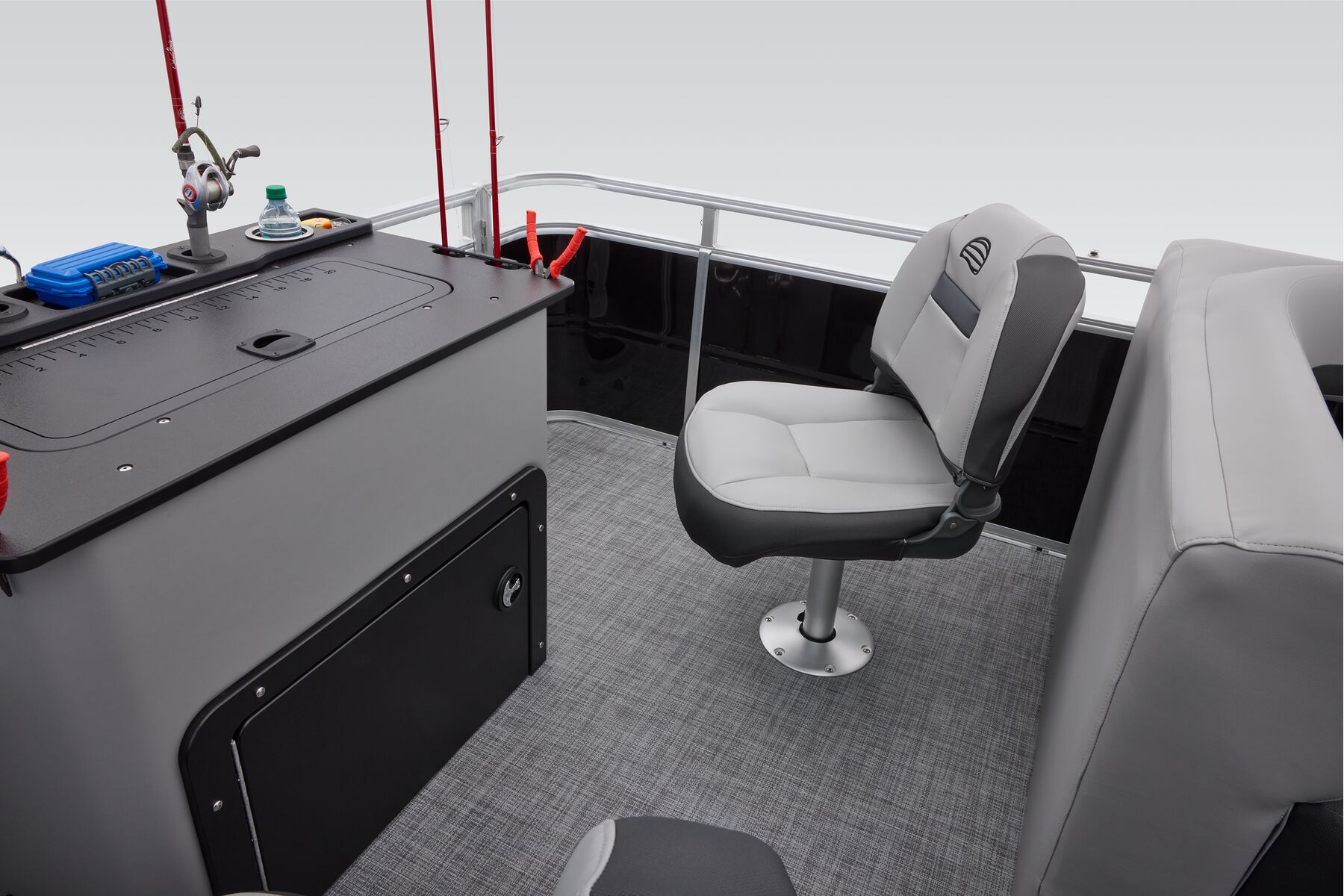

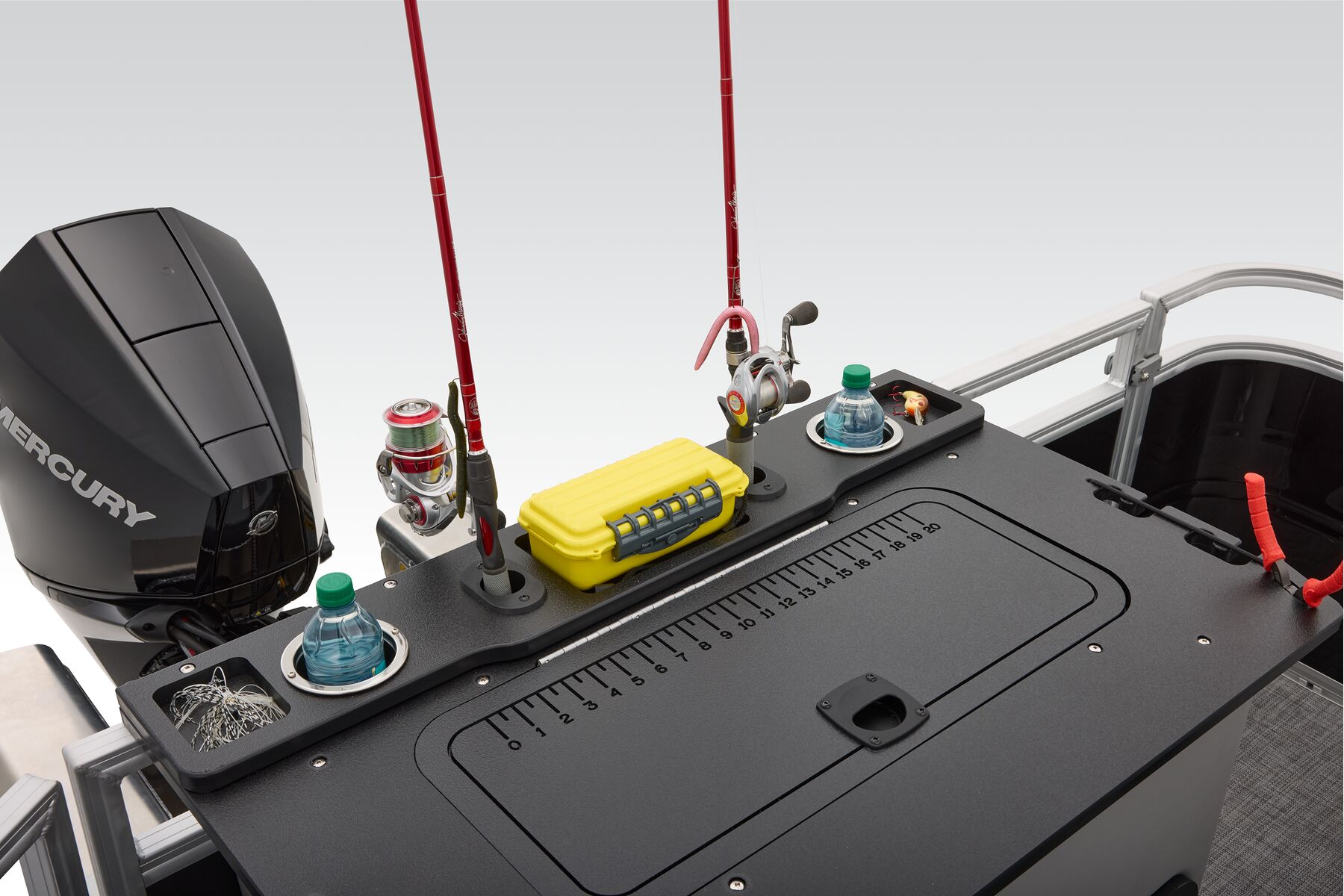

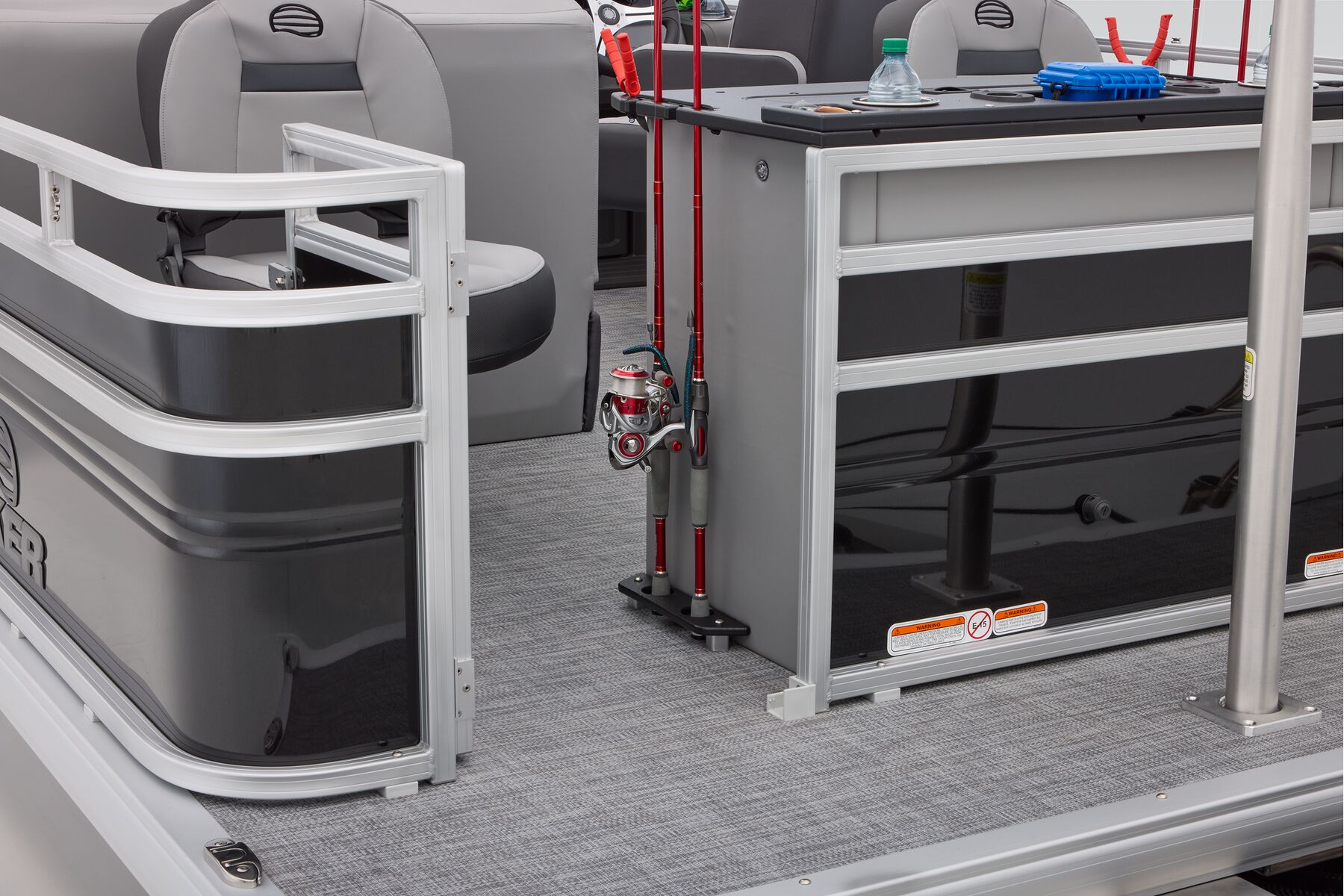

- Front fishing station w/2 pedestal seat bases; rail-mounted rod & tool holders; & bow starboard storage compartment w/drink holder, rod holder & composite lid w/fish ruler
- Port side drink holders

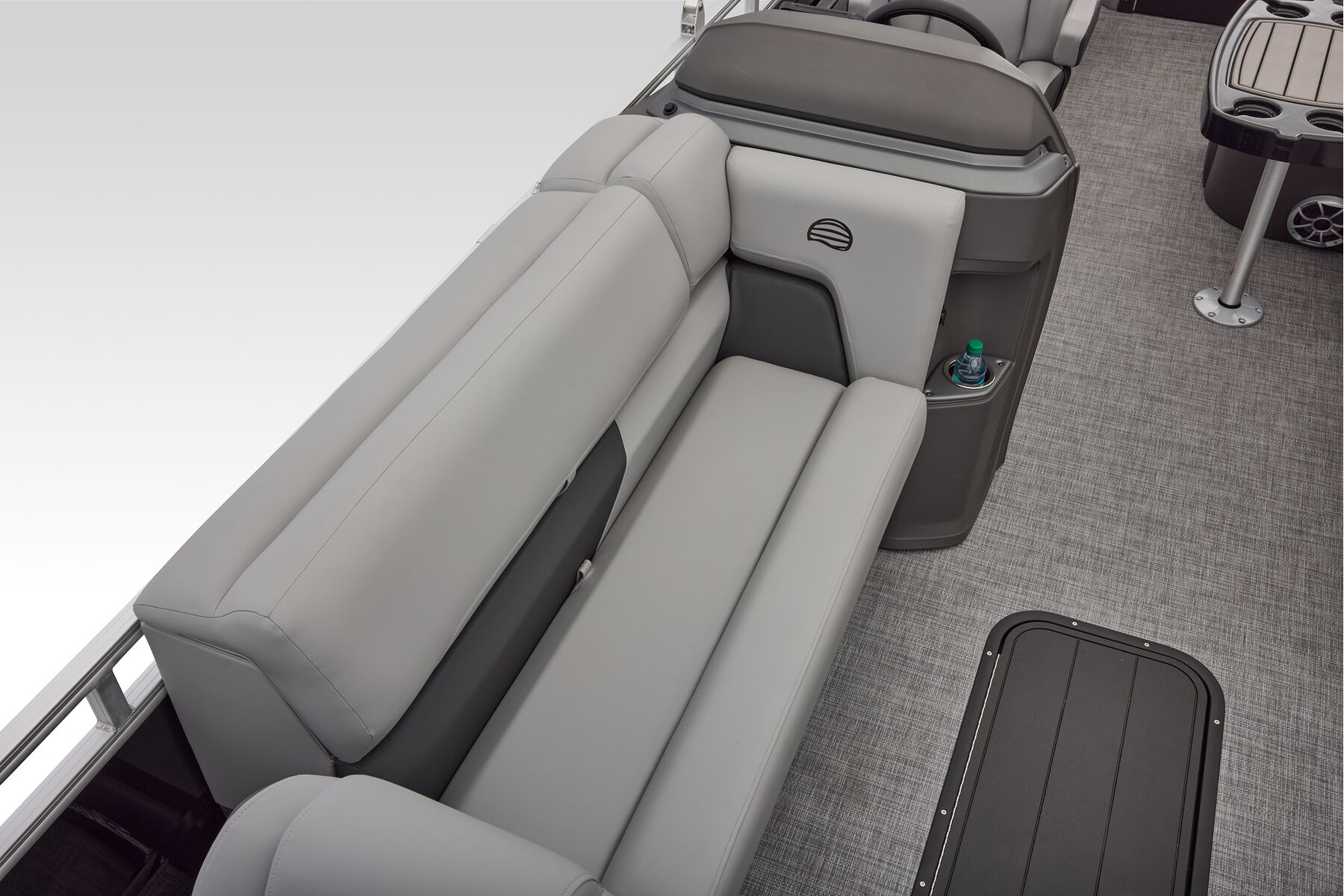

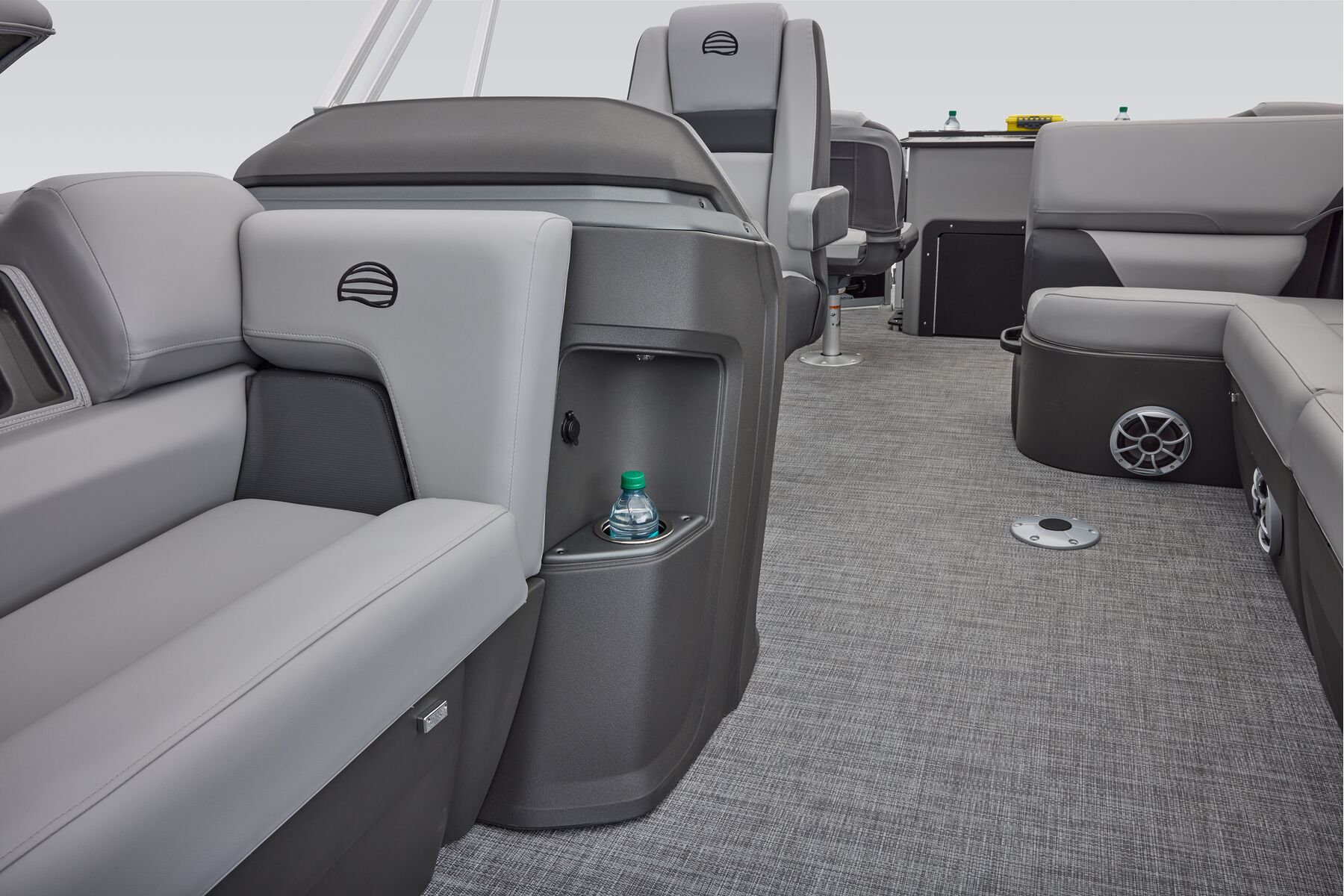

- Bow starboard console couch w/STOW MORE™ & underseat storage

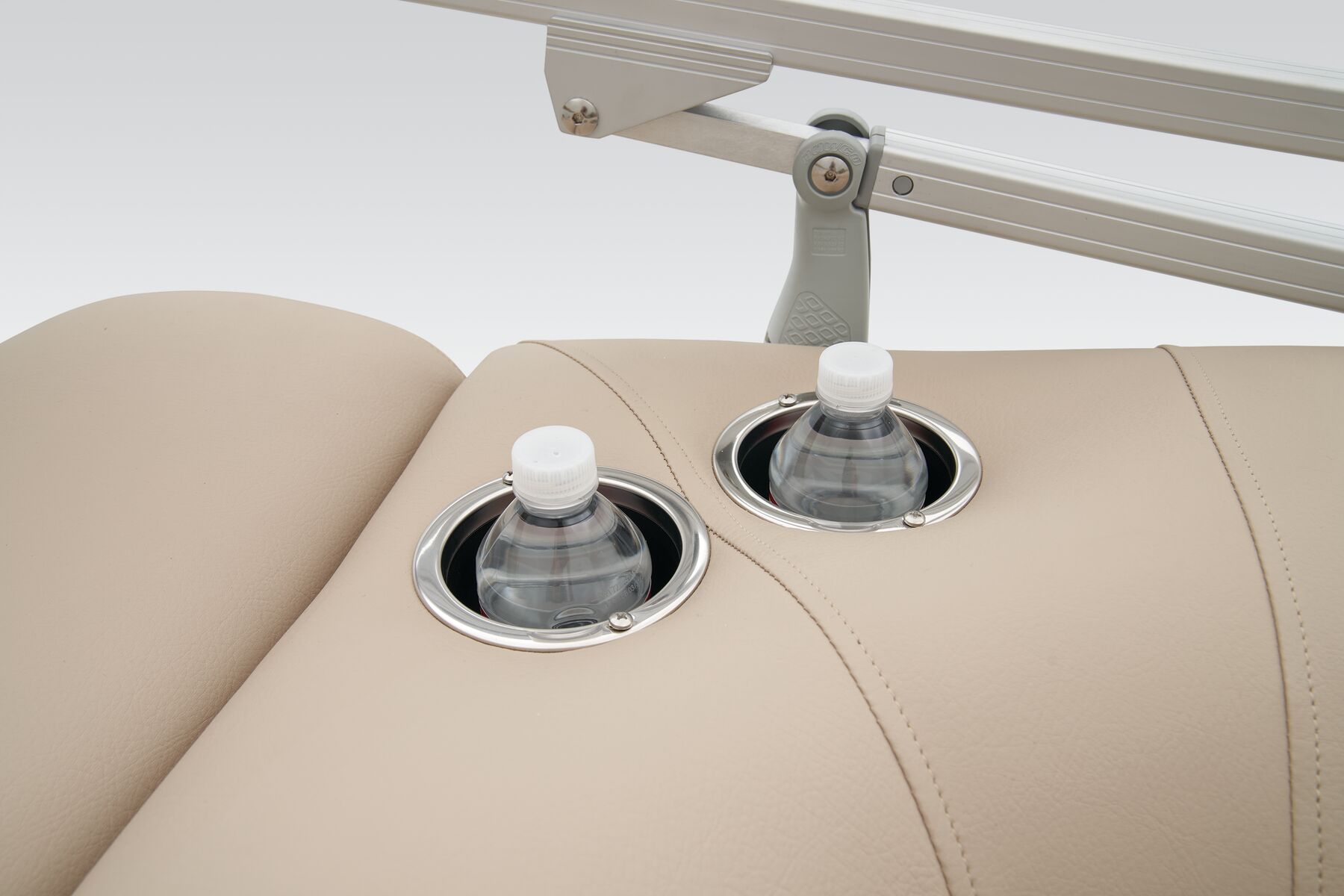

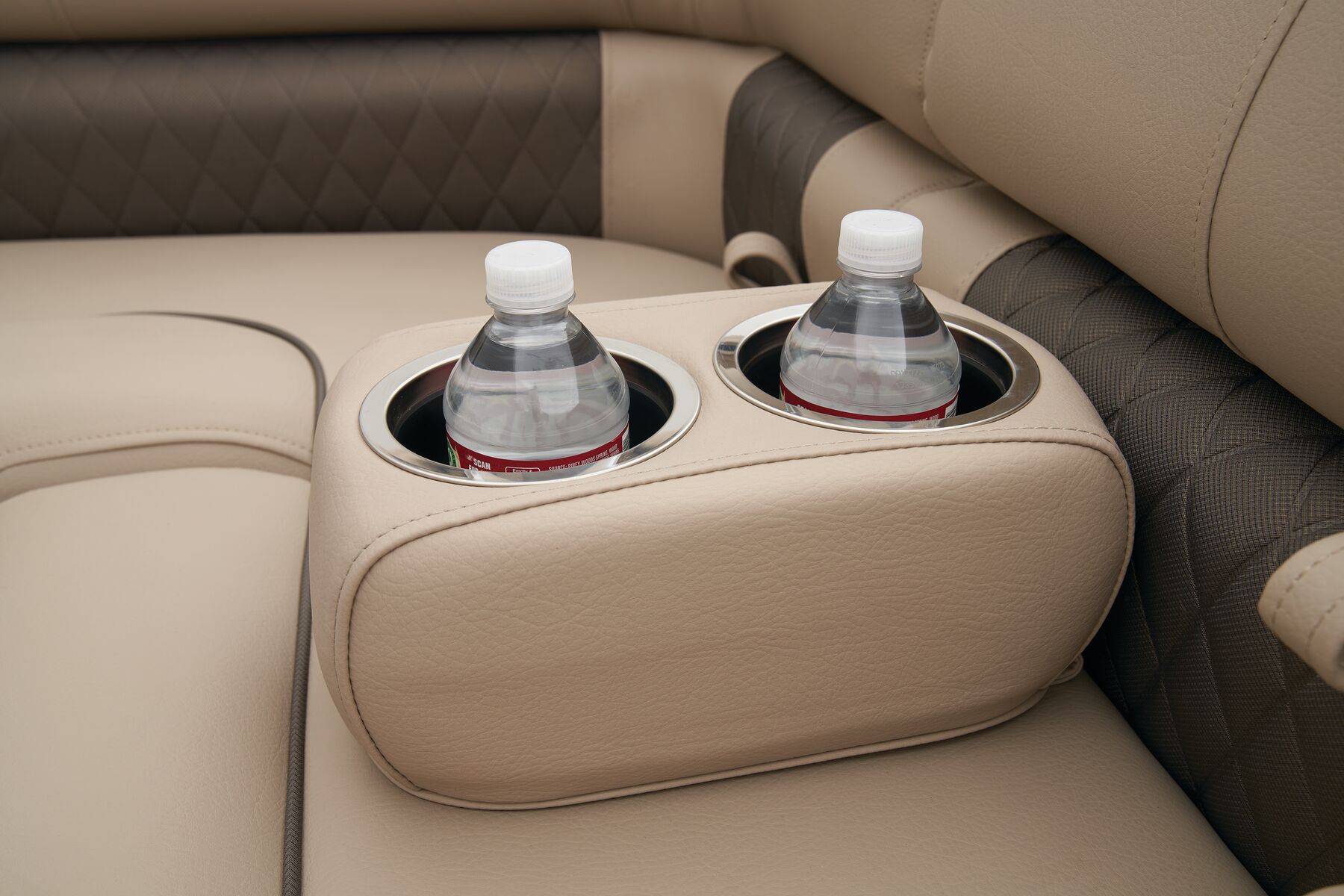

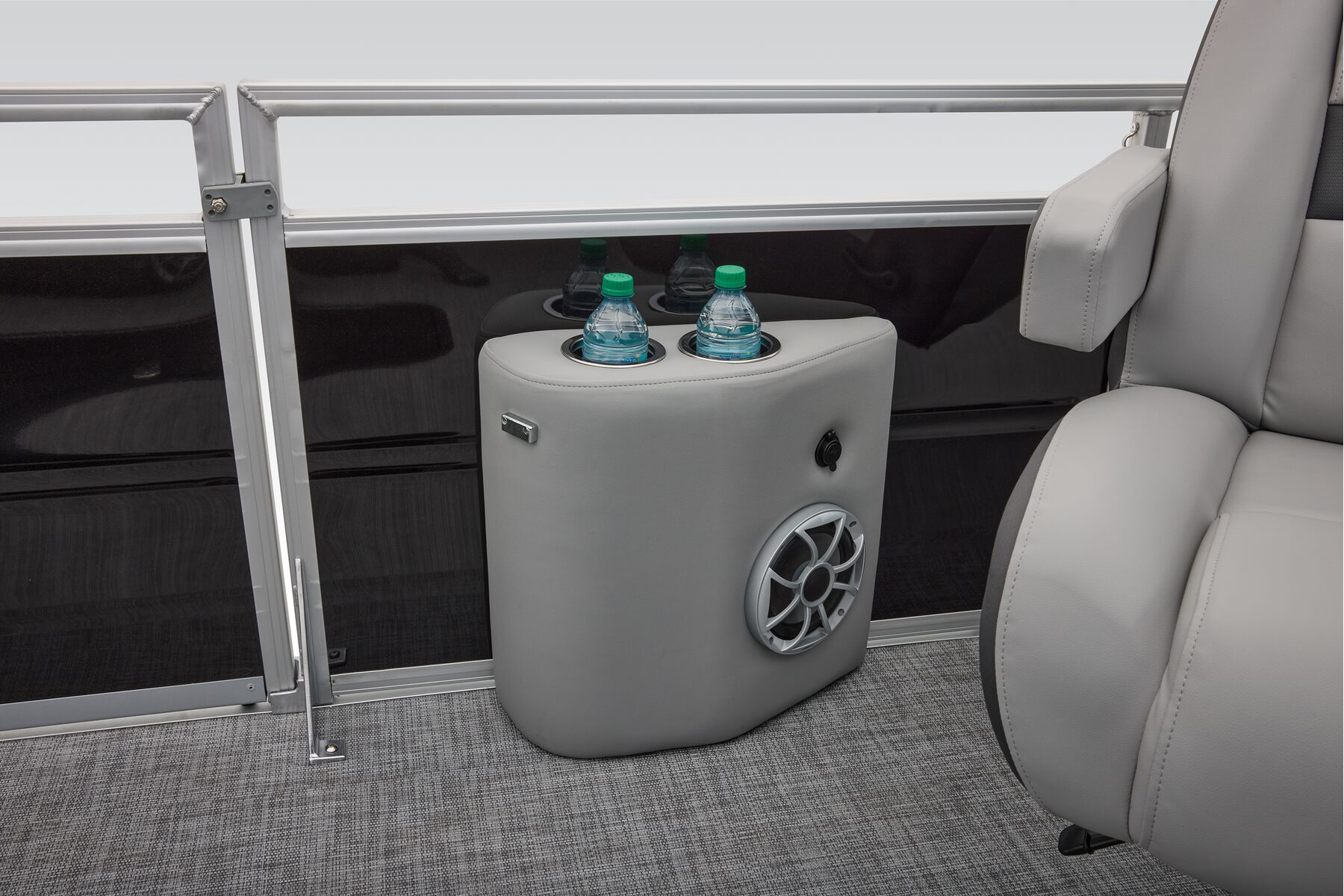

- 2 movable drink holders/armrests for couch seating

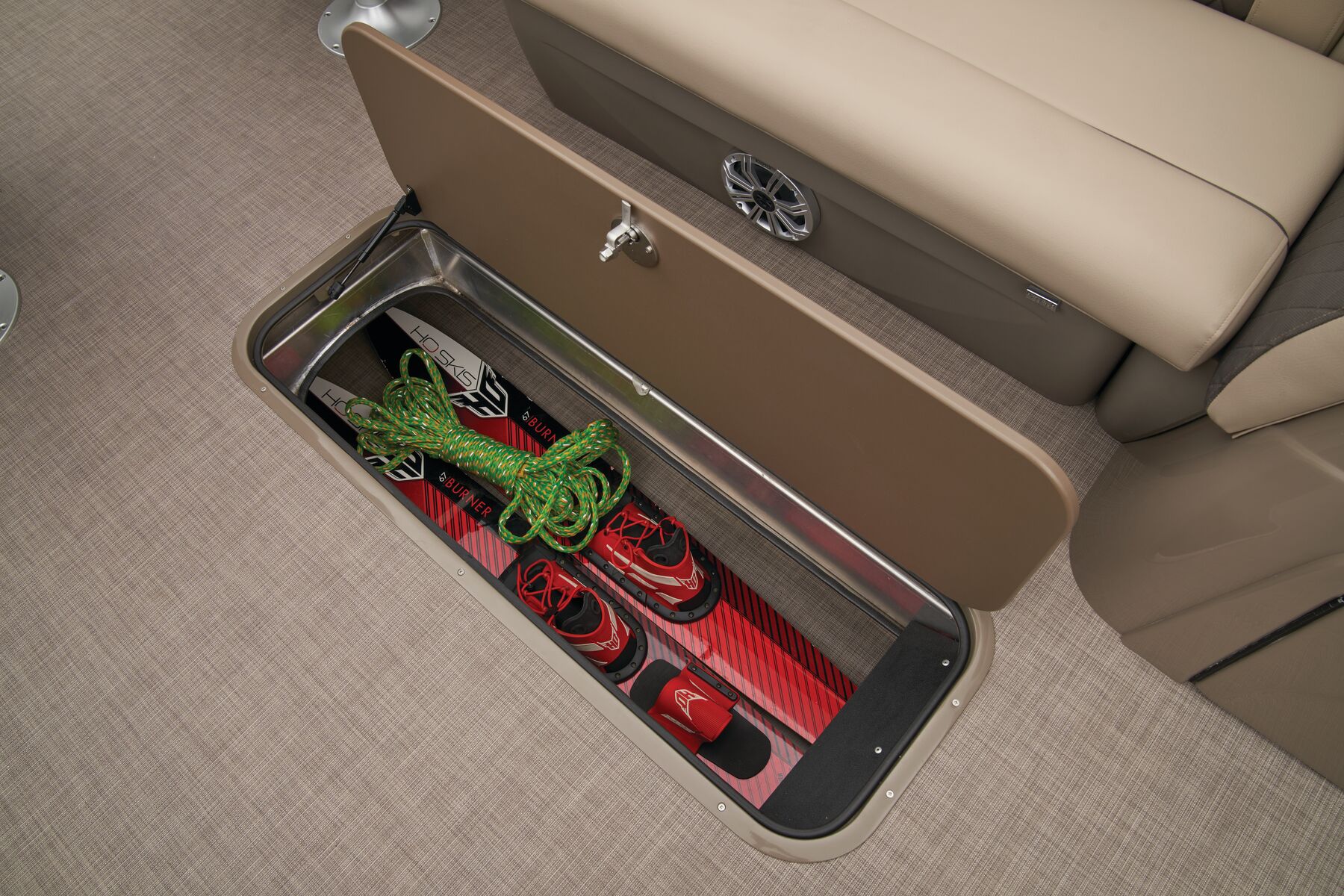

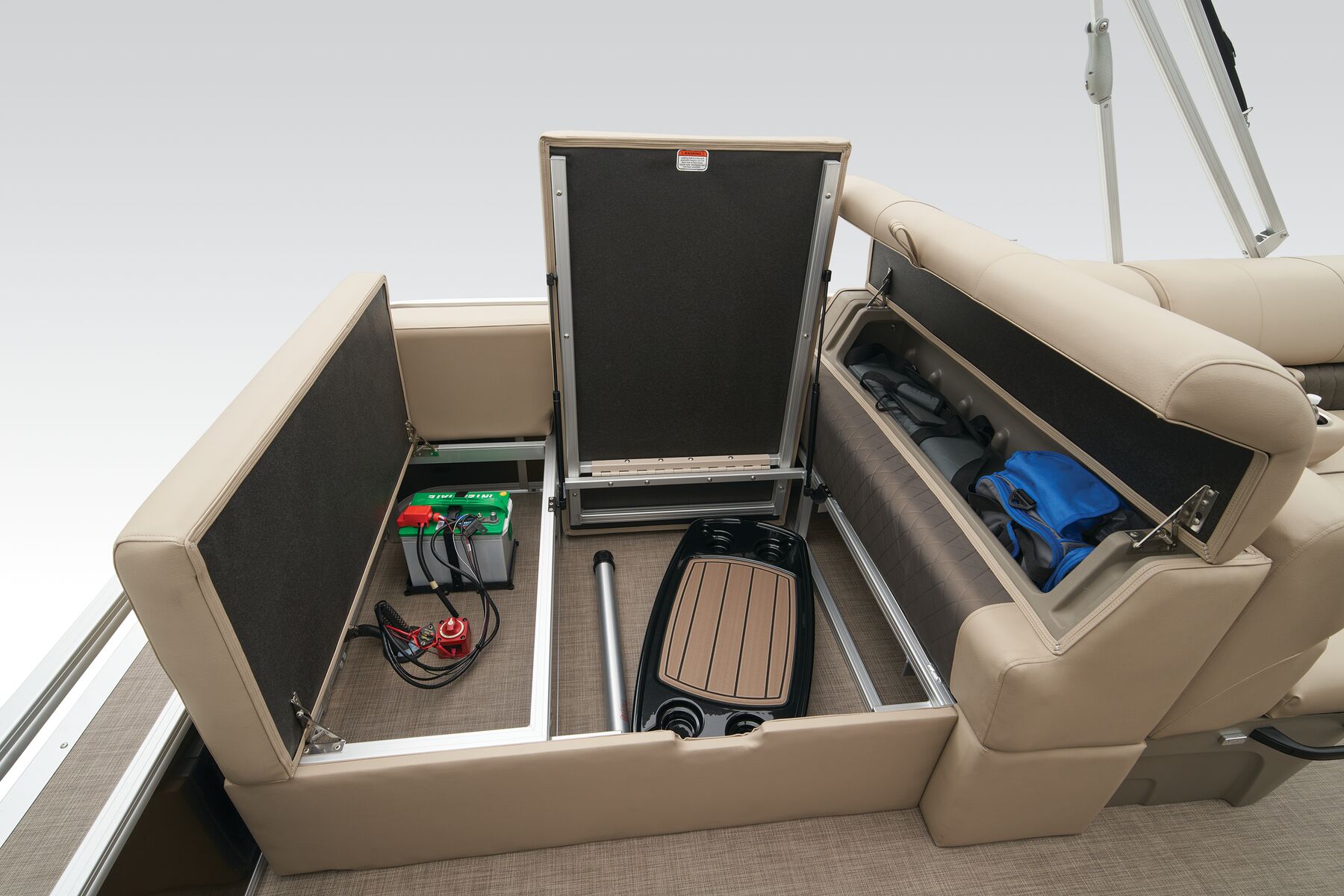

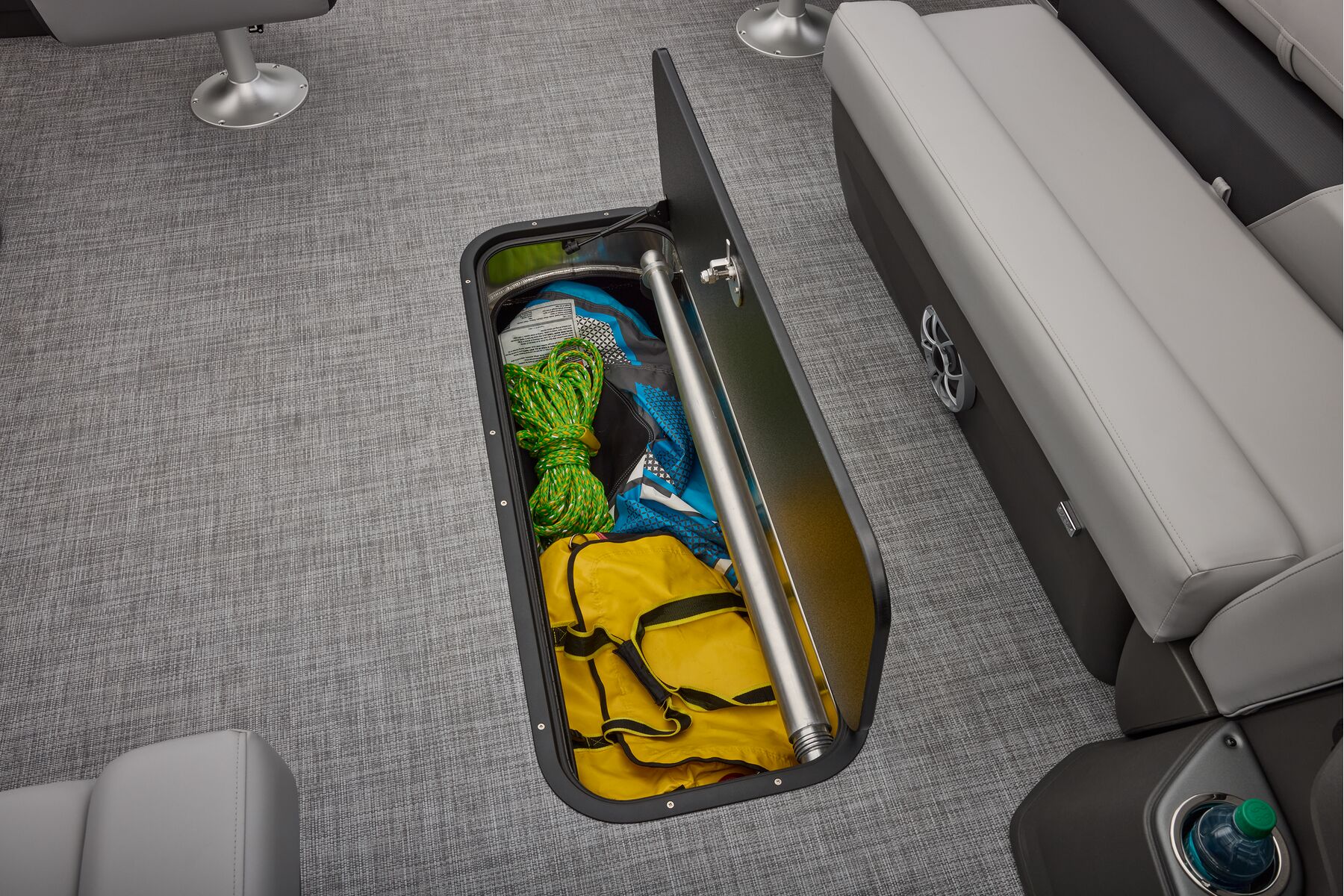

- In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log

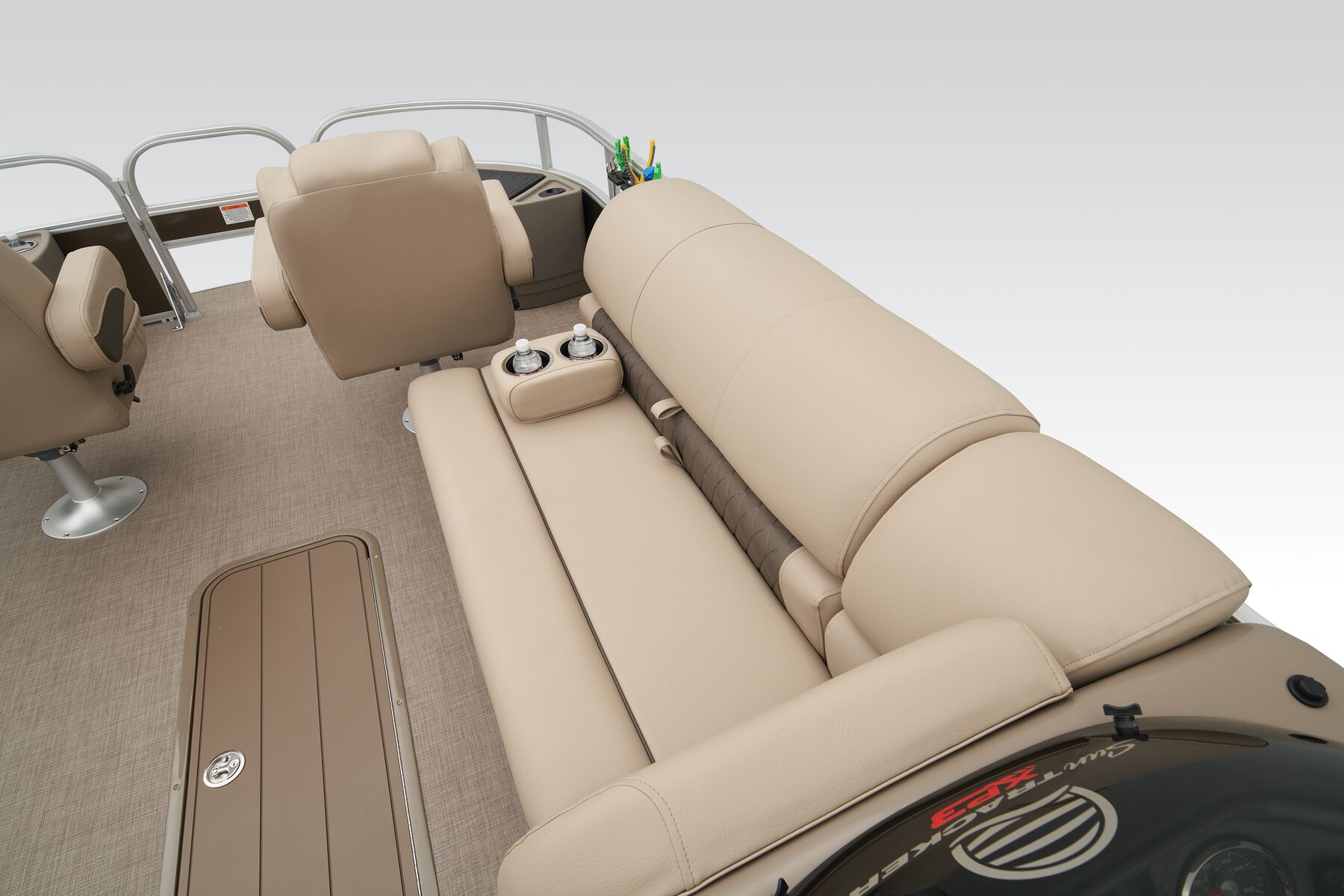

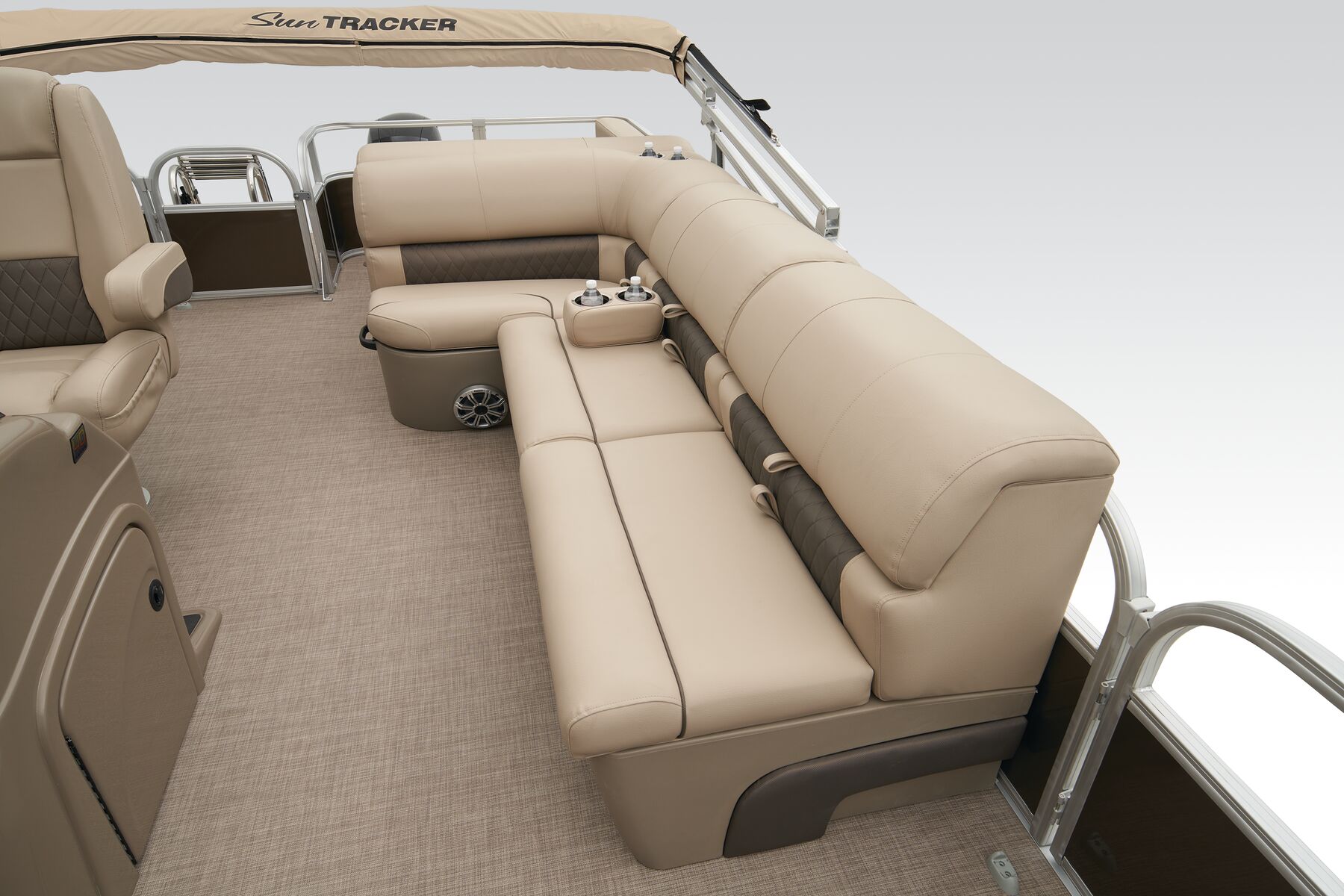

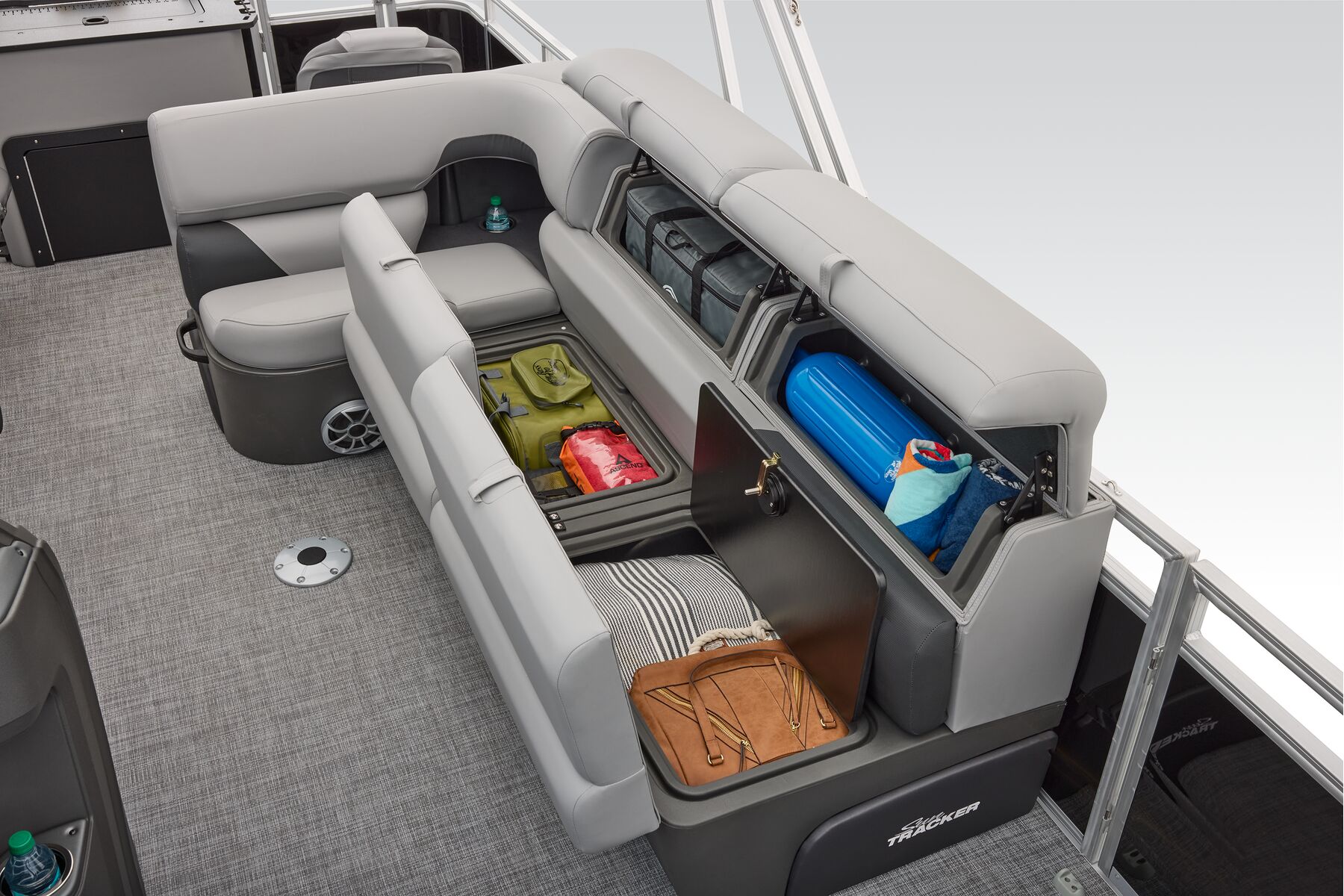

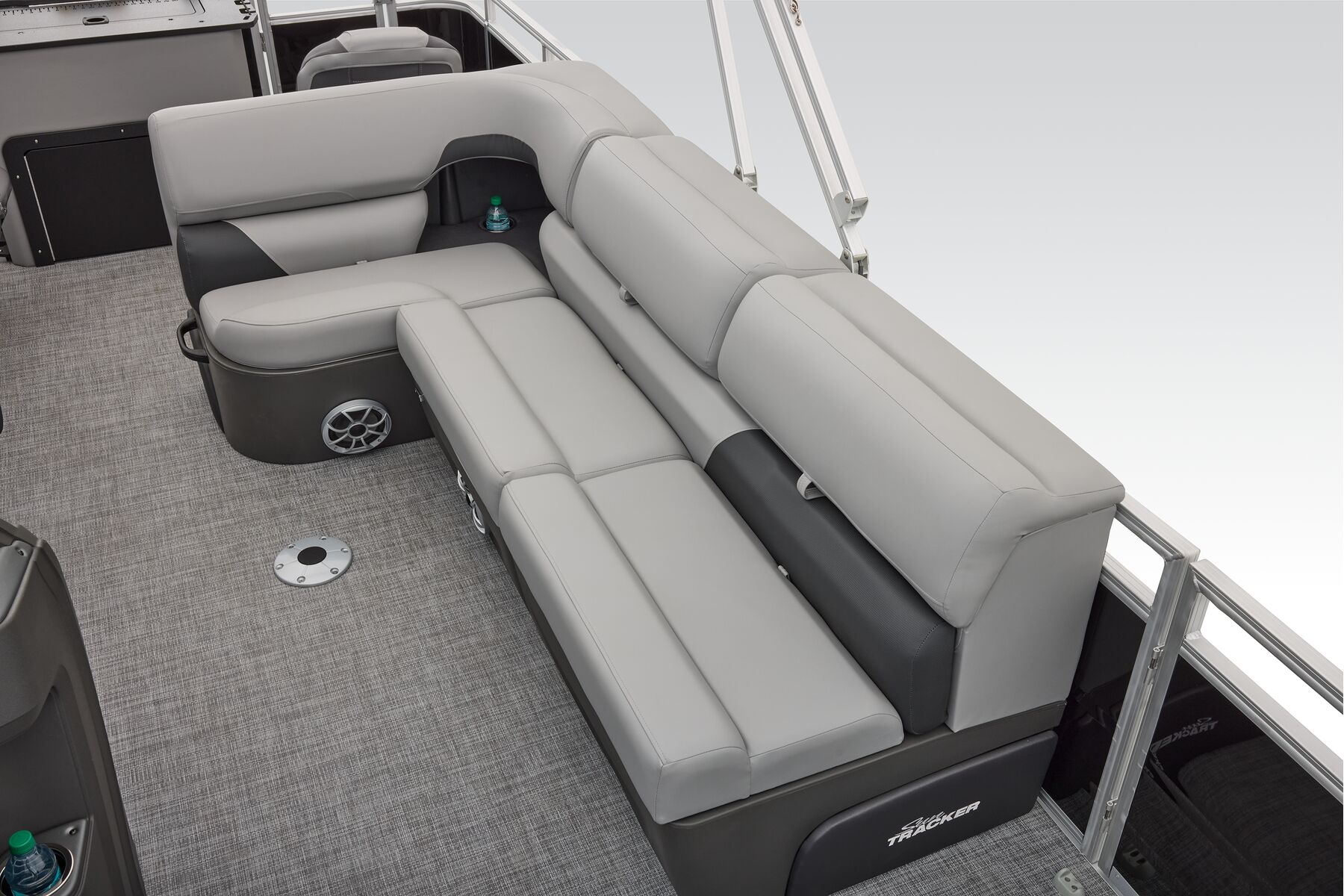

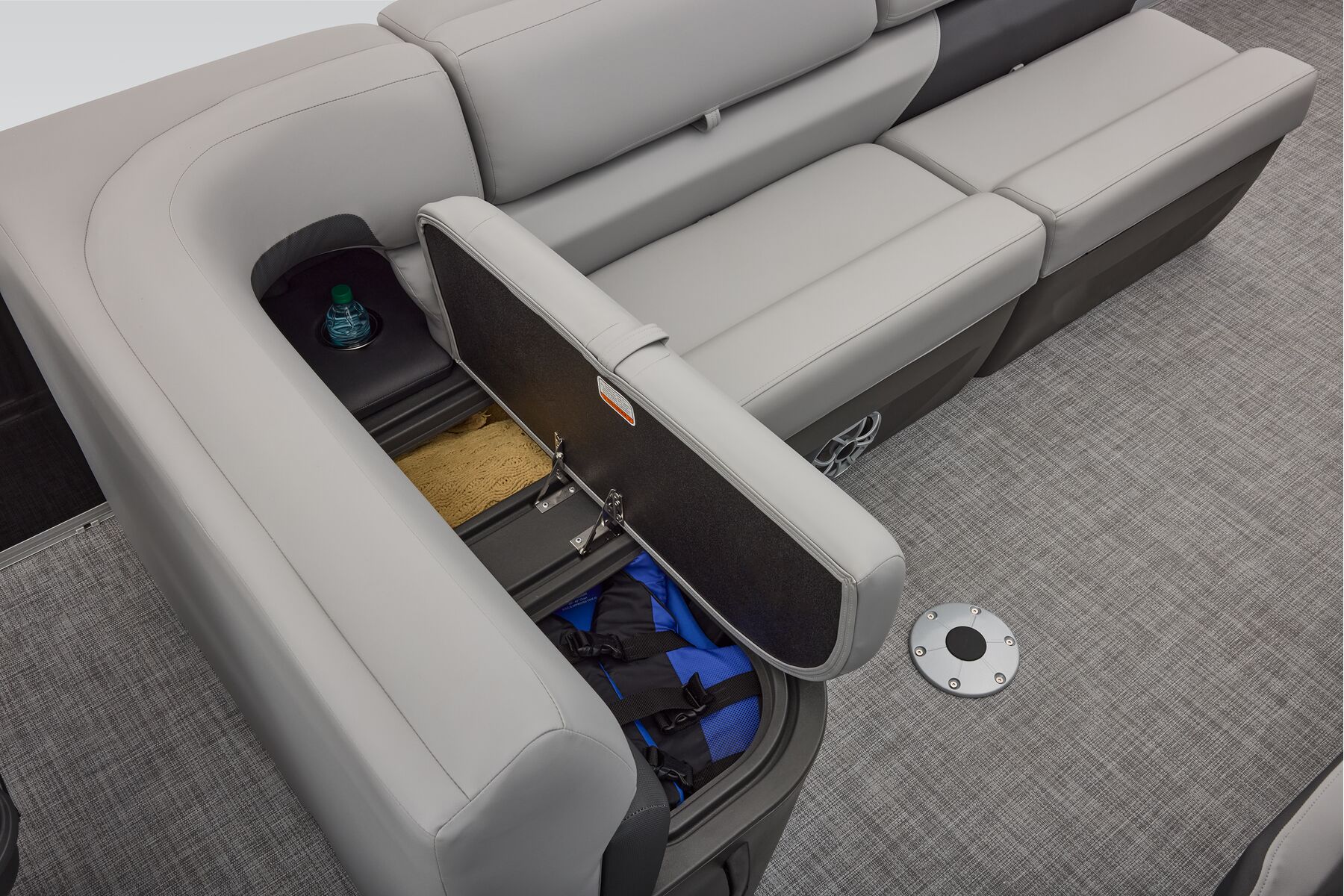

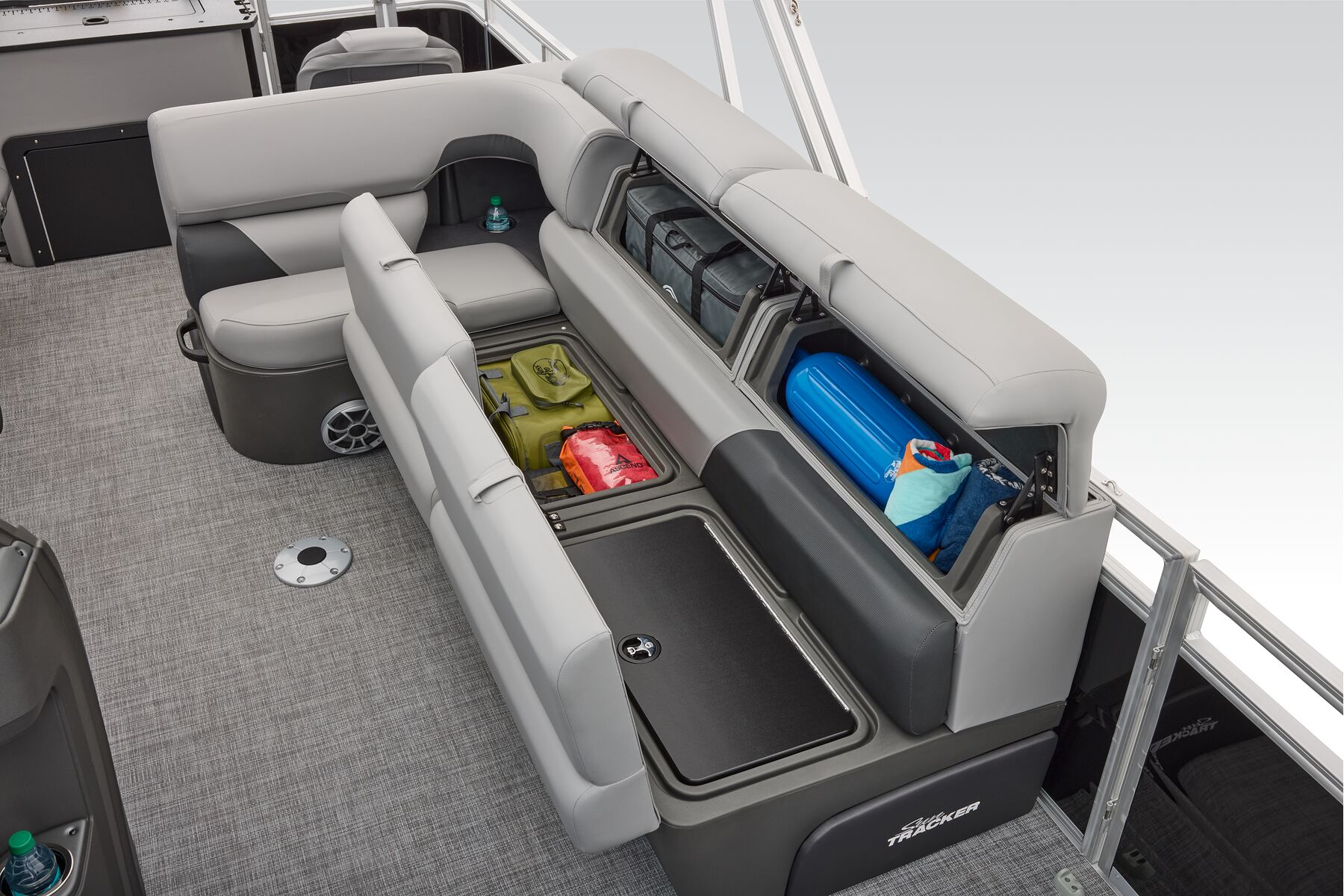

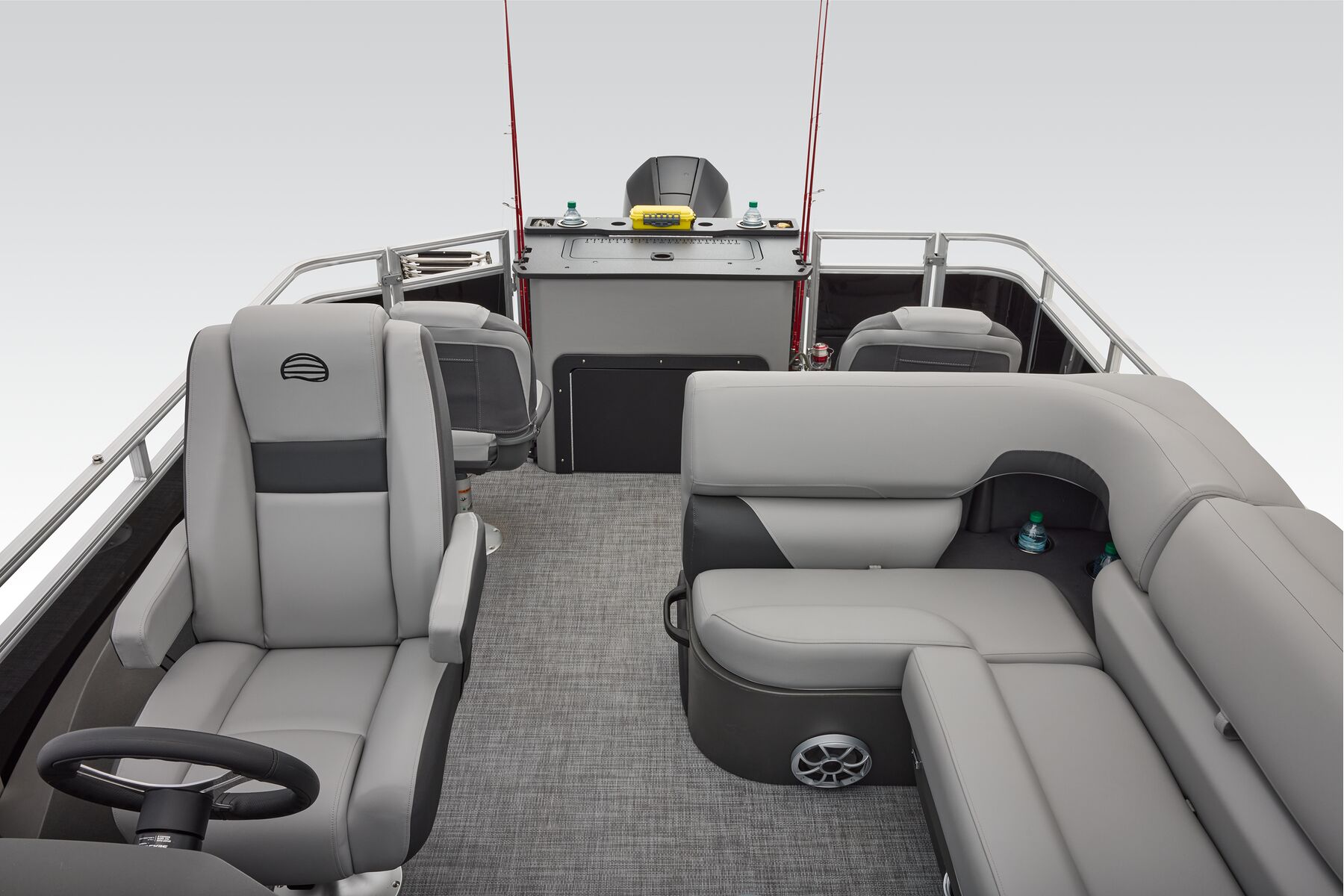

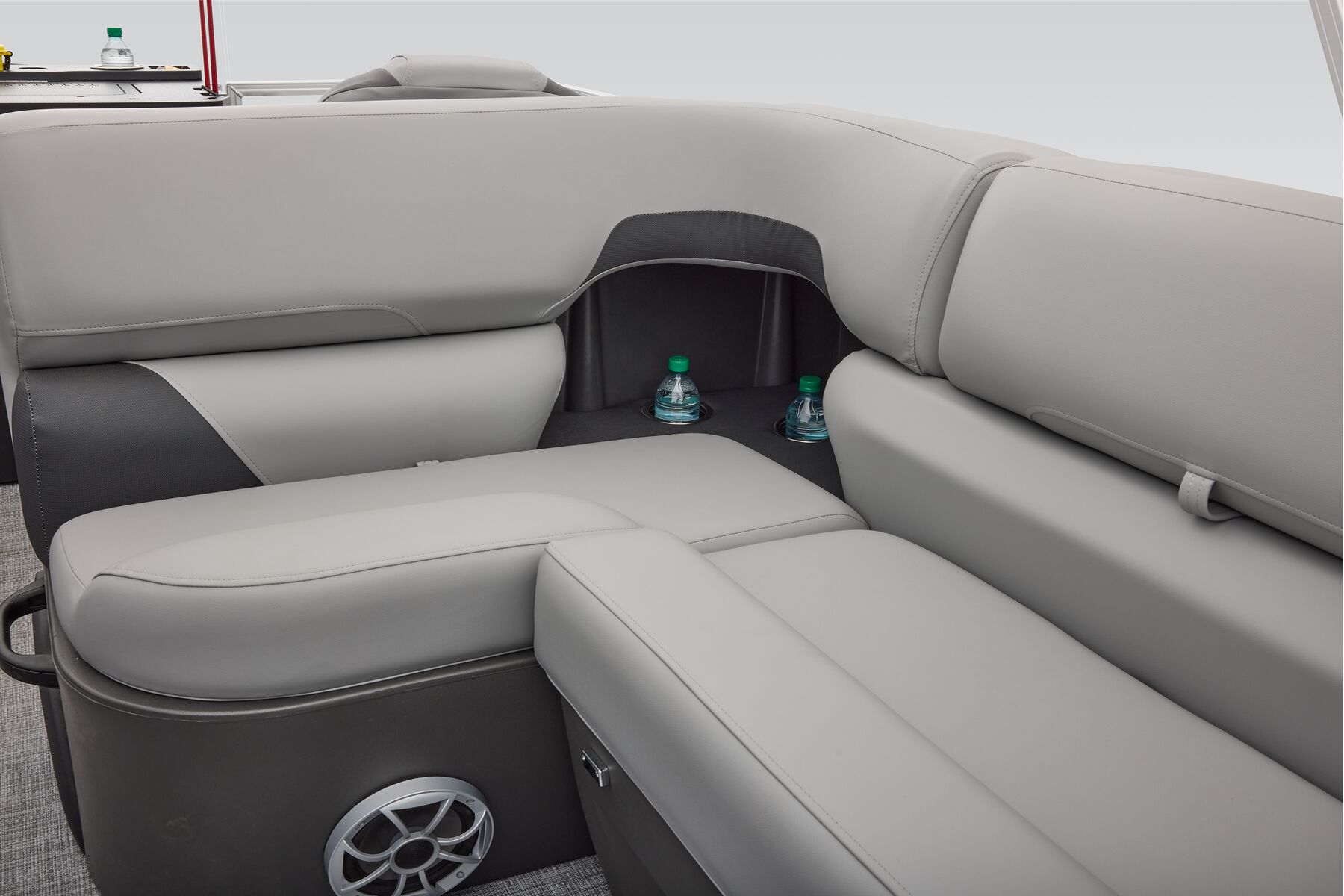

- Aft L-lounge couches w/STOW MORE™ & underseat, lockable storage

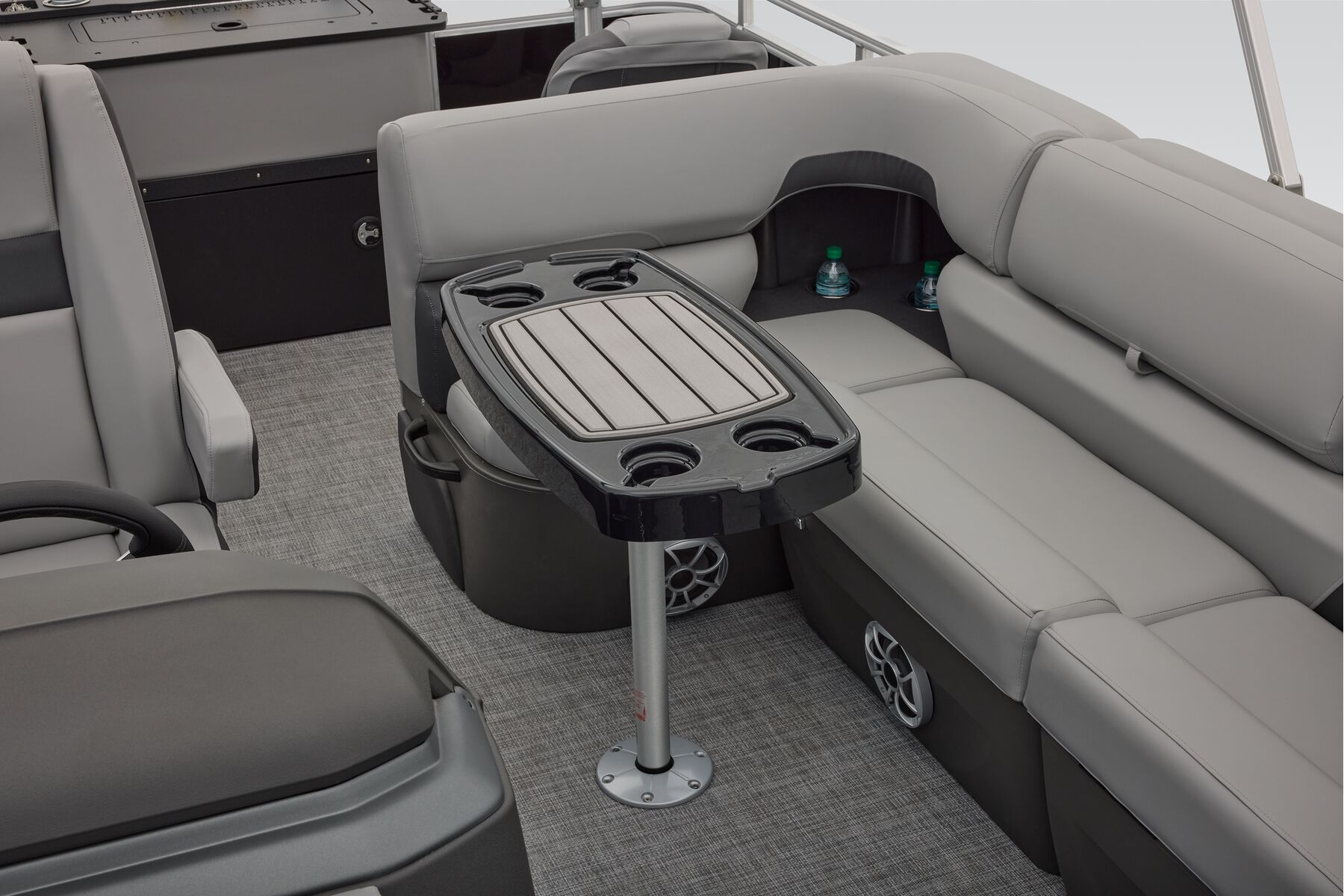

- Removable table w/soft-touch insert & 4 molded-in drink holders

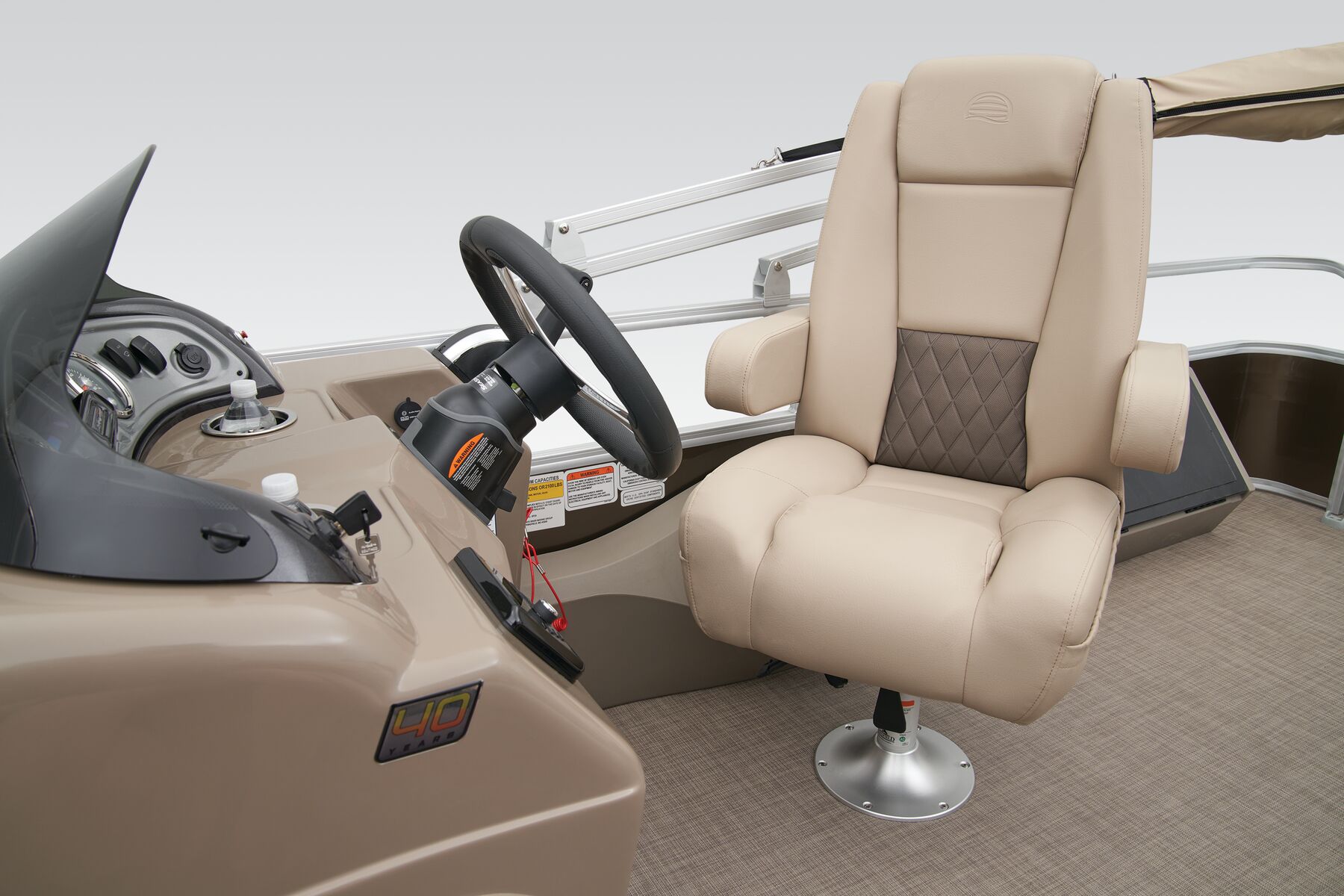

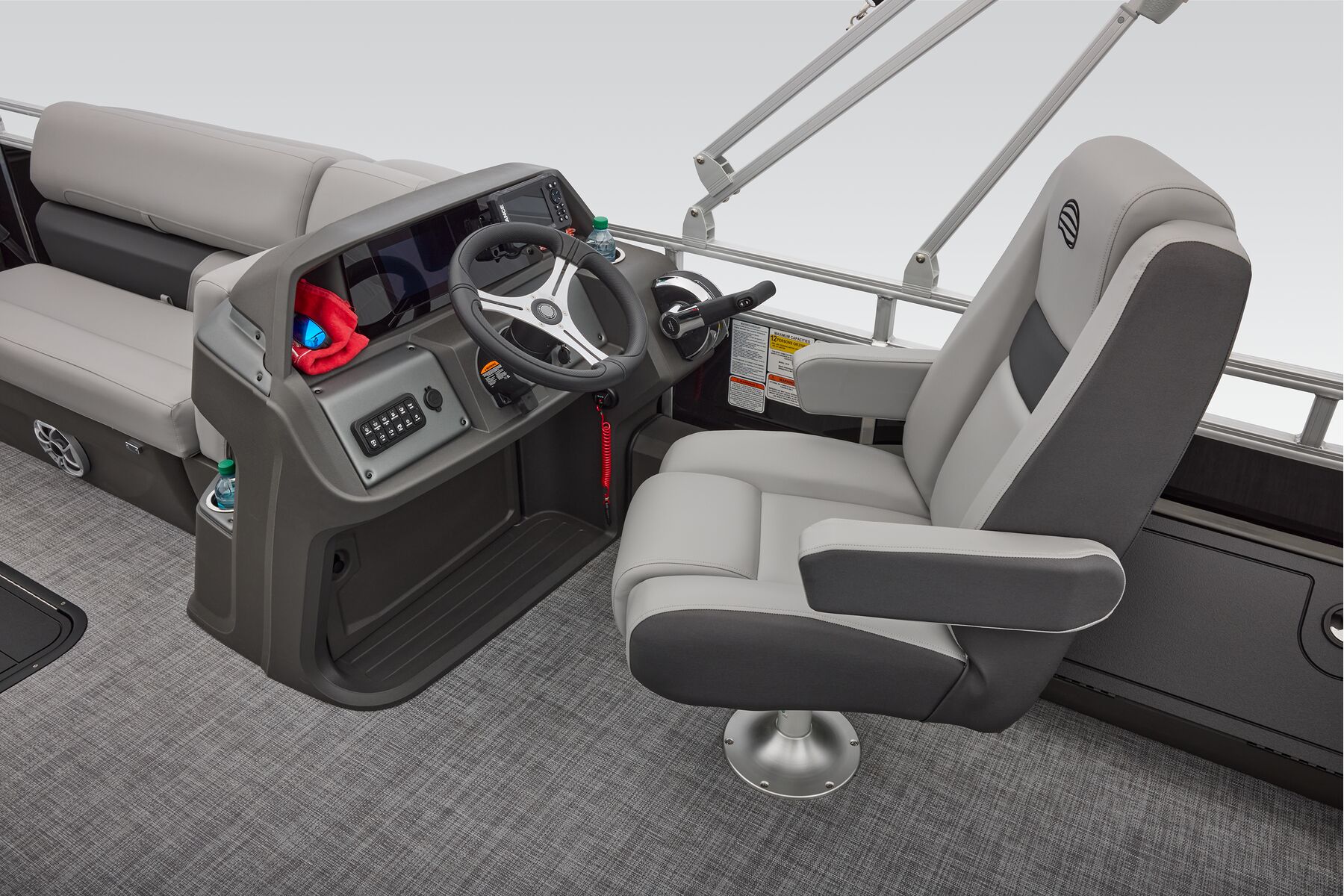

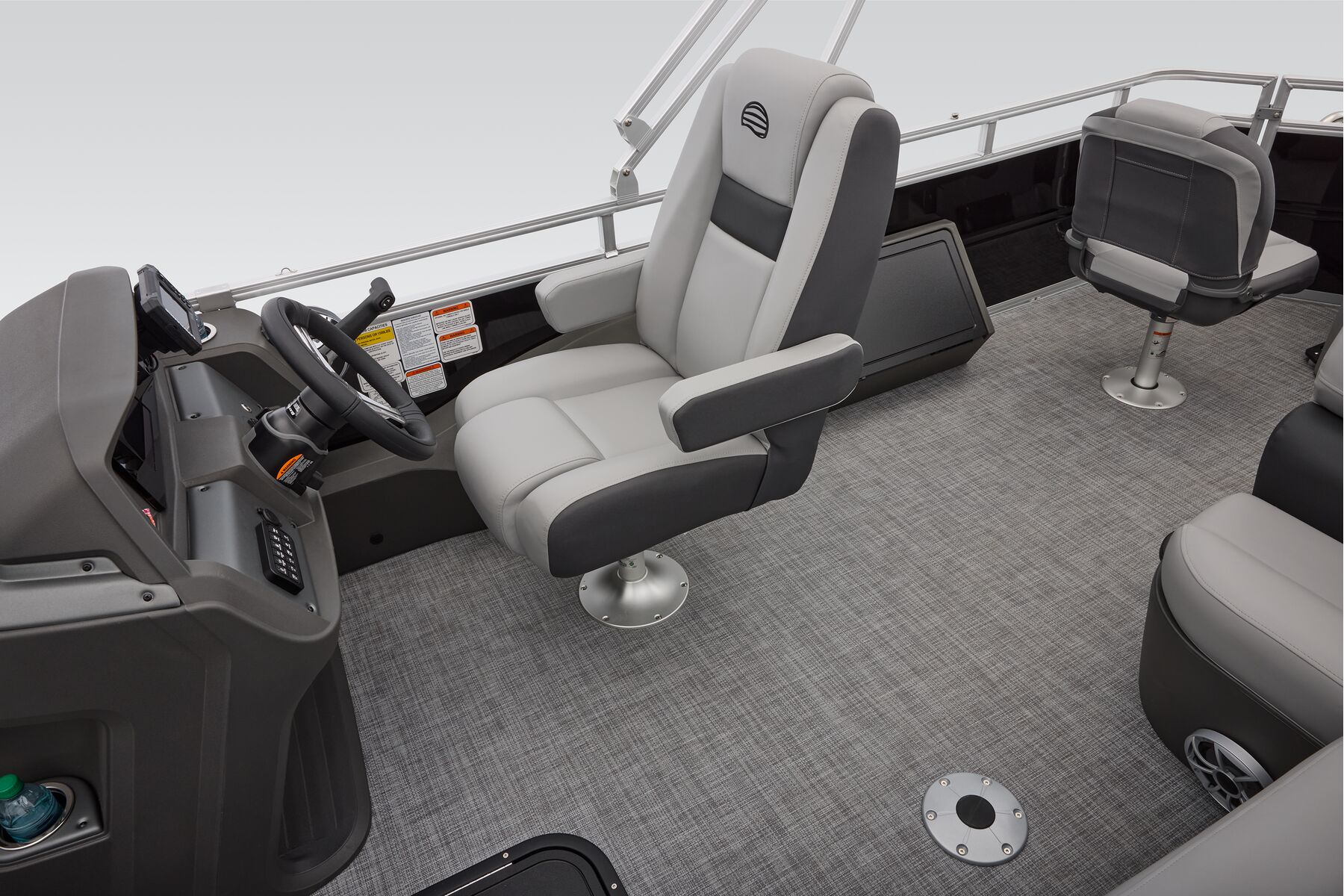

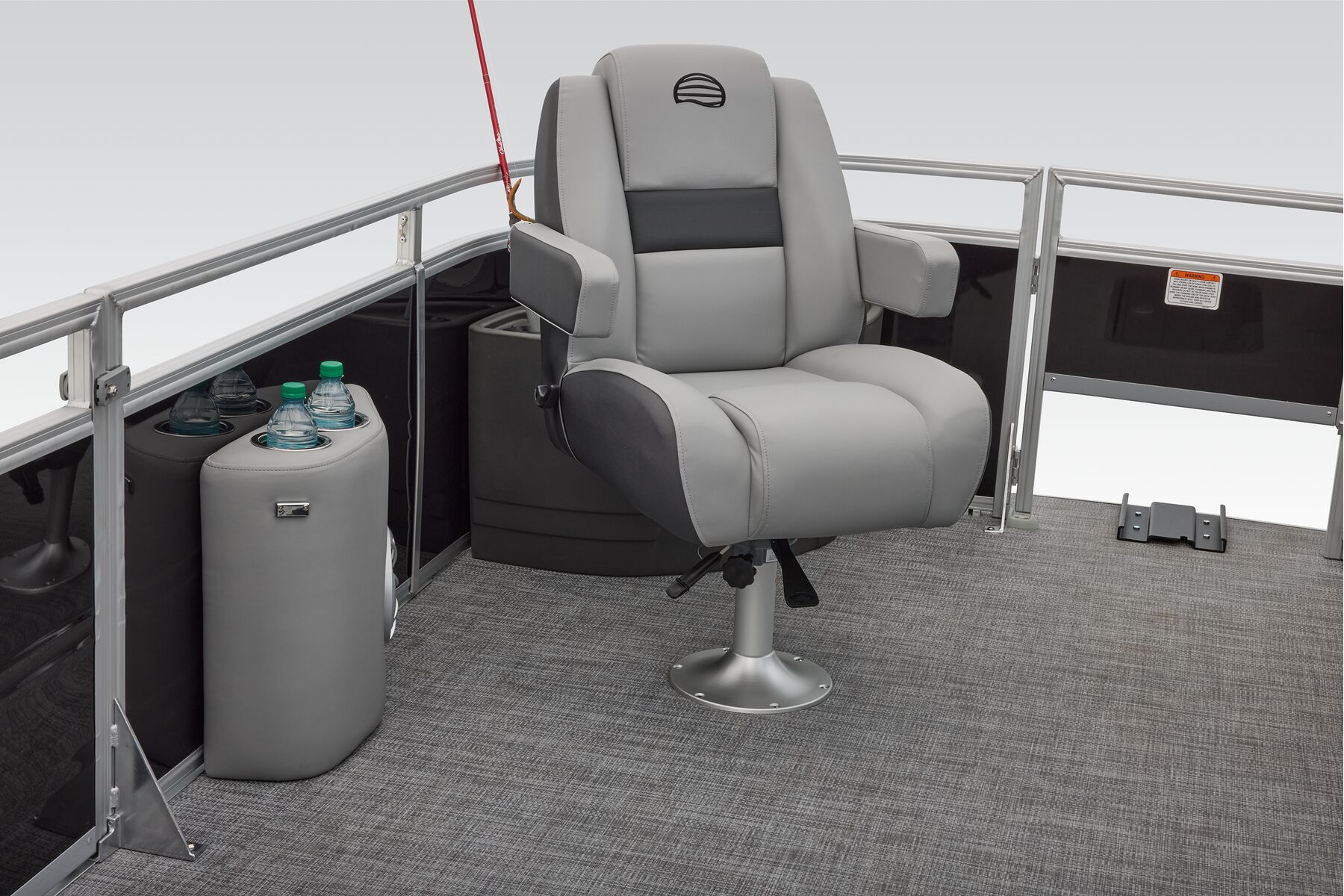

- Reclining, high-back swiveling helm bucket seat w/self-leveling armrests
- Aft rear-facing double lounge w/STOW MORE™ & underseat storage

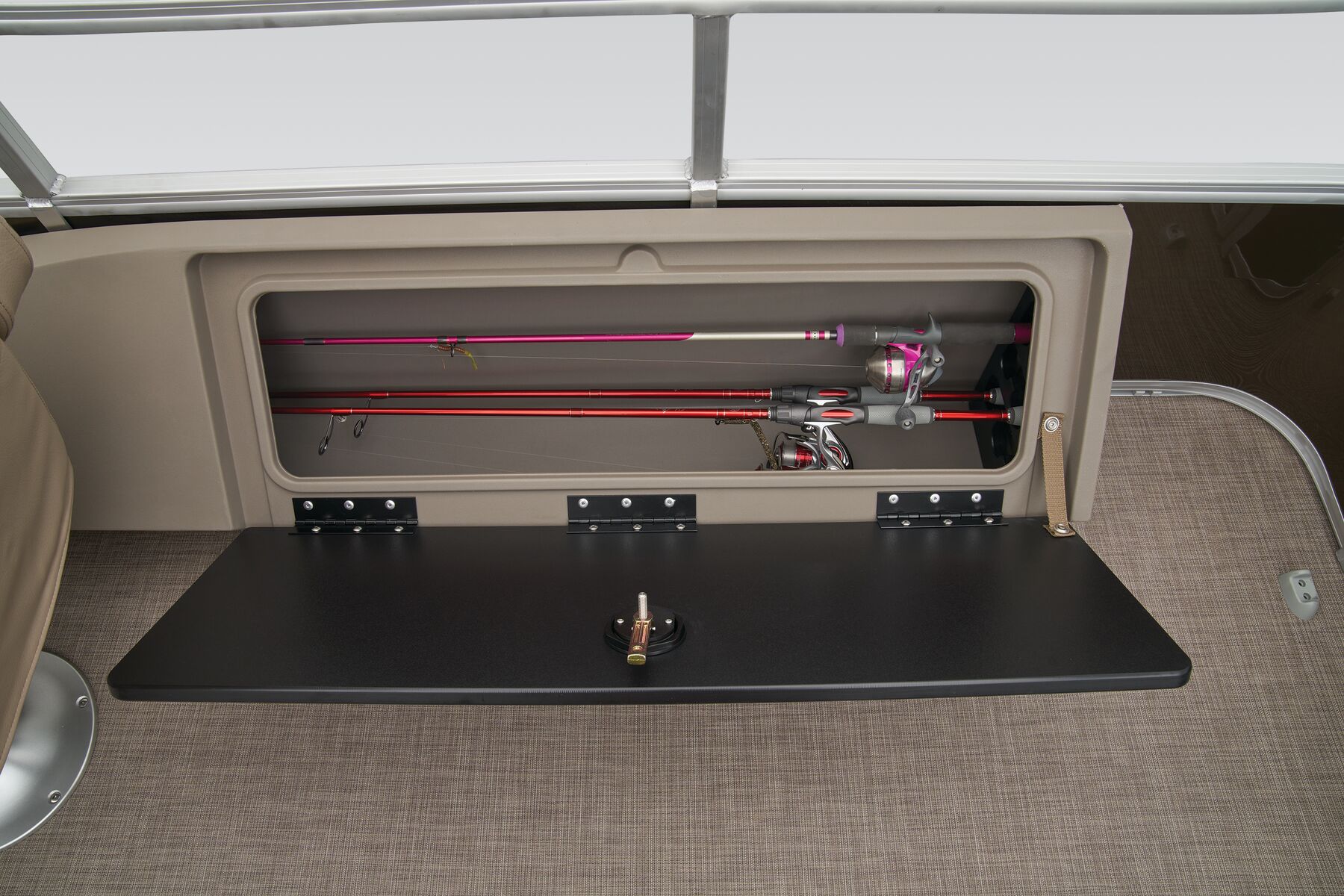

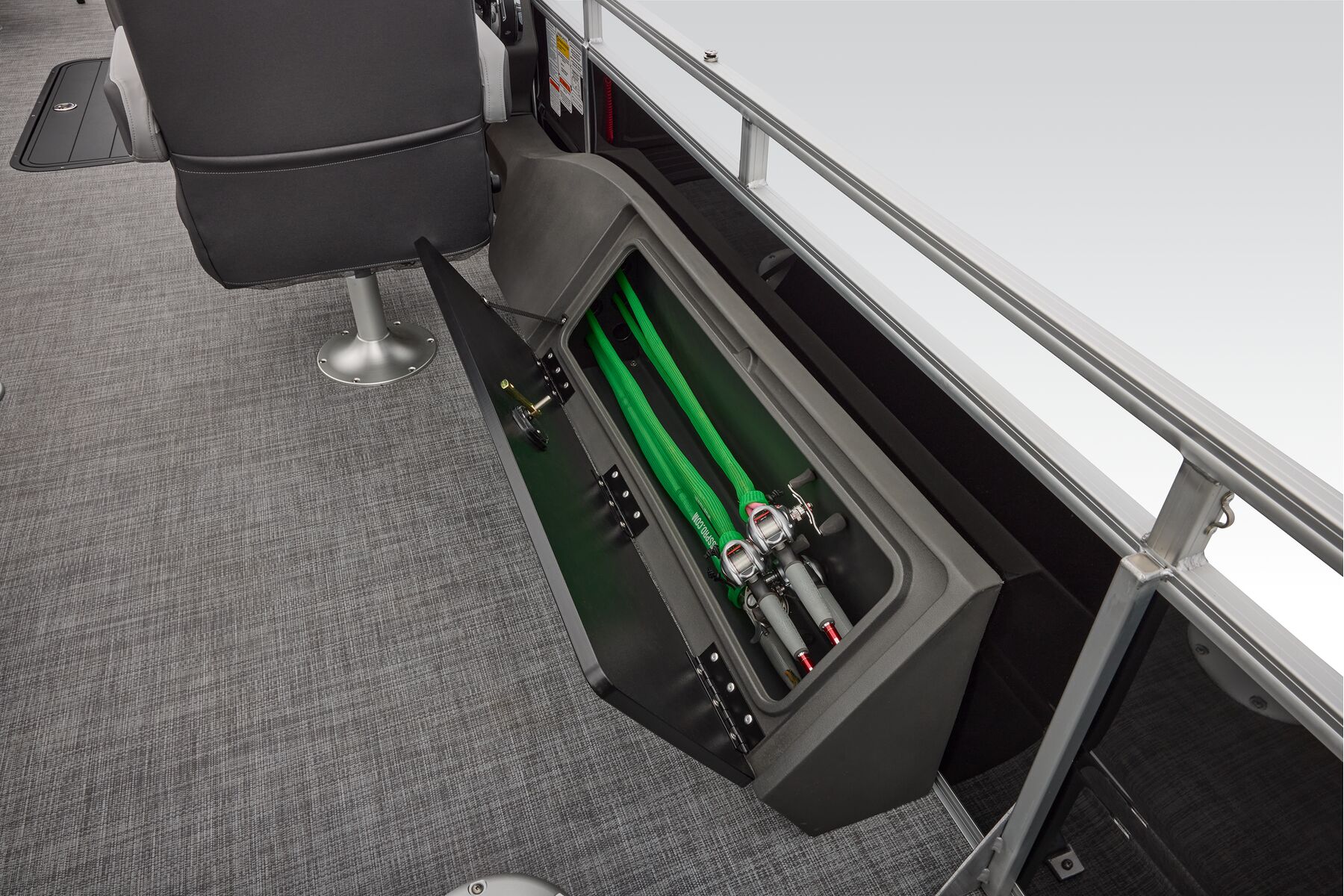

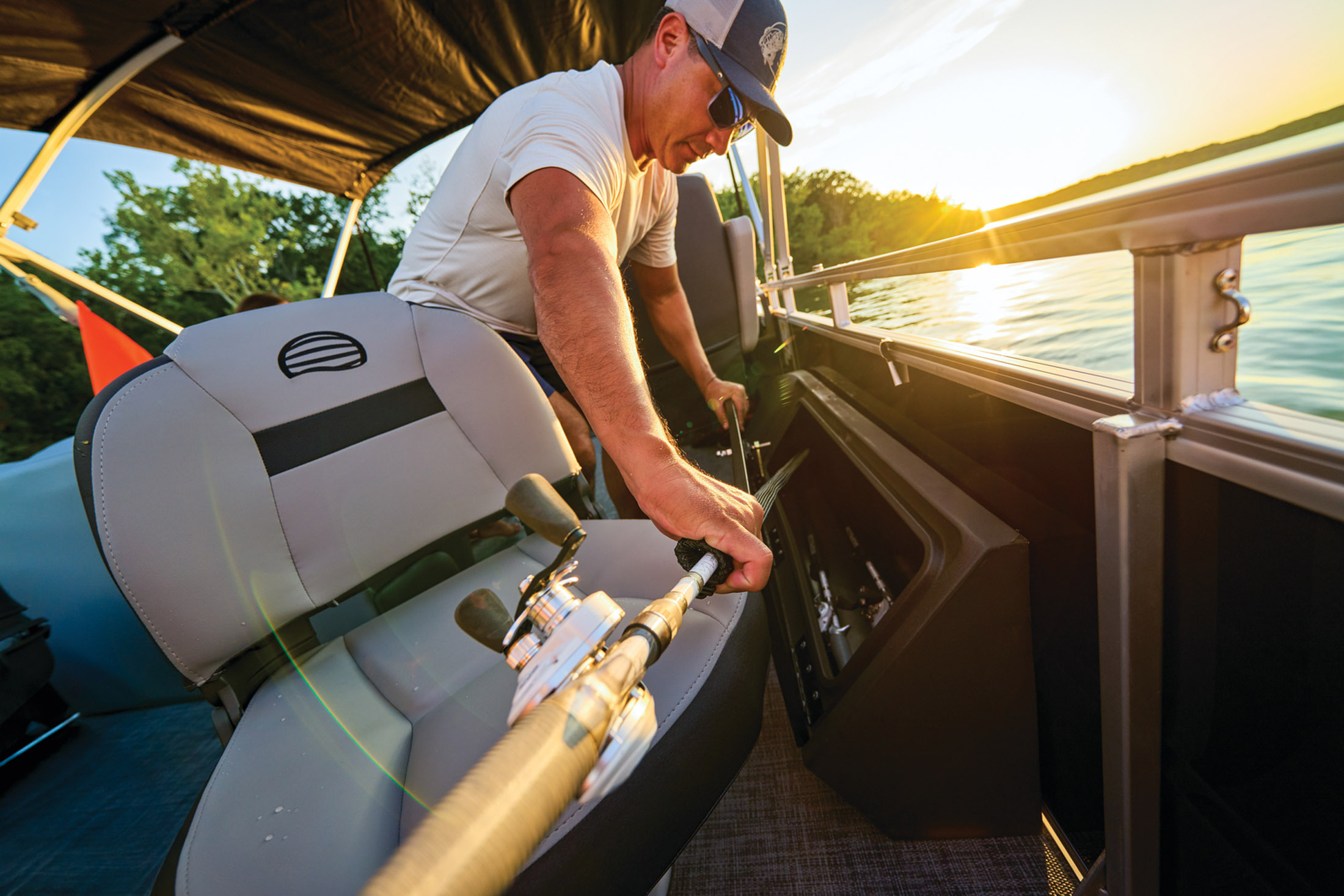

- Aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer

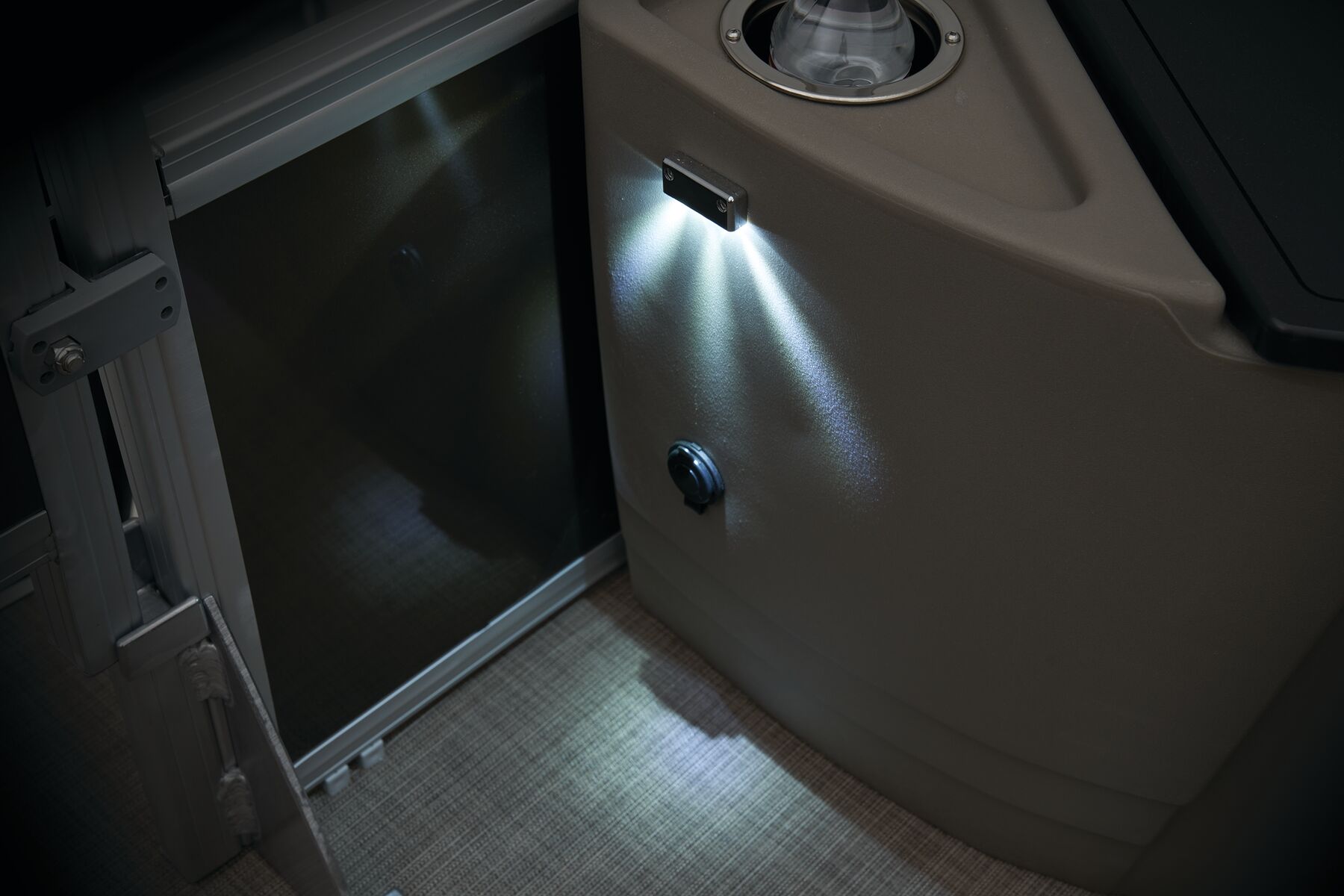

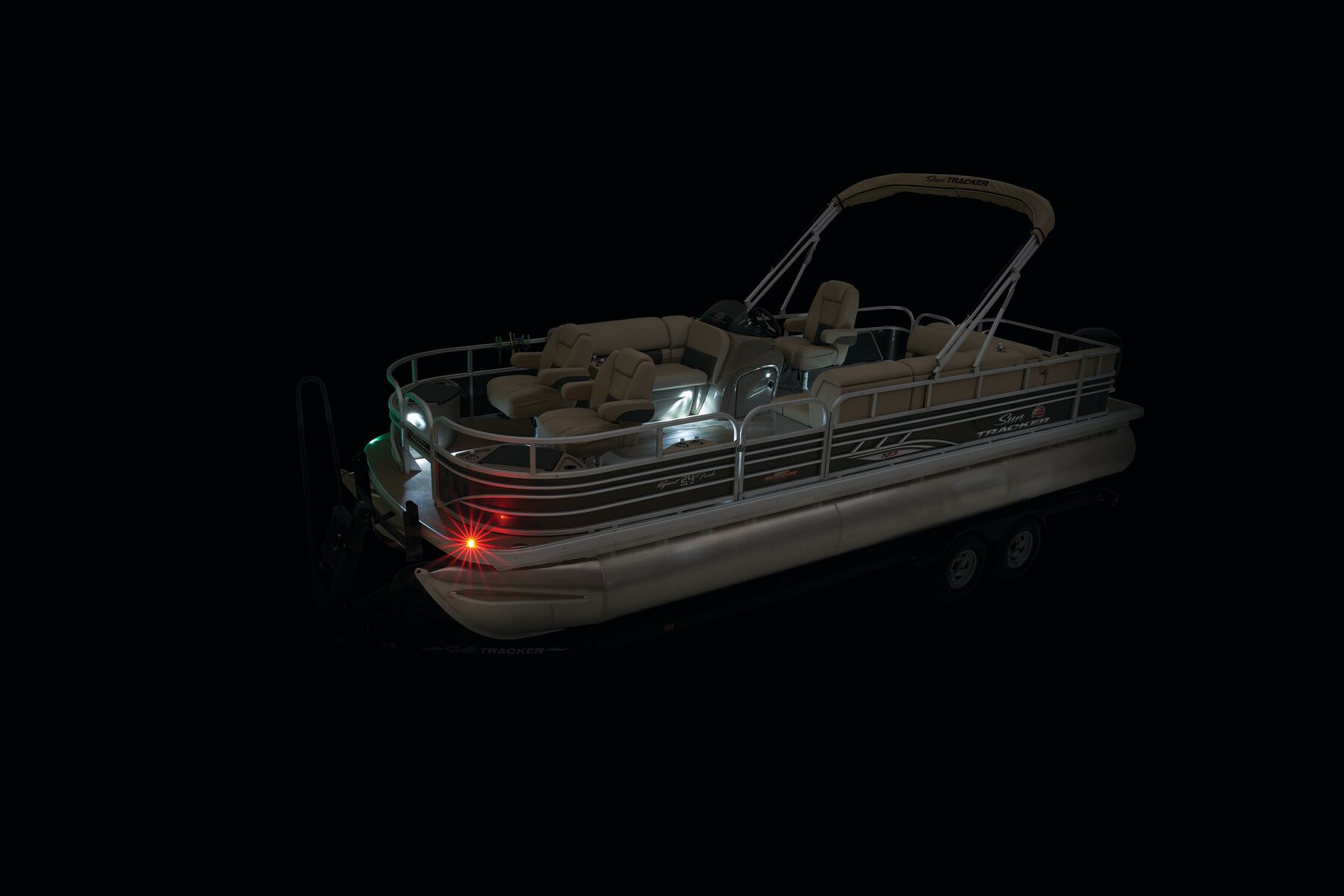

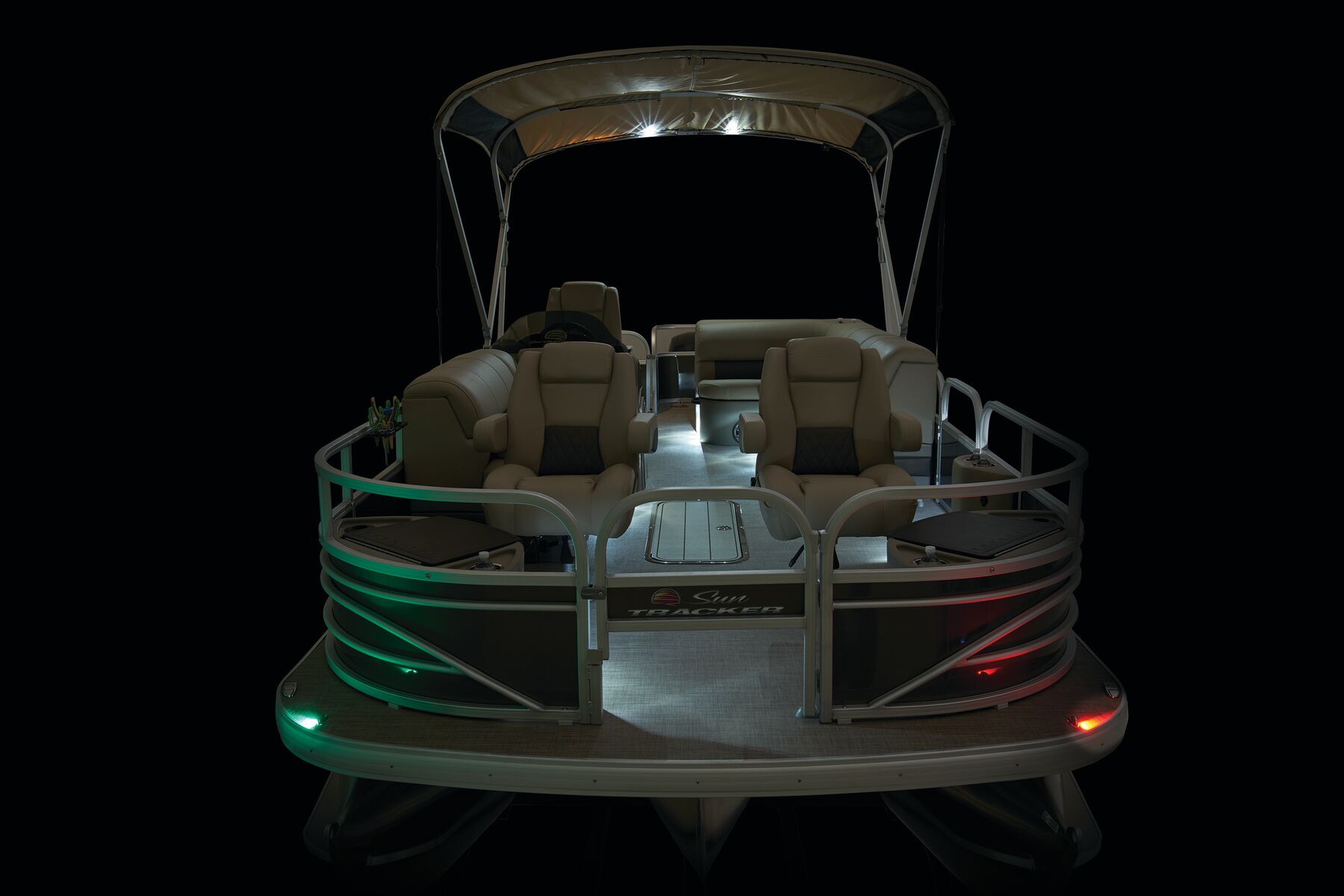

- Interior courtesy lighting

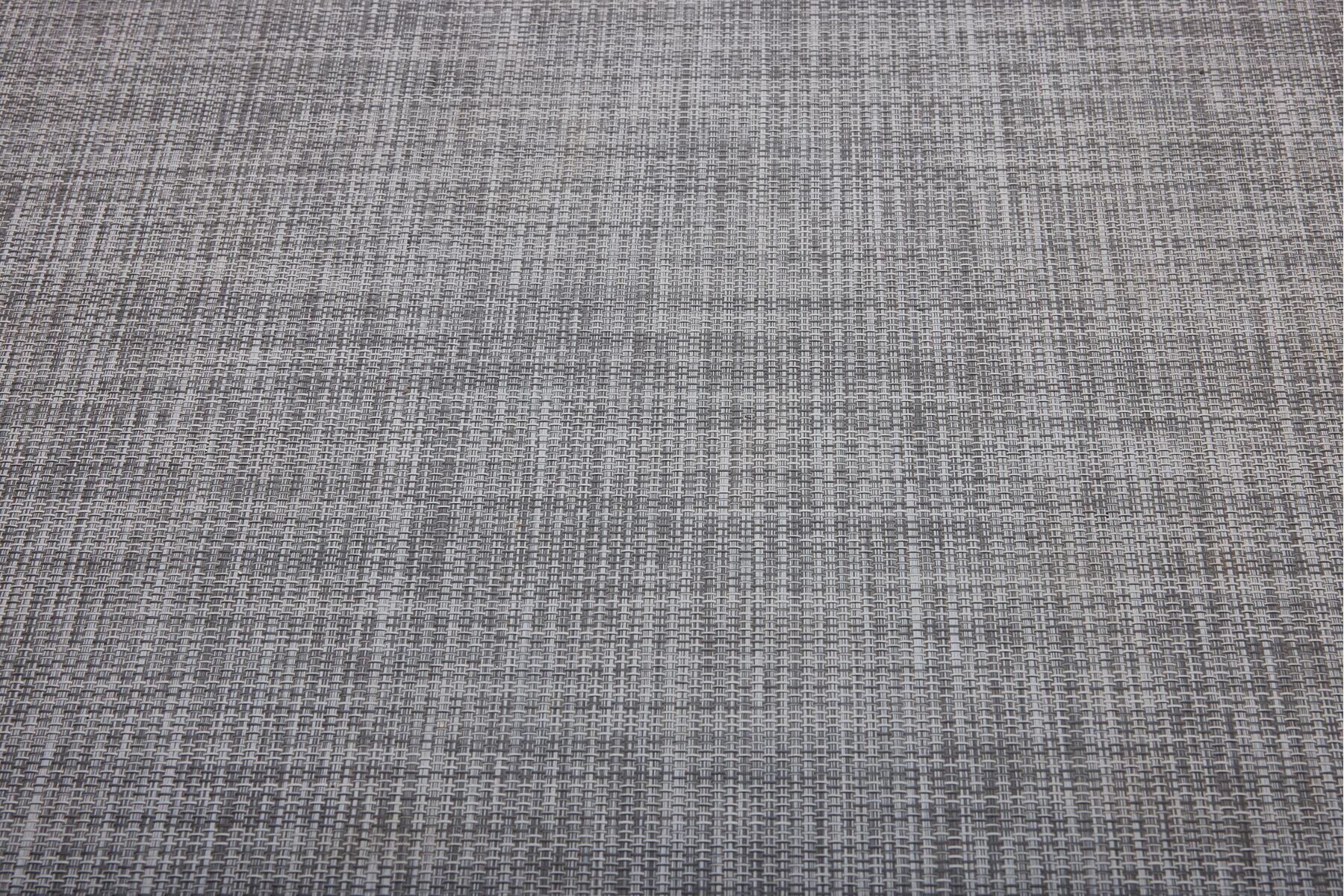

- Woven 16-oz. (.45 kg) marine-grade flooring throughout

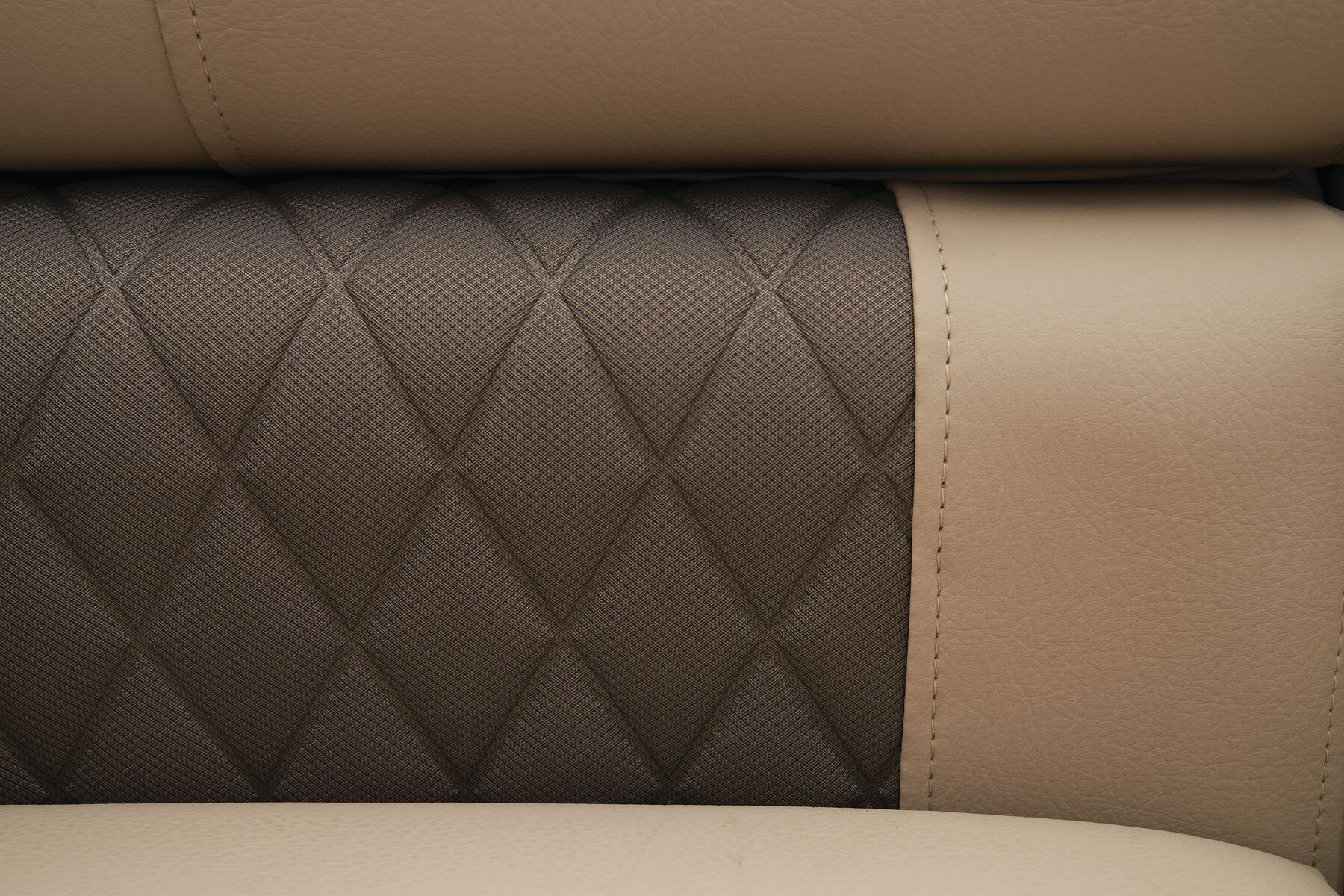

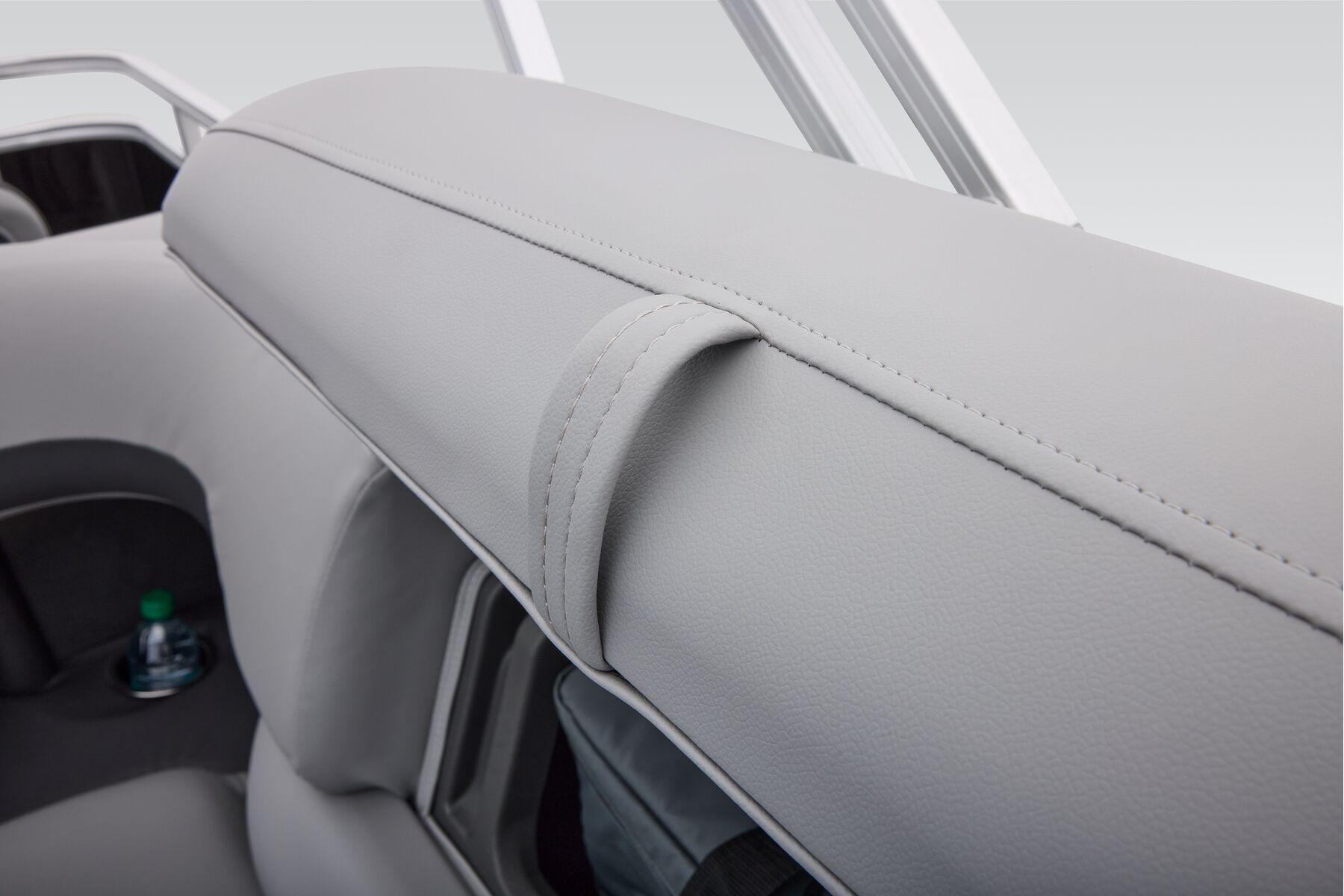

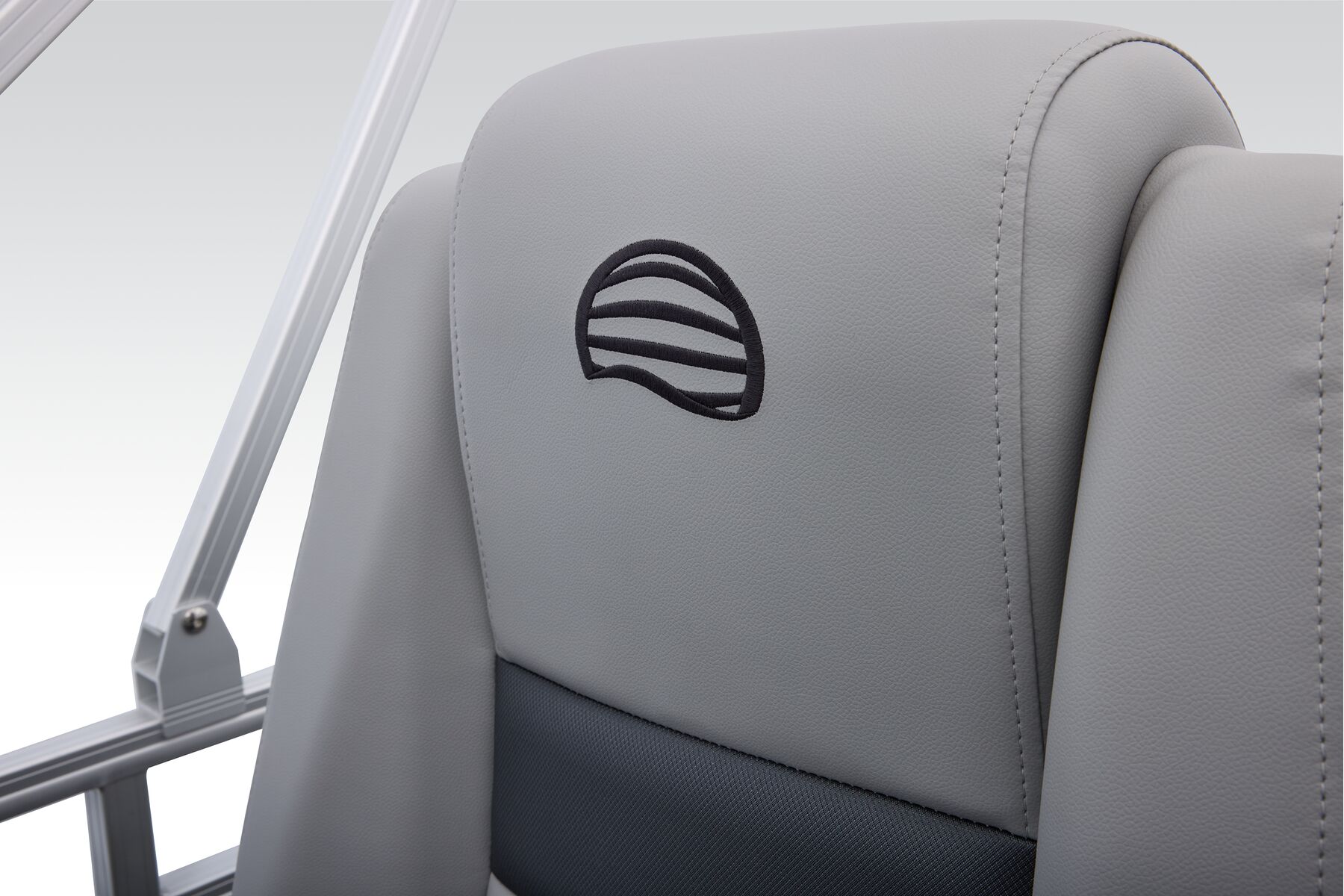

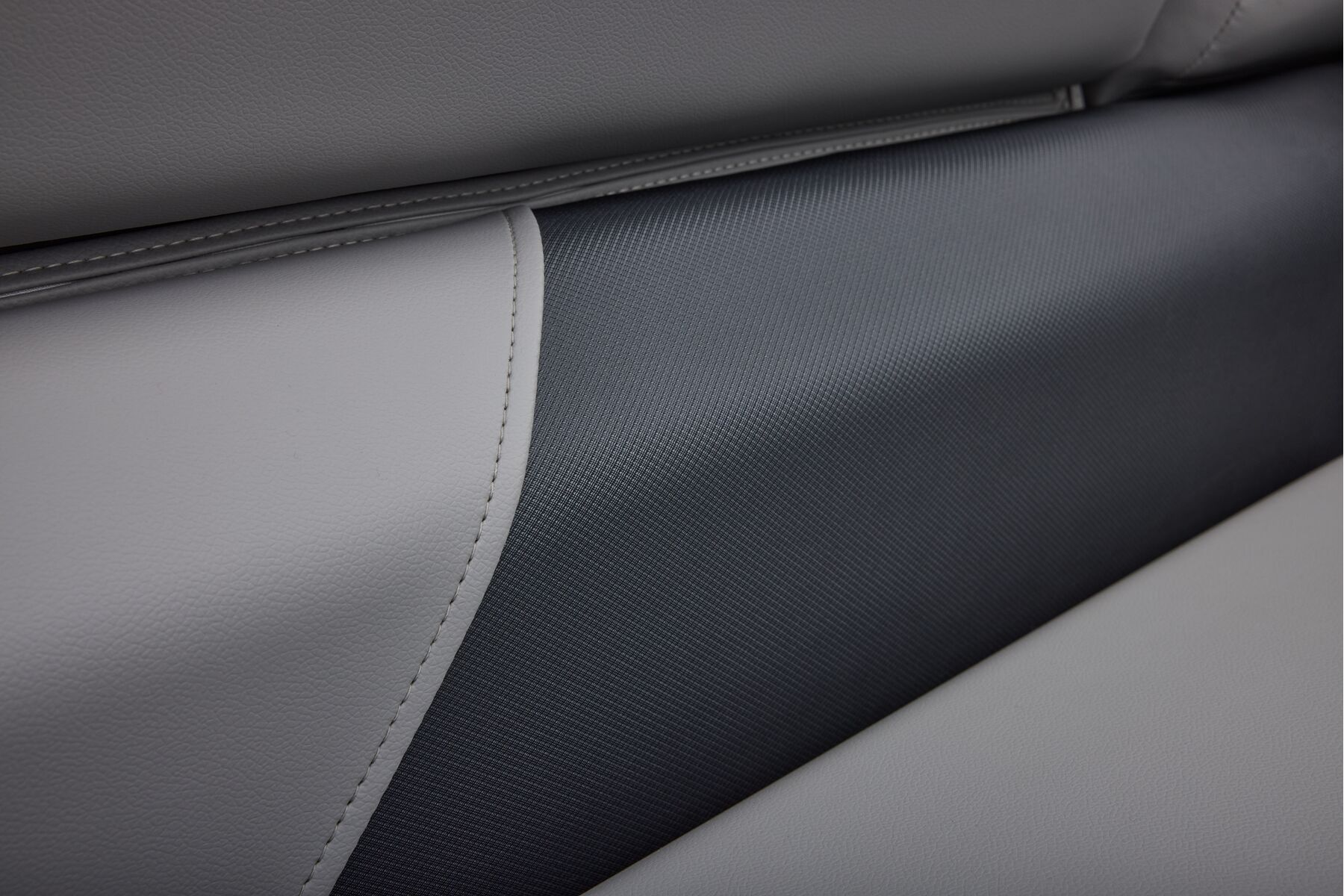

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance

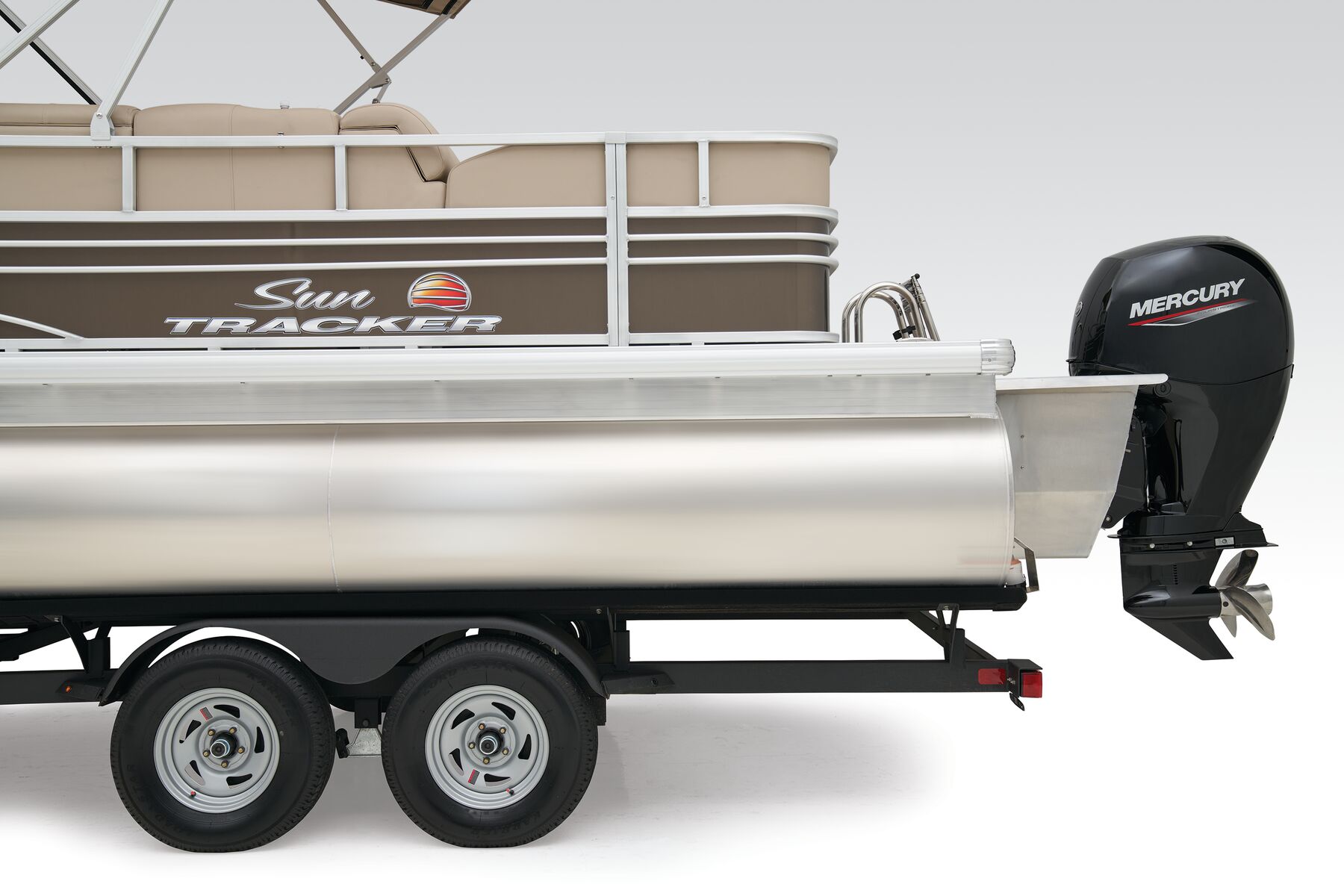

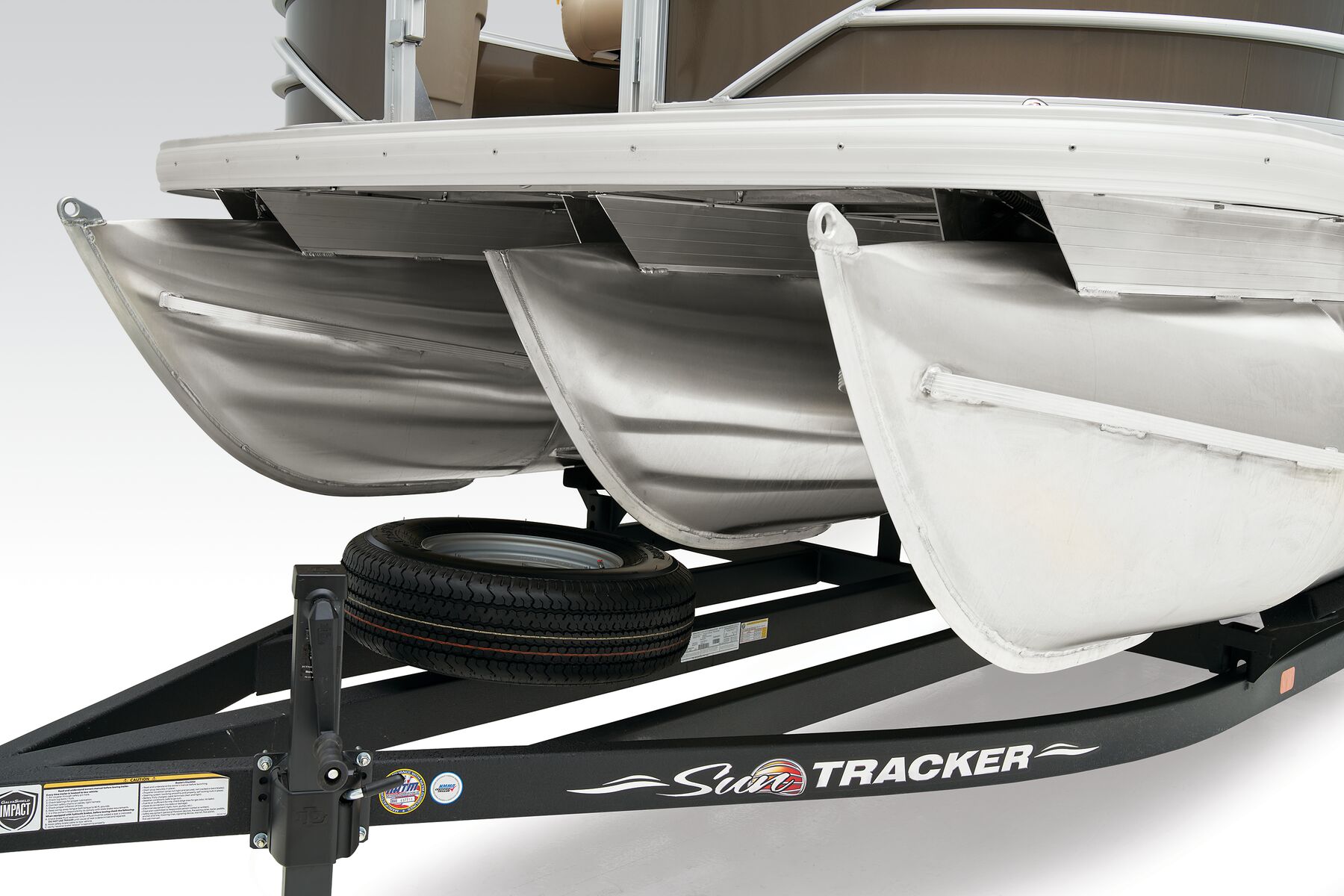

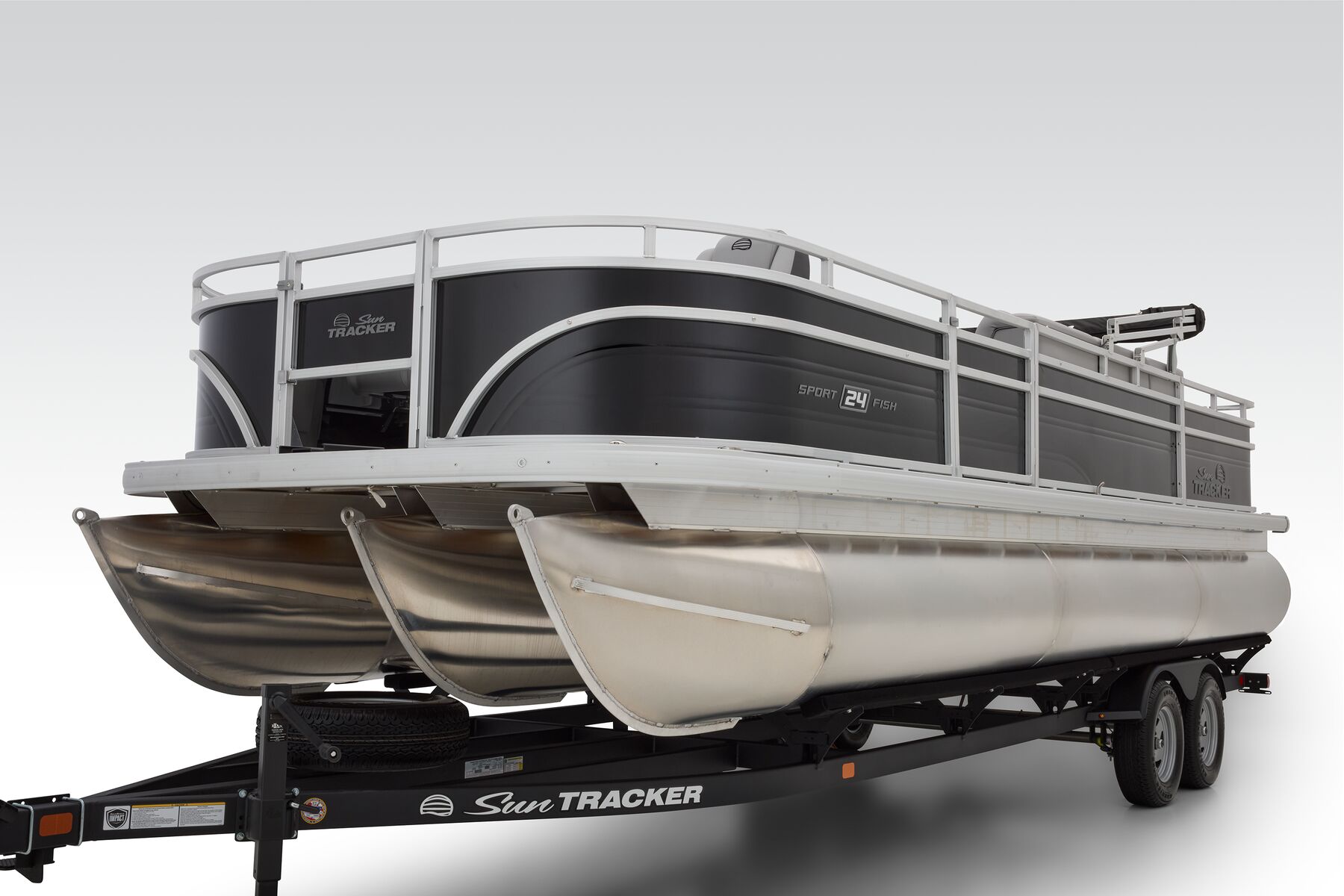

- Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
- XP3 performance strakes & wave-deflecting nose cone for maximum performance
- Full-length, 1-piece longitudinal M-bracket deck supports
- Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
- Heavy-duty aluminum U-channel reinforcement behind bow deck trim

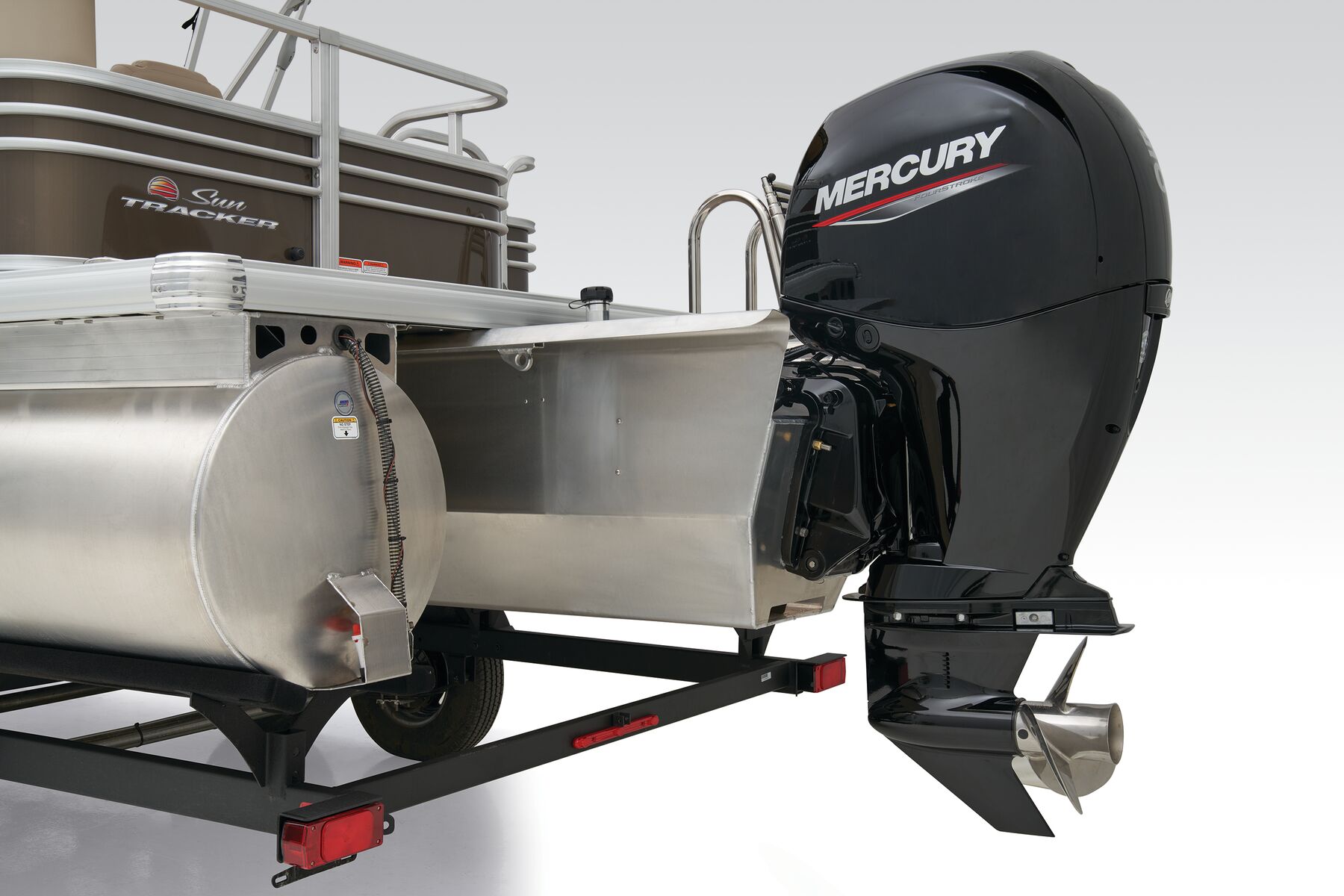

- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- All-aluminum box-beam transom for strength & longevity
- Factory-installed underpinning (under-deck shielding) for improved performance
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- 1-1/4" (3.18 cm), .090" (.23 cm) anodized aluminum fence rails
- Sound- & vibration-deadening fence insulation for a quiet ride
- Extruded & anodized aluminum deck edging w/polished aft corner covers
- Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
- Rotomolded storage, furniture & console for superior strength & longevity
- Nylon gate latches & heavy-duty hinges that open inward
- Stainless or coated corrosion-resistant fasteners
- Factory-matched aluminum propeller
Exterior
- Color: Black or Caribou fencing

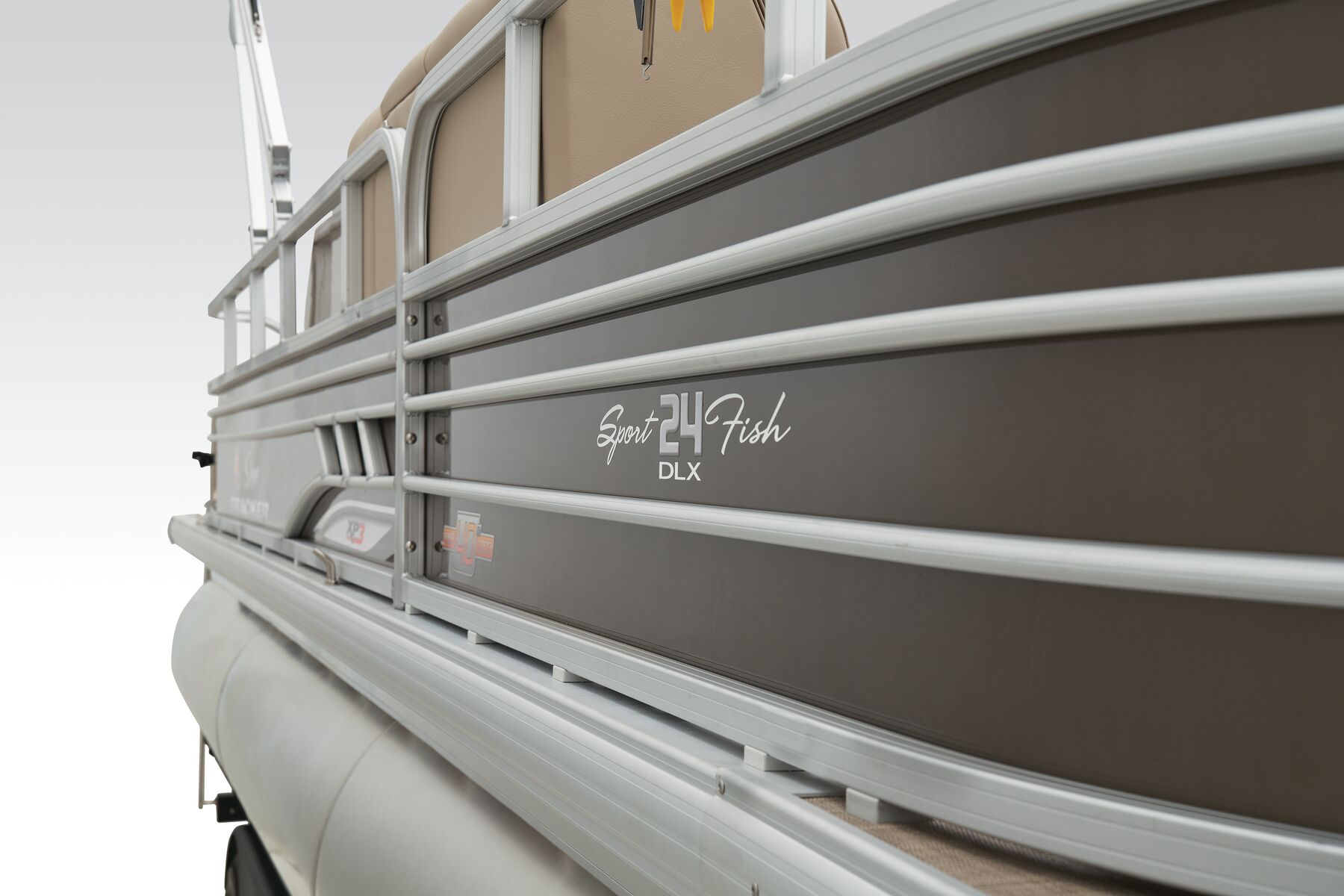

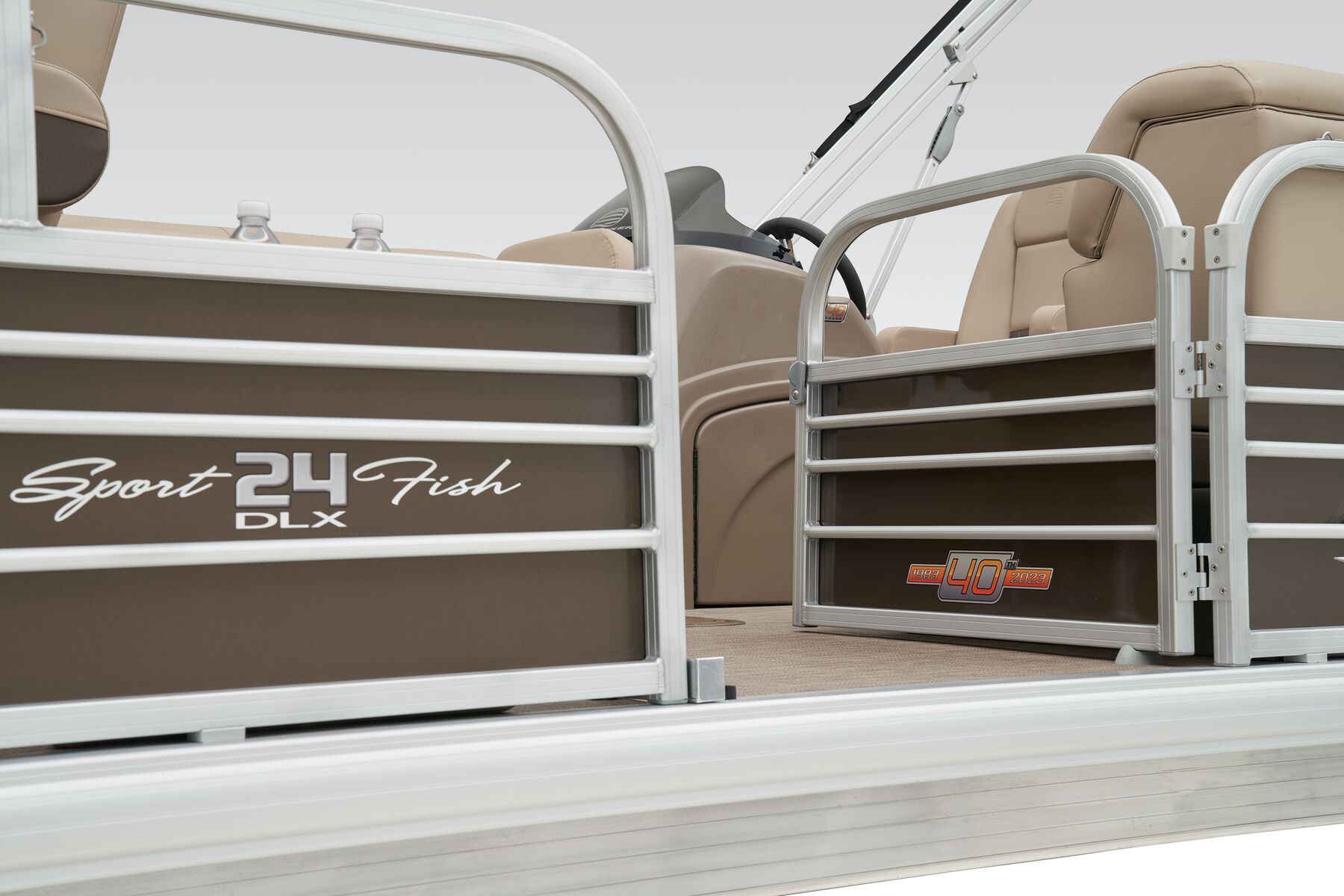

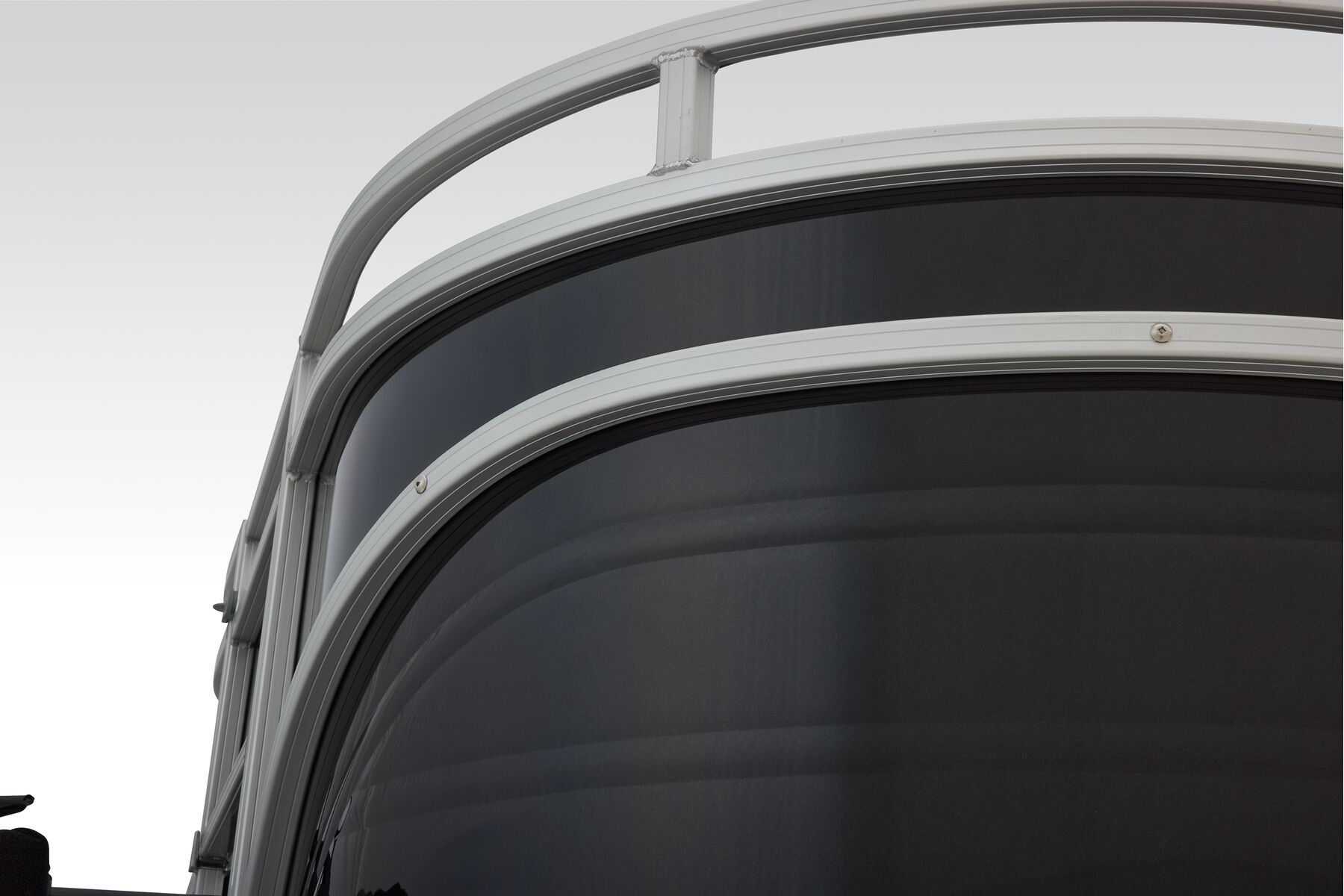

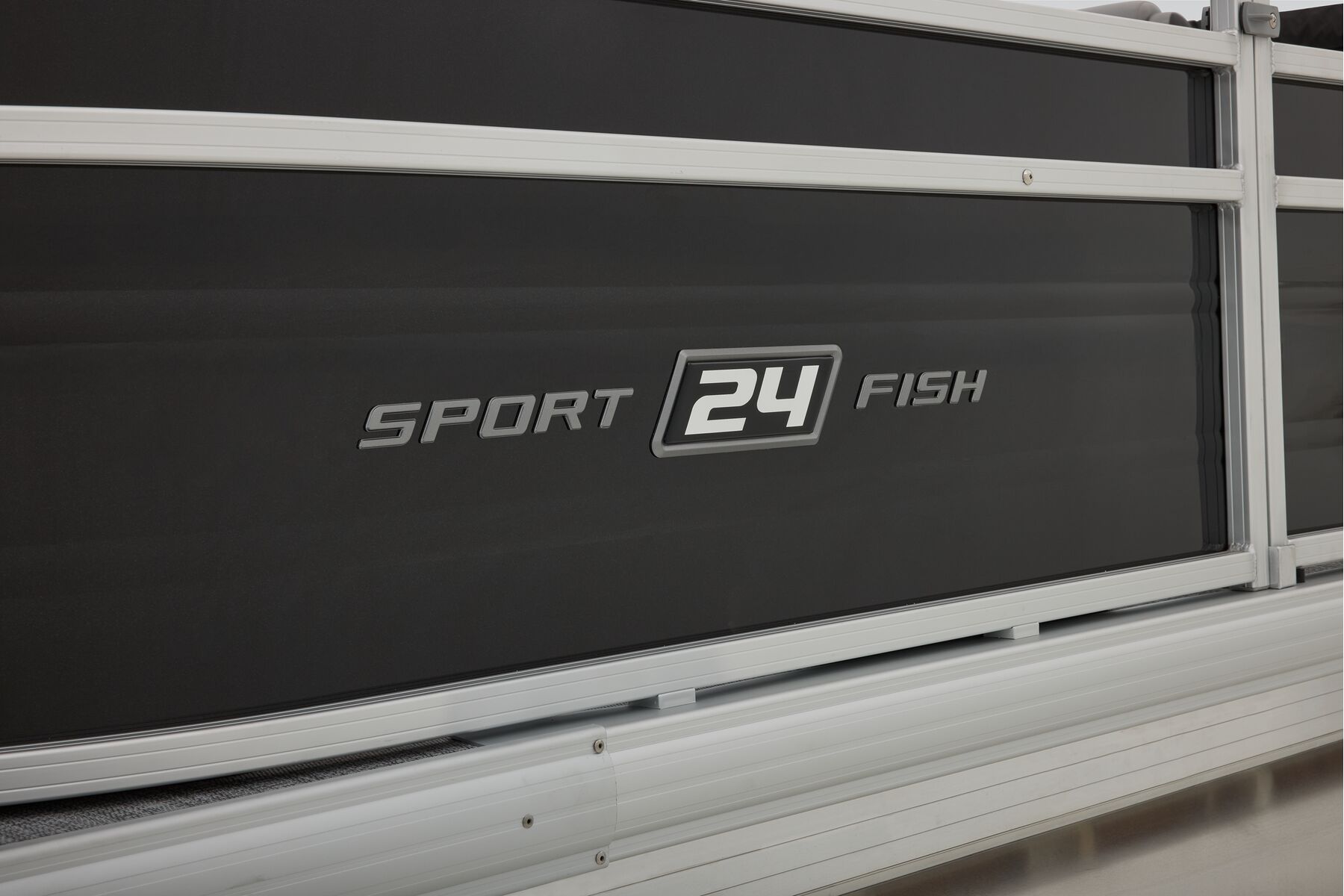

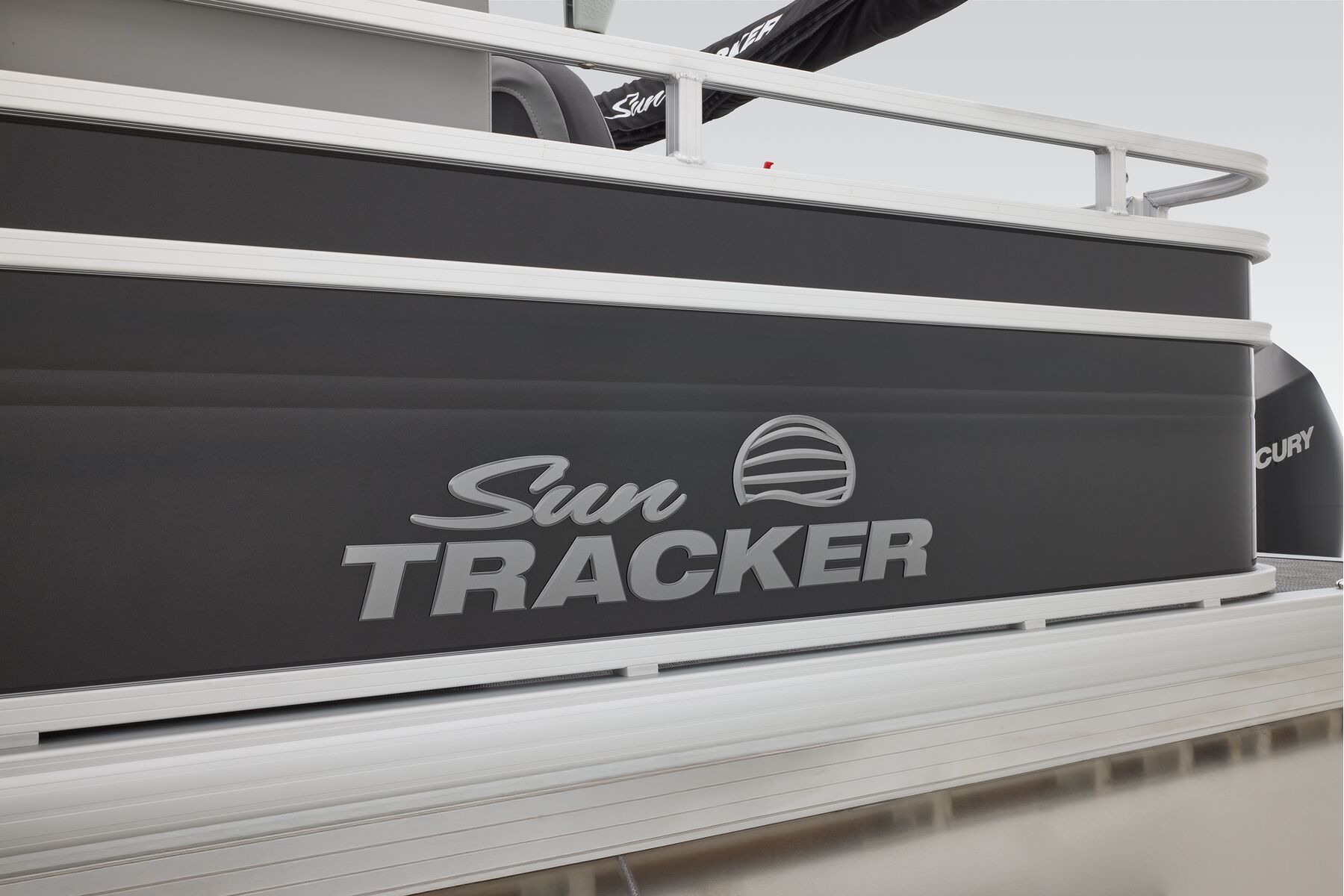

- Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics

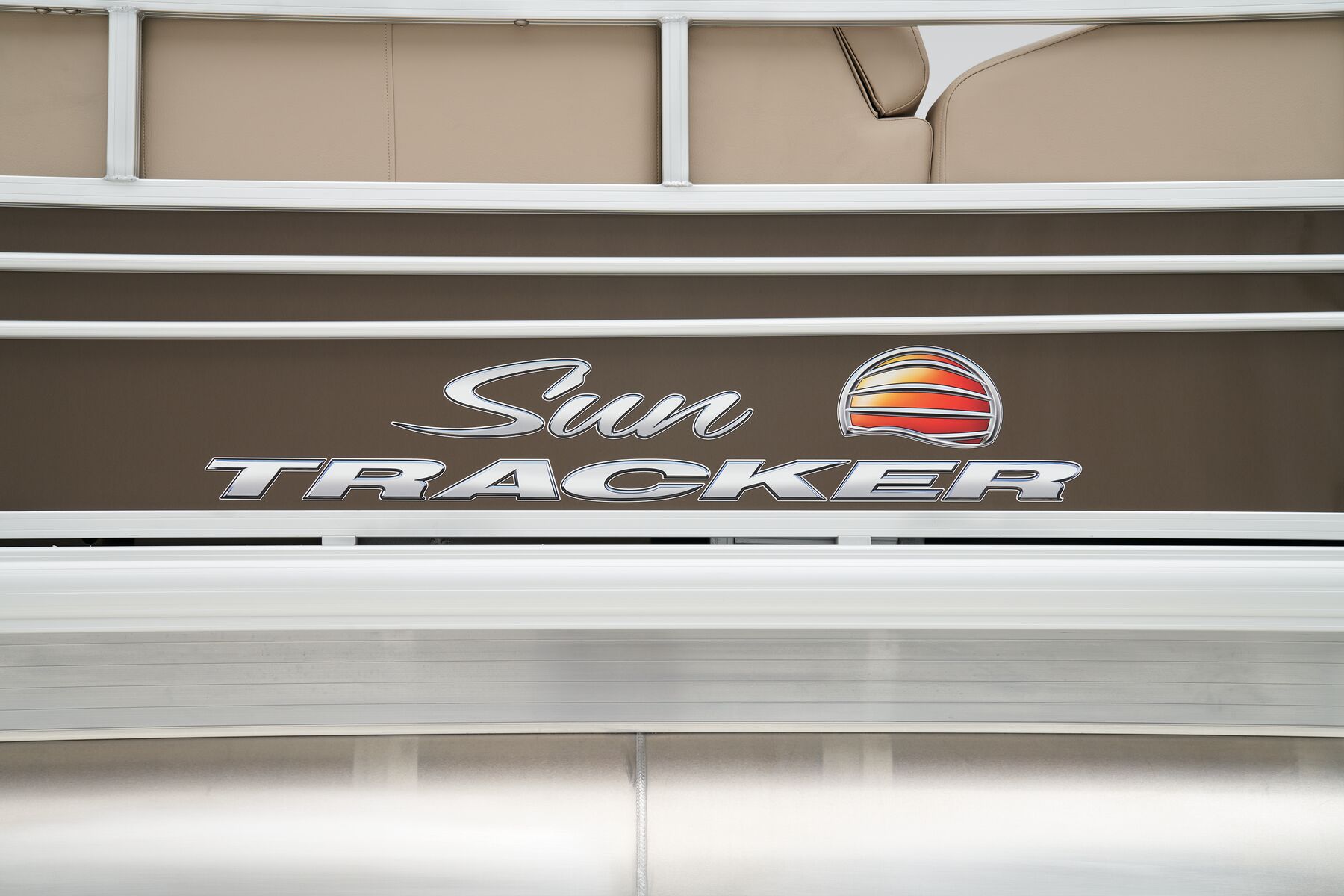

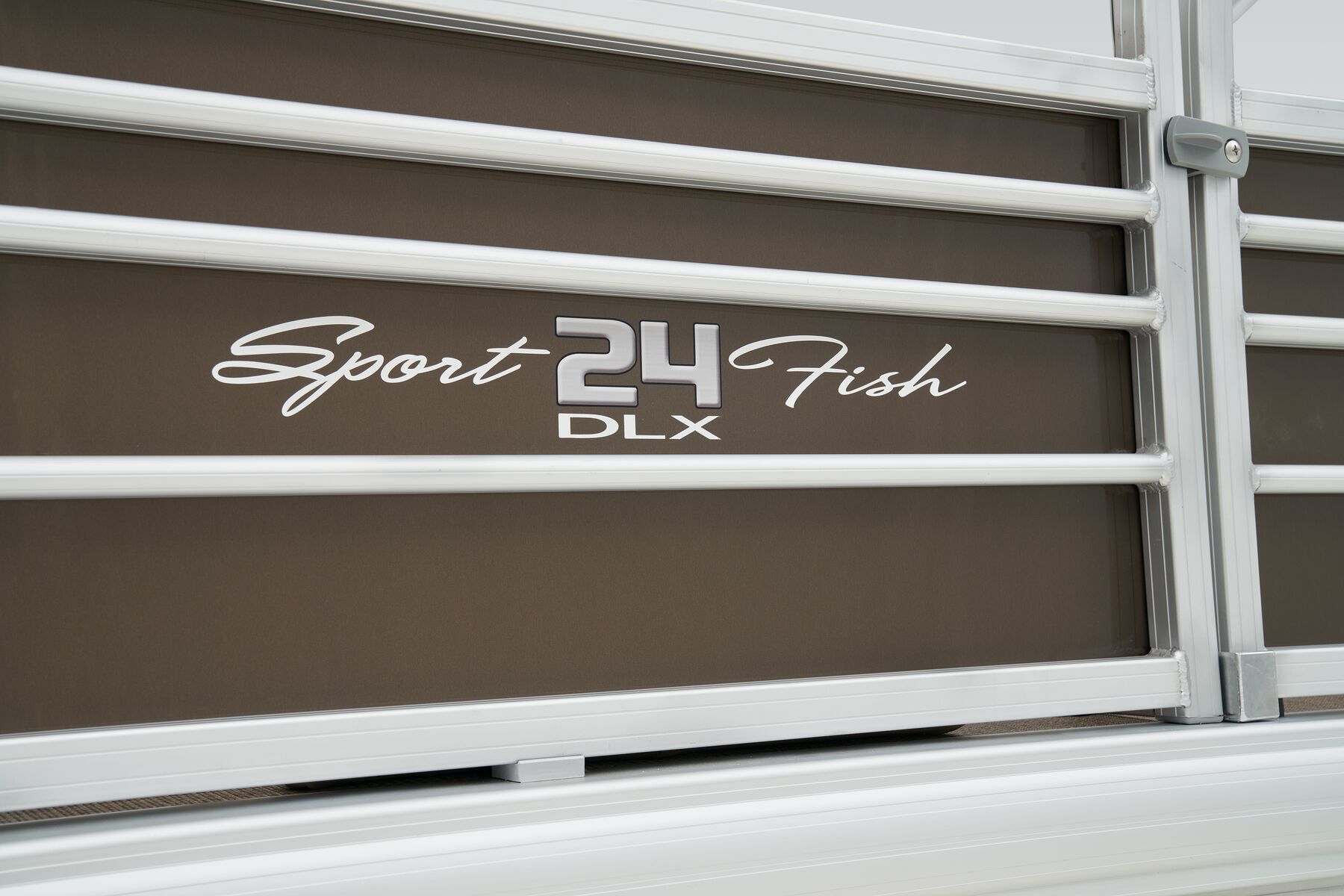

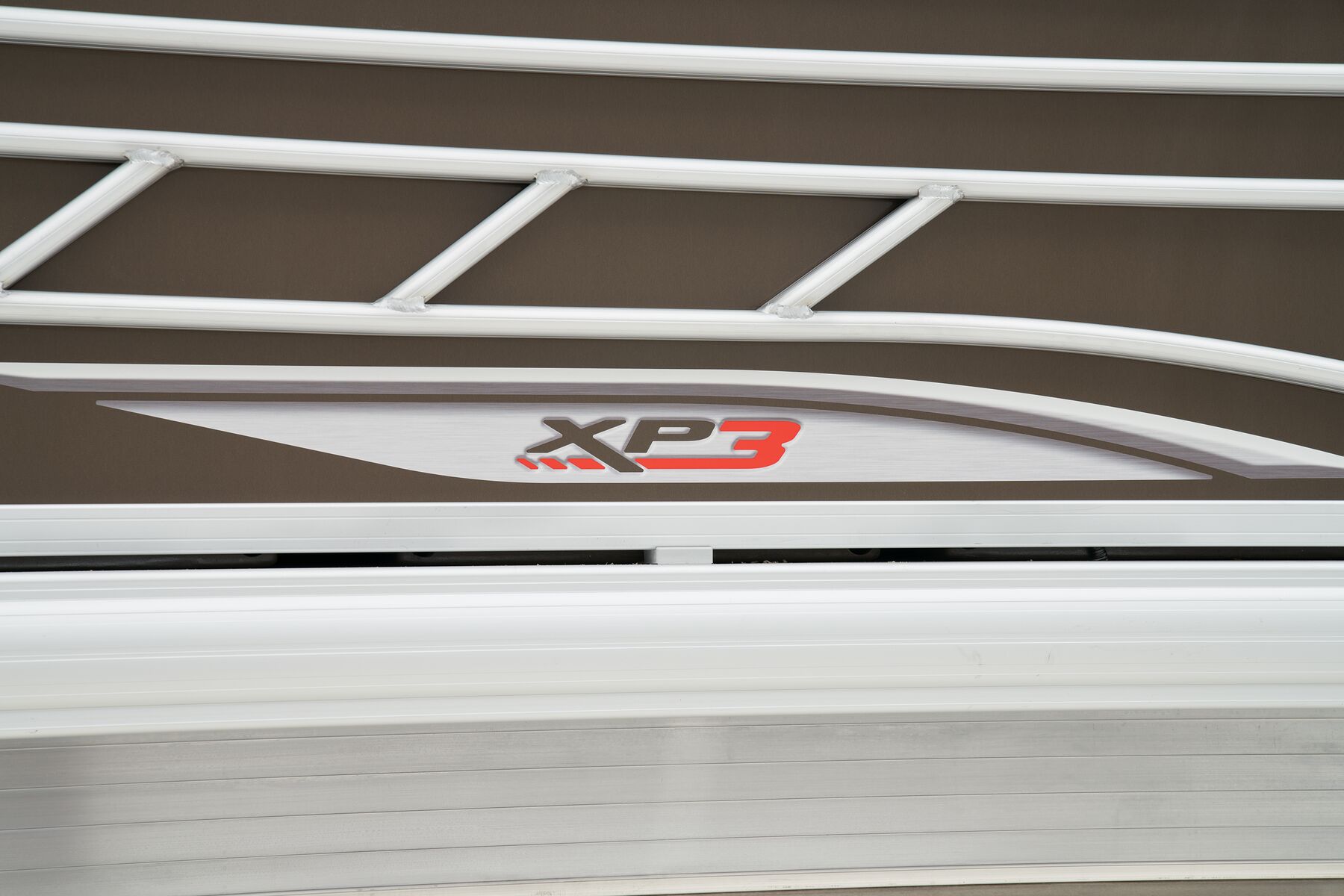

- Exterior styling w/XP3 graphics package
- Elevated fence panels for deck drainage & ventilation
Electrical
- 500 GPH (1892.71 LPH) Ultima automatic bilge pump

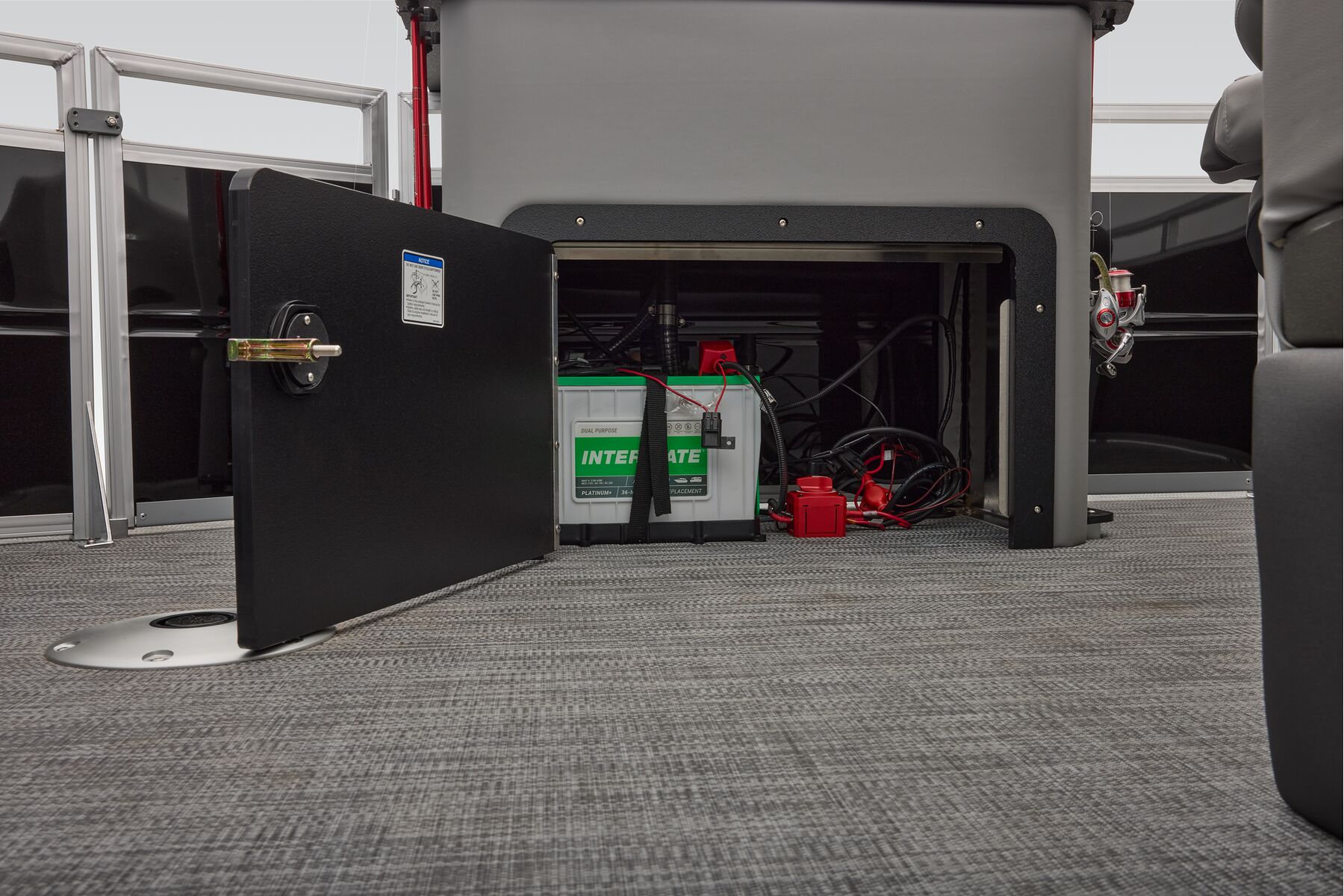

- Battery disconnect switch
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
- Pre-wired for optional fishing package
Options
Note: SunTracker’s innovative new FLARE touchscreen gauge display relies on proprietary digital engine data not available from all engines. Boats equipped with optional Mercury 9.9ELPT FourStroke or 20ELPT FourStroke engines will experience limited monitoring capability. See dealer for details.
