2026
PARTY BARGE® 22 XP3
w/ 150 L FourStroke Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$53995
USD
|
Overview

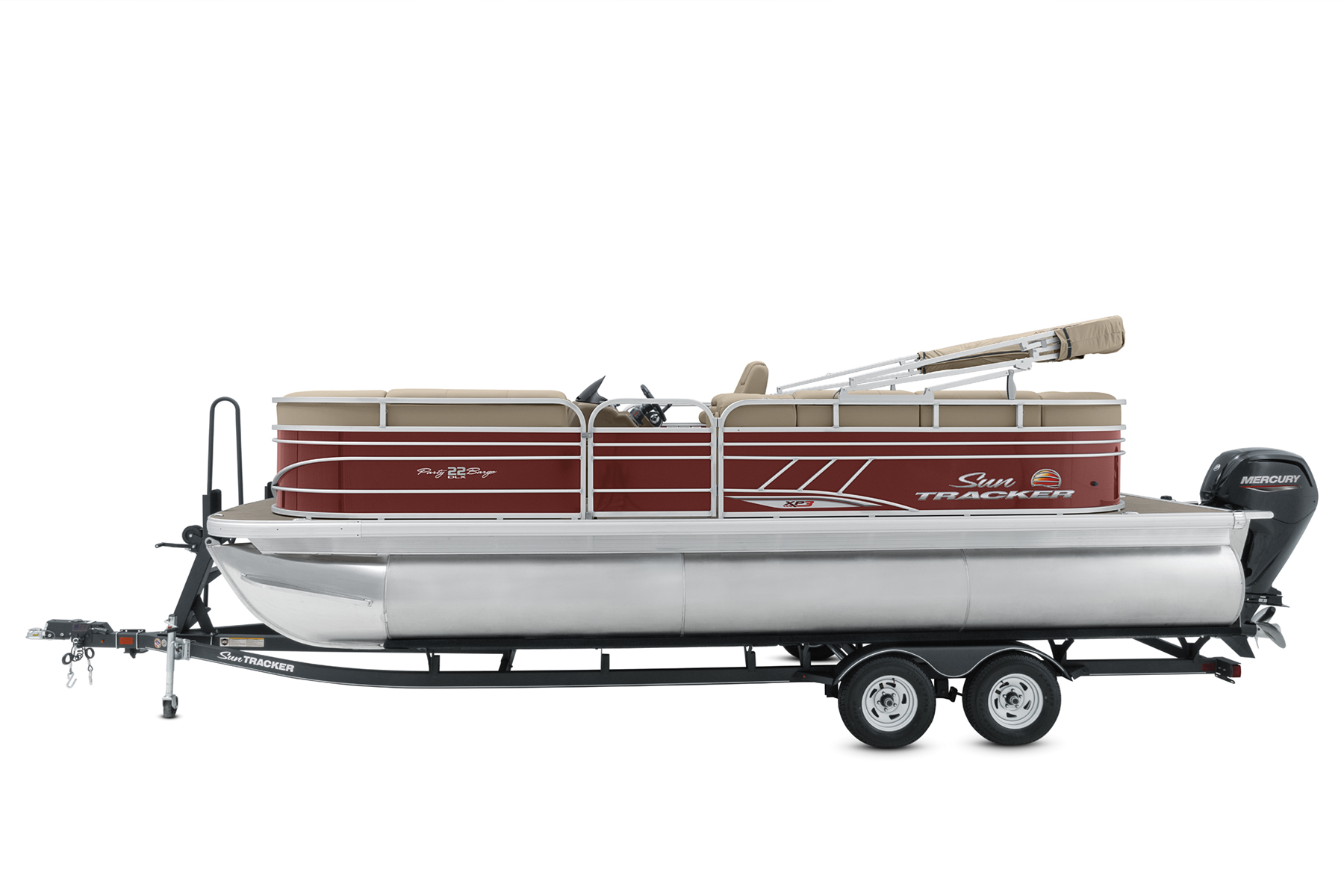

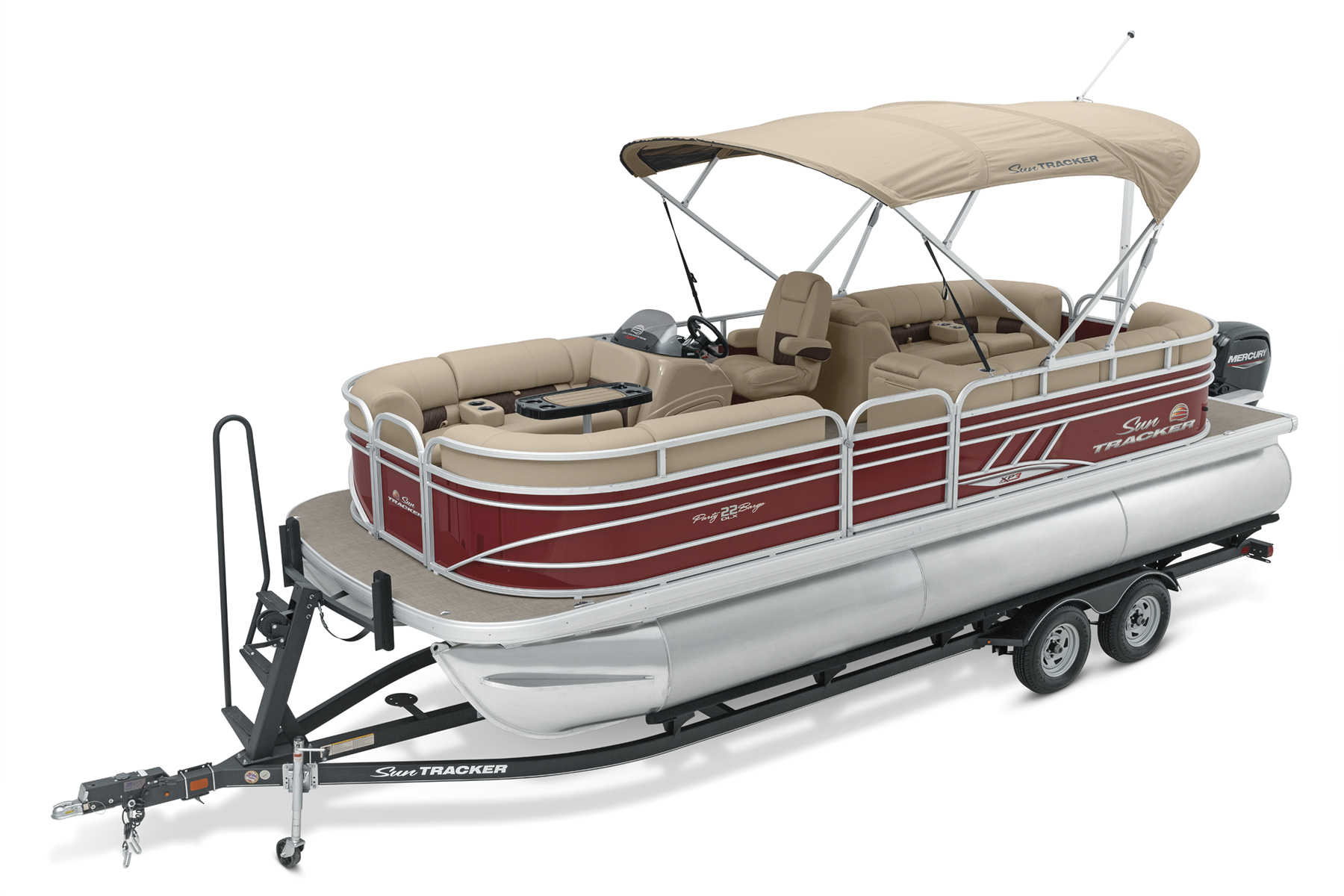

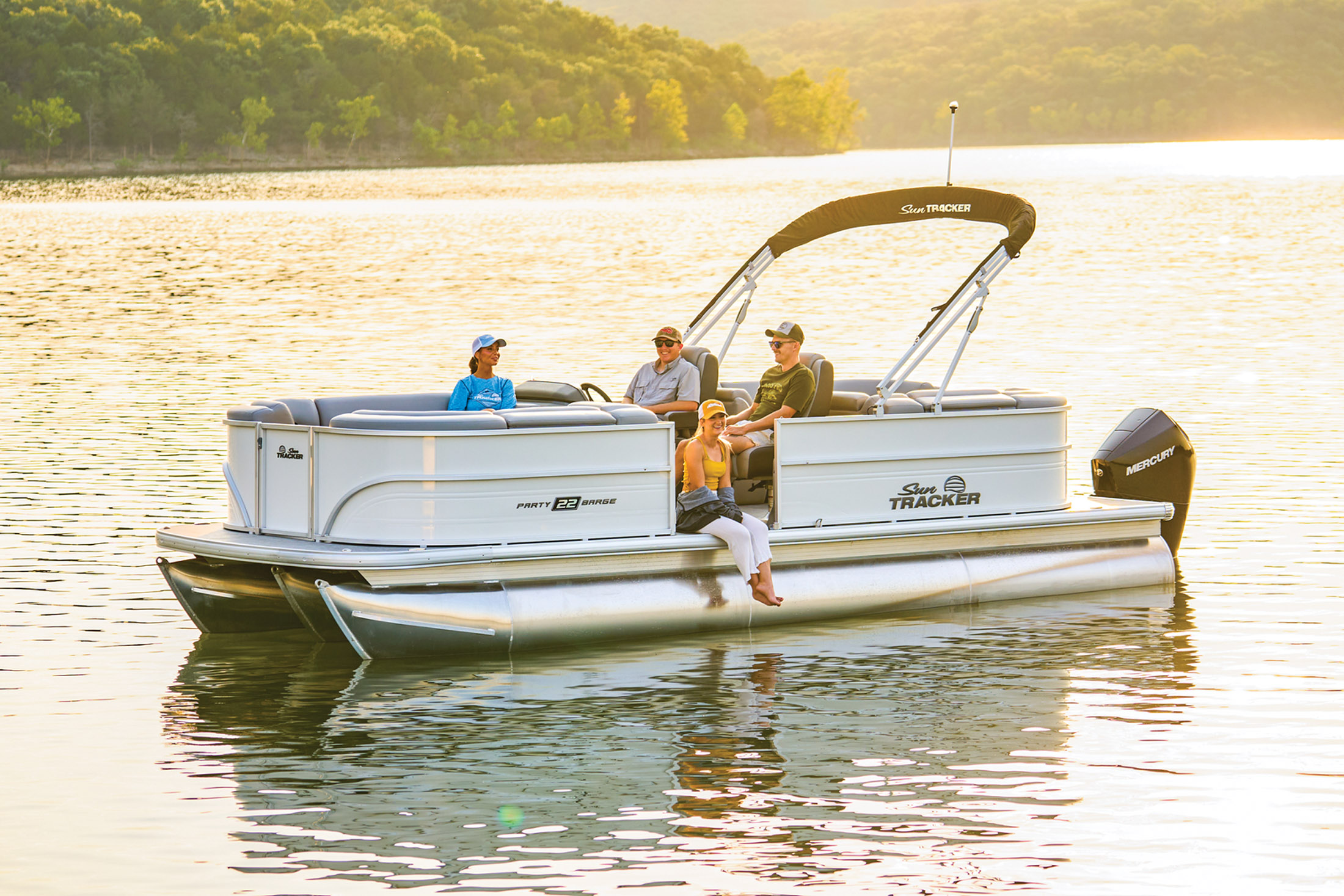

Just when you thought the PARTY BARGE® couldn’t get better, the 2026 SUN TRACKER® PARTY BARGE 22 XP3 adds a third log with lifting strakes to create increased strength and performance. To top it off, it has the same fully equipped, party-ready deck as its two-logged sibling.

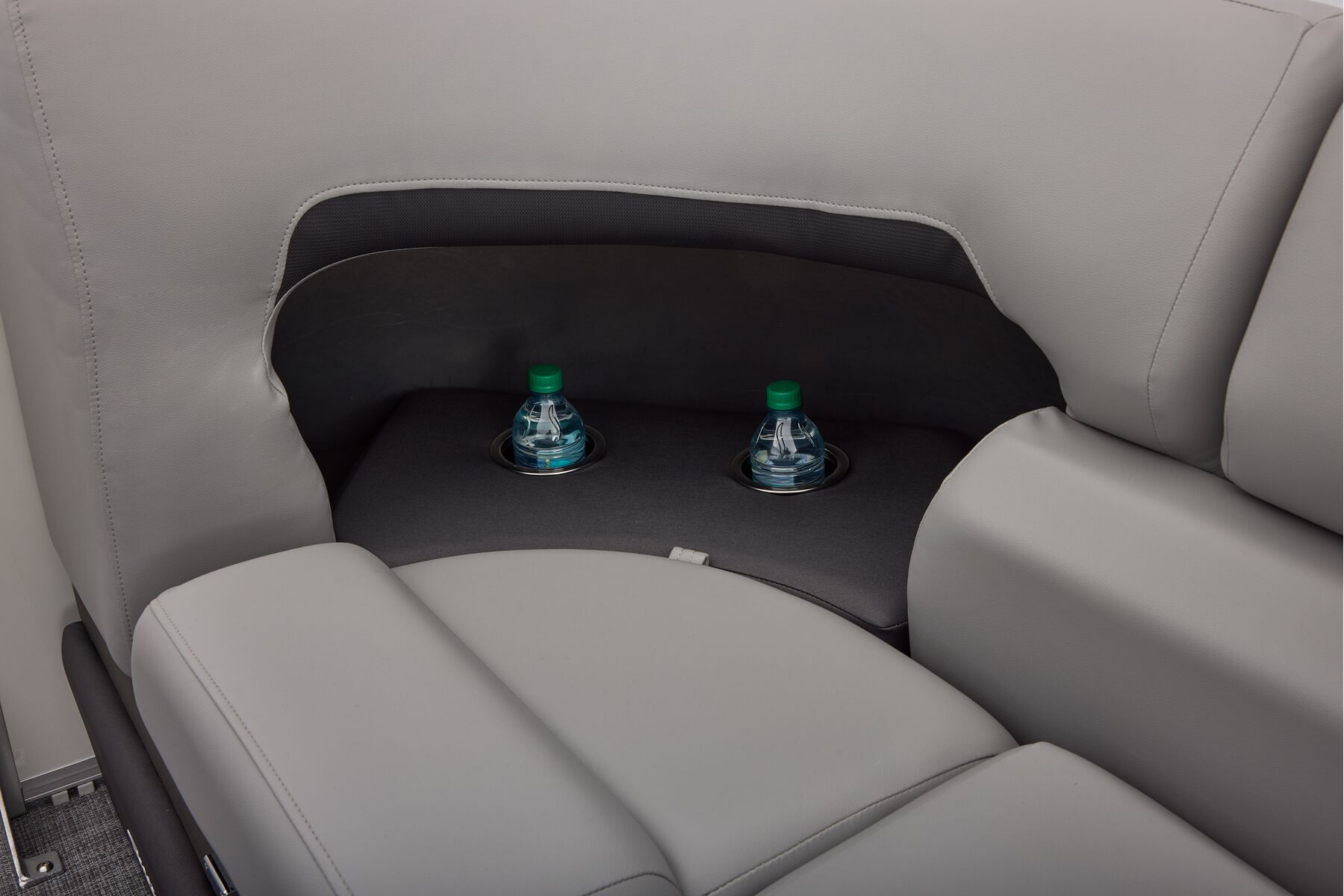

This year's 22 XP3 has an all-new interior has some exciting new features, including backrest cubbies that increase storage space and add extra cupholders that can keep larger bottles out of the way. The couches have bright accents that match the fence colors for an extra splash of style. The driver's console also got a big facelift with upgraded tech, making the PARTY BARGE the best-looking pontoon on the lake.
The 22 DLX's immense list of features mixed with the stability and performance of a third log makes the 22 XP3 a pontoon ready to take your summer to new heights.
Key Features

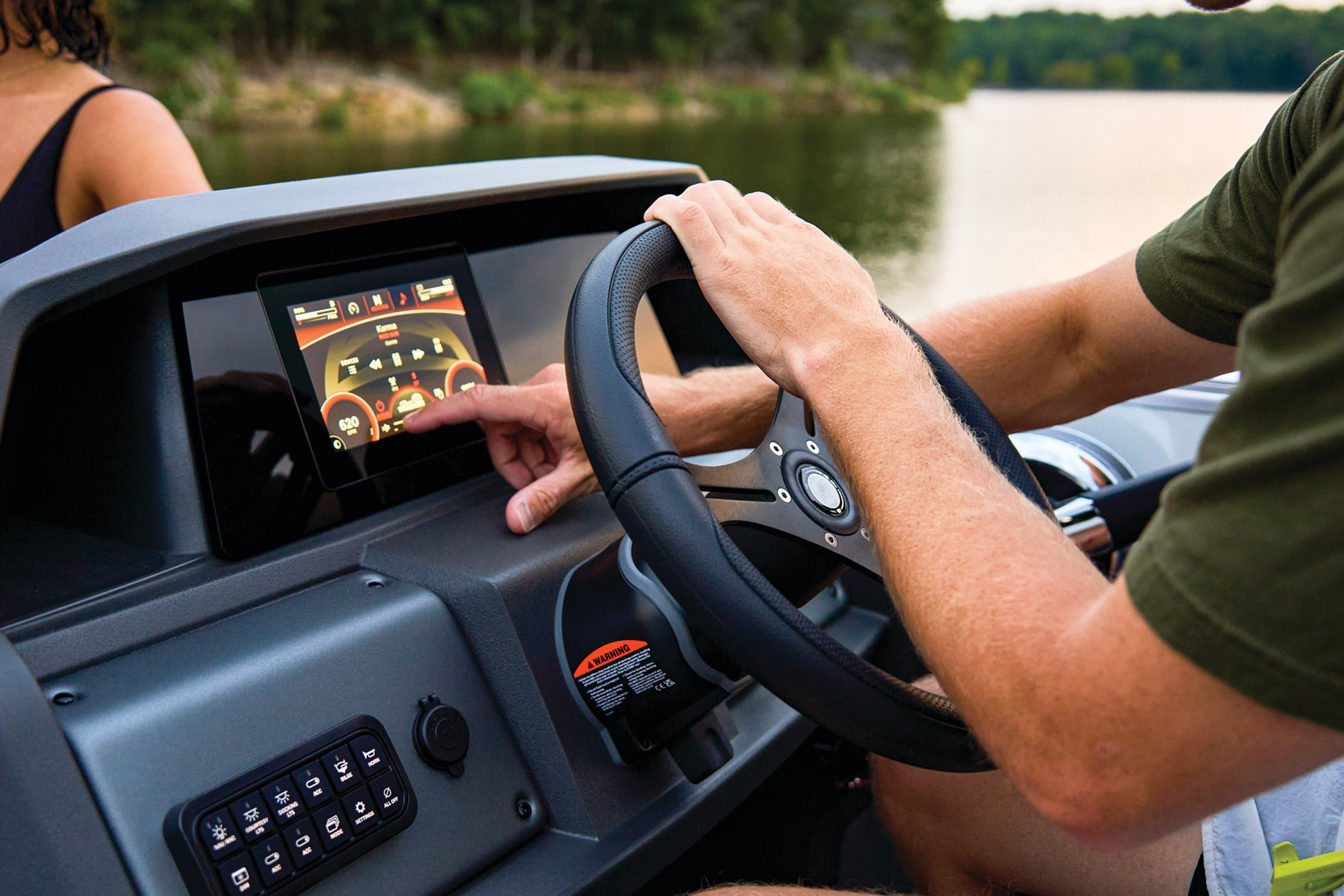

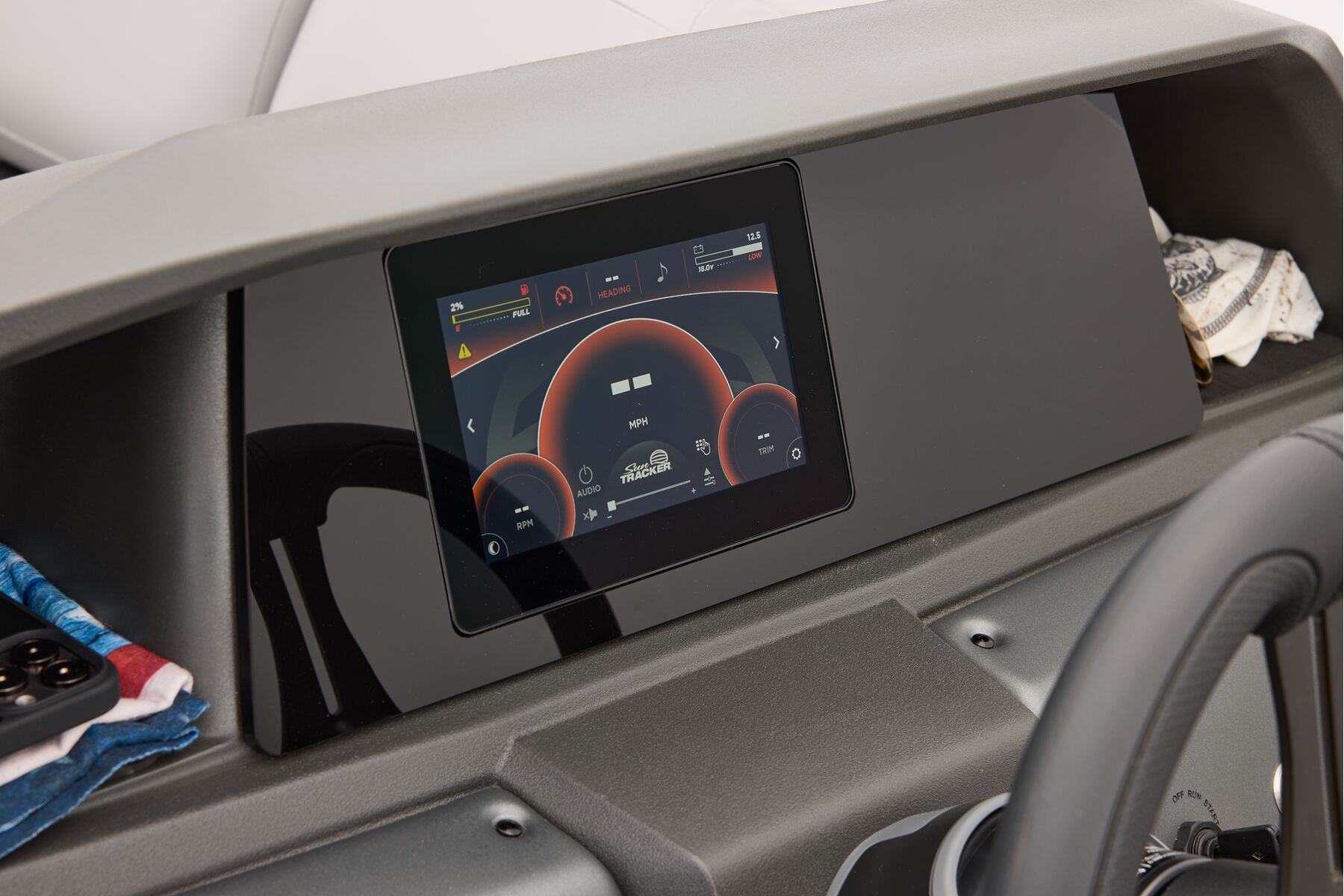

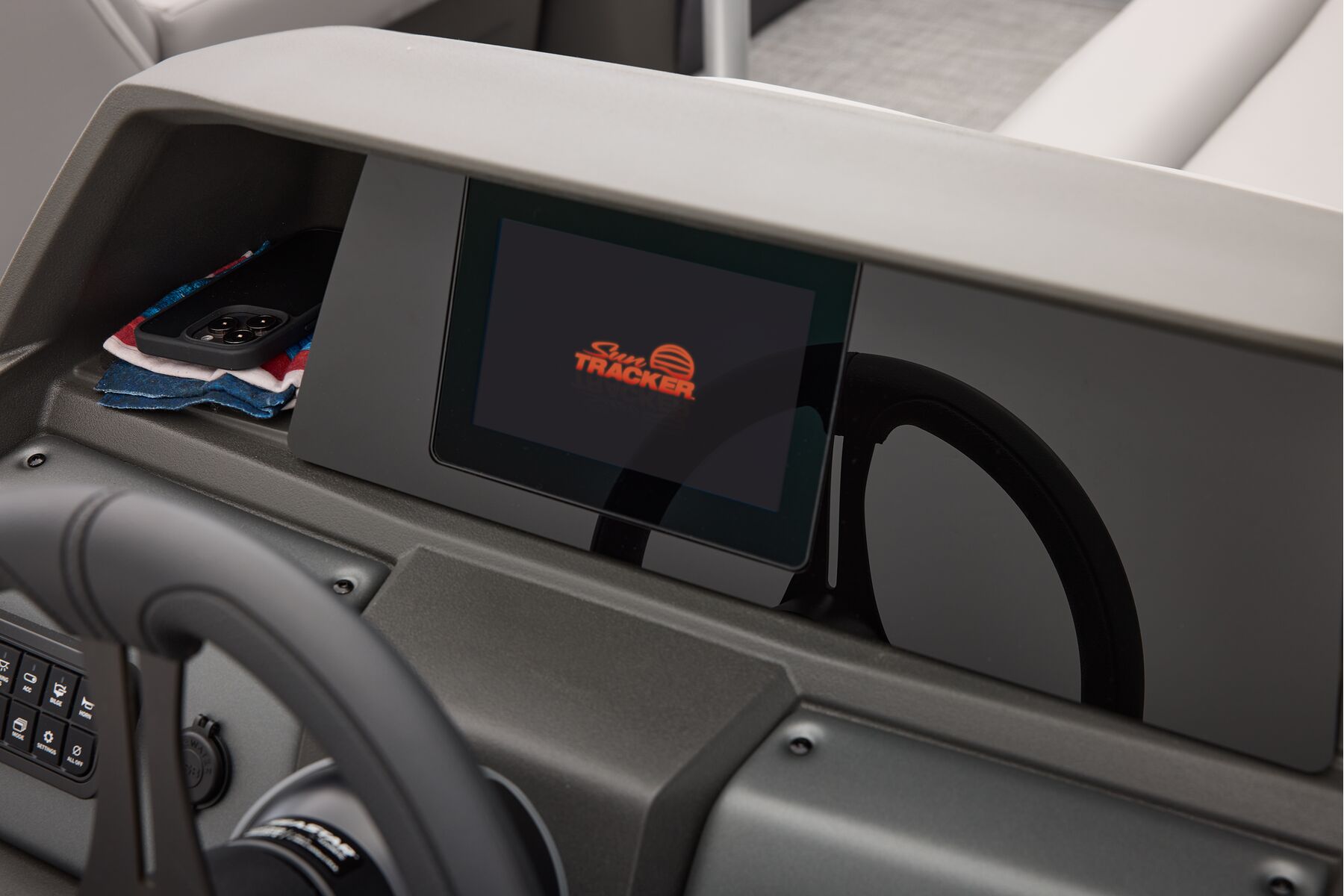

Touchscreen
SUN TRACKER FLARE™ touchscreen gauge display with NEW integrated GPS & NEW stereo control.
Elevated Fencing
NEW full-height, elevated fence panels for deck drainage & ventilation.
XP3 Performance
XP3 performance strakes & wave-deflecting nose cone for maximum performance.
Gallery
Specifications
| Length | 7.37 m | 24' 2'' |
| Deck Length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 200 HP | |
| Fuel Capacity | 196.82 L | 52 gal. |
| Pontoon Log Length | 6.78 m | 22' 3'' |
| Pontoon Log Diameter | 66.04 cm | 26'' |
| Pontoon Log Material | 0.100 5052 marine alloy | |
| Max. Person Capacity | 11 persons |
| Max. Person Weight | 725.75 kg | 1600 lbs. |
| Max. Person, Motor & Gear Weight | 1088.62 kg | 2400 lbs. |
| Interior Depth | 69.215 cm | 27.25'' |
| Average Dry Weight | 1351.71 kg | 2980 lbs. |
| Average Package Weight | 2256.62 kg | 4975 lbs. |
| Package Height | 2.72 m | 8' 11'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.86 m | 32' 4'' |
| Storage Length | 9.86 m | 32' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 150 L FourStroke | 31-40 mph |
$53995 USD
|
Select Dealer | ||
| 200 L FourStroke | - |
$59125 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
- NMMA® certified

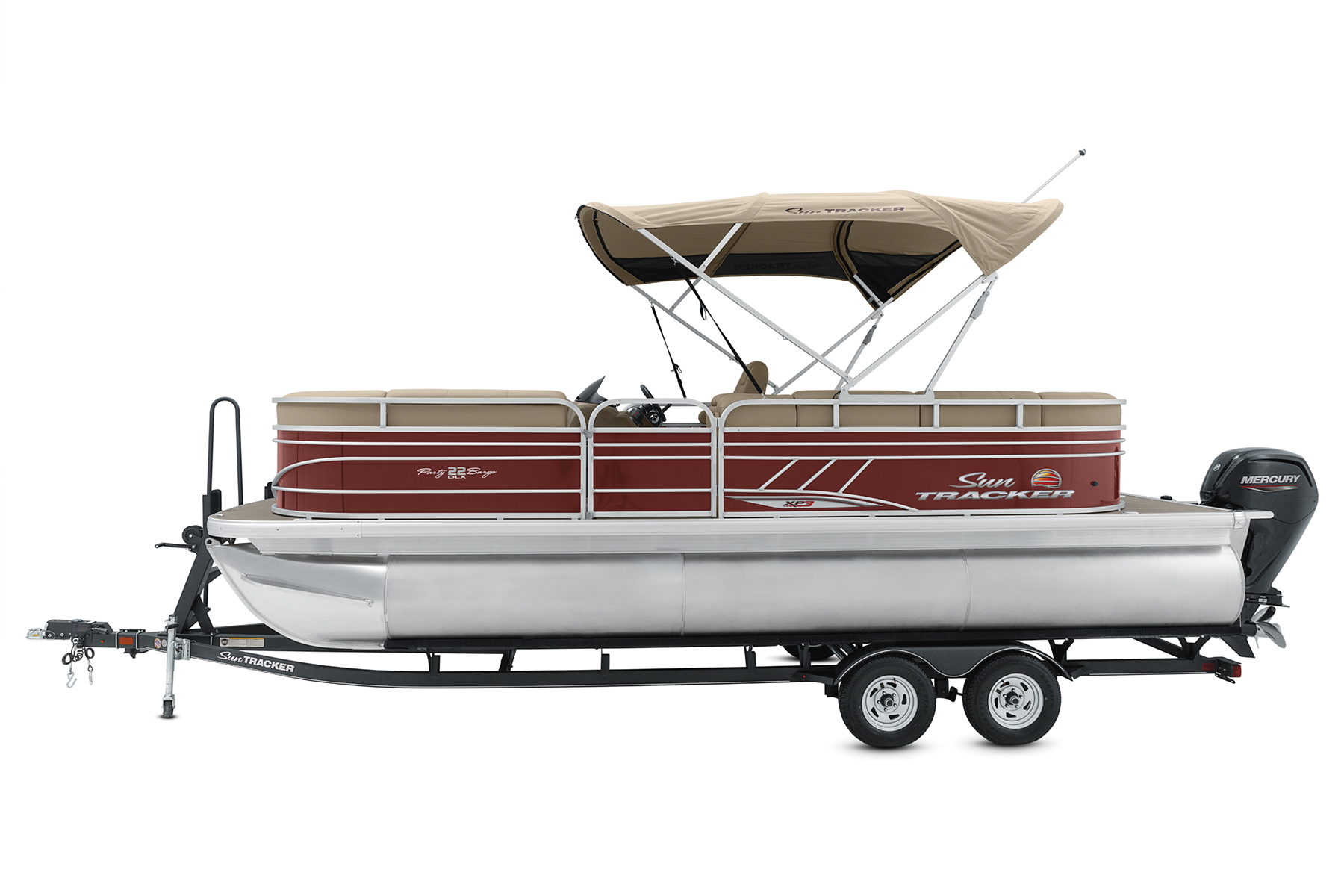

- 10' (3.05 m) Black SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot

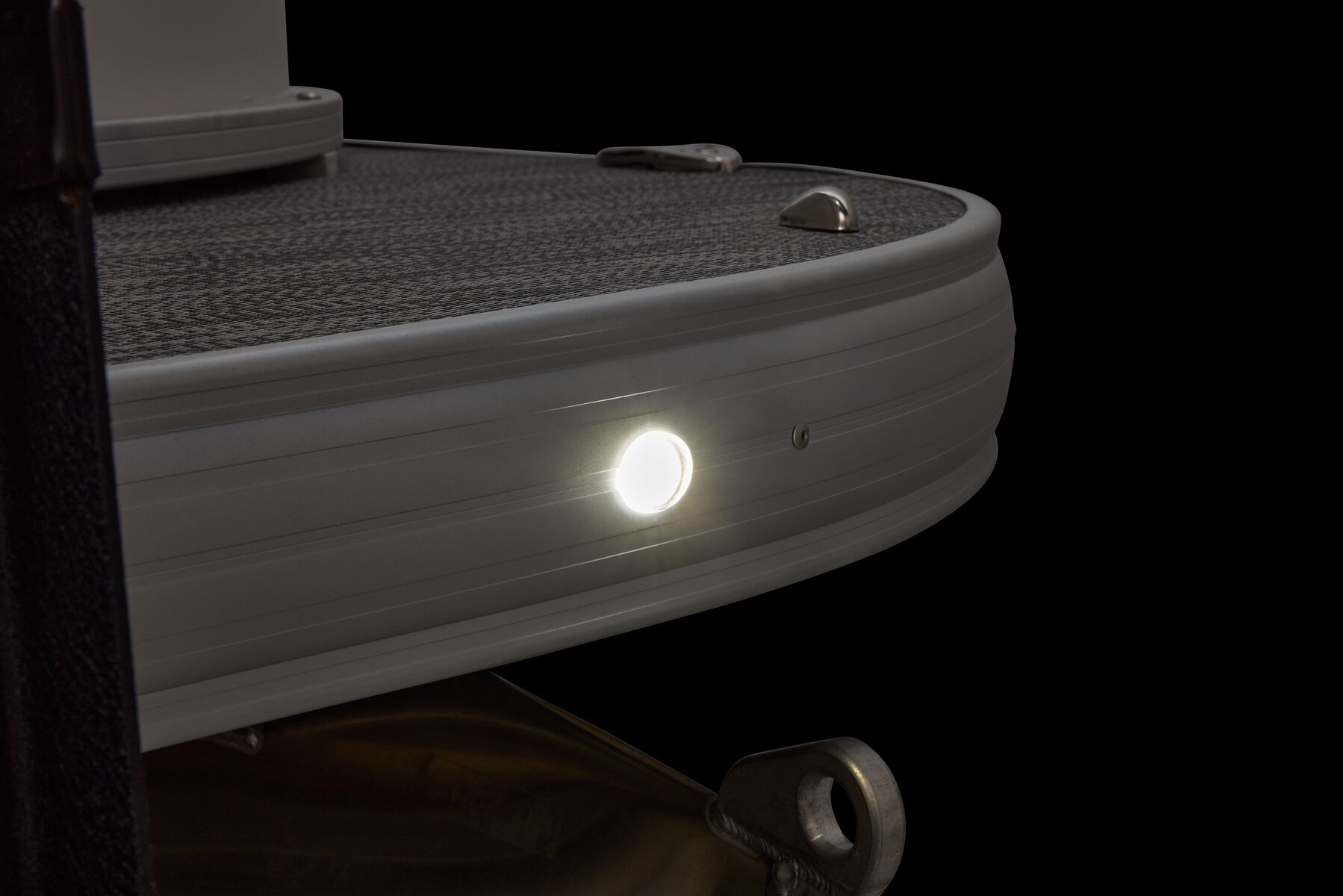

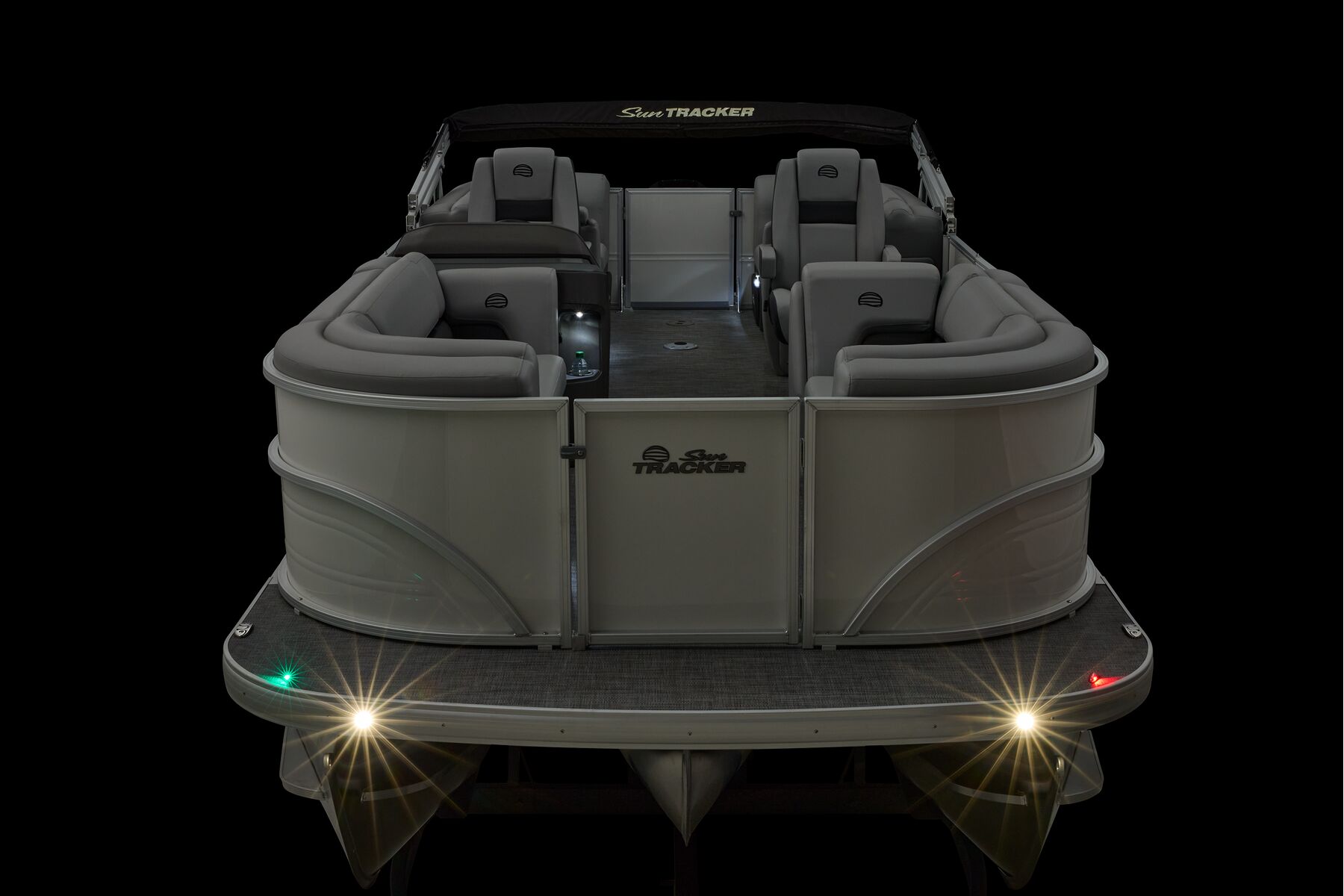

- NEW integrated LED docking lights

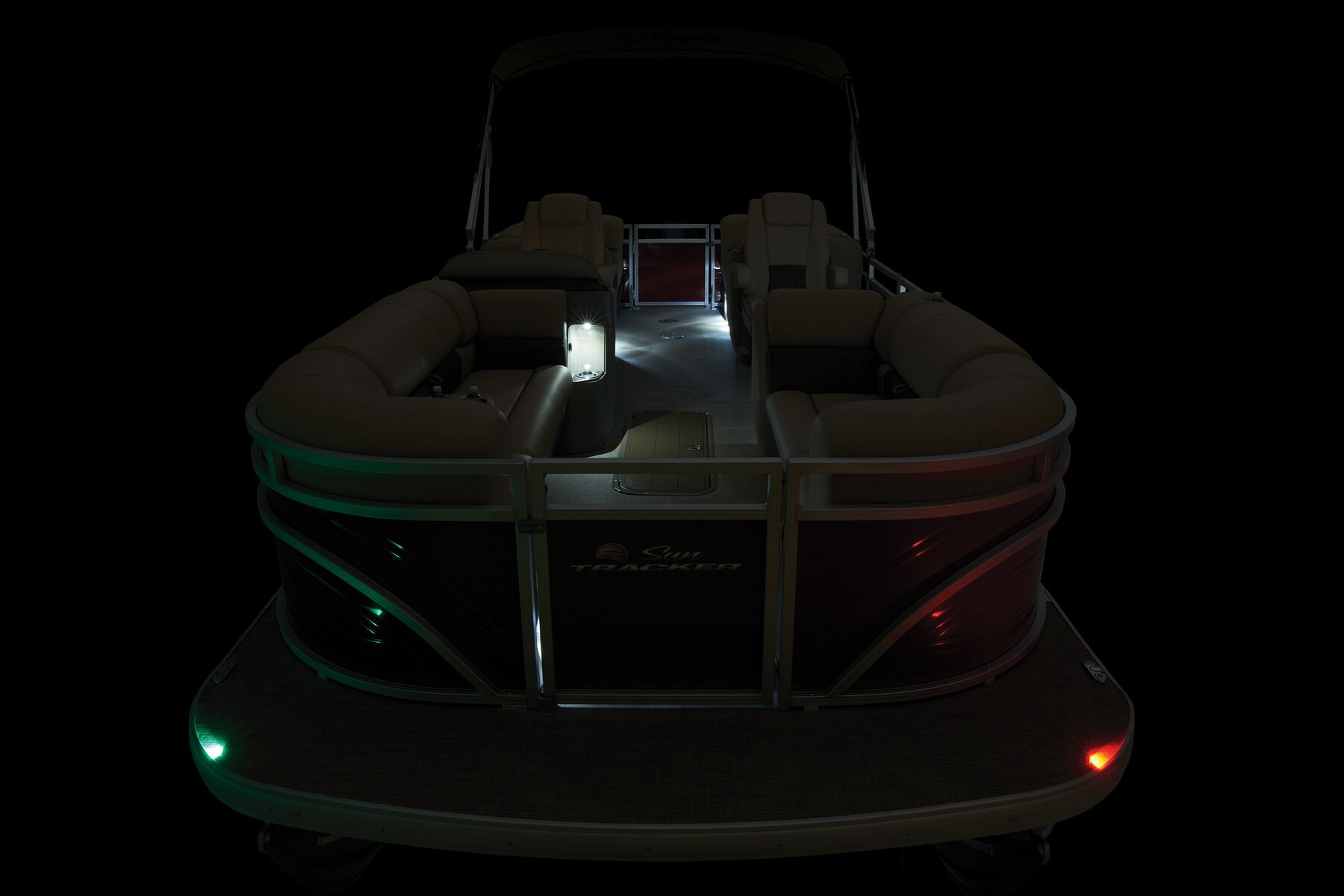

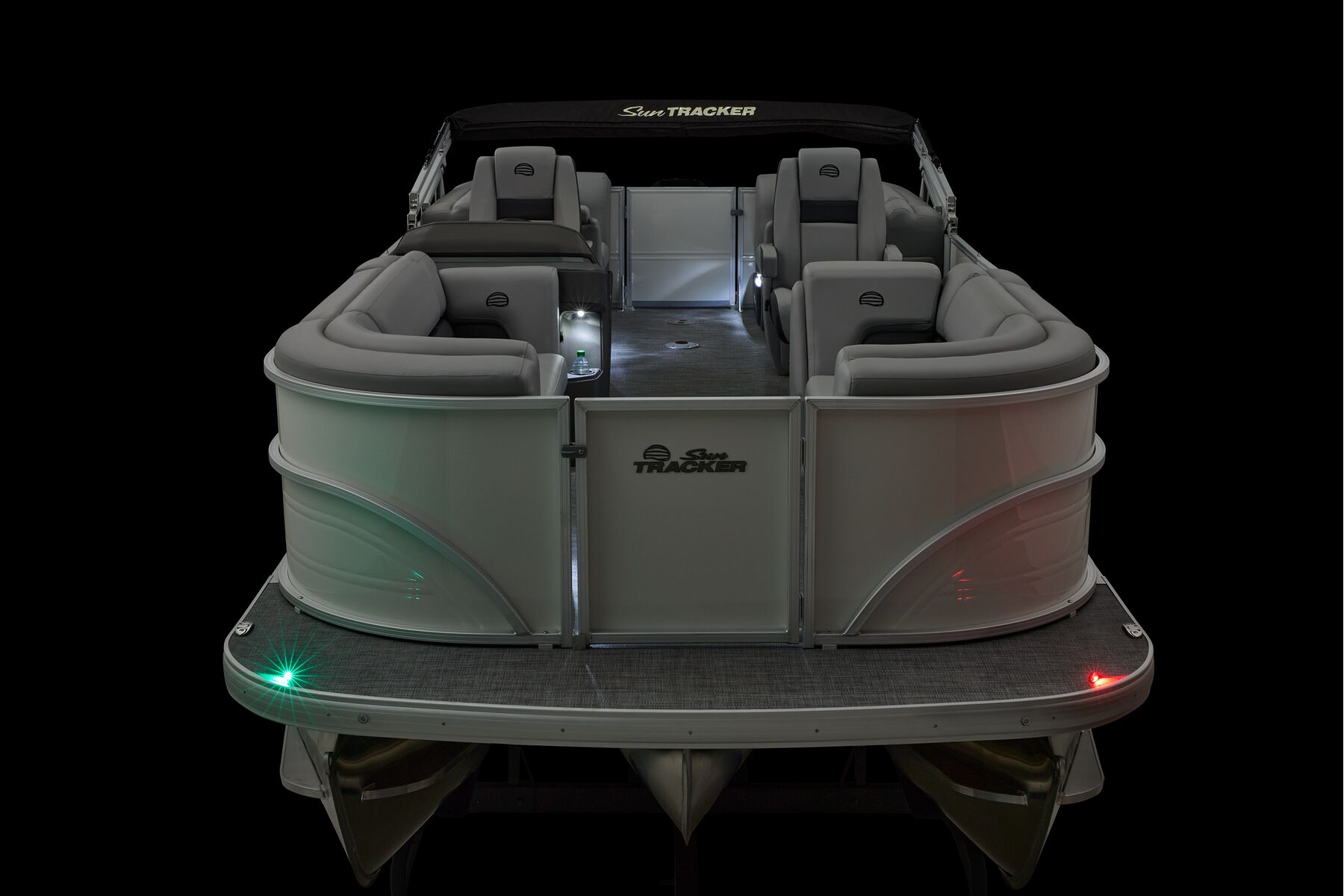

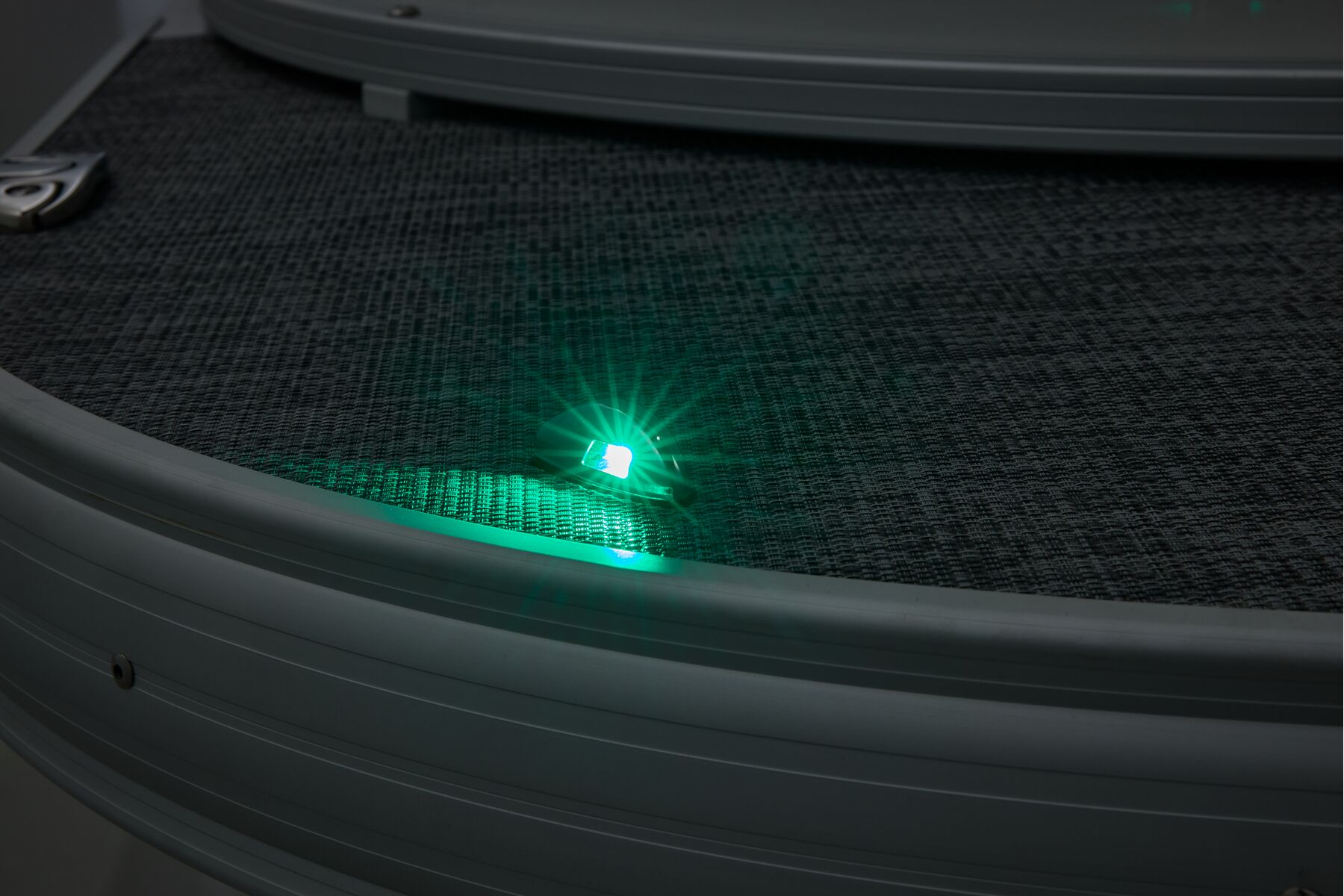

- Integrated LED navigation & anchor lights
- 4 folding mooring cleats & starboard side tie-off mooring eye

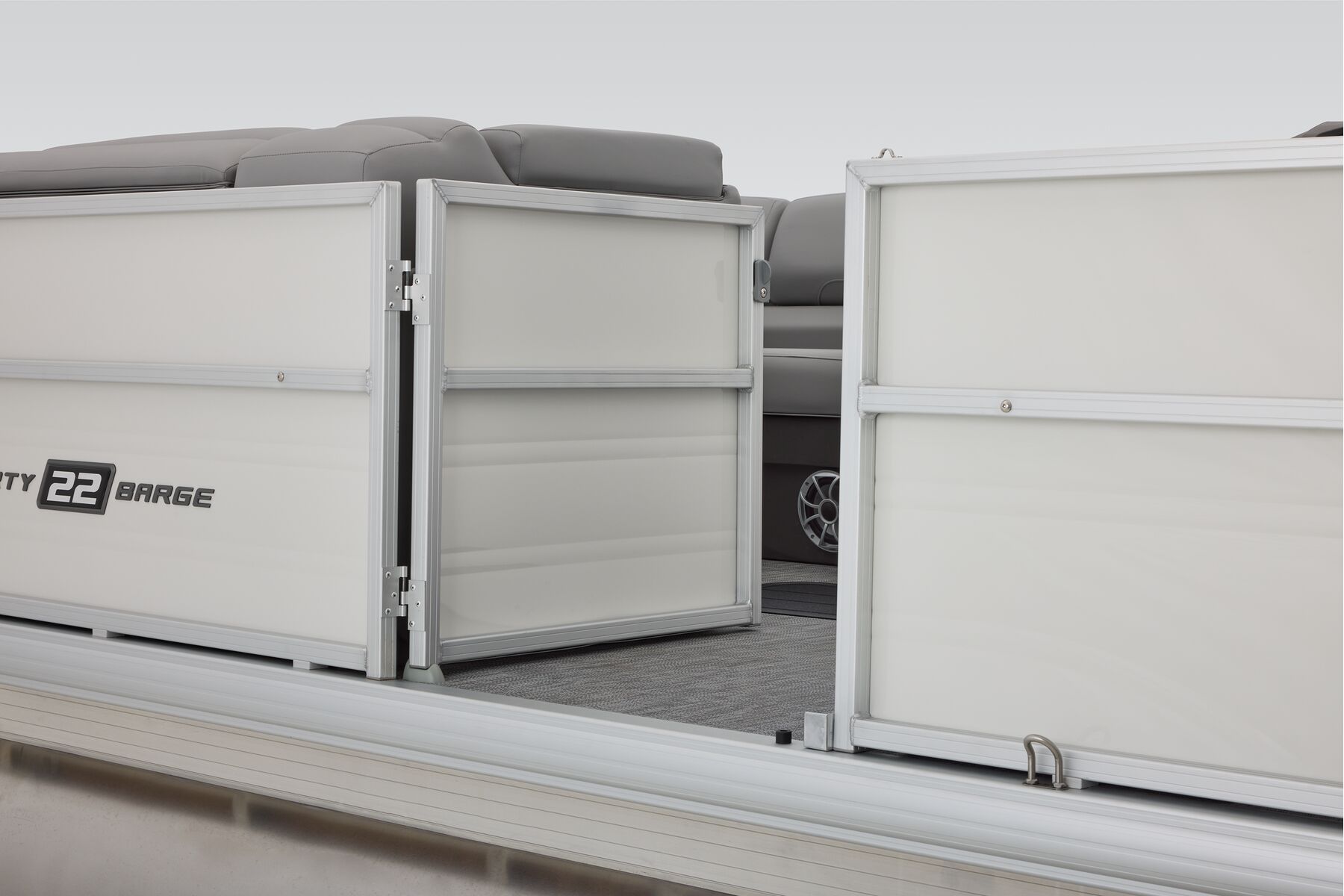

- Port wheelchair-accessible gate

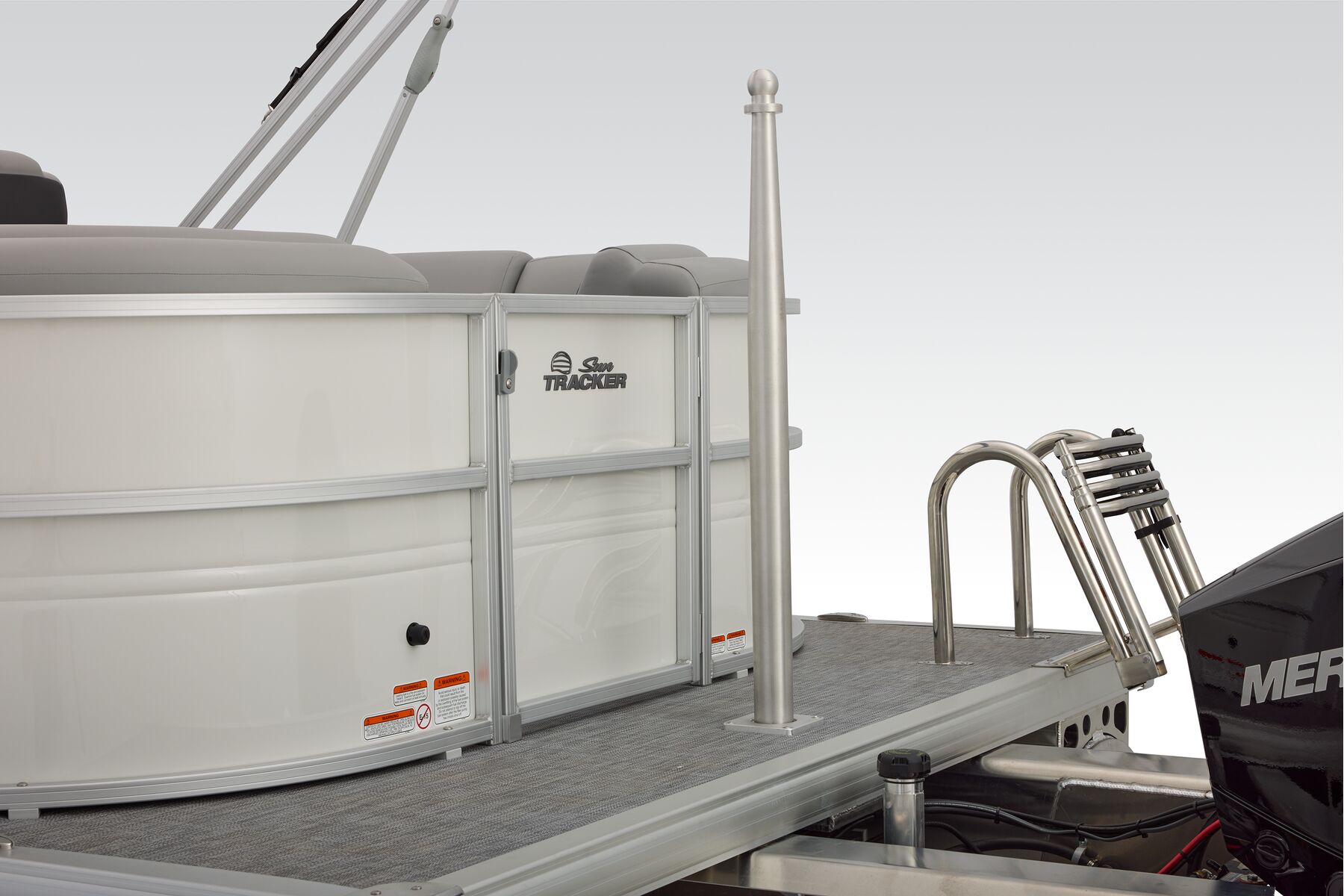

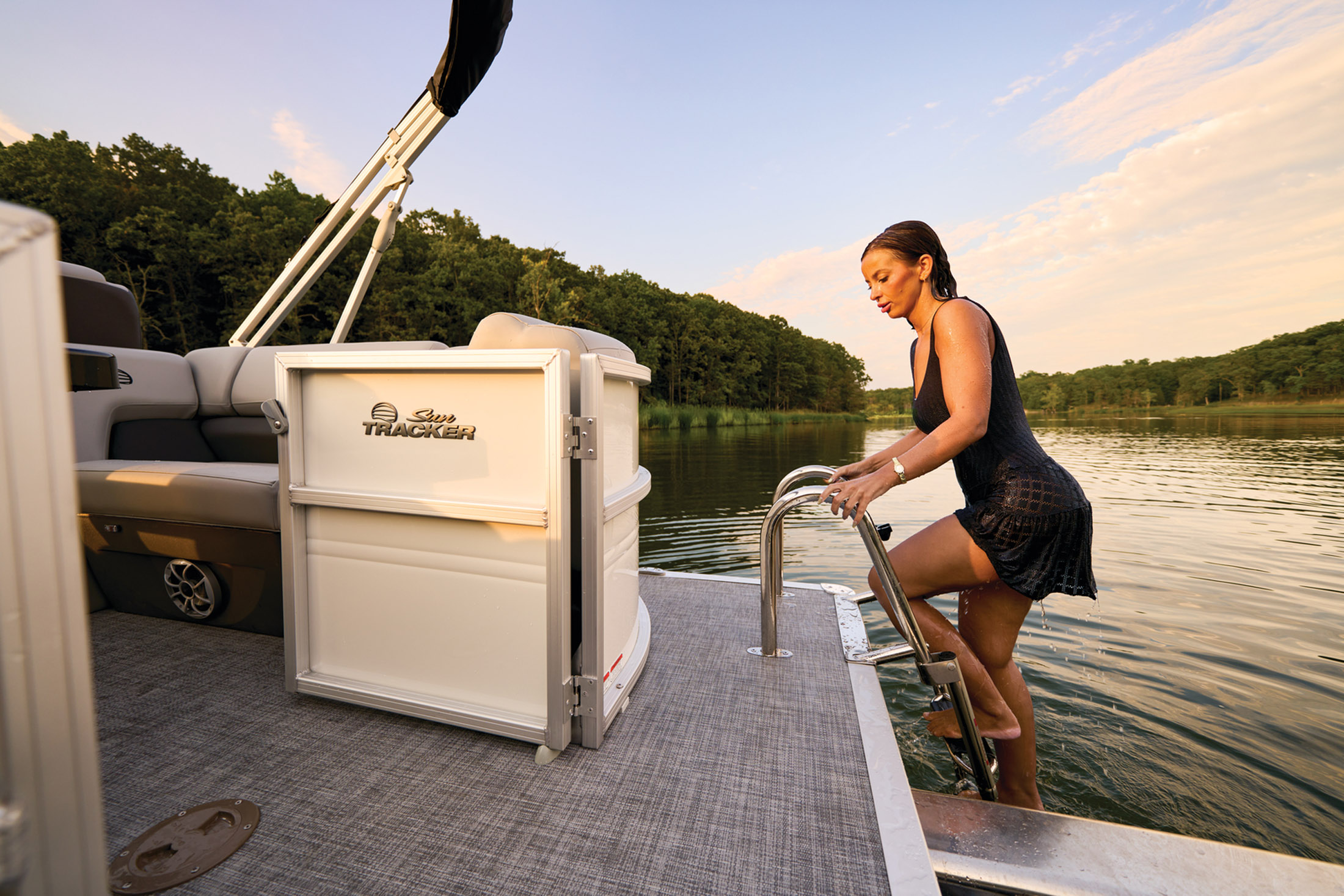

- Rear boarding platform w/NEW wider 4-step telescoping boarding ladder & grab rails
- Aft receptacle base for optional ski tow pylon
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console
- NEW console design & color

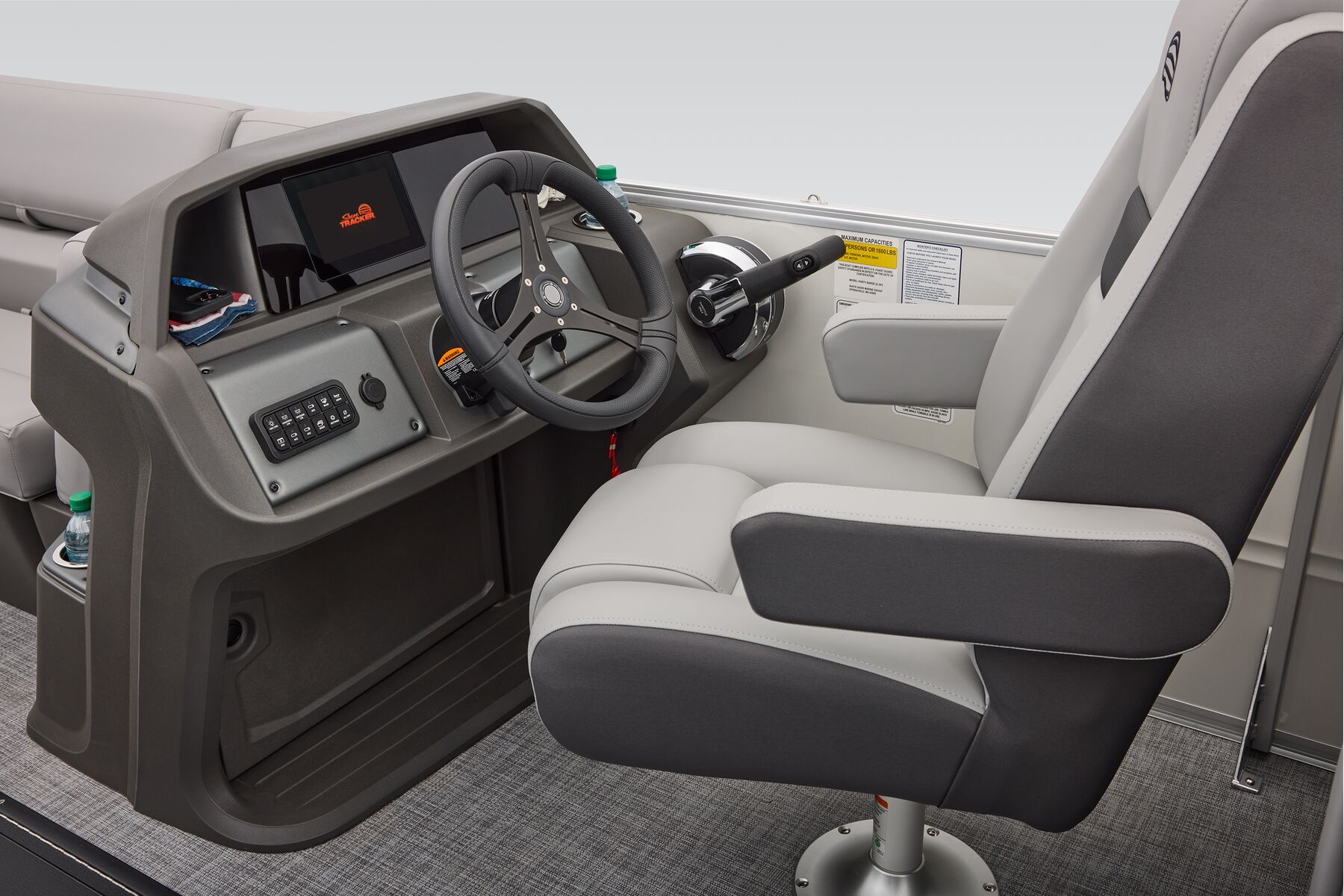

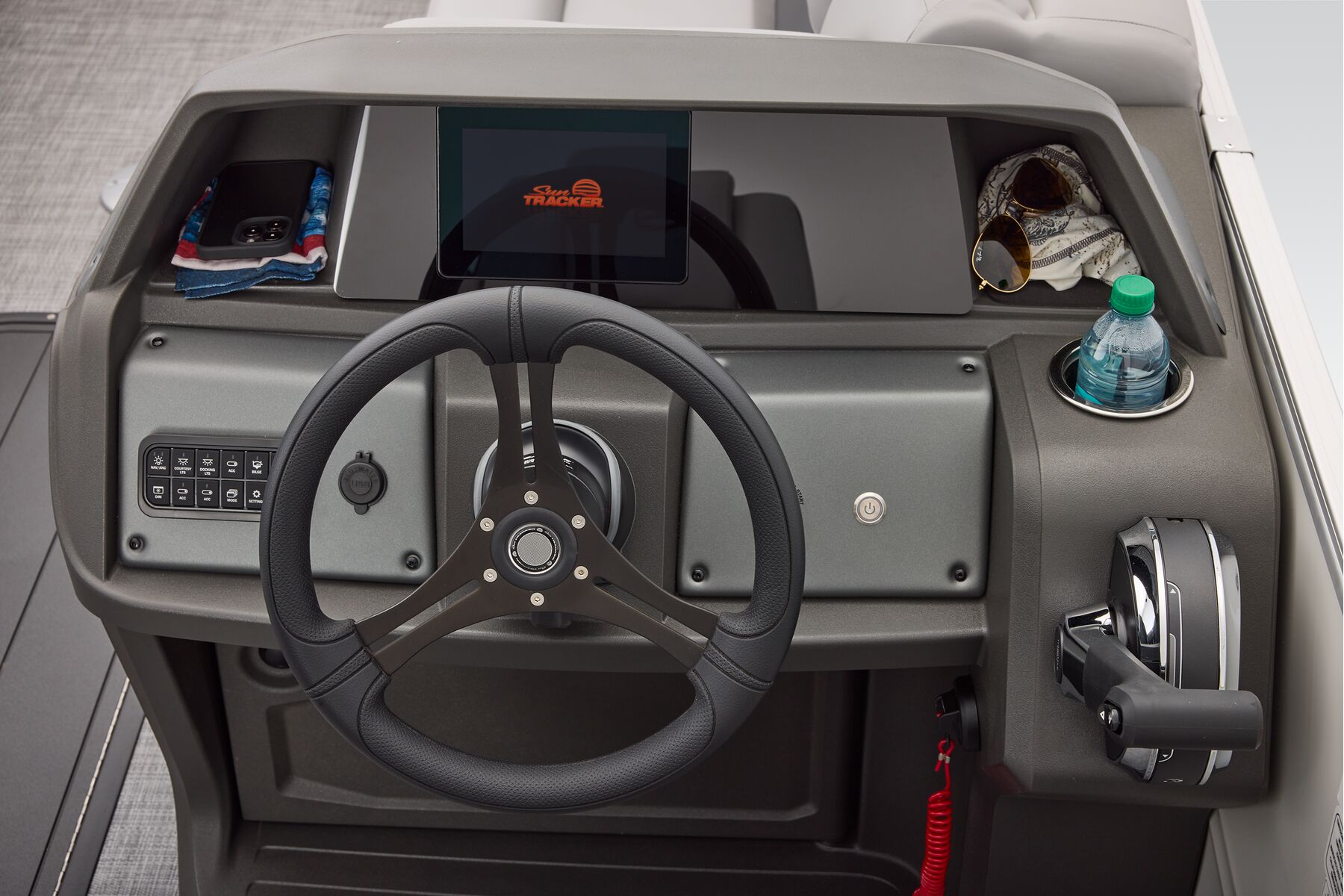

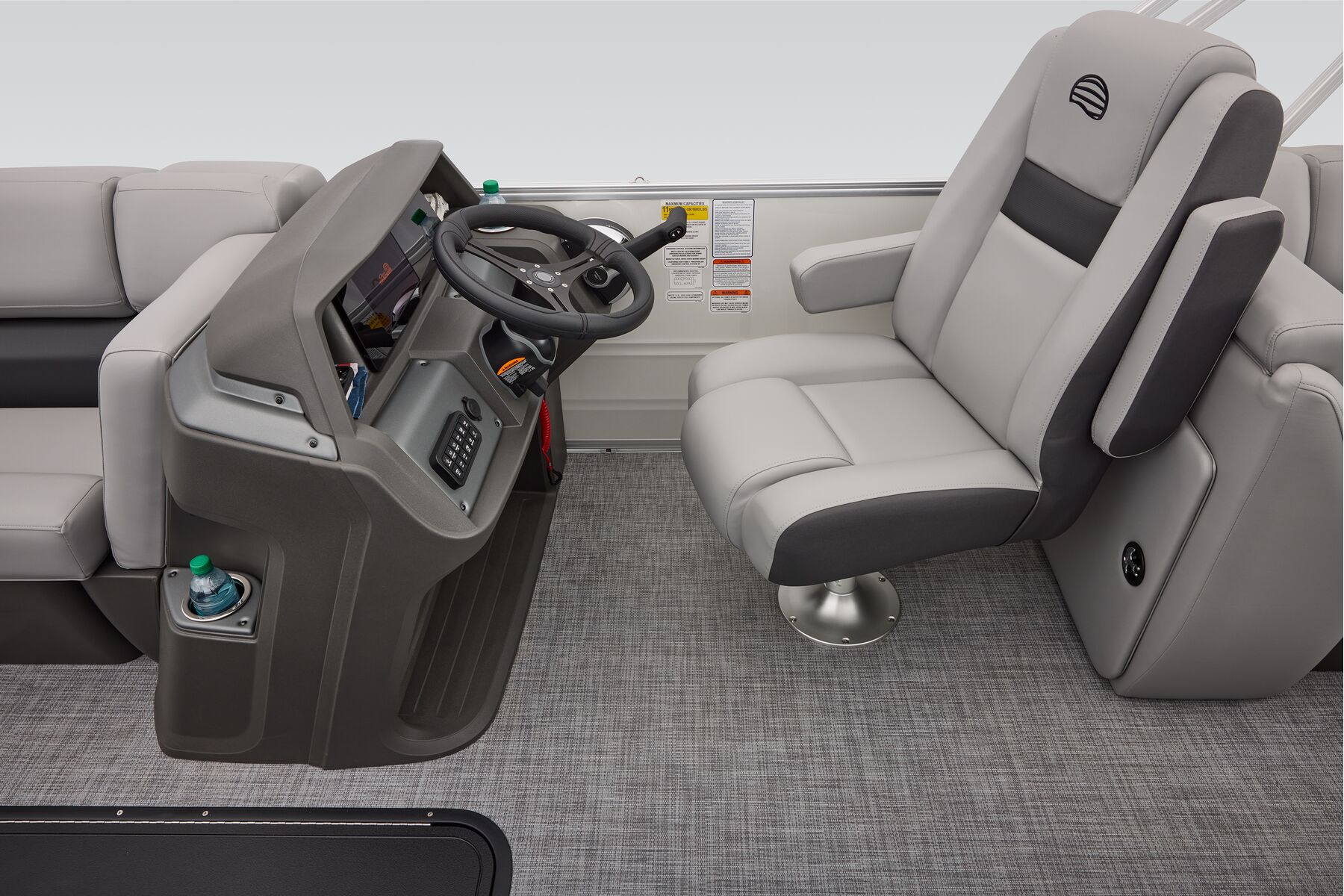

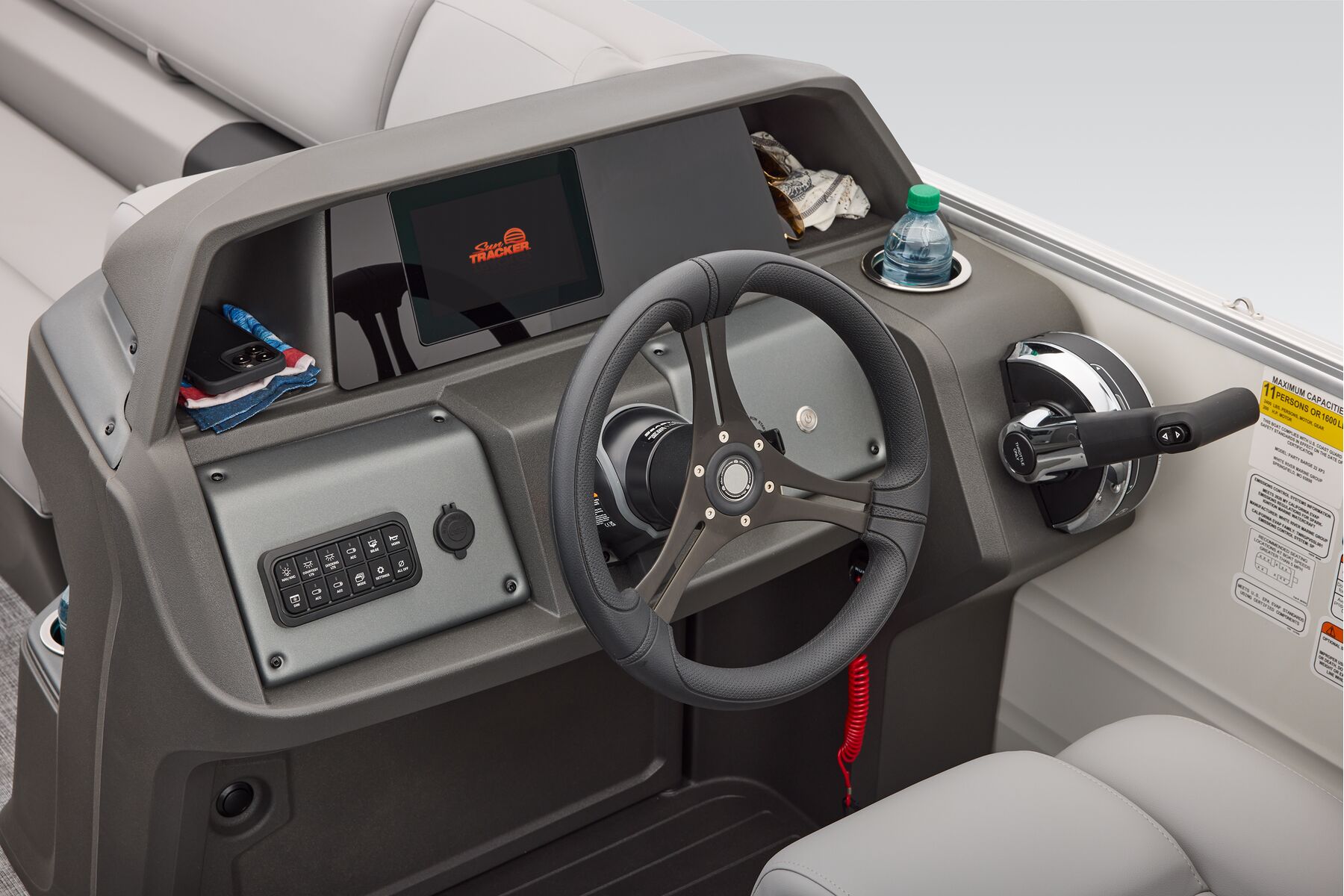

- Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls
- SUN TRACKER FLARE™ touchscreen gauge display w/NEW integrated GPS & NEW stereo control

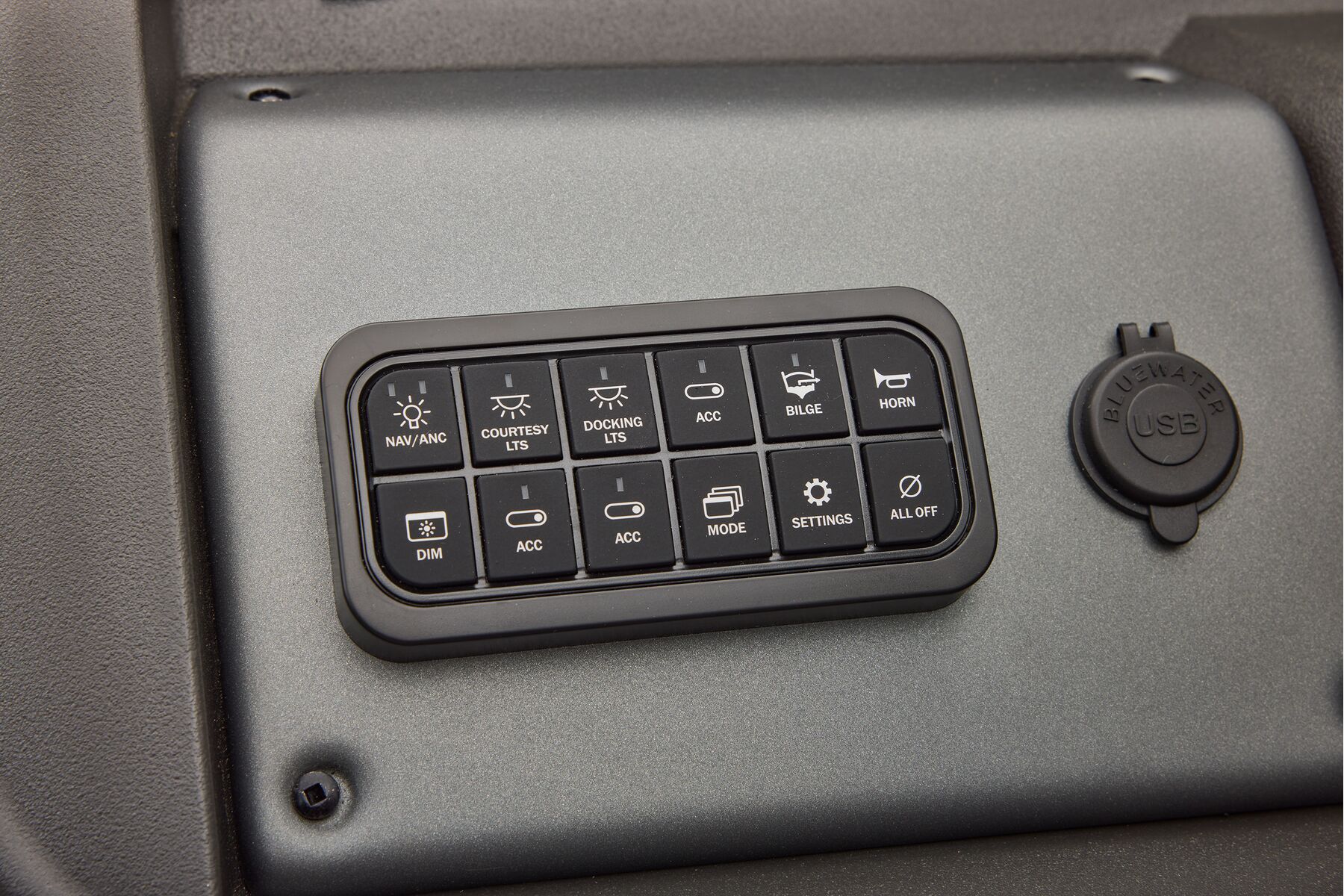

- NEW 12-button switch panel location
- Tilt hydraulic steering w/deluxe soft-touch steering wheel

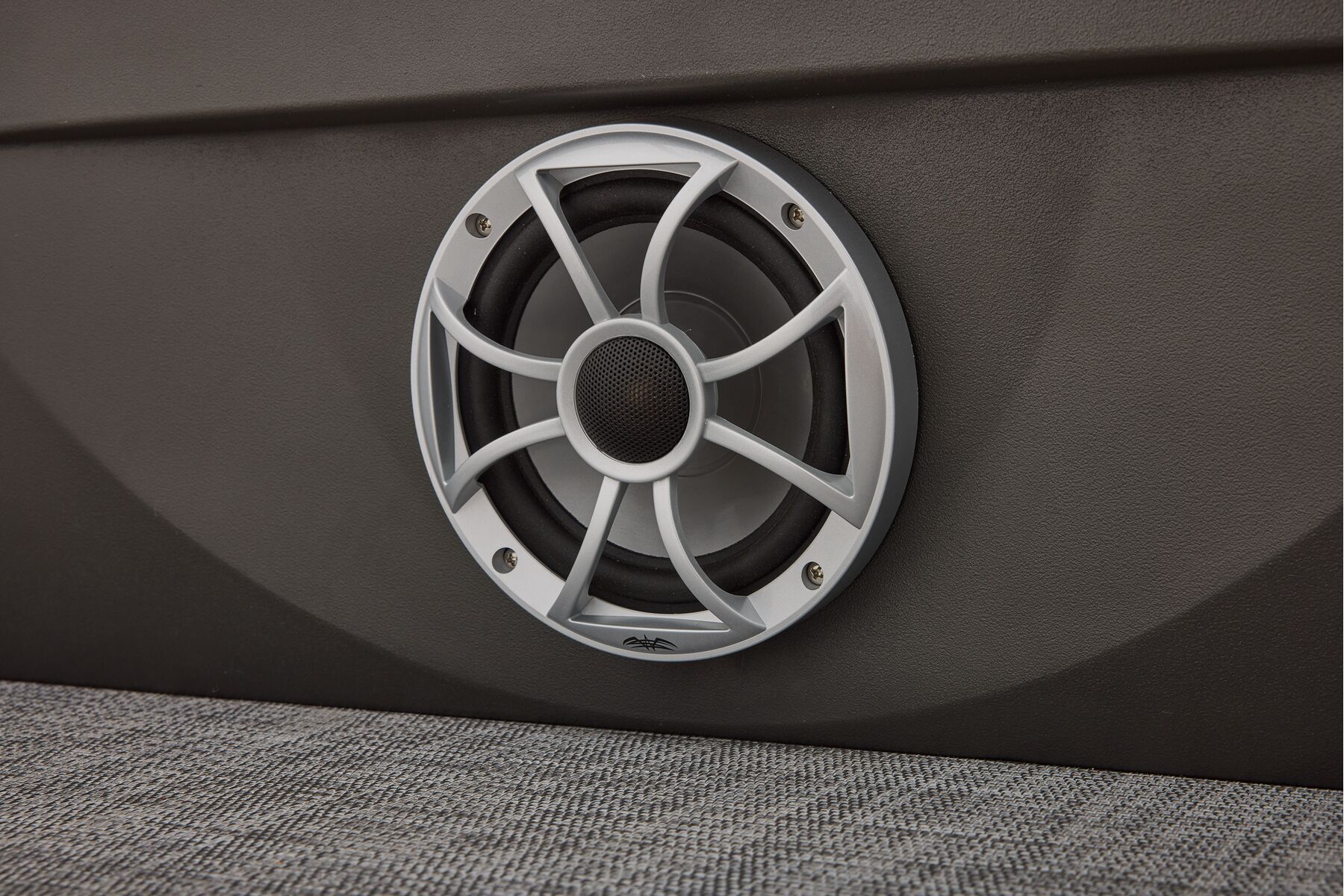

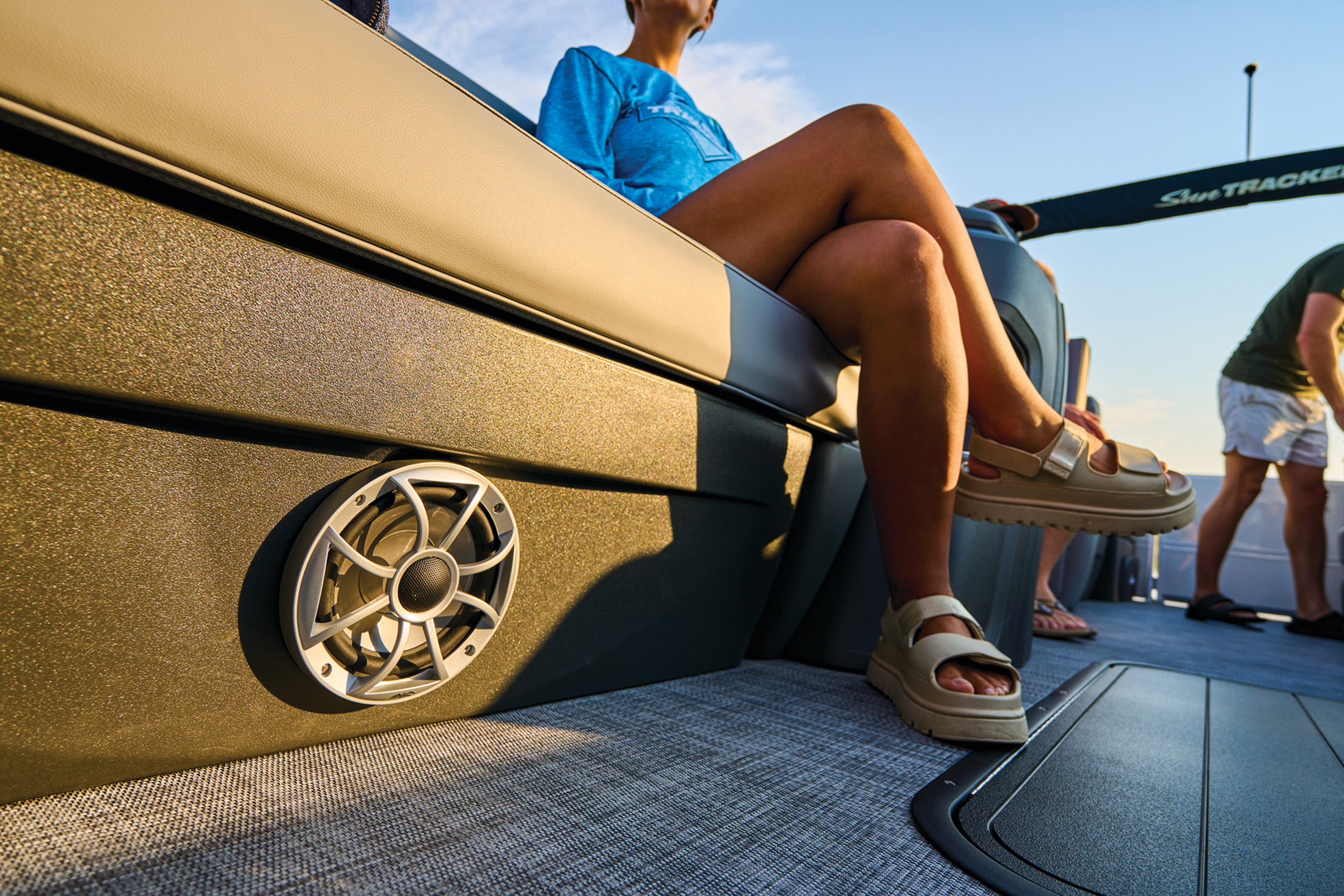

- 4 Wet Sounds® 6.5" (16.51 cm) upholstery speakers, strategically located & shielded within the seat bases

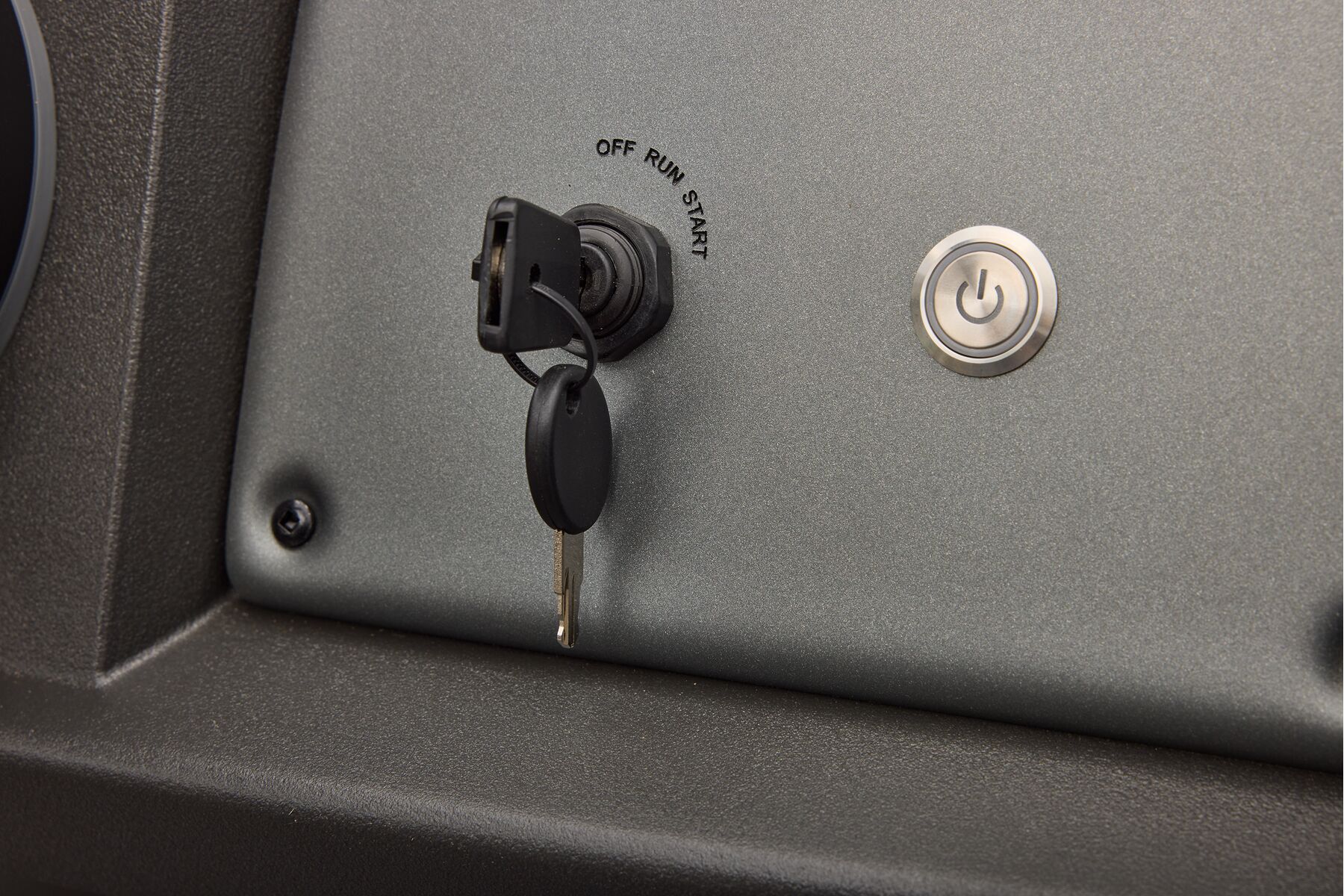

- Master power on/off switch
- Recessed mobile phone cubbies
- USB charging receptacle
Interior

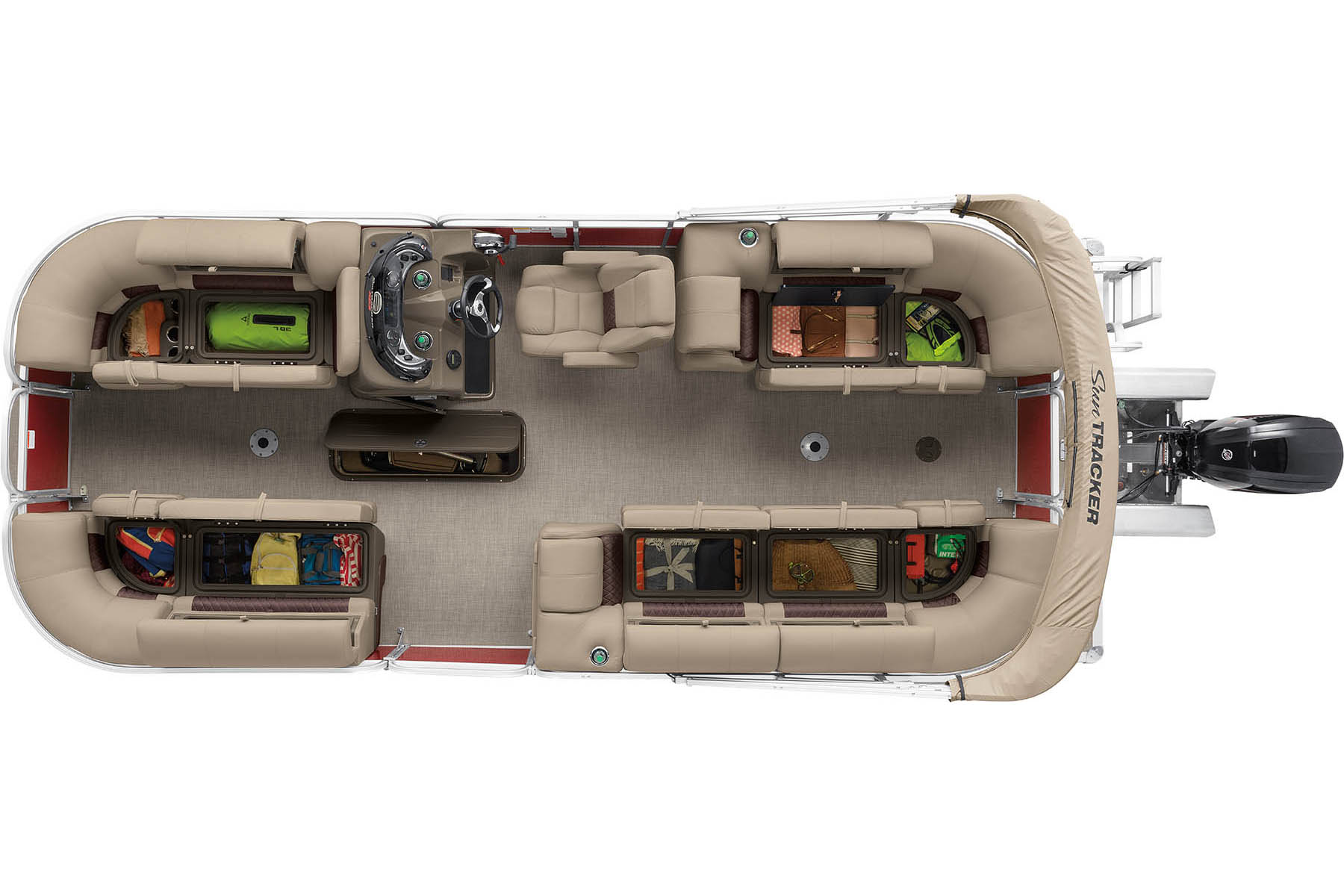

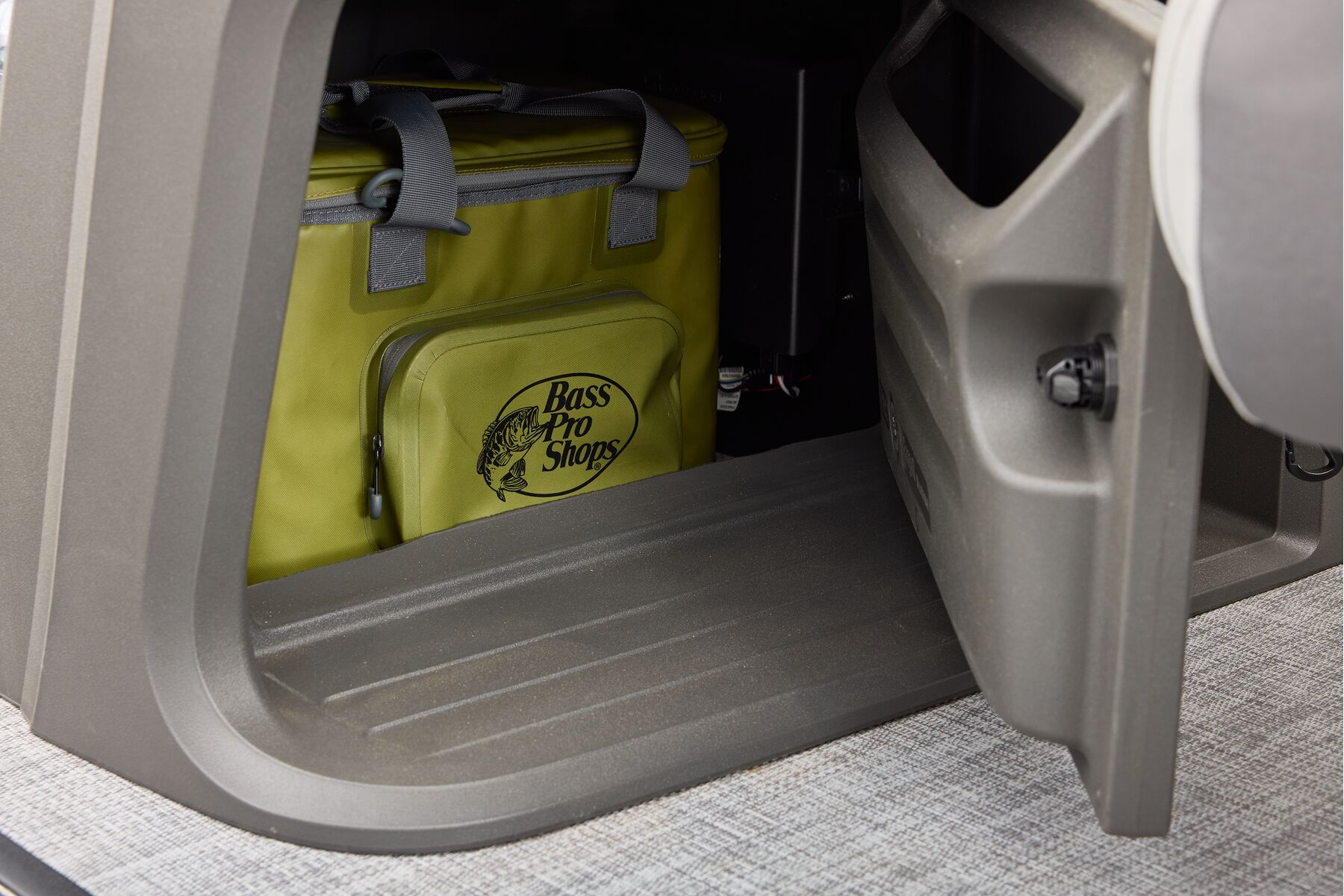

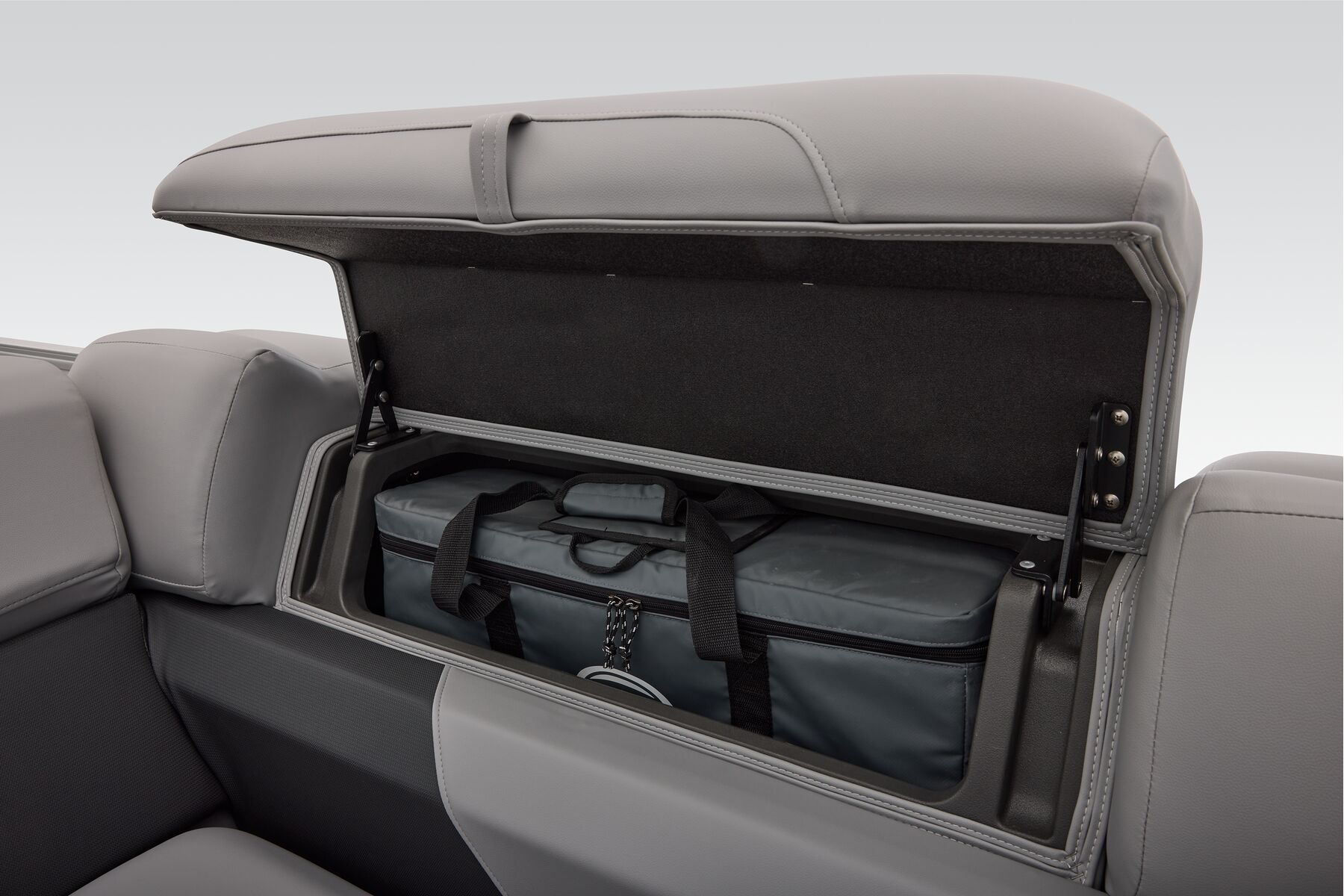

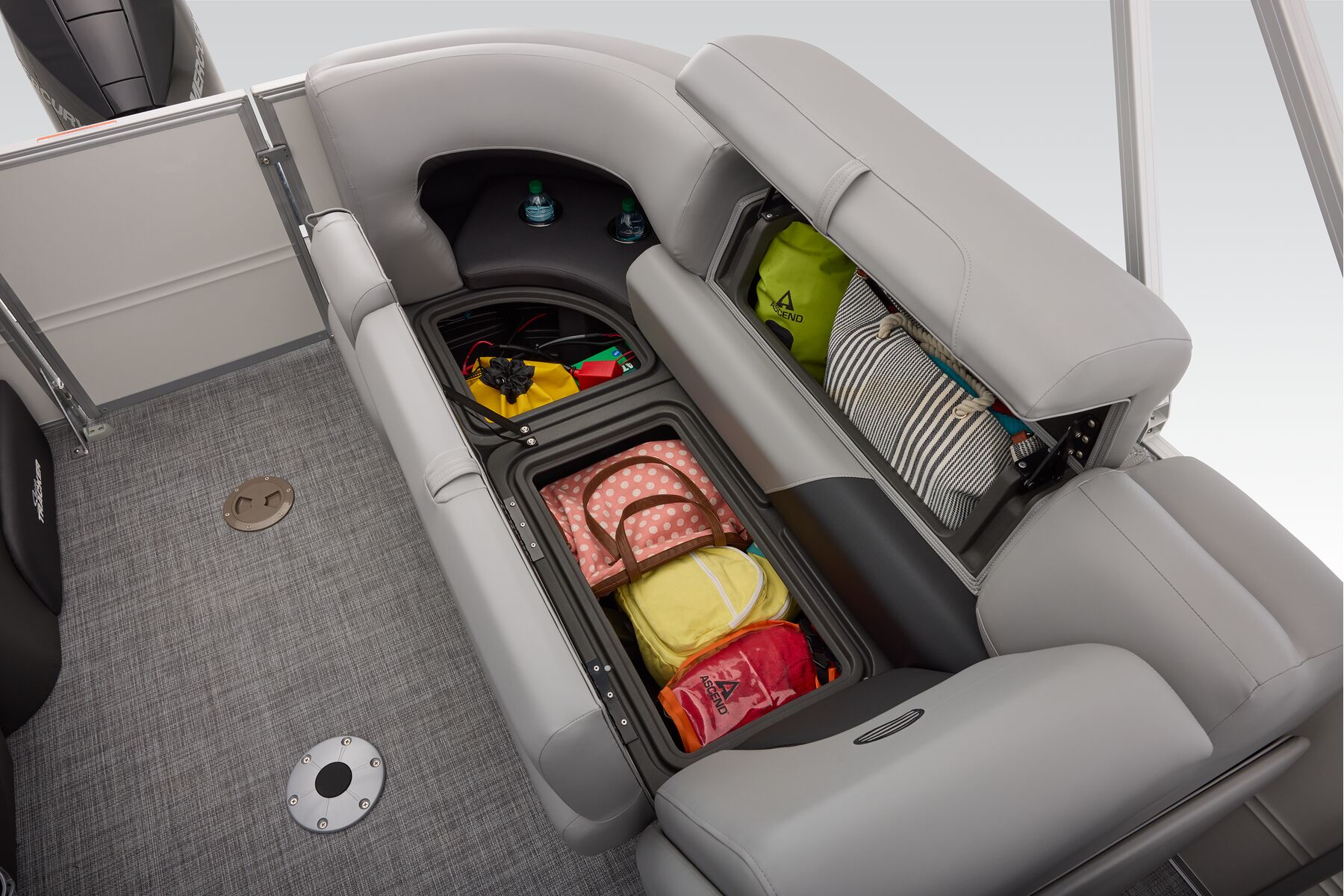

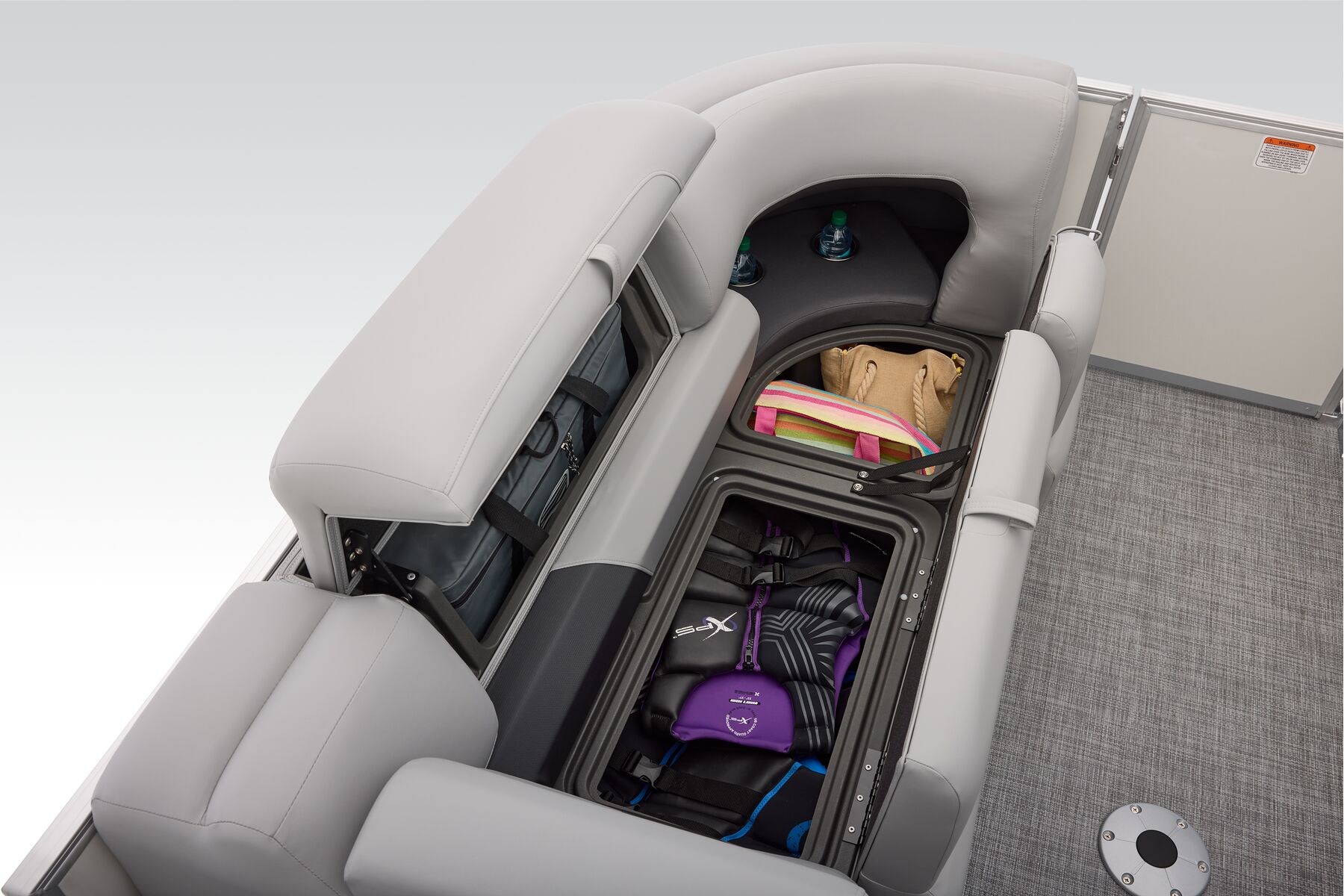

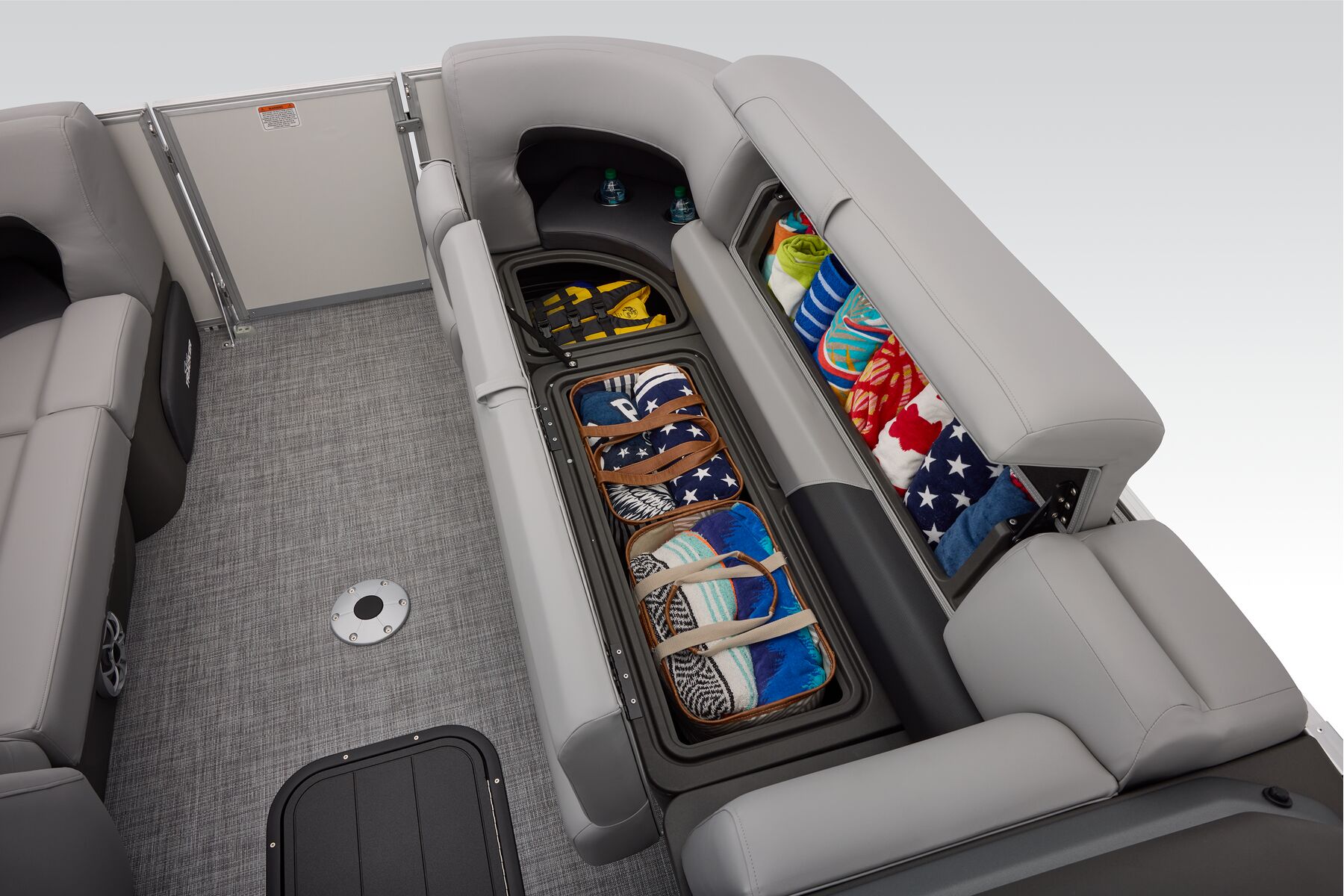

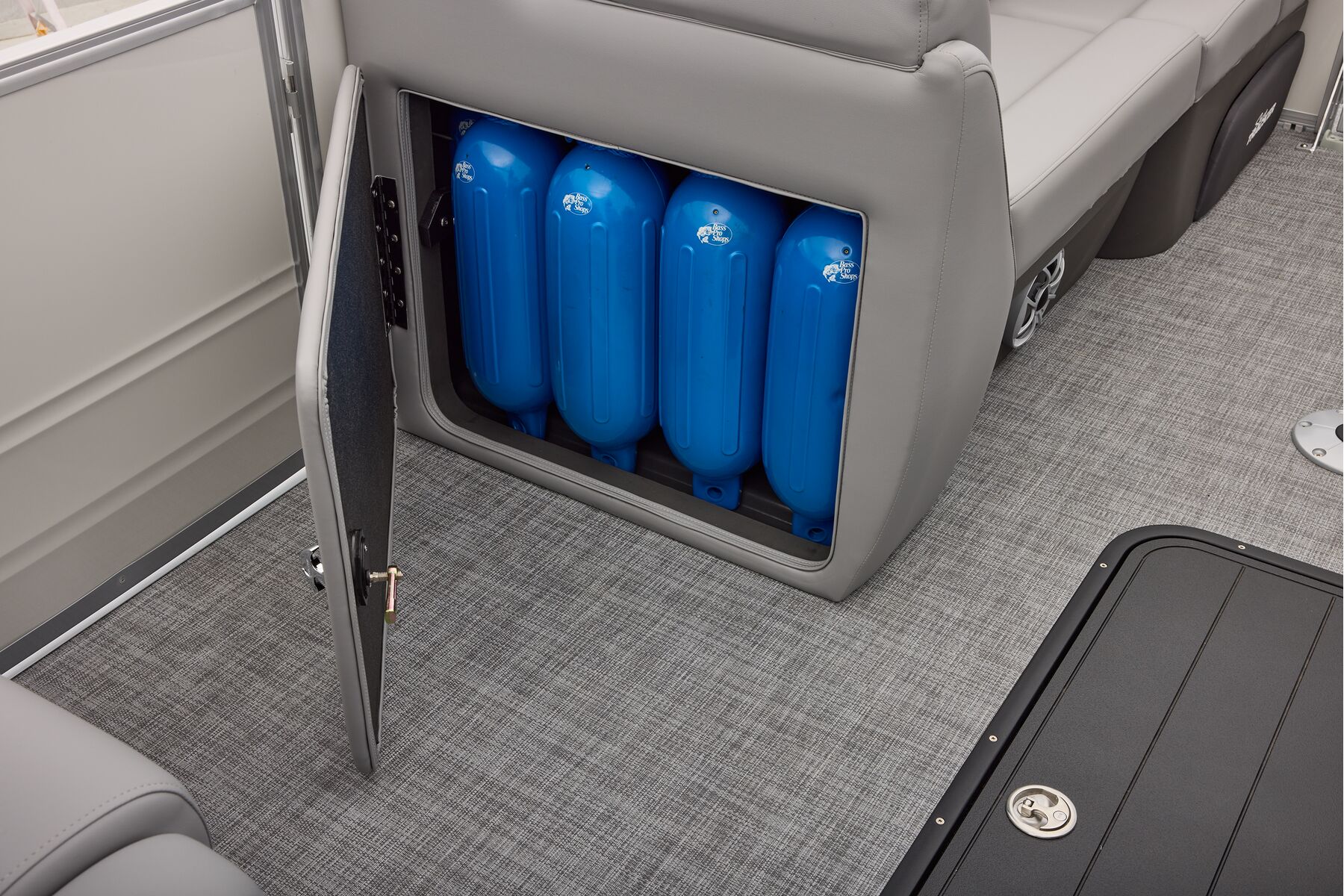

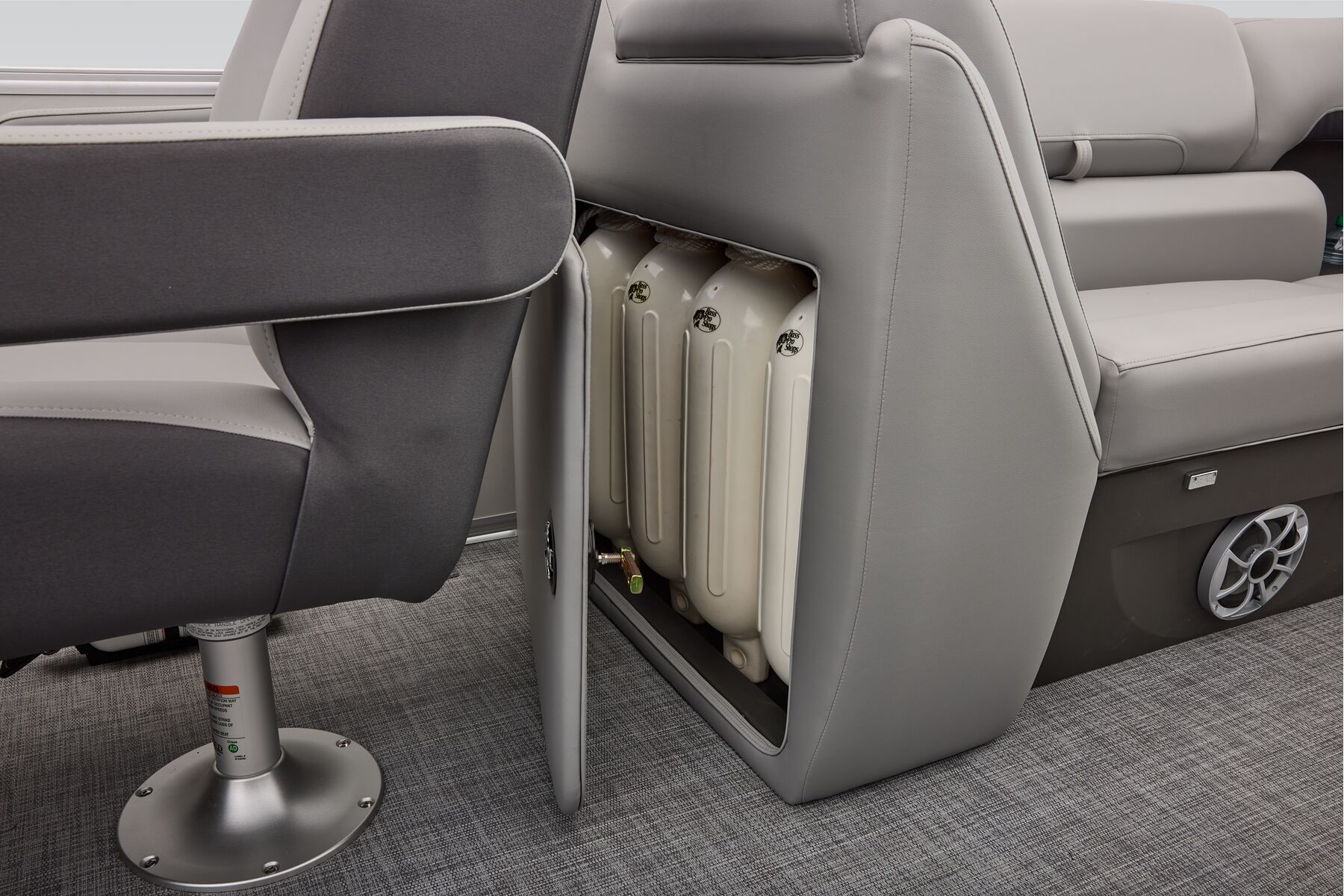

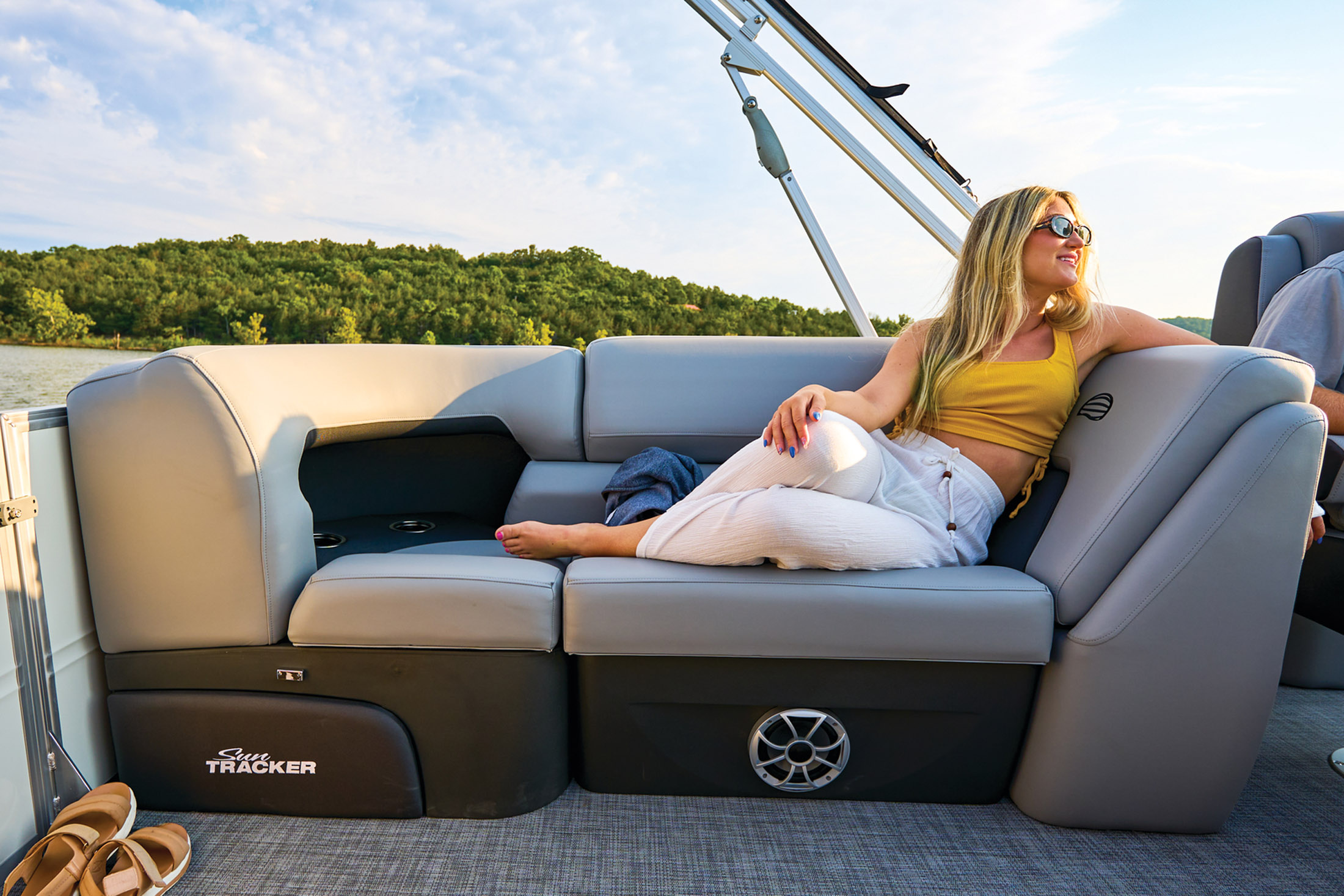

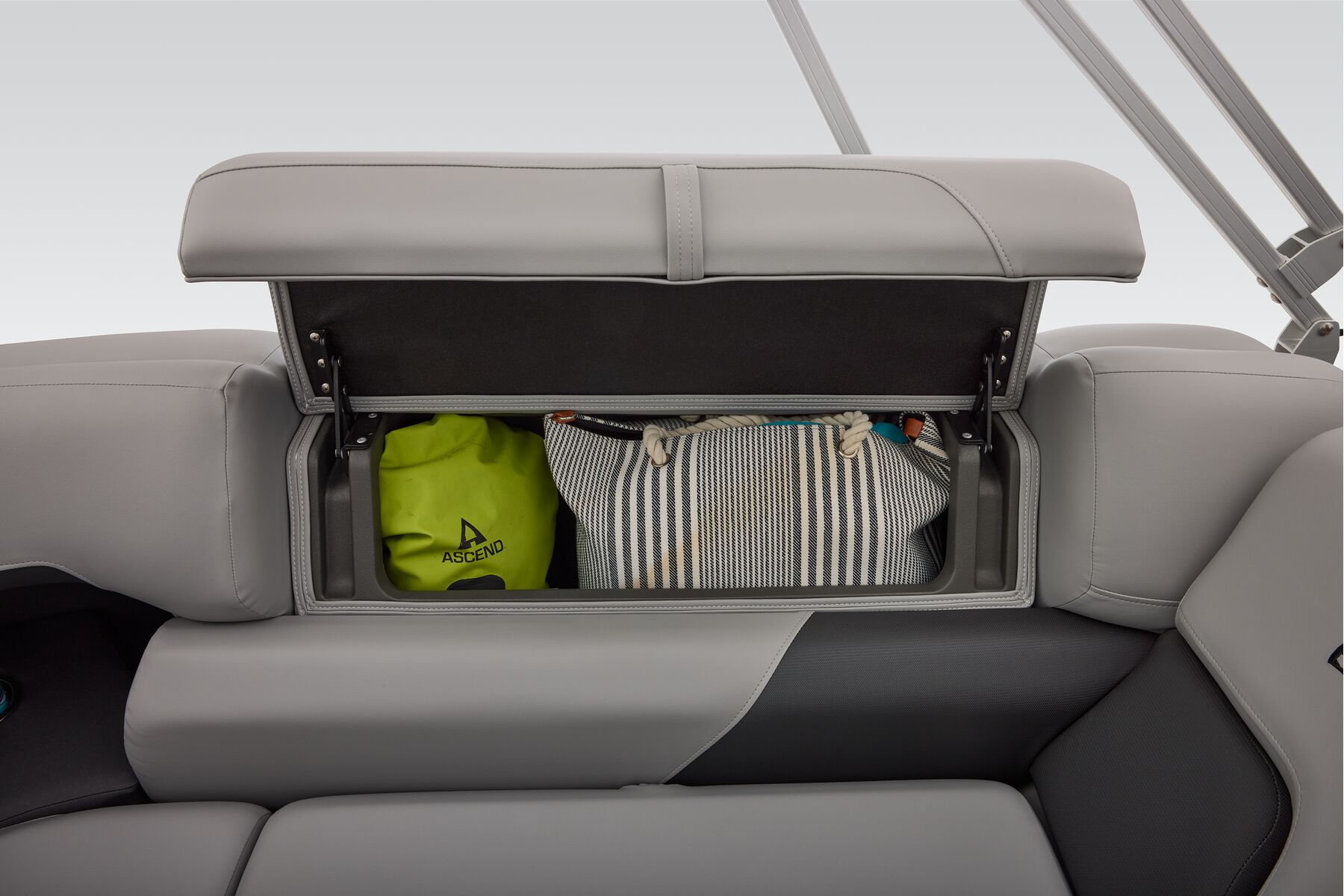

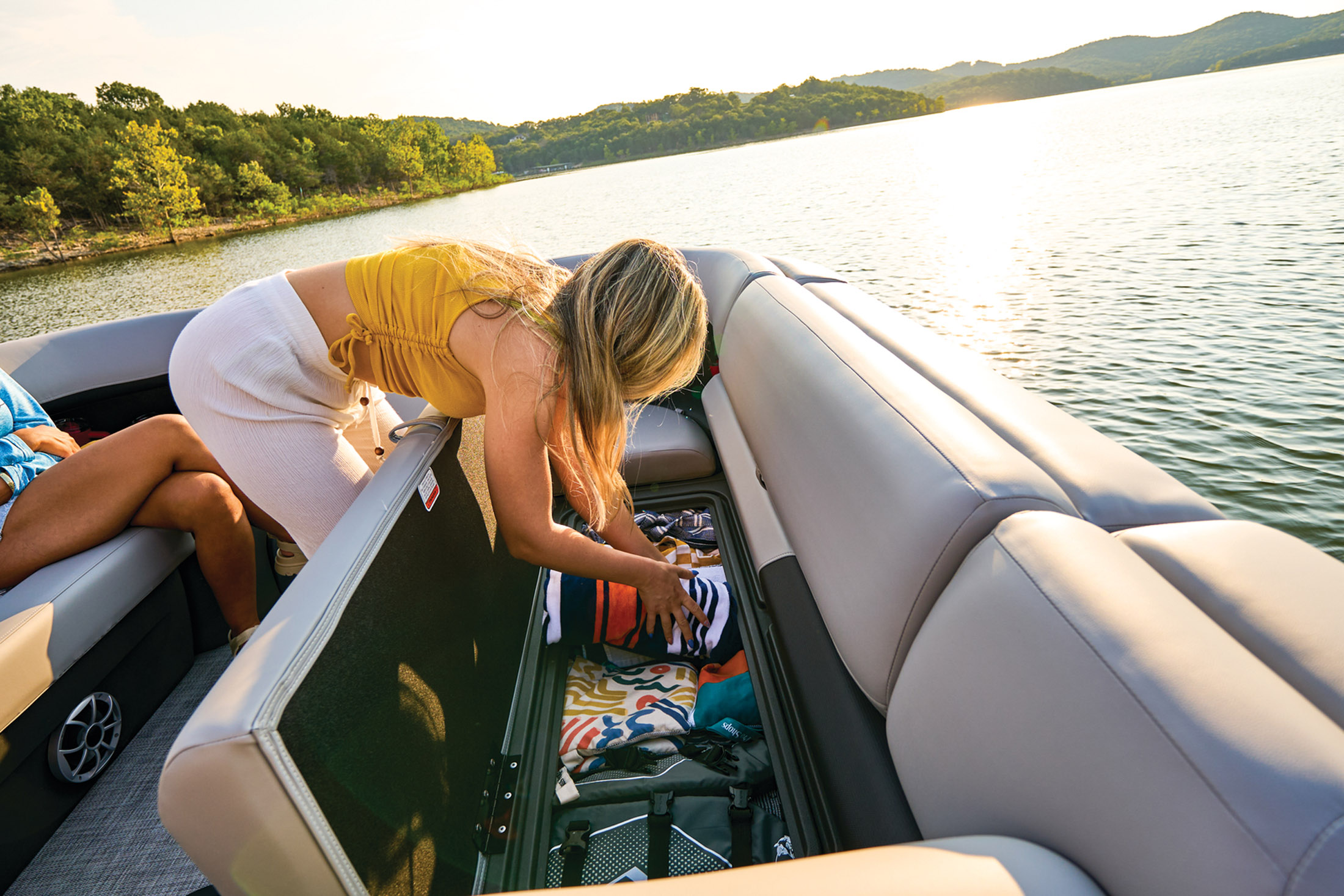

- Patented built-in STOW MORE™ seat-back storage system for all couches
- Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder
- Bow starboard console couch w/STOW MORE™ & underseat storage

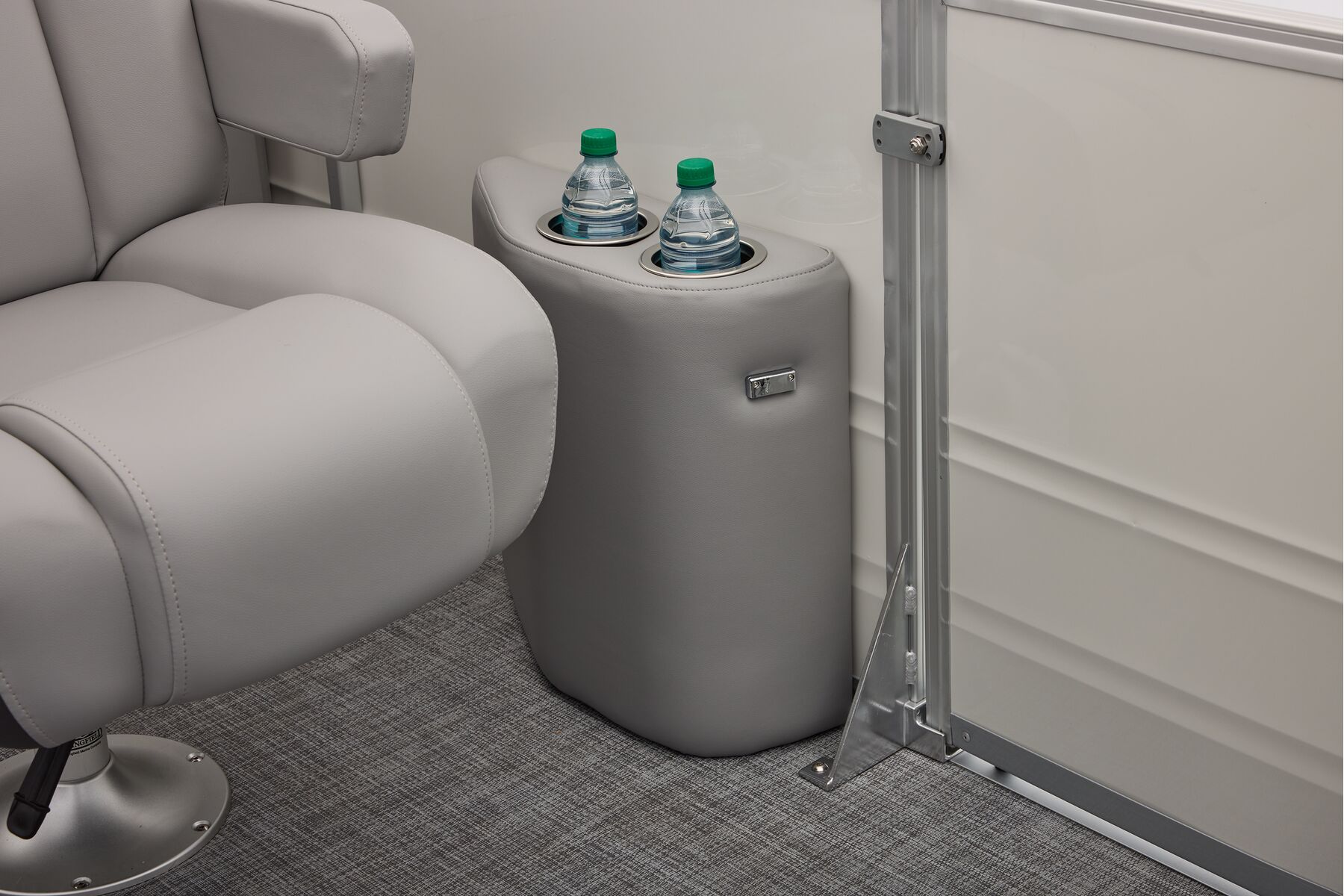

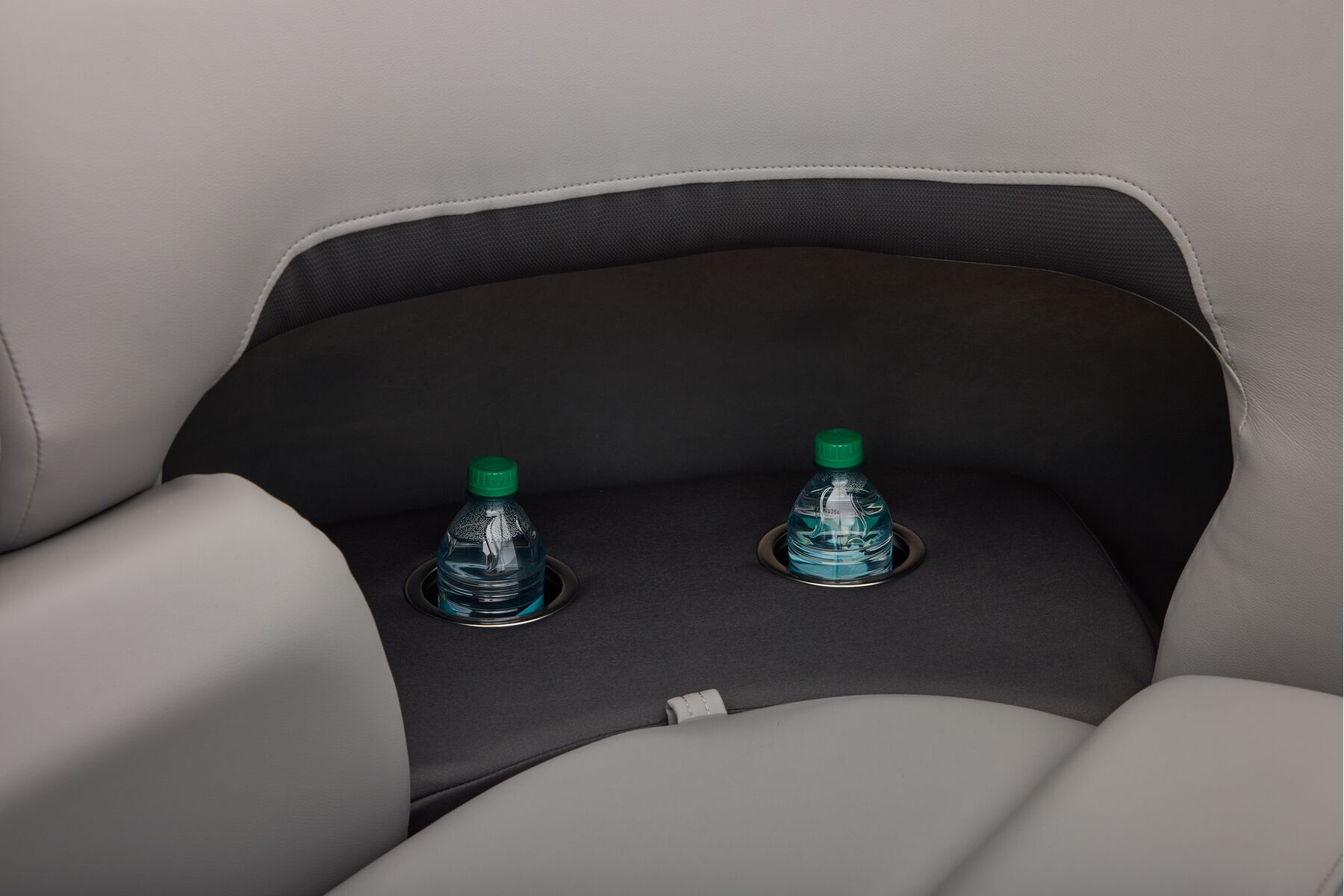

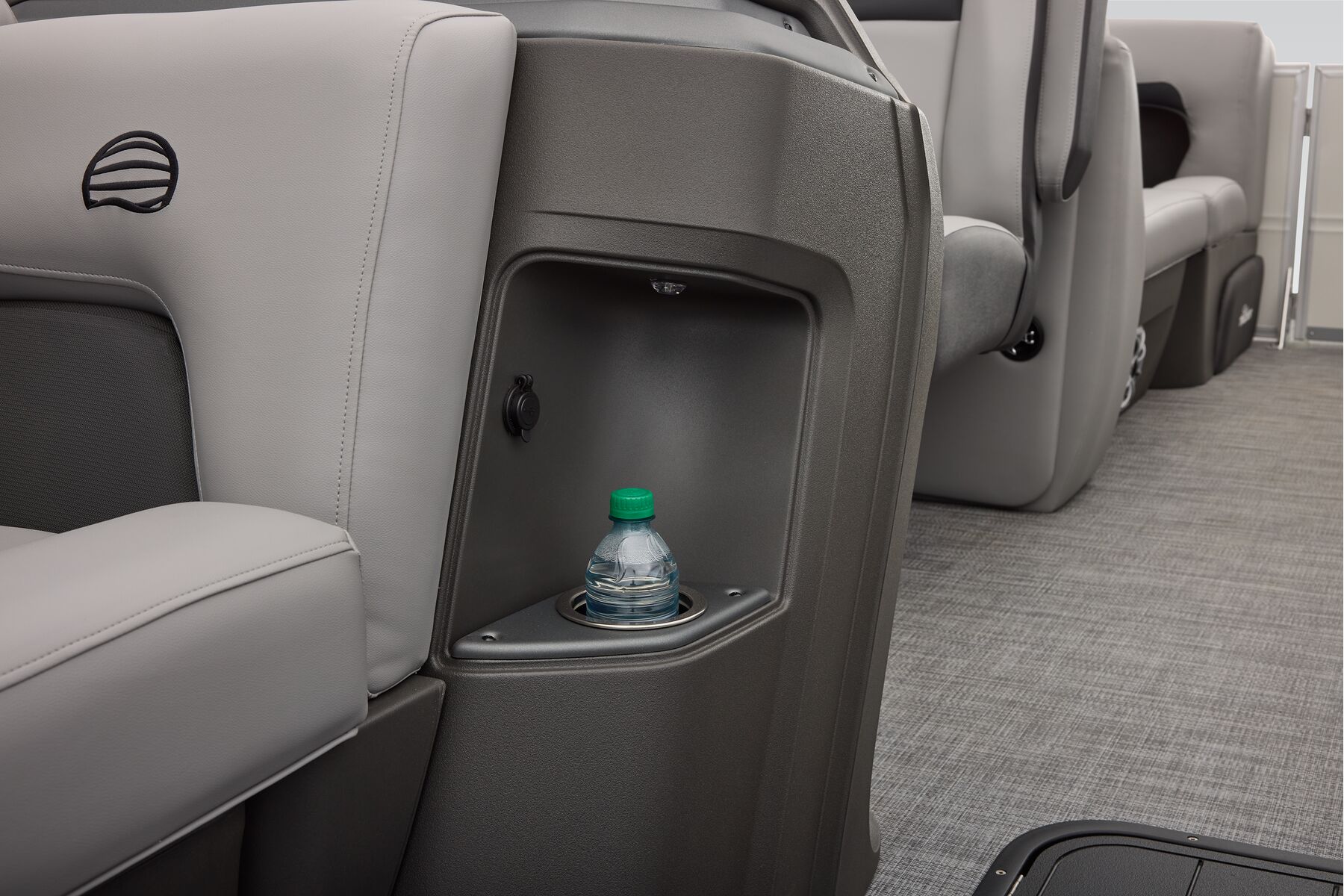

- NEW integrated drink holders w/storage area
- Midship port side drink holder

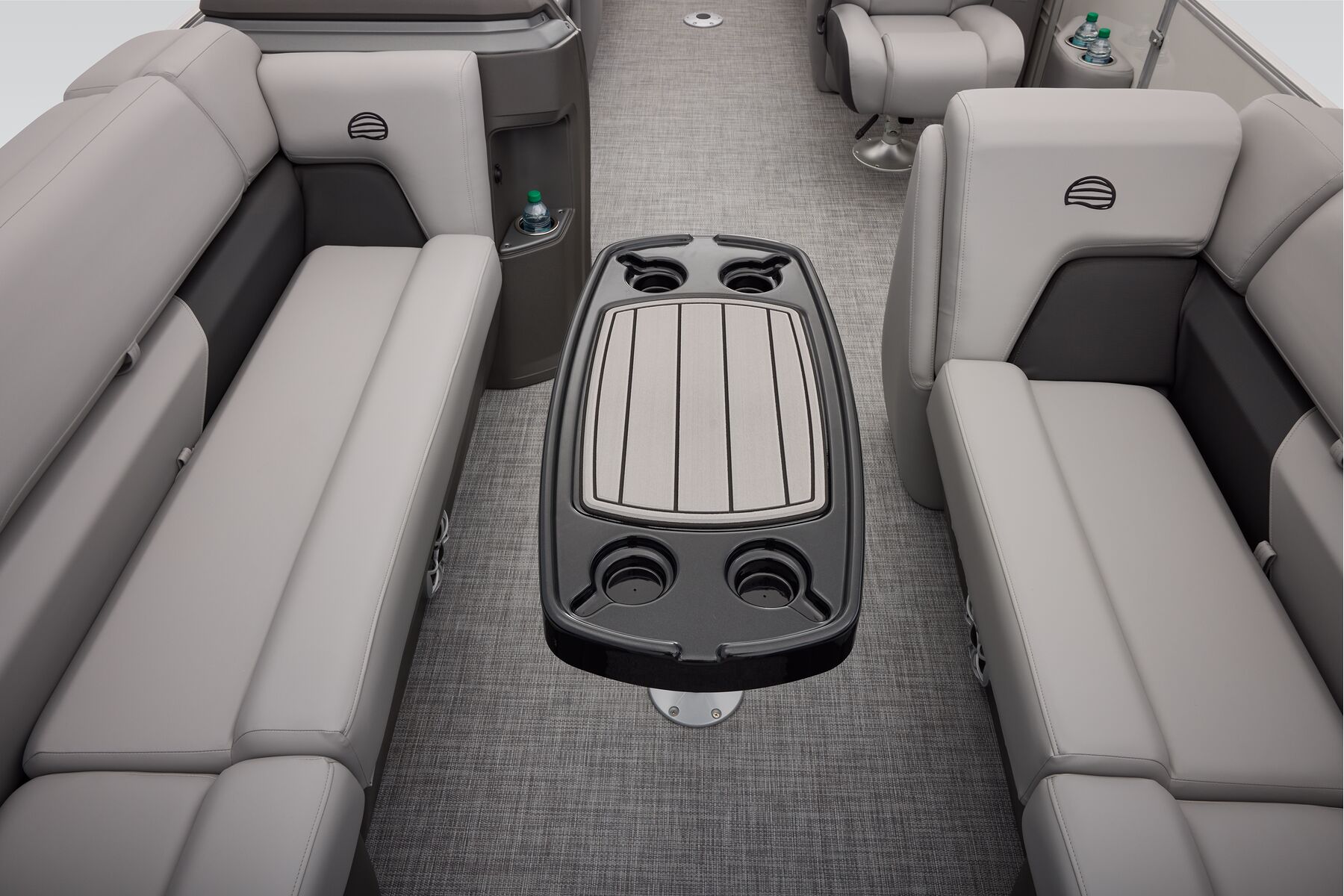

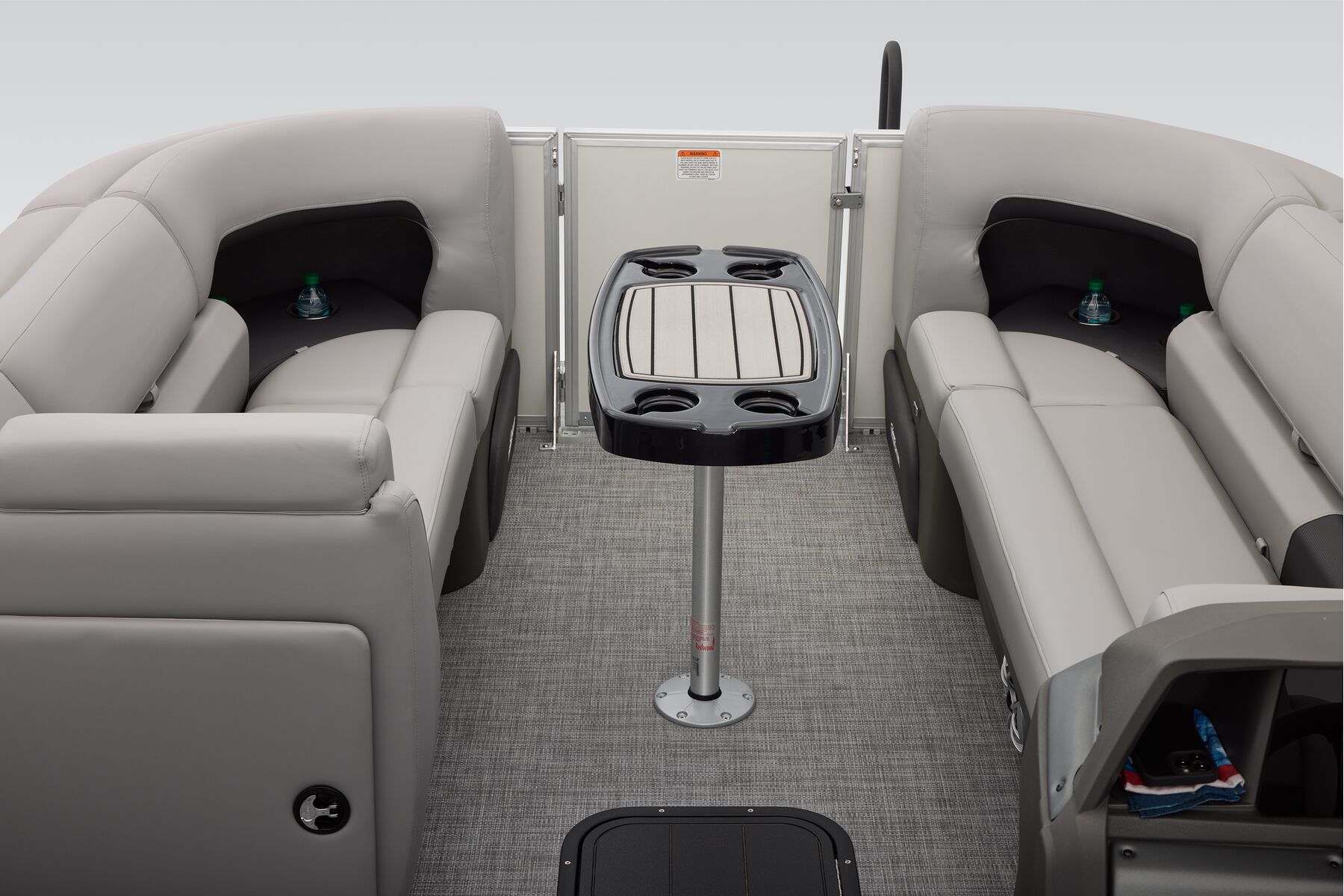

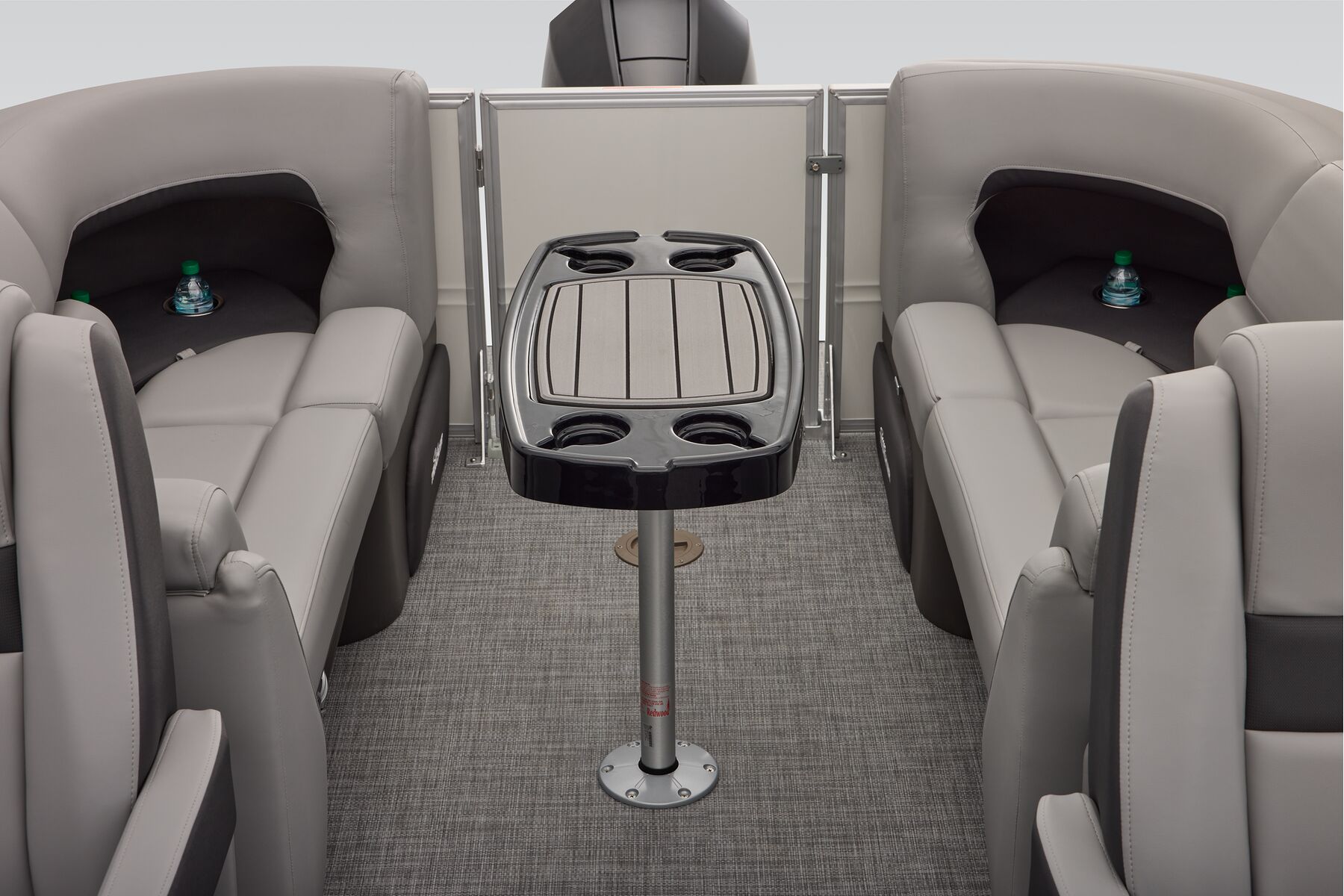

- Removable table w/4 molded-in drink holders; NEW color-coordinated, soft-touch mat; & NEW tailored table location per dealer (dealer installed)

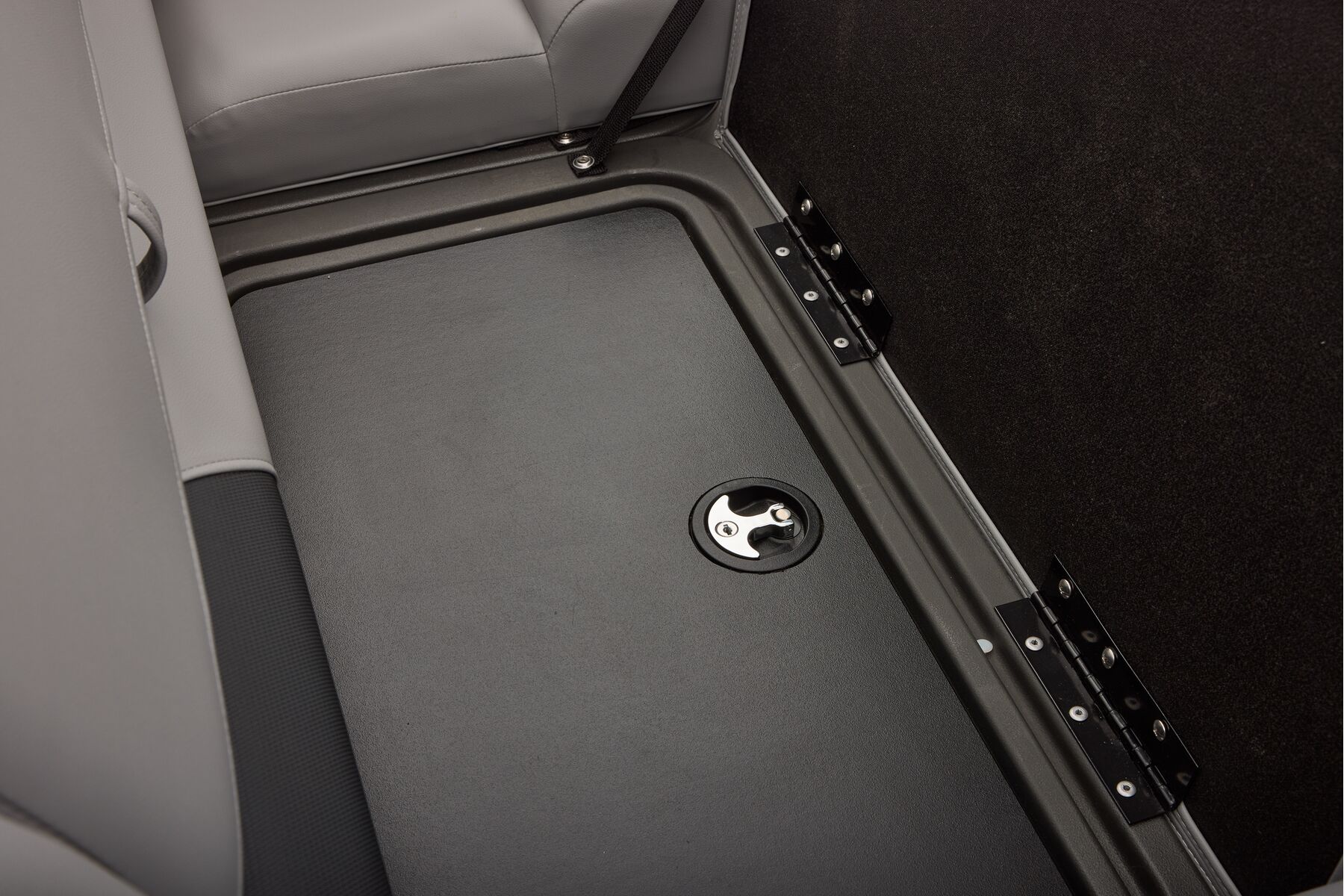

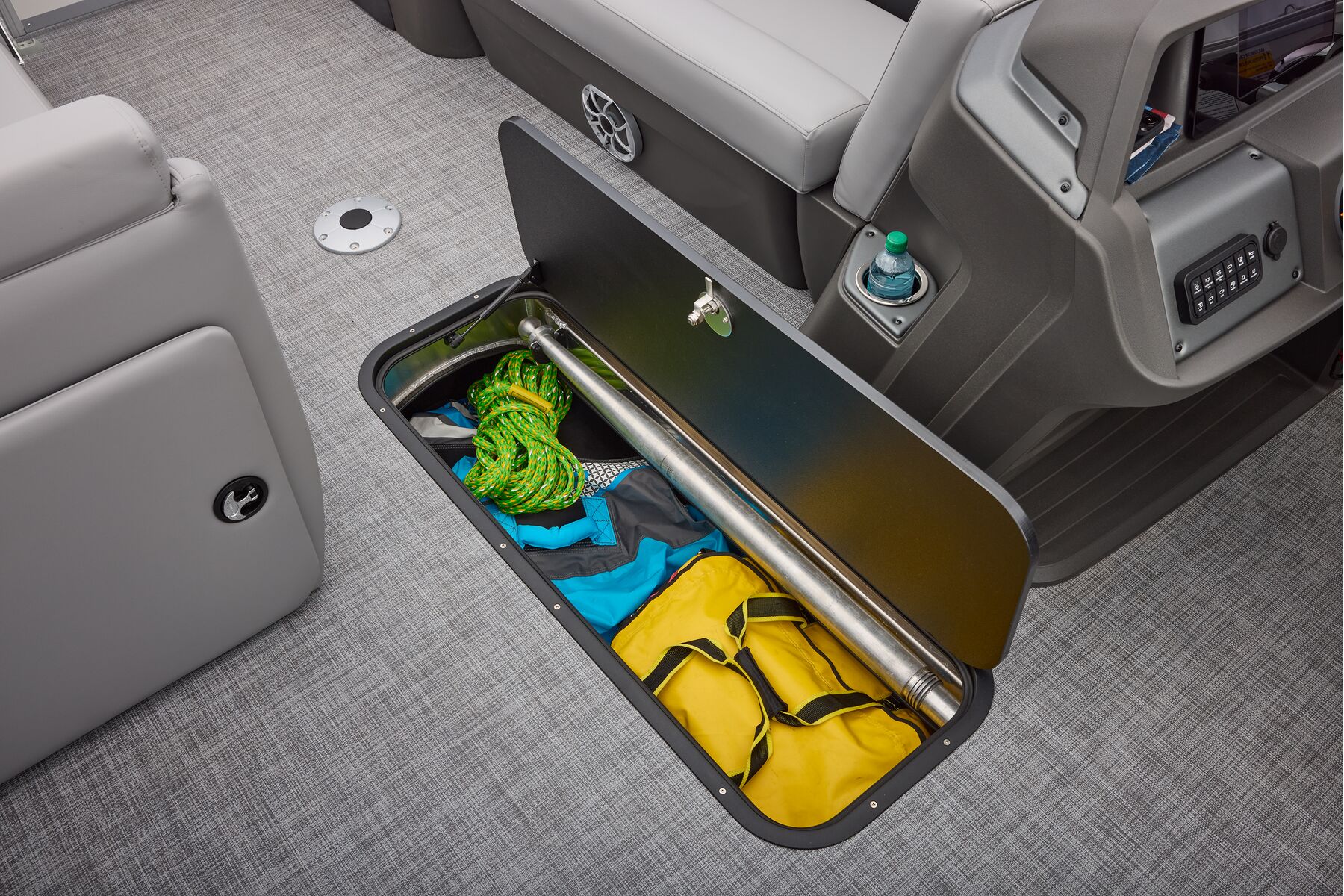

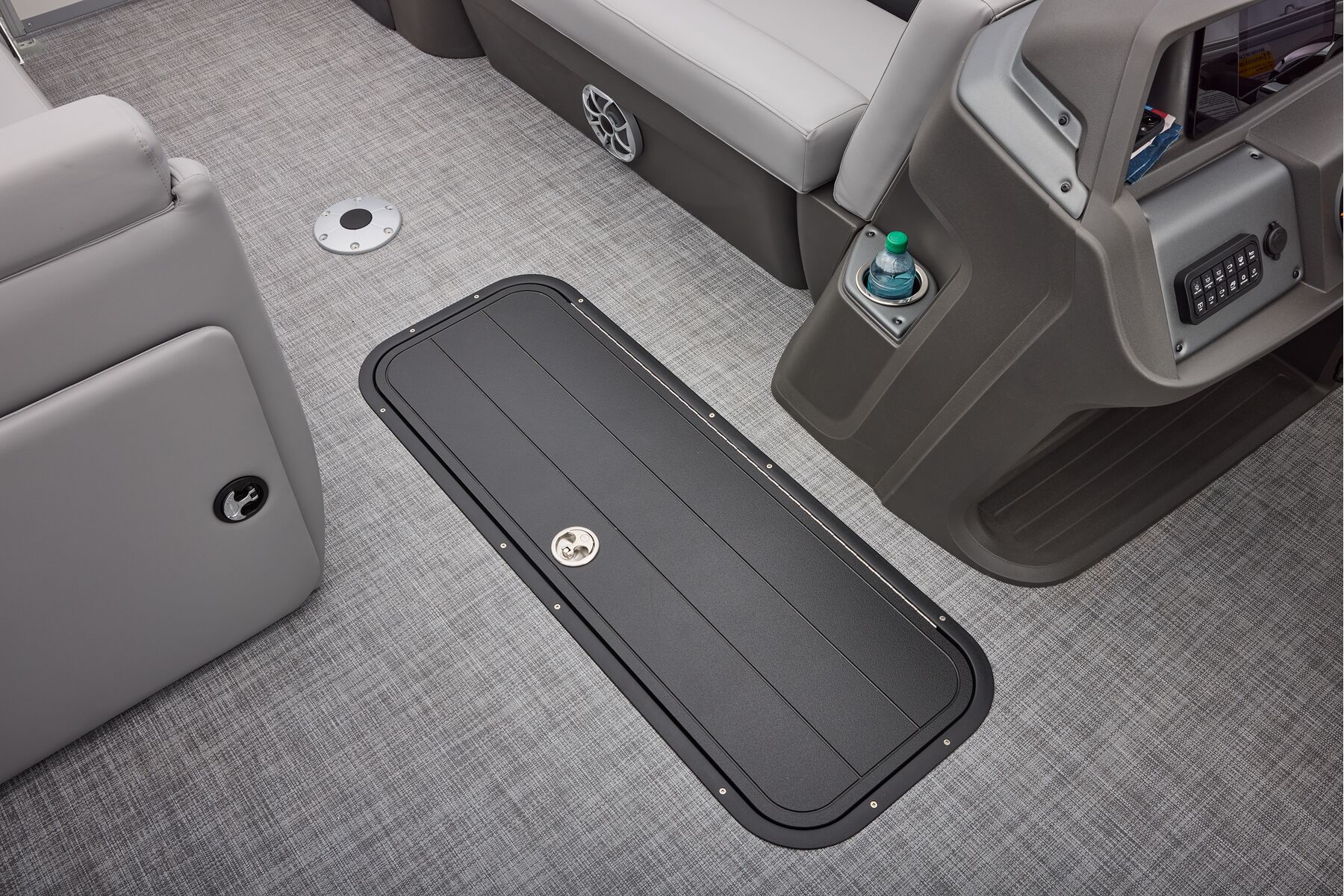

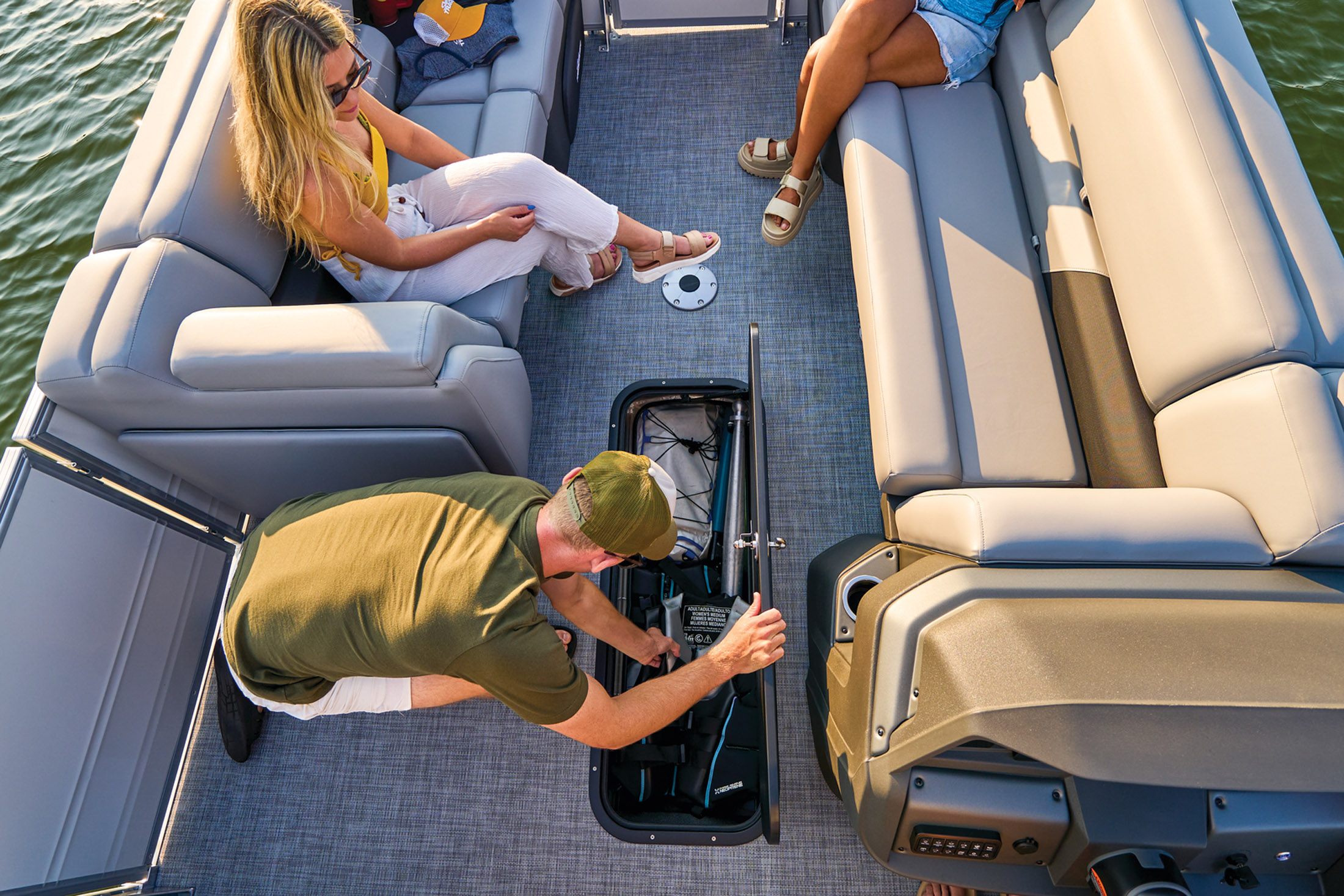

- In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log

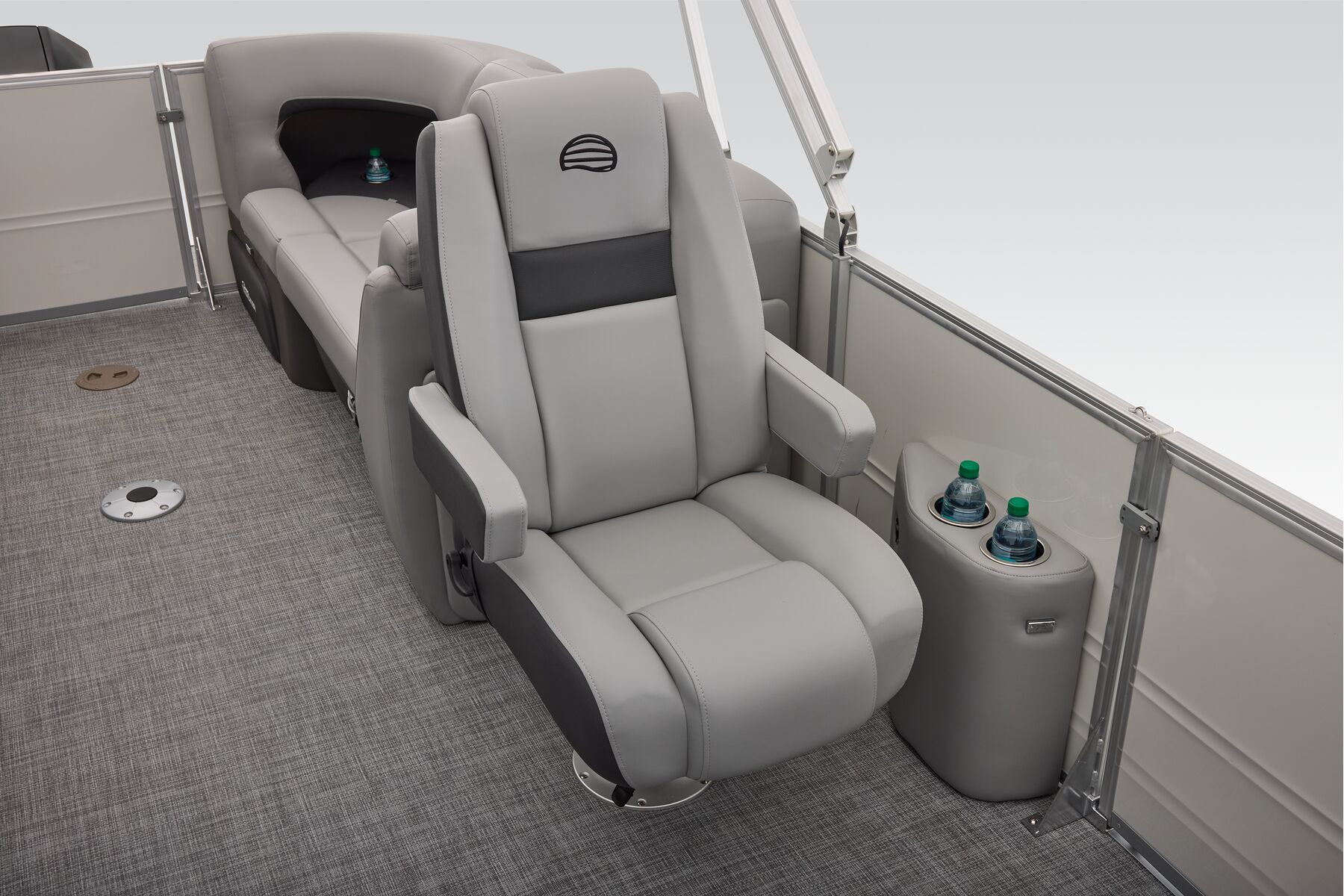

- Reclining, high-back swiveling port & helm bucket seats w/self-leveling armrests

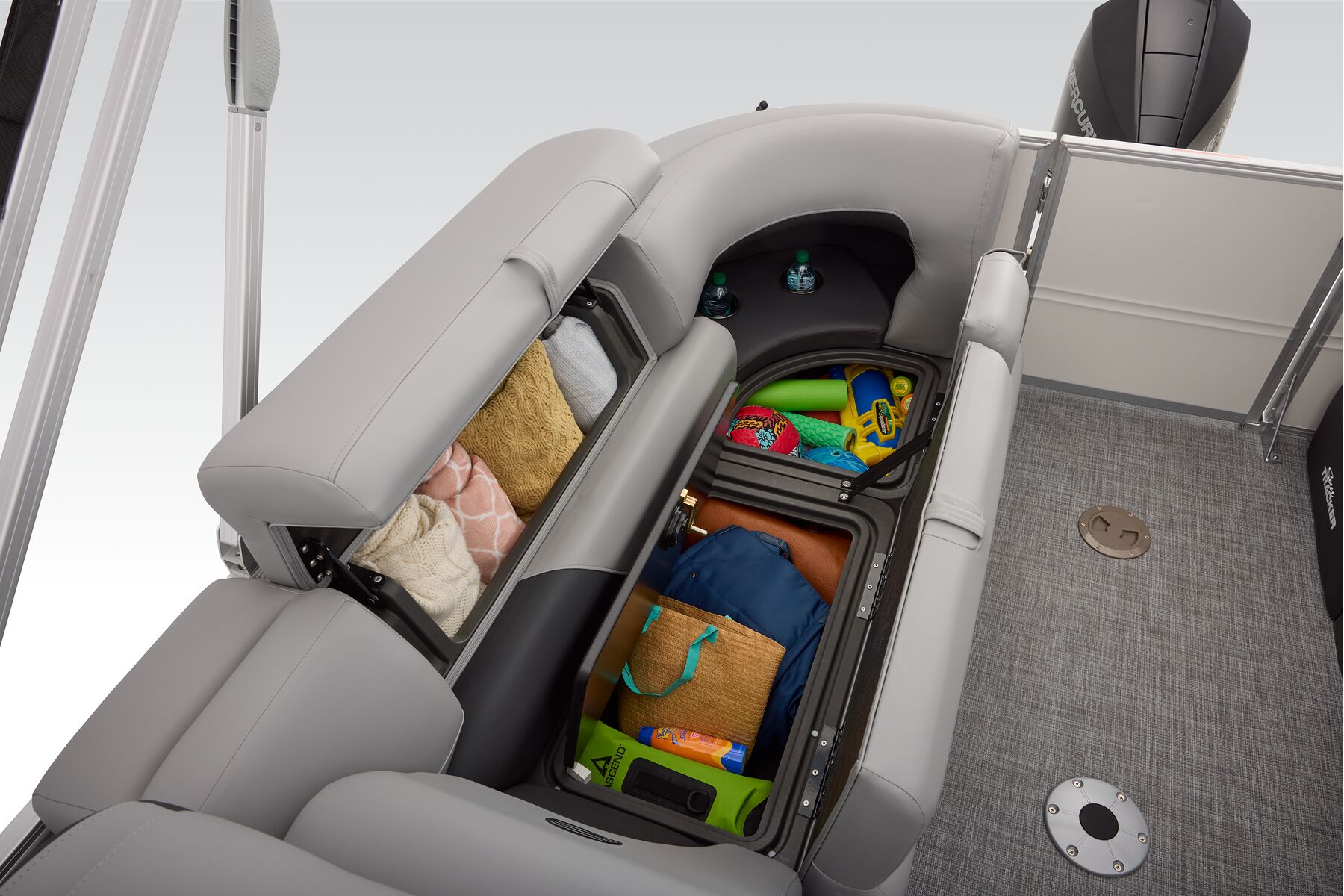

- Aft port couch w/STOW MORE™ & underseat storage
- Aft starboard couch w/STOW MORE™ & underseat, lockable storage

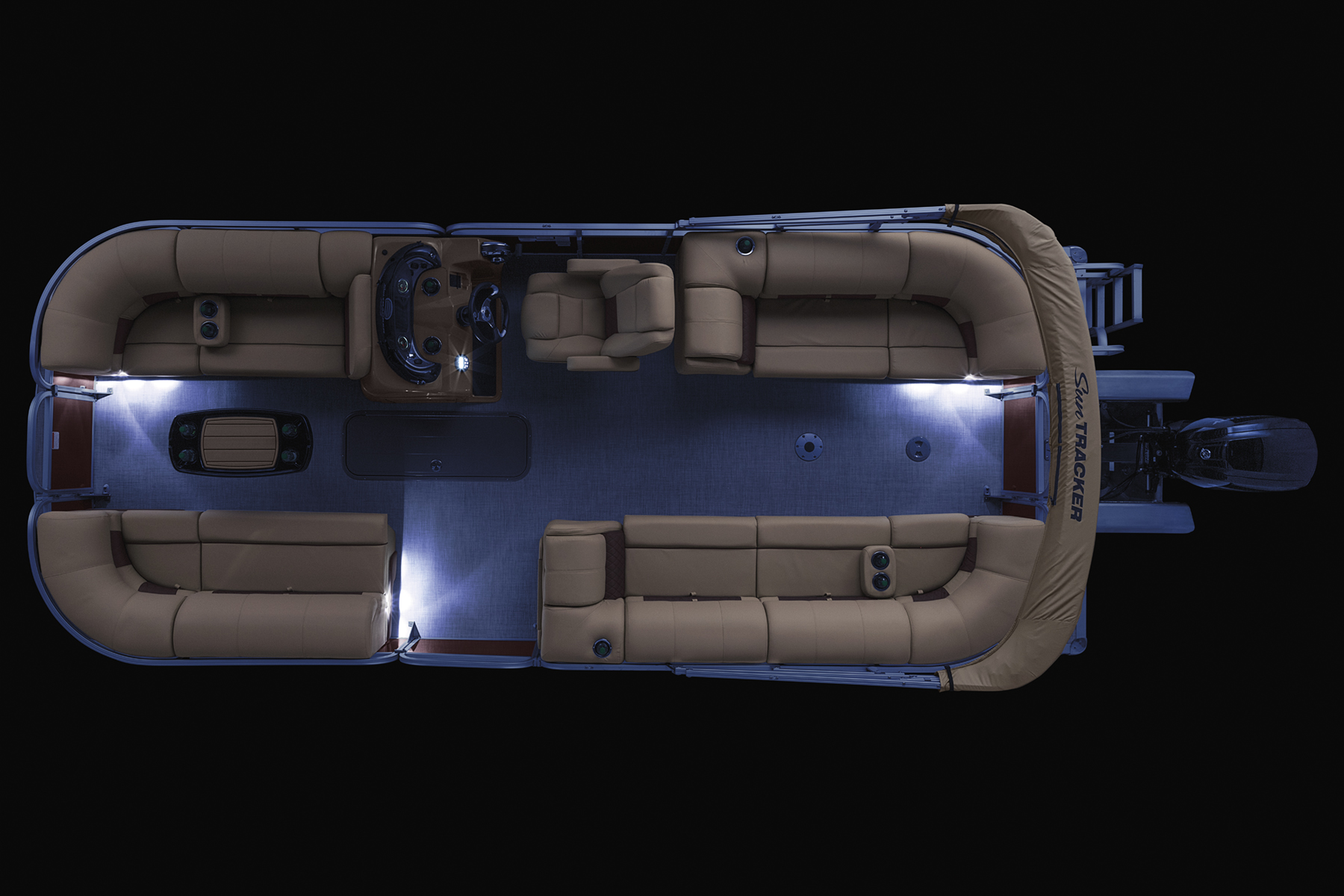

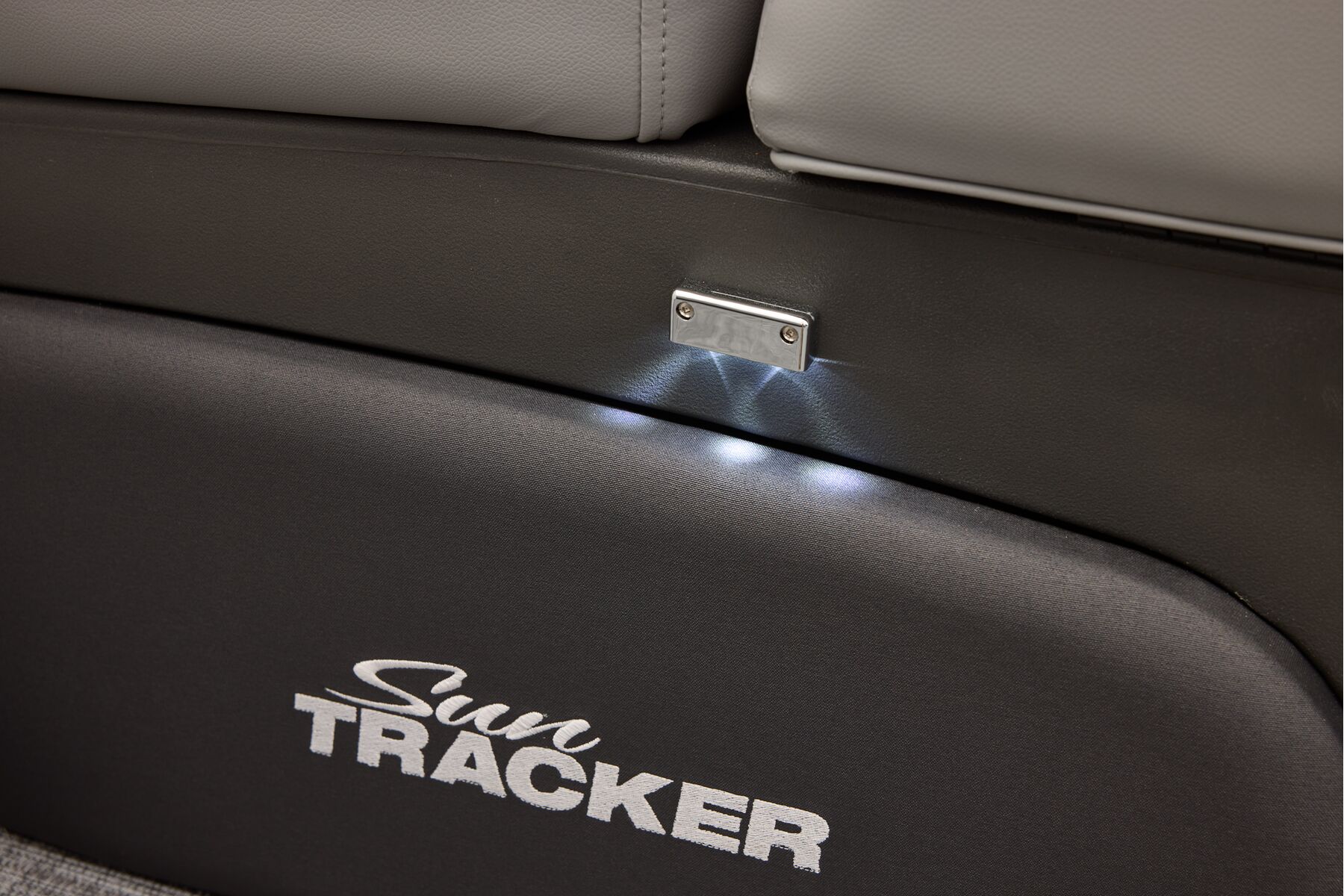

- Interior courtesy lighting
- Full-width aft swim deck

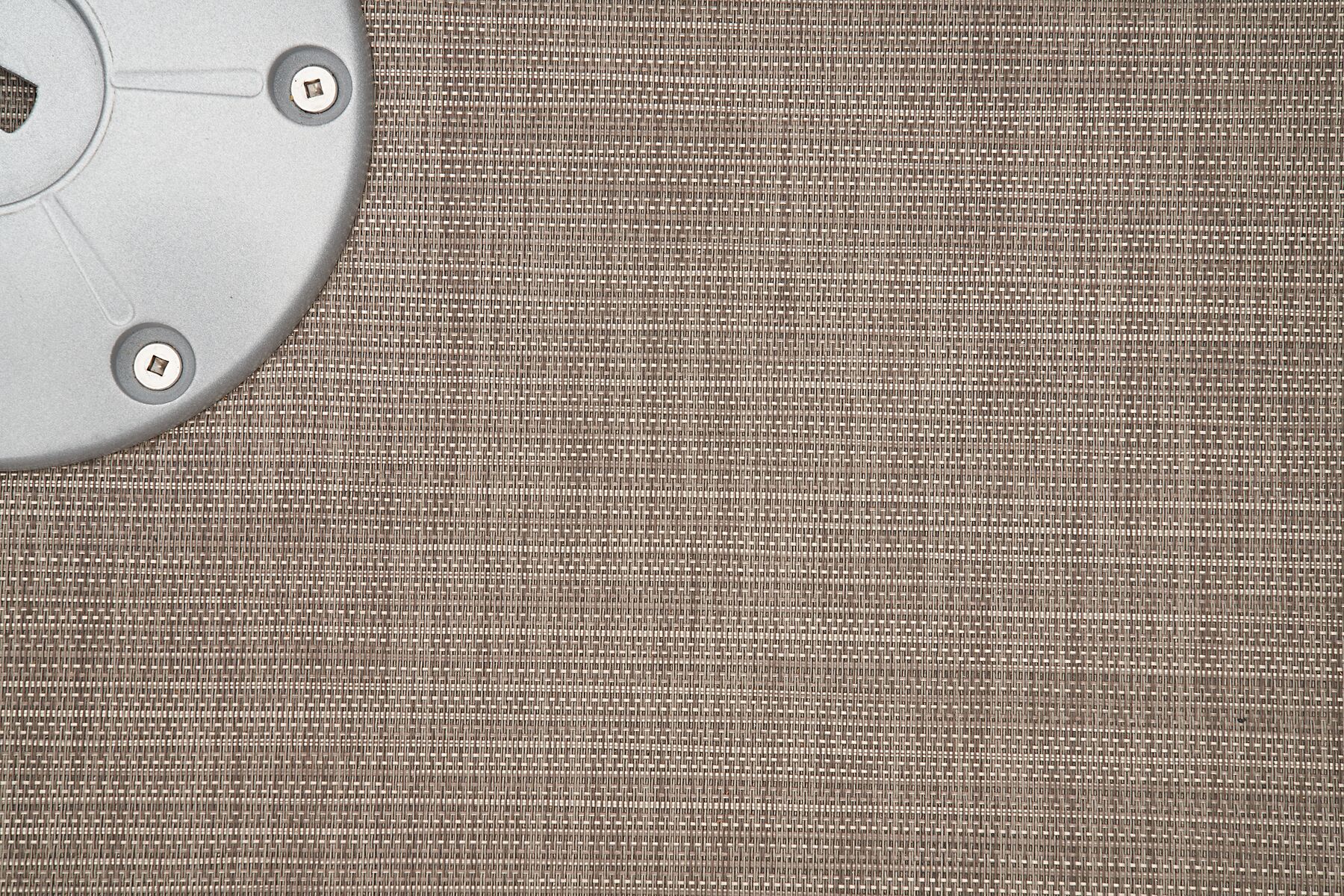

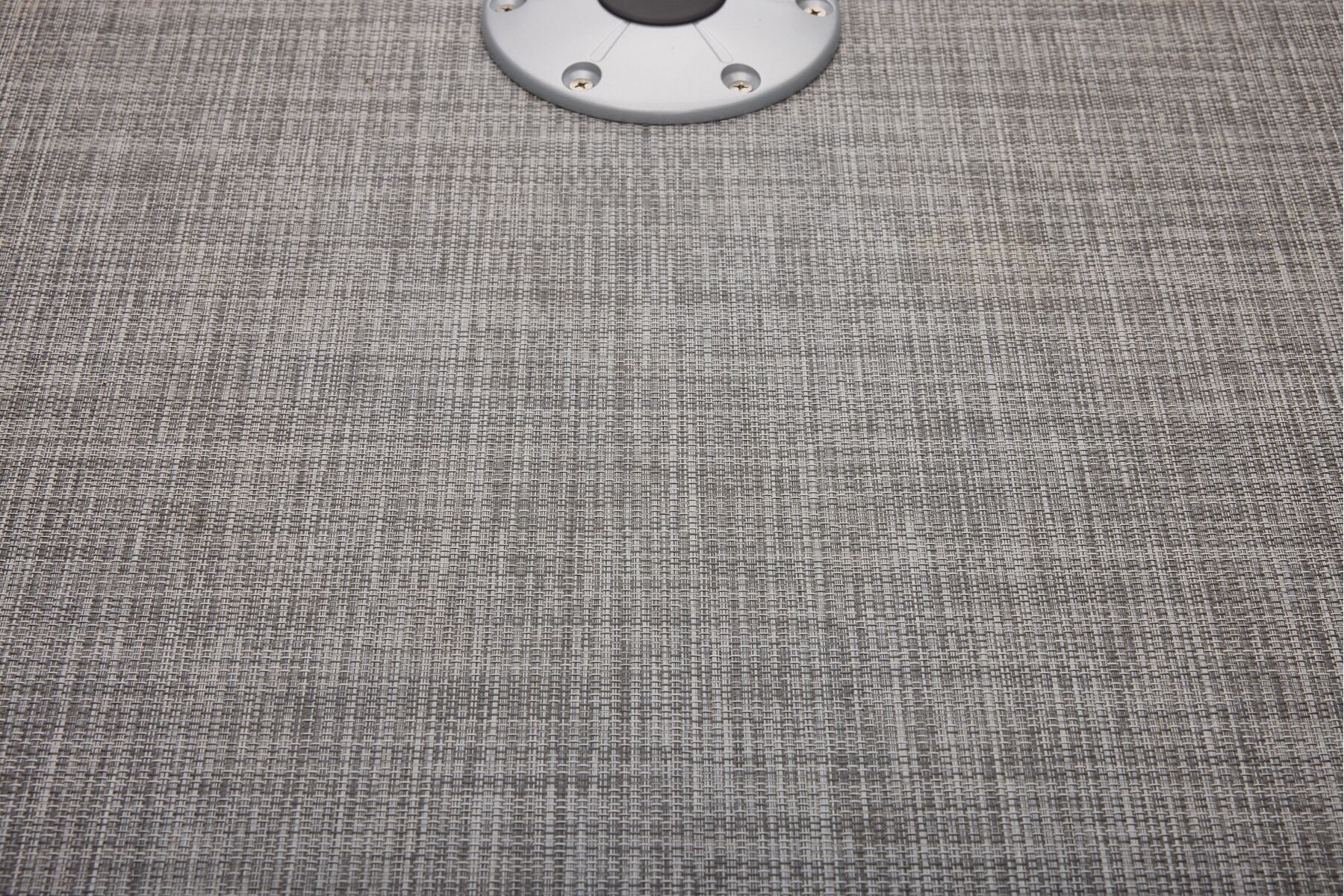

- NEW woven 16-oz. (.45 kg) marine-grade flooring throughout

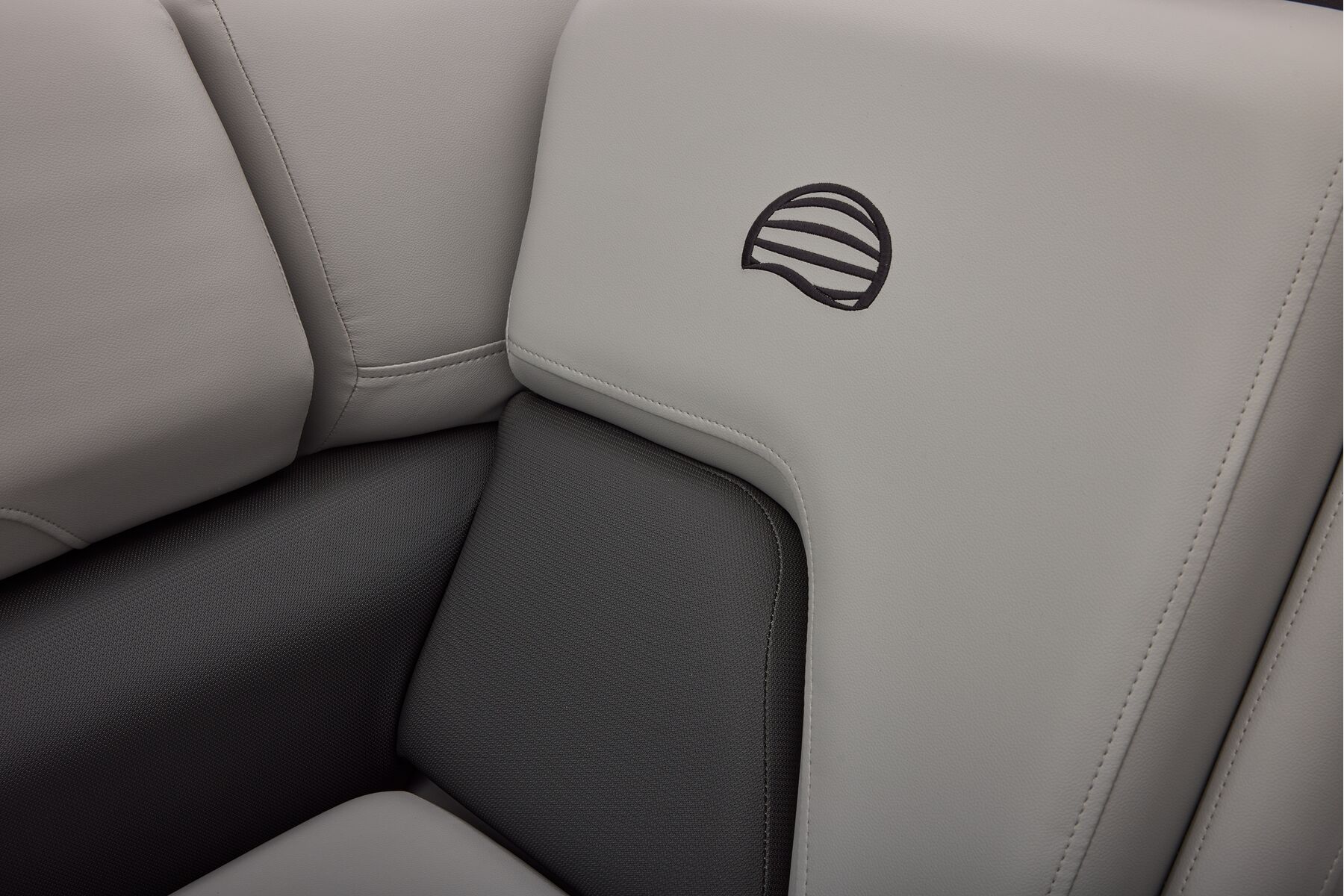

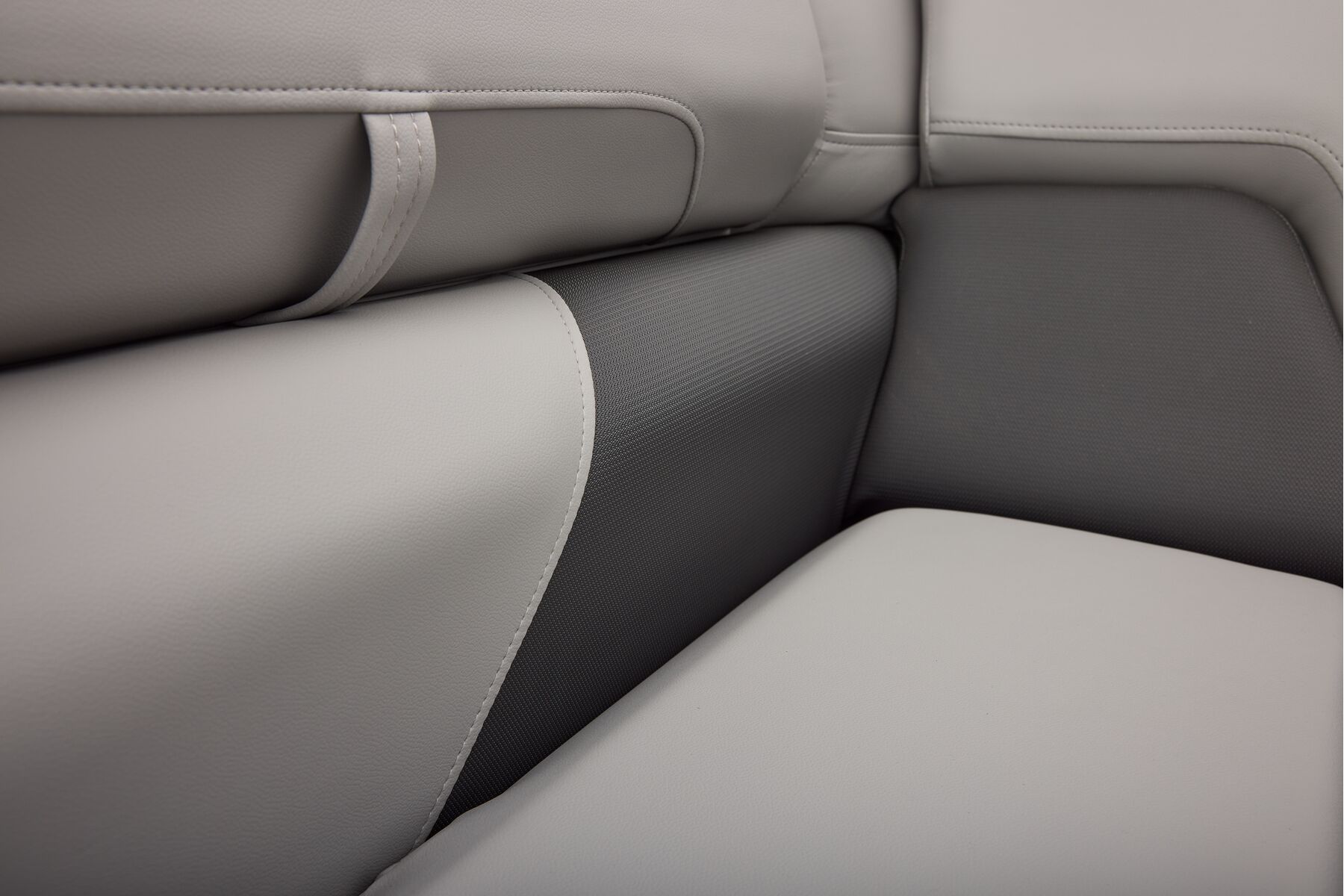

- NEW marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance

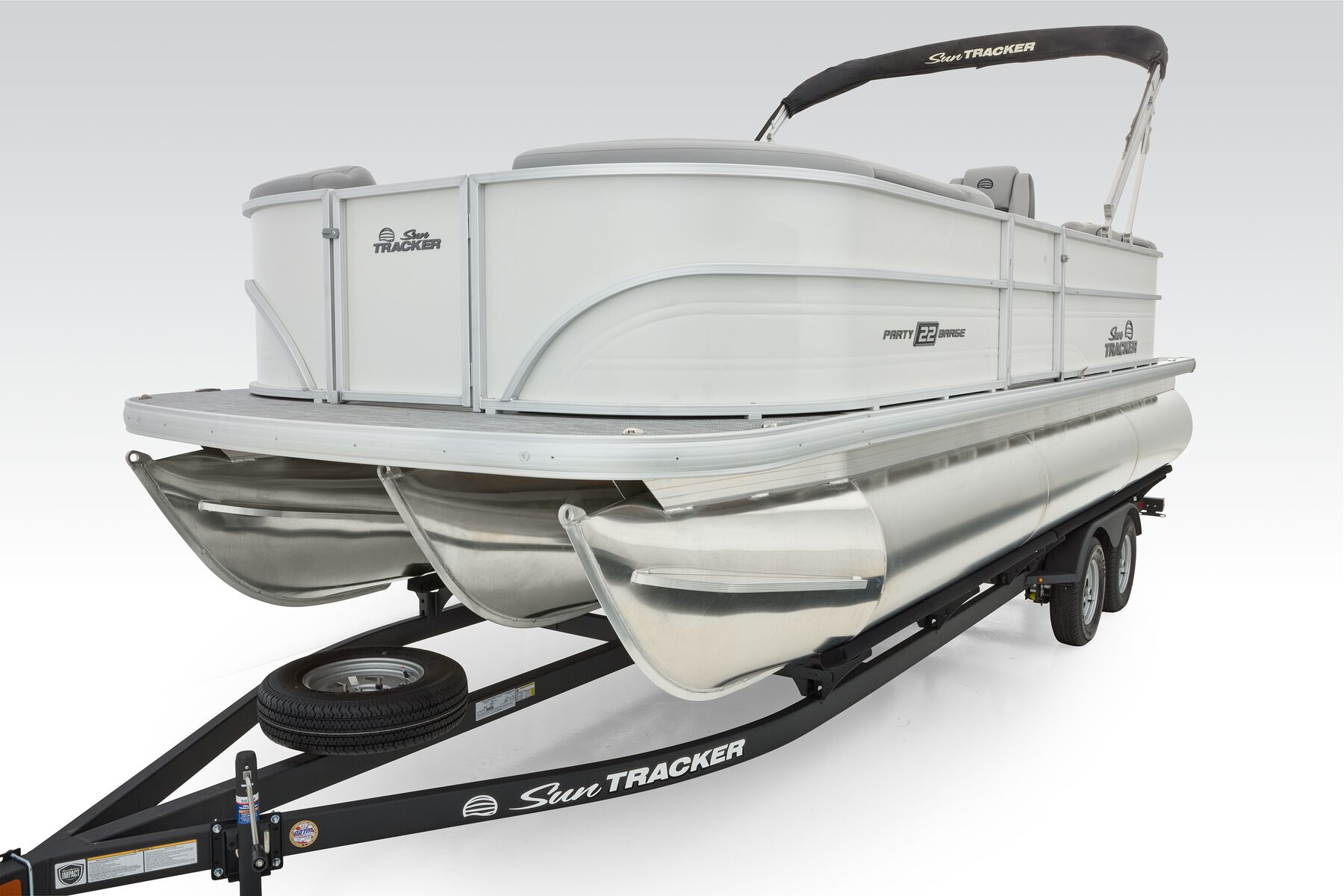

- Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
- XP3 performance strakes & wave-deflecting nose cone for maximum performance
- Full-length, 1-piece longitudinal M-bracket deck supports
- Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
- Heavy-duty aluminum U-channel reinforcement behind bow deck trim
- Reinforced bow & stern structures

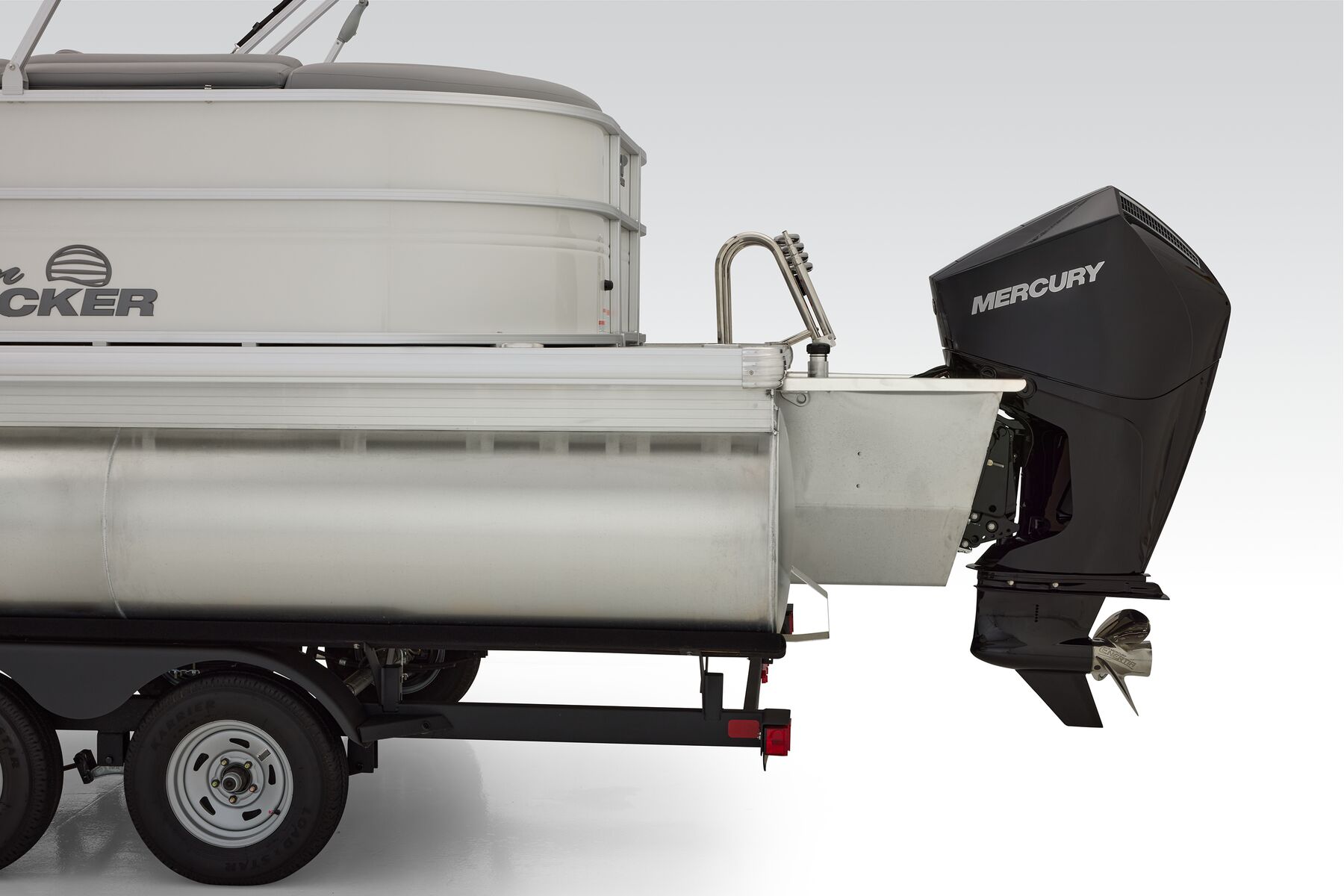

- NEW all-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- All-aluminum box-beam transom for strength & longevity
- Factory-installed underpinning (under-deck shielding) for improved performance
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
- Sound- & vibration-deadening fence insulation for a quiet ride
- Extruded & anodized aluminum deck edging w/polished aft corner covers
- Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
- Rotomolded storage, furniture & console for superior strength & longevity
- Nylon gate latches & heavy-duty hinges that open inward
- Stainless or coated corrosion-resistant fasteners
- Factory-matched aluminum propeller
Exterior
- Color: NEW Heritage Red, NEW Pearl White, NEW Sky Blue or NEW Starlite Black fencing
- NEW graphics

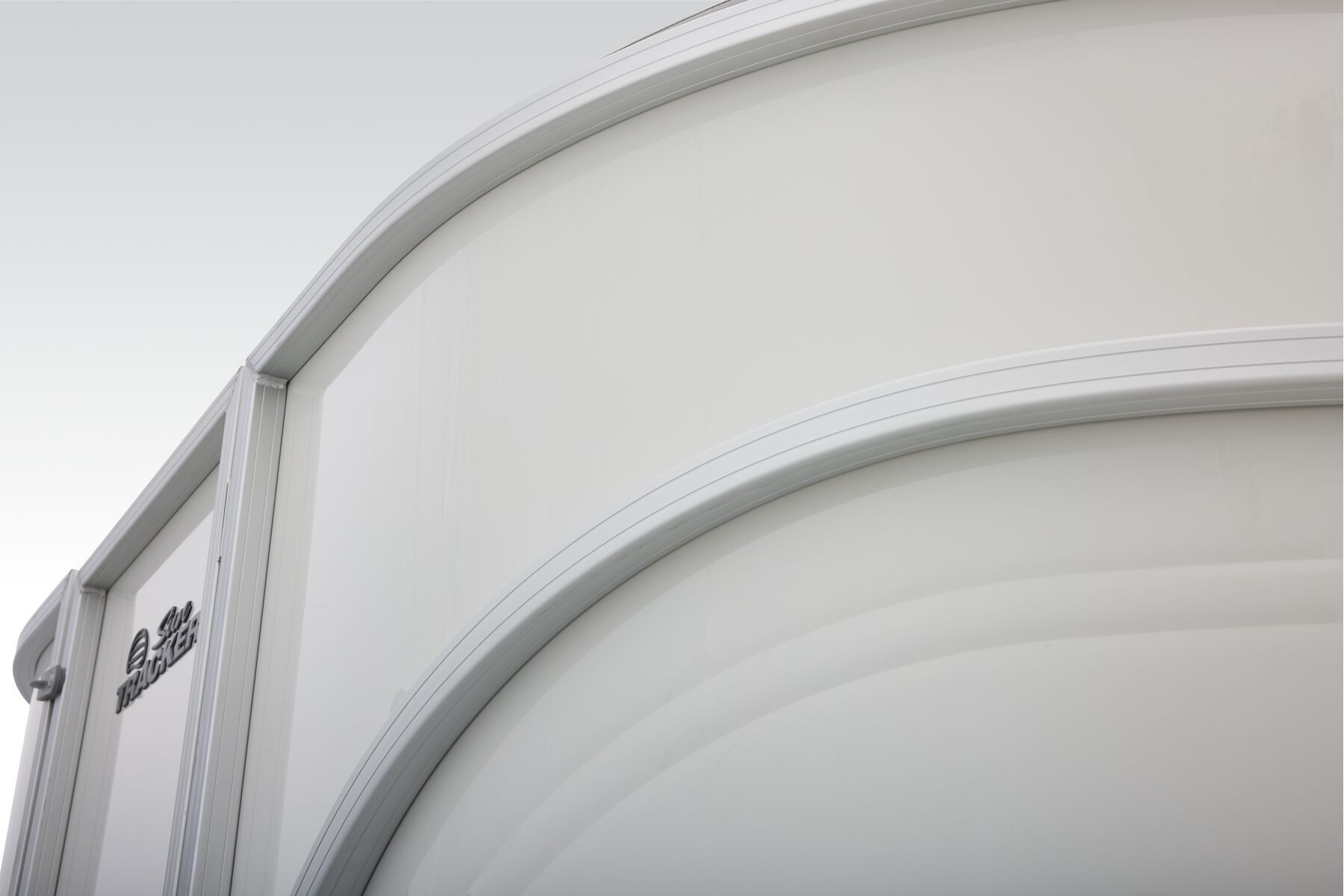

- Patent-pending TRACK FORMED® fence design w/high-sheen finish for long-lasting cosmetics
- NEW redesigned fencing, gates & color

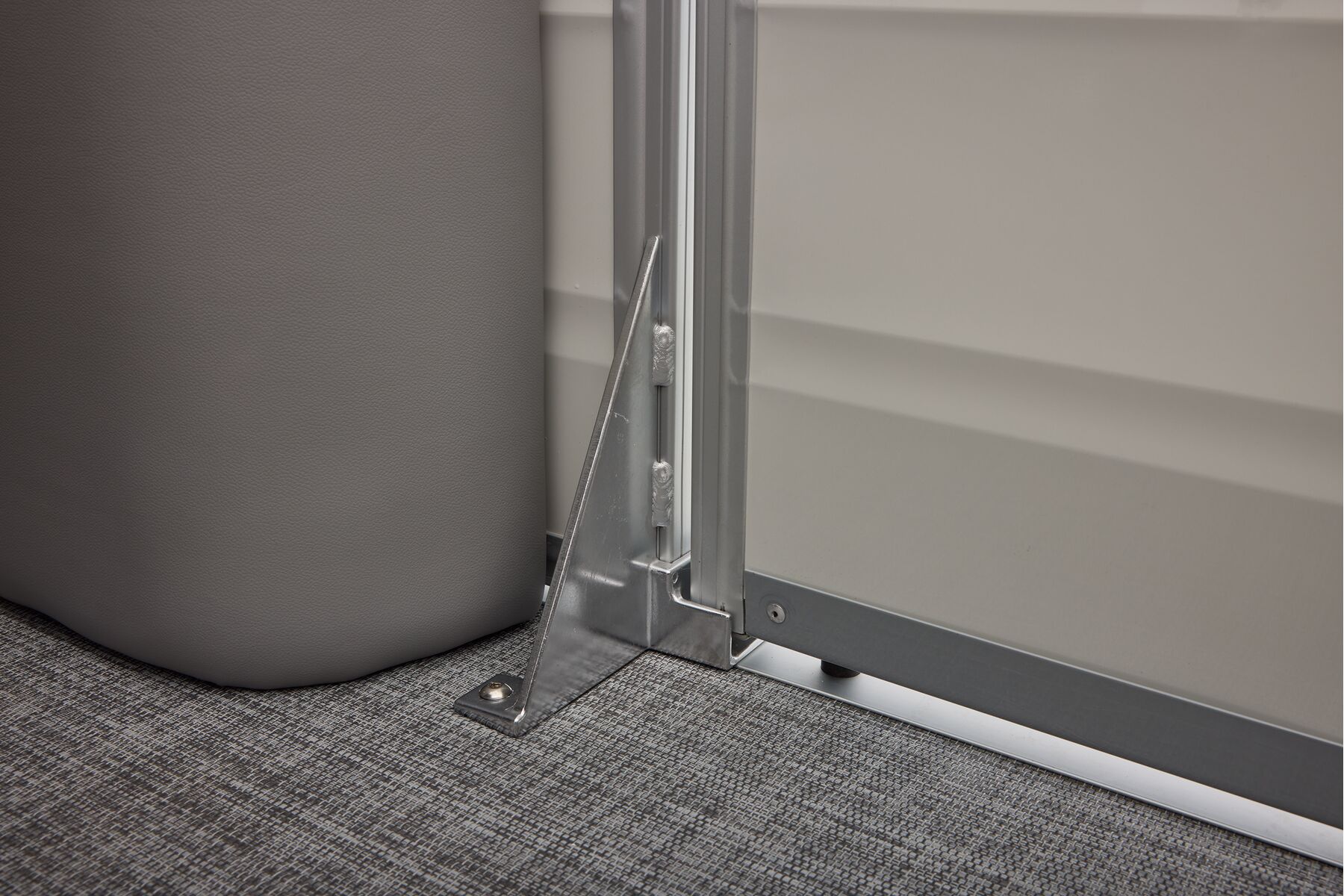

- NEW full-height, elevated fence panels for deck drainage & ventilation
Electrical
- 500 GPH (1,893 LPH) Ultima automatic bilge pump

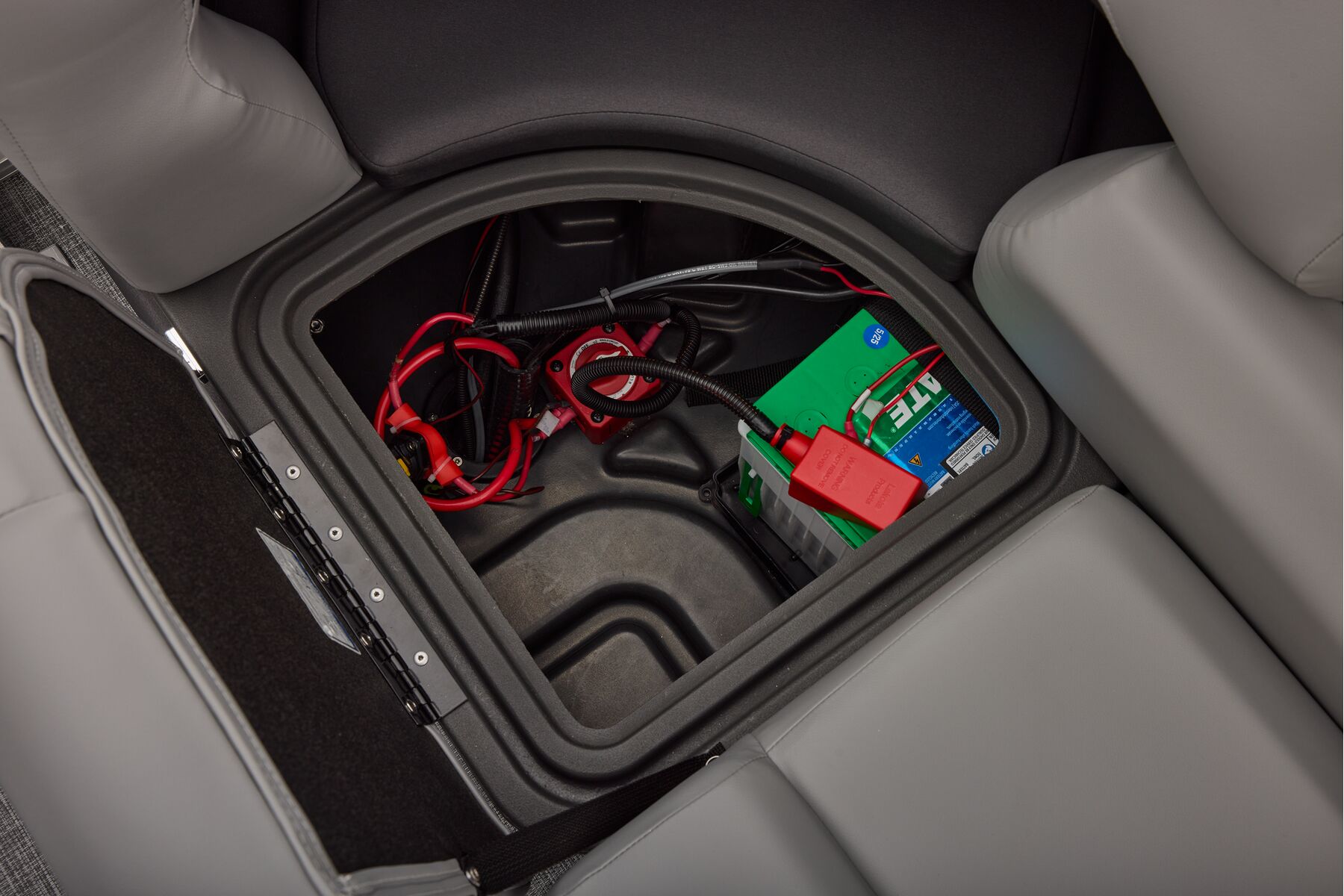

- Battery disconnect switch
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
Options
Note: SunTracker’s innovative new FLARE touchscreen gauge display relies on proprietary digital engine data not available from all engines. Boats equipped with optional Mercury 9.9ELPT FourStroke or 20ELPT FourStroke engines will experience limited monitoring capability. See dealer for details.
