Party Barge 22 DLX

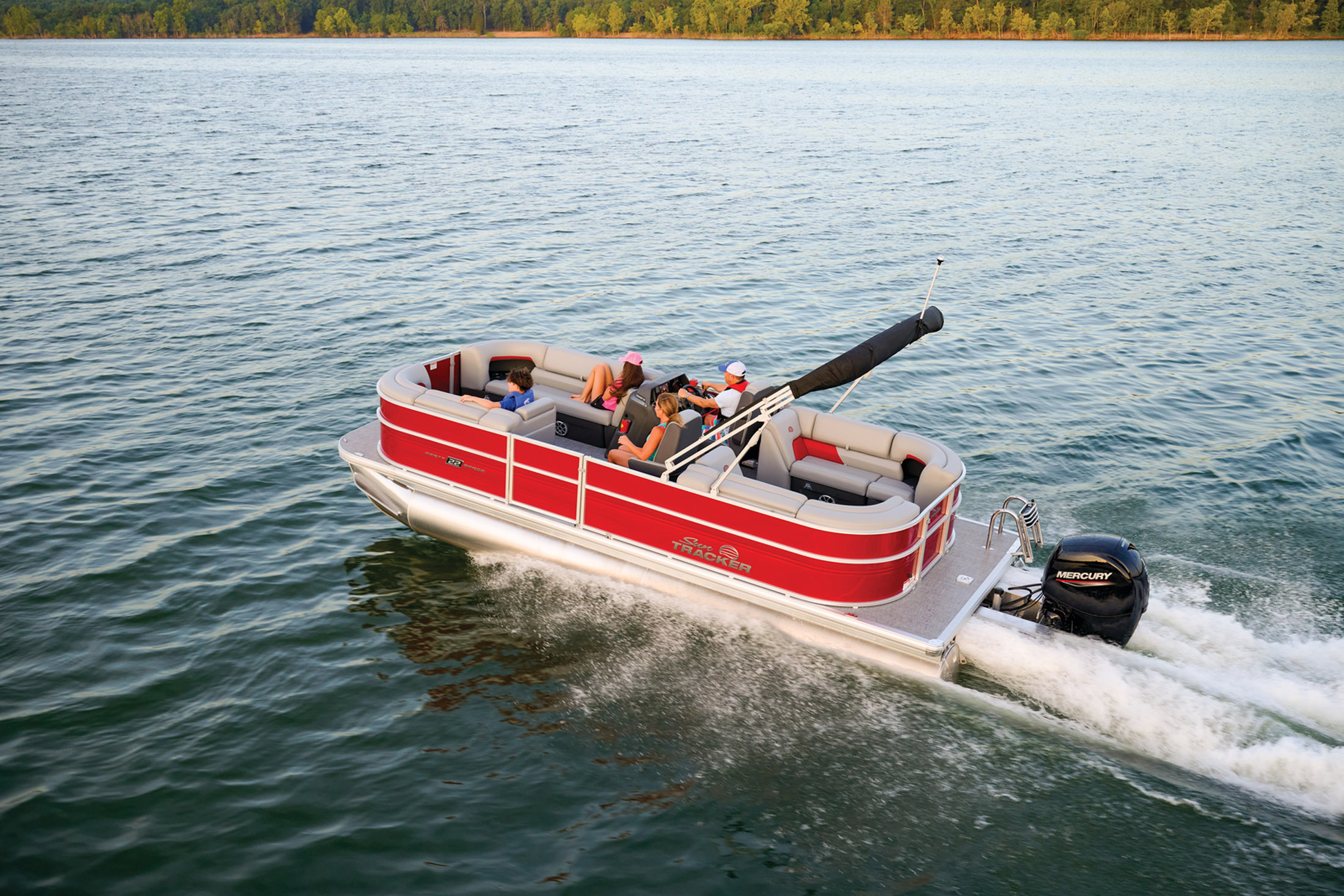

* PREVIOUS MODEL YEAR LOCATION IMAGES SHOWN
2023

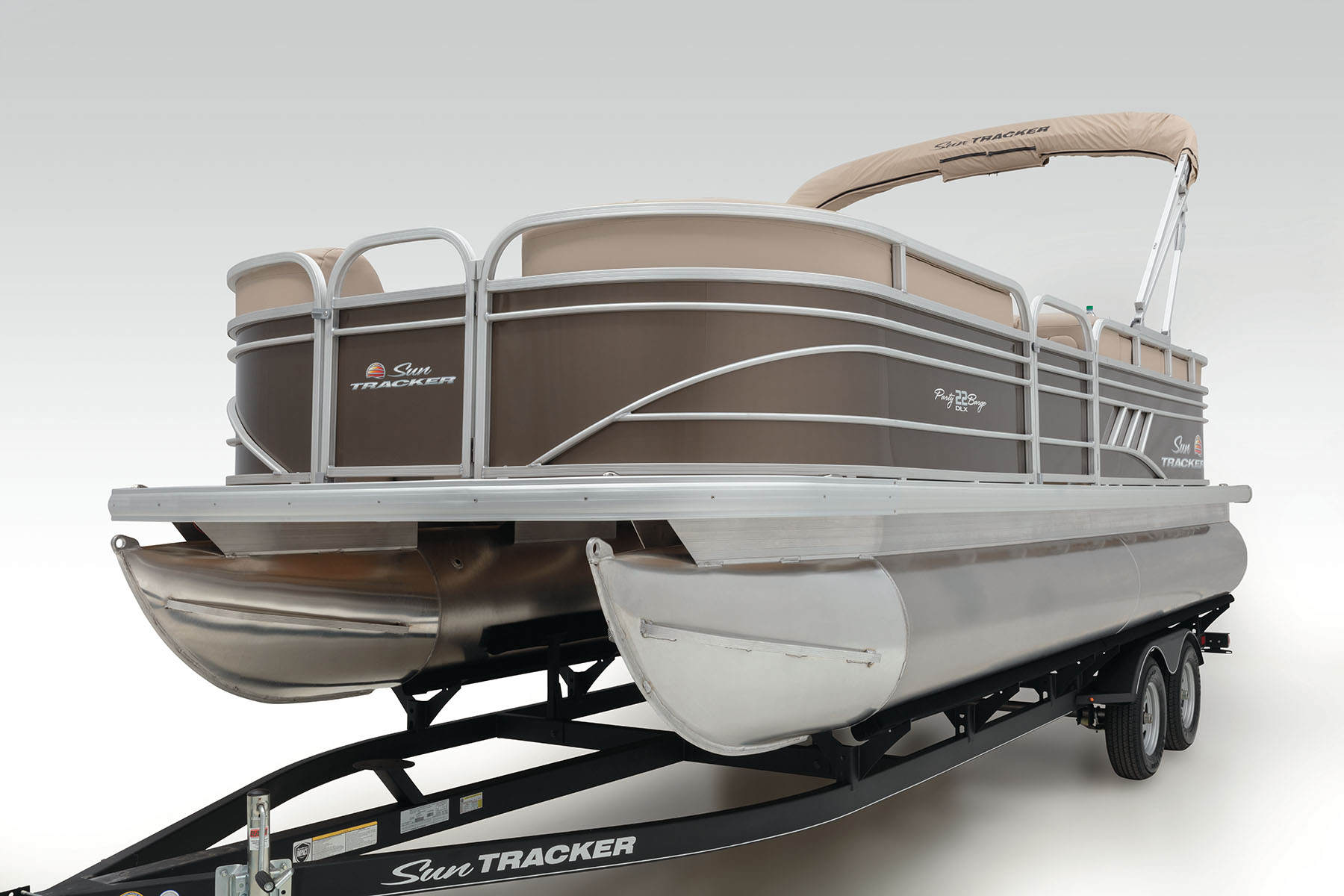

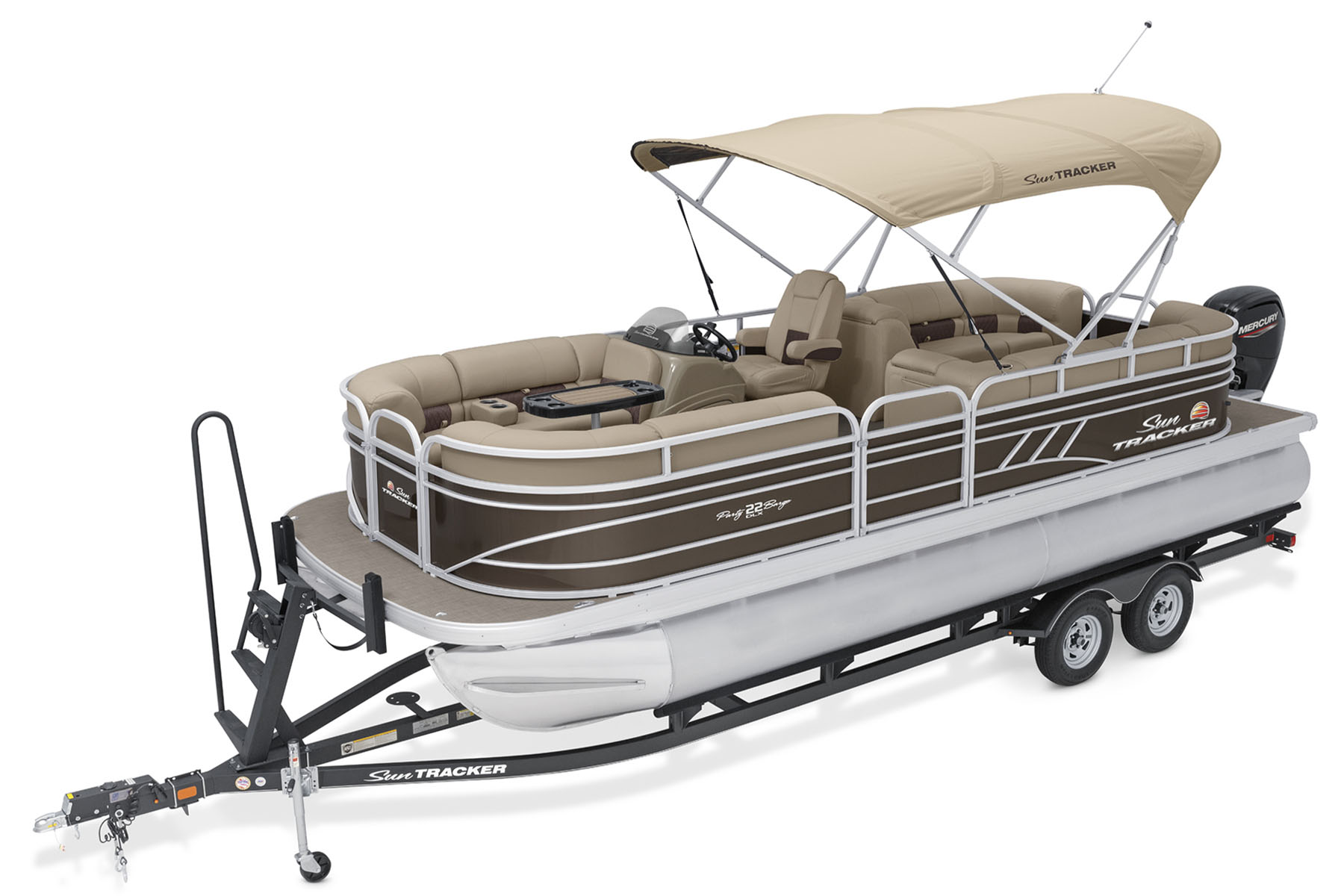

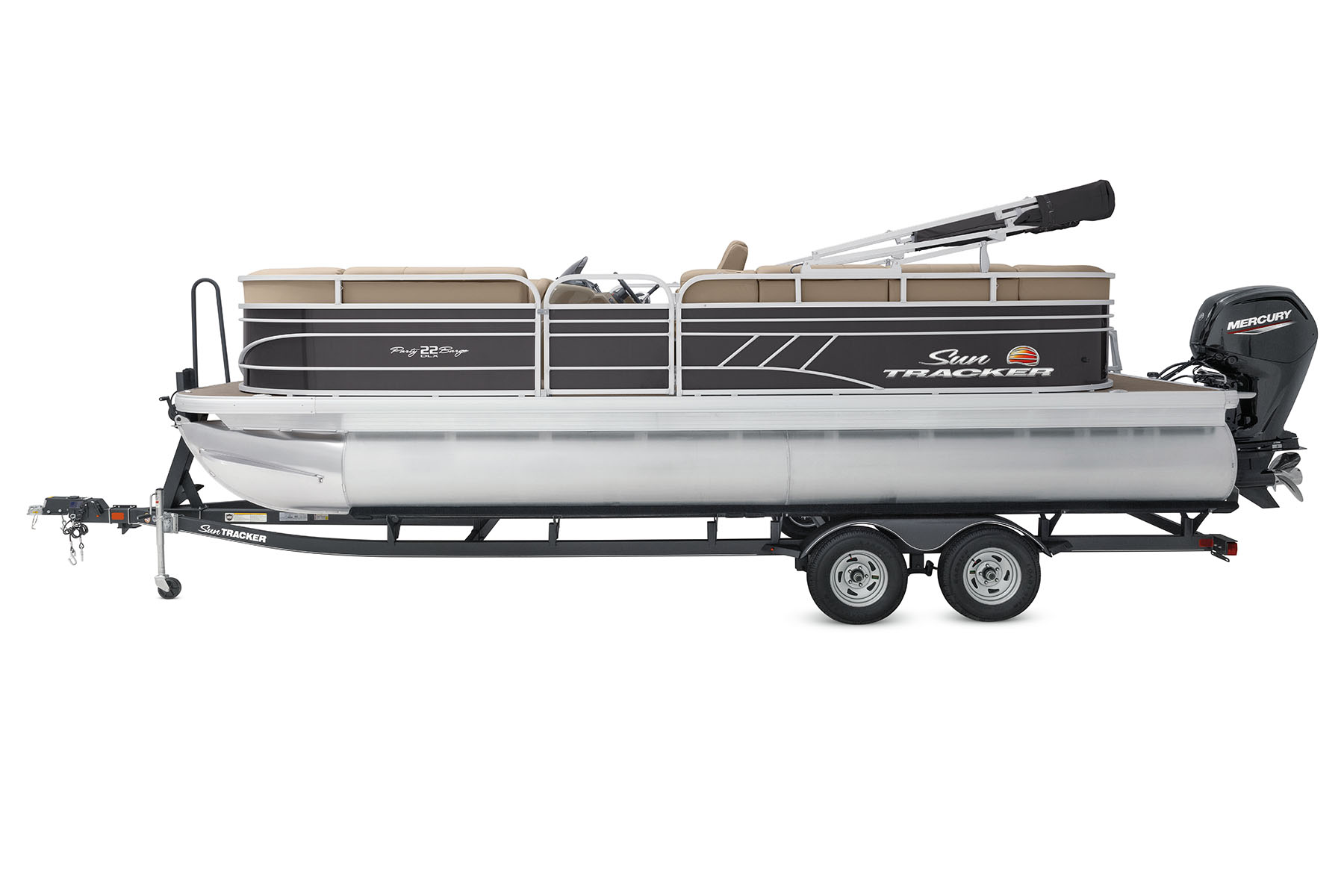

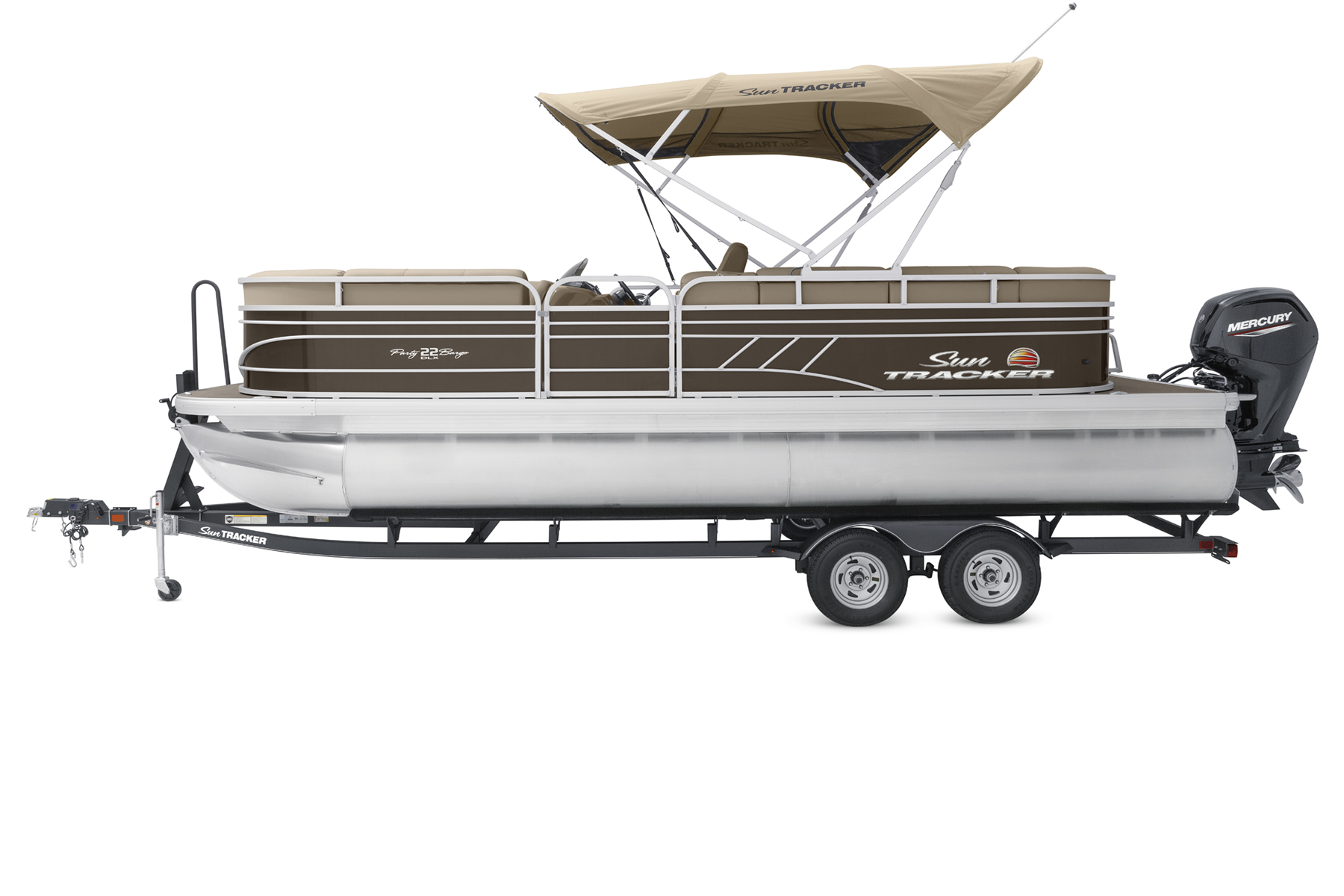

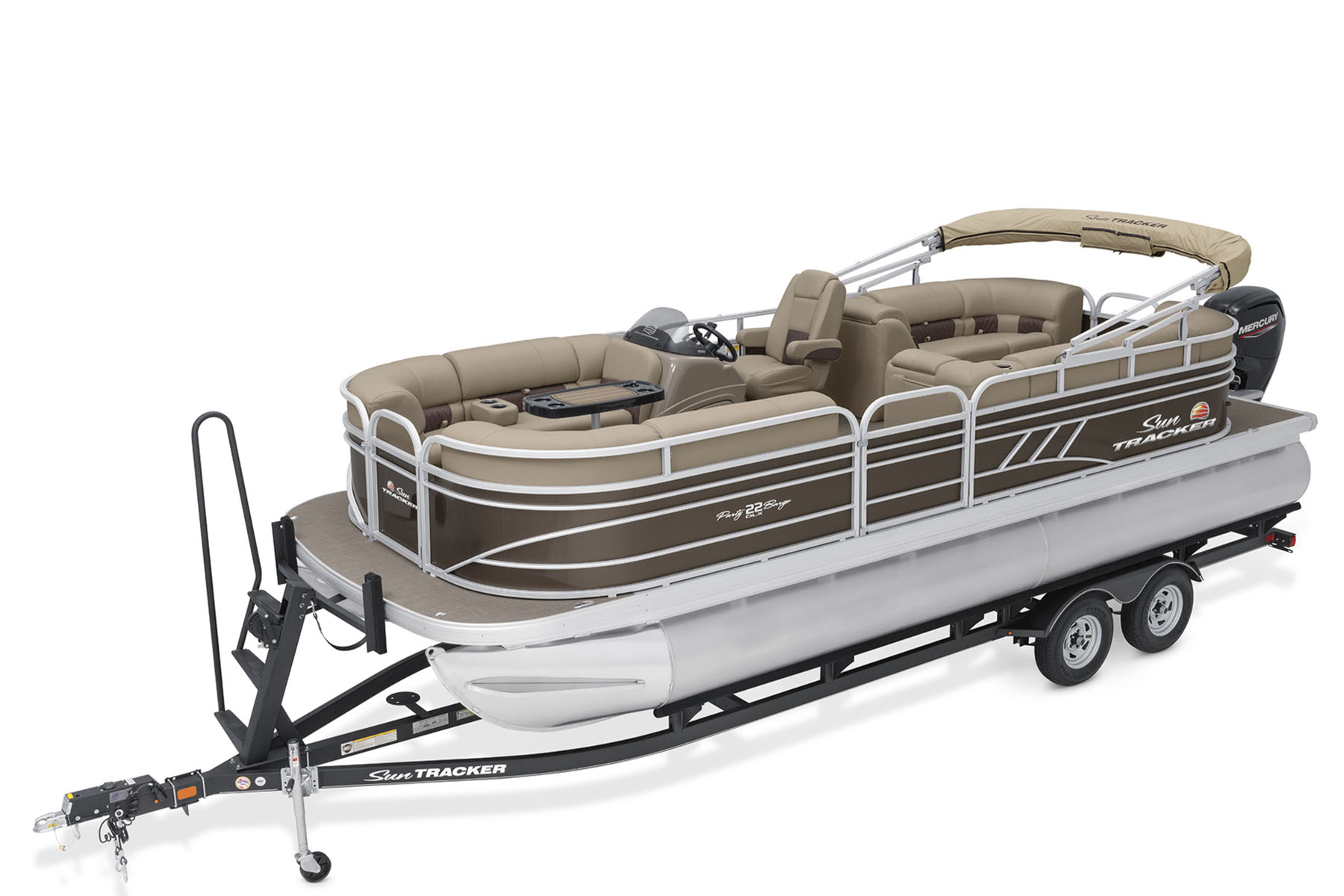

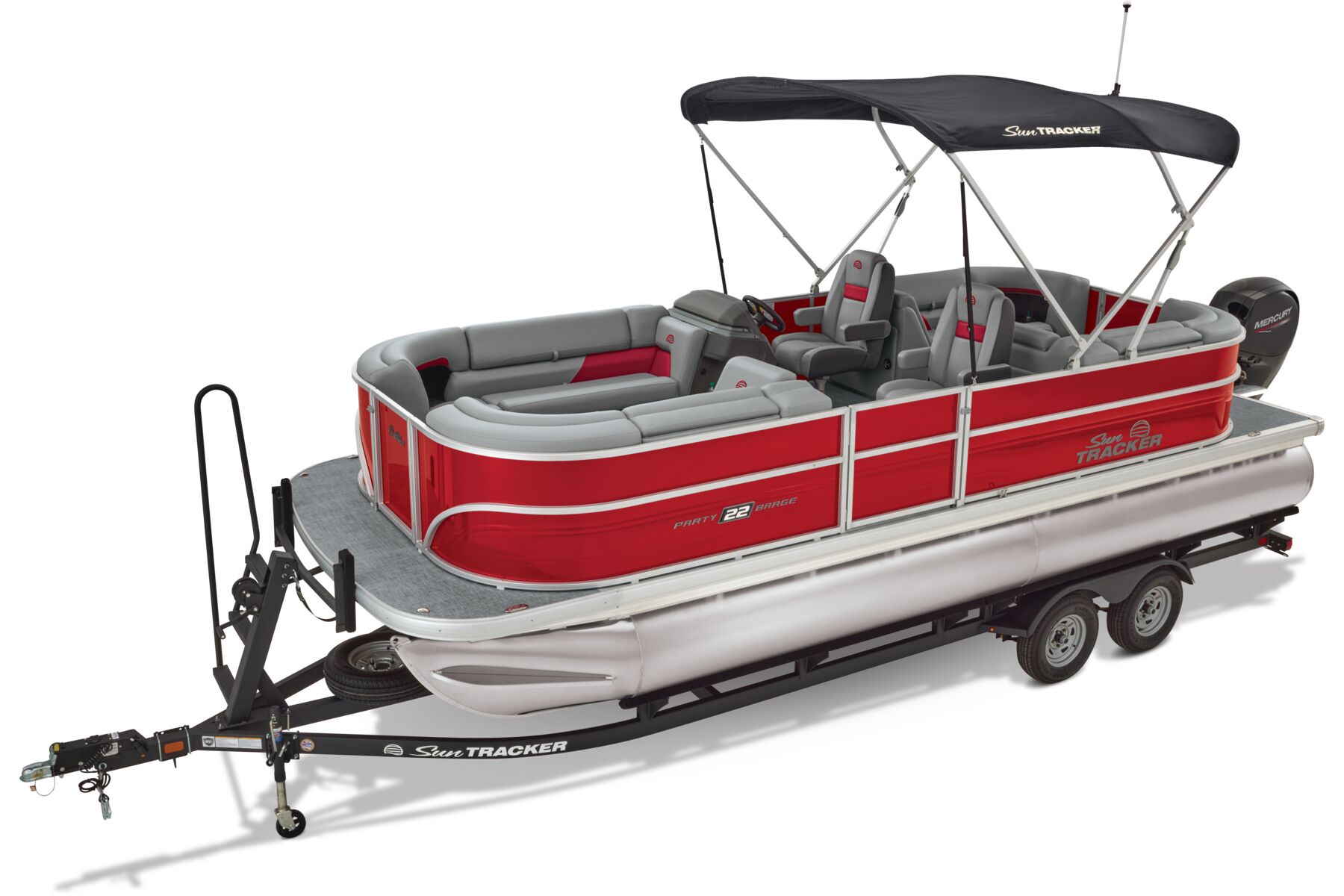

PARTY BARGE® 22 DLX
w/ 115 ELPT FourStroke Command Thrust Mercury® FourStroke
Price Excludes Optional Trailer
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$39995
USD
|
| Inflation Buster Price |
$37995.0
|
| Savings |
$2000.0
|
| View Price w/ Prep & Freight: | Select Dealer |
Overview

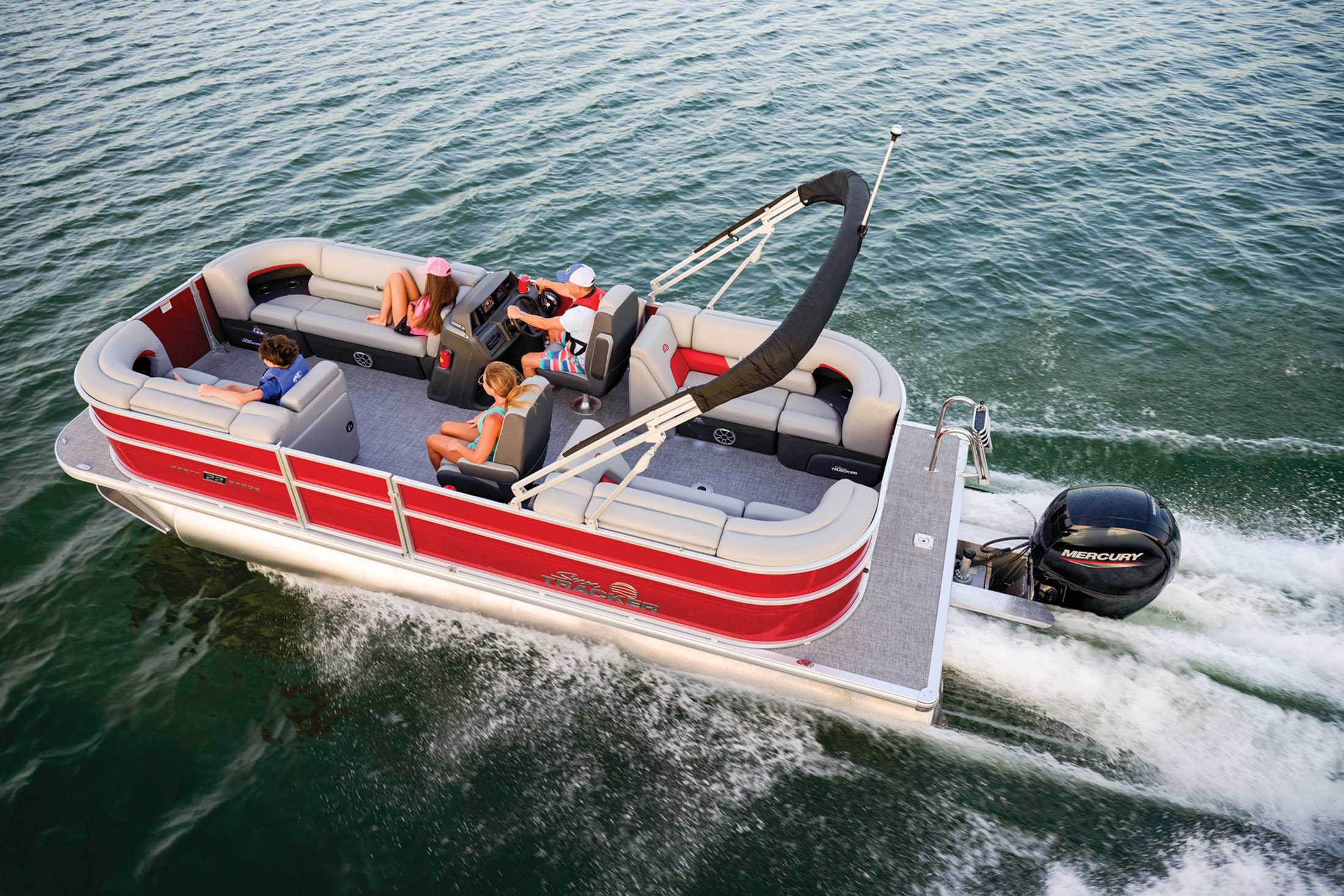

The PARTY BARGE® 22 DLX takes full advantage of its 22’ 1” by 8’ 6” deck to provide you and your guests a ton of comfort and convenience features you’ll enjoy for years to come.

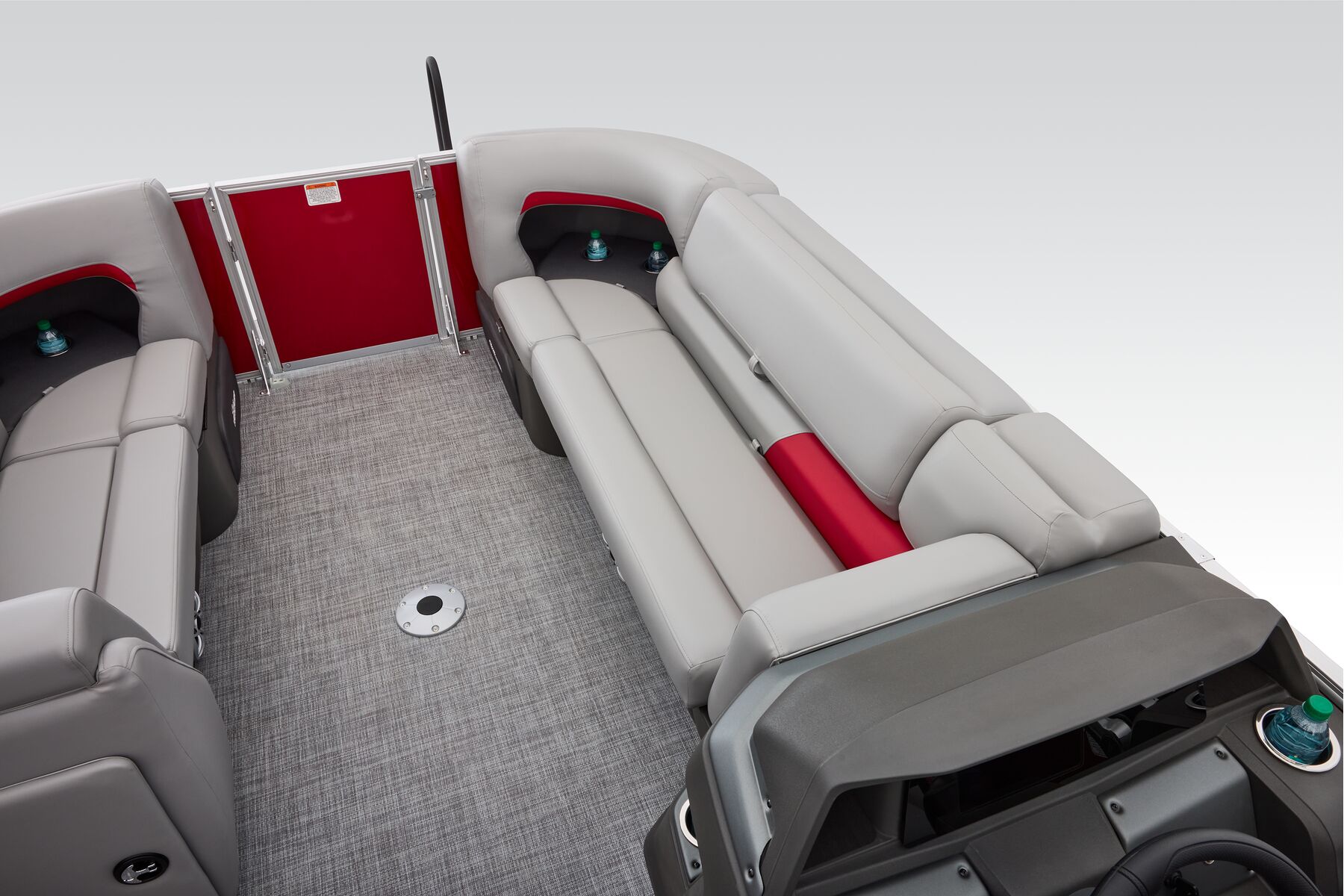

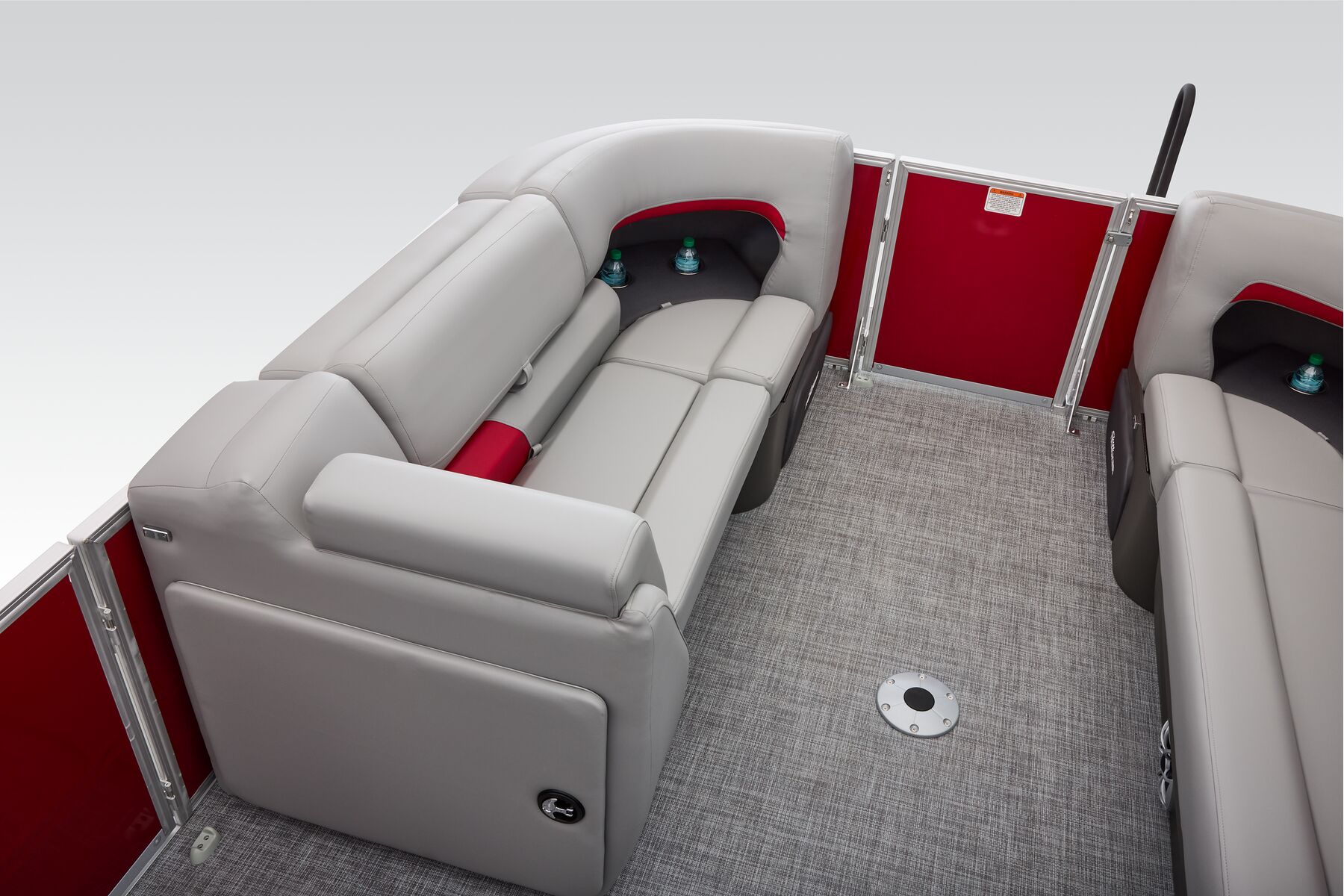

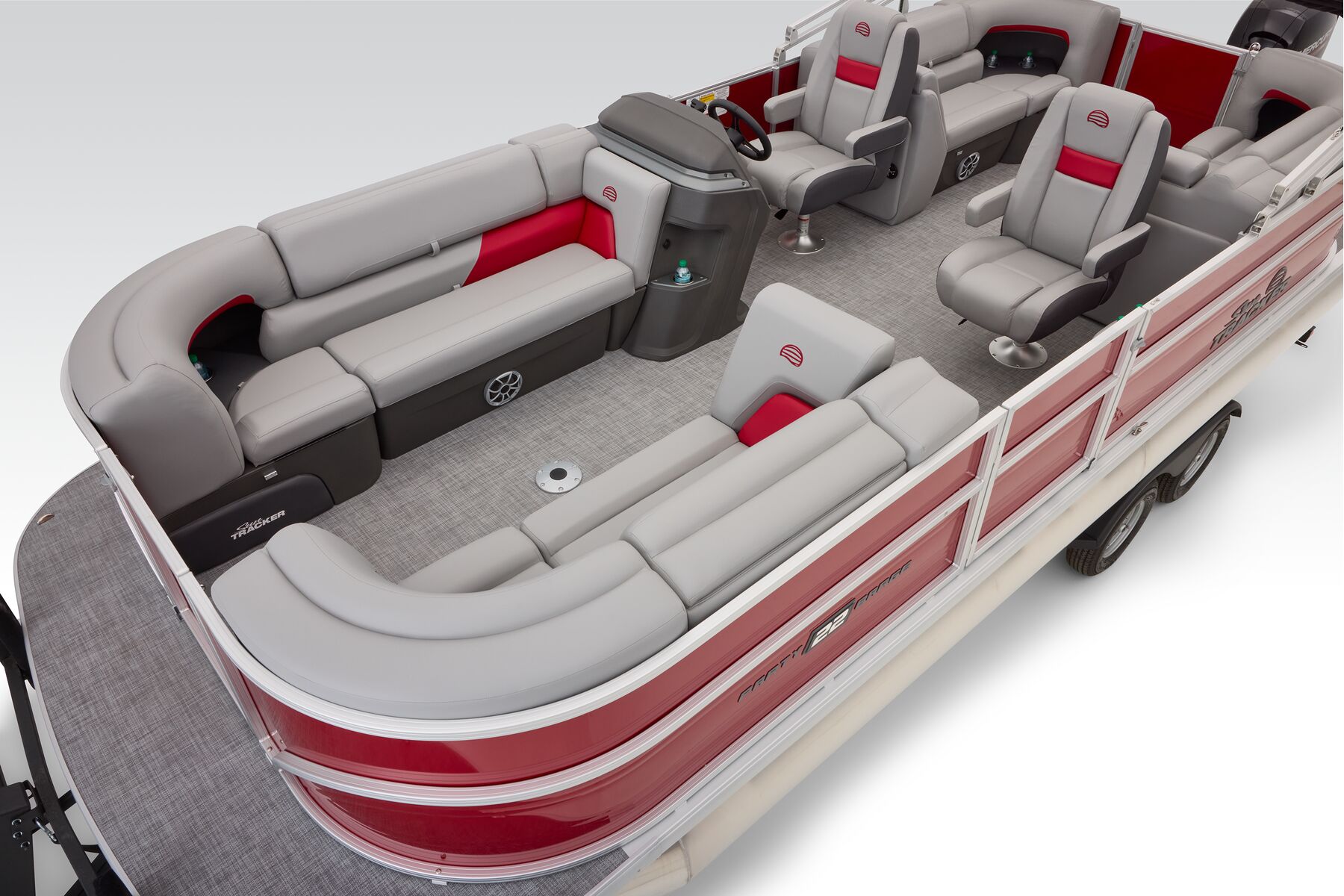

Onboard, you’ll find four extremely spacious lounges, each loaded with our STOW MORE™ seat storage system. This system includes rotomolded underseat storage and seat-back compartments that can be accessed without even standing up! It builds on that comfort with the new 10' Bimini top, new stereo and more!
The Sun Tracker PARTY BARGE® 22 DLX has everything you and 10 others need to get on the water and making memories together!
Key Features

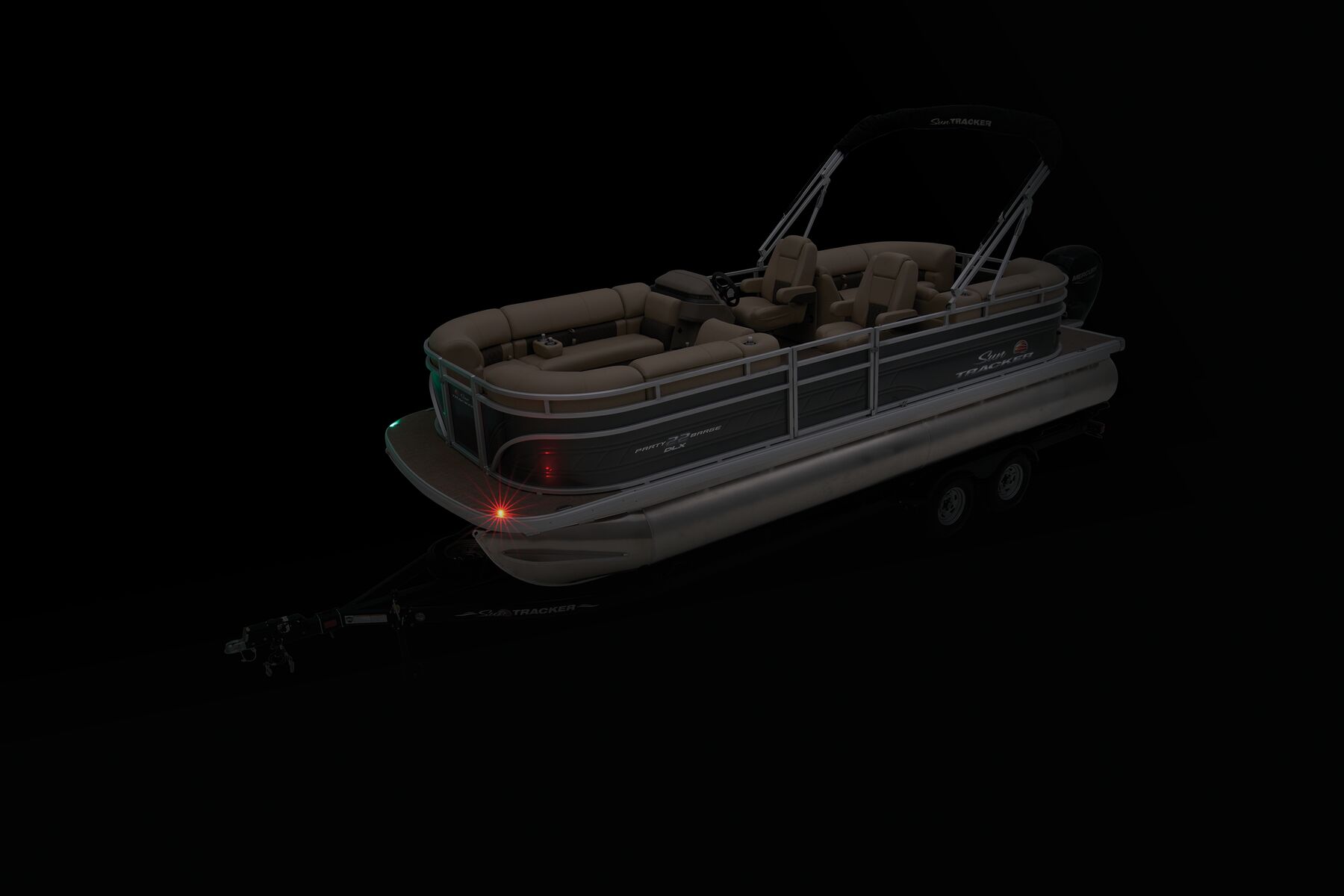

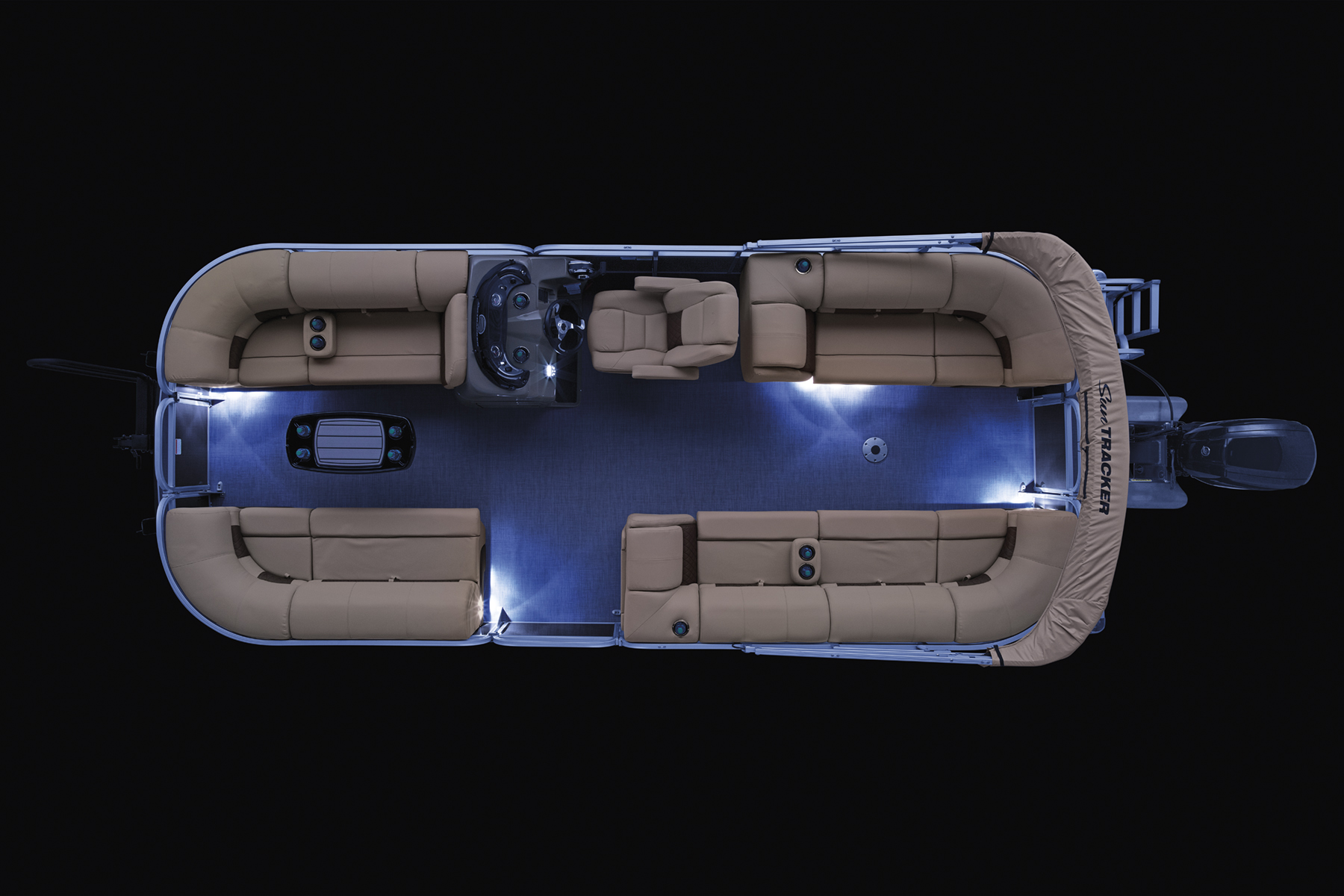

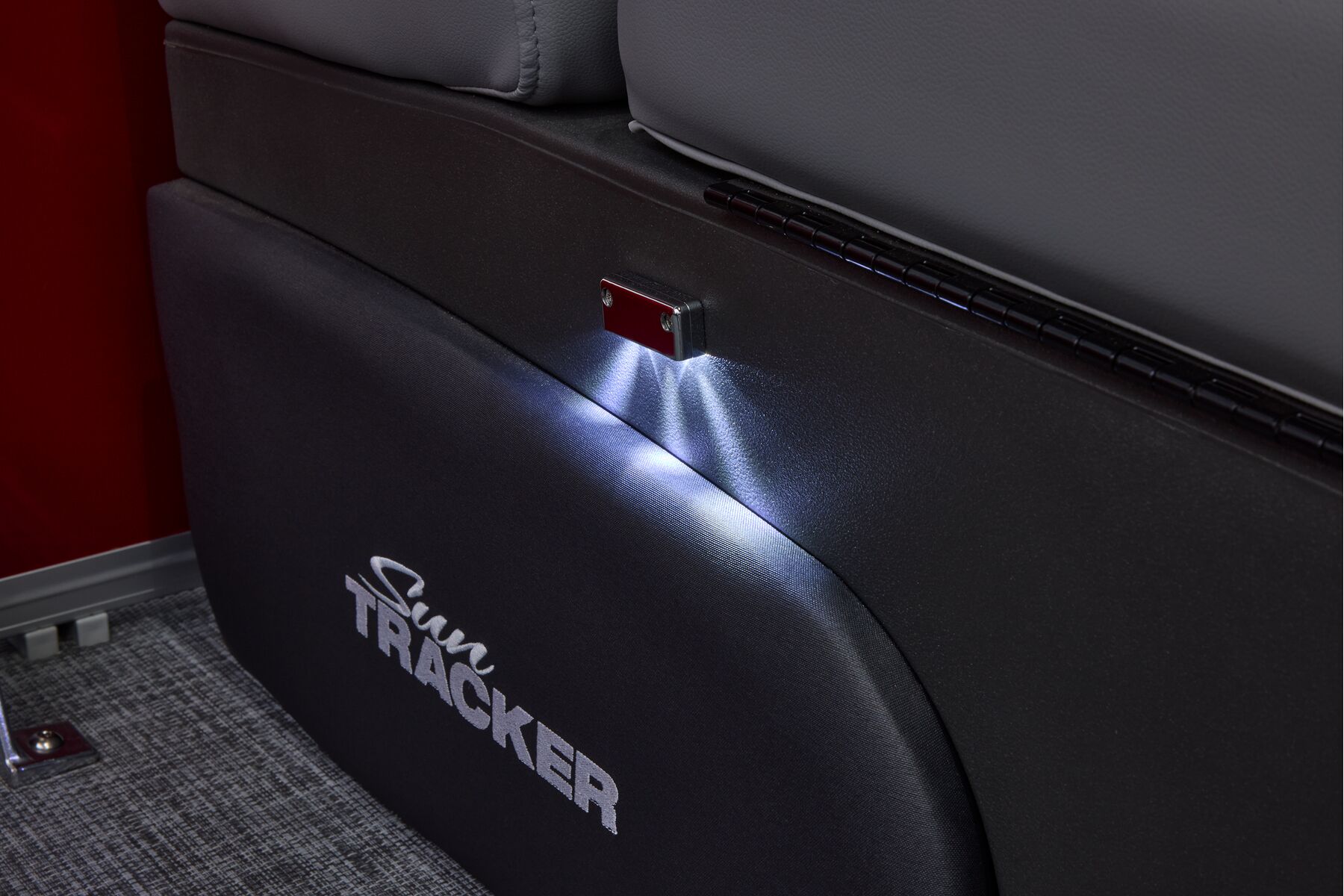

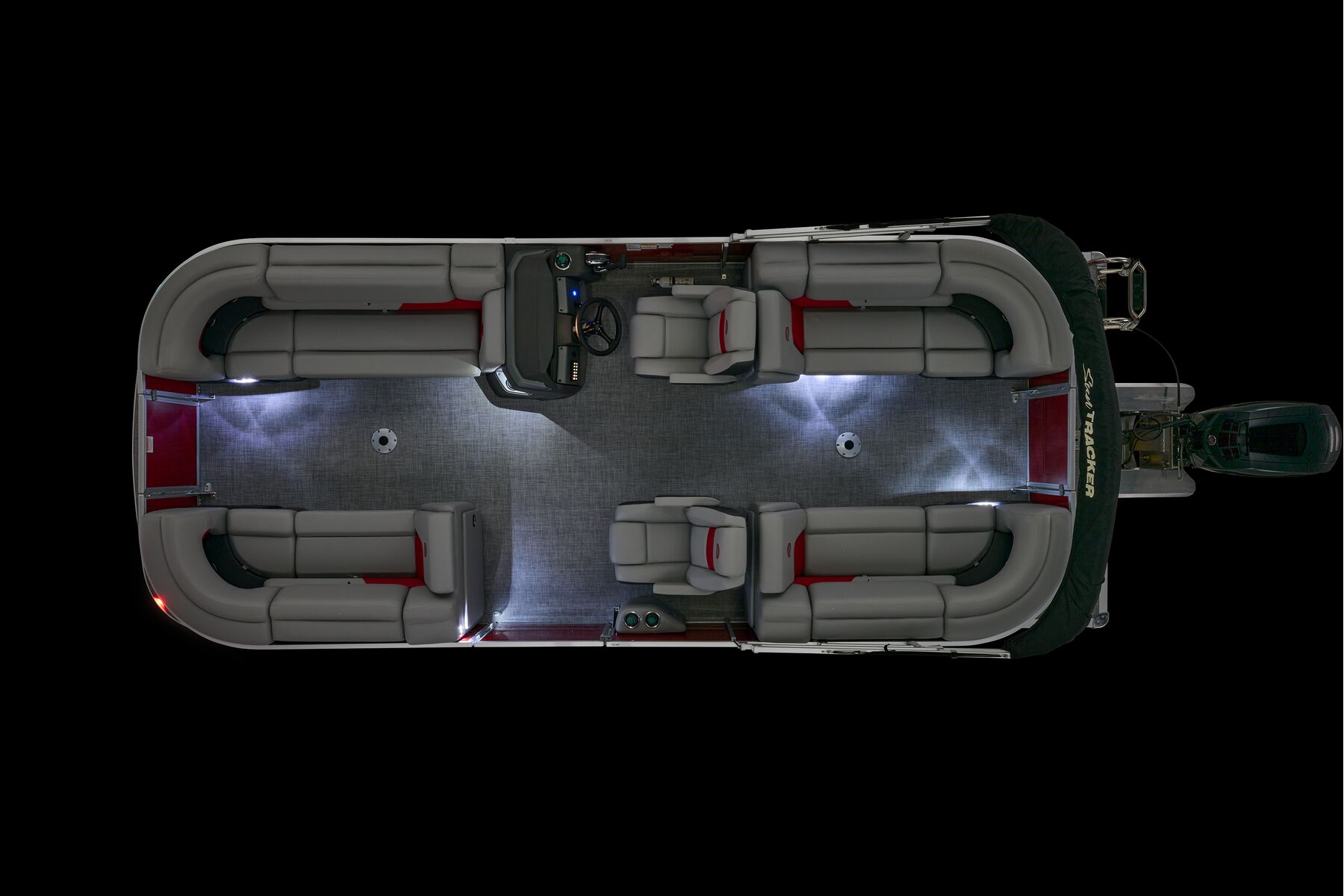

Interior lighting
In addition to lights in the Bimini top, there are interior lights throughout to keep the party going after dark.

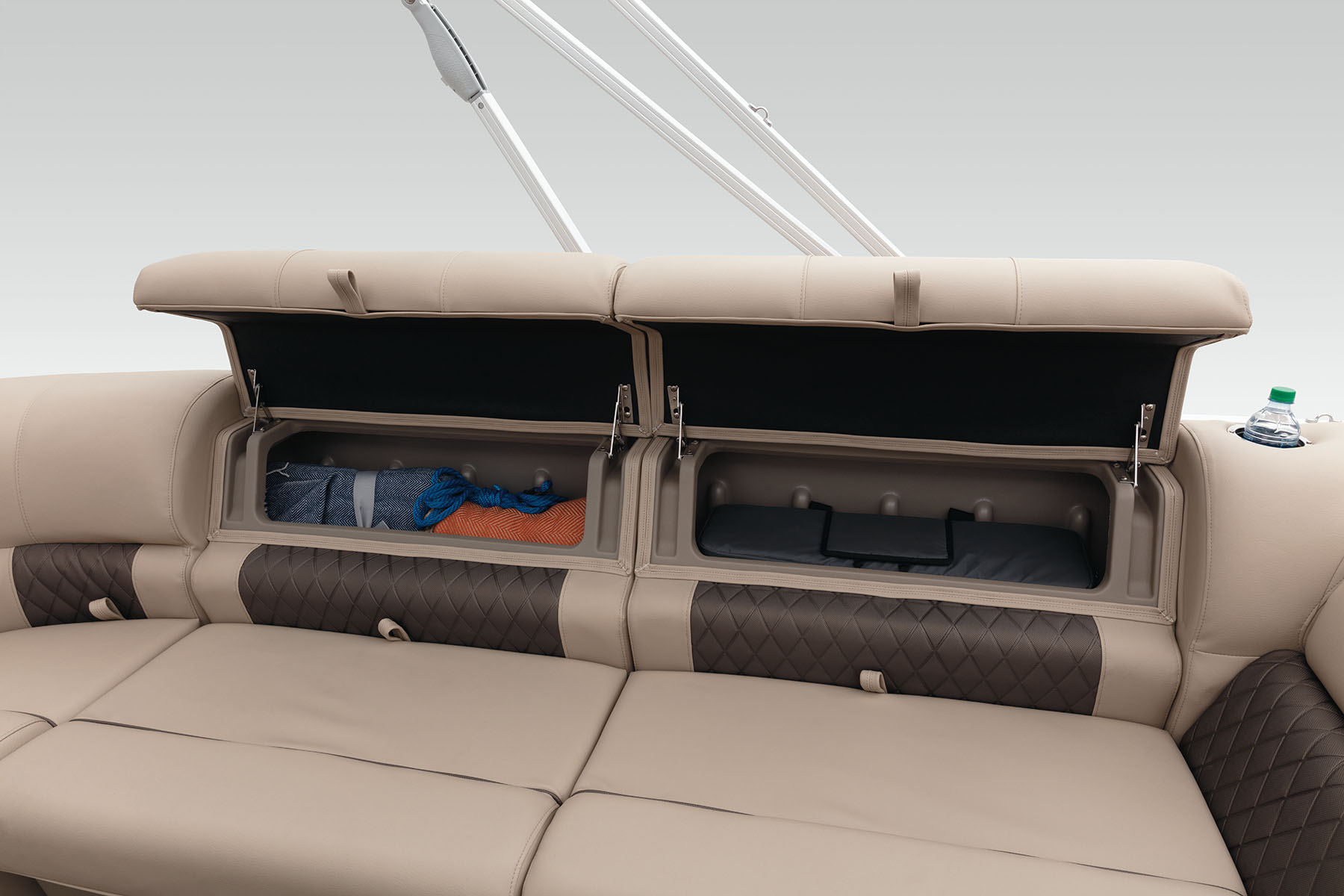

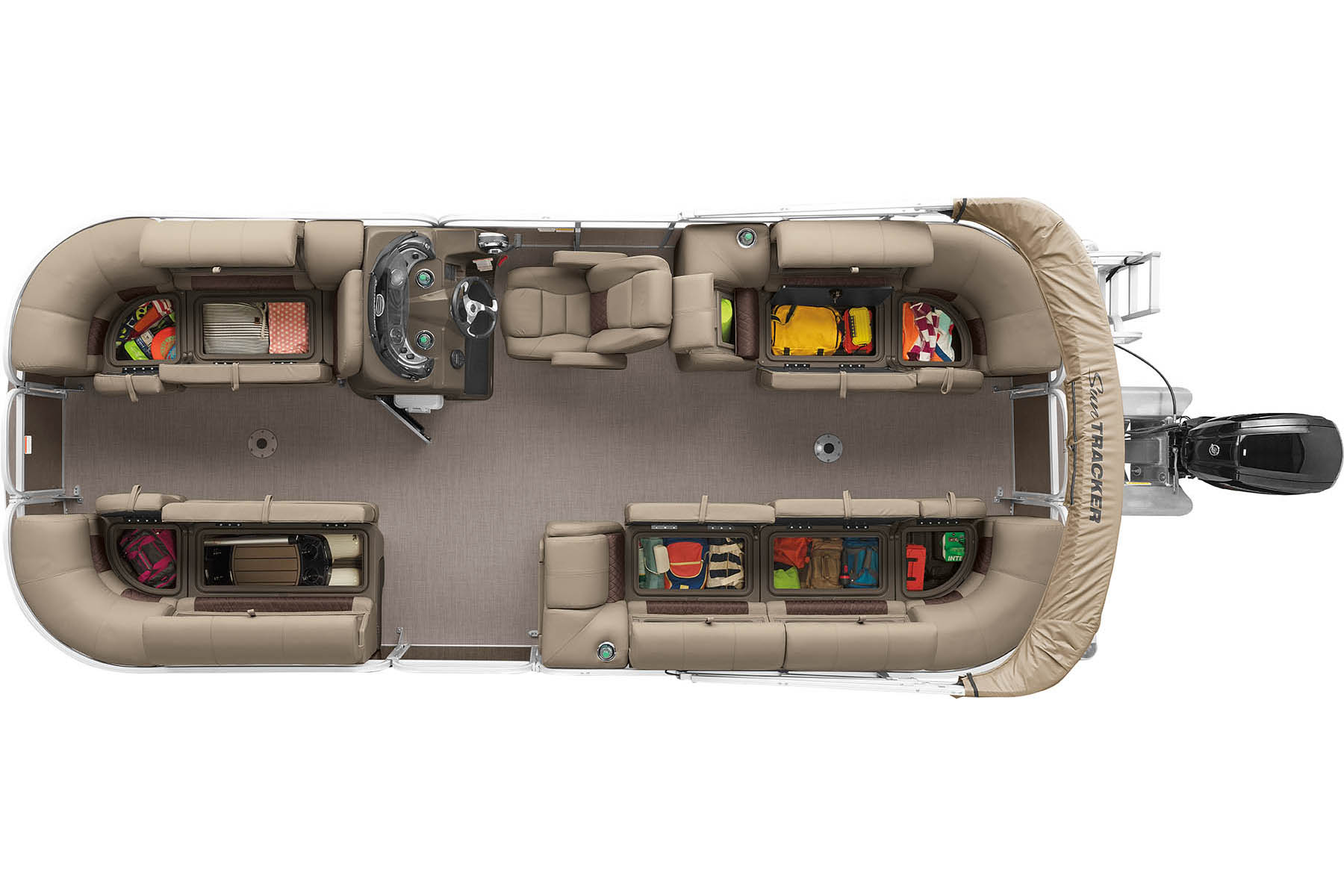

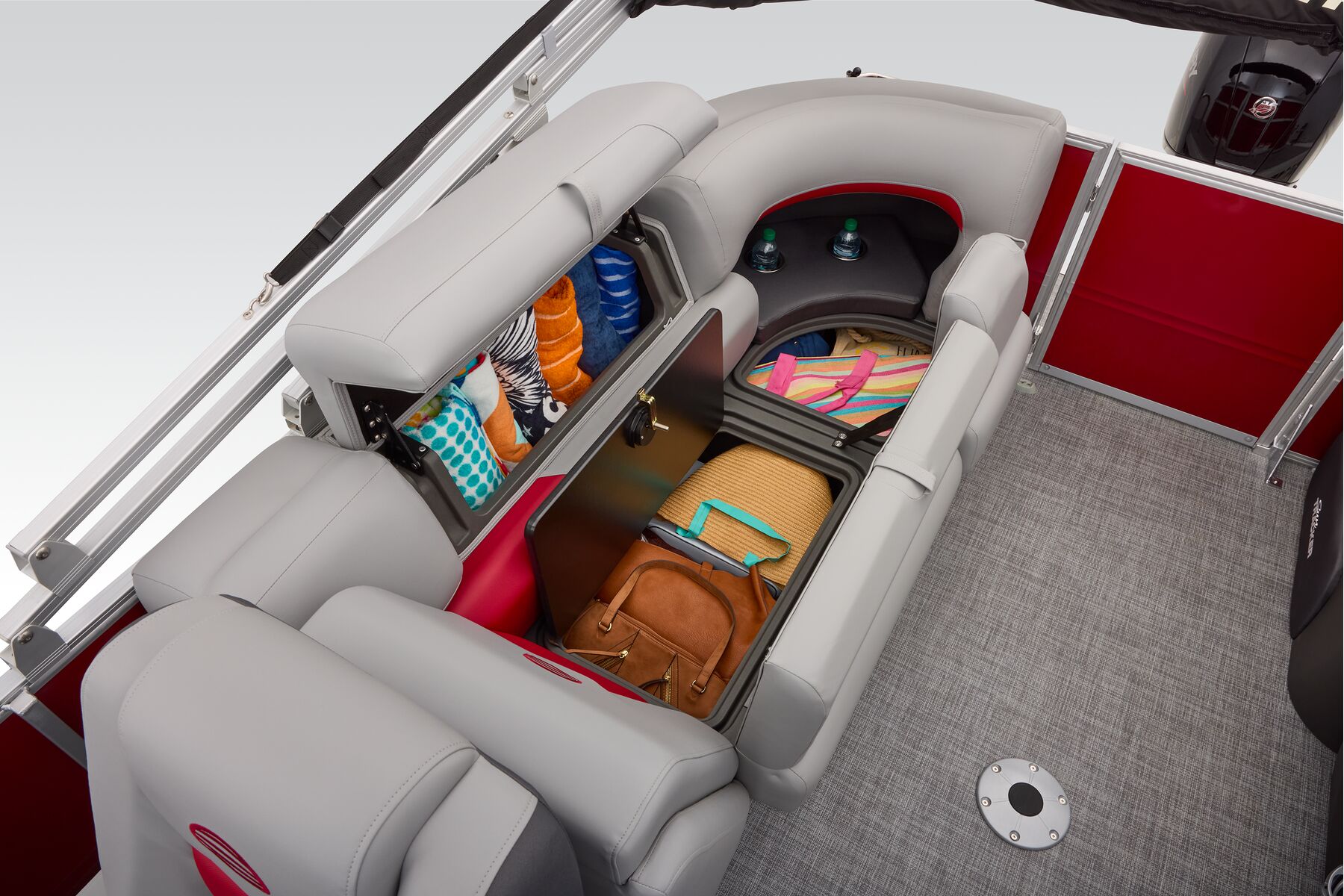

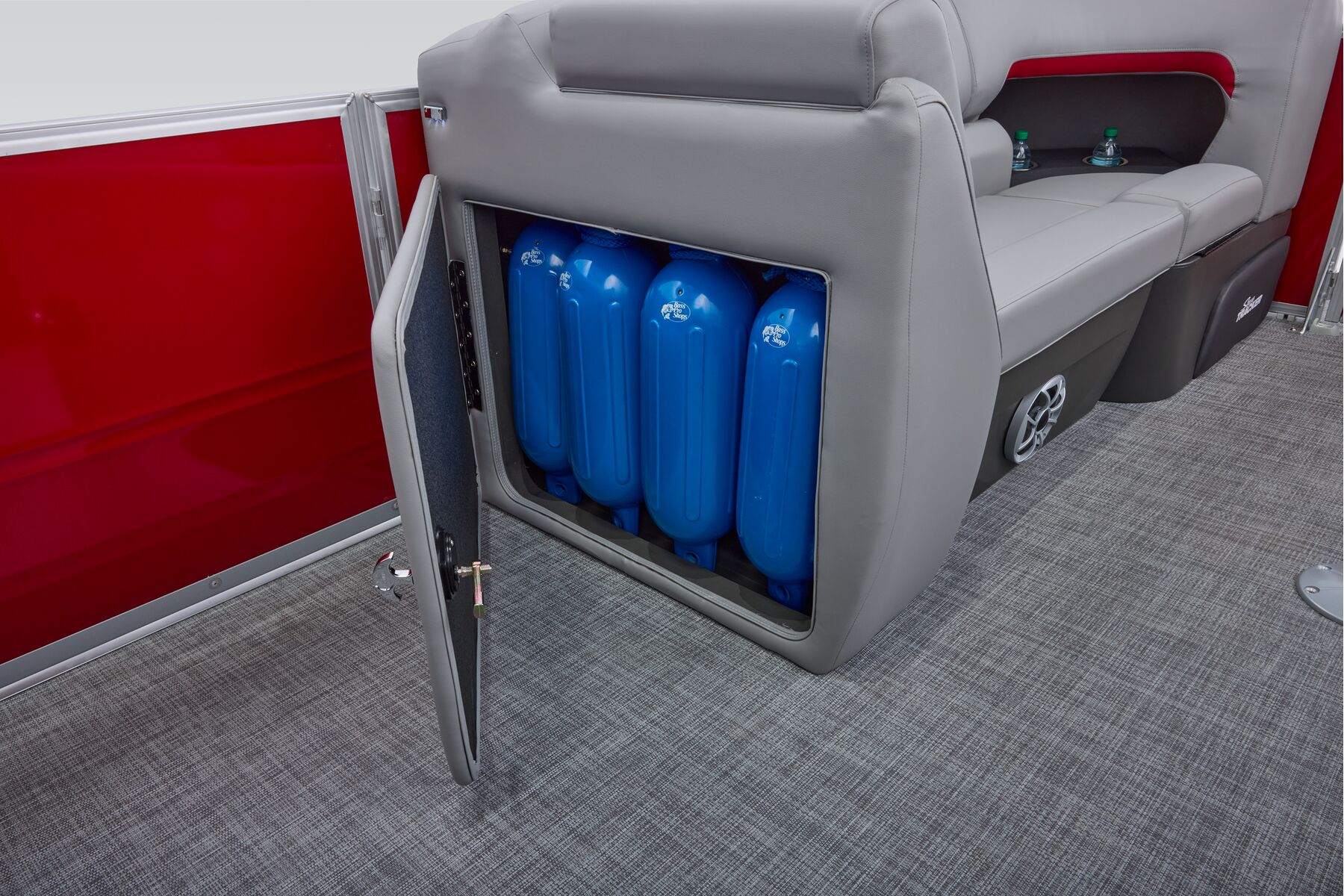

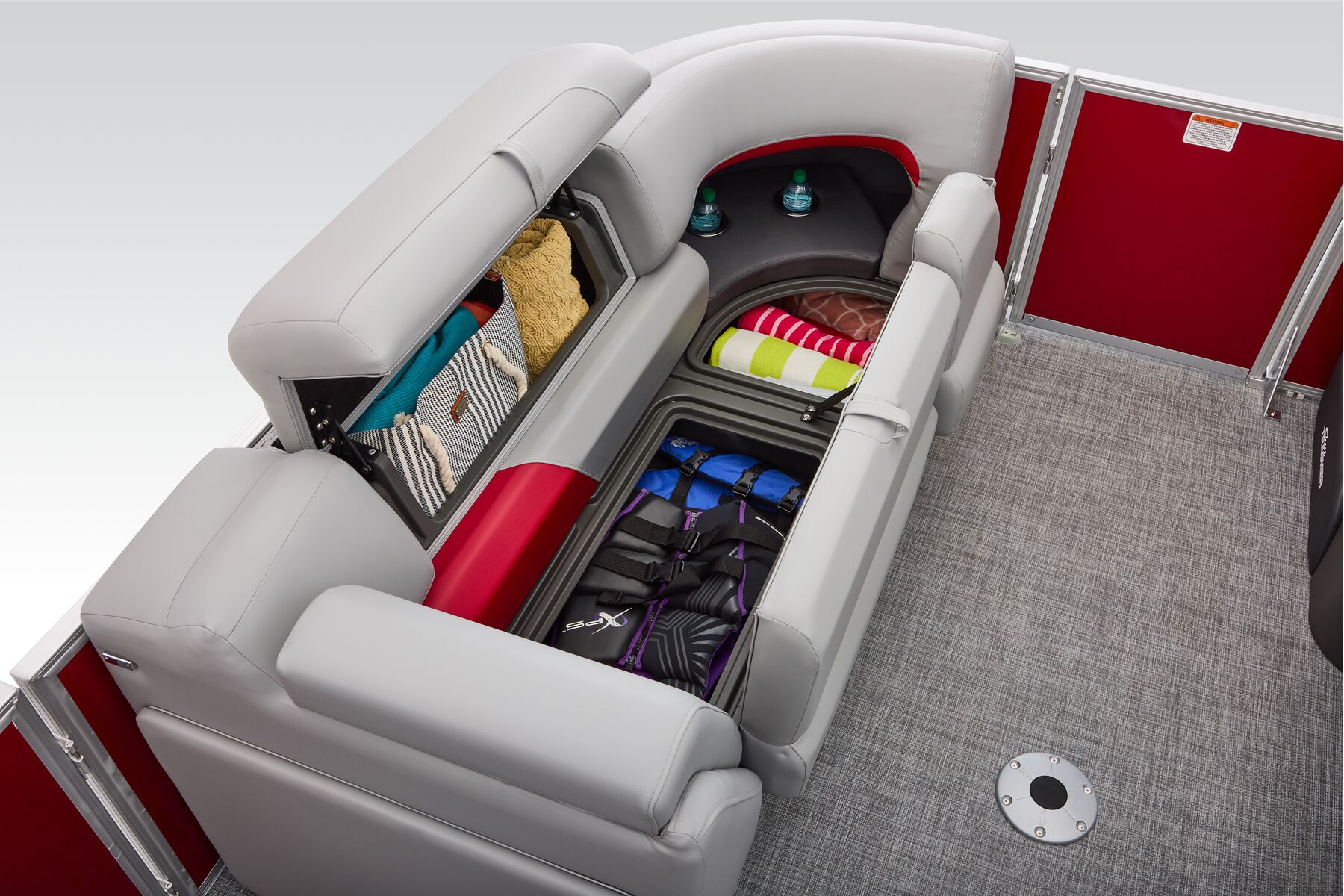

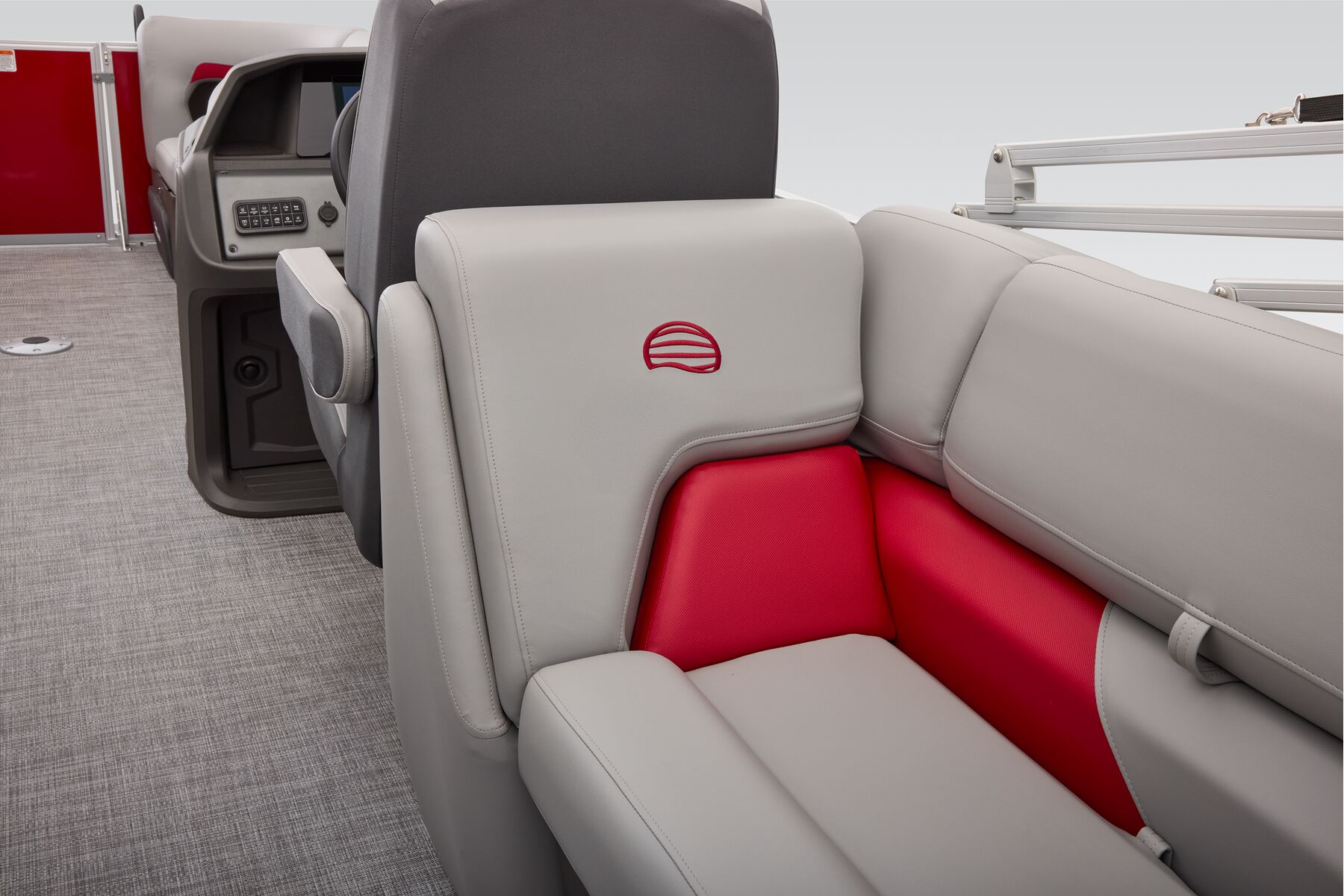

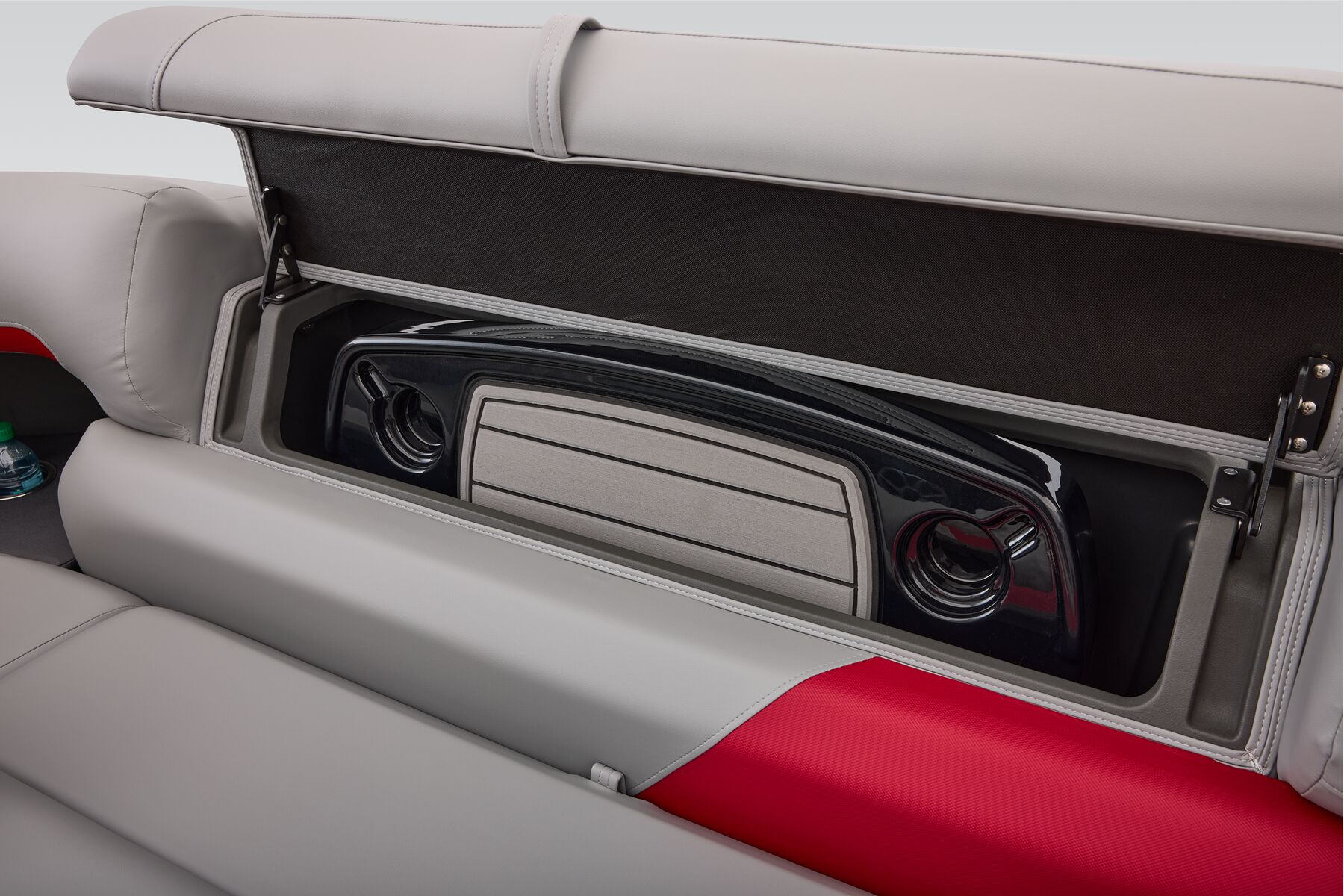

STOW MORE™ storage

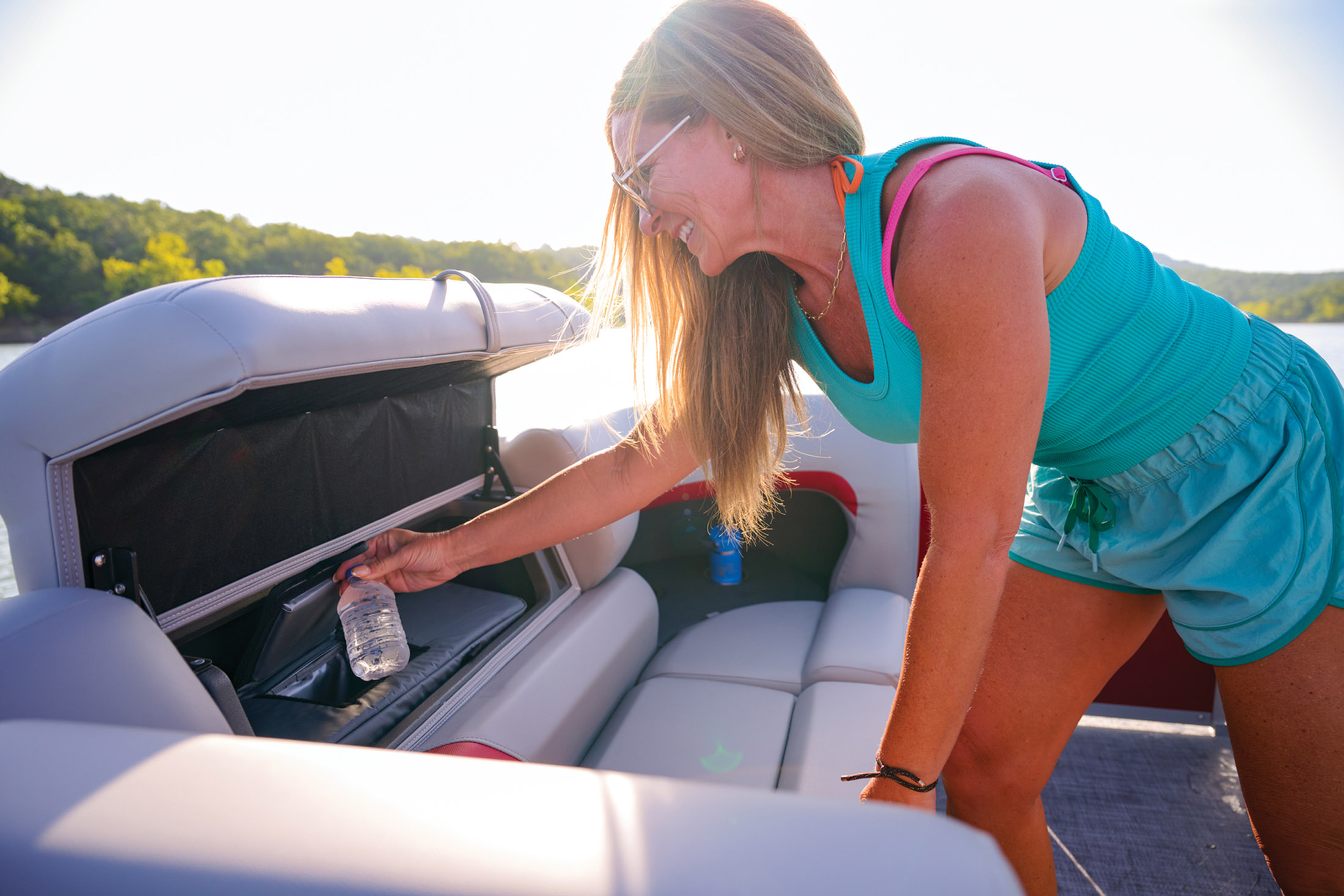

The seat-back compartments can even be accessed while sitting down!
Cleats
Flip up the cleats for mooring, or flip them down to avoid stubbing a toe while doing a canonball.
Specifications
| Length | 7.37 m | 24' 2'' |
| Deck Length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 150 HP | |
| Fuel Capacity | 121.5 L | 32.1 gal. |
| Pontoon Log Length | 6.78 m | 22' 3'' |
| Pontoon Log Diameter | 60.96 cm | 24'' |
| Pontoon Log Material | 0.080 5052 marine alloy | |
| Max. Person Capacity | 11 persons |
| Max. Person Weight | 680.39 kg | 1500 lbs. |
| Max. Person, Motor & Gear Weight | 997.9 kg | 2200 lbs. |
| Interior Depth | 74.93 cm | 29.5'' |
| Average Dry Weight | 943.47 kg | 2080 lbs. |
| Average Package Weight | 1775.81 kg | 3915 lbs. |
| Package Height | 2.69 m | 8' 10'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.86 m | 32' 4'' |
| Storage Length | 9.86 m | 32' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 9.9 ELPT FourStroke Command Thrust ProKicker | - |
$30375
$32375
USD
$2000
|
Select Dealer | ||
| 25 ELPT FourStroke | - |
$32195
$34195
USD
$2000
|
Select Dealer | ||
| 115 ELPT FourStroke Command Thrust | 21-29 mph |
$37995
$39995
USD
$2000
|
Select Dealer | ||
| 150 L FourStroke | 29-38 mph |
$40395
$42395
USD
$2000
|
Select Dealer | ||
| Mercury® Pro XS® | |||||
| 115 ELPT Pro XS® FourStroke Command Thrust | - |
$38355
$40355
USD
$2000
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty
- NMMA® certified

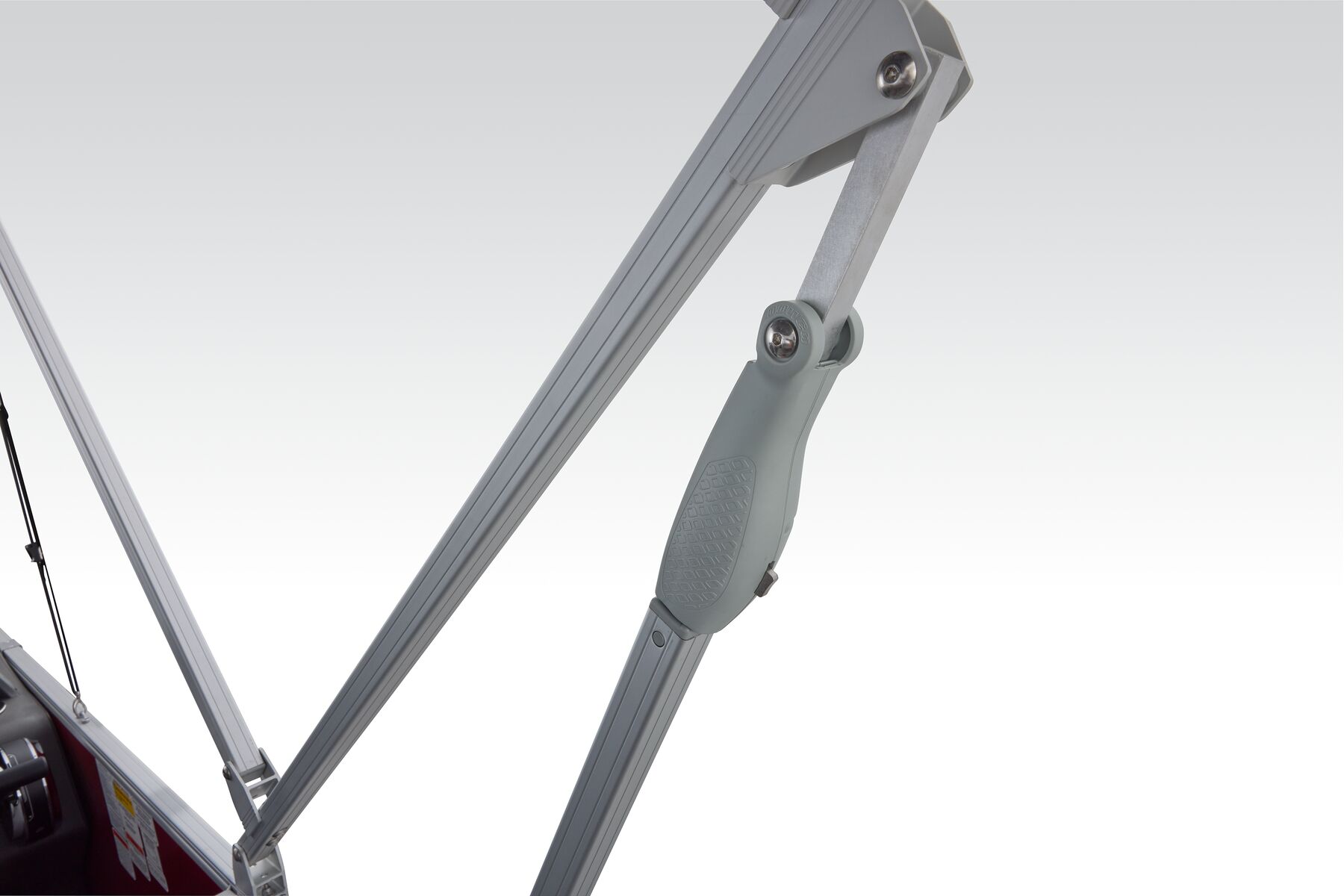

- 10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)

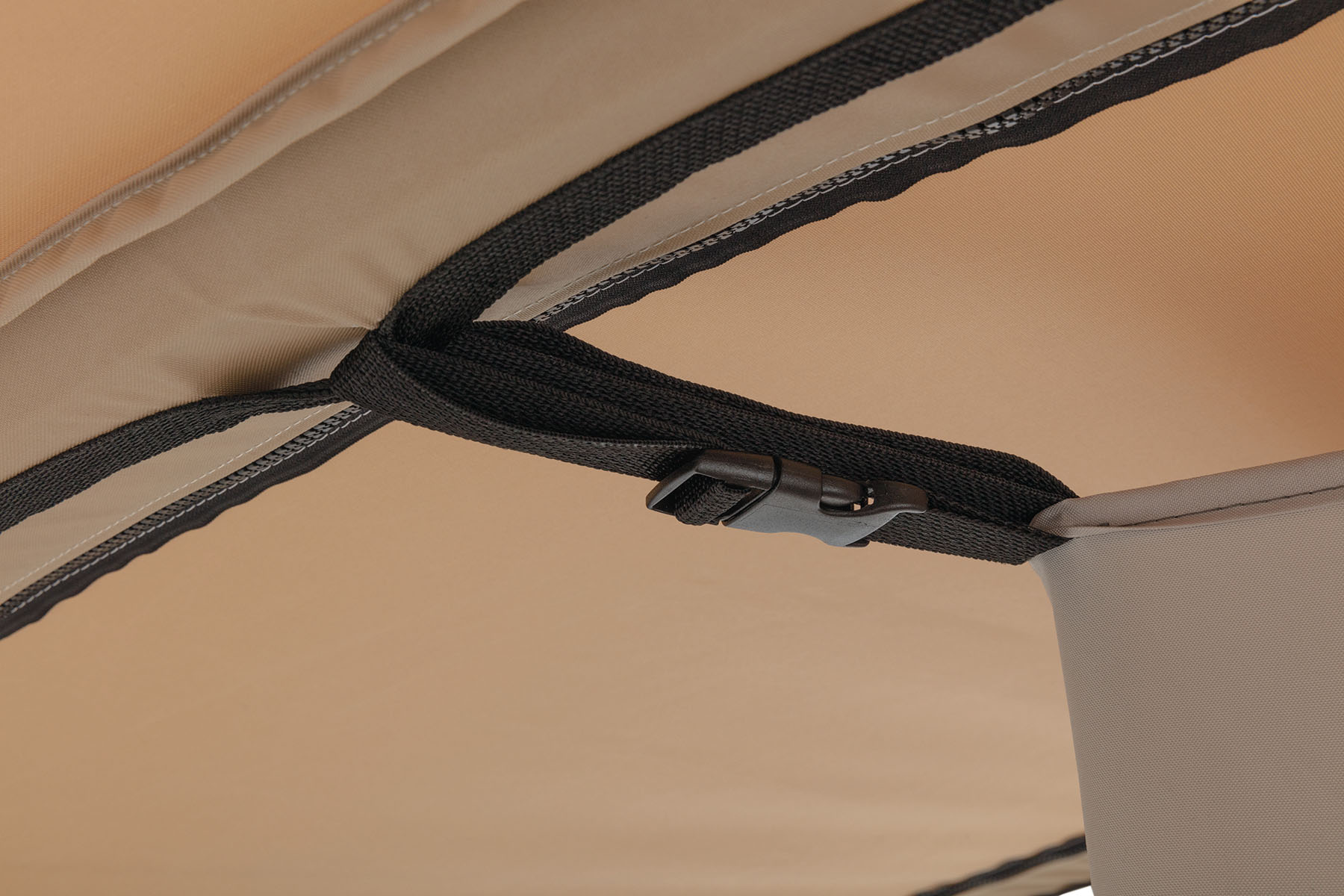

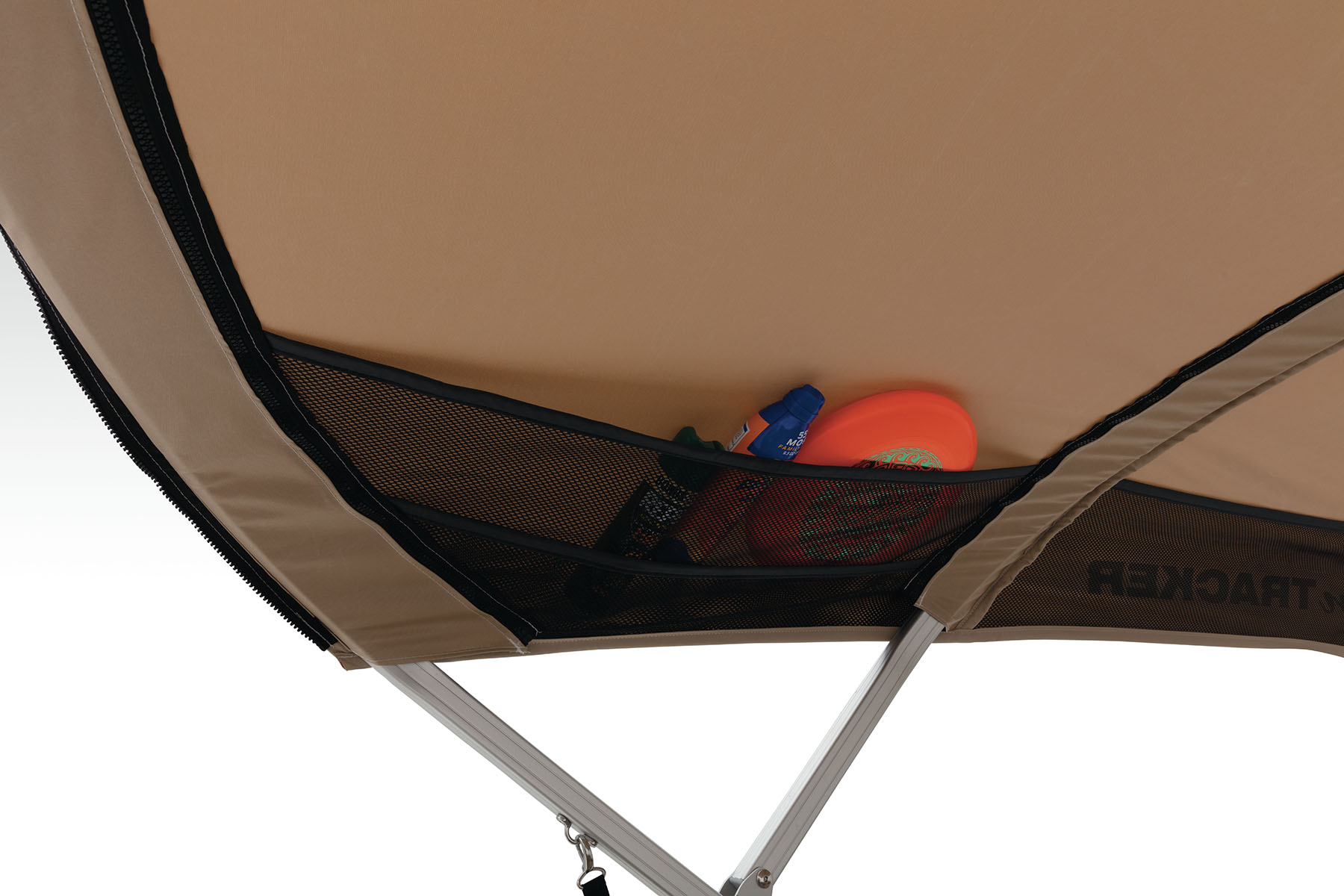

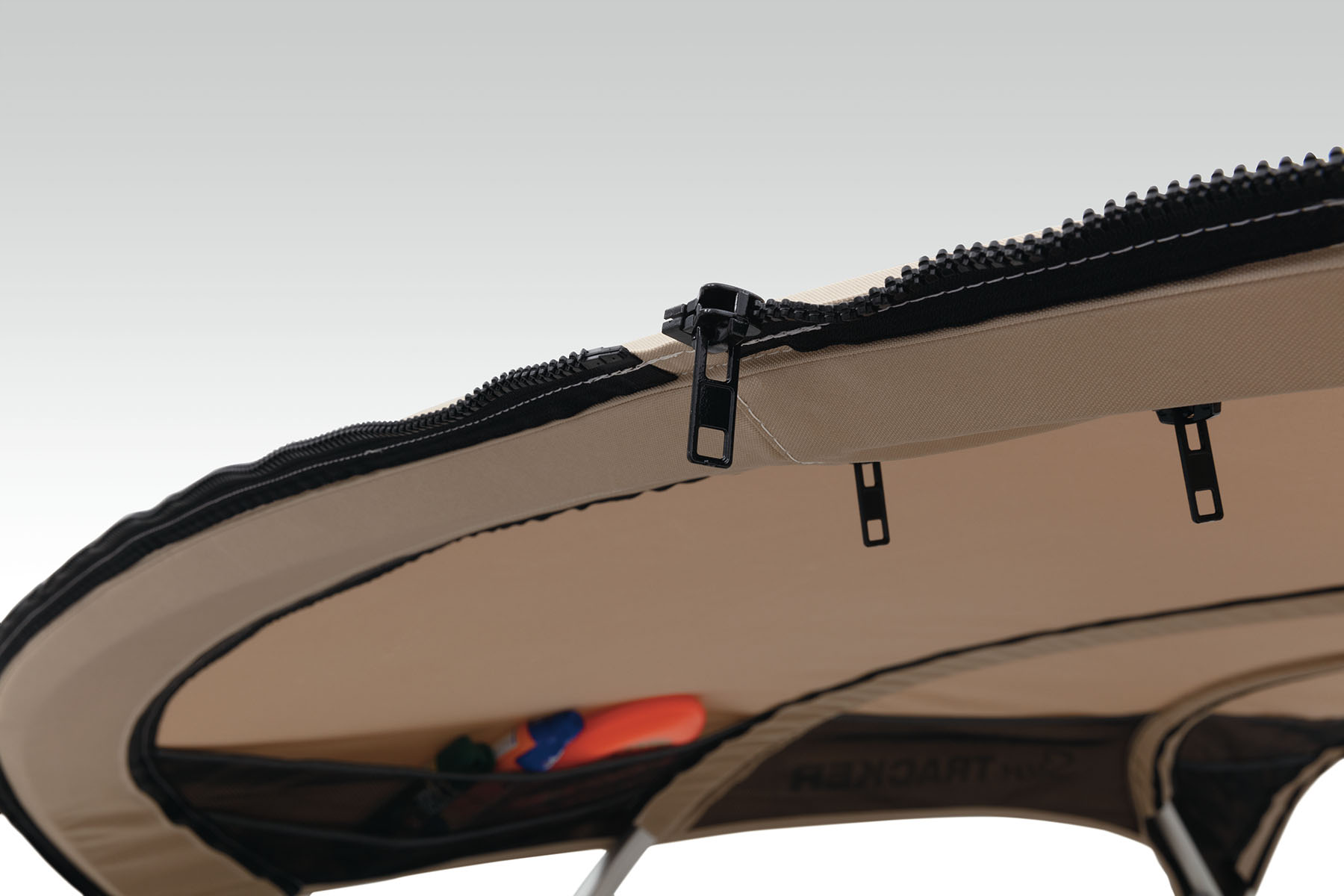

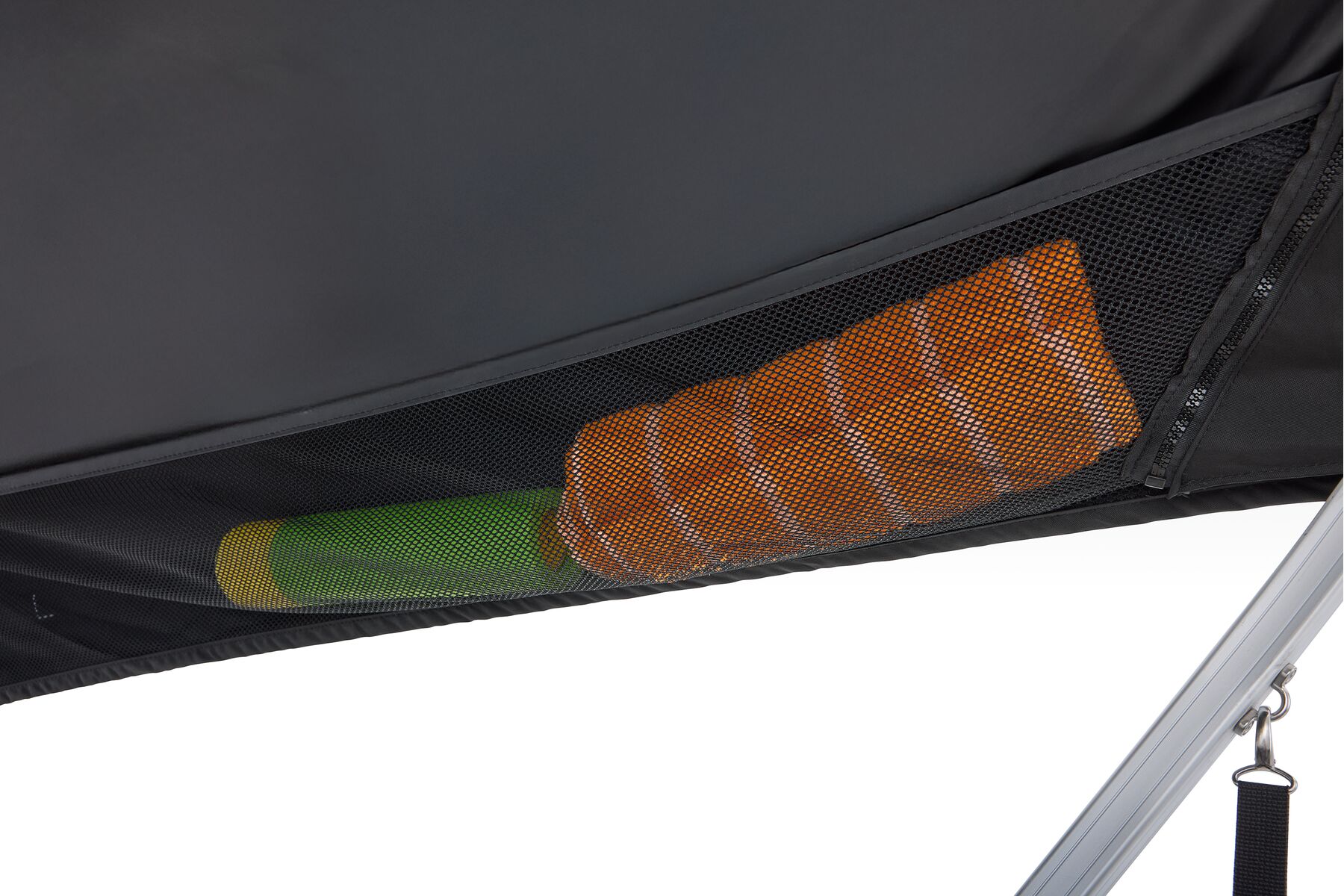

- Storage pockets in Bimini top

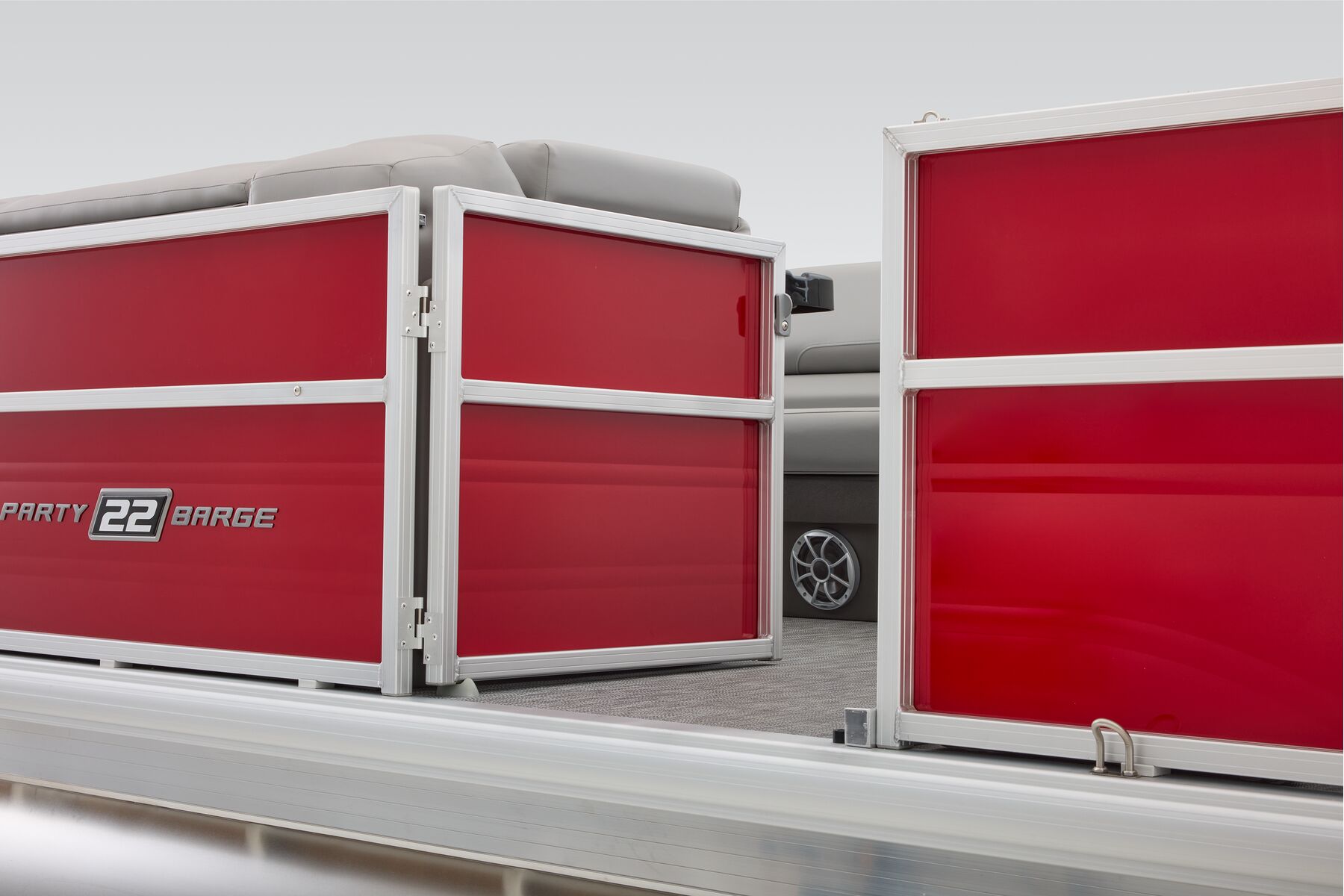

- Nylon gate latches & heavy-duty hinges that open inward

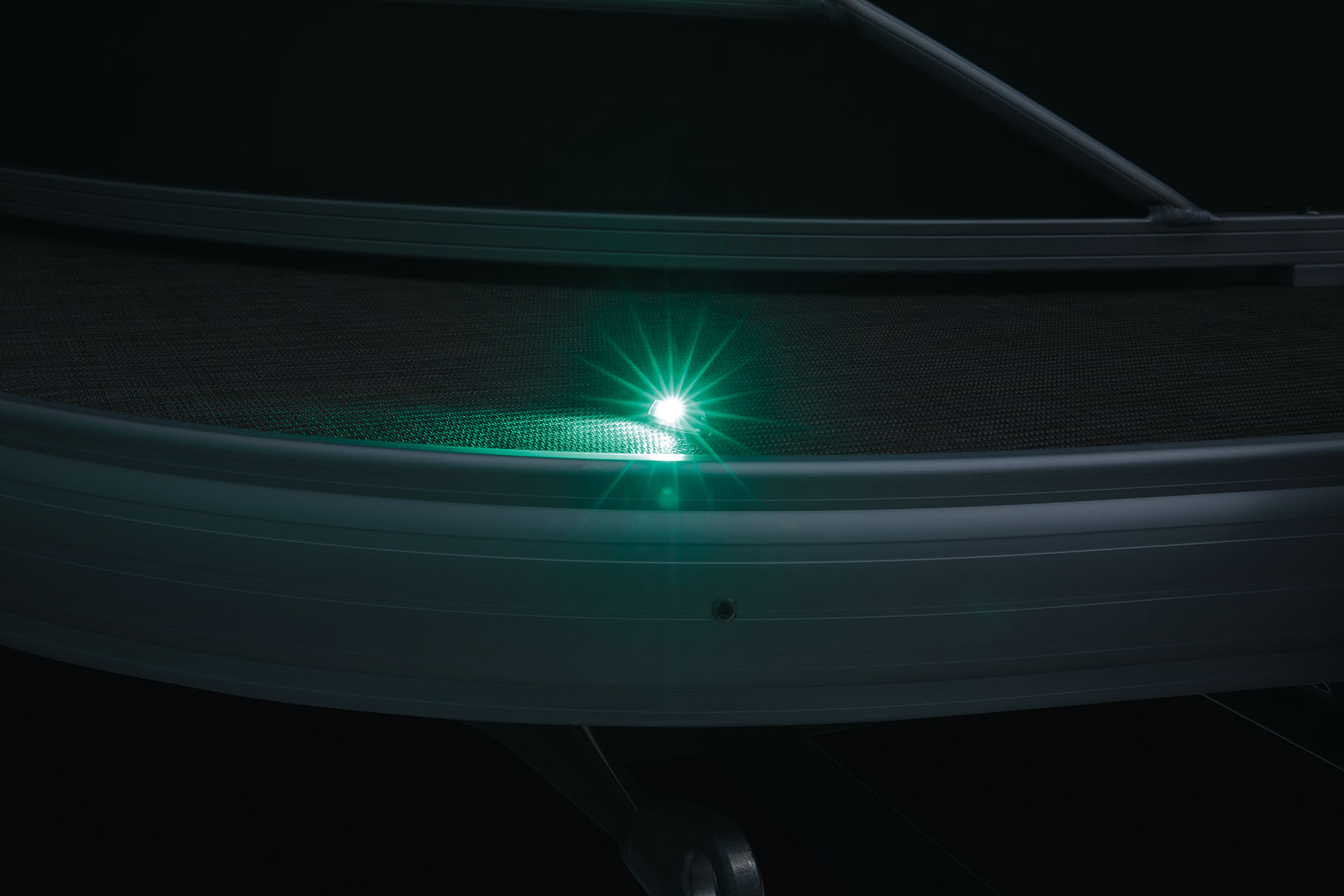

- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light
- Mooring eye on starboard side for tie off
- Four 4.5" (11.43 cm) fold-down mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn

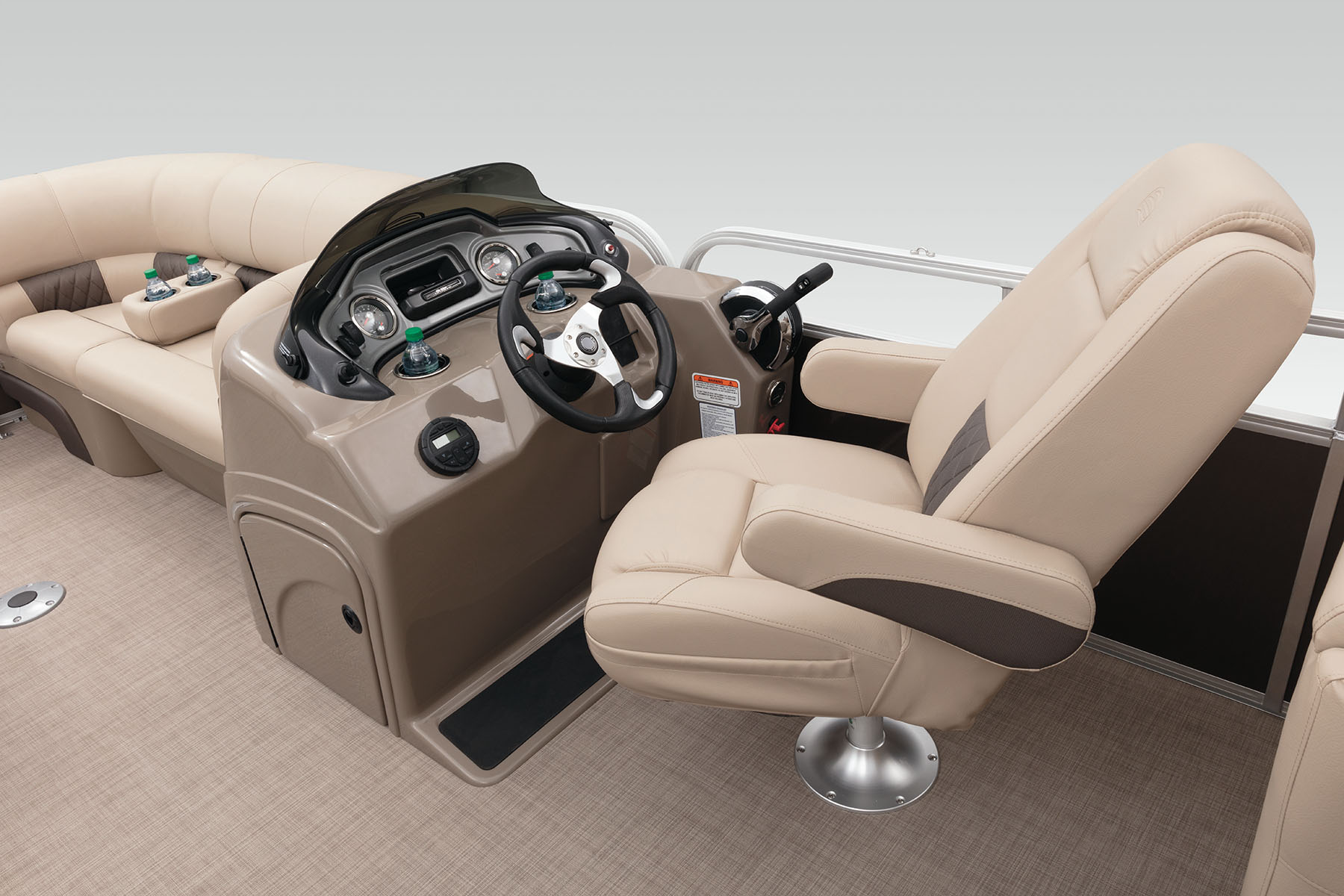

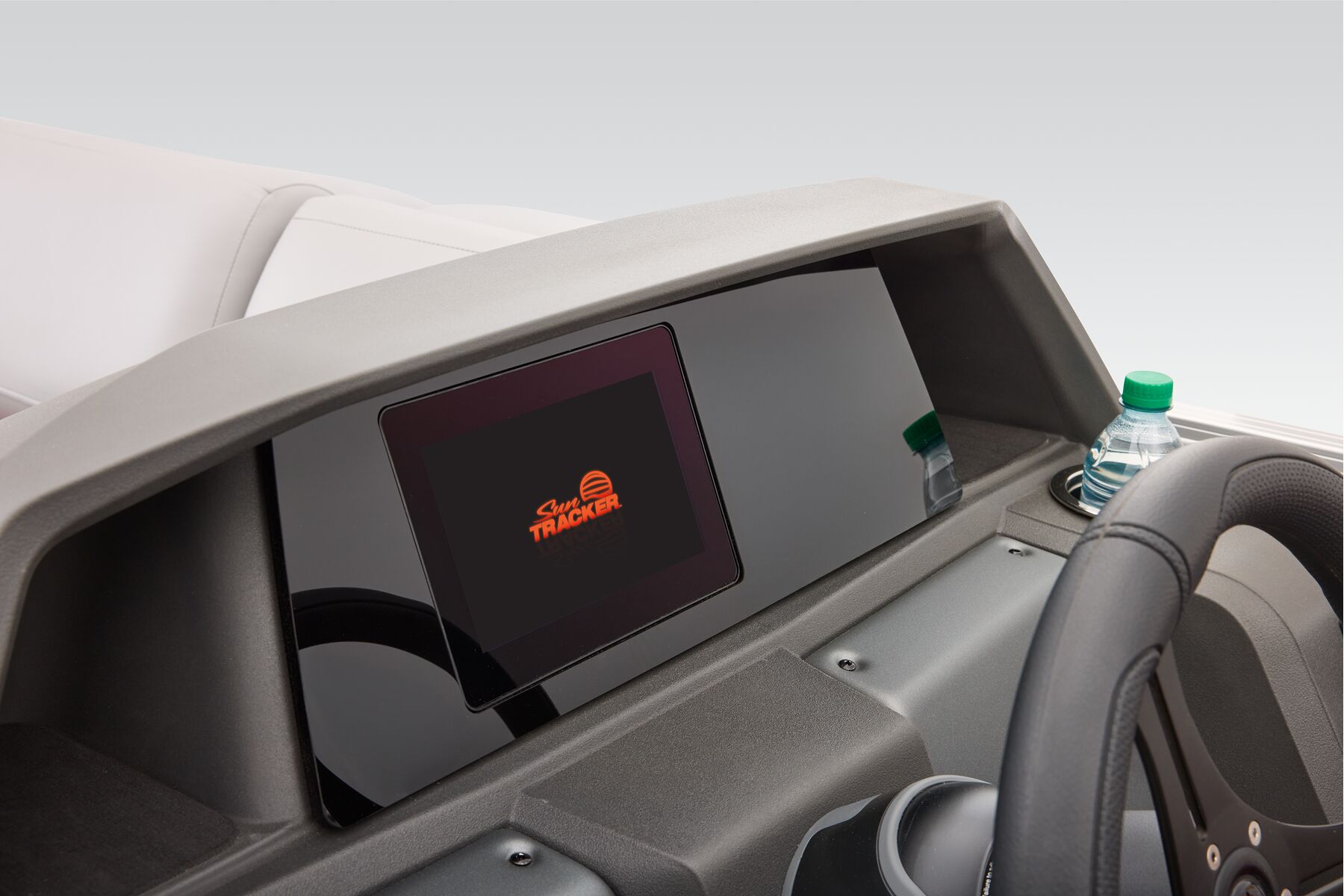

Console
- Deluxe soft-touch sport steering wheel
- 4:2 ratio no-feedback steering for responsive, easy turning
- Wraparound sport shroud & tinted, removable windscreen

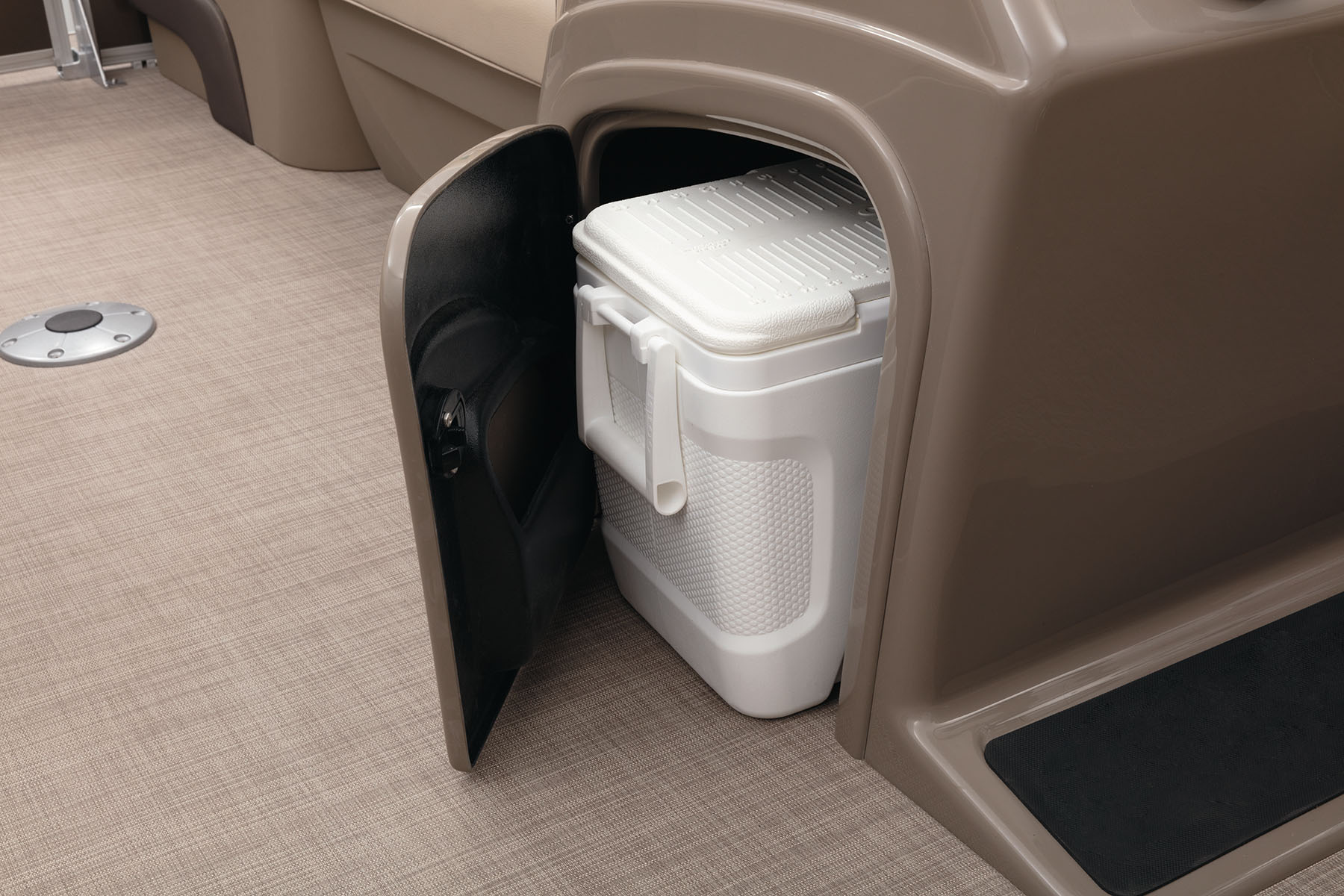

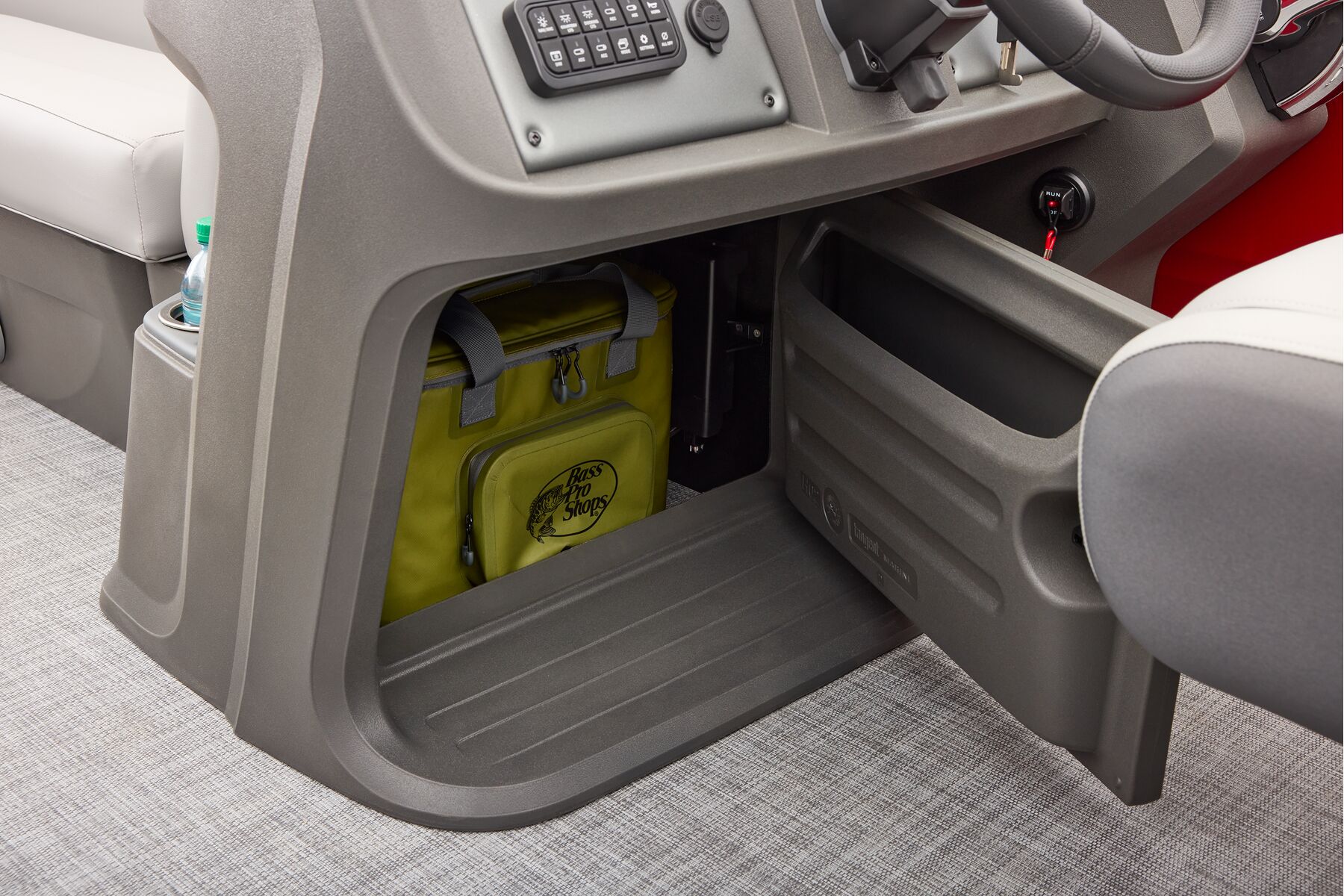

- Below-console cooler/storage space w/door & integrated pouch
- Small items tray
- Drink holders
- Built-in footrest w/non-skid pad

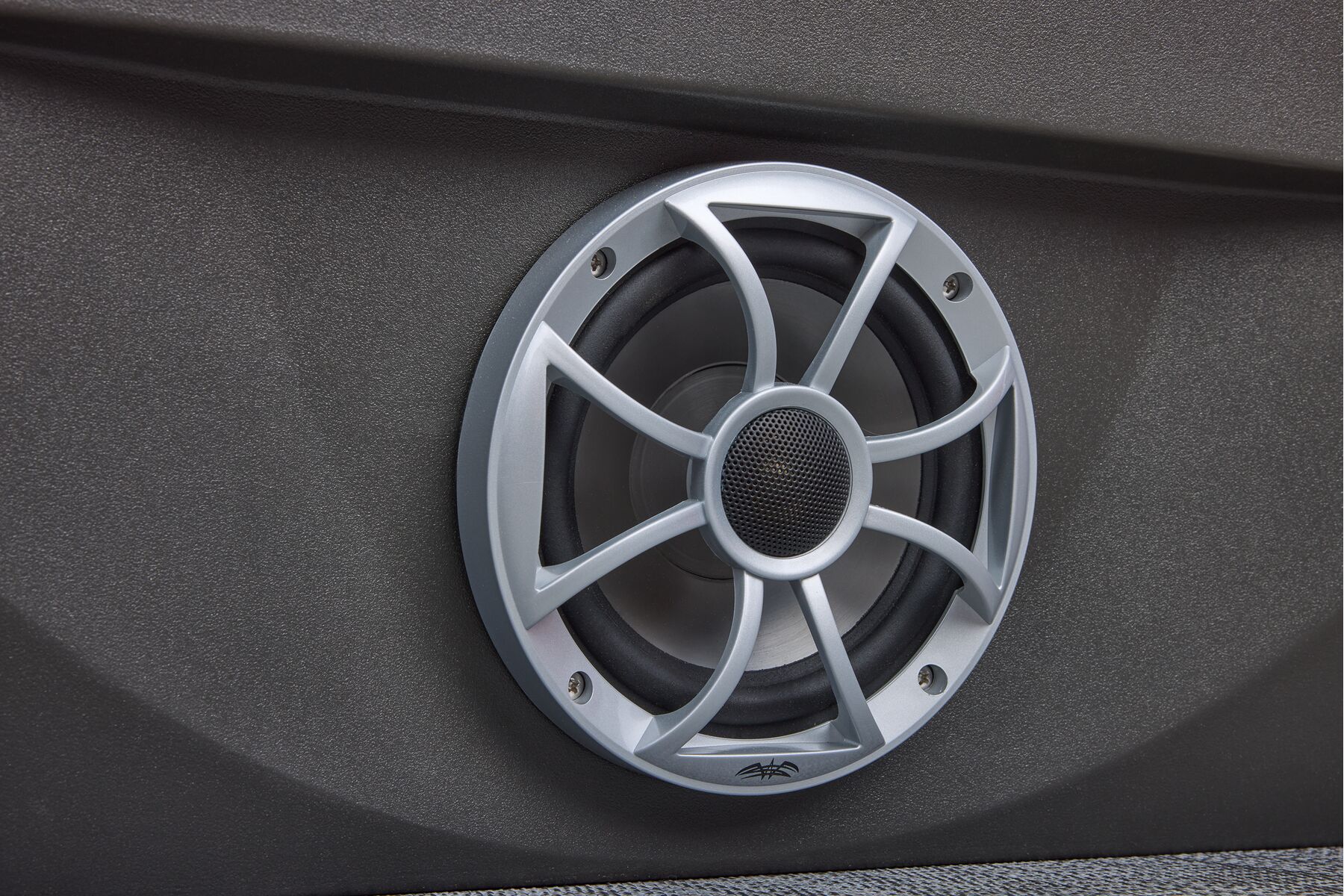

- AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 4 upholstery speakers
- USB/3.5 mm auxiliary input ports on console for direct stereo connection

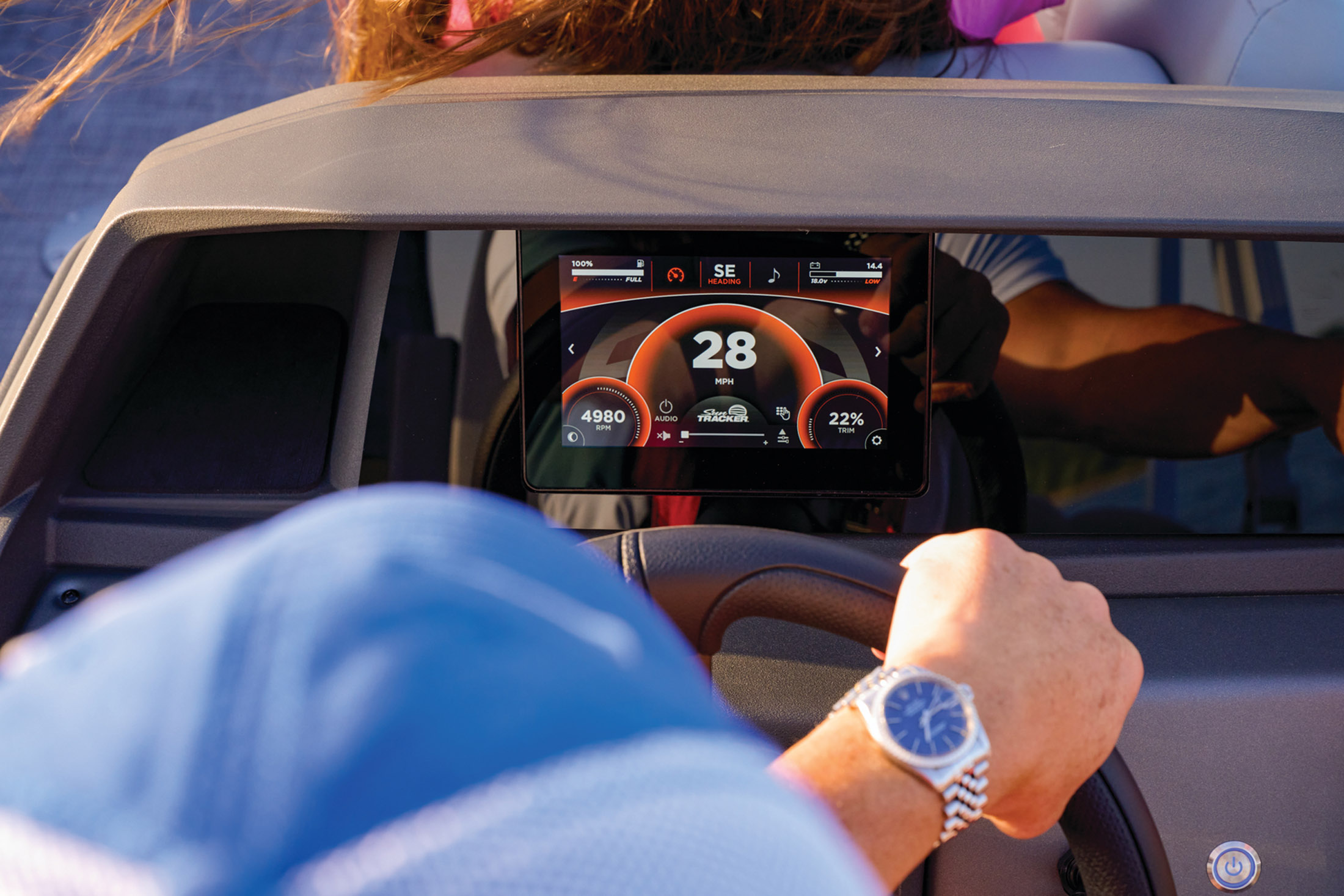

- Tachometer, trim meter/speedometer & fuel & hour gauges
- Lighted rocker switches
- Ergonomically positioned Mercury® binnacle control box w/trim
- 12V outlet
- Dark console color

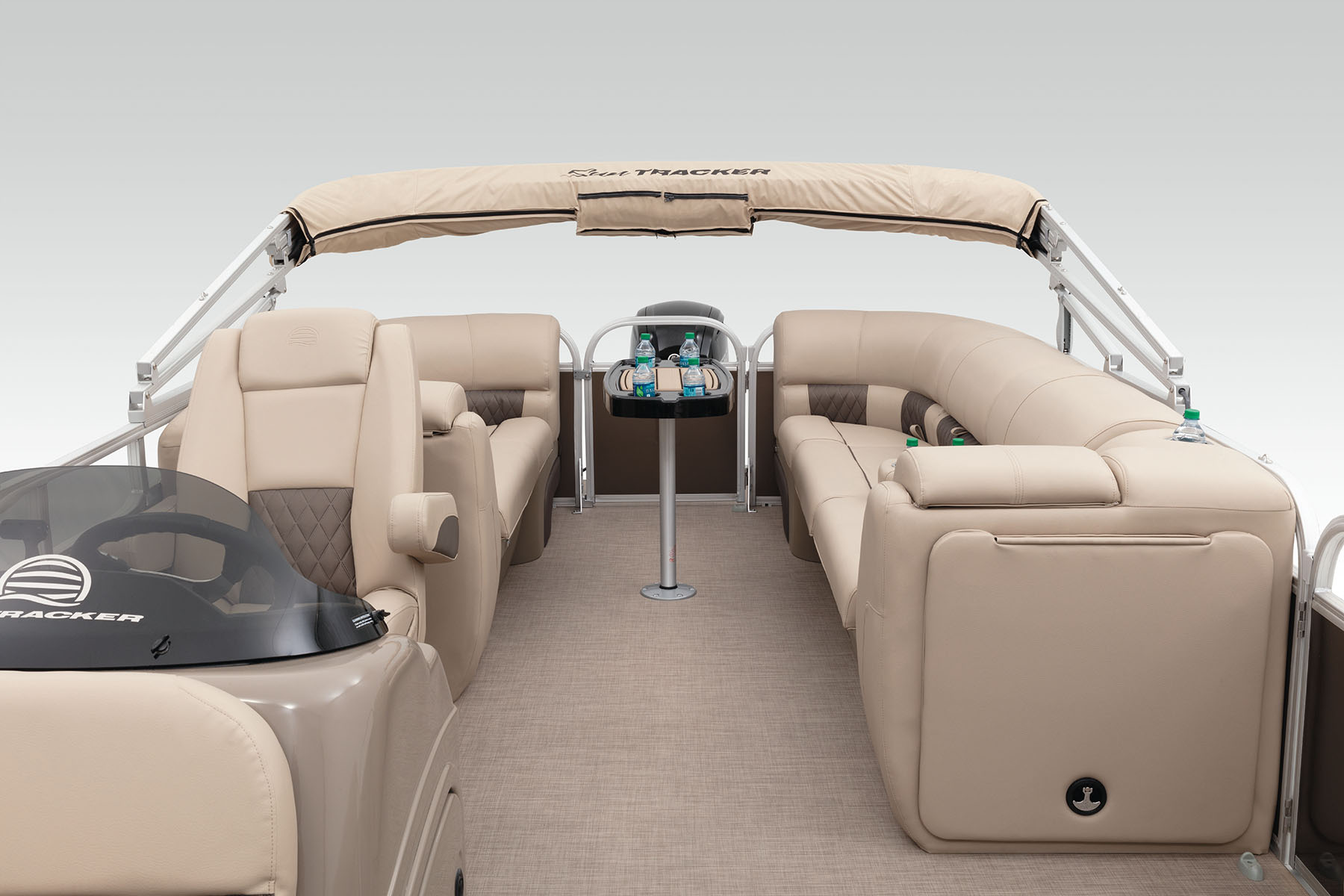

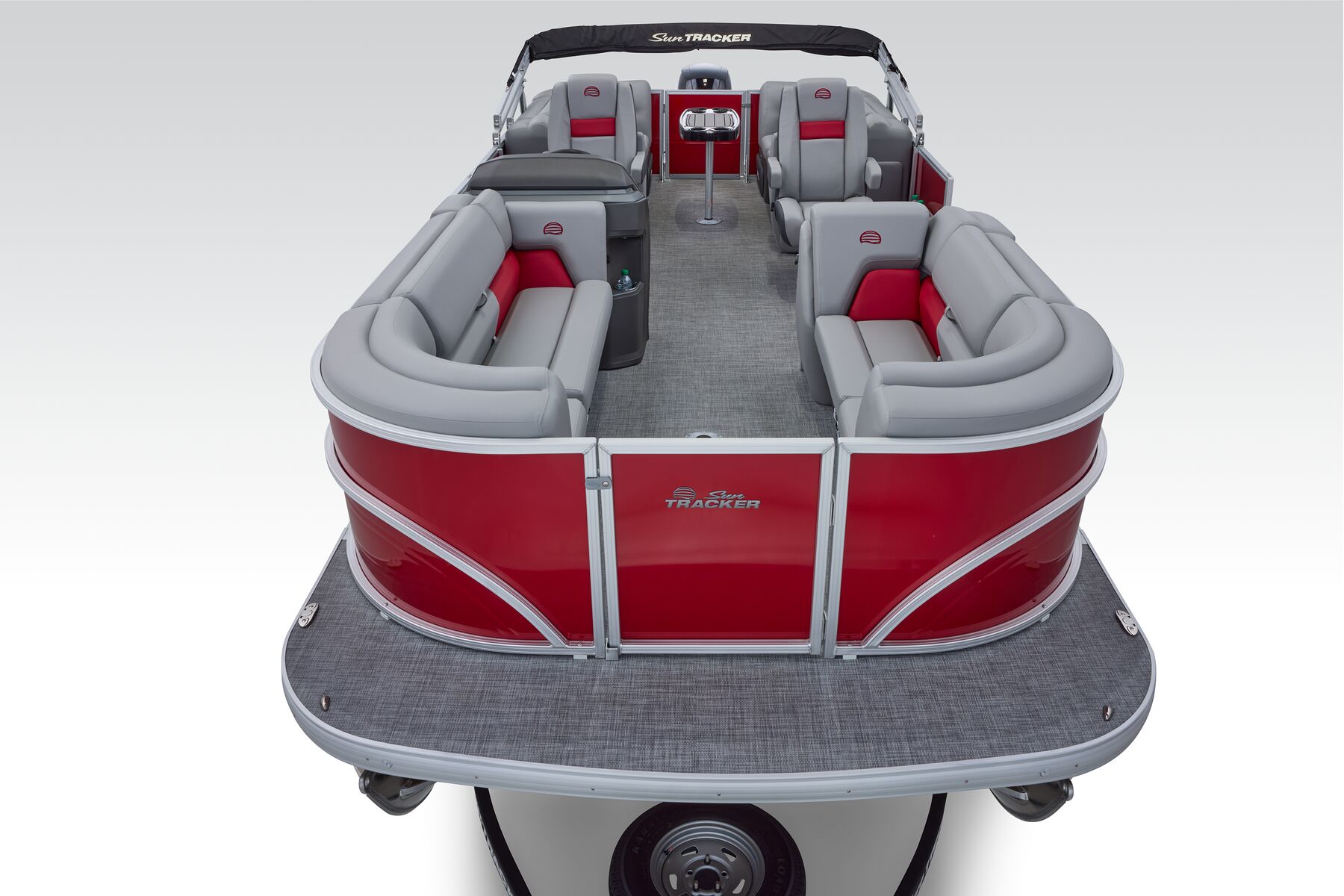

Interior

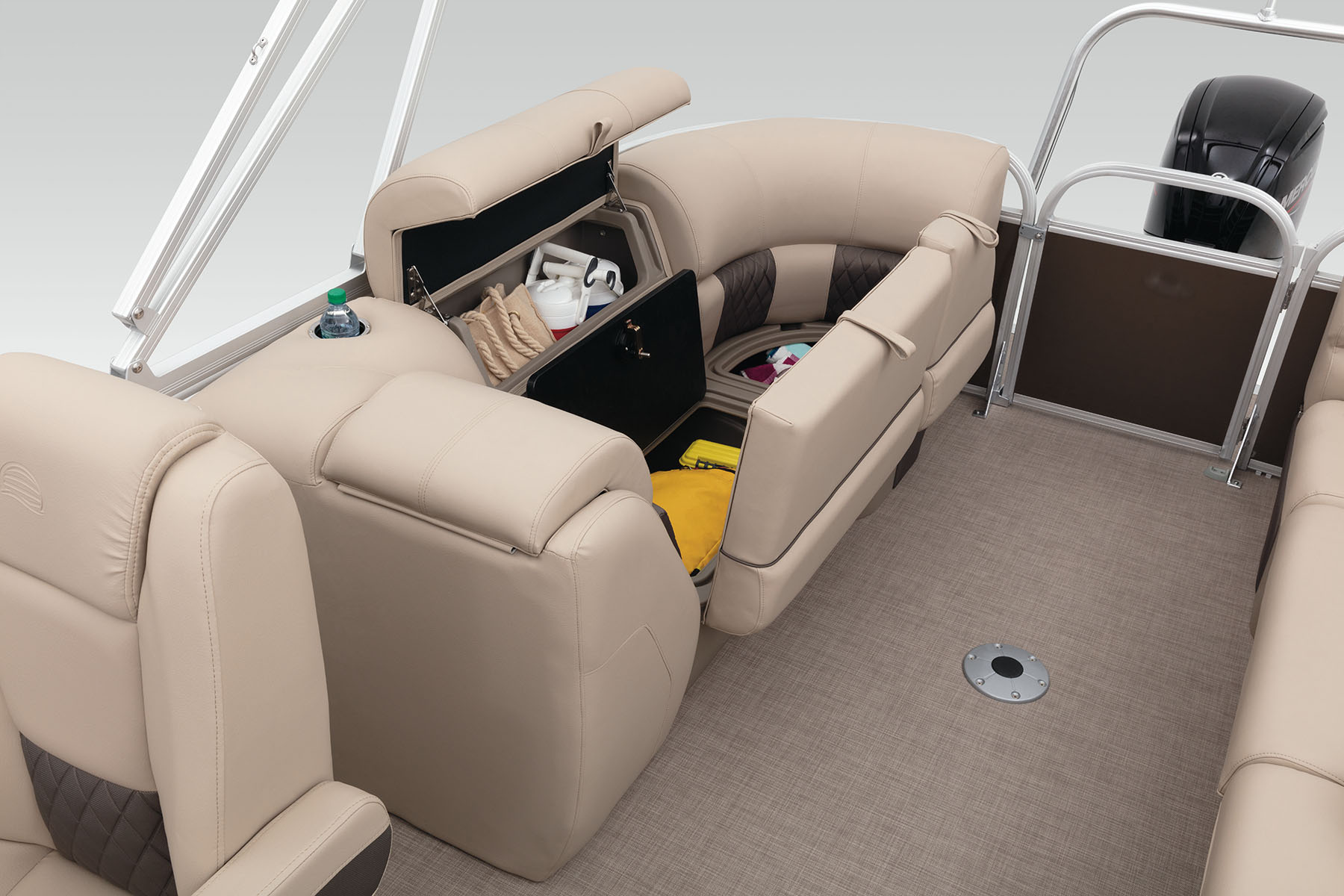

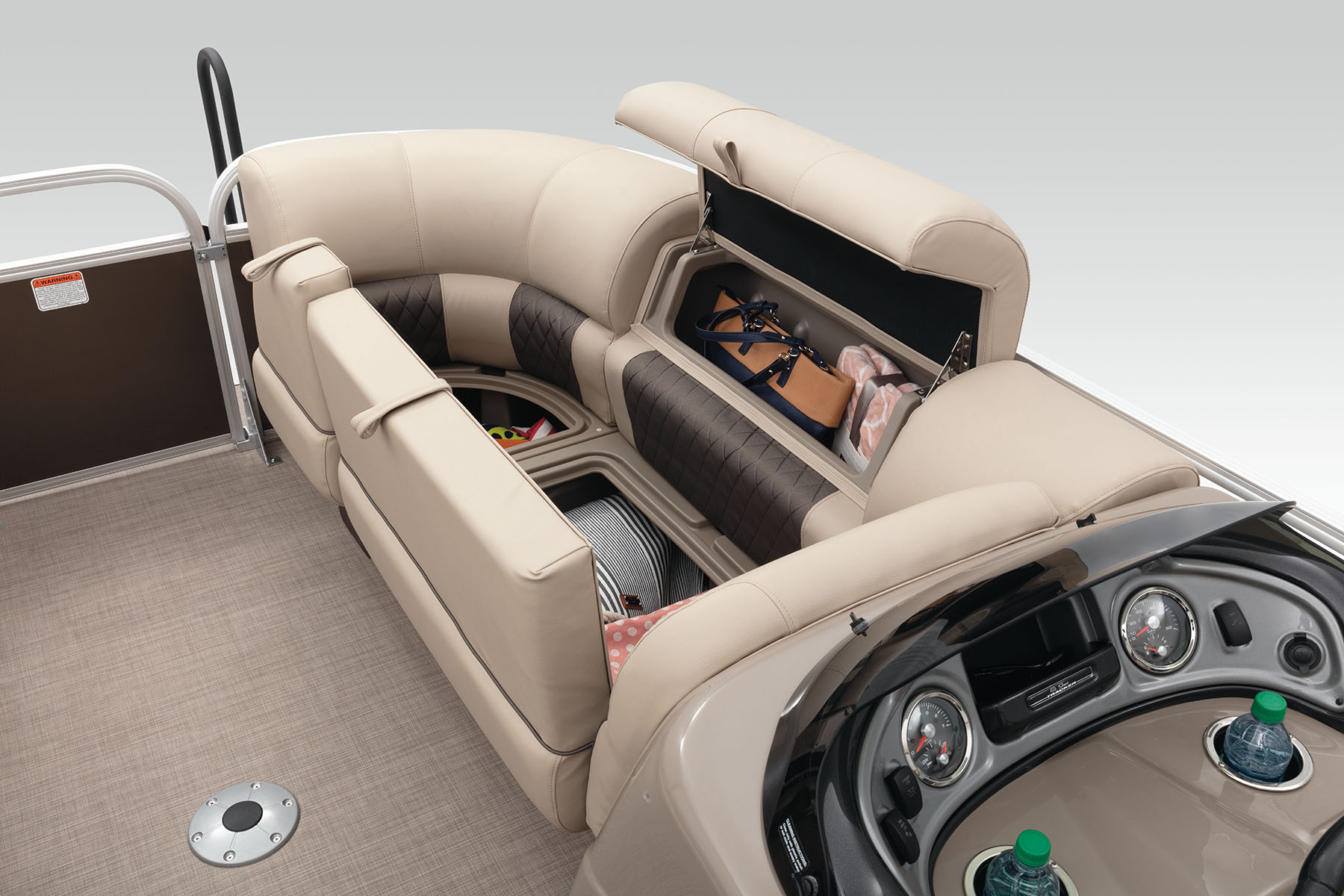

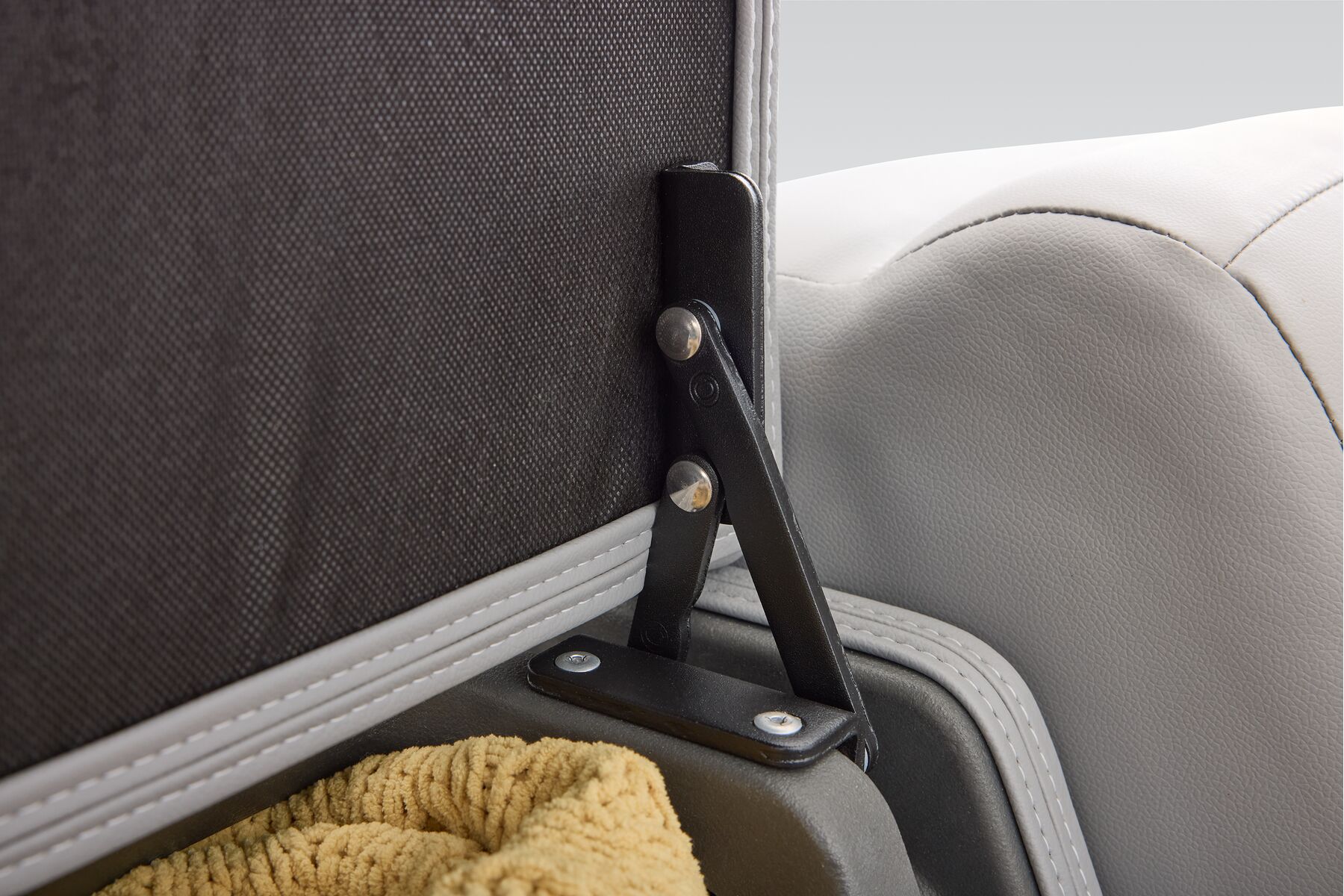

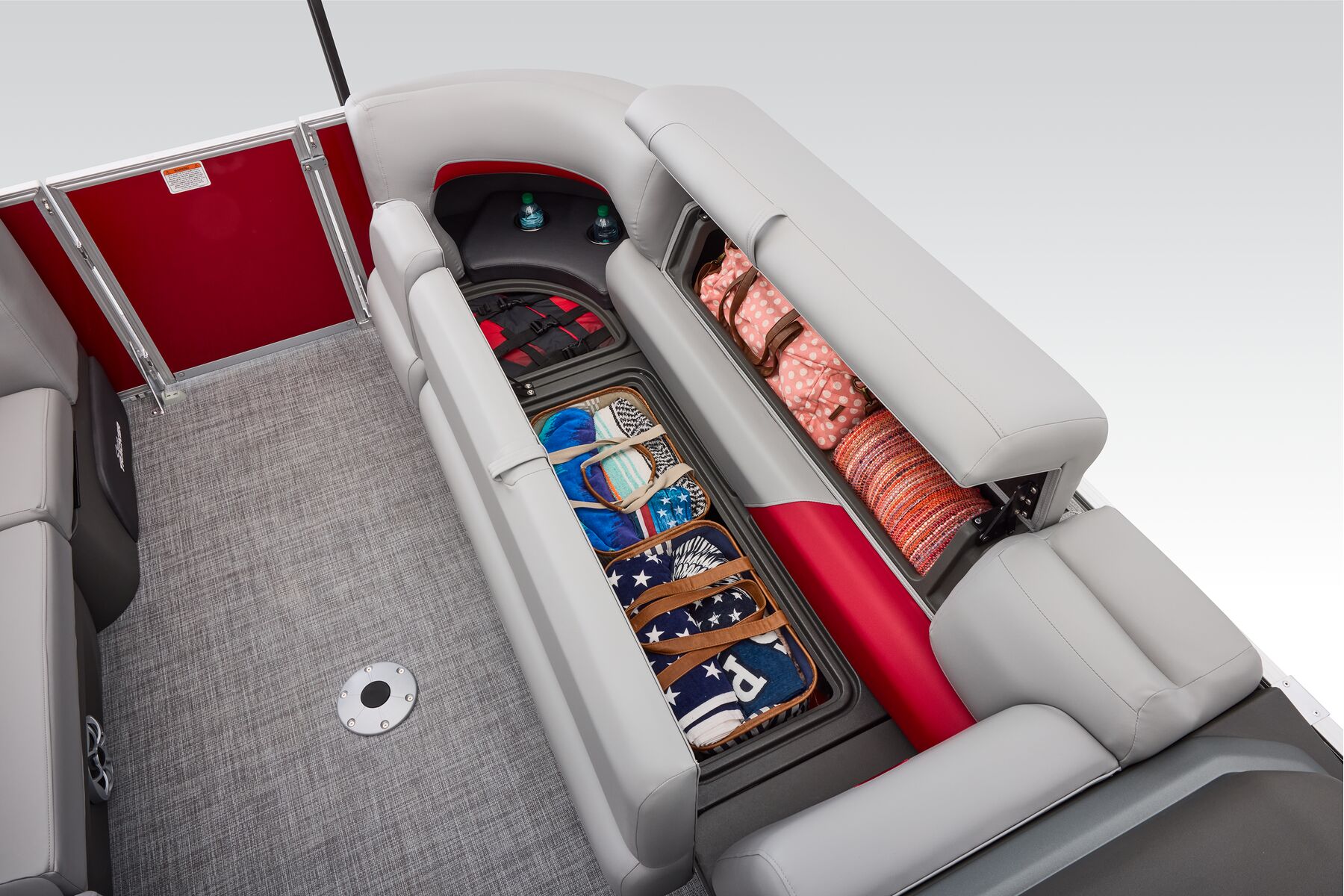

- The patented STOW MORE™ system features an added compartment in the seat back for increased storage

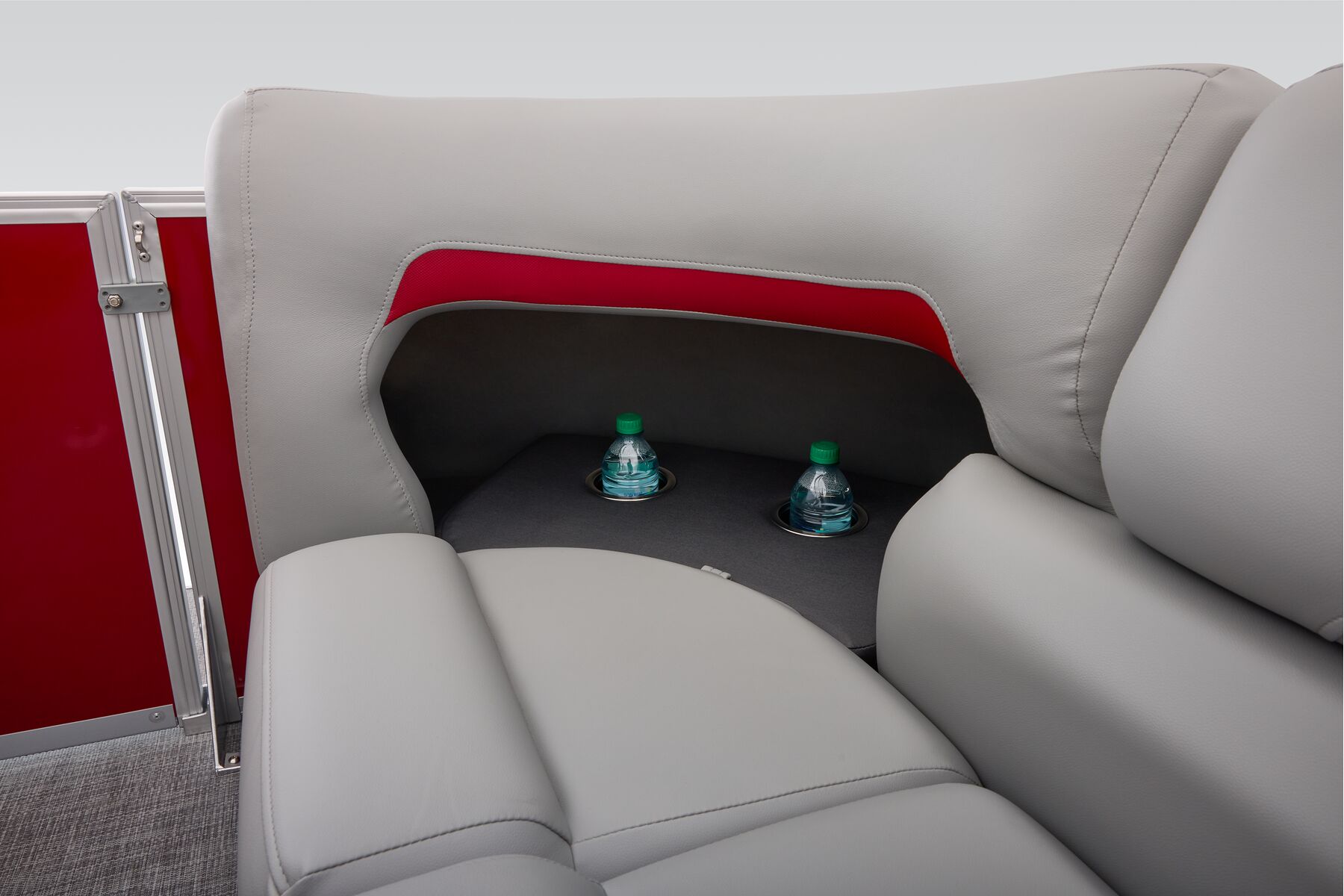

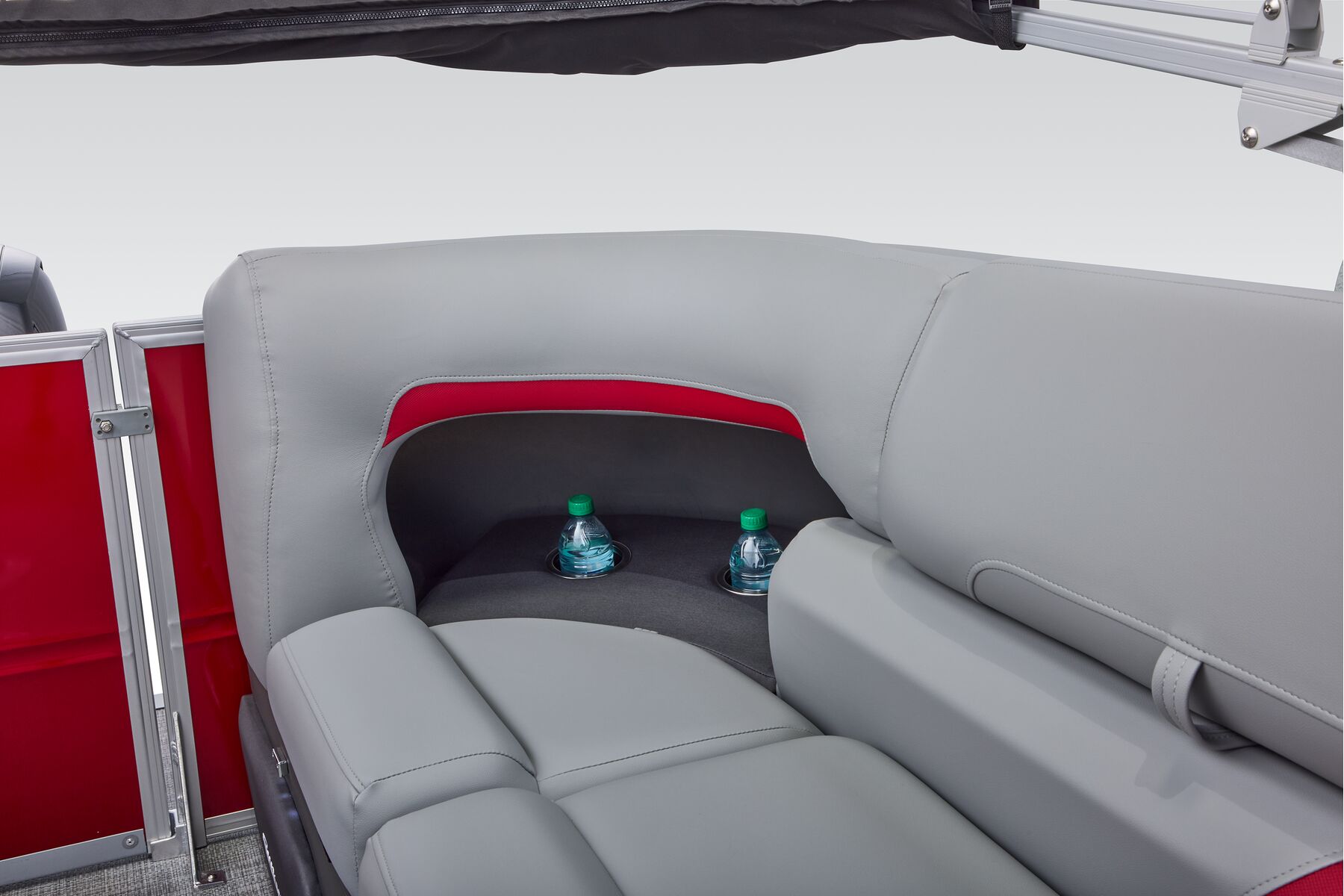

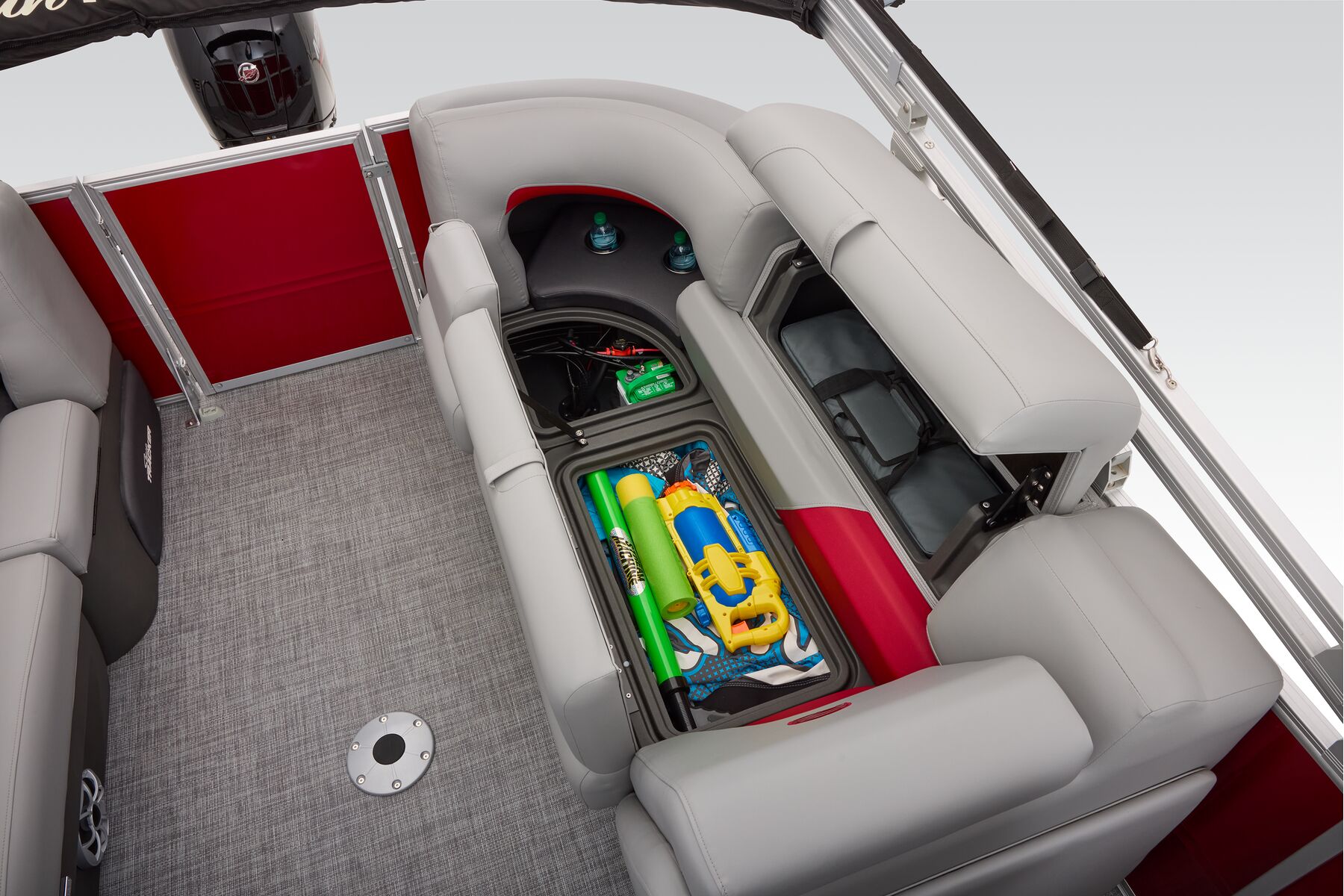

- Bow port couch w/STOW MORE™ system, underseat storage & armrest w/drink holder
- Bow starboard couch w/STOW MORE™ system & underseat storage

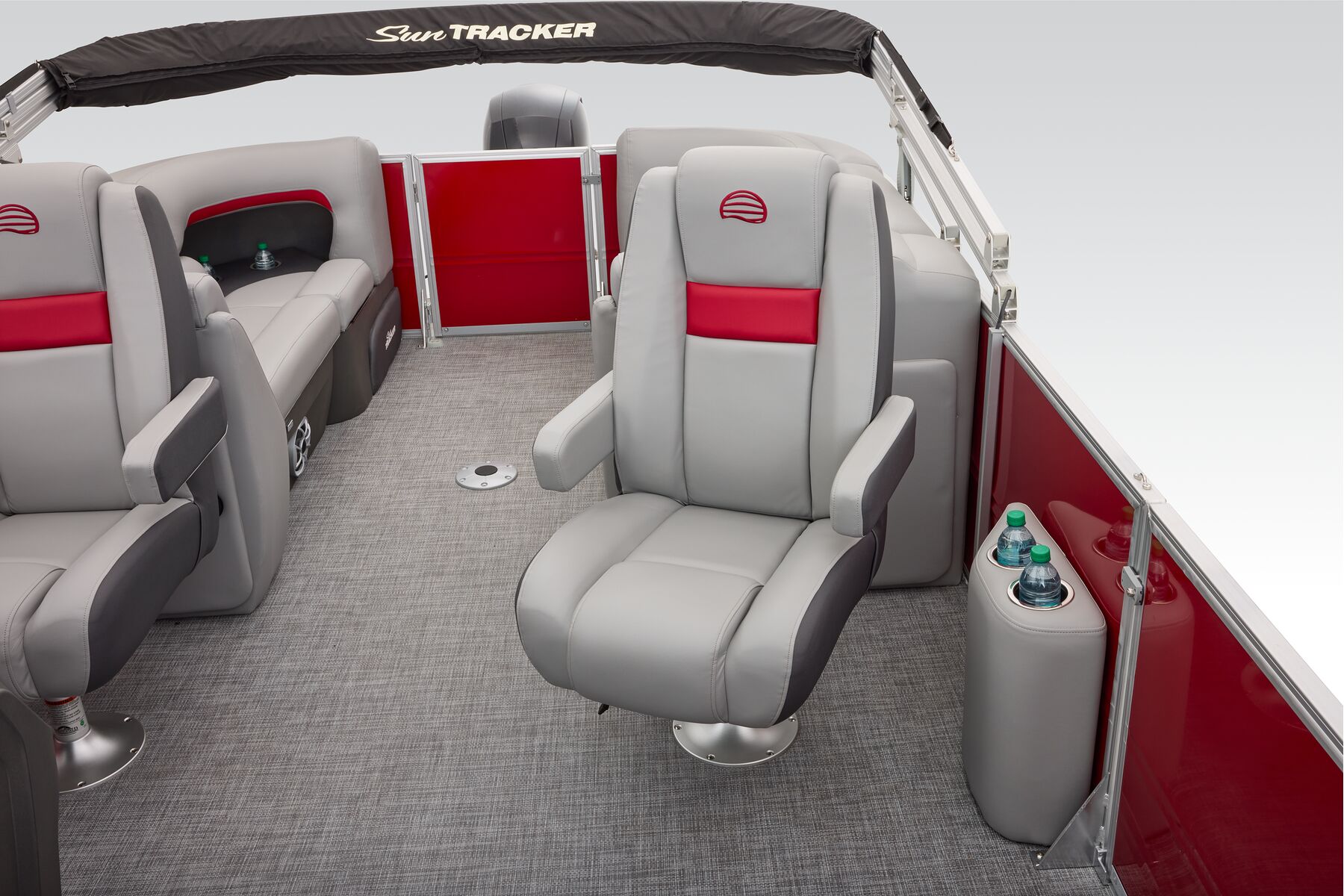

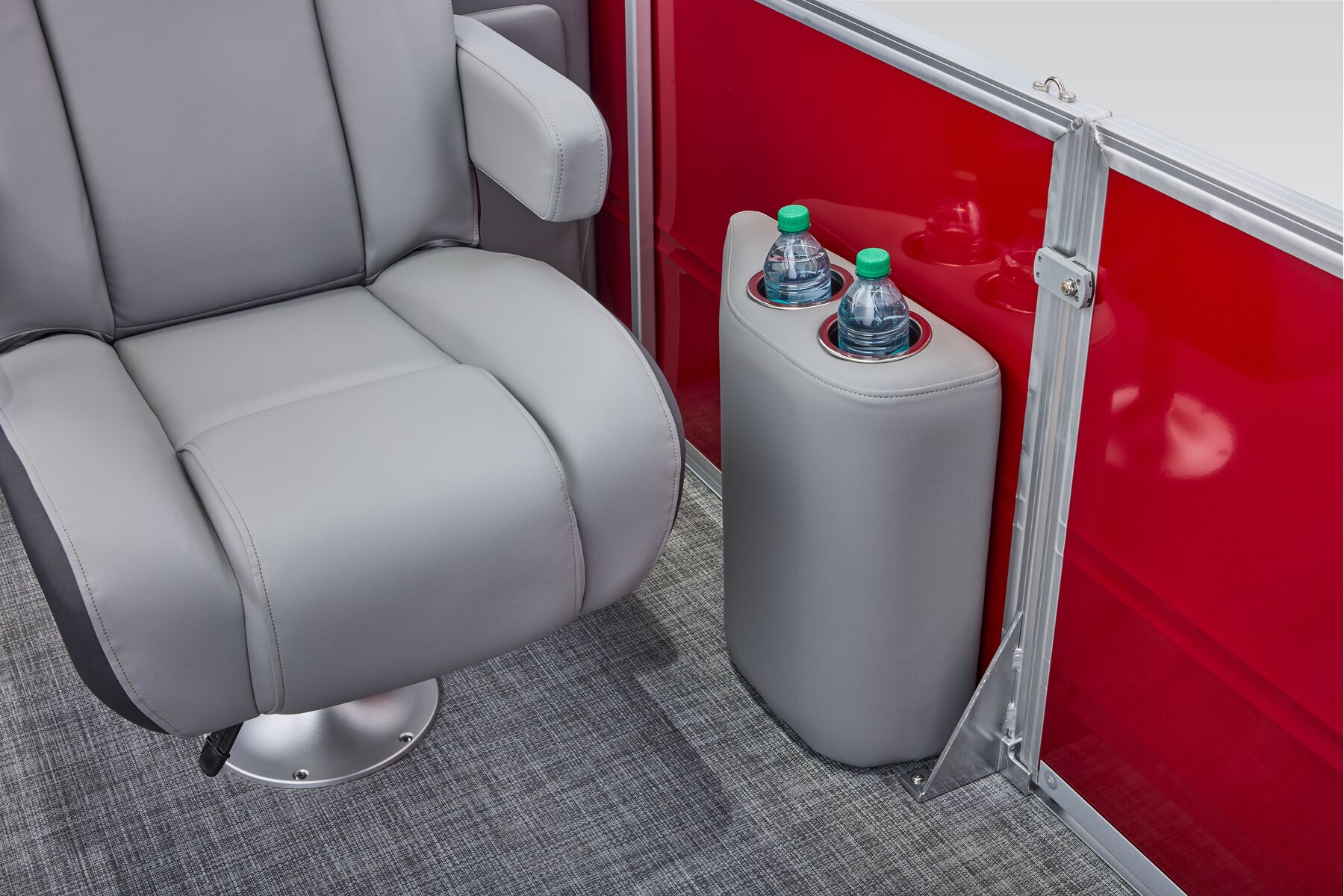

- High-back swiveling port bucket seat, reclining & w/self-leveling arms

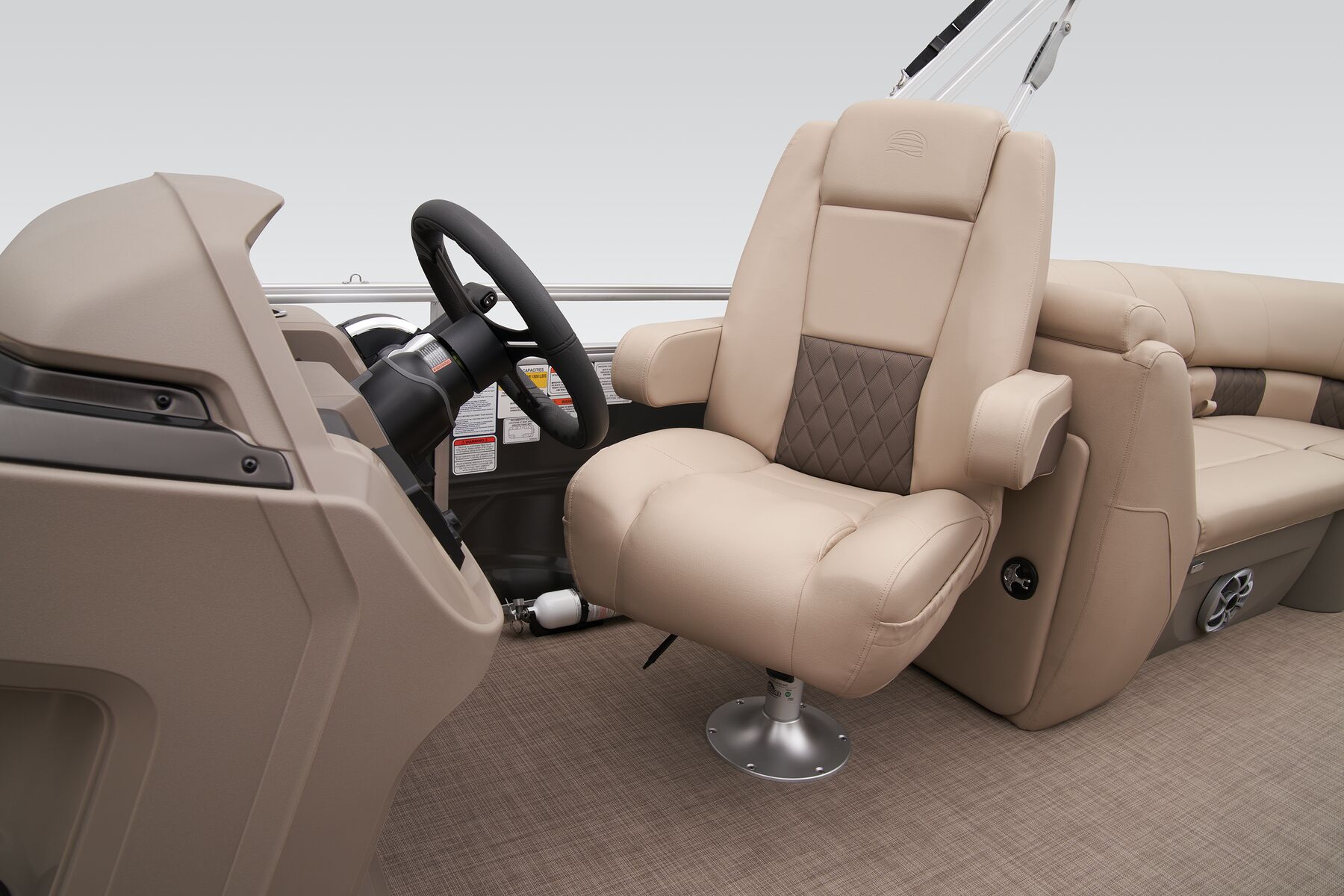

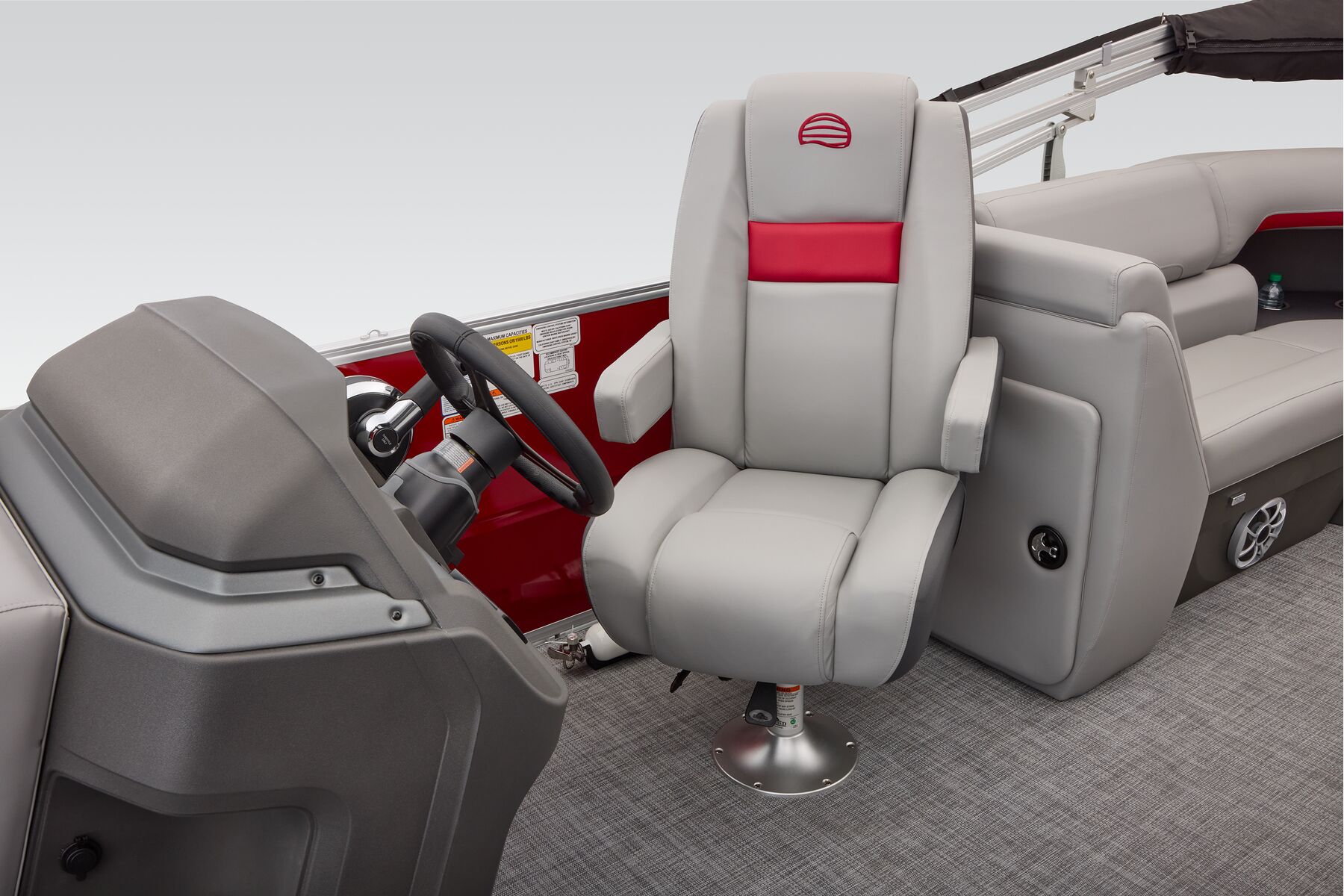

- High-back swiveling helm bucket seat, reclining & w/self-leveling arms
- Aft port couch w/STOW MORE™ system, underseat storage & arm

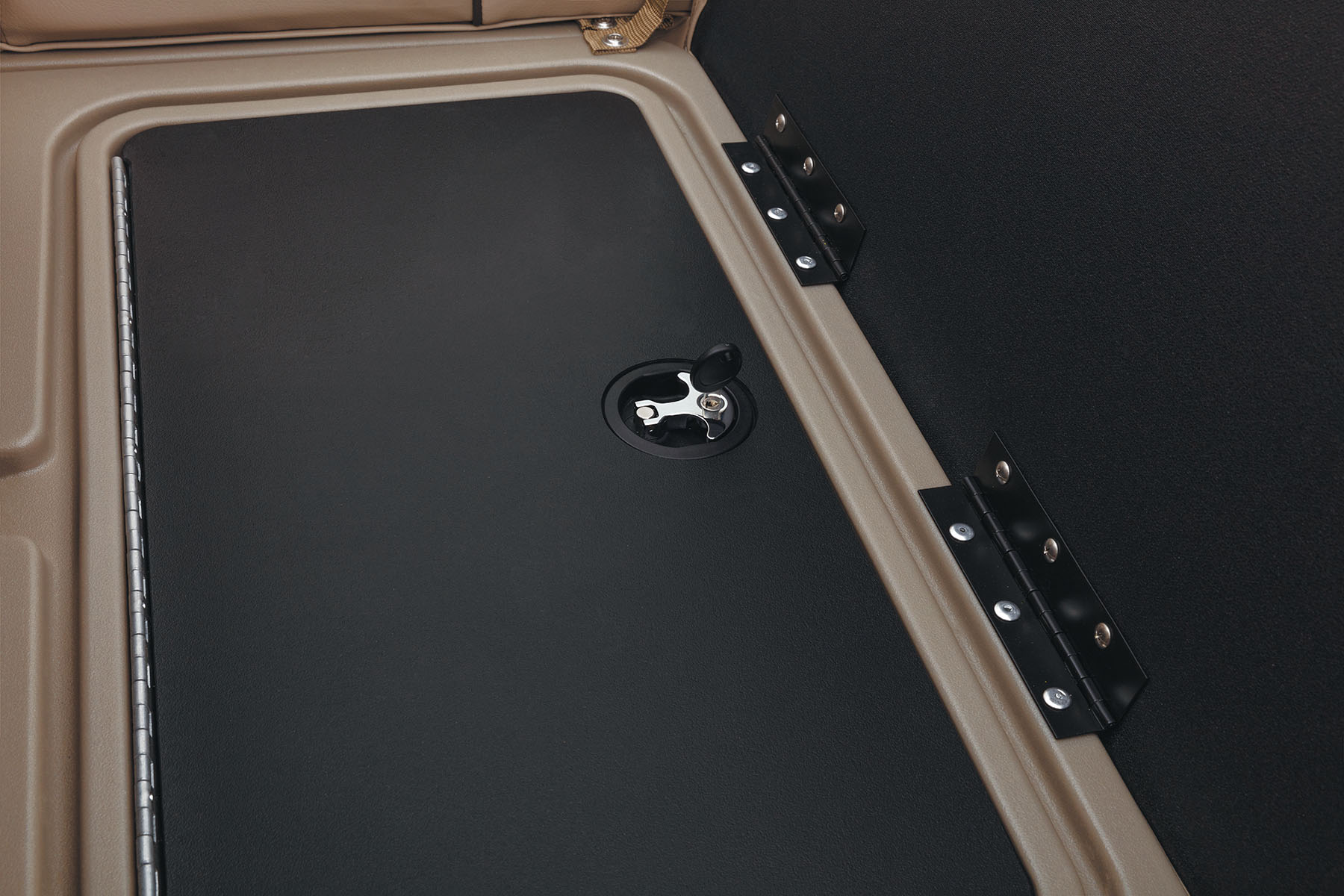

- Aft starboard couch w/STOW MORE™ system, lockable underseat storage & arm

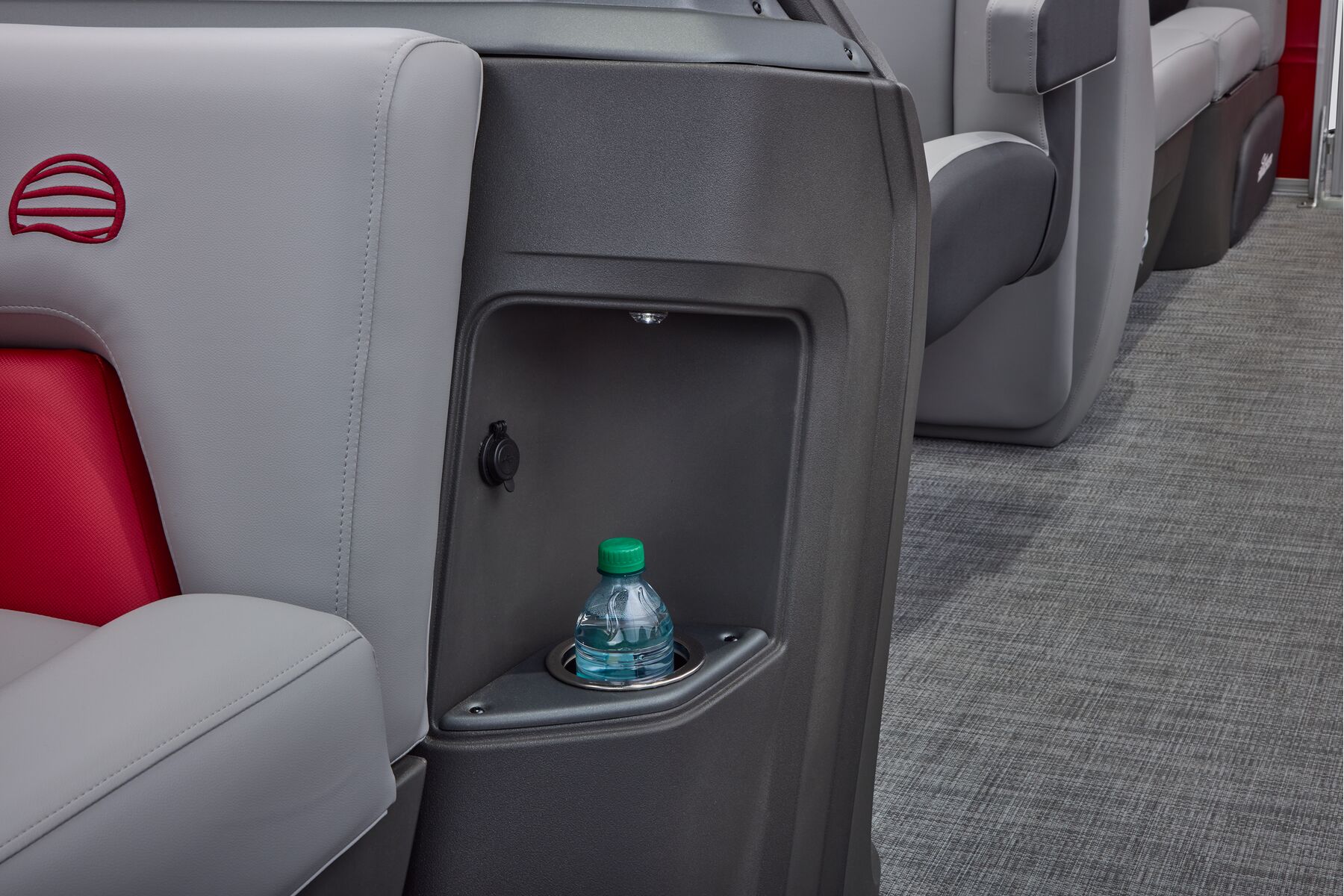

- Midship port side drink holder
- Full-width aft swim deck

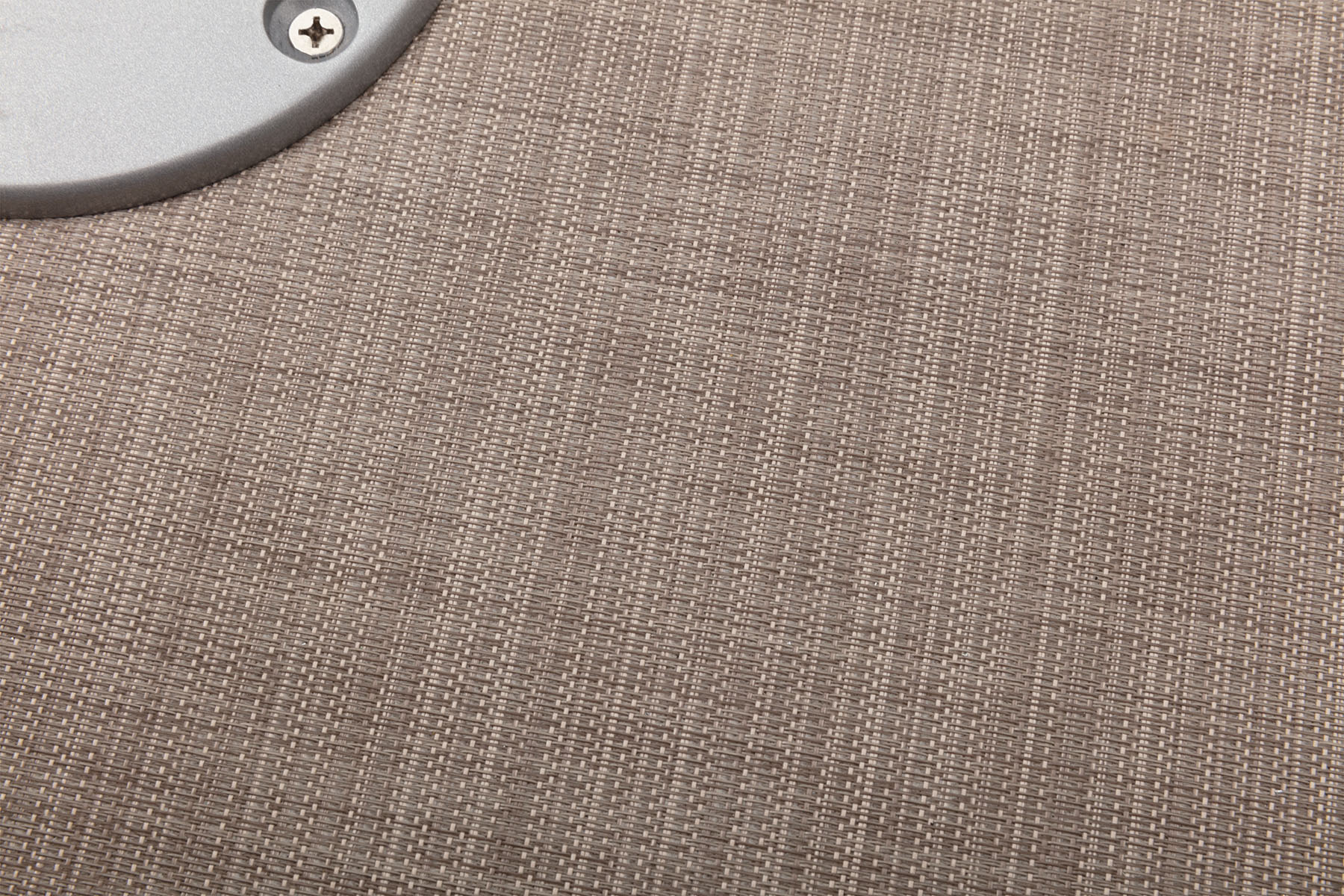

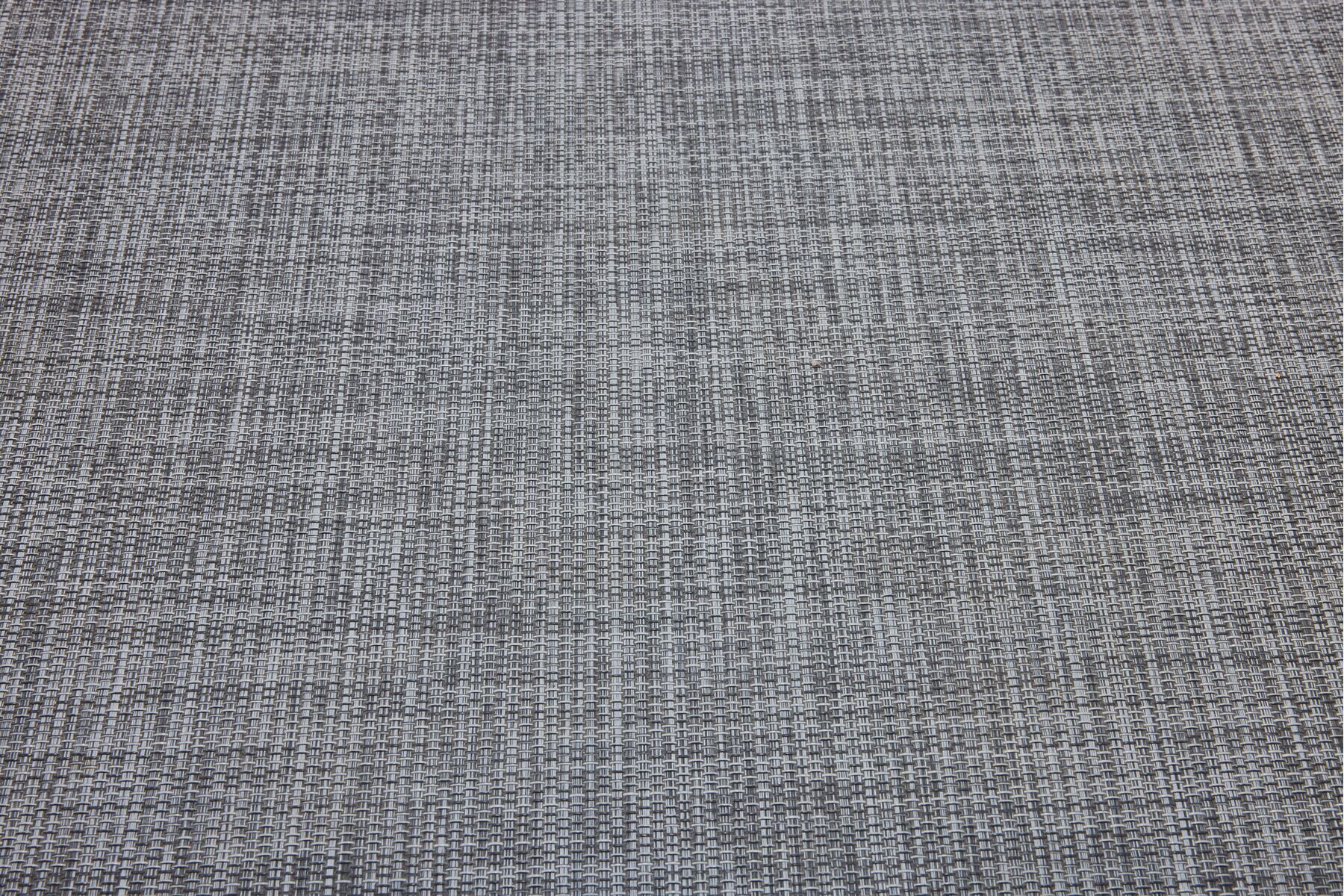

- Woven 16-oz. (.45 kg) marine-grade flooring throughout

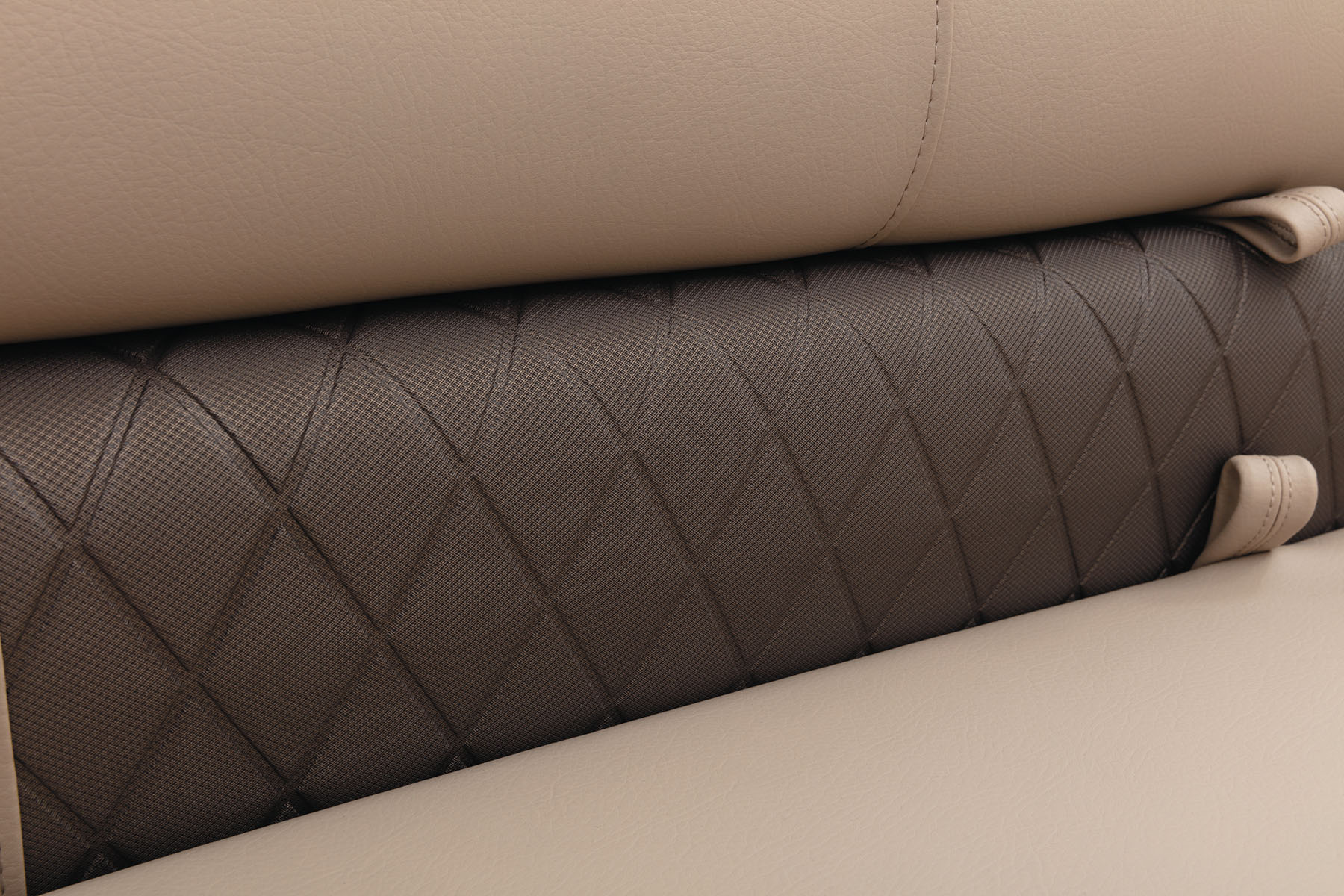

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

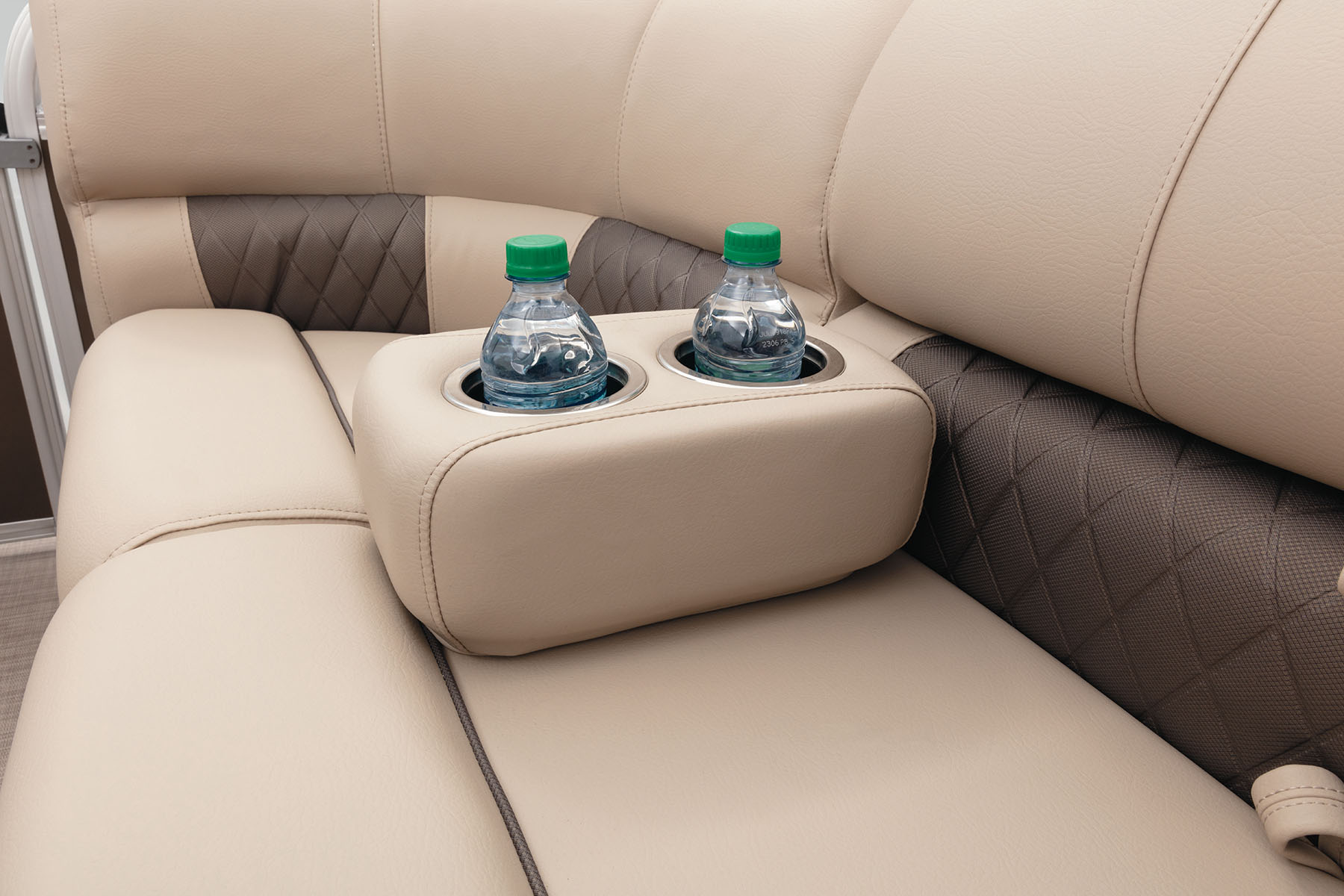

- 2 movable drink holders/armrests

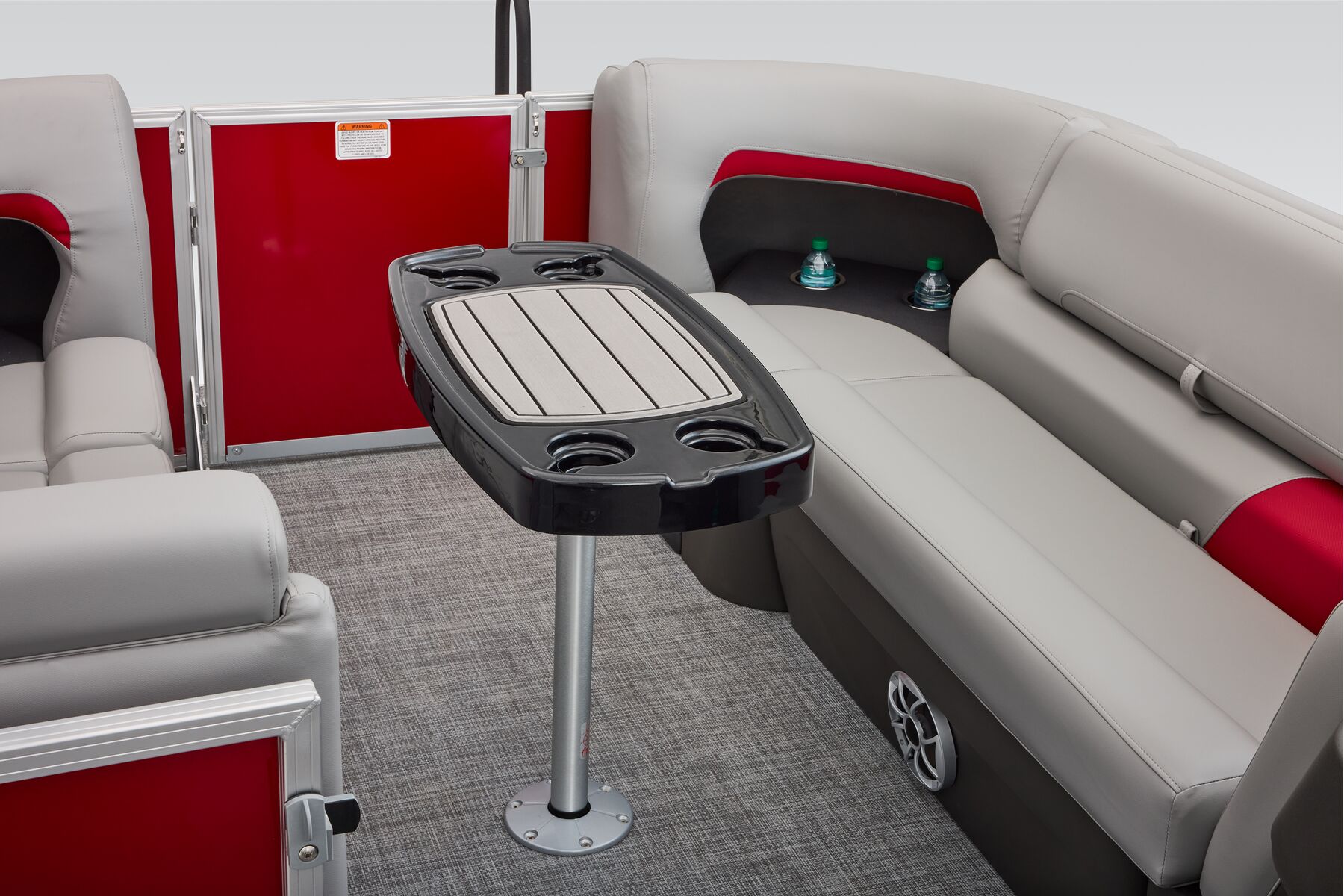

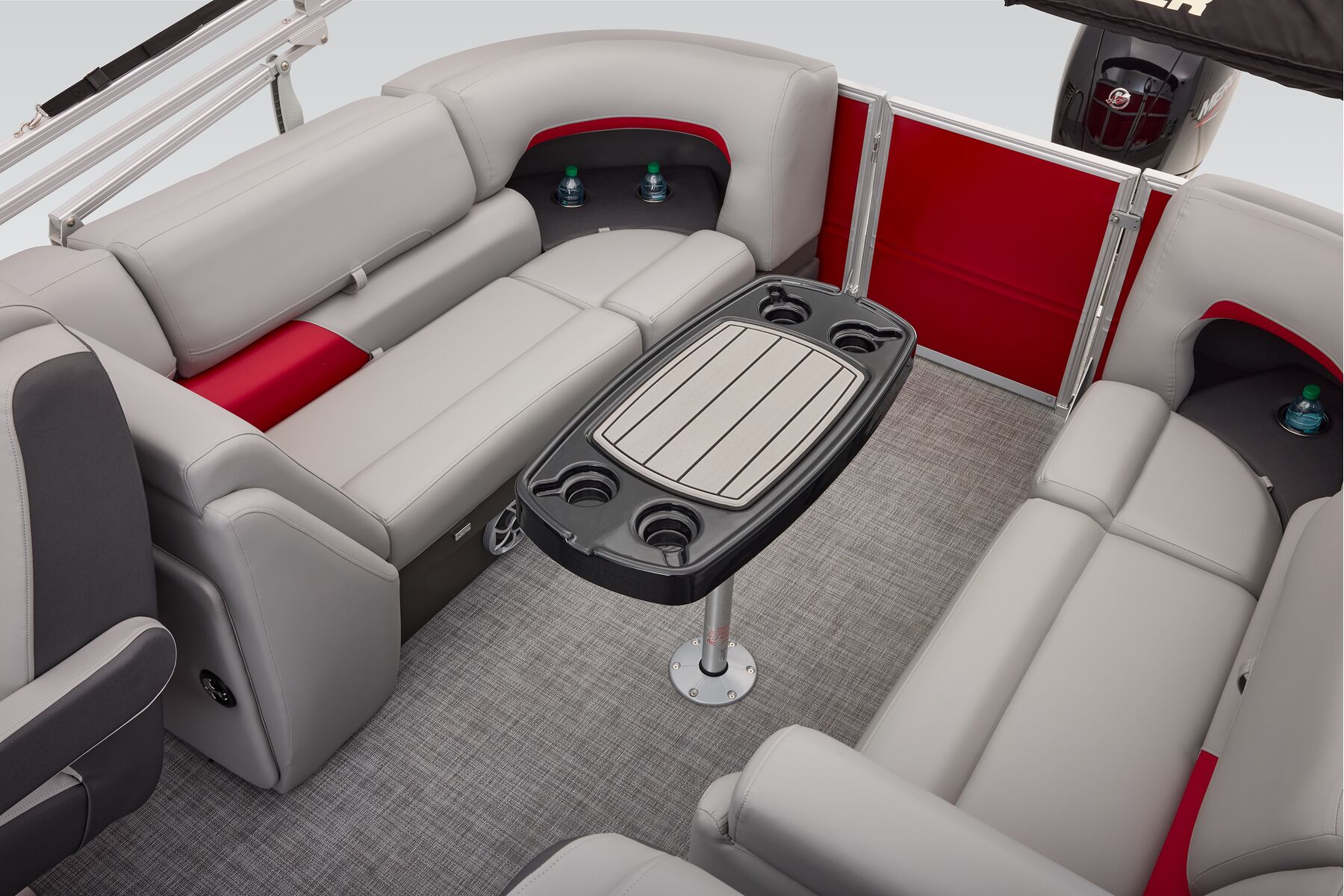

- Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
Performance
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched aluminum propeller

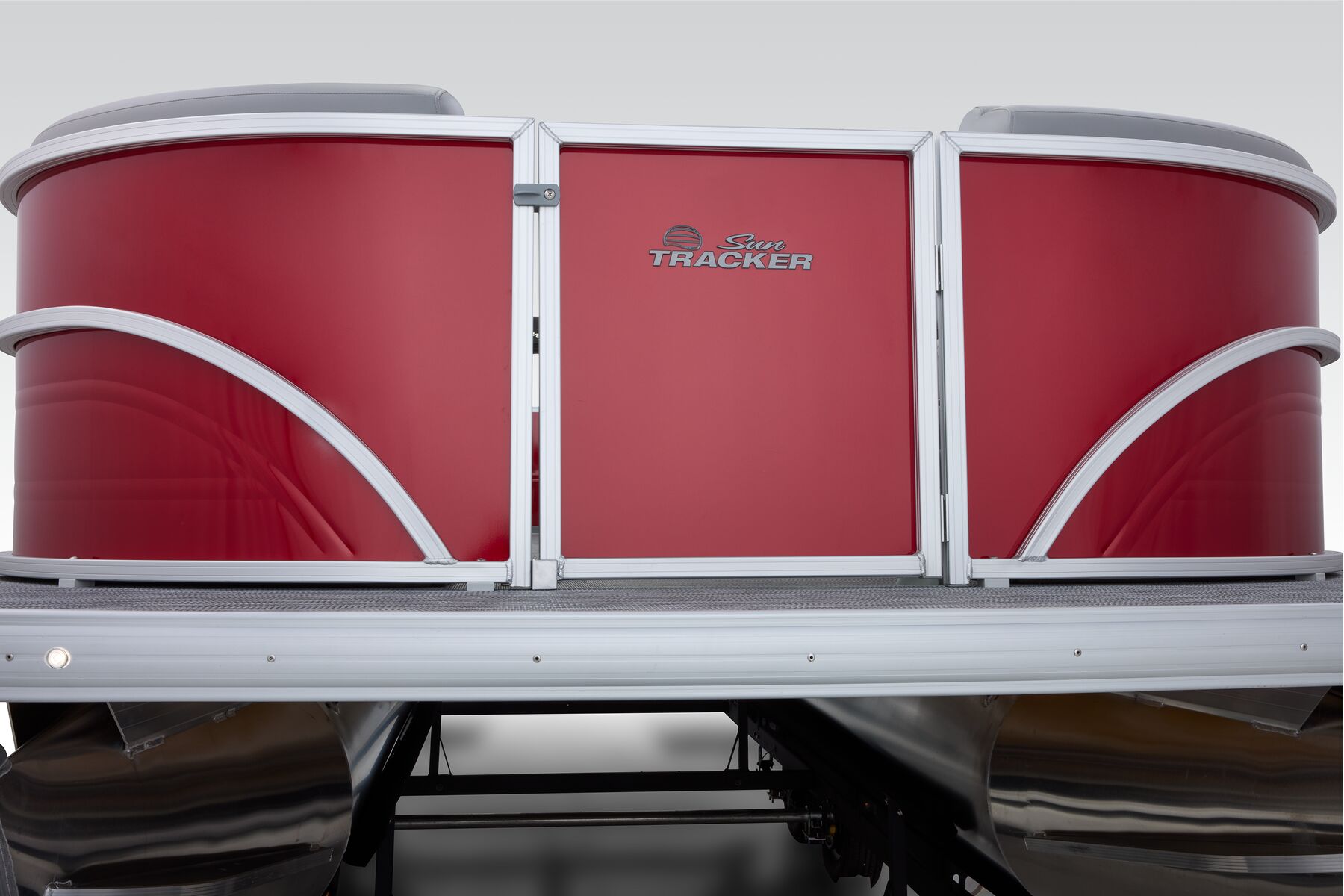

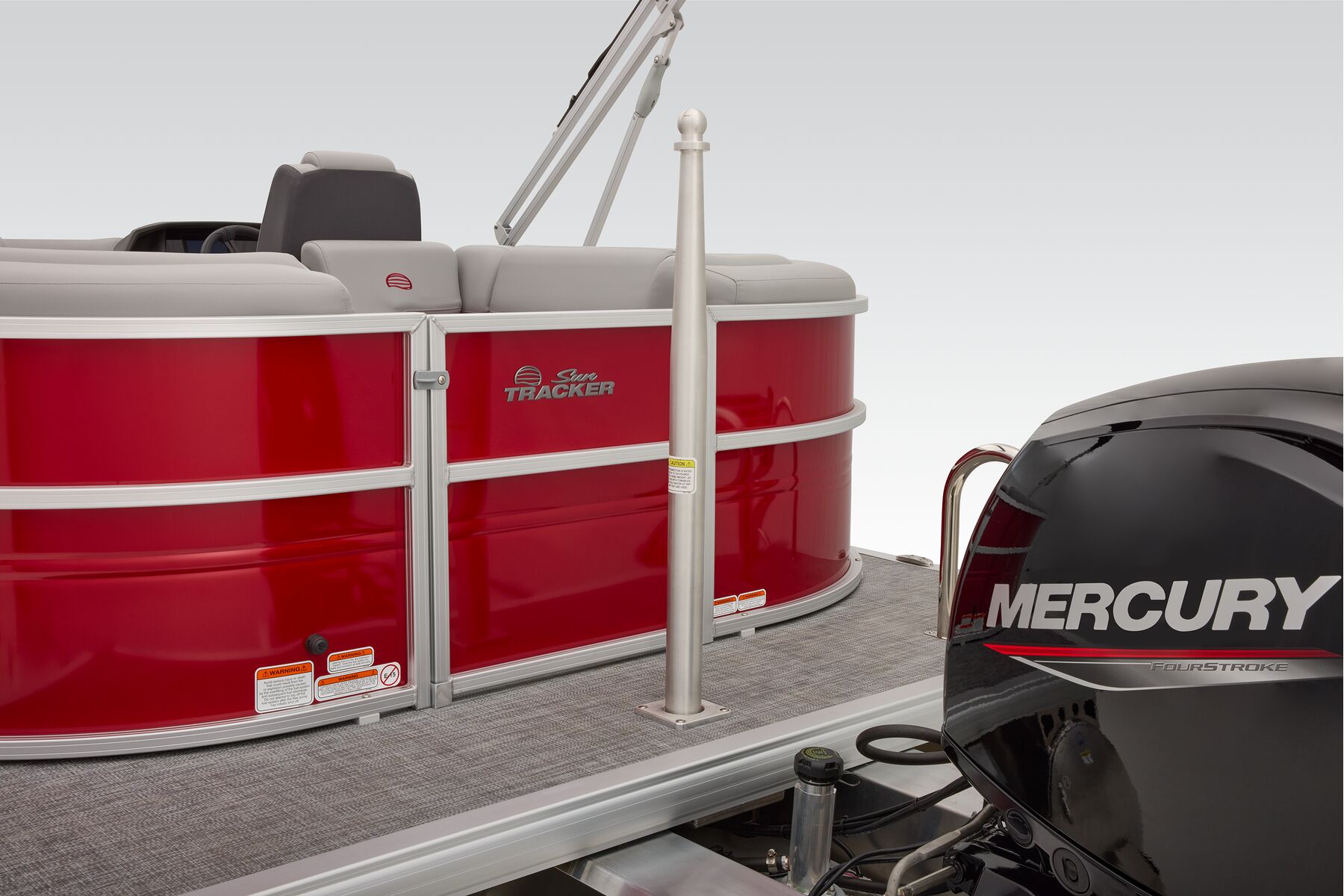

Construction & Exterior

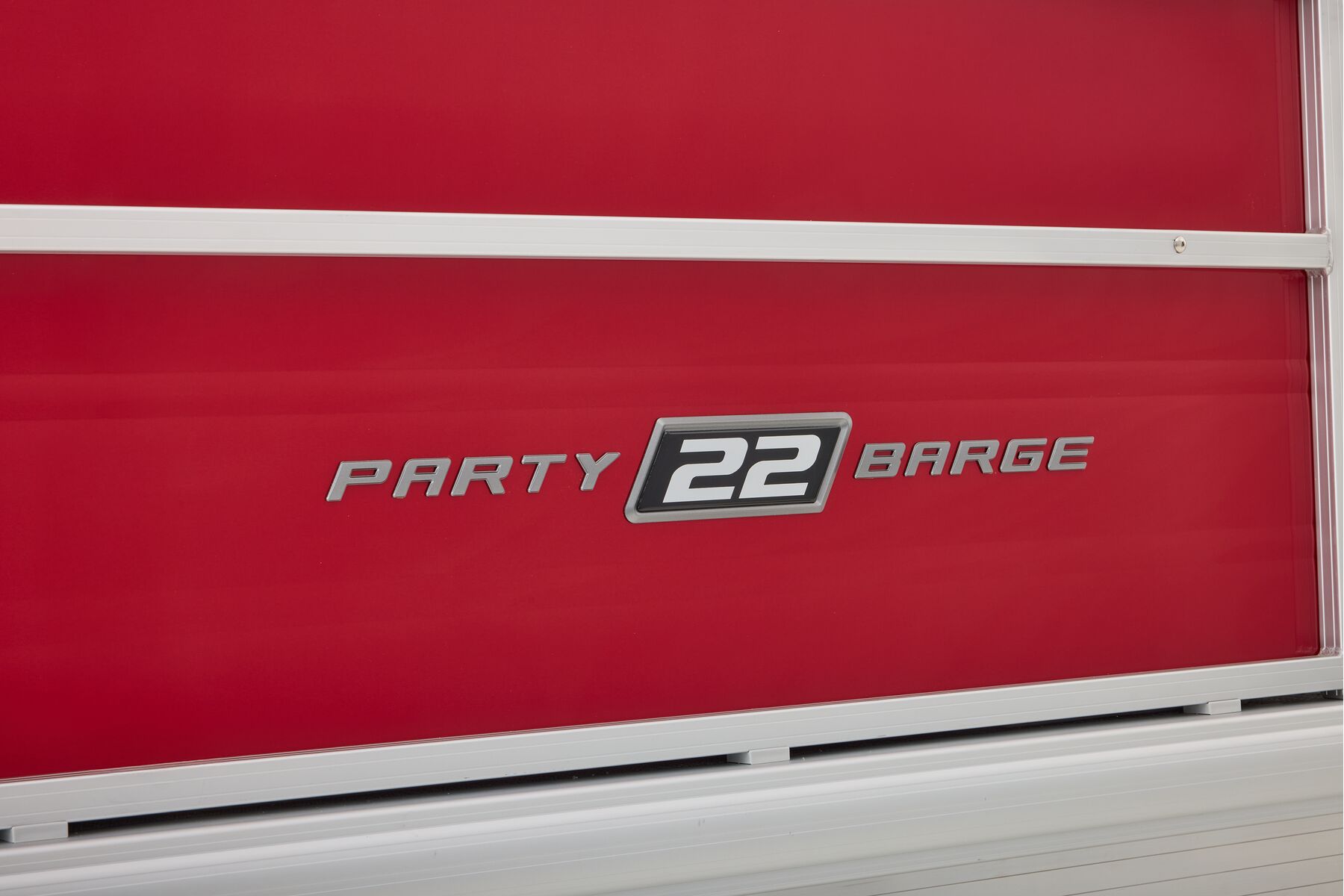

- Color: NEW Charcoal or NEW Copper Red fencing
- Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
- Rotomolded couches & backs for furniture w/Diamante Pepper accent
- Heavy-duty bow U-channel reinforcement behind deck trim
- 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
- 1-piece full-length M-bracket deck supports

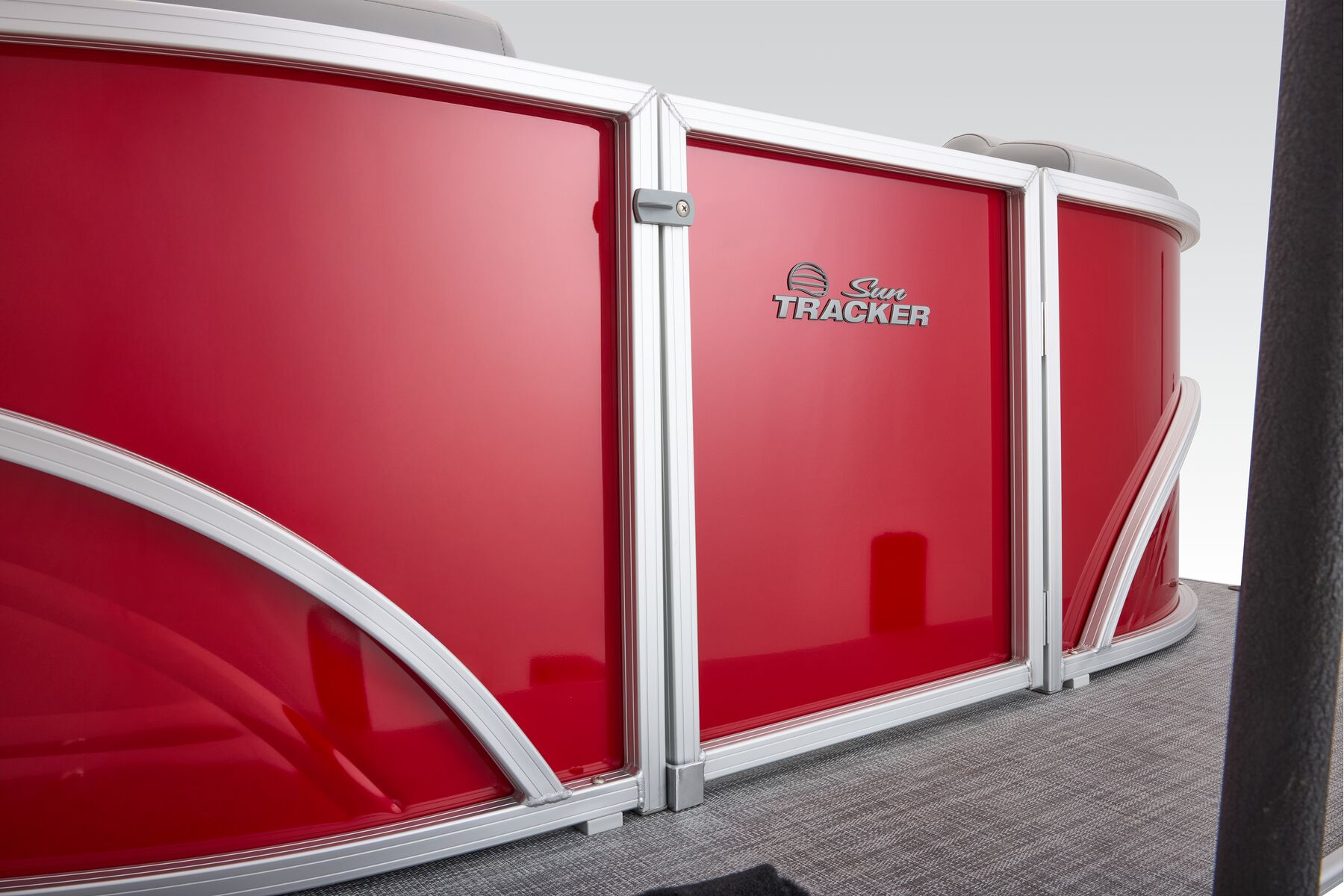

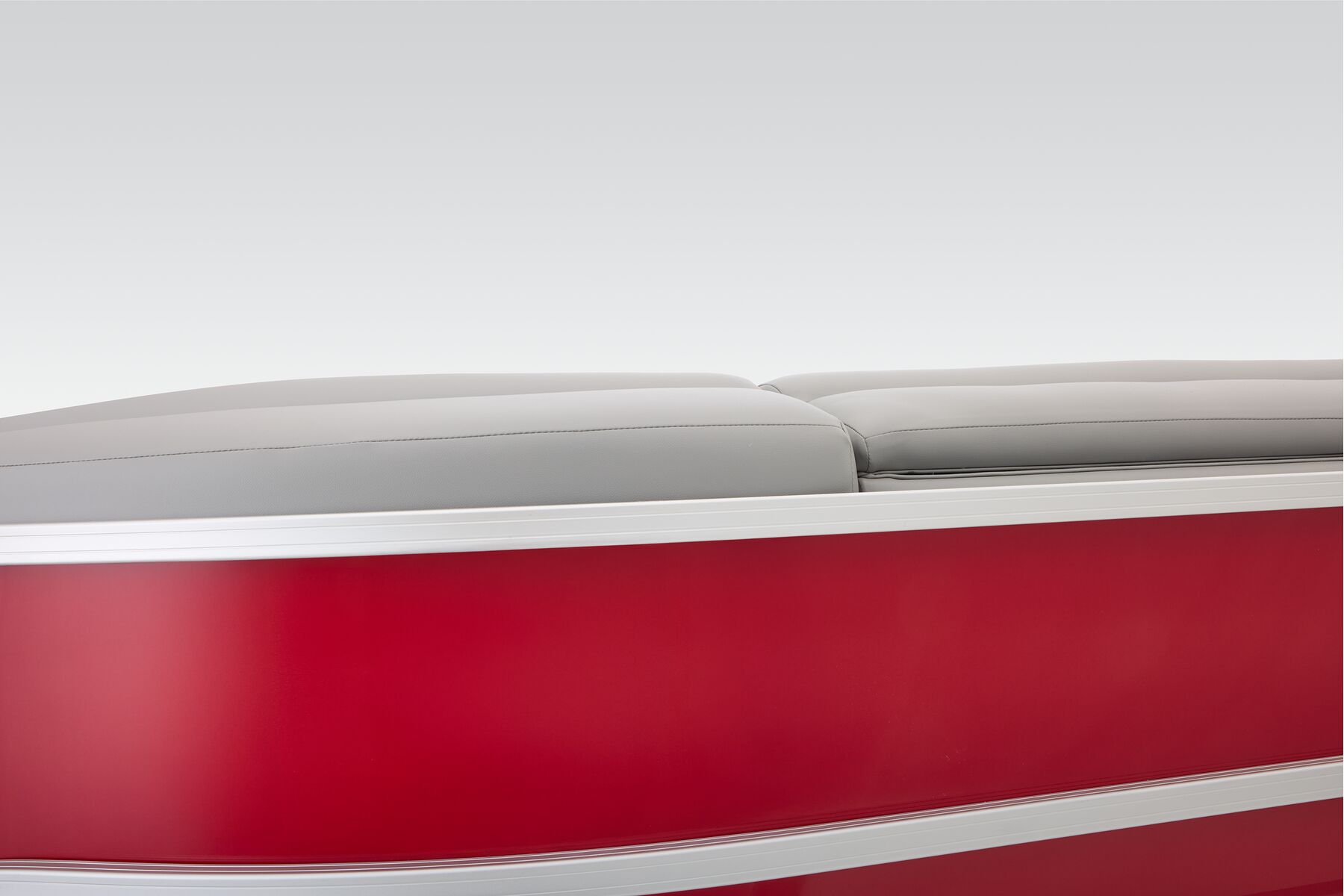

- Protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks

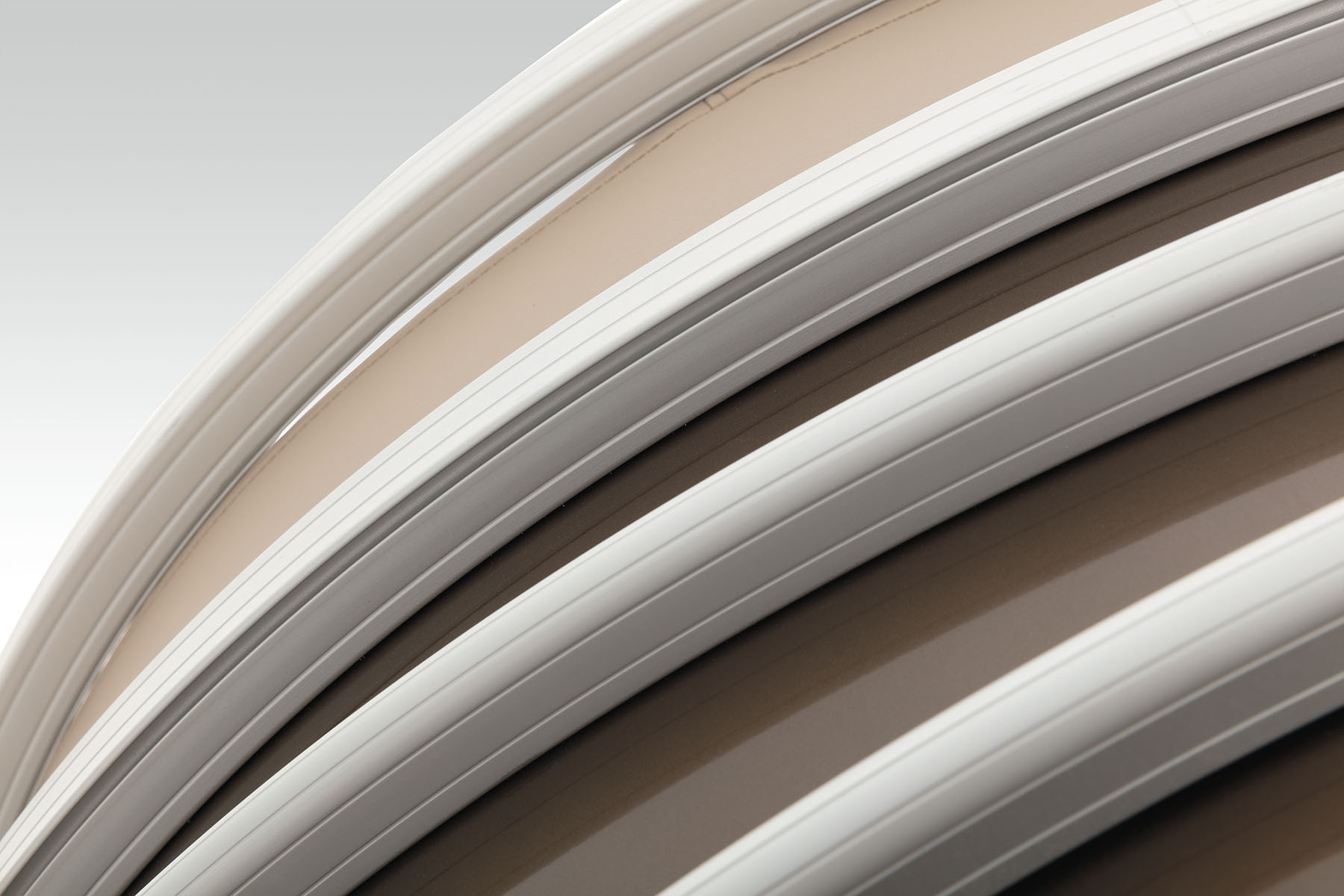

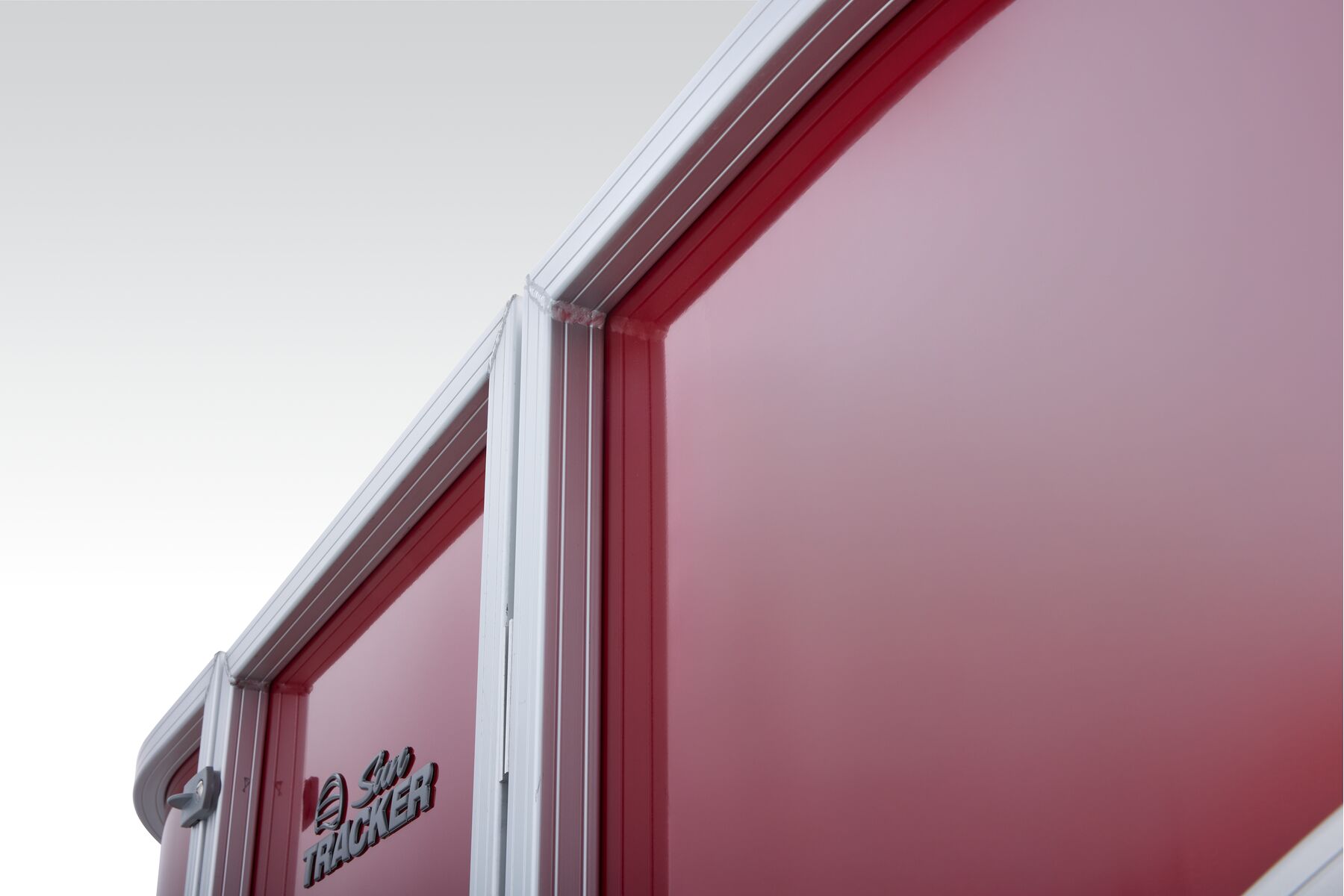

- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Reinforced bow structure
- Extruded anodized aluminum deck edging w/polished aft corner covers

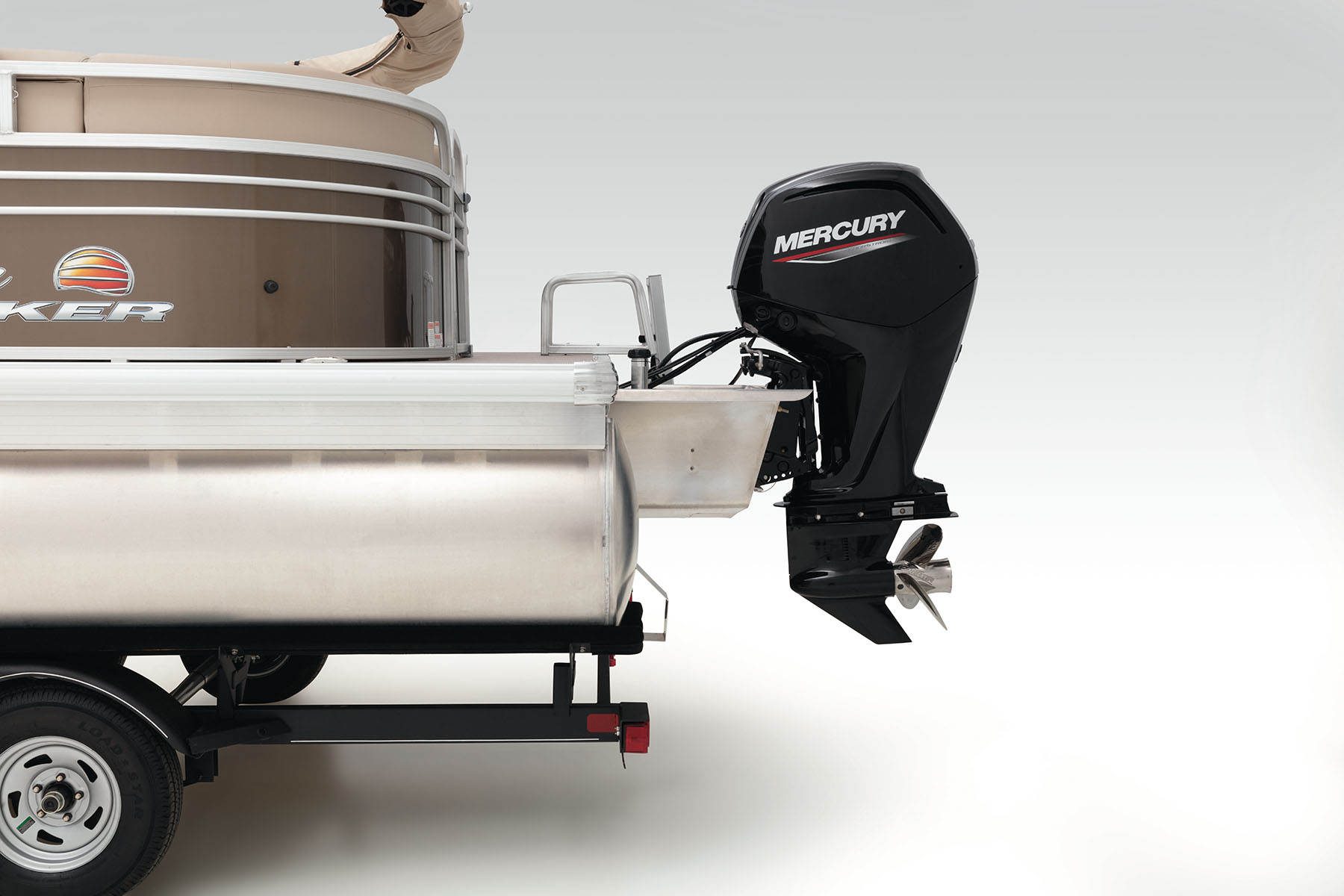

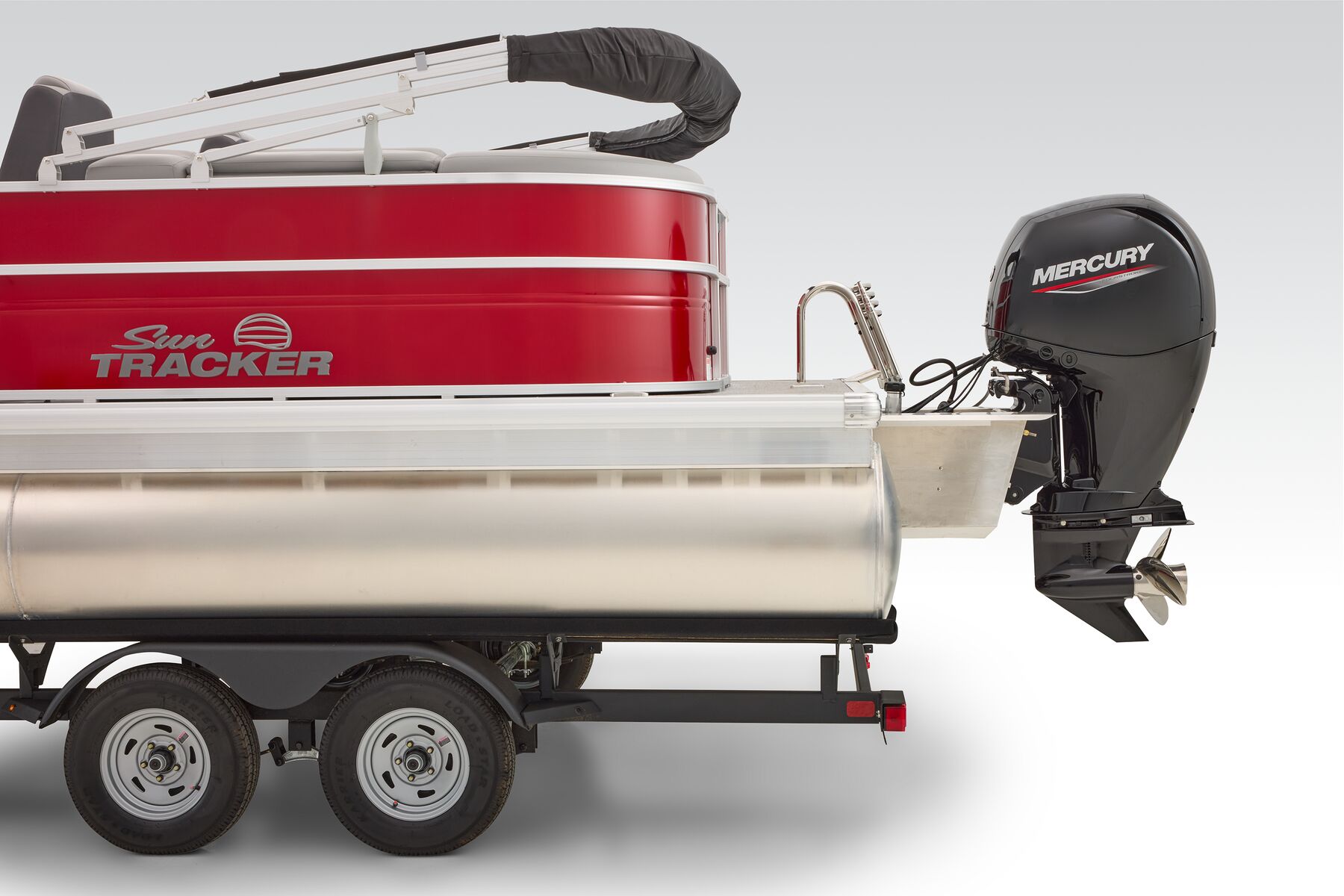

- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity

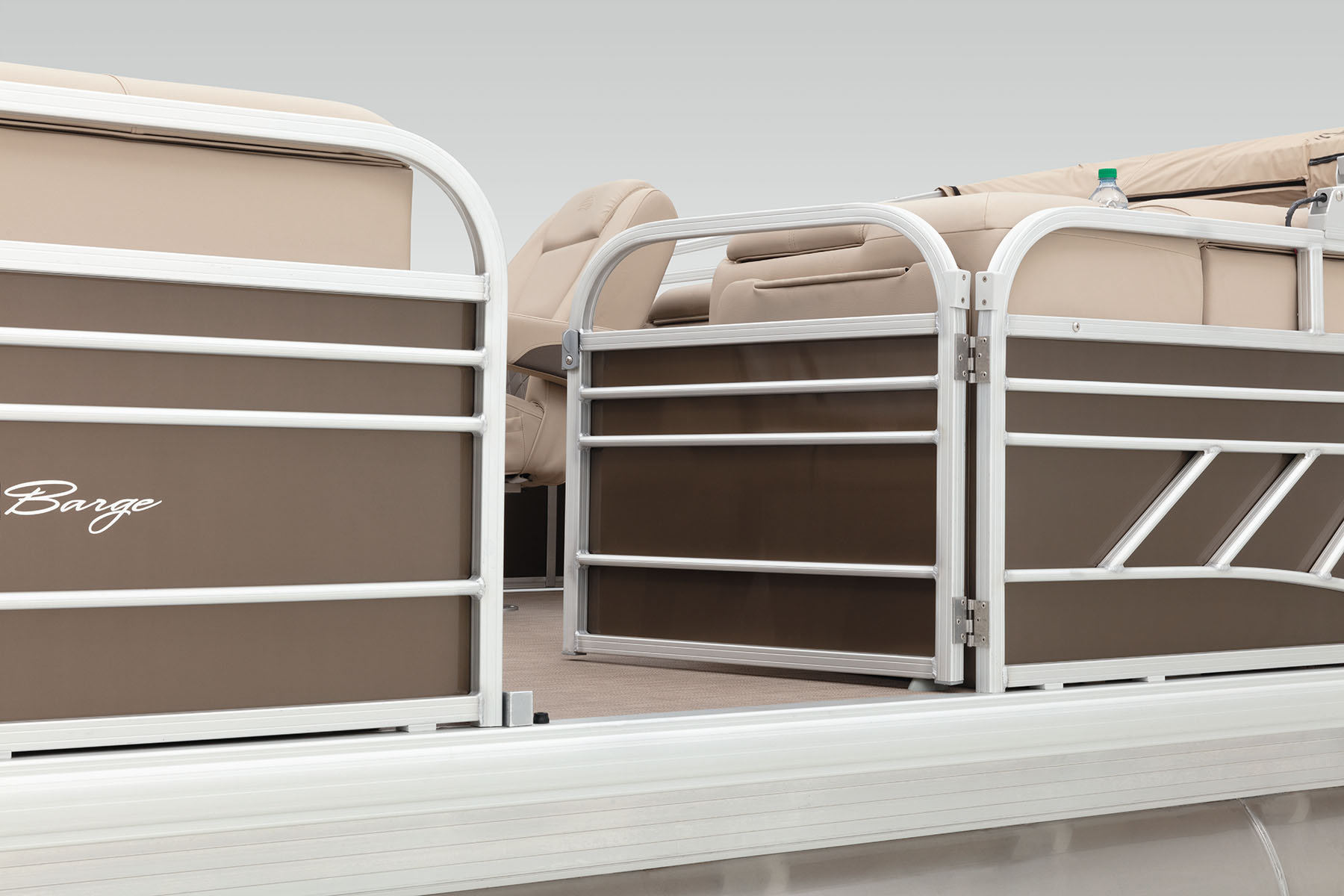

- Port wheelchair-access gate

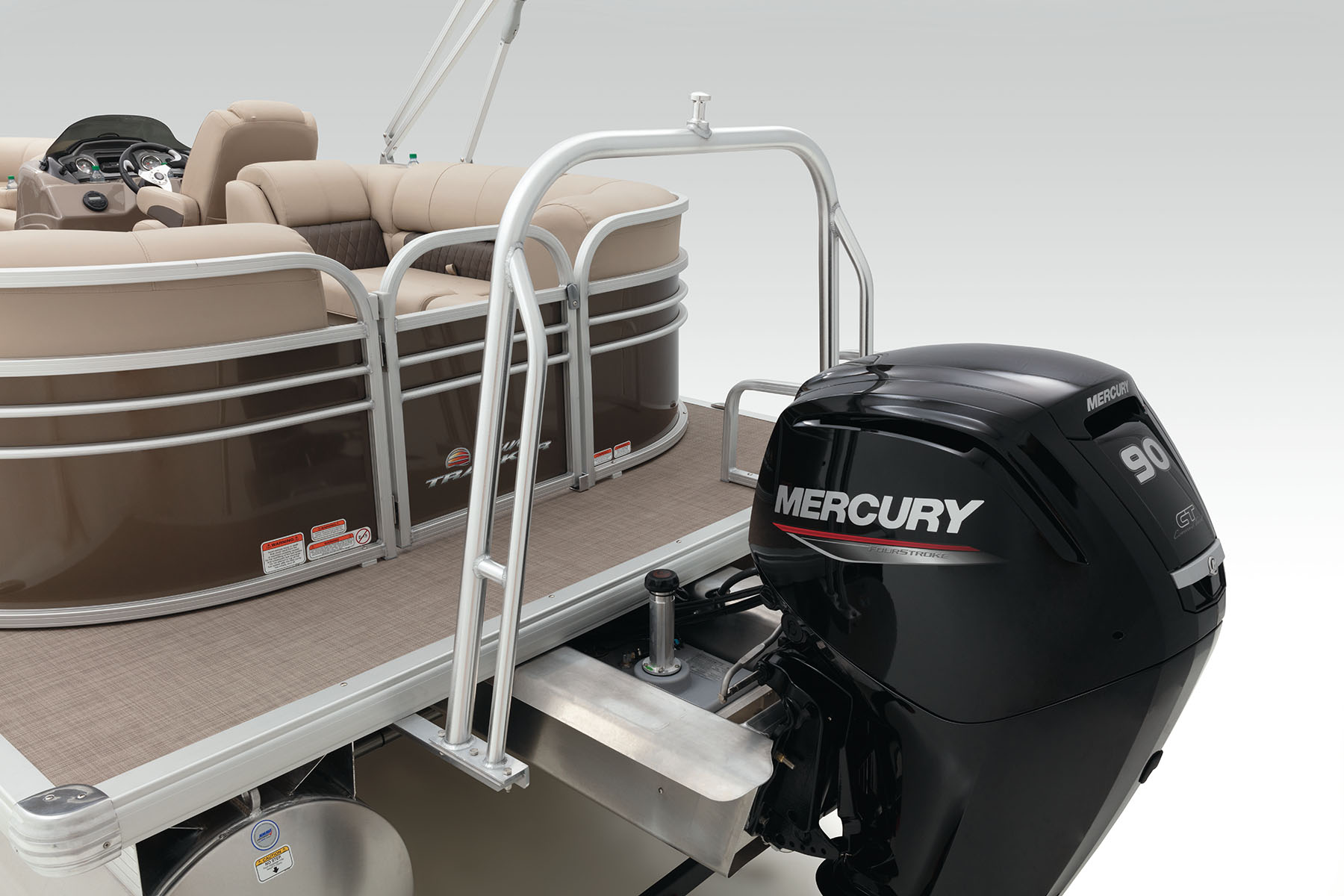

- Rear boarding platform w/NEW 4-step telescoping boarding ladder & grab rails
Electrical

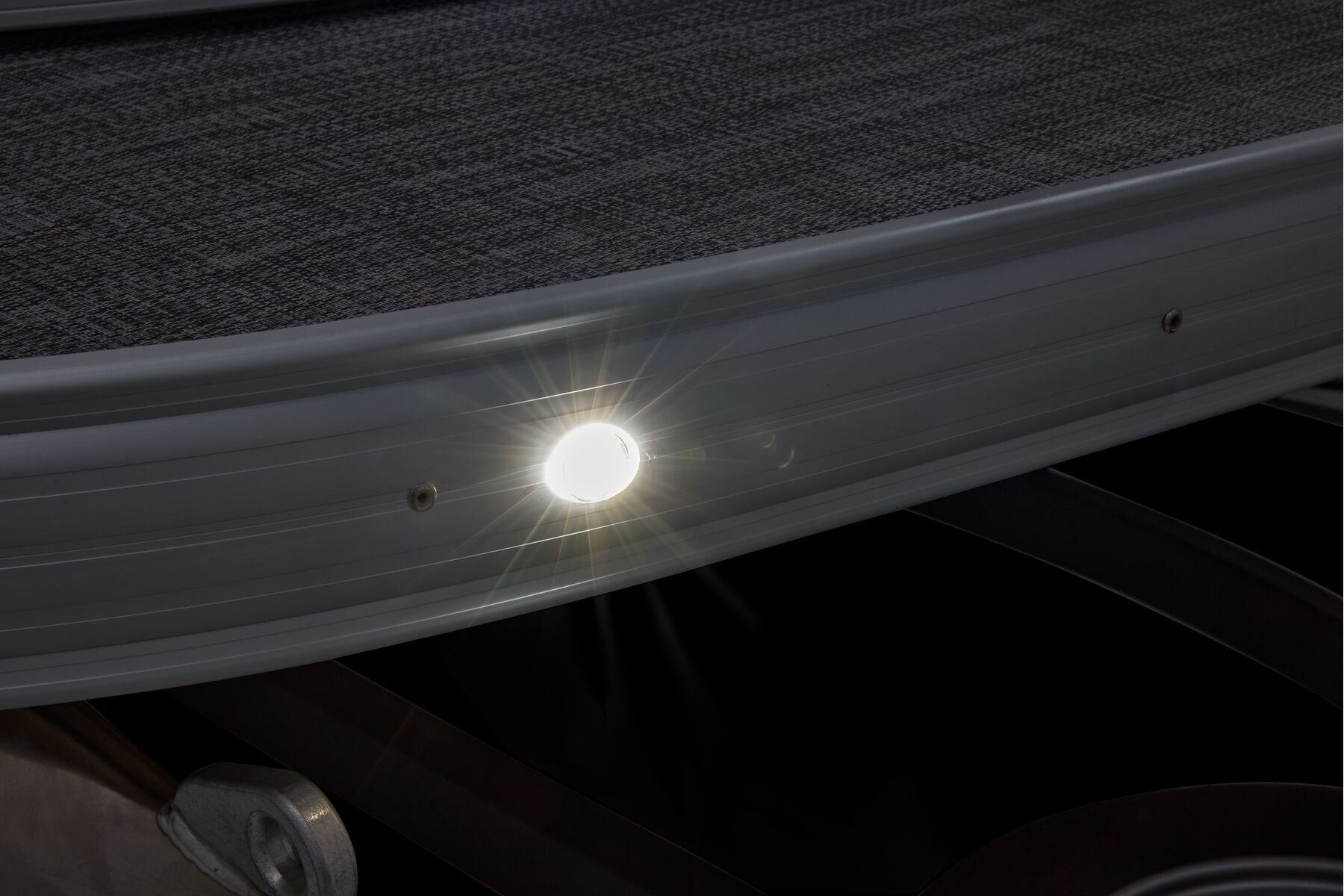

- Interior courtesy lighting
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
