Fishin Barge 22 DLX
* PREVIOUS MODEL YEAR LOCATION IMAGES SHOWN
2023

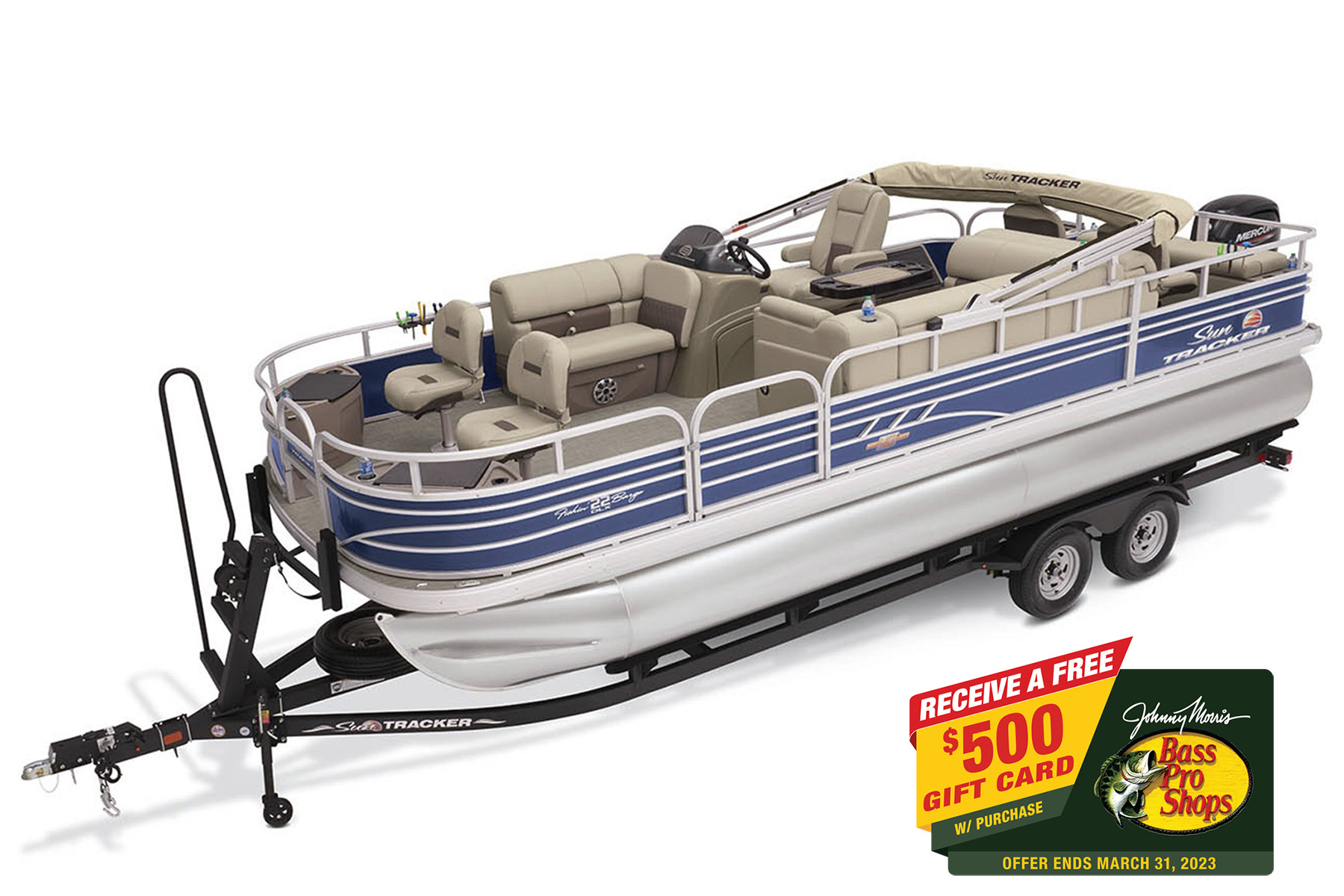

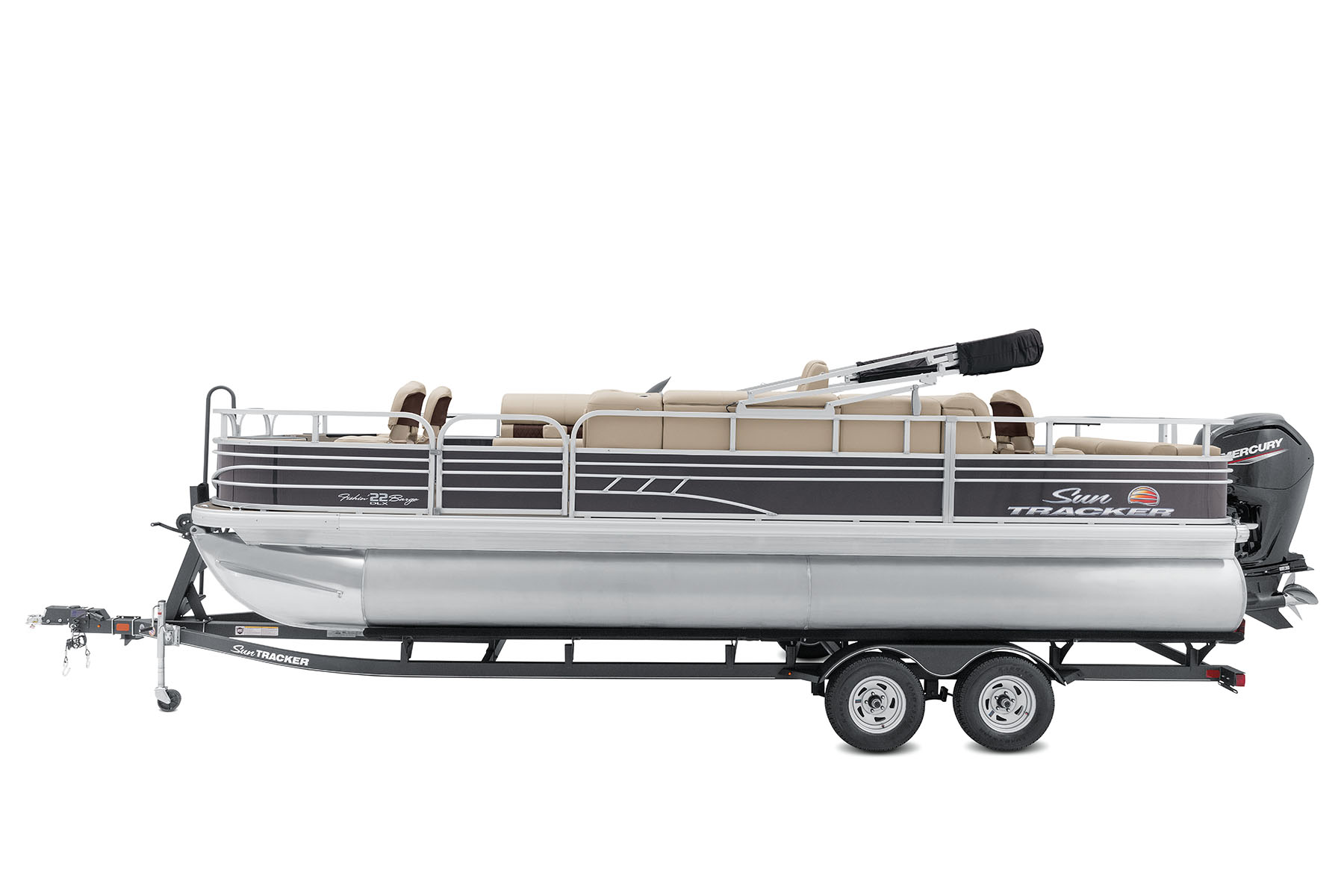

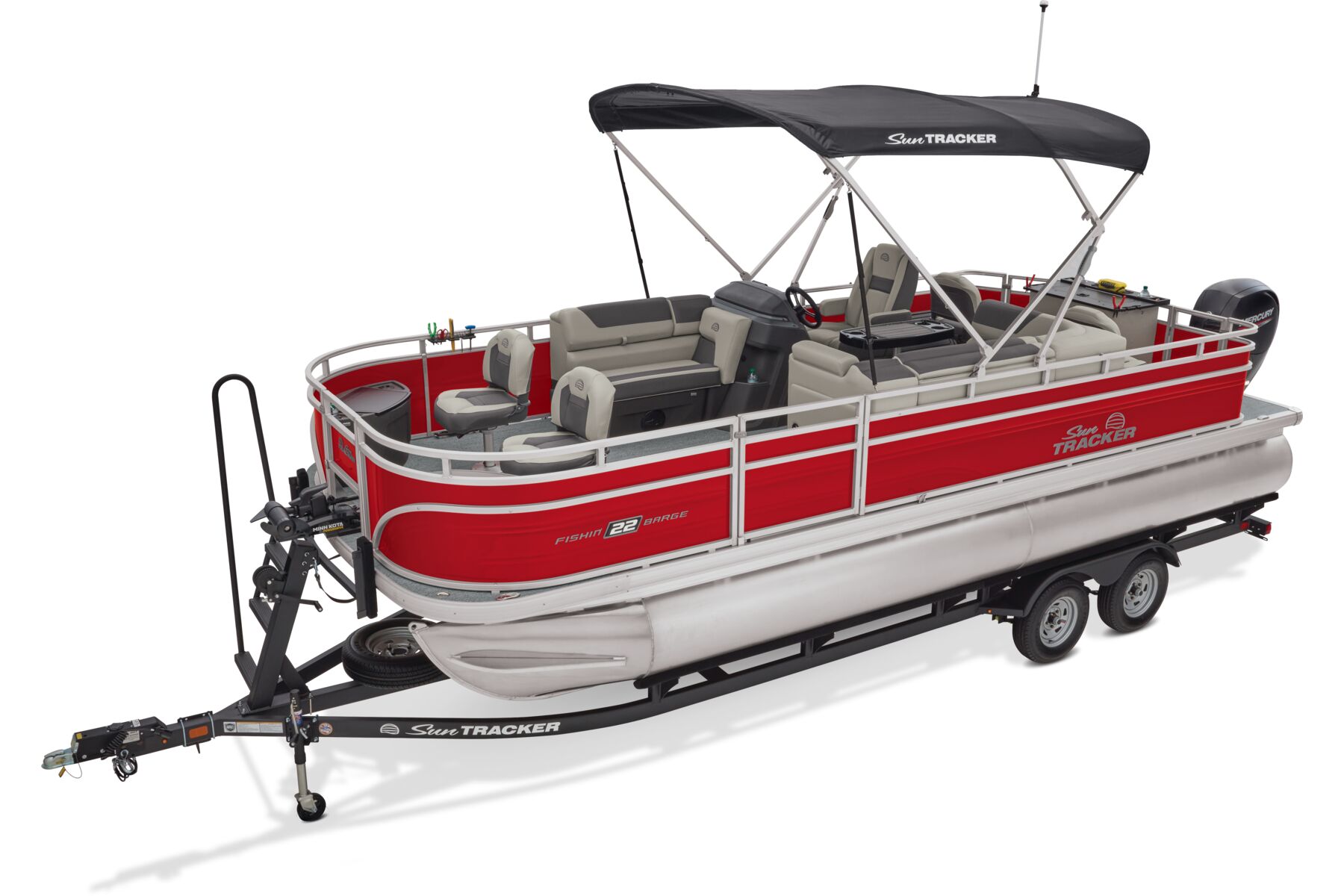

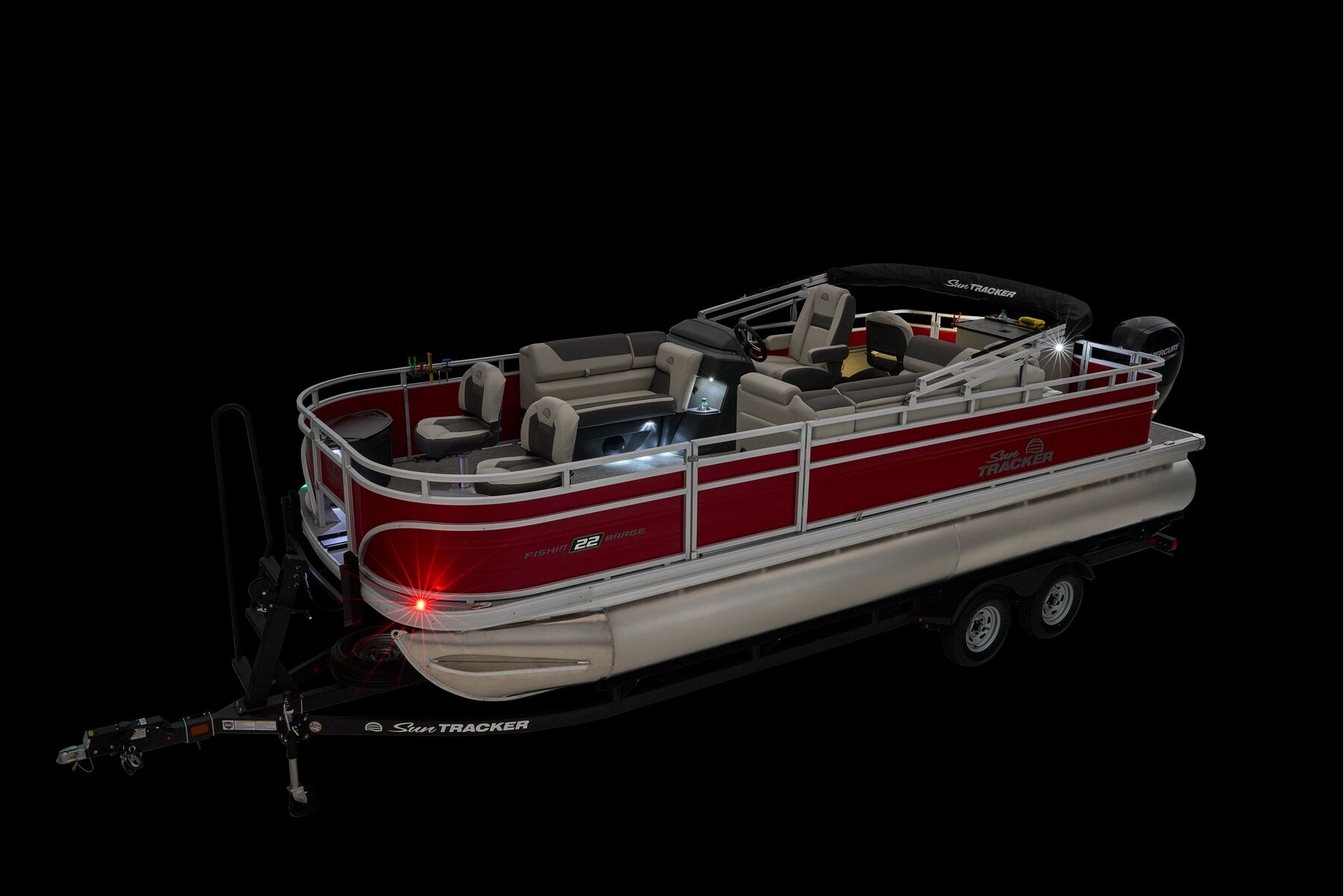

FISHIN' BARGE® 22 DLX
w/ 115 ELPT FourStroke Command Thrust Mercury® FourStroke

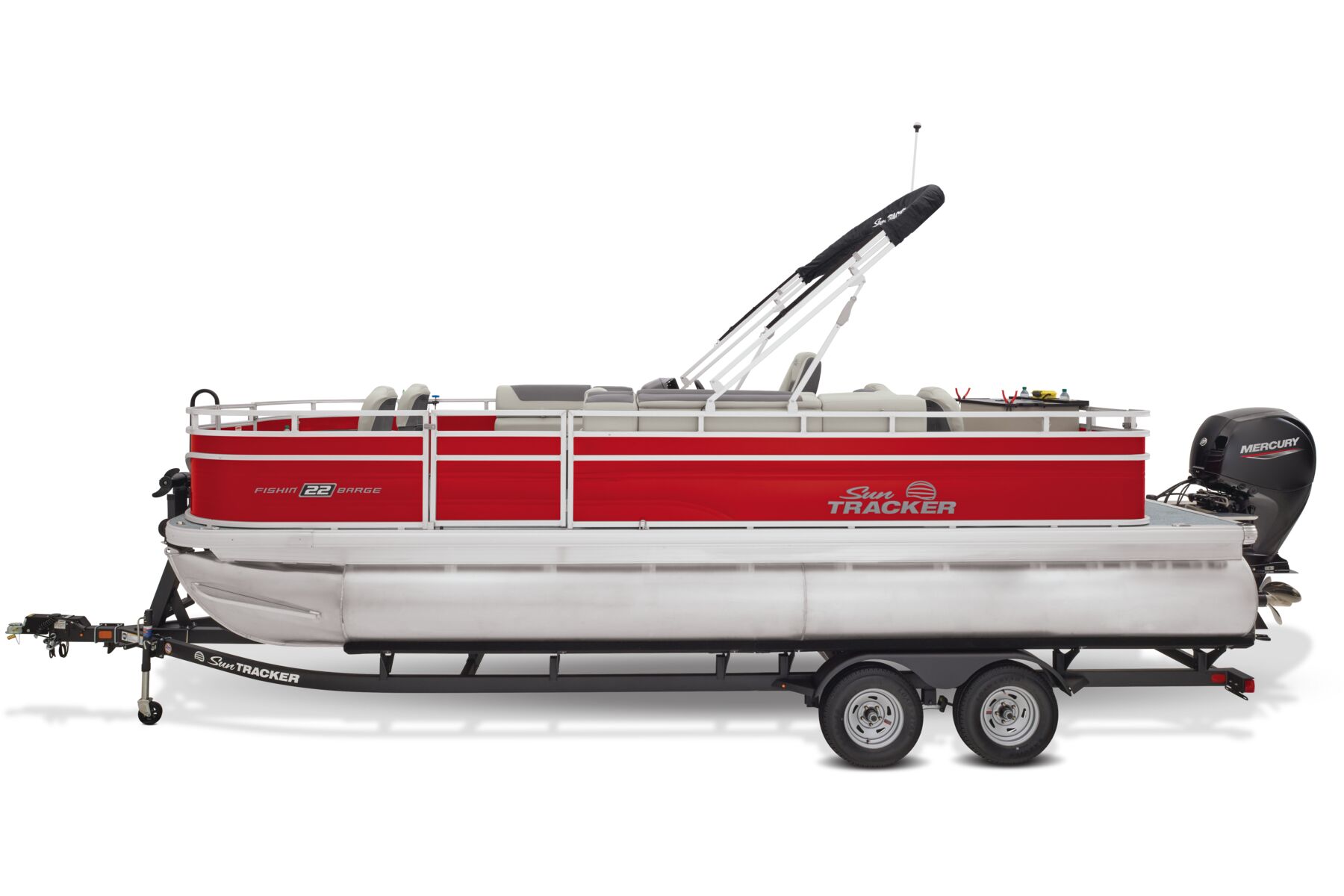

Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$37995
USD
|
Overview
Call up your friends and invite them out for a day loaded with plenty of casts, laughs and memories, compliments of the FISHIN’ BARGE® 22 DLX and its long list of fishing and comfort features.

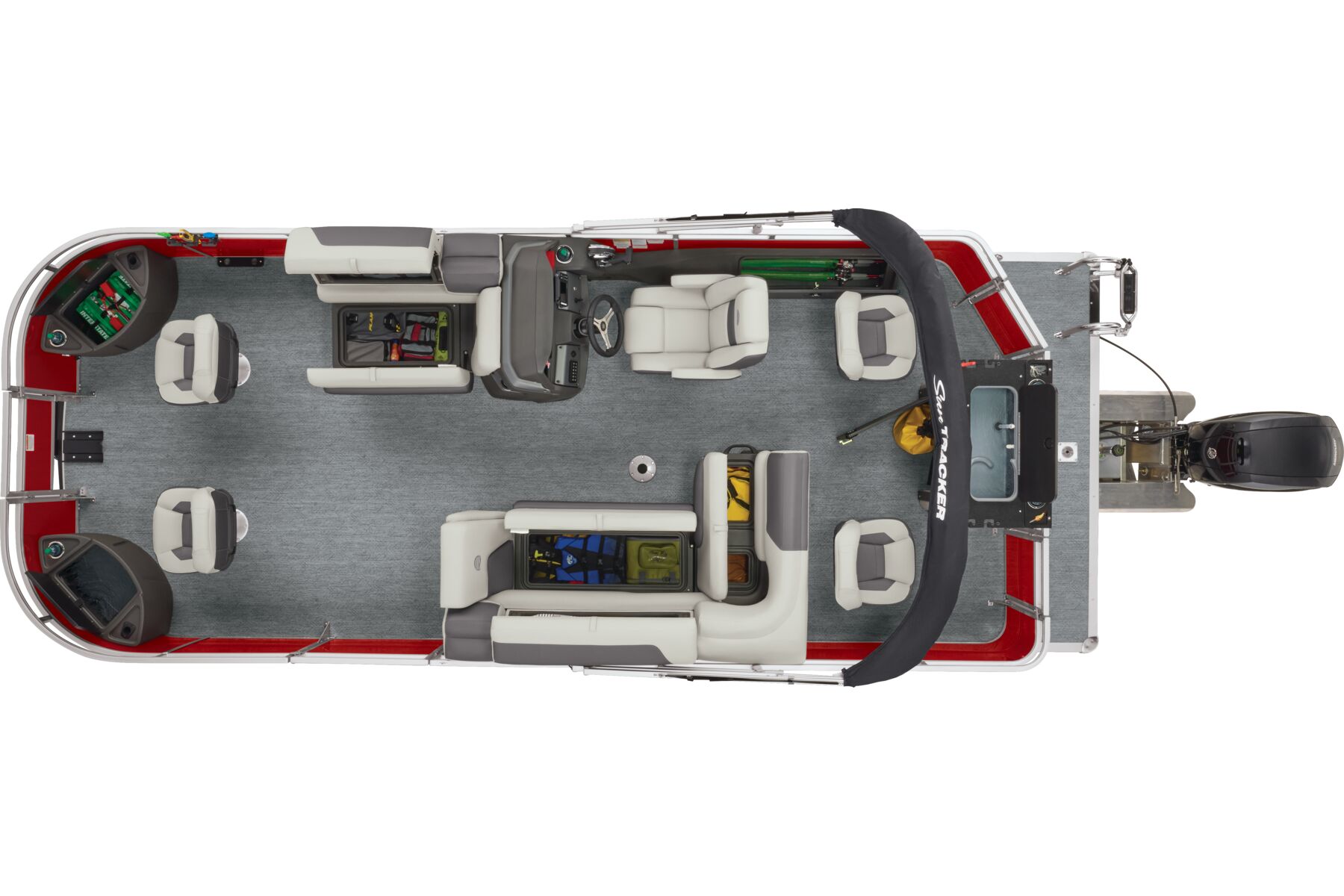

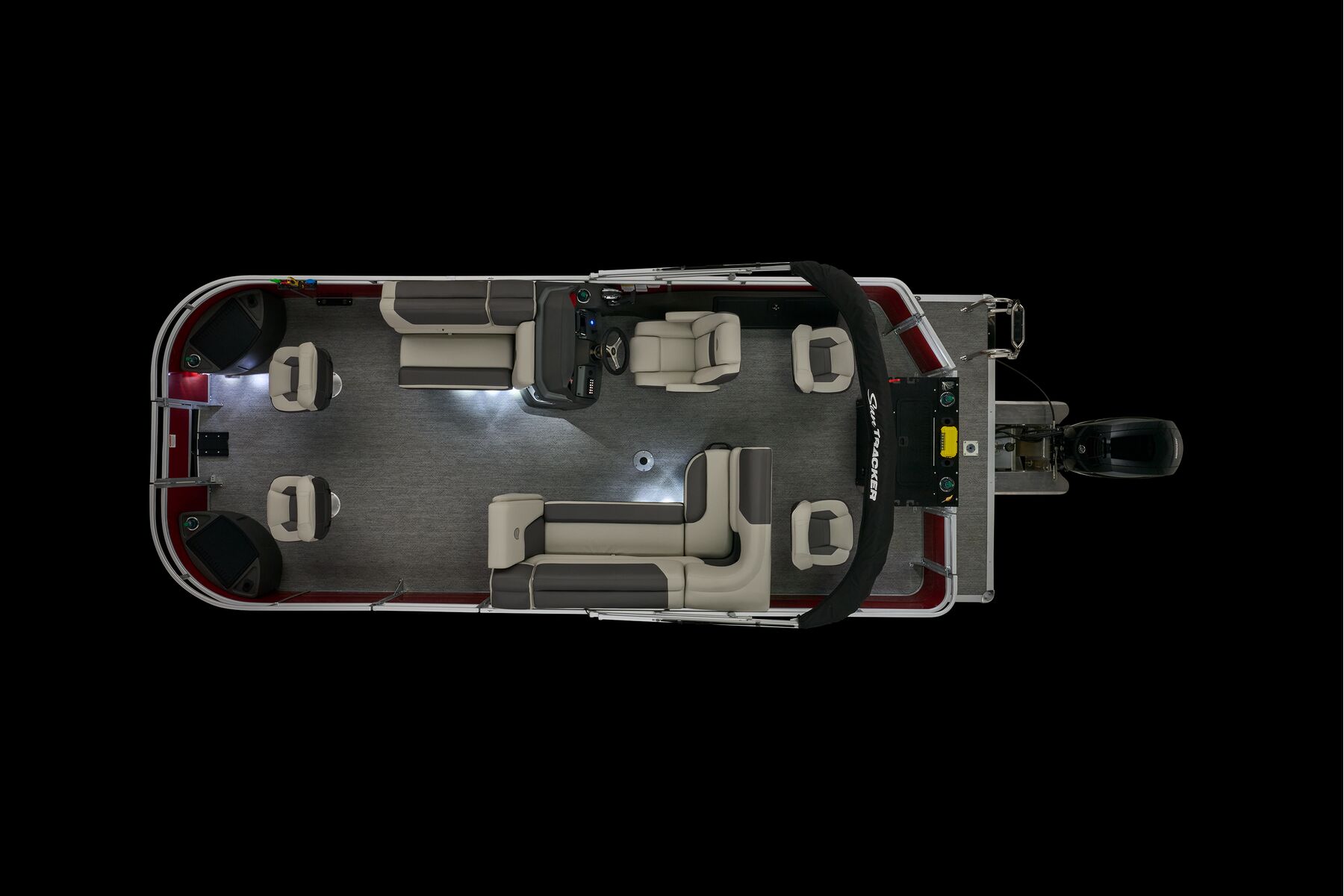

With a 22’ 1” by 8’ 6” deck, this boat has plenty of room in the playpen for two loaded fishing decks, both with an aerated livewell, two fishing chairs and rod storage (lockable rod storage is conveniently located near the aft fishing deck). But the fun doesn’t stop there! There’s also midship lounge seating port and starboard, both with the STOW MORE™ seat storage system, a new 10’ powered Bimini top and more!
Did we mention that it will hold a crew of 11? Do you need any more reasons to check out the loaded and fishing friendly FISHIN’ BARGE 22 DLX? Because, there are plenty more features for you to see!
Key Features

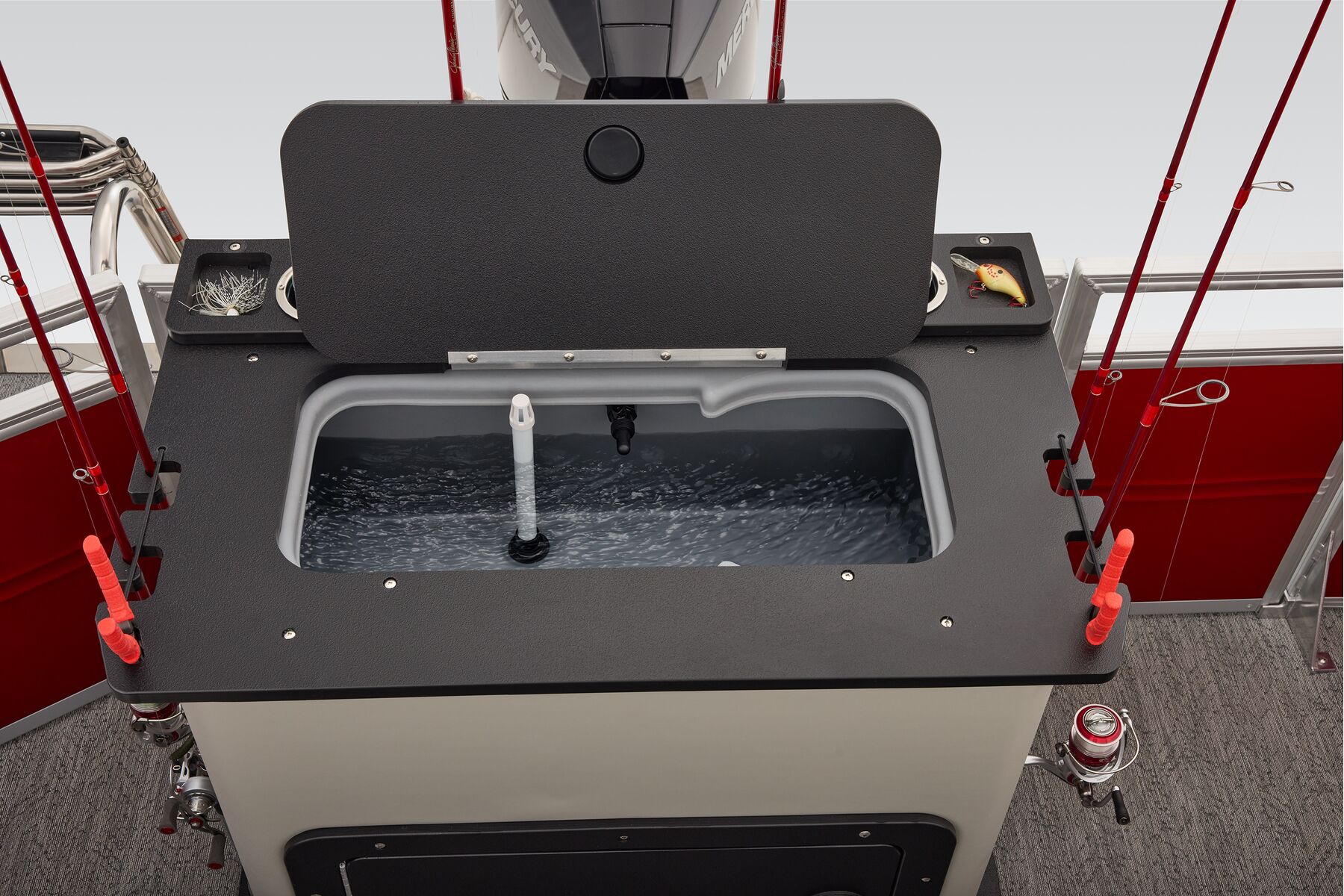

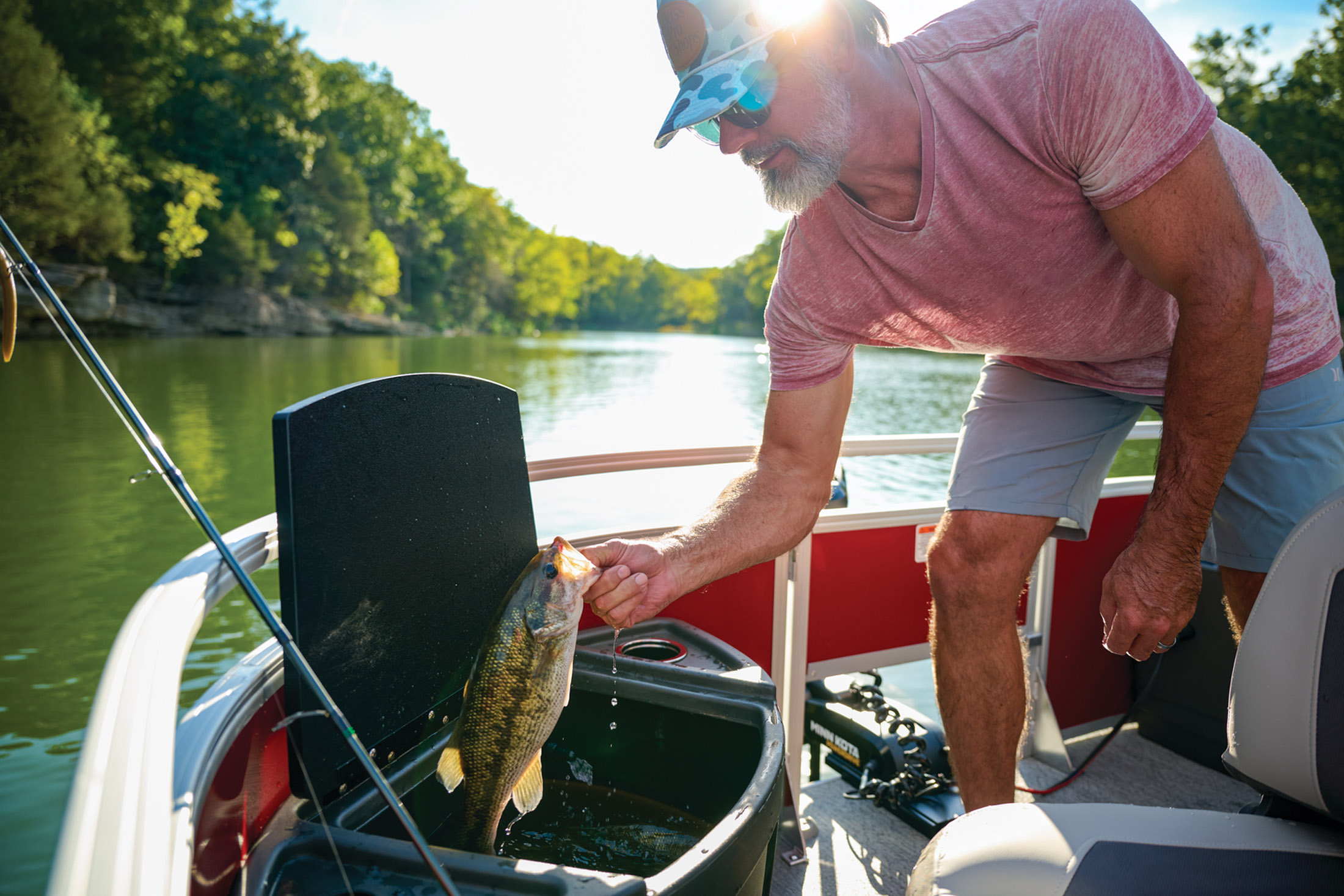

Aerated livewells
With 32 gallons of total livewell capacity, you can ensure your catch is healthy.

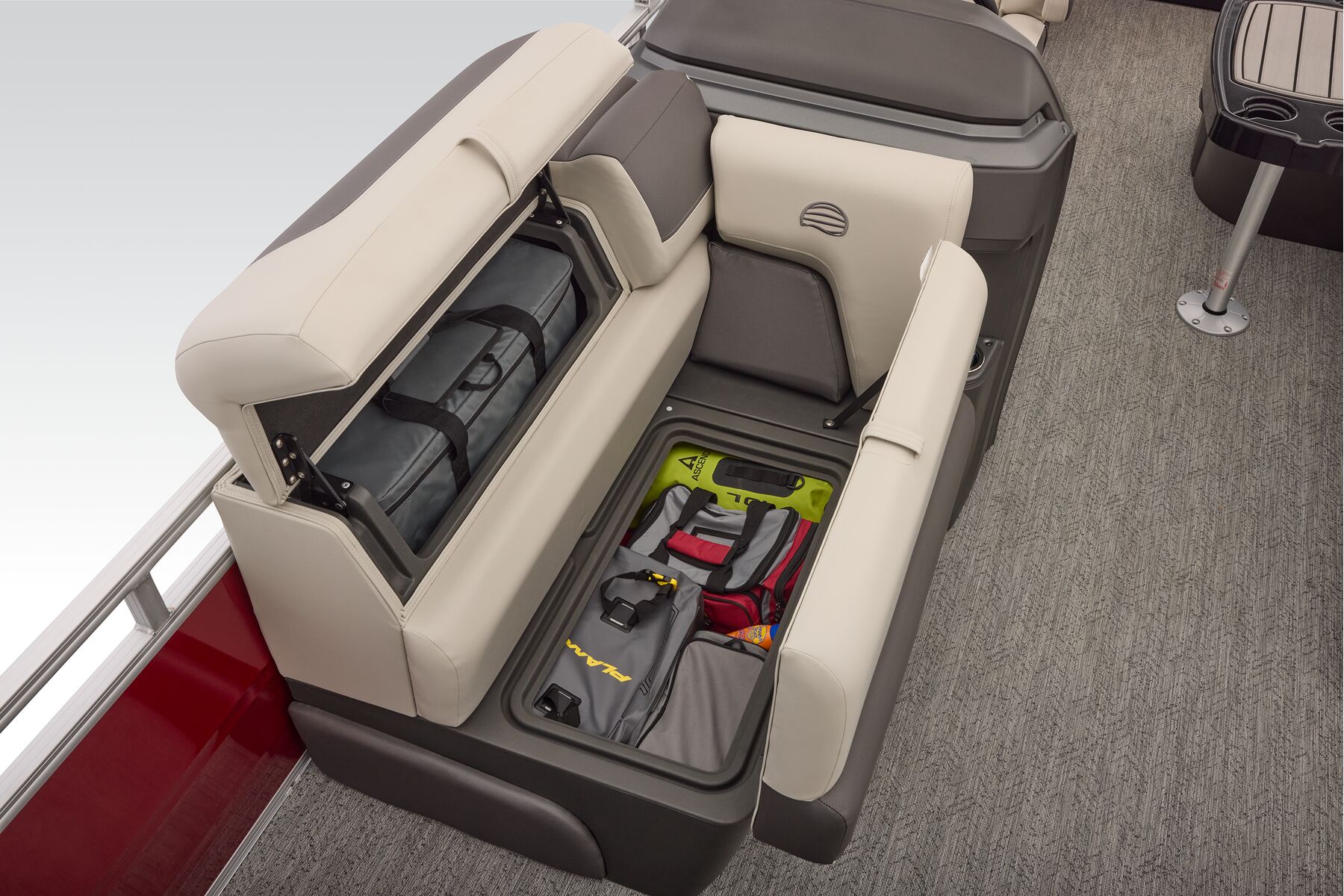

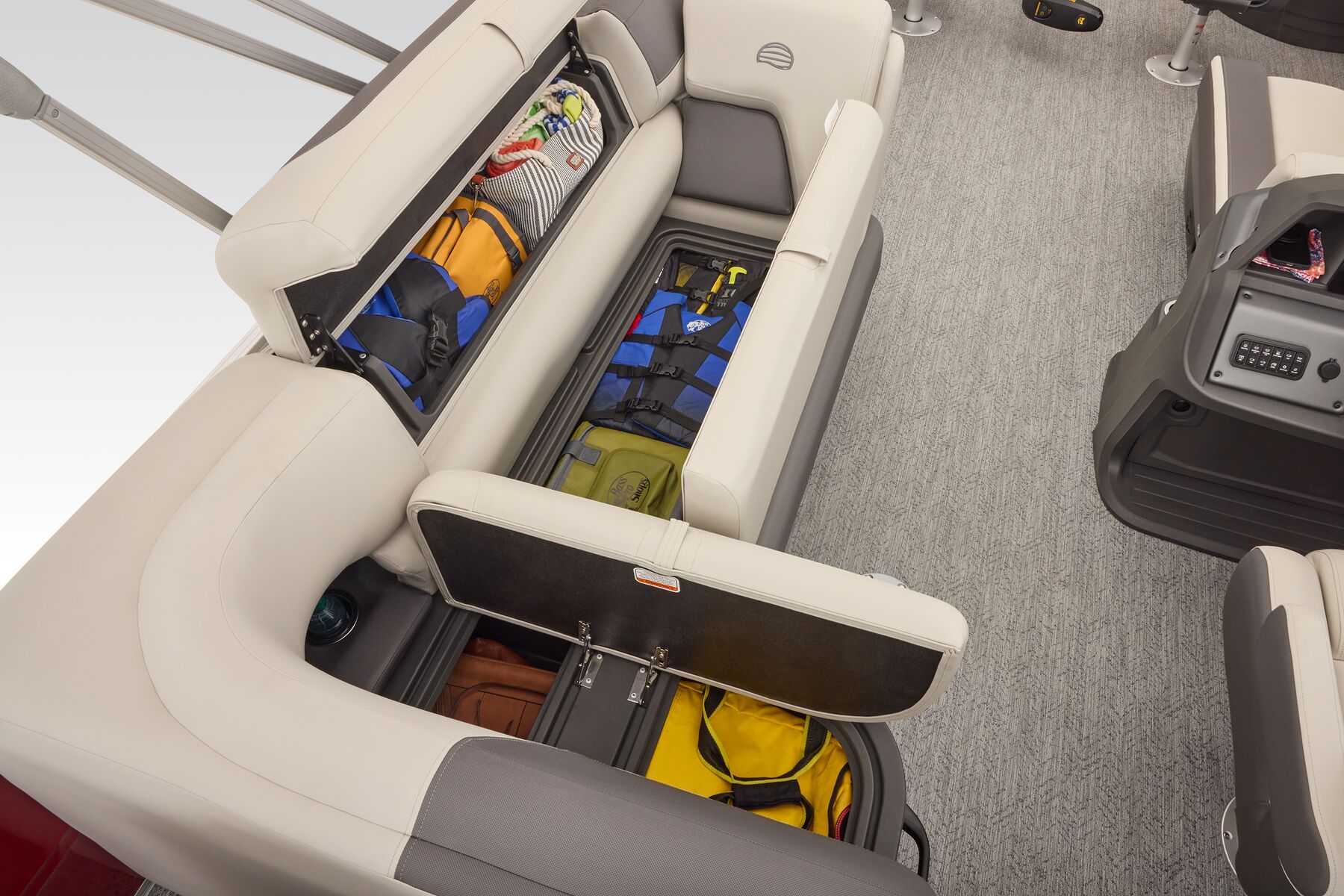

STOW MORE™ storage system
Storage in the seat backs, under the seats and at the aft fishing deck provide space for everything.

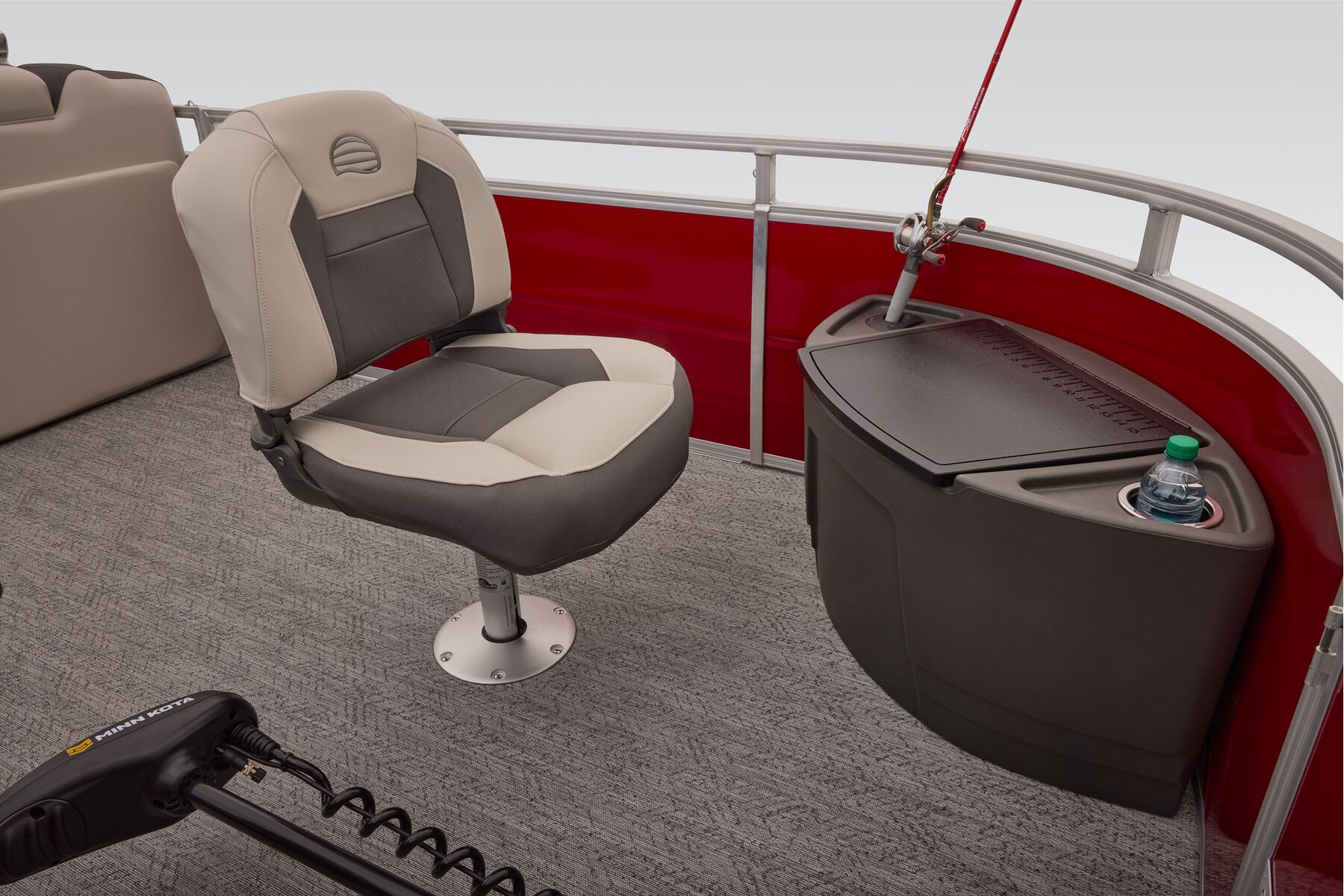

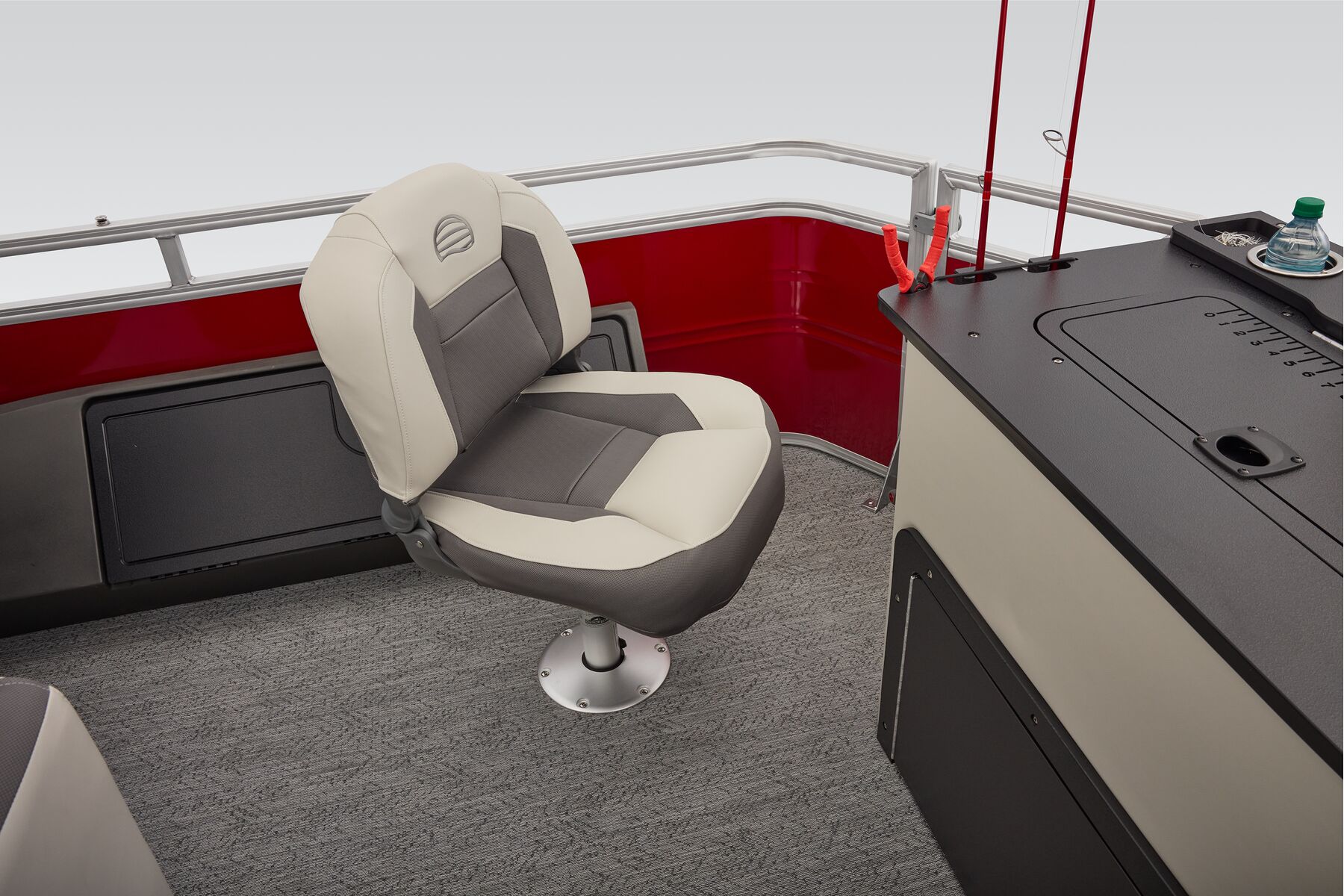

Fishing chairs
Four fishing chairs (two fore, two aft) provide the anglers comfort while casting.
Specifications
| Length | 7.37 m | 24' 2'' |
| Deck Length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 150 HP | |
| Fuel Capacity | 121.5 L | 32.1 gal. |
| Pontoon Log Length | 6.78 m | 22' 3'' |
| Pontoon Log Diameter | 60.96 cm | 24'' |
| Pontoon Log Material | 0.080 5052 marine alloy | |
| Max. Person Capacity | 11 persons |
| Max. Person Weight | 680.39 kg | 1500 lbs. |
| Max. Person, Motor & Gear Weight | 972.96 kg | 2145 lbs. |
| Interior Depth | 66.04 cm | 26'' |
| Average Dry Weight | 925.33 kg | 2040 lbs. |
| Average Package Weight | 1757.67 kg | 3875 lbs. |
| Package Height | 2.74 m | 9' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.86 m | 32' 4'' |
| Storage Length | 9.86 m | 32' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 9.9 ELPT FourStroke Command Thrust ProKicker | - |
$30375 USD
|
Select Dealer | ||
| 25 ELPT FourStroke | 11-14 mph |
$32195 USD
|
Select Dealer | ||
| 115 ELPT FourStroke Command Thrust | 23-33 mph |
$37995 USD
|
Select Dealer | ||
| 150 L FourStroke | 27-38 mph |
$40395 USD
|
Select Dealer | ||
| Mercury® Pro XS® | |||||
| 115 ELPT Pro XS® FourStroke Command Thrust | - |
$38355 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty
- NMMA® certified

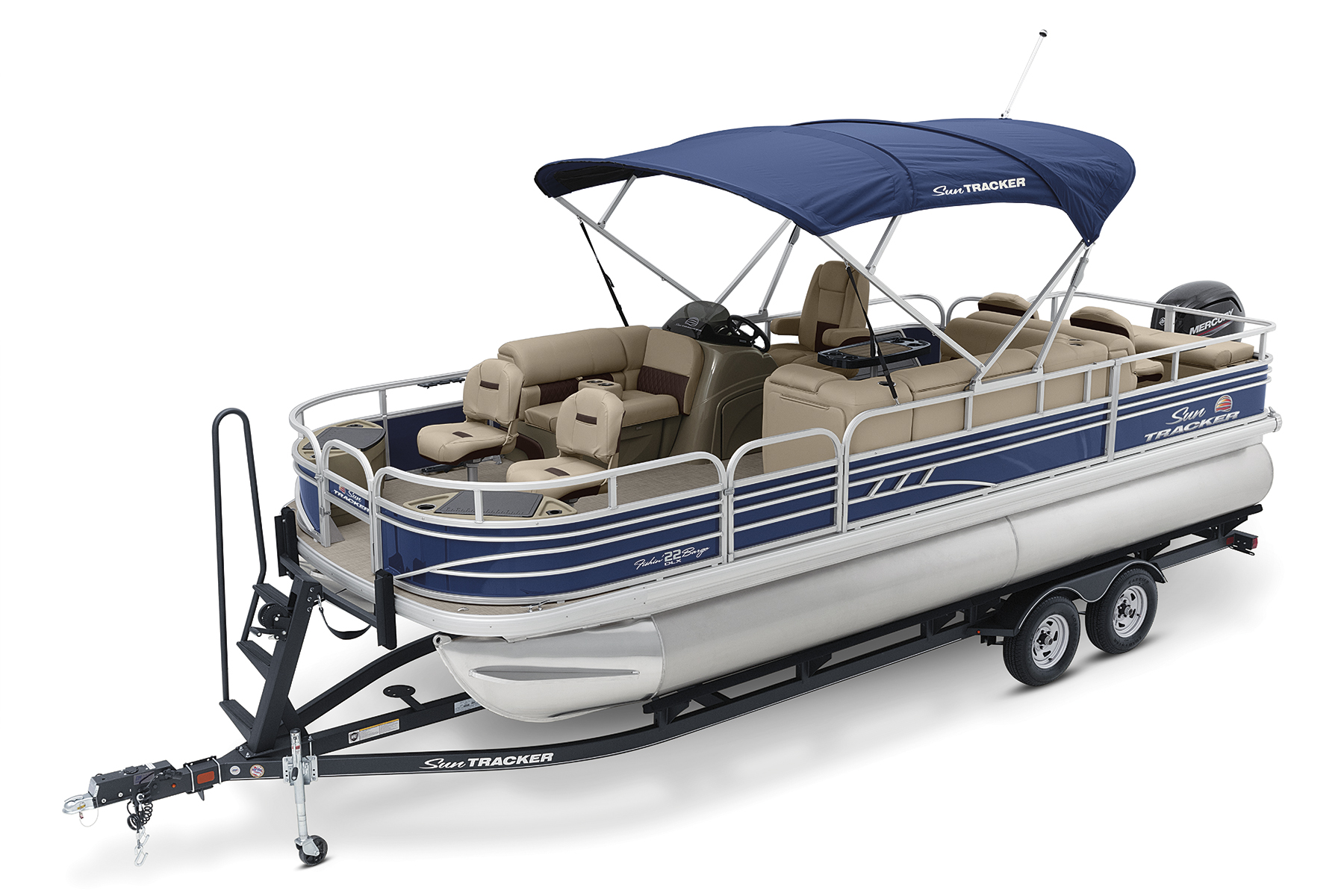

- 10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)
- Storage pockets in Bimini top

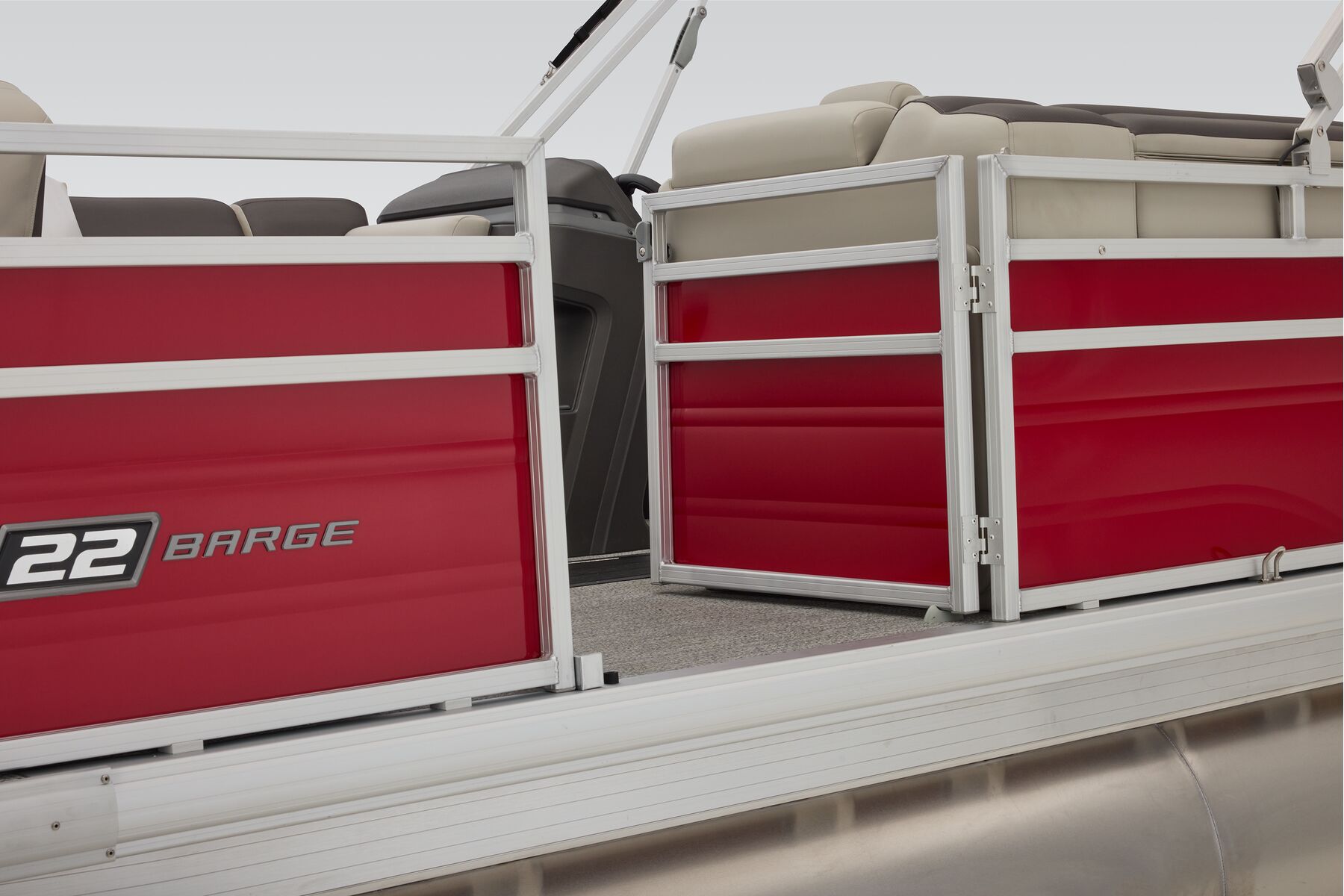

- Nylon gate latches & heavy-duty hinges that open inward

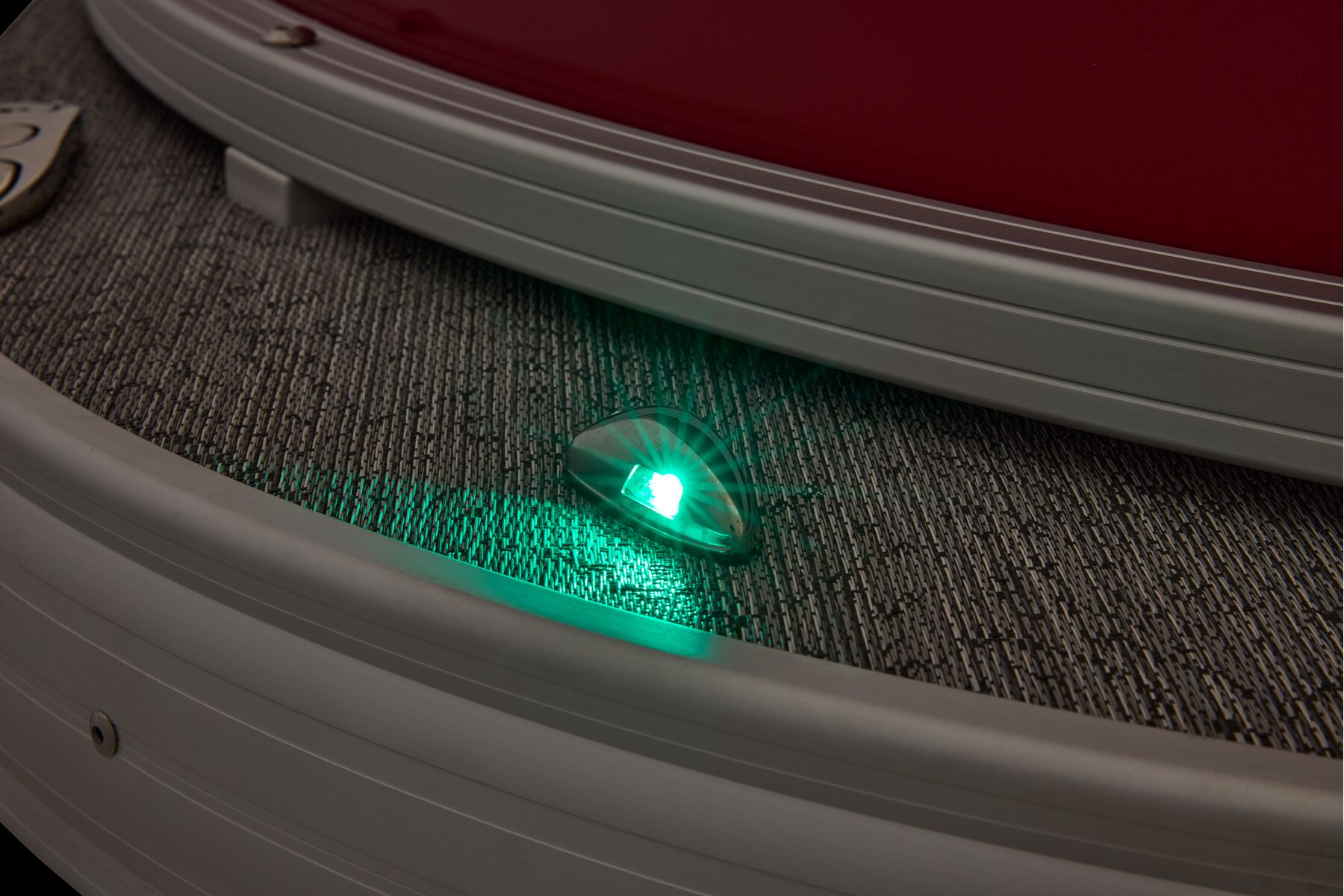

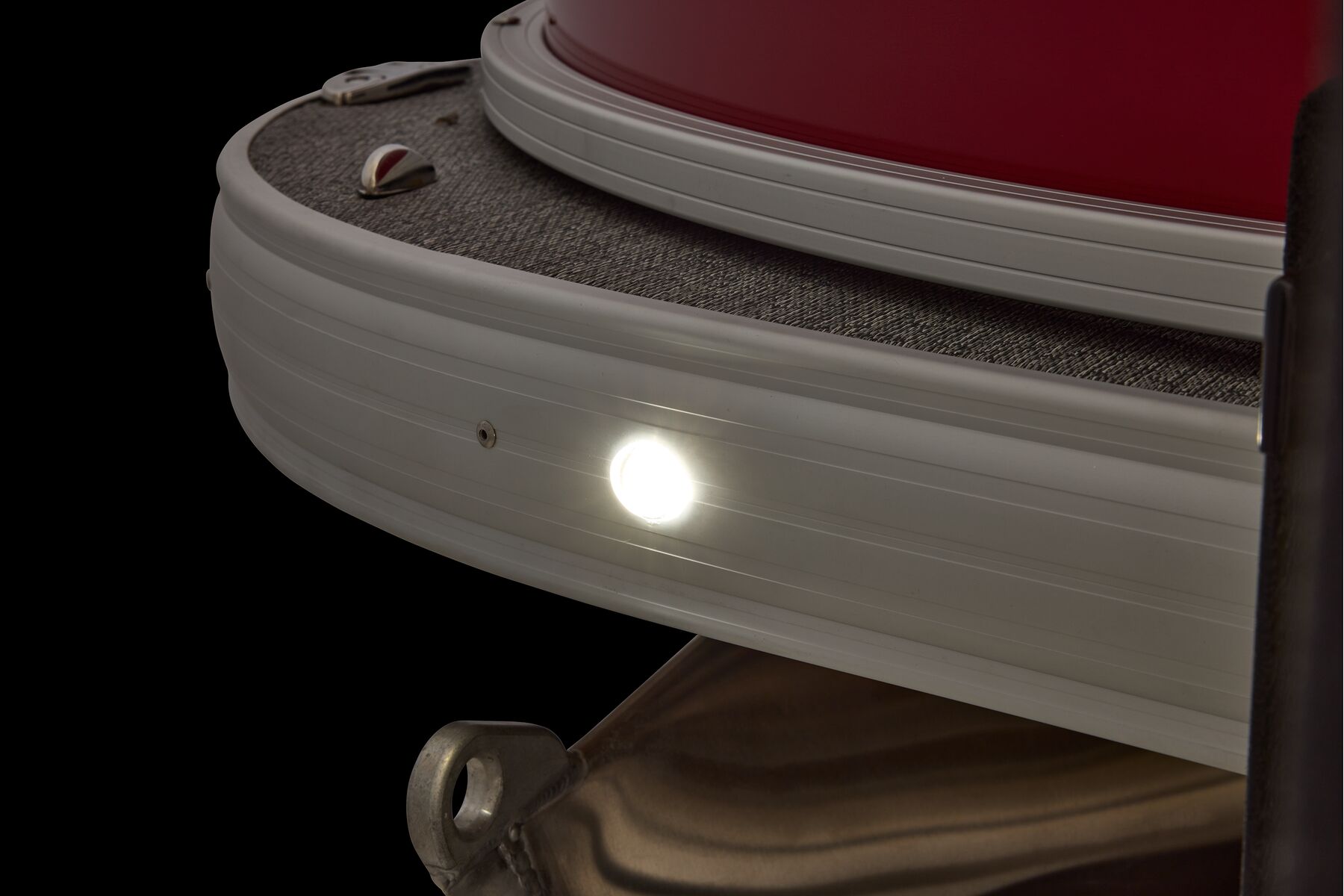

- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light
- Mooring eye on starboard side for tie off

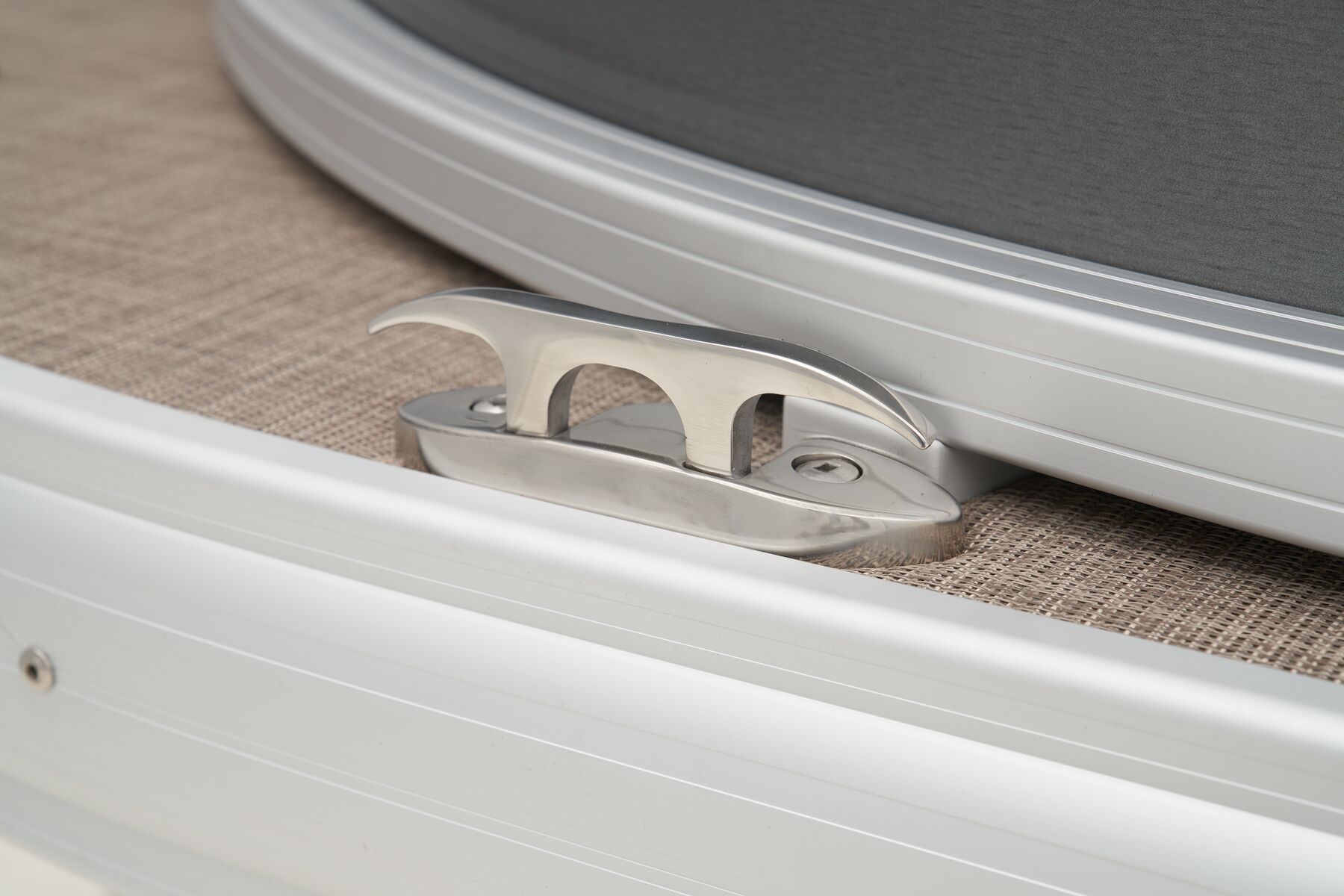

- Four 4.5" (11.43 cm) fold-down mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Livewell System

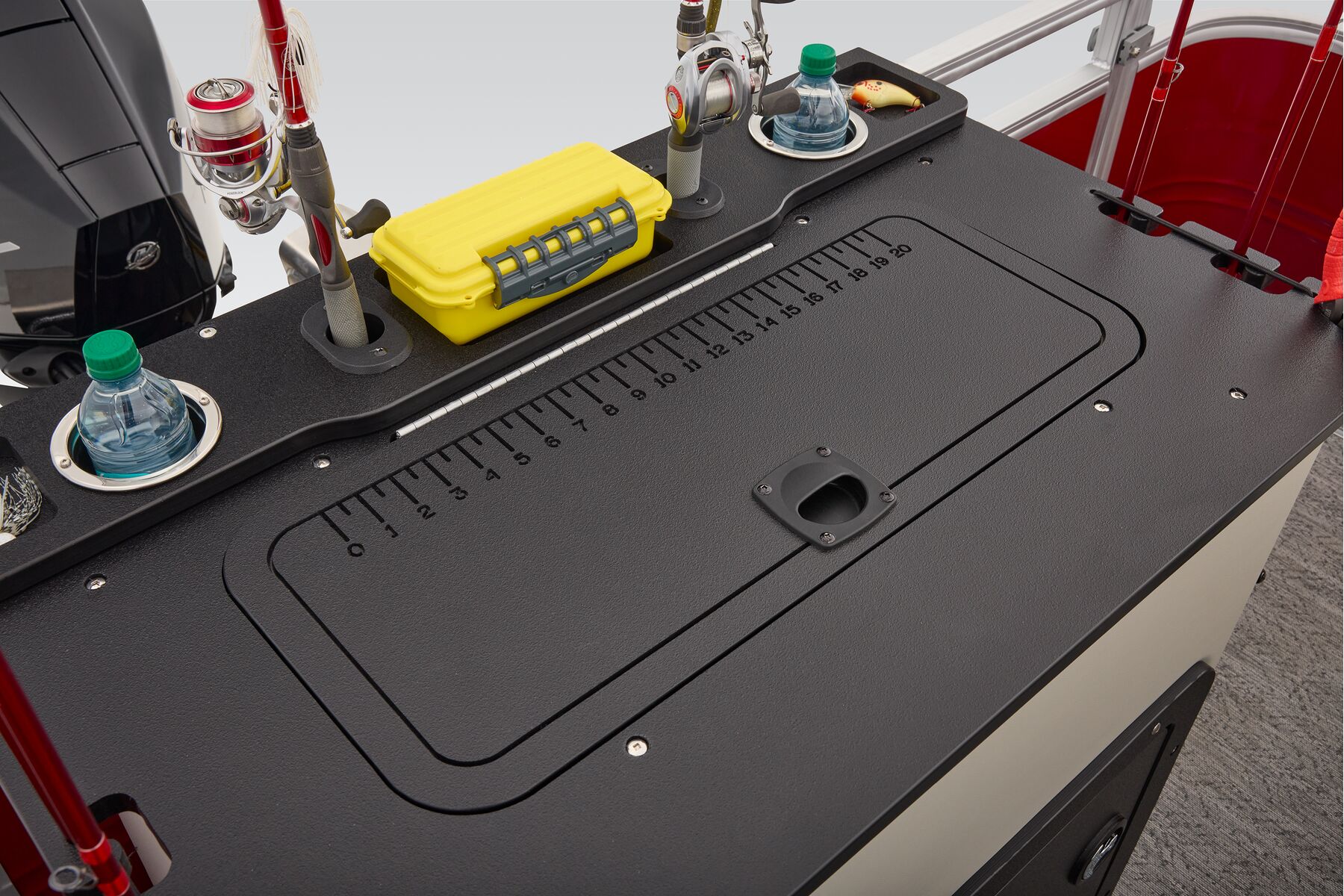

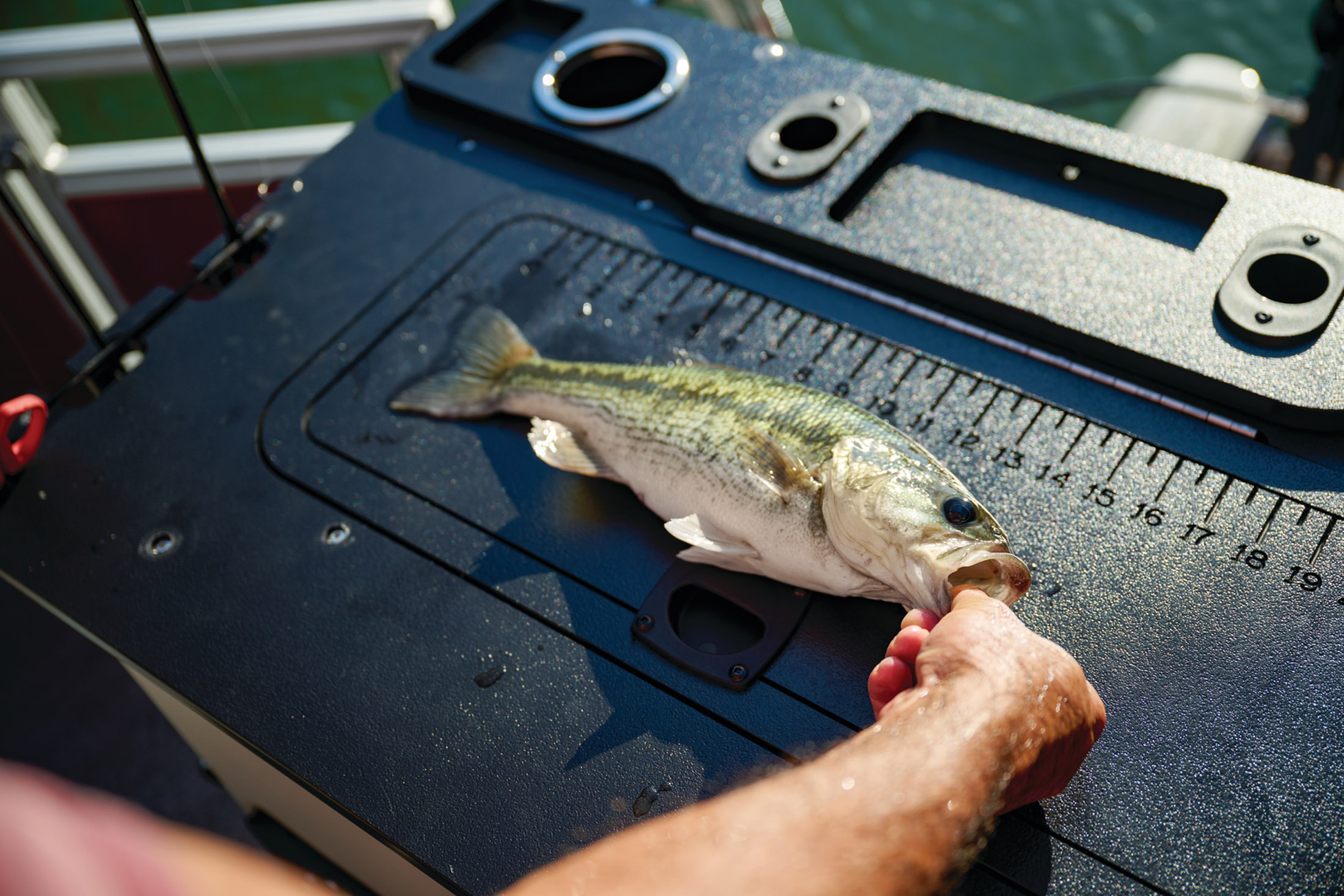

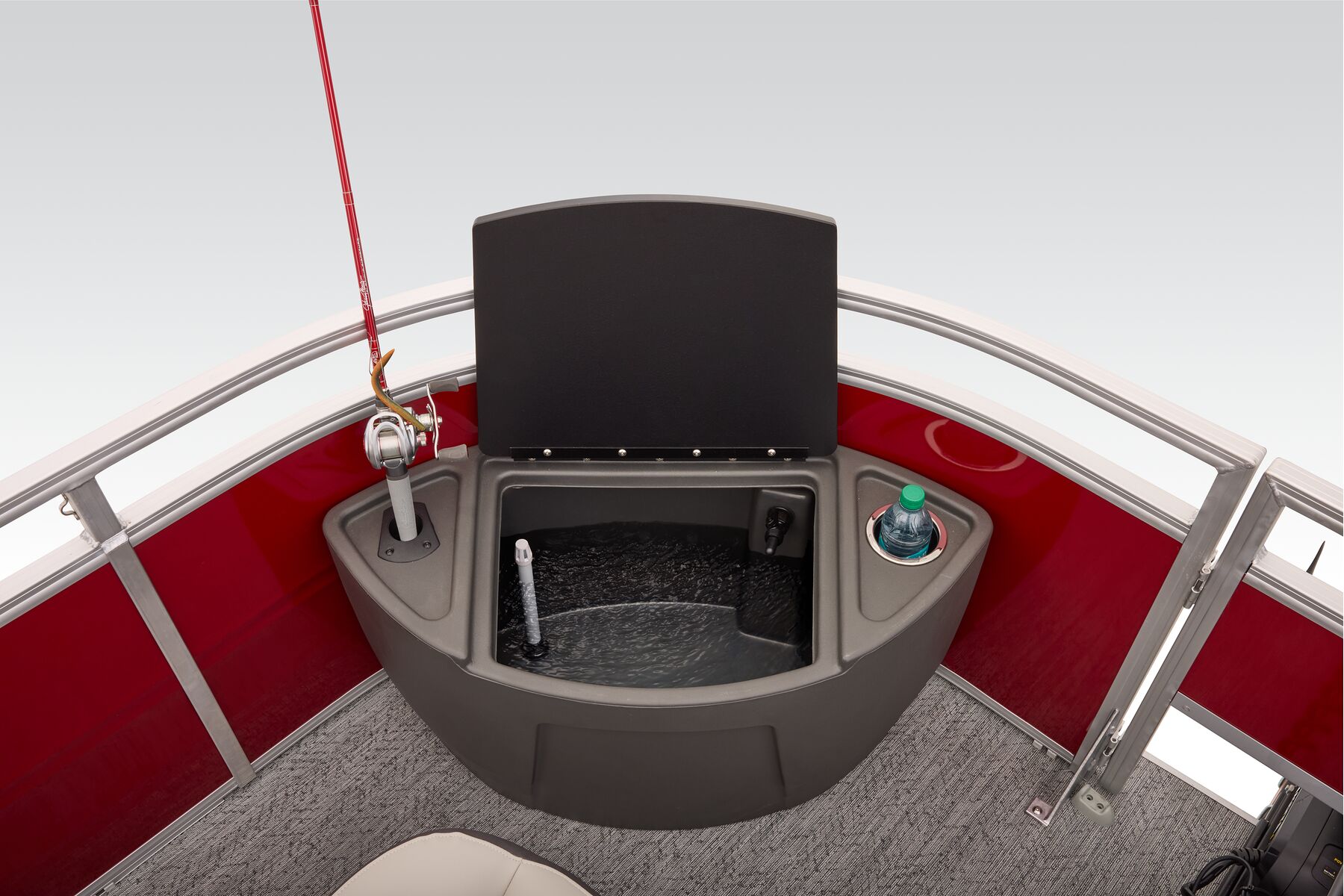

- Bow port 16-gal. (60.57 L) rotomolded & aerated livewell w/shutoff valve & composite lid w/ruler

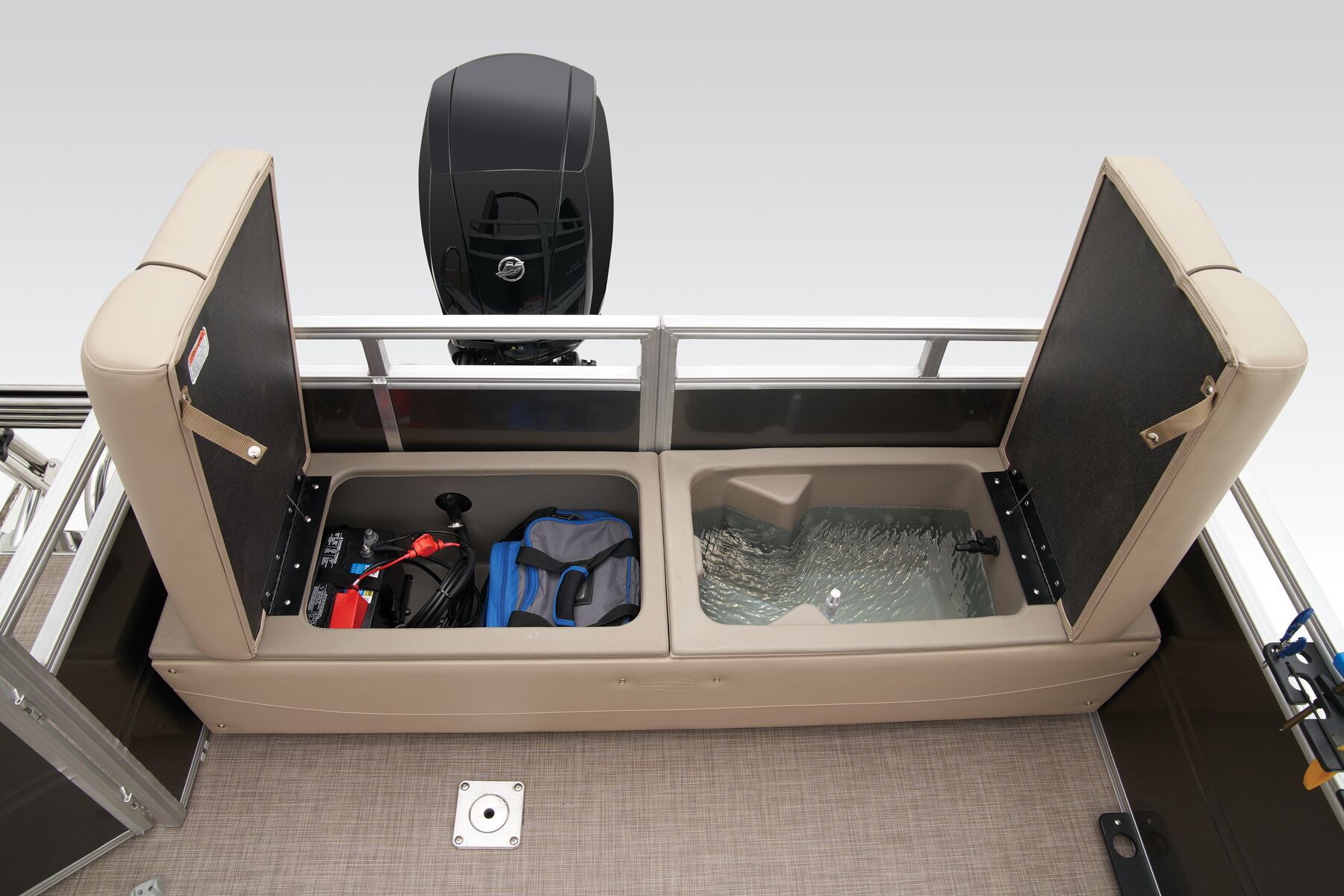

- Aft port 16-gal. (60.57 L) aerated livewell w/removable bait bucket & shutoff valve

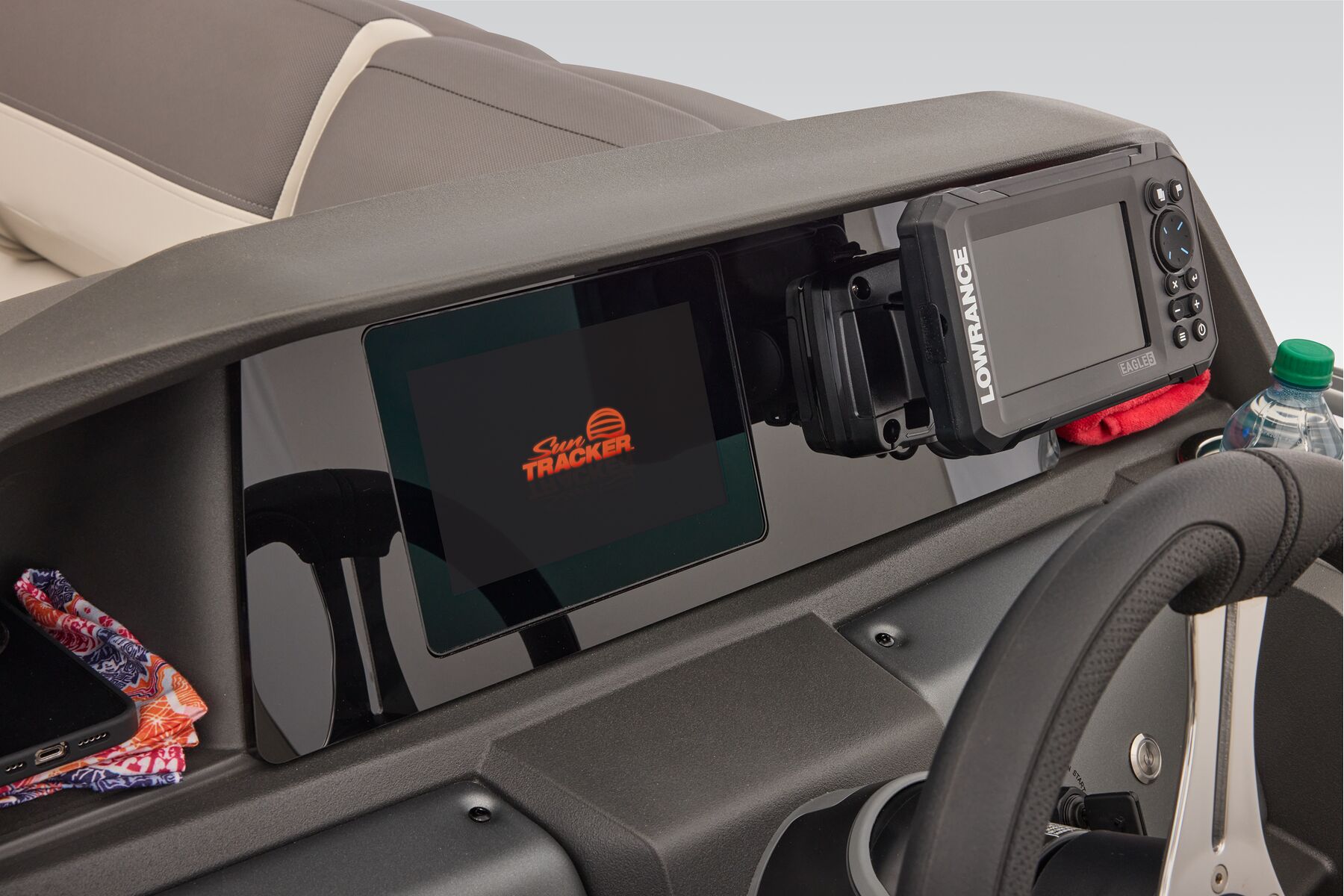

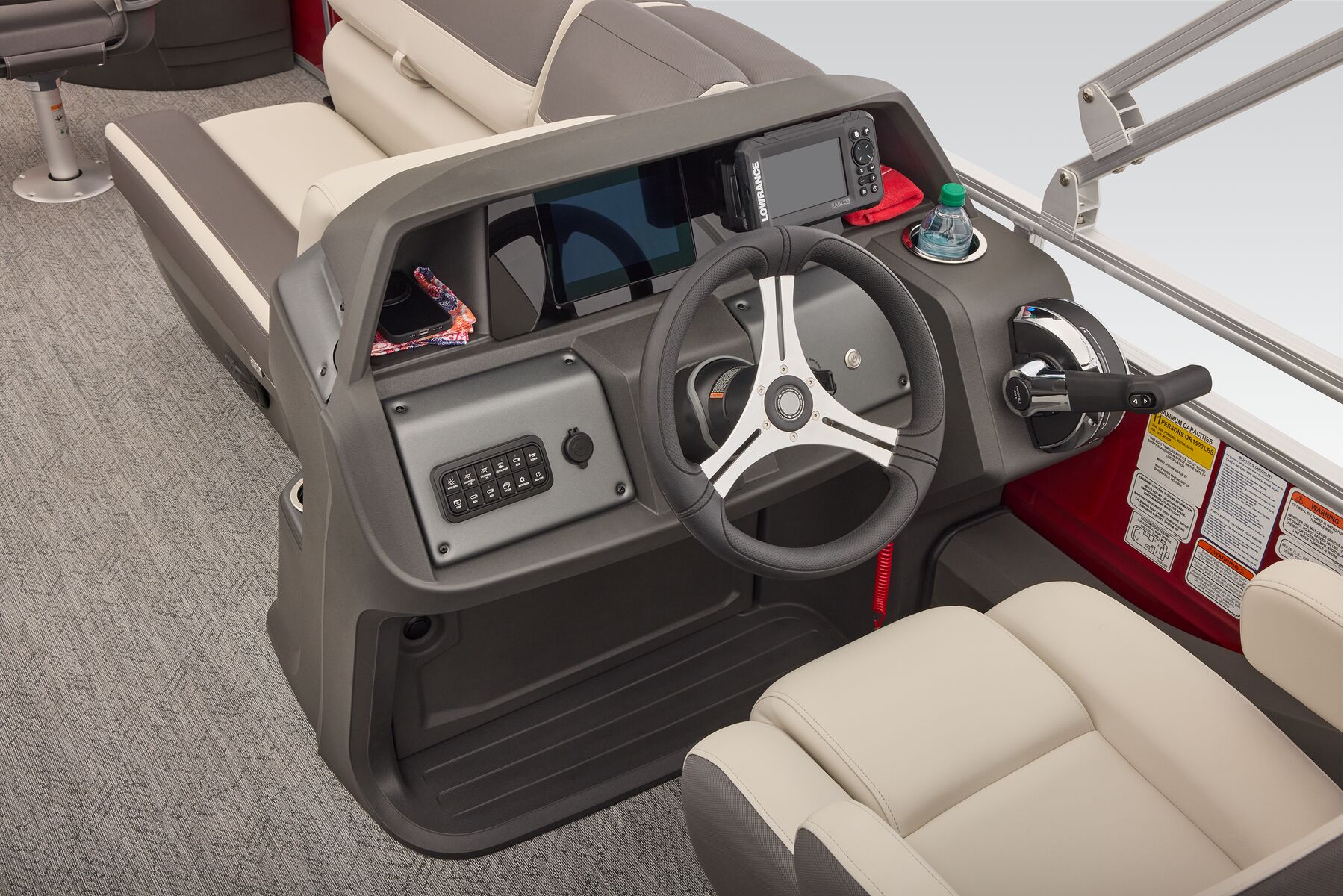

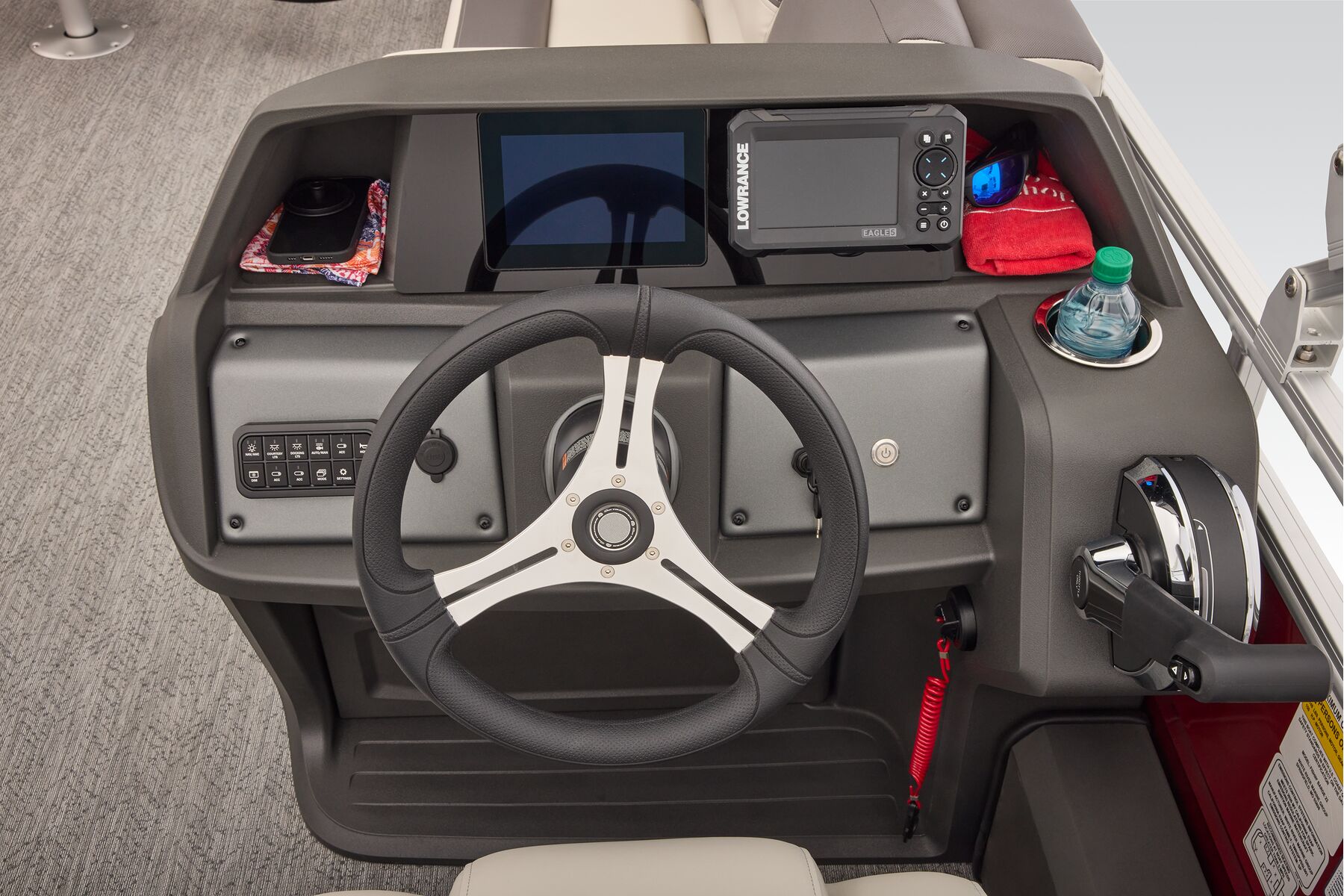

Console
- Deluxe soft-touch sport steering wheel
- 4:2 ratio no-feedback steering for responsive, easy turning
- Wraparound sport console shroud & tinted, removable windscreen

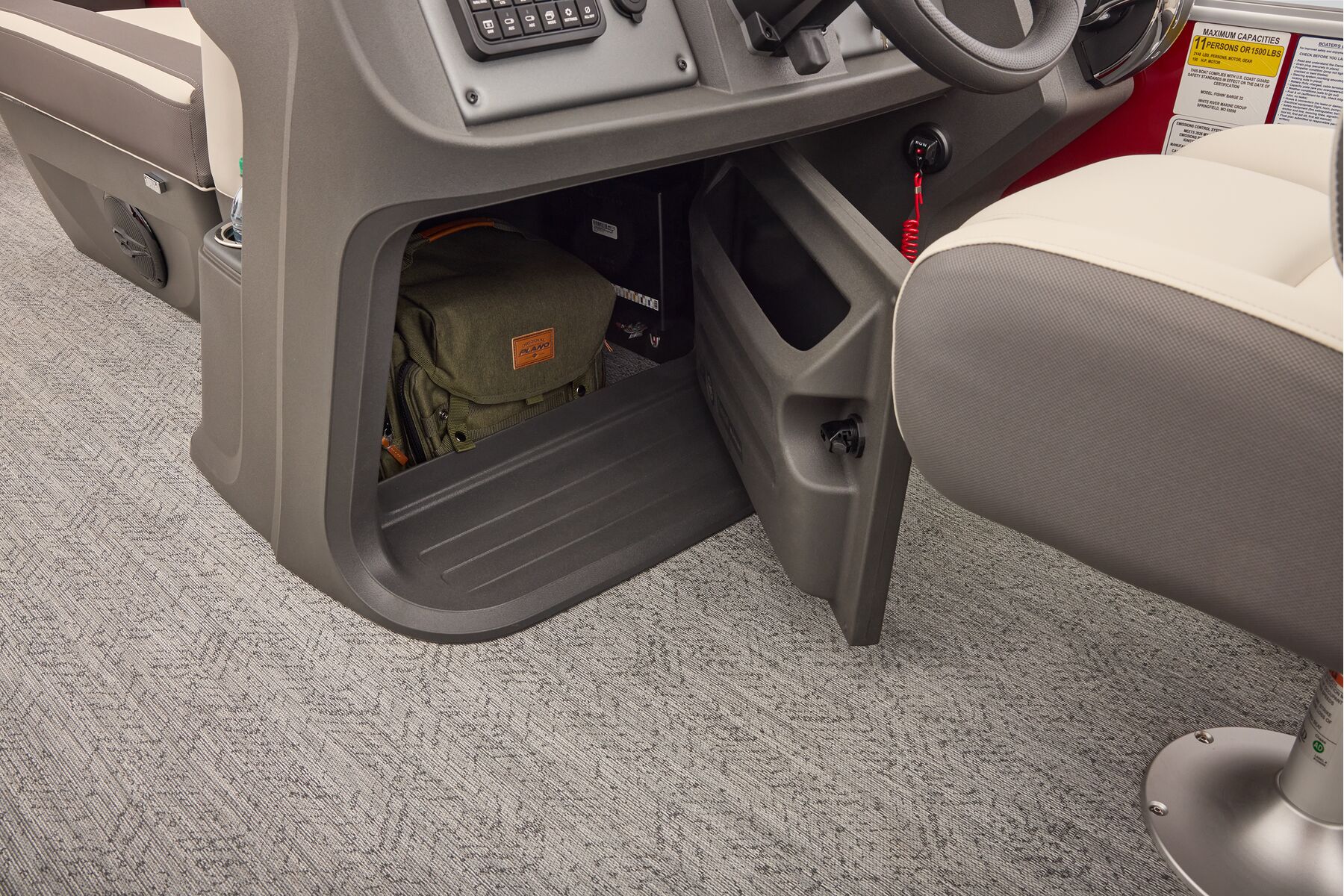

- Below-console cooler/storage space w/door & integrated pouch
- Small items tray
- Drink holders
- Built-in footrest w/non-skid pad
- AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 2 NEW upholstery speakers
- USB/3.5 mm auxiliary input ports on console for direct stereo connection
- Tachometer, trim meter/speedometer & fuel & hour gauges

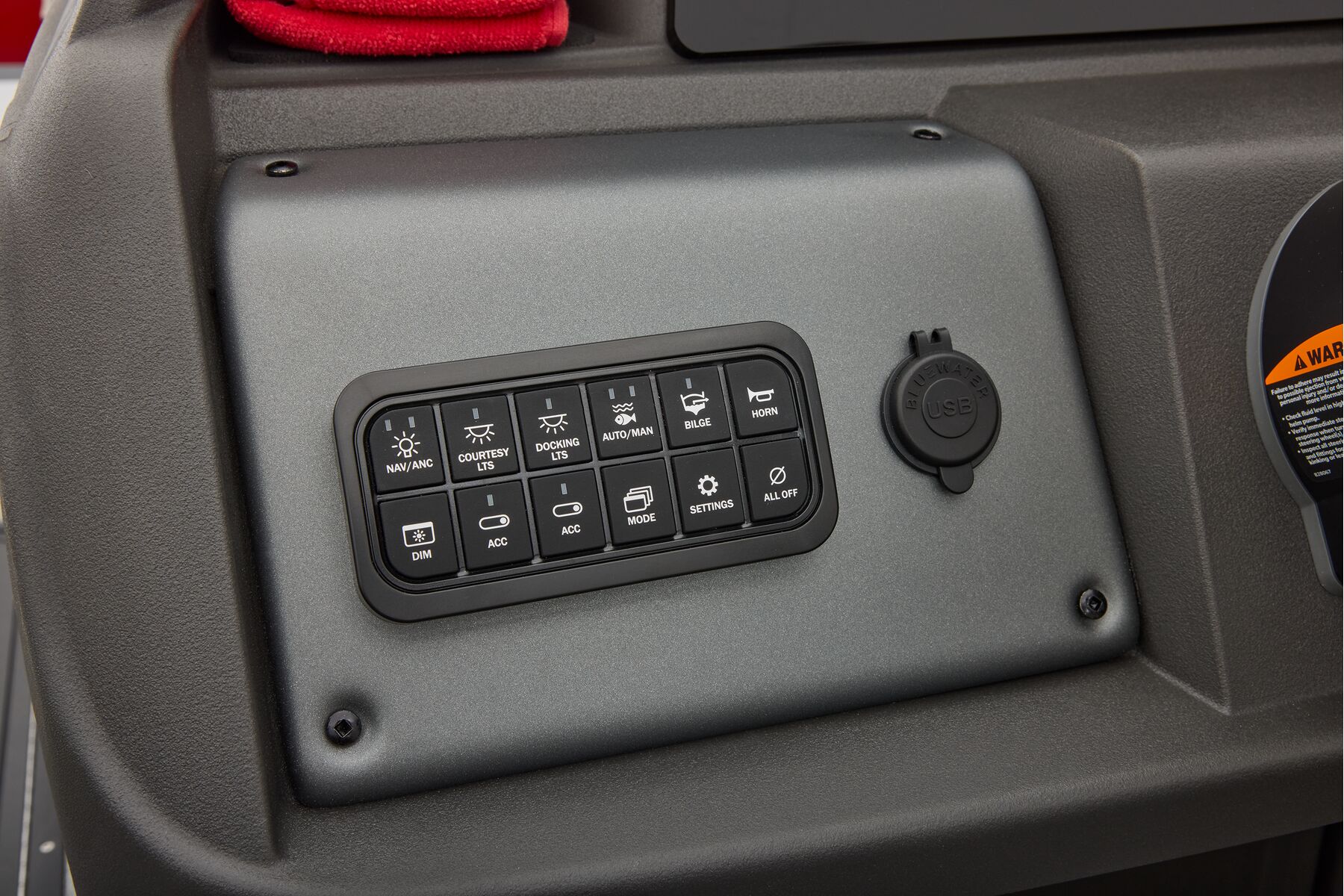

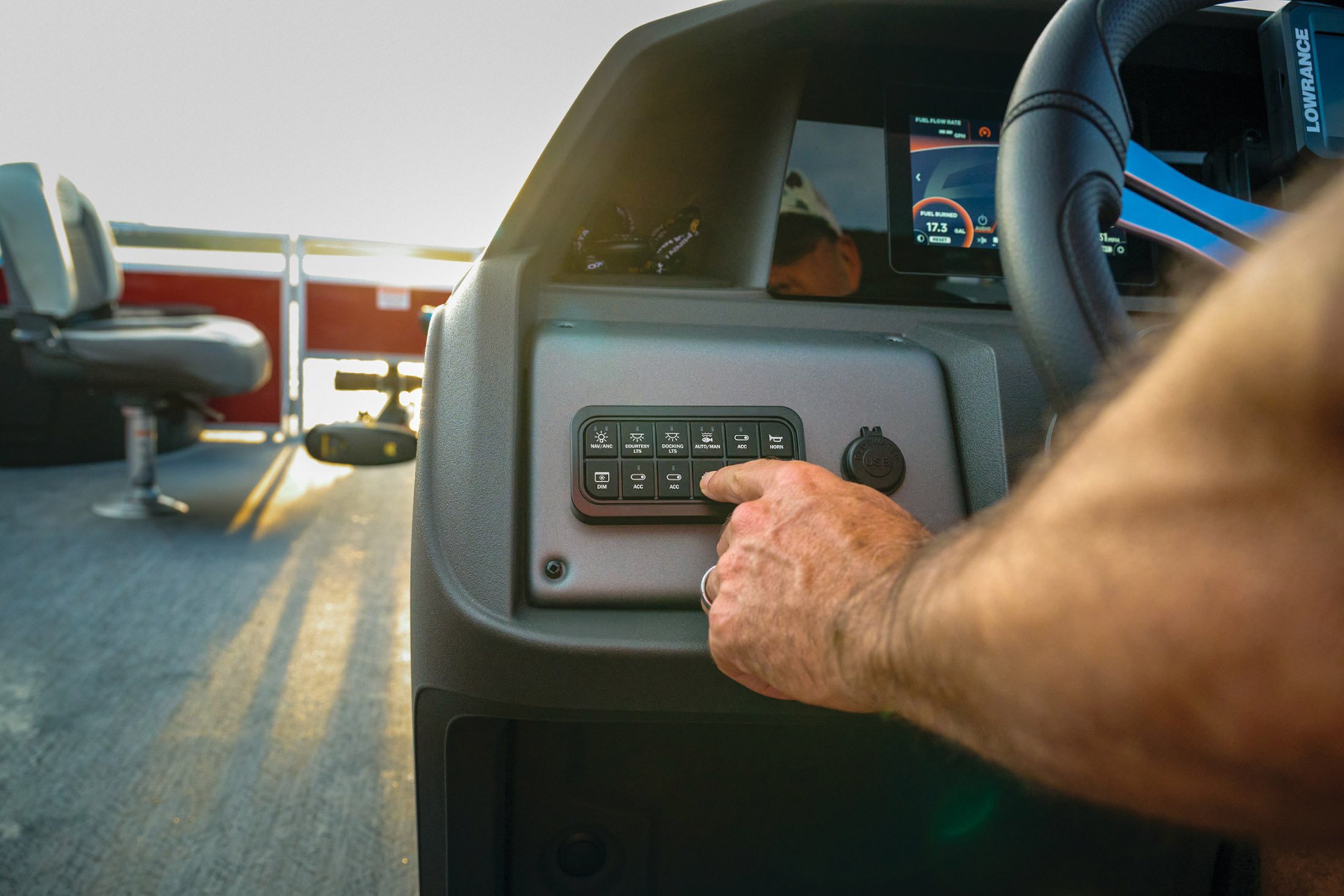

- Lighted rocker switches
- Ergonomically positioned Mercury® binnacle control box w/trim
- 12V outlet
- Dark console color

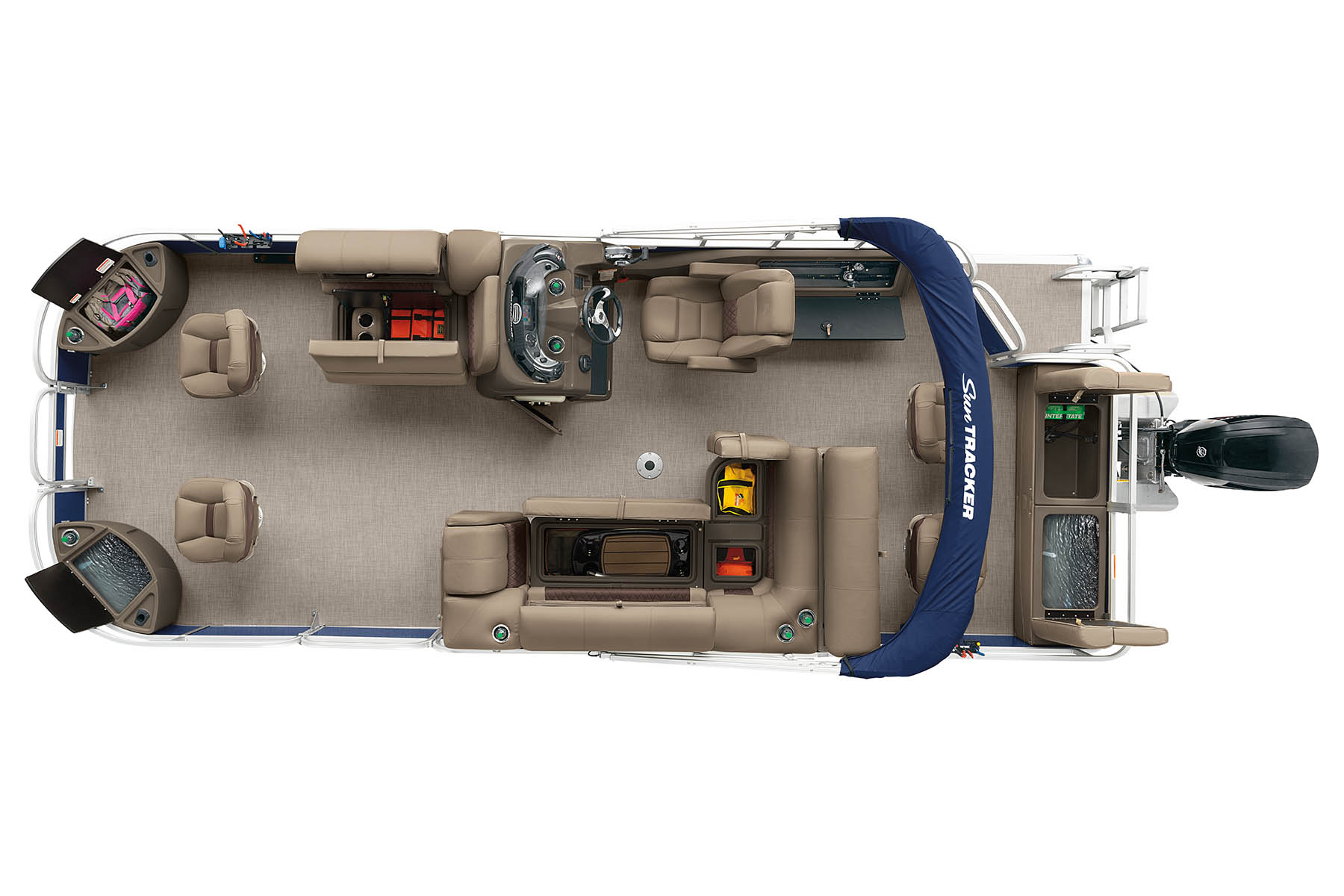

Interior

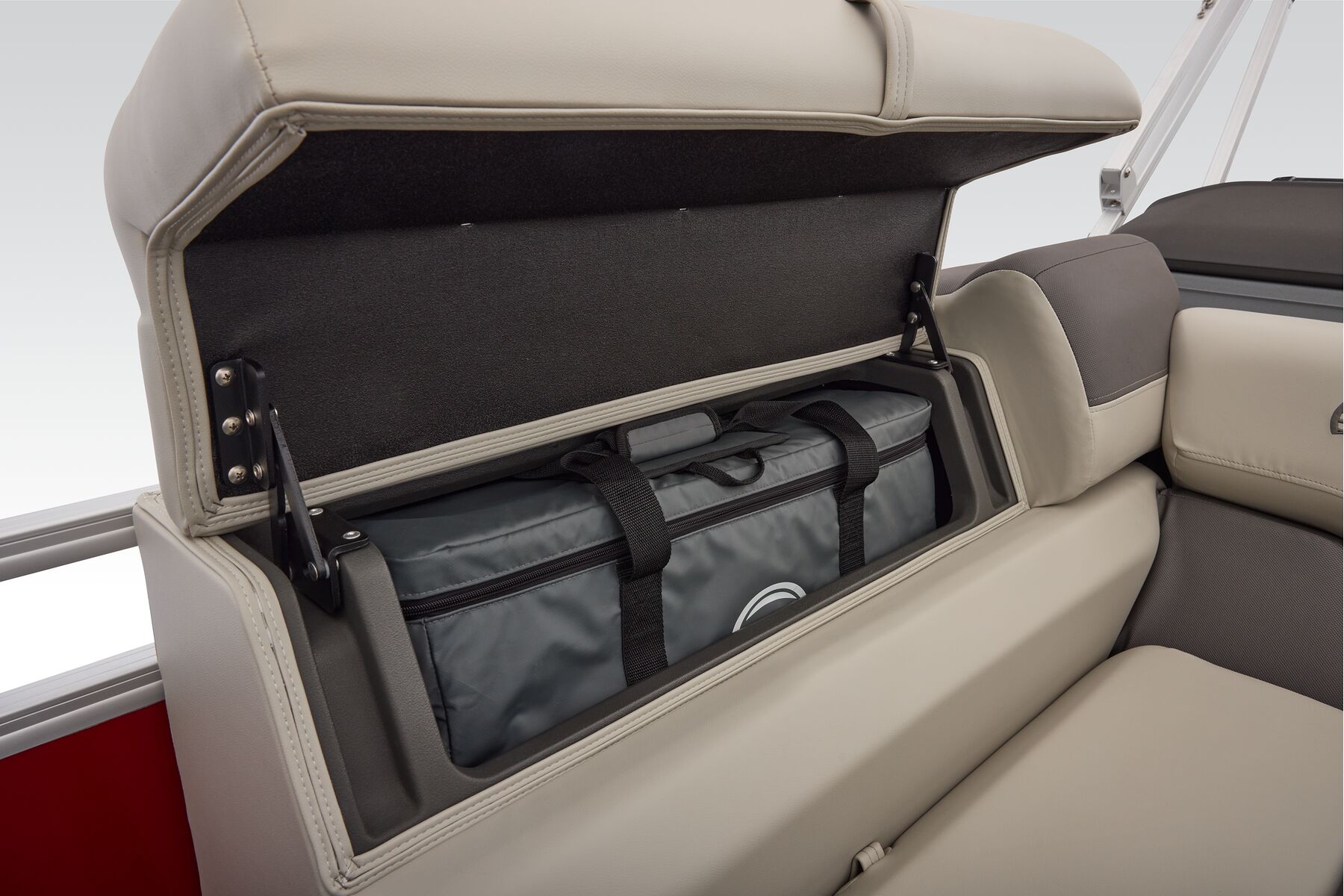

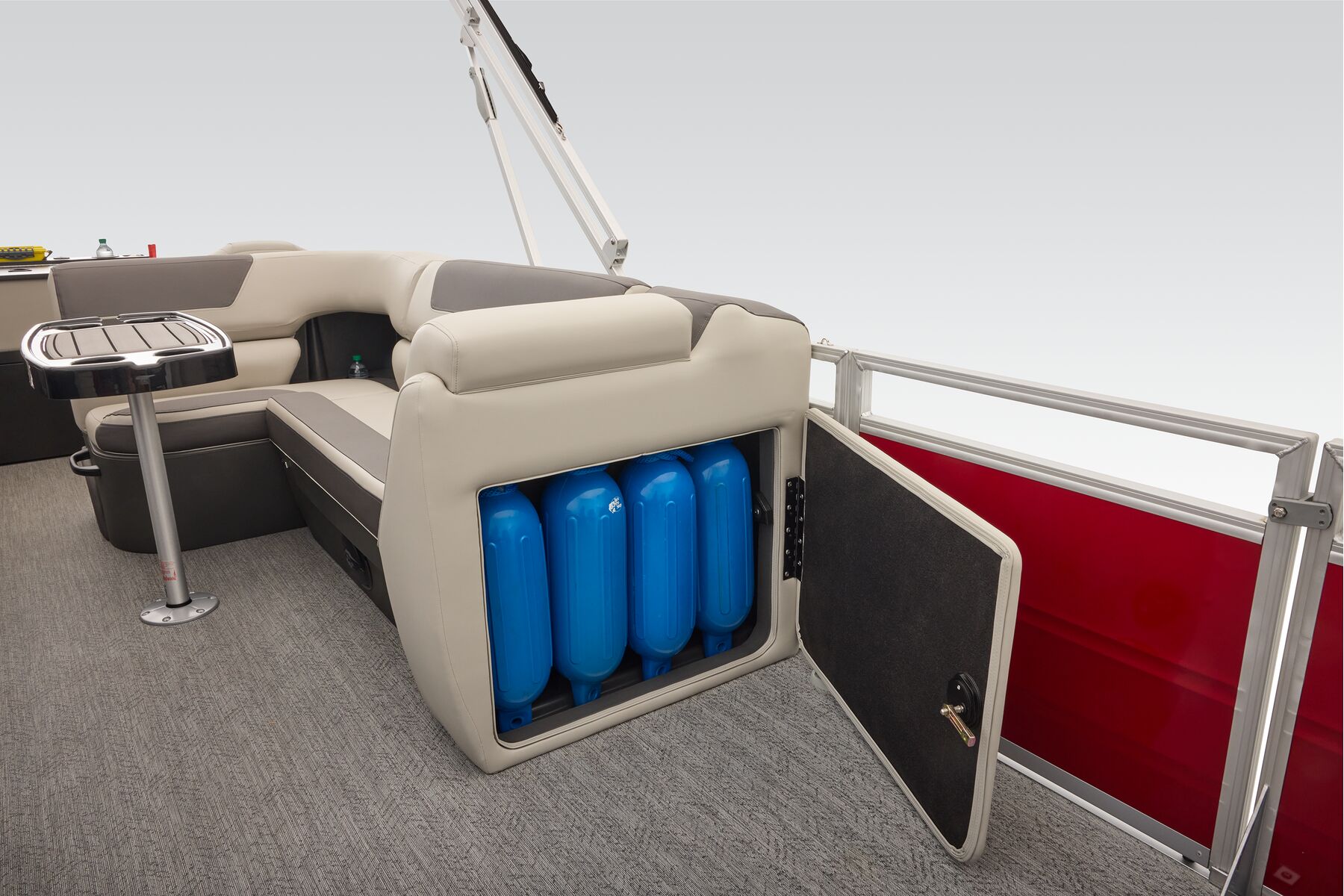

- The patented STOW MORE™ system features an added compartment in the seat back for increased storage
- Large bow port rotomolded box w/livewell, ruler, drink holders & lid

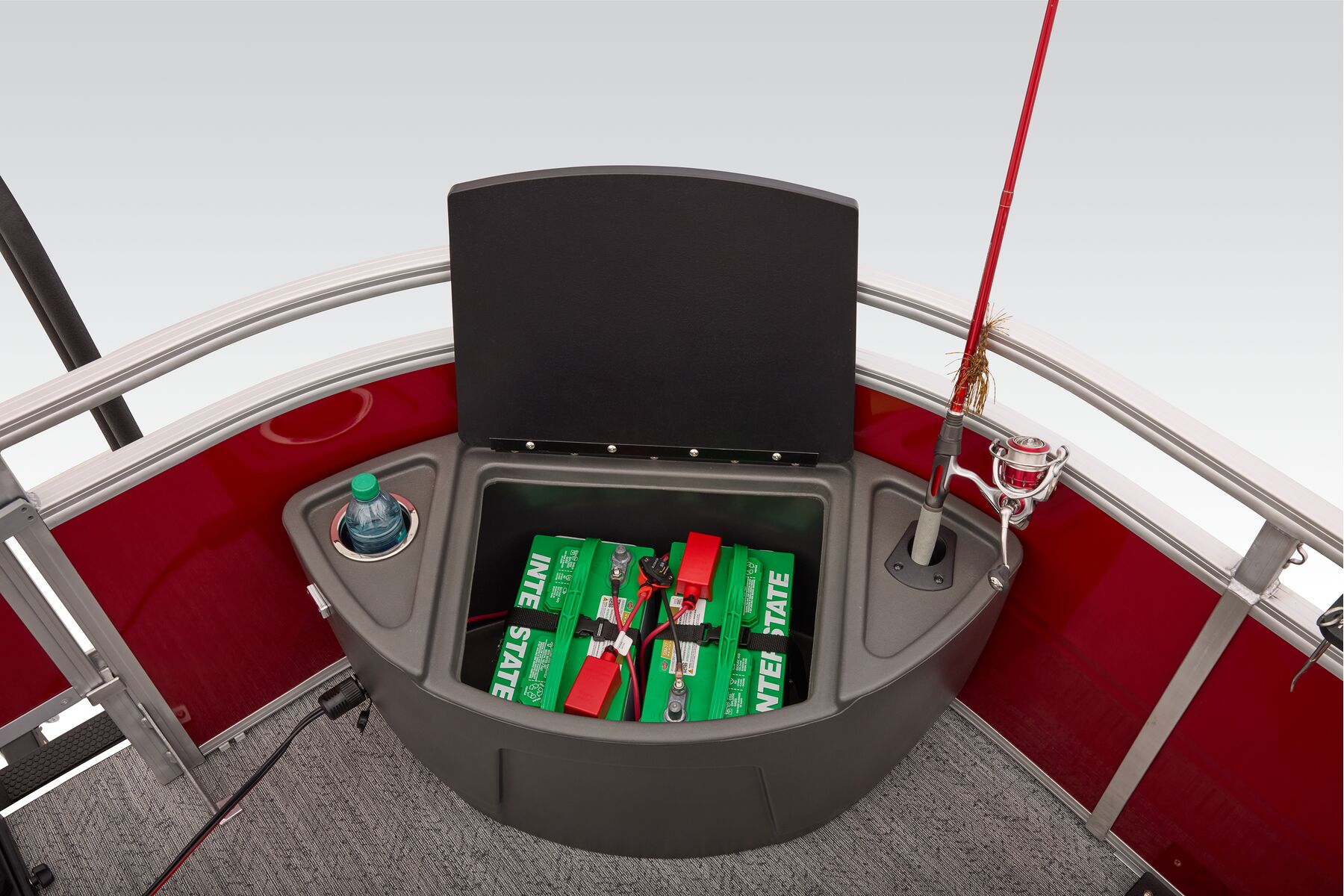

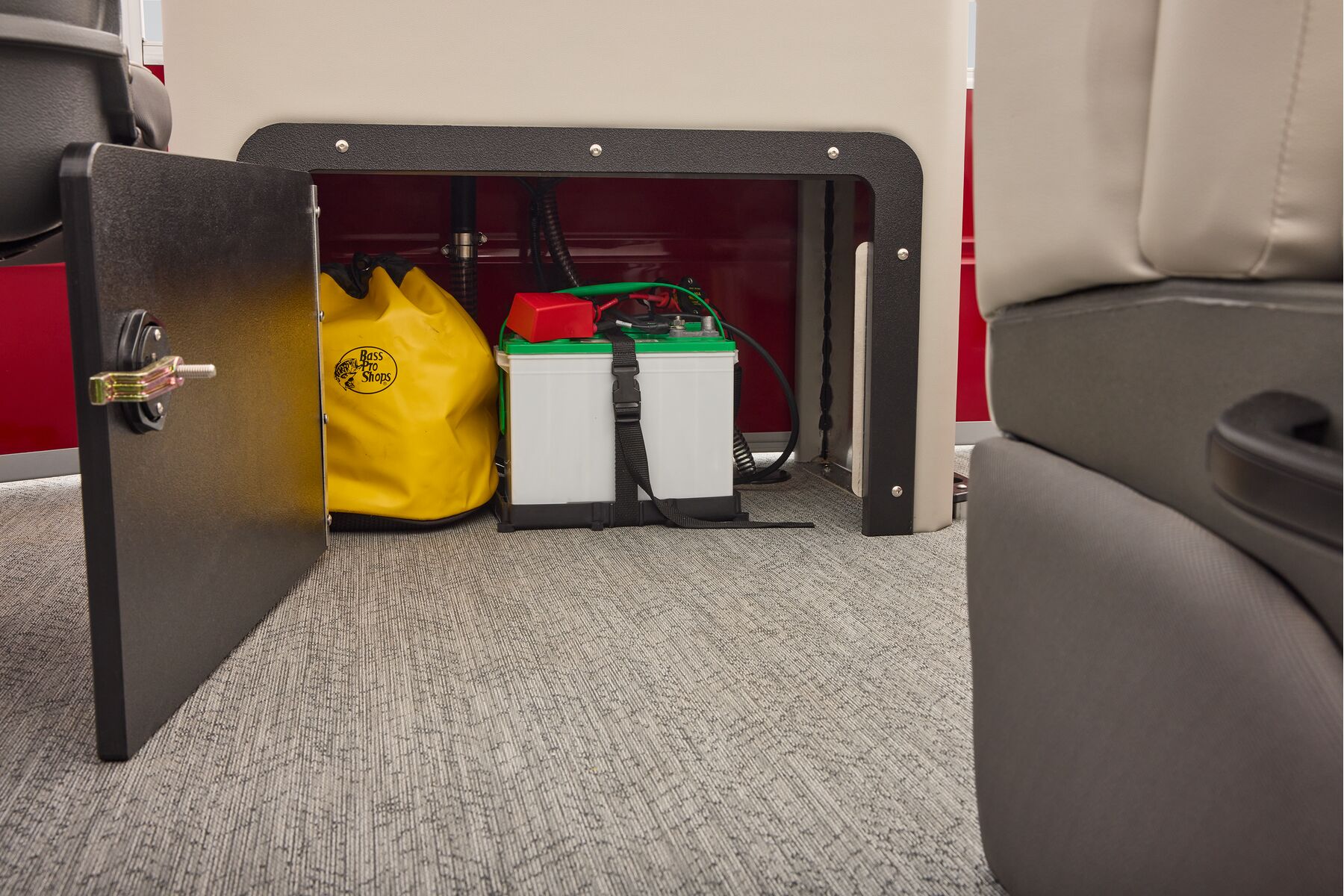

- Large bow starboard rotomolded box w/storage, ruler, drink holders & lid w/room for 24V total battery capacity
- Clam-shell fishing chairs constructed w/all-composite seat frames w/heavy-duty 2-3/8" (6 cm) diameter pedestals

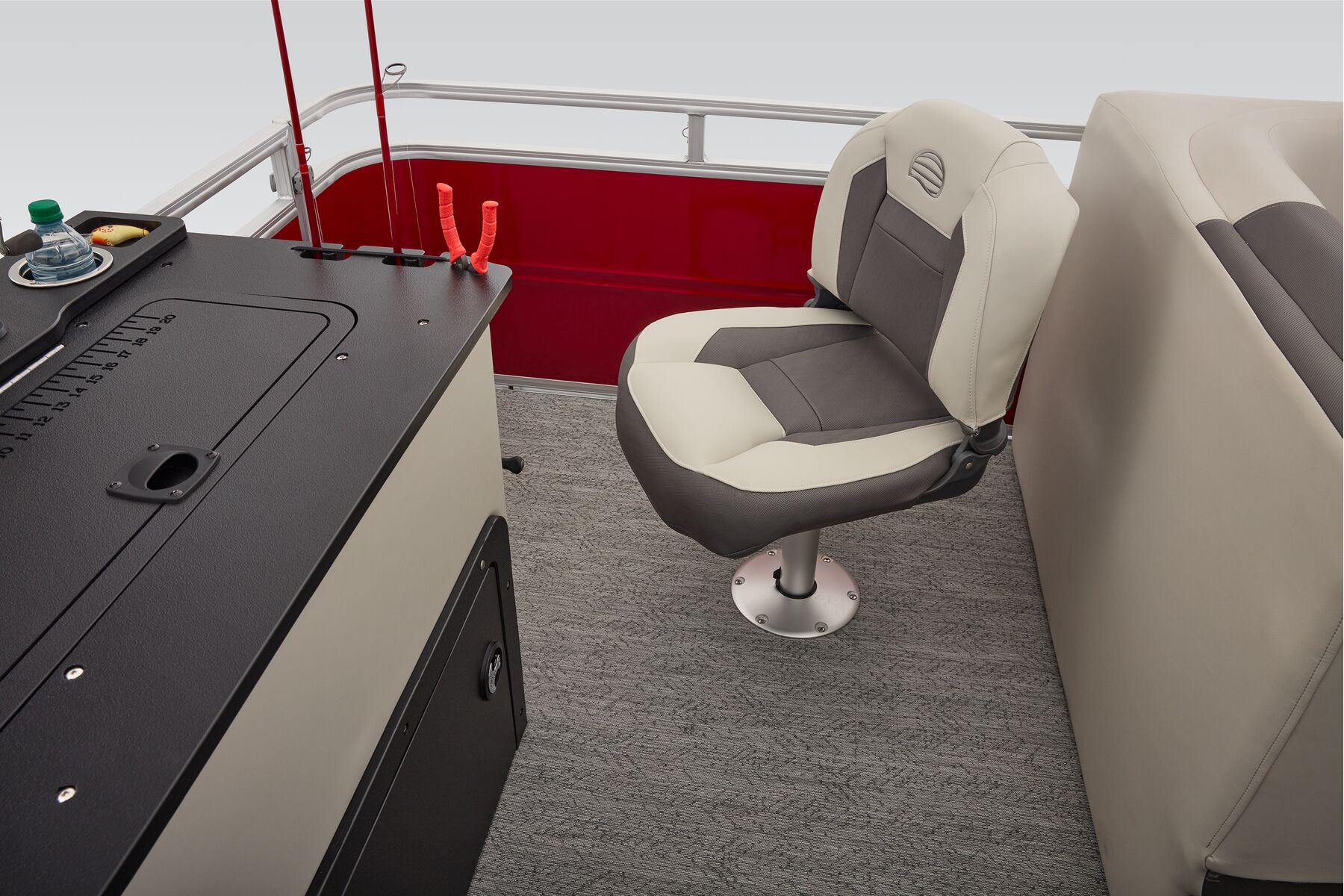

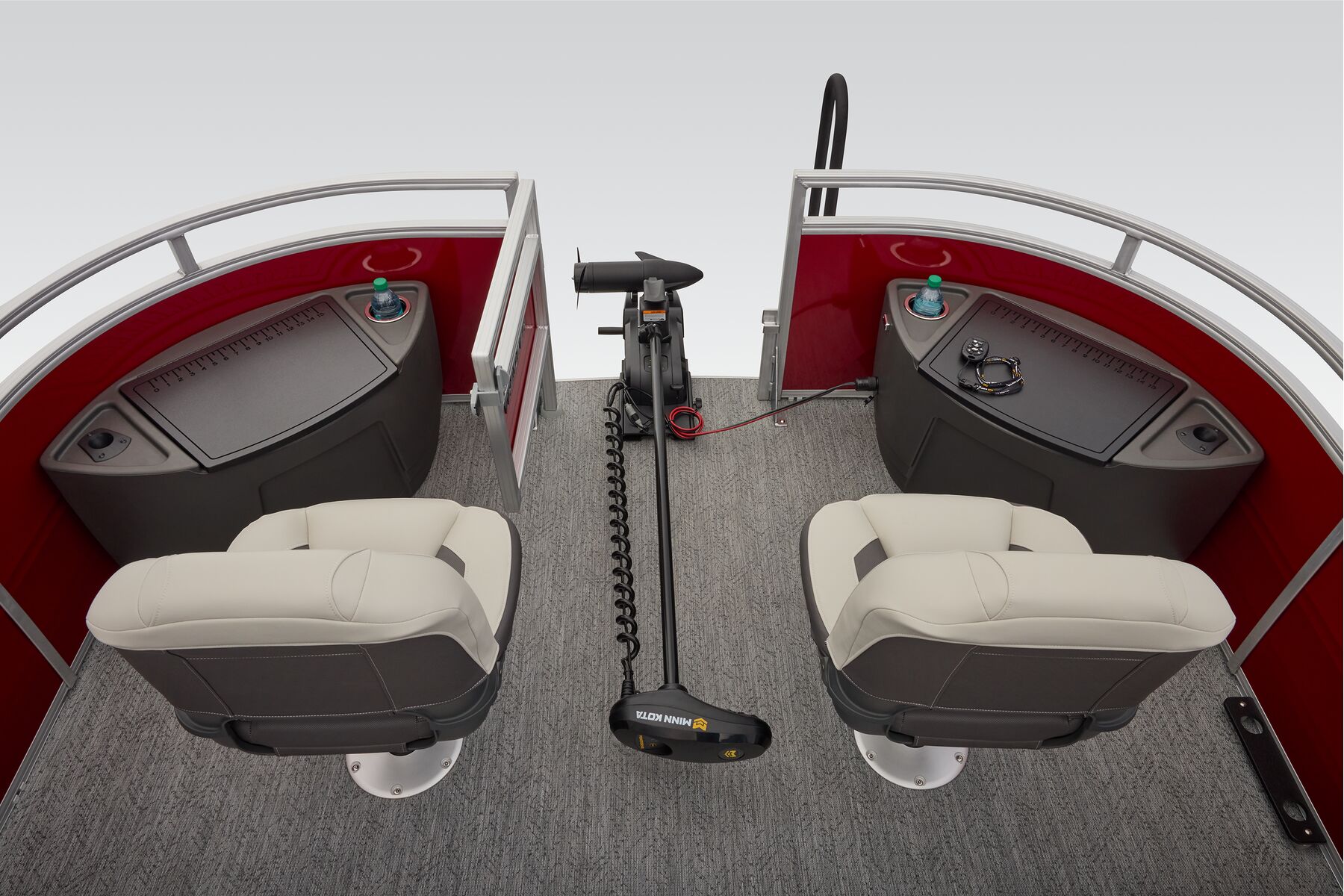

- Bow fishing deck w/2 removable folding fishing chairs
- Bow rail-mounted vertical rod & tool holders
- Forward-console couch w/STOW MORE™ system & lockable underseat storage

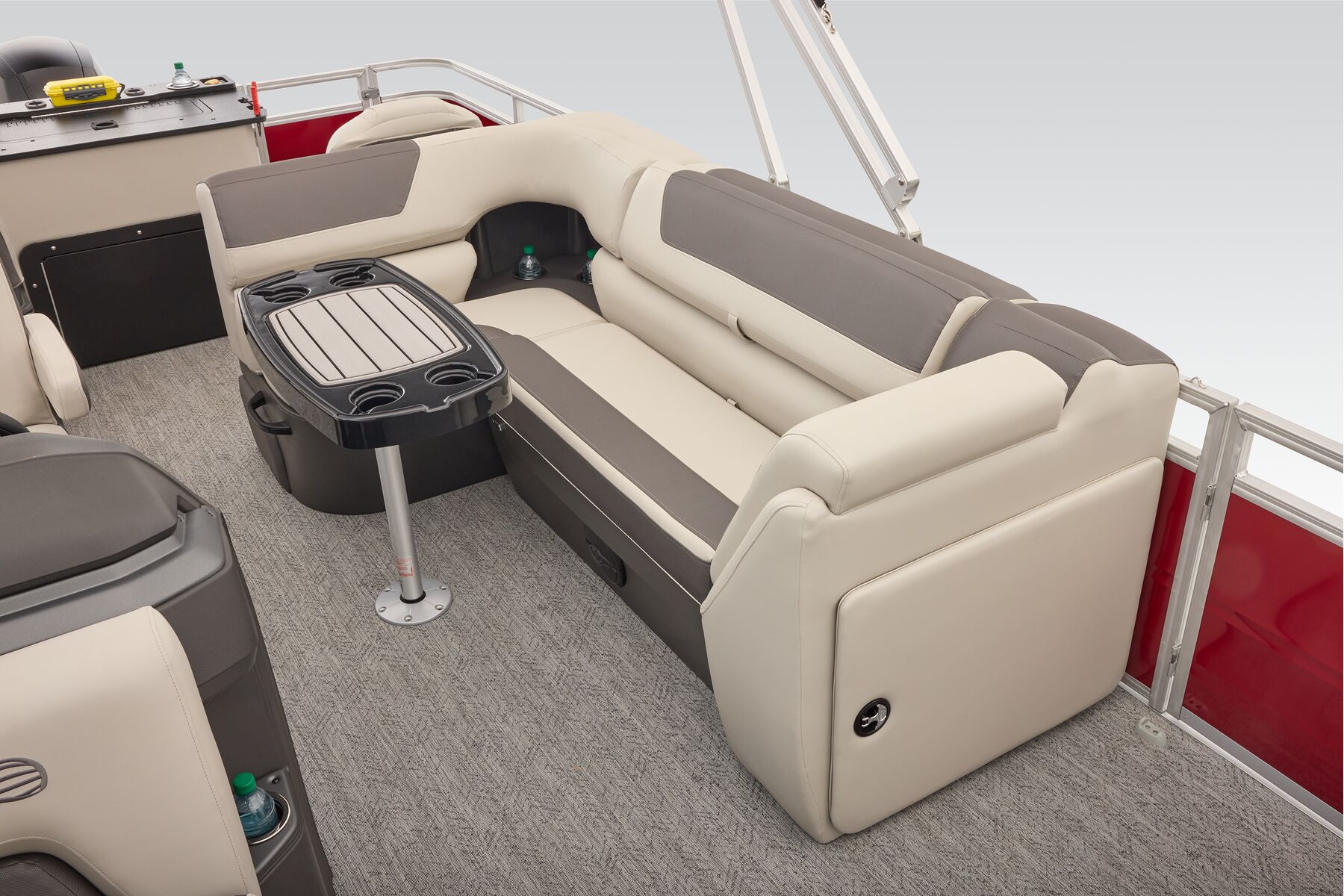

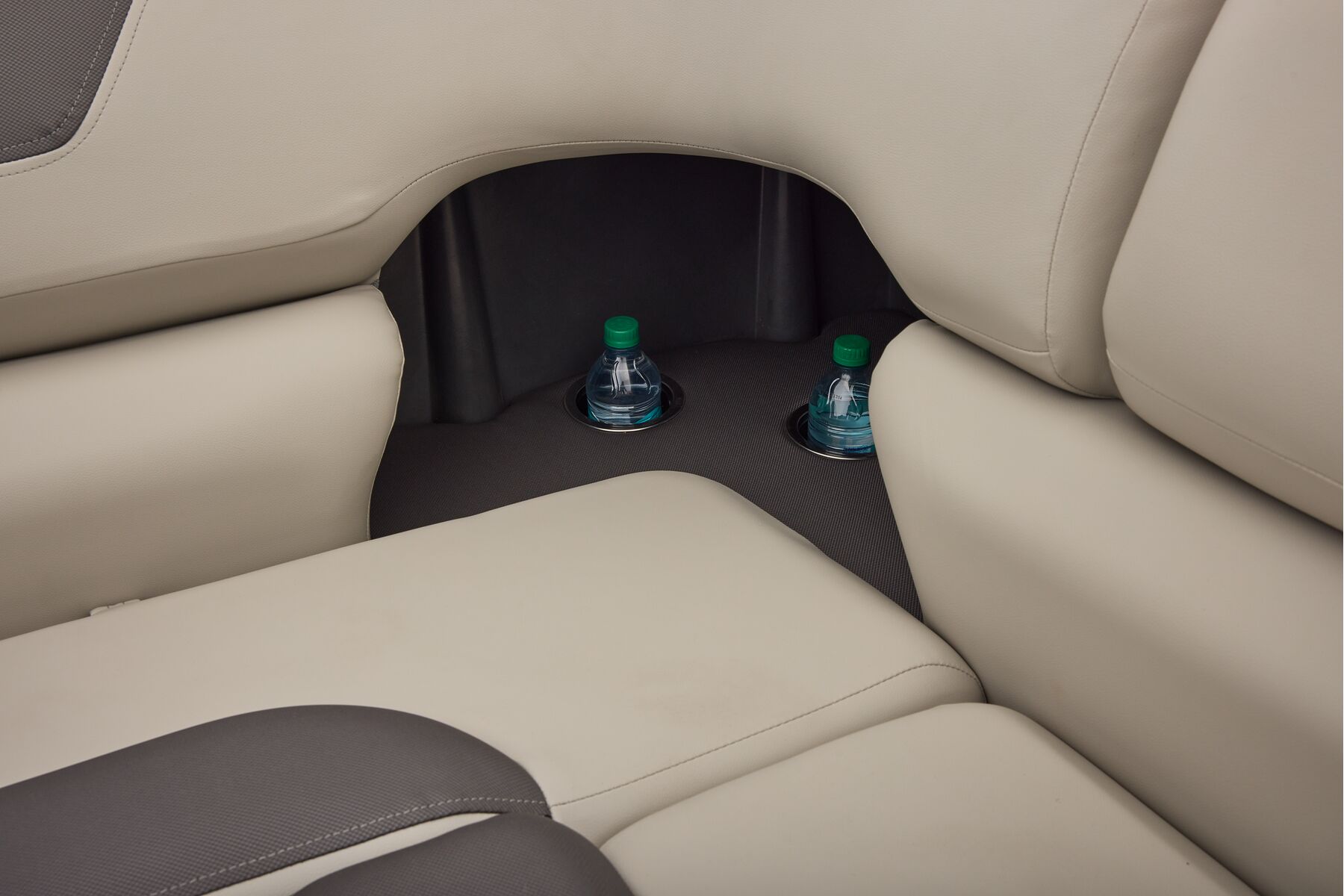

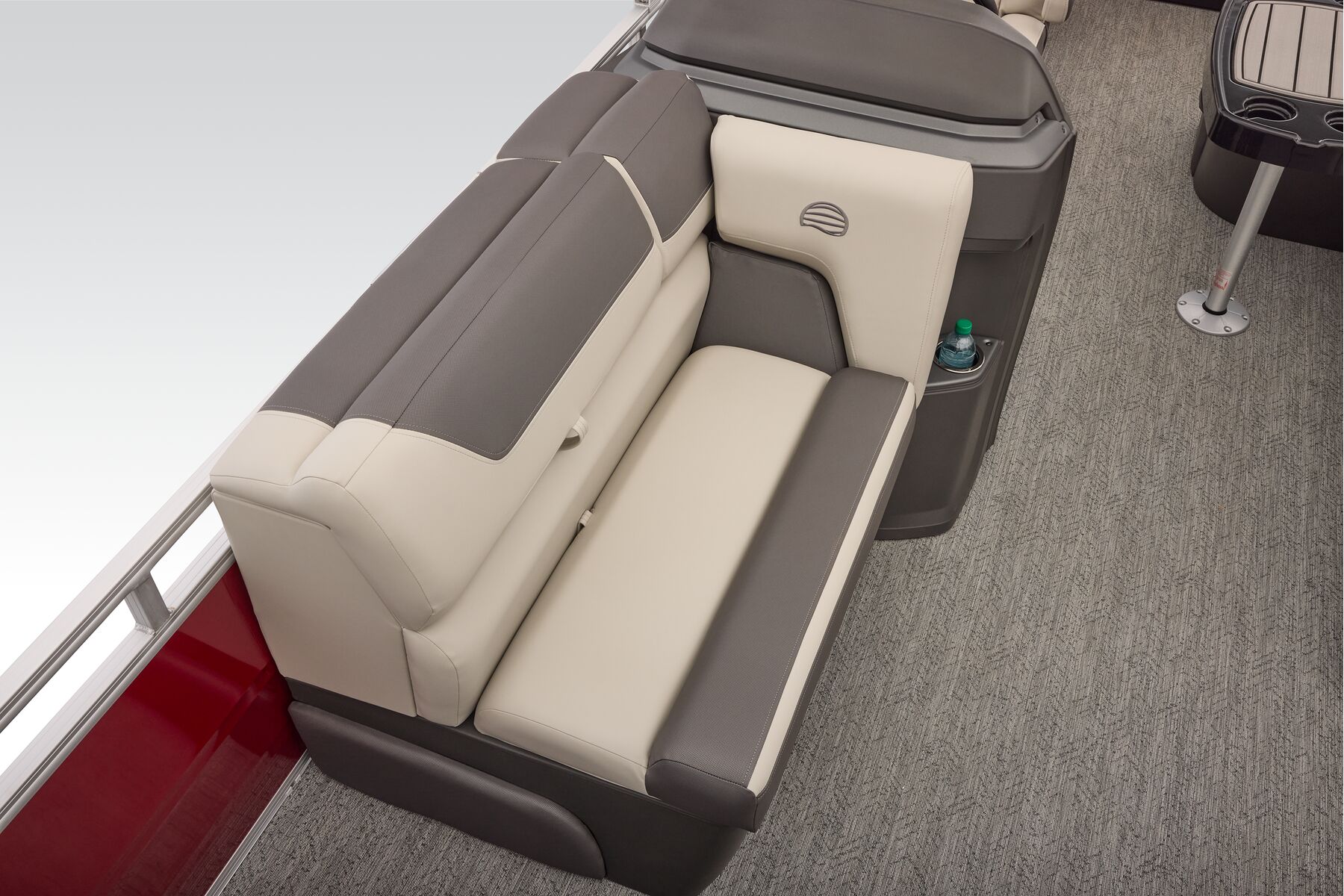

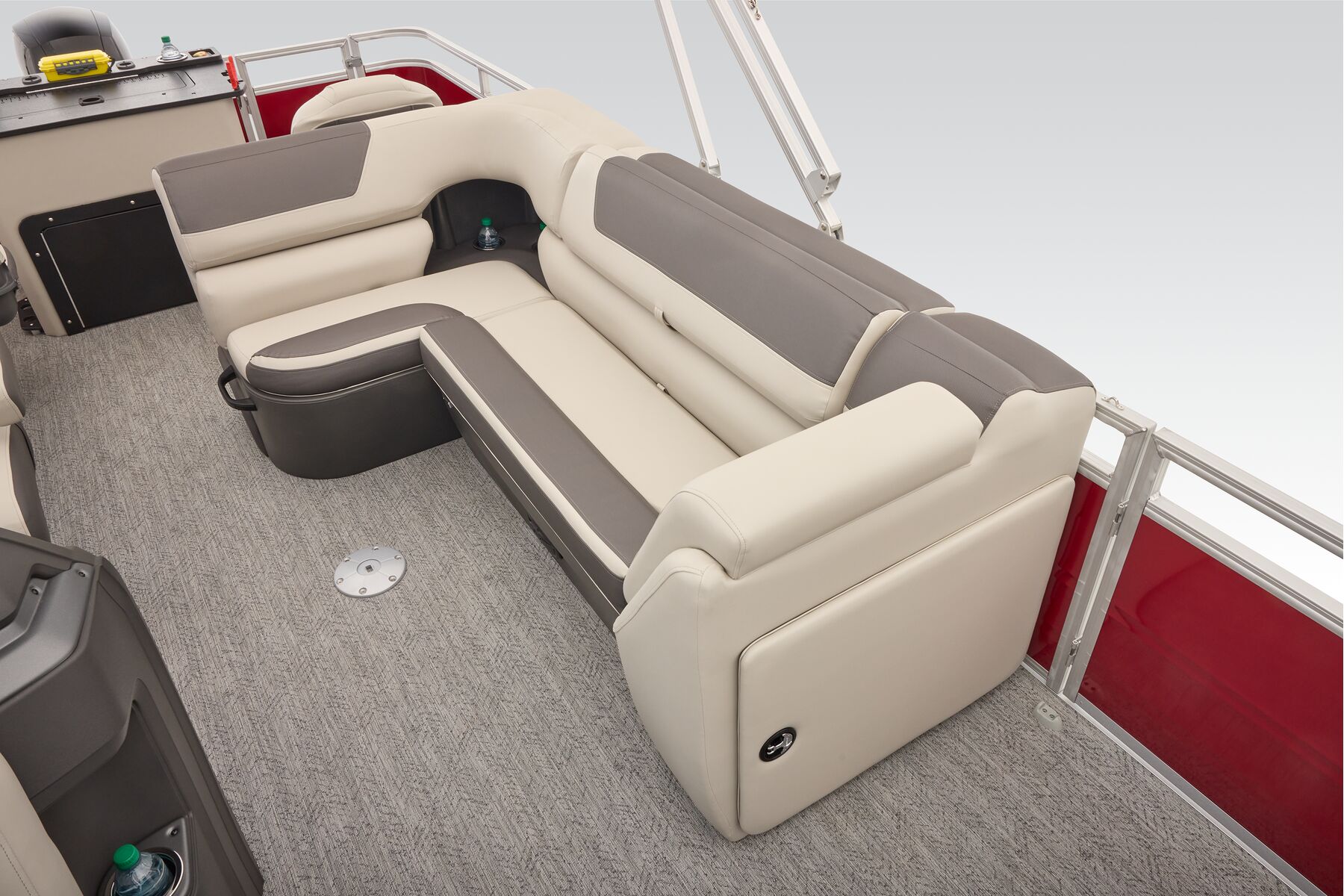

- Aft L-lounge w/STOW MORE™ system & underseat storage

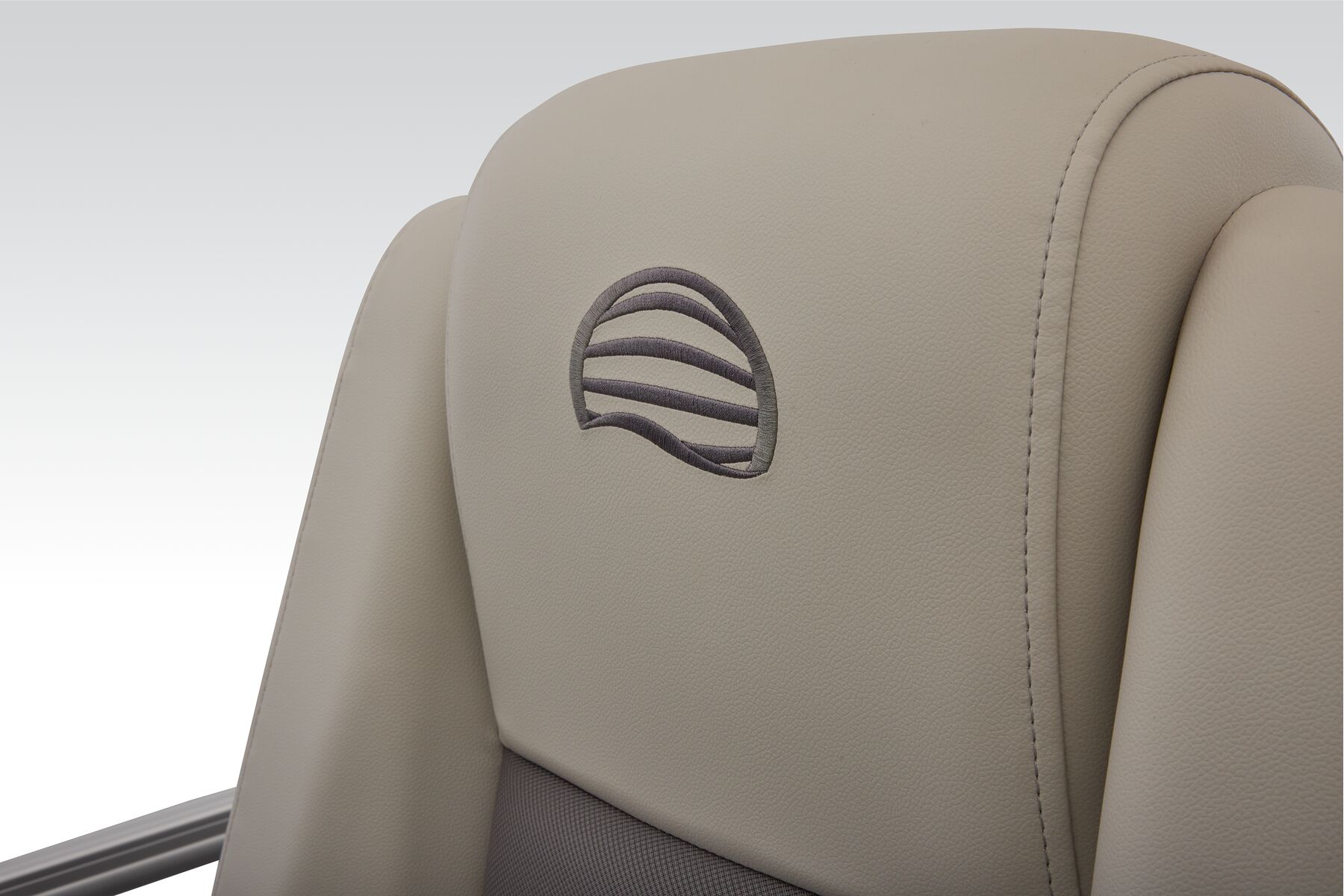

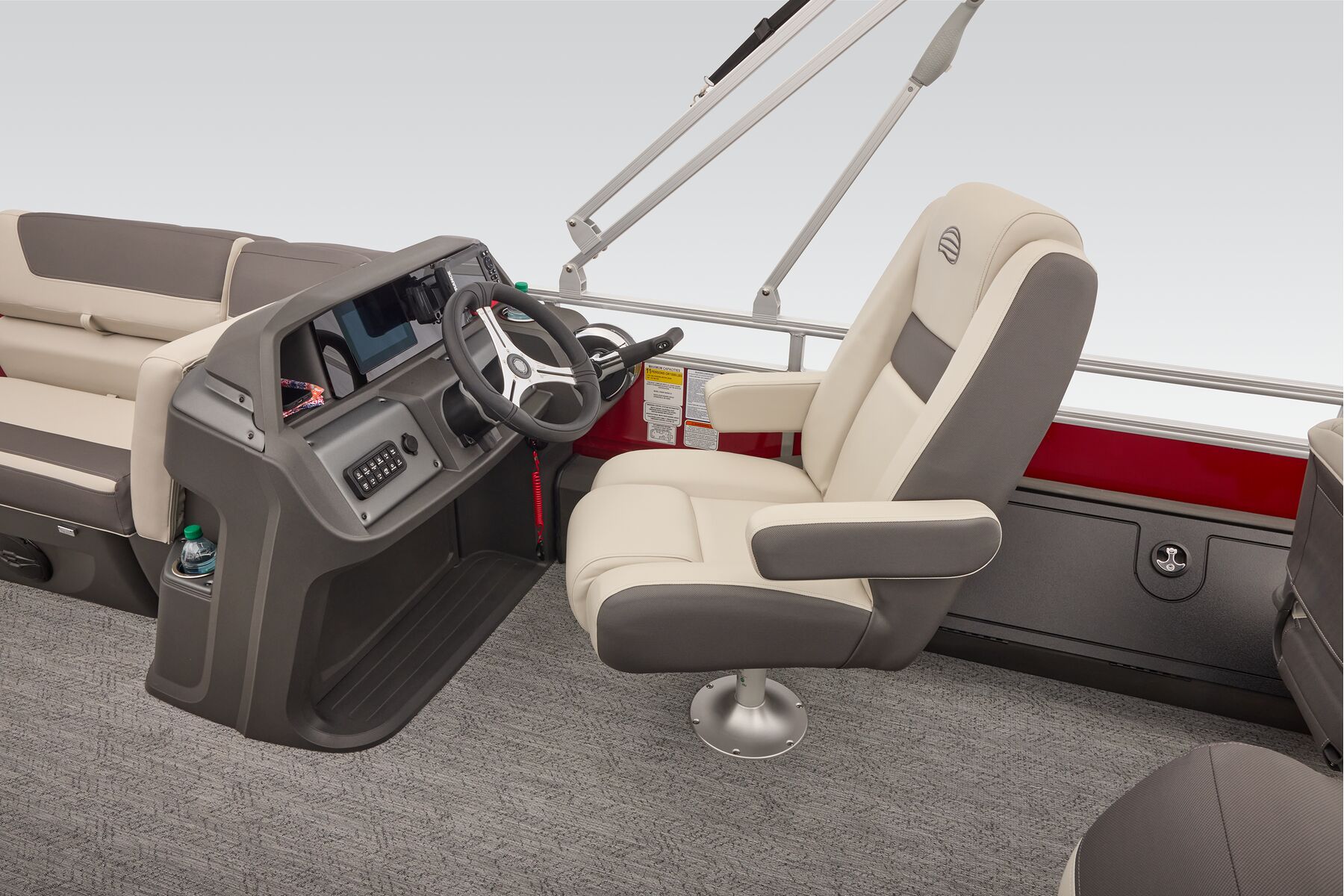

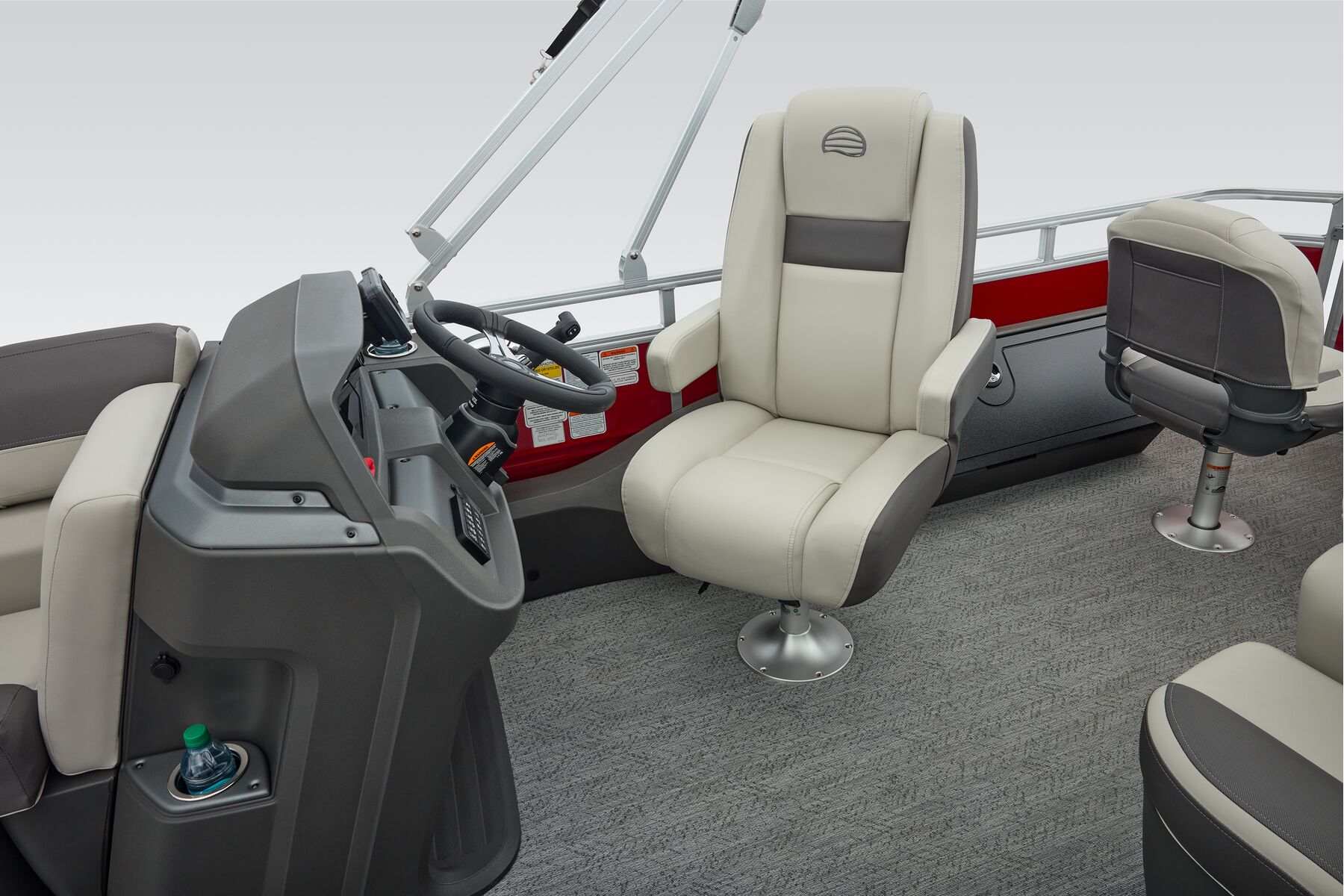

- High-back swiveling helm bucket seat, reclining & w/self-leveling arms

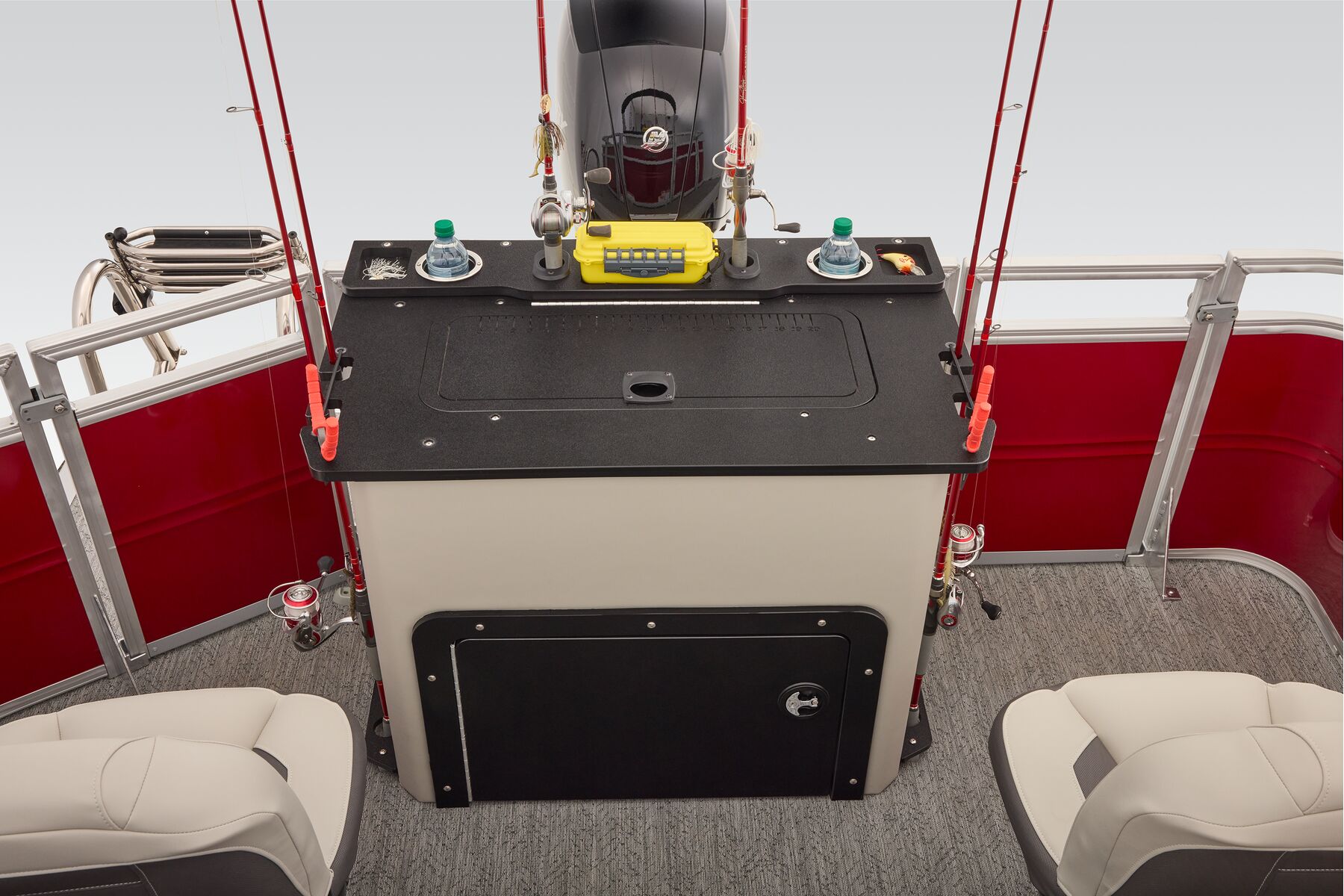

- Rear-facing tackle storage in aft L-lounge

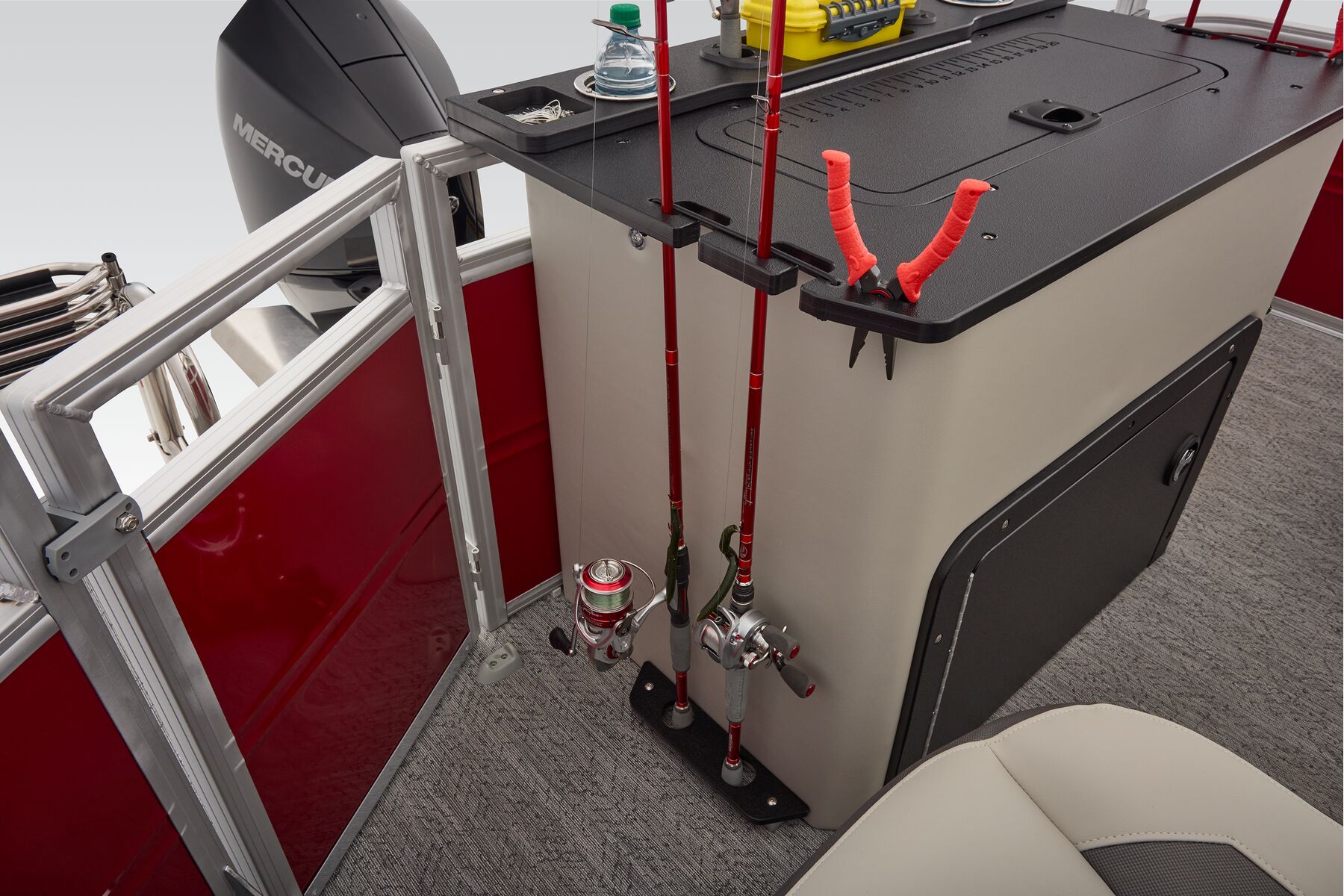

- Aft rail-mounted vertical rod & tool holders

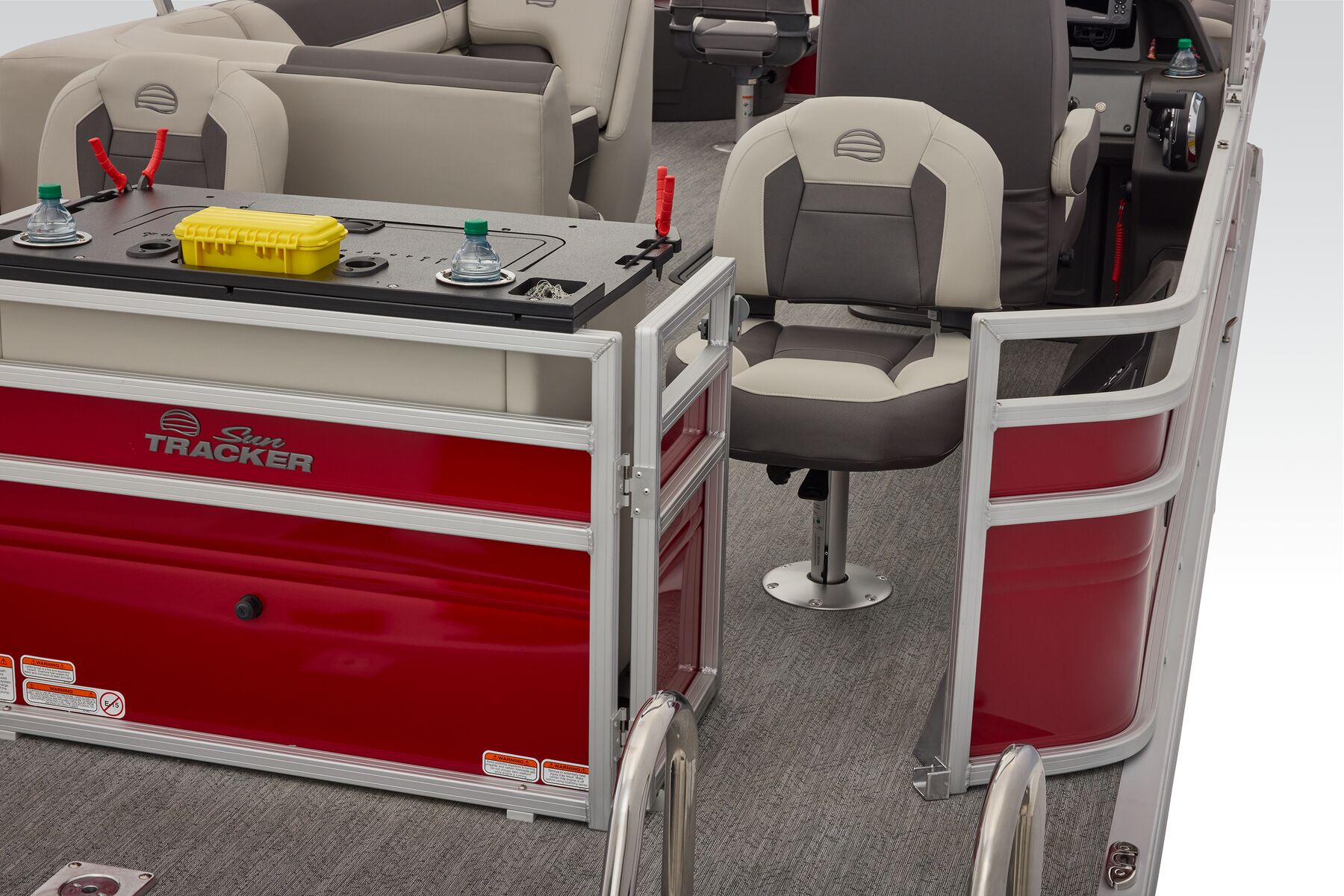

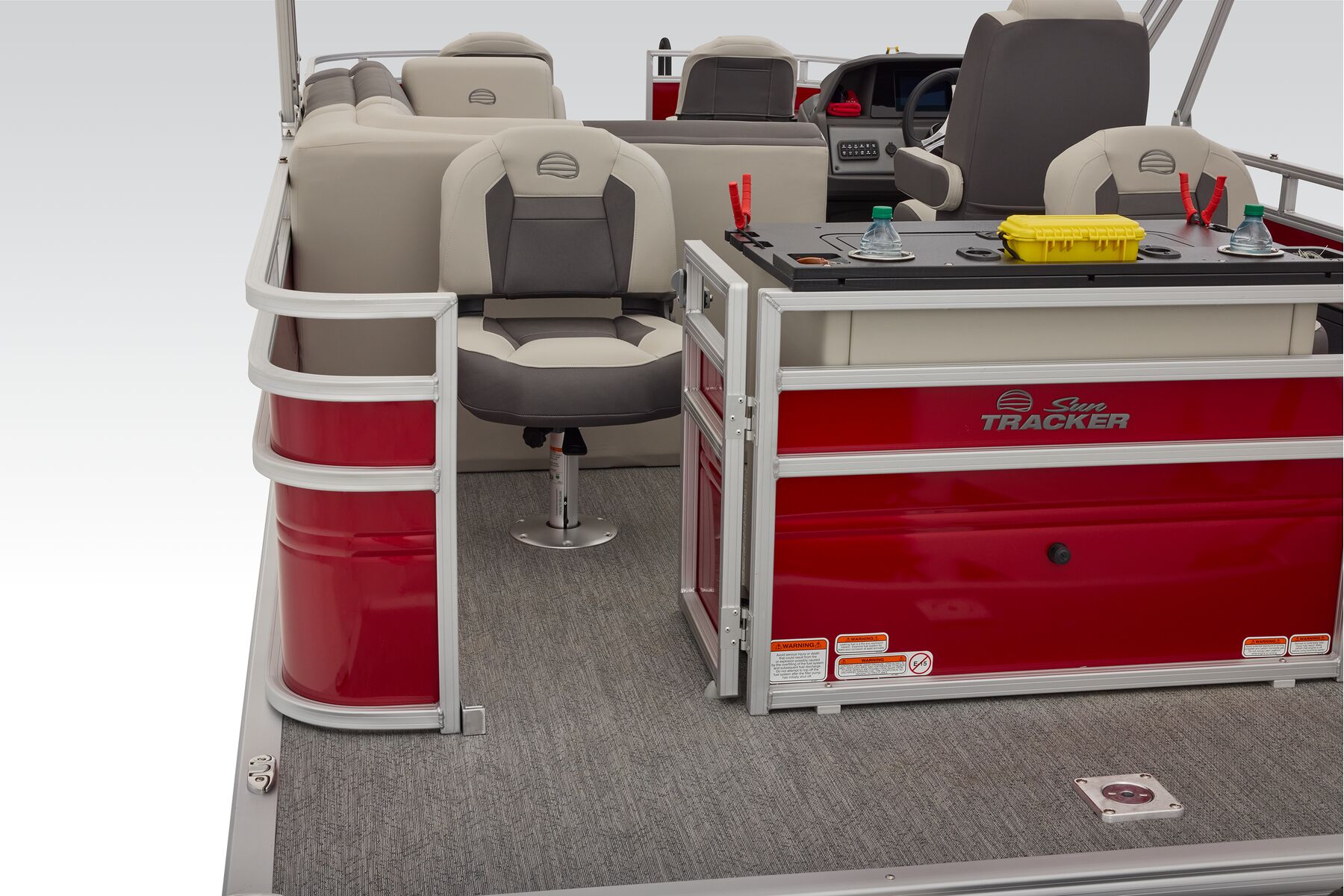

- Aft fishing deck w/2 removable folding fishing chairs
- Molded aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer

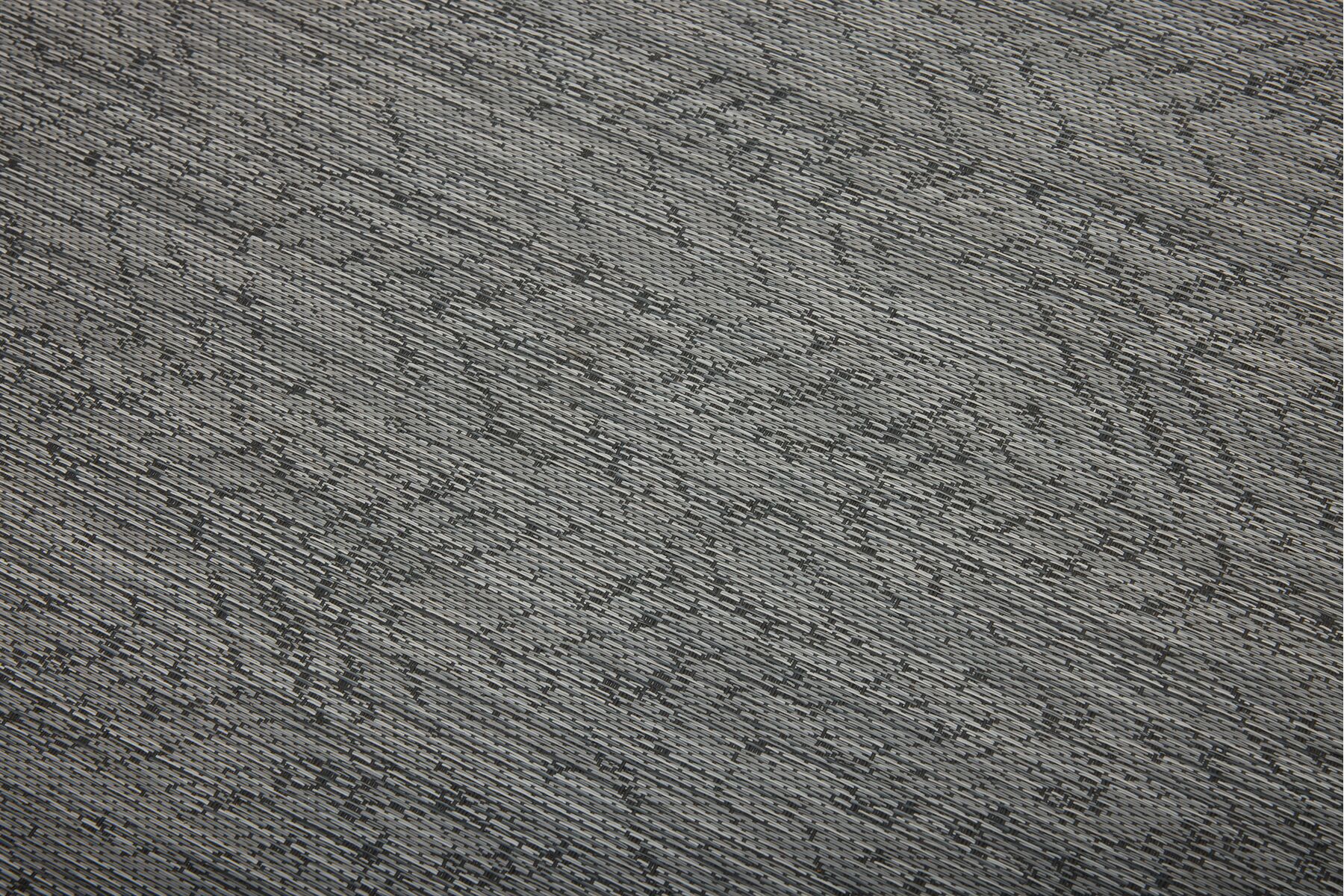

- Woven 16-oz. (.45 kg) marine-grade flooring throughout

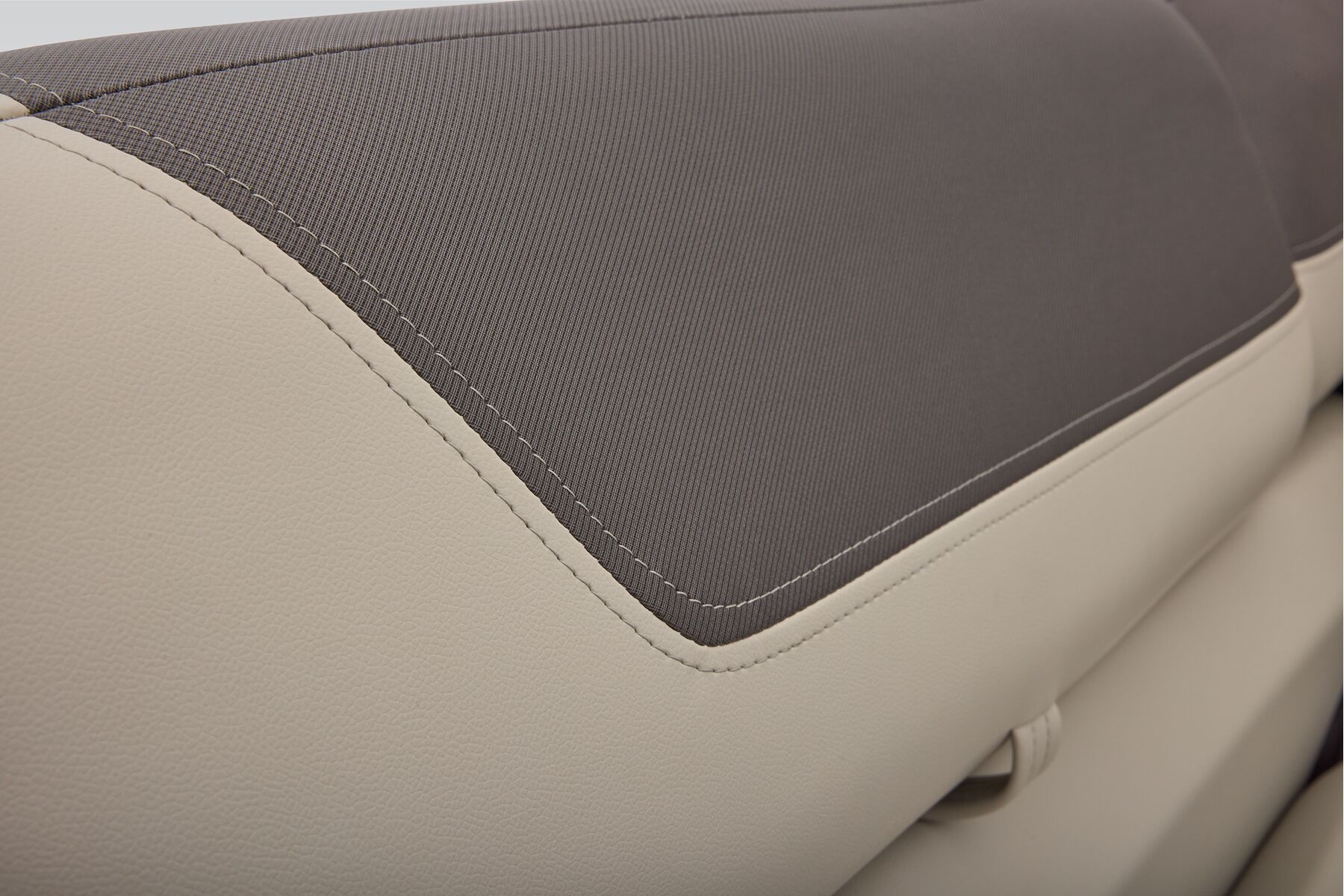

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

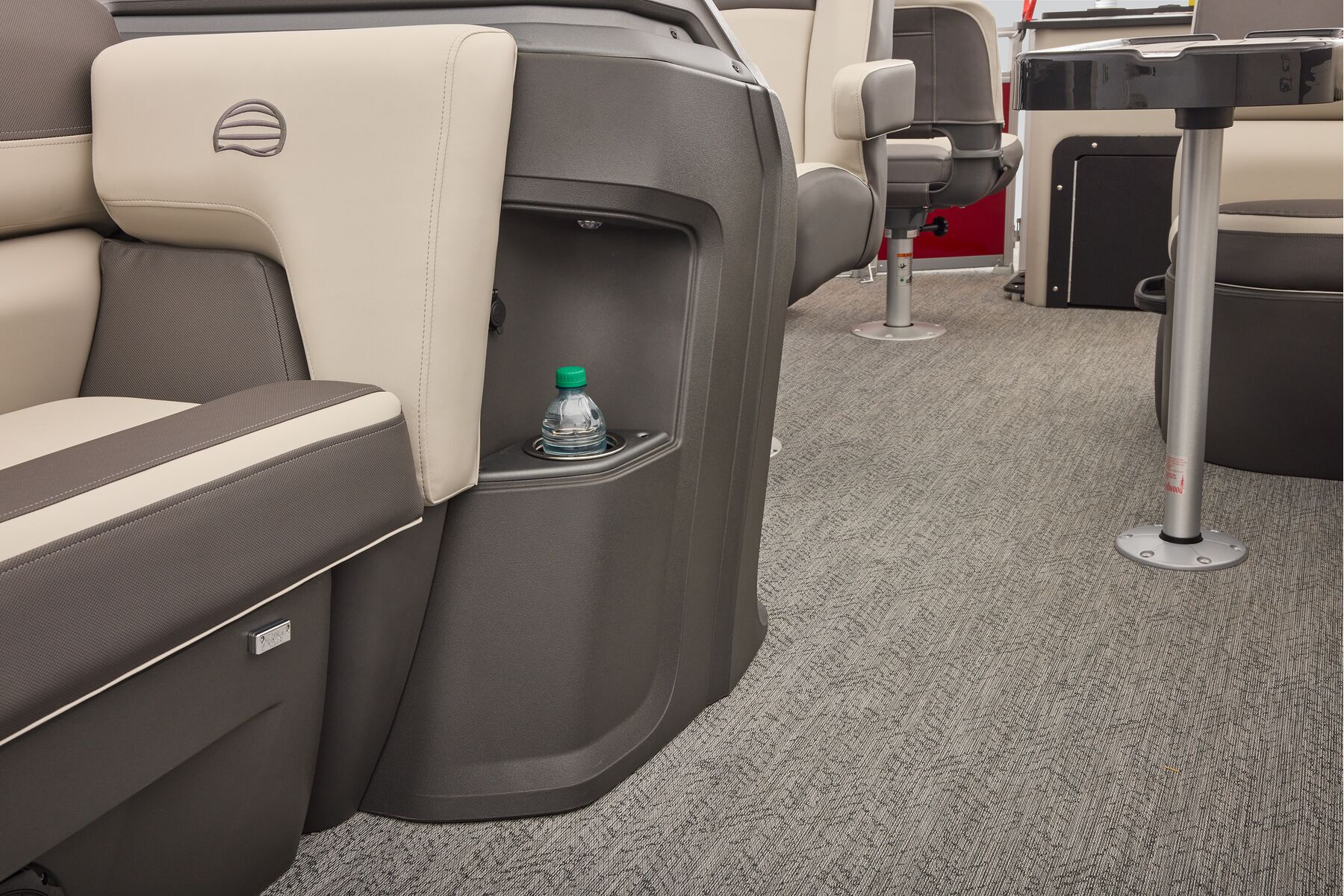

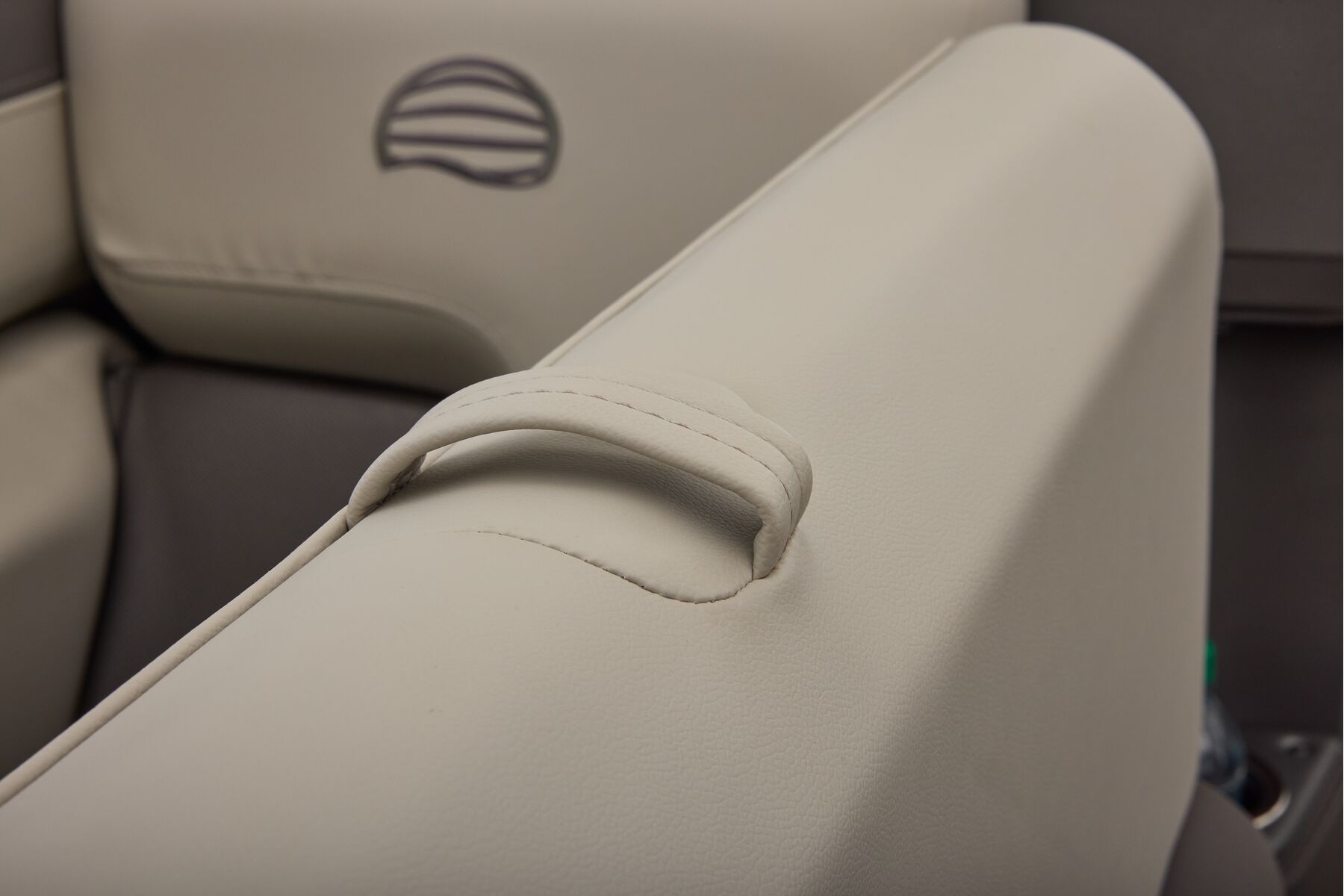

- Movable drink holder/armrest

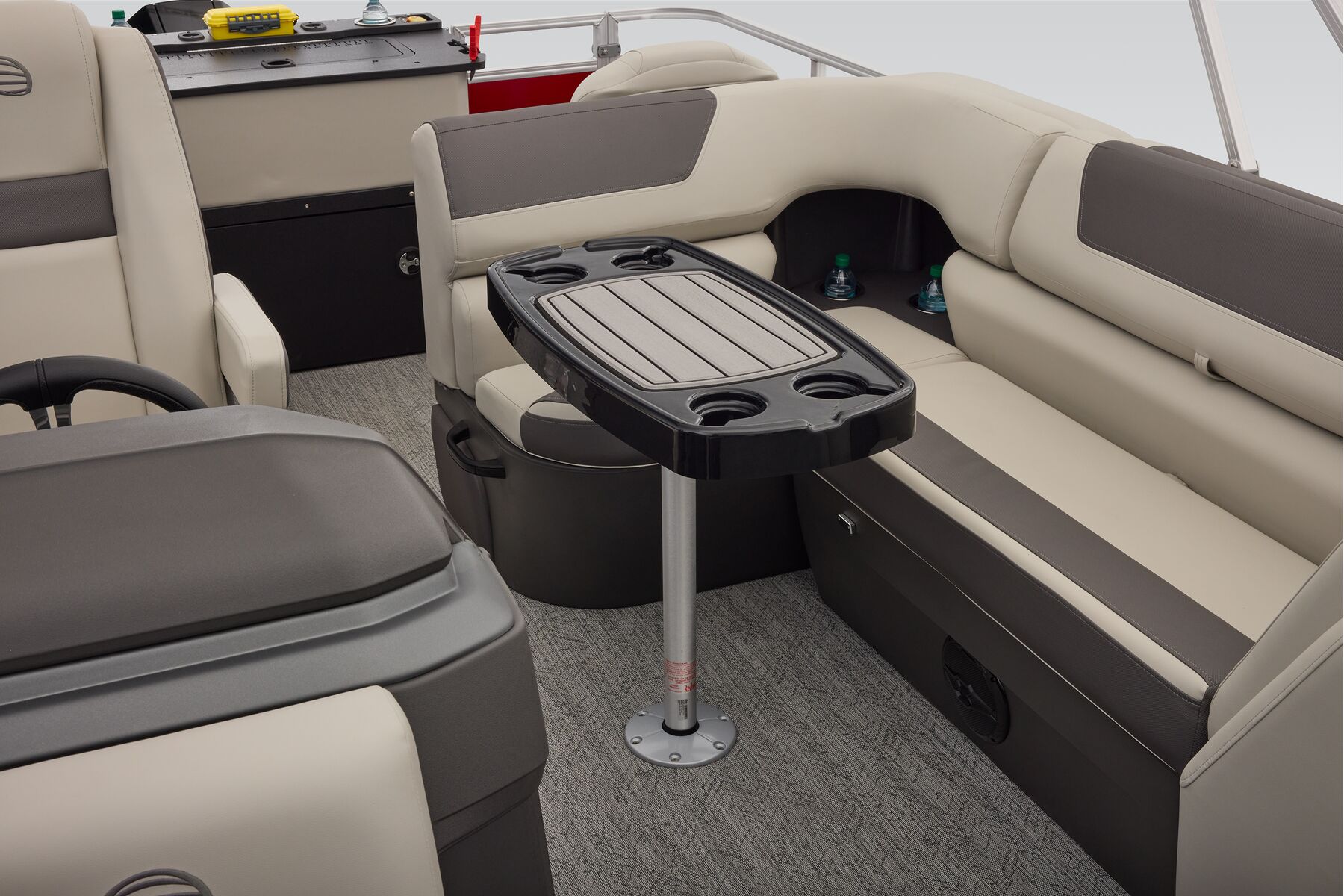

- Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
Performance
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched aluminum propeller
Construction & Exterior

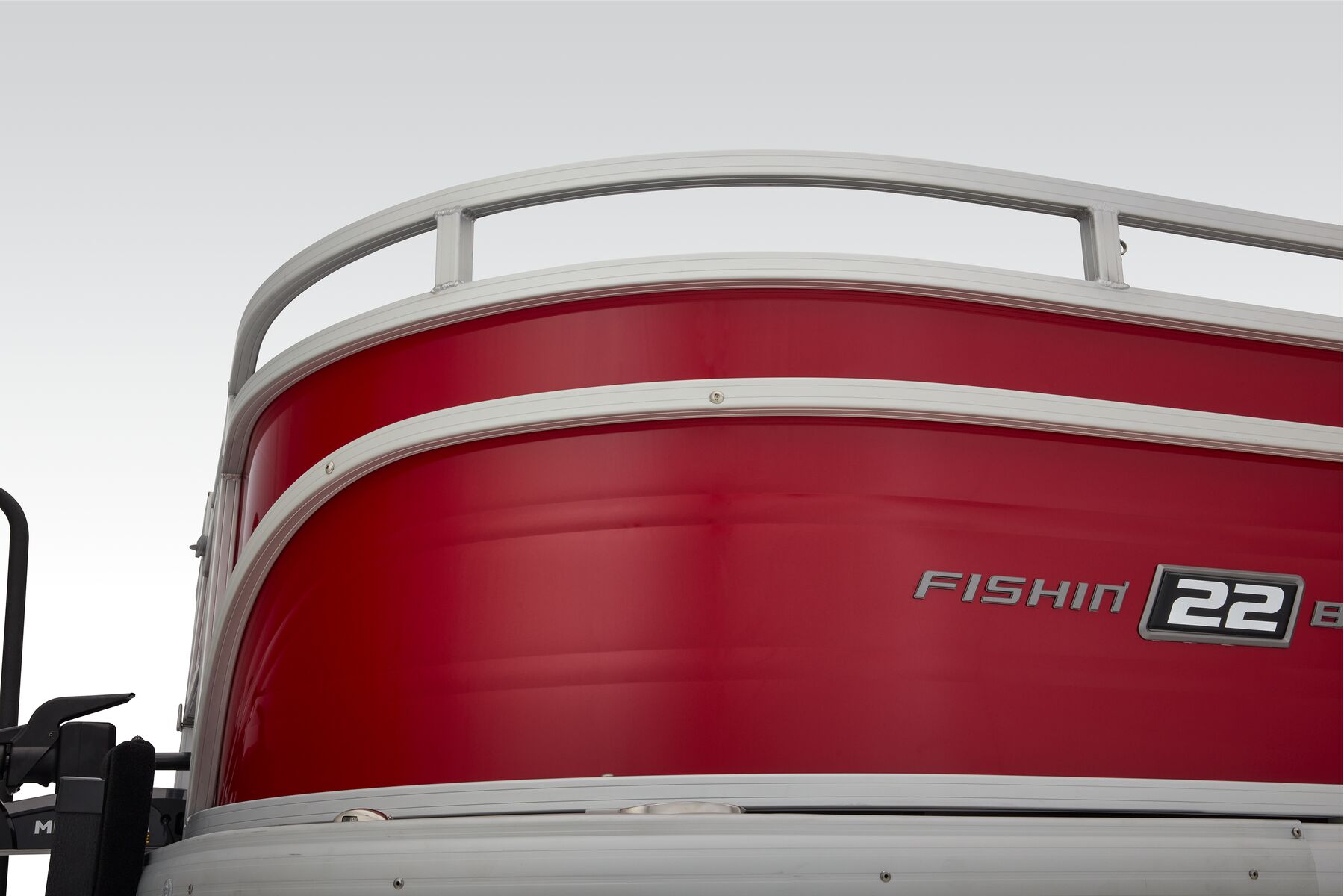

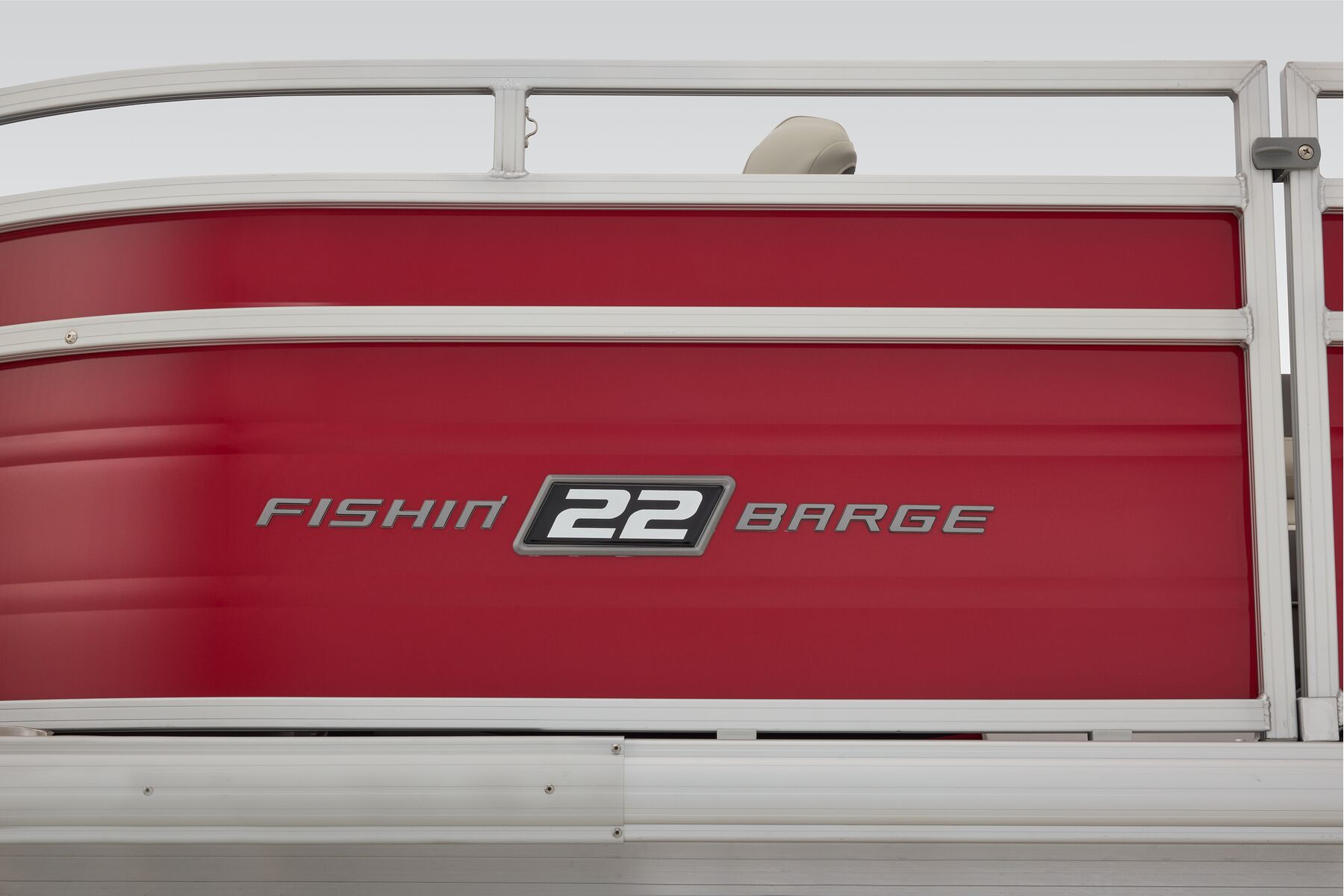

- Color: NEW Charcoal or Indigo Blue fencing
- Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
- Rotomolded couches & backs for furniture w/Diamante Pepper accent
- Fishing seats w/Diamante Pepper accent
- Heavy-duty bow U-channel reinforcement behind deck trim

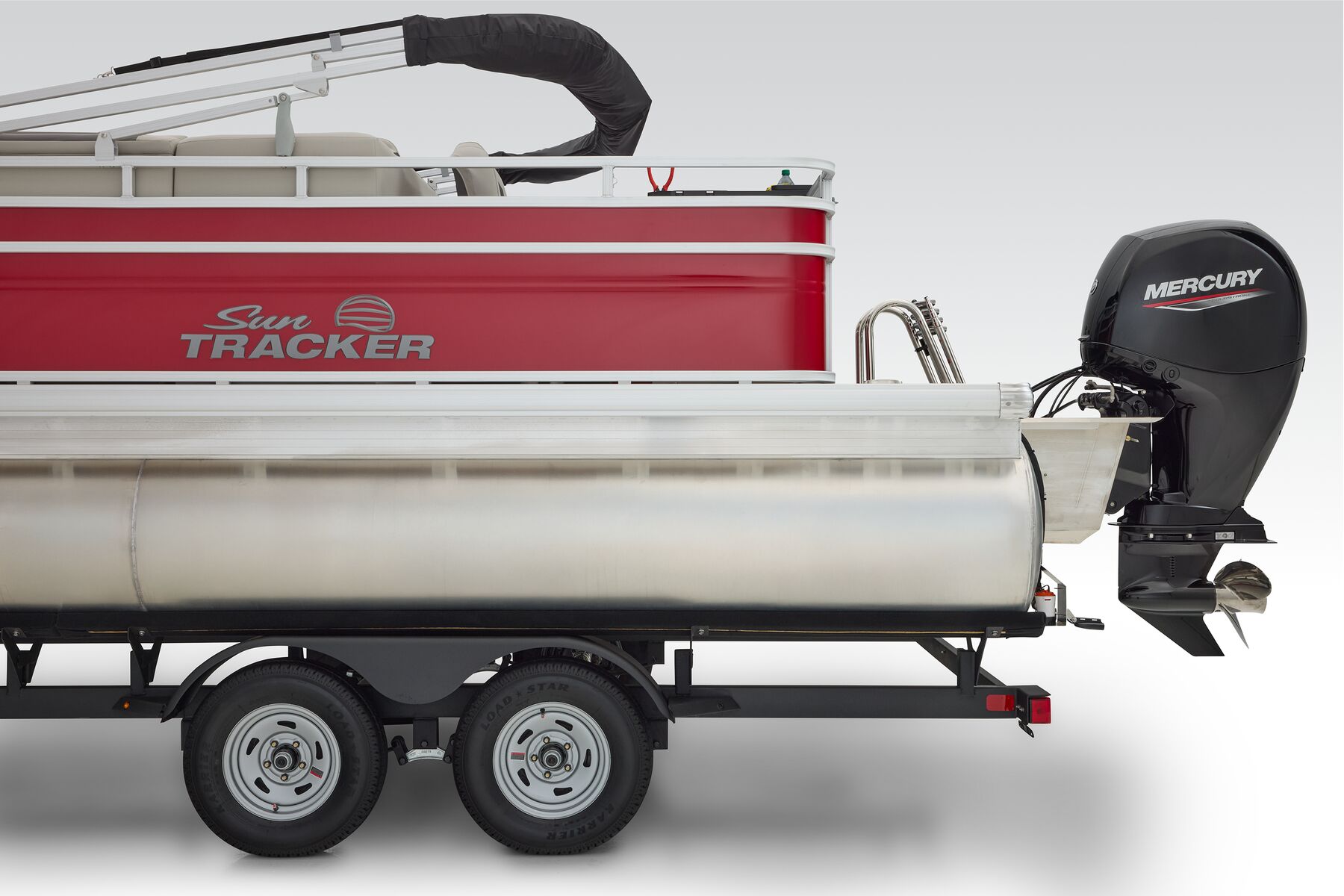

- 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- Protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Extruded anodized aluminum deck edging w/polished aft corner covers
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity
- Port wheelchair-access gate

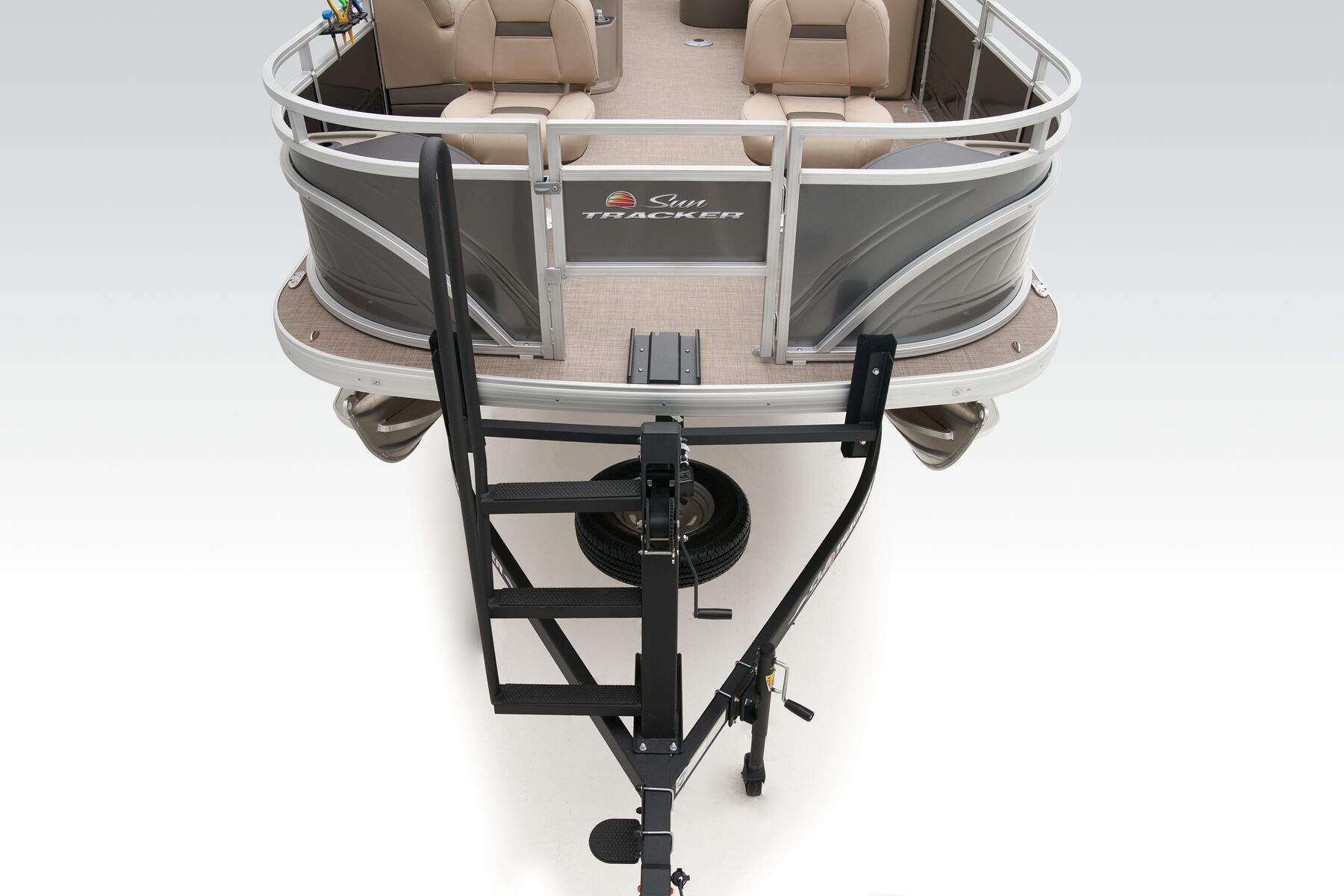

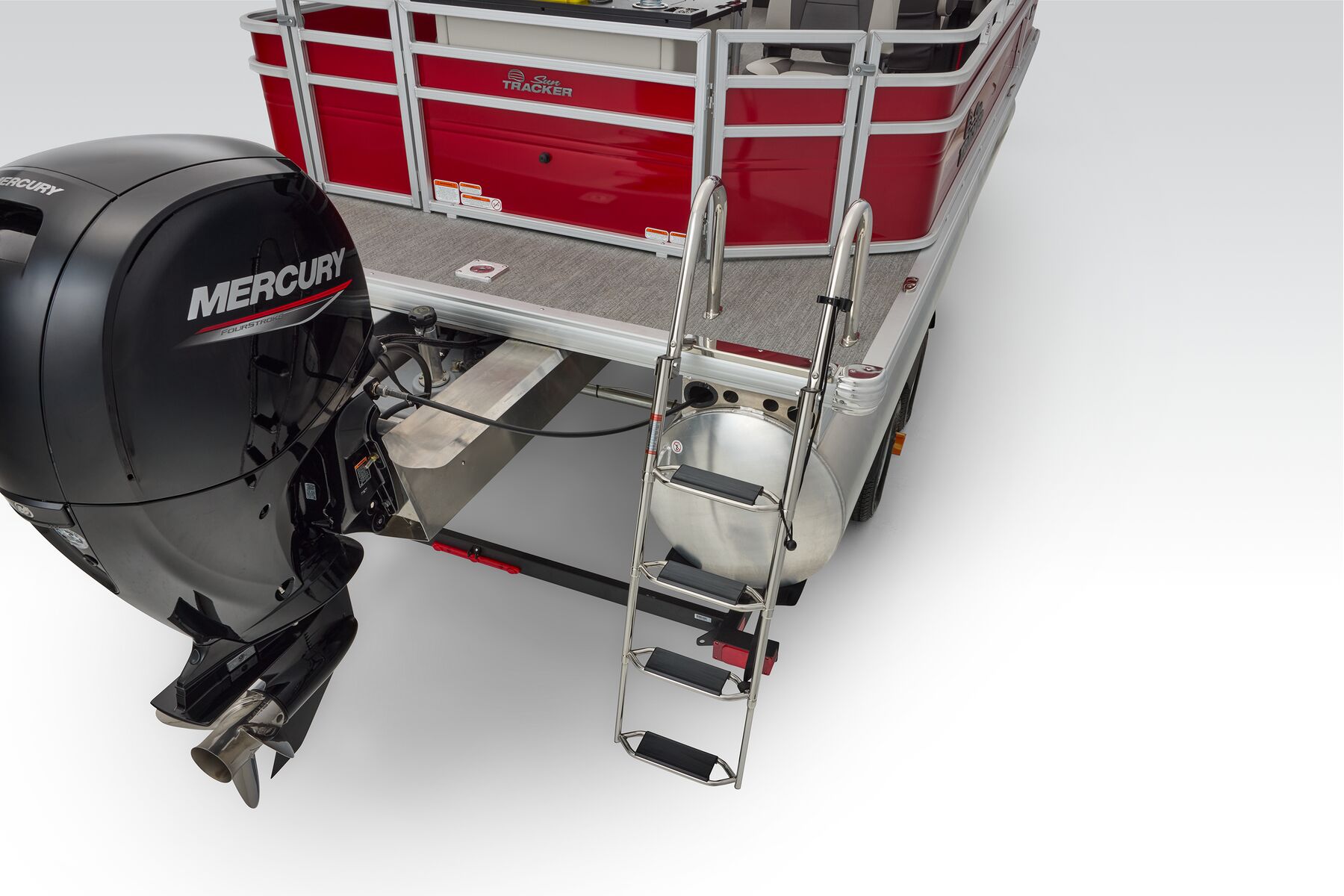

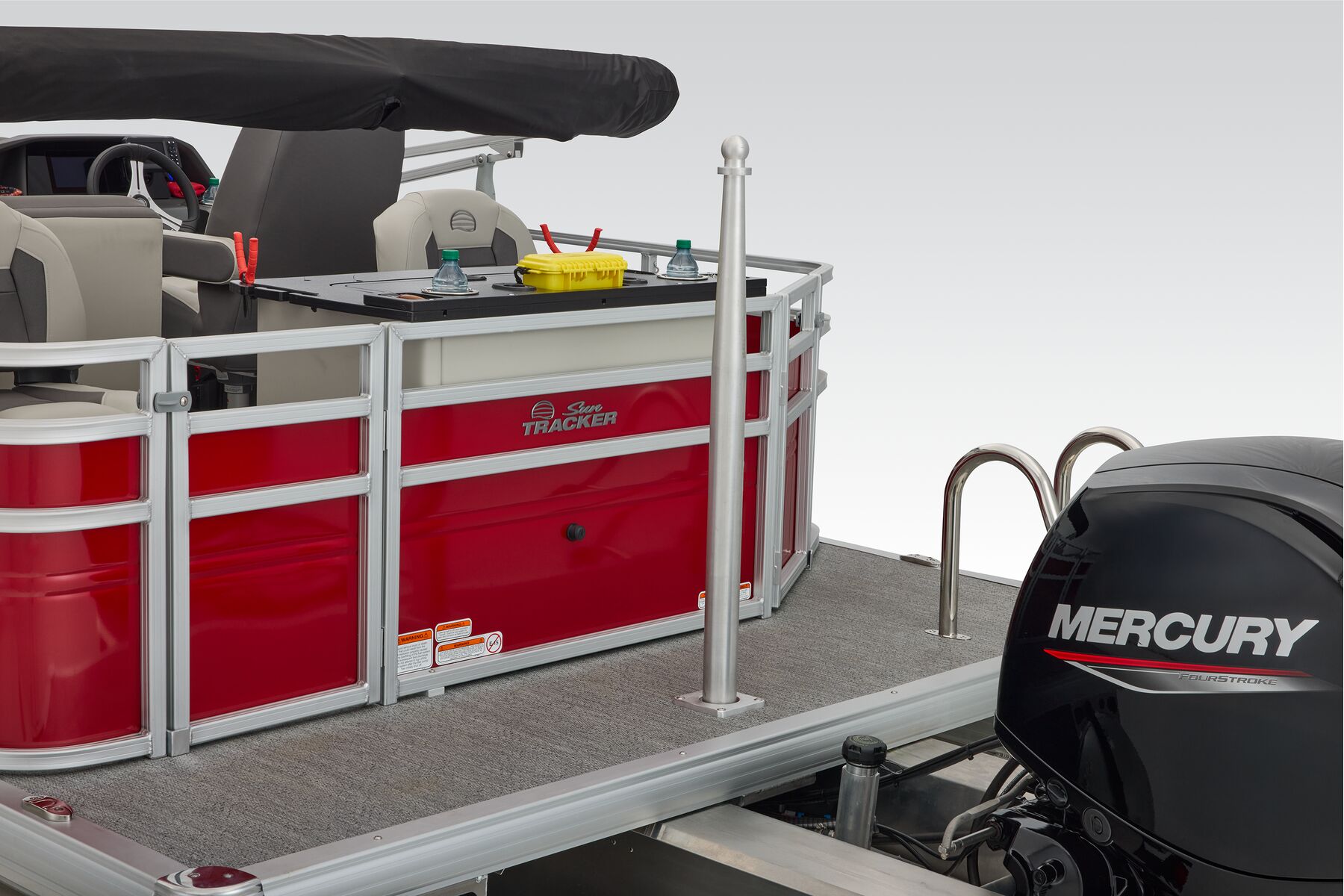

- Rear boarding platform w/NEW 4-step telescoping boarding ladder & grab rails
Electrical

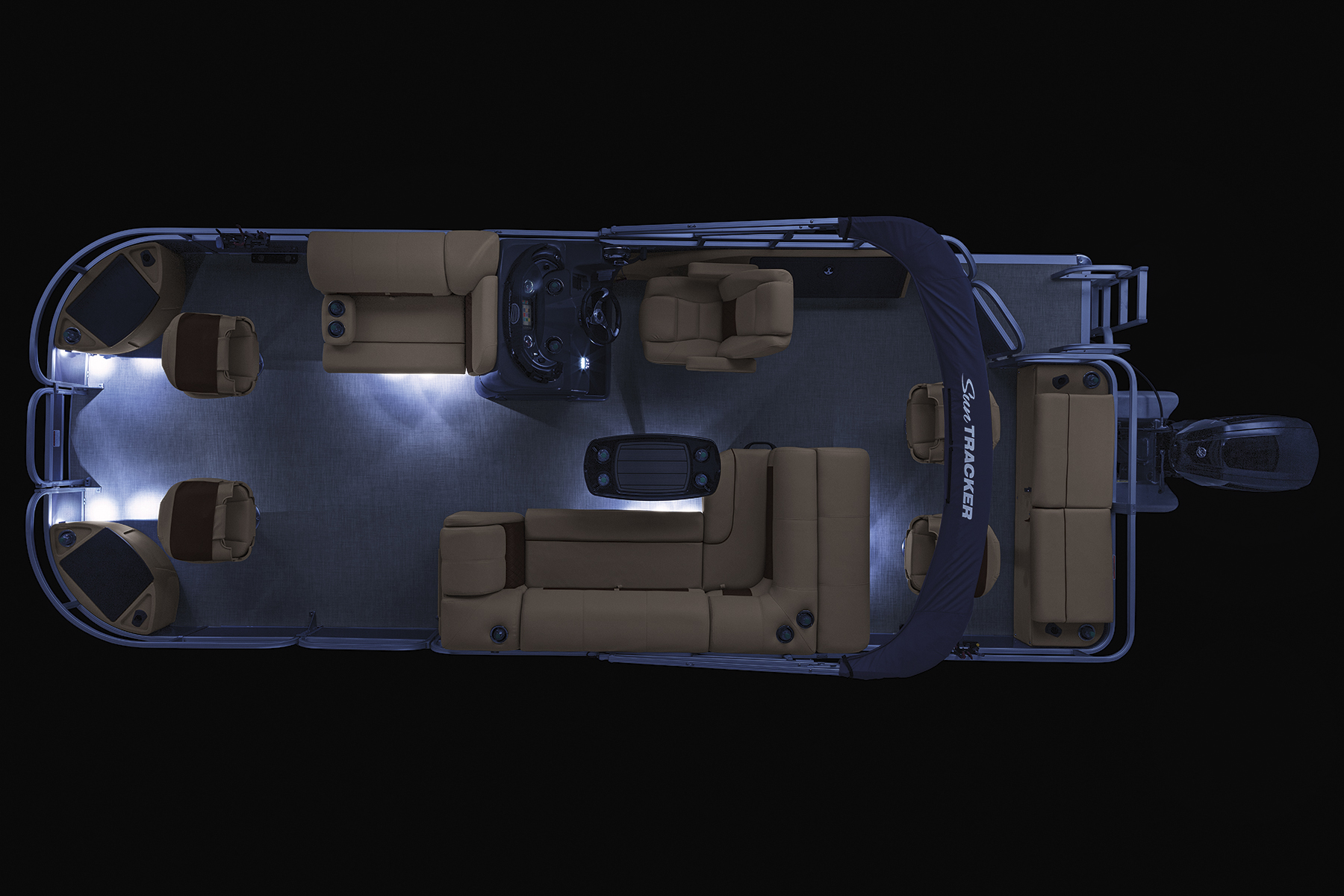

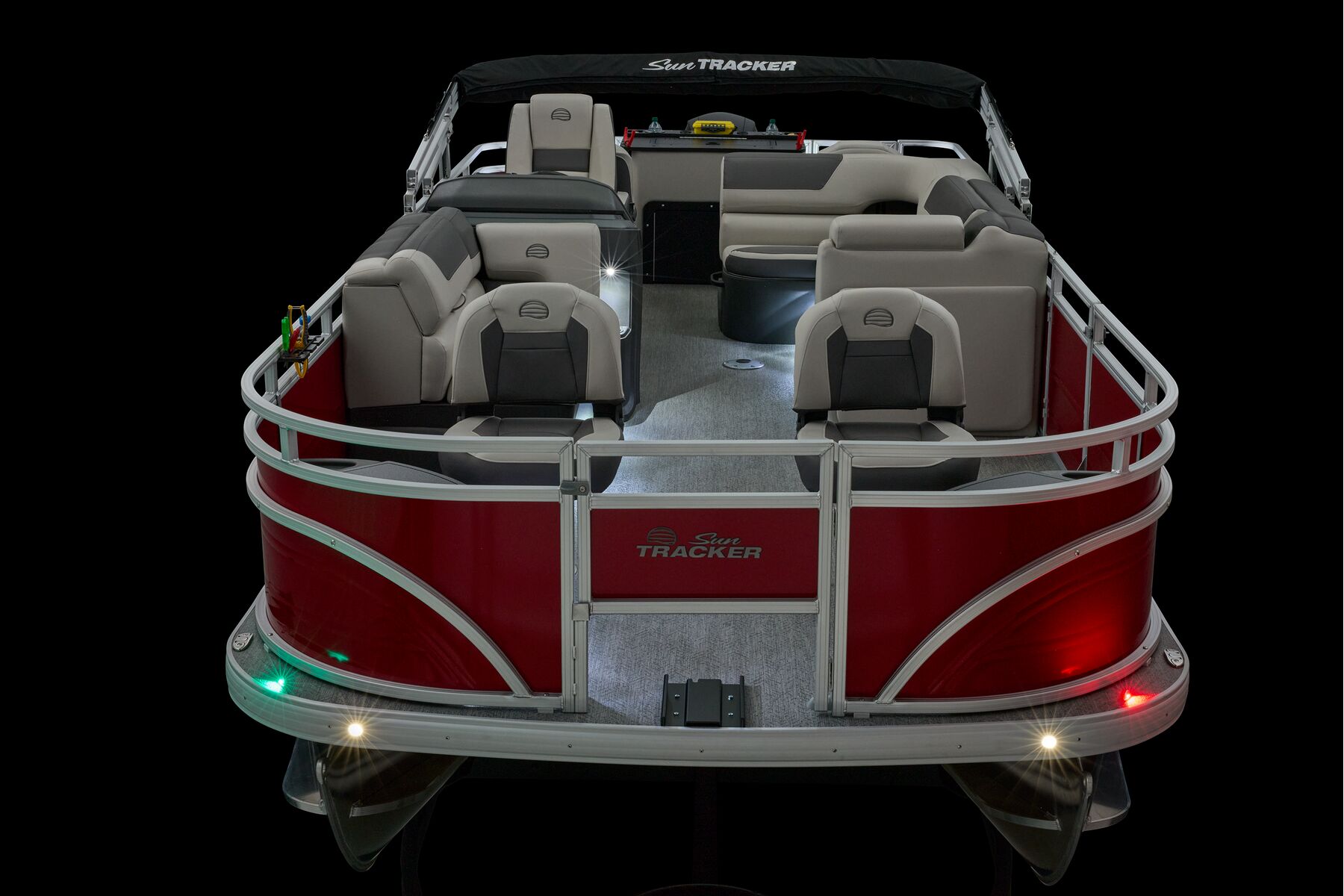

- Interior courtesy lighting
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
Options
Gallery

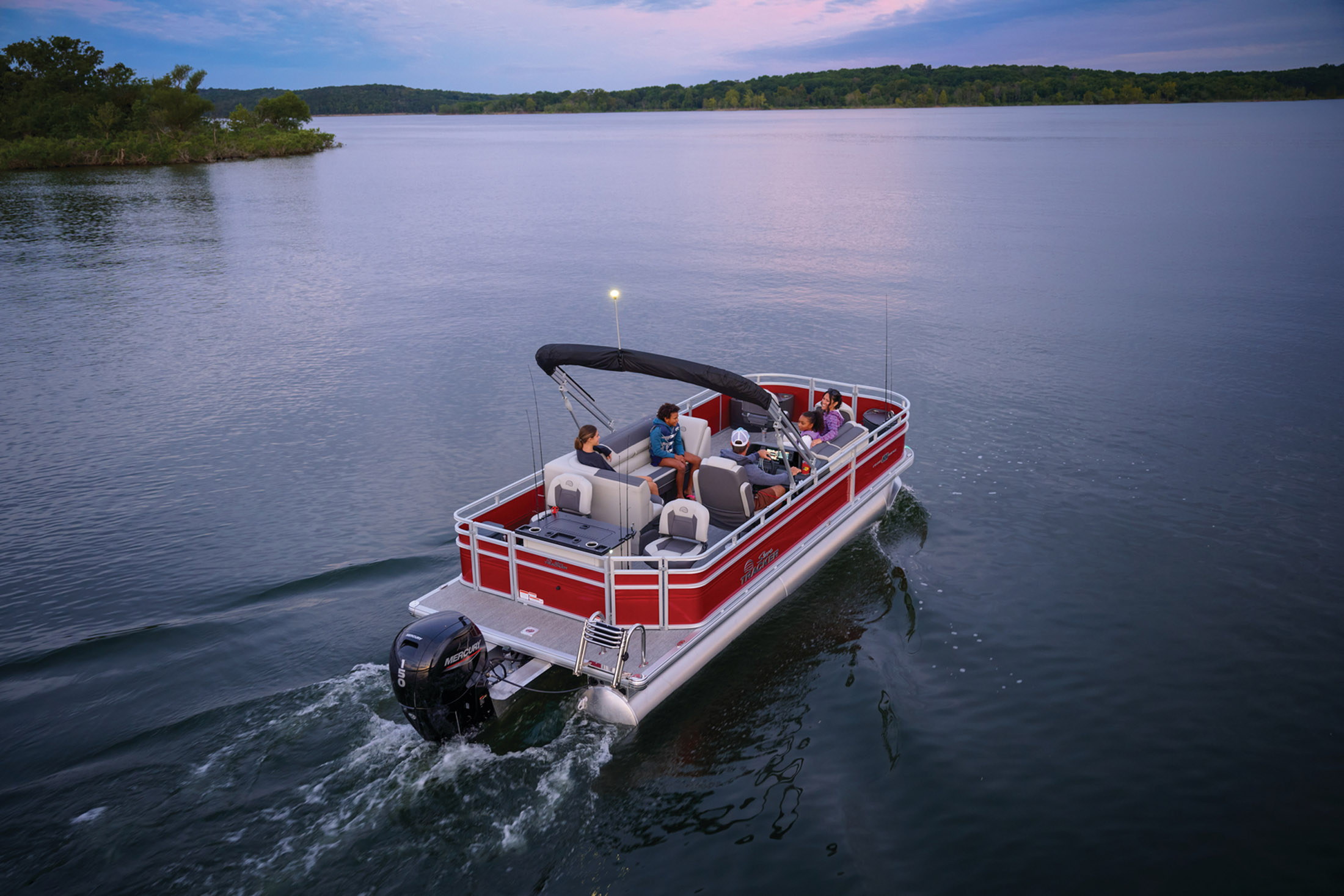

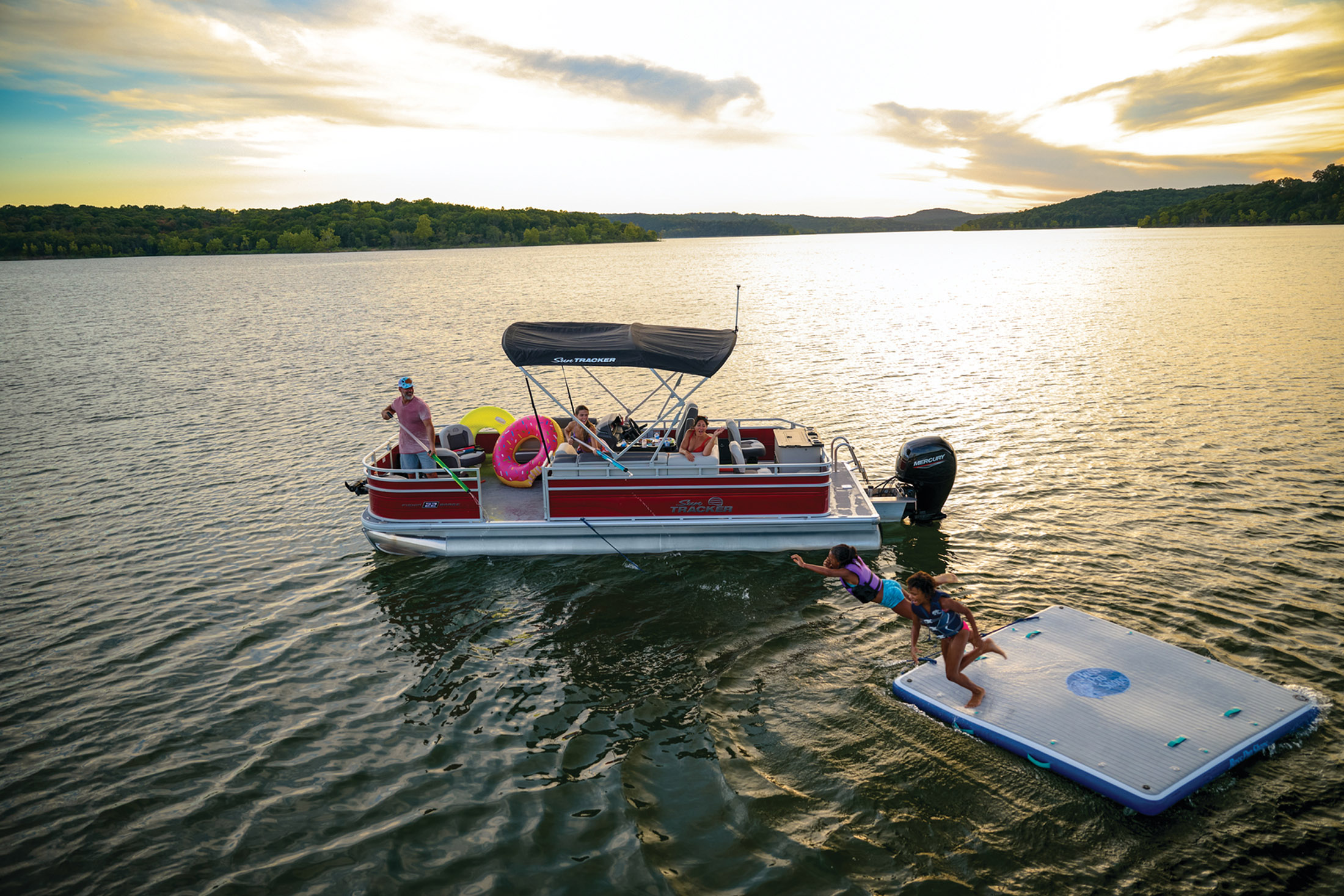

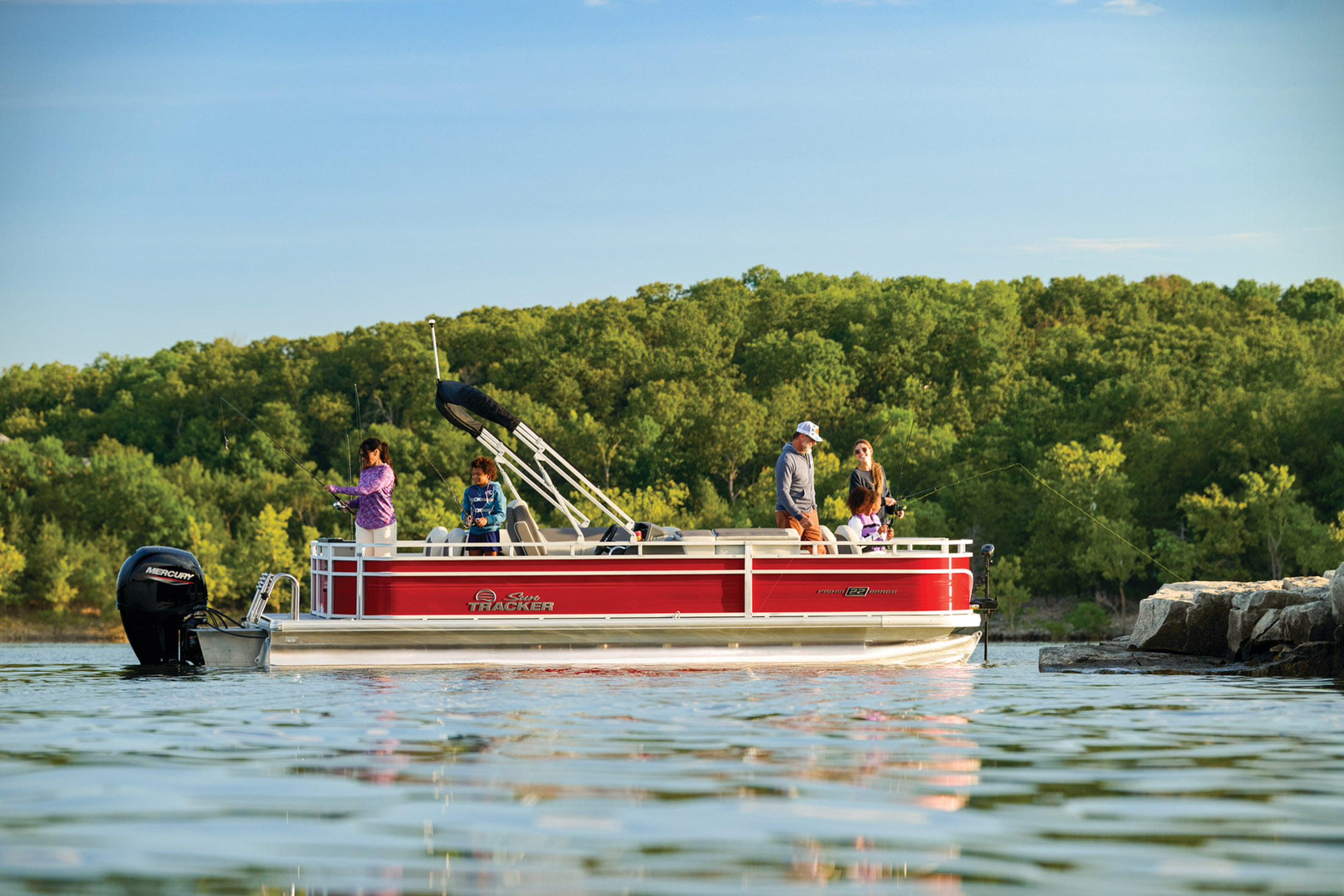

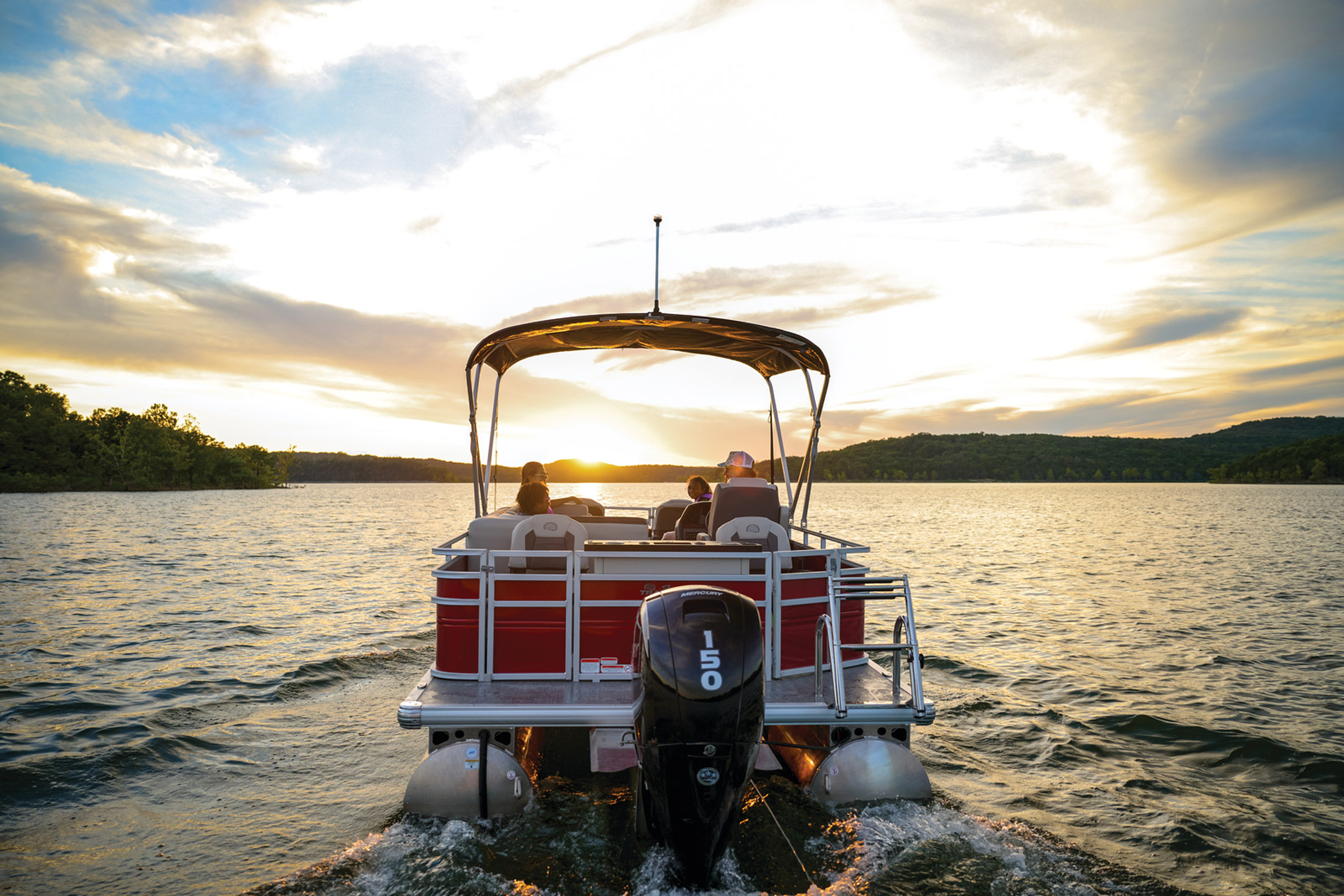

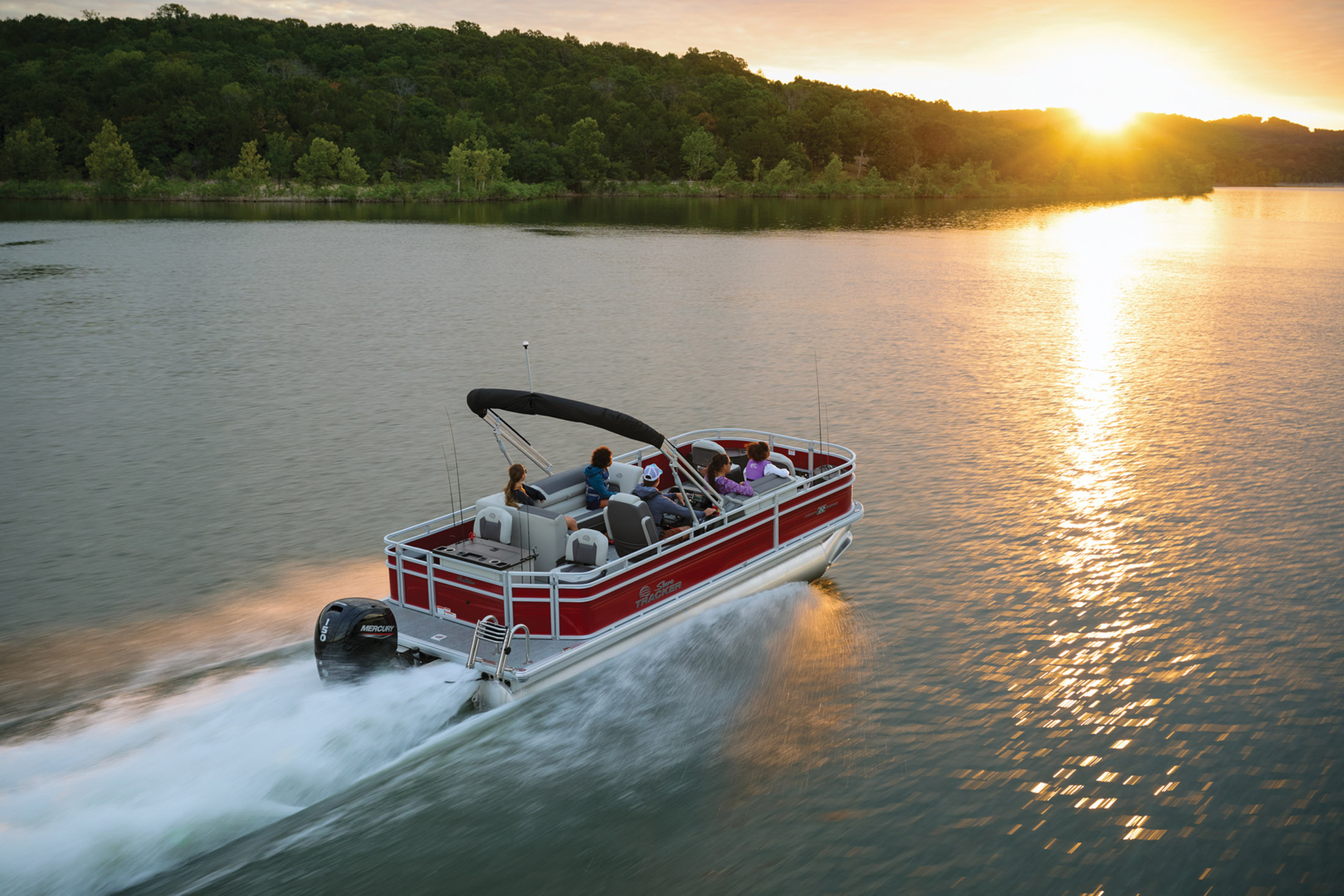

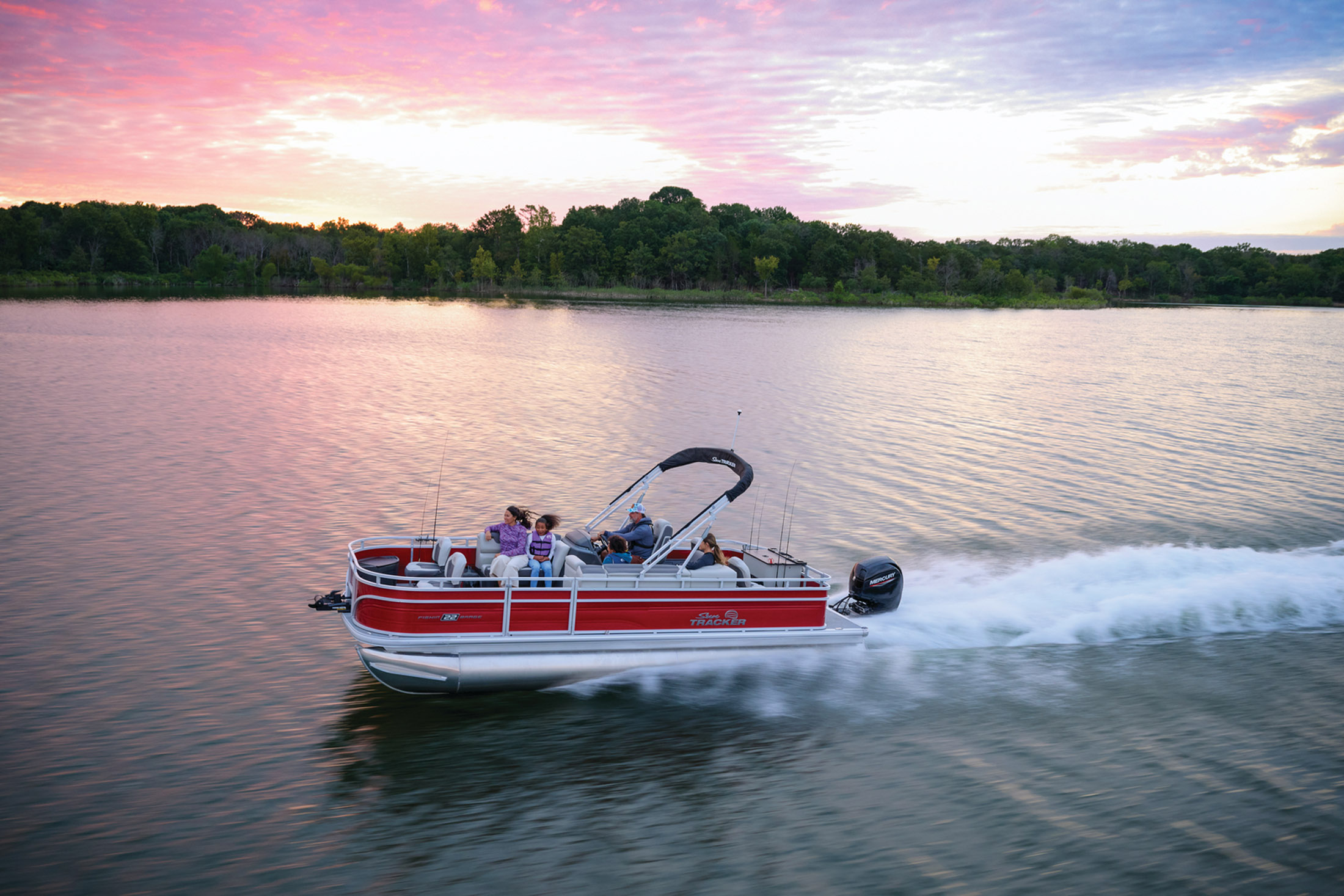

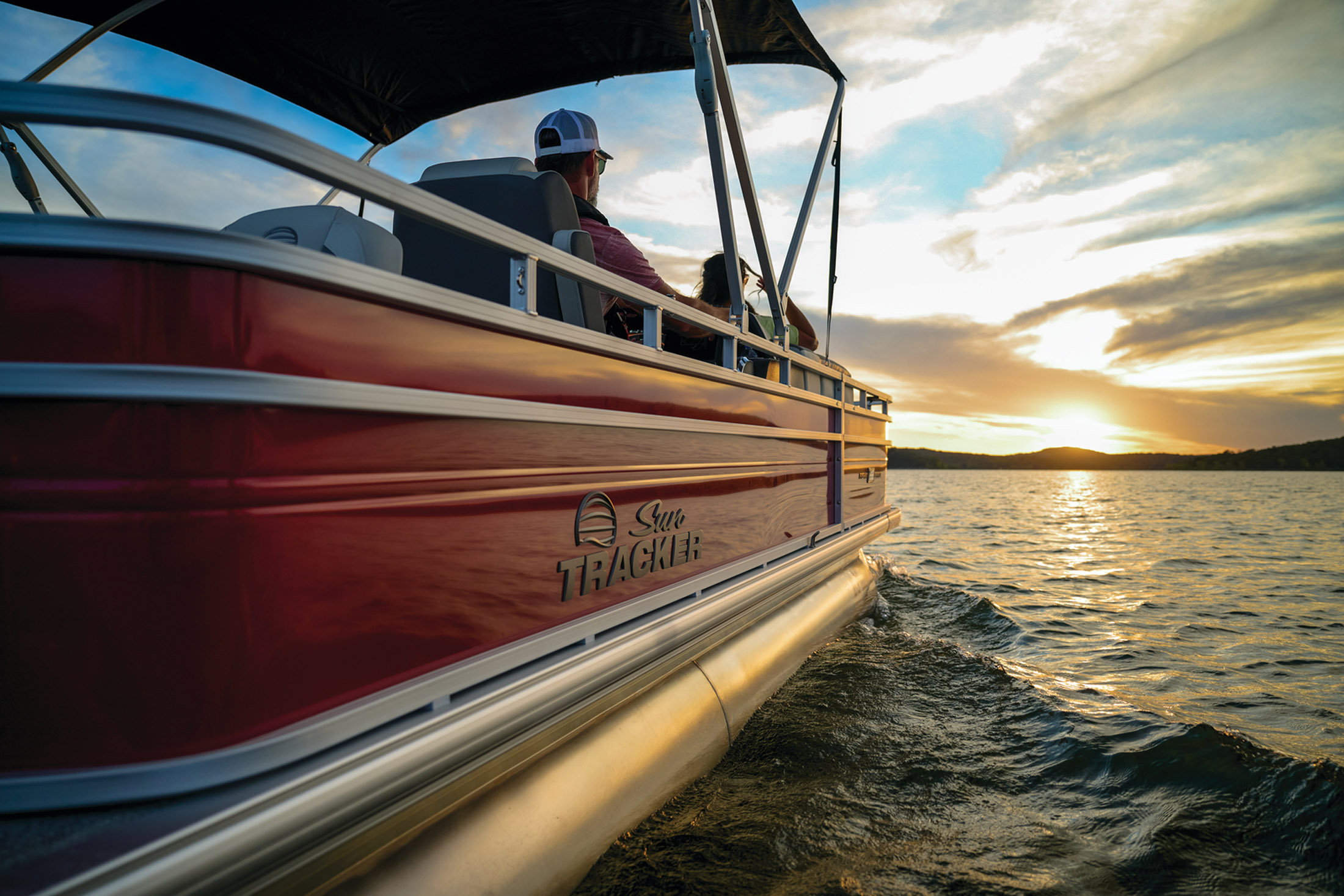

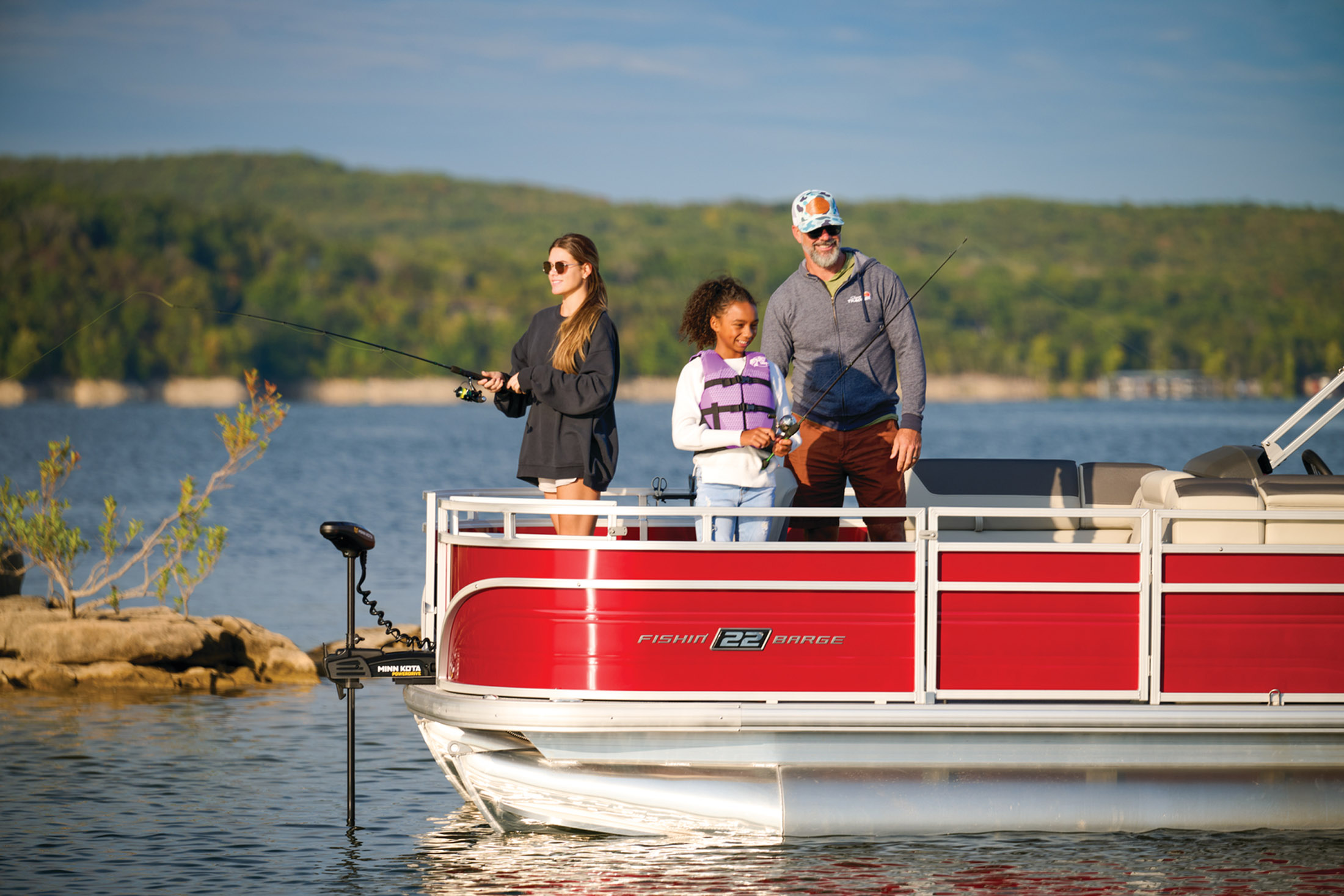

* PREVIOUS MODEL YEAR LOCATION IMAGES SHOWN
