Party Barge 22 RF XP3
* PREVIOUS MODEL YEAR LOCATION IMAGES SHOWN
2023

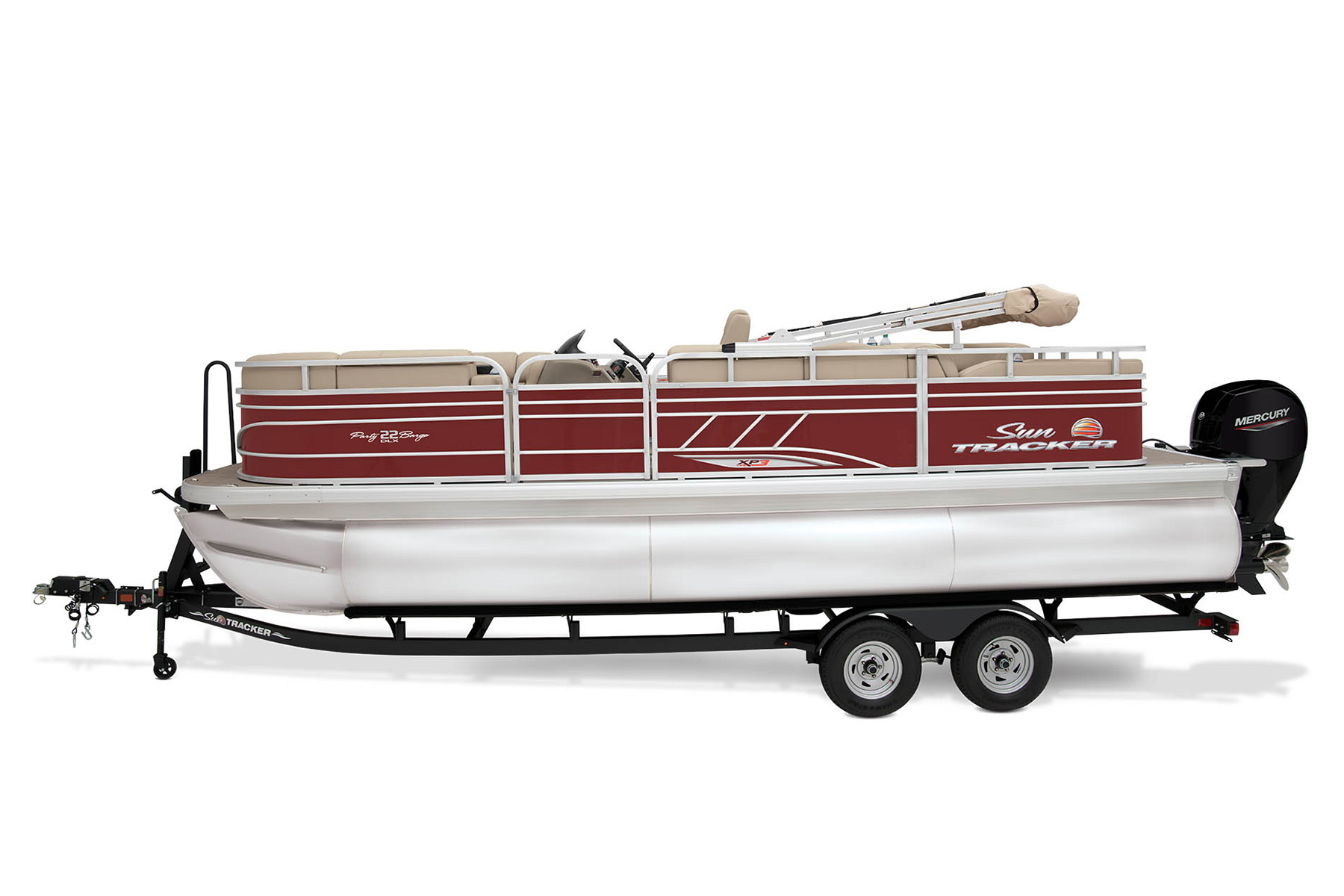

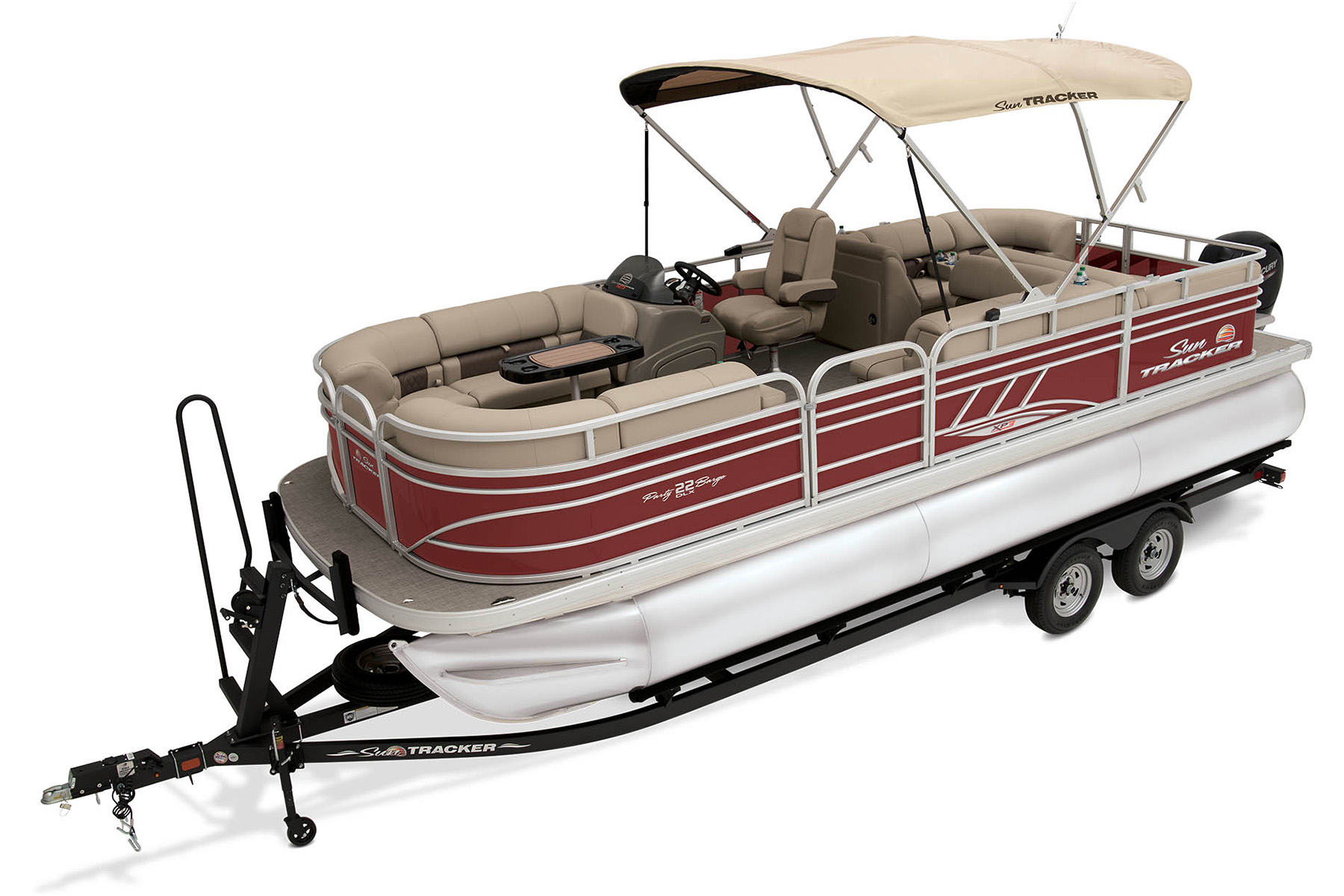

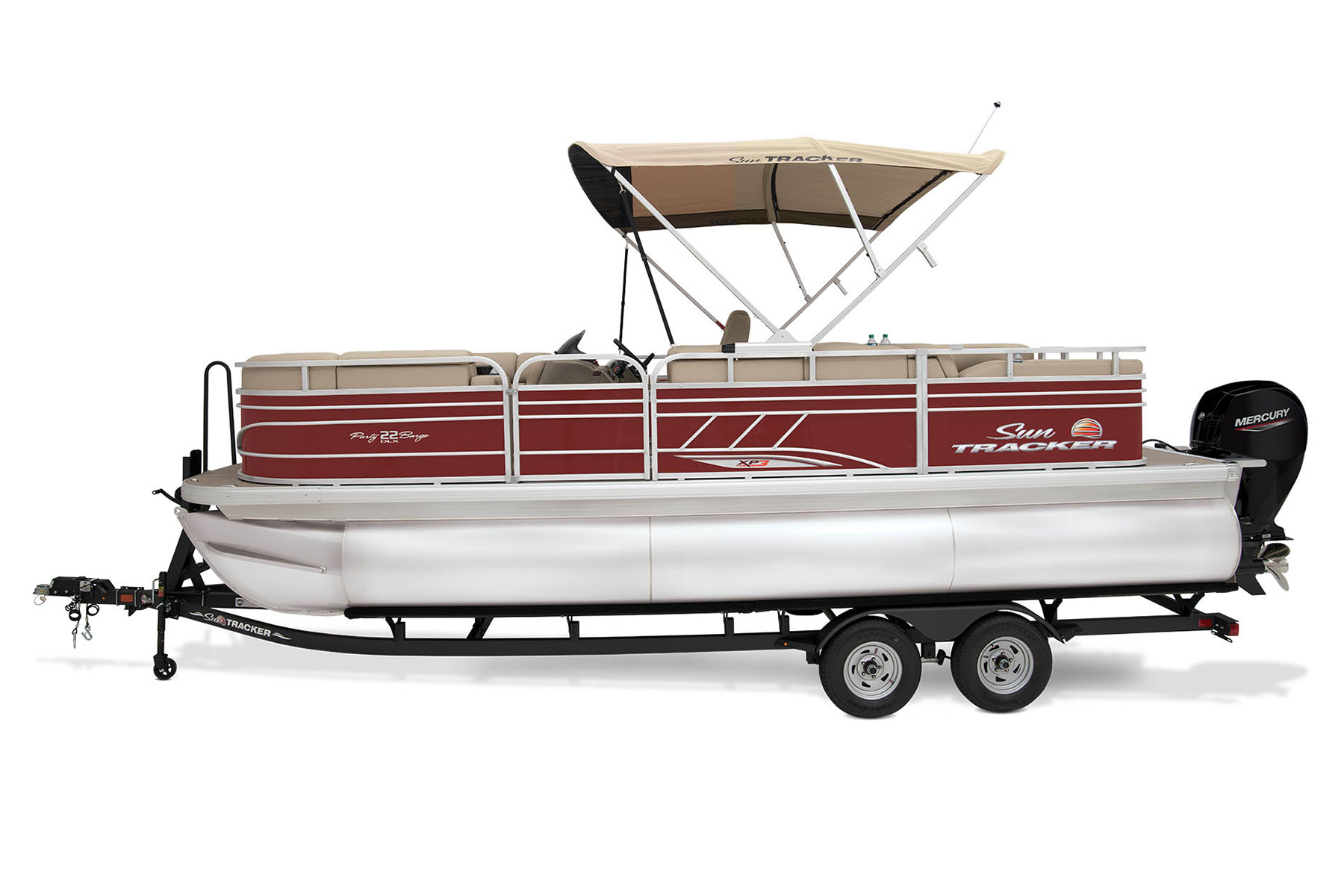

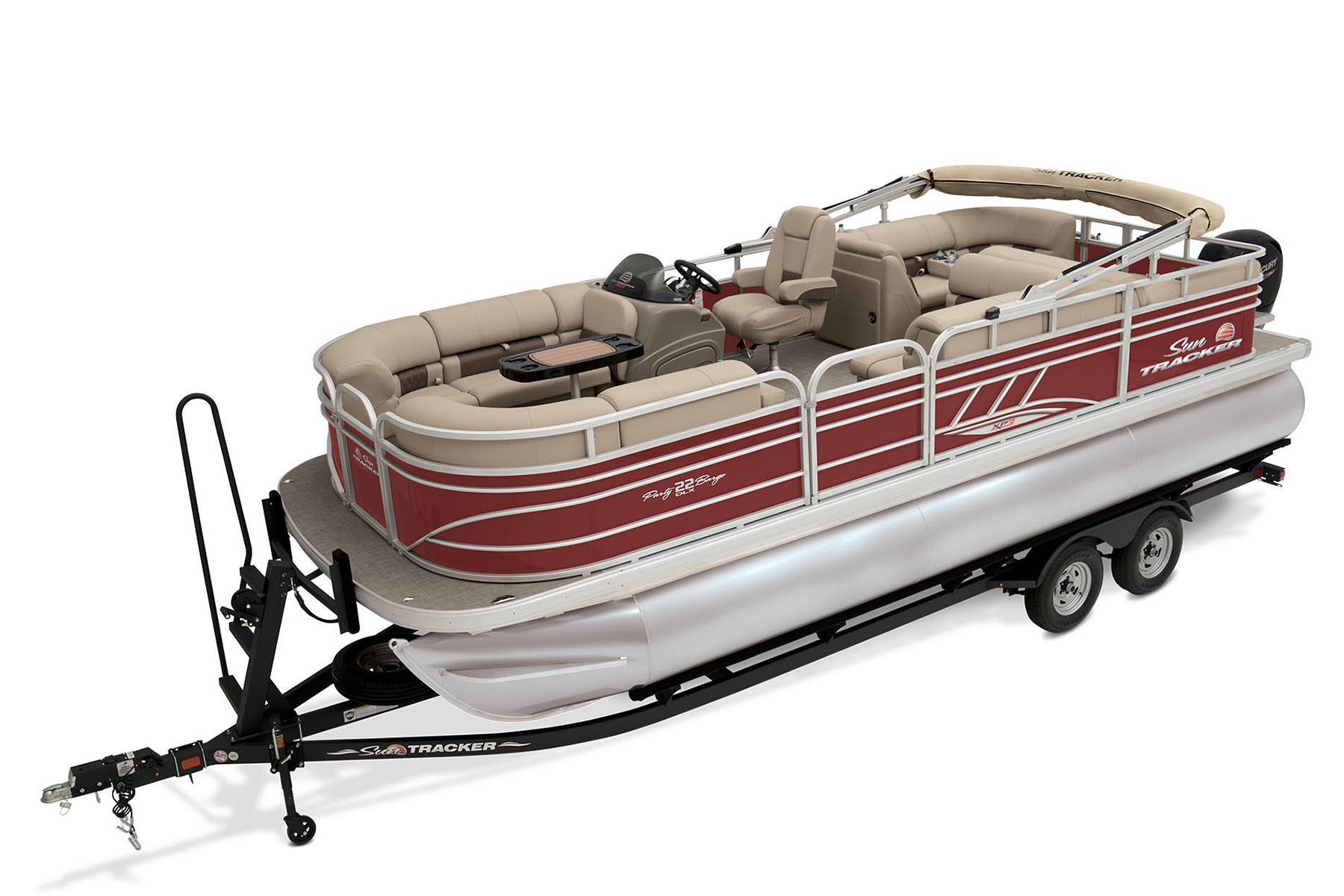

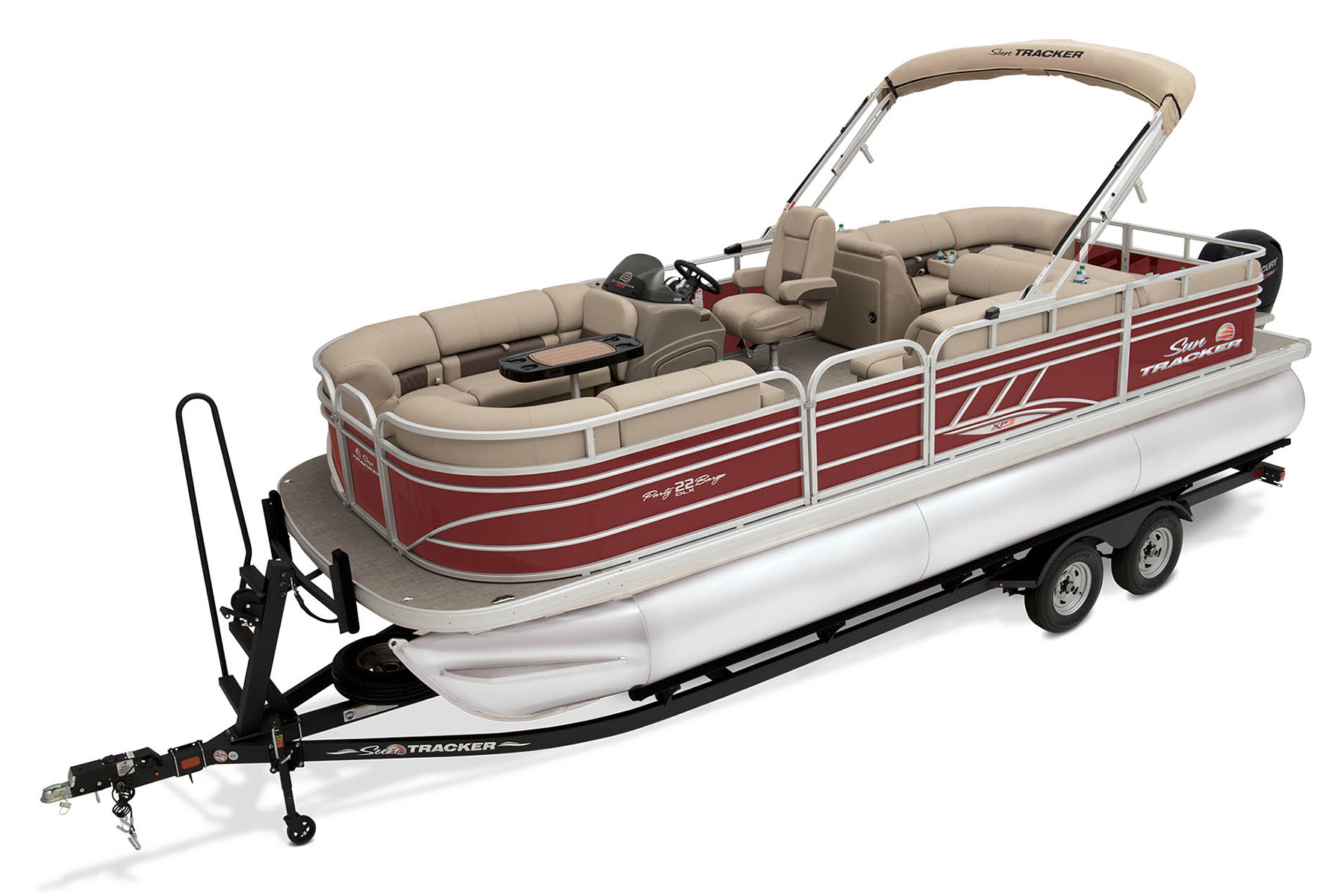

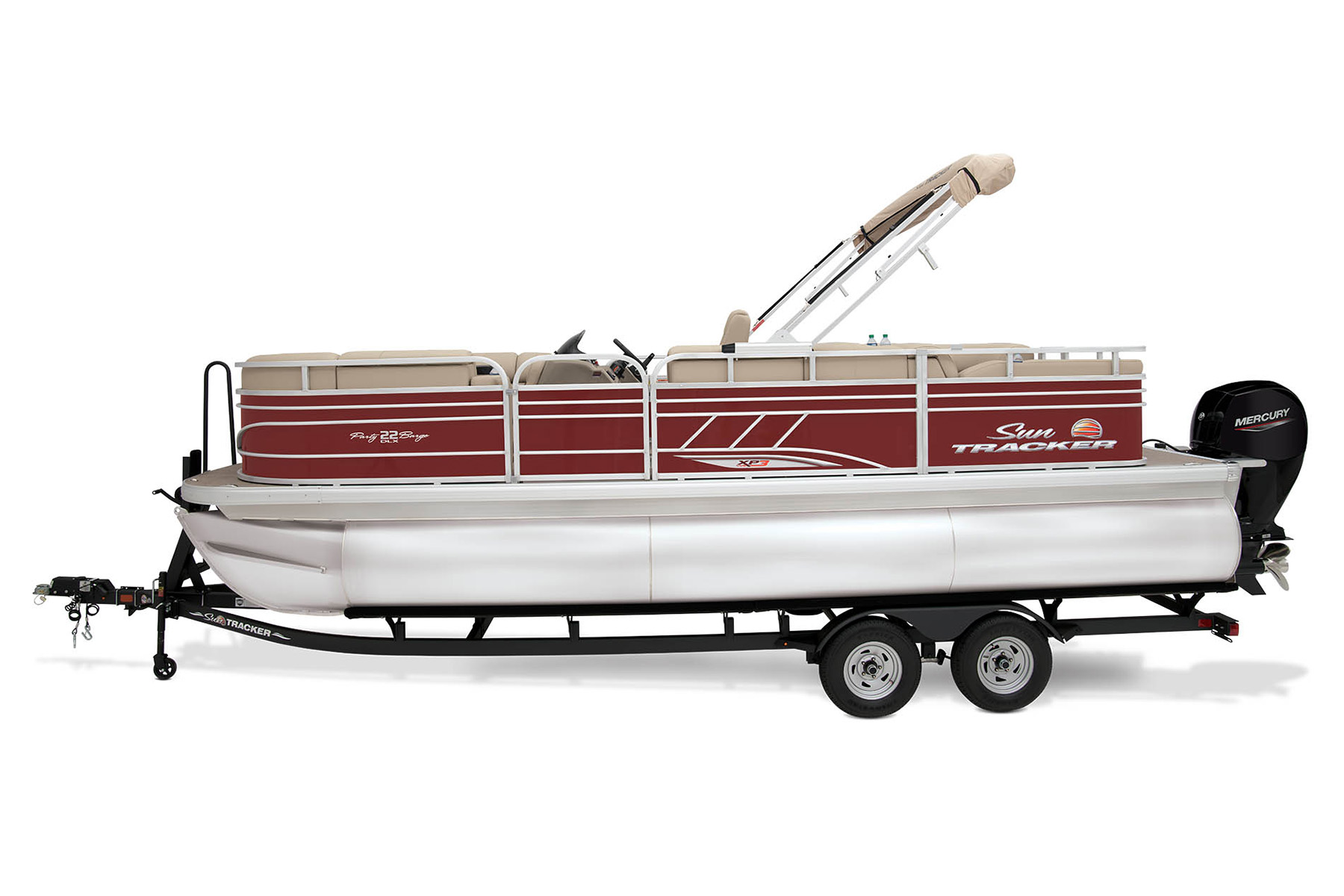

PARTY BARGE® 22 RF XP3
w/ 150 L FourStroke Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$51995
USD
|
Overview
Change your view of summer fun with the PARTY BARGE® 22 RF XP3!
With three 26” logs with lifting strakes and factory-installed underpinning, this pontoon boat can handle up to 200 horsepower—extra power for cruising and pulling a tuber! That rear-facing lounge provides the perfect place for a couple of spotters to enjoy the action.
For those slower moments, the other couches throughout invite all-day lounging. The STOW MORE™ seat storage system keeps everyone’s gear conveniently close, yet out of the way. And the Bluetooth®-capable stereo provides a soundtrack to all the fun.
Ready to change your view of summer fun?
Key Features

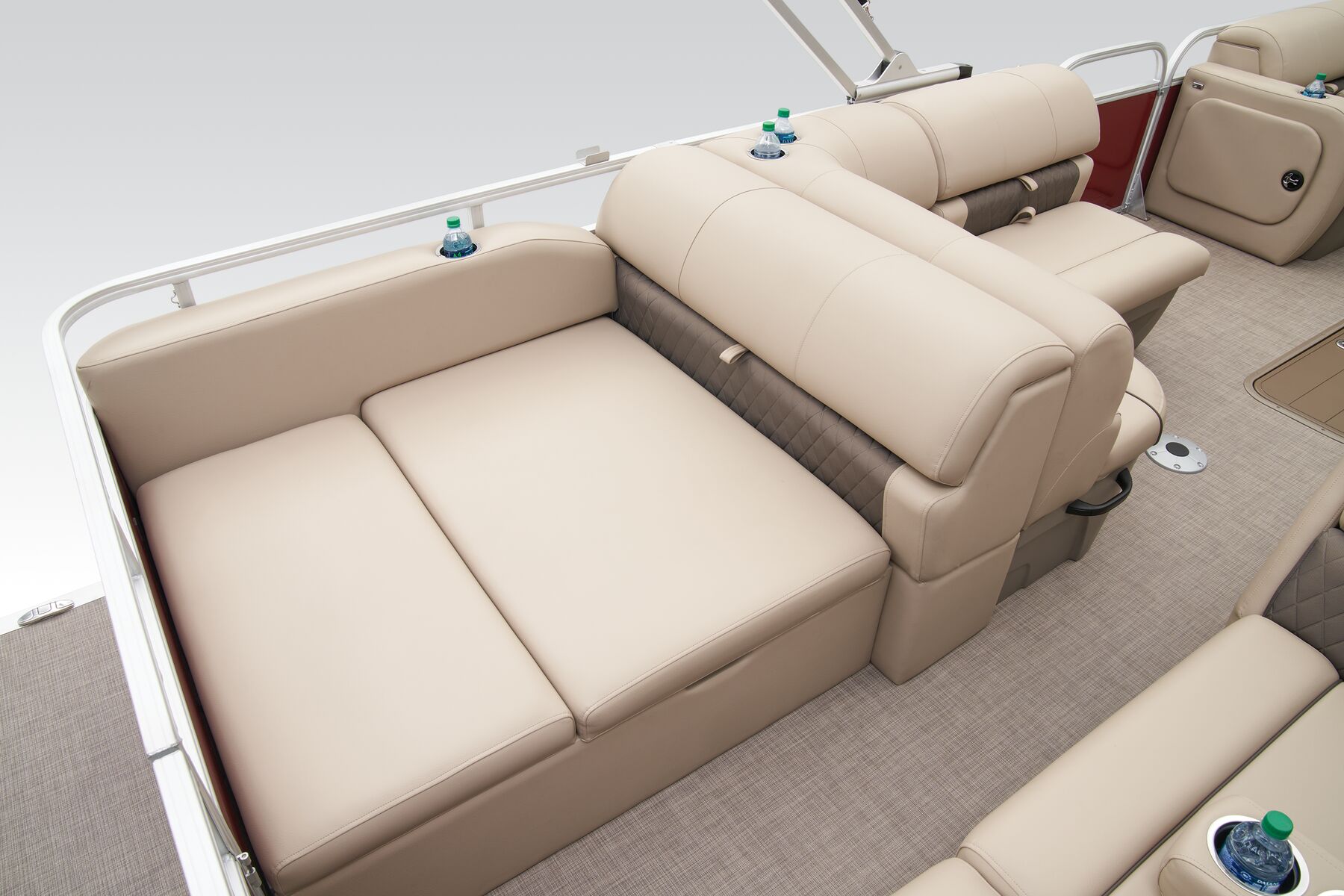

Rear-facing lounge
The aft lounge is perfect for lying back and watching the watersports action.

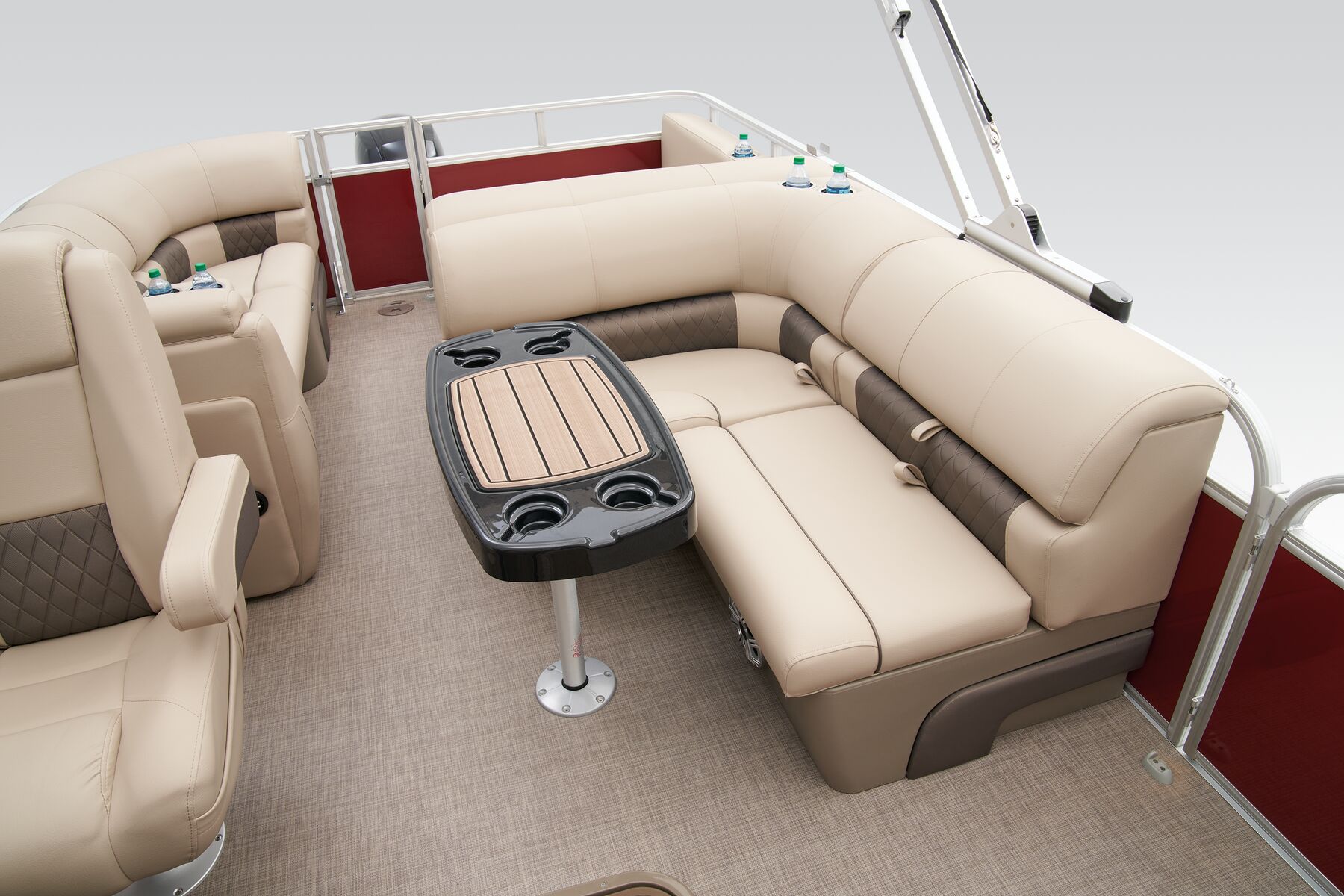

Movable table
The table can be set up at the L-lounge or bow lounges and features drink holders.
XP3 performance
The 26" logs and lifting strakes provide the performance needed to take your fun faster.
Specifications
| Length | 7.37 m | 24' 2'' |
| Deck Length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 200 HP | |
| Fuel Capacity | 196.82 L | 52 gal. |
| Pontoon Log Length | 6.78 m | 22' 3'' |
| Pontoon Log Diameter | 66.04 cm | 26'' |
| Pontoon Log Material | 0.100 5052 marine alloy | |
| Max. Person Capacity | 11 persons |
| Max. Person Weight | 725.75 kg | 1600 lbs. |
| Max. Person, Motor & Gear Weight | 1088.62 kg | 2400 lbs. |
| Interior Depth | 74.93 cm | 29.5'' |
| Average Dry Weight | 1351.71 kg | 2980 lbs. |
| Average Package Weight | 2254.35 kg | 4970 lbs. |
| Package Height | 2.72 m | 8' 11'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.86 m | 32' 4'' |
| Storage Length | 9.86 m | 32' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 150 L FourStroke | 31-40 mph |
$51995 USD
|
Select Dealer | ||
| 200 L FourStroke | - |
$55755 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty
- NMMA® certified

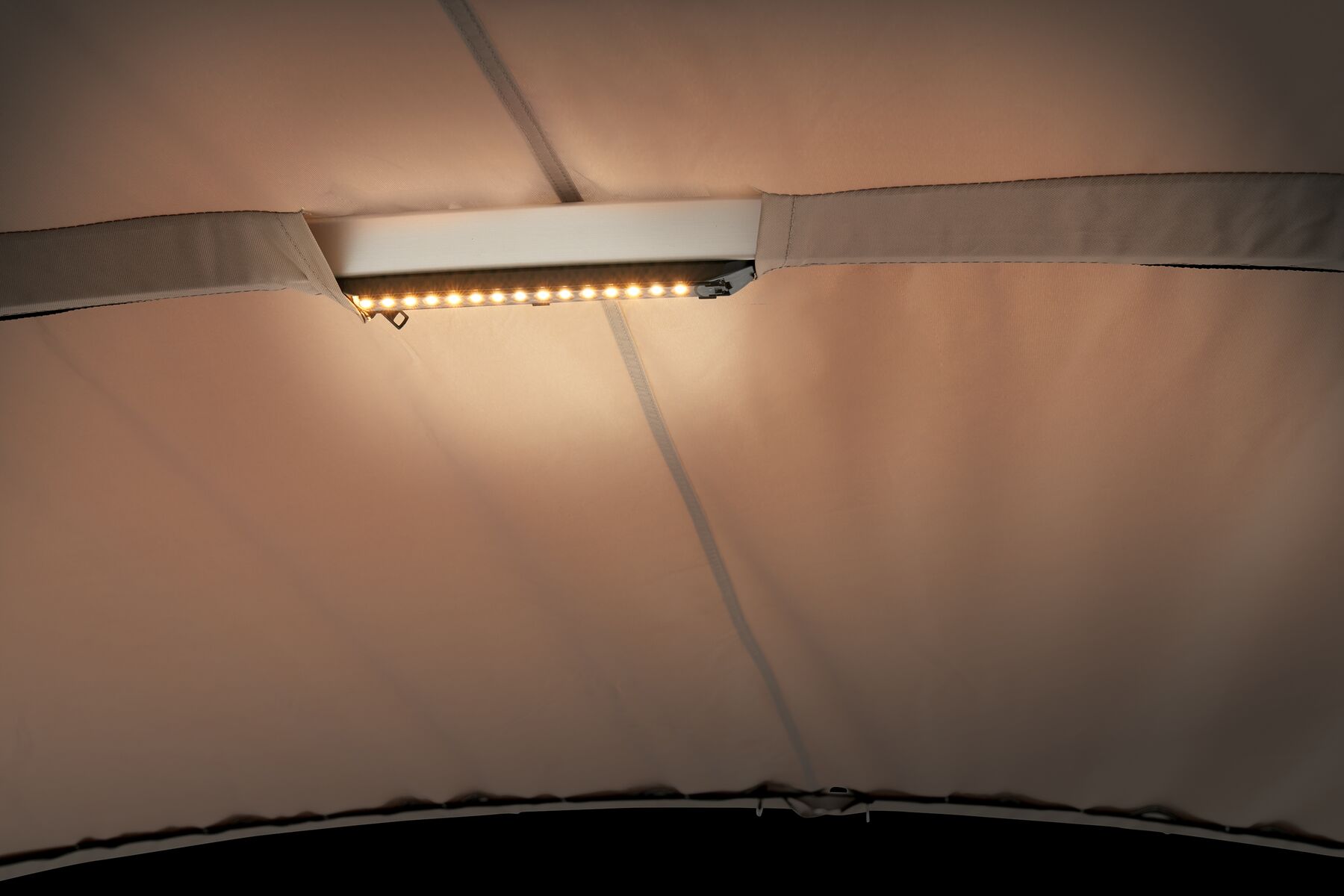

- 10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)

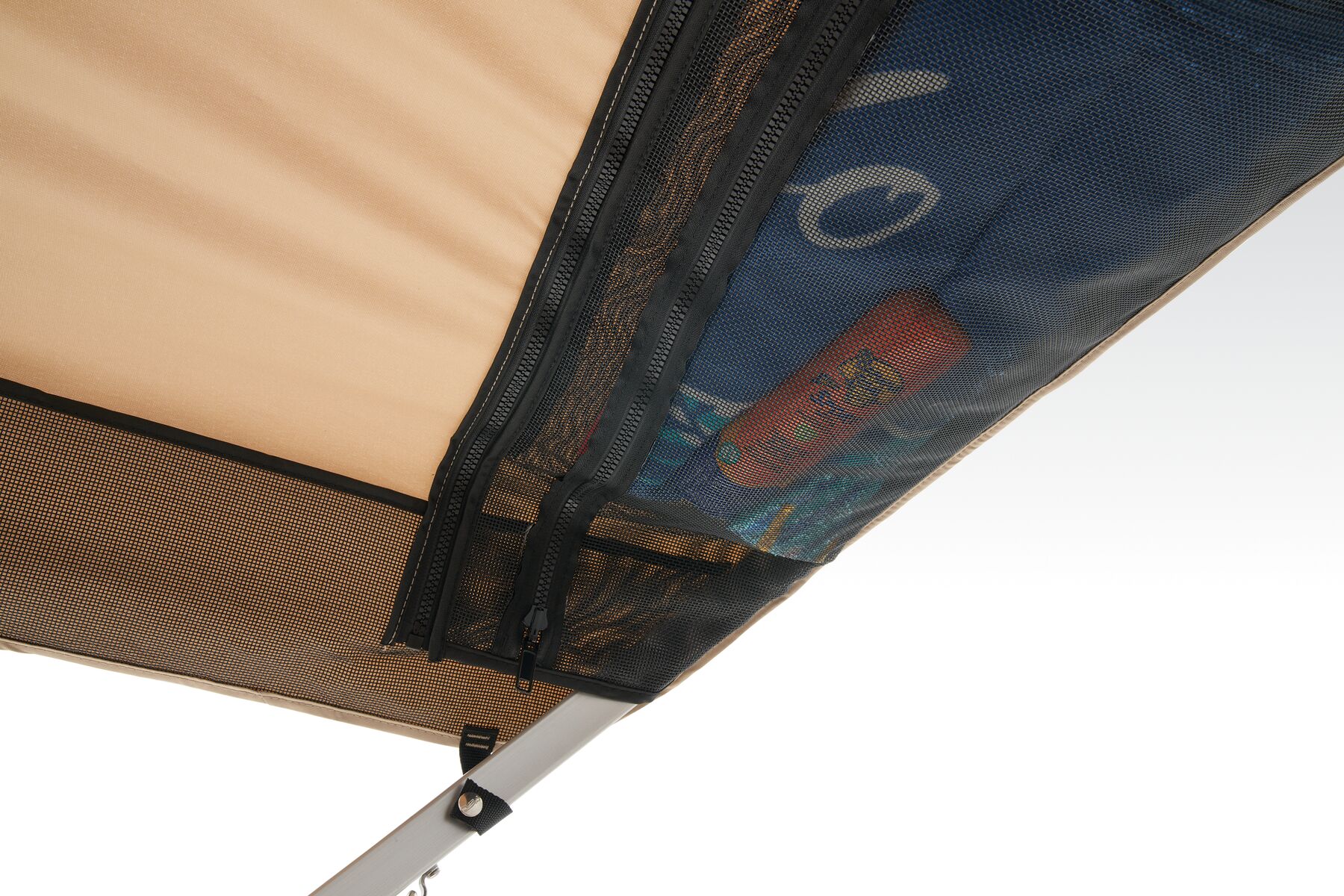

- Storage pockets in Bimini top
- Nylon gate latches & heavy-duty hinges that open inward

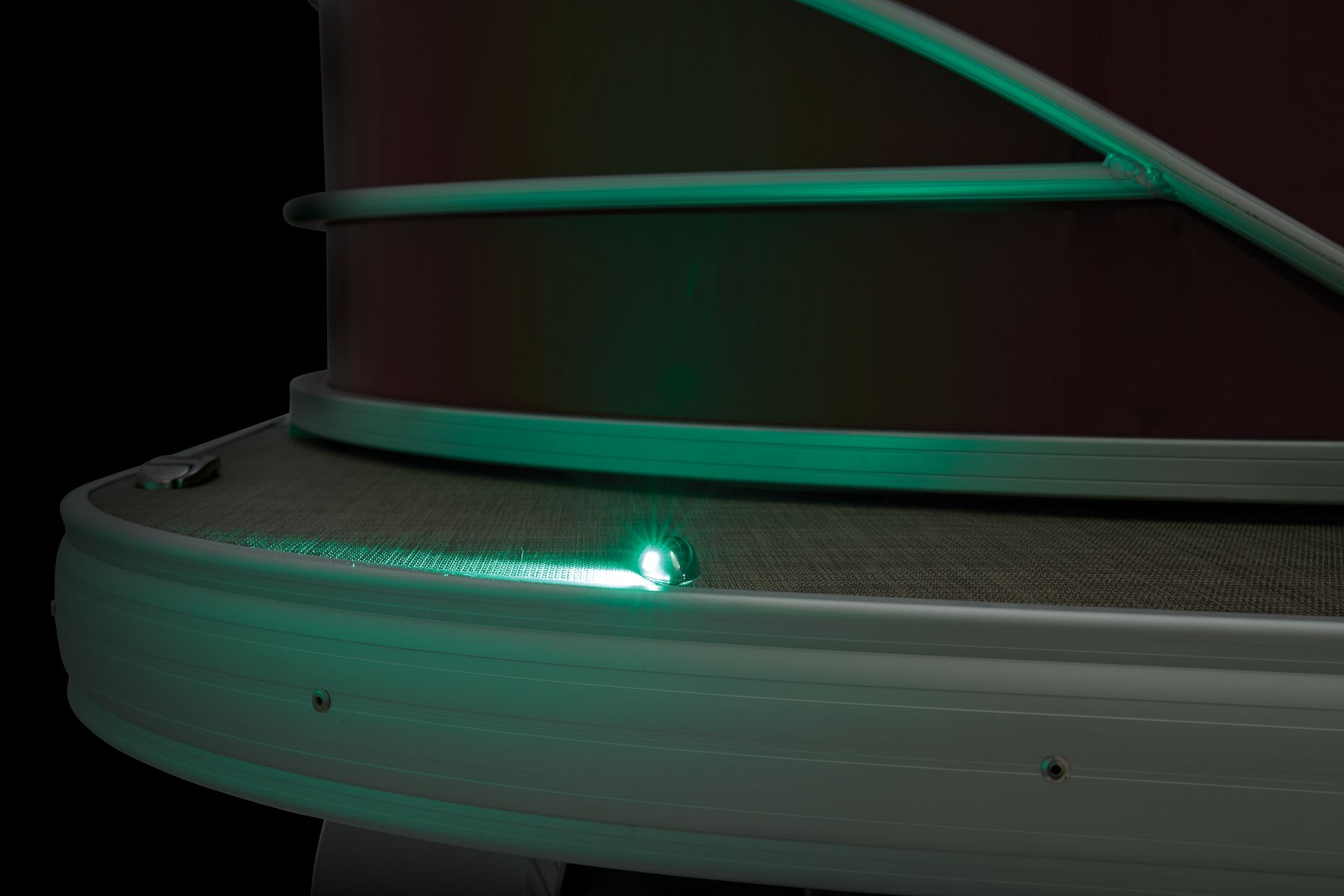

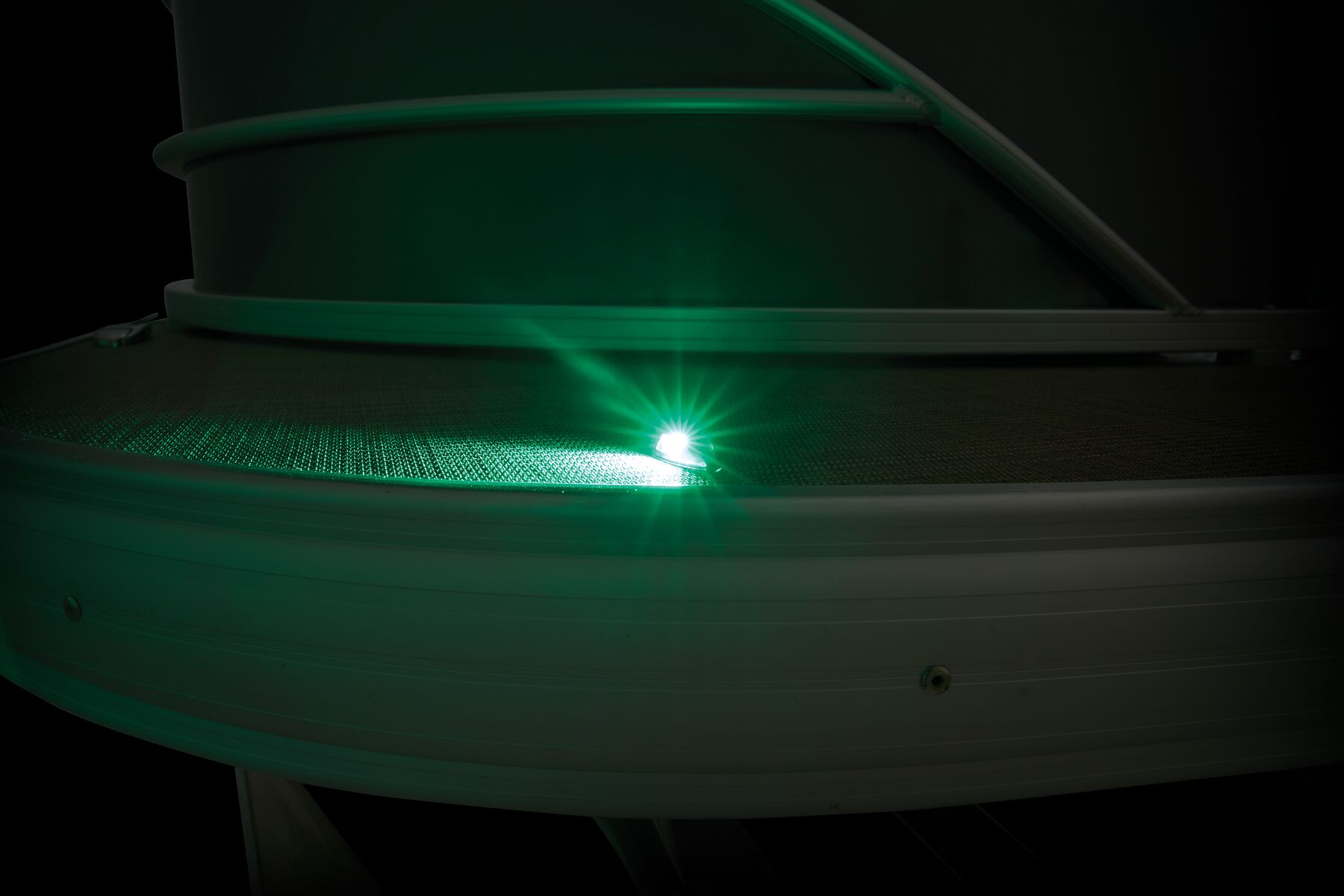

- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light
- Mooring eye on starboard side for tie off

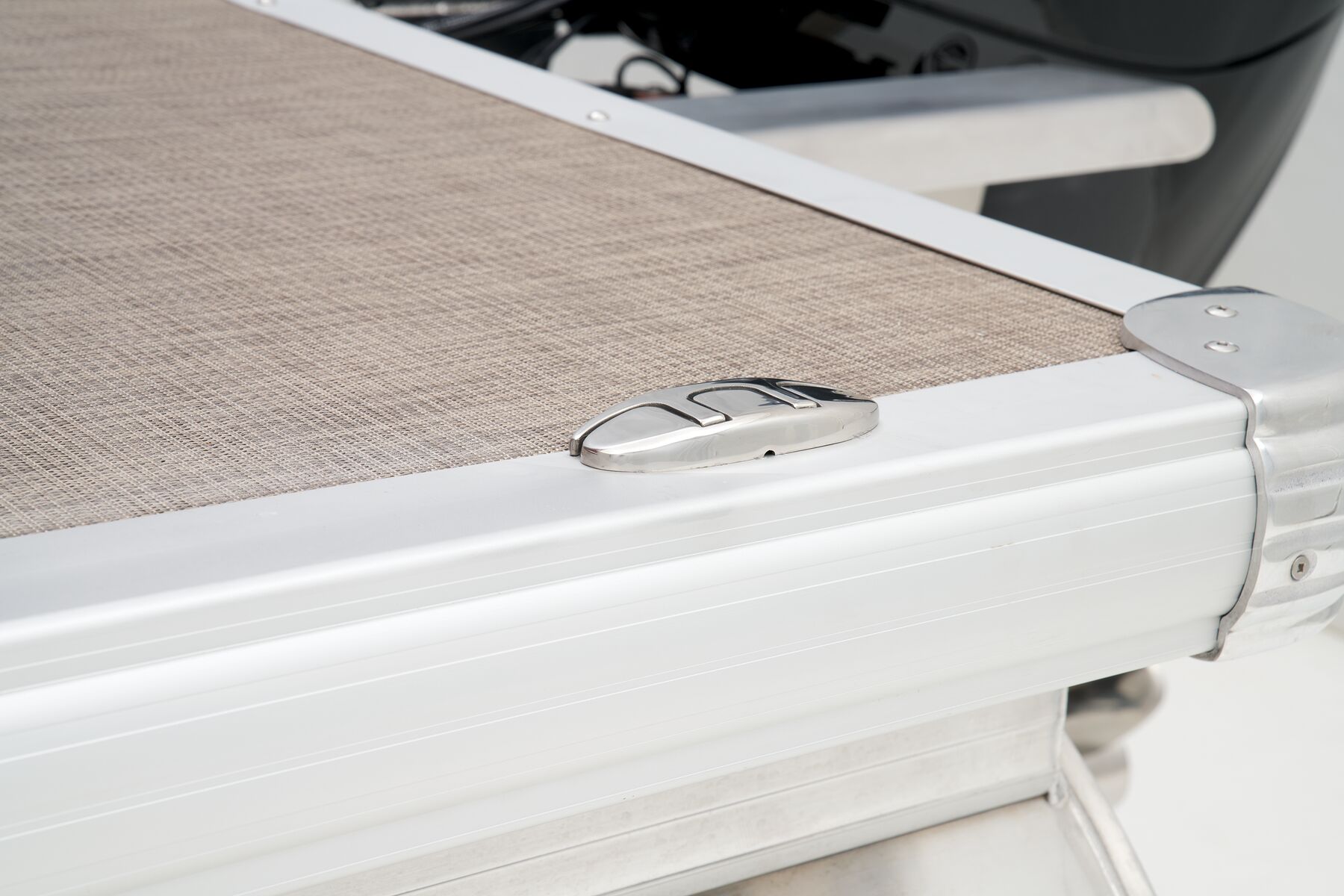

- Four 4.5" (11.43 cm) fold-down mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn

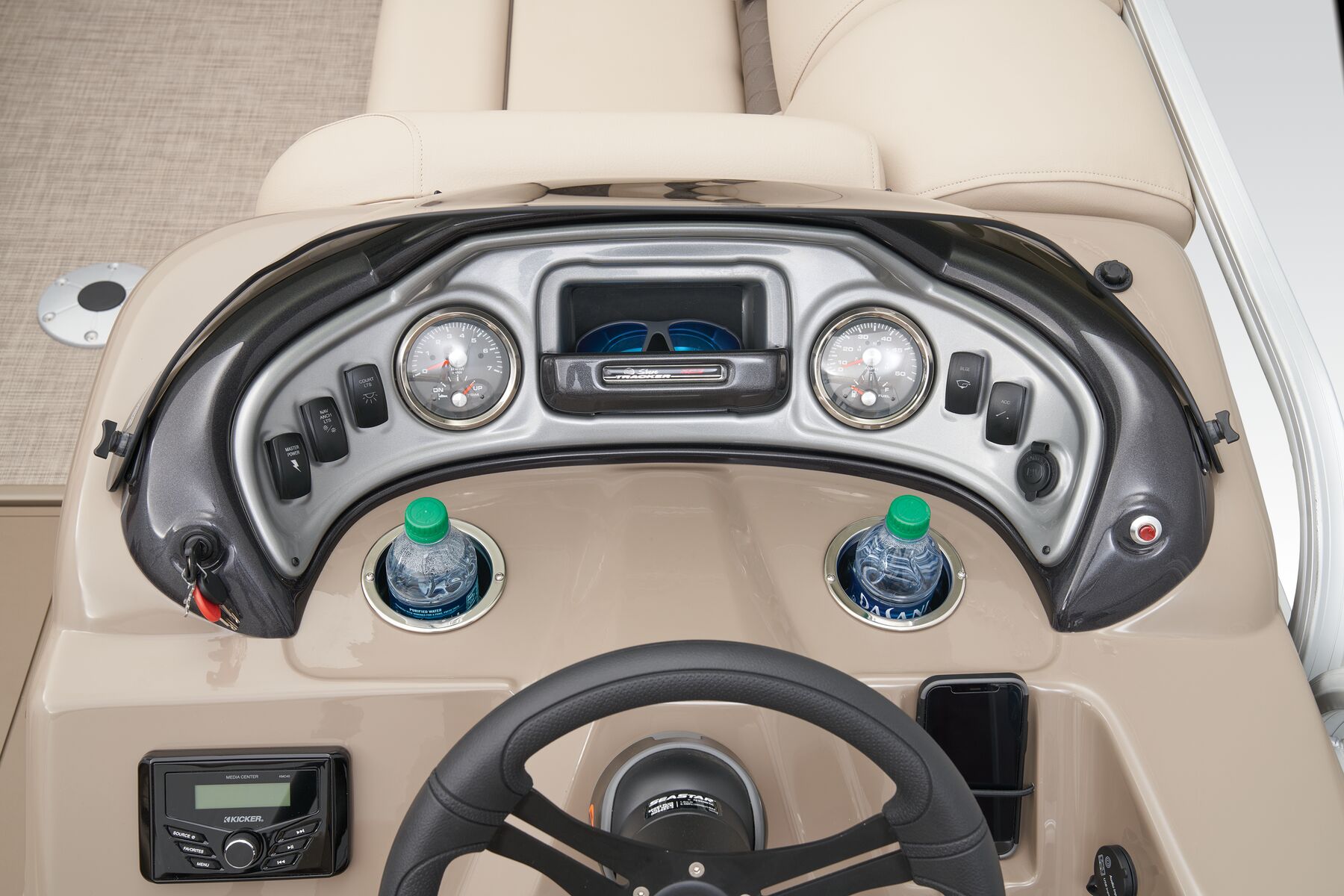

Console

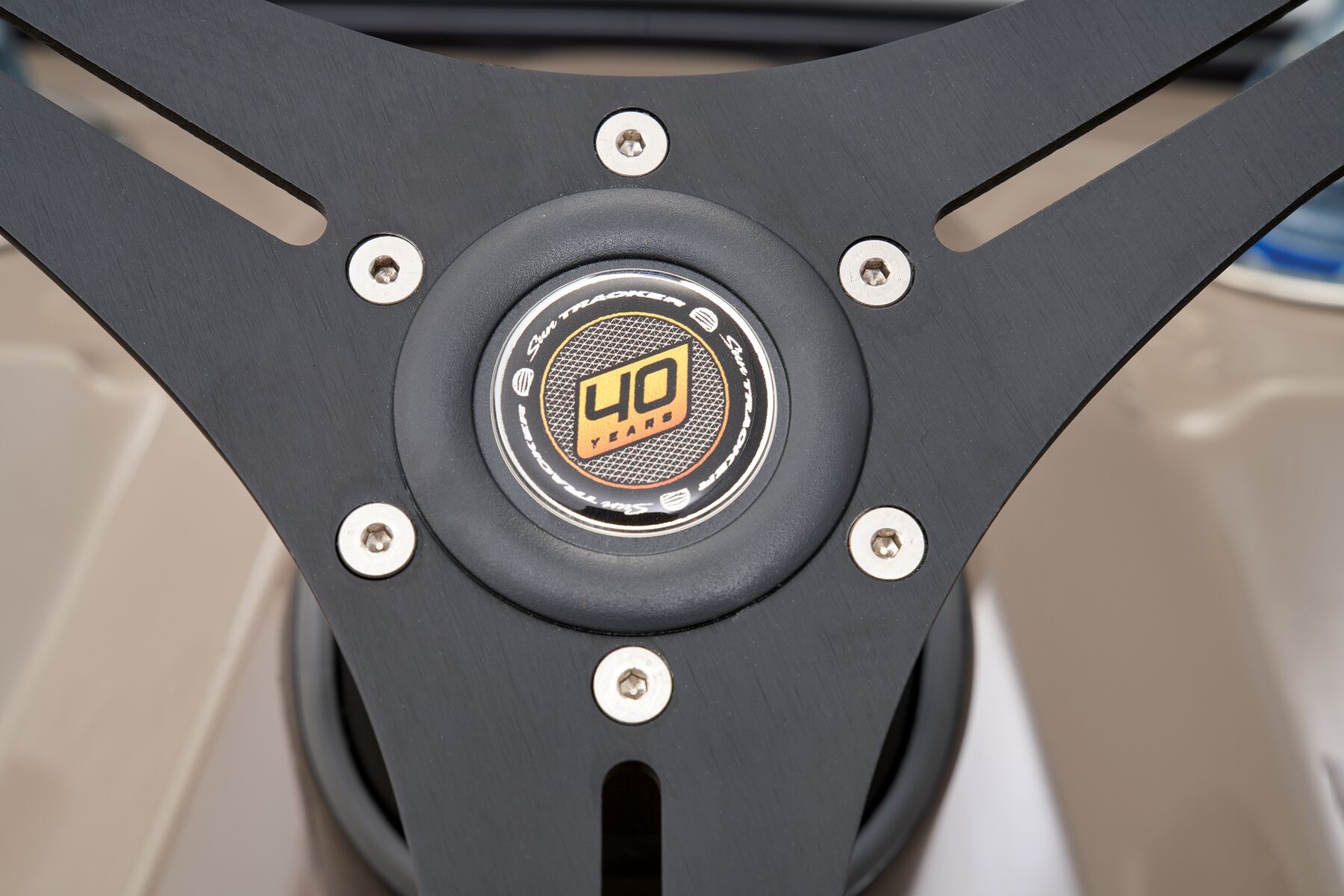

- Deluxe soft-touch sport steering wheel
- Tilt hydraulic steering
- Wraparound sport shroud & tinted, removable windscreen

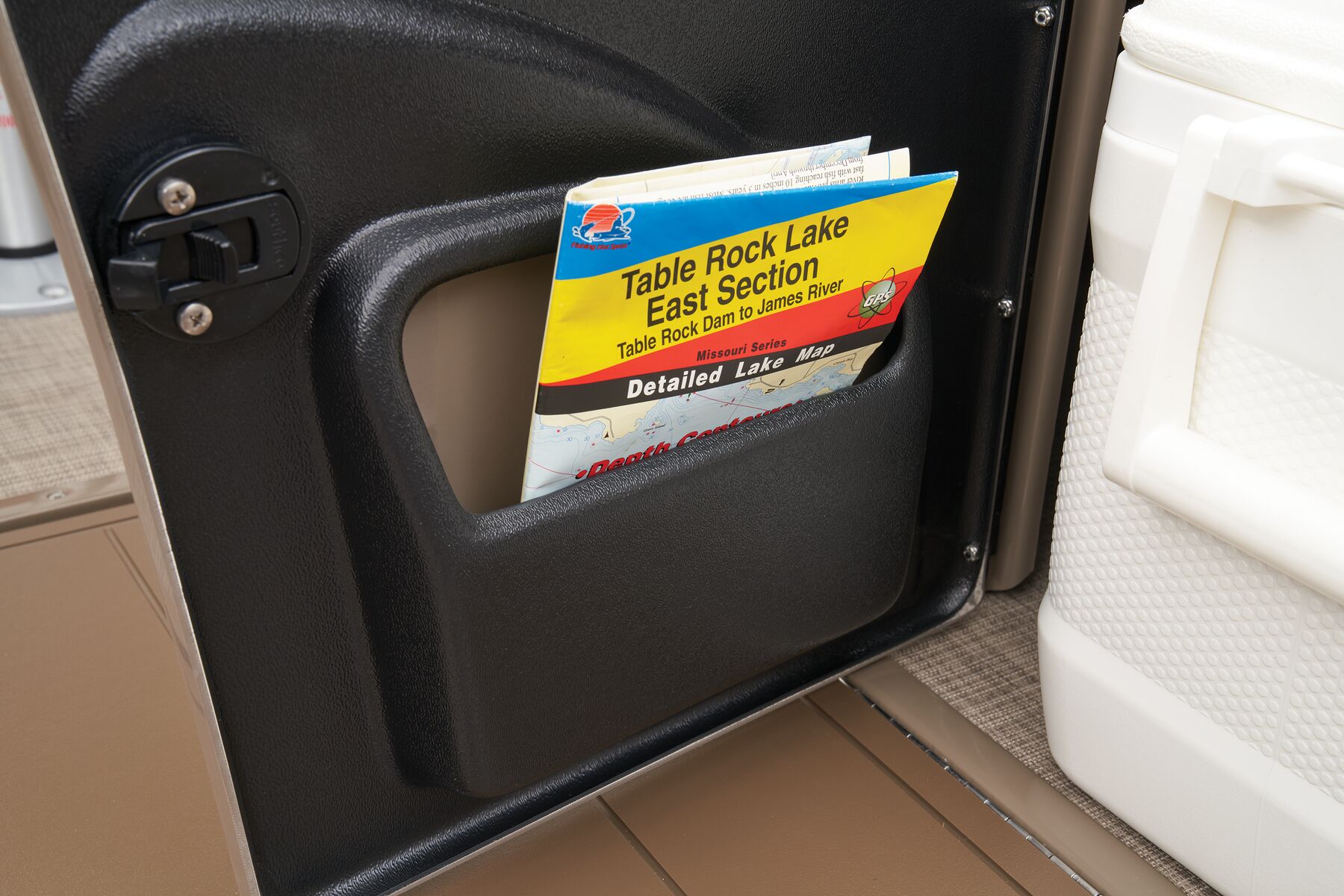

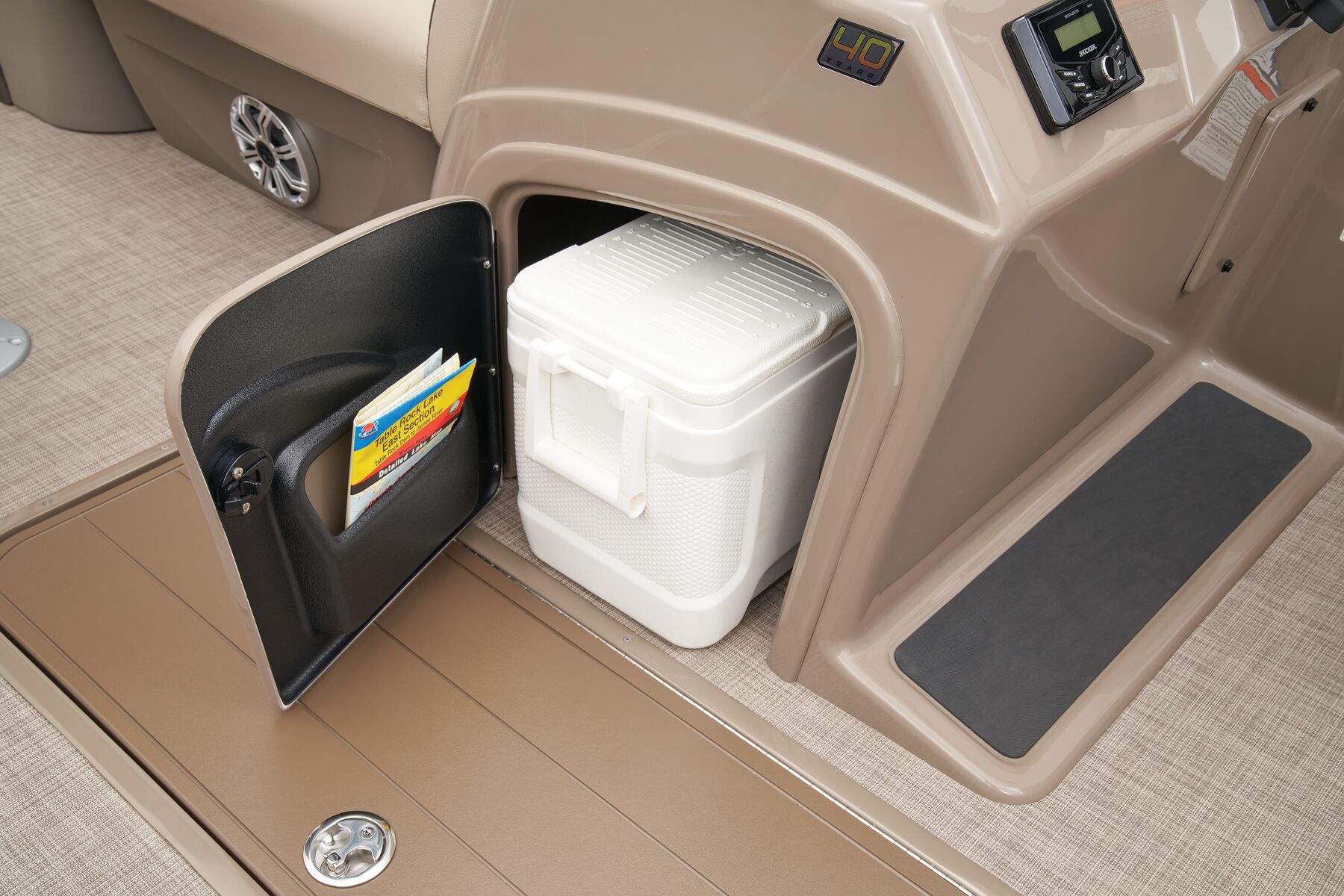

- Below-console cooler/storage space w/door & integrated pouch

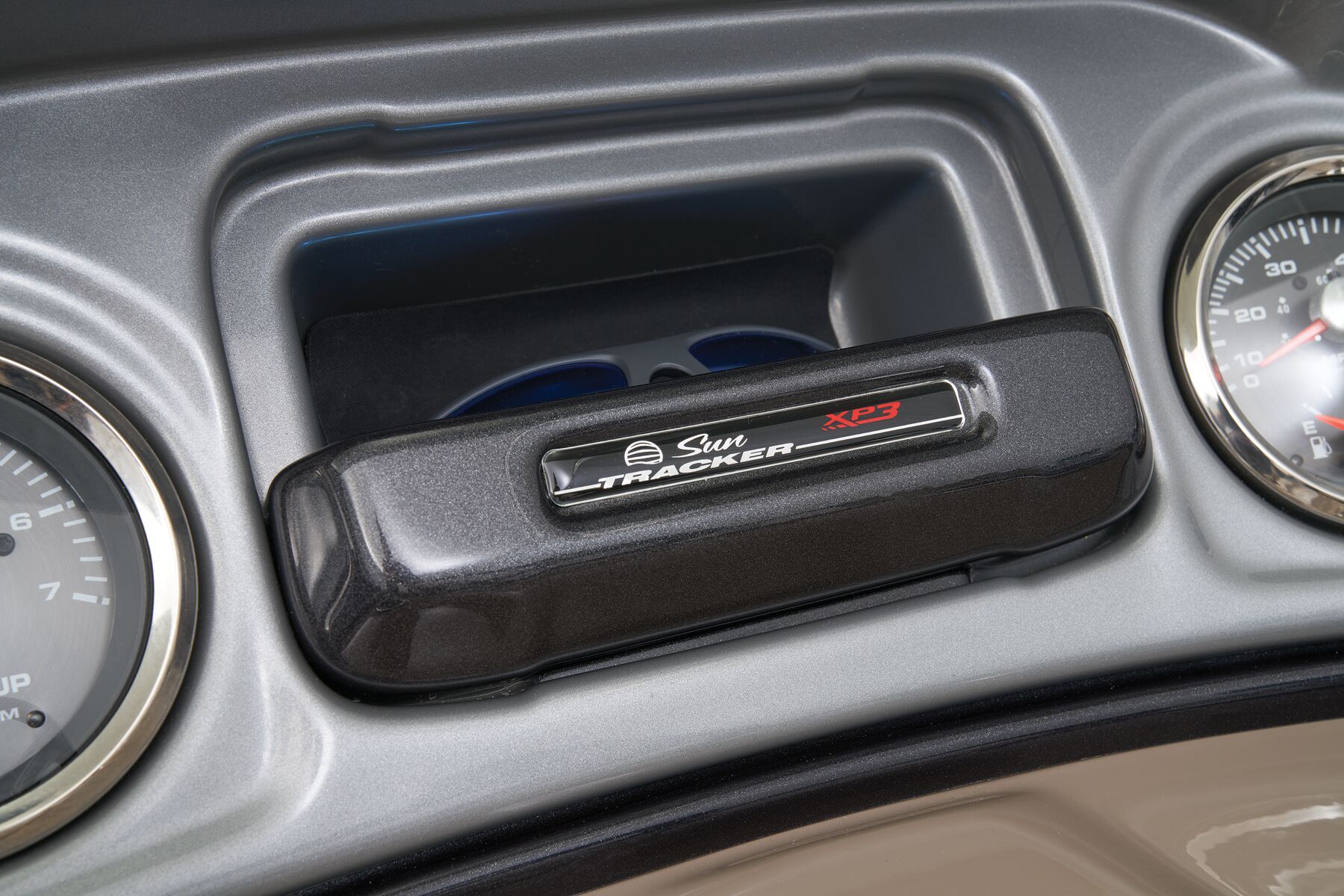

- Small items tray
- Drink holders
- Built-in footrest w/non-skid pad

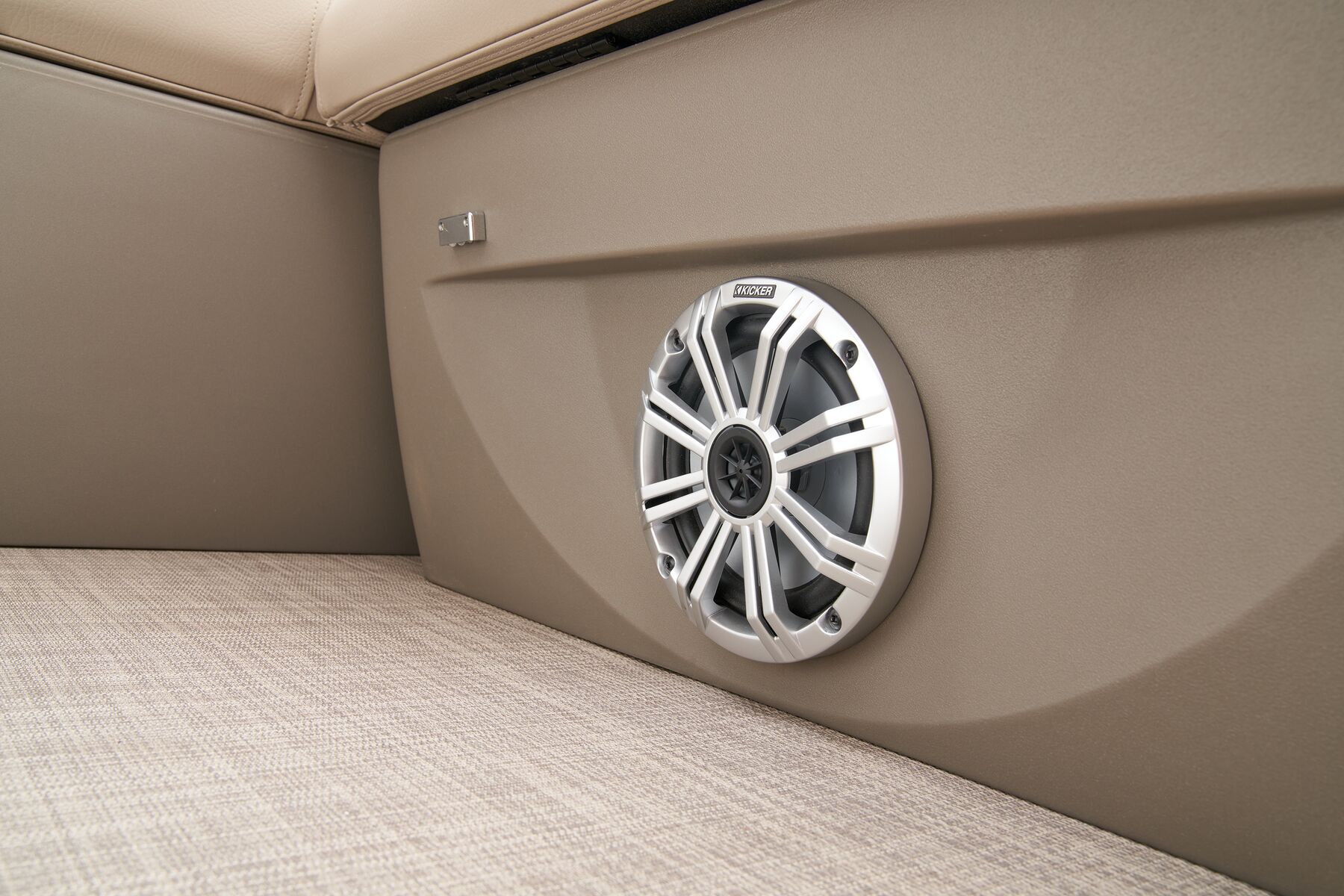

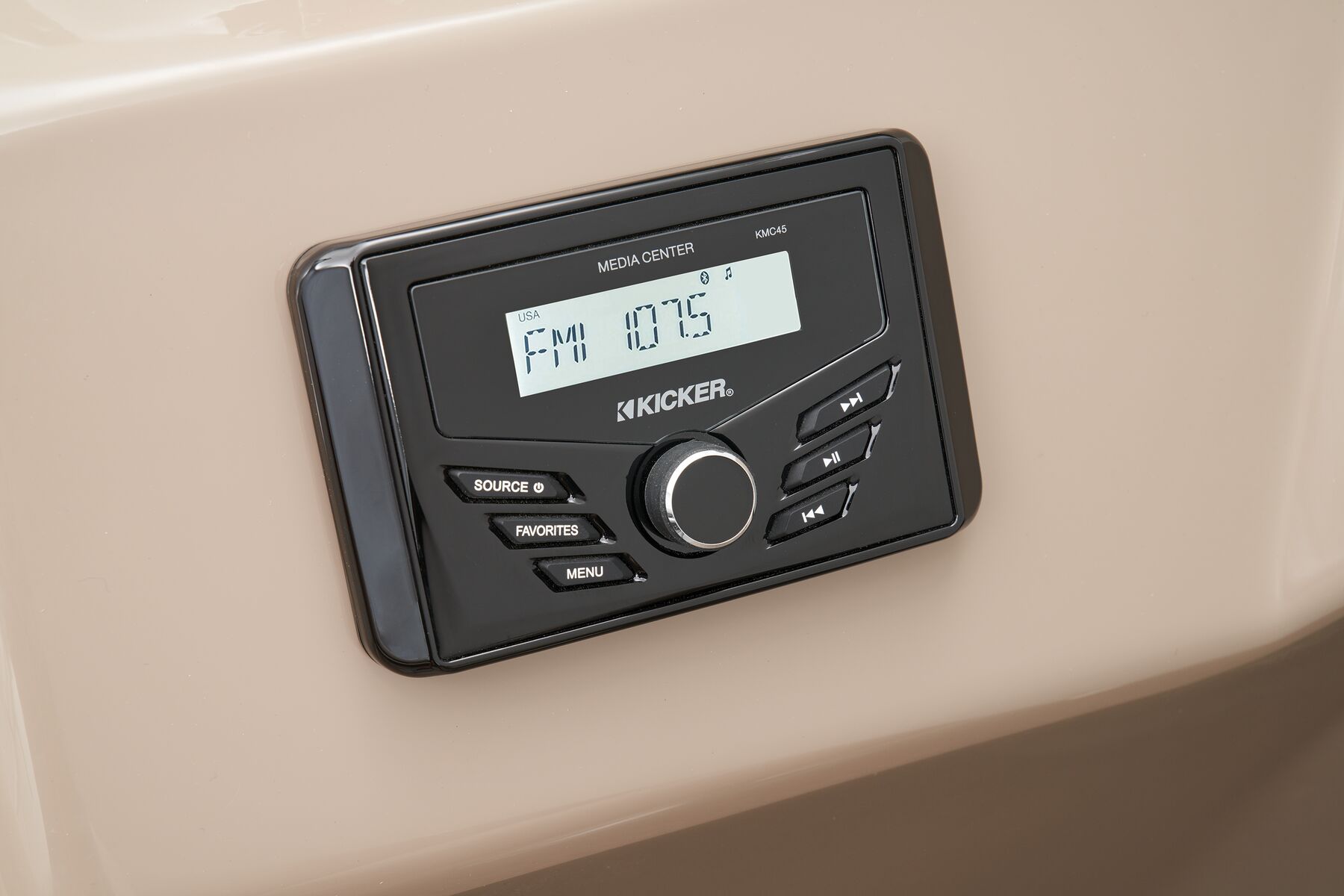

- AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 4 upholstery speakers
- USB/3.5 mm auxiliary input ports on console for direct stereo connection
- Tachometer, trim meter/speedometer & fuel & hour gauges
- Lighted rocker switches w/bilge switch
- Ergonomically positioned Mercury® binnacle control box w/trim
- 12V outlet
- Dark console color

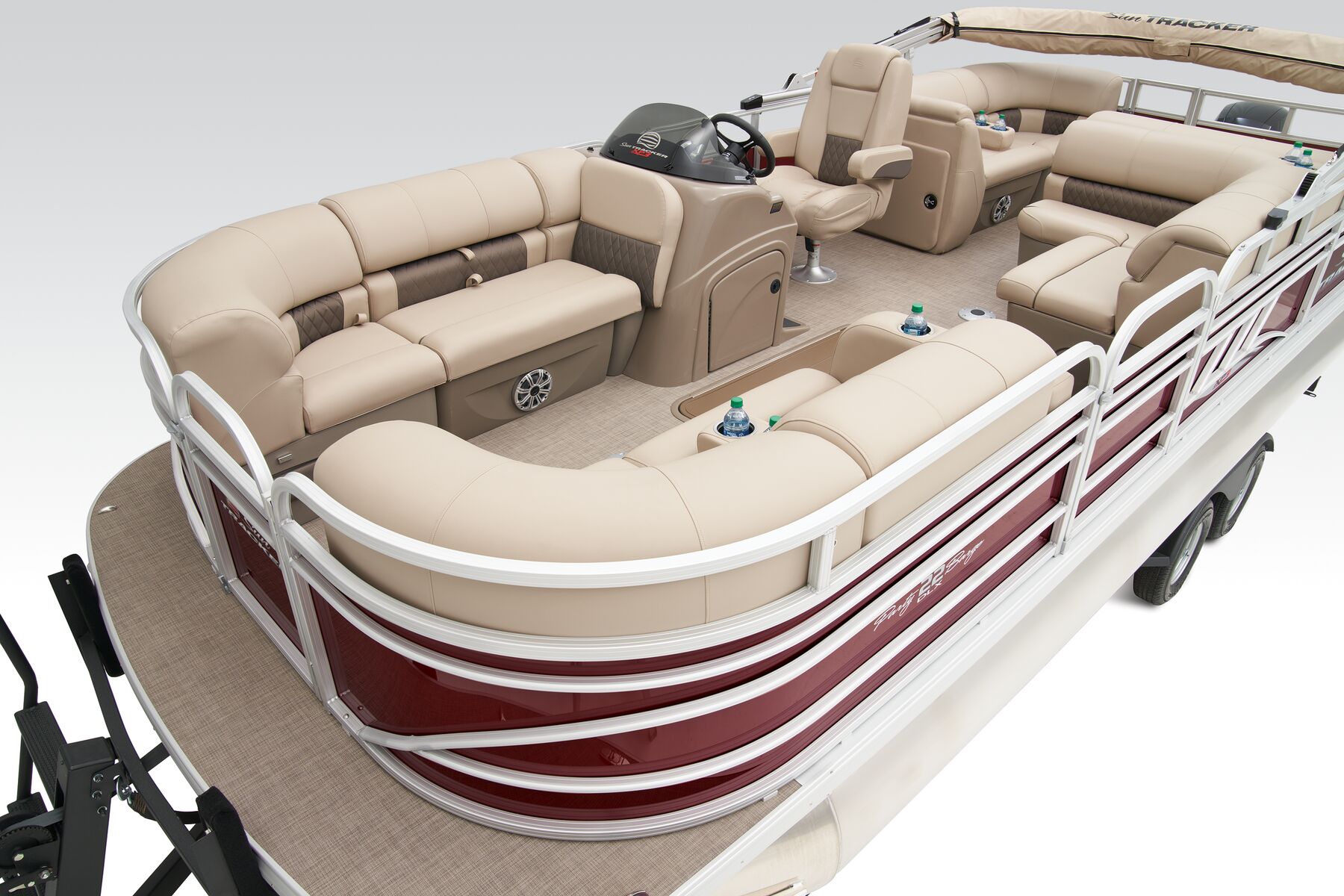

Interior

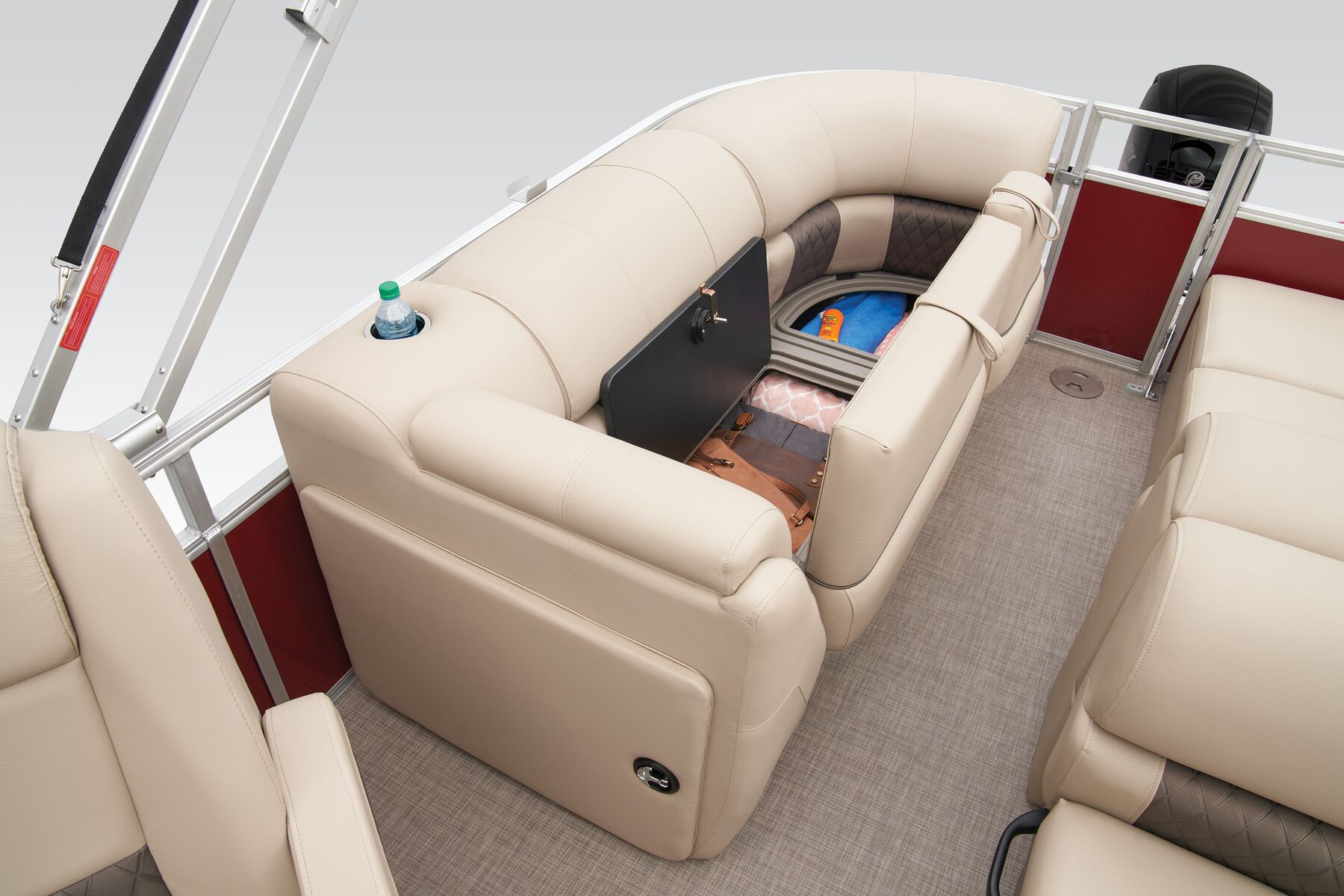

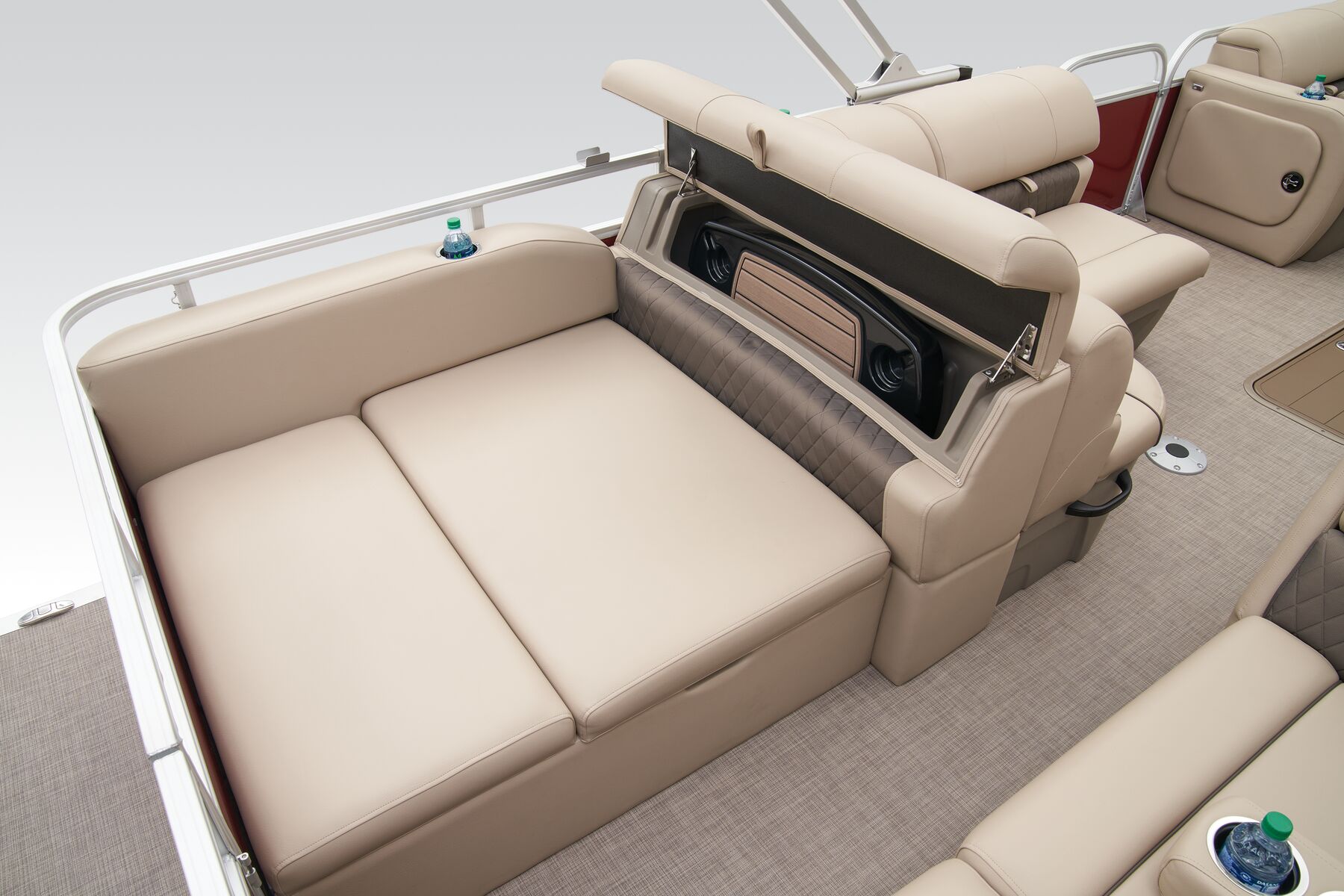

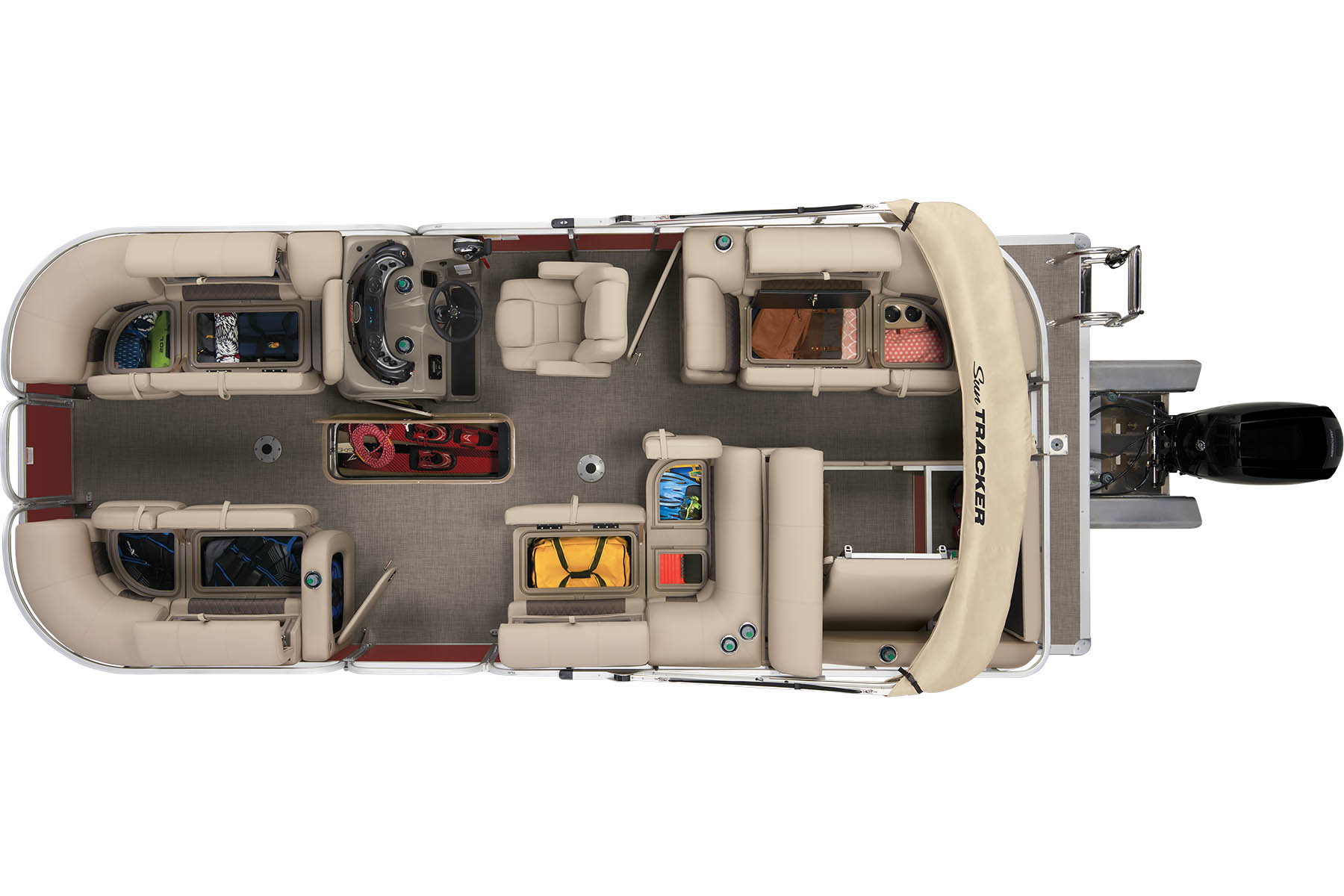

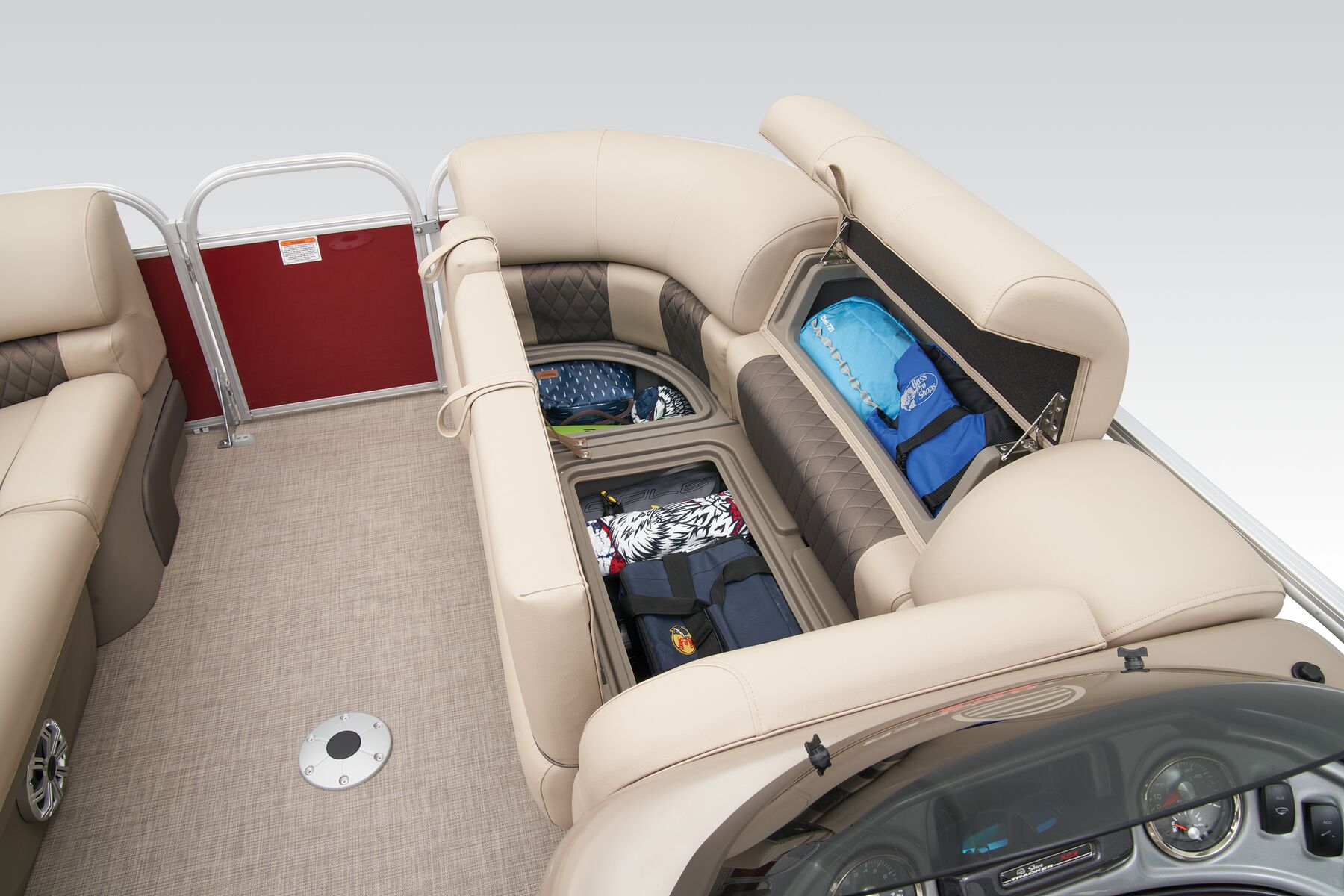

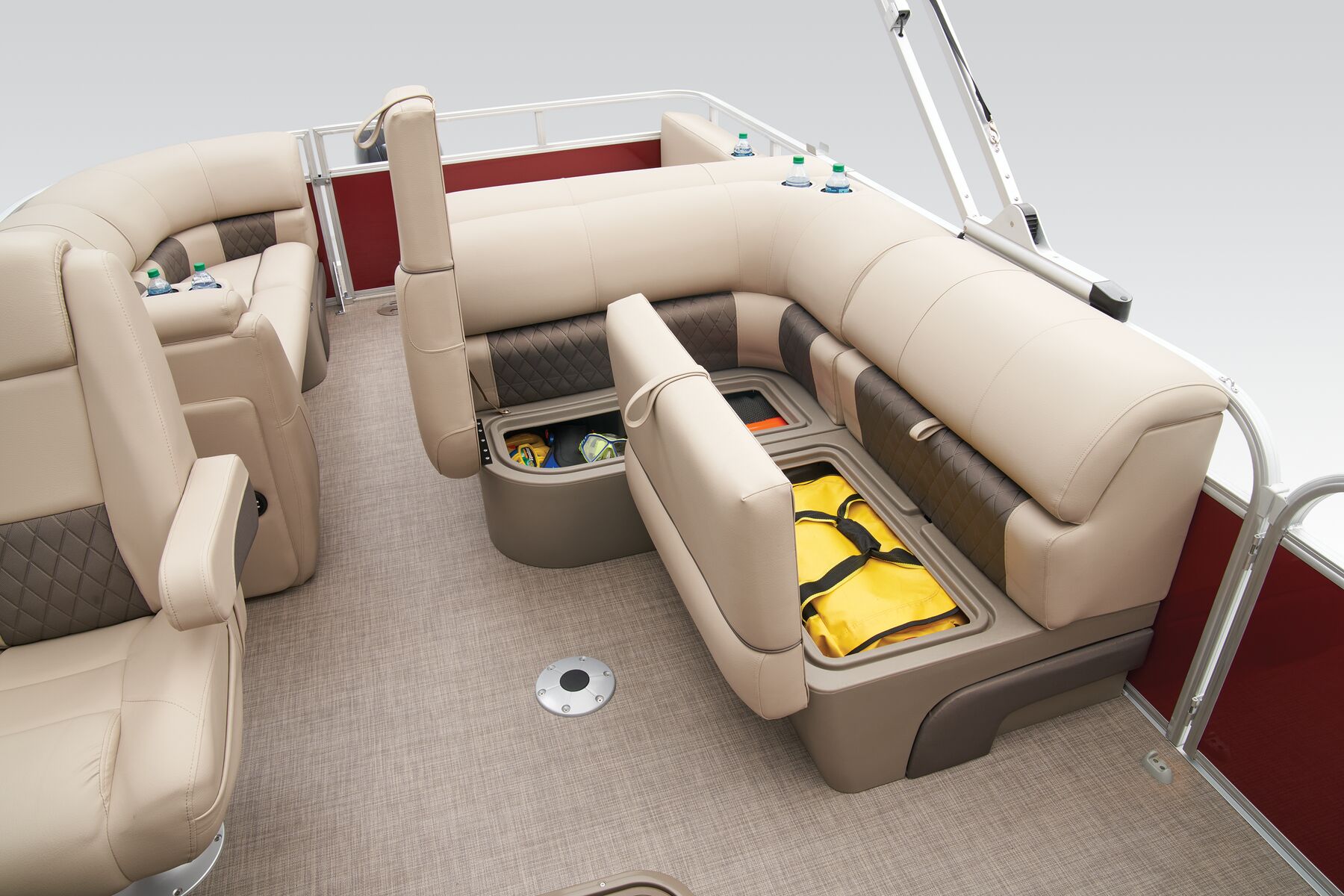

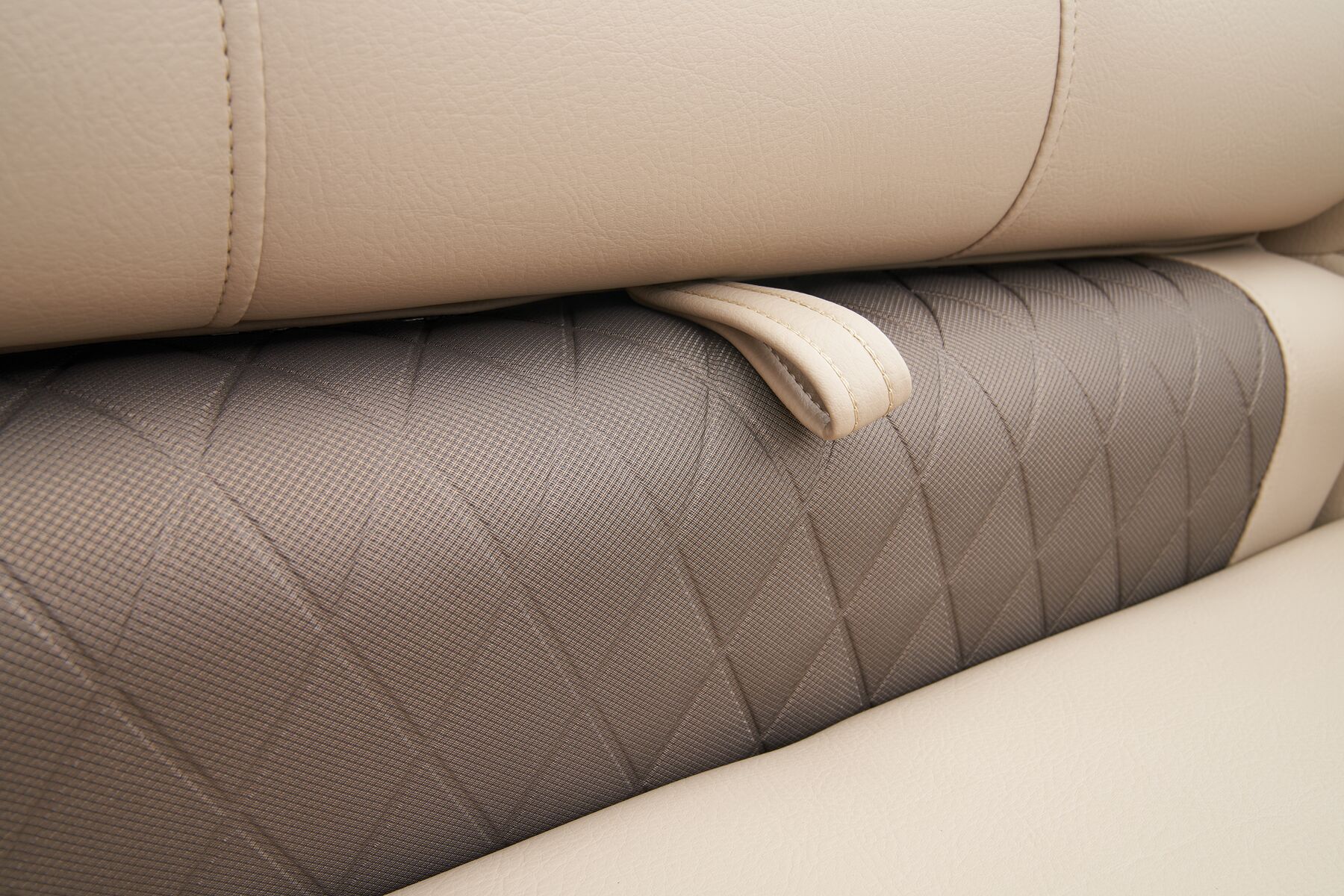

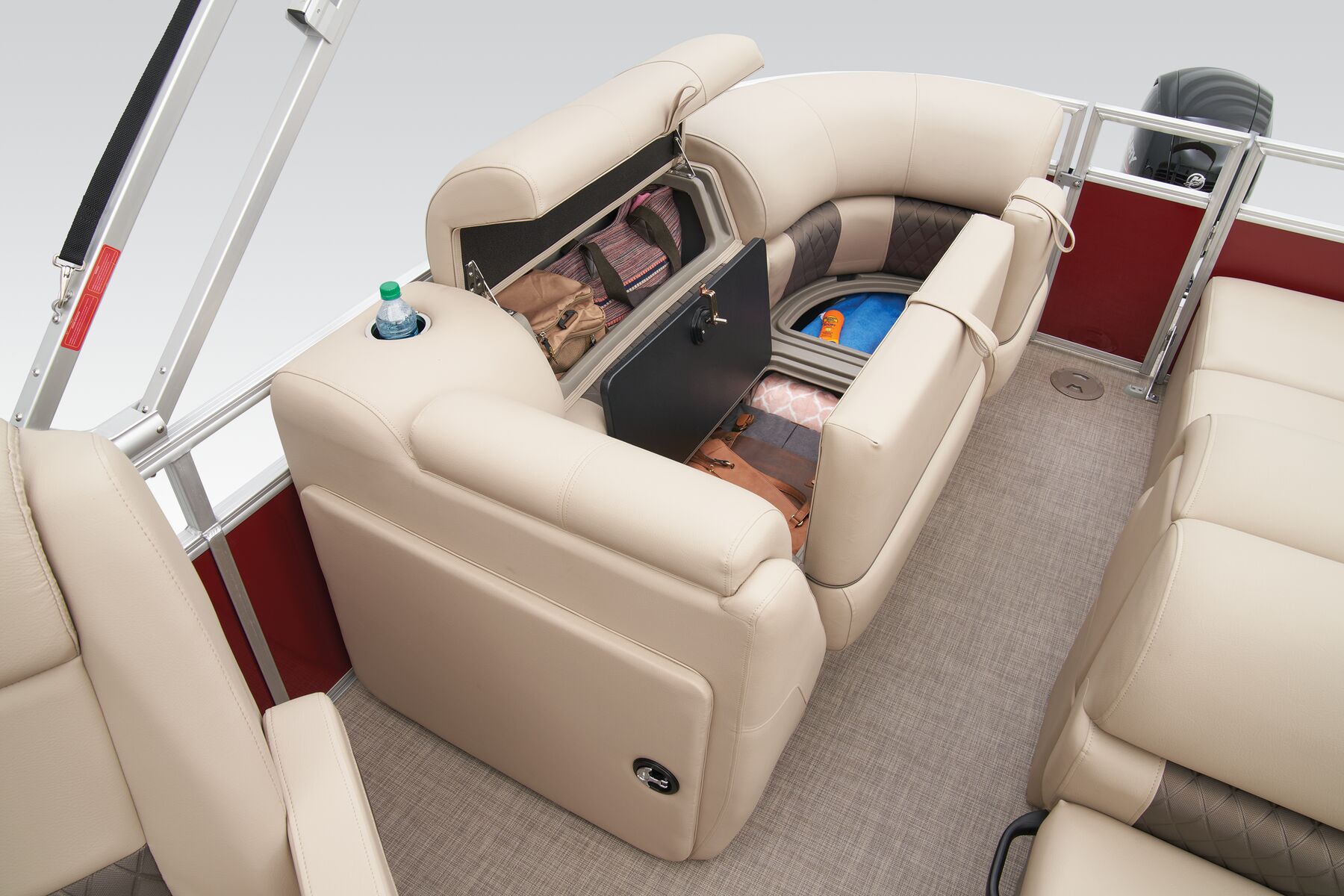

- The patented STOW MORE™ system features an added compartment in the seat back for increased storage

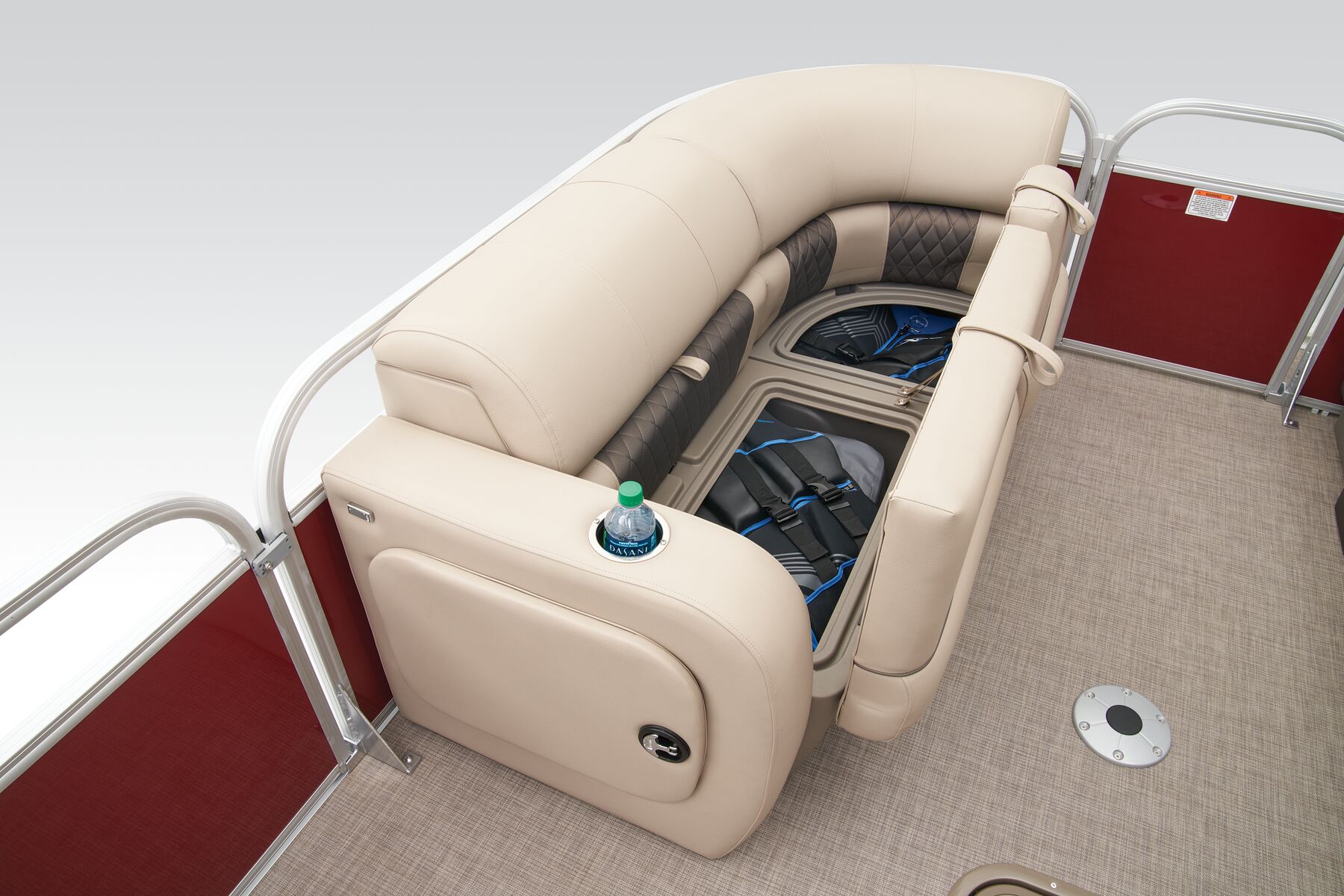

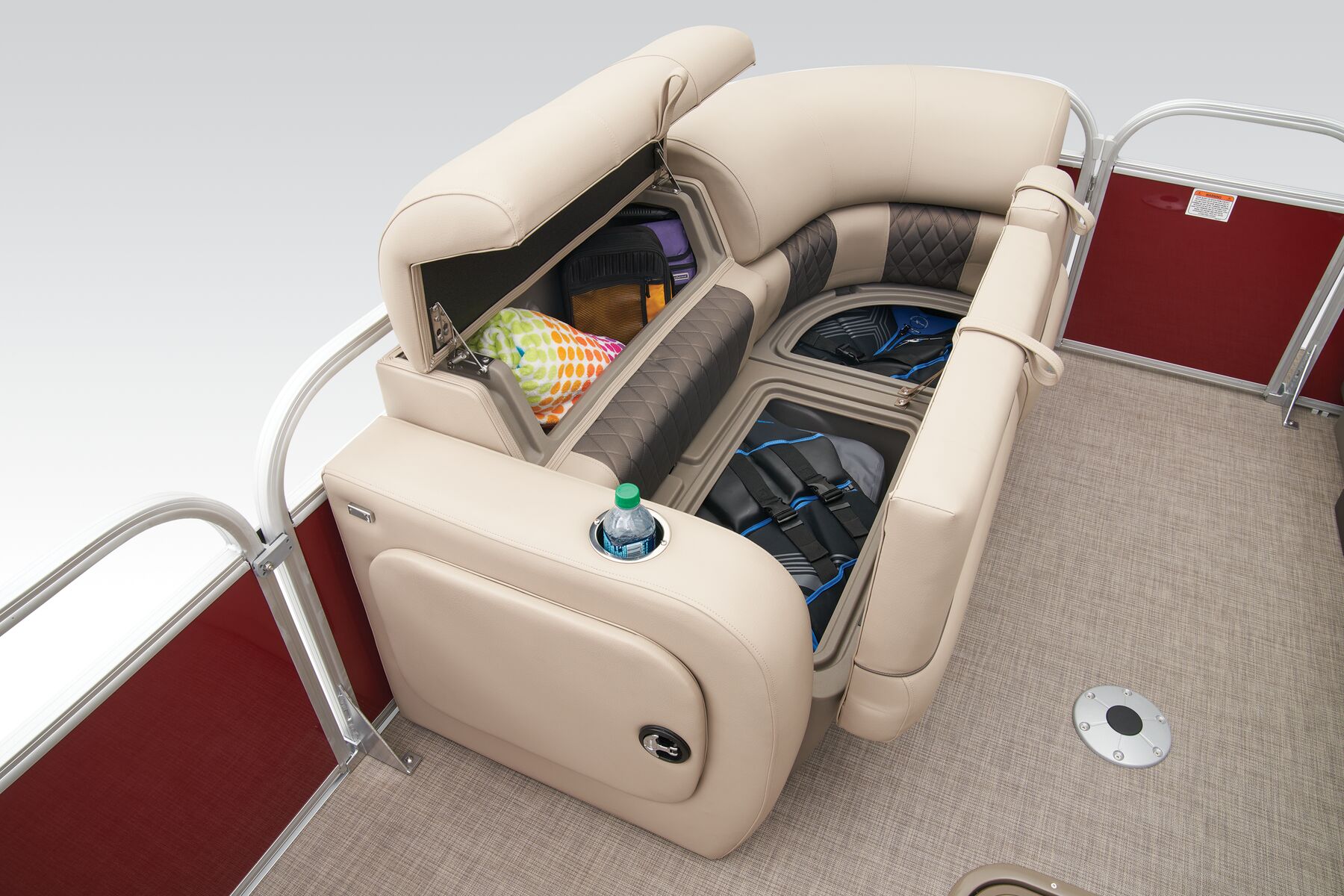

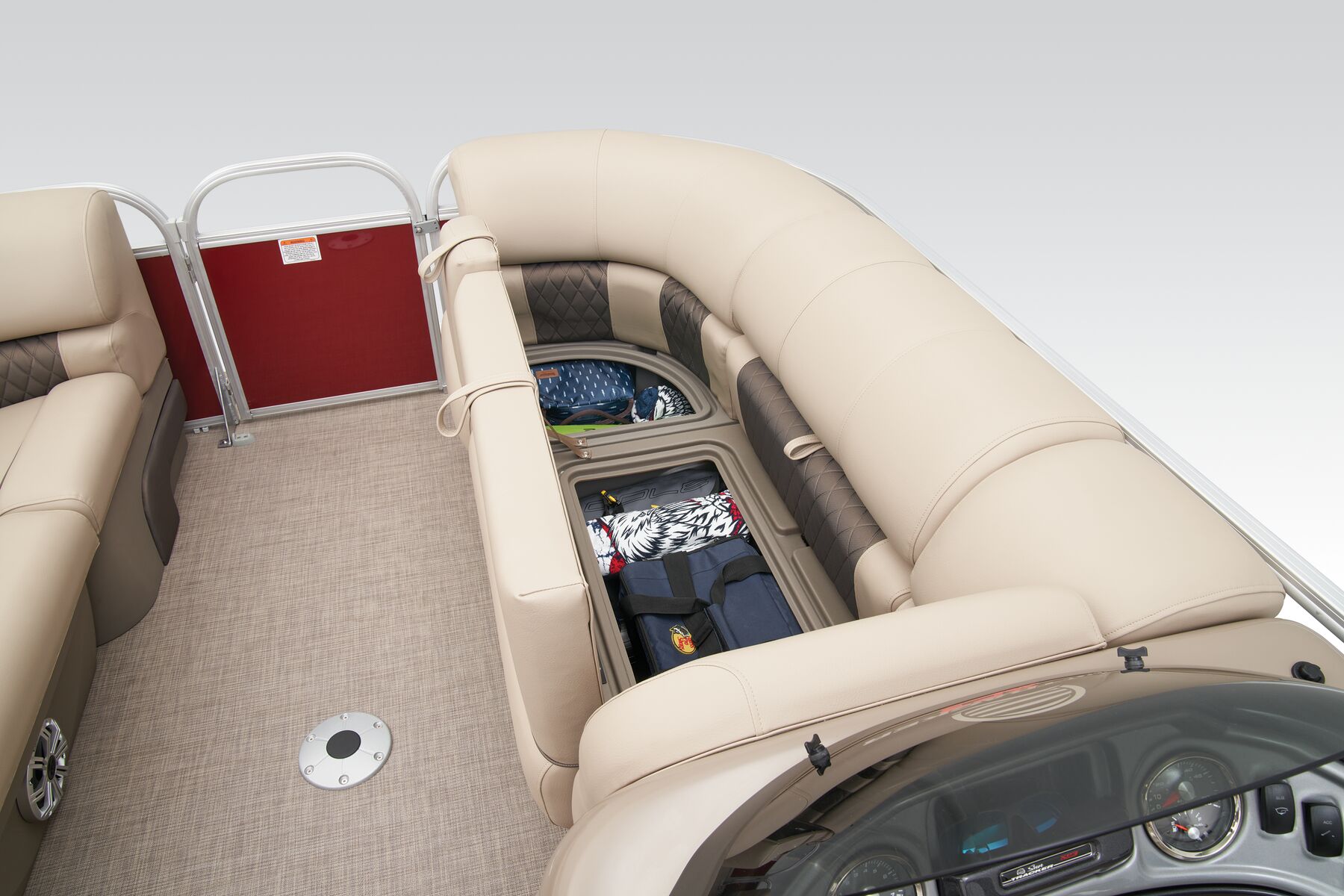

- Bow port couch w/STOW MORE™ system, underseat storage & armrest w/drink holder
- Bow starboard couch w/STOW MORE™ system & underseat storage
- 88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/bilge pump in center log & NEW spaghetti mat

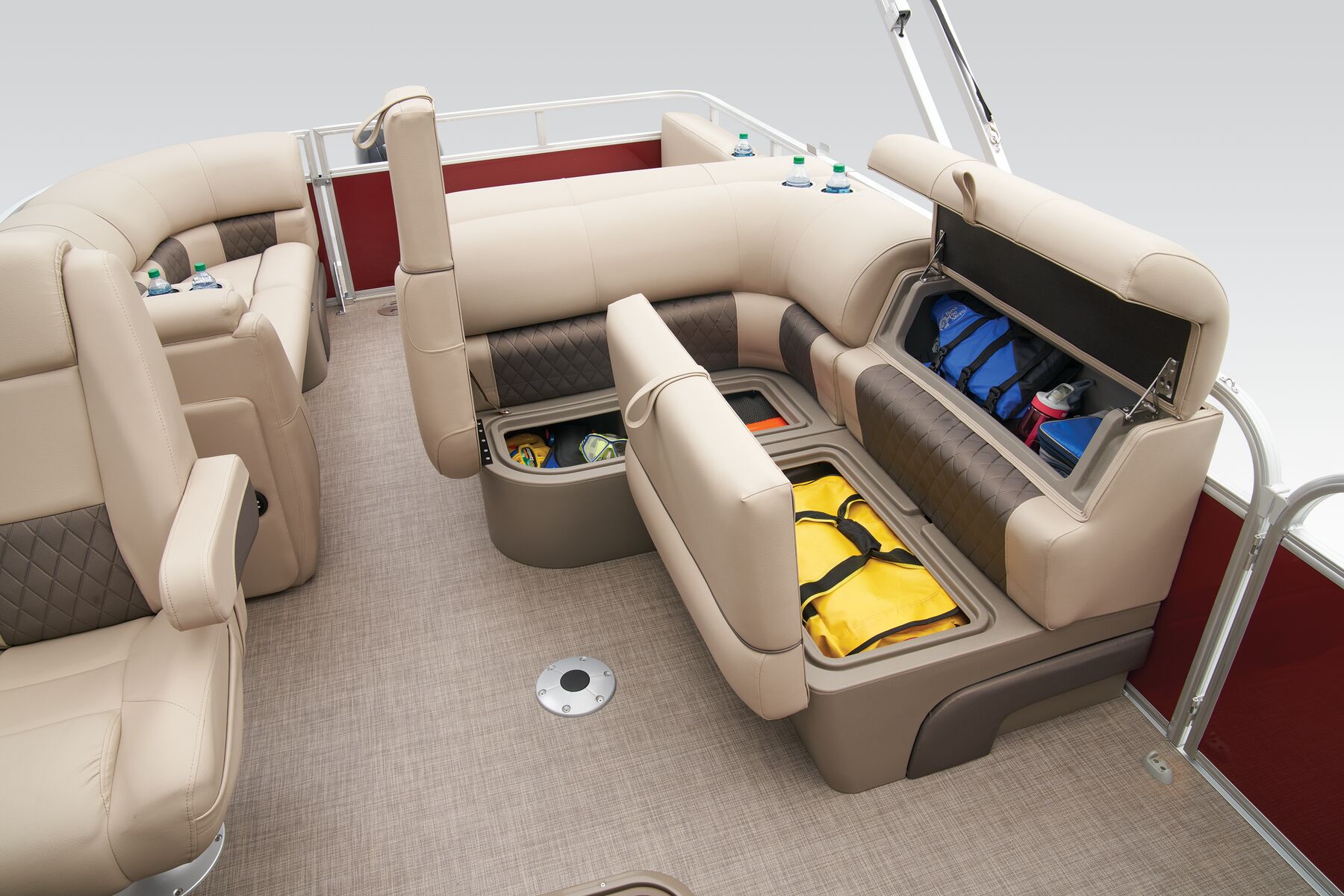

- Midship port L-lounge w/STOW MORE™ system & underseat storage

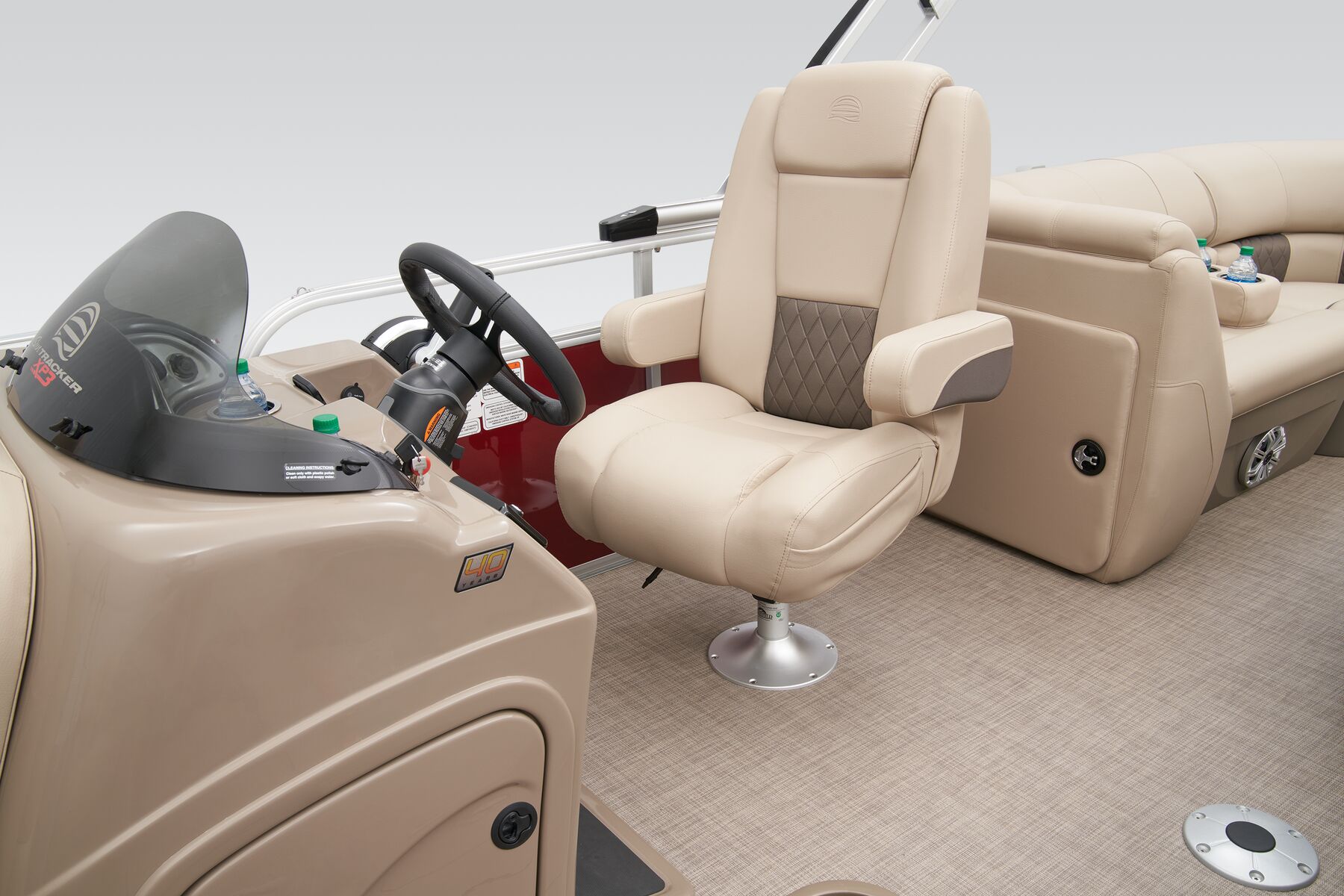

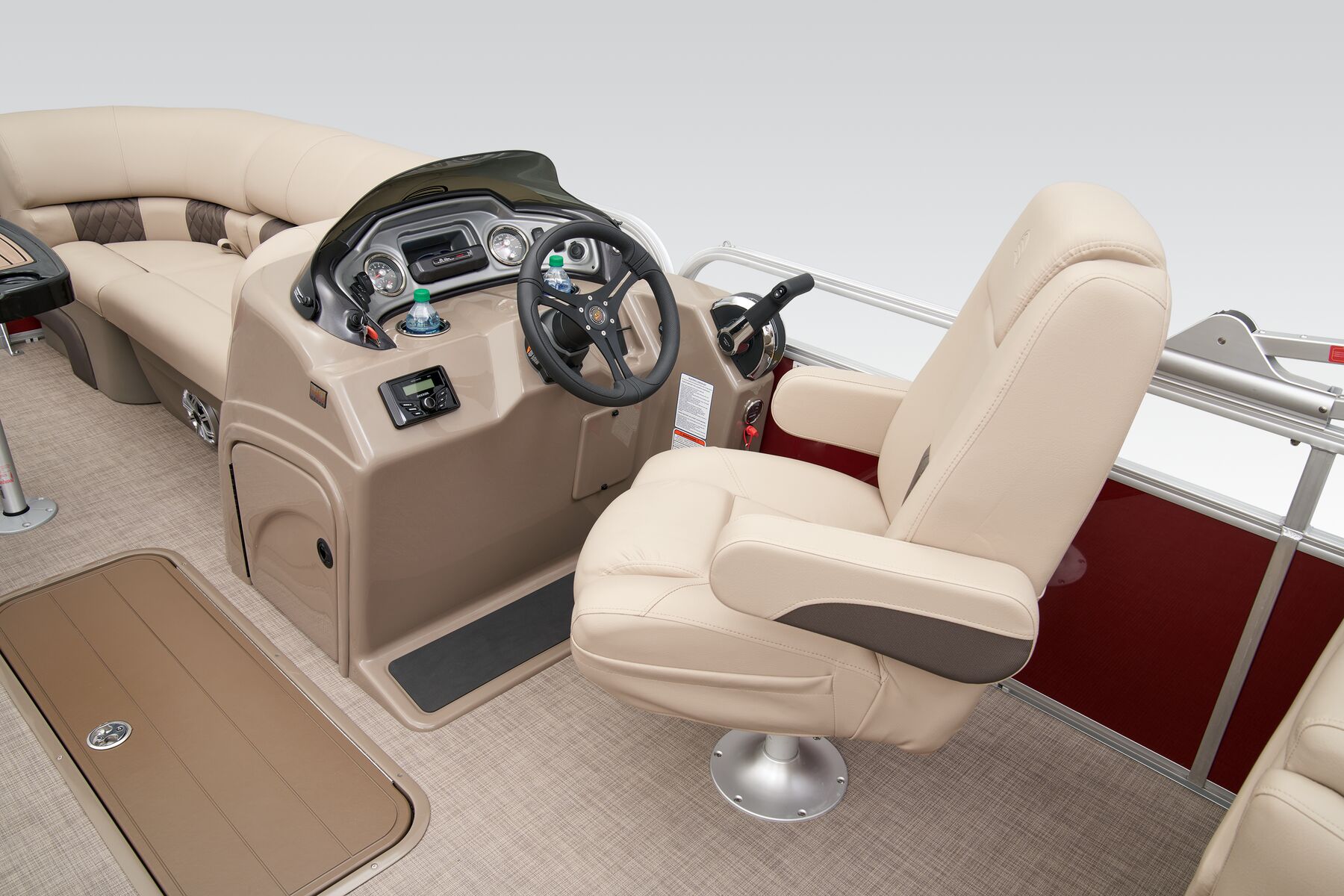

- High-back swiveling helm bucket seat, reclining & w/self-leveling arms

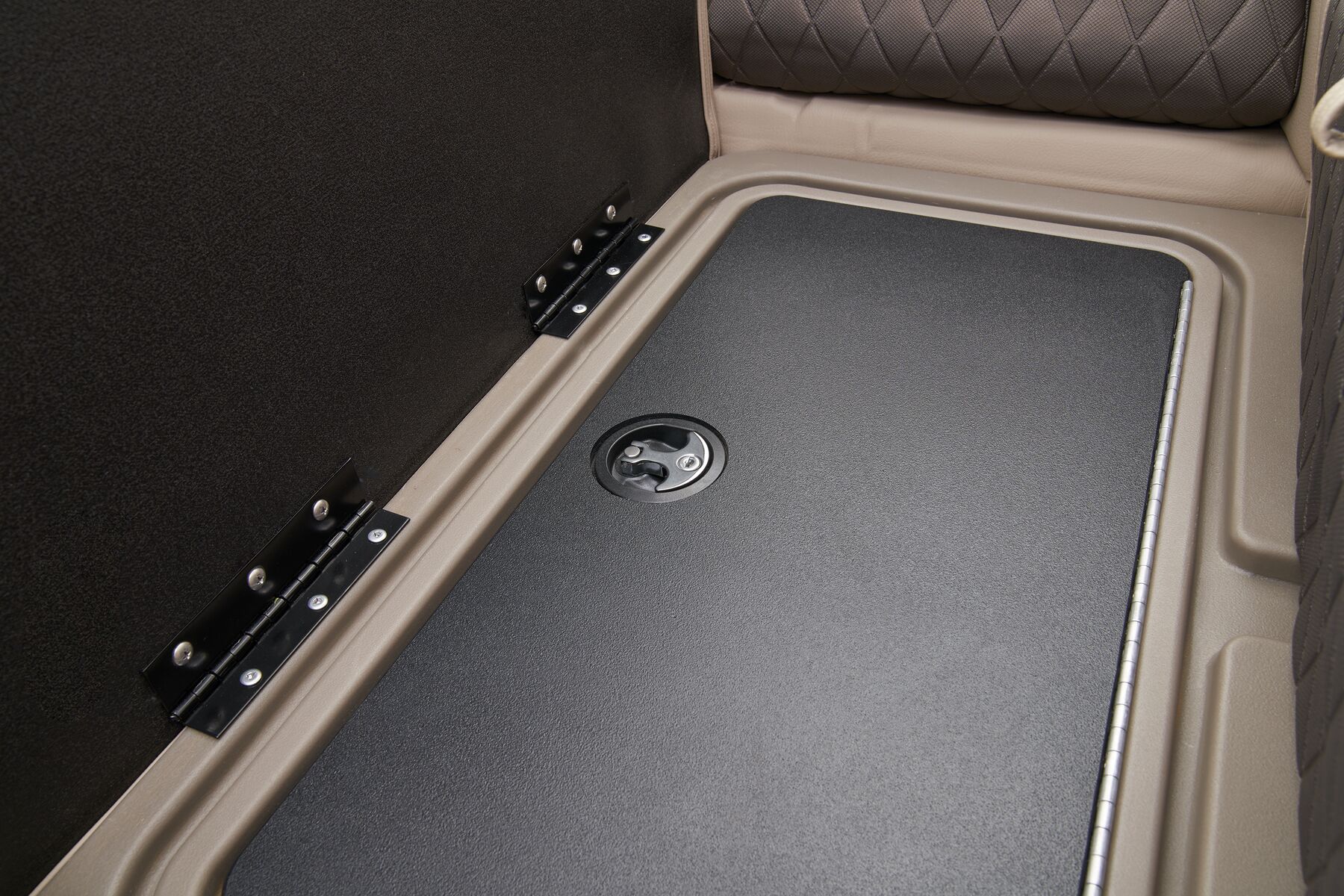

- Aft starboard couch w/STOW MORE™ system & lockable underseat storage
- Full-width aft swim deck
- Receptacle for optional ski tow pylon

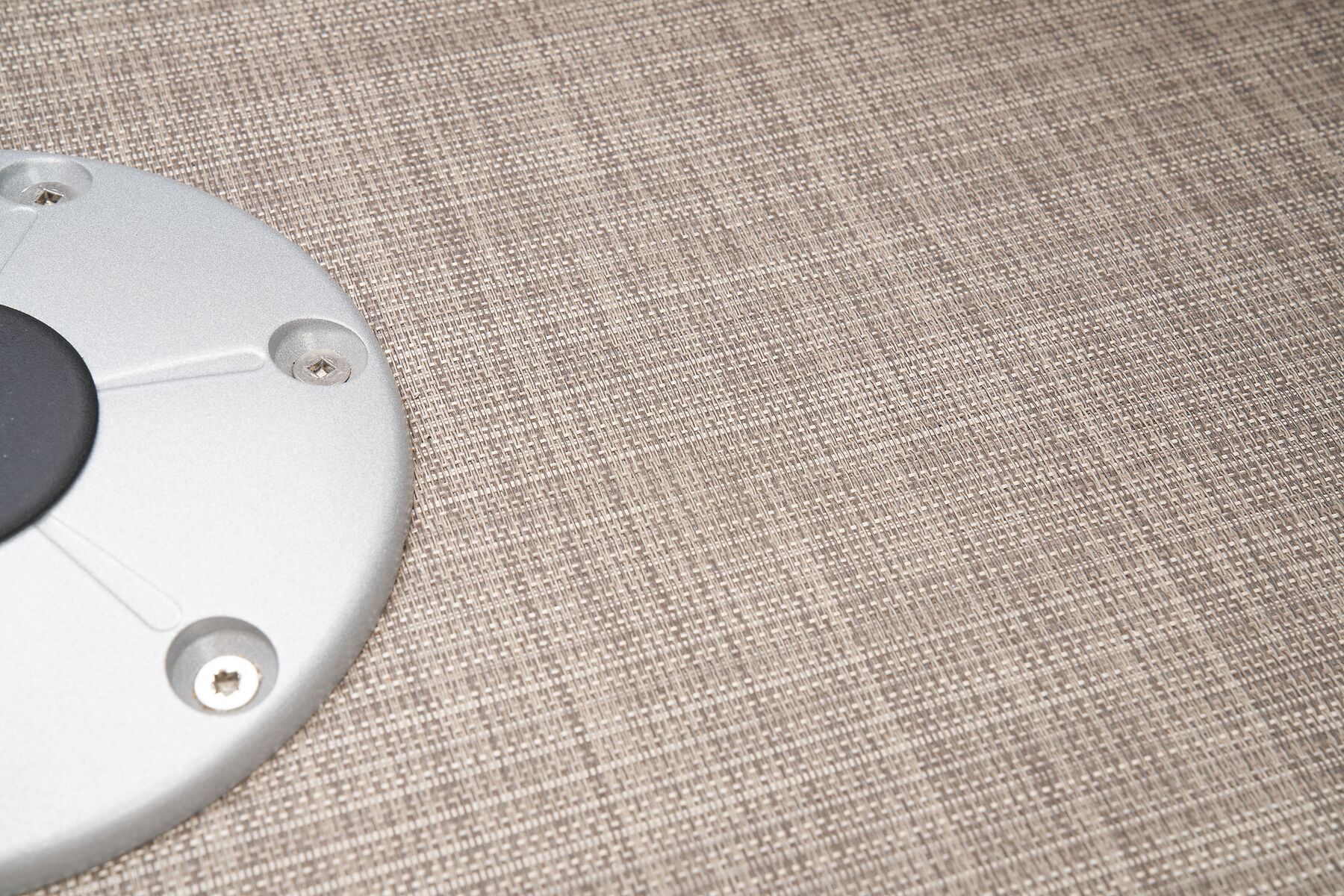

- Woven 16-oz. (.45 kg) marine-grade flooring throughout

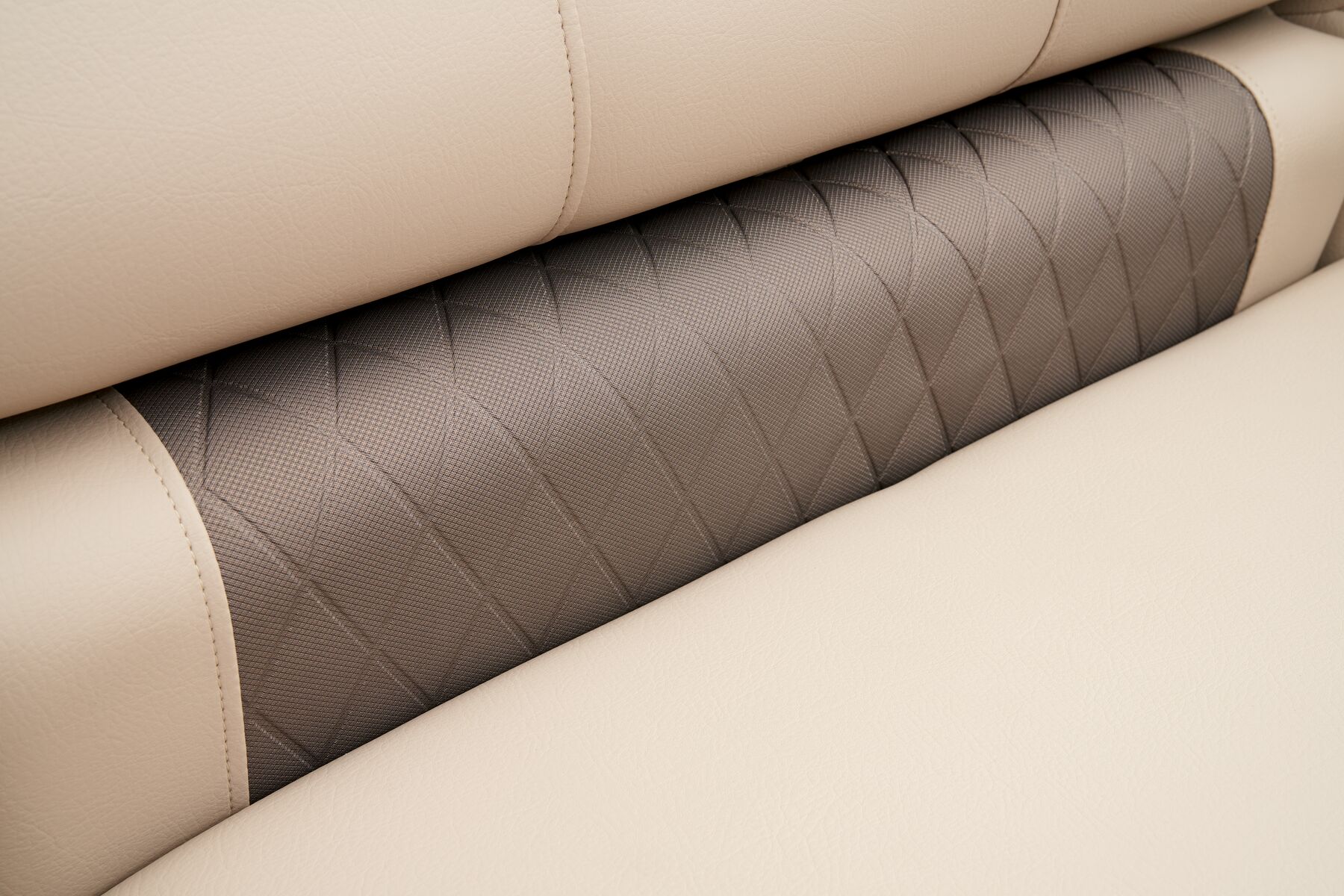

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

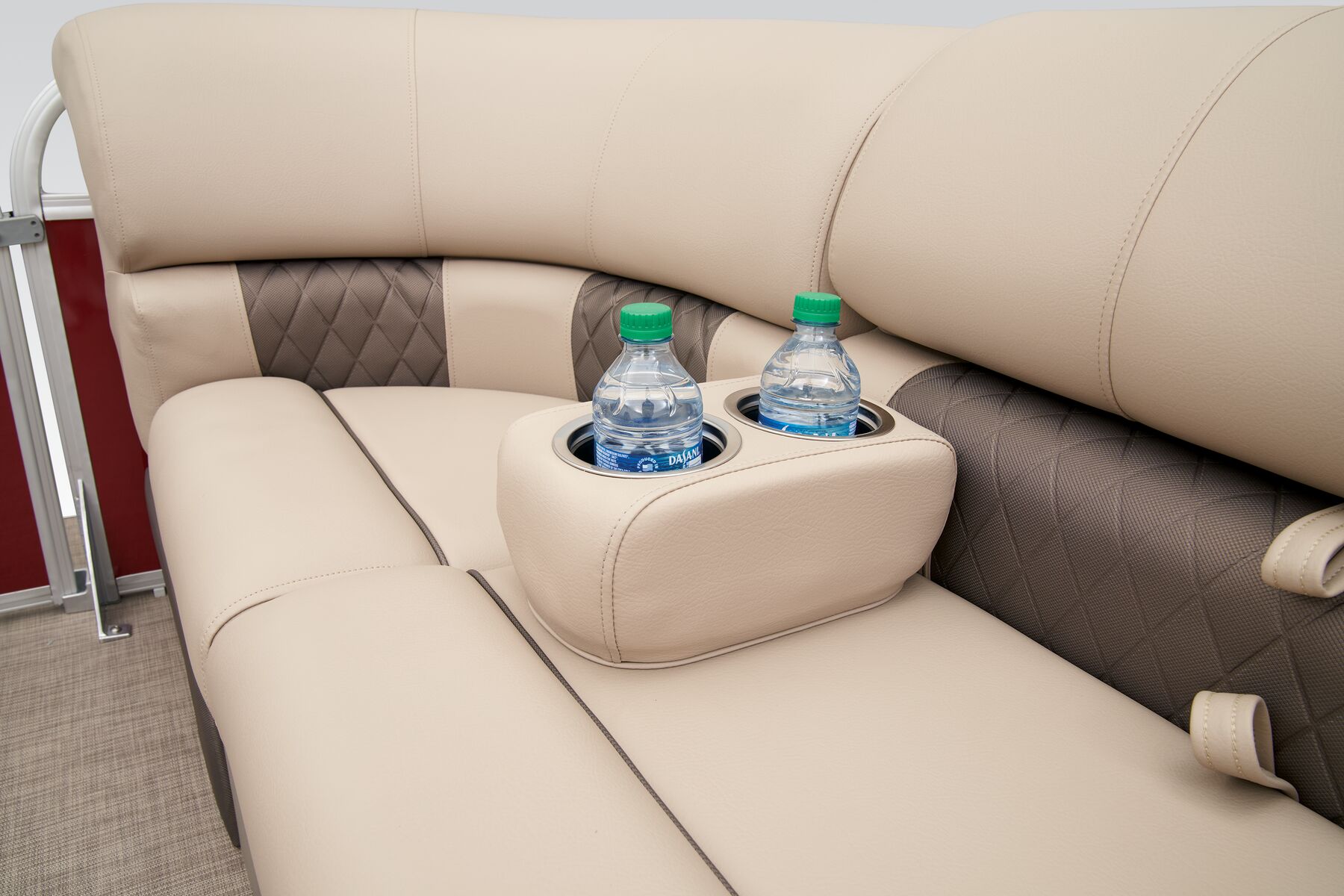

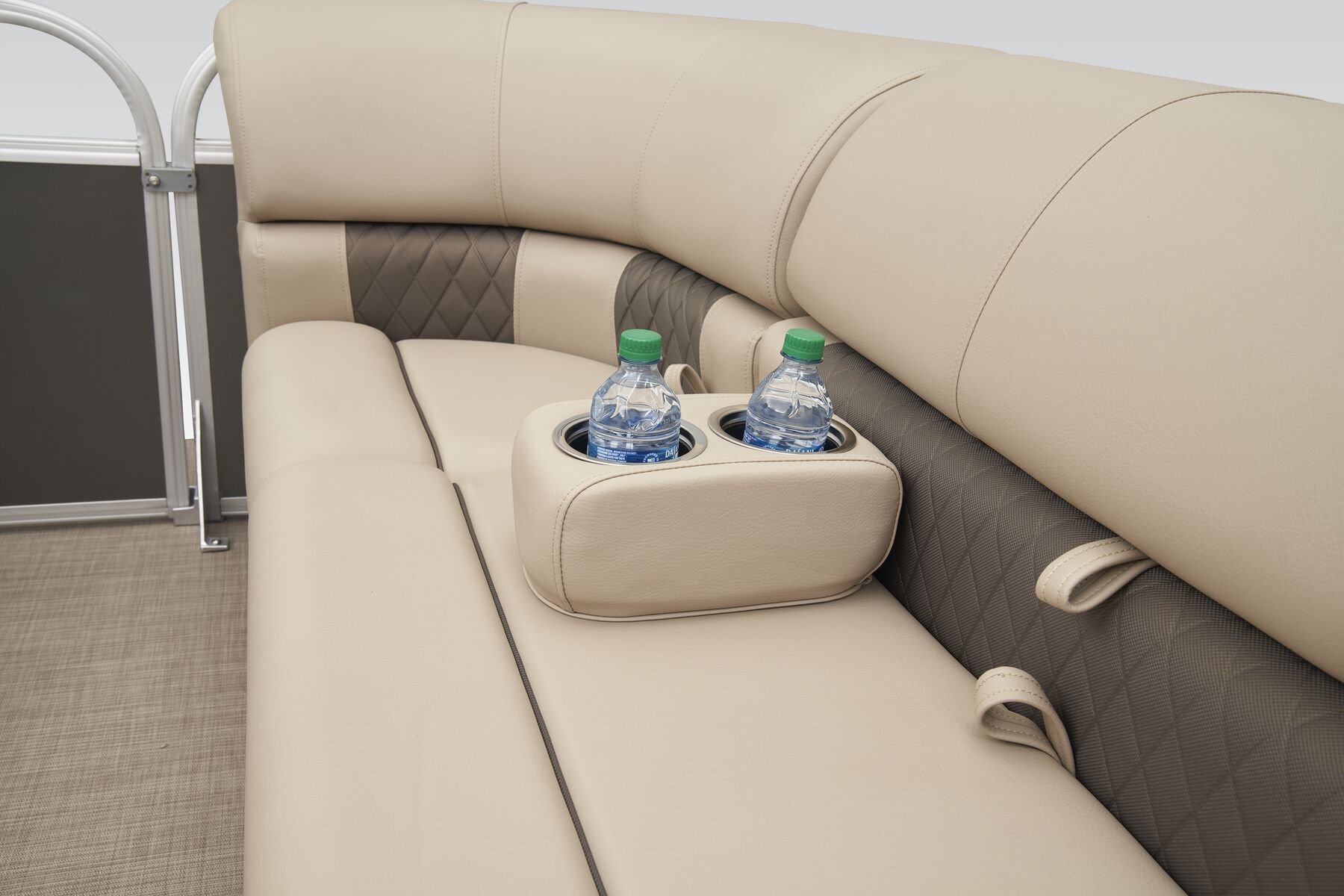

- 2 movable drink holders/armrests
- Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations
Exterior
- XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched stainless steel propeller
Construction & Exterior
- Color: NEW Charcoal or Copper Red fencing

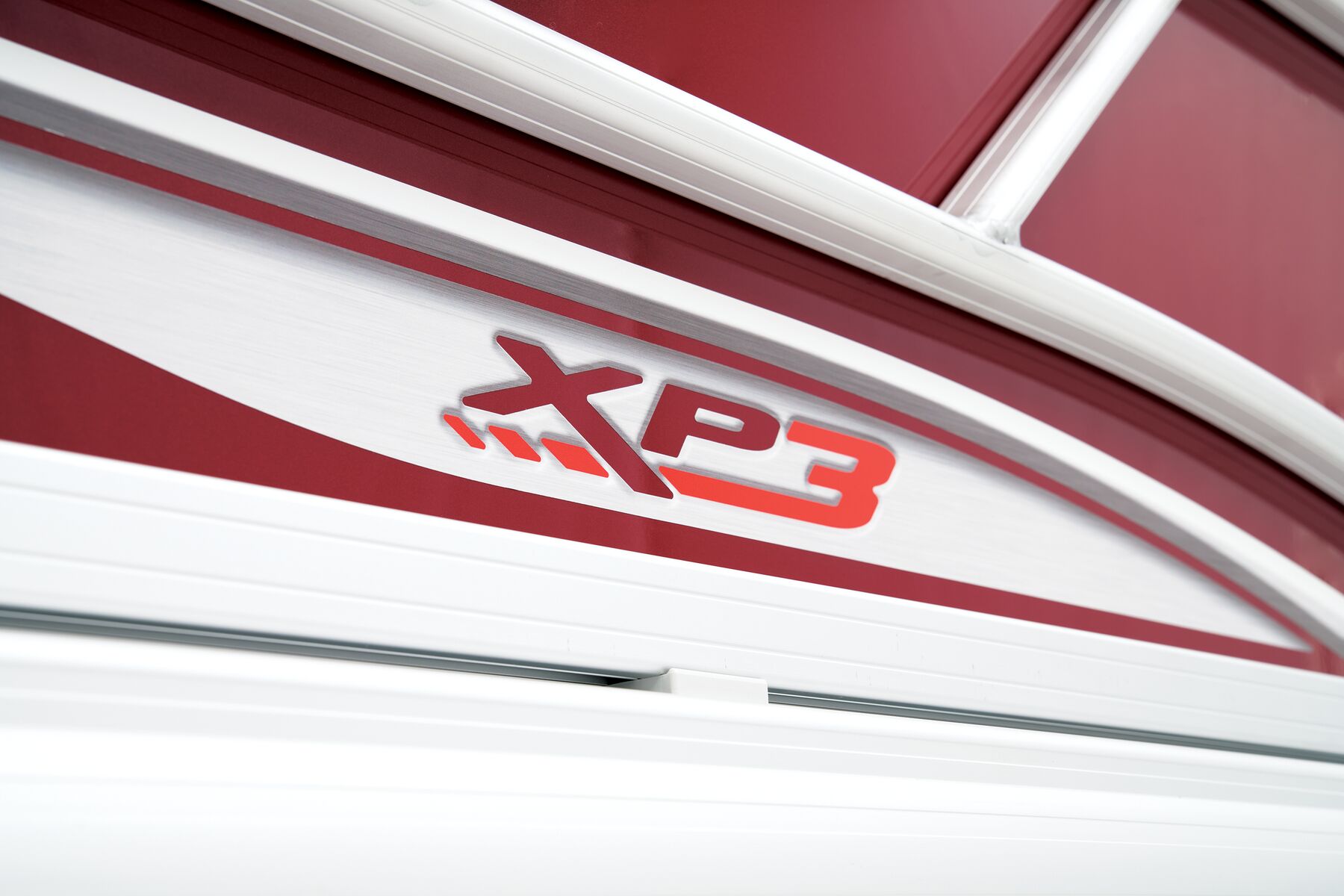

- Exterior styling w/XP3 graphics package
- Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
- Rotomolded couches & backs for furniture w/Diamante Pepper accent
- Heavy-duty bow U-channel reinforcement behind deck trim

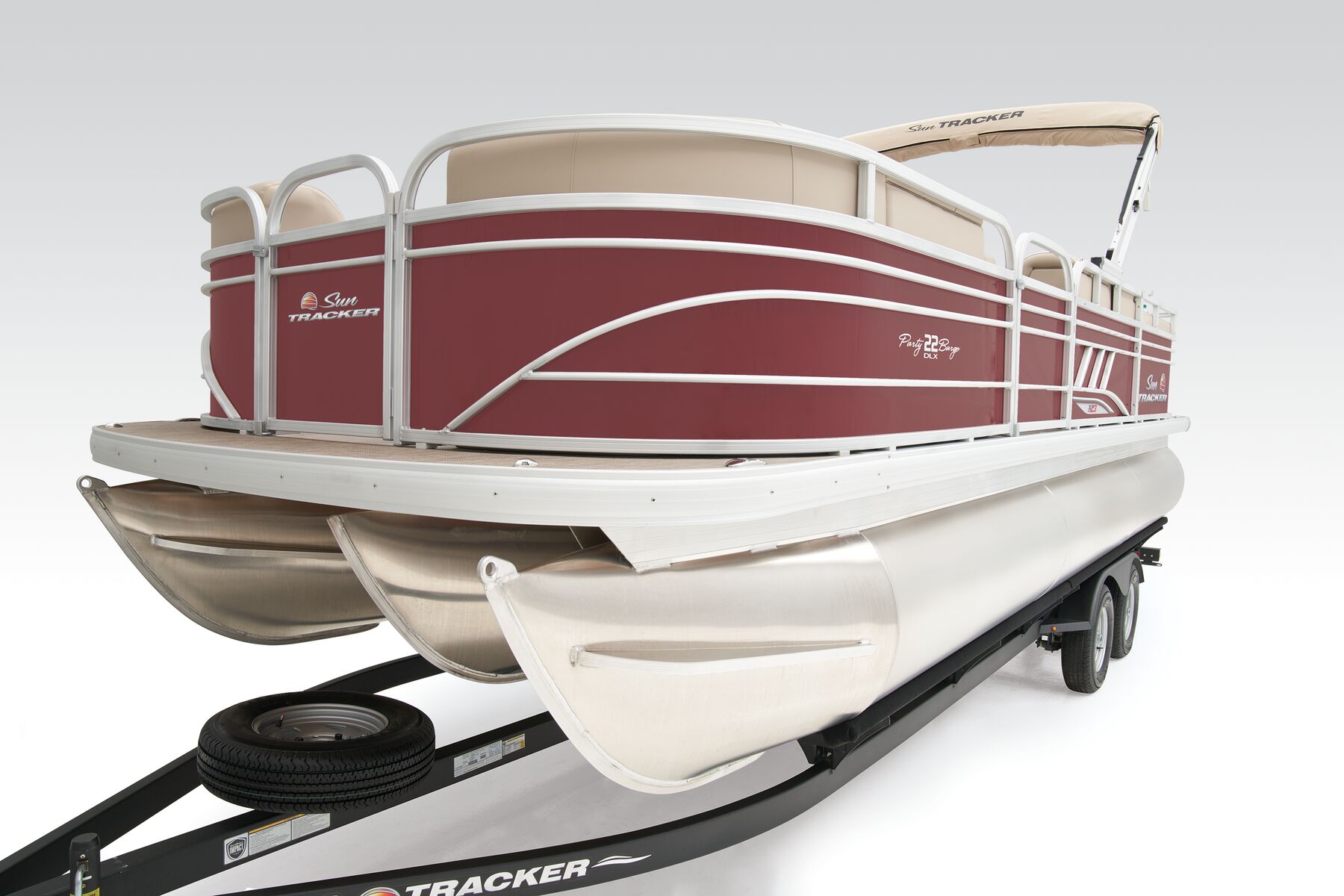

- Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- Protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks

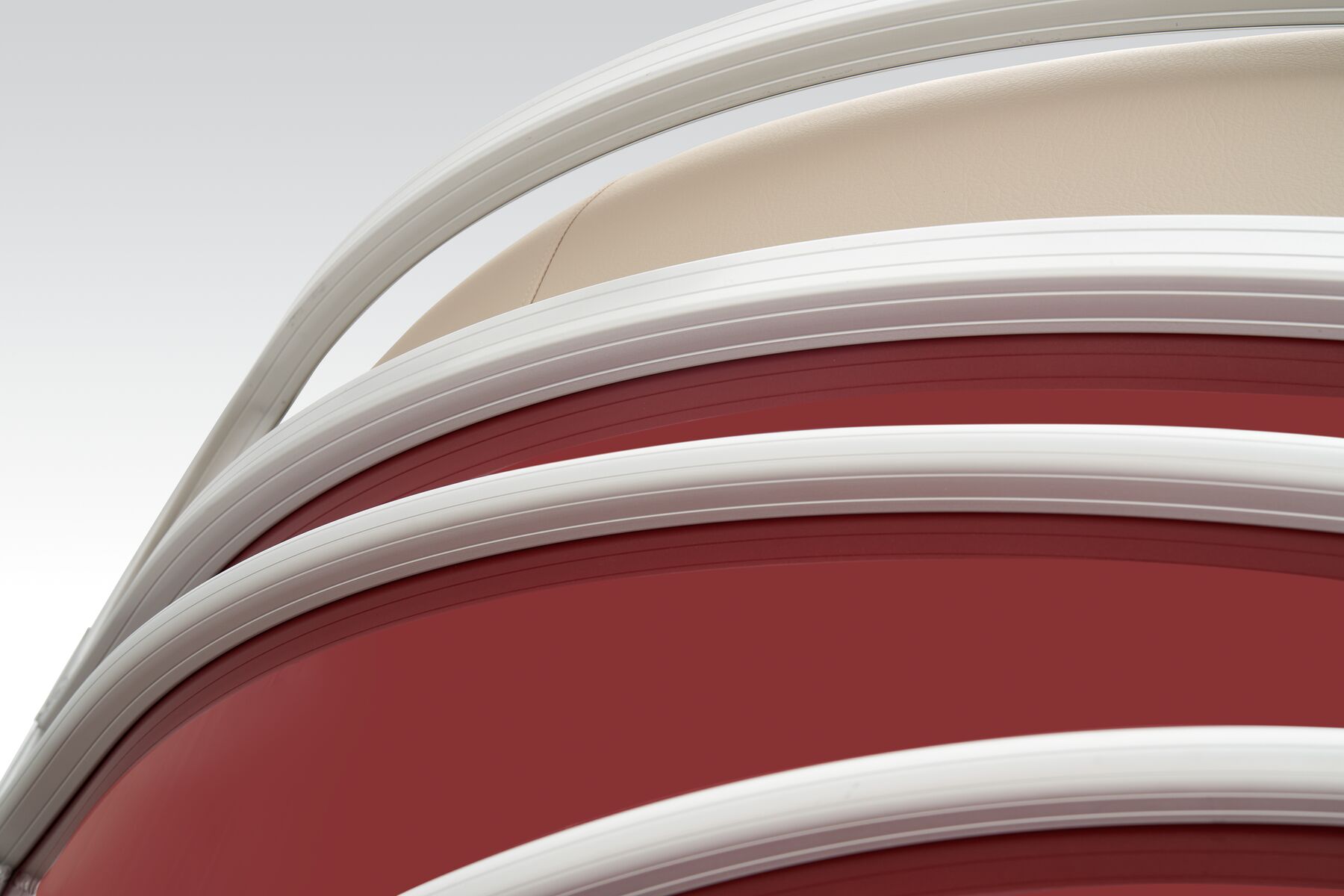

- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Reinforced bow & stern structures
- Factory-installed underpinning (under-deck shielding) for improved performance
- Extruded anodized aluminum deck edging w/polished aft corner covers

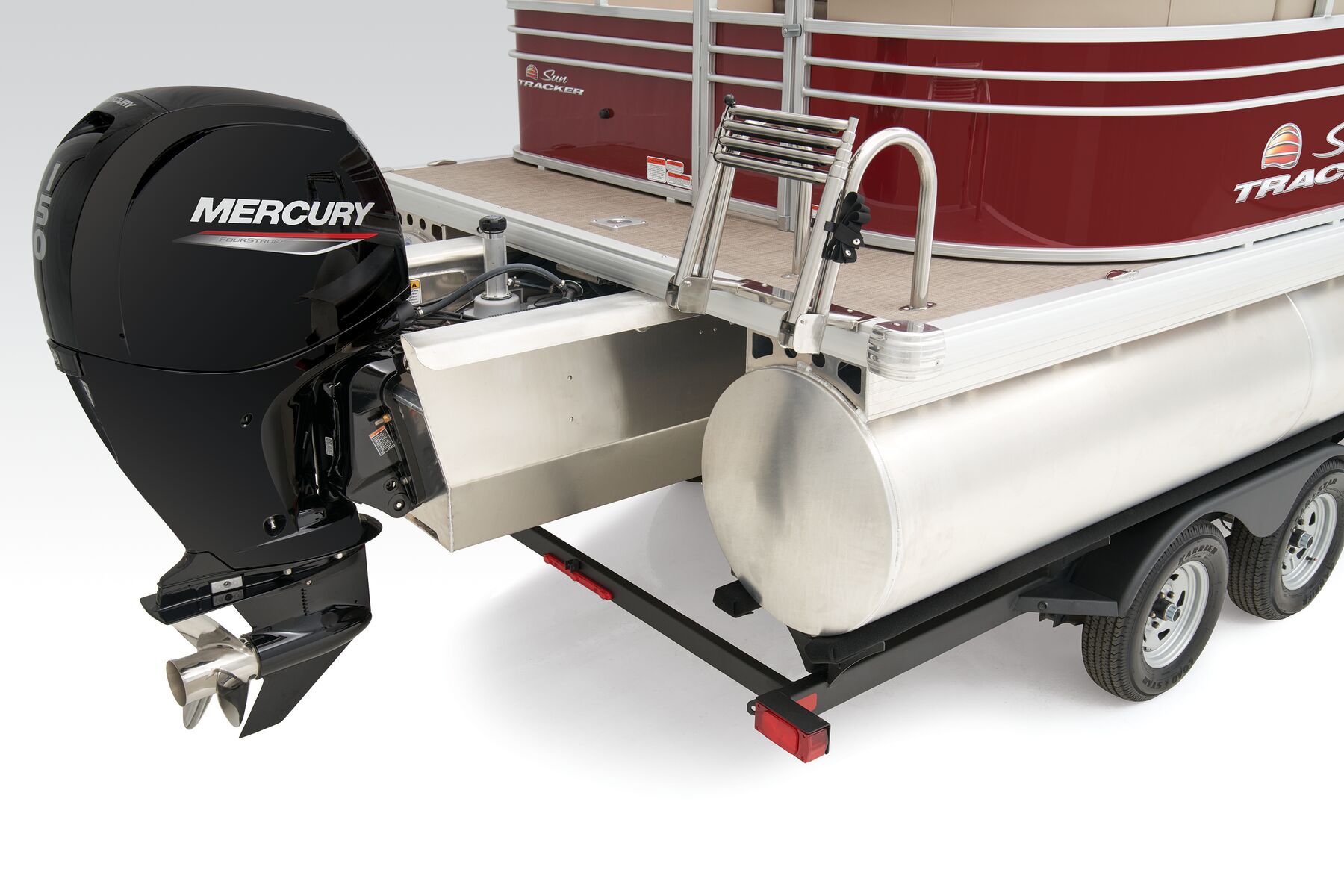

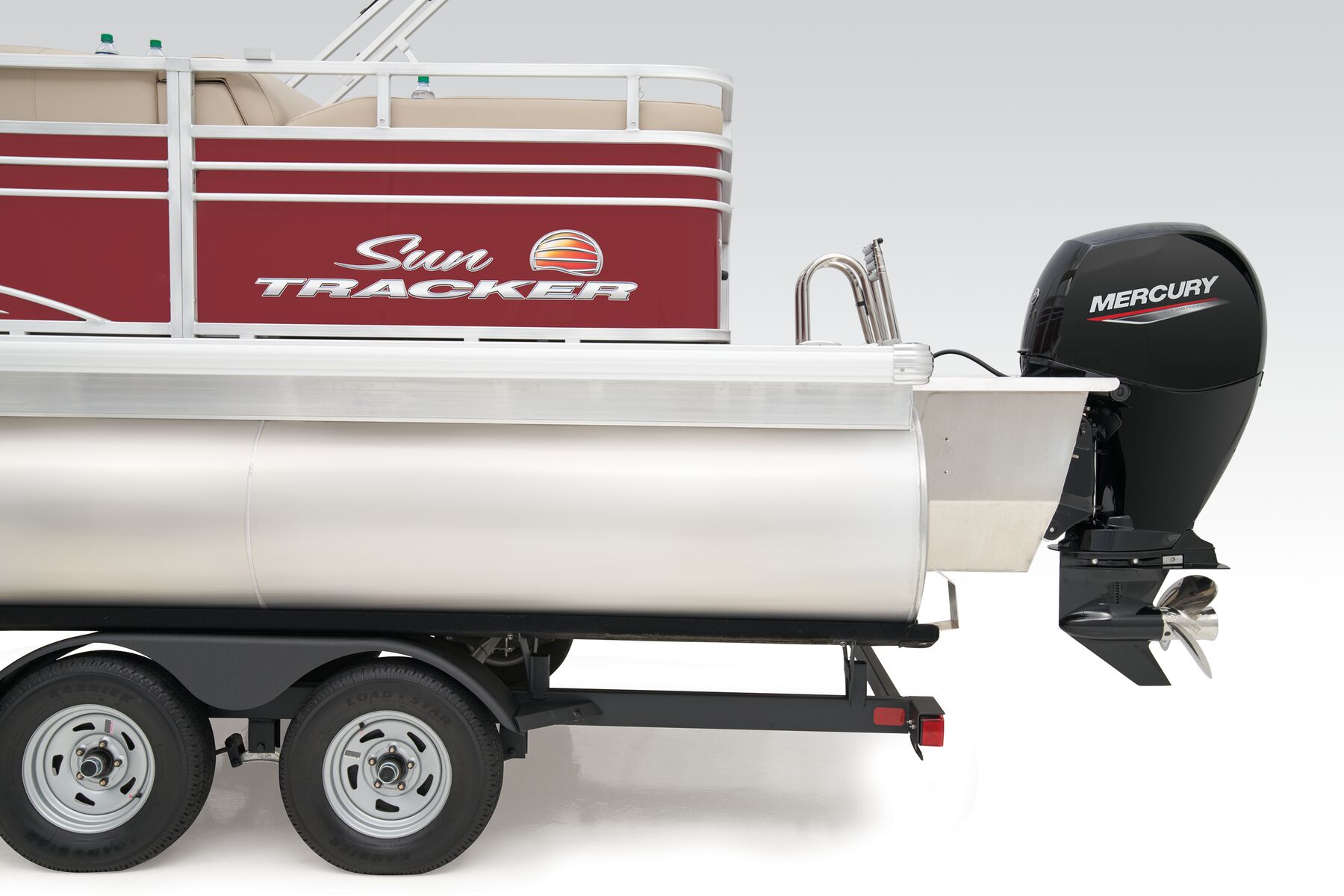

- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity

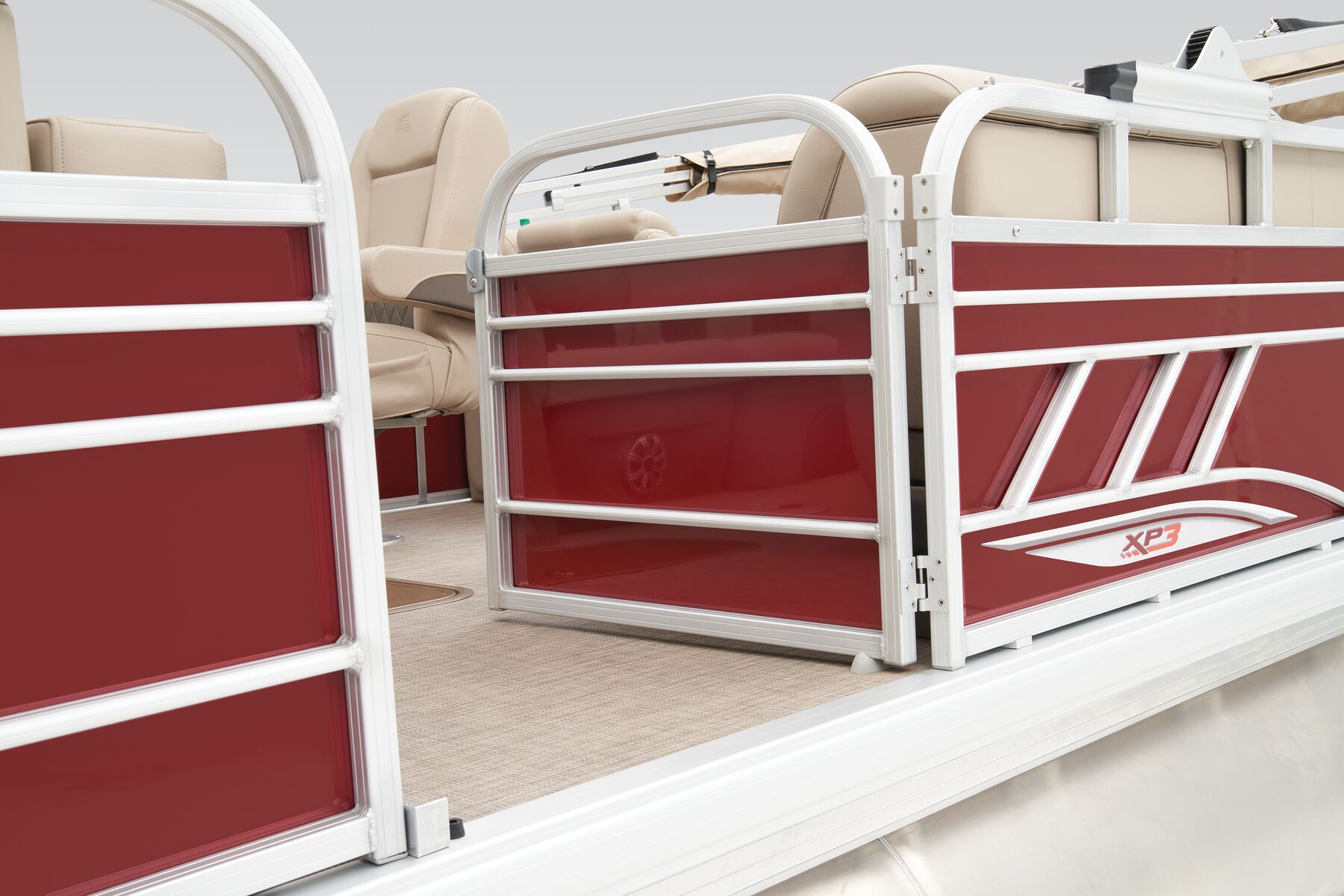

- Port wheelchair-access gate
- Rear boarding platform w/NEW 4-step telescoping boarding ladder & grab rails
Electrical
- 500 GPH (1892.71 LPH) Ultima auto bilge pump

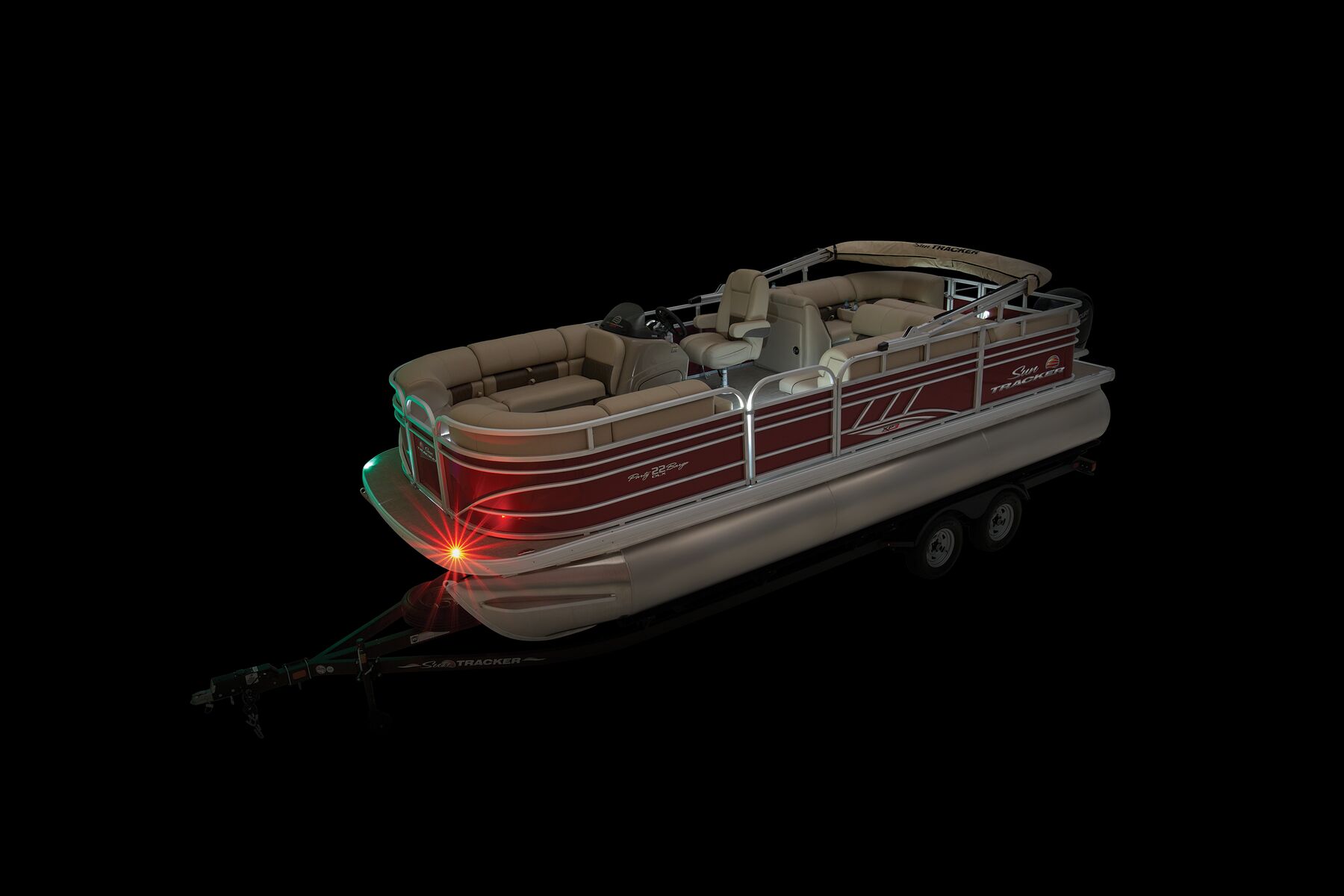

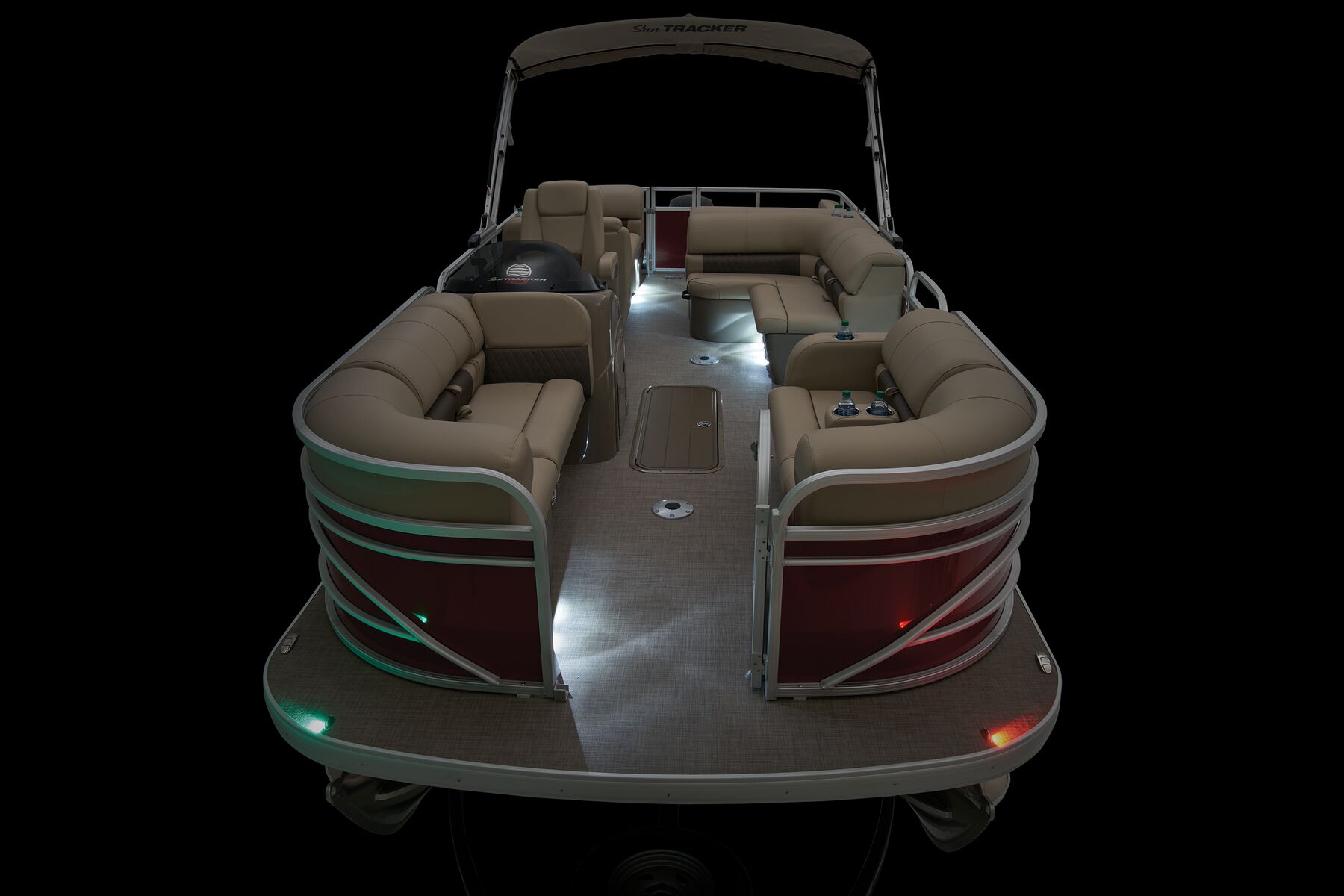

- Interior courtesy lighting
- Battery disconnect switch
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
